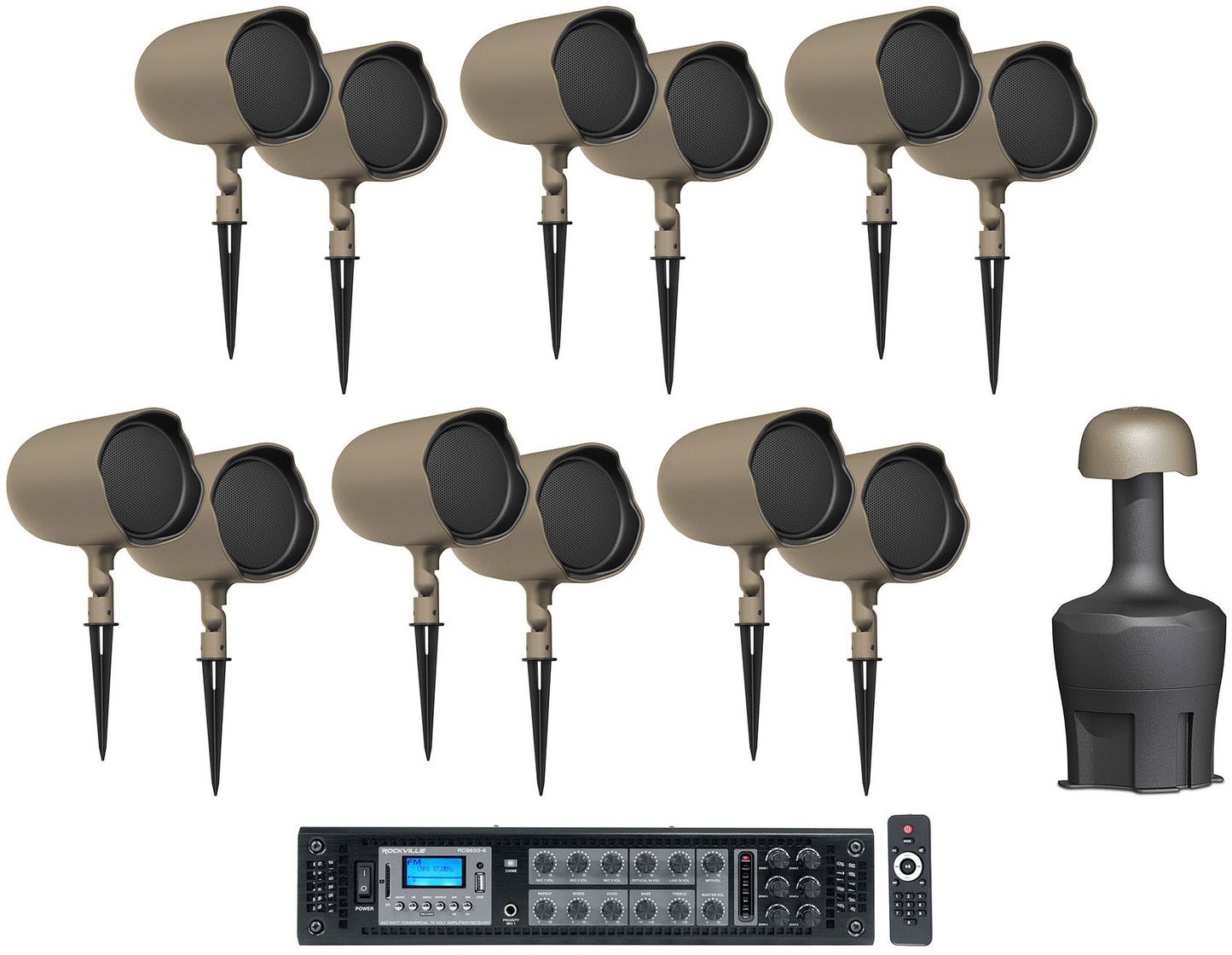

Package Includes:

(6) Pair JBL GSF6-TN 6.5" Landscape Ground Stake / Wall Mount 70v Commercial Speaker
(1) JBL GSB12-TN 12" Landscape In-Ground Garden 70v Commercial Subwoofer Outdoor Sub
(1) Rockville RCS650-6 650 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth

Description:

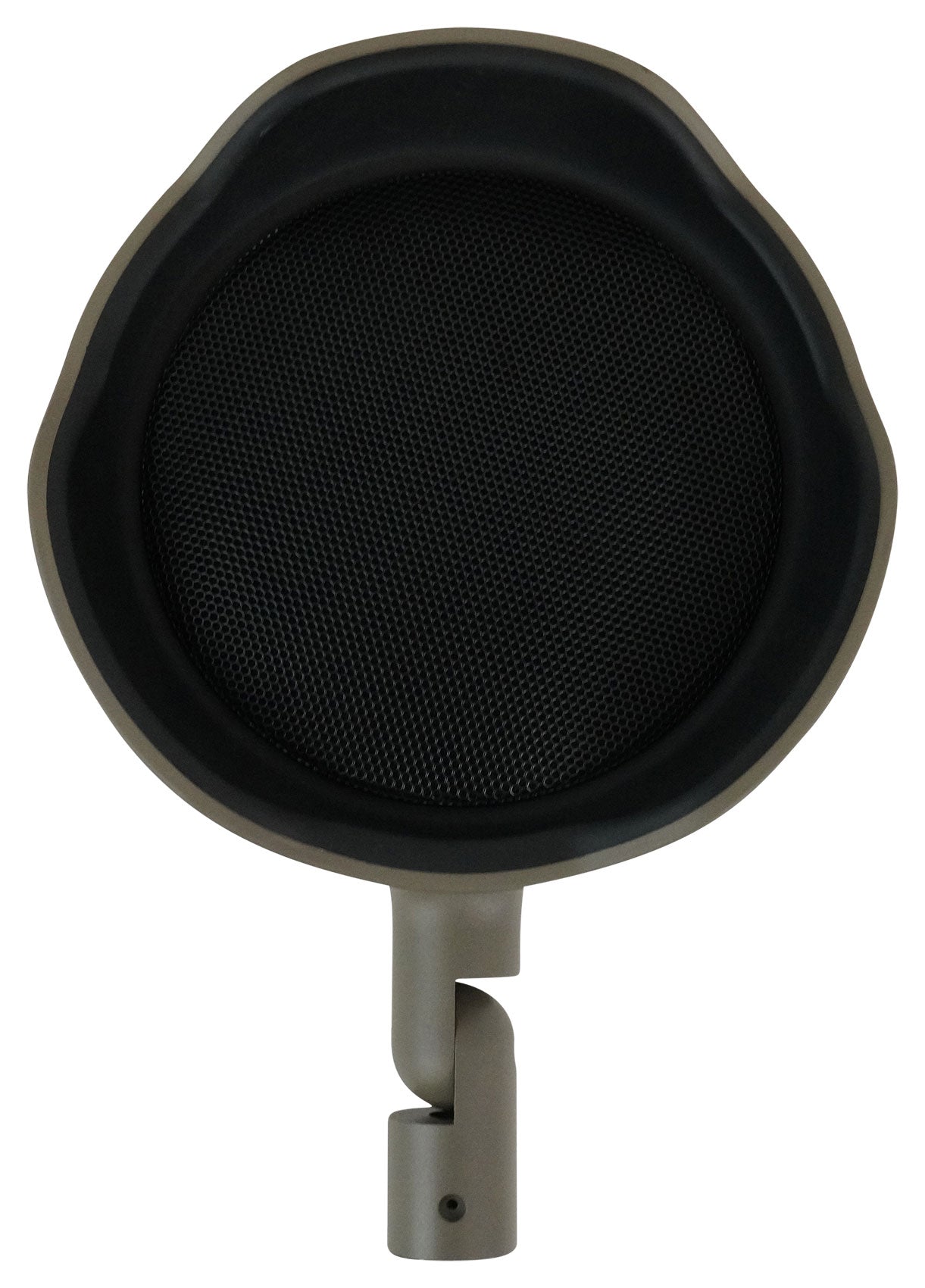

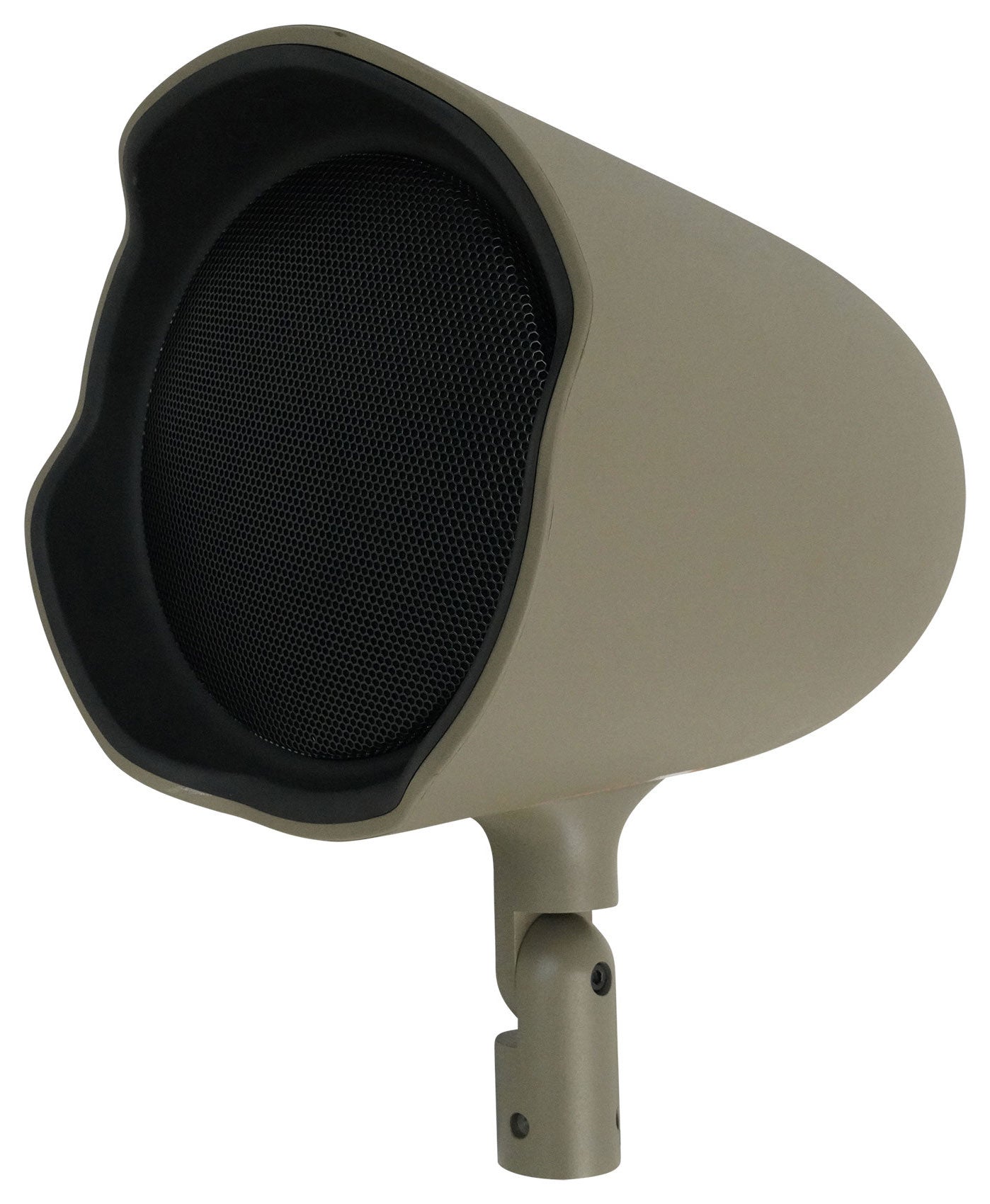

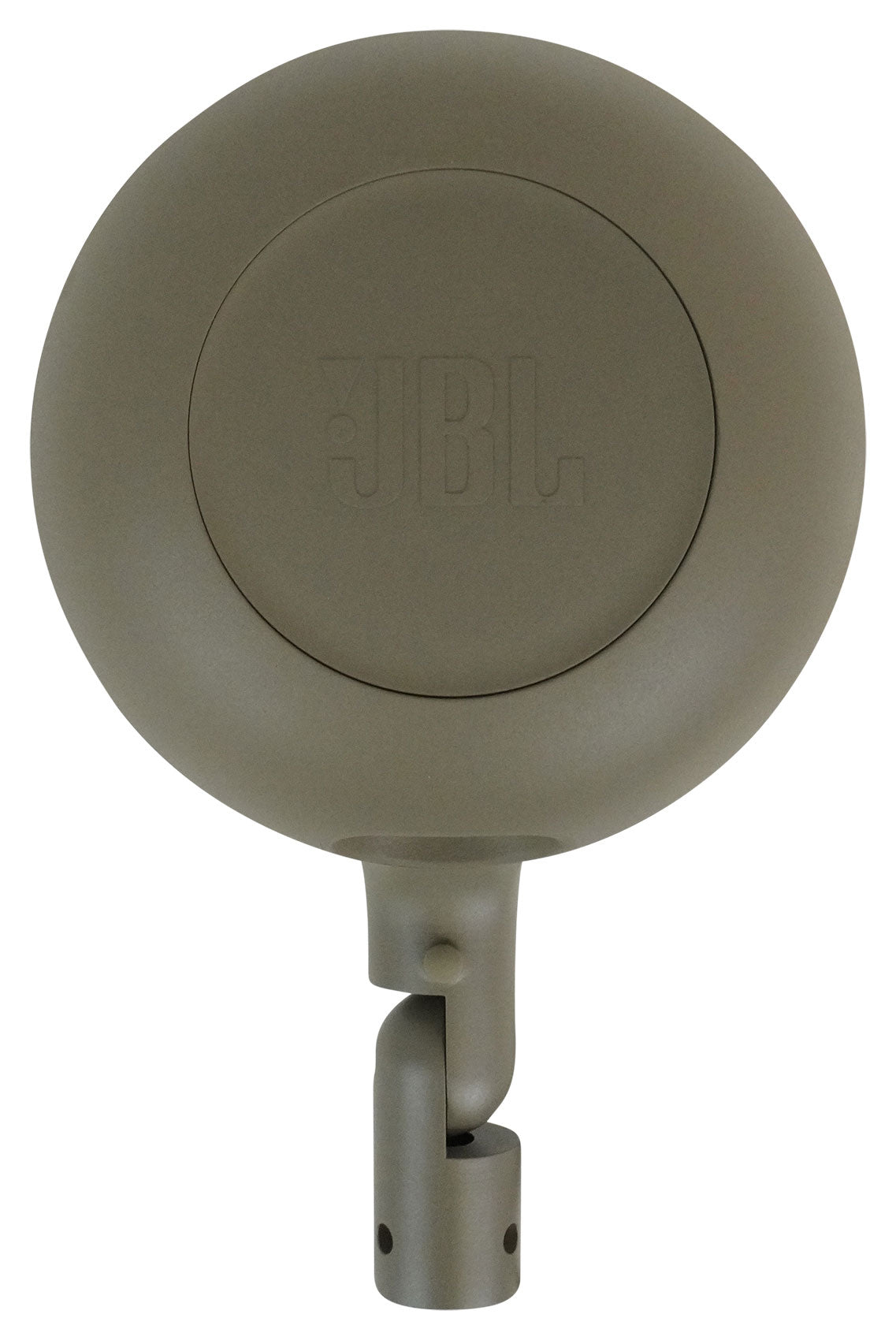

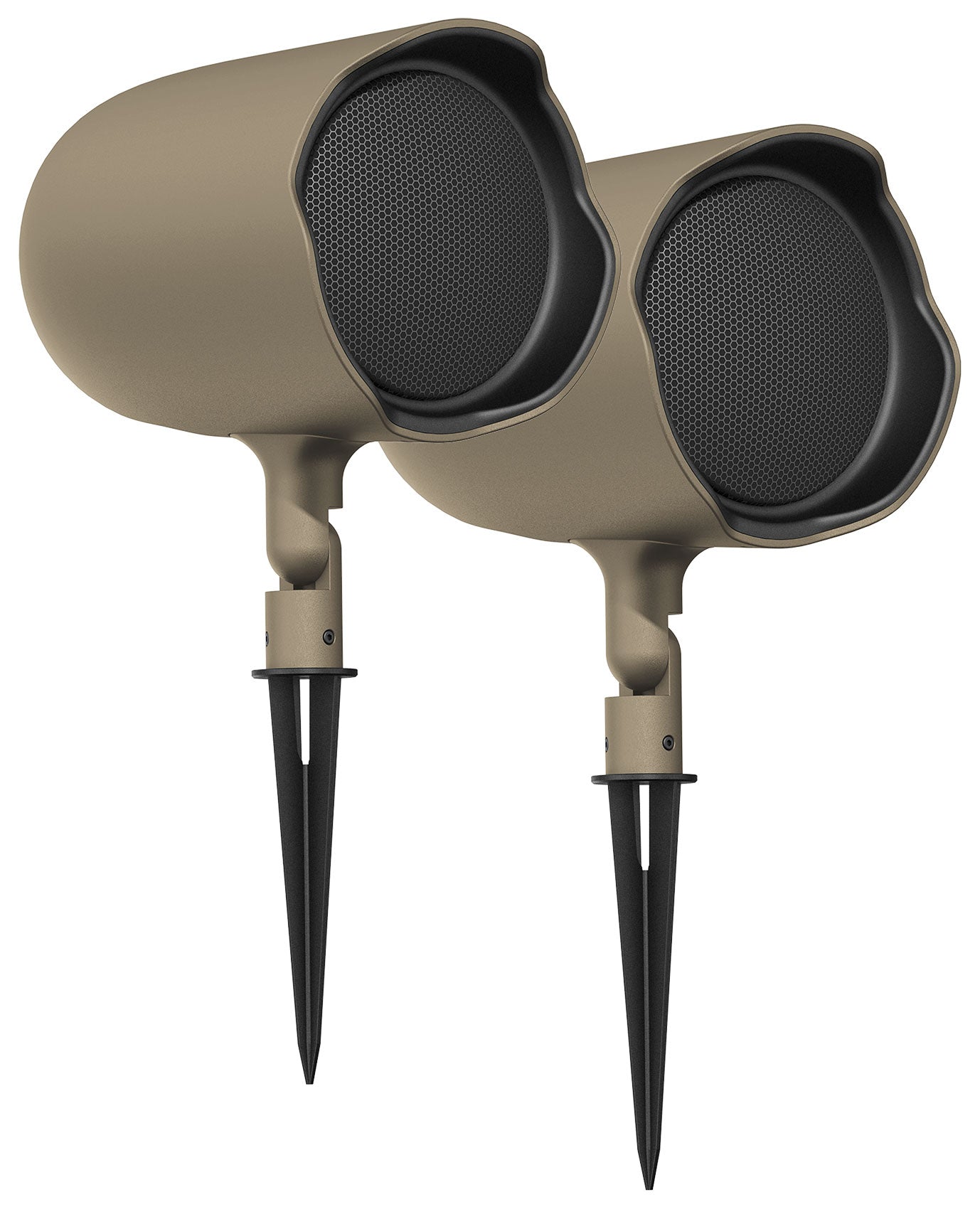

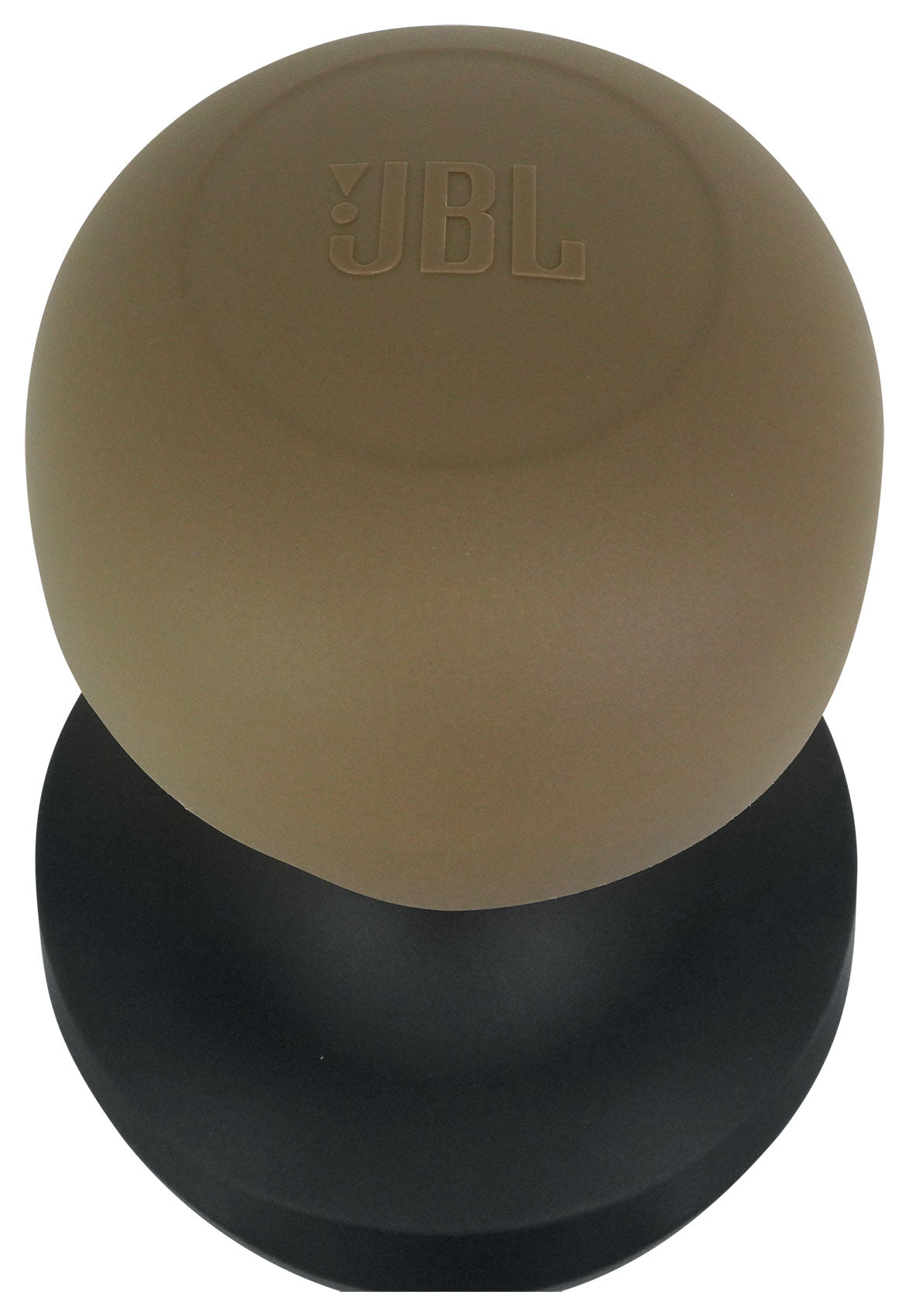

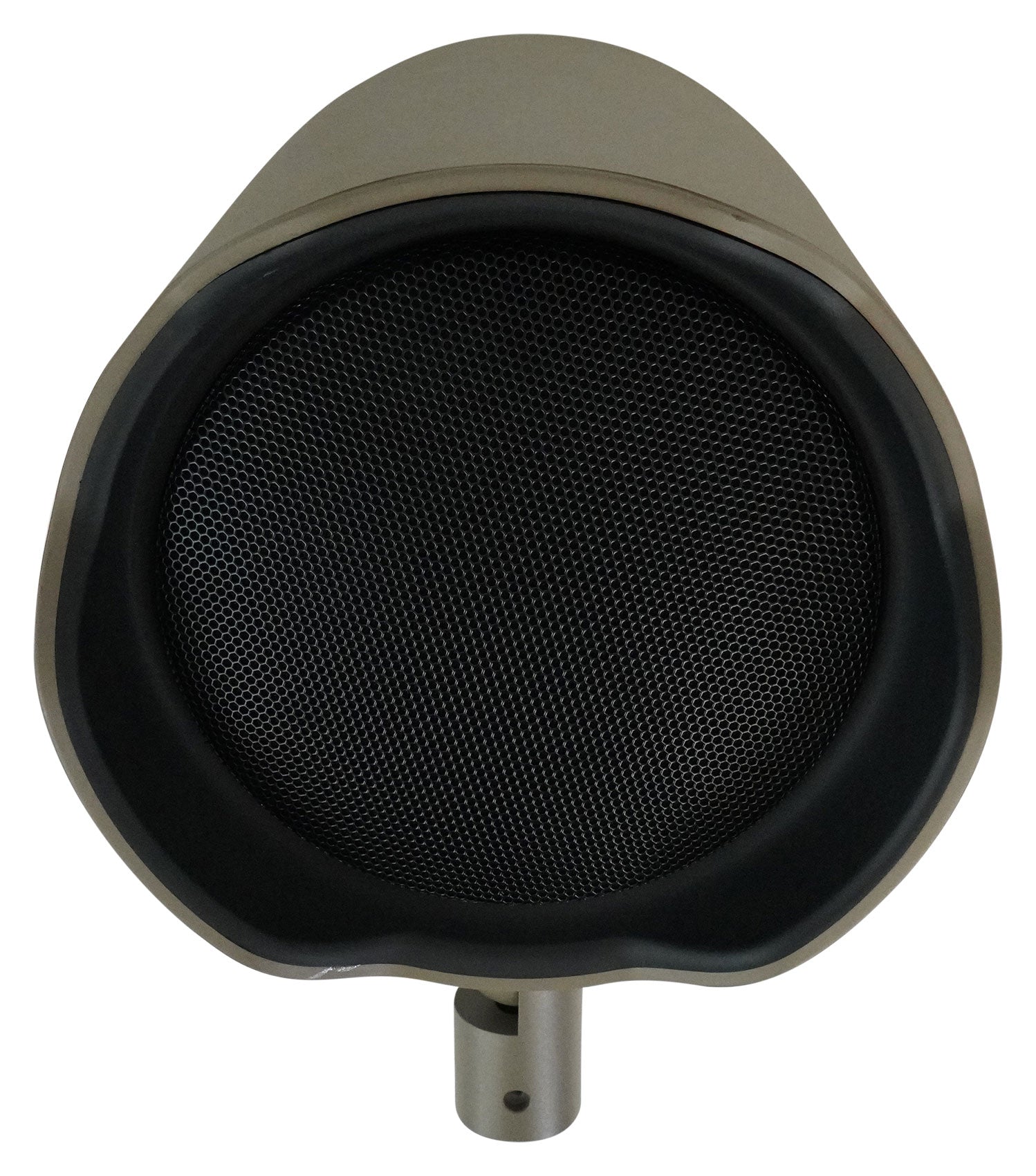

Ground-Stake Landscape Loudspeaker
The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation.

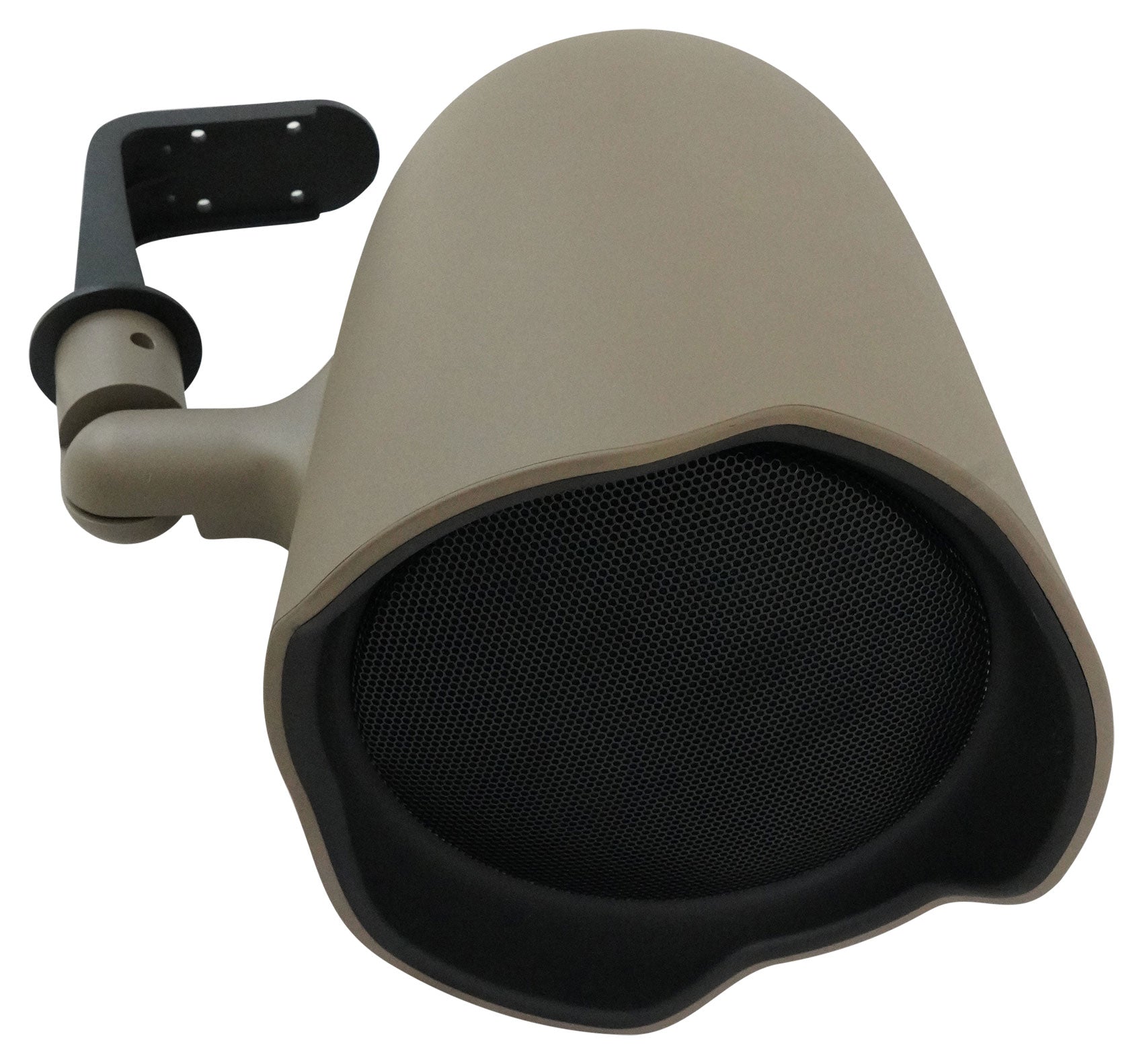

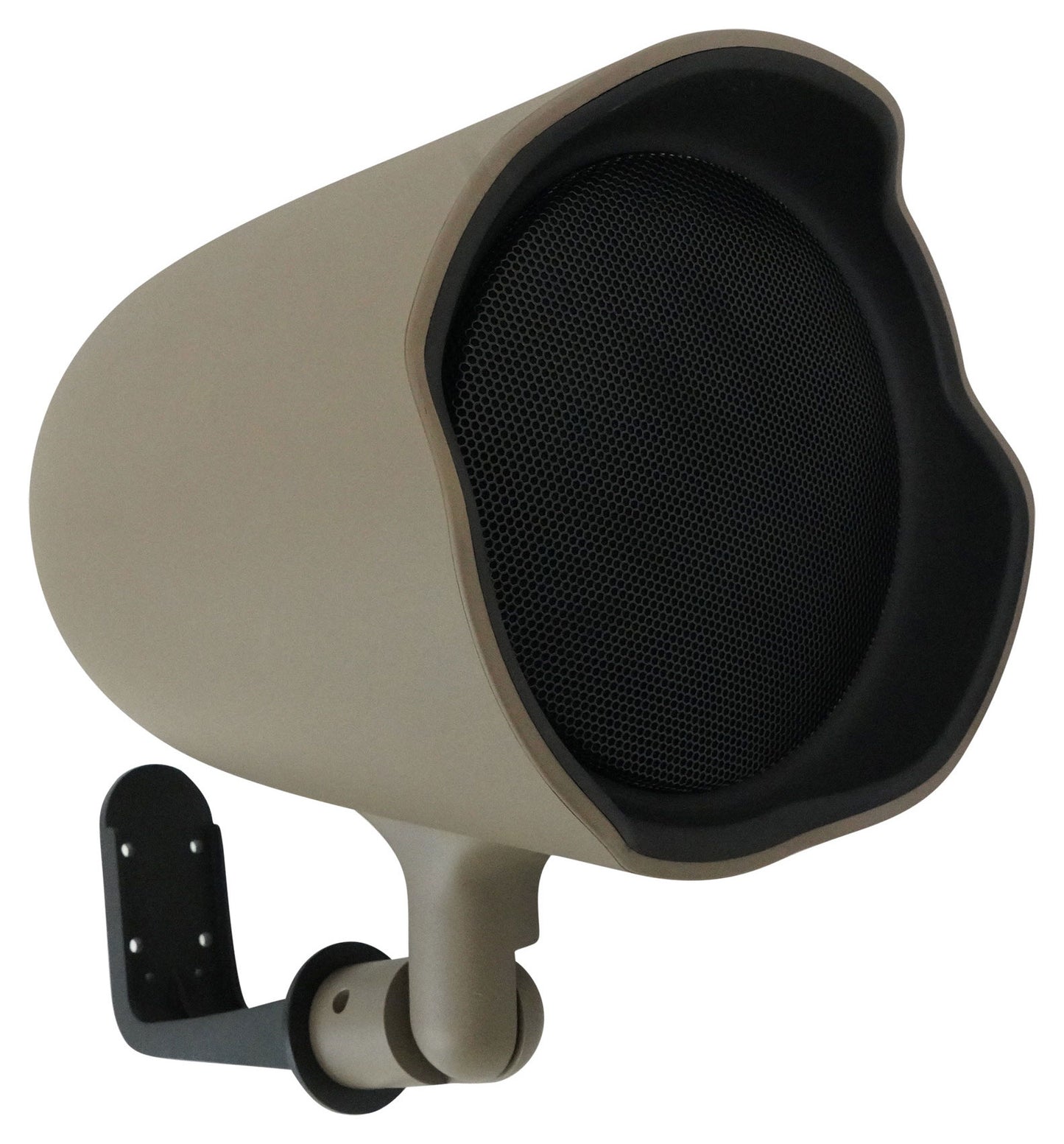

Versatile mounting options include a ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces (both are included). A low-profile, unobtrusive speaker, the GSF6 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

The elegant, discreet GSF6 - winner of international design awards for industrial design excellence - is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

Features:

Transducers: 165 mm (6.5") woofer with polypropylene cone and 25 mm (1") voice coil on aluminum voice coil former; 25 mm (1.0") titanium dome tweeter
with neodymium magnet assembly and Kapton voice coil former
Frequency range: 65 Hz - 20 kHz
Power handling (at 8Ω setting): 50W continuous pink noise, 100W continuous program
Multi-tap 30W transformer is switchable for 8O direct operation or use in 70V/100V distributed systems
IP66 rated against water and dust ingress
Bottom drip hole provides drainage for drivers
Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
Aimable via adjustable hinge
Includes ground stake and L-bracket for surface mounting

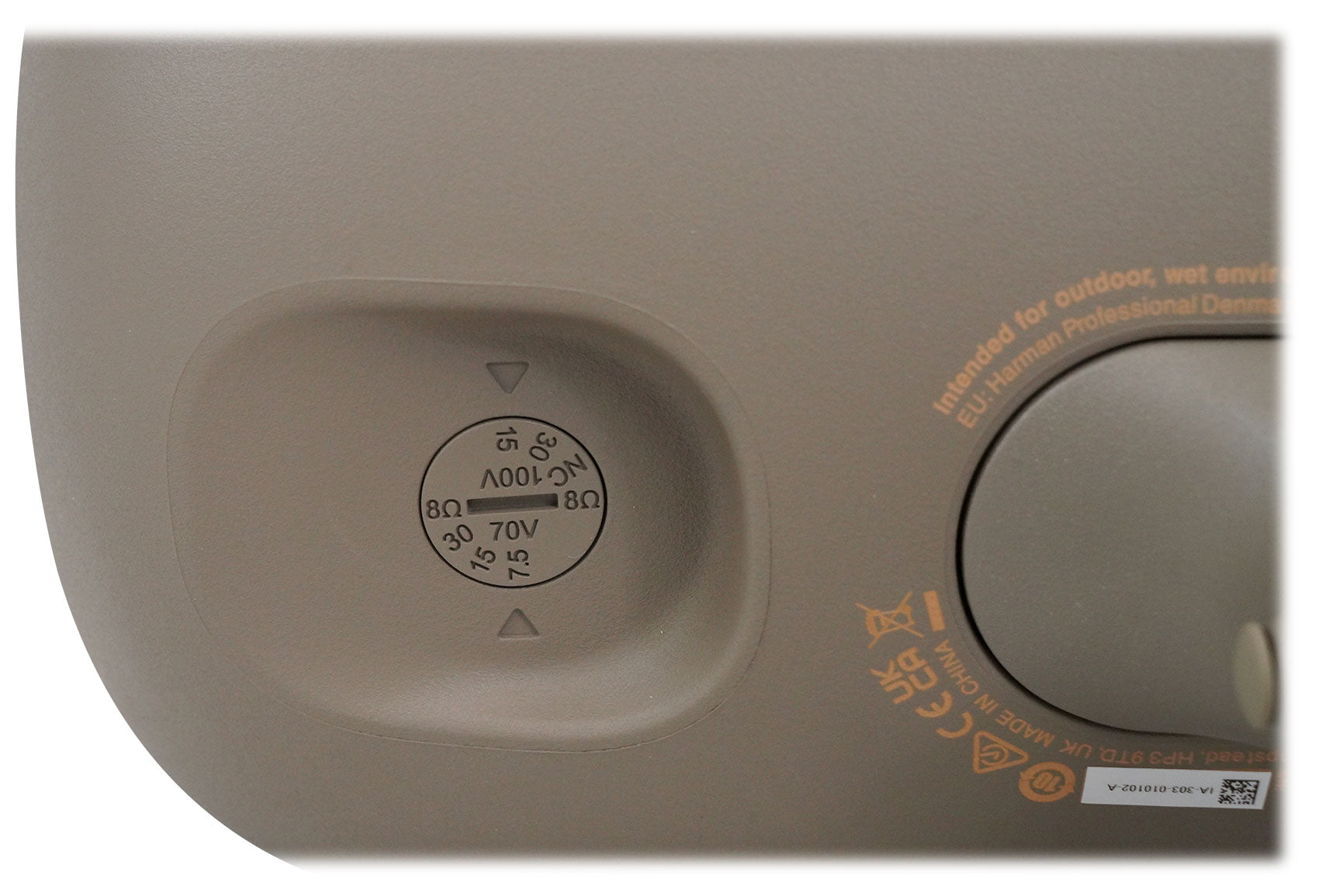

Includes tap selector located on bottom of speaker, away from water incursion
Available in hunter green or tan finish

Specifications:

Frequency Range (-10dB): 65 Hz - 20 kHz
Frequency Response (+/-3 dB): 90 Hz - 18 kHz
Power Rating:
100 W Continuous Program (2 hrs)
50 W (200 W Peak), Continuous Pink Noise (2 hrs)
30 W (120 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity: 87 dB (ave. 300 kHz - 12 kHz)
Maximum SPL: 110 dB peak (104 dB continuous, 2 hr) @ 1m
Coverage Pattern: 70° conical
Nominal Impedance: 8 Ω (at 8Ω tap)
Transformer Taps: 70V: 30 W, 15 W, 7.5 W
100V: 30W, 15 W
Drivers:
165 mm (6.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on aluminum voice coil former
25 mm (1.0 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former

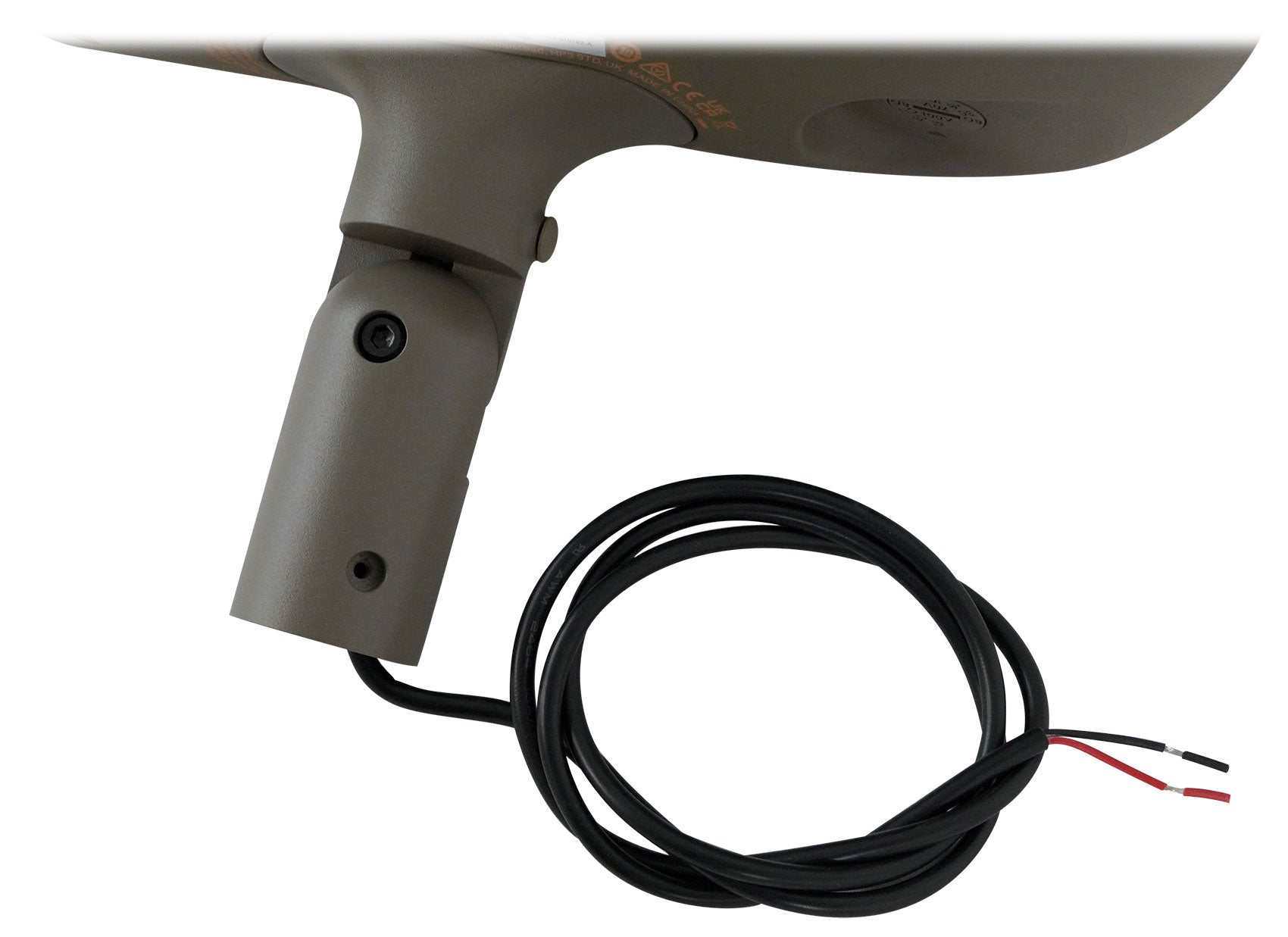

Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
Color: Tan RAL7004
Dimensions:
Cabinet 218 mm diameter x 293 mm deep (8.6 x 11.6 in).
Assembly height 444 mm (17.5 in) with L-bracket base (at 90°) and 544 (21.5 in) with ground stake base.
Net Weight: 3.5 kg (7.7 lbs)

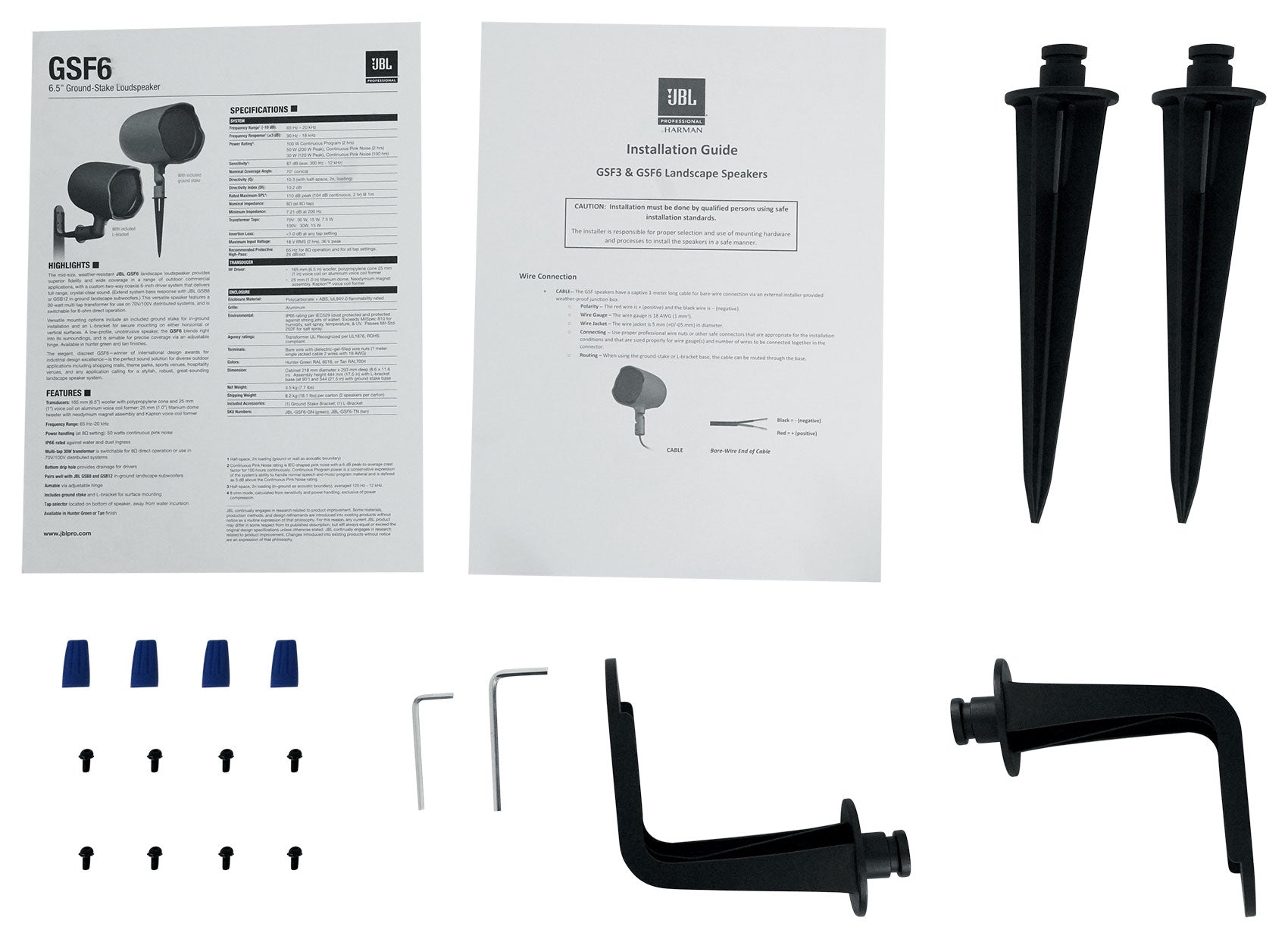

Included Accessories: (1) Ground Stake Bracket; (1) L-Bracket

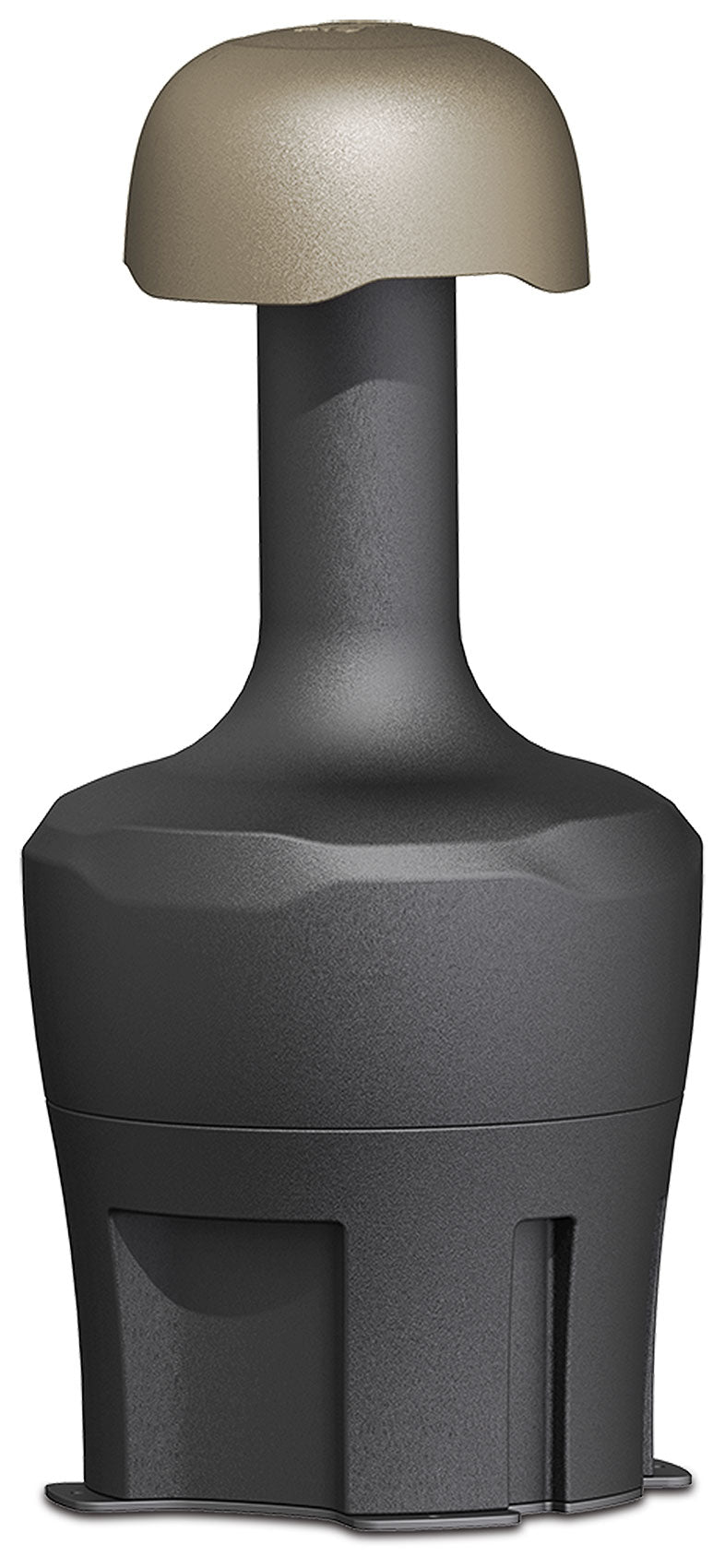

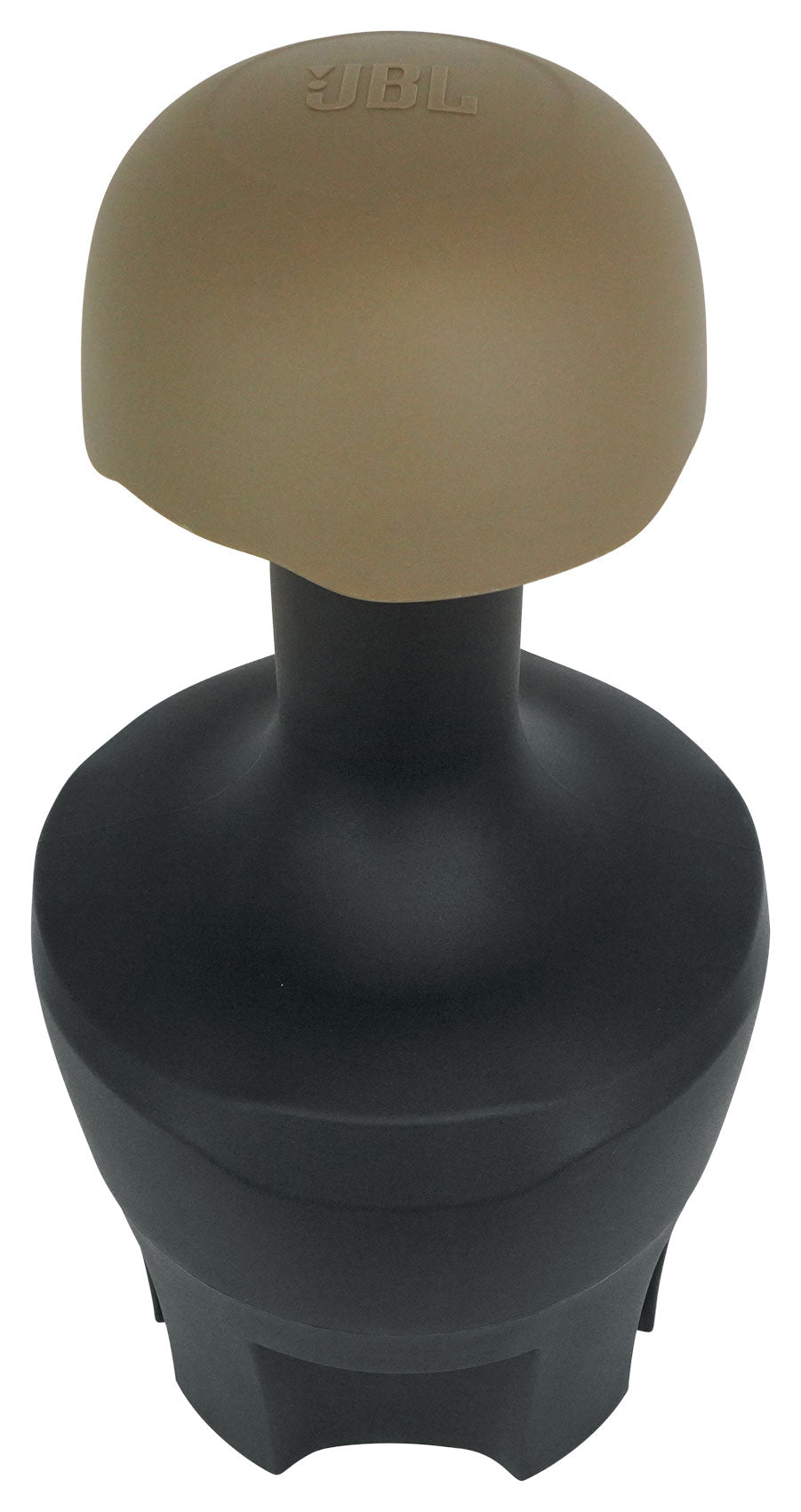

Description:

In-Ground Landscape Subwoofer The JBL GSB12 in-ground 12-inch landscape subwoofer augments the low-frequency performance of JBL GSF full-range landscape speakers to provide rich, full-range sound in lawn and garden areas of hospitality, corporate and retail spaces.

The GSB12 focuses on fidelity, with true subwoofer extension down to 30 Hz and a steep, multiple-slope lowpass filter for superior sound. Its premium-grade, 200-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation.

This sleek, ultra-low-profile speaker - winner of international design awards for industrial design excellence - installs underground, with only the audio port visible. It's designed to withstand the elements: Its chamber is oriented directly below the audio port to prevent accidental damage from landscaping, which can be a problem with side-located chambers. Grab handles allow easy installation and tabs secure the subwoofer to blocks or anchors.

Add the GSB12 to landscape areas of hotels, shopping complexes, restaurants, public spaces, theme parks or any application that demands legendary JBL sound with deep, rich, powerful bass.

Features:

Transducer: GSB12: 305 mm (12") polypropylene driver, 50mm (1.5") voice coil on Kapton former
True subwoofer performance down to 30Hz
Built-in steep, multiple-slope lowpass filter
Low-impedance direct operation, plus premium-grade subwoofer-band transformer for use in 70V/100V systems
Forms a complete system with JBL GSF full-range landscape speakers
Chamber oriented directly below opening to prevent accidental damage from landscaping
Grab handles allow easy installation
Anchor points for securing cabinet to block or anchors
Available in hunter green or tan finishes to fit a wide variety of landscapes
Dimensions: 866 mm Height x 402 mm Diameter (34 x 16 in)

Specifications:

Frequency Range (-10dB): 30 Hz - 120 Hz
Frequency Response (+/-3 dB): 39 Hz - 107 Hz
Power Rating:
900 W Continuous Program (2 hrs)
450 W (1800 W Peak), Continuous Pink Noise (2 hrs)
300 W (1200 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity: 85.5 dB (ave. 40 Hz - 105 Hz)
Maximum SPL: 118 dB peak (111 dB continuous, 2 hr) @ 1m
Coverage Pattern: Omnidirectional
Nominal Impedance: 6Ω (at 6Ω tap)
Transformer Taps: 70V: 200 W, 100 W, 50 W
100V: 200 W, 100 W
Driver: 305 mm (12-inch) driver, polypropylene injection cone, thermoplastic vulcanizate surround, 50 mm (2-inch voice coil on glass fiber former

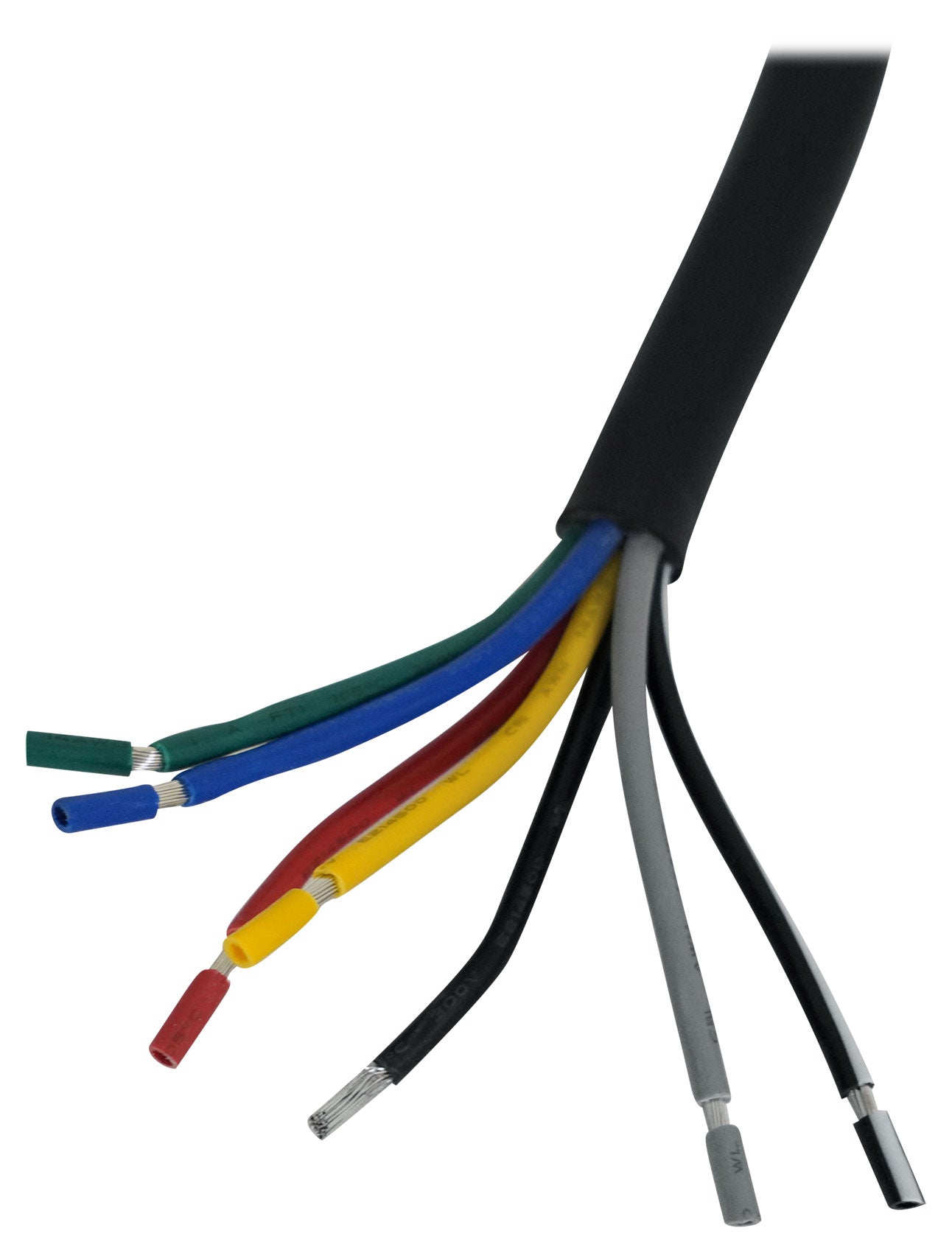

Terminals: Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 7 wires with 14 AWG)
Enclosure Material: LDPE Polyethylene plastic, 6 mm minimum wall thickness, color throughout
Color: Tan (RAL7004)
Dimensions: 842 mm Height x 400 mm Diameter (34.2 x 15.8 in)
Net Weight: 16.2 kg (35.7 lbs)

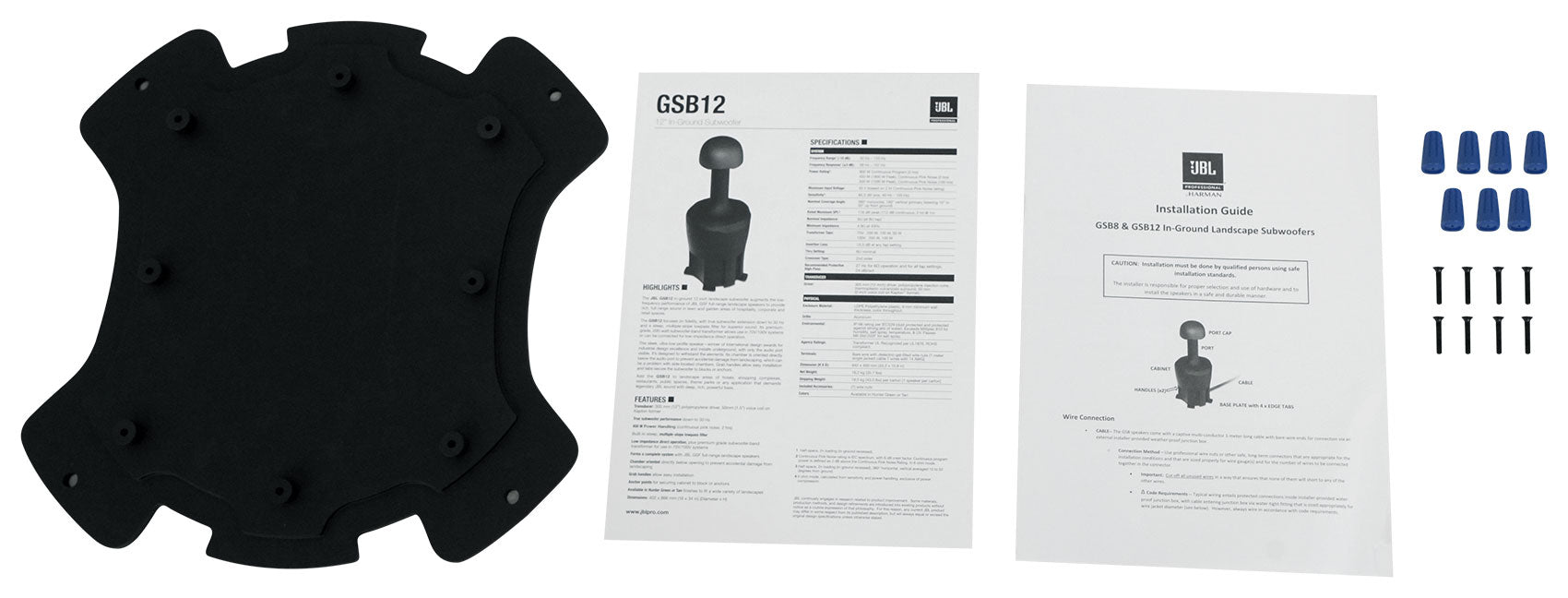

Included Accessories: (7) wire nuts

All About Your RCS650-6:

How To Set Up Your RCS Series of Amplifiers:

How To Parallel Wire Your 70 VOLT System:

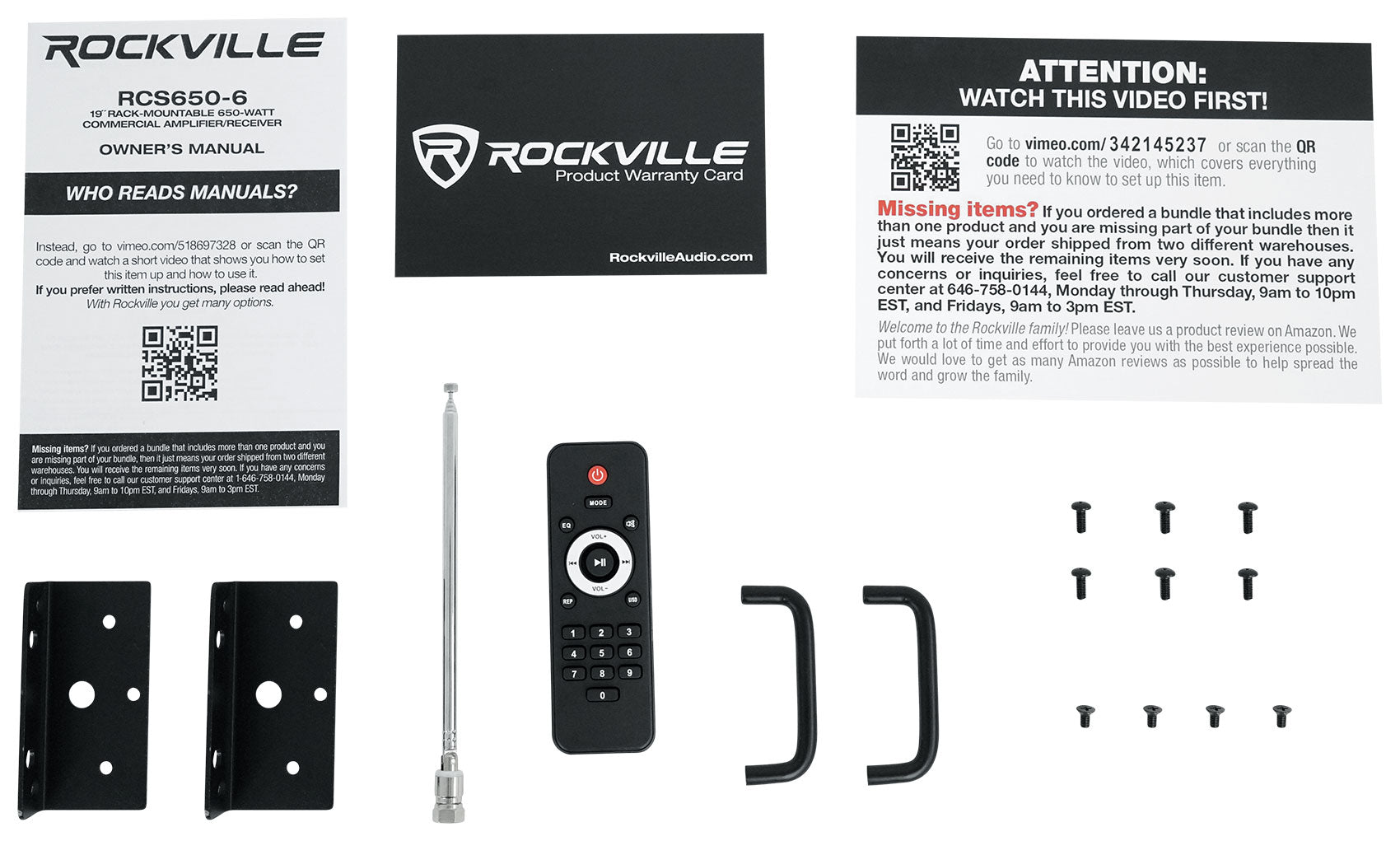

What's In The Box:

Amplifier
Remote
Rack Mount Ears
Power Cable
FM Radio Antenna
Set-up and how-to training video so you can install it yourself
Warranty

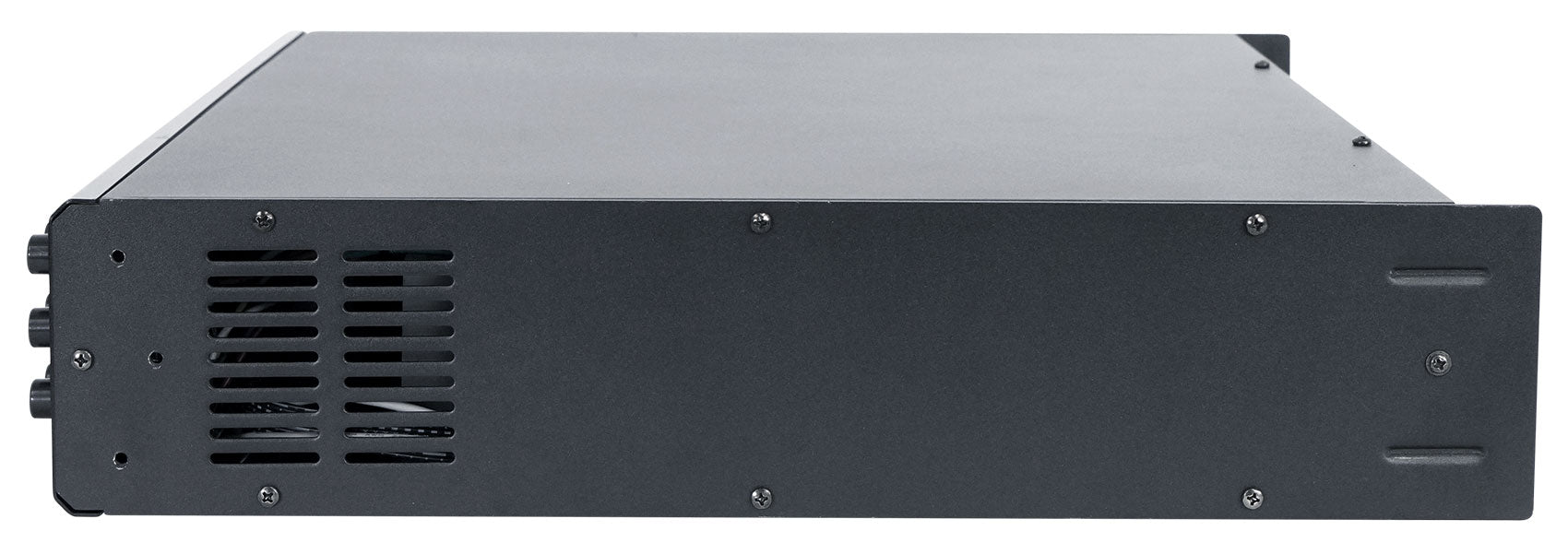

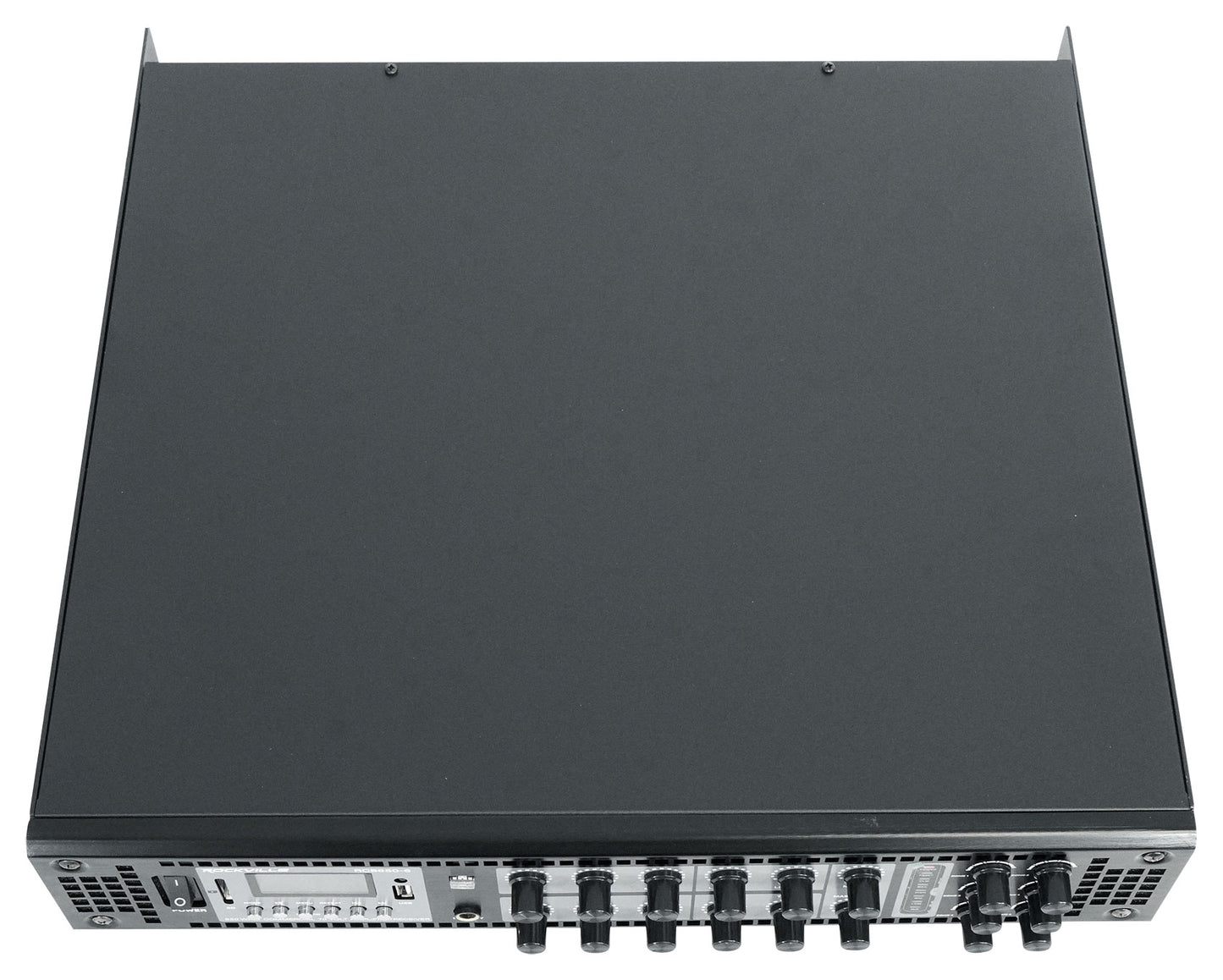

Description:

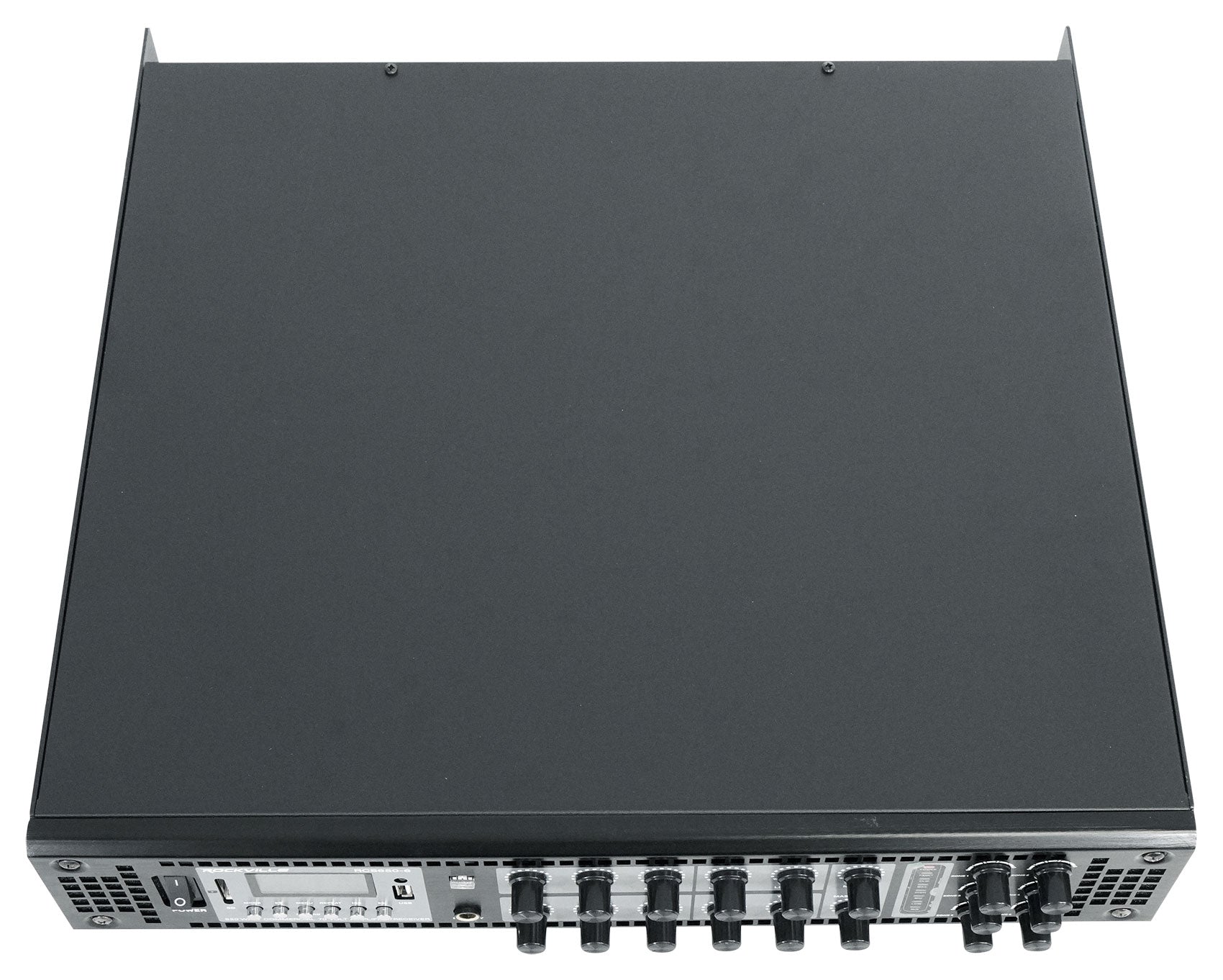

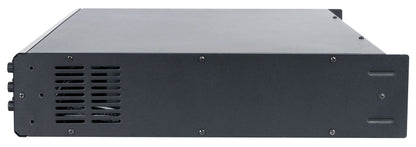

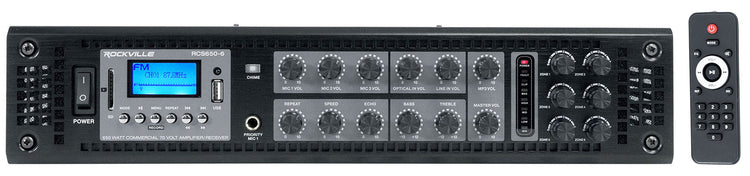

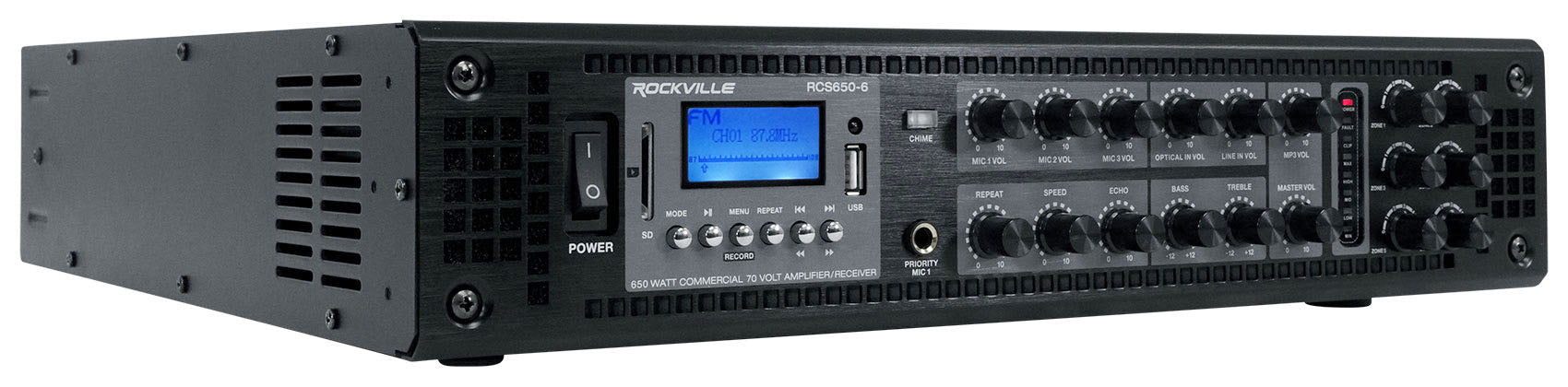

Rockville is proud to introduce our new RCS series of products. The RCS650-6 is a 650 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed.

This RCS650-6 outputs 650 watts at 70 volt or 780 Watts at 100 volt and the power can be split up into 6 zones. (Most professionals recommend you not exceed 90% of the amp power, so we recommend your speakers watts not to be more than 600 in total on the taps). Each zone can output up to 200 watts and all zones should not exceed 650 watts. If you want all 650 watts into a single zone you can use the direct outputs. If you want to use multiple zones then you can use the zone outputs. For example you can have zone 1 with 200 watts, zone 2 with 200 watts, zone 3 with 100 watts, zone 4 with 50 watts, zone 6 with 50 watts. This would total 600 watts which is less than the 650 watts the amp can produce and its also not more than the 200 watts output each zone can produce.

Wiring is totally simple as well. You just wire all the speakers in parallel from one to the next. This product will include a video URL in the box to train you how to use it.

With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements. The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc.

Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system. If you want a volume control in each room, then you can buy any of our wall mount 70 volt volume controllers such as our VOL70100.

The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable.

Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. The RCS650-6 makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and ¼" to make this amplifier more universal and user friendly. With our unique design you can feel confident in your DIY ability when installing our commercial system!

What is 70 volt?

70 volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, with this 650 watt / 70 volt amplifier, you can install speakers that total around 600 watts. It does not matter if it is 18 speakers that are 30 watts each or 36 speakers that are tapped at 15 watts each. You always want your 70 volt amp to have at least 10% more power than the combined watts your speakers are tapped at. When we say the word tap, what we are referring to are the selectors that many speakers in 70 volt have on them. For example, some speakers might have selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. What this allows for is full customization of your sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10 watts, the ones in the hallway at 3 watts and the speakers in the bathrooms at 1.5 watts. Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.

70 volt systems allow you to run very long lines of speaker wire without signal loss. This makes it ideal when running long speaker leads. The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

If you want an easy to use feature-rich 70 volt amplifier with a ton of power and 6 zones the Rockville RCS650-6 is your best choice!

Applications:

Restaurant
Bar
Café
School
Lounge
Home (Multi-zone, Multi-room)
Office
Warehouse

Features:

Rockville RCS650-6 650 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm
70V RMS Power: 650 Watts
100 volt RMS Power: 780 Watts
6-Zones - each zone has a separate volume control and you can easily add wall volume controllers as well
Each zone can output 200 watts at 70 volts and the entire amp can output 650 watts total RMS
You can use the direct output and get 650 watts to a single zone or you can use the zone outputs and get up to 200 watts per zone with all zones combined not exceeding 650 watts
Built in Bluetooth audio streaming
FM radio tuner
USB input to play audio stored on a thumb drive (32gb max)
SD card slot to play music stored on an SD Card (32gb max)
Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
Echo control for the mic inputs with speed and repeat adjustments
Built in clipping limiter to protect the amp and speakers
BASS and Treble control
Chime button for making announcements
Top quality aluminum panel with industrial grade knobs
5 segments signal level indication
Built in cooling system keeps component cool at all times

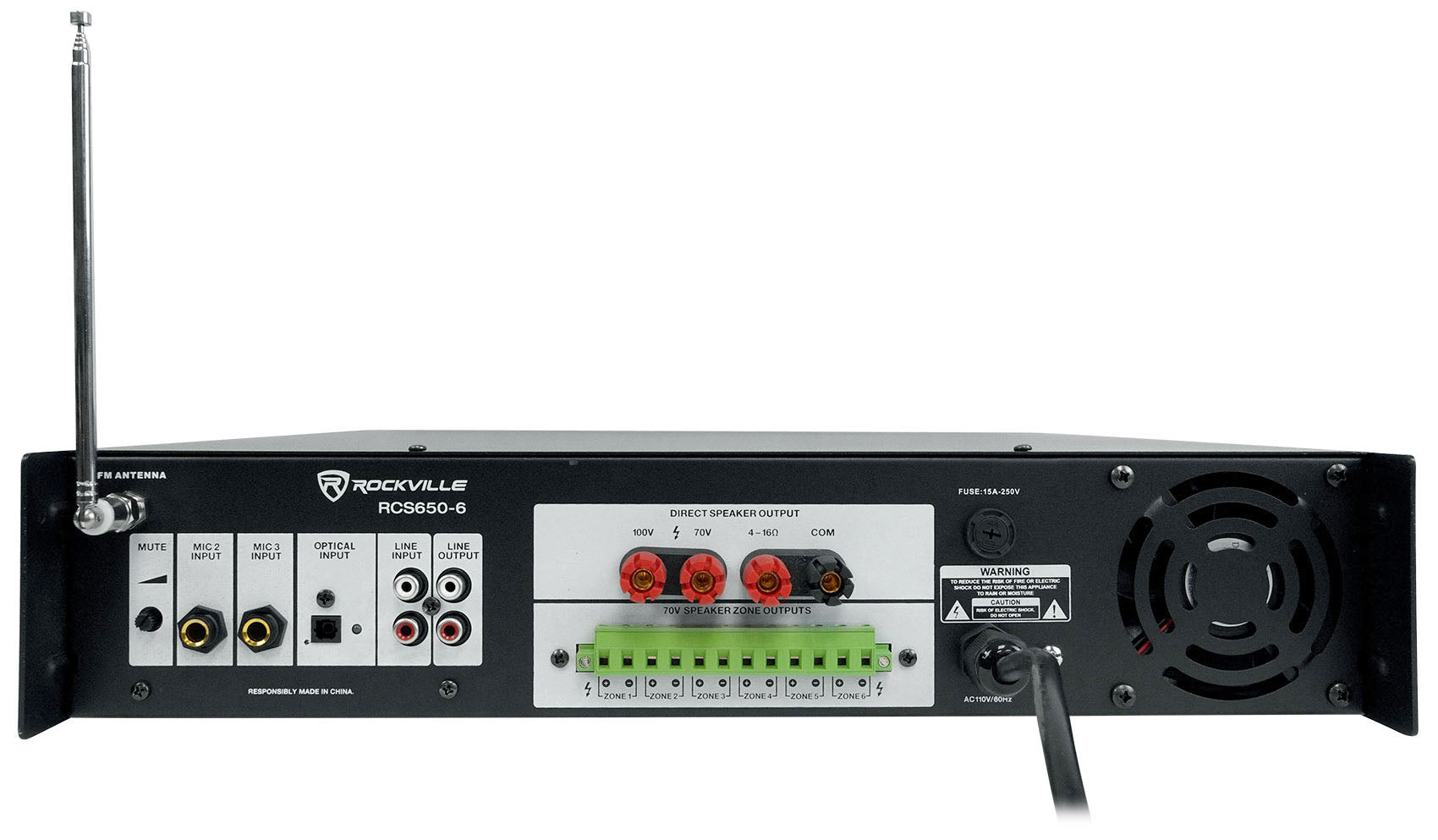

Inputs and Outputs:

(1) Set RCA AUX inputs
(3) Mic inputs
RCA Line output
100V speaker red positive speaker output terminal
70V speaker red positive speaker output terminal
8 Ohm red positive speaker output terminal
Shared negative speaker output terminal

Specifications:

Power Requirements: 120V / 50-60Hz
A Weighted Signal to Noise (@ 1W) -70.2dBA
A Weighted Signal to Noise (referenced to full 4 ohm power) -93.9dBA
Frequency Response: 42Hz to 20 Khz
Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.65%
Weight: 31.7 lbs
Dimensions: 19" x 16" x 4" inches
