Works Perfectly!!
"These units work very well! I’ve used multiple of them as 70v amps with no issues so far! I will gladly continue to use them for my customers."
$0.00 USD

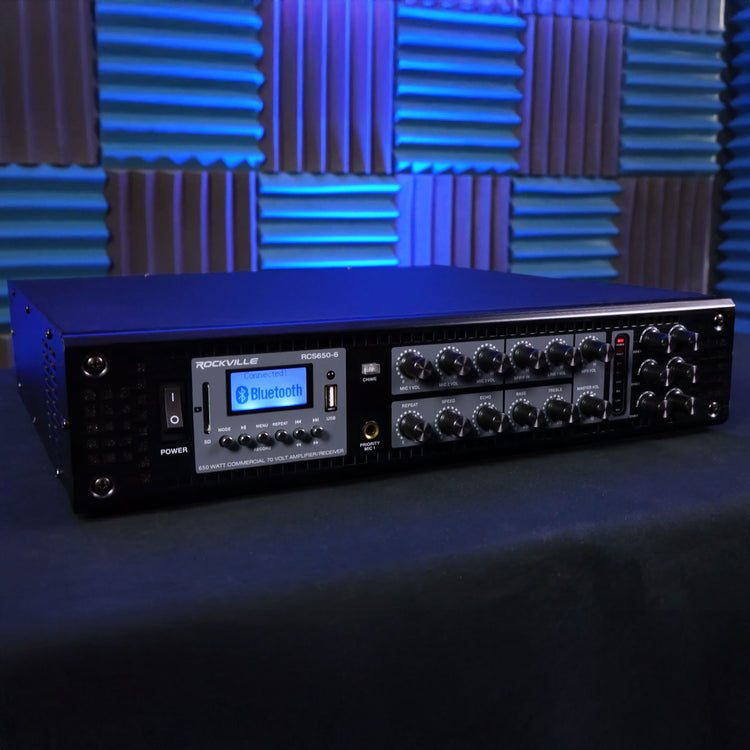

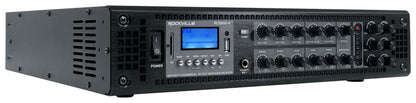

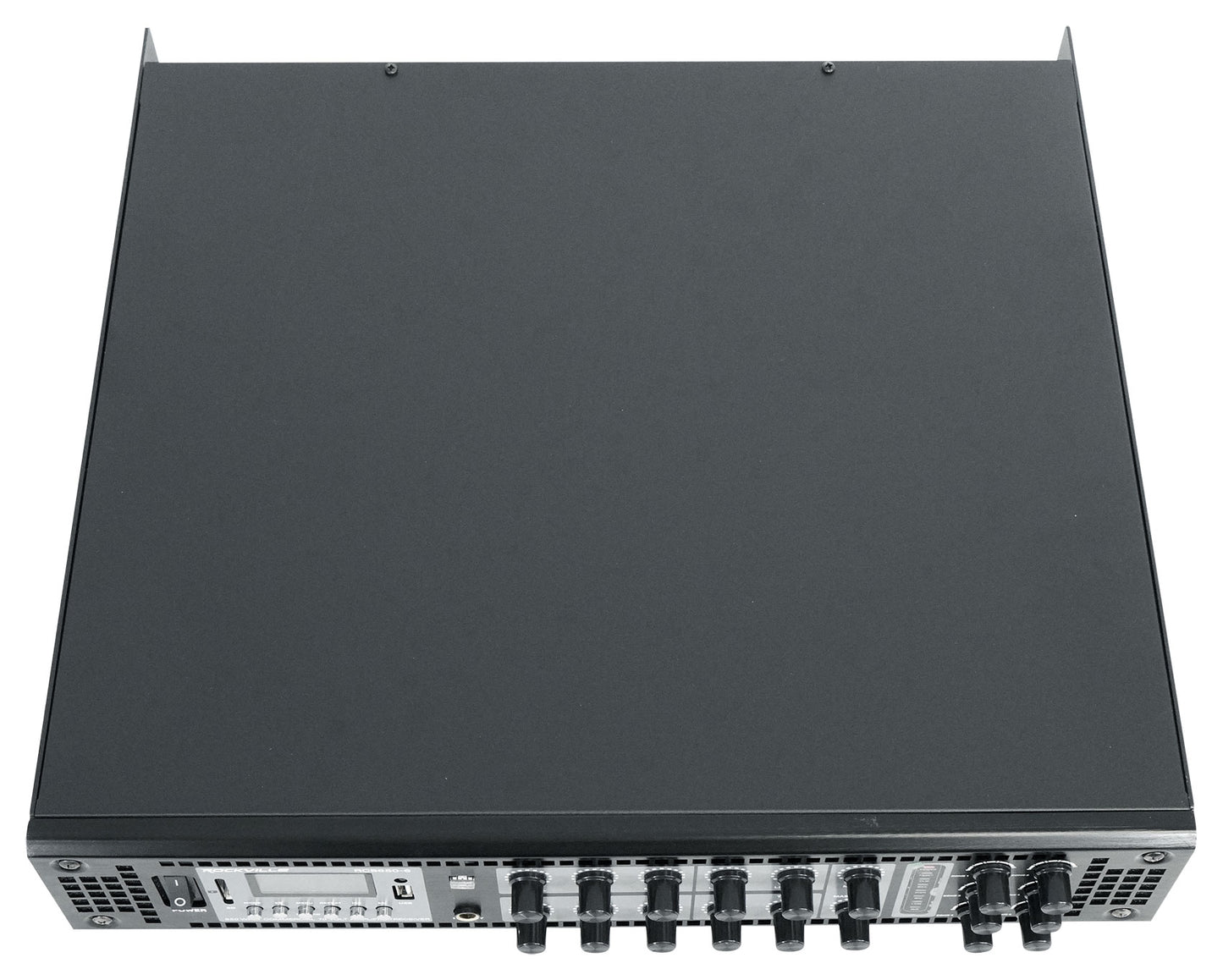

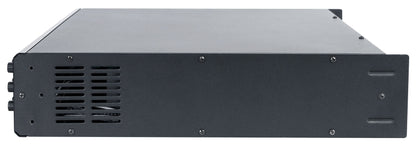

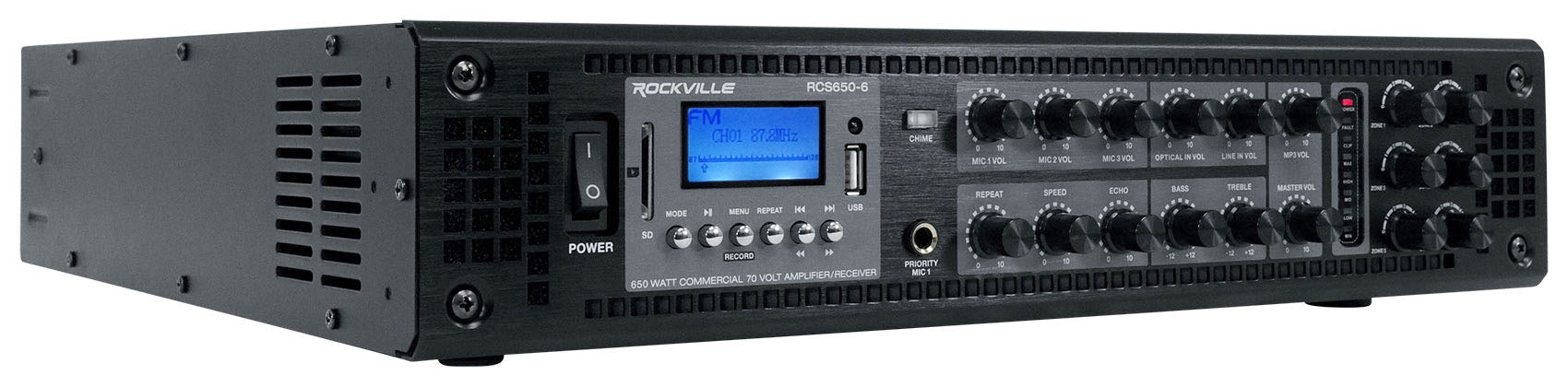

RCS650-6
Rockville
Free Shipping
Couldn't load pickup availability
SKU: SKU: RCS650-6
View full details

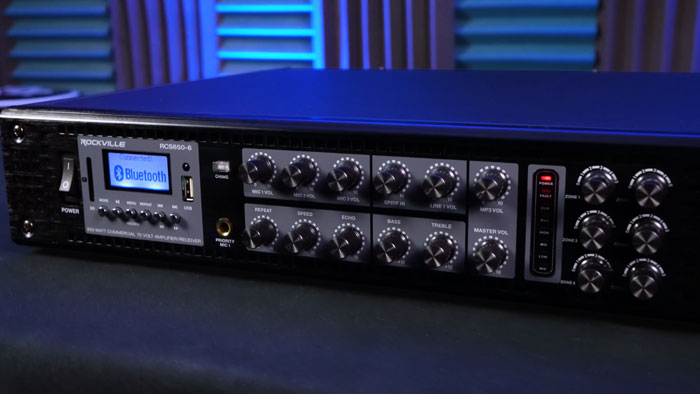

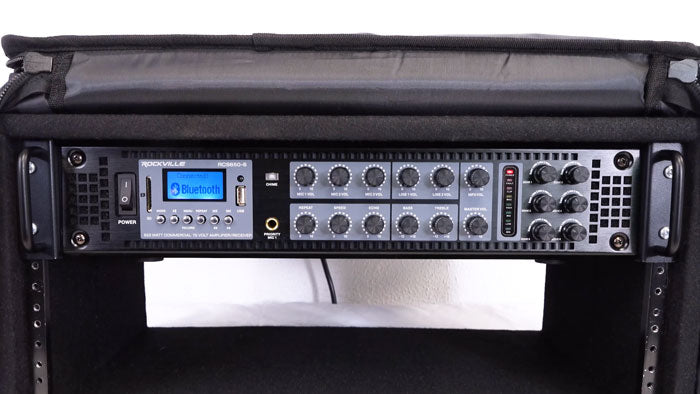

Six 70V zones provide individual volume adjustment, supporting installations across dining areas, classrooms, offices, and other spaces that need separate listening levels.
Rated at 650W RMS for 70V and 780W RMS for 100V, this receiver also accepts 4-ohm and 8-ohm speaker connections for compatible installations.

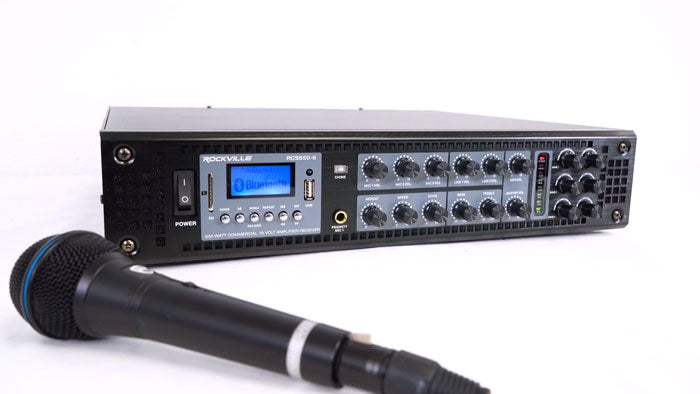

Three microphone inputs include echo settings, and a chime button cues announcements in classrooms, restaurants, offices, and other commercial spaces.
Bluetooth, FM radio, USB, SD, optical, and two line inputs offer connection options for streaming, stored music, and wired audio gear.

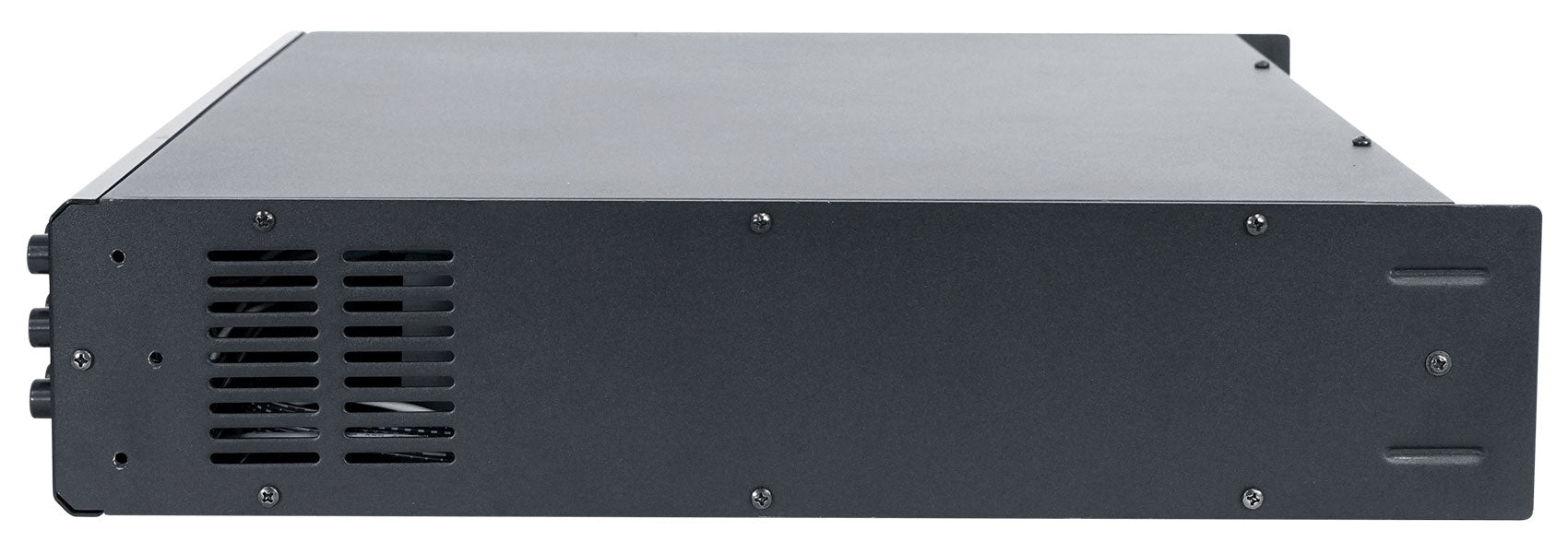

A built-in clipping limiter and cooling system help protect the amplifier and speakers from overheating during extended audio playback and paging.

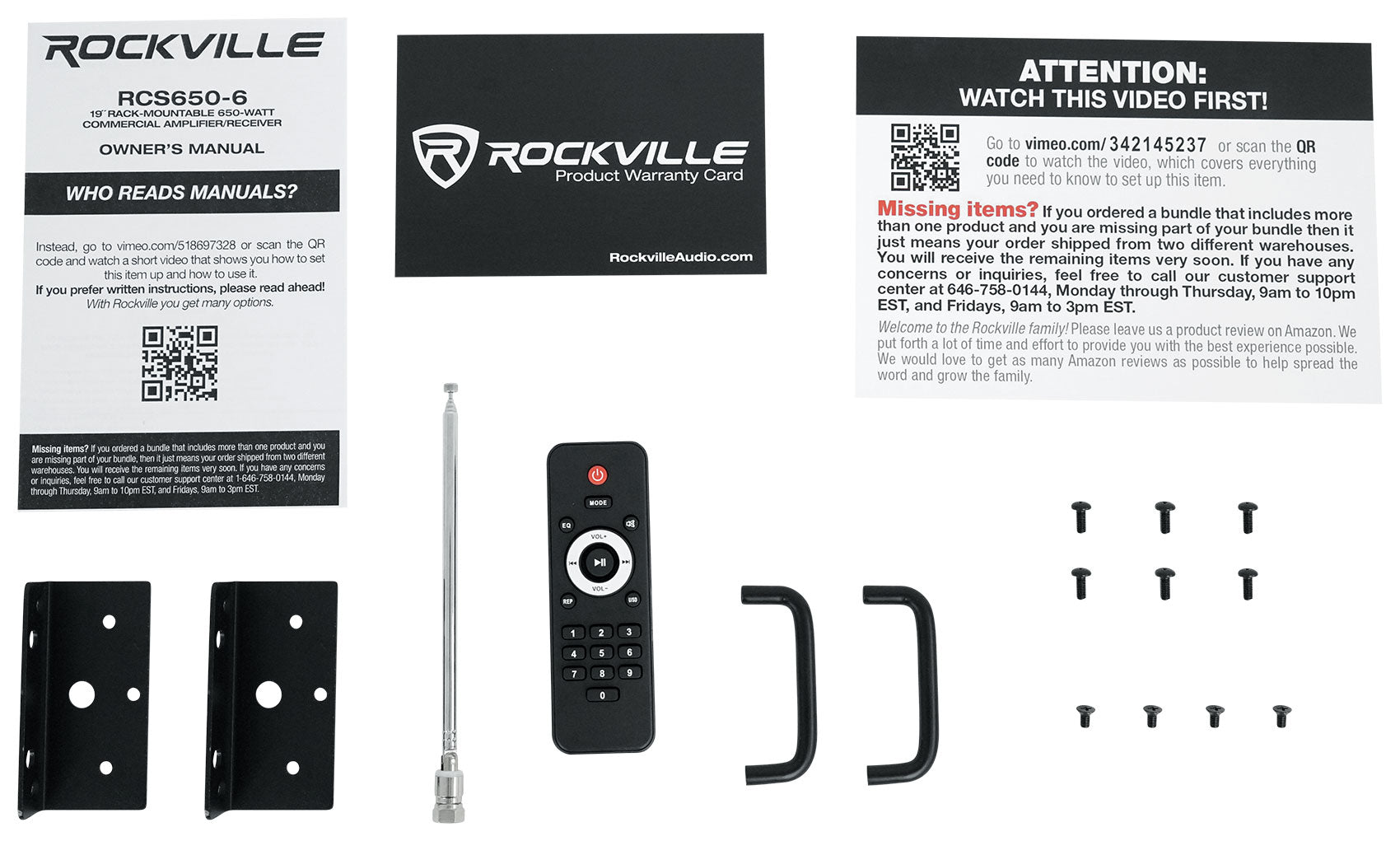

Owner's Manual
Yes. The RCS650-6 has an optical digital audio input for a TV, projector, or other device with an optical audio output. Connect it using a standard TOSLINK optical cable up to 16 feet (5 meters) long. A green indicator on the amplifier confirms an incoming optical signal.

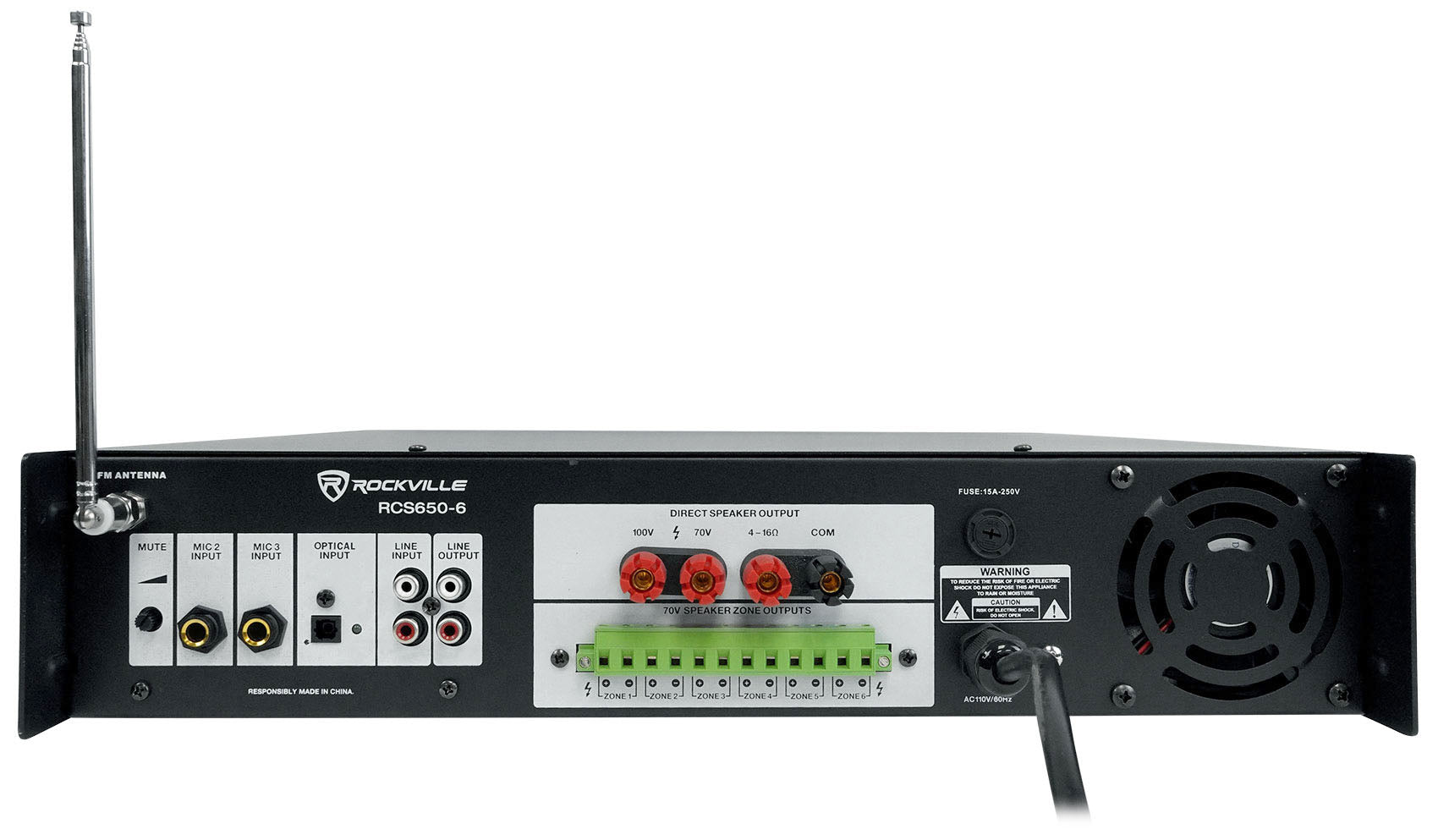

The six zone outputs require speakers with built-in 70V transformers. Compatible 4-ohm and 8-ohm speakers connect to the separate low-impedance direct output, not the zone terminals. Keep the combined speaker impedance at 4 ohms or higher when using that direct output.
No. Use either the zone outputs or a direct speaker output, never both together. The owner’s manual warns that simultaneous use can permanently damage the amplifier. When using the direct outputs, choose only one positive terminal option: 70V, 100V, or low impedance.

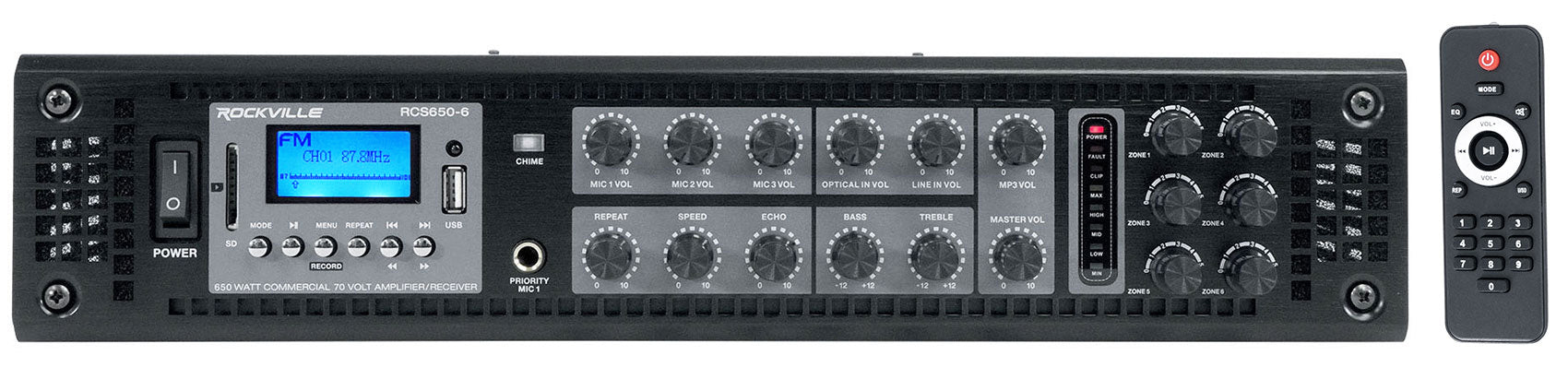

Yes. Each of the six zones has its own volume knob on the RCS650-6. For adjustment inside a room, add a compatible 70V in-wall volume controller. The controller’s wattage rating must equal or exceed the combined speaker tap settings connected through it.

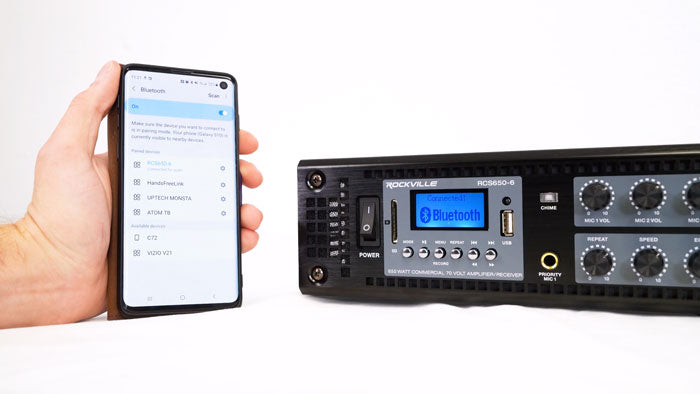

Select Bluetooth with the Mode button, then choose “RCS650-6” in your phone’s Bluetooth settings. If playback is quiet, check your phone volume, the MP3 volume knob, and the amplifier’s overall volume knob. Holding the next-track button on the MP3 panel also raises Bluetooth playback volume.
Use a USB flash drive or standard SD card with a capacity of 32GB or less, formatted as FAT or FAT32. These inputs play stored audio without a phone connection, making them useful for background music in restaurants, offices, and other commercial spaces.
How to setup your RCS650-6
Free Shipping
Free Shipping
Overall rating: 4.5833335 / 5 from 24 reviews.
Review topics: [value, sound, works, install, unit, system].
"These units work very well! I’ve used multiple of them as 70v amps with no issues so far! I will gladly continue to use them for my customers."
— Allen F. (5/5)
"The power button is faulty. This is my third time purchasing this model"
— Dana L. (1/5)
"I have purchased three of these and on two of them the display board has gone out. One after about six months and now the replacement after two months."
— Scott E. (1/5)
"You get so much bang for your buck. Nothing fancy. Just simple analog controls, perfect for the commercial environment."
— Demian D. (5/5)
"Love the Rockville RCS650-6. Works great! Easy setupwith the mics I got! Awesome! Would buy again and hope I can again soon! Thanks"
— Steve J. (5/5)
"Exellent unit. Should have separate 8 obm volume adjusment in case using both speaker outputs. Also storing radio stations shoul be easier like having memory buthon."
— Krsto S. (4/5)
"Love it easy to hook up. Great sound. 8 wetarrays. 1 15 in sub. Rc650 Amp. Fills a 13000 square foot with awesome sound."
— William D. (5/5)
"Awesome unit. Exactly what we were looking for."
— Matt P. (5/5)
"Works great"
— Michael D. (5/5)
"Easy install and sounds perfect. Installed in church auditorium."
— Antioch C. (5/5)
