Package Includes:

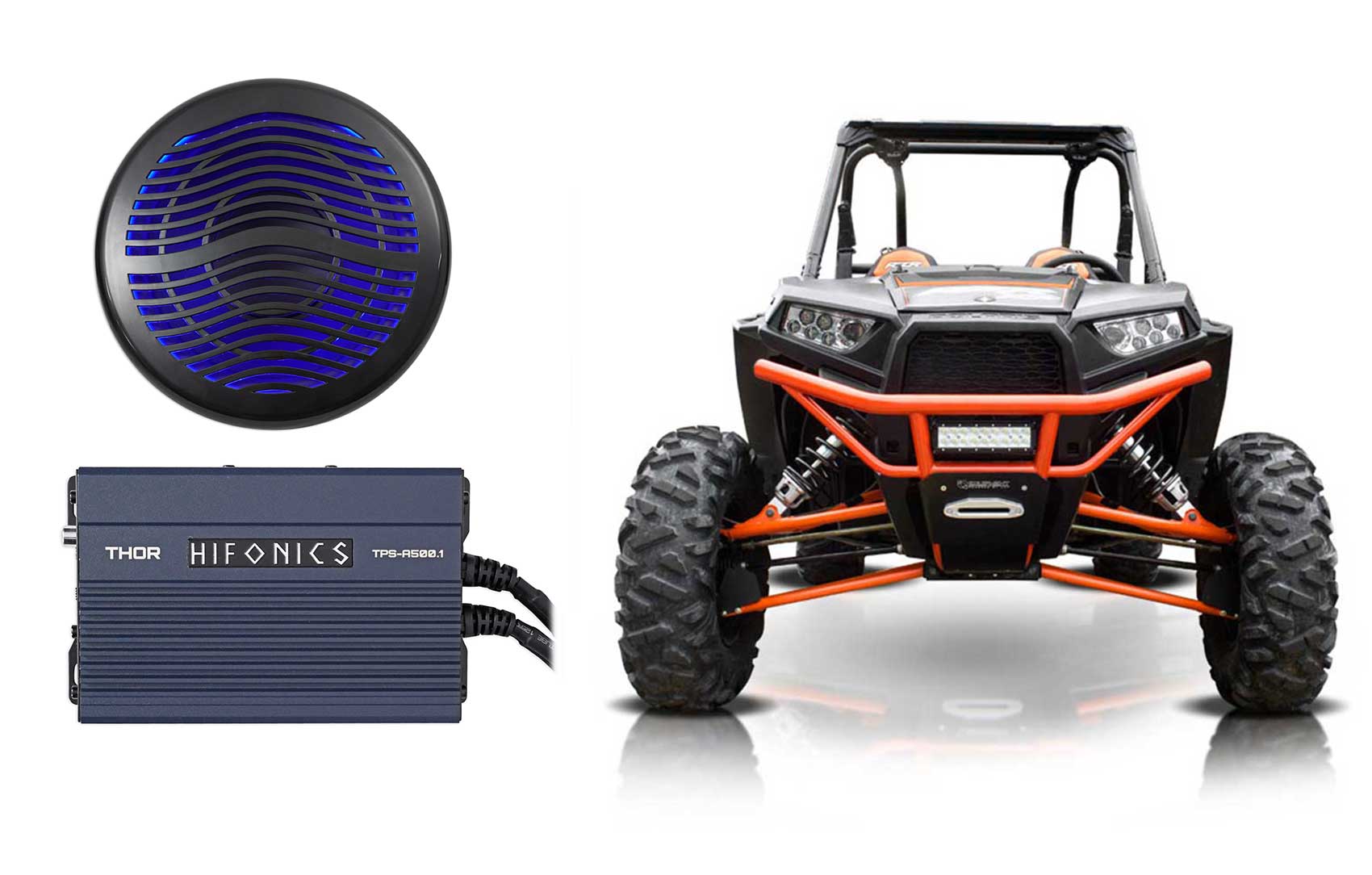

(1) Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart

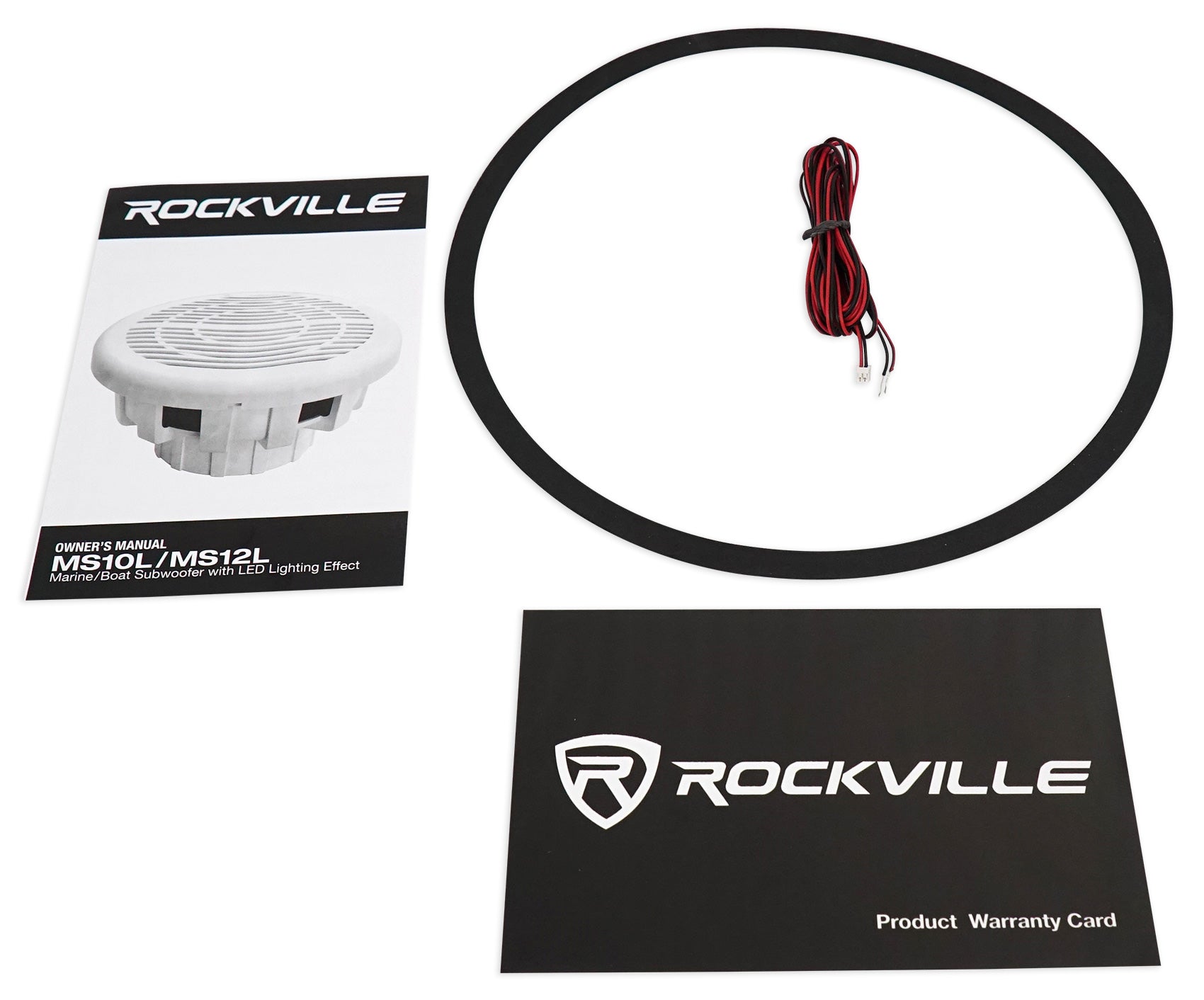

(1) Rockville MS12LB 12" 2800 Watt Black Marine/Boat 12" Free Air Subwoofer w/ LED's

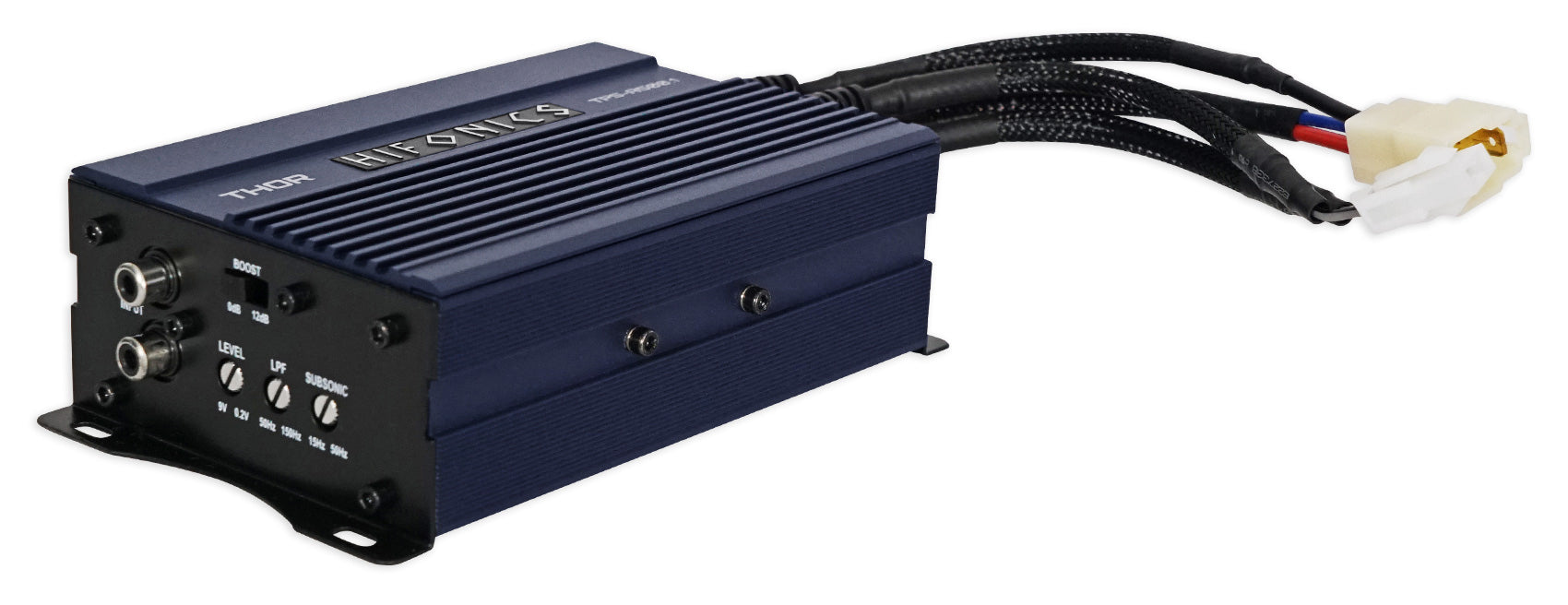

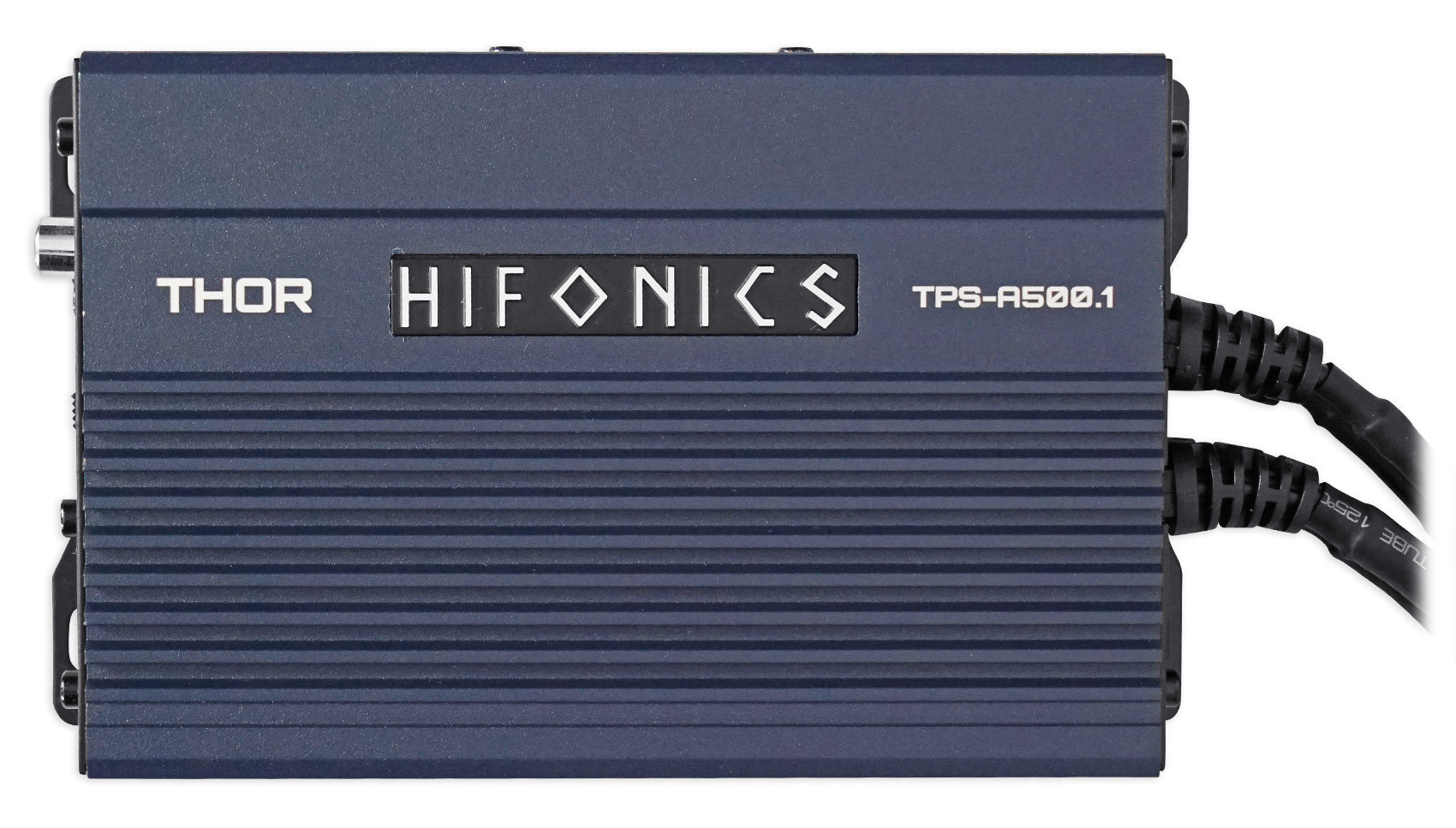

Description of TPS-A500.1:

Hifonics THOR compact 500 watt mono Powersports amplifier to for a subwoofer with on-board equalization and simple instalation with quick release connectors.

Features:

Hifonics TPS-A500.1 500w Mono Marine Sub Amplifier For Polaris RZR/ATV/UTV/Cart
Marine Grade Protection: YES - Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.

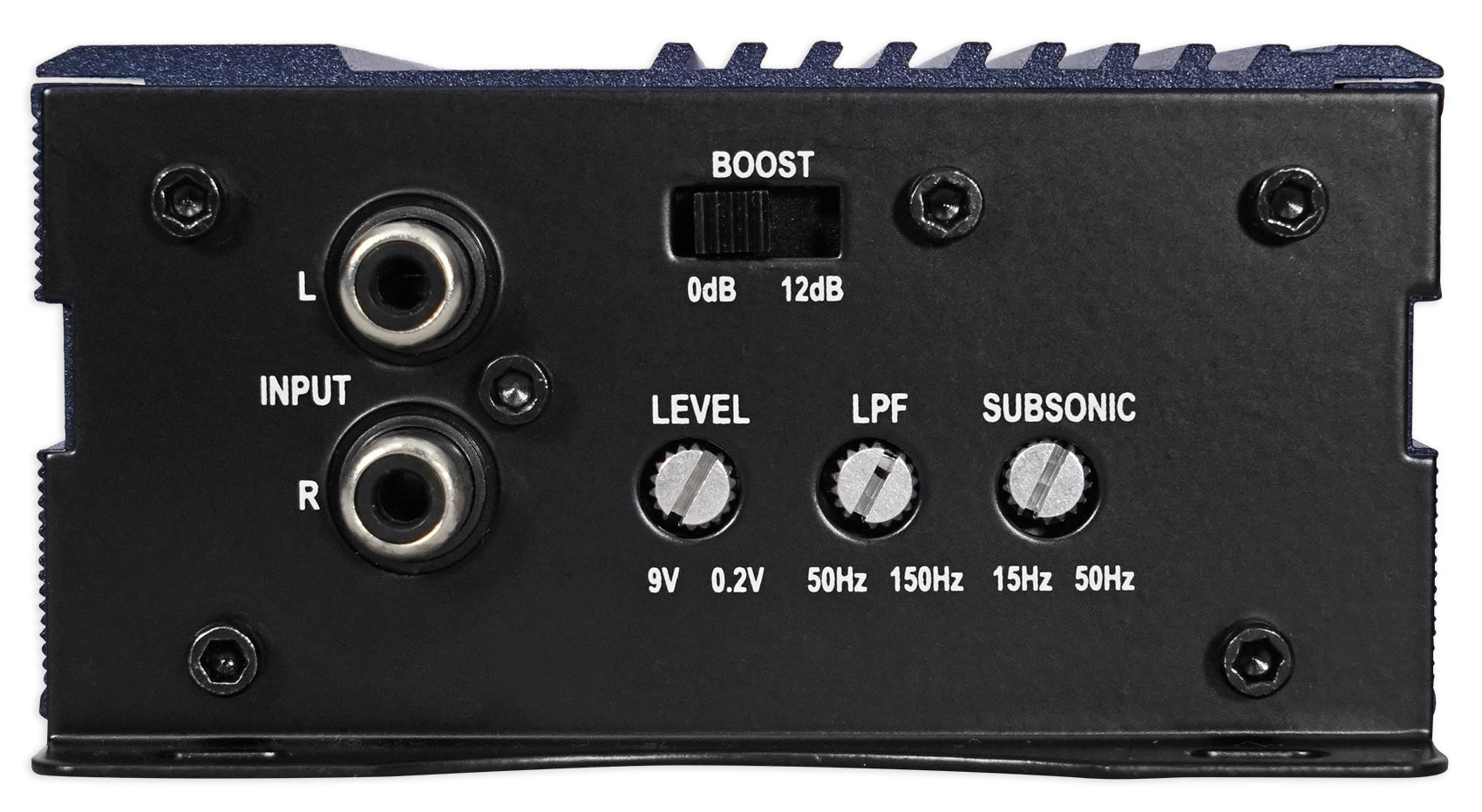

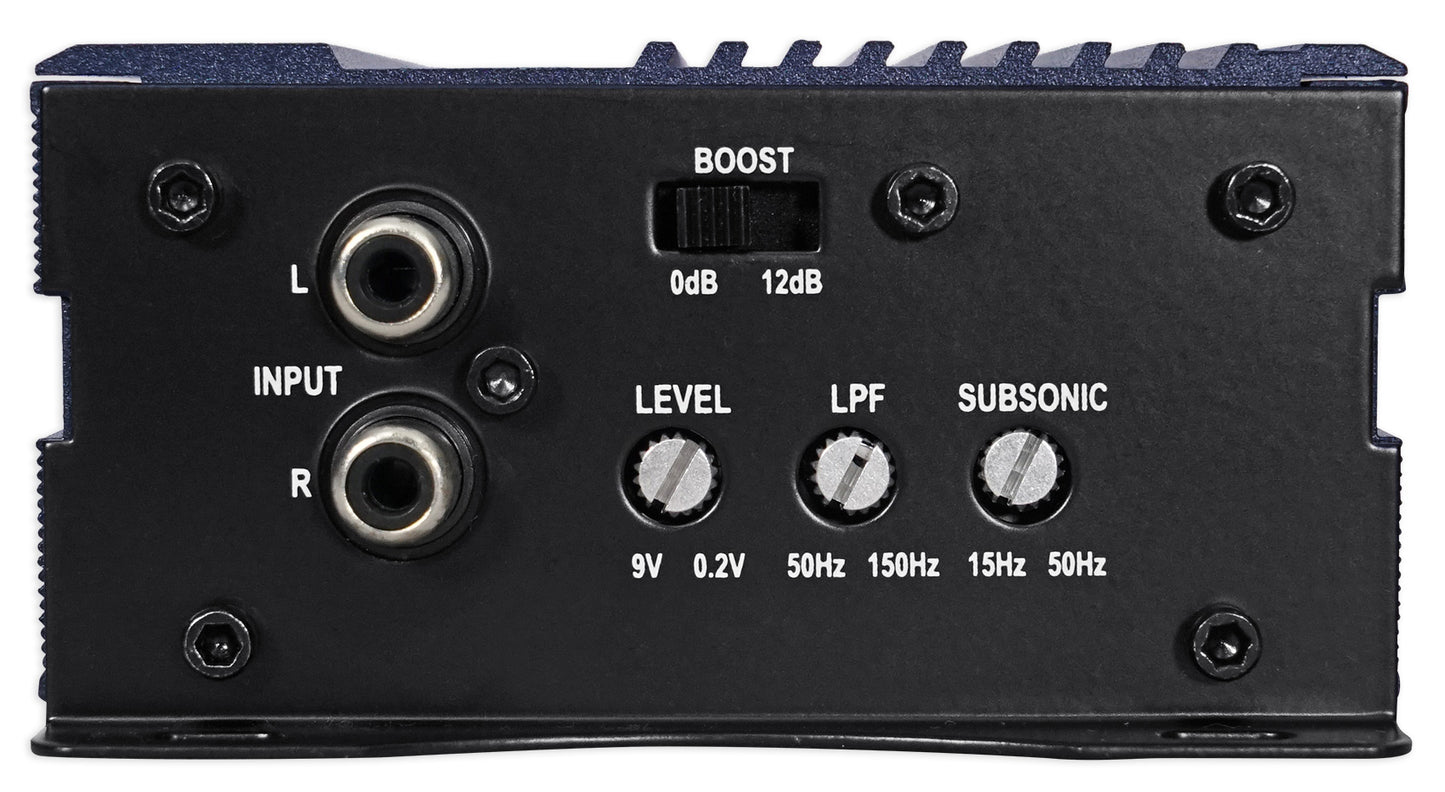

Pre-Amp Circuitry: Low Noise Pre-Amplifier Stage - Special preamplifier reduces incoming noise from source units dramatically improving sound quality
Inputs: 1 Pair, RCA Nickel-Plated - High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
Operation Mode: Mono operation - Designed to power 1 subwoofer or subwoofer system
Crossover / Signal Shaping: LPF - Complete control of amplifier signal, essential when using two or more amplifiers
Class / Topology: Full Range Class D - Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation
Heat Sink: Aluminum - Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices

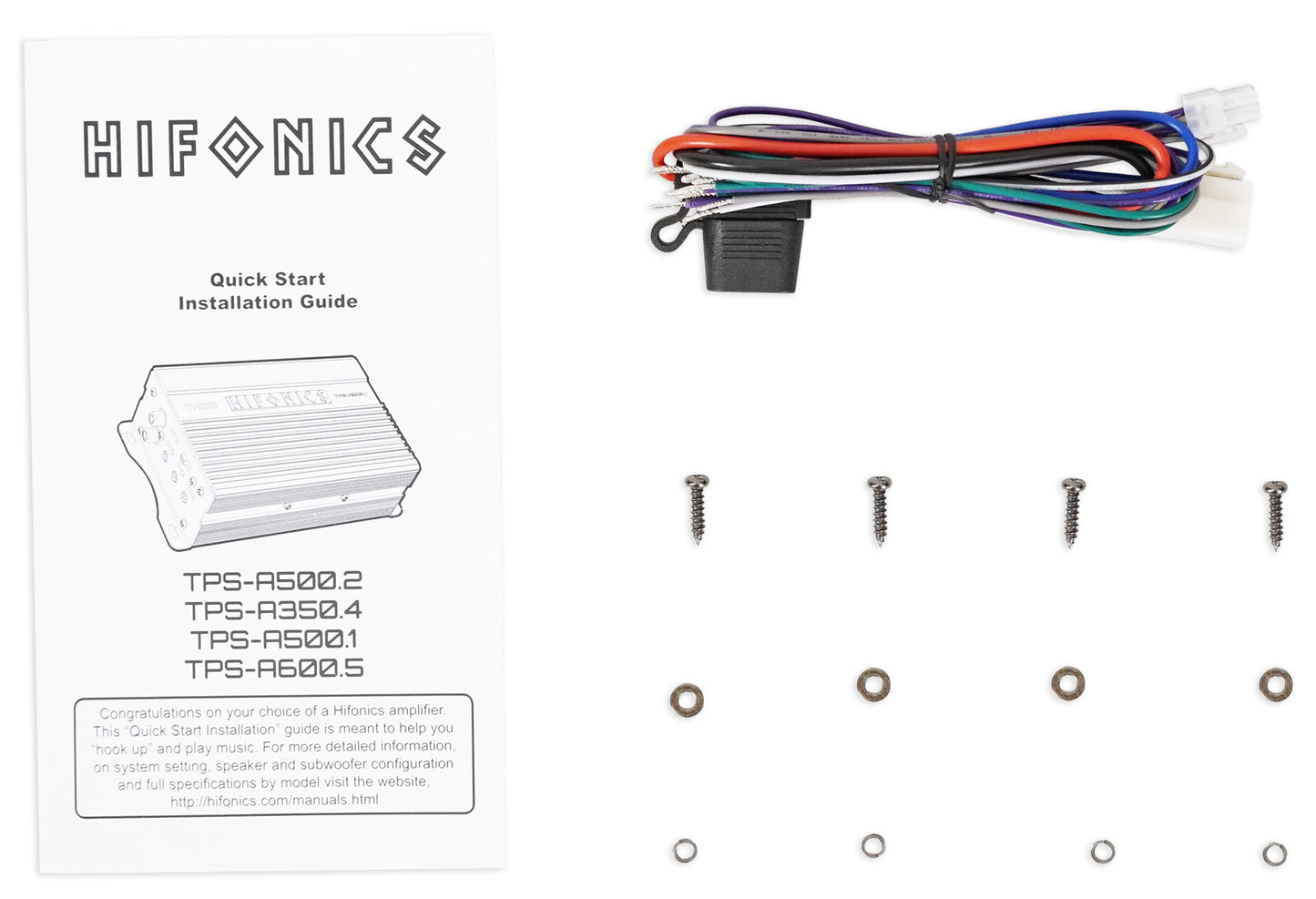

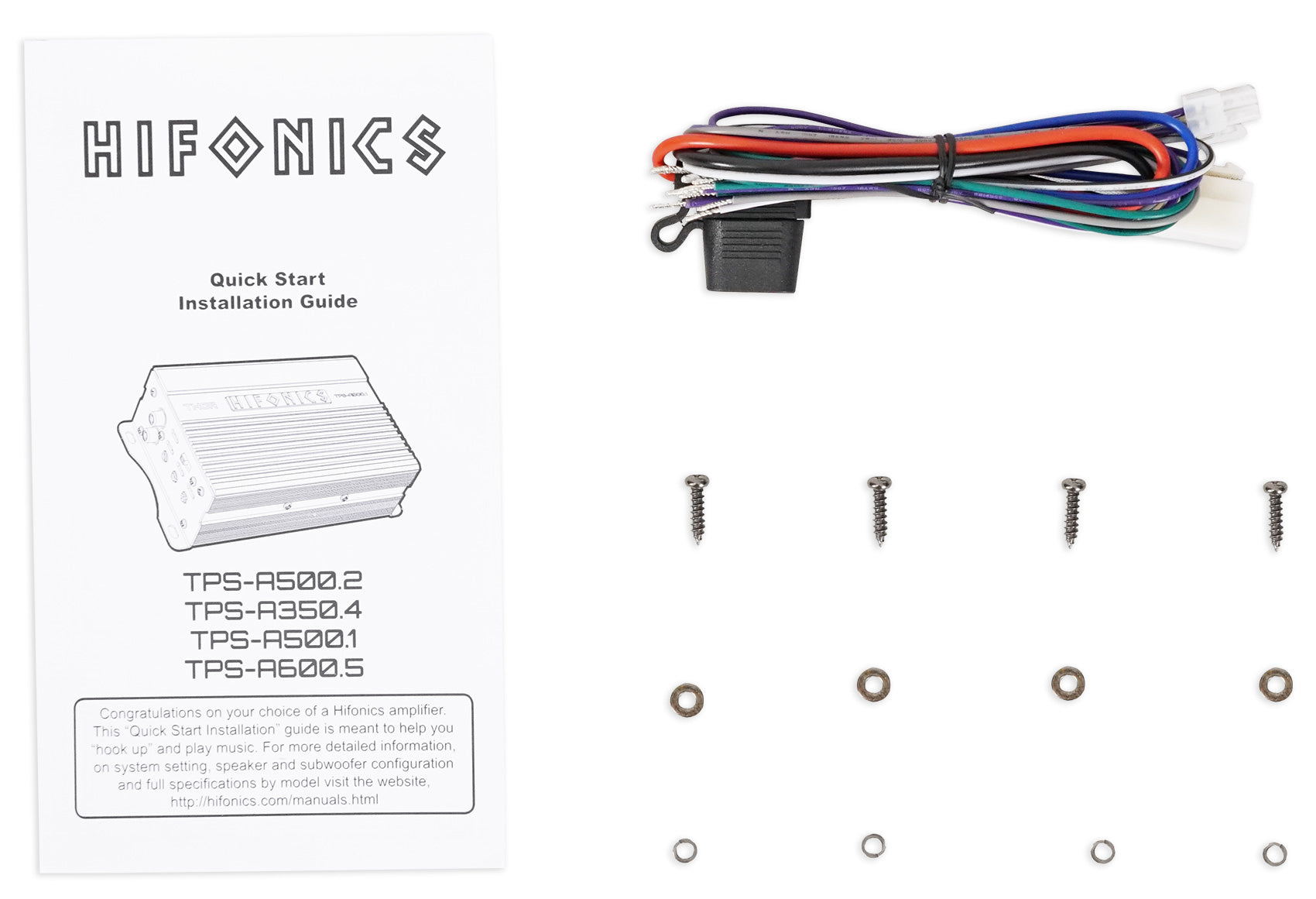

Output Connections: Quick Dissconect Wires, RCA Connections - Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
Connections Type: Gold-plated connections - Gold-plated power, ground, speaker and RCA corrosion resistant connections

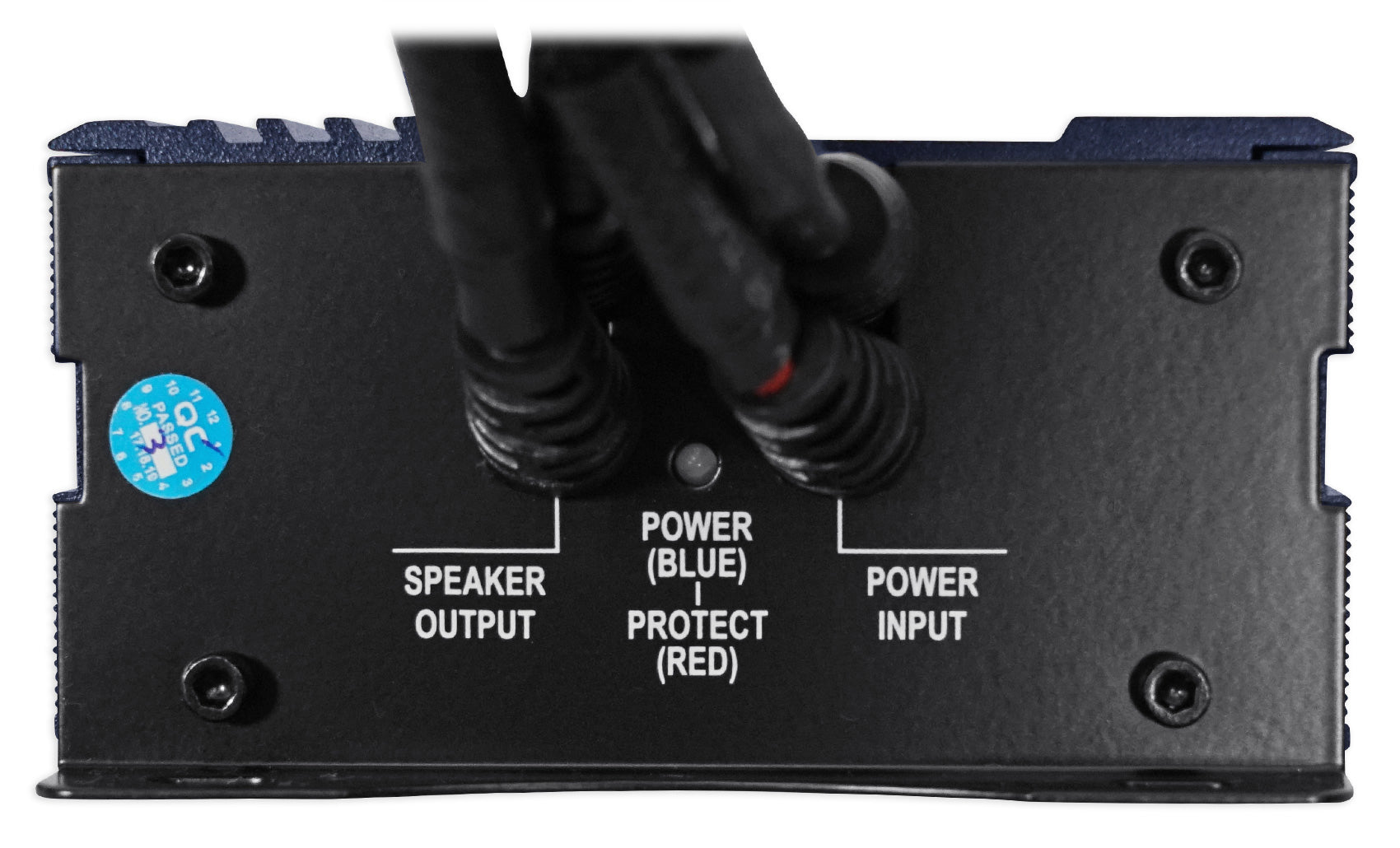

Diagnostics: Three-stage protection circuits - Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
Marinized / Waterproof: YES - Water resistant for durability in any environment

Specifications:

Class: Full Range Class D
Variable Voltage: 0.2V~9V
Signal to Noise Ratio: >100dB
Frequency Response: 10Hz-300Hz
Crossover Type: Electronic 12dB Per Octave
Crossover Frequency Range CH1 & CH2: Switch Low Pass 300 Hz
Bass Boost: 0-12dB@45Hz
Subsonic Filter: 60Hz
Power @ 2-Ohms: 1 x 500W
Power @ 4-Ohms: 1 x 250W
Total Channels: Mono
Audio Inputs: RCA
Power Terminal 12v/GND: Molex 10 ga
Speaker Terminal Wire Gauge: Molex Plug Connector
Fusing: 1 x 30 Amps
Certifications: Marine & Powersports
Dimensions: 3.70 X 5.51 X 1.77 inches (9.4 X 14.0 X 4.5 cm)
Weight: 2.09 lbs (0.95 kg)

Video of MS12LB:

Description:

The MS12LB is one of the most powerful marine subwoofers on the market. What really makes this sub stand out is the sound quality and durability. It goes so loud that if you crank it up, boats that are thousands of feet away can feel the bass. The frequency range of these subs are so good that it will make all your songs sound so much better! These play frequencies that normal full range speakers cannot hit, adding depth and richness to all your music.

The MS12LB is 2,800 watts peak, 1,400 watts Program RMS and 700 watts CEA Rated! This sub is CEA-2031 compliant, which makes it easy to compare this subwoofer to other CEA compliant subs on the market. The issue in the marine audio world is that there are so many different brands with different standards on how they rate their products. We want to make it easy for you to compare our products to any brands on the market, therefore we provided all 3 ratings for you to do so. The CEA compliant rating, which you should use to compare this to other premium brands that make CEA compliant products such as Kicker, Rockford Fosgate, Kenwood, Pioneer, etc. We also supply a program RMS rating that has become standard for many good brands in the industry such as Hifonics, Earthquake, etc. Lastly, we also supply a peak rating which almost all brands in the industry provide. This peak power is the amount of power the sub can handle for a short burst.

This subwoofer has a double-stacked 100 Oz magnet! They are twice as large as almost any other marine sub on the market, which is why these can handle so much power. In addition, the MS12LB has a fantastic sensitivity rating at 90dB, which means even if you have a smaller amplifier, the subwoofer is sensitive enough that it will still sound great.

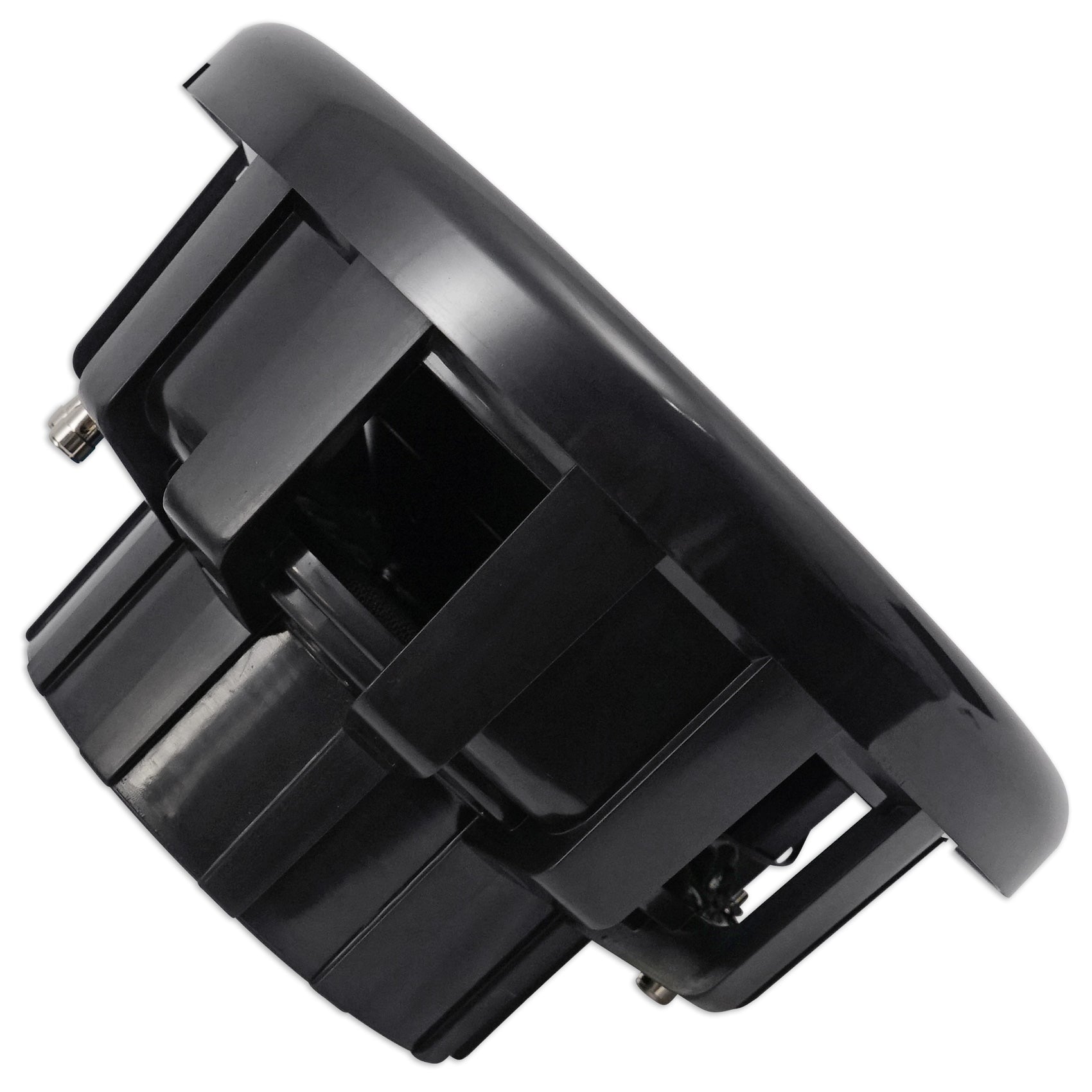

The MS12LB was designed in a molded ABS plastic basket that is made with a special blend that is waterproof and un-breakable. You can literally jump on it and hit it with a sledgehammer without it breaking!

Using only true marine grade components and materials, the Rockville MS12LB subwoofers are fully marinized against salt & fresh water conditions. These subs are completely waterproof and protected from the elements! They are UV treated and have a special waterproof coating to prevent water damage. These subwoofers also come with a 1 year warranty to give you the peace of mind you deserve when purchasing from Rockville!

Features:

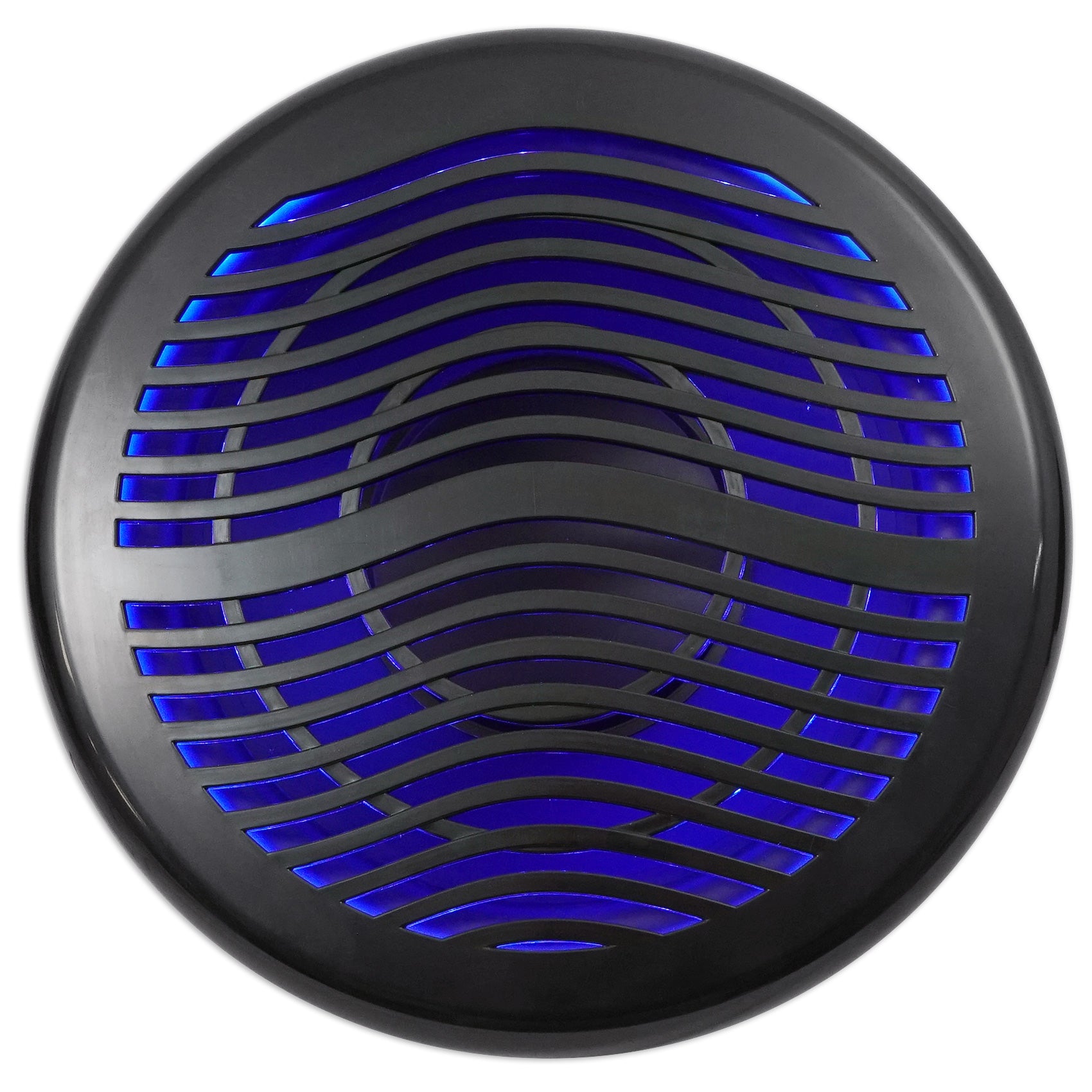

Rockville MS12LB 12" Marine Free Air Subwoofer with LED's
Free air subwoofer does not require any enclosure
Max Power: 2800 Watts
RMS Program Power: 1400 Watts
RMS Power: 700 Watts
Polypropylene cone with Rubber edge
2.0" 4 Layer dual voice coil
Molded ABS plastic basket made with a special blend that is waterproof and un-breakable (if you literally jump on it, it will not break or bend)
Magnet: 100 Oz double stacked magnet
Frequency response: 20Hz-4Khz
Impedance: Dual 4 Ohm
Sensitivity: 90dB
Total diameter:12.8"
Cutout diameter:11"
Mounting depth:6.1"

Specifications:

Free Air Resonance (Fs): 25.82 Hz
Electrical “Q” (Qes): 0.5402
Mechanical “Q” (Qms): 3.334
Total Speaker “Q” (Qts): 0.4649
Equivalent Compliance (Vas): 4.19 cu ft / 118.67 L
One-Way Linear Excursion (Xmax): 0.41 in / 10.5 mm
Reference Efficiency (No): 0.36%
Efficiency (1 W / 1 m): 88 dB SPL
Effective Piston Area (Sd): 79.2 sq in / 0.0511 sq m
DC Resistance (Re): 3.4 Ohms

About Rockville Quality Control Procedures:
The Rockville brand stands for Quality, Innovation and Value. We aim to deliver products twice as good as our competitors at a fraction of the cost of famous brands. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All functions and components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to have engineers and technicians test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to the factory to quality control every product. After production is complete Rockville has the head of QC in our overseas office test a certain percentage of all products from the production line a second time to ensure that the quality meets our strict standards. All Rockville products are backed with a hassle free warranty.
