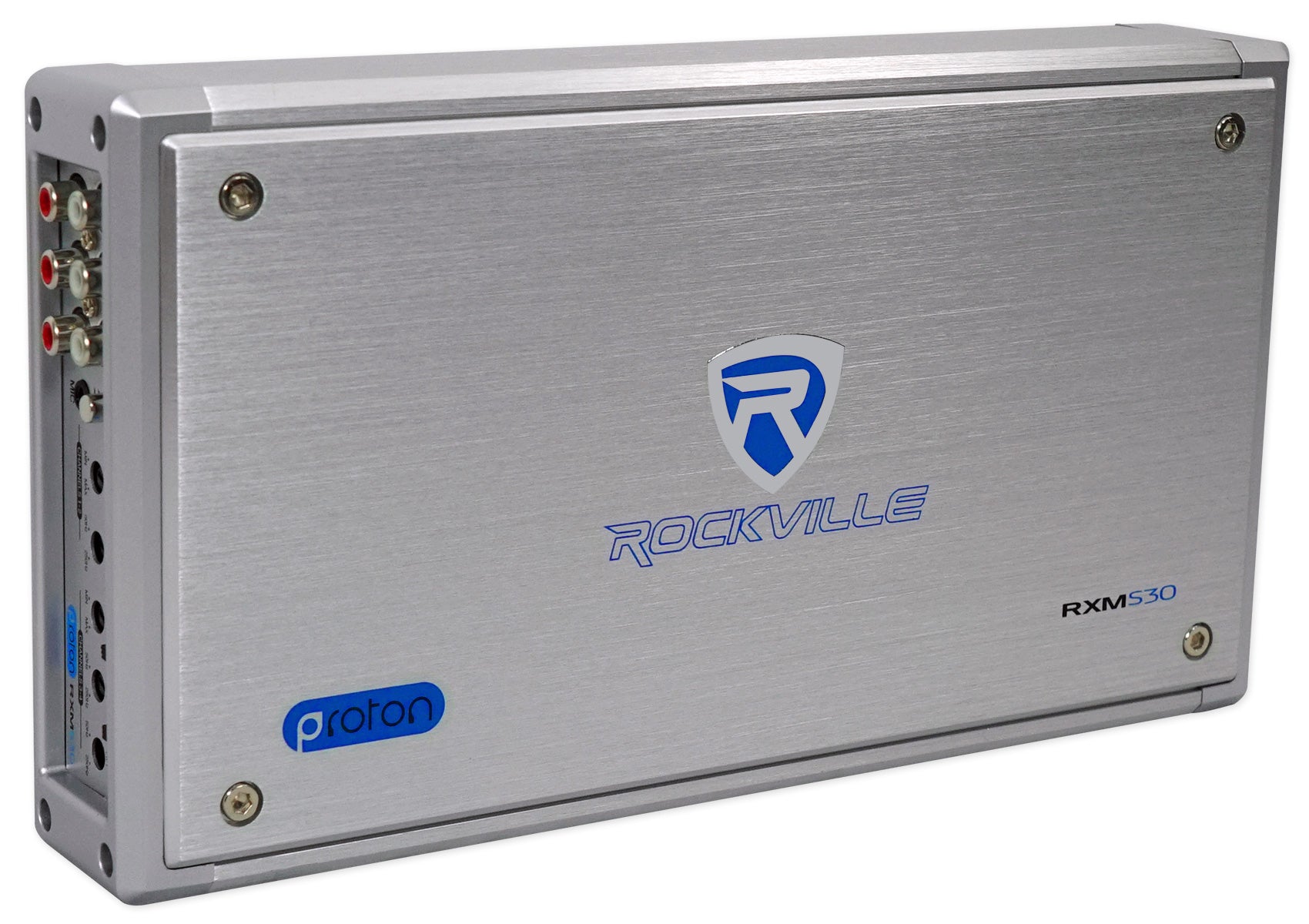

Rockville
RXM-S30
RXM-S30
4-Channel Marine Amplifier, 2,400W Peak, Micro Size, Water Resistant, Includes 2 x 30A Fuses, RCA Output
Free Shipping
Features
- Compact marine amplifier with 2,400W peak output
- Water-resistant design for boats, cars, and outdoor setups
- Premium Elna RA3 capacitors deliver rich, clear sound
- Double-sided SMD PCB boosts efficiency and reliability
- Includes 2 x 30A fuses and RCA preamp output
Couldn't load pickup availability

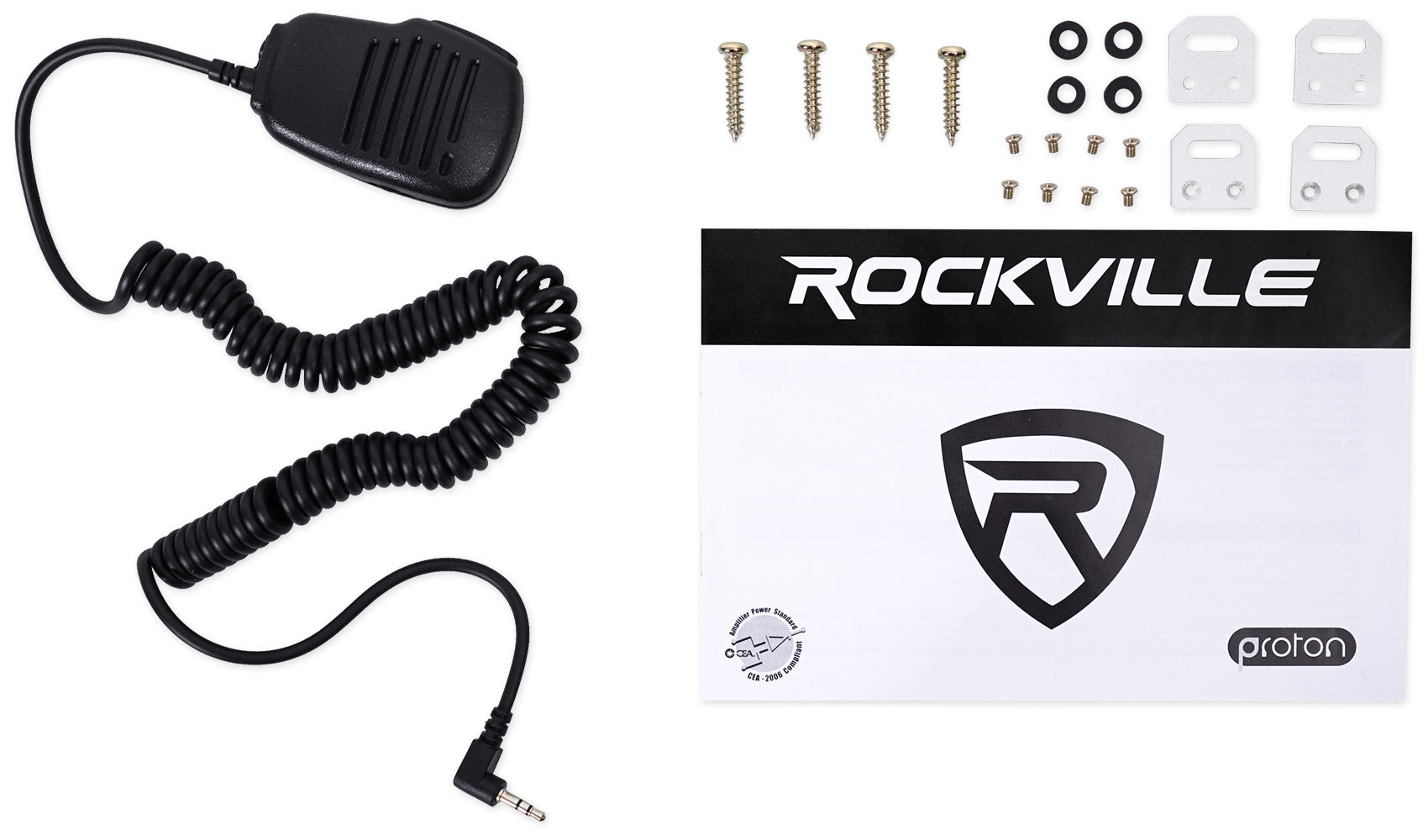

What's Included in the box
- RXM-S30 Marine Amplifier
- 2 x 30A Fuses (pre-installed)
- RCA Preamp Line Output

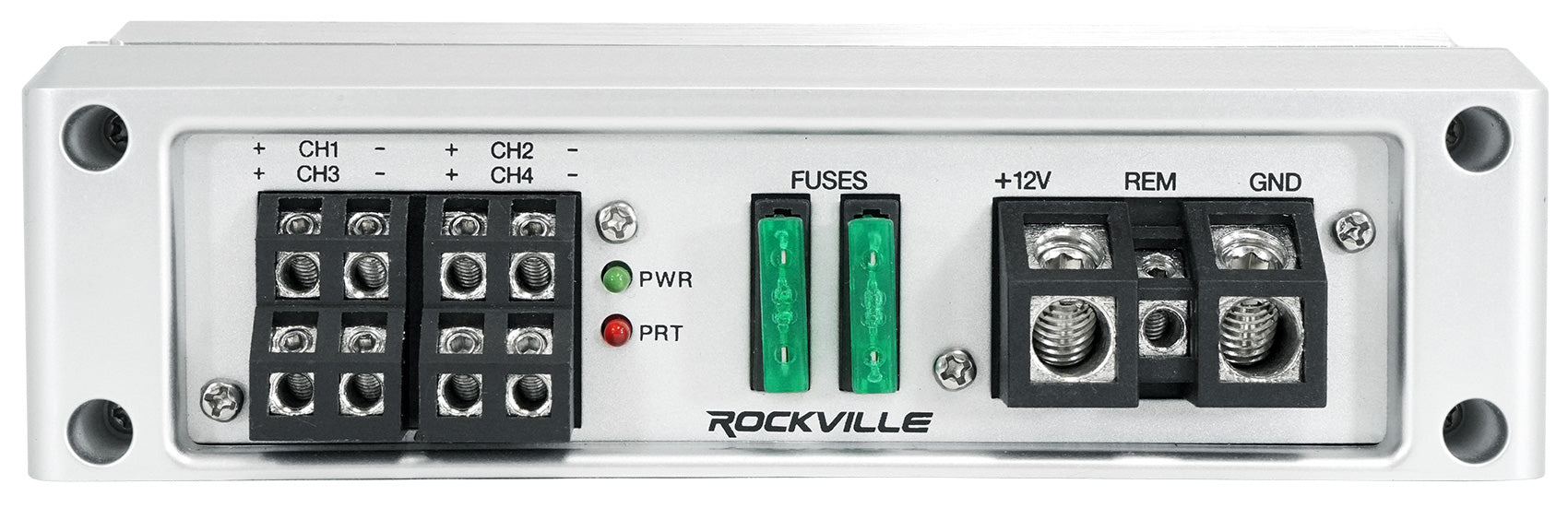

- Lucite Encapsulated Power/Ground Terminals
- Lucite Encapsulated Speaker Terminals
SKU: SKU: RXM-S30
View full details

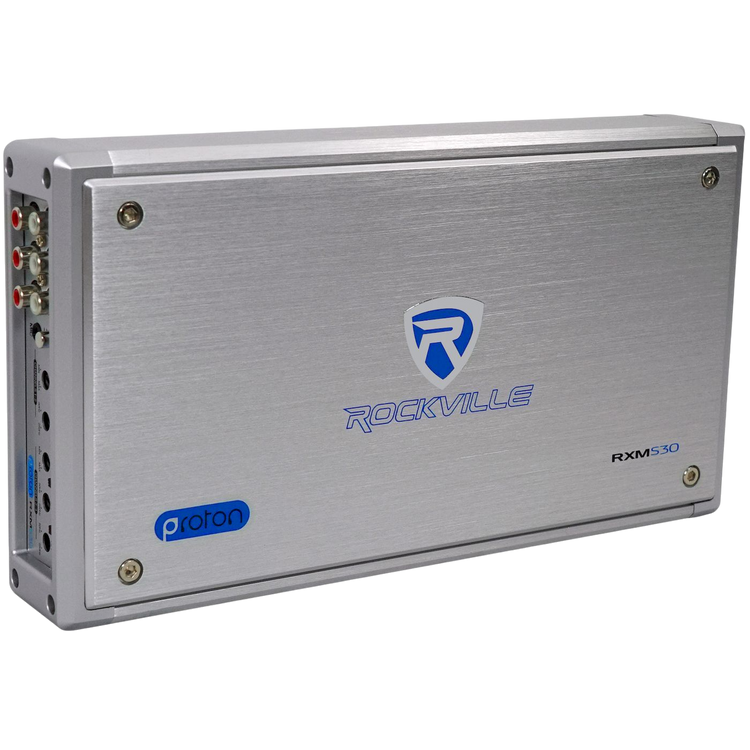

Product Description

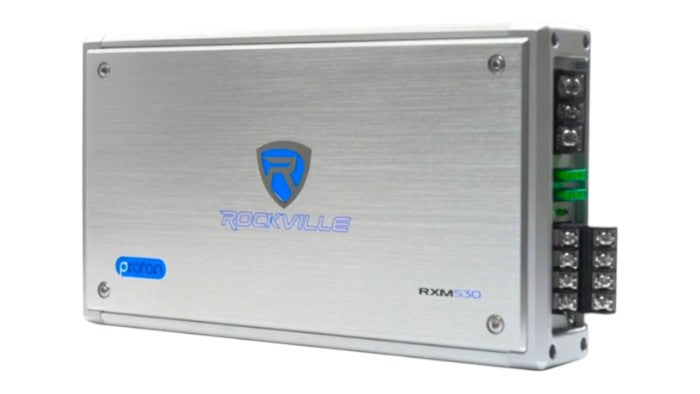

Micro-Sized Marine Amplifier with Advanced Features

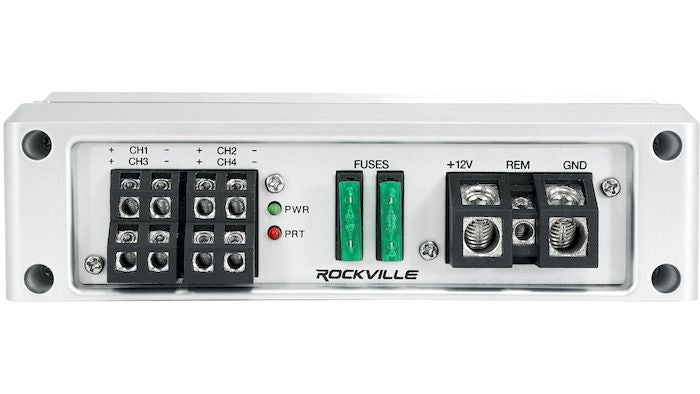

Superior Performance and Efficiency

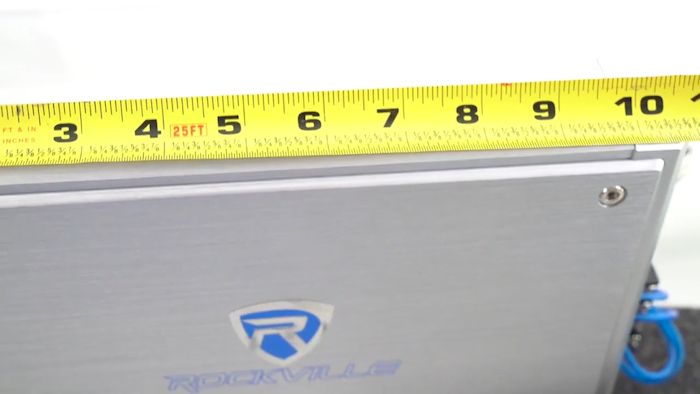

Adaptable for Any Environment

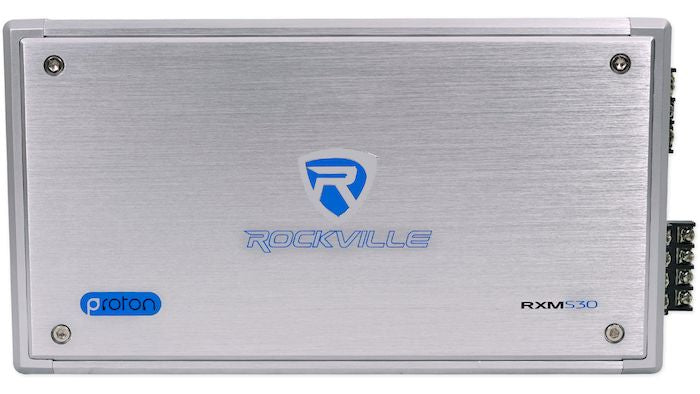

Distinctive Build Quality

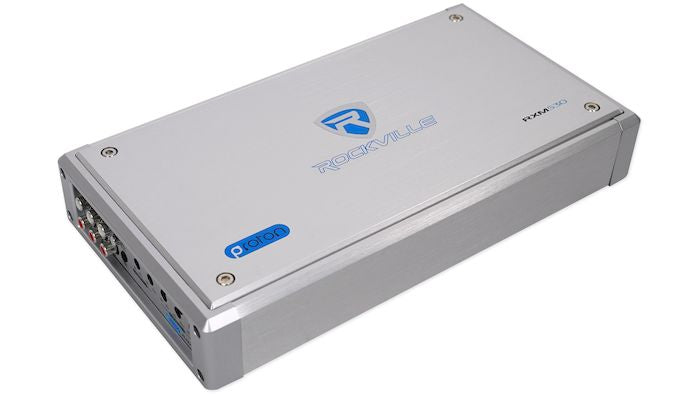

Upgrade Your Audio Experience
Features
Compact Powerhouse
Delivers 2,400W peak output and 400W Dyno Certified RMS in a compact, water-resistant chassis for flexible installation.
Premium Audio Components
Features Elna RA3 capacitors and sealed potentiometers, providing rich, clear sound and lasting reliability.
Efficient Performance
Class A/B technology and double-sided SMD PCB achieve up to 70% efficiency, drawing less current and playing louder.
Marine-Ready Durability
Conformal coated PCB and robust construction protect against moisture, oxidation, and harsh environments.
Flexible Installation Options
Fits tight spaces in boats, cars, or custom builds, with versatile bridging and channel separation for tailored setups.

Technical Specifications
- Type of Product 4-Channel Marine Amplifier
- Peak Power Output 2,400W
- Dyno Certified RMS Power 400W (4 x 90W @ 4 Ohms)
- Bridged RMS Power 2 x 600W @ 4 Ohms
- Class A/B Full Range Micro
- PCB Type Double Sided SMD, FR4 Fiberglass
- Capacitors Elna RA3 (Japan)
- Potentiometer Sealed Type
- Frequency Response 15Hz – 20KHz
- Channel Separation 50 dB
- Input Sensitivity 20mV-6V
- S/N Ratio >90dB
- Damping Factor >200 @ 100Hz
- Fuse Rating 2 x 30A
- Weight 7 lb
- Dimensions 6.7" x 1.98" x 12.28"
