RCS90-6

Product Description Features Specifications Support

RCS90-6

  • RCS90-6
  • RCS90-6
  • RCS90-6
  • RCS90-6
  • RCS90-6
  • RCS90-6
  • RCS90-6
  • RCS90-6
  • RCS90-6
1 9

Rockville

RCS90-6

RCS90-6

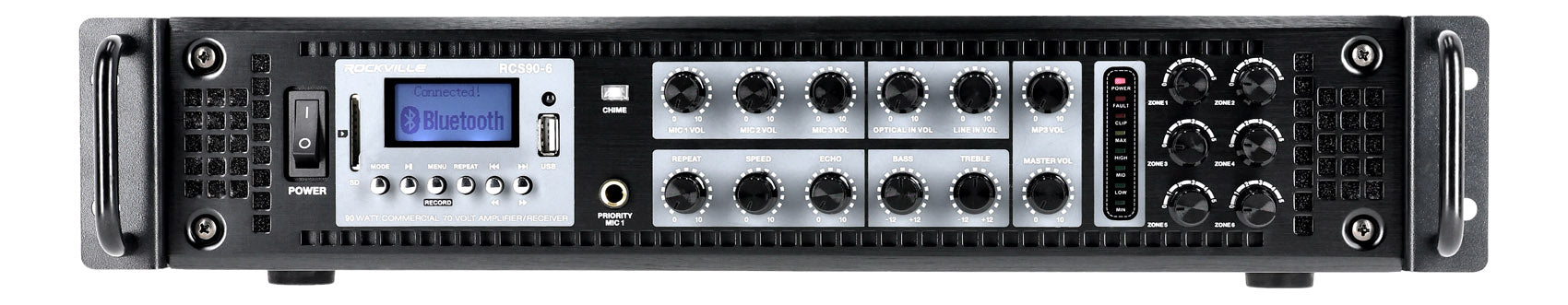

90W 6-Zone 70V/100V Commercial Amplifier/Receiver

Free Shipping

$164.95
$164.95 $0.00
Features
    • 90W RMS amplifier with six-zone independent control
    • Bluetooth, USB, SD, FM, and optical input for playback
    • Three mic inputs with echo and chime for announcements
    • Detachable euro-block terminals for easy installation
    • Sleek aluminum front panel with industrial-grade knobs
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
1-Year Warranty

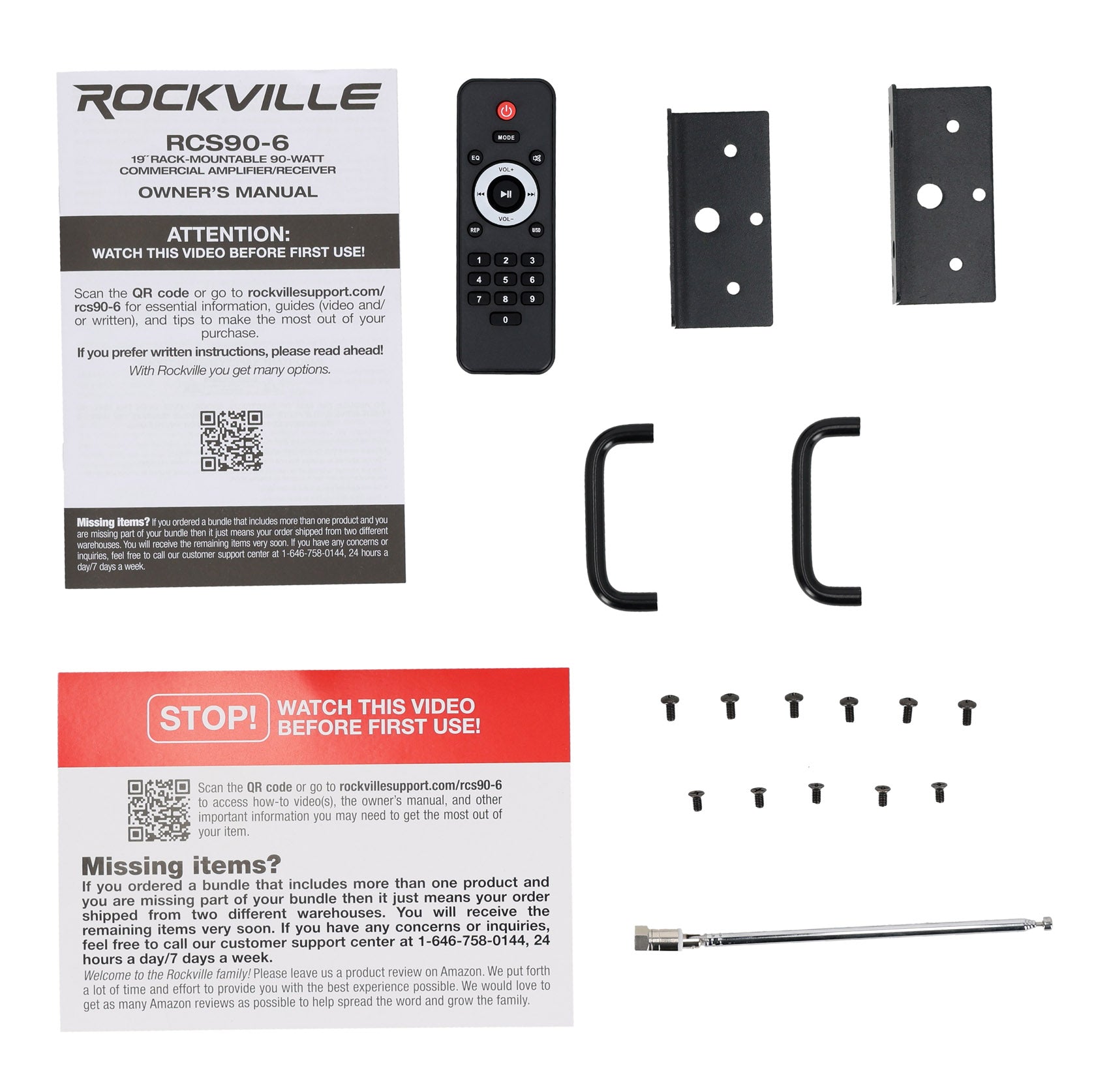

    • Rockville RCS90-6 70V Commercial Amplifier
    • Detachable Euro-Block Speaker Terminals
    • FM Antenna
    • Power Cable
    • User Manual

SKU: RCS90-6

View full details

Product Details

The Rockville RCS90-6 is a commercial 70V amplifier designed for dynamic multi-zone audio environments. Delivering 90W of sound, it features six independent zones, Bluetooth streaming, and media inputs for integration into restaurants, lounges, offices, schools, and retail spaces. Its intuitive controls and robust build make it ideal for both background music and announcements, while the flexible connectivity supports a range of speaker types and installation needs. With advanced features like a built-in limiter, signal level indicator, and efficient cooling, the RCS90-6 brings reliable, high-quality audio to any commercial or residential setting.
Rockville
Rockville

Powerful Multi-Zone Amplification

The Rockville RCS90-6 is a commercial 70V amplifier engineered for superior sound and flexible control. With 90W RMS and six independent zones, it adapts to any environment, from restaurants to offices.
Rockville

Seamless Connectivity and Streaming

Enjoy Bluetooth streaming up to 40 feet, plus USB, SD, and FM radio options. Three microphone inputs with echo and chime functions make announcements clear and engaging.
Rockville

Tailored Audio for Every Space

Six separate zones with individual volume controls let you create unique soundscapes in each area. The amplifier’s compatibility with 70V, 100V, 8-ohm, and 4-ohm systems supports a wide range of speaker setups.
Rockville

Distinctive Design and Advanced Protection

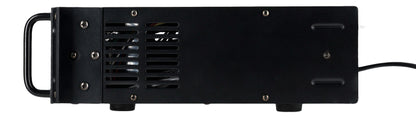

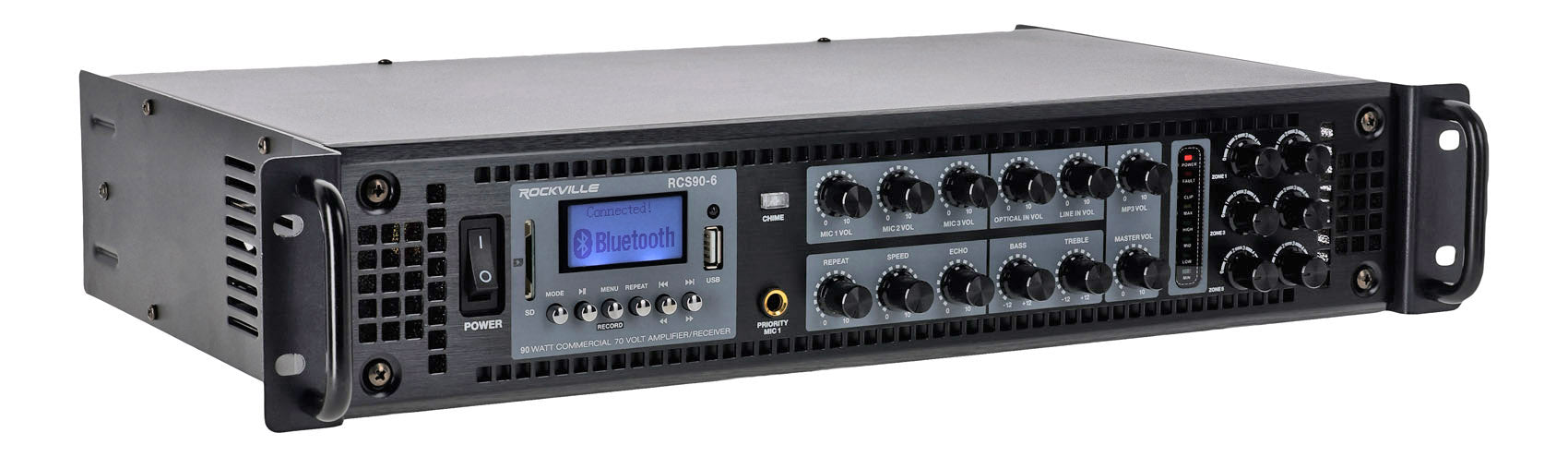

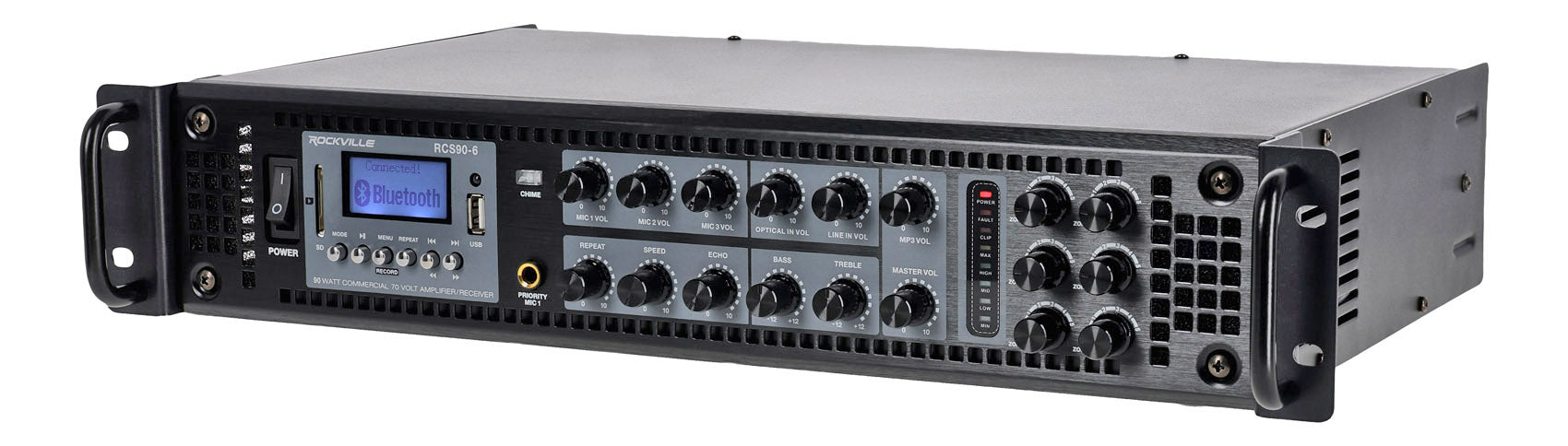

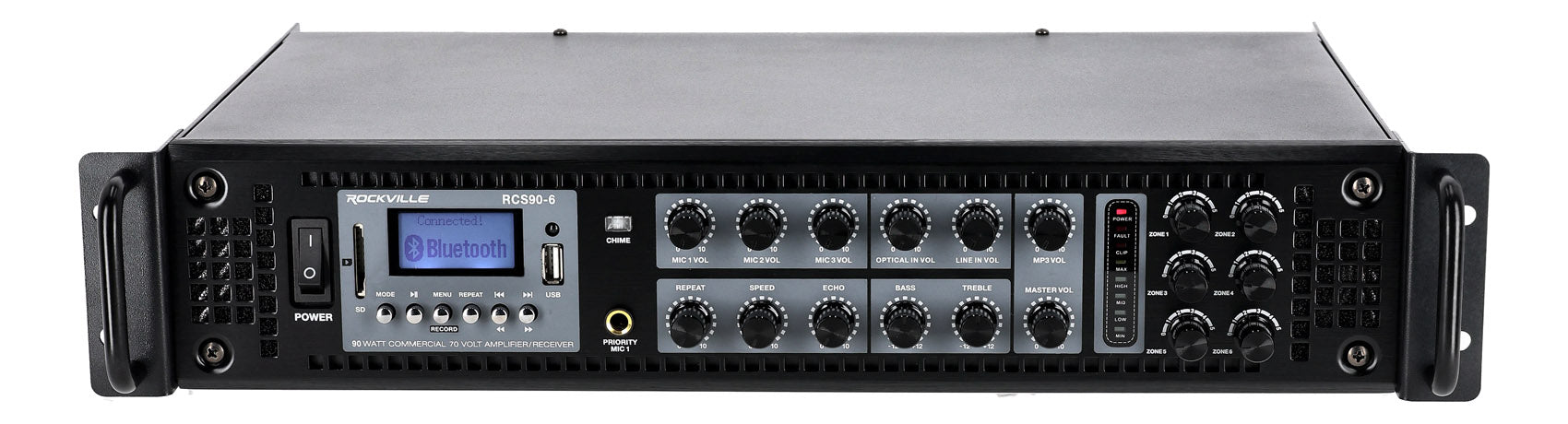

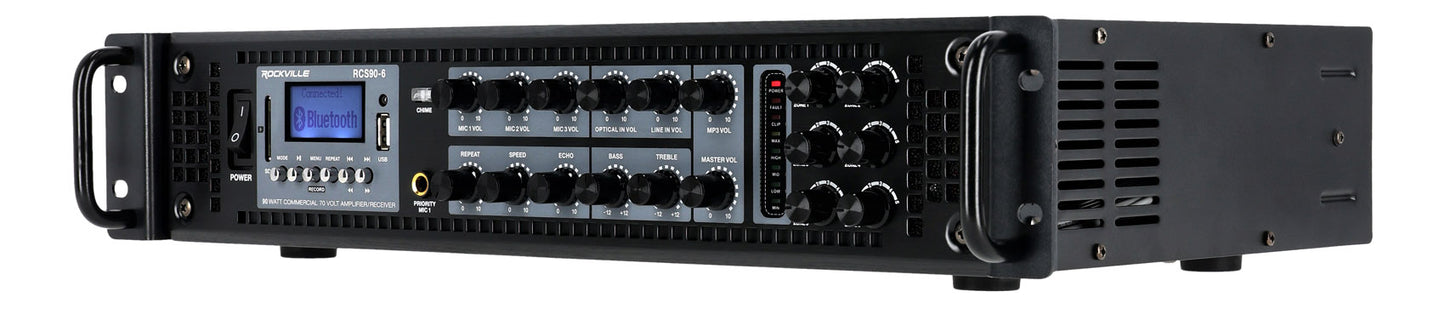

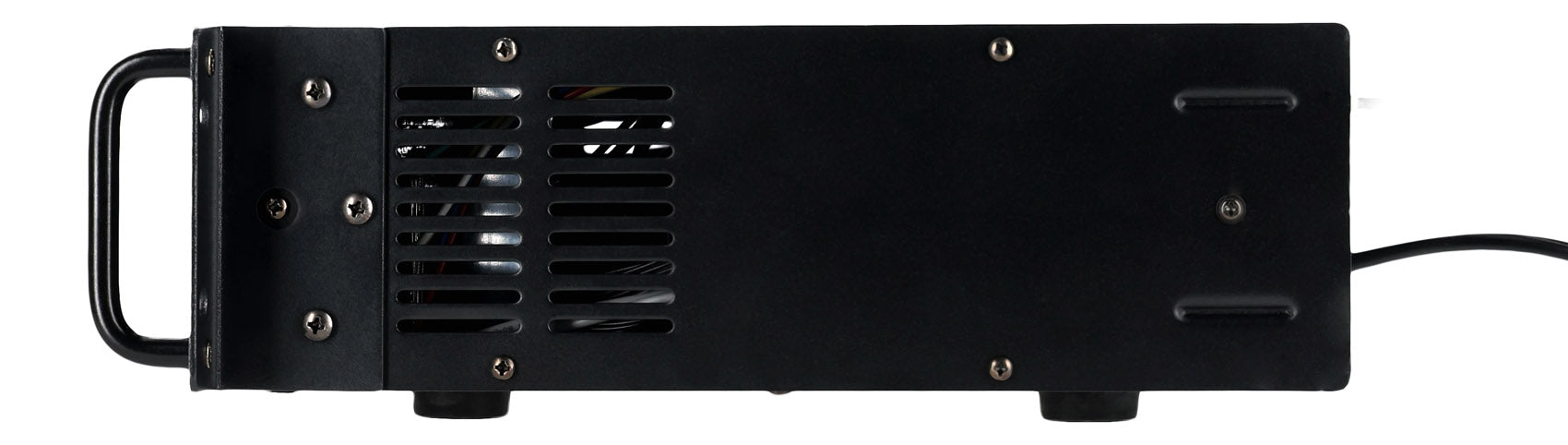

A sleek aluminum front panel and industrial-grade knobs combine style with durability. Built-in clipping limiter, signal level indicator, and efficient cooling system protect your investment and maintain performance.
Rockville

Your Sound, Your Way

The RCS90-6 is the perfect choice for those seeking reliable, high-quality audio with intuitive controls and versatile features. Bring premium sound to your commercial or residential space—experience the difference today.

Features

    • Six-Zone Audio Control

      Distribute music or announcements to six separate areas, each with its own volume control for a tailored listening experience.

    • Flexible Connectivity

      Bluetooth, USB, SD, FM, and multiple mic inputs offer a range of streaming and playback options for any occasion.

    • Powerful Output

      Delivers 90W RMS with compatibility for 70V, 100V, 8-ohm, and 4-ohm systems, supporting diverse speaker setups.

    • User-Centric Design

      Detachable euro-block terminals and industrial-grade knobs make installation and operation straightforward and stylish.

    • Advanced Protection

      Built-in clipping limiter, signal level indicator, and efficient cooling system safeguard performance and longevity.

RCS90-6

Technical Specifications

  • Type of Product Commercial 70V Amplifier
  • Power Output 90W RMS (70/100V)
  • Zones 6 Independent Audio Zones
  • Bluetooth Range Up to 40 ft
  • Inputs 2 RCA AUX, 3 Mic, Optical, USB, SD, FM

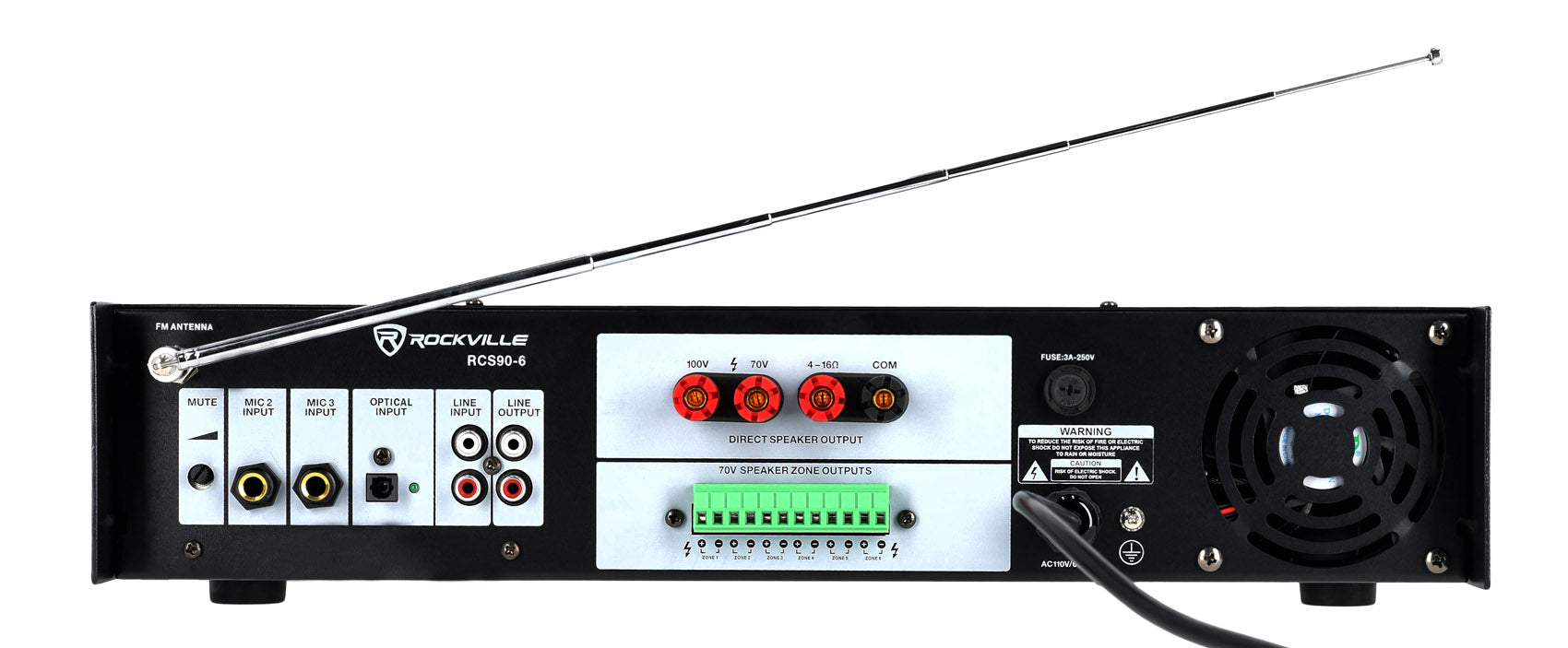

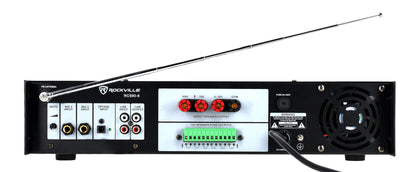

  • Outputs RCA Line Out, 70V/100V/8-ohm Speaker Outputs
  • Frequency Response 38Hz – 22.96kHz

Support

The RCS90-6 works with 70V, 100V, 8-ohm, and 4-ohm speaker systems. It suits distributed background music and paging installations in restaurants, offices, schools, and retail spaces. Use the amplifier connections intended for your speaker system.

Yes. The RCS90-6 has six speaker zones with independent volume controls, so you can set different listening levels in different areas. Zone controls adjust volume; they do not provide six separate music sources.

Speaker count depends on the selected wattage tap on each speaker, not just the number of connections. Add the tap settings across all connected speakers and keep the combined load below the amplifier’s total rated output, leaving some power headroom.

Yes. The RCS90-6 supports Bluetooth streaming from a compatible phone or tablet at distances up to 40 ft. This lets staff play music from a nearby device without connecting an audio cable to the amplifier.

Yes. USB and SD card playback let you use stored audio, and the built-in FM tuner provides radio playback. The RCS90-6 also has an optical input and two RCA AUX inputs for wired audio sources.

Yes. Three microphone inputs have separate volume controls, letting you adjust microphone levels for announcements. A chime button helps get listeners’ attention before speaking, making the amplifier useful for paging alongside background music in commercial spaces.

The product page lists the RCS90-6 commercial amplifier, detachable Euro-Block speaker terminals, an FM antenna, a power cable, and a user manual. Speakers, microphones, and speaker wire are not listed as included, so plan those separately for your installation.
