Condenser Microphone, Cardioid, 16mm Diaphragm
Features
- High power handling provides strong bass performance.
- Wide 30Hz - 20 KHz range captures deep lows and crisp mids.
- Compact 51mm size fits easily in installations.
- Durable construction stands up to harsh environments.
- Designed for premium audio experiences in your environment.
Couldn't load pickup availability
SKU: SKU: RCM02 U
View full details![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226189.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226190.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226191.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226195.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226193.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226192.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226197.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226196.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226198.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226199.jpg?v=1764187709&width=1445)
![RCM02 [Used]](http://rockvilleaudio.com/cdn/shop/files/1226200.jpg?v=1764187709&width=1445)
Product Description
Features
-

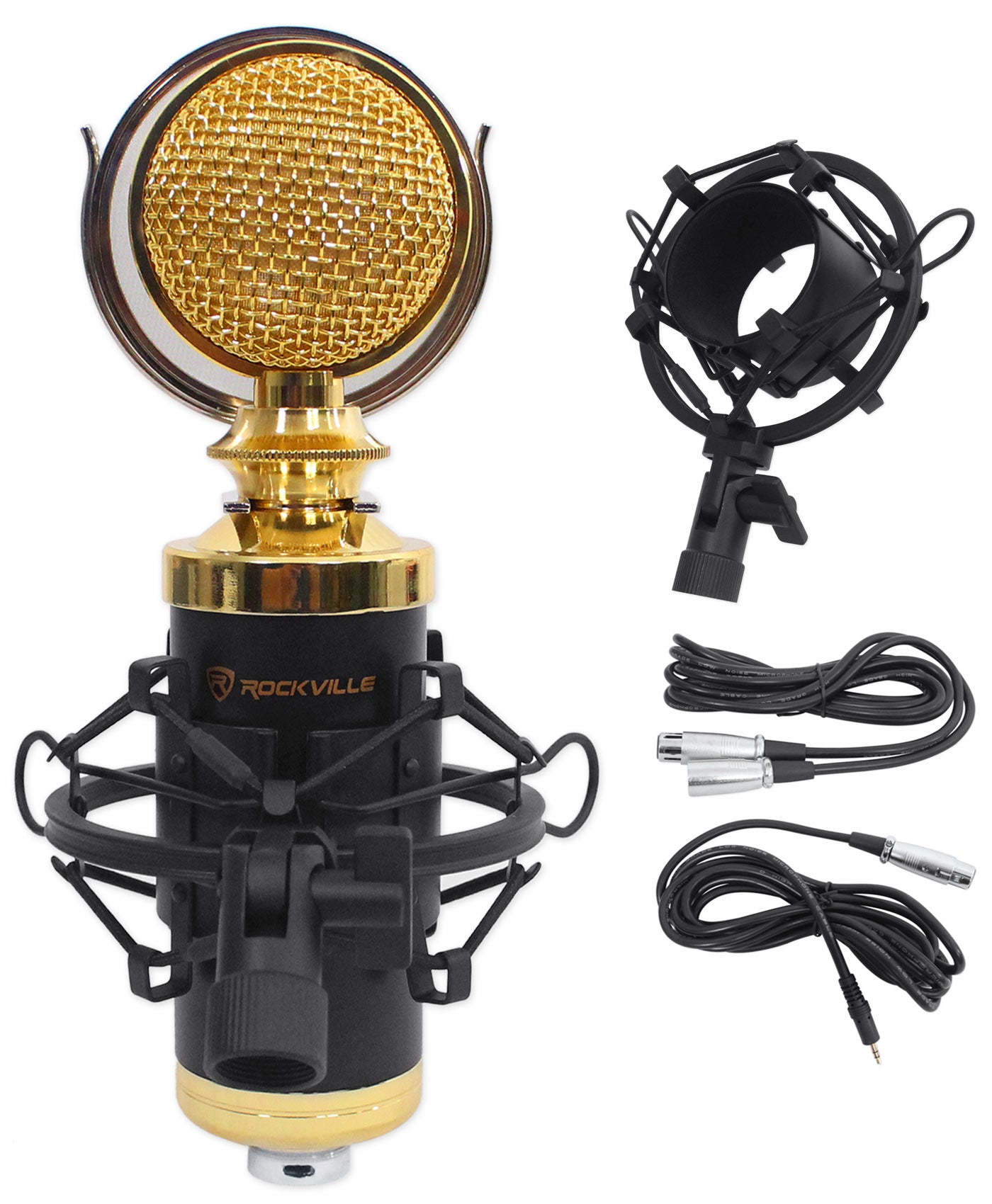

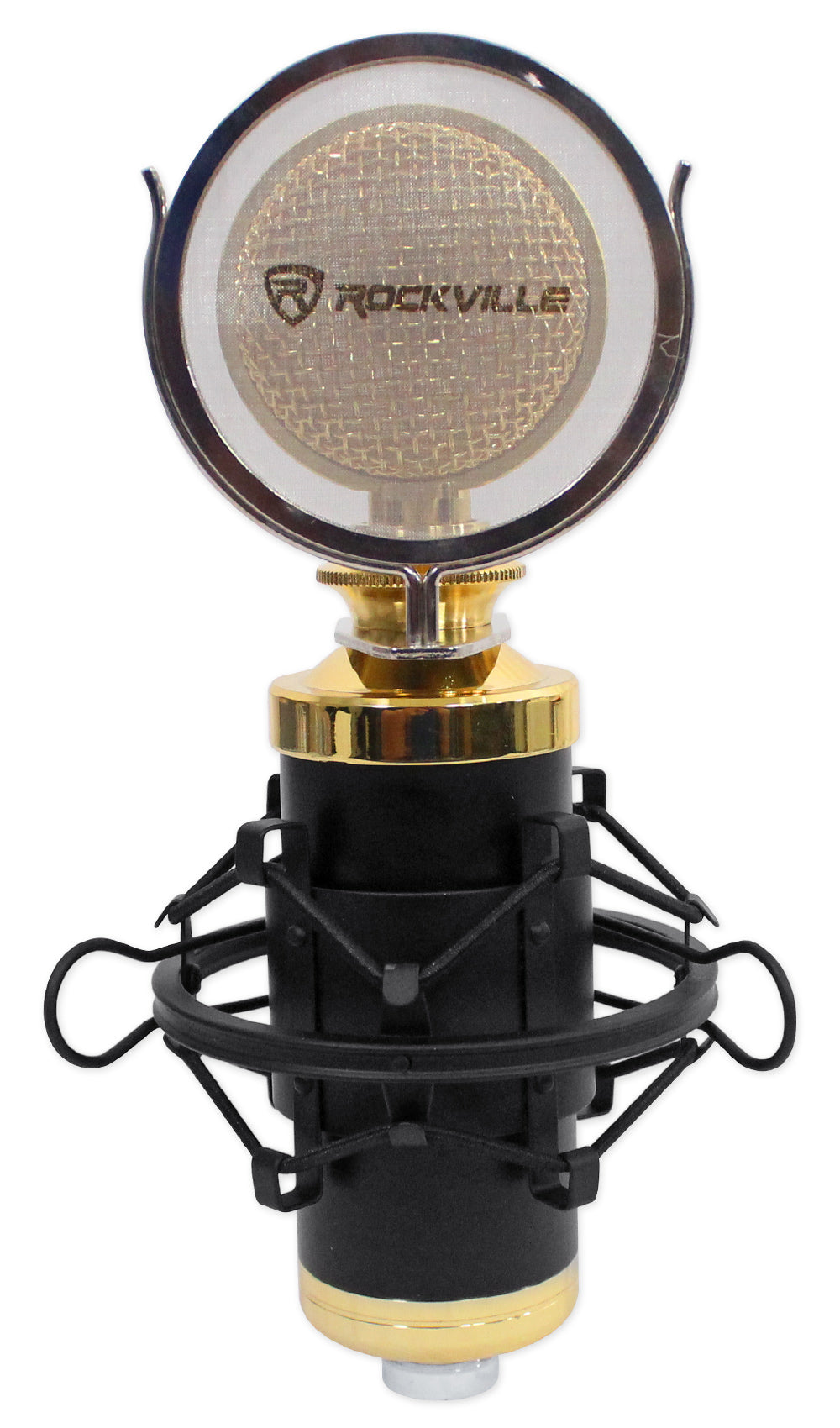

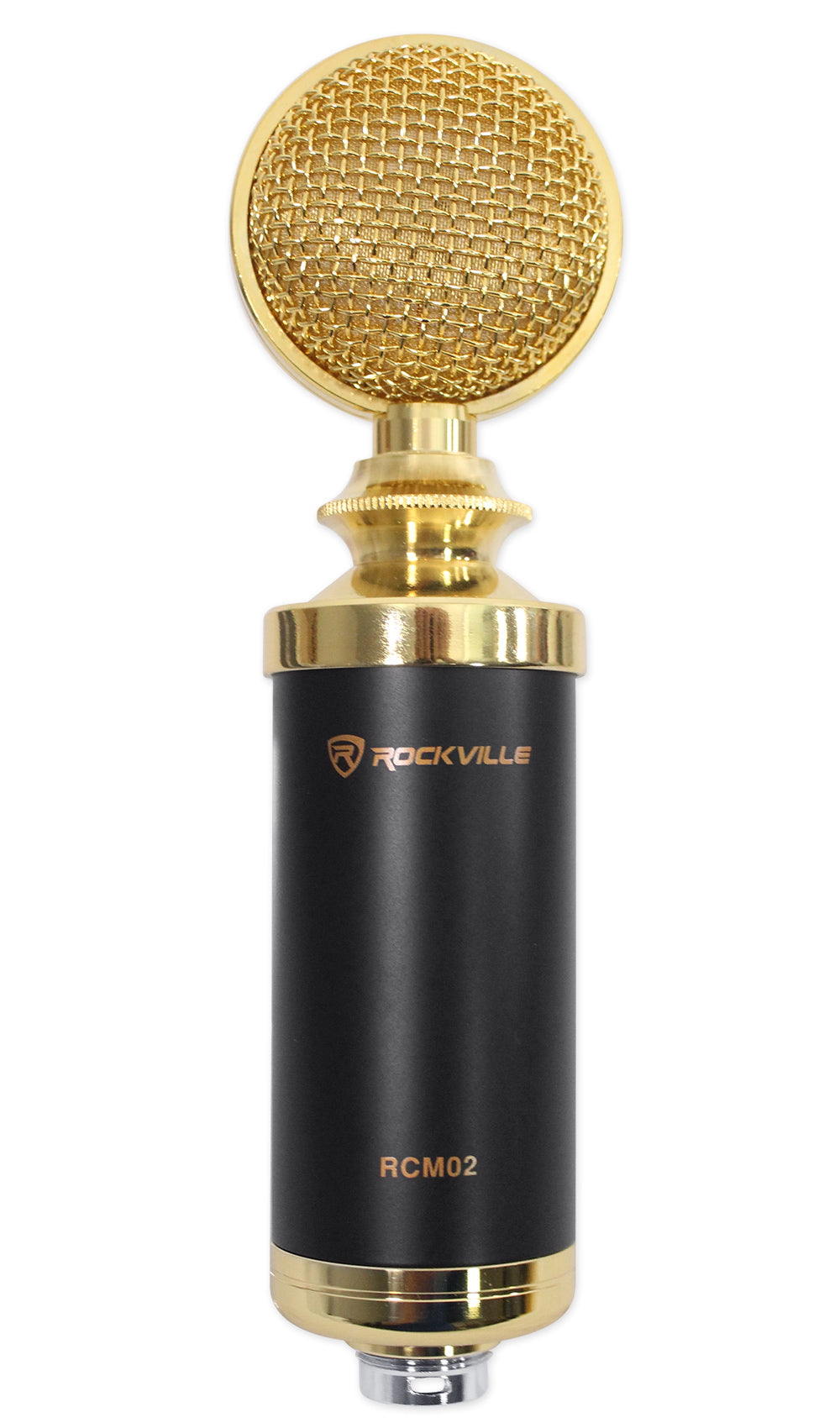

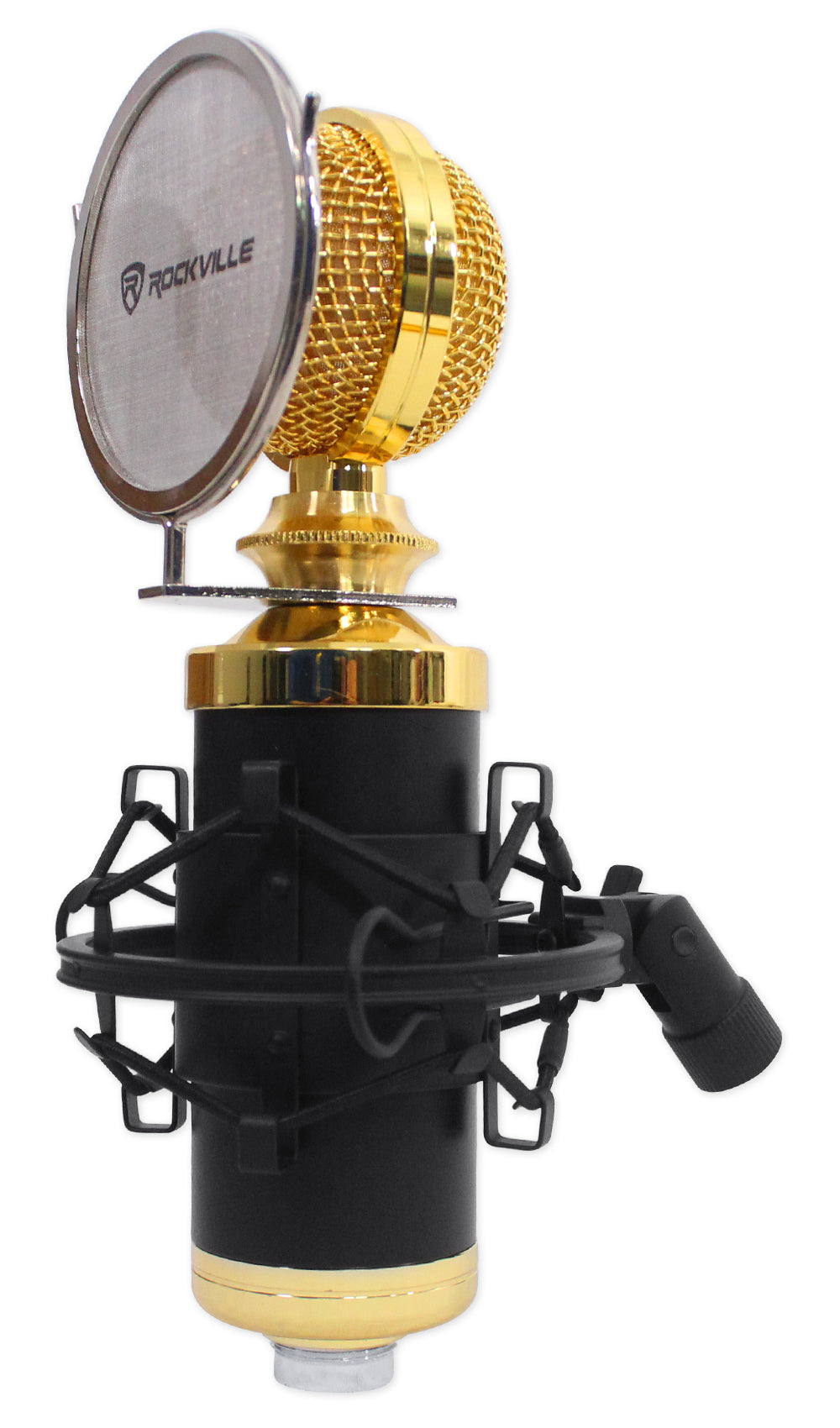

Rcm Condenser Microphone
RCM02 Condenser Microphone ensuring reliable performance in any setup delivering dependable results in real-world applications.
-
% Copper Foot Jack

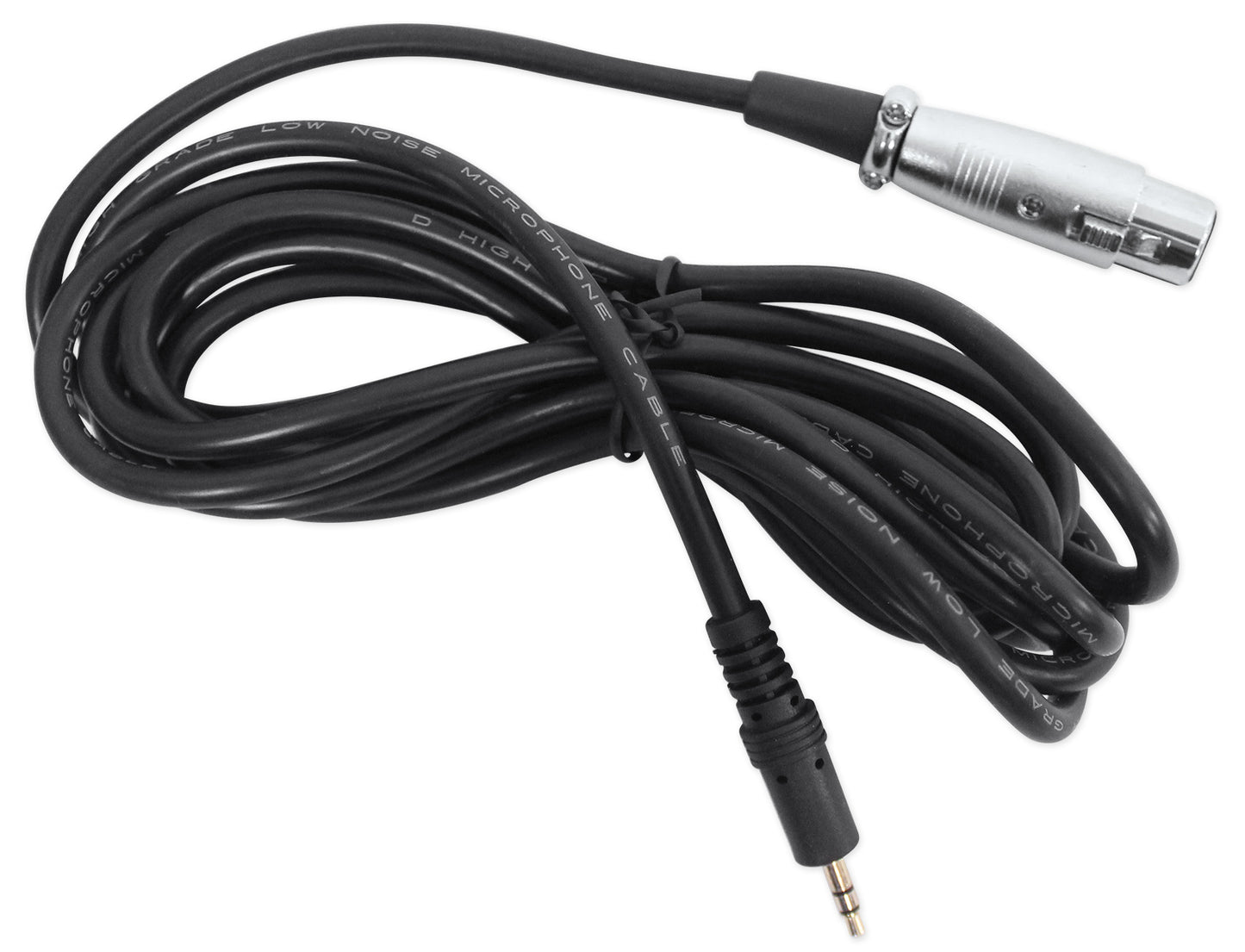

100% Copper 10 foot 3.5mm jack to XLR cable to connect mic to your computer or other device designed for convenience and durability.
-

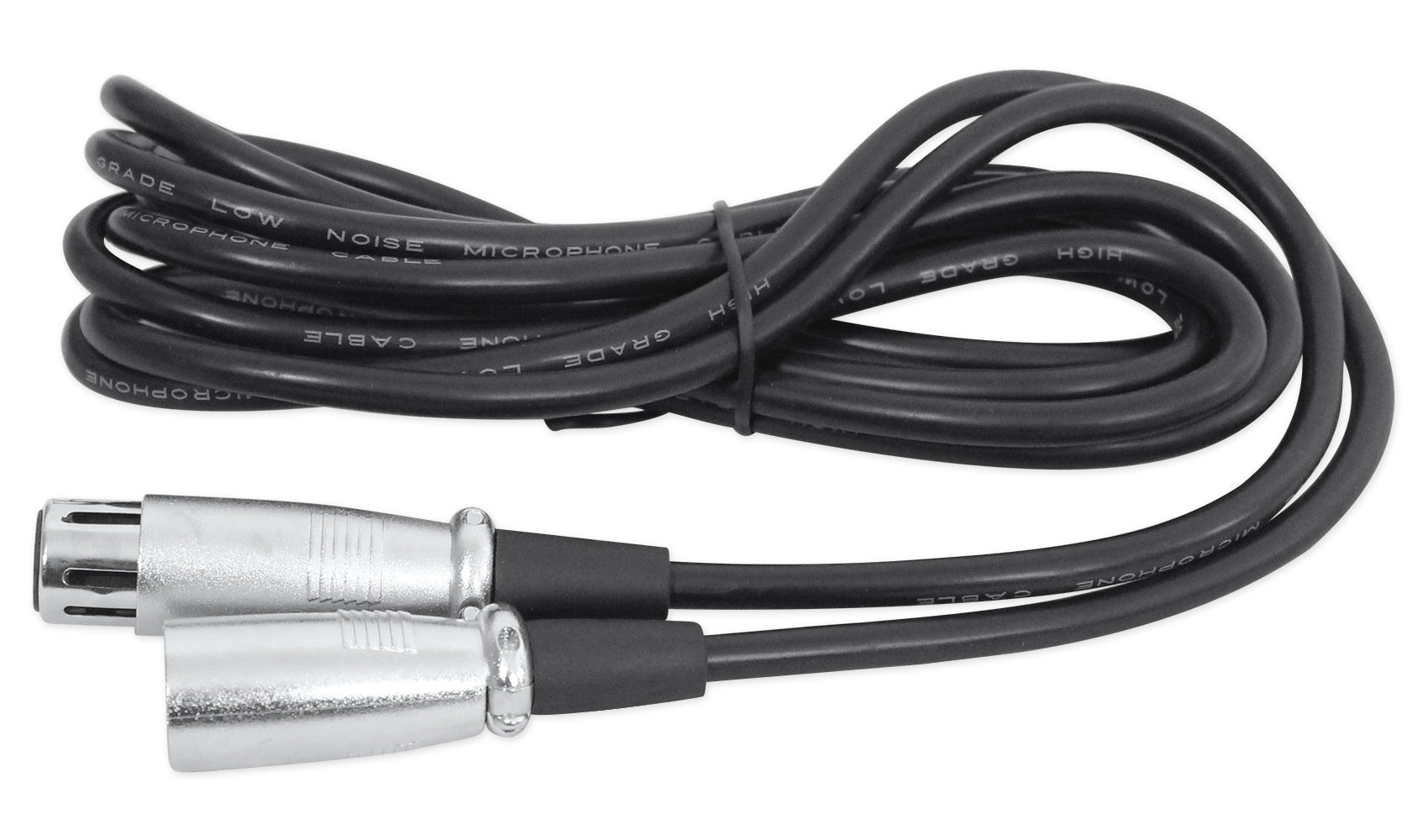

Foot % Copper Xlr
10 foot 100% Copper XLR to XLR cable to connect to any mixer with phantom power offering long-lasting reliability and ease of use.
-

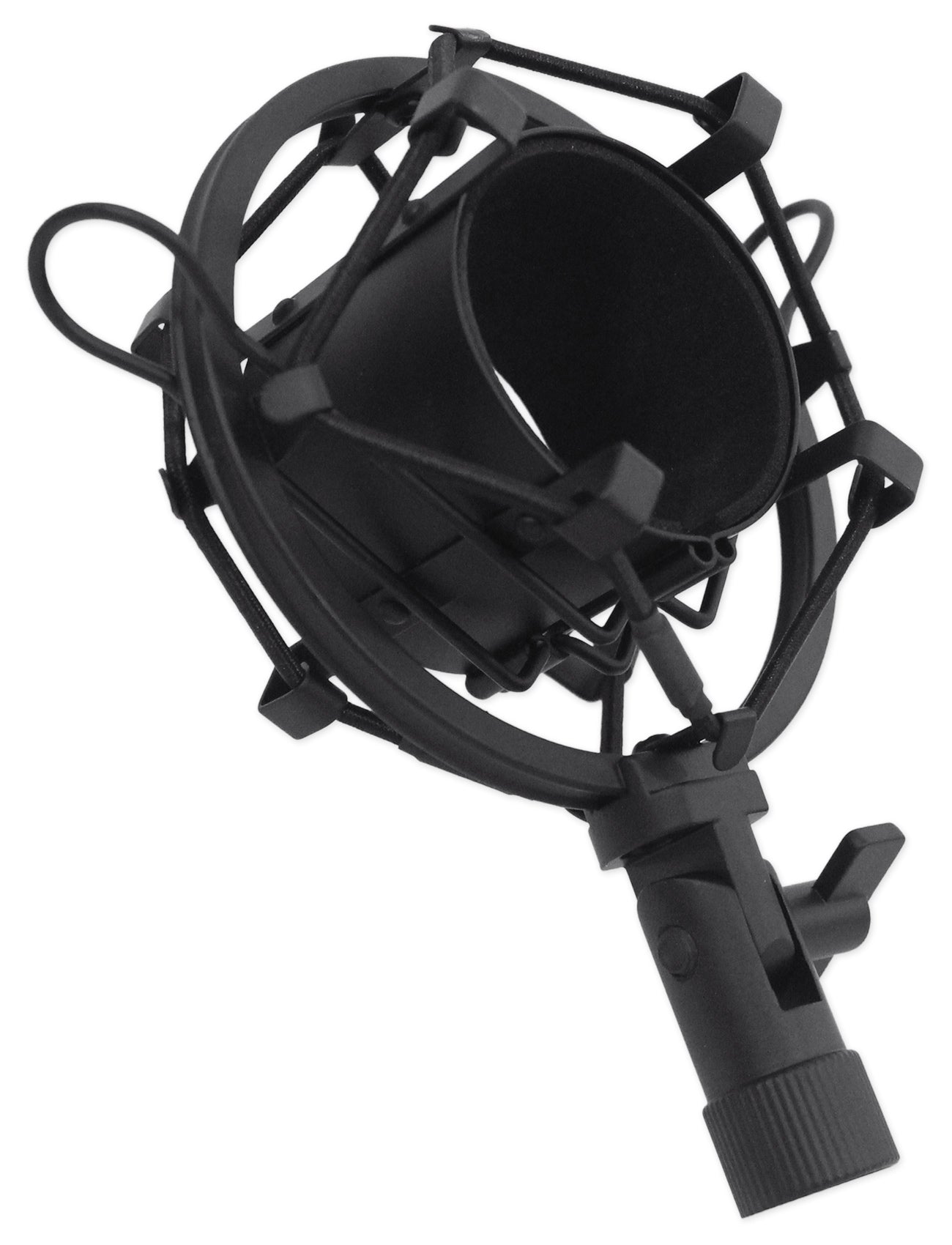

Metal Shock Mount
Metal Shock Mount for professional-grade performance and ease delivering dependable results in real-world applications.
-
Metal Antiwind Foam Cap
Metal Anti-wind Foam Cap to deliver dependable service every time delivering dependable results in real-world applications.
Technical Specifications
- Type of Product Microphone
- All Aluminum Chassis Design The RCM02 strikes the perfect balance between weight and performance
- Polar Pattern Unidirectional Cardioid
- Power Requirements 48V DC Phantom Power
- Sensitivity -29dB±2dB (0dB=1V/Pa at1kHZ)
- Output Impedance 200O±30% (at 1kHz)
- Standard Operating Voltage 3V
- Operating Voltage Range 1.5V-10V
- Current Consumption <= 500uA
- Voltage Deduction Characteristic Within 3dB at 2V
- S/n Ratio 74 dB
- Frequency Response 30Hz - 20 KHz
- Fixed Crossover Filter Cutoff Frequency 40Hz---16 KHz
- Load Impedance >= 1000 Ohms
- Equivalent Noise Level <= 18dBA (IEC 581-5)
- Max. Input SPL 126dB (THD=1.0% at 1kHZ)
- Electrical Current >= 4.8mA
- Microphone Max. Diameter 51mm (2" inches)
- Microphone Length 215mm (8.46" inches)
- Microphone Material Steel Basket + Aluminum Body
- PCB Layout Surface Mount
- Weight 380 Grams (0.84 Pounds)
- Dimensions 51mm (2" inches) (Microphone Max. diameter) ; 215mm (8.46" inches) (Microphone Length)
