MRDF-4

MRDF-4

4-Channel Marine Amplifier, 700W RMS, Includes Terminal Covers and Mounting Hardware

Free Shipping

$129.95
$129.95 $0.00
Features
    • 700W RMS total at 2 ohms across four marine-audio channels
    • 76% efficiency at 2 ohms and 85% at 4 ohms
    • 50Hz to 250Hz adjustable high-pass and low-pass filters
    • Terminal covers, sealed connections, and a conformal-coated circuit board
    • Includes mounting hardware and spare fuses
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
1-Year Warranty

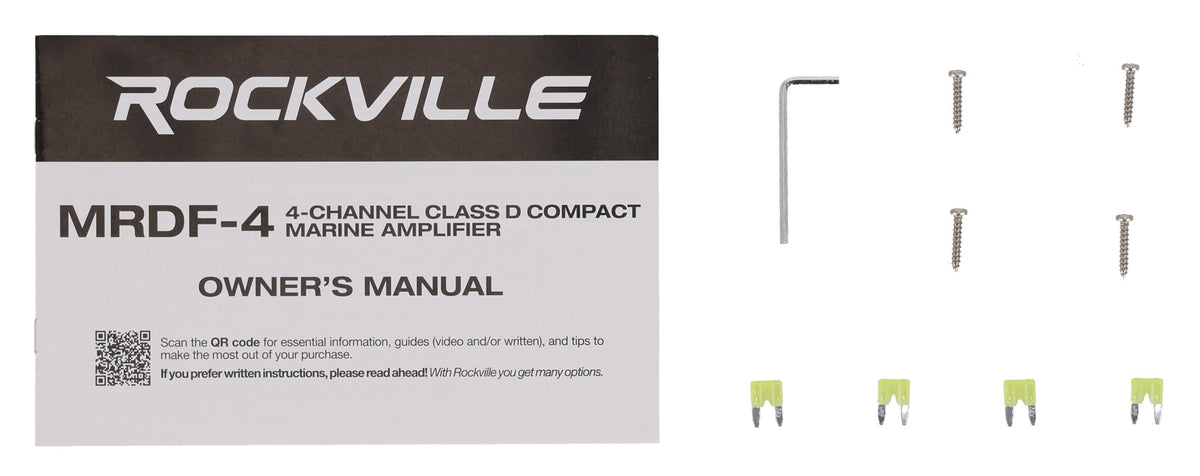

    • MRDF-4 4-Channel Marine Amplifier
    • White Silicone Terminal Covers
    • Mounting Hardware
    • Spare Fuses

SKU: MRDF-4

View full details

Product Details

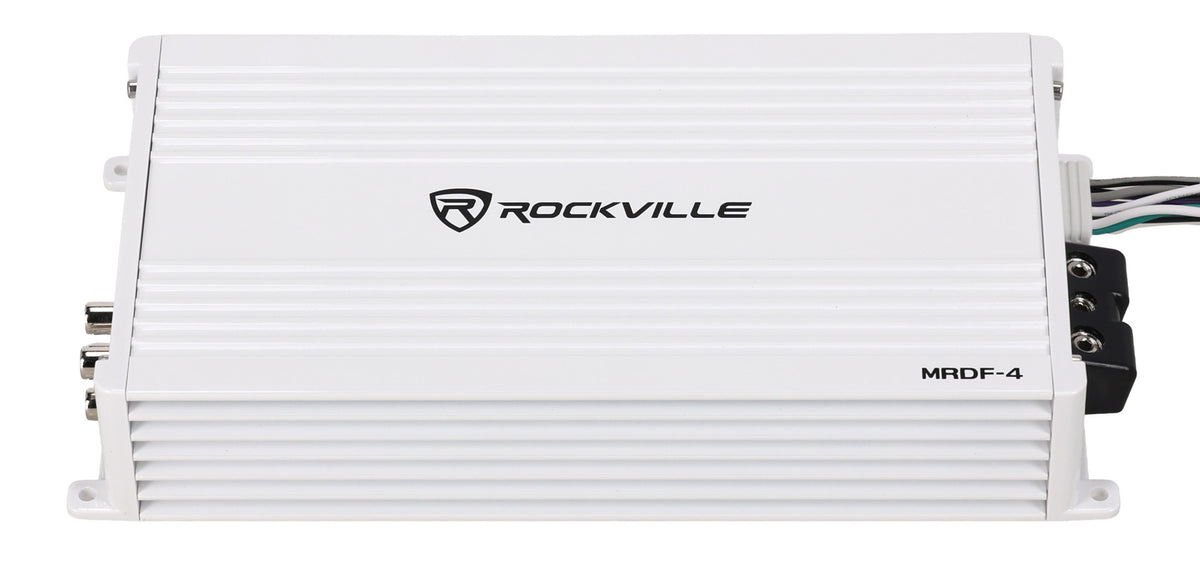

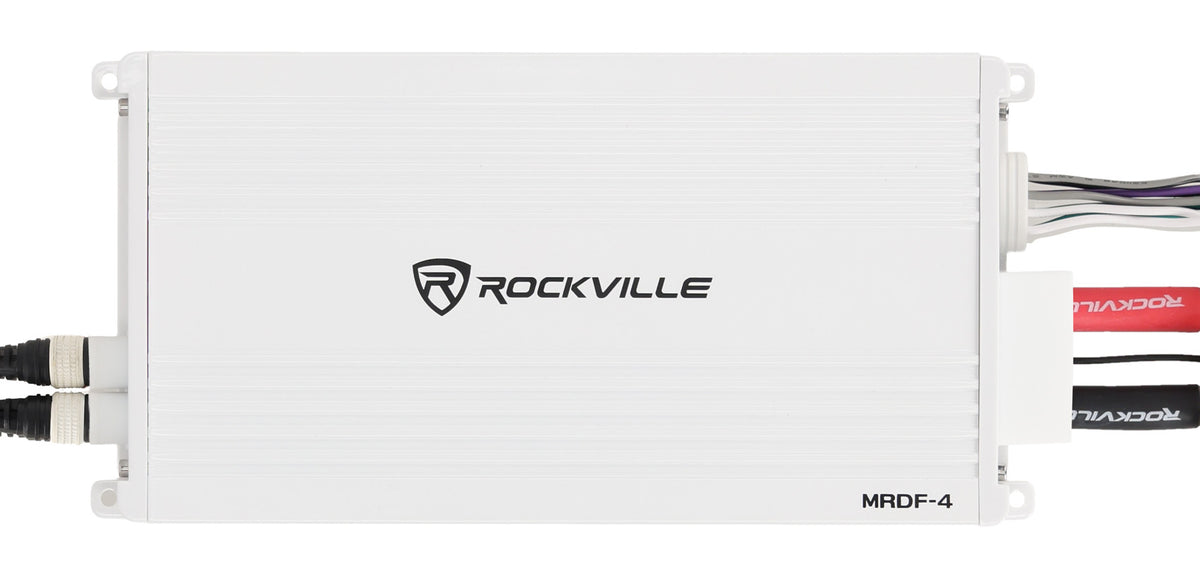

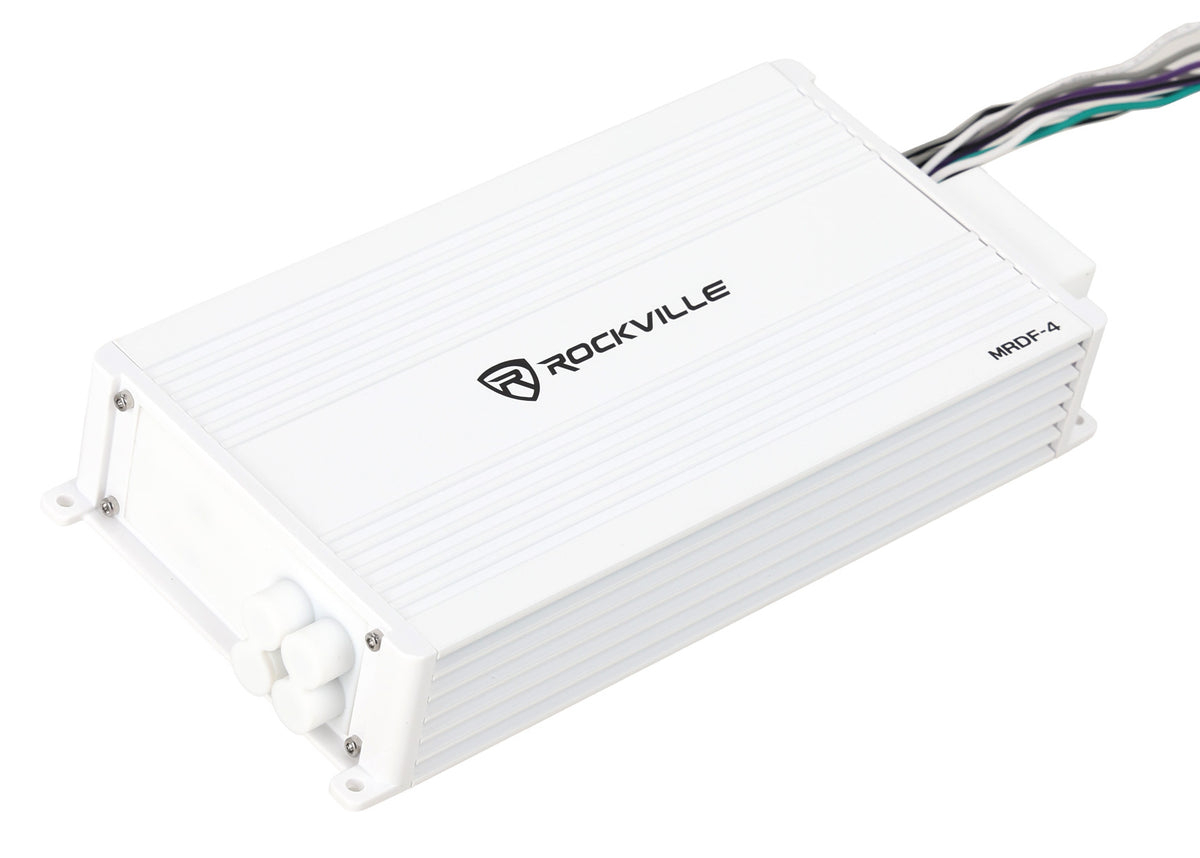

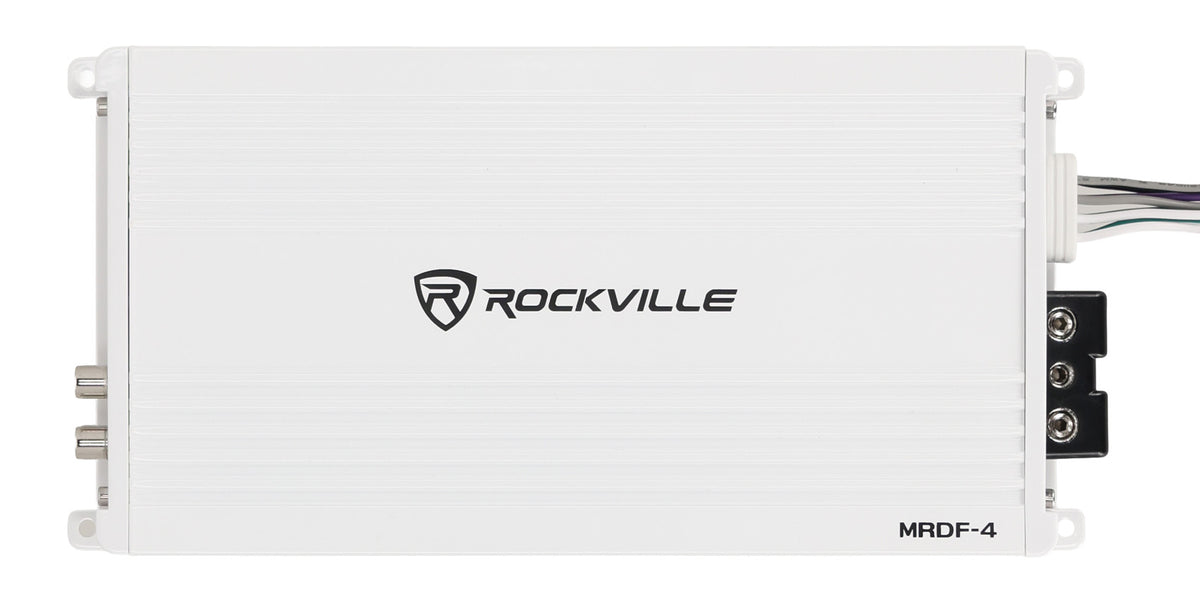

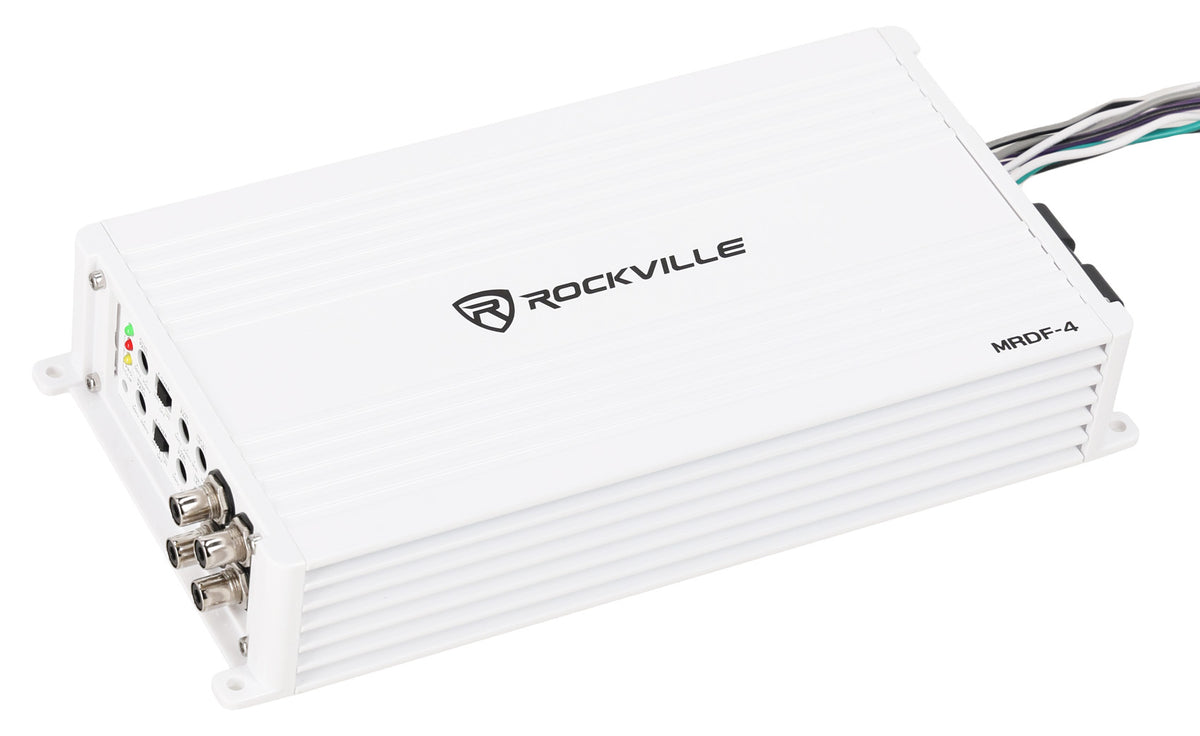

The MRDF-4 is a four-channel marine amplifier delivering 700W RMS total at a 2-ohm load for boat audio systems that need clear, full-range sound. Its Class D topology and compact format suit installations where cabin or console space is limited. At 2 ohms, it supplies 175W RMS per channel; at 4 ohms, it supplies 115W RMS per channel, or 350W RMS x 2 when bridged at 4 ohms. Adjustable high-pass and low-pass filters from 50Hz to 250Hz help tune full-range speakers, component speakers, or bridged subwoofers. White silicone terminal covers, sealed connections, a conformal-coated circuit board, stainless steel hardware, and a UV- and salt-resistant chassis are built for marine conditions. Power, status-mode, and clipping indicators provide at-a-glance operating feedback. The package includes the amplifier, terminal covers, mounting hardware, and spare fuses.

Features

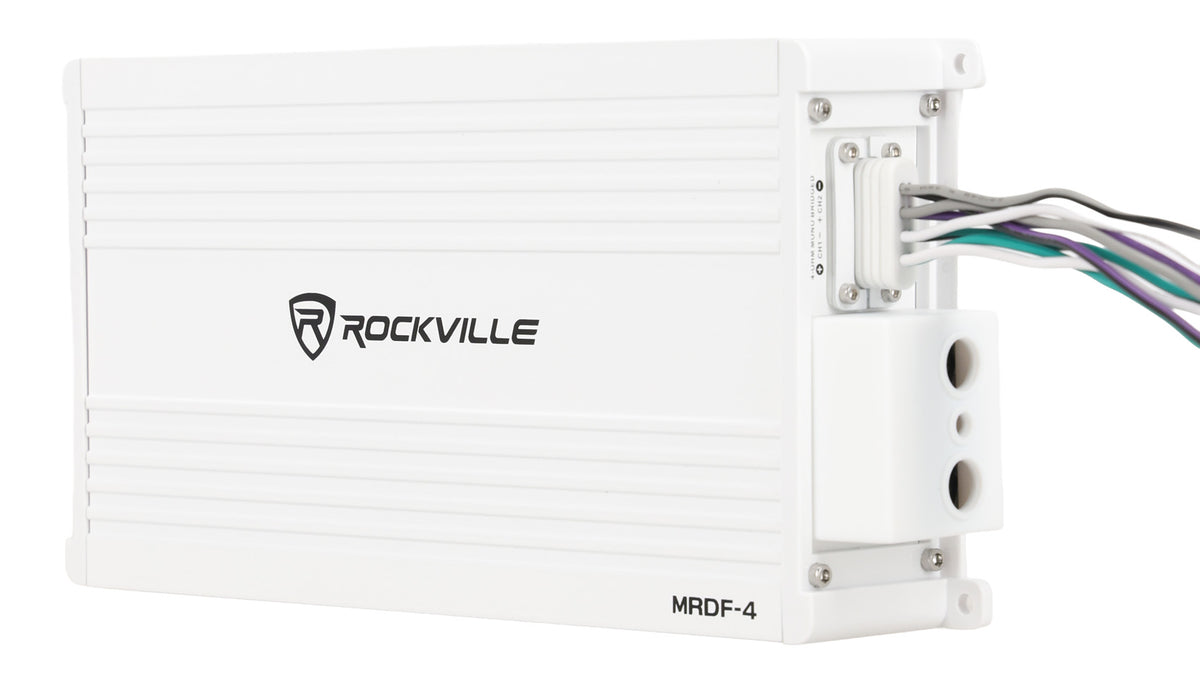

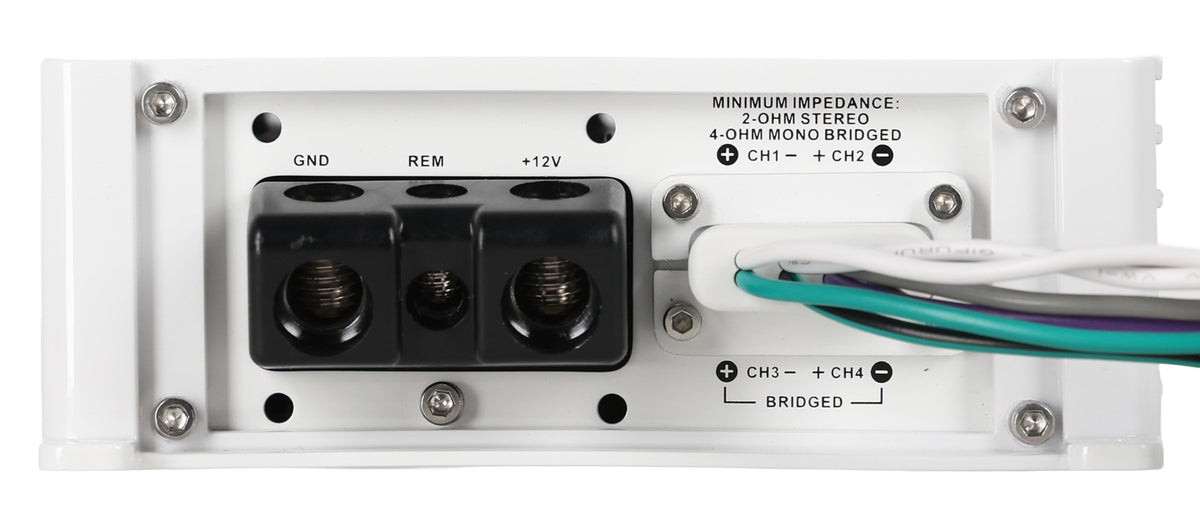

    • Marine-Sealed Connections

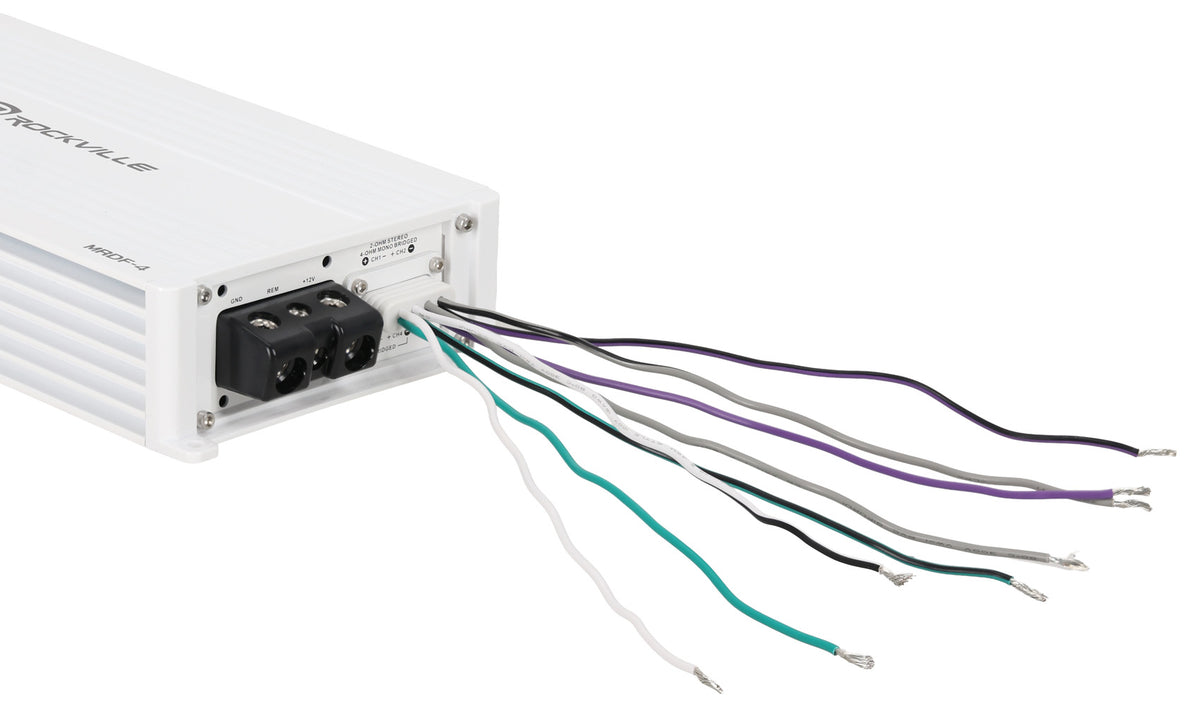

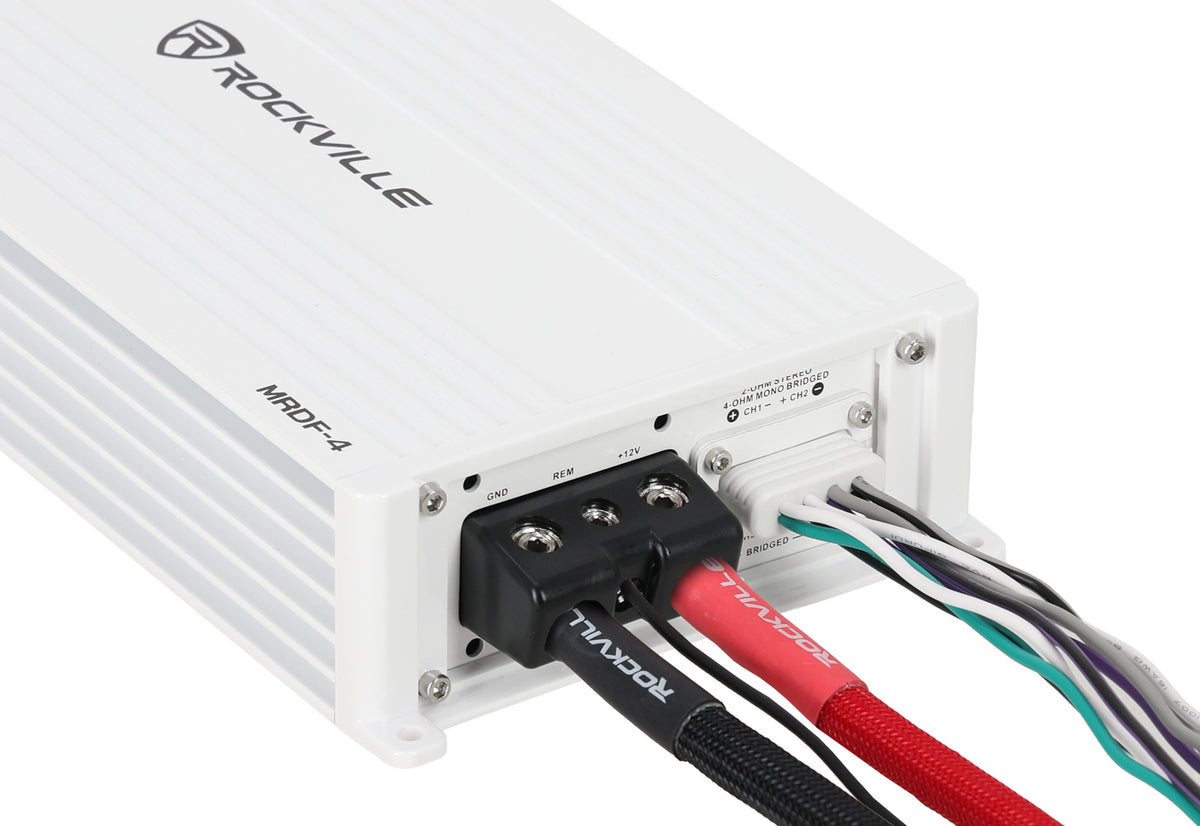

      White silicone covers seal around power, ground, remote, and RCA connections, helping shield these points from splashes and salt corrosion aboard the boat.

    • Protection for Humid Conditions

      A conformal-coated circuit board and UV- and salt-resistant chassis shield internal electronics from moisture, salt air, and humidity during marine use.

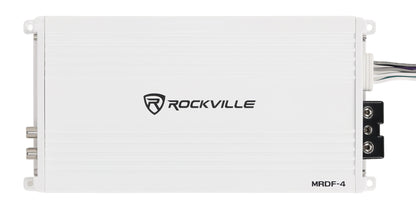

    • Full-Range Output in a Small Footprint

      Micro-size Class D circuitry with SMD components and a high-speed MOSFET supply delivers 700W RMS total at 2 ohms in a compact chassis.

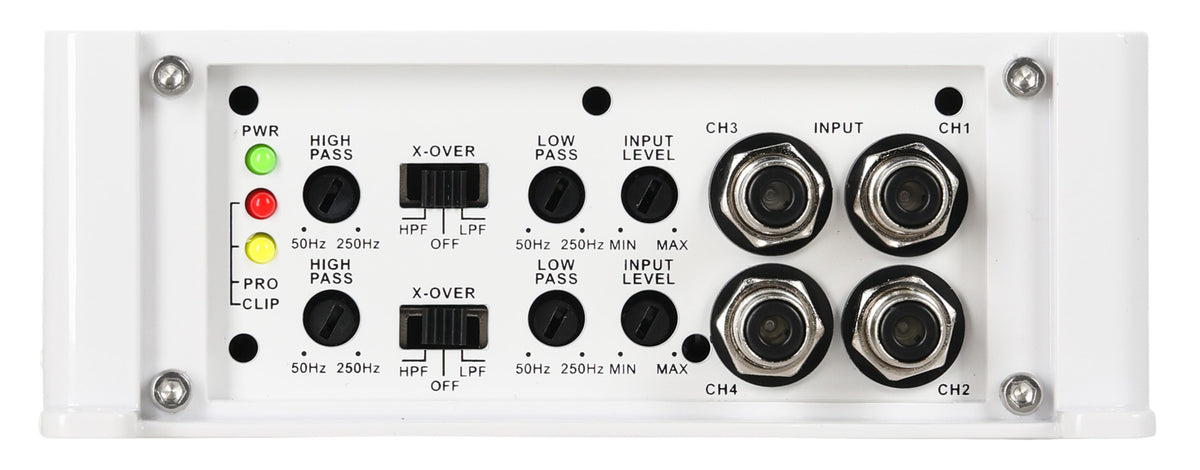

    • Tune for Your Speaker Setup

      Adjustable high-pass and low-pass filters cover 50Hz to 250Hz for shaping full-range speakers, component speakers, or bridged subwoofers in a boat audio system.

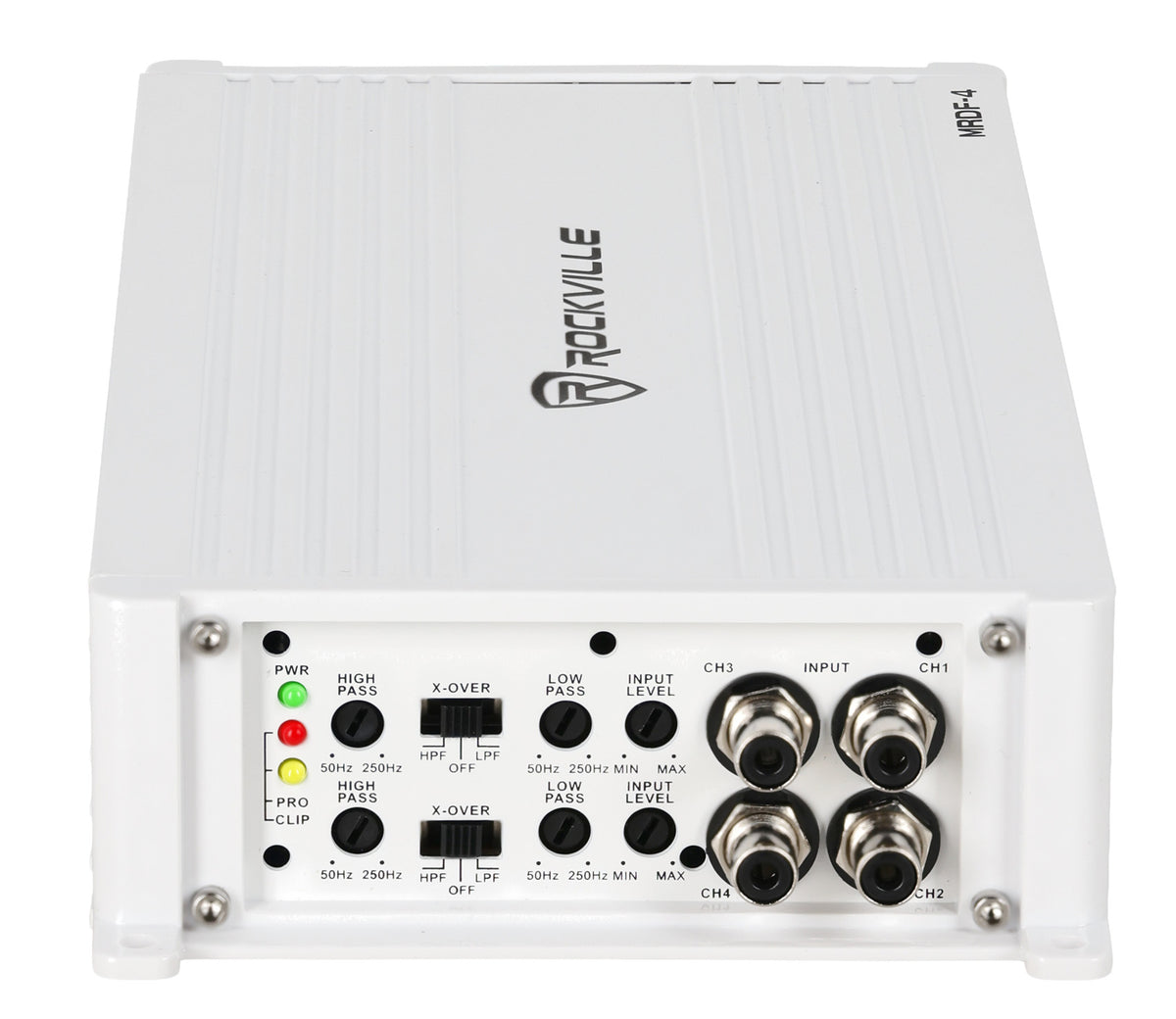

    • Check Operating Status at a Glance

      Power, status-mode, and clipping LEDs report amplifier conditions, while thermal, short-circuit, and over-voltage protection guard against common operating faults during operation.

Technical Specifications

  • Product Type 4-Channel Marine Amplifier
  • System RMS Power (2 Ohm) 700W RMS (at 2 Ohms)
  • 2 Ohm Stereo RMS Power 175W RMS x 4 at 1 kHz, 2Ω, 1% THD+N, 14.4 VDC (76% efficient)
  • 4 Ohm Stereo RMS Power 115W RMS x 4 at 1 kHz, 4Ω, 1% THD+N, 14.4 VDC (85% efficient)
  • 4 Ohm Bridged RMS Power 350W RMS x 2 at 1 kHz, 4Ω, 1% THD+N, 14.4 VDC (76% efficient)
  • Peak Power (2 Ohm) 700W x 4 Channels
  • Peak Power (4 Ohm) 460W x 4 Channels
