MRD600.1
Rockville
MRD600.1
MRD600.1

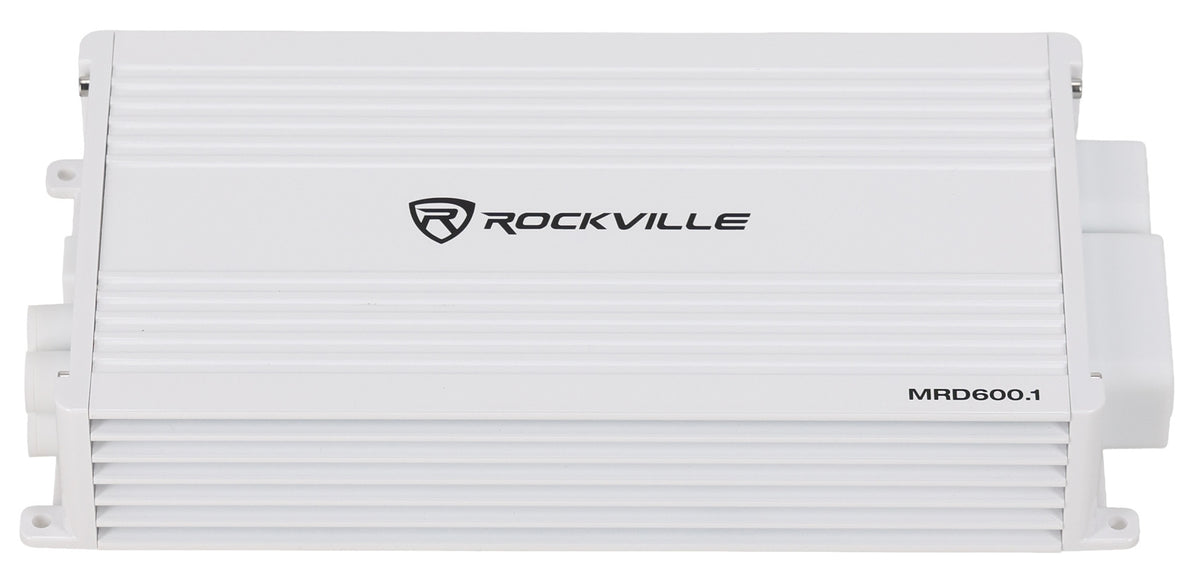

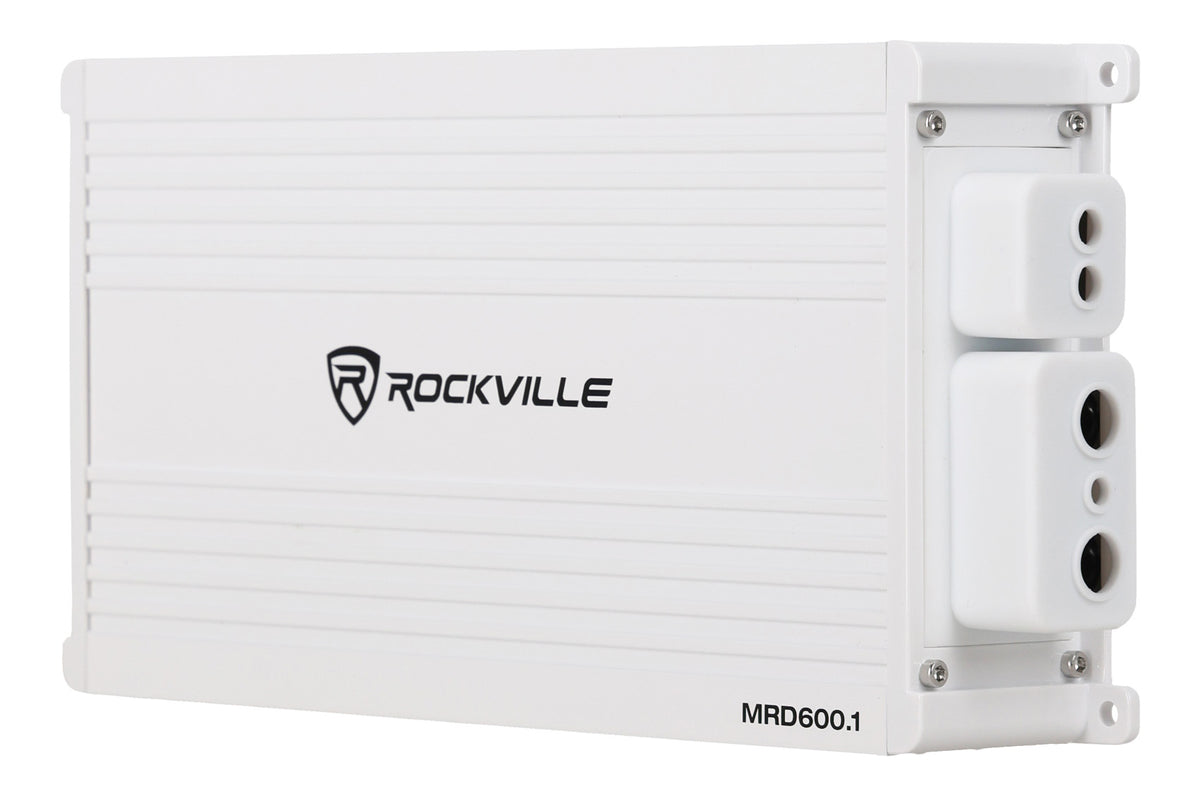

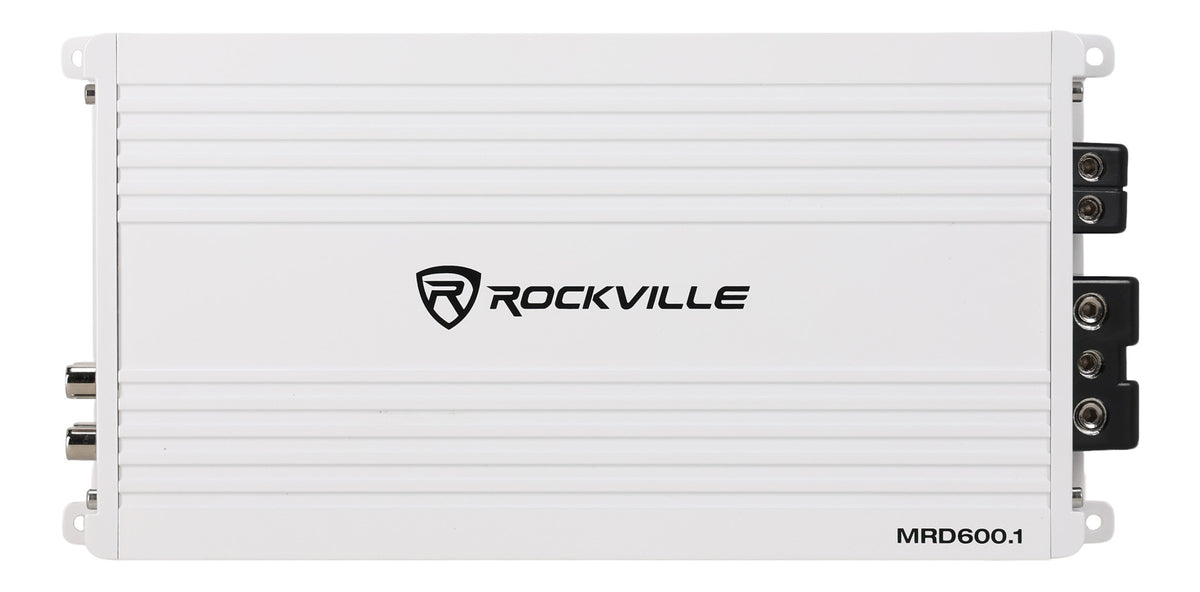

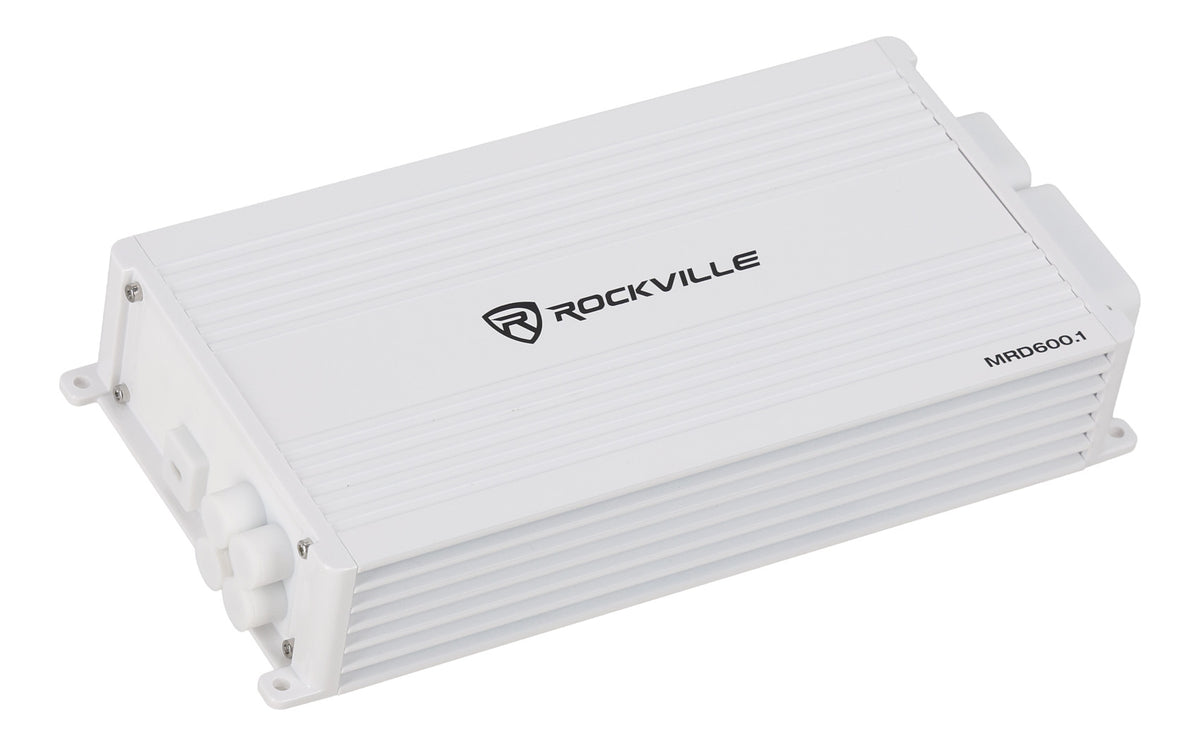

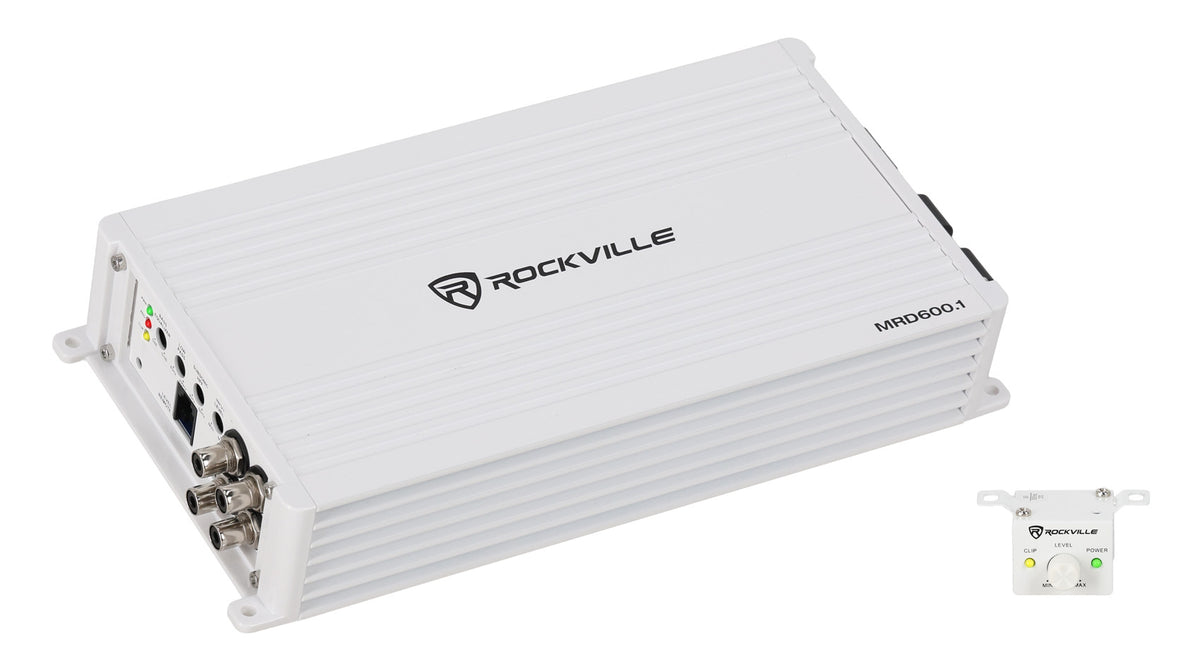

Marine Class D Mono Amplifier, 600W RMS at 1Ω, 1-Ohm Stable, Includes Metal Bass Remote
Free Shipping
Features
- 600W RMS at 1Ω supports a single-channel marine subwoofer system
- 400W RMS at 2Ω and 250W RMS at 4Ω support load matching
- Marine-rated build pairs coated circuitry with sealed terminals and a resistant chassis
- Compact 10.4-inch length fits tight boat installations
- Metal bass remote includes a clipping indicator for signal checks
Couldn't load pickup availability

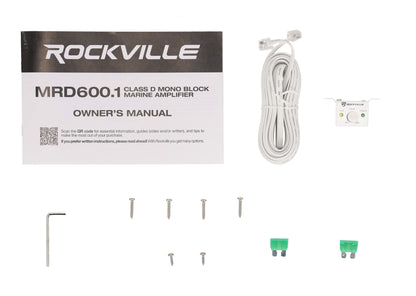

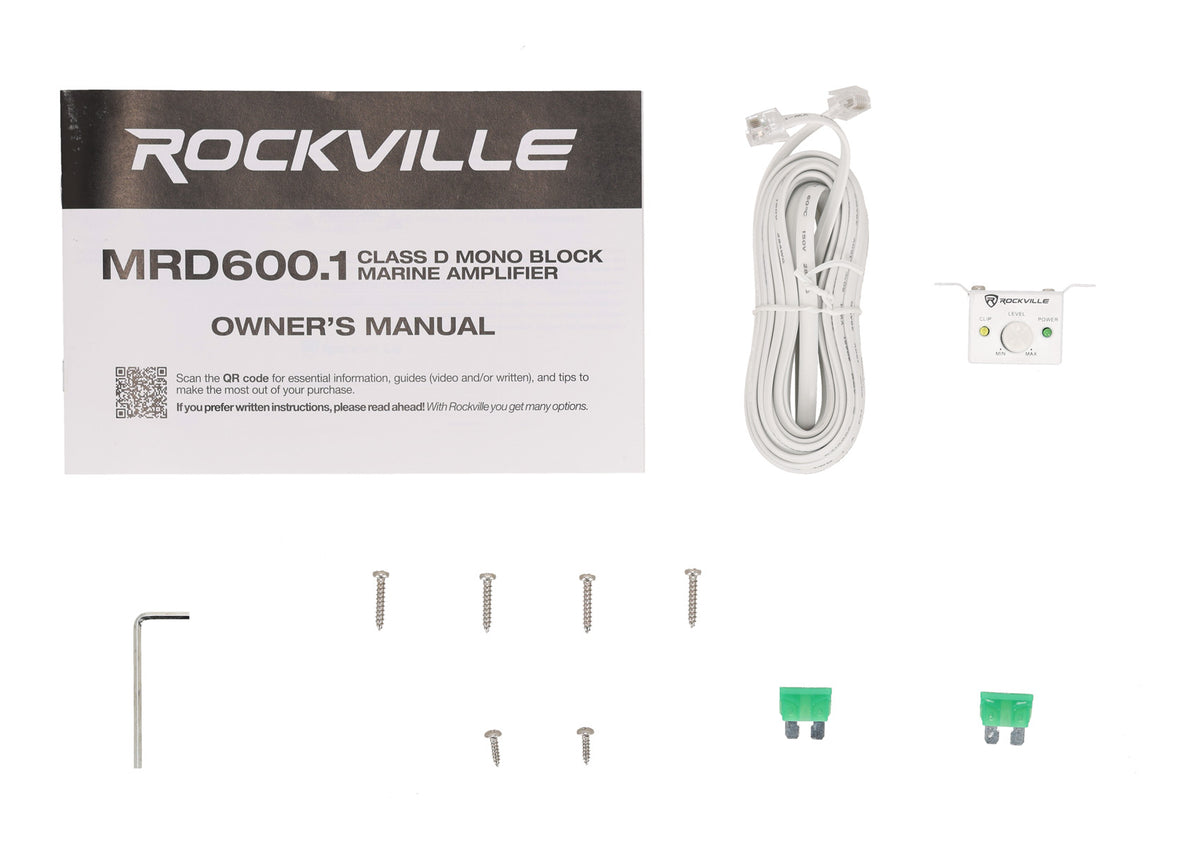

What's Included in the box
- MRD600.1 Marine Amplifier
- Metal Bass Remote with Clipping Indicator
- White Remote Cable
- White Silicone Terminal Covers
- Removable Caps for Unused RCA Terminals
SKU: SKU: MRD600.1
View full details









Product Details
A Compact Marine Monoblock Built for Real Power
Deep Bass You Can Dial In
From Wakeboard Boats to Fishing Rigs
Marine Toughness in Every Detail
Add the MRD600.1 to Your System Today
Features
-
Marine-Ready Protection
Conformal-coated boards, sealed terminals, and a UV- and salt-resistant aluminum alloy chassis help this amplifier suit demanding boat installations over time.
-
Fits Tight Spaces
At 10.4 inches long, the compact chassis fits boat installations with limited room while leaving space for other audio components and wiring.
-
Check Levels While Listening
The included metal remote has a clipping indicator, letting you monitor signal limits and adjust subwoofer level from the listening area.
-

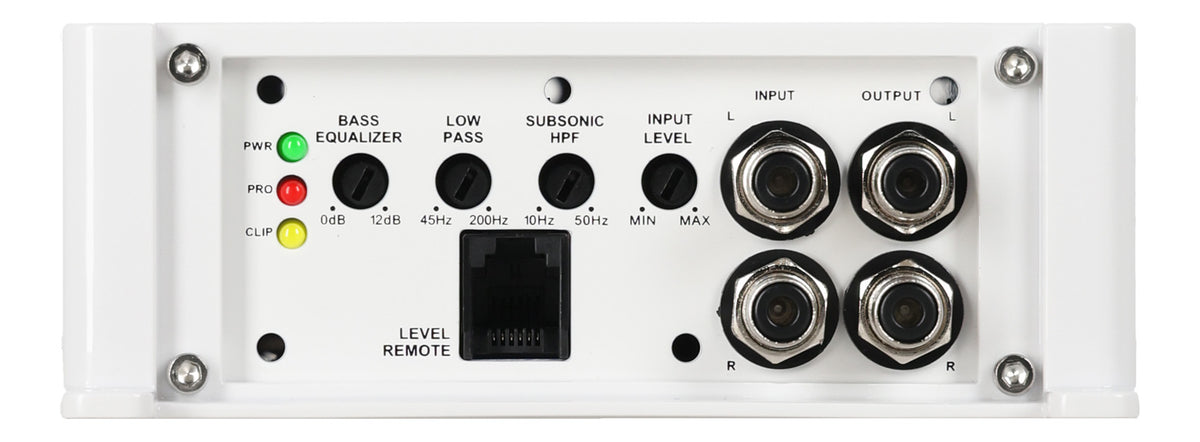

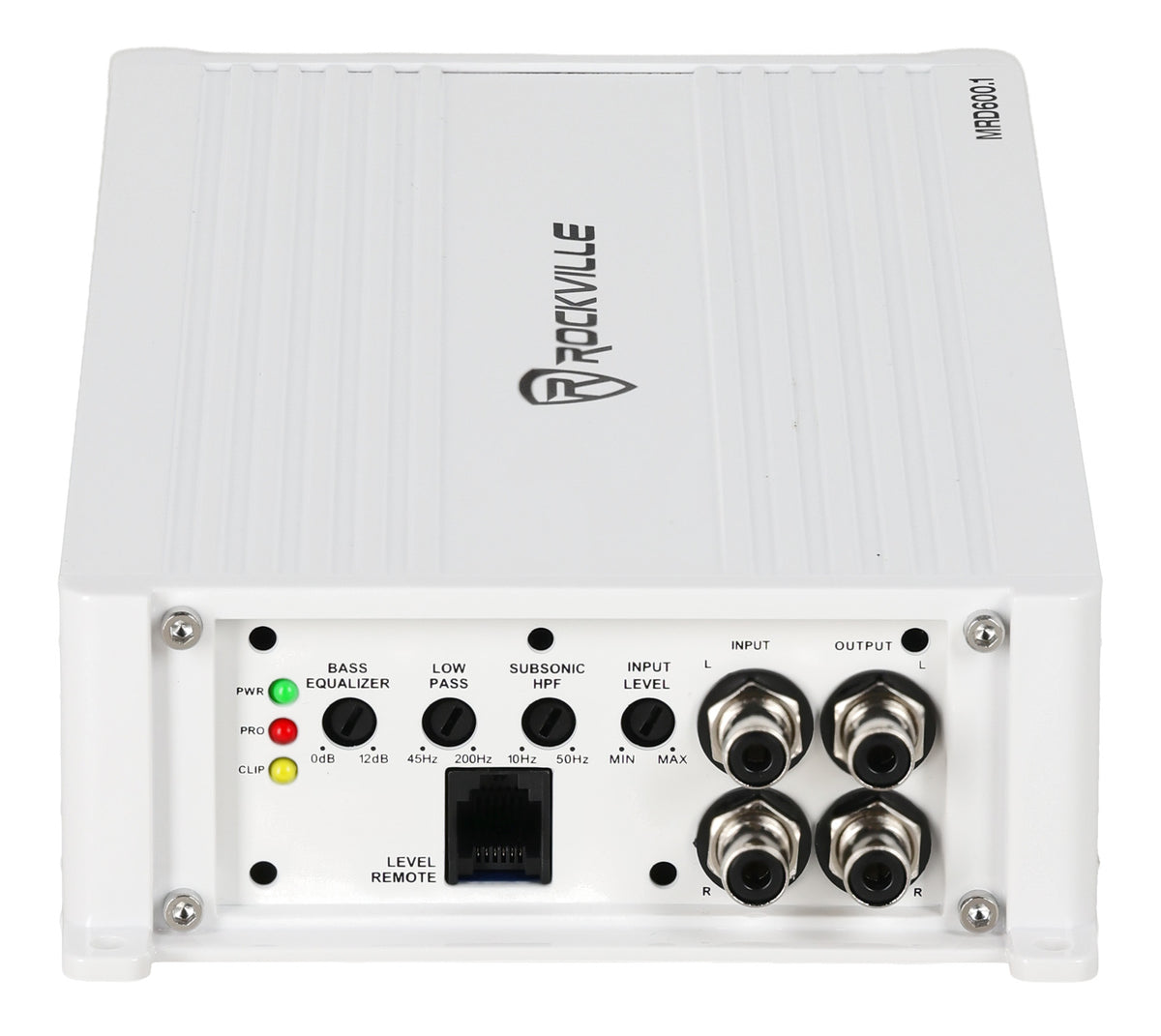

Shape Subwoofer Response
A 0dB to 12dB boost at 45Hz, 50Hz to 200Hz low-pass filter, and 10Hz to 50Hz subsonic filter help tailor the low end.
-
Match Your Source Unit
Input sensitivity adjusts from 264mV to 8.0V, while Tiffany-style RCA terminals and an 8 Volt preamp output support compatible audio system connections.
Technical Specifications
- Product Type Marine Class D Mono Amplifier
- RMS Power (1 Ohm) 600 Watts RMS @ 1Ω, 1% THD+N (75% efficient)
- RMS Power (2 Ohm) 400 Watts RMS @ 2Ω, 1% THD+N (85% efficient)
- RMS Power (4 Ohm) 250 Watts RMS @ 4Ω, 1% THD+N (90% efficient)
- Peak Power (1 Ohm) 2400 Watts x 1 Channel
- Peak Power (2 Ohm) 1600 Watts x 1 Channel
- Peak Power (4 Ohm) 1000 Watts x 1 Channel
- Amplifier Class Class D
- Channels Mono (1 Channel)
- Marine Construction Conformal-coated PCB, UV/salt-resistant aluminum alloy chassis, sealed terminals
- Fuse Rating 60A (2 x 30 Amp Maxi Fuses, built in)
- Power Supply High-speed MOSFET
- Bass Boost 0dB-12dB at 45Hz
- Low Pass Filter 50Hz - 200Hz
- Subsonic Filter 10Hz - 50Hz
- Input Signal Voltage 264mV - 8.0V
- Protection Circuitry Full IC-controlled
- Bass Remote Metal remote with clipping indicator

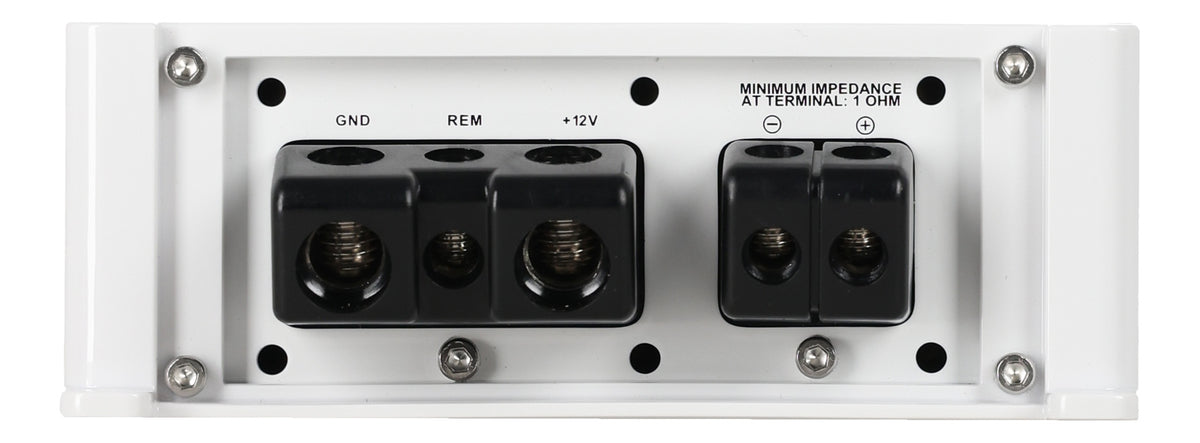

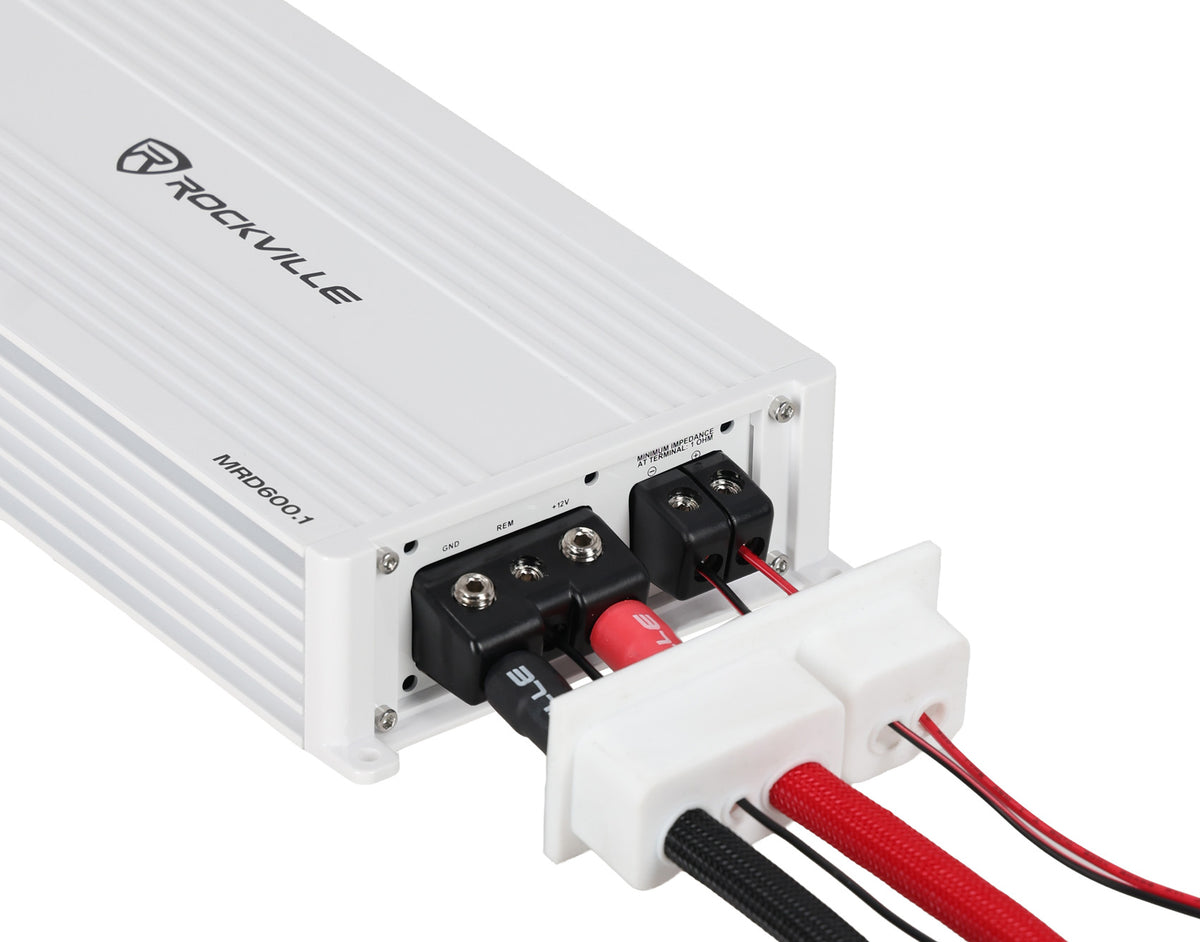

- Power and Ground Terminals 4 Gauge
- Speaker Wire Terminals 8 Gauge
- Soft Start System Mute and delay
- RCA Preamp Line Output Tiffany-style terminals with 8 Volt preamp circuitry
- Signal-to-Noise Ratio -91.9dBA (A-weighted, CEA 2006 Standard)
- Frequency Response 10Hz - 200Hz
- Damping Factor >150 @ 100Hz
- Remote Level Attenuation 0 to -26dB
- Maximum THD+N 0.5% at 4 Ohm rated power
- Minimum THD less than 0.5% at rated power
- Battery Voltage Limits 8V to 16.1V
- Dimensions (L x W x H) 10.4" x 4.9" x 1.8"
