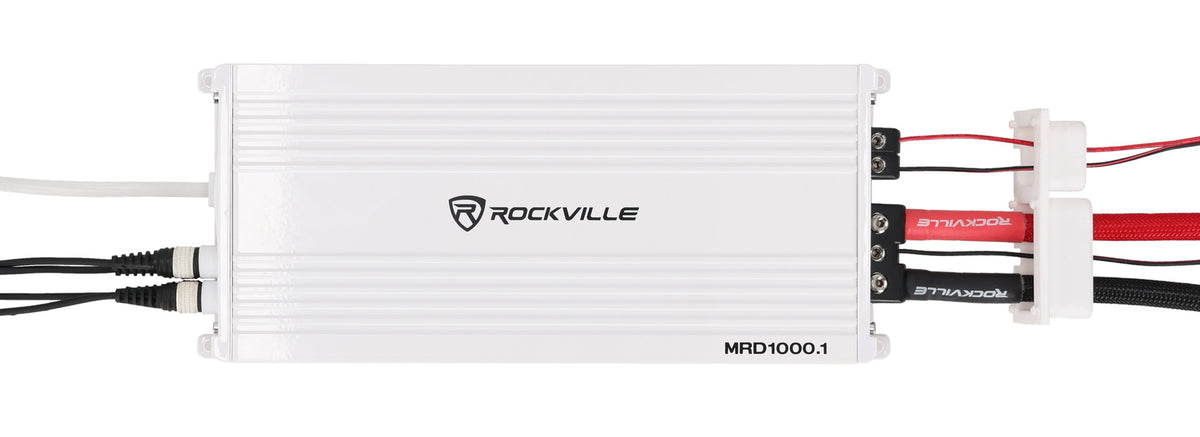

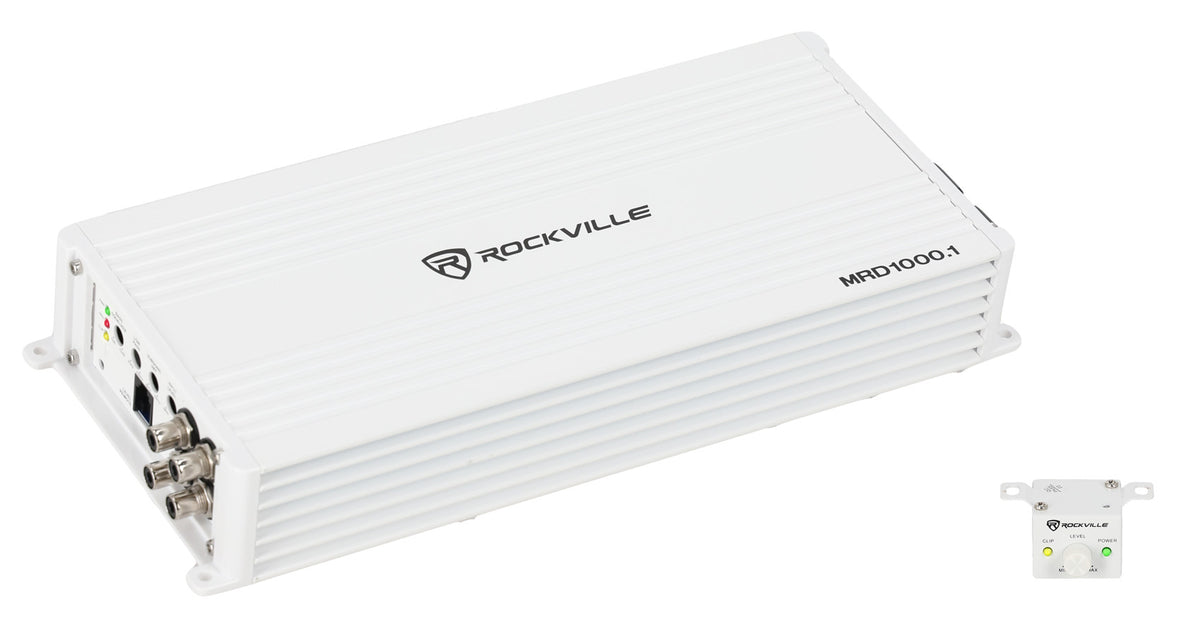

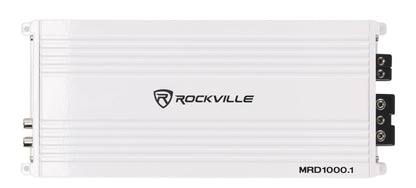

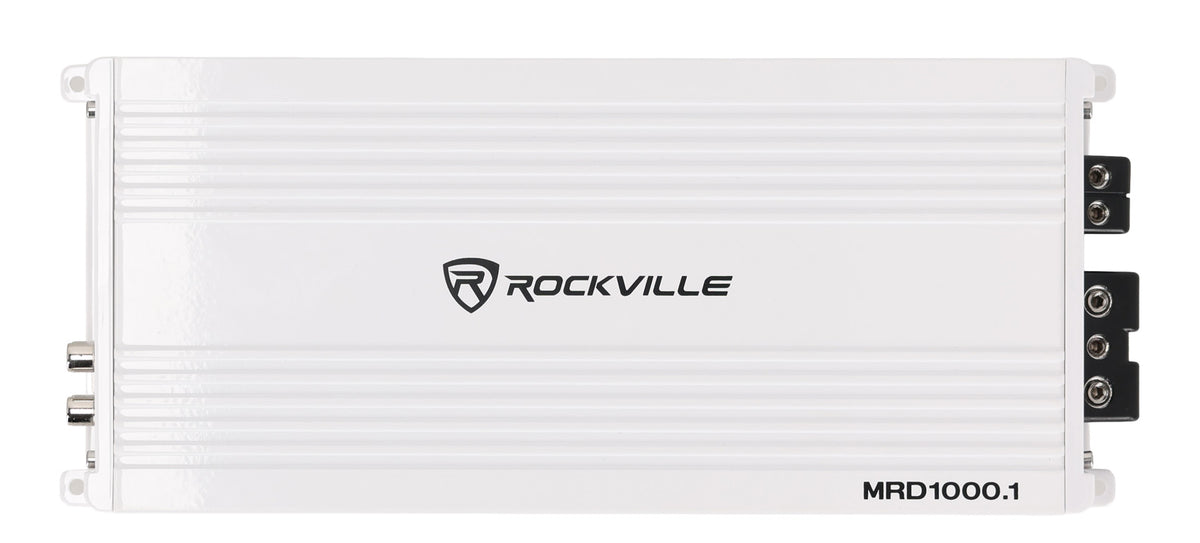

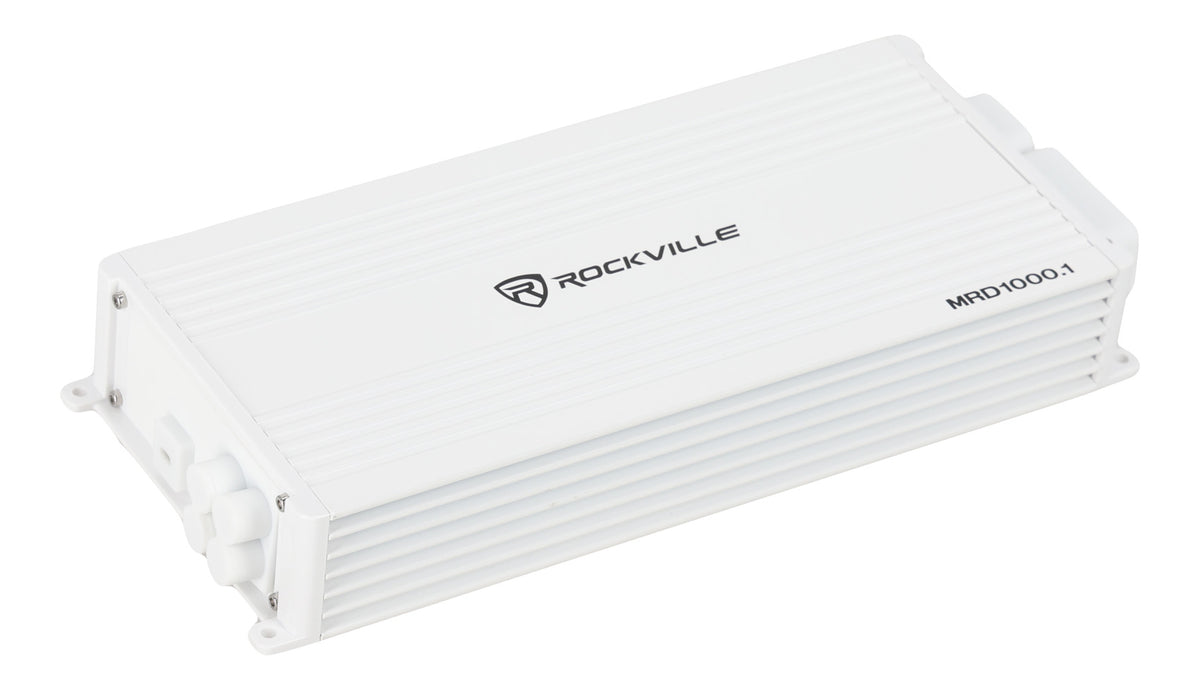

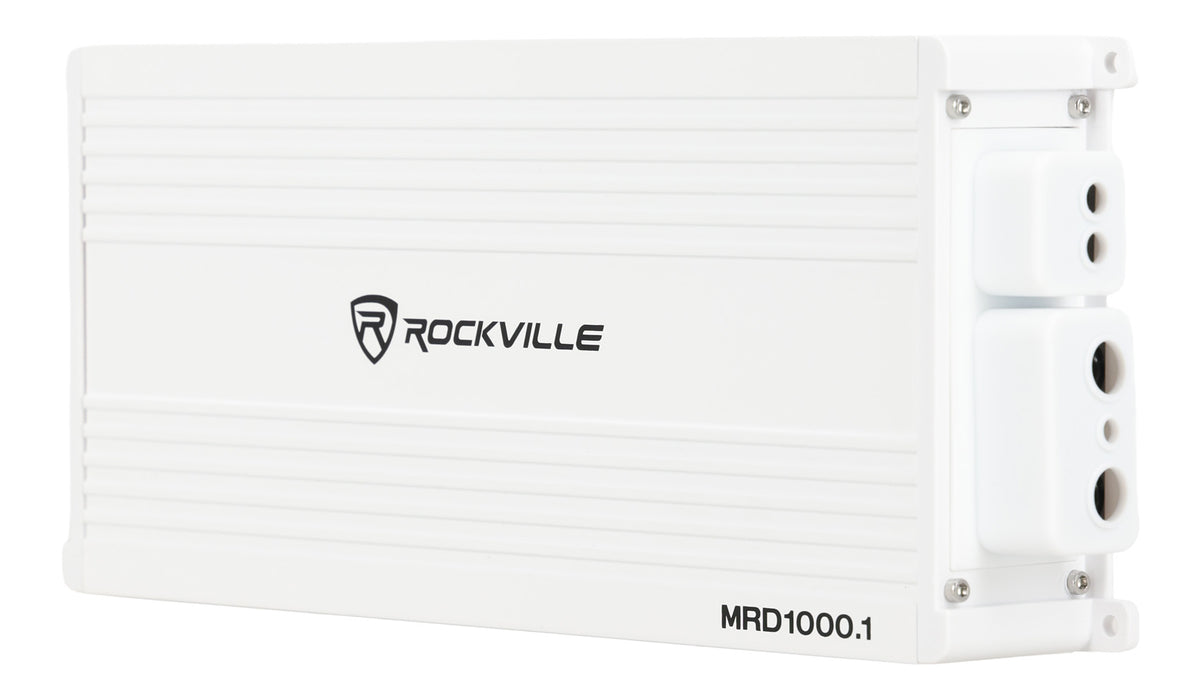

Mono Marine Amplifier, 1000W RMS @ 1 Ohm, Included Bass Remote, White
Free Shipping
Features
- Dyno-certified 1000W RMS at 1Ω for marine bass output
- Marine-grade conformal-coated board and UV/salt-resistant chassis
- Compact 12" design fits tight boat installs
- Adjustable Bass Boost, Low Pass, and Subsonic filters tune any subwoofer setup
- Metal bass remote with clipping indicator for real-time control
Couldn't load pickup availability

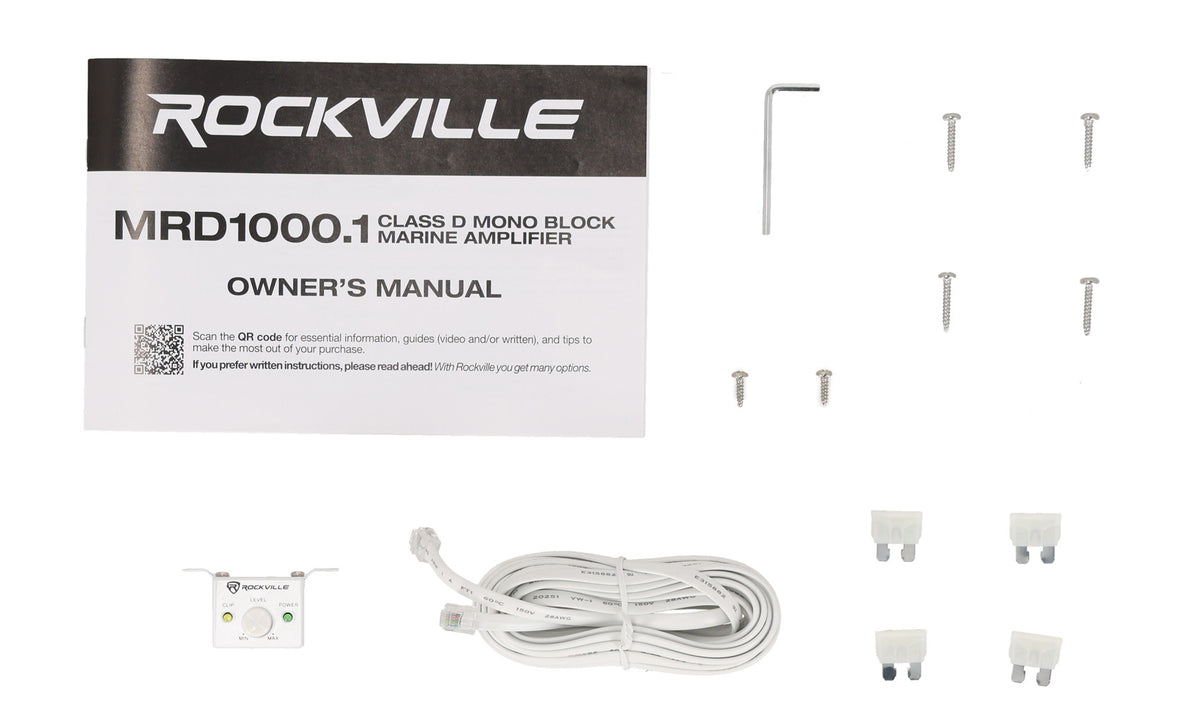

What's Included in the box
- Rockville MRD1000.1 Marine Class D Mono Amplifier
- White Metal Bass Remote with Clipping Indicator
- White Remote Cable
- White Silicone Terminal Covers
- Removable RCA Terminal Caps
- Stainless Steel Mounting Hardware
SKU: SKU: MRD1000.1
View full details










Product Details
Marine Class D Mono Amplifier
Built for the Water, Built to Last
Where It Performs
What Sets It Apart
Add It to Your Build
Features
-
Dyno-Certified Marine Power
Independently dyno-tested at 1000W RMS @ 1Ω (4000W peak), this Class D monoblock gives you the bass output it claims, verified rather than estimated.
-
Built to Survive Saltwater
A conformal-coated PCB, UV/salt-resistant aluminum chassis, and stainless steel hardware resist corrosion, so your amplifier holds up season after season on the water.
-

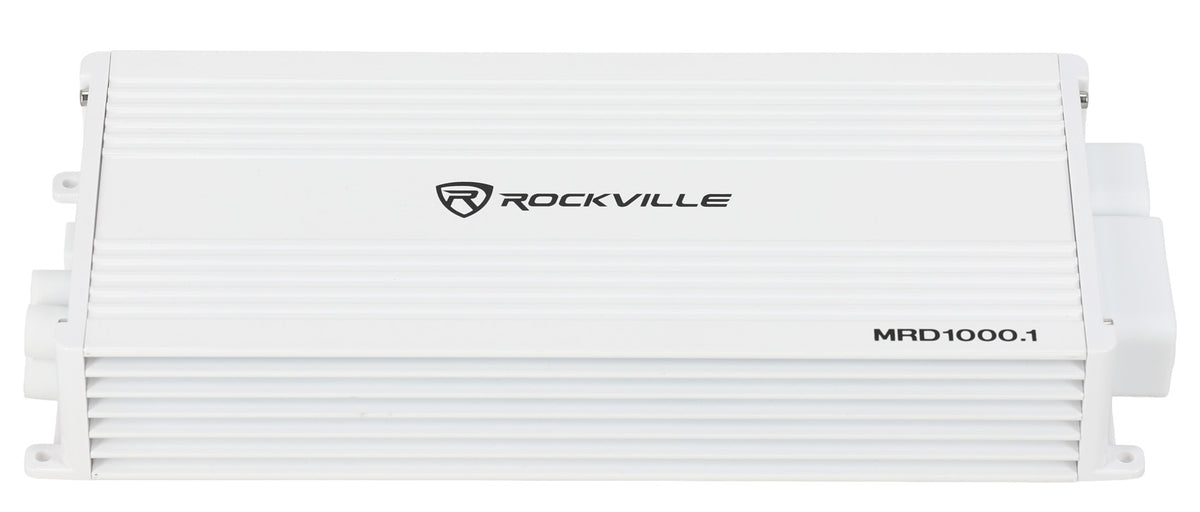

Fits Tight Installs
At just 12" long, this compact monoblock slides into seat bases, tower pods, and cramped engine bays where larger amplifiers simply won't go.
-

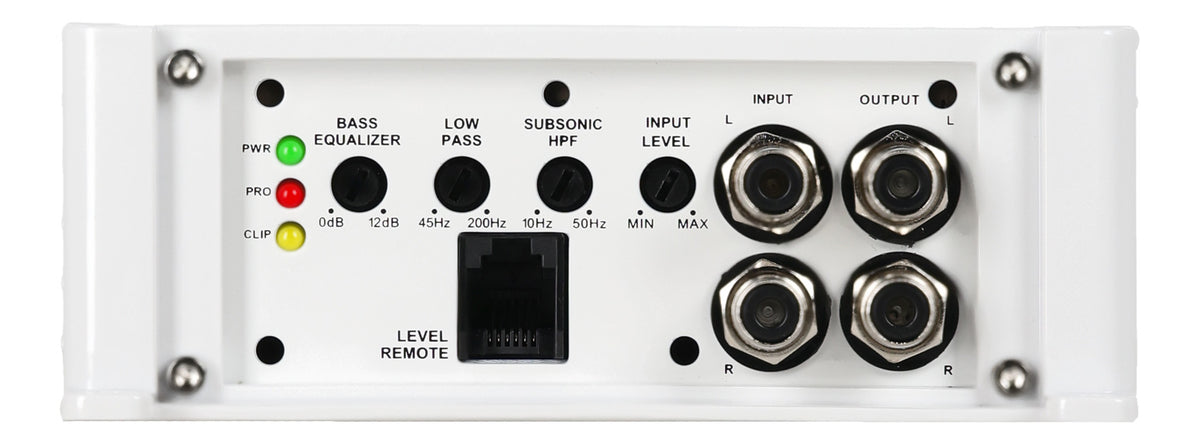

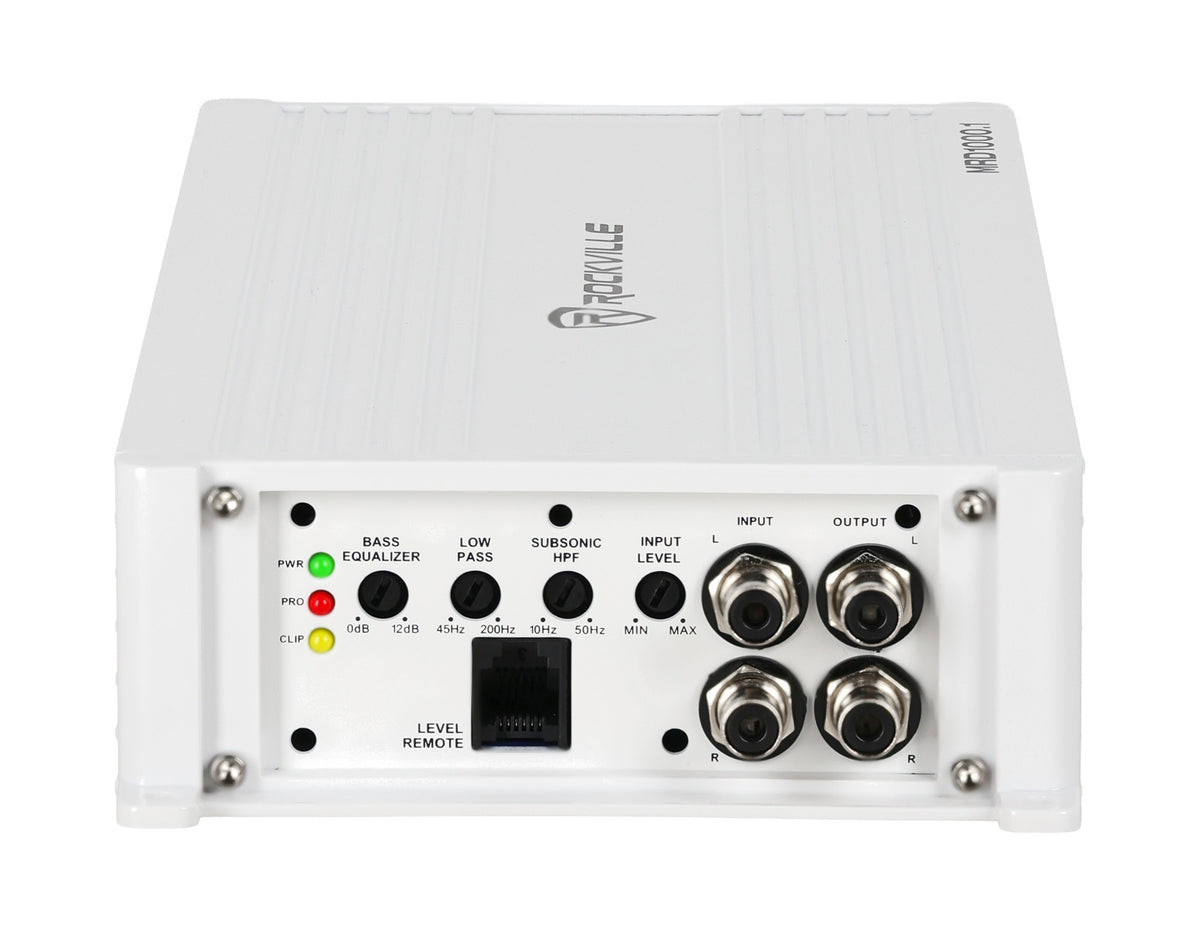

Dial In Your Bass
Adjustable Bass Boost (0dB–12dB at 45Hz), Low Pass (45Hz–200Hz), and Subsonic (10Hz–50Hz) filters let you tune deep, clean output for any subwoofer setup.
-
Tune From Your Seat
An included metal bass remote with a clipping indicator lets you push bass to its peak before distortion in real time, song after song.
Technical Specifications
- Product Type Marine/Boat Class D Mono Amplifier
- RMS Power @ 1Ω 1000W @ 50Hz, 1% THD+N, 14.4 VDC (73% efficient)
- RMS Power @ 2Ω 700W @ 50Hz, 1% THD+N, 14.4 VDC (84% efficient)
- RMS Power @ 4Ω 420W @ 50Hz, 1% THD+N, 14.4 VDC (87% efficient)
- Peak Power @ 1Ω 4000W x 1 Channel
- Peak Power @ 2Ω 2800W x 1 Channel
- Peak Power @ 4Ω 1600W x 1 Channel
- Marine Grade Construction Conformal-coated PCB, UV/salt-resistant aluminum alloy chassis, sealed terminals
- Fuse Rating 100A (4 x 25A Maxi Fuses, built in)
- Power Supply High-Speed MOSFET
- Amplifier Class High Performance Class D
- Bass Boost 0dB–12dB @ 45Hz
- Low Pass Filter 45Hz–200Hz
- Subsonic Filter 10Hz–50Hz
- Adjustable Input Signal Voltage 264mVrms–8.0Vrms (measured @ 4Ω)
- Protection Circuitry Full IC-Controlled
- Remote Subwoofer Control Included metal remote with clipping indicator

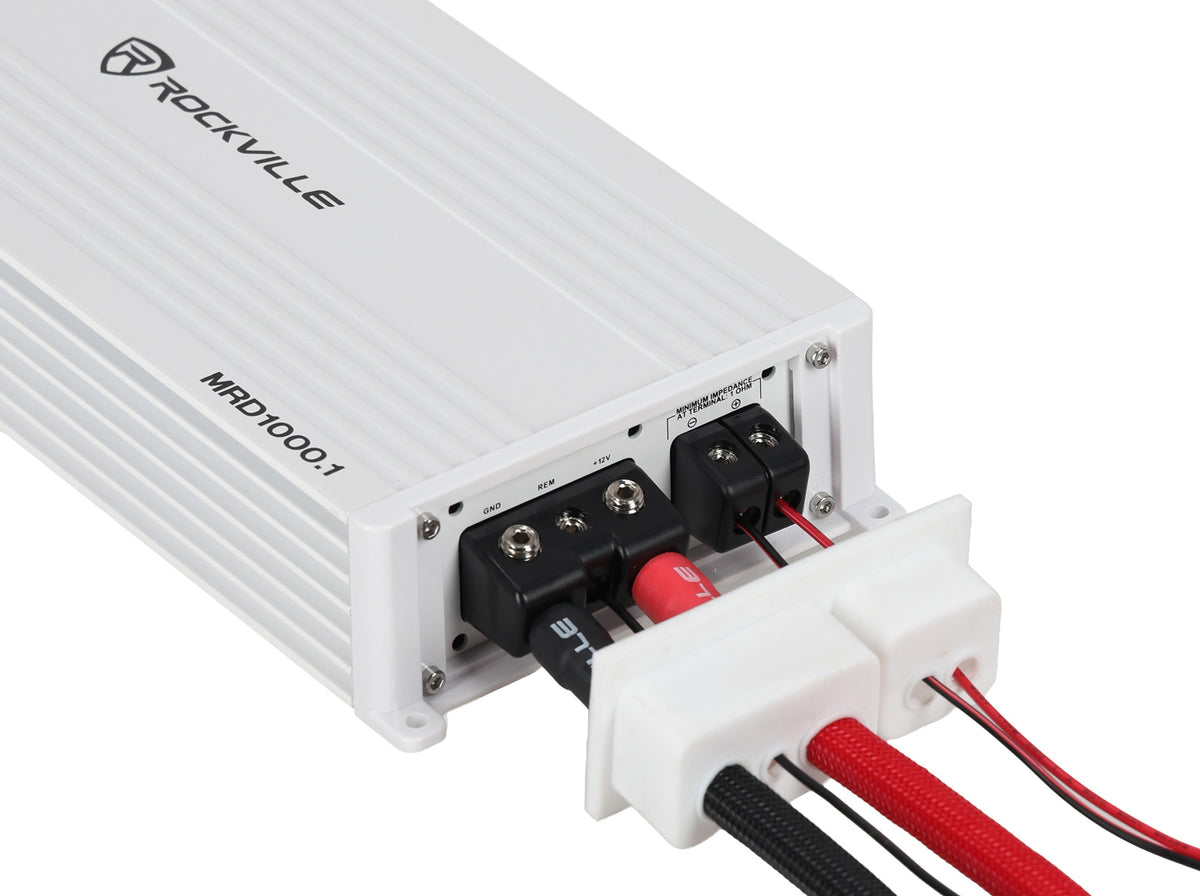

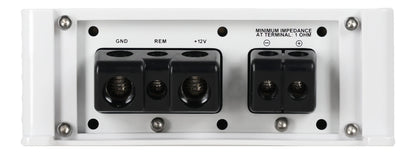

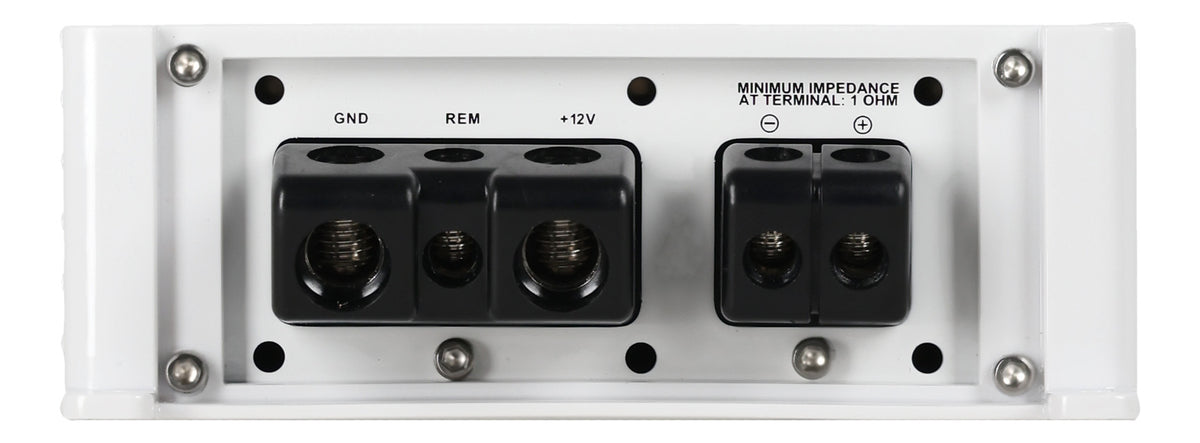

- Power/Ground Terminals 4 Gauge
- Speaker Wire Terminals 10 Gauge
- Soft Start System Mute and Delay
- RCA Preamp Line Output Tiffany-style terminals, 8 Volt preamp circuitry
- LED Indicators Power/Protect/Clip (Power and Clip on Remote)
- A-Weighted Signal to Noise 82 dBA @ 1W RMS @ 4Ω / 105 dBA @ 400W RMS (4Ω)
- Frequency Response 10Hz–193Hz at +/-3dB
- Damping Factor >150 @ 100Hz
- Remote Level Attenuation 0 to –26dB
- Operating Voltage 9 VDC–16 VDC
- Max Current Draw 103A @ 1Ω, 50Hz
- Distortion (THD+N) vs Frequency <0.1% at 1W RMS from 20Hz to 250Hz
- Dimensions (L x W x H) 12" x 4.9" x 1.8"
