Rockville

M8G20B

M8G20B

8 AWG Power/Ground Wire, 20 ft, 80A Max Load, Marine/Car Use, Ring Terminal
Regular price $29.95
Sale price $29.95 Regular price $29.95
Features
    • 20 ft of true 8 AWG tinned OFC power/ground wire
    • Rated for a maximum load of 80A at 20 ft
    • 735 strands of 0.12 mm tinned OFC wire
    • Marine-grade PVC resists water, saltwater, heat, cold, oil, gas, and fumes
    • Includes a ring terminal, washer, heat shrinks, ferrules, grommets, and zip ties
Select Color Option
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
1-Year Warranty

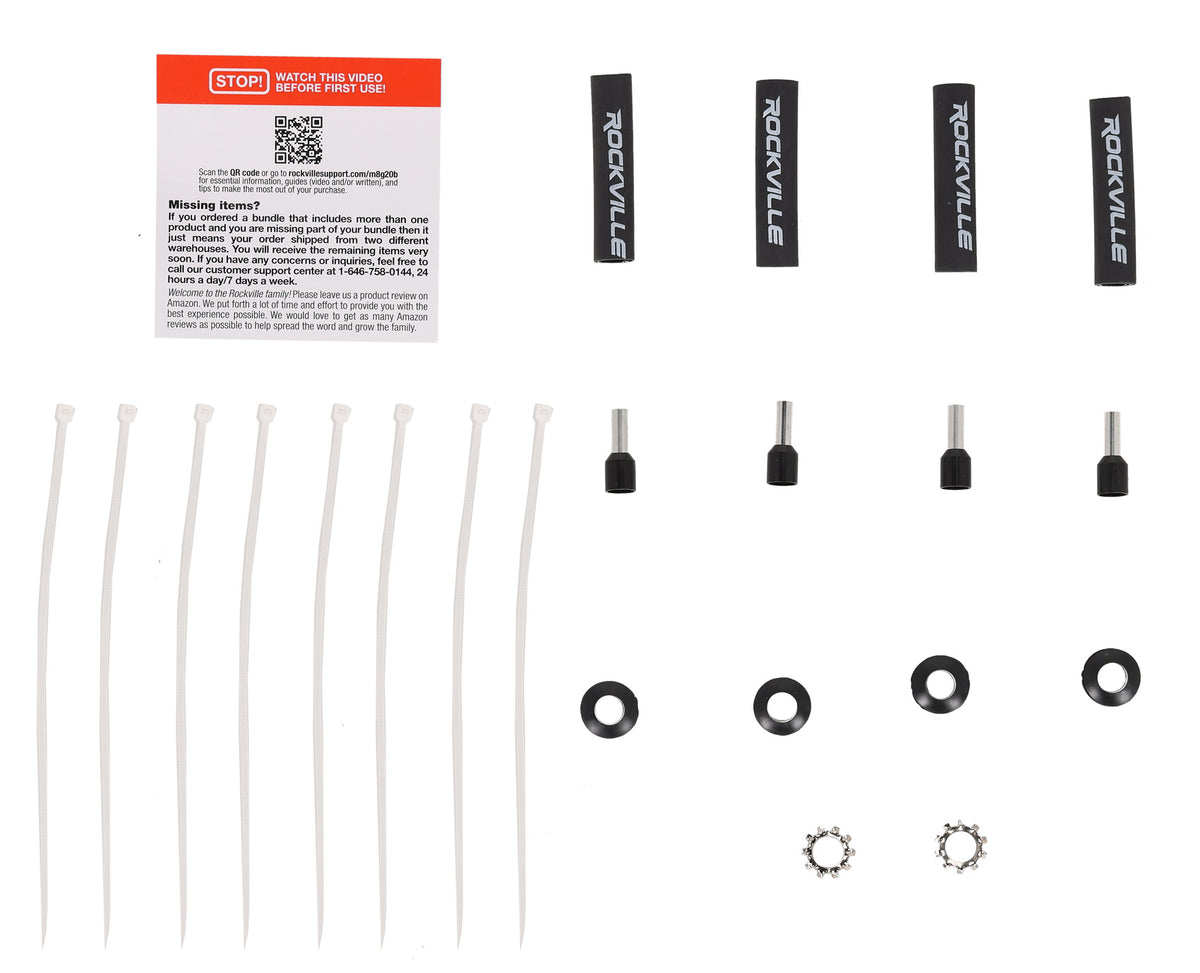

    • (1) 20 ft 8 AWG tinned OFC power/ground cable with black mesh split loom
    • (1) Pre-installed ring terminal, washer, and black heat shrink
    • (4) Additional black heat shrinks
    • (4) Black ferrules
    • (4) Grommets
    • (8) Zip ties

SKU: SKU: M8G20B

View full details

Product Details

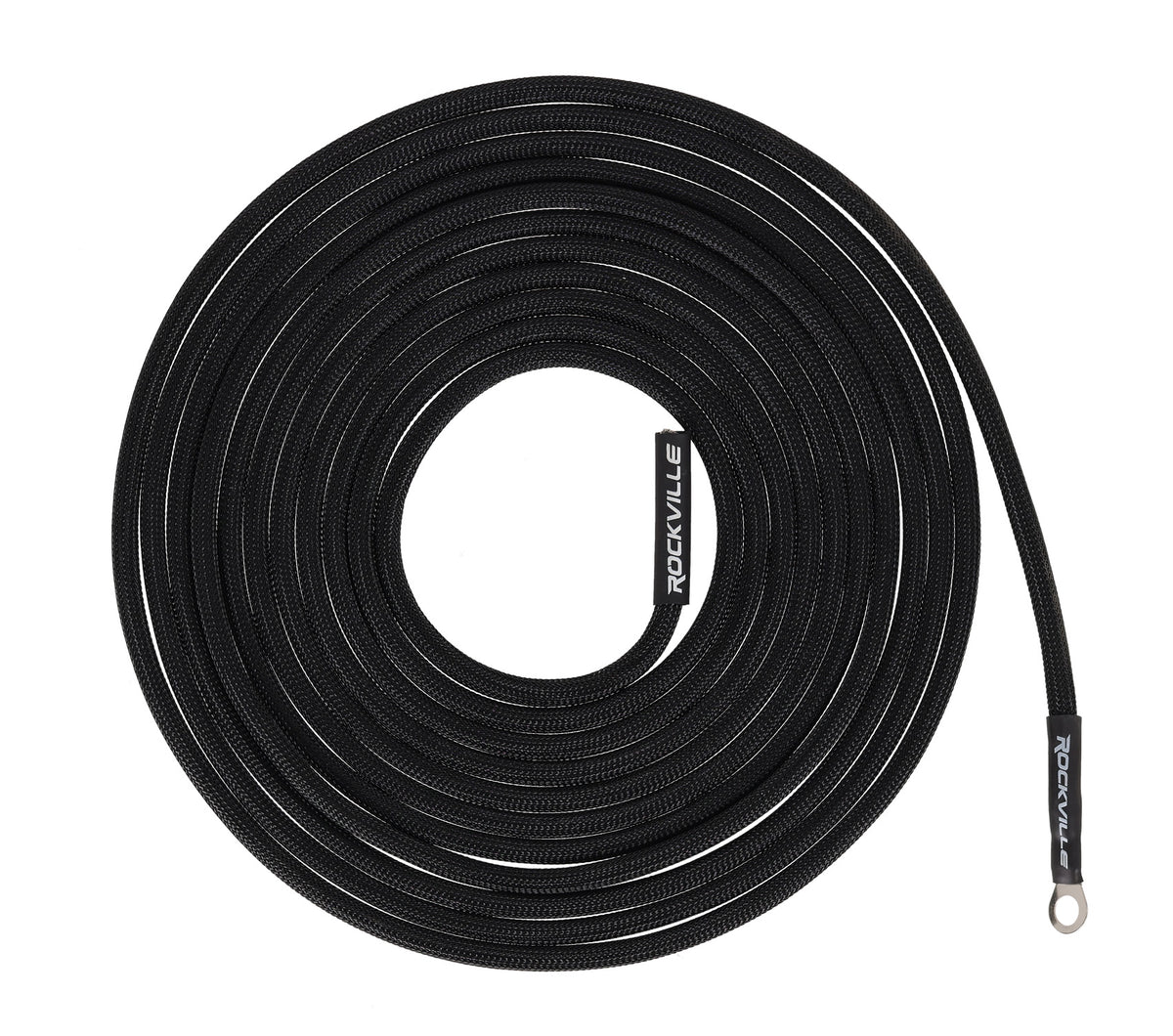

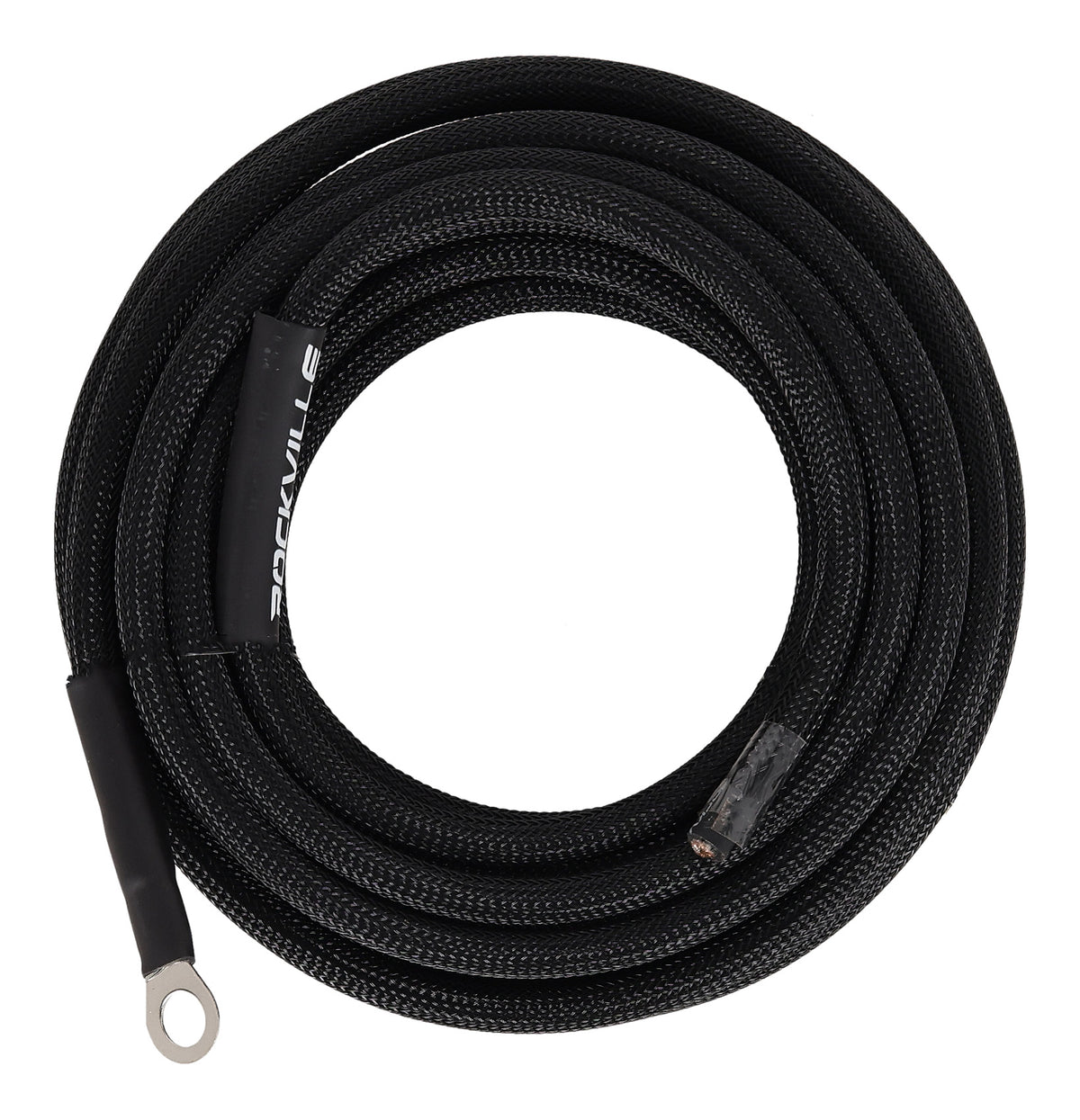

The M8G20B is a 20 ft, 8 AWG tinned OFC power/ground wire for marine and car audio installations. Its 735 strands of 0.12 mm tinned oxygen-free copper form a flexible cable for routing through tight spaces, while the 6.5 mm outer diameter gives installers a clear fit reference. The marine-grade PVC jacket is waterproof and moisture-proof, and it resists heat, cold, saltwater, oil, gas, and fumes. Tinned copper resists rust and oxidation, while black mesh split loom wraps the full cable. The wire is rated for a maximum load of 80A at 20 ft. A ring terminal, washer, and black heat shrink are pre-installed; four additional black heat shrinks, four ferrules, four grommets, and eight zip ties are included. It also suits solar panel wiring.

Features

    • Power for Demanding Runs

      At 20 ft, true 8 AWG construction carries up to 80A, giving installers a clear load reference for marine, car audio, or solar wiring.

    • Flexible Cable Routing

      735 strands of 0.12 mm tinned OFC wire and a flexible marine-grade PVC jacket help the cable pass through tight installation spaces.

    • Resists Corrosion and Exposure

      100% tinned oxygen-free copper resists rust and oxidation, while the jacket resists water, saltwater, heat, cold, oil, gas, and fumes.

    • Ready for Terminal Connections

      A pre-installed ring terminal, washer, and black heat shrink support connection setup, with four additional heat shrinks and four ferrules included for other terminations.

    • Organized, Protected Routing

      Black mesh split loom wraps the full cable, and four grommets plus eight zip ties help keep the installation covered and organized.

Technical Specifications

  • Product Type 8 AWG marine/car power/ground wire
  • Model M8G20B
  • Length 20 ft
  • Wire Gauge True 8 AWG
  • Conductor 100% tinned oxygen-free copper (OFC)
  • Strand Count 735 strands of 0.12 mm tinned OFC wire
  • Maximum Load 80A at 20 ft

Support

Yes. It's true 8 AWG, made of 735 strands of 0.12mm tinned OFC with a 6.5mm outer diameter, and it's rated for up to 80A over 20 ft. Full-gauge copper cuts voltage drop, so your amp gets the current it needs and doesn't starve when the bass hits.

Tinned copper resists the oxidation that slowly turns bare copper green and drains performance, especially around saltwater and humidity. The M8G20B is 100% tinned OFC, so it keeps conducting cleanly for years in boats and stays reliable in cars that see rain, road salt, and moisture.

You get 20 ft of 8 AWG wire wrapped in black mesh split loom, with a ring terminal, washer, and heat shrink already installed. The kit also includes 4 ferrules, 4 heat shrinks, 4 grommets, and 8 zip ties, which covers terminating, routing, and securing the run.

Yes. Cut it to fit your install, then finish the end with one of the included ferrules and heat shrinks for a clean, tight connection. The flexible marine-grade PVC jacket bends easily through tight spaces, and the grommets protect the wire where it passes through panels or firewalls.

It works for power or ground runs in marine and car audio systems, and it's also suitable for solar panel installations. The PVC jacket holds up to heat, cold, saltwater, oil, gas, and fumes, so it can run through bilges, trunks, and engine bays without breaking down.
