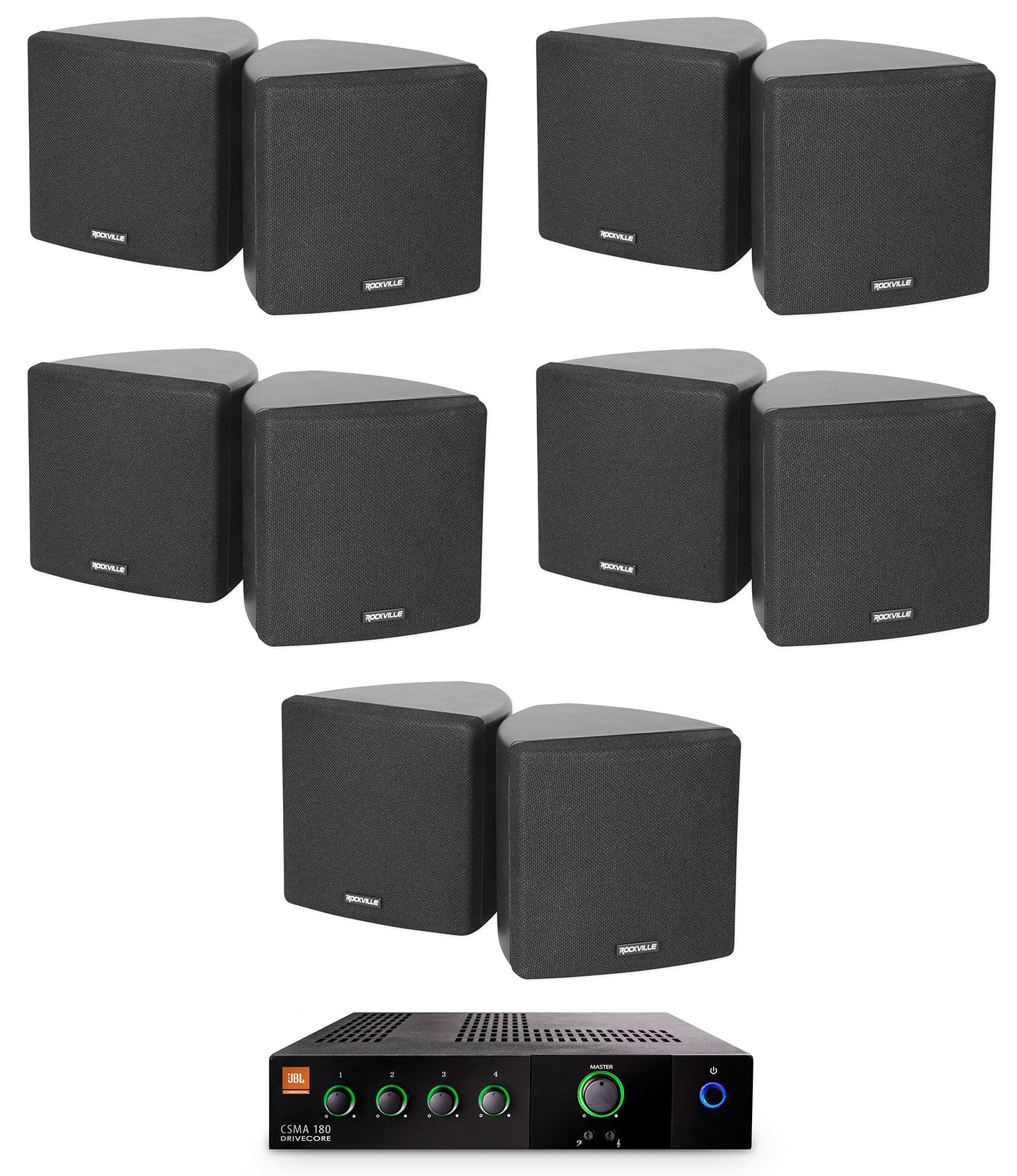

Package Includes:

(1) JBL CSMA 180 80w Commercial 70v Amplifier Mixer For Restaurant/Bar/Cafe CSMA180
(5) Cube by Rockville Pair of 3.5" Black Commercial 70v Swivel Wall Mount Speakers

Description:

The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown's DriveCore technology enables significantly reduced size and weight - all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

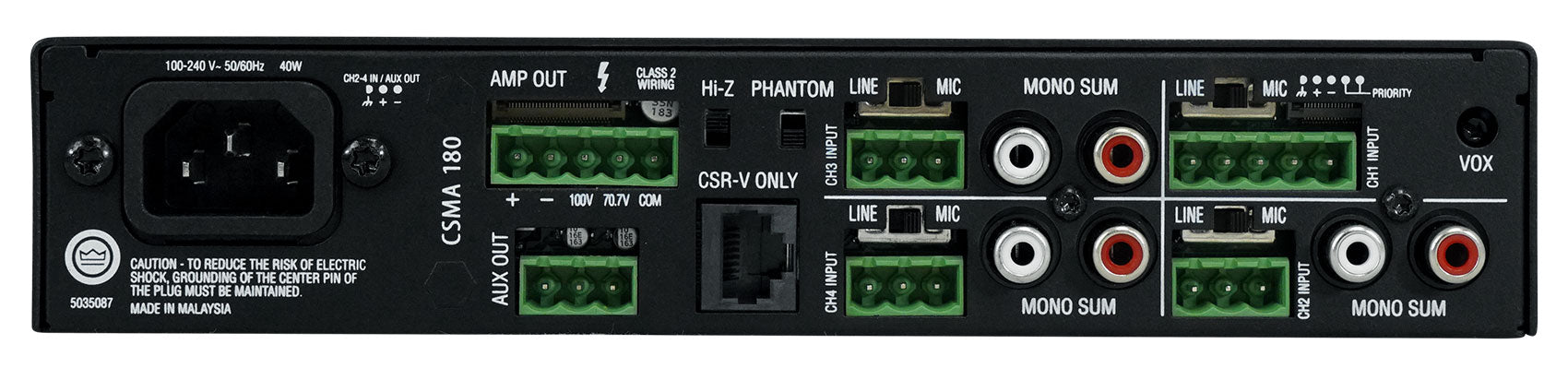

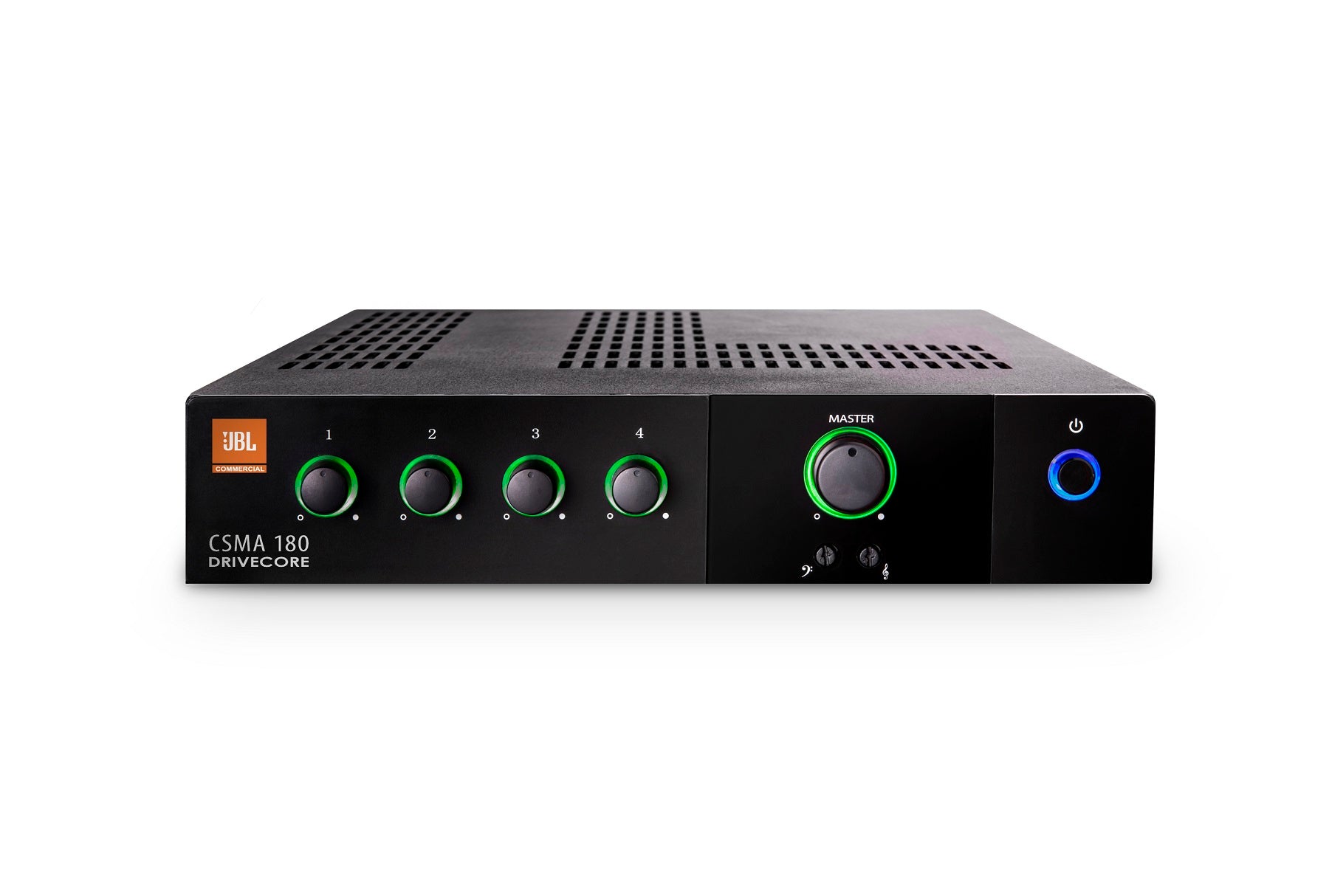

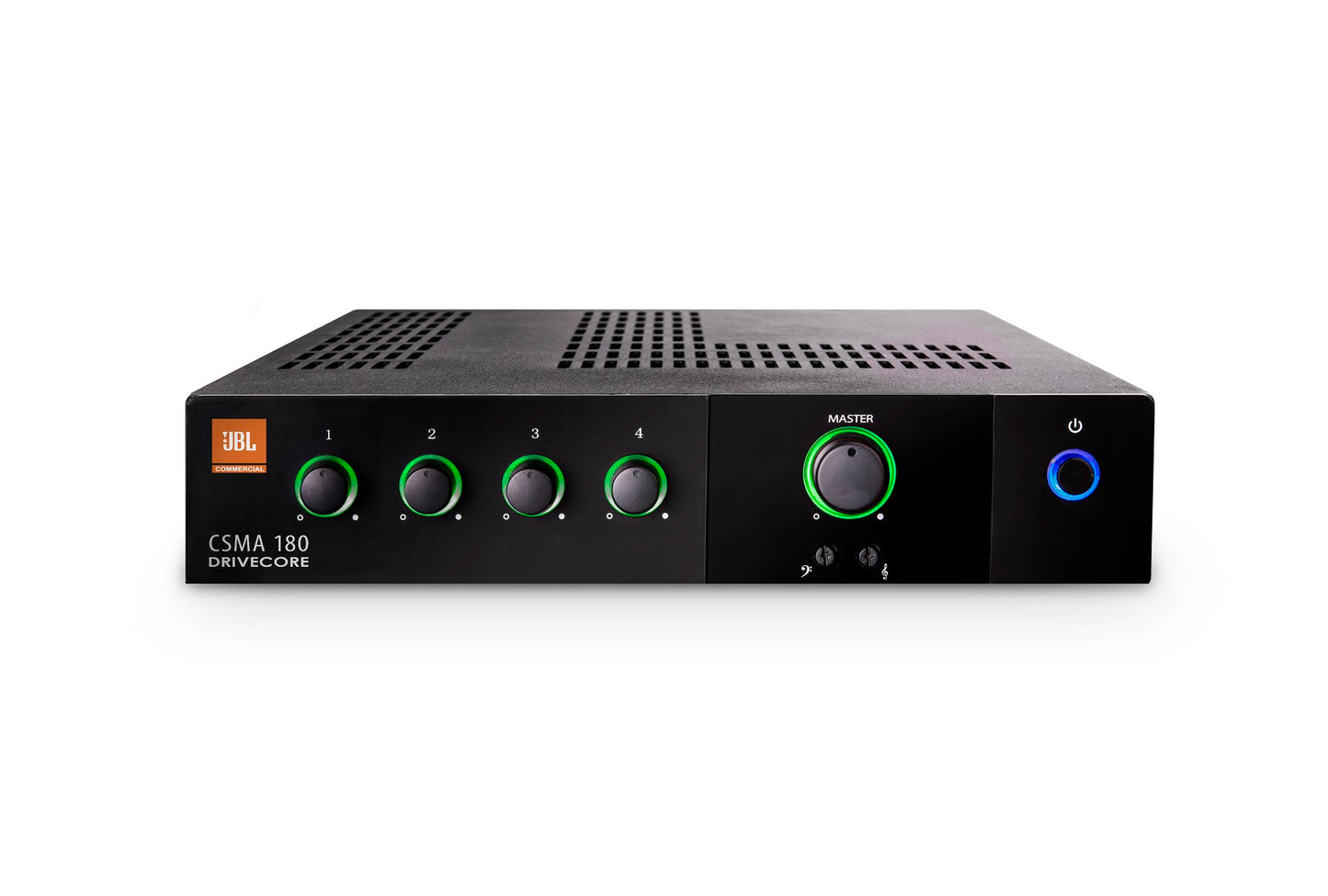

The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

JBL Commercial mixer/amps are manufactured under HARMAN's GreenEdge™ environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation - up to 80 percent more efficient than previous designs. All models carry a 3-year no-fault transferable warranty.

Features:

4 inputs with 1 output of 80 or 120-watts of power
Ideal for commercial and industrial use
Fanless, space-saving 1U design
Sleek industrial look with illuminated rings, making them easy to see and operate
Euro-block type mic/line input connectors and output connectors
Independent Bass and Treble controls for each output channel
Supports 70V and 100V distributed audio systems without the need for a separate transformer
Remote volume control capability using JBL CSR-V module and standard Ethernet cable
Priority muting
Configurable output routing
Utilizes Crown's DriveCoreTM technology providing excellent audio performance with high efficiency
Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
Includes rack mounting kit
Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
Energy Star® Certified

Specifications:

Output: 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%
Frequency Response: +/- 1dB (@1W into 4 or 8 Ohms)
Load Impedance: Stable from 2 - 16 Ohms
Sensitivity: 1.4Vrms
Signal to Noise Ratio: Greater than 100 dB - 1kHz, A-weighted
Input Impedance: Balanced 20K Ohms/Unbalanced 10K Ohms
Max Input: +20dBu Typical

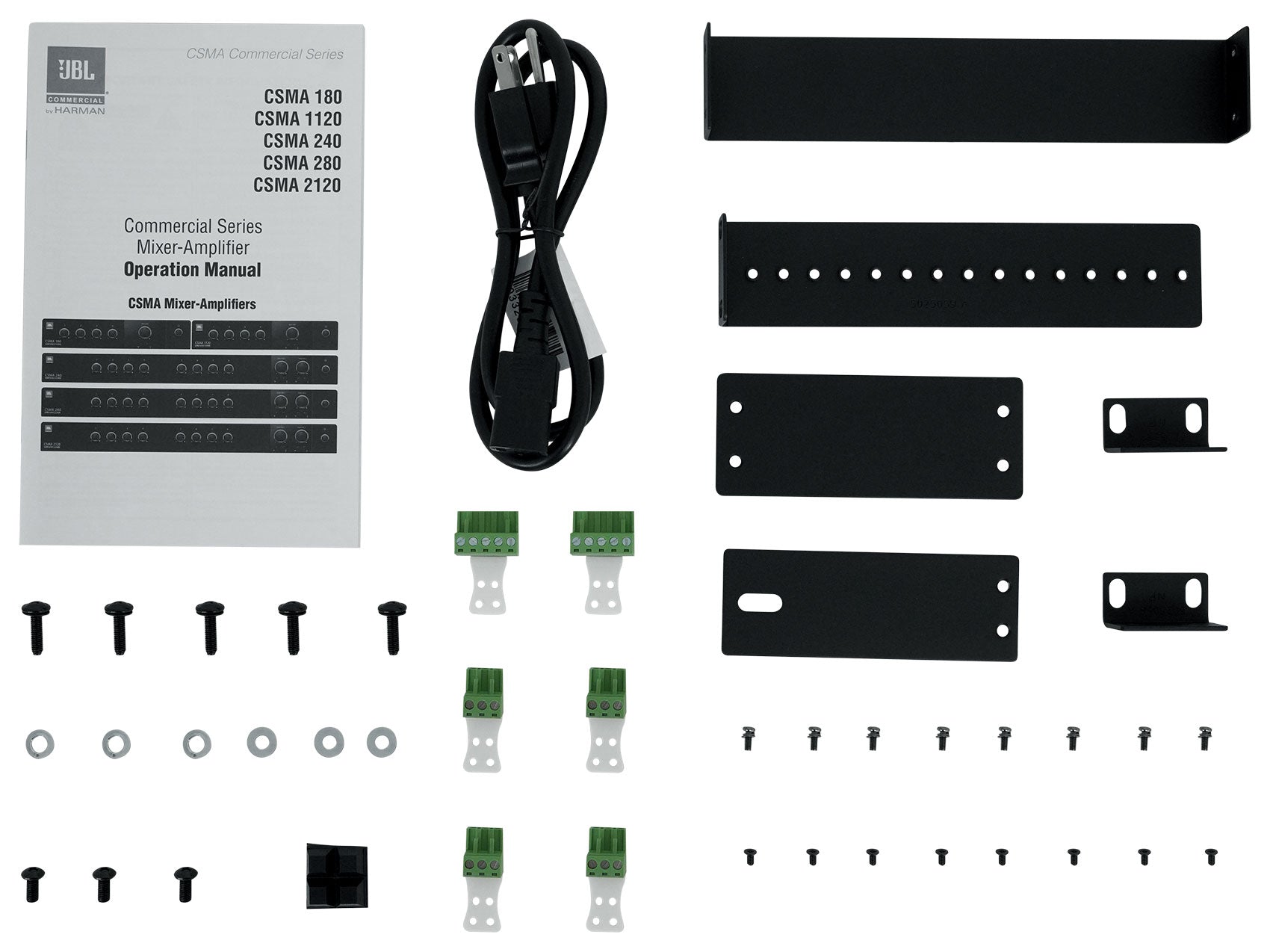

Included Accessories: Rack mounting kit
Dimensions: 1.7" x 8.6" x 11.9" (43.3 mm x 218.5 mm x 303.4 mm)
Shipping Weight: 180: 9.9 lbs (4.5 kg); 1120: 10.1 lbs (4.6 kg)

How to Set Up Cube 70 Volt Speaker:

Video of Cube 70v Black:

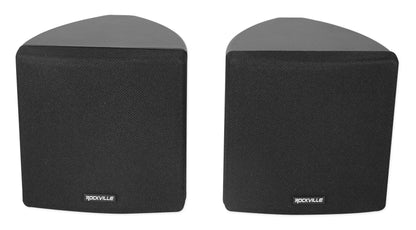

Introducing Cube by Rockville!

70 Volt power options

6 Watt
3 Watt
1.5 Watt

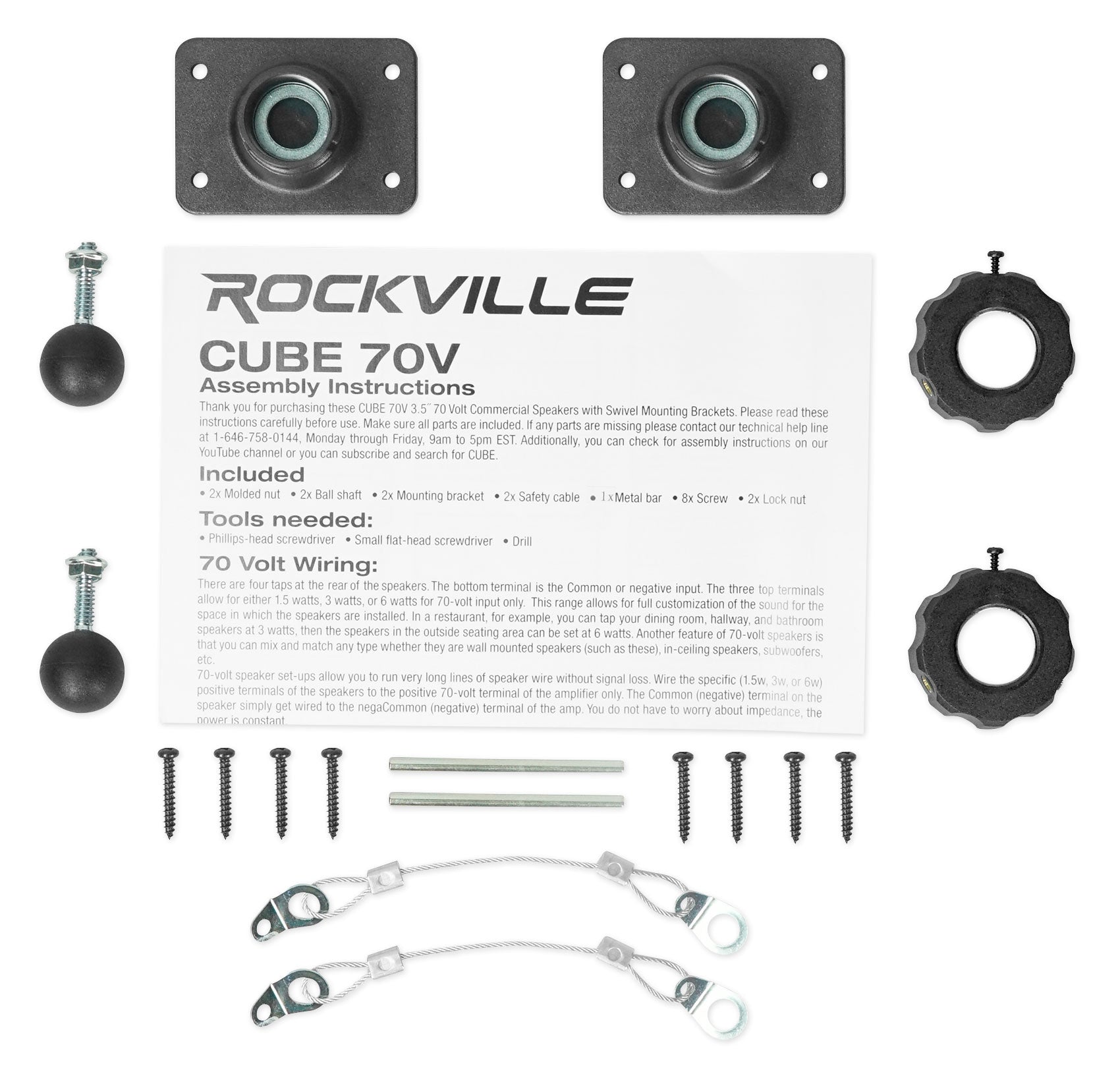

Includes:

(2) Speakers
(2) mounting brackets with metal bars
(2) safety cables
(8) screws
(1) User manual

Description:

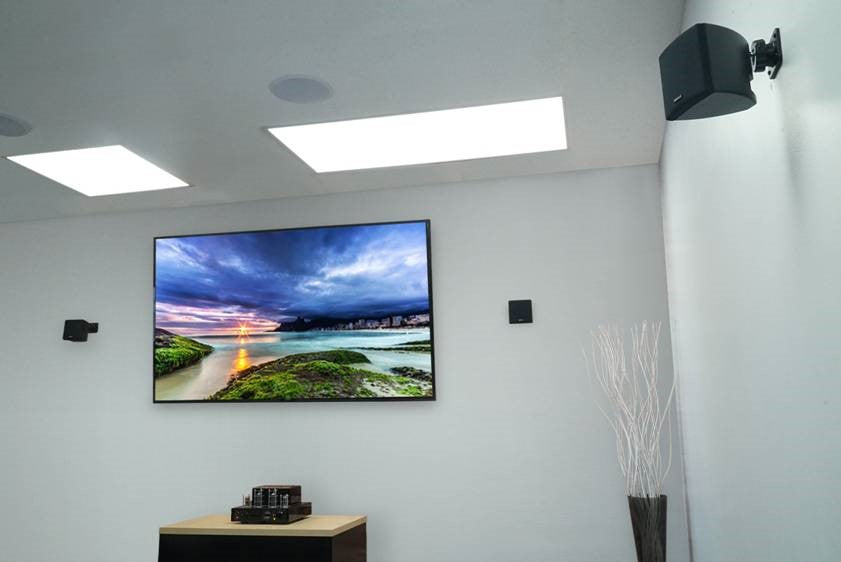

The Rockville Cube 70V black is a great choice for any restaurant, office, retail store, or any other commercial application. What makes these special is the minimal footprint that is stylish and unobtrusive. The speaker also includes our 360 degree mounting system that allows rotation in any direction for optimal sound staging. The slim design can be mounted anywhere quickly and easily.

2-Way configuration
There is a couple of very famous companies who make speakers that look similar. In our opinion those speakers have no highs and no lows. That is because they use a one way design. Our model has a dedicated woofer for mids and a dedicated tweeter for highs giving you incredible sound quality.

Quick-disconnect terminals
We use euro-block speaker terminals which are detachable so you can easily wire many speaker and quickly disconnect them at any time.

What is 70 volt ?
70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 150 watts and you can install speakers that total around 120 watts. It does not matter if it is 20 speakers that are 6 watts each or 40 speakers that are tapped at 3 watts each. You always want your 70 volt amp to have at least 15 to 20% more power than the combined watts your speakers are tapped at.

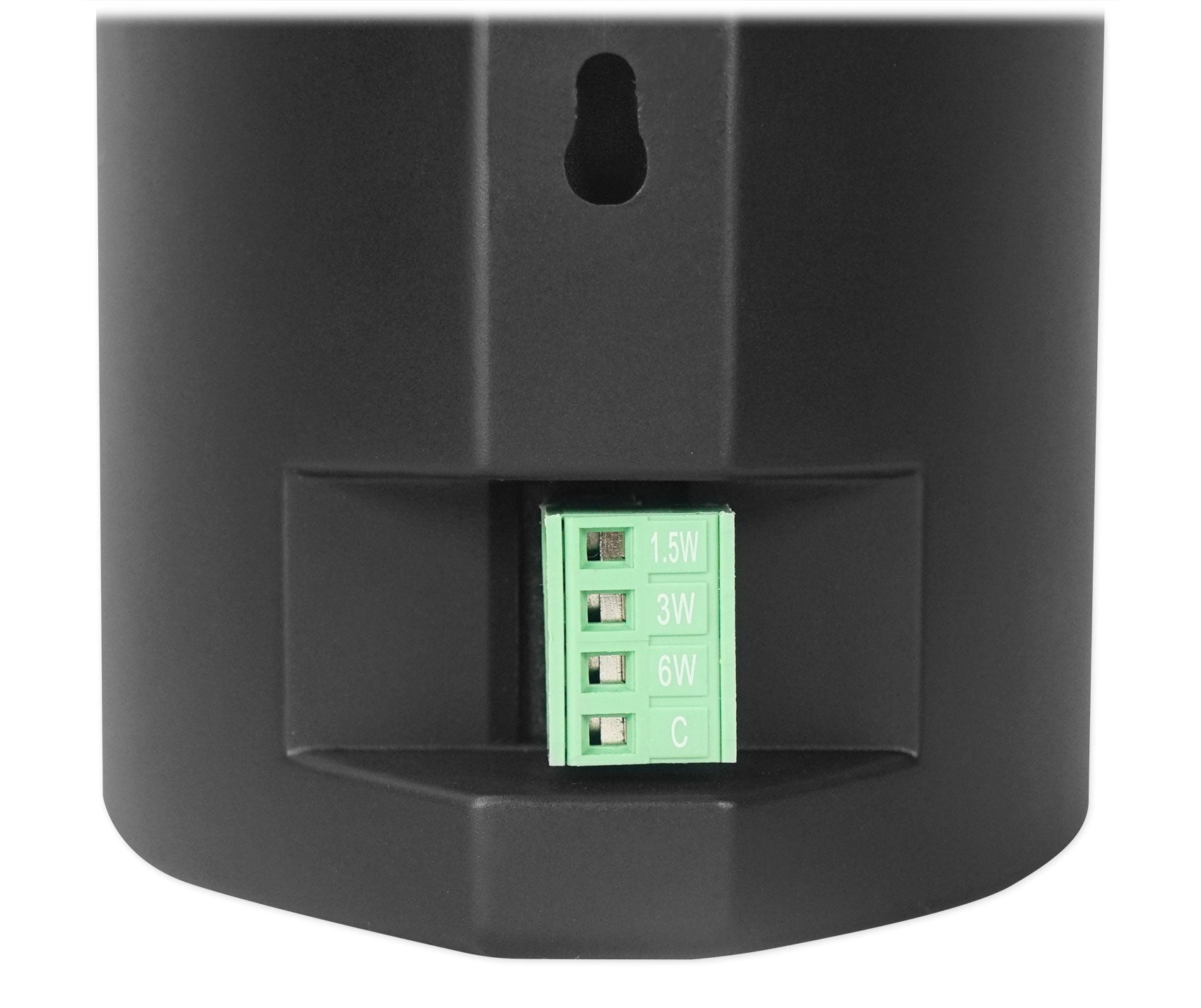

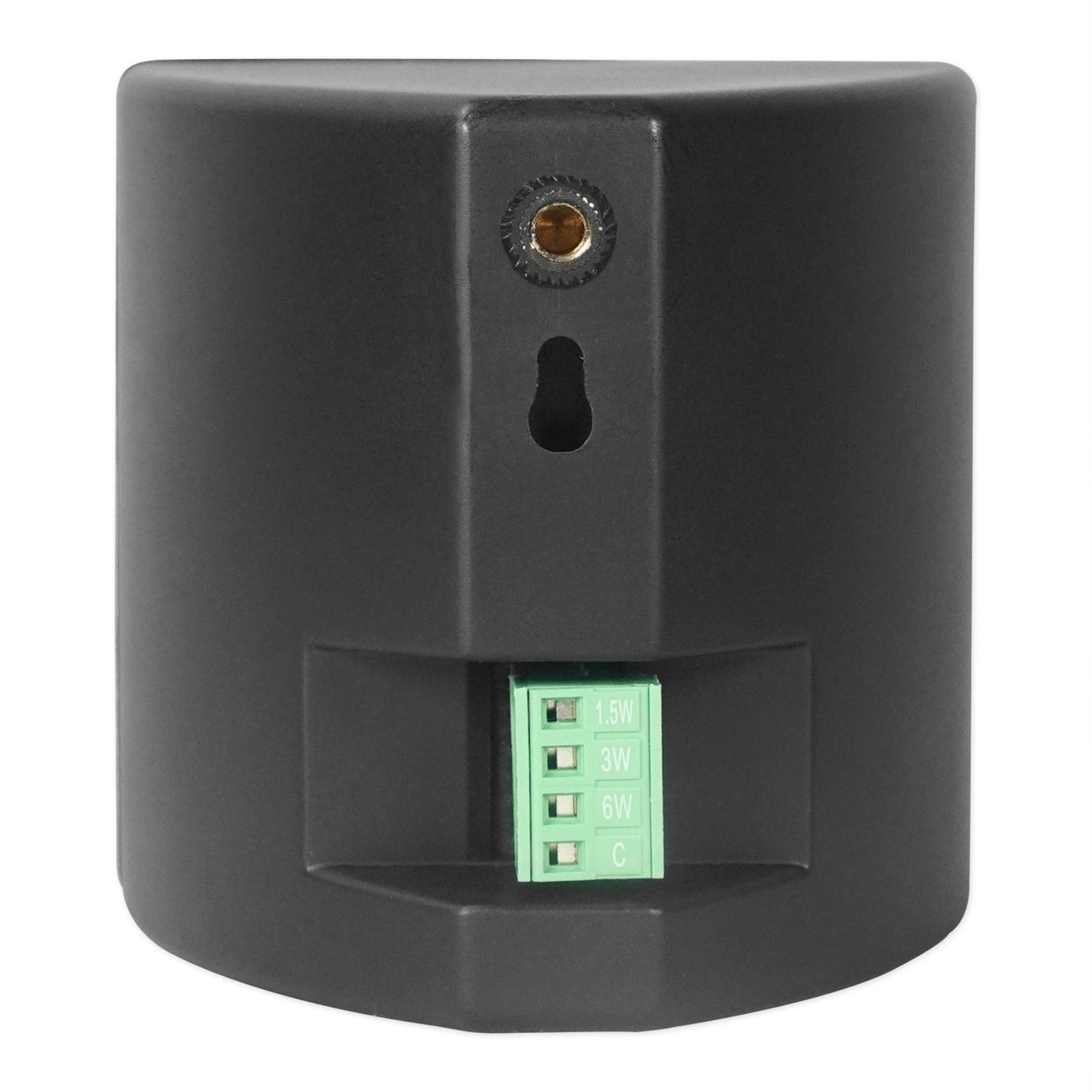

When we say the word tap, we are referring to the rear of these speakers where you can use the 1.5 watt, 3 watt, or 6 watt inputs. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 6 watts, and the hallway or bathroom speakers at 3 watts.

Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.

The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

Features:

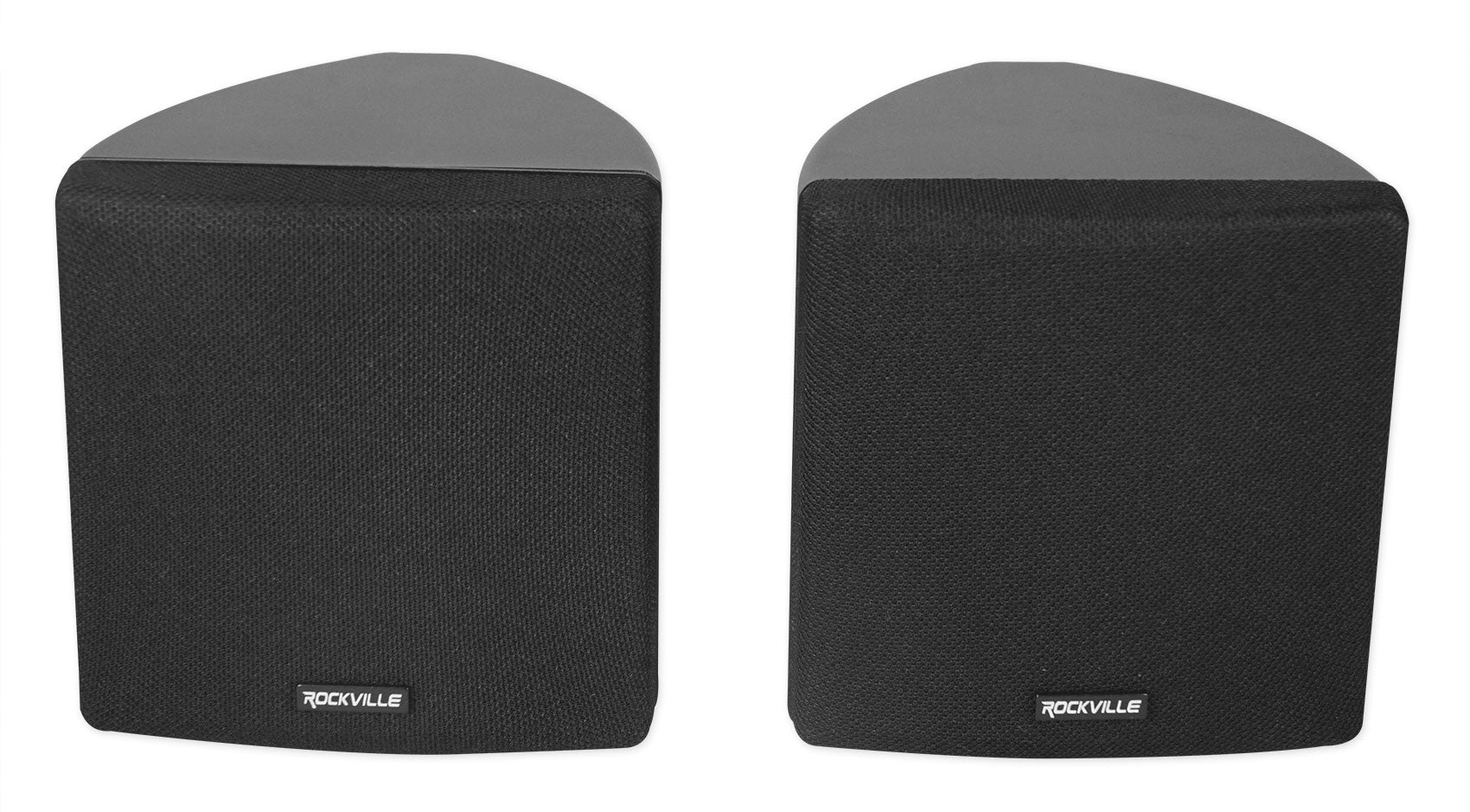

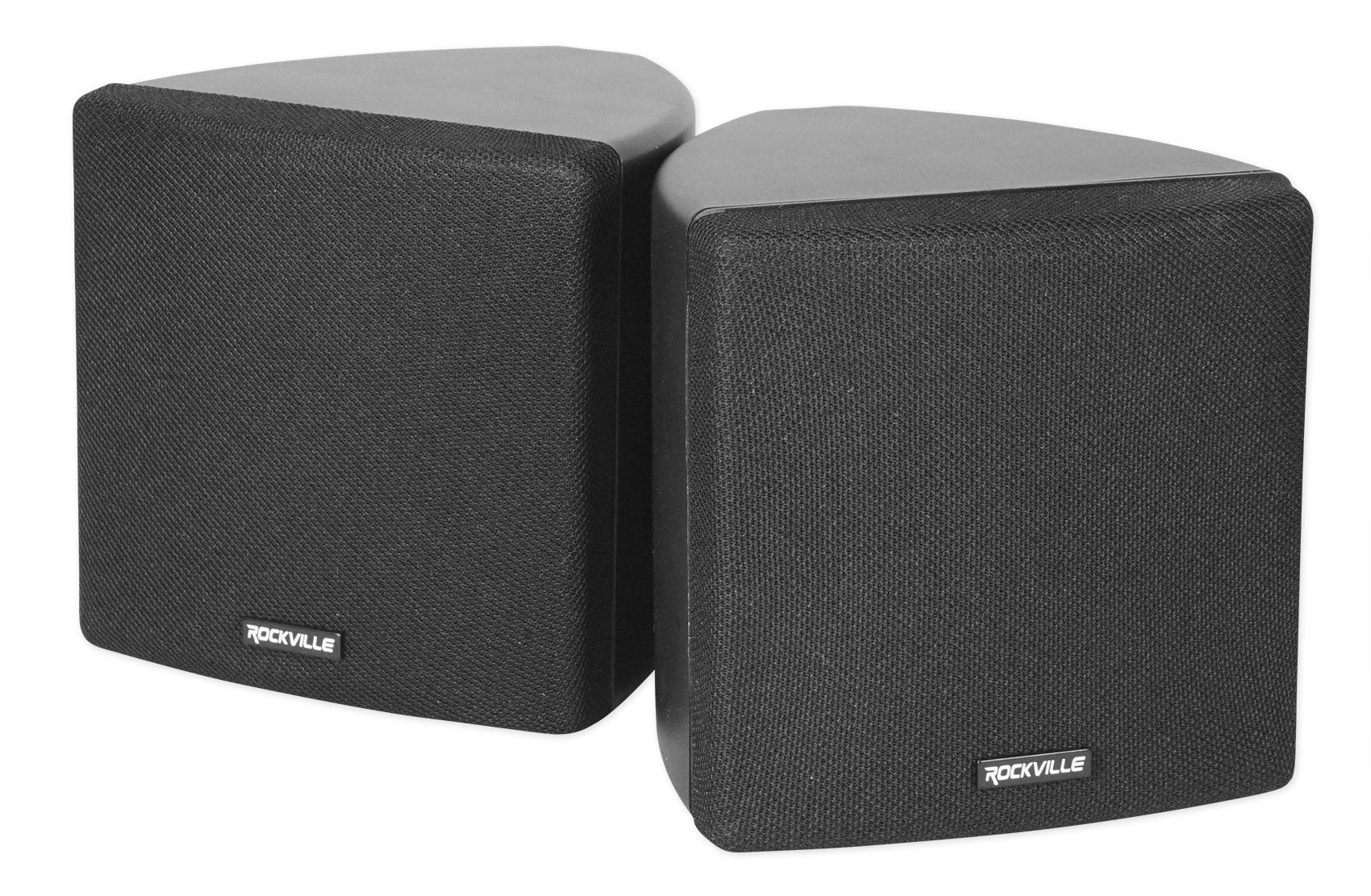

Cube by Rockville - Pair of Black 3.5" 70 Volt Commercial Speakers With Swivel Mounting Bracket
70 Volt power options: 6 watts, 3 watts, 1.5 watts

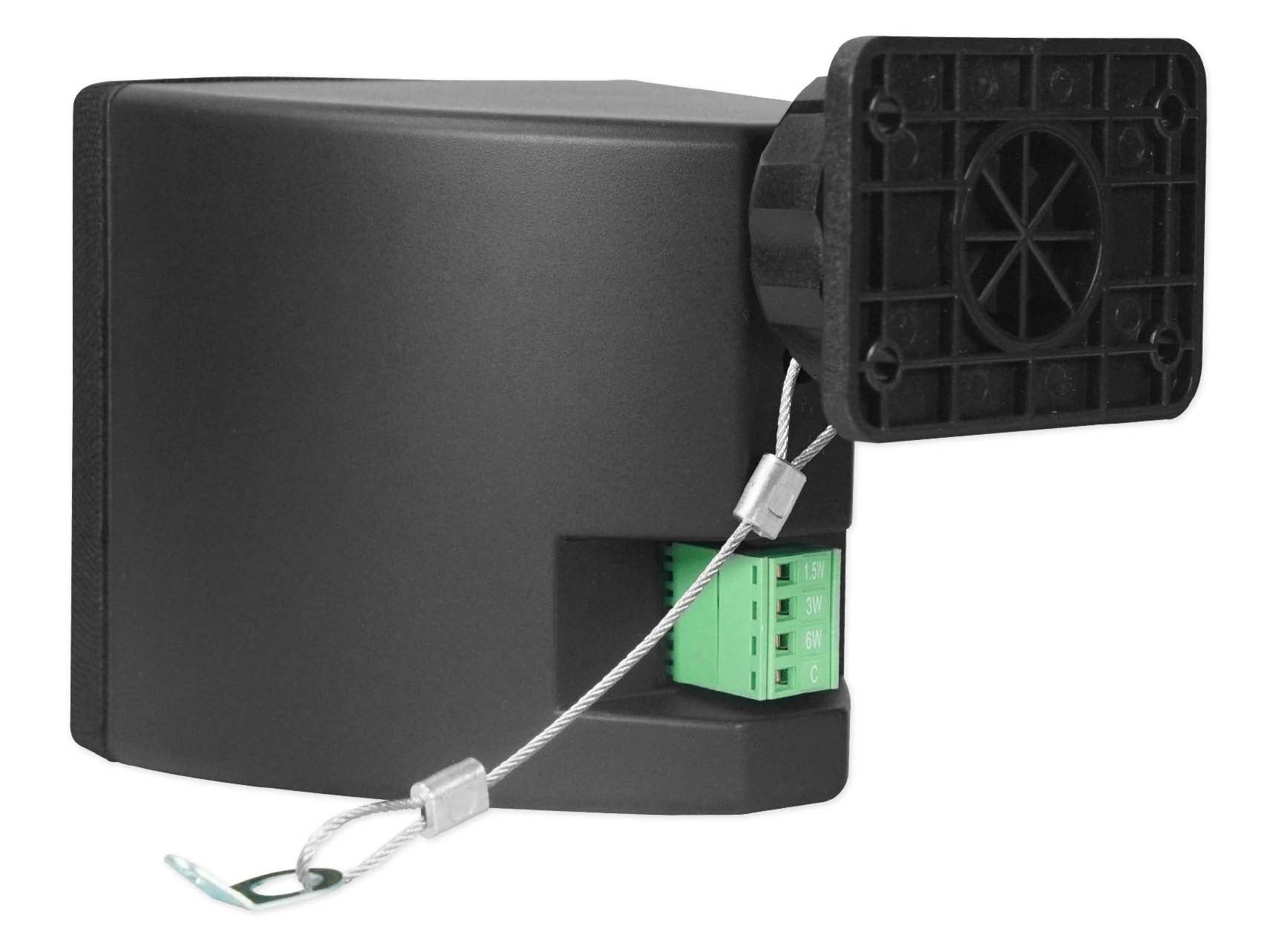

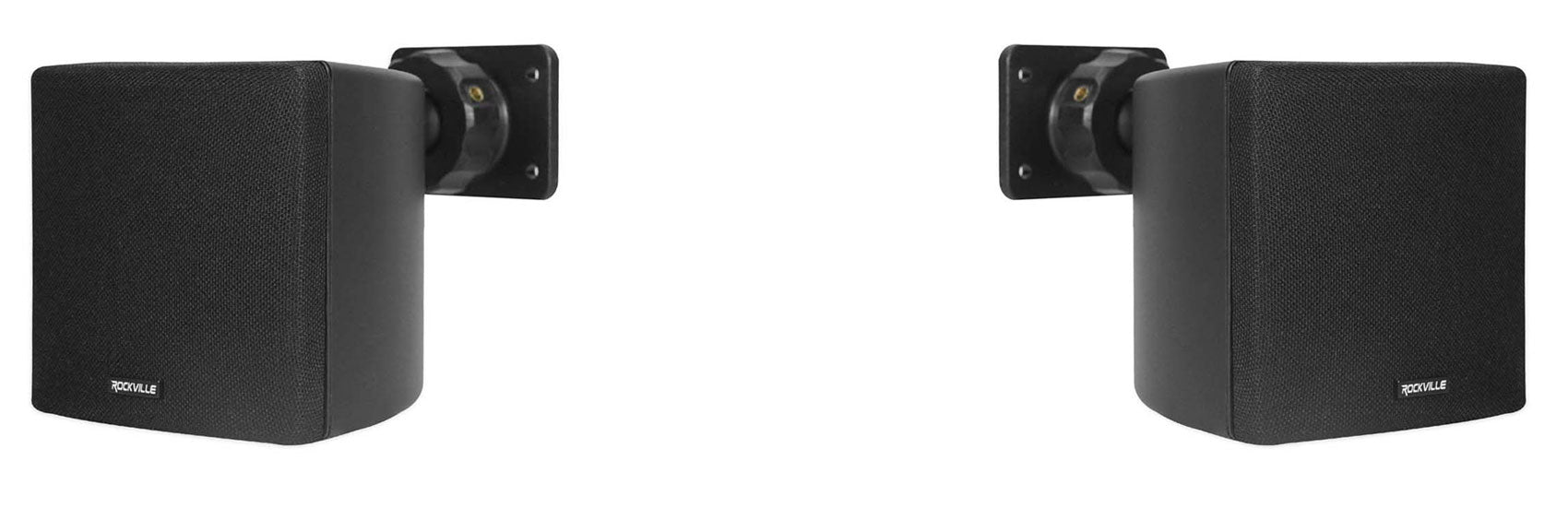

Easy Wall Mount Brackets with 360 Degree Swivel Rotation For Optimal Sound Staging

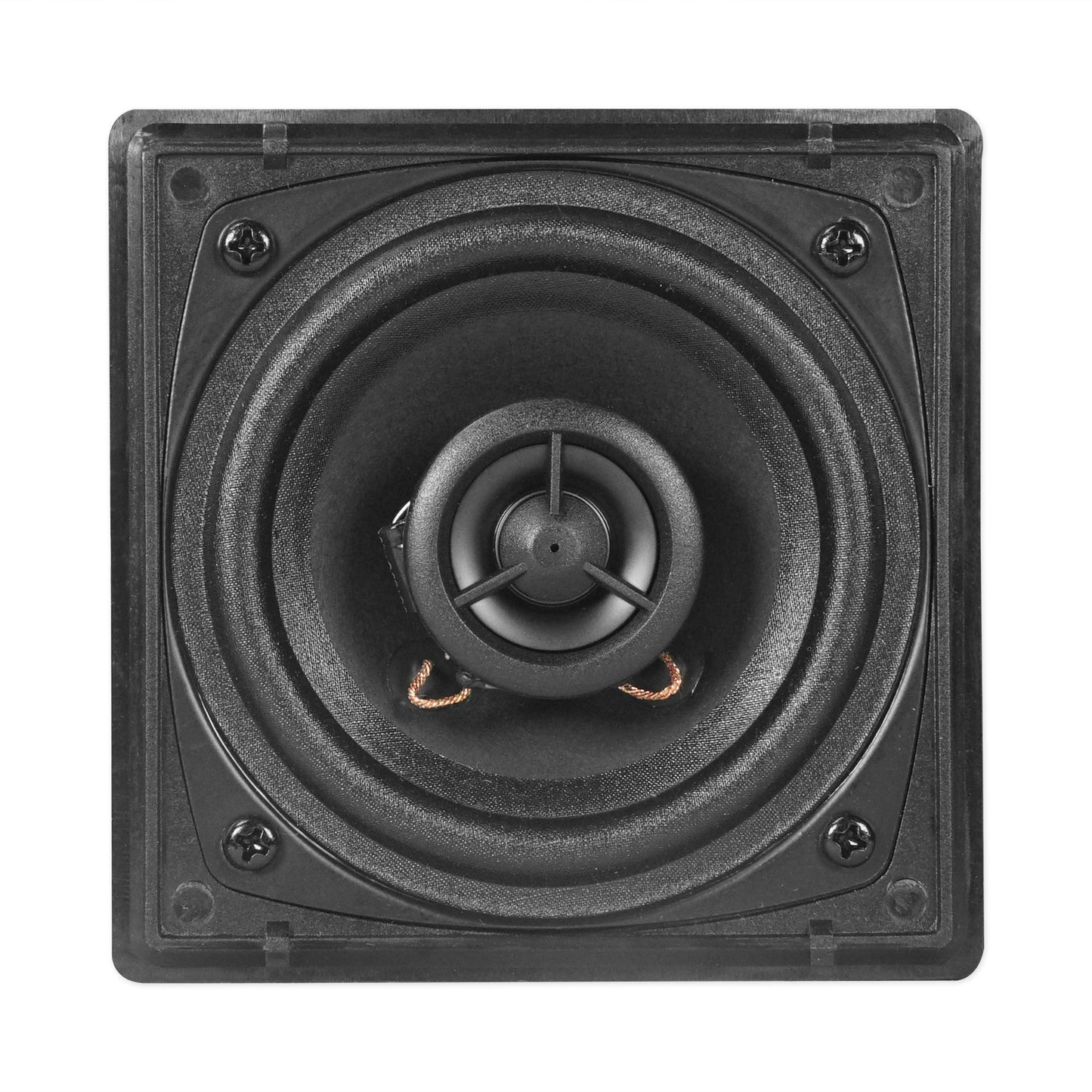

3.5" Woofer with Paper Cone has Natural Sound Reproduction with Clear Mids and Bass
0.5" black PEI tweeter delivers crystal clear highs
True 2 way speaker system delivers way better sound quality than famous brands who make these in a 1 way design
Sensitivity: 86 dB +-2dB (1M/2.83V)
Frequency Response (±3db): 130Hz - 20kHz
Cabinet Material: ABS
Color: Black

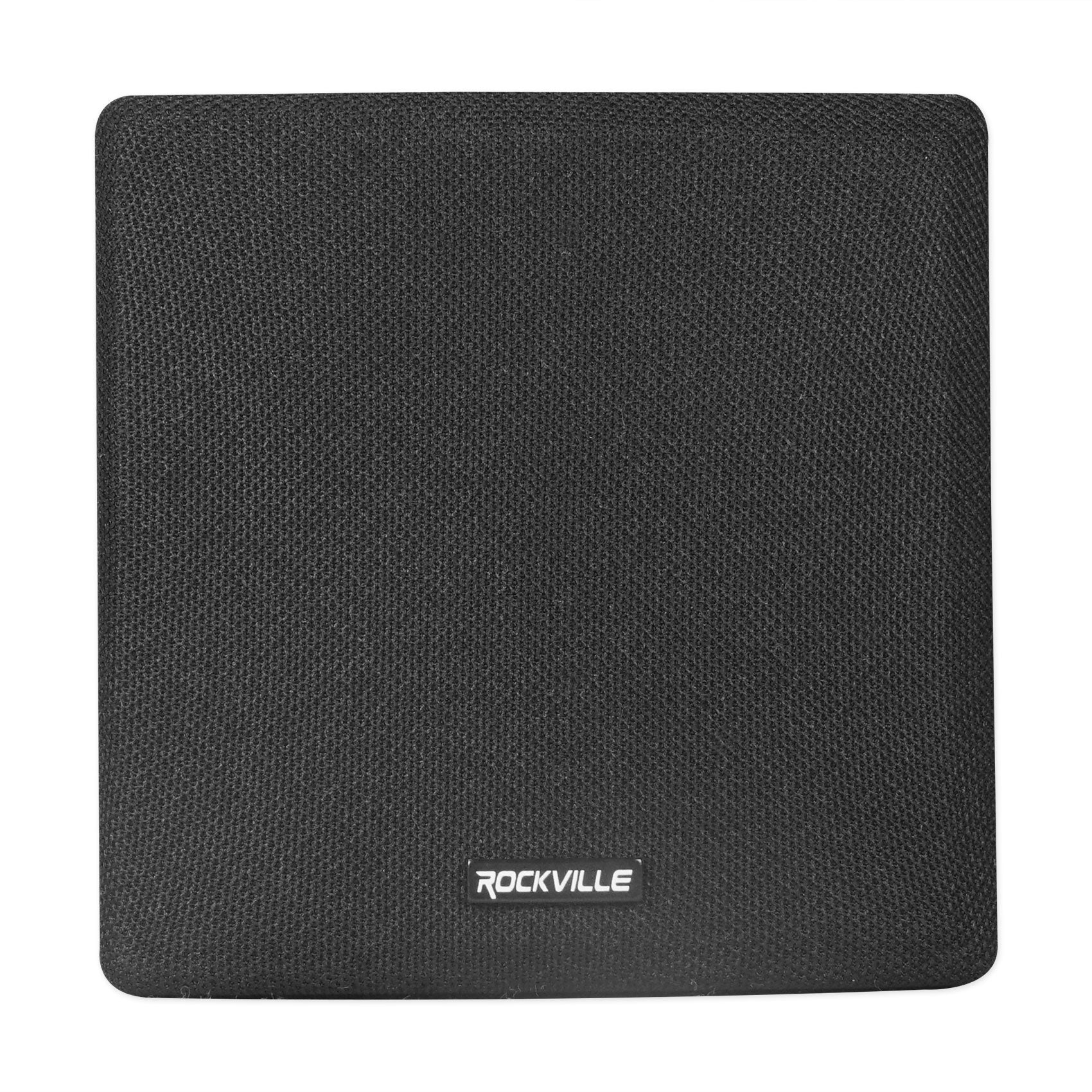

Shielded grill offers additional protection from dust and damage
Audiophile grade sound quality
Perfect for restaurants, offices, retail stores, and other commercial applications
Euro block speaker terminals with quick disconnect
Product Dimensions: 4.13" x 4.72" x 4.13"
Product Weight: 1.76 Lbs. (Per Speaker)
