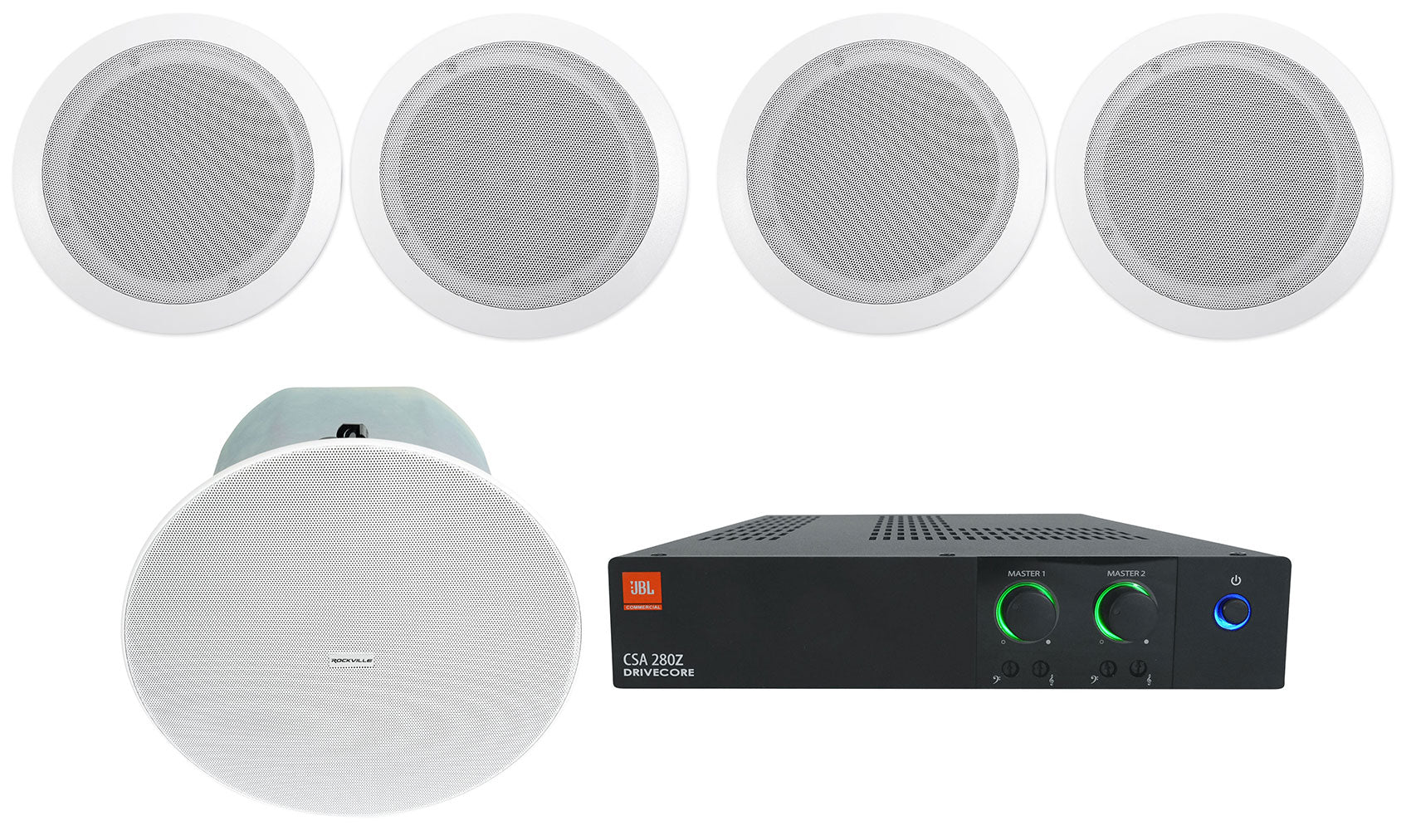

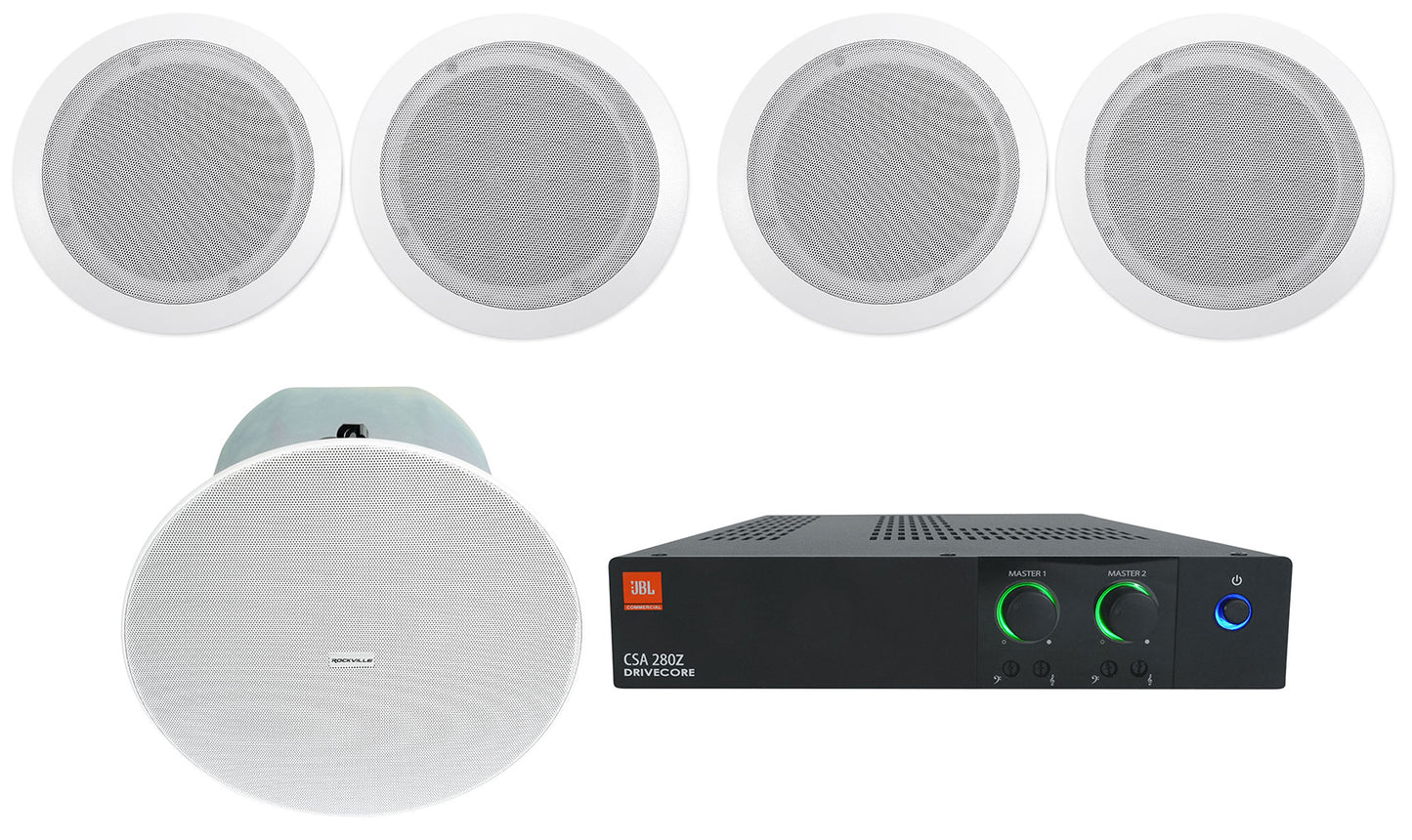

Package Includes:

(1) JBL CSA 280Z 2 x 80w Commercial 70v Amplifier Amp 4 Restaurant/Bar/Cafe CSA280Z
(2) 2) Rockville CC65T White 6.5" Commercial 70v Ceiling Speakers For Restaurant
(1) Rockville CC8-SUB 8” Commercial/Restaurant 70V Ceiling Subwoofer Sub+Rough-In Kit

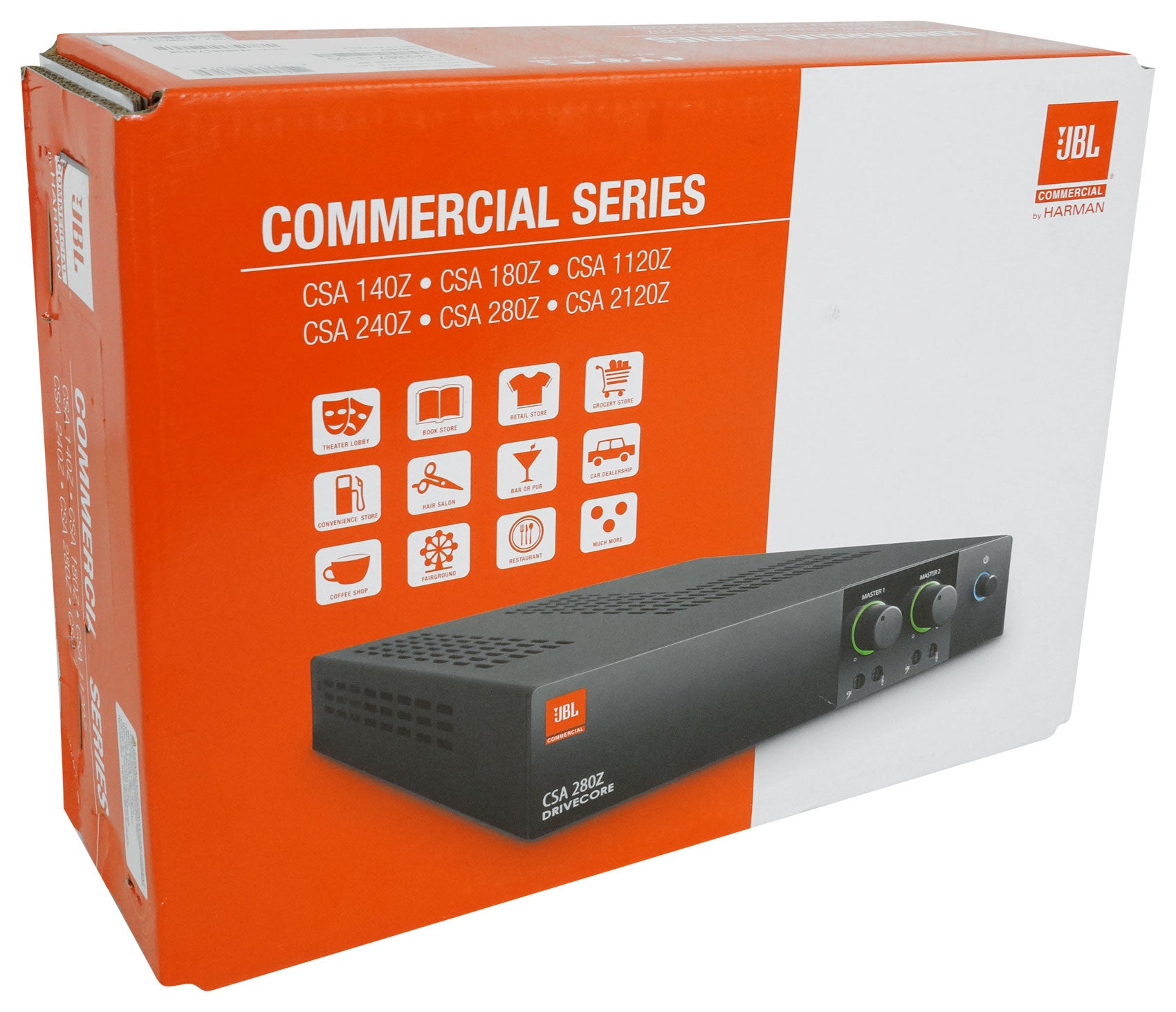

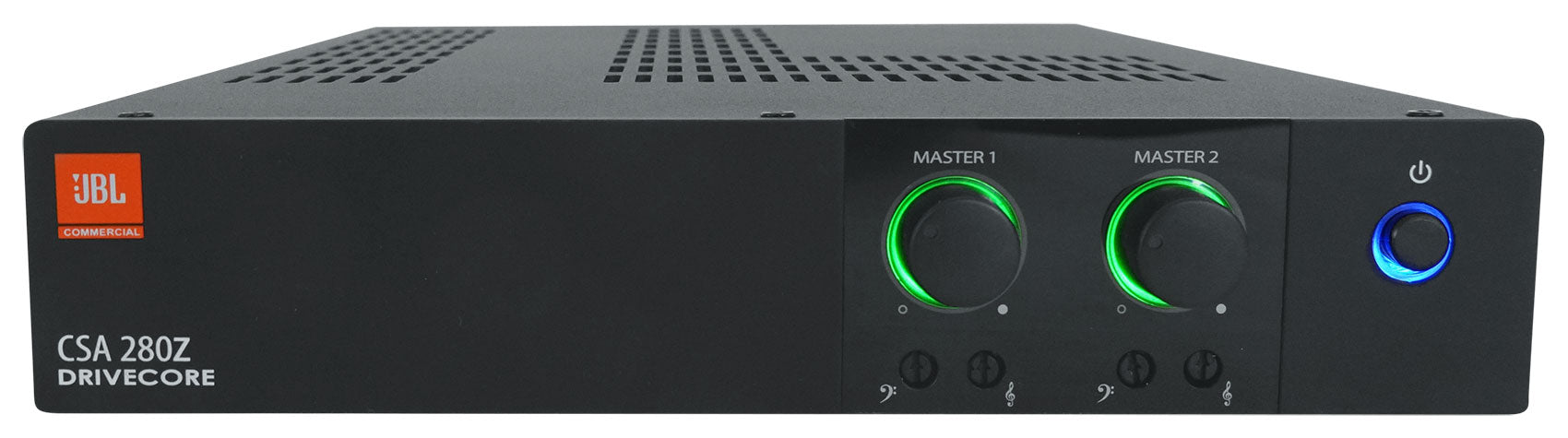

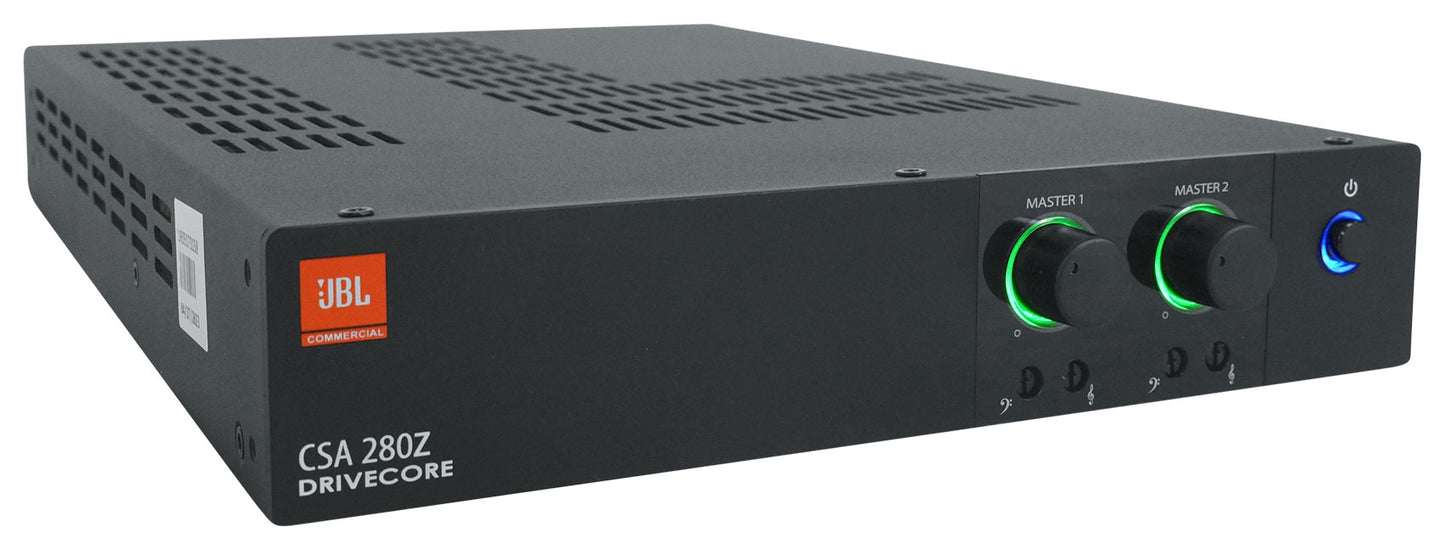

Description of CSA 280Z:

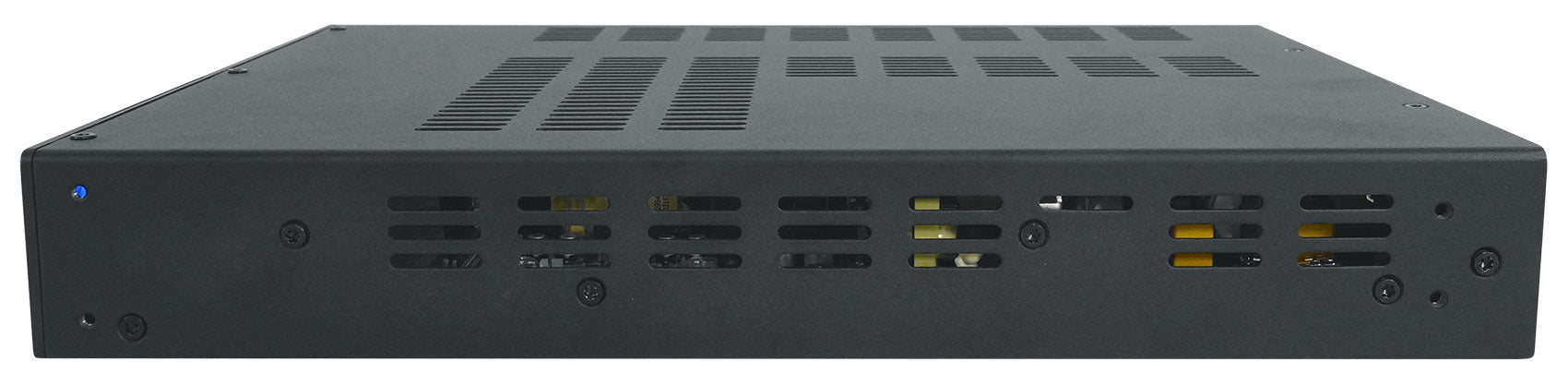

By combining years of innovation, invention and insight from HARMAN brands, JBL Commercial Series Amplifiers (CSA) go well beyond the expected in generating powerful sound. From the switch-mode universal power supply to the efficient performance of Crown’s DriveCore Technology, we continue to set new standards in commercial power amplifier technology. Simple to configure, the Commercial Series amp provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance. Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Its universal power supply allows every Commercial Series amp to accept AC voltages from 100 to 240 VAC, 50/60 Hz. And with HARMAN’s GreenEdge environmental initiative, Commercial Series amps quickly pay for themselves in energy savings.

Features:

2 output channels with 80W per channel
Built-in 70V and 100V
Fanless, space-saving 1U design
Sleep mode disable function
Energy-efficient amplifier
Sleek industrial look with illuminated rings making knobs easy to see and use

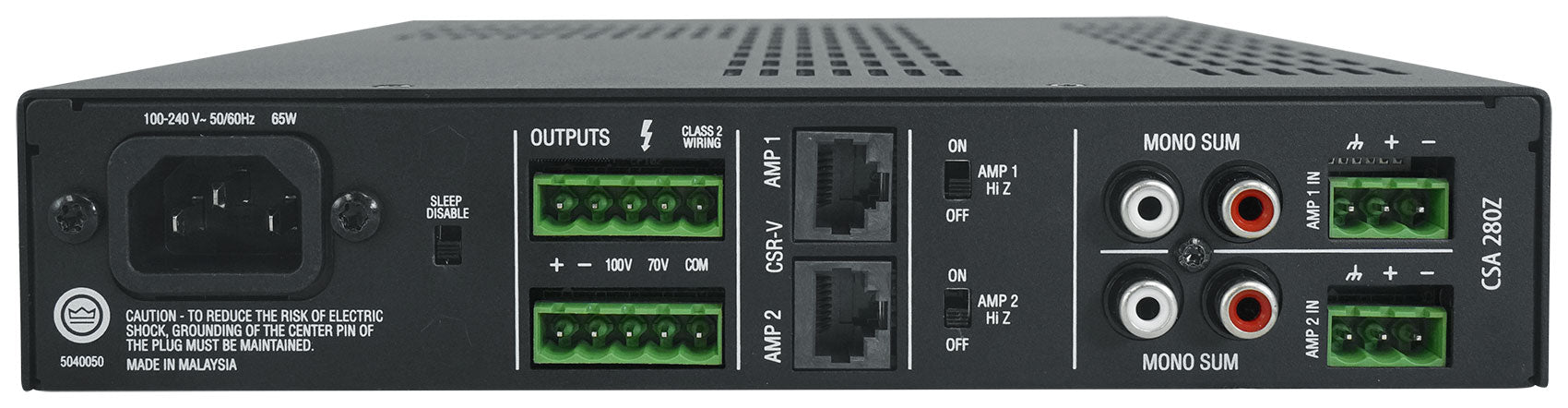

Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
Universal power supply
Energy Star Certified

Specifications:

Power Output: 80W
Output Channels: 2
Input Sensitivity: 1.4Vrms for 8-ohms
Phantom Power: 27VDC
AC Line Voltage: 100 - 240V, 50/60 Hz
Input Impedance: 20K ohms/50K ohms
Dimensions: 1.75” x 8.5” x 12” (44.45mm x 215.9mm x 304.8mm)
Included Accessories: Rack mounting kit

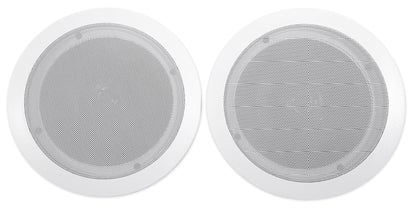

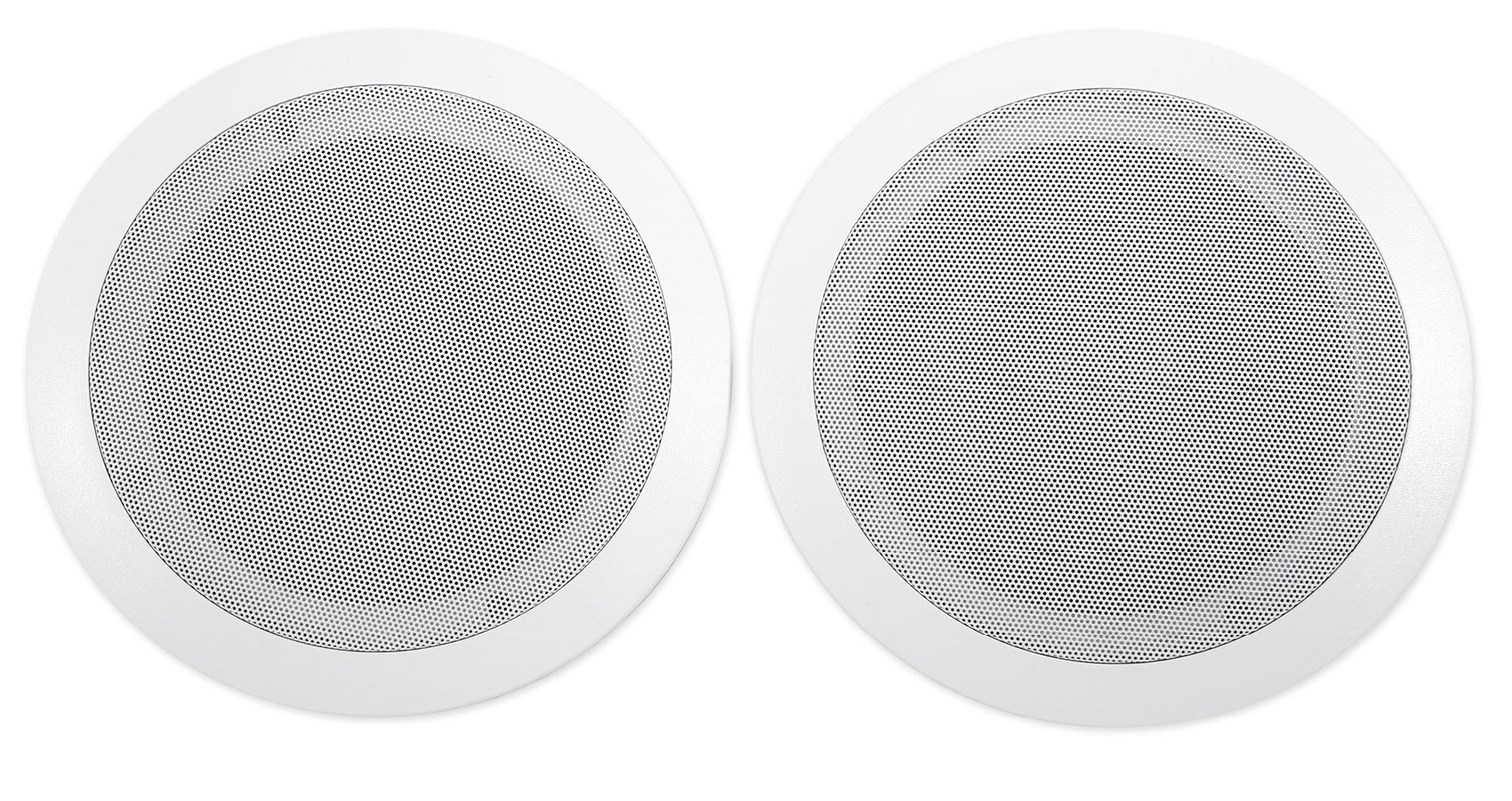

All About Your CC65T:

How to Set up Your CC65T and CC80T:

All About Your 70 Volt:

Description:

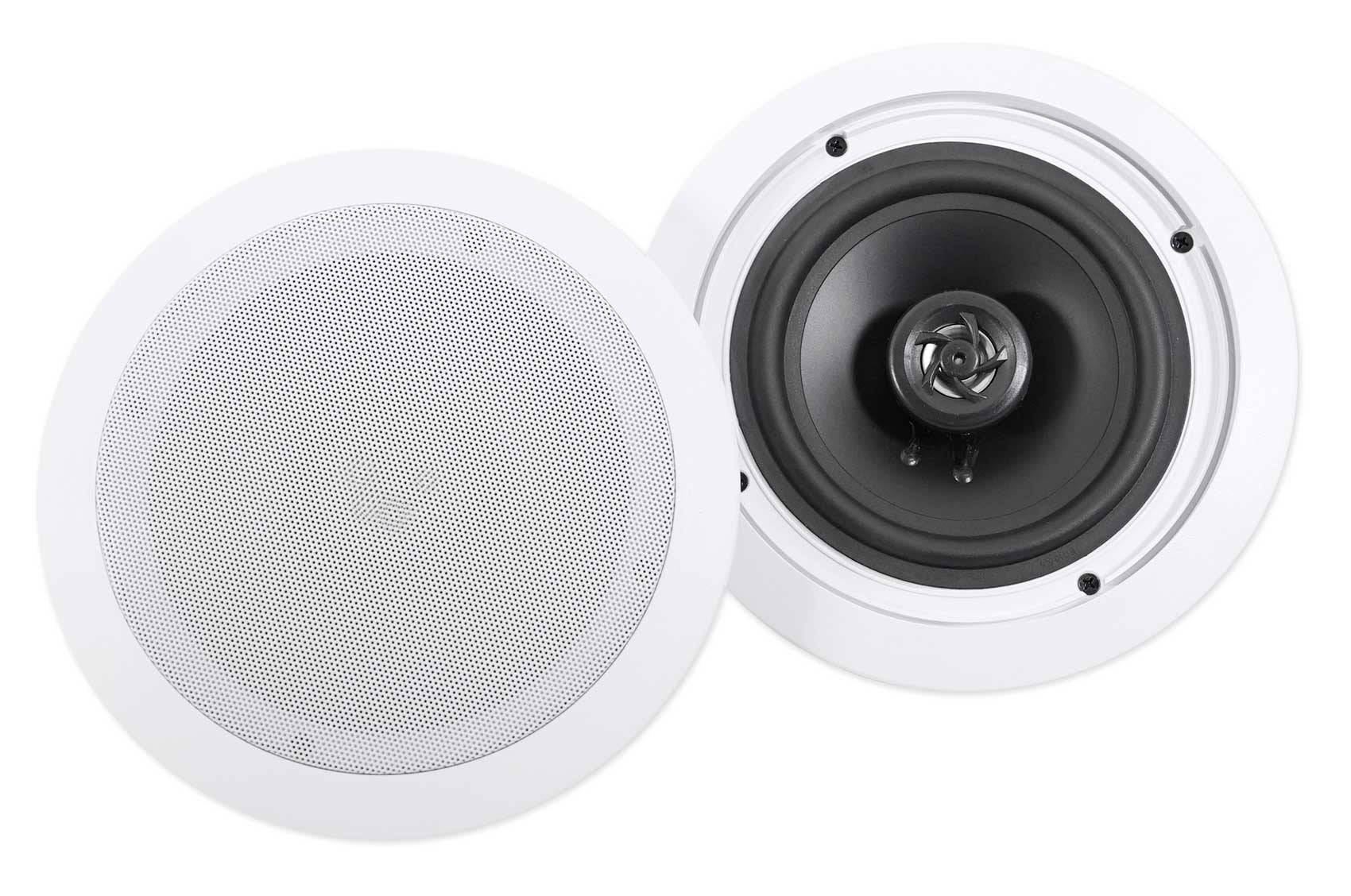

The CC65T are perfect for any commercial application where you want to get amazing sound quality out of your music and have the ability to crank the volume really loud. It will obviously still handle your PA announcements and chimes, etc. We took a high quality home theater speaker and added 70 volt technology to it to give you the best of both worlds. With a select-able tap wattage that ranges from 2.5w all the way to 20w these speakers are great for any commercial application.

These ceiling speakers are precision tuned for excellent audio response at high and low volumes. If you want good musical sound you really need a 2-way speaker with a dedicated tweeter for highs and a dedicated woofer for lows. These in-ceiling speakers feature a 6.5" polypropylene woofer cone for clear, rich mids and deep bass. Our mylar dome tweeter provides clean, crisp highs. The included sheer grill enables flush installation and can be painted to match any décor. Our high quality spring loaded push terminals make your wiring very secure.

Features:

Pair of Rockville CC65T White 6.5" Commercial 70v In-Ceiling Speakers for Restaurant/Bar/Cafe
70V Power Options:
- 20w
- 15w
- 10w
- 5w
- 2.5w
Polypropylene Cone
Rubber Surround
6.5" Woofer
1" Aluminum Voice Coil
½" Mylar Dome Tweeter
10 oz. Ferrite Magnet
High Quality Spring Loaded Push Terminals
Aim-able Swivel Tweeter
Paintable Flush Mount Grills
Frequency Response: 60Hz - 20KHz
Sensitivity: 89dB @ 1w / 1m
Impedance: 8 Ohms
Mounting Depth: 2.91"
Cut-out Diameter: 7.6"
Color: White (paintable)

There is a tap switch on the speaker so you can easily select how many watts you want the speaker to get from the amp.

70V Power Options:

20w
15w
10w
5w
2.5w

8 Ohm power handling:

What is 70 volt?

70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 150 watts and you can install speakers that total around 120 watts. It does not matter if it is 12 speakers that are 10 watts each or 24 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 to 20% more power than the combined watts your speakers are tapped at.

When we say the word tap, we are referring to the switch that is located on the rear of these speakers where you can select how many watts you want the speaker to play. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 6 watts, and the hallway or bathroom speakers at 3 watts.

Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.

The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

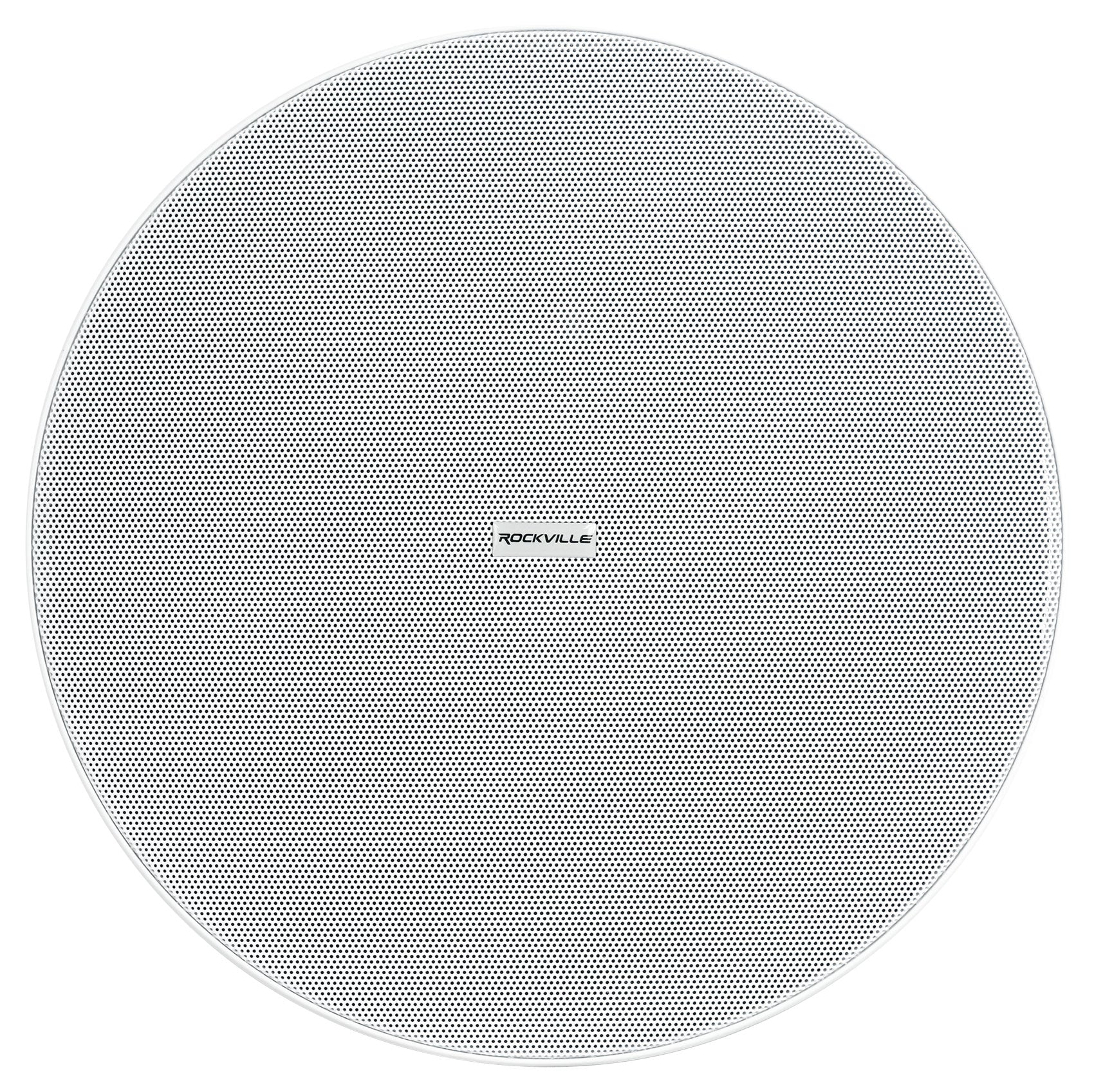

All about Your CC8-SUB:

How To Set Up Your CC8-SUB:

How To Tap Your CC8-SUB:

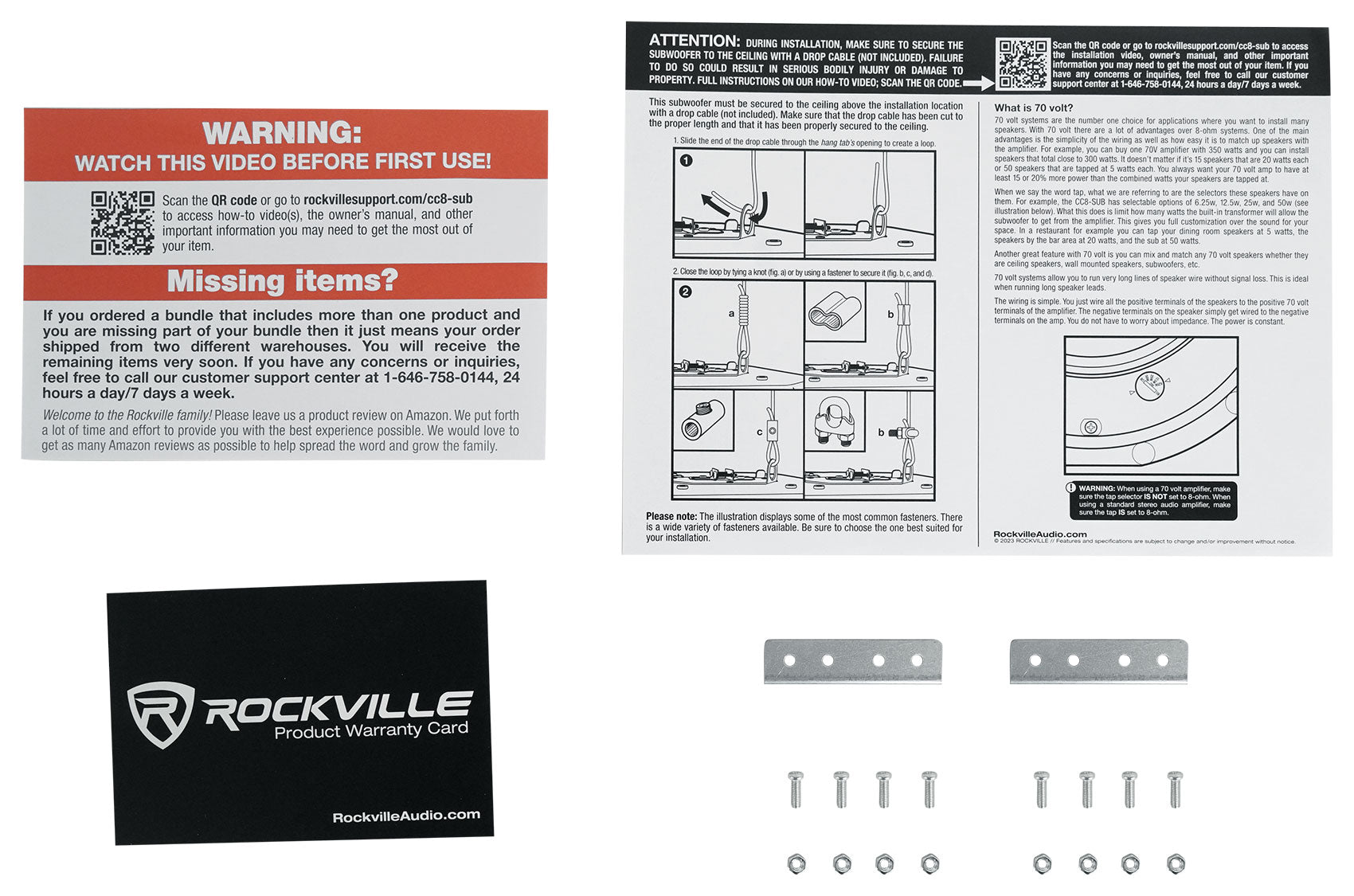

Includes:

Subwoofer
Metal rough-in kit for drop-ceiling tile mounting

Description:

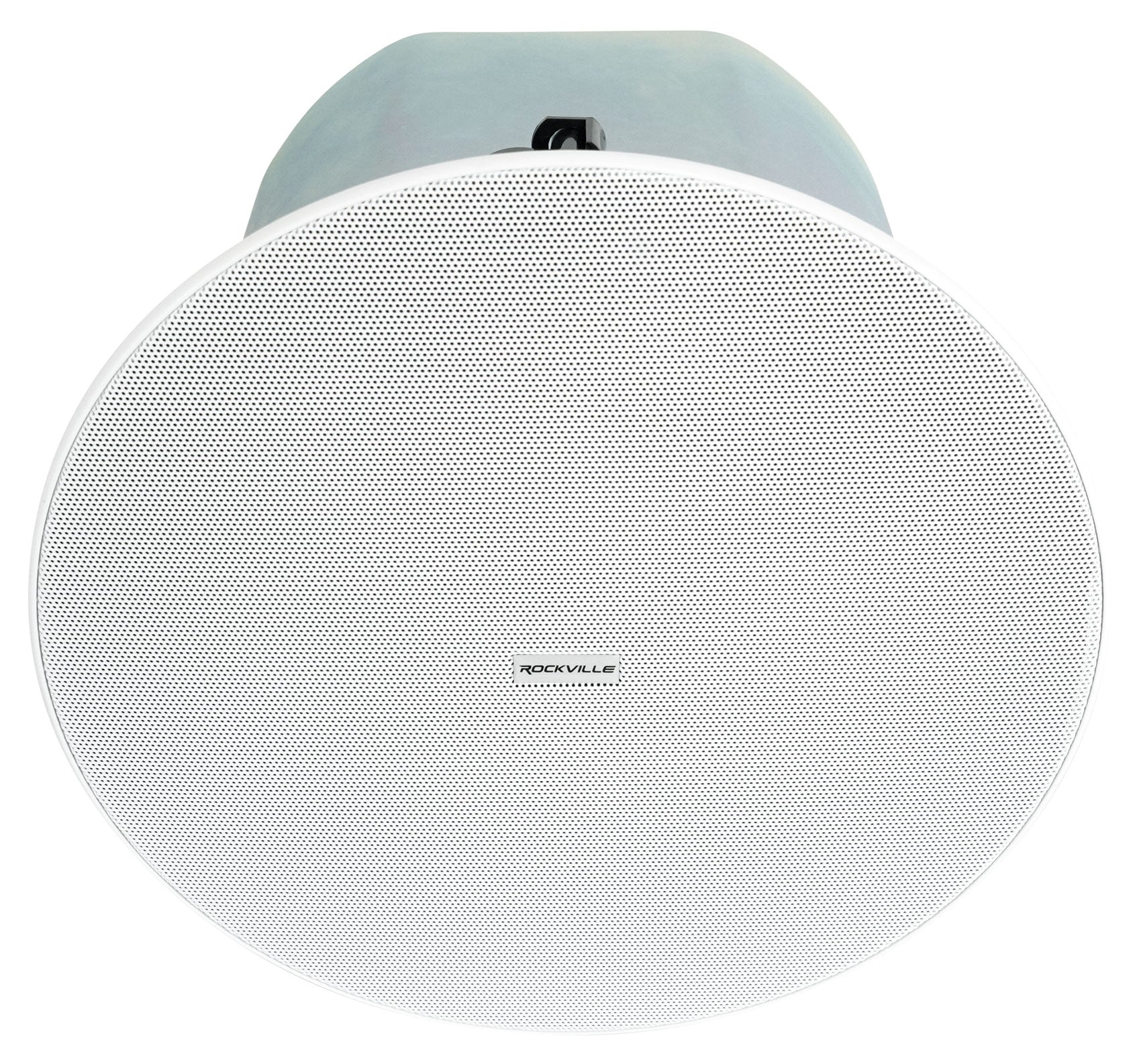

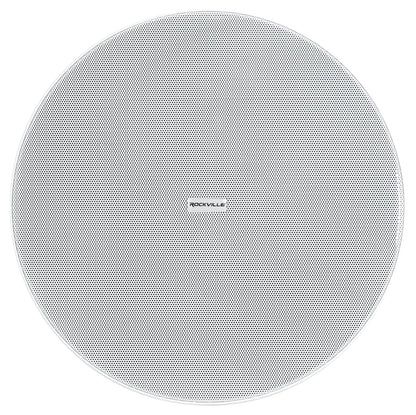

The Rockville CC8-SUB is an 8" in-ceiling subwoofer with a built in transformer that will operate at either 70 volts or regular 8 ohm. This can install into a sheet rock ceiling or a drop-ceiling with the included metal rough-in bracket.

Applications:

Conference rooms
Offices
Schools
Churches
Retail stores
Commercial applications
Home audio systems

There is a tap switch that allows the following power options:

70V Power Options:

50w
25w
12.5w
6.25w

8 Ohm power handling:

100w RMS
200w Peak

Features:

Rockville CC8-SUB 8" 70V Commercial In-Ceiling Subwoofer
Mounts in any kind of ceiling such as dry wall or ceiling tiles with included rough-in kit
Selectable Taps: 50w, 25w, 12.5w, 8 Ohm
Built-in 70v transformer
30 oz magnet
Detachable Phoenix terminals accepts regular speaker wire (Makes installation easier and more convenient)
50w-25w-12.5w-6.25w selectable with 70v input
By-pass option to run sub at 8 ohm: 100w RMS power handling @ 8 ohm
Frequency response: 38Hz-300Hz
Sensitivity: 89B (1w@1m)
High quality metal rough in bracket included
Unit weight: 15lbs

What is 70 volt?

70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 350 watts and you can install speakers that total close to 300 watts. It does not matter if it is 15 speakers that are 20 watts each or 50 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at.

When we say the word tap, what we are referring to are the selectors these speakers have on them. For example, these speakers have selectable options of 2.5w, 5w, 10w, 20w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 20 watts, and the ones in the hallway at 2.5 watts.

Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.

70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.
