CCL6T BLACK [Used]

Product Description Features Specifications Support

CCL6T BLACK [Used]

  • CCL6T BLACK [Used]
  • CCL6T BLACK [Used]
  • CCL6T BLACK [Used]
  • CCL6T BLACK [Used]
  • CCL6T BLACK [Used]
  • CCL6T BLACK [Used]
1 6
Used

Rockville

CCL6T BLACK [Used]

CCL6T BLACK [Used]

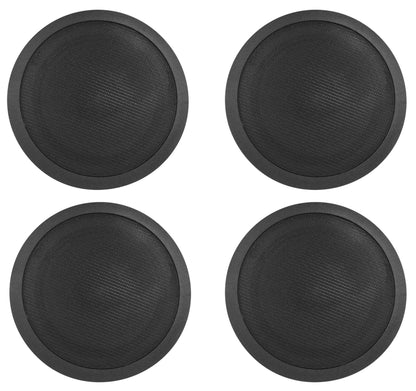

70V Commercial Ceiling Speakers, 6" Woofer, 10W/5W/2.5W Power Options, Includes Four Speakers, Mounting Hardware
$22.19
$22.19 $0.00
Features
    • 70V system with selectable 10W, 5W, and 2.5W power options for zone control
    • 6" double paper cone design delivers clear sound from 80Hz to 15KHz
    • Paintable flush-mount grills blend with any ceiling aesthetic
    • Fireproof terminals and commercial-grade construction for reliable installation
    • Simplified wiring supports multiple speakers without impedance matching concerns

SKU: CCL6T BLACK U

View full details

Product Description

The CCL6T delivers exceptional commercial audio performance with selectable power options that adapt to any installation. These 6" ceiling speakers excel in restaurants, offices, schools, and retail environments where background music and PA announcements demand consistent, clear sound distribution. The integrated transformer provides three power settings—10W, 5W, and 2.5W—allowing precise volume control across different zones. The double paper cone design and ferrite magnet produce balanced frequency response from 80Hz to 15KHz. With paintable flush-mount grills and fireproof terminals, these speakers blend architectural aesthetics with commercial-grade reliability. The 70V system simplifies wiring while supporting multiple speaker installations without signal degradation.
Commercial Audio Excellence Redefined

Commercial Audio Excellence Redefined

The CCL6T combines 70V technology with user-friendly power selection. These 6" speakers deliver exceptional clarity for PA announcements and background music, making them the ideal choice for restaurants, offices, schools, and retail establishments.
Customizable Power for Every Zone

Customizable Power for Every Zone

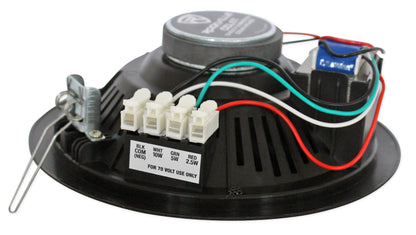

The transformer system provides three power options—10W, 5W, and 2.5W—accessed through white, green, and red terminals. This allows precise volume control across different areas of your space. The 70V system eliminates impedance matching concerns while supporting extensive speaker networks.
Superior Sound Engineering

Superior Sound Engineering

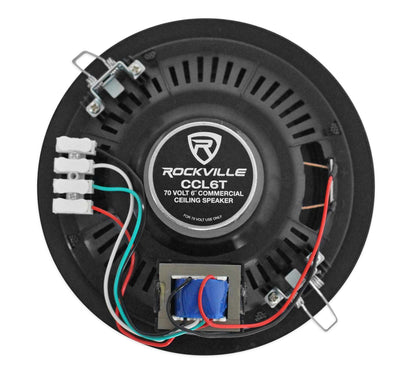

Each speaker features a double paper cone paired with a 0.75" voice coil and 3.5 oz ferrite magnet, producing balanced frequency response from 80Hz to 15KHz. The 88dB sensitivity rating delivers power conversion, while the fireproof screw terminal block and spring-loaded push terminals provide secure, long-lasting connections.
Installation Made Simple

Installation Made Simple

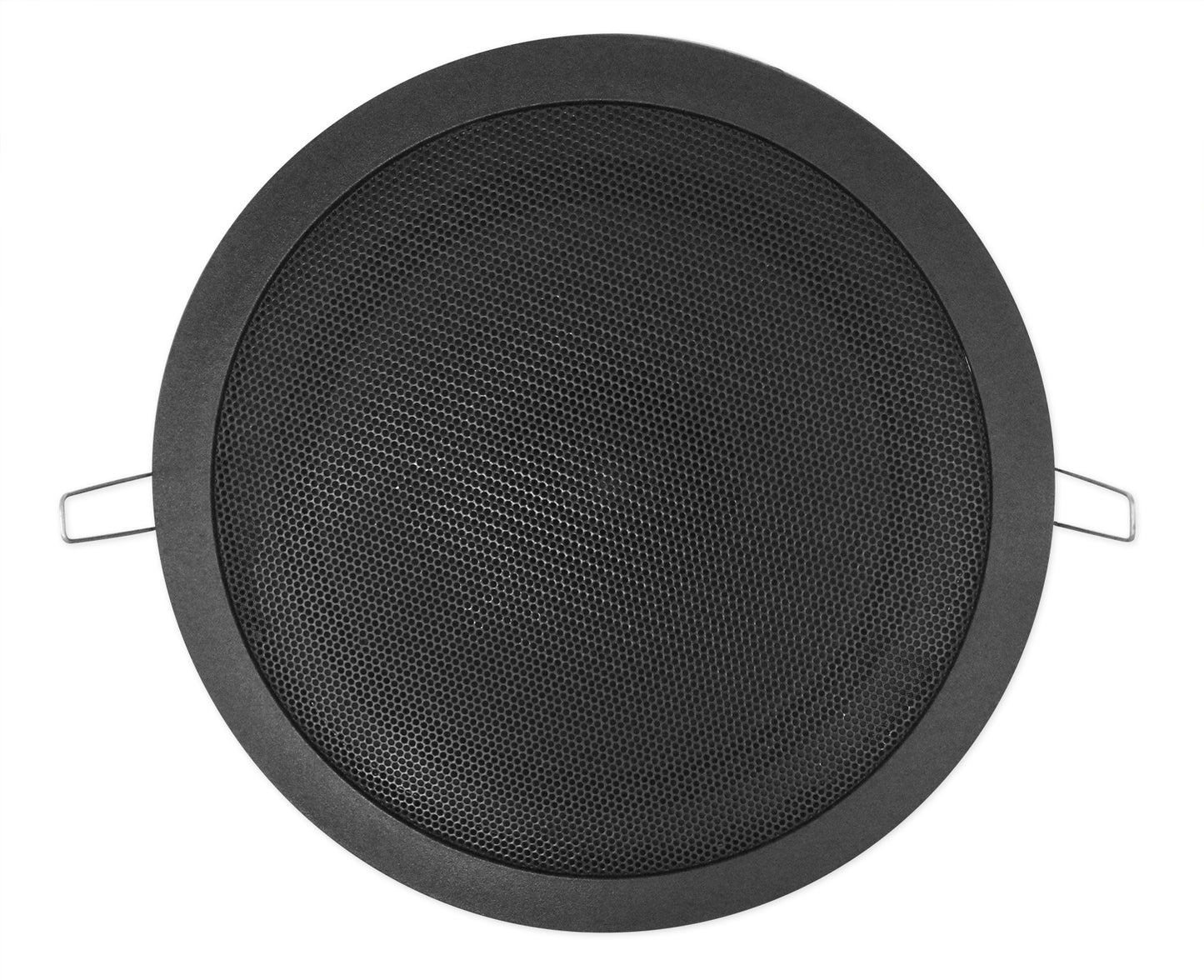

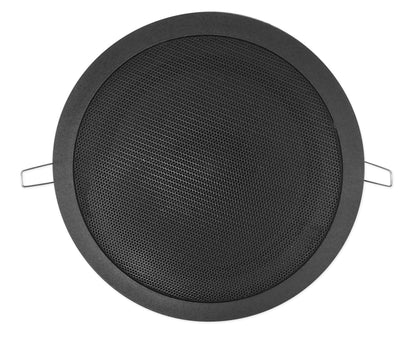

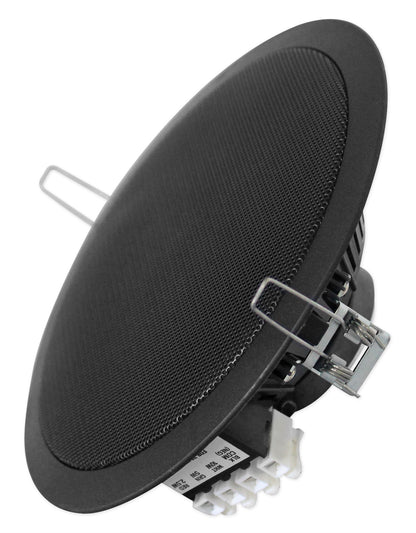

The paintable flush-mount grills blend with any ceiling, while the 2.36" mounting depth accommodates standard construction. The 6.5" cut-out diameter requires minimal ceiling modification, and the 70V system allows extensive wire runs without signal degradation. Multiple speakers can be connected using positive-to-positive, negative-to-negative wiring.
Investment in Long-Term Performance

Investment in Long-Term Performance

These speakers transform any commercial environment into a sophisticated audio-enabled space. The combination of selectable power options, superior sound quality, and simplified installation creates a system that grows with your business needs while maintaining consistent performance across all zones.

Features

    • Selectable Power Control

      Choose between 10W, 5W, or 2.5W power settings through color-coded terminals, allowing precise volume customization for different zones within your commercial space.

    • 70V System Compatibility

      Connects seamlessly to 70V amplifiers with simplified wiring that supports multiple speakers without impedance matching concerns or signal degradation over long wire runs.

    • Balanced Sound Performance

      Double paper cone design with ferrite magnet delivers clear frequency response from 80Hz to 15KHz, perfect for both PA announcements and background music applications.

    • Flush-Mount Design

      Paintable grills and 2.36" mounting depth create a clean, professional appearance that integrates with any ceiling aesthetic while maintaining easy installation access.

    • Commercial-Grade Construction

      Fireproof screw terminal block and spring-loaded push terminals provide secure connections that meet commercial installation standards for long-term reliability.

Technical Specifications

  • Product Type 70V Commercial Ceiling Speakers
  • Power Options 10W, 5W, 2.5W
  • Woofer Size 6"
  • Frequency Response 80Hz - 15KHz
  • Sensitivity 88dB @ 1W/1M
  • Impedance 1K, 2K, 4K ohms
  • Voice Coil 0.75"
