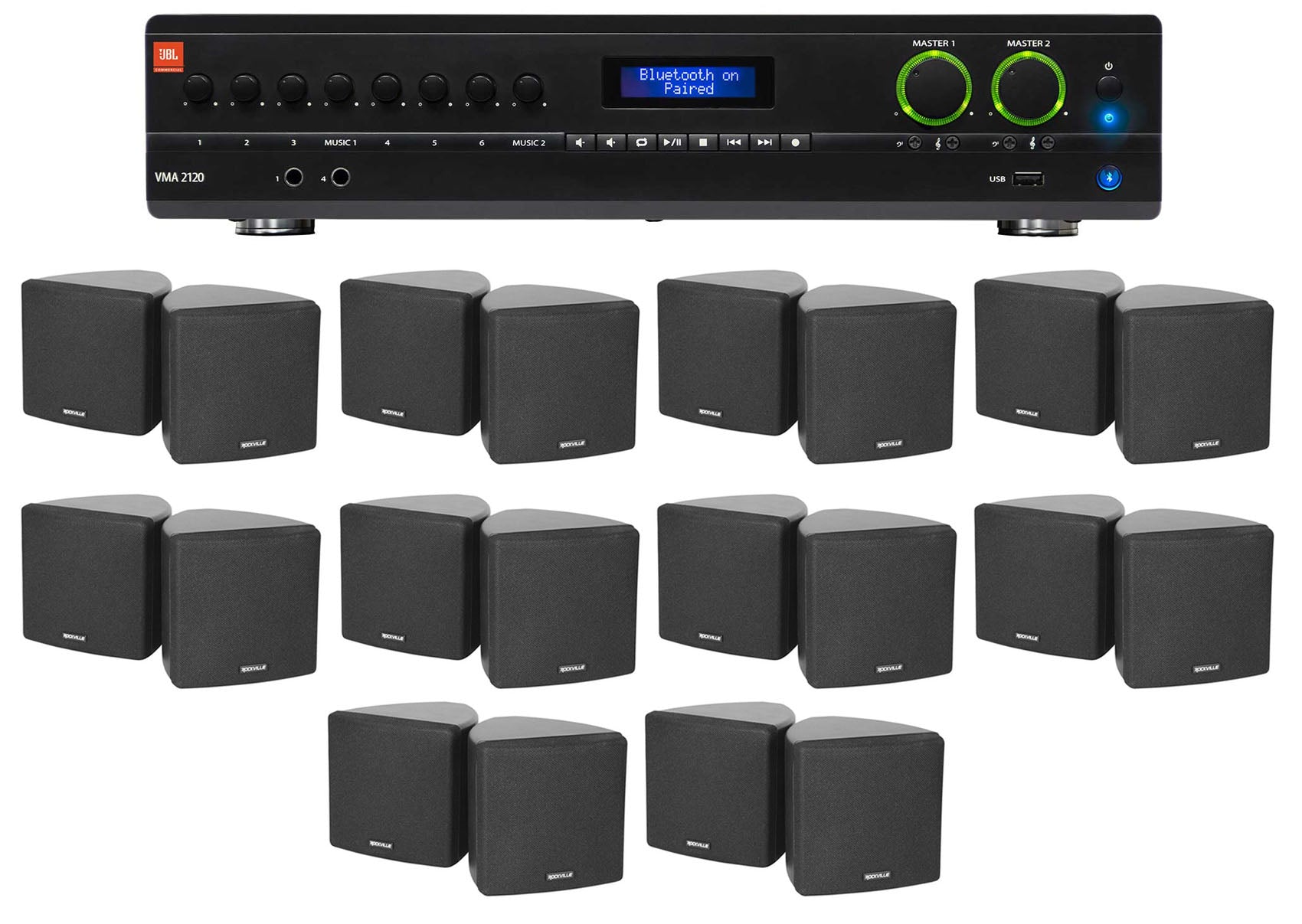

Package Includes:

(1) JBL VMA2120 2-Ch. Commercial/Restaurant 120W 70V Bluetooth Amplifier, 8 Inputs
(10) Cube by Rockville Pair of 3.5" Black Commercial 70v Swivel Wall Mount Speakers

Authorized JBL Dealer!

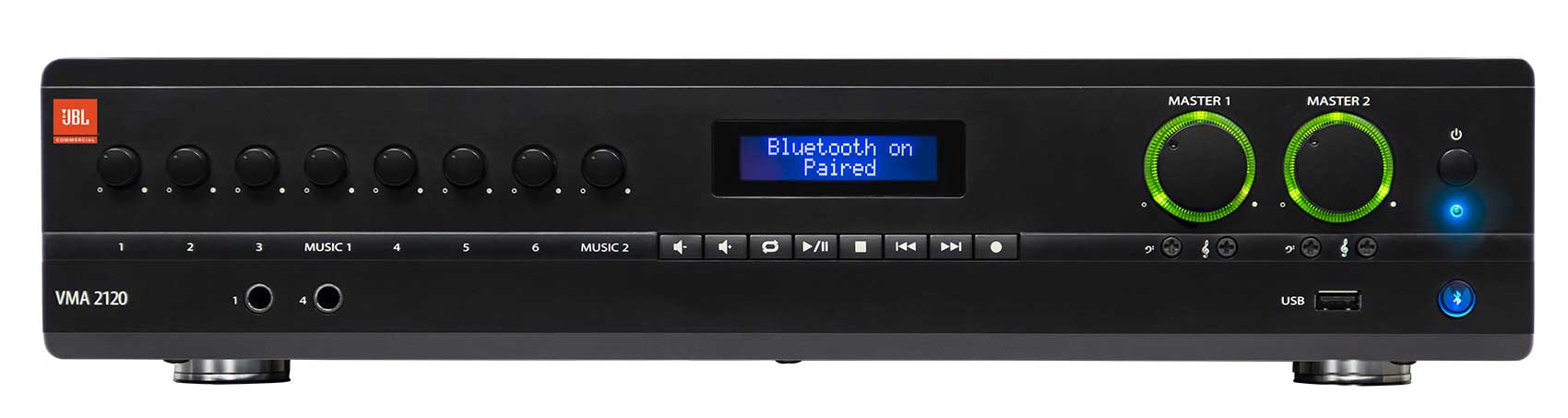

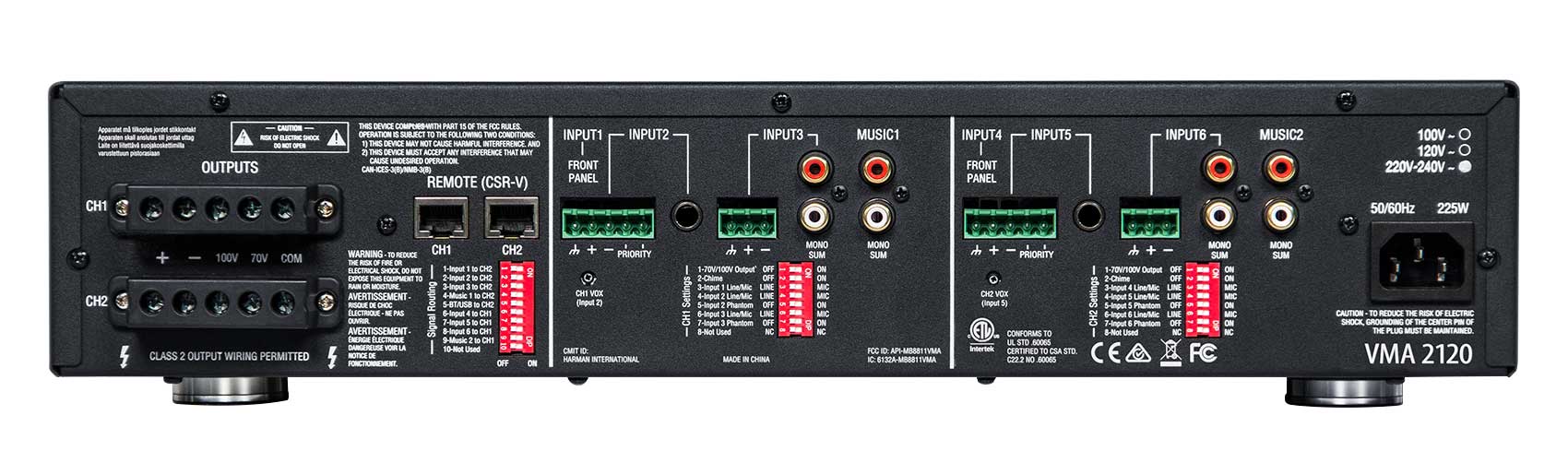

Description of VMA2120:

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4O, 8O) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Features:

JBL VMA2120 120 Watt 70V Mixer/Amplifier with Bluetooth and 8 Channel Inputs
Max Output Power: 120 Watts
Frequency Response: 20 Hz - 20 kHz
THD (Total Harmonic Distortion): <0.5%
Signal-to-Noise Ratio: > 76 dB
Input Impedance: Mic: 400 Ohms, Line: 20 kOhms (balanced), RCA: 50 kOhms
Phantom Power: 27VDC
Crosstalk: -70 dB
Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
Minimum Load Impedance: 4 Ohms, 40 Ohms, 80 Ohms
Insertion Loss: 1 dB Maximum
Number of Inputs: 8
Number of Outputs: 2
Tone Control: Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input Sensitivity: Mic Input: 5.5mVRMS, Line Input: 1.3VRMS, RCA Input (stereo in): 130mVRMS
Independent bass and treble controls for each output channel
Paging Chime, and Priority Muting

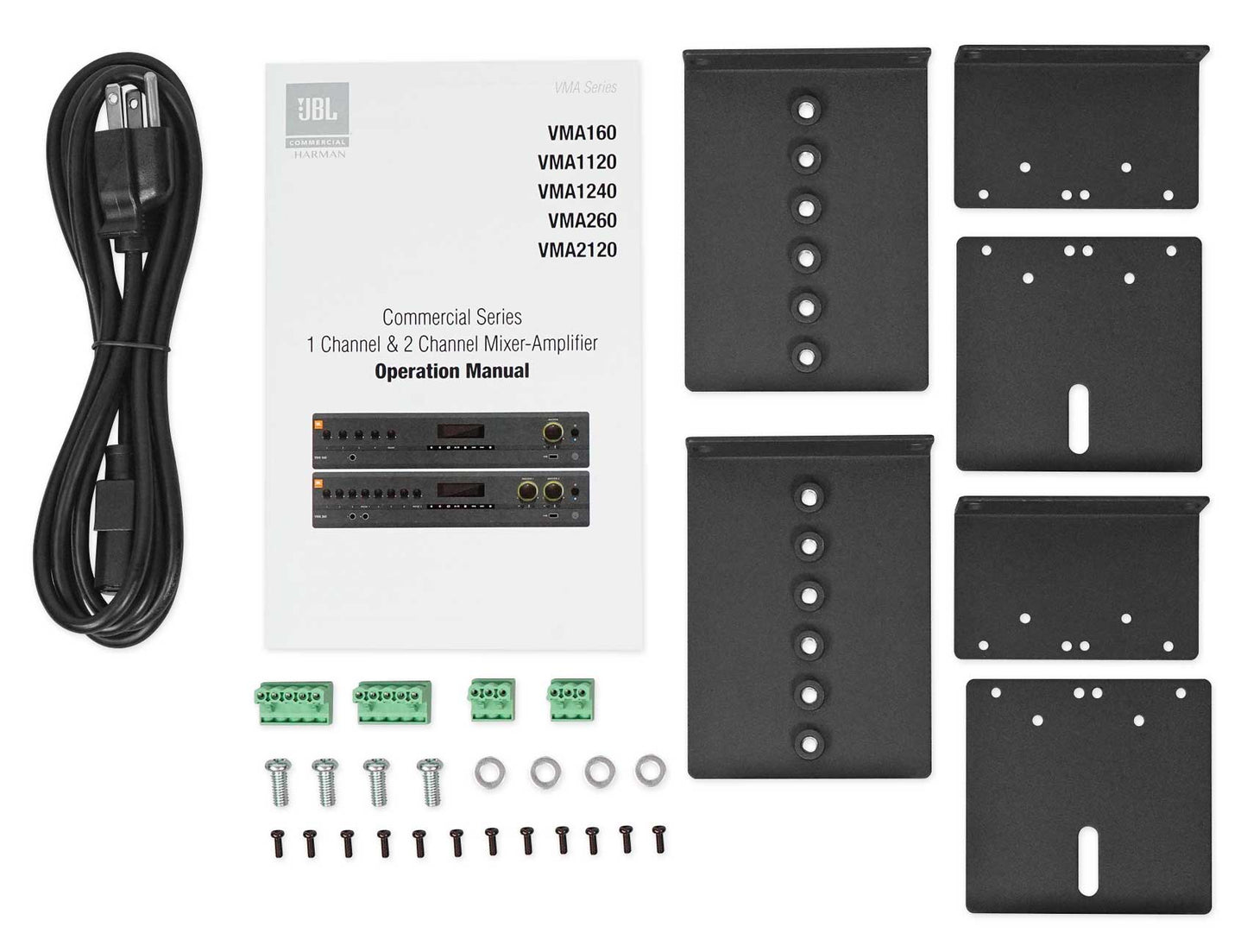

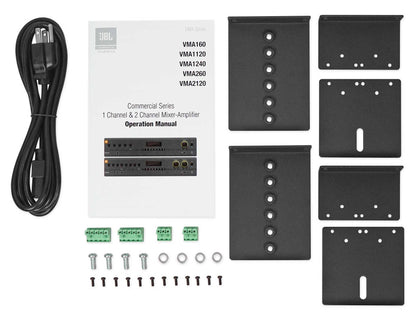

Rack mounting hardware included
Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches
Product Weight: 29.3 Lbs.

How to Set Up Cube 70 Volt Speaker:

Video of Cube 70v Black:

Introducing Cube by Rockville!

70 Volt power options

6 Watt

3 Watt

1.5 Watt

Includes:

(2) Speakers
(2) mounting brackets with metal bars
(2) safety cables
(8) screws
(1) User manual

Description:

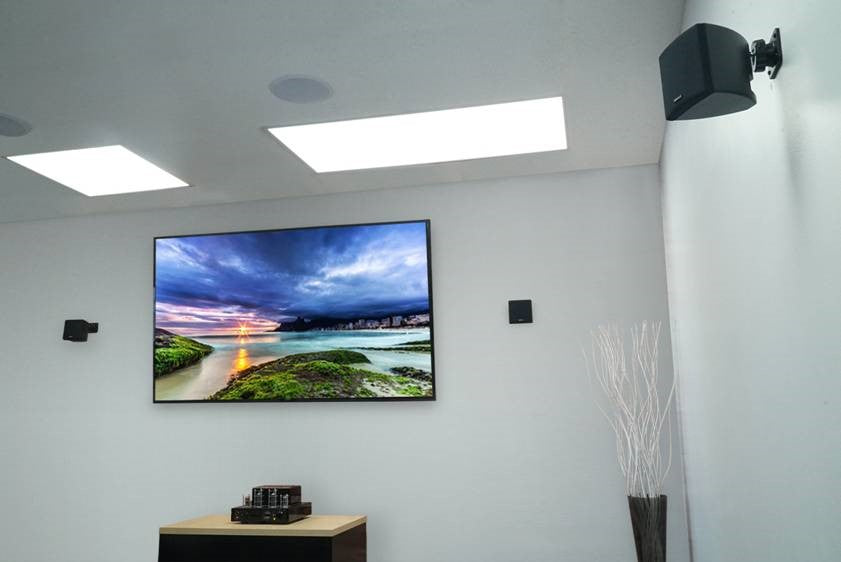

The Rockville Cube 70V black is a great choice for any restaurant, office, retail store, or any other commercial application. What makes these special is the minimal footprint that is stylish and unobtrusive. The speaker also includes our 360 degree mounting system that allows rotation in any direction for optimal sound staging. The slim design can be mounted anywhere quickly and easily.

2-Way configuration
There is a couple of very famous companies who make speakers that look similar. In our opinion those speakers have no highs and no lows. That is because they use a one way design. Our model has a dedicated woofer for mids and a dedicated tweeter for highs giving you incredible sound quality.

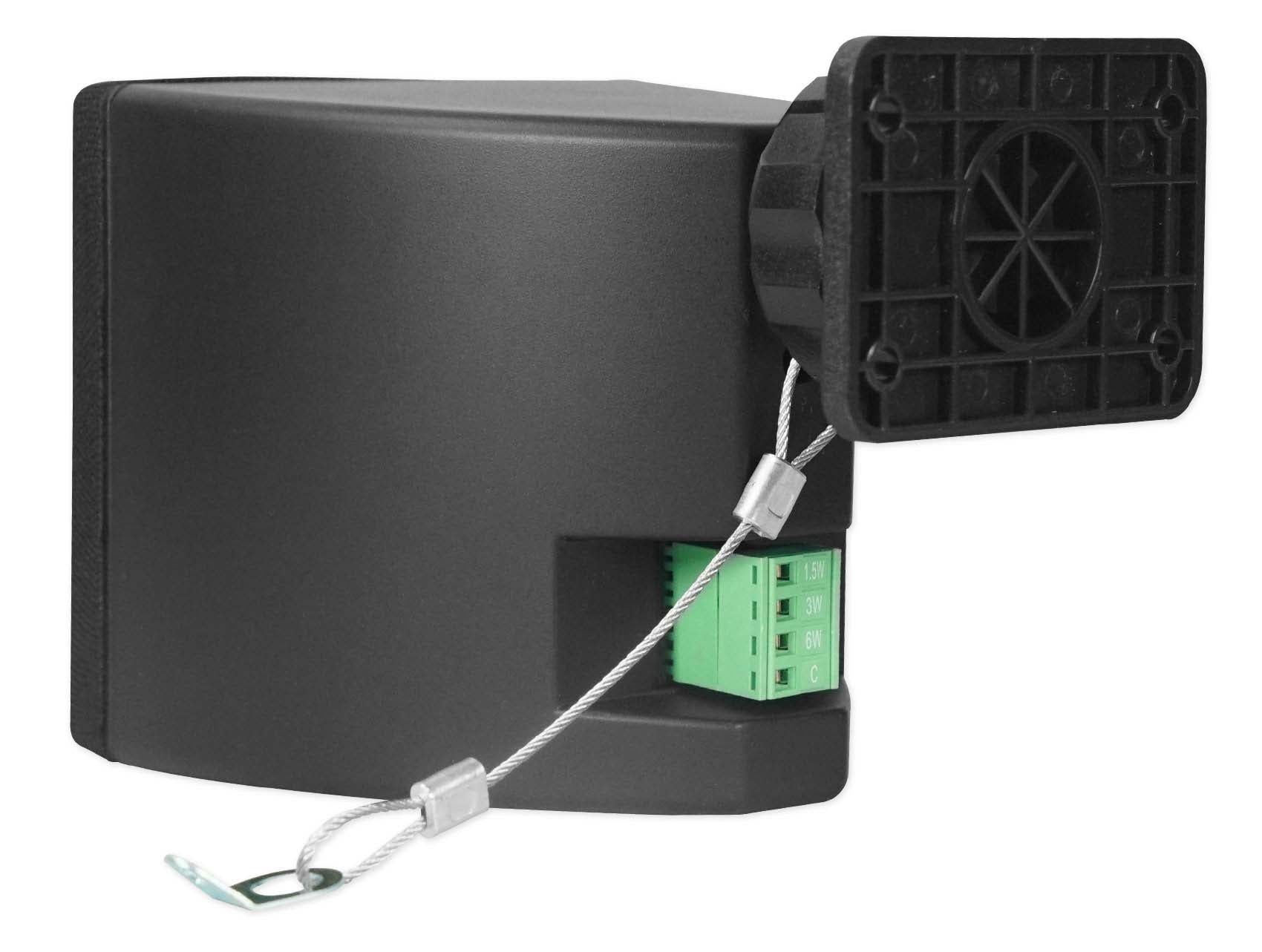

Quick-disconnect terminals
We use euro-block speaker terminals which are detachable so you can easily wire many speaker and quickly disconnect them at any time.

What is 70 volt ?
70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 150 watts and you can install speakers that total around 120 watts. It does not matter if it is 20 speakers that are 6 watts each or 40 speakers that are tapped at 3 watts each. You always want your 70 volt amp to have at least 15 to 20% more power than the combined watts your speakers are tapped at.

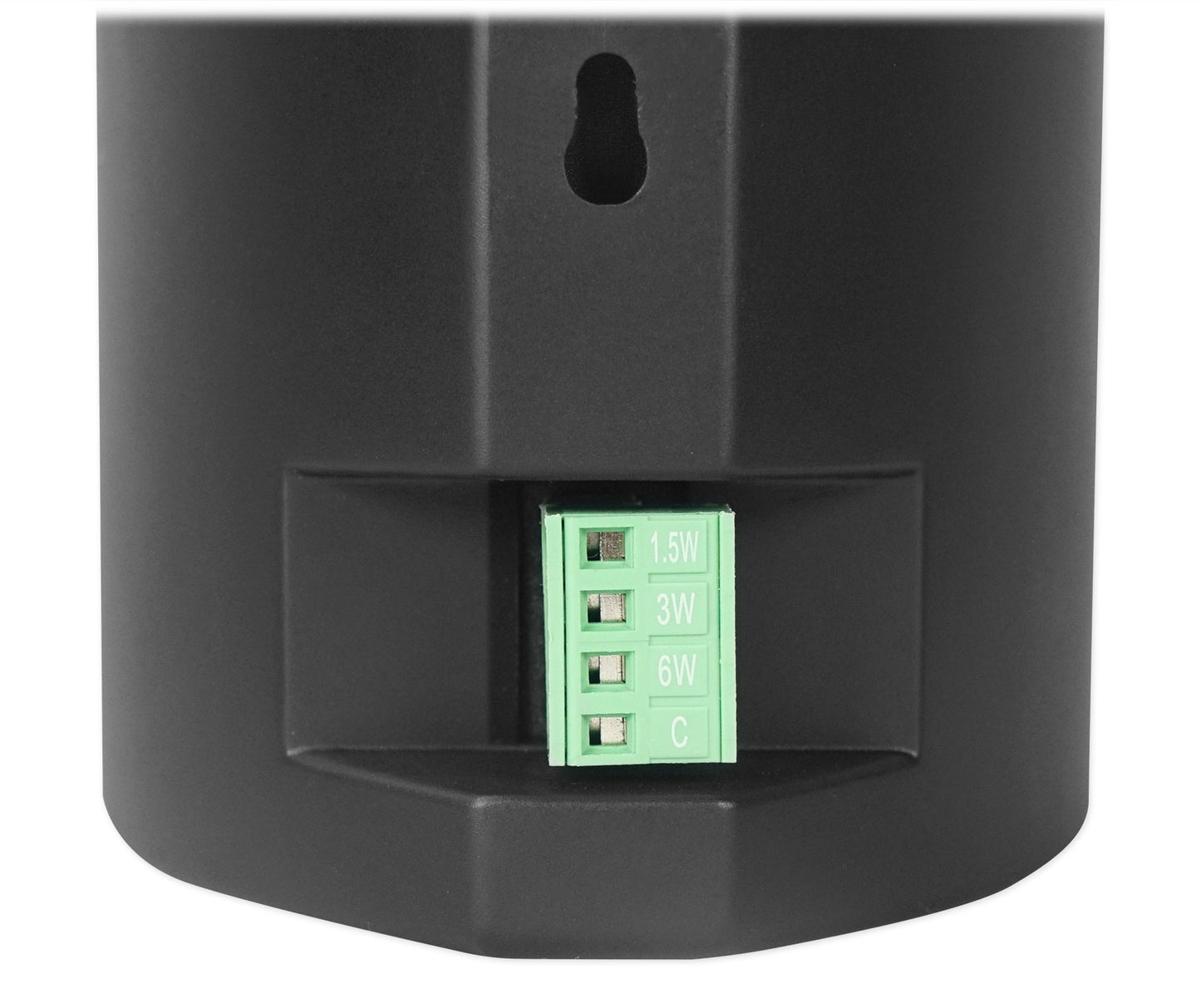

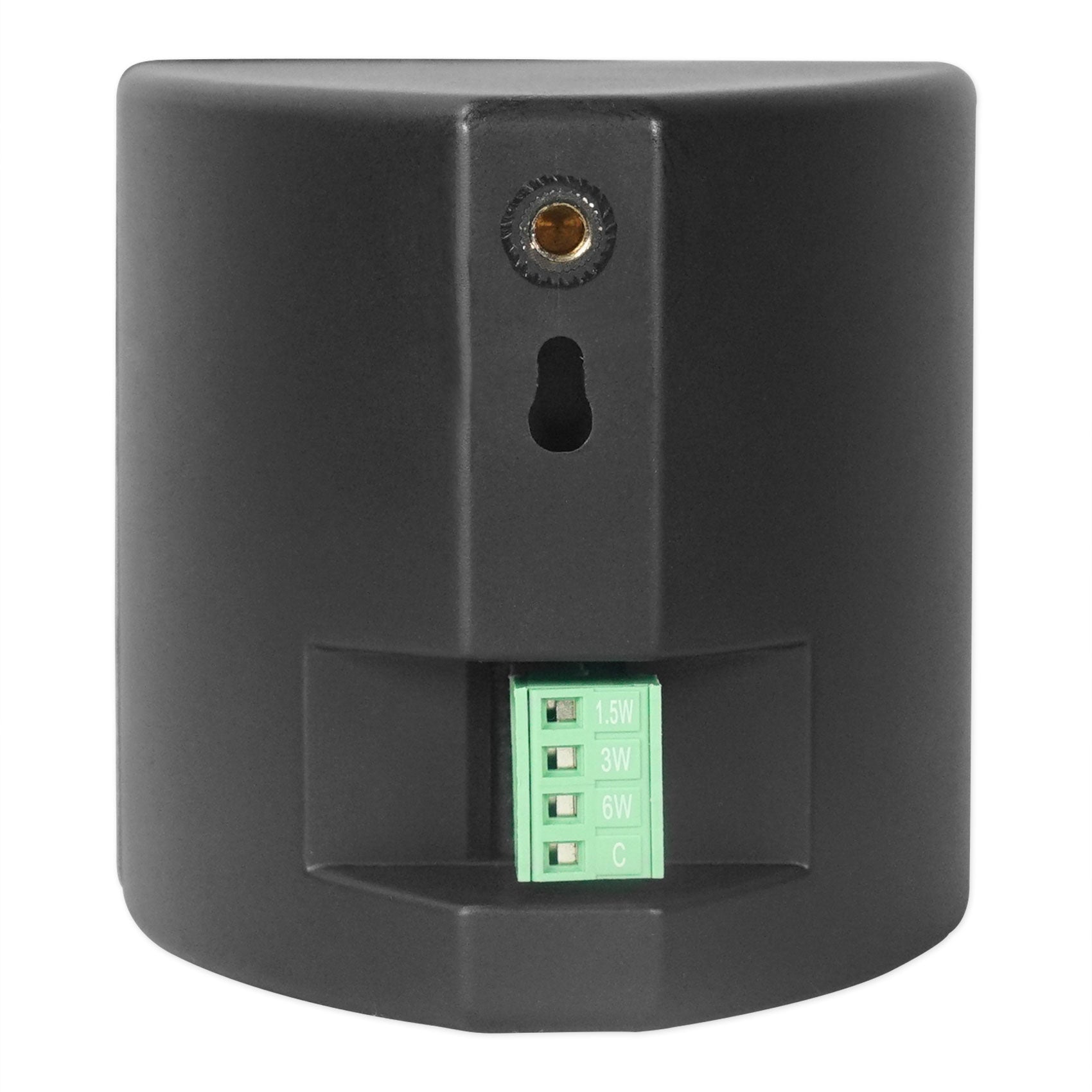

When we say the word tap, we are referring to the rear of these speakers where you can use the 1.5 watt, 3 watt, or 6 watt inputs. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 6 watts, and the hallway or bathroom speakers at 3 watts.

Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.

The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

Features:

Cube by Rockville - Pair of Black 3.5” 70 Volt Commercial Speakers With Swivel Mounting Bracket

70 Volt power options: 6 watts, 3 watts, 1.5 watts

Easy Wall Mount Brackets with 360 Degree Swivel Rotation For Optimal Sound Staging

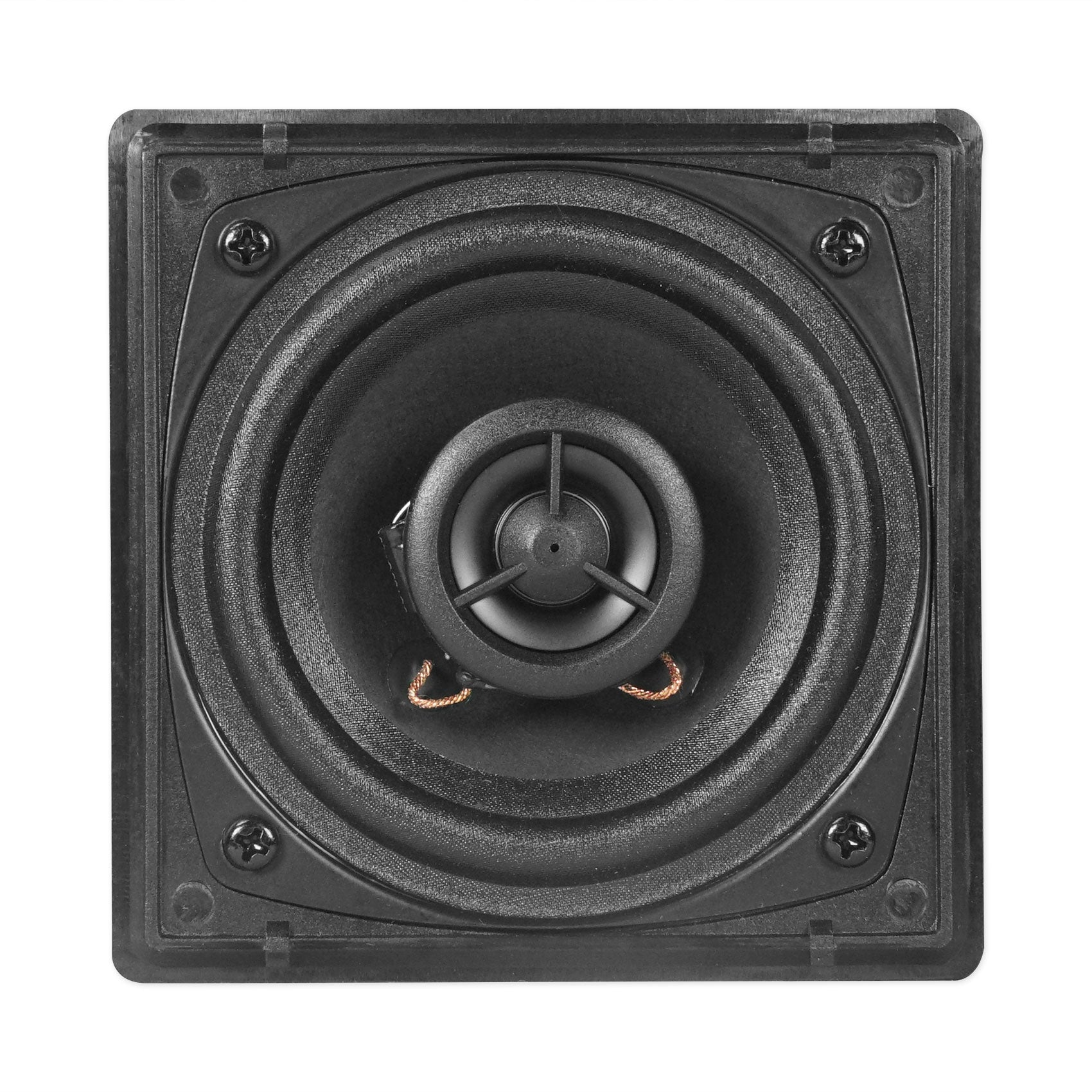

3.5” Woofer with Paper Cone has Natural Sound Reproduction with Clear Mids and Bass

0.5” black PEI tweeter delivers crystal clear highs

True 2 way speaker system delivers way better sound quality than famous brands who make these in a 1 way design

Sensitivity: 86 dB +-2dB (1M/2.83V)

Frequency Response (±3db): 130Hz - 20kHz

Cabinet Material: ABS

Color: Black

Shielded grill offers additional protection from dust and damage

Audiophile grade sound quality

Perfect for restaurants, offices, retail stores, and other commercial applications

Euro block speaker terminals with quick disconnect

Product Dimensions: 4.13" x 4.72" x 4.13"

Product Weight: 1.76 Lbs. (Per Speaker)
