All About Your XBAR-24 :

How to set up your XBAR-24:

How to install a Soundbar in your UTV:

What's in the Box:

• 1.75” & 2” clamps
• 1.5” & 1.875” rubber pads
• Mounting screws
• Wiring installation kit
• User manual

Features:

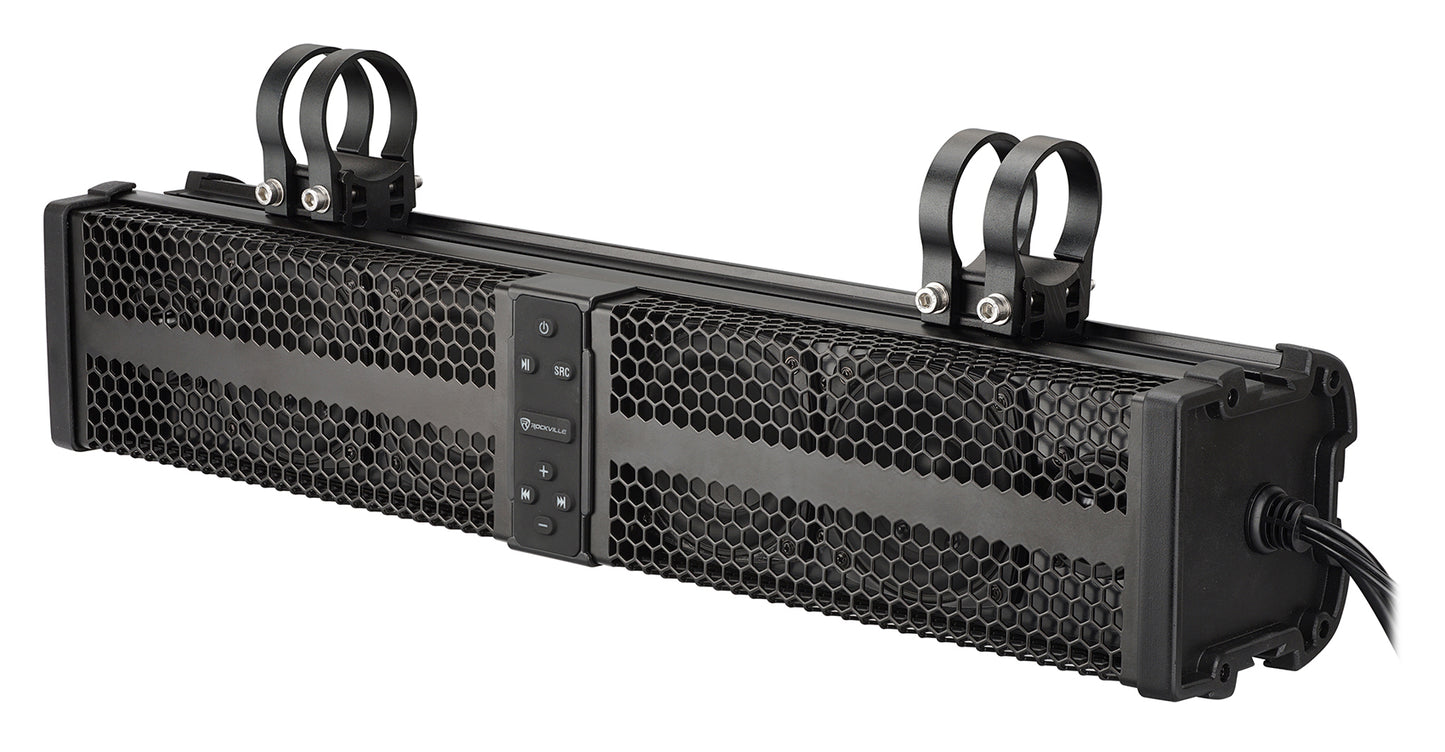

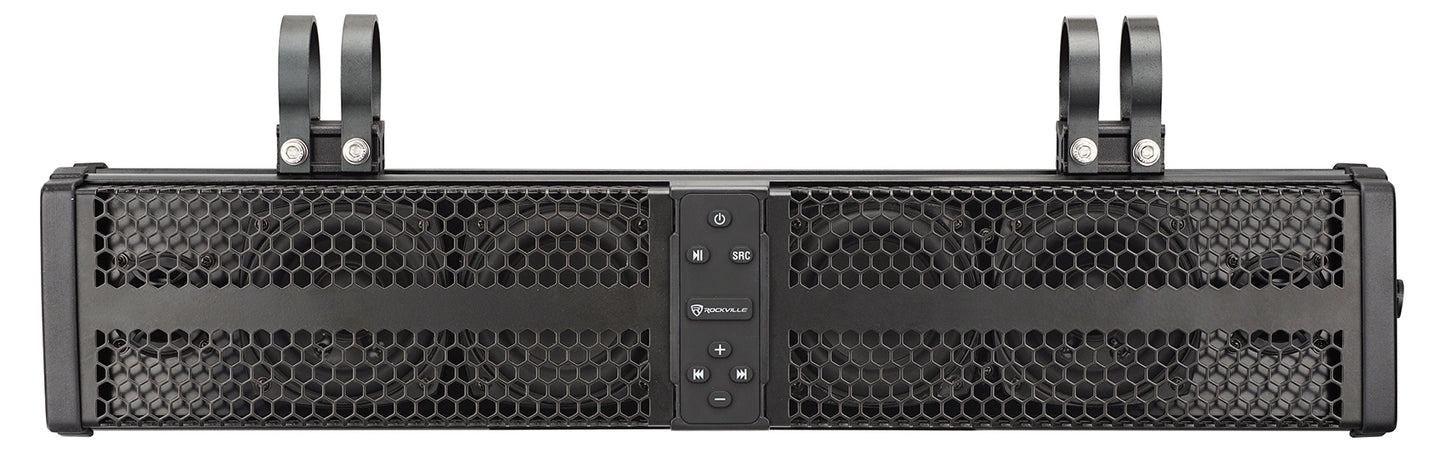

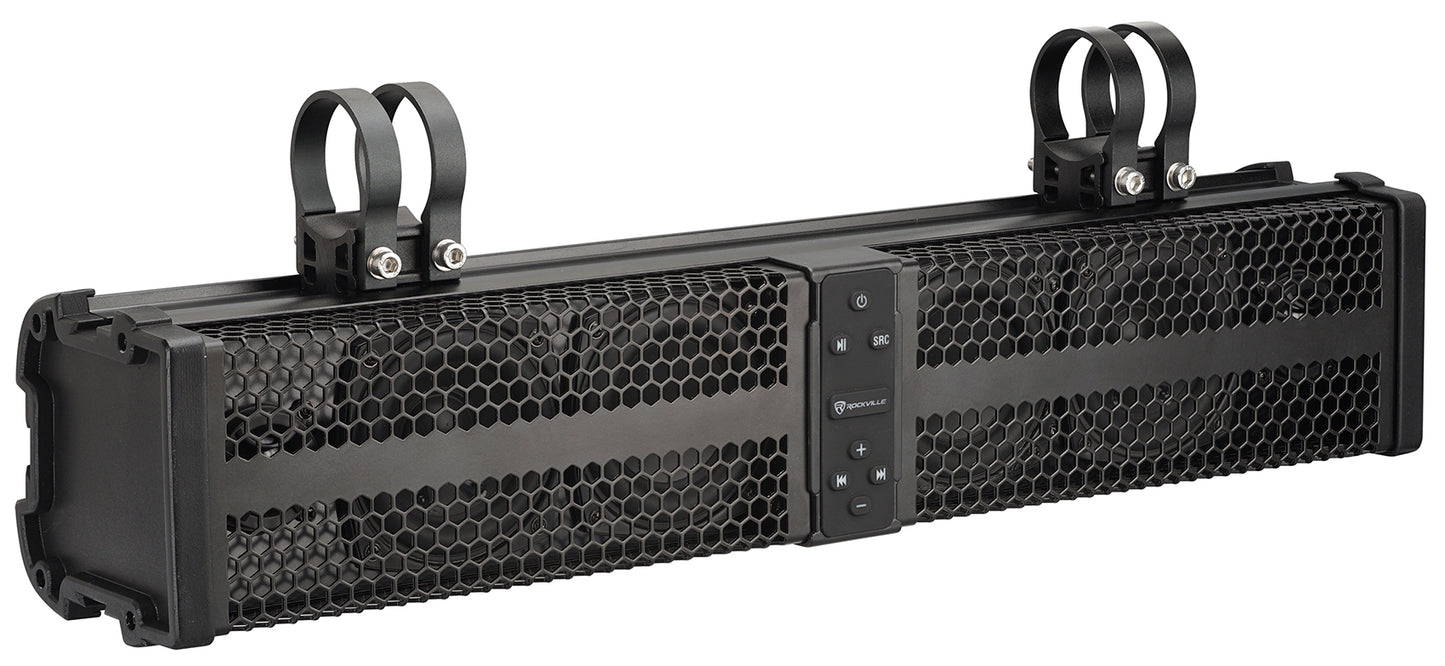

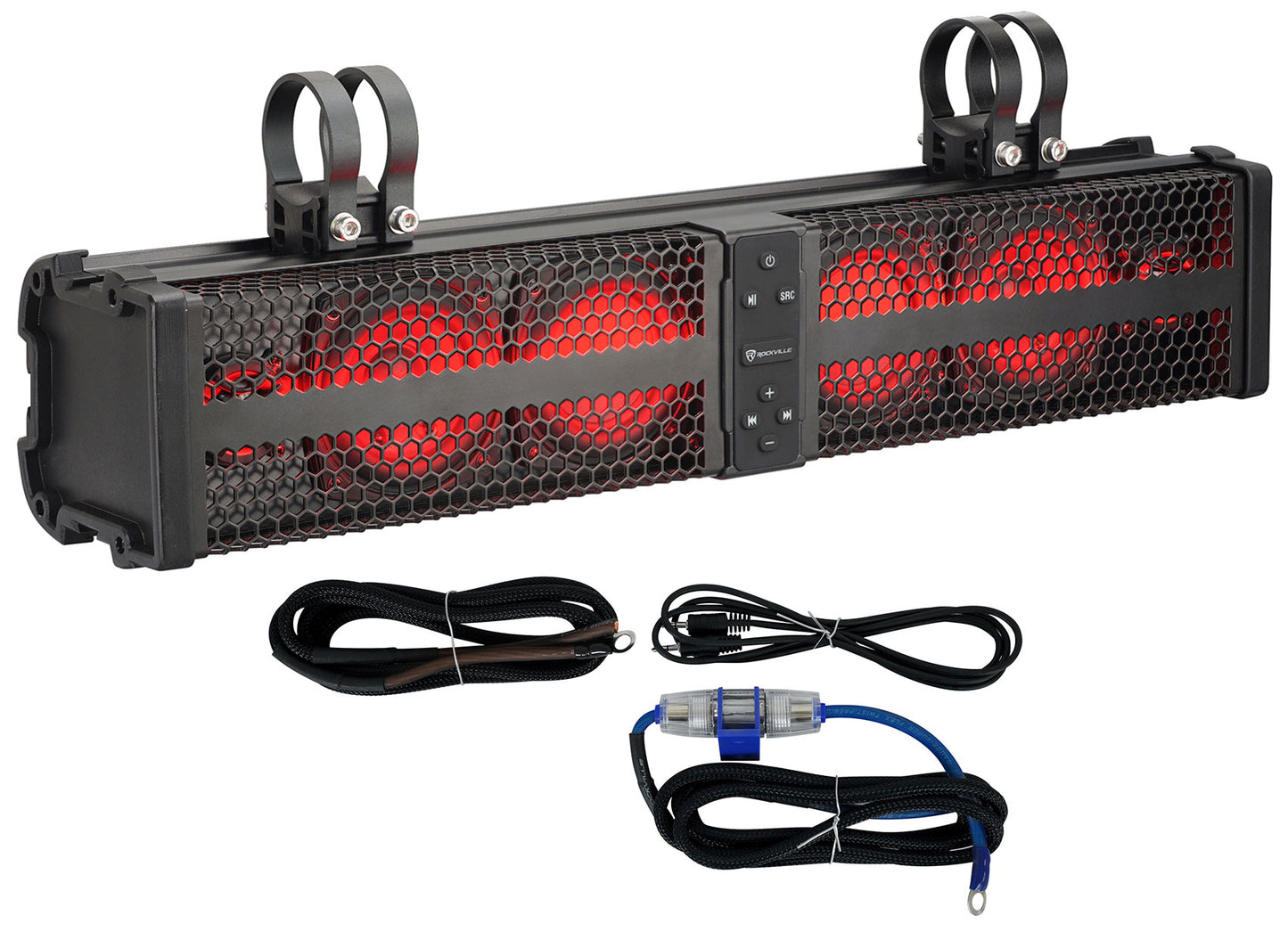

• Rockville XBAR-24 24" ATV/UTV Soundbar Bluetooth Speaker System w/LED + Wire Kit
• Built in Bluetooth 5.0 chip-set
• Built in LED lights with on/off button (red, blue, purple, and off)
• LED modes: solid color (selectable color), Pulsating (Blinking in any color you choose)
• 6 Speakers built in
• Extremely loud with great sound quality
• 24" Amplified Bluetooth Sound System
• Built in Class D stereo power amplifier with 200 Watts RMS and 400 Watts Peak
• (4) 3.5” mid-bass drivers with ferrite Y35 magnets
• (2) 1" PEI dome tweeters
• Marine rated with rugged weatherproof exterior
• IPx6 waterproofing/weatherproofing
• Clean installation (Includes a harness that gets hard wired to the vehicle battery)
• Perfect for ATV, UTV, Side X Sides, Jeeps, and other offroad applications
• Polypropylene mica Cone
• Butyl Rubber Surround
• All Speakers are Forward Firing for Maximum SPL and Sound Staging
• Includes multi-angle adjustable clamp system fits 1.5”/1.75”/1.85”/2" bars
• Weather Resistant Grills and Hardware
• Frequency Response: 20Hz - 20KHz
• Height: 4.65" Length: 23.42", Depth: 4.69"

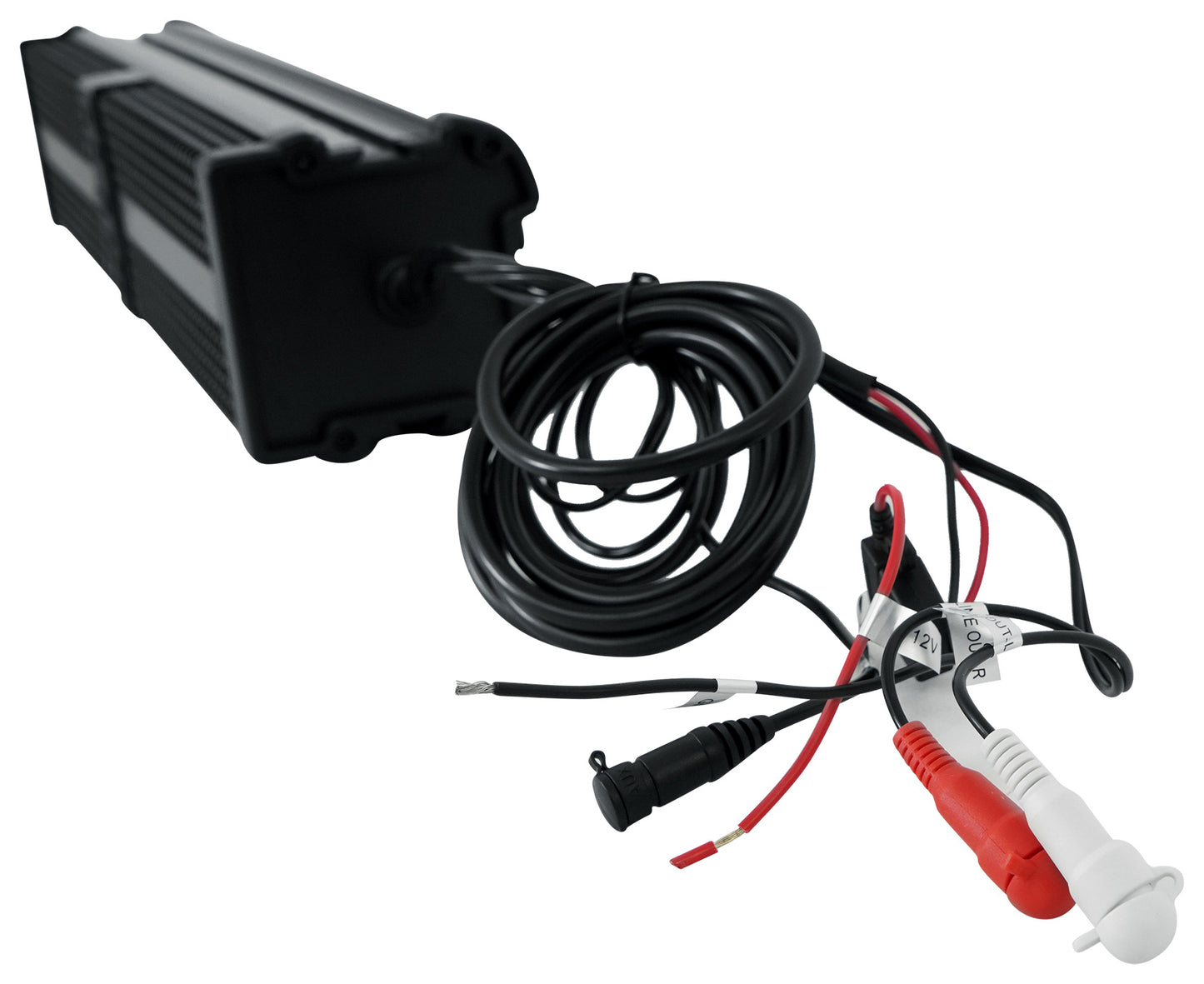

Inputs and Outputs:

• 3.5mm Audio Auxiliary Input
• RCA Audio output for a second sound bar or for a subwoofer or for an amplifier or more powered speakers

Bluetooth Features:

• Bluetooth Version 5.0
• Supports A2DP audio streaming
• Bluetooth range up to 32.8 feet
• Built-in Bluetooth technology for handsfree talking and audio streaming
• Automatic Pairing to Bluetooth when in range

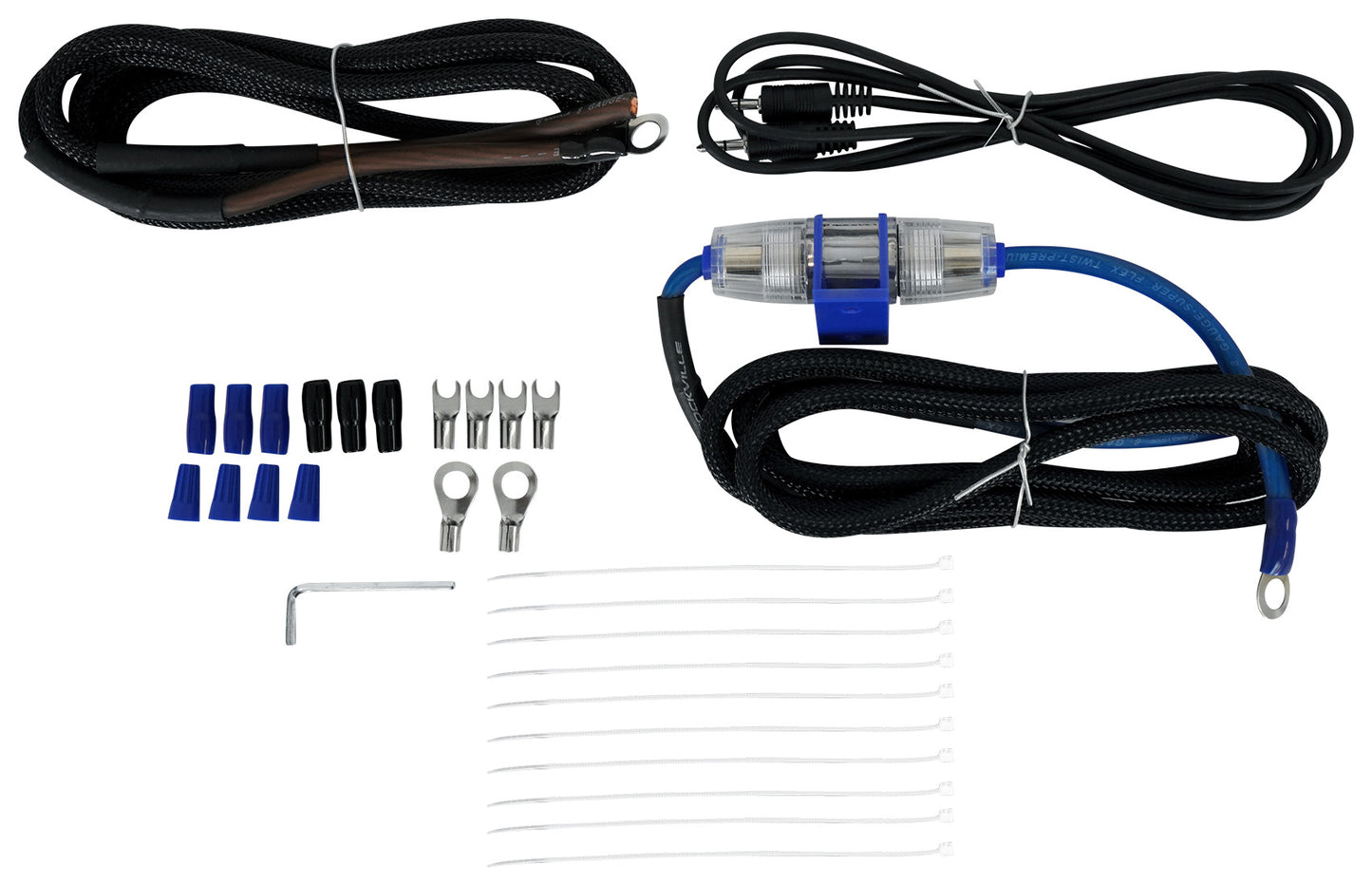

Wire Kit Includes:

• Rockville RWK8ATV 8 AWG Gauge Amplifier/Amp Installation Wire Kit For Motorcycle/RZR/ATV/UTV
• 6 Foot 8 Gauge 100% OFC, Red Flexible Power Cable with 3’ Black Poly Woven Mesh to better resist chemicals in the battery compartment
• 6 Foot 8 Gauge 100% OFC, Black Flexible Ground Cable
• (2) 4 Foot 16 Gauge 100% OFC black Flexible Speaker Cables Protected by black nylon mesh
• 6 Foot Pre-terminated ring terminals make connections to the battery simple
• (1) Silver AGU Fuse Holder – Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring
• (1) 60A AGU Fuse
• (2) Ring Terminals
• (2) Spade Terminals
• (4) Speaker Cable Terminals
• (4) Washers
• (10) White Cable Ties
• (1) hexagon spanner
