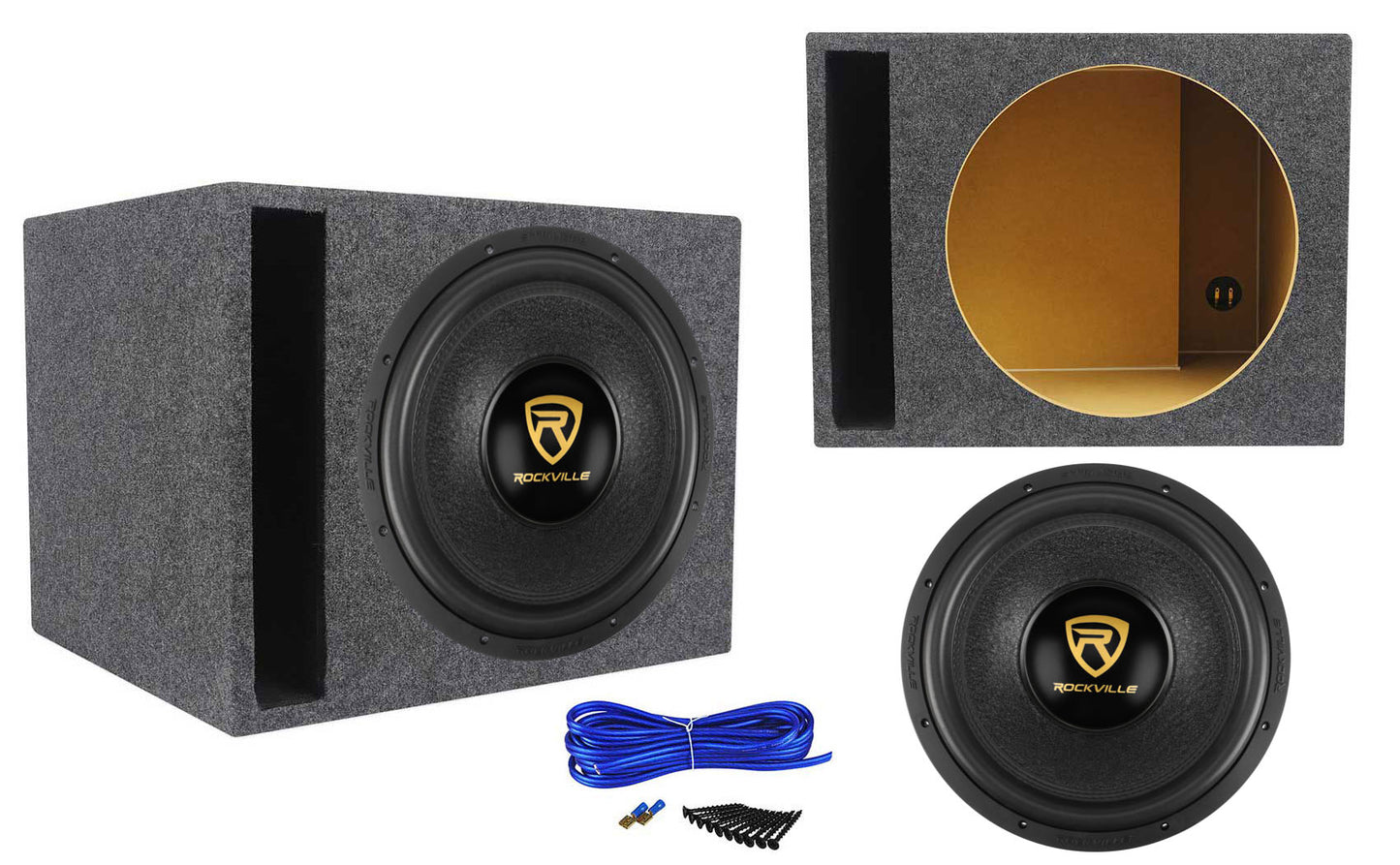

Package Includes:

• (1) Rockville 15" Car Audio Subwoofer
• (1) Rockville 15" Vented Car Audio Subwoofer Box 2.6 Cubic Ft. Sub Enclosure
• 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 12 Feet of 14 AWG Blue Speaker Wire
• 2 Spade Terminals

---

All about your K9 Series Subwoofers:

Wiring for 1 DVC 4 Ohm SUBS:

Wiring for 2 DVC 4 Ohm SUBS:

Features of W15K9D4:

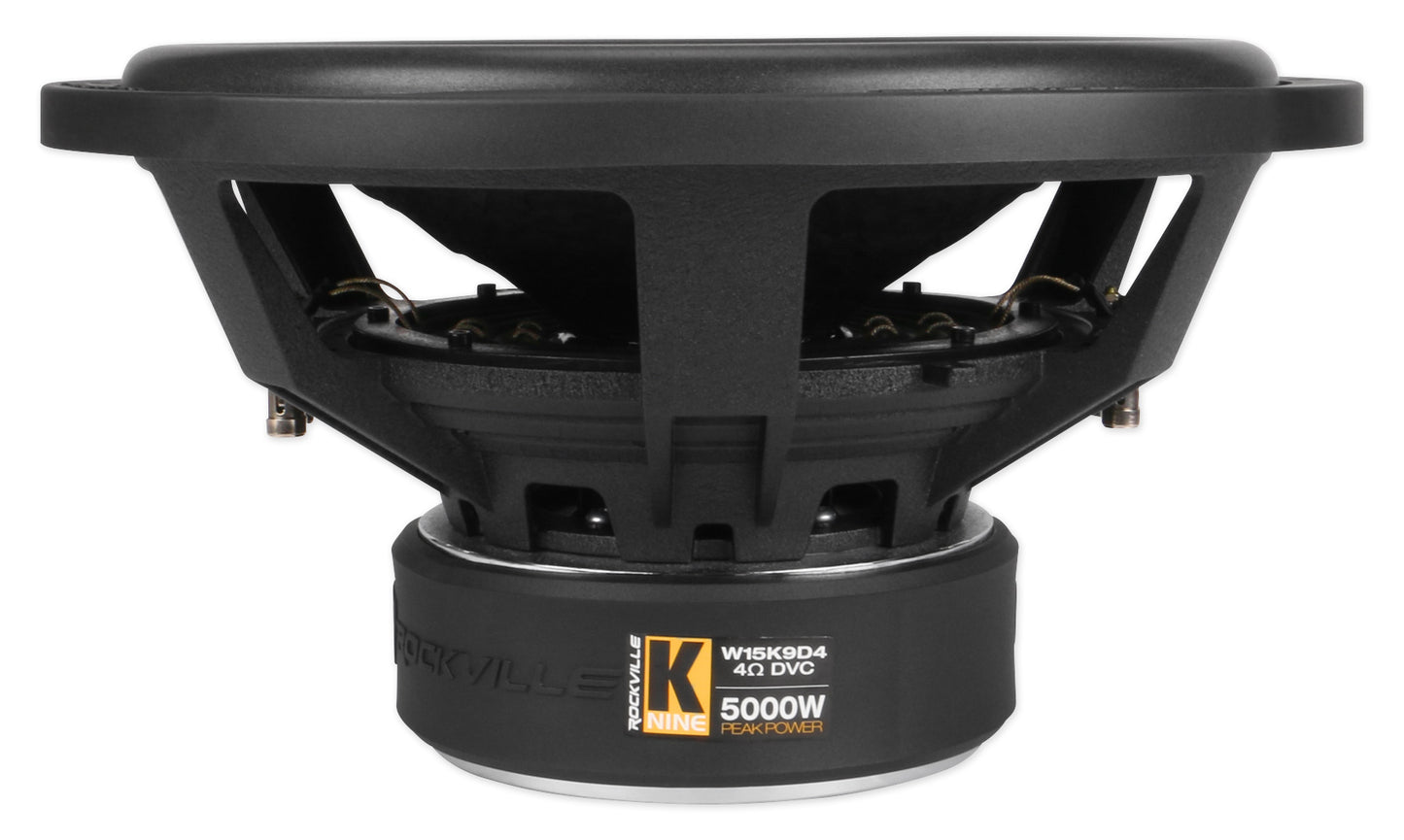

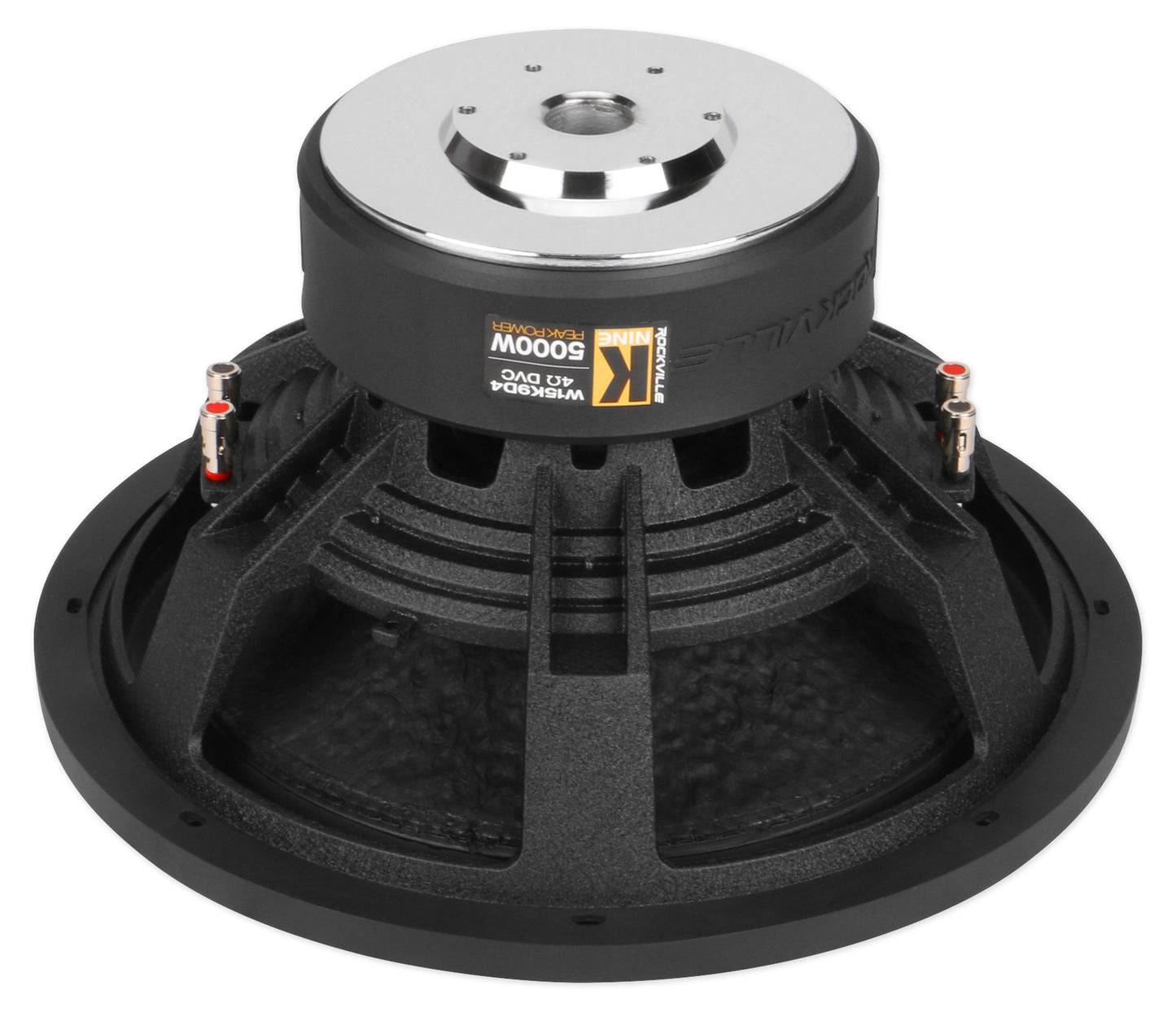

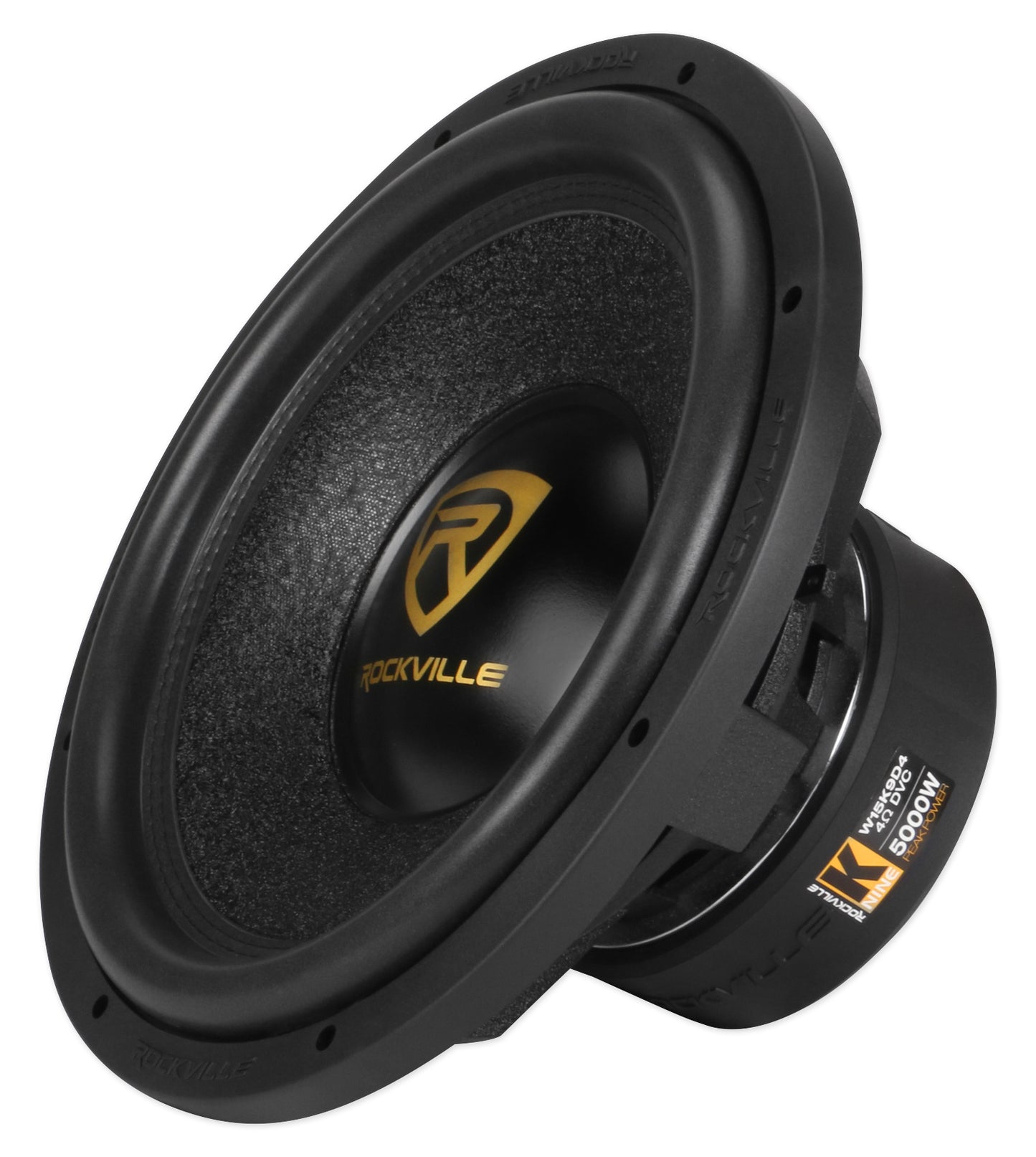

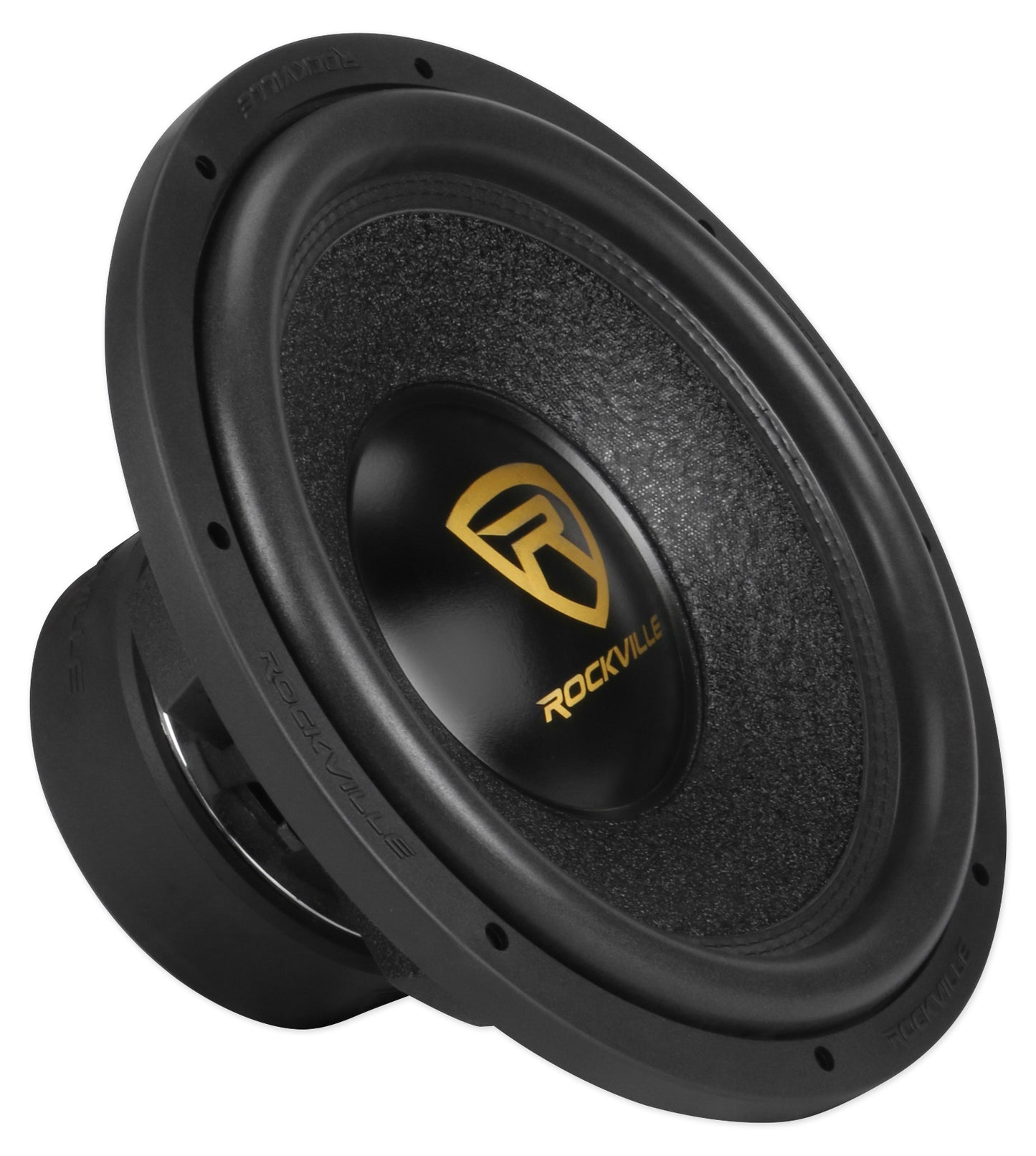

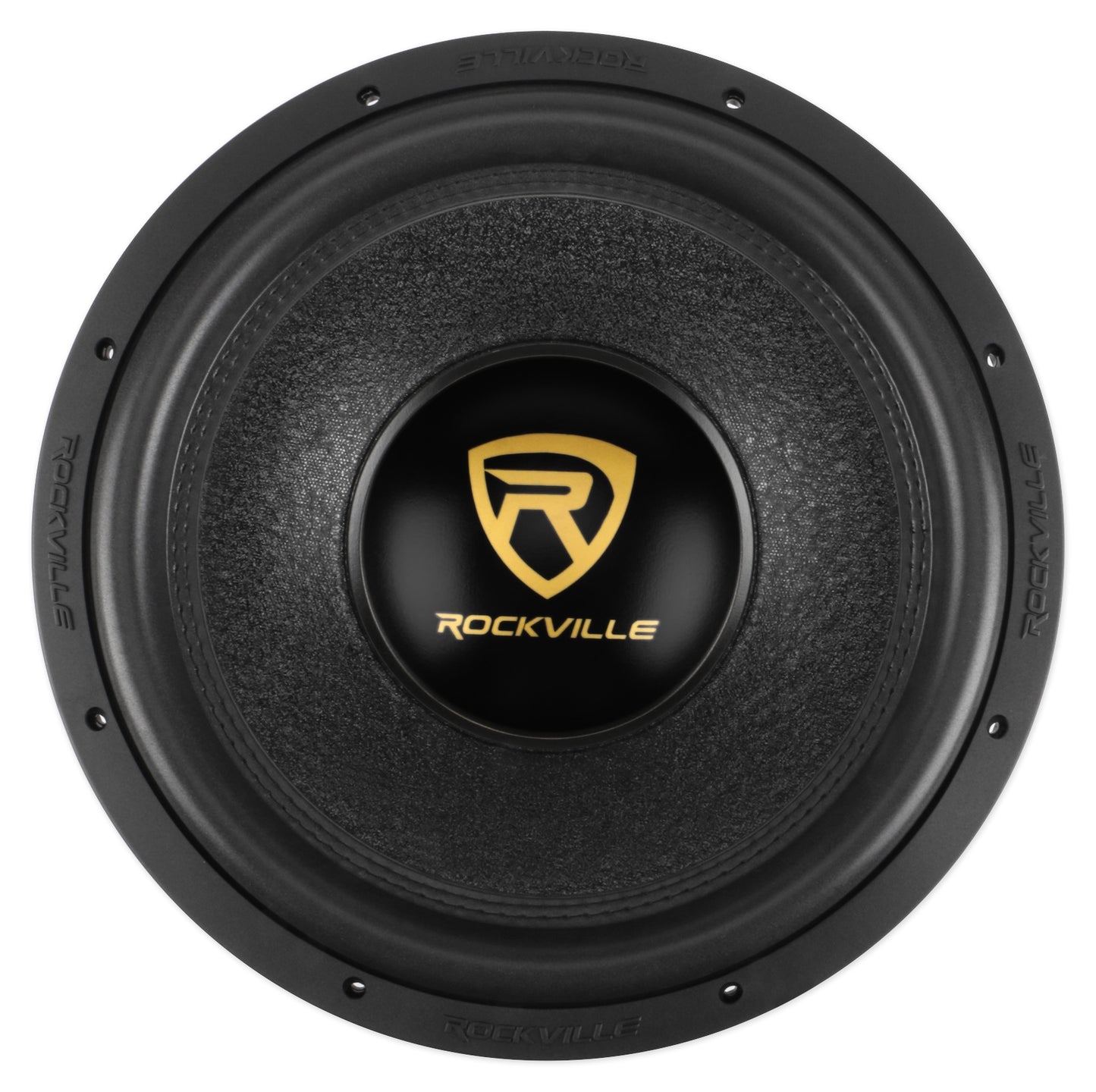

• Rockville W15K9D4 K9 Series 15" Dual 4-Ohm Car Subwoofer
• Peak Power Handling: 5000 Watts
• Program Power Handling: 2500 Watts
• CEA Rated RMS Power Handling: 1250 Watts
• 3" 4-Layer Black Aluminum Former Wound with OFC Wire Made in USA
• This voice coil is stable up to 240 degrees celcius! The voice coil windings are made in the USA!
• Double Stacked 190 Oz High Quality Magnet
• Cast Aluminum Basket With Black Sanded Finish Makes This Sub Very Efficient And Lighter Weight
• Two Chrome-Plated Binding Post Terminals
• Black Non-Pressed Paper Cone With Beautiful Finish
• Our cones are ultra-stiff. They are thicker and stronger than other subs on the market making our subs able to handle more power.
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Red Stitching Cone Reinforcement Ensures Long Life
• New Ultra-stiff  PolyPropylene (PP) Dustcap
• Impedance: Dual 4-Ohm Voice Coils
• Vented Hole on T-yoke Enhances Heat Dissipation
• Special Custom Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Custom Rockville Mounting Gasket Looks Beautiful and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use high grade glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• Nomex Spider provides tear resistance, strength and long-term reliability over regular cotton and poly cotton spiders
• Cutout Diameter: 14.09” inches
• Mounting Depth: 8.23” inches
• Frequency Response: 32 Hz - 1.5K kHz
• 10mm T-Yoke + 10mm Washer
• Sensitivity: 87.9dB
• Sealed Enclosure Volume: 1.7 – 2.9 Cubic Feet
• Vented/Ported Enclosure Volume: 2.7 – 3.85 Cubic Feet
• XMAX is 30mm
• Weight: 34.17 Lbs.
• Shipping Weight: 38.58 Lbs.
• Shipping Box Dimensions: 17.72" x 17.72" x 12.4" Inches
• XMAX: 30 MM

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 95mm (3.74 inches)
• Gap Plate Outside Diameter: 190mm (7.5 inches)
• Gap Plate Thickness: 25mm (1 inch)
• Yoke Outside Diameter: 180mm (7.1 inches)
• Yoke Thickness: 10mm (0.4 inches)
• Yoke Pole Diameter: 75mm (3 inches)

TS Parameters:

---

 Description:

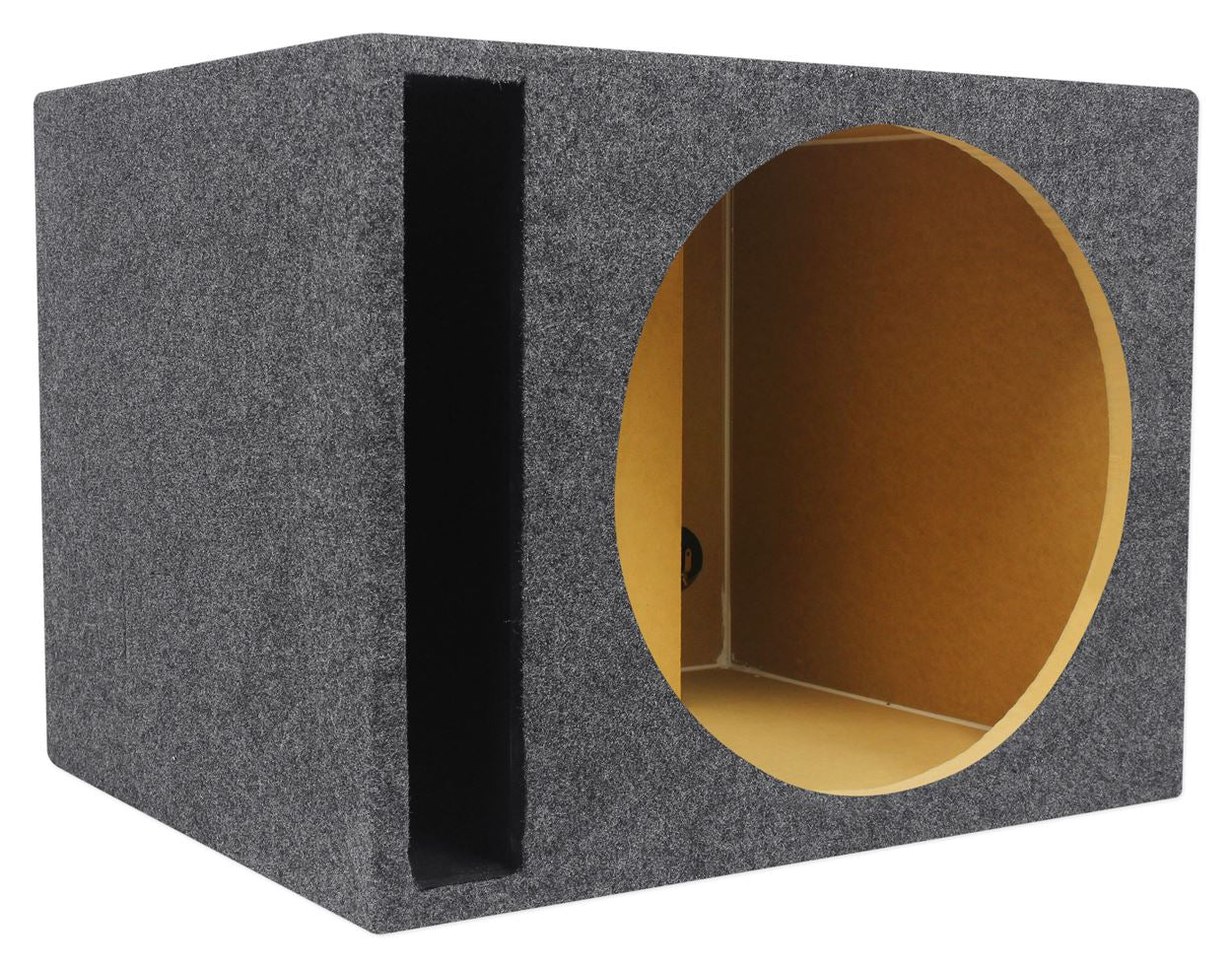

The RSV15 is a single 15" vented subwoofer box is made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood.  This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you!  EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!

MADE IN THE USA WITH PRIDE!

Features:

• Rockville RSV15 Single 15" 2.6 cu. ft. 3/4" MDF Vented Subwoofer Enclosure Box
• Machine precision cut mounting holes
• ¾” USA Heavy Duty MDF Construction
• Top of the line Glue for extra durable adhesion
• High quality GOLD spring loaded terminals
• Designed, tested, and engineered to work perfectly with high powered subs
• Designed to give the best sound quality
• Tuning frequency: 32Hz

Enclosure Measurements:

• Type of Enclosure: Ported/Vented
• Enclosure Sub Size: Single 15"
• Dimensions in Inches: 21" x 18" x 16.25"
• Top and Bottom Depth: 16.25"
• Mounting Depth: up to 15" (enough depth for any shallow sub on the market)
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): 3.5 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 2.6 Cubic Feet

Complete Single Subwoofer Enclosure Installation Kit!

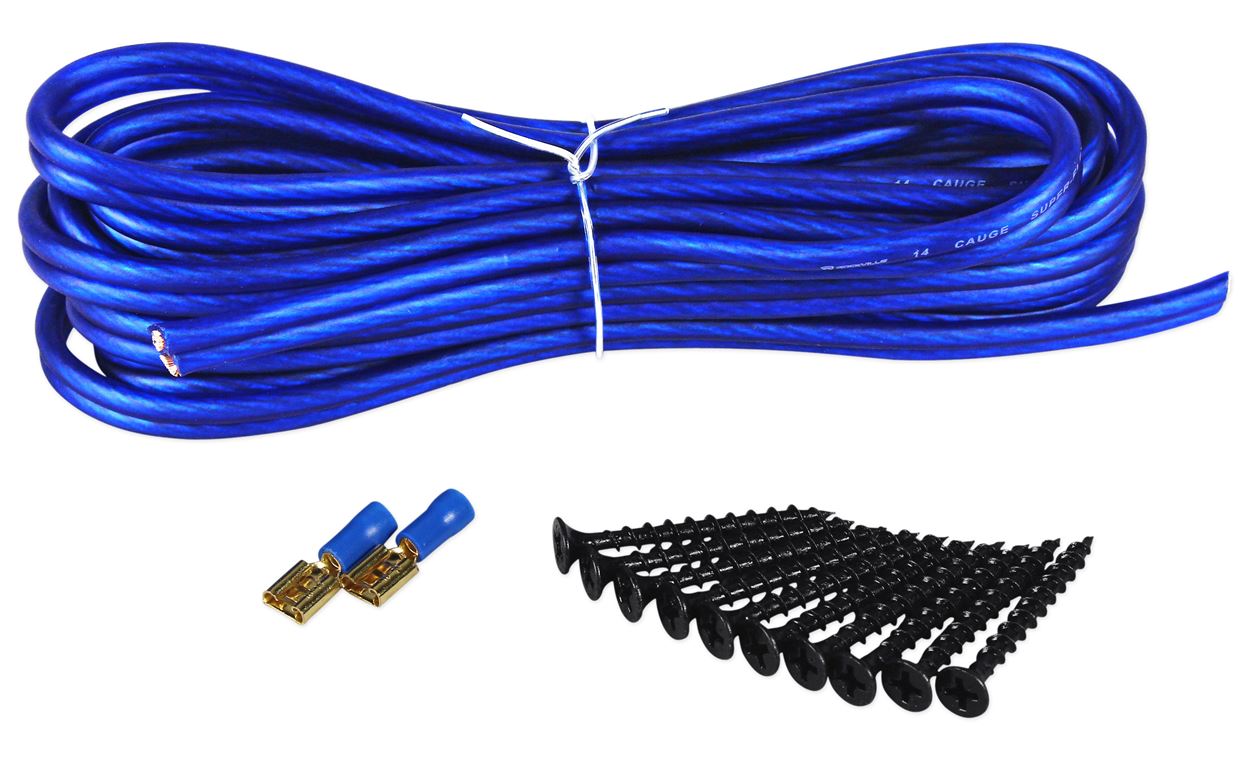

Includes:

• 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 12 Feet of 14 AWG Blue Speaker Wire
• 2 Spade Terminals

This accessory package includes everything you need to install one subwoofer into an enclosure, and wire to connect the enclosure to your amplifier.  This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure.  The speaker wire is 14 gauge.  This is way better than using 16 gauge.  You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire.  These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
