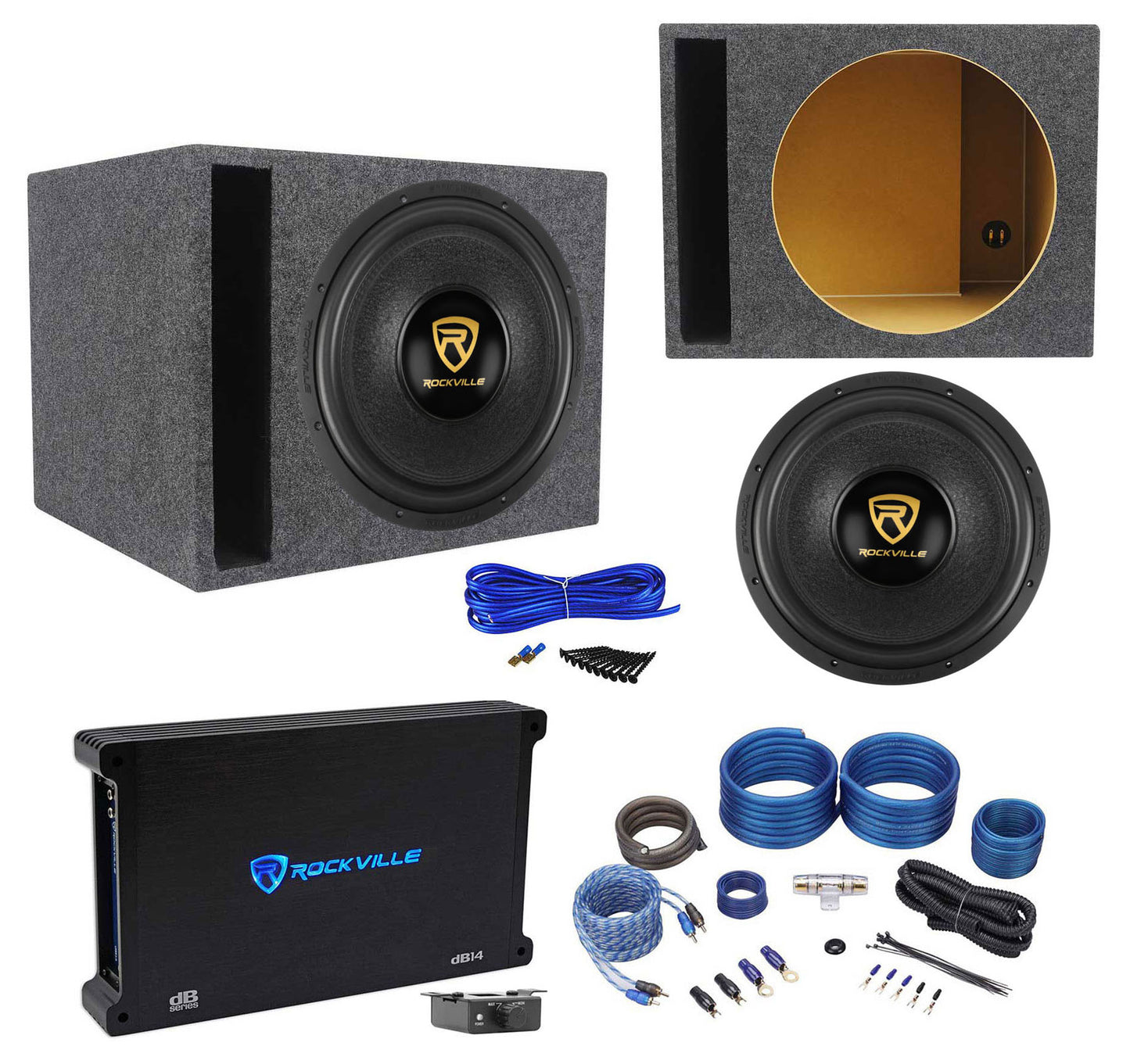

Package Includes:

• (1) Rockville 15" Car Audio Subwoofer

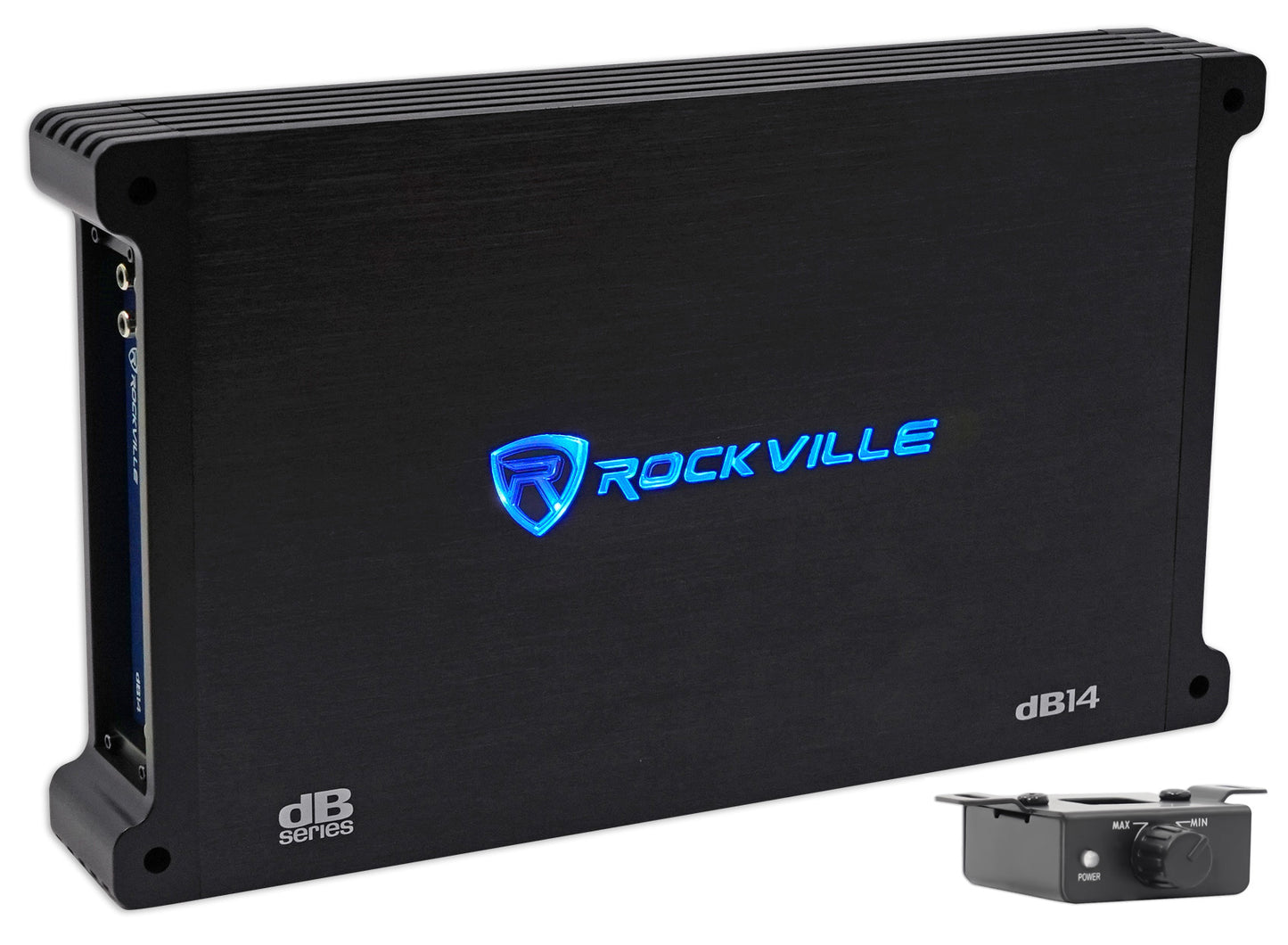

• (1) Rockville dB14 4000 Watt Peak/1000 Watt Dyno-Certified RMS Mono 2 Ohm Amplifier Car Audio Amp
• (1) Rockville RWK41 4 Gauge Complete Car Amp Wiring Installation Wire Kit with RCA's
• (1) RRockville 15" Vented Car Audio Subwoofer Box 2.6 Cubic Ft. Sub Enclosure
• 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 12 Feet of 14 AWG Blue Speaker Wire
• 2 Spade Terminals

---

All about your K9 Series Subwoofers:

Wiring for 1 DVC 4 Ohm SUBS:

Wiring for 2 DVC 4 Ohm SUBS:

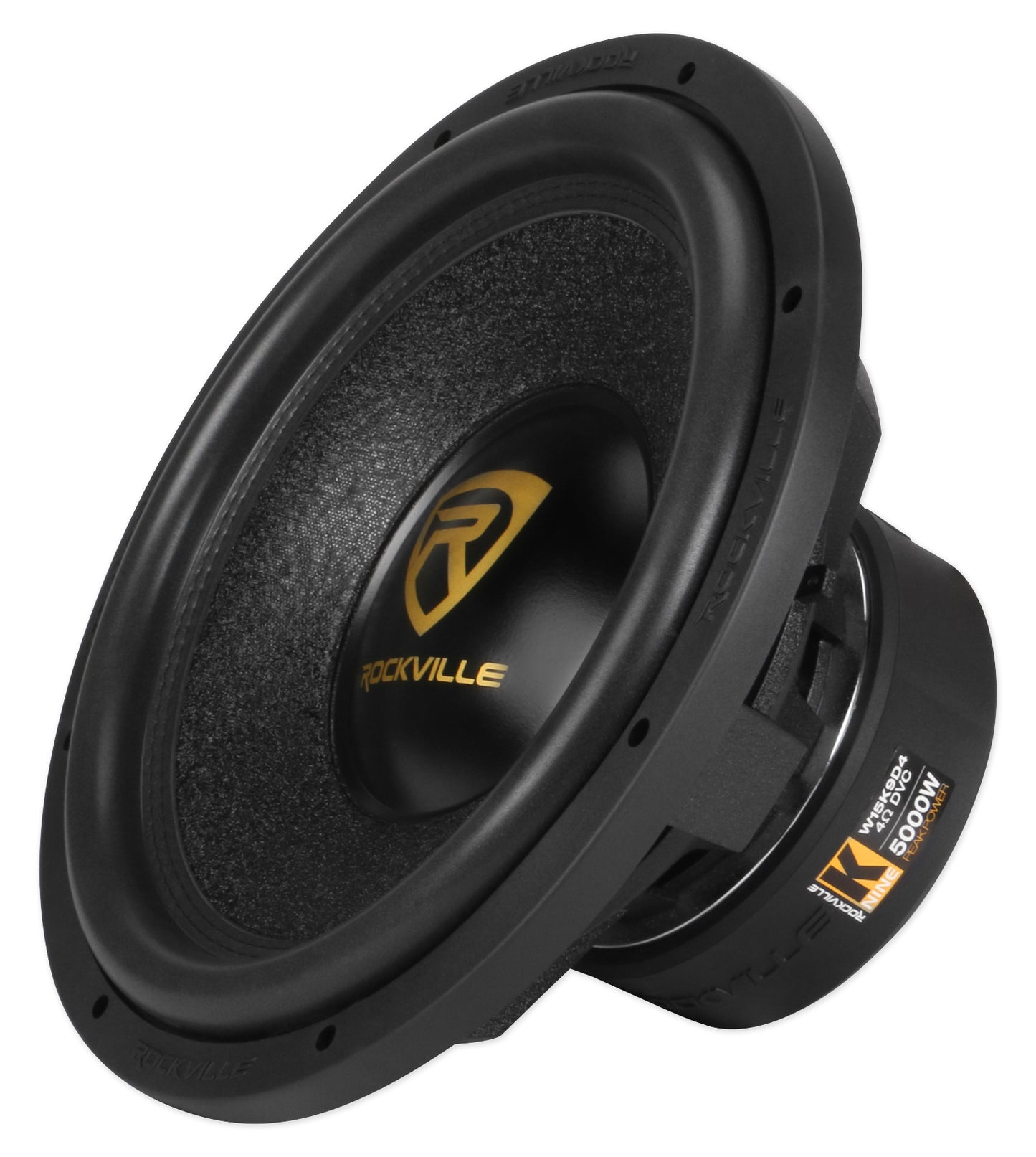

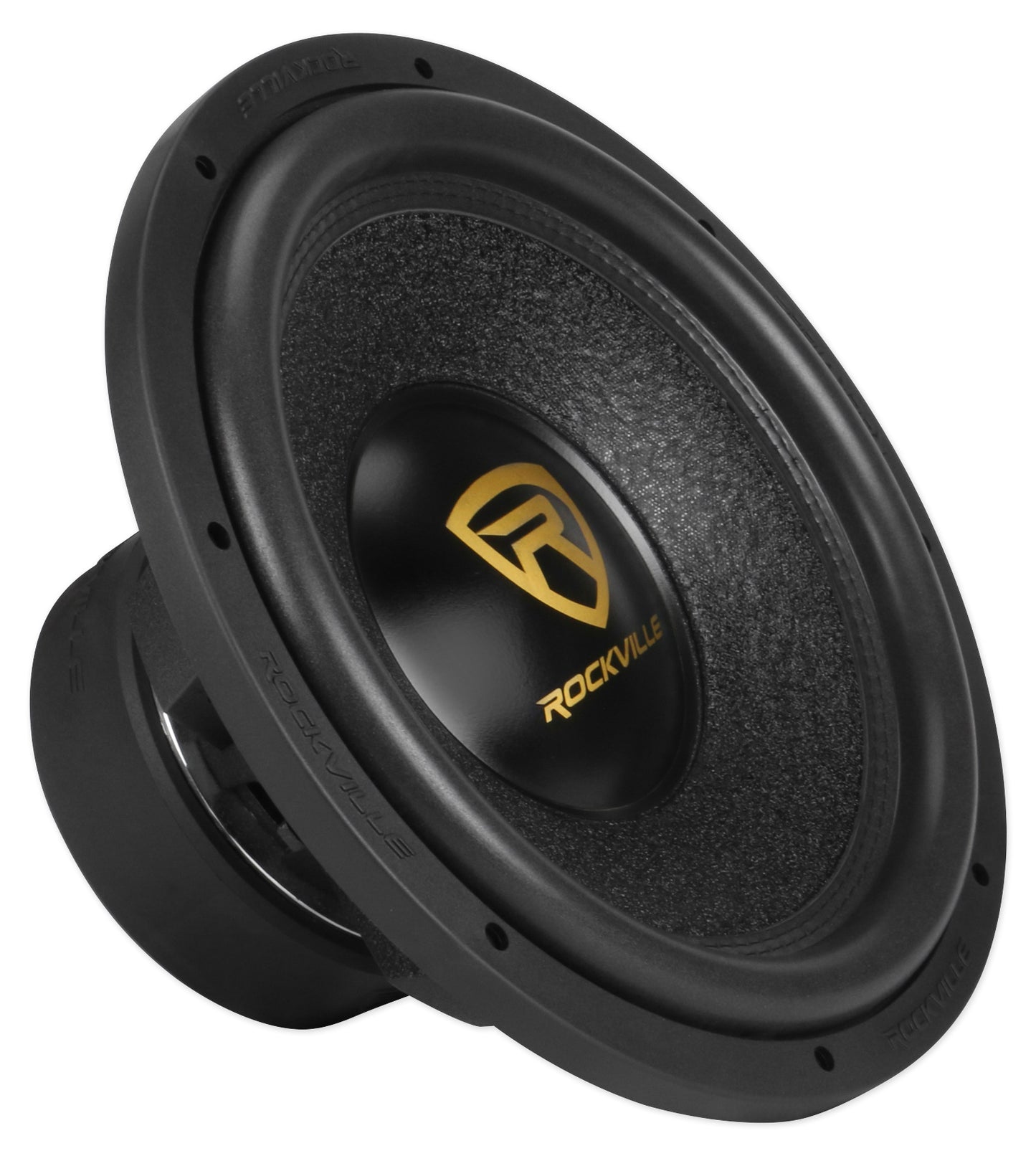

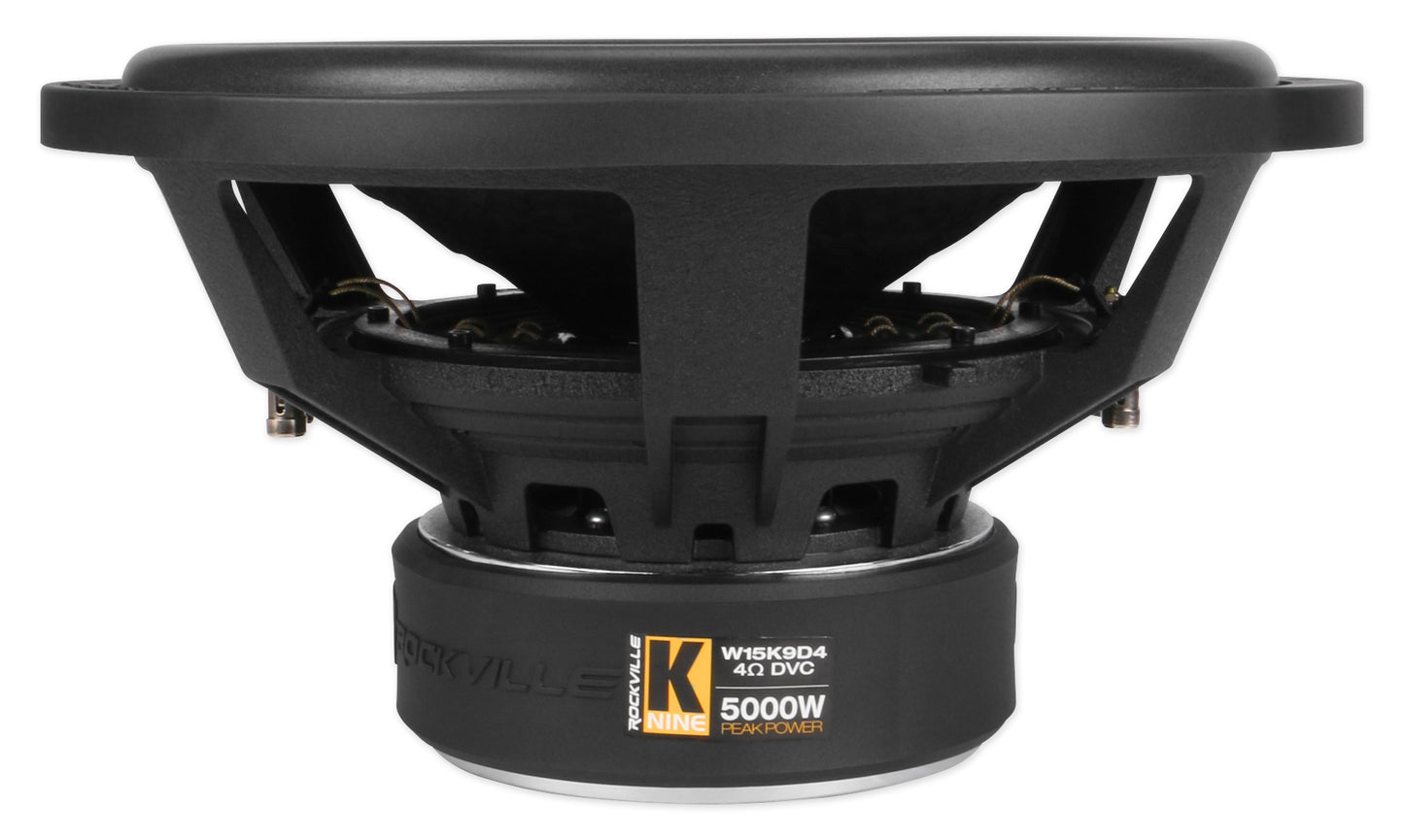

Features of W15K9D4:

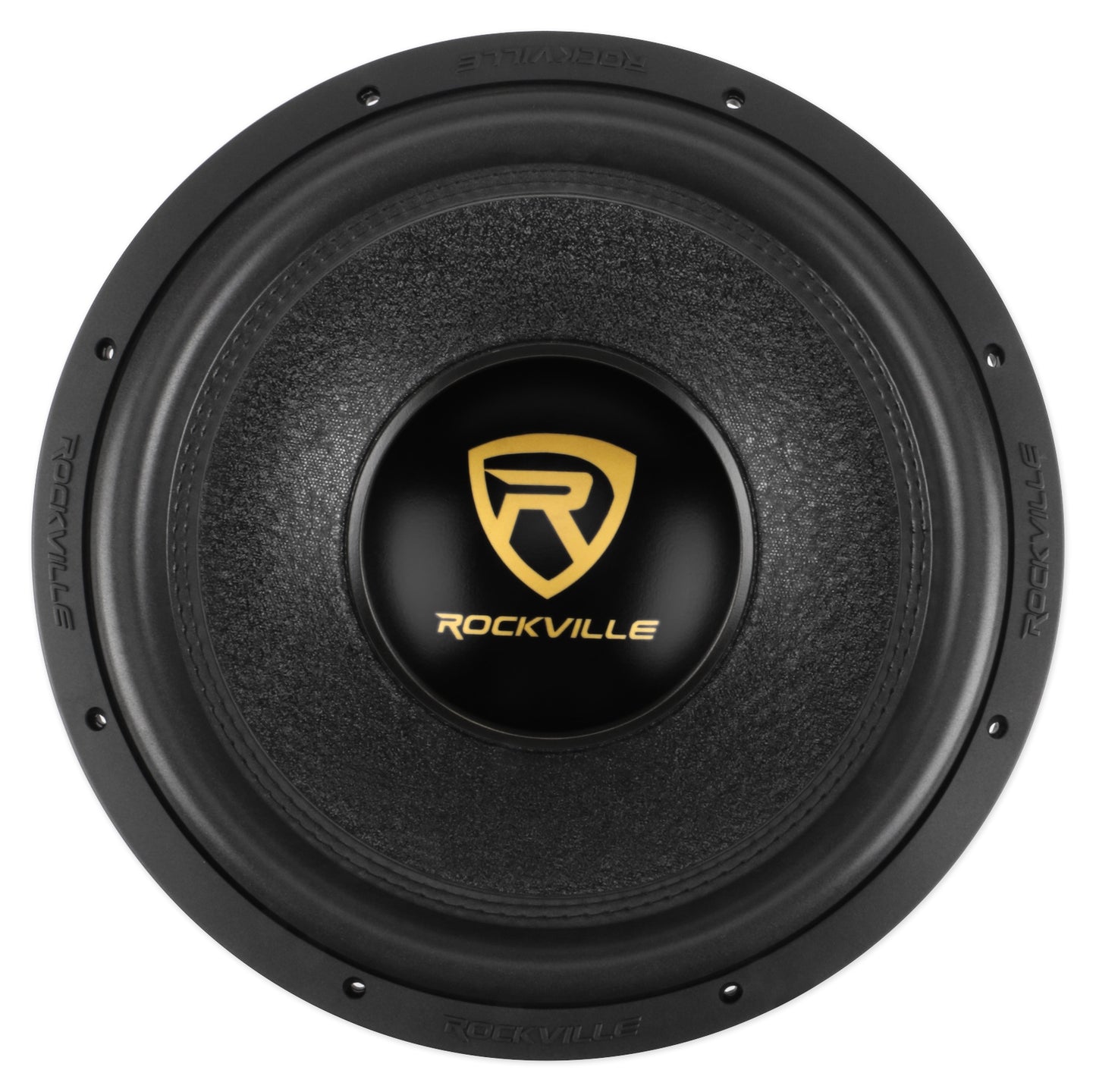

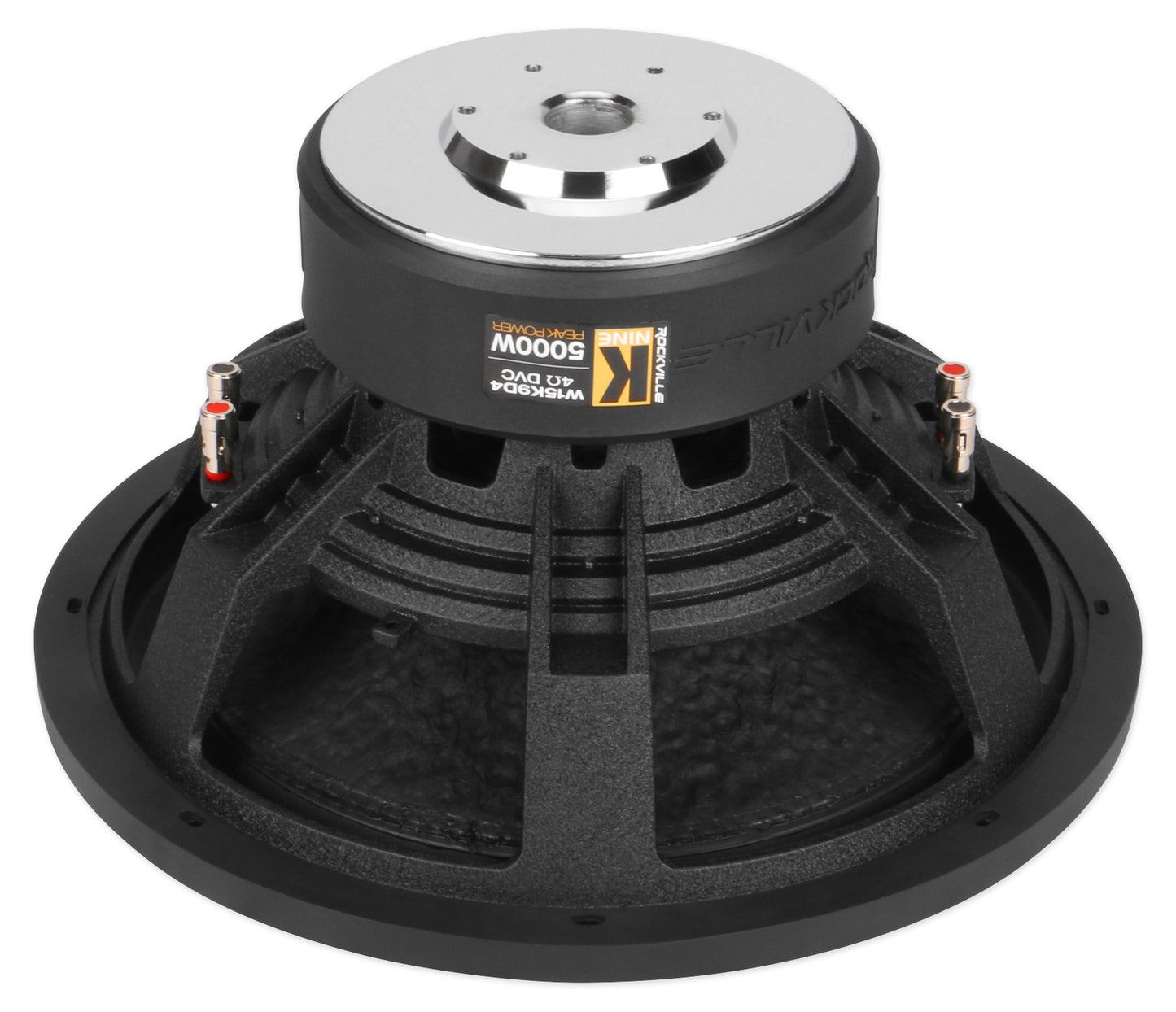

• Rockville W15K9D4 K9 Series 15" Dual 4-Ohm Car Subwoofer
• Peak Power Handling: 5000 Watts
• Program Power Handling: 2500 Watts
• CEA Rated RMS Power Handling: 1250 Watts
• 3" 4-Layer Black Aluminum Former Wound with OFC Wire Made in USA
• This voice coil is stable up to 240 degrees celcius! The voice coil windings are made in the USA!
• Double Stacked 190 Oz High Quality Magnet
• Cast Aluminum Basket With Black Sanded Finish Makes This Sub Very Efficient And Lighter Weight
• Two Chrome-Plated Binding Post Terminals
• Black Non-Pressed Paper Cone With Beautiful Finish
• Our cones are ultra-stiff. They are thicker and stronger than other subs on the market making our subs able to handle more power.
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Red Stitching Cone Reinforcement Ensures Long Life
• New Ultra-stiff  PolyPropylene (PP) Dustcap
• Impedance: Dual 4-Ohm Voice Coils
• Vented Hole on T-yoke Enhances Heat Dissipation
• Special Custom Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Custom Rockville Mounting Gasket Looks Beautiful and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use high grade glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• Nomex Spider provides tear resistance, strength and long-term reliability over regular cotton and poly cotton spiders
• Cutout Diameter: 14.09” inches
• Mounting Depth: 8.23” inches
• Frequency Response: 32 Hz - 1.5K kHz
• 10mm T-Yoke + 10mm Washer
• Sensitivity: 87.9dB
• Sealed Enclosure Volume: 1.7 – 2.9 Cubic Feet
• Vented/Ported Enclosure Volume: 2.7 – 3.85 Cubic Feet
• XMAX is 30mm
• Weight: 34.17 Lbs.
• Shipping Weight: 38.58 Lbs.
• Shipping Box Dimensions: 17.72" x 17.72" x 12.4" Inches
• XMAX: 30 MM

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 95mm (3.74 inches)
• Gap Plate Outside Diameter: 190mm (7.5 inches)
• Gap Plate Thickness: 25mm (1 inch)
• Yoke Outside Diameter: 180mm (7.1 inches)
• Yoke Thickness: 10mm (0.4 inches)
• Yoke Pole Diameter: 75mm (3 inches)

TS Parameters:

---

Video of RWK41:

Unboxing Video for RWK41:

Description:

The Rockville RWK41 4 AWG (American Wire Gauge) amp kit has the following differences over other amp kits on the market at this price point.

1. Our RCA cables are 100 % copper. These are top of the line RCA cables

2. Better Resistance: The only thing that really matters with wires is the resistance rating. This is a measurement of conductivity and how much signal is loss per foot of wire. Since Rockville wires are made with around 3 times as much copper as any other wire at this price point, these wires had a much better resistance rating which means they will transfer more power to your amps than the other brands.

3. We do not cheat you on the thickness of the wire. These are standard American wire gauge thickness. This is another reason our conductivity is better than anything else at this price point. Other brands in the market place write 4 gauge, but cheat you on the thickness. We are honest about the thickness.

4. The Rockville amplifier installation kits feature a new soft abrasion proof insulating jacket. This rugged PVC outer jacket allows for 100% improved flexibility over standard power cables making them extremely easy to route through your vehicles interior, and it maintains exceptional resistance to grease and oil. The PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F.

The RCA signal transfer cables included in this kit feature blue and silver twisted pair technology in a clear outer jacket insulation skin. Not only do the blue and silver wires look cool but they also provide superior signal transfer with maximum noise suppression. They are 100% copper to provide absolute lossless perfect signal transfer to your receiver. This technology reduces interference, so your audio signal flows clean and pure at all power levels.

This kit also includes a massive 60 Amp AGU Gold Plated Fuse, so you can be sure it will handle the all the DC power that your amp will need without even the slightest loss of current. The included 7 split loom tube provides protection for your power cable from the typically harsh environment found under the hood of your car.

Audiosavings product experts have tested this amp kit against many leading amp kits on the market and were were impressed not only by the great looks but by the quality of these Rockville installation kits as well. These kits had a lower resistance rating than the other brands we compared and tested them against. What this means is that Rockville manufactures their kits with more copper than other kits at this price point, ultimately providing your amplifiers with better and cleaner DC power, so they work cooler and more efficiently. You will hear the difference a Rockville installation kit will make!

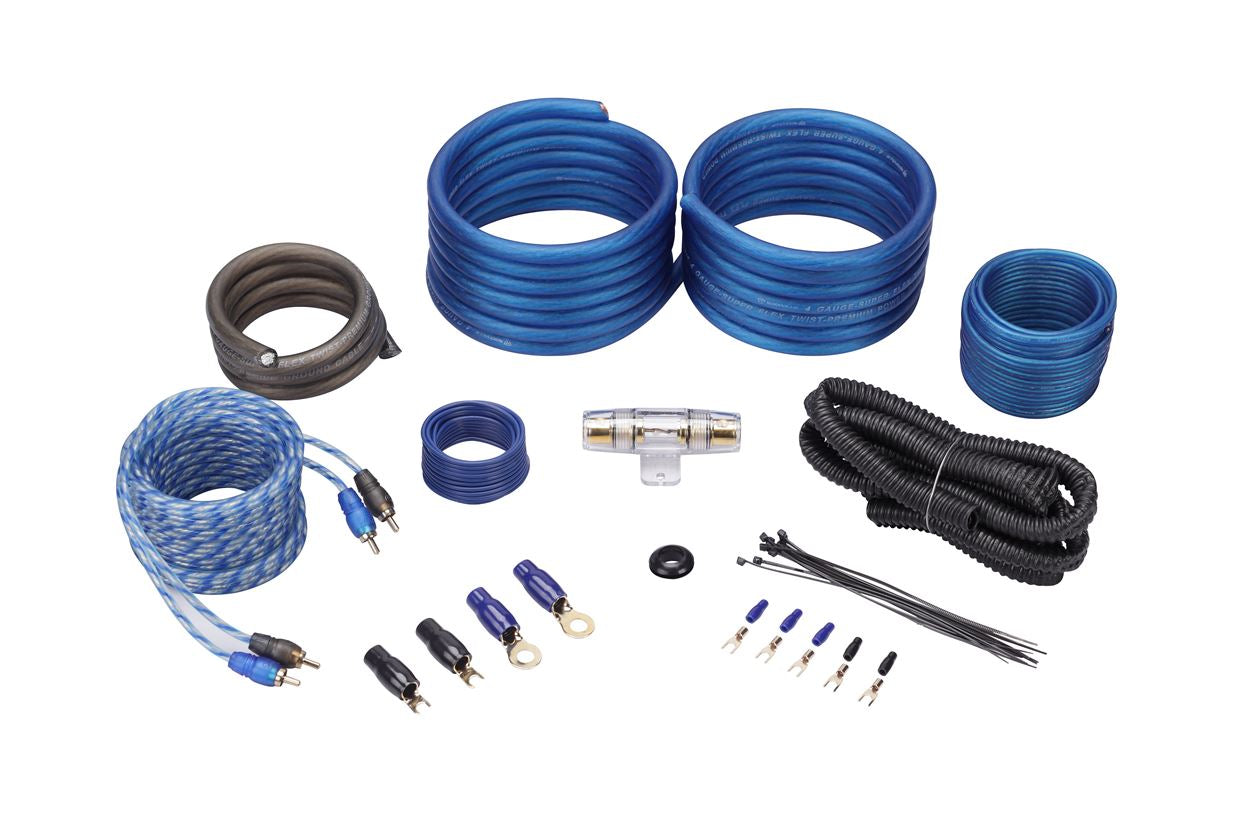

Features:

• 1 – 17’ High Grade Twisted Pair of 100% Copper RCA Cable
• 17’ – 4 Gauge Translucent Blue SuperFlex Power Cables
• 17’ – 18 Gauge Blue Remote Cable
• 17’ – 16 Gauge Clear Speaker Wire
• 3’ – 4 Gauge Clear SuperFlex Ground Wire
• Gold Plated AGU Heat Resistant Fuse Holder
• 60 Amp AGU Gold Plated Fuse
• 7’ Split Tube Loom
• Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets

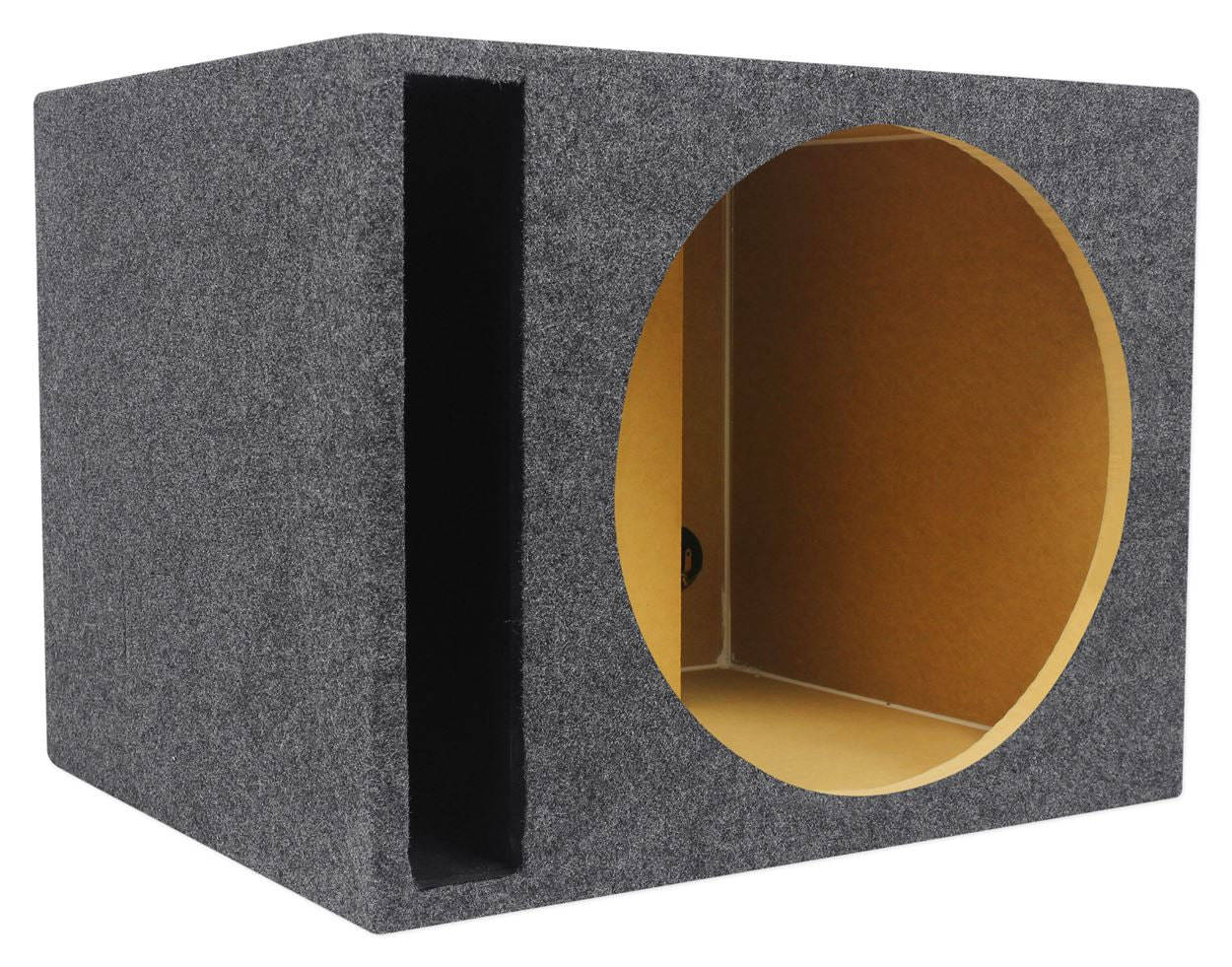

The RSV15 is a single 15" vented subwoofer box is made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood.  This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you!  EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!

MADE IN THE USA WITH PRIDE!

Features:

• Rockville RSV15 Single 15" 2.6 cu. ft. 3/4" MDF Vented Subwoofer Enclosure Box
• Machine precision cut mounting holes
• ¾” USA Heavy Duty MDF Construction
• Top of the line Glue for extra durable adhesion
• High quality GOLD spring loaded terminals
• Designed, tested, and engineered to work perfectly with high powered subs
• Designed to give the best sound quality
• Tuning frequency: 32Hz

Enclosure Measurements:

• Type of Enclosure: Ported/Vented
• Enclosure Sub Size: Single 15"
• Dimensions in Inches: 21" x 18" x 16.25"
• Top and Bottom Depth: 16.25"
• Mounting Depth: up to 15" (enough depth for any shallow sub on the market)
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): 3.5 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 2.6 Cubic Feet

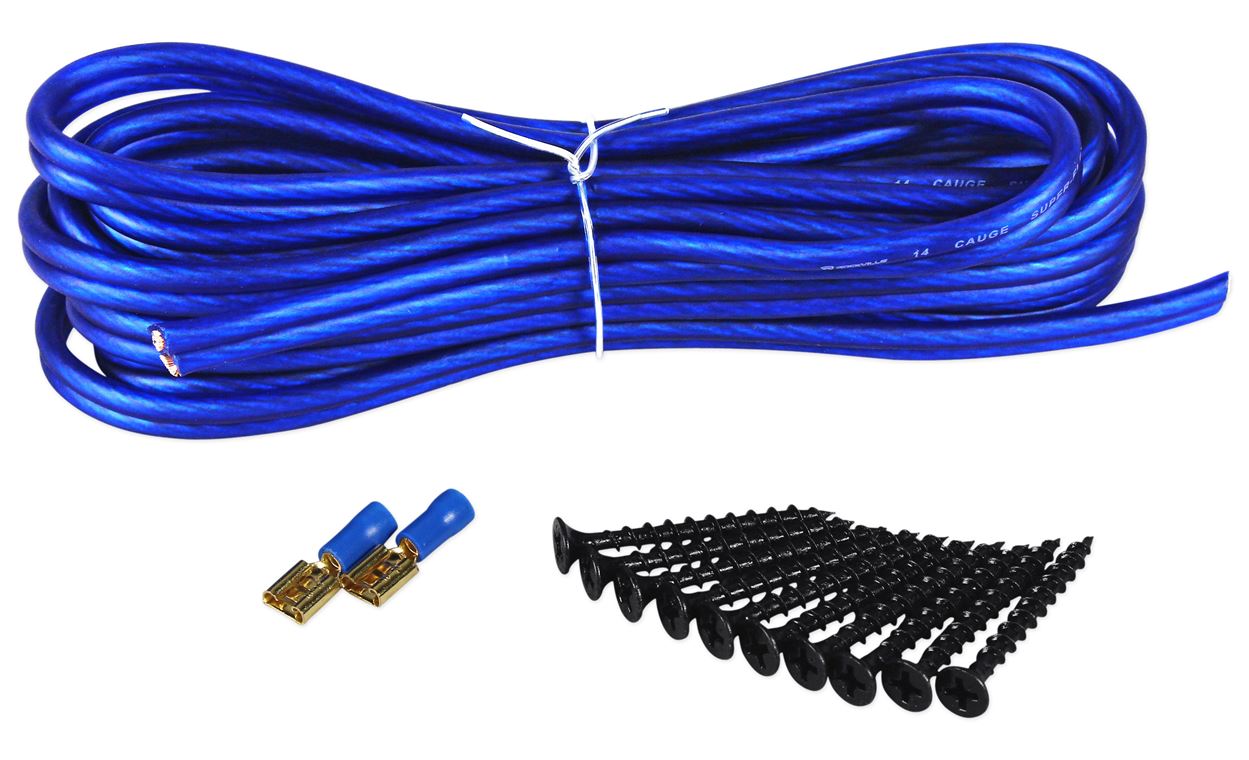

Complete Single Subwoofer Enclosure Installation Kit!

Includes:

• 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actual
