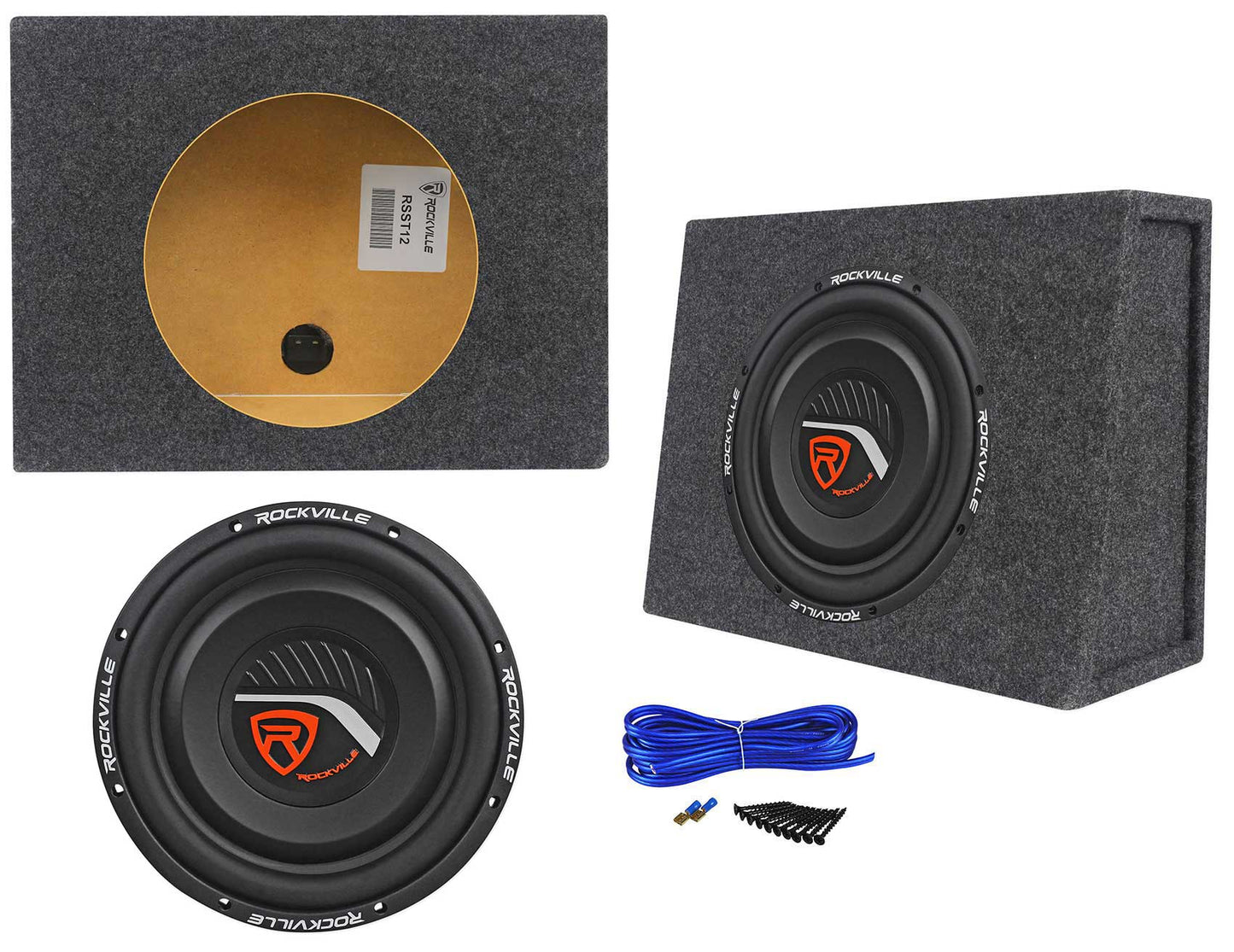

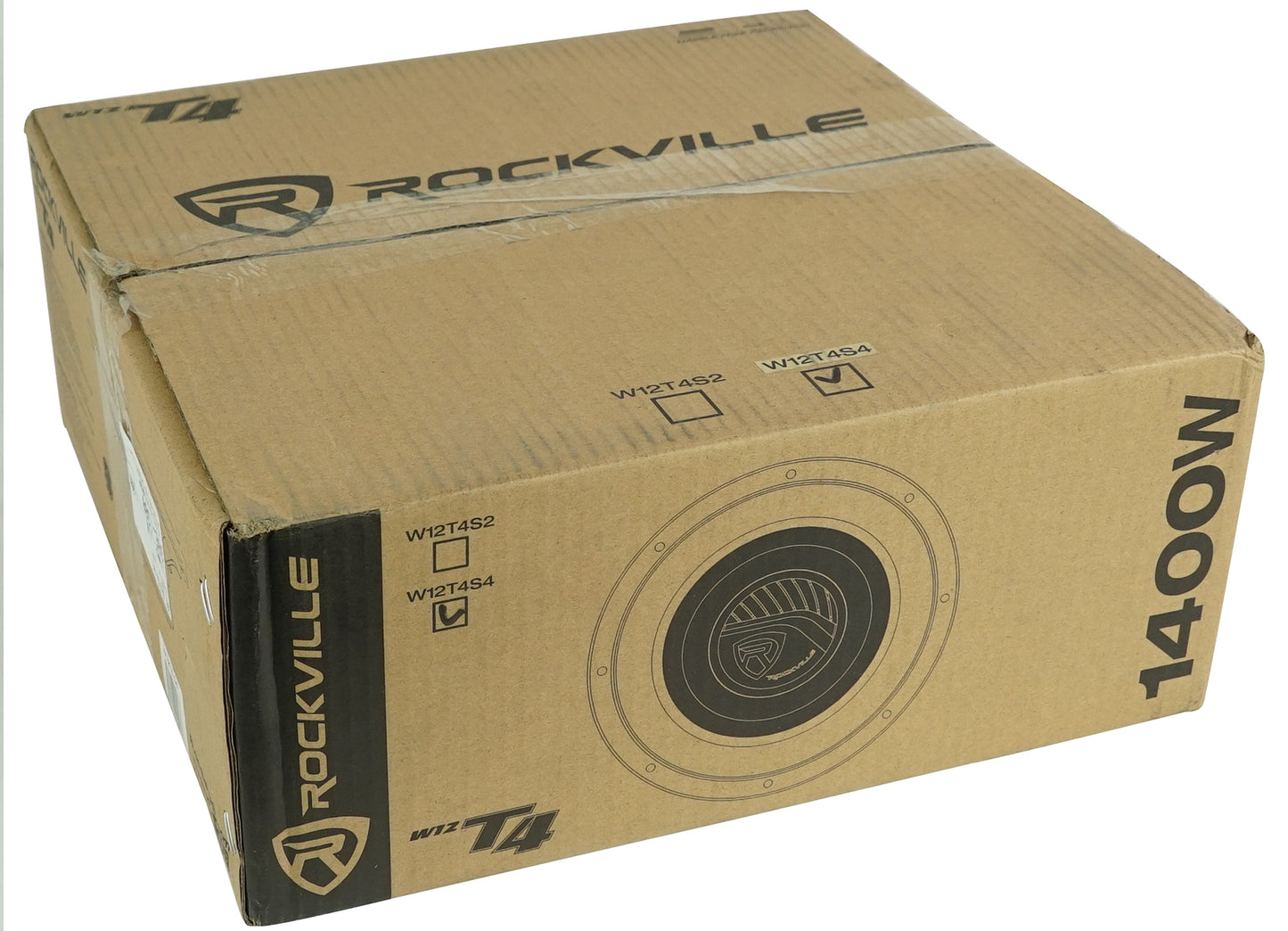

- (1) Rockville W12T4S4 12" Shallow Mount 1400w Car Subwoofer, CEA Compliant, 4-Ohm
- (1) Rockville RSST12 Single 12" 0.9 cu.ft. Sealed Car/Truck Shallow Sub Enclosure
- 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
- 12 Feet of 14 AWG Blue Speaker Wire
- 2 Spade Terminals
Video of T4 Series Shallow Mount subs:
CEA Compliant Legitimate Power Ratings
Peak Power = Amount of power the sub can handle for a burst during the loudest point of a song. This number is not as important as the RMS power. This subwoofer has 1,400 watts peak.
CEA Rated RMS Power = This is an official tested rating by a specific industry standard. This is the way the top brands in the industry such as Kicker, Rockford, etc rate their products. This subwoofer is 350 watts RMS CEA rated. This rating is measured at a very specific voltage over a specific period of time to determine true power handling. You can feel confident matching this with a high-end amplifier from Kicker, Rockford Fosgate, or any other top brand that uses CEA compliant ratings.
Description:

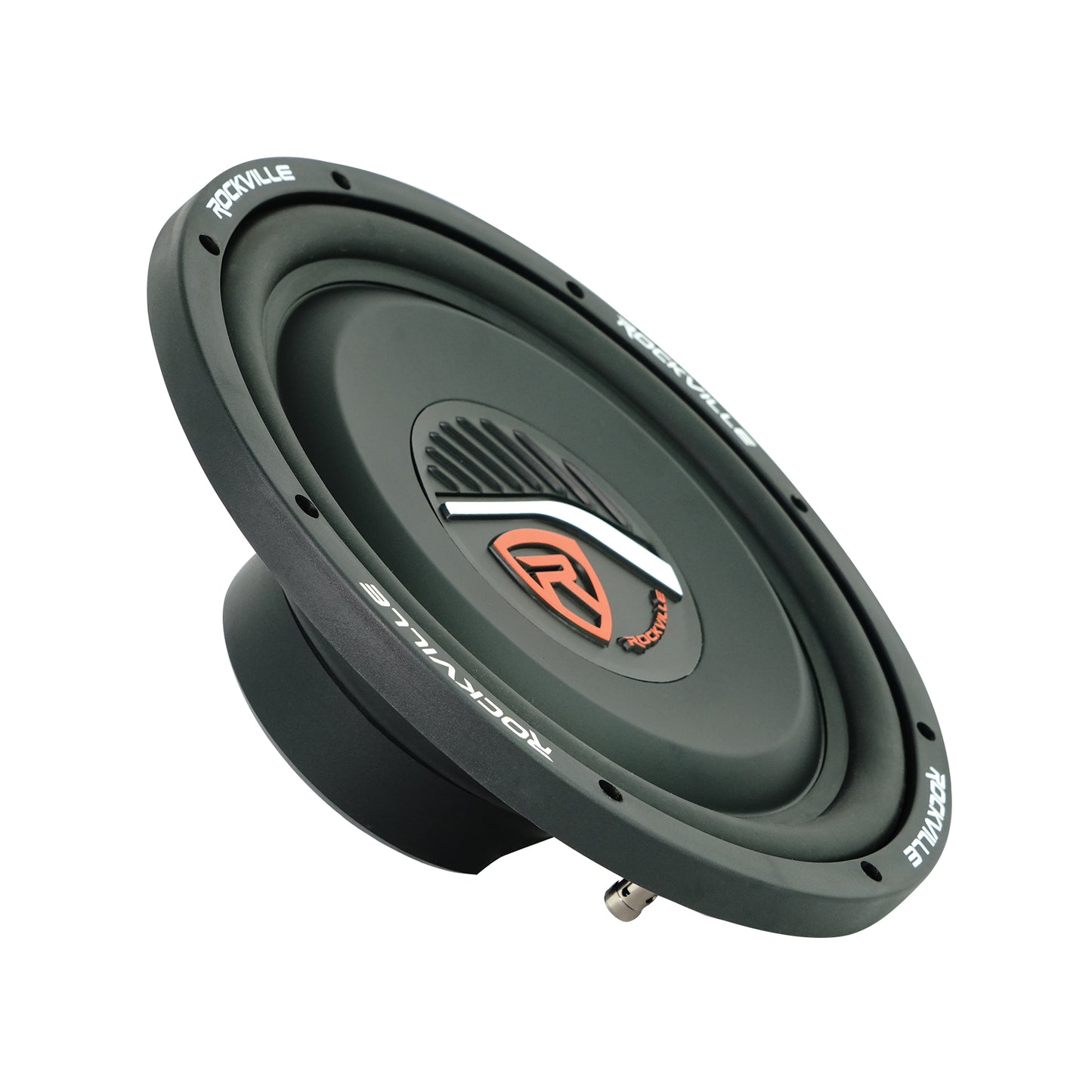

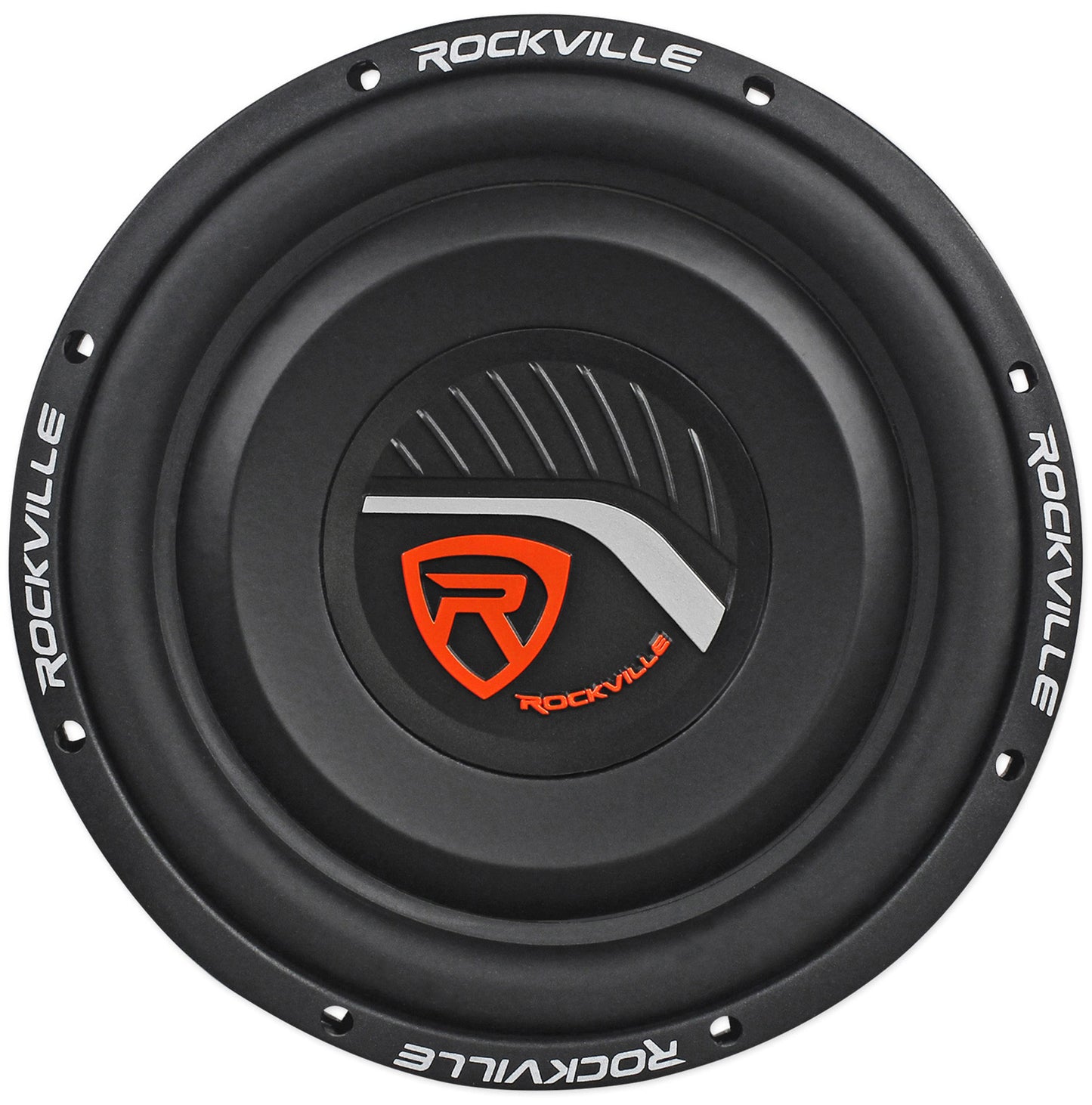

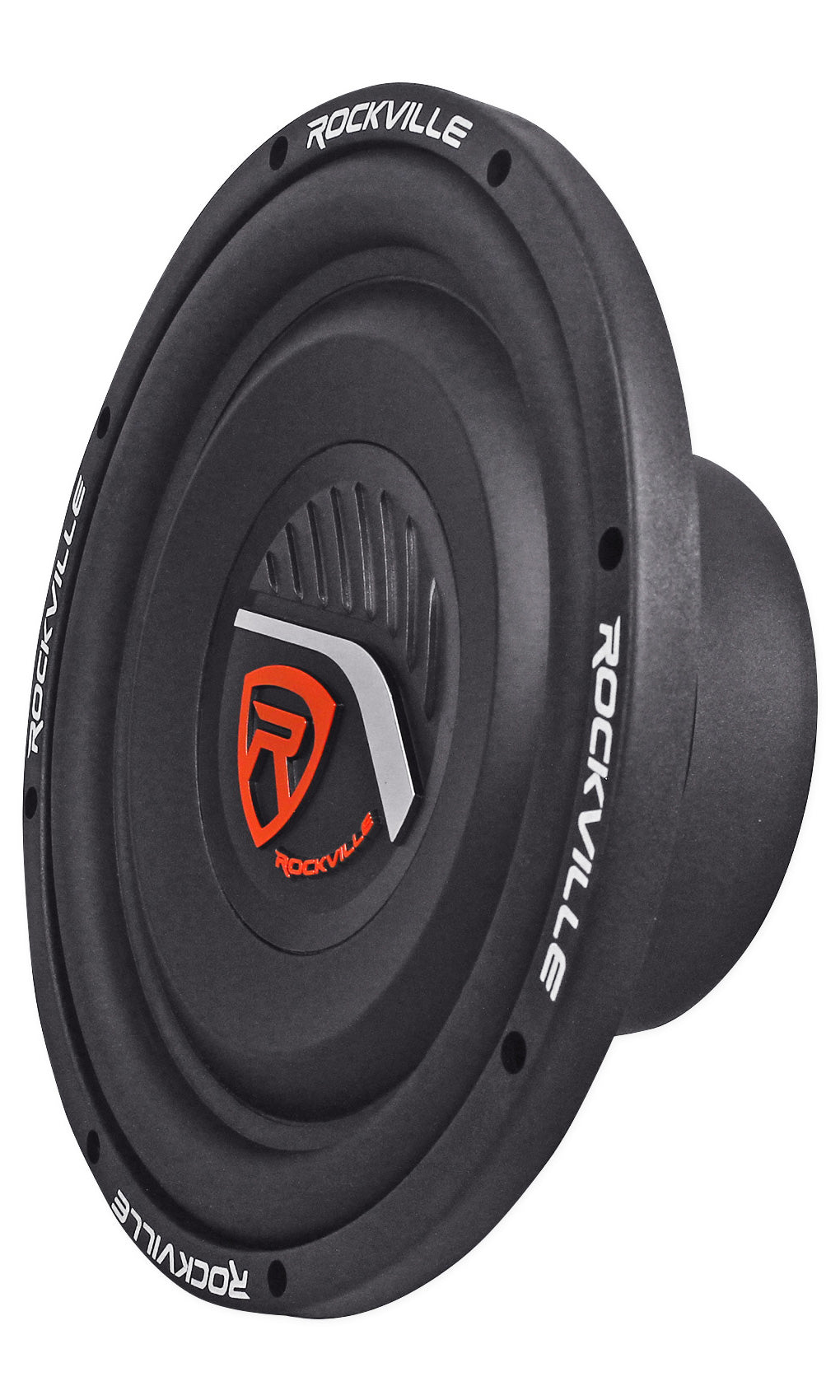

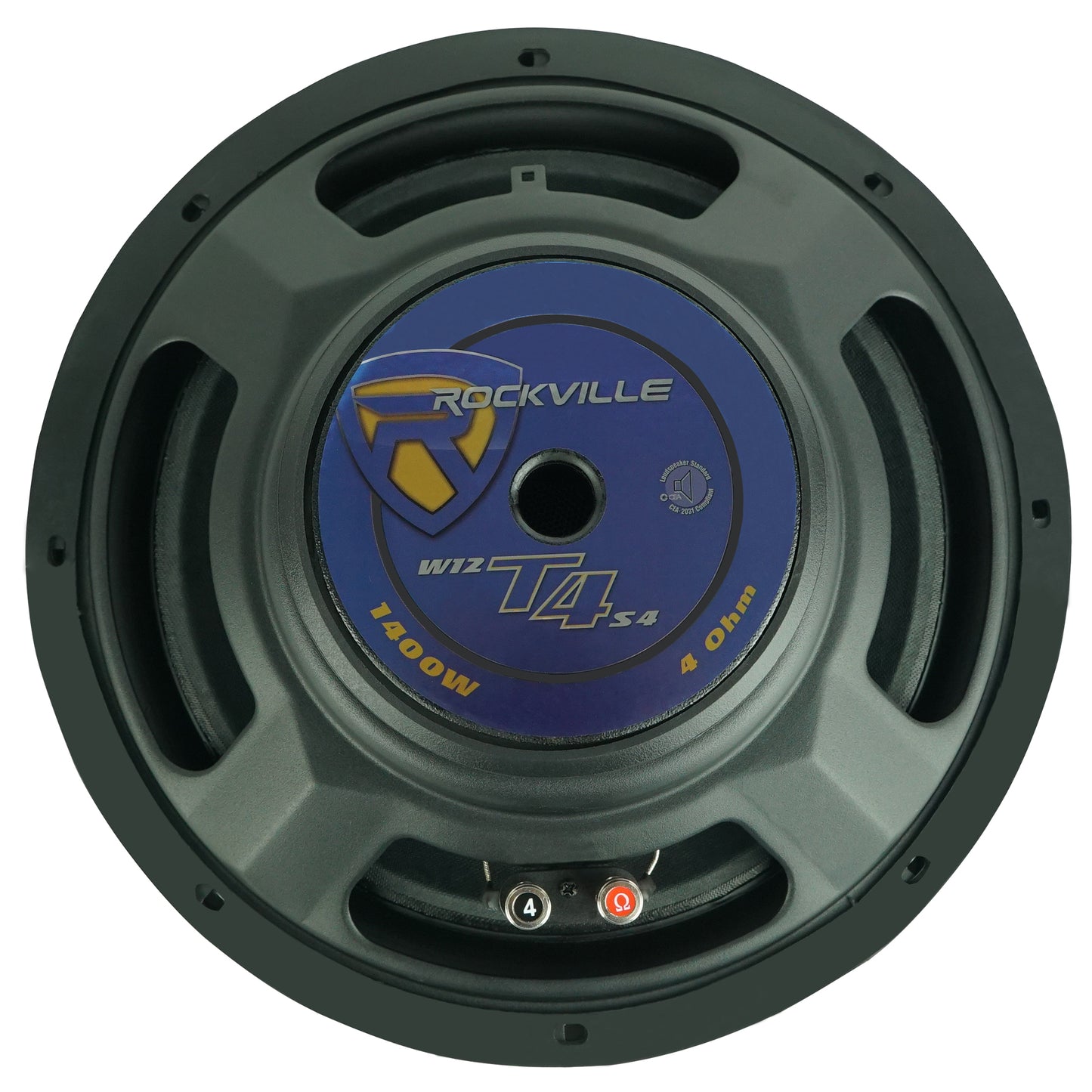

The Rockville W12T4S4 subwoofer features a 4-Ohm single voice coil. These subwoofers are engineered to deliver very low frequency response where space is limited. Whether installed behind the seat in a compact car, pick-up truck or in a motorcycle's saddlebag, make no mistake the Rockville T4™ subs will rock you!

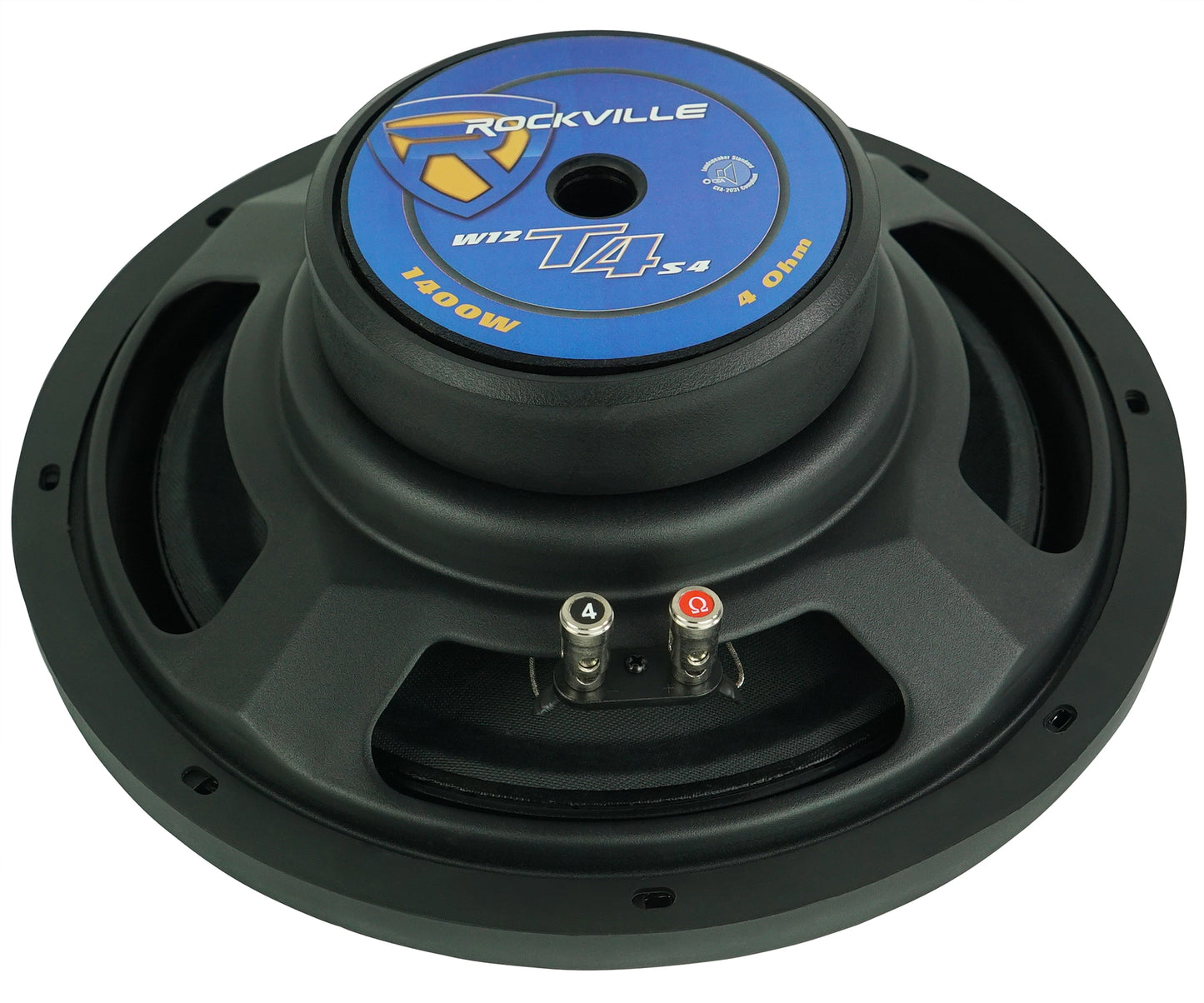

A vented core magnet motor structure with extra thick back & top plates allows for full voice-coil extended peak-to-peak excursion, creating an ultra-deep bass response.
Features:
- Rockville W12T4S4 12" Shallow Mount 1400 Watt Car Subwoofer, CEA Compliant, 4-Ohm
- Peak Power Handling: 1400 Watts
- RMS Power Handling (CEA-2031 Compliant): 350 Watts RMS
- 2" voice coil
- Ultra-Stiff Paper Composite Cone
- 3D Molded High Gloss Acrylic Dust Cap
- Ultra Slim, Expanded and Rolled Steel Basket
- High Density Laminated Butyl Rubber Surround
- High Power Strontium Magnet with Ultra Saturated, High BL Motor Gap
- Vented Core Magnet Motor Structure
- High Temperature Aluminum Voice Coil Former
- Lightweight Compact Design Ideal for Any Installation
- Rubber Magnet Boot
- Dual Chrome Plated Spring Loaded Push Terminals
- Shallow Mount Subwoofer
- Impedance: SVC 4 Ohm
- Cutout Diameter: 10.98 Inches

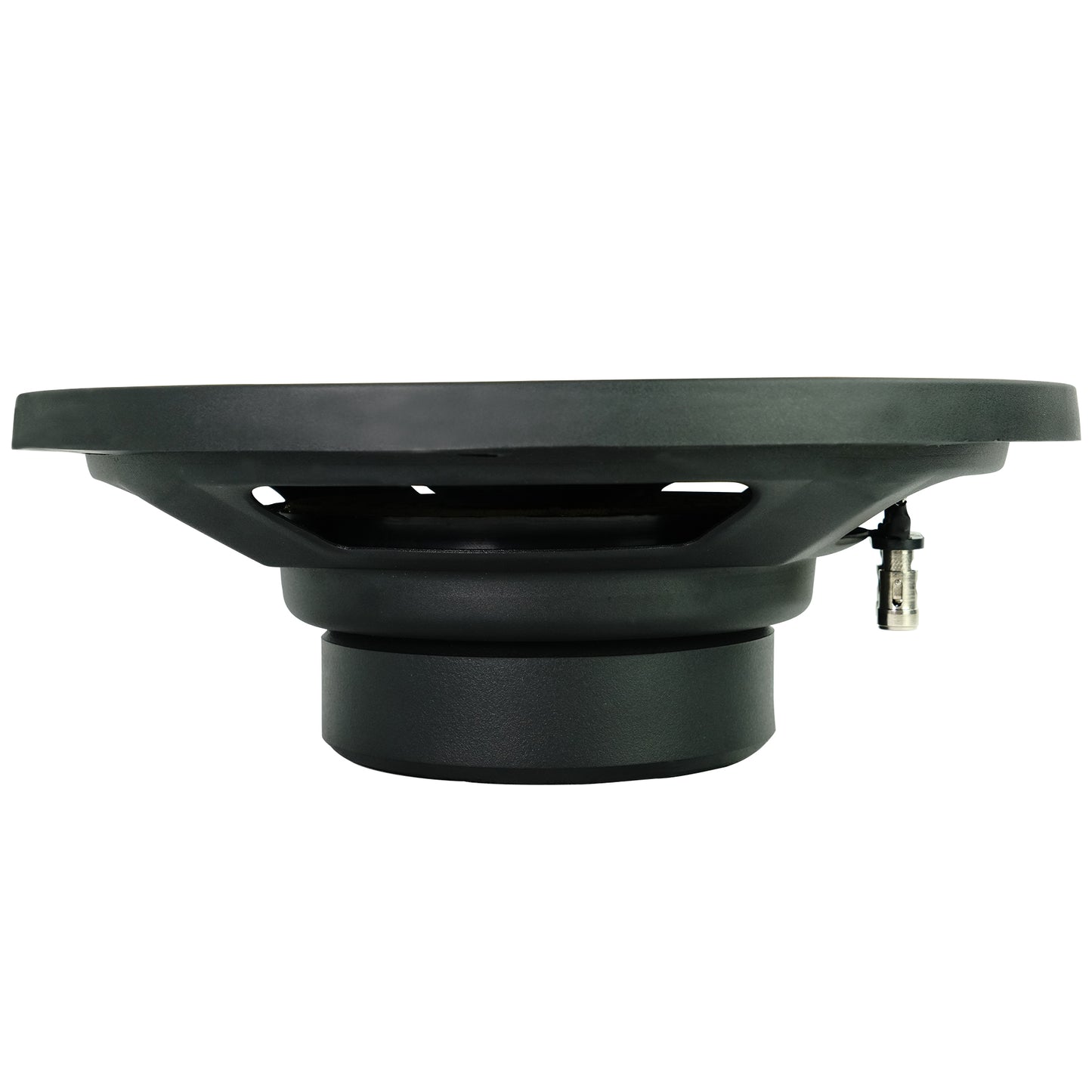

- Mounting Depth: 3.7 Inches
- Frequency Response: 34 Hz to 500 Hz
- Sensitivity: 89dB @ 1w/1m
- Enclosure Recommendations:
- Sealed: 0.67 cu. Ft - 1.7 Cu. Ft.
- Vented: 1.00 cu. Ft - 2.0 Cu. Ft.
| Electrical Parameters | |
| Re | 3.46 Ohm |
| Le | 2.013 mH |
| L2 | 2.592 mH |
| R2 | 5.06 Ohm |
| Cmes | 937.44 µF |
| Lces | 23.04 mH |
| Res | 44.89 Ohm |
| fs | 34.2 Hz |
| Mechanical Parameters (using laser) | |
| Mms | 154.549 g |
| Mmd (Sd) | 140.565 g |
| Rms | 3.673 kg/s |
| Cms | 0.14 mm/N |
| Kms | 7.15 N/mm |
| Bl | 12.84 N/A |
| Lambda | 0.094 |
| Loss factors | |
| Qtp | 0.659 |
| Qms | 9.054 |
| Qes | 0.698 |
| Qts | 0.648 |
| Other Parameters | |
| Vas | 56.623 l |
| n0 | 0.313 % |
| Lm | 87.16 dB |
| Lnom | 87.78 dB |
| Sd | 535.02 cm² |
| EBP | 49 |
| Mechanical Parameters | |
| RMSE-free | 0.80 Ohms |
| Fs | 37.72 Hz |
| Re | 3.33 Ohms (dc) |
| Res | 39.65 Ohms |
| Qms | 9.00 |
| Qes | 0.76 |
| Qts | 0.70 |
| L1 | 1.59 mH |
| L2 | 2.50 mH |
| R2 | 8.03 Ohms |
| RMSE-load | 0.62 Ohms |
| Vas (Sd) | 48.41 liters |
| Mms | 157.14 grams |
| Cms | 113 μM/Newton |
| Bl | 12.91 Tesla-M |
| SPLref (Sd) | 88.0 dB (4 ohms) |
| Rub-index | 0.03 |
| Method: Mass-loaded | 80.000 grams |
| DCR mode: Measure | -0.13 ohms |
| Area (Sd) | 551.55 sq cm |

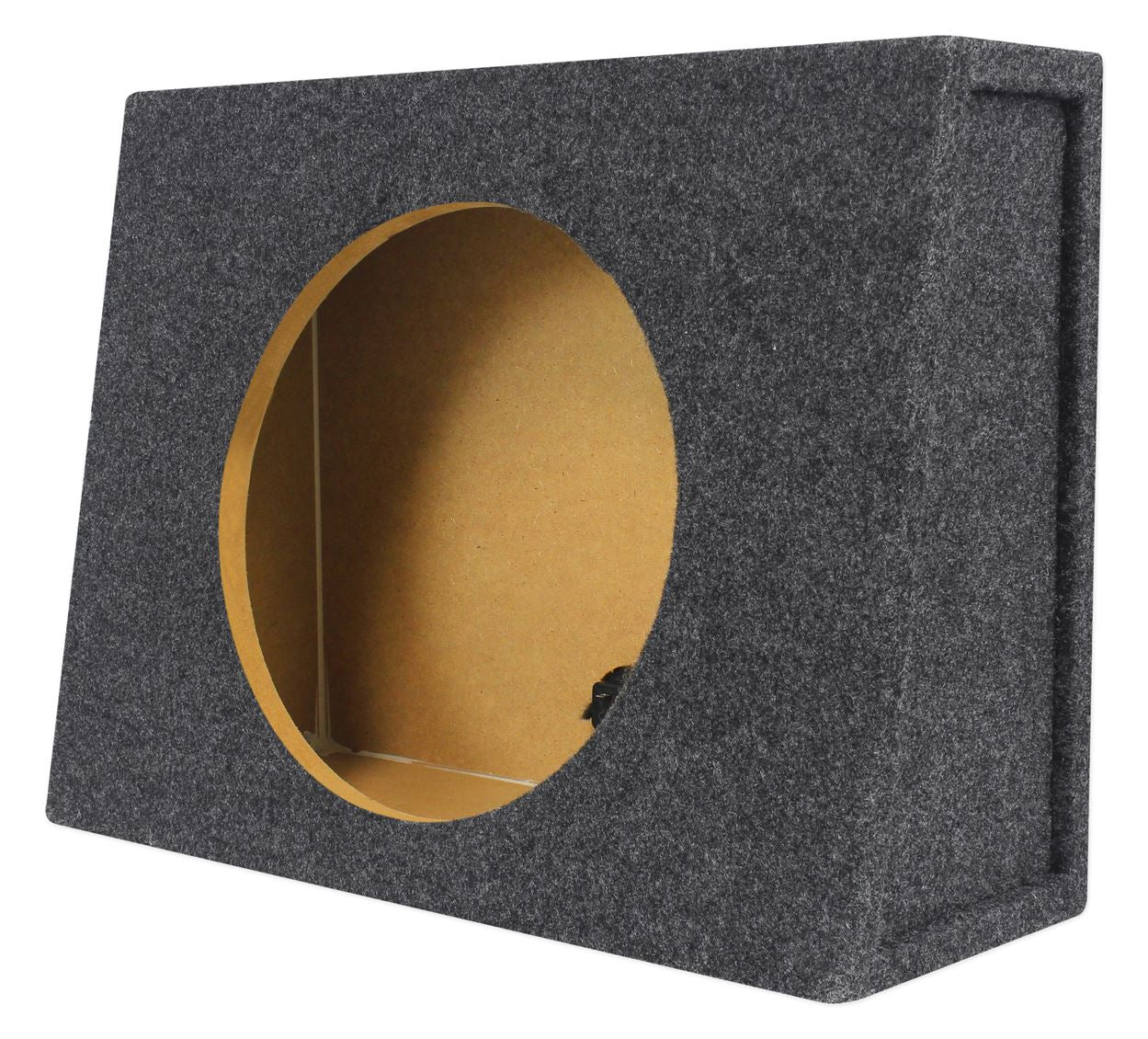

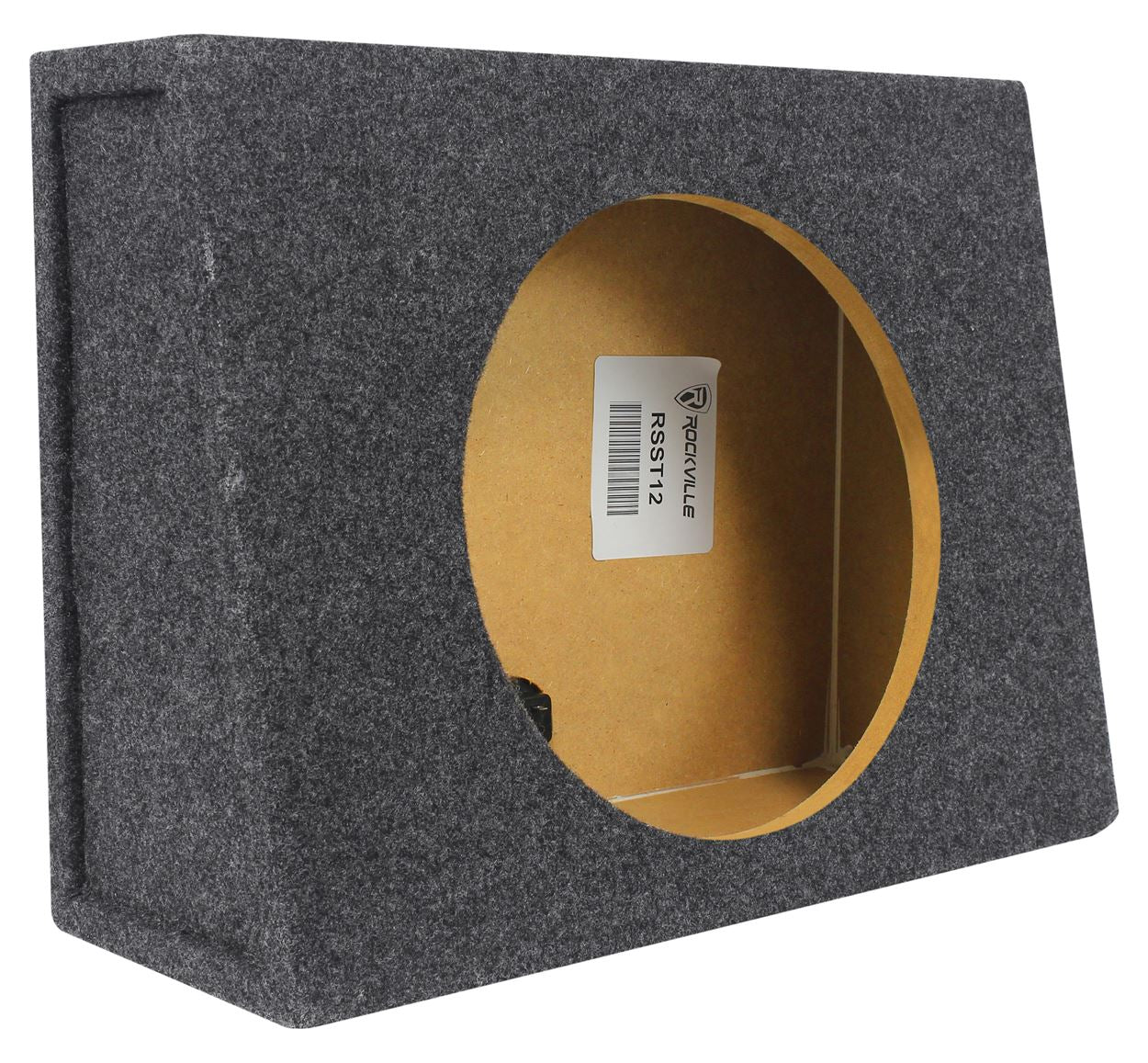

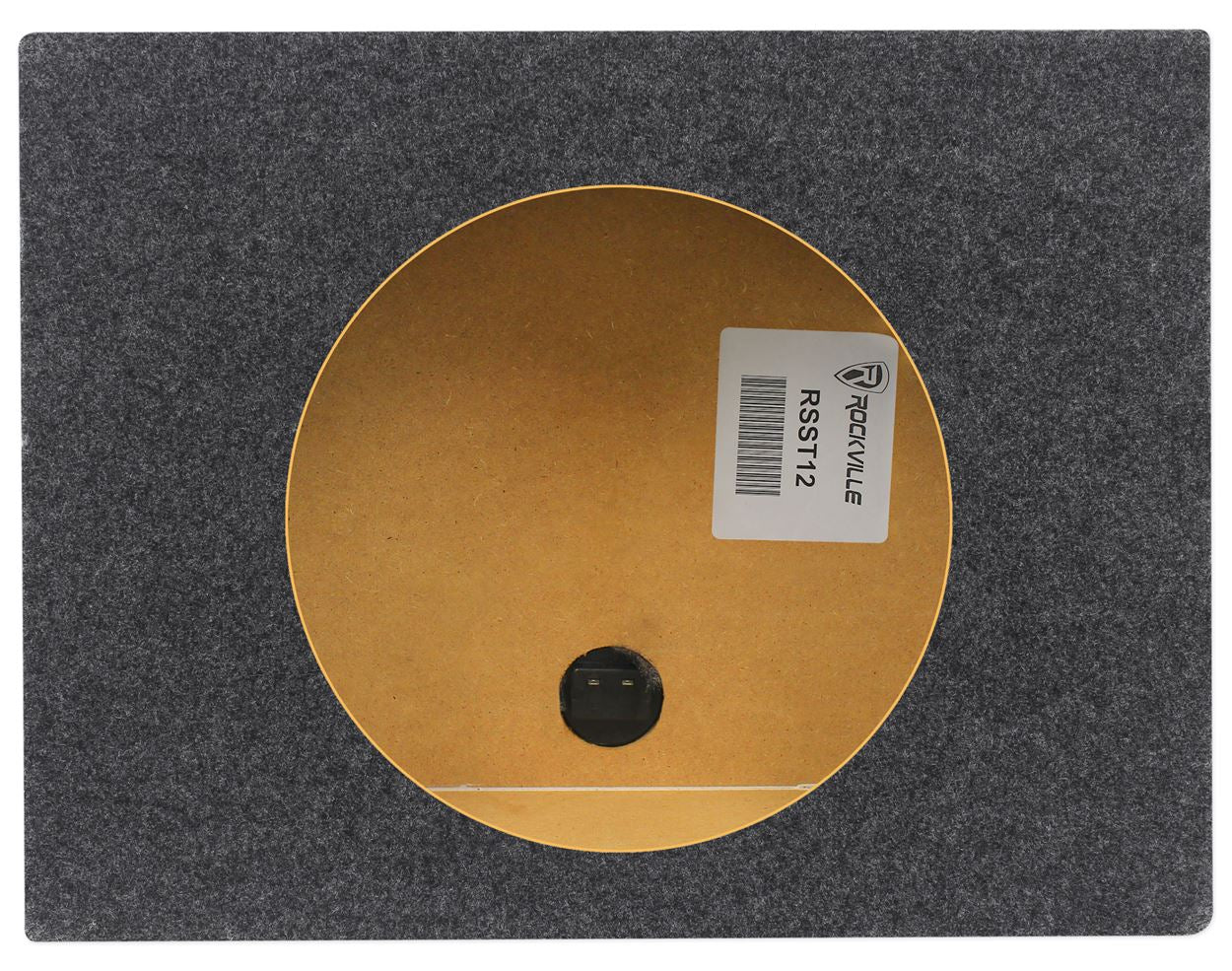

Description of RSST12:
The RSST12 single 12" sealed shallow mount speaker box is made in the USA with Grade “A” 5/8" MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The 5/8" USA MDF is much stronger then any type of import wood. This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you! EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!
MADE IN THE USA WITH PRIDE!
Features:
- Rockville RSST12 Single 12" 0.9 cu.ft. 5/8" MDF Sealed Truck Subwoofer Enclosure Box
- Proudly Made In The USA, Using Only The Finest Quality Materials - For The Best Level of Performance From Your Subs!
- Designed For 12" Shallow Mount Subwoofers
- Machine precision cut mounting holes
- 5/8" USA Heavy Duty MDF Construction
- Top of the line Glue for extra durable adhesion

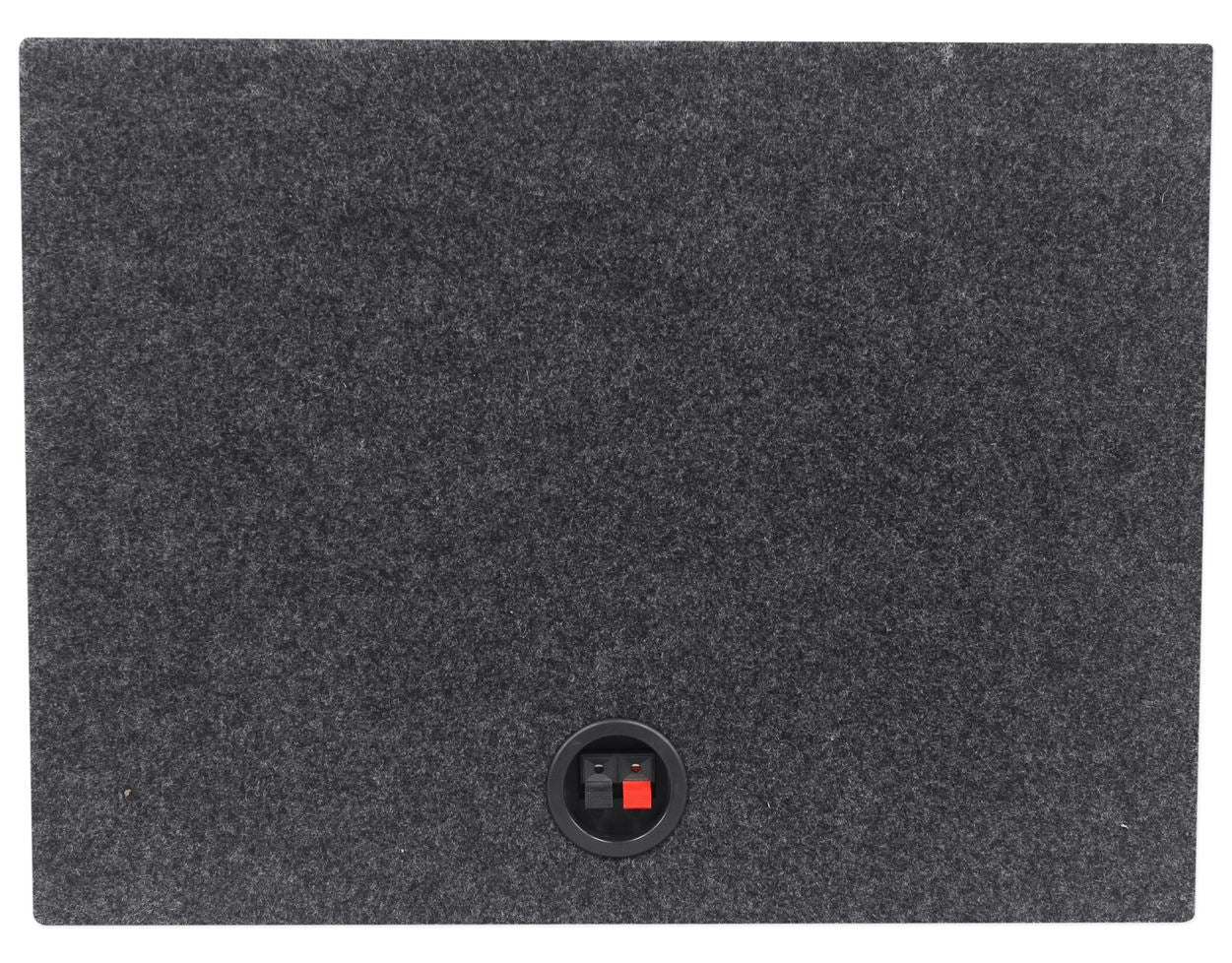

- High quality GOLD spring loaded terminals
- Designed, tested, and engineered to work perfectly with high powered subs
- Designed to give the best sound quality
Enclosure Measurements:
- Type of Enclosure: Sealed Truck/Shallow
- Enclosure Sub Size: Single 12" Shallow
- Dimensions in Inches: 20" (L) x 7.5" (Bottom Depth) x 5" (Top Depth) x 15"
- Top and Bottom Depth: 15"
- Mounting Depth: up to 6" (enough depth for any shallow sub on the market)
- Gross Volume Per Sub (Measurement for the outer dimensions of the box): 1.1 Cubic Feet
- Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 0.9 Cubic Feet
The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville sub enclosures are backed with a full 90 day warranty, though it is unlikely that you will need to use it.

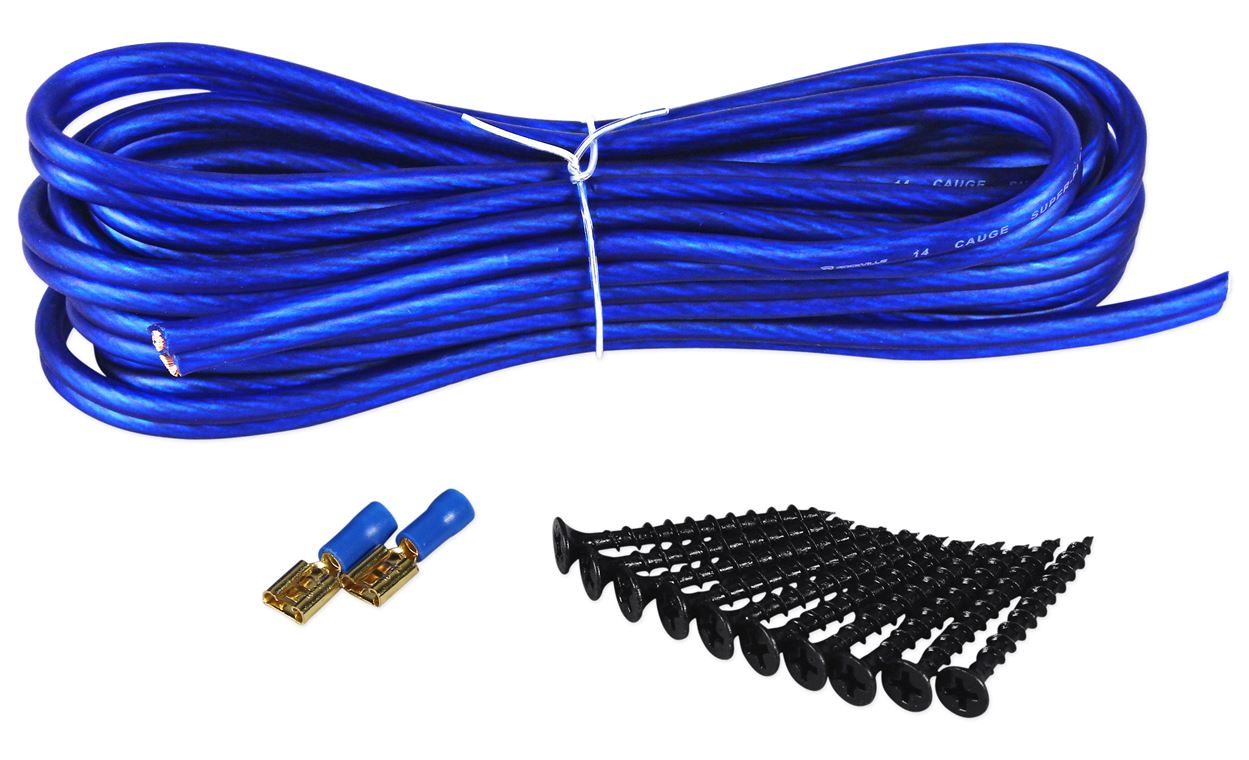

Complete Single Subwoofer Enclosure Installation Kit!
Includes:
- 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
- 12 Feet of 14 AWG Blue Speaker Wire
- 2 Spade Terminals
This accessory package includes everything you need to install one subwoofer into an enclosure, and wire to connect the enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested.
The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire. These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
- UPC:
- 613816440641
