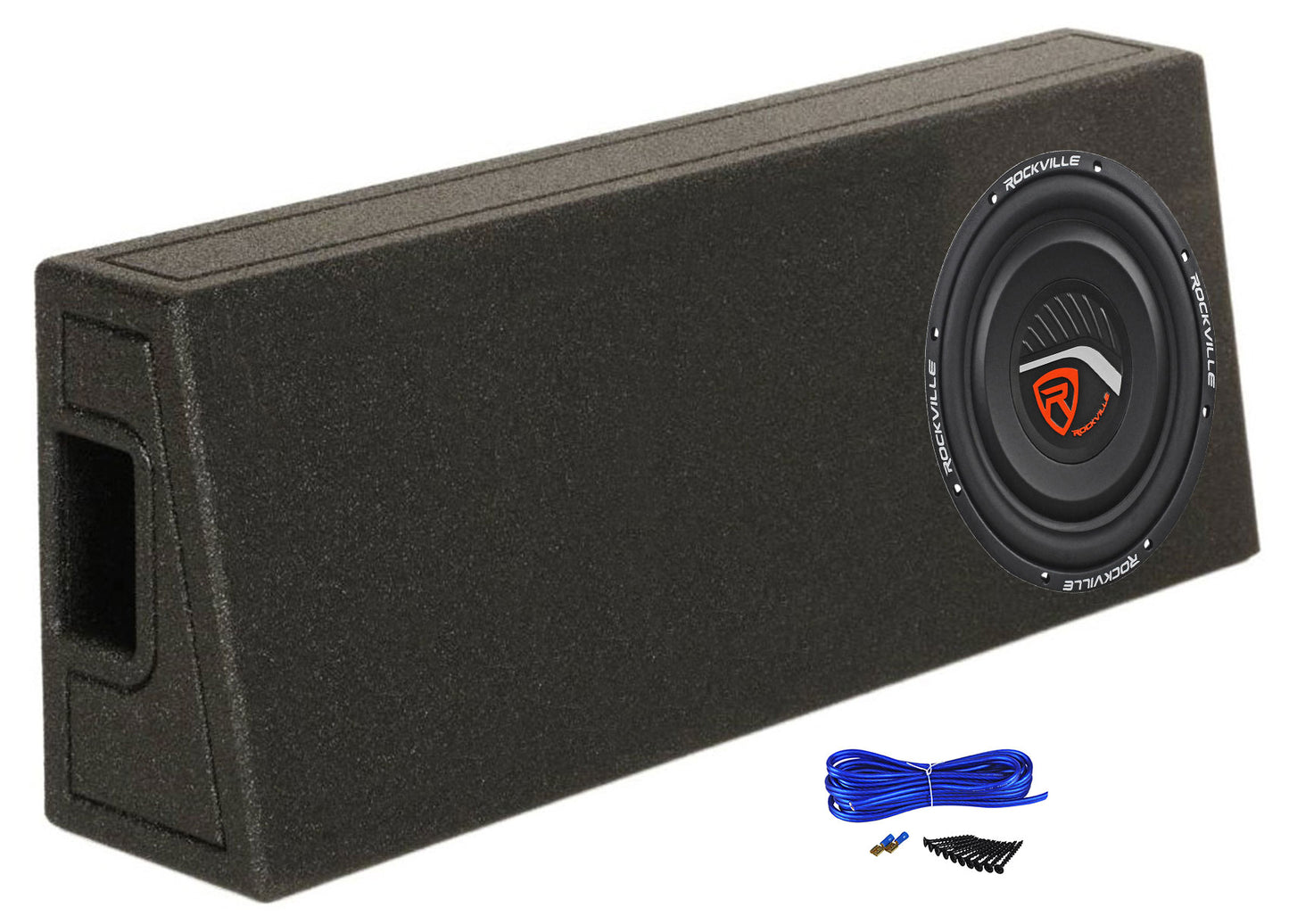

- (1) Rockville W12T4S2 12" Shallow Mount 1400w Peak Car Subwoofer 2-Ohm Sub 350w RMS CEA Rated
- (1) Rockville REC122 Single 12" Ported Behind Seat Truck Subwoofer Enclosurer Box
- (1) Complete Single Sub Box Enclosure Installation Kit: Speaker Wire, Screws, Spades
Video of T4 Series Shallow Mount Subs:
CEA Compliant Legitimate Power Ratings
Peak Power = Amount of power the sub can handle for a burst during the loudest point of a song. This number is not as important as the RMS power. This subwoofer has 1,400 watts peak.
CEA Rated RMS Power = This is an official tested rating by a specific industry standard. This is the way the top brands in the industry such as Kicker, Rockford, etc rate their products. This subwoofer is 350 watts RMS CEA rated. This rating is measured at a very specific voltage over a specific period of time to determine true power handling. You can feel confident matching this with a high-end amplifier from Kicker, Rockford Fosgate or any other top brand that uses CEA compliant ratings.

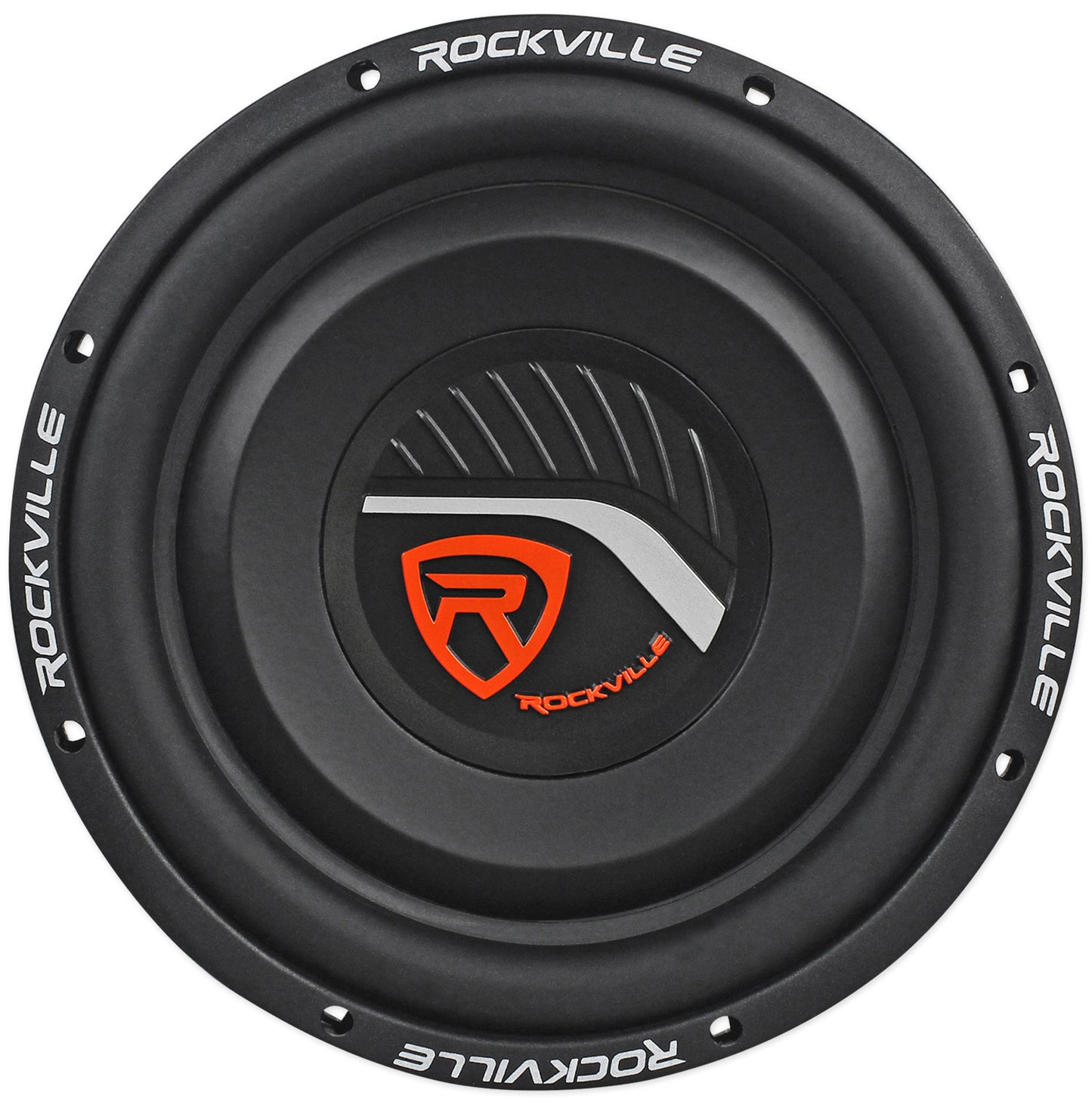

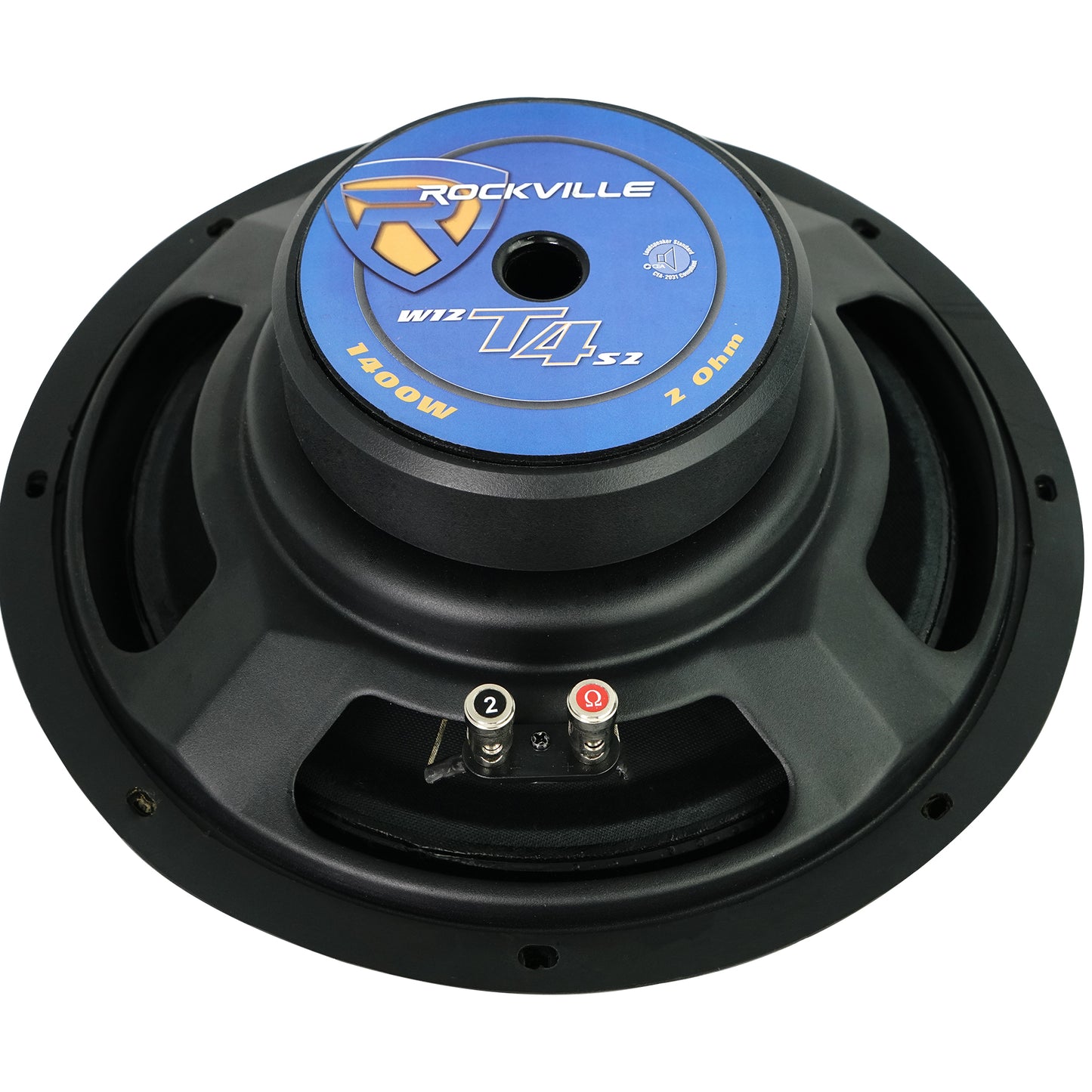

Description:

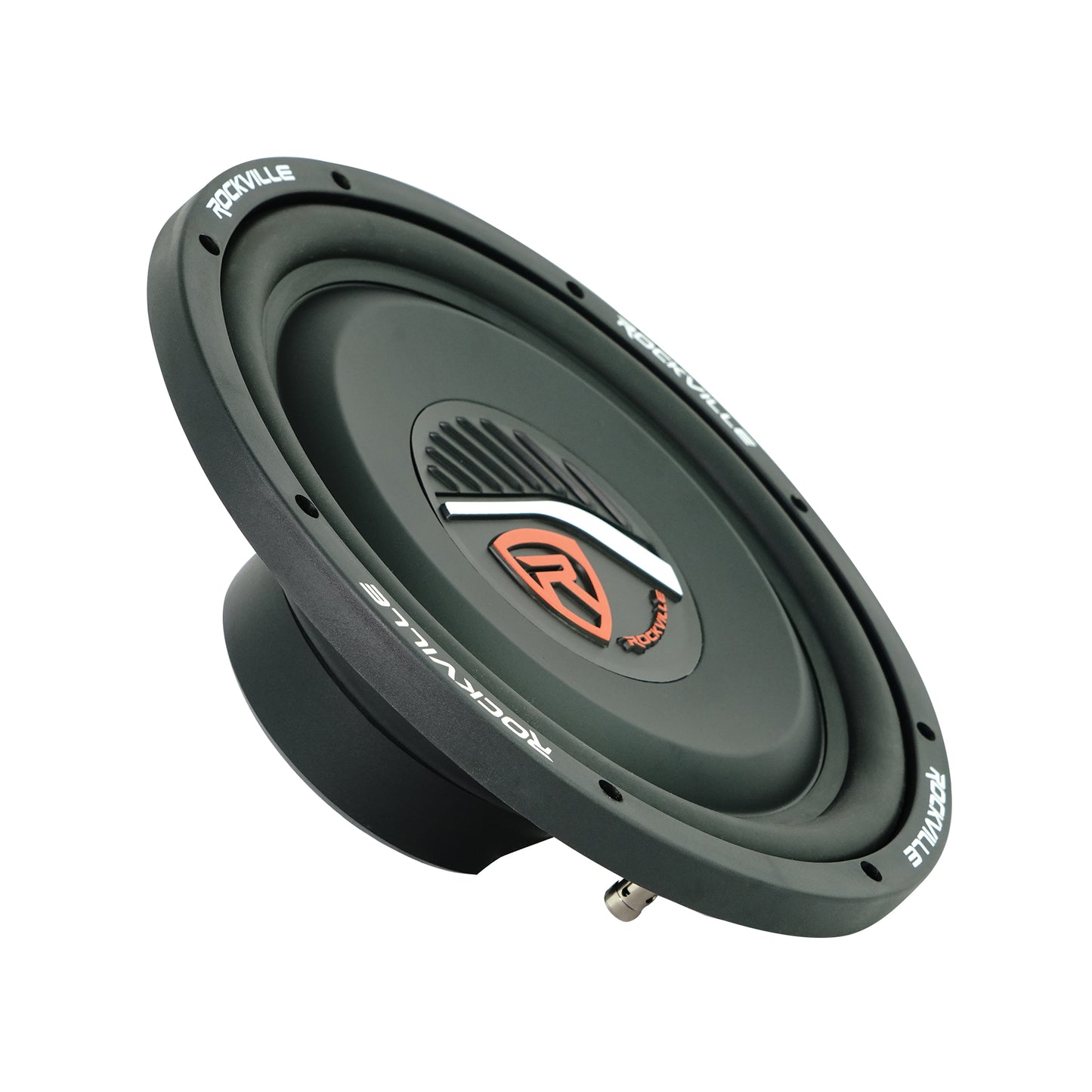

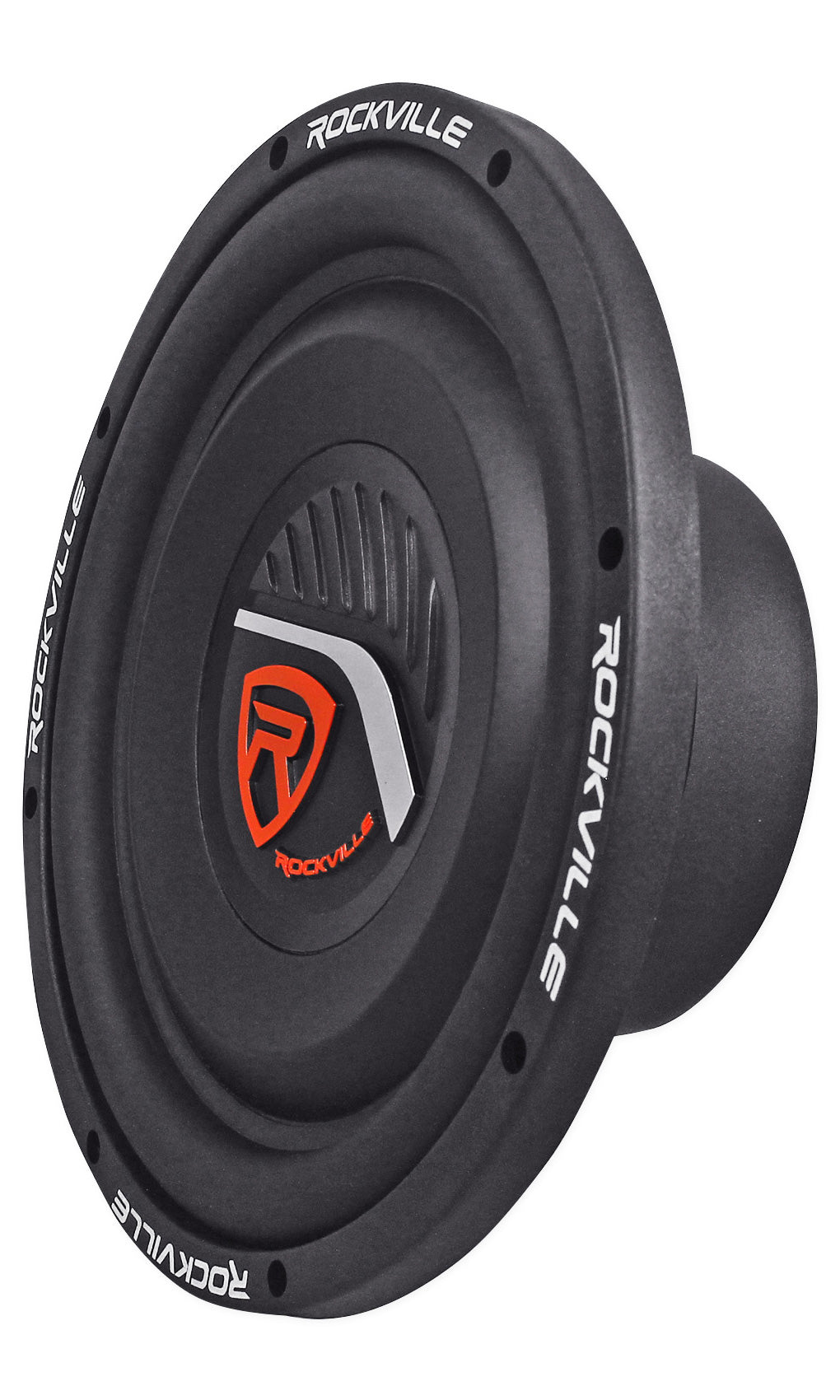

The Rockville W12T4S2 subwoofers feature a 2-Ohm single voice coil. These subwoofers are engineered to deliver serious low frequency response where space is limited. Whether installed behind the seat in a compact car, pick-up truck or in a motorcycle's saddlebag, make no mistake the Rockville T4™ subs will rock you!
A vented core magnet motor structure with extra thick back & top plates allows for full voice-coil extended peak-to-peak excursion, creating ultra deep bass response.
Features:
- Rockville W12T4S2 12" Shallow Mount 1400 Watt Car Subwoofer, CEA Compliant, 2-Ohm
- Peak Power Handling: 1400 Watts
- RMS Power Handling (CEA-2031 Compliant): 350 Watts RMS
- 2" voice coil
- Ultra-Stiff Paper Composite Cone
- 3D Molded High Gloss Acrylic Dust Cap
- Ultra Slim, Expanded and Rolled Steel Basket
- High Density Laminated Butyl Rubber Surround
- High Power Strontium Magnet with Ultra Saturated, High BL Motor Gap
- Vented Core Magnet Motor Structure
- High Temperature Aluminum Voice Coil Former
- Lightweight Compact Design Ideal for Any Installation
- Rubber Magnet Boot
- Dual Chrome Plated Spring Loaded Push Terminals

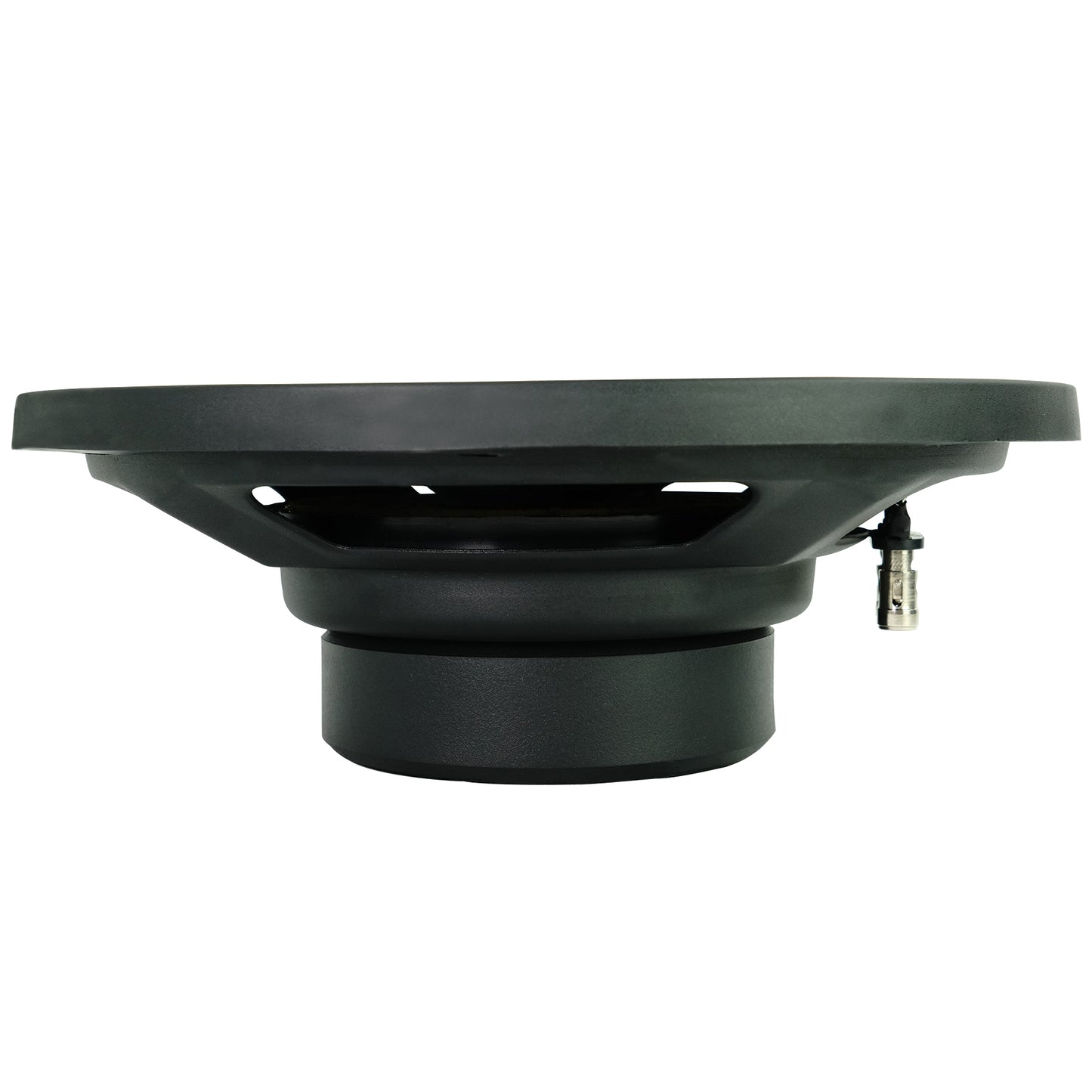

- Shallow Mount Subwoofer
- Impedance: SVC 2 Ohm

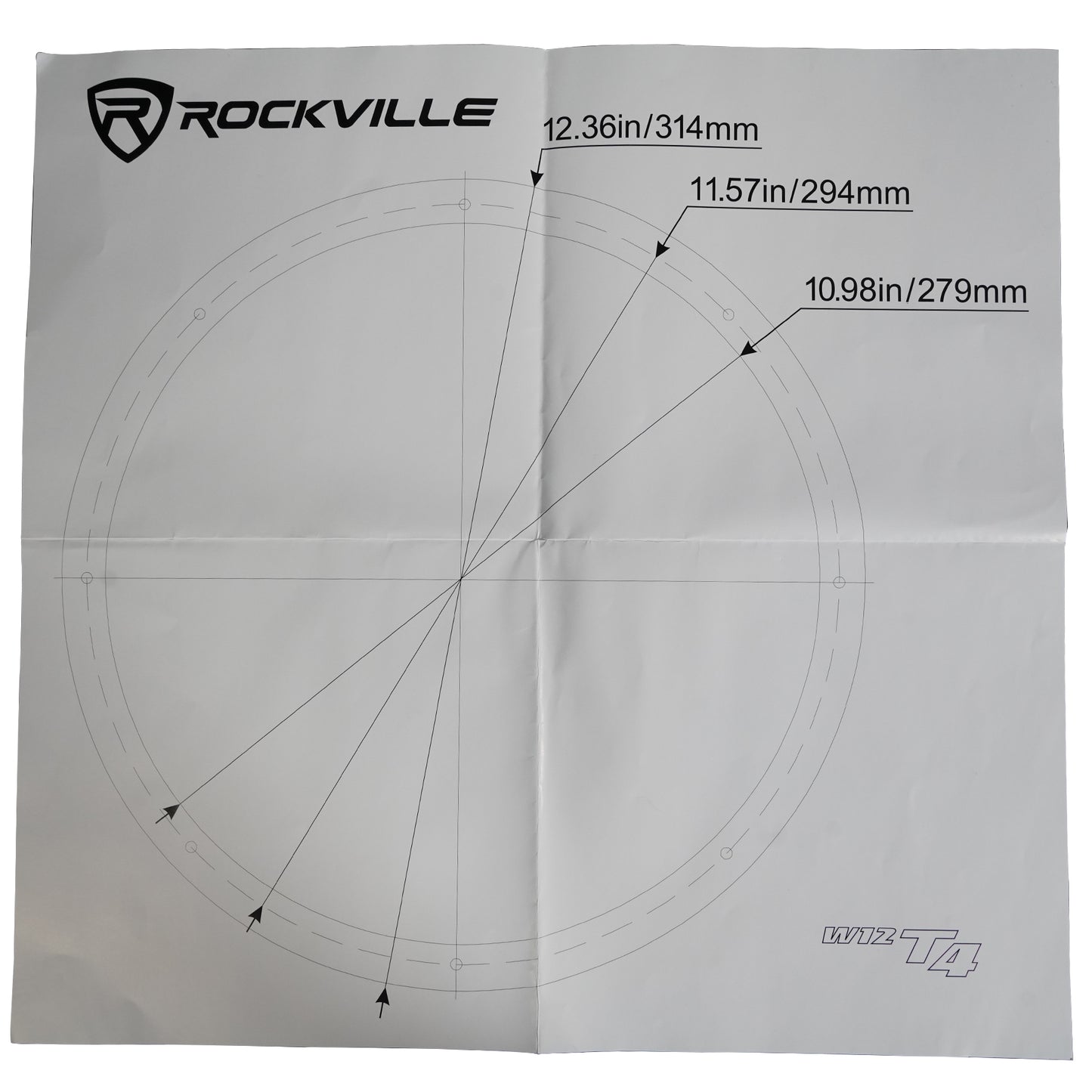

- Cutout Diameter: 10.98 Inches
- Mounting Depth: 3.7 Inches
- Frequency Response: 34 Hz to 500 Hz
- Sensitivity: 89dB @ 1w/1m
- Enclosure Recommendations:
- Sealed: 0.67 cu. Ft - 1.7 Cu. Ft.
- Vented: 1.00 cu. Ft - 2.0 Cu. Ft.
TS Parameters:
| Electrical Parameters | |
| Re | 2.33 Ohm |
| Le | 1.535 mH |
| L2 | 1.779 mH |
| R2 | 3.74 Ohm |
| Cmes | 1239.82 µF |
| Lces | 16.84 mH |
| Res | 35.39 Ohm |
| fs | 34.8 Hz |
| Mechanical Parameters (using laser) | |
| Mms | 163.092 g |
| Mmd (Sd) | 149.107 g |
| Rms | 3.717 kg/s |
| Cms | 0.128 mm/N |
| Kms | 7.81 N/mm |
| Bl | 11.469 N/A |
| Lambda | 0.097 |
| Loss factors | |
| Qtp | 0.603 |
| Qms | 9.604 |
| Qes | 0.633 |
| Qts | 0.594 |
| Other Parameters | |
| Vas | 51.8453 l |
| n0 | 0.333 % |
| Lm | 87.42 dB |
| Lnom | 86.76 dB |
| Sd | 535.02 cm² |
| EBP | 55 |
| Mechanical Parameters (using laser) | |
| RMSE-free | 0.62 Ohms |
| Fs | 36.97 Hz |
| Re | 2.14 Ohms (dc) |
| Res | 22.06 Ohms |
| Qms | 7.86 |
| Qes | 0.76 |
| Qts | 0.70 |
| L1 | 1.11 mH |
| L2 | 1.48 mH |
| R2 | 5.71 Ohms |
| RMSE-load | 0.41 Ohms |
| Vas (Sd) | 61.15 liters |
| Mms | 129.50 grams |
| Cms | 143 μM/Newton |
| Bl | 9.19 Tesla-M |
| SPLref (Sd) | 90.6 dB (4 ohms) |
| Method: Mass-loaded | 80.000 grams |
| DCR mode: Measure | -0.13 ohms |
| Area (Sd) | 551.55 sq cm |

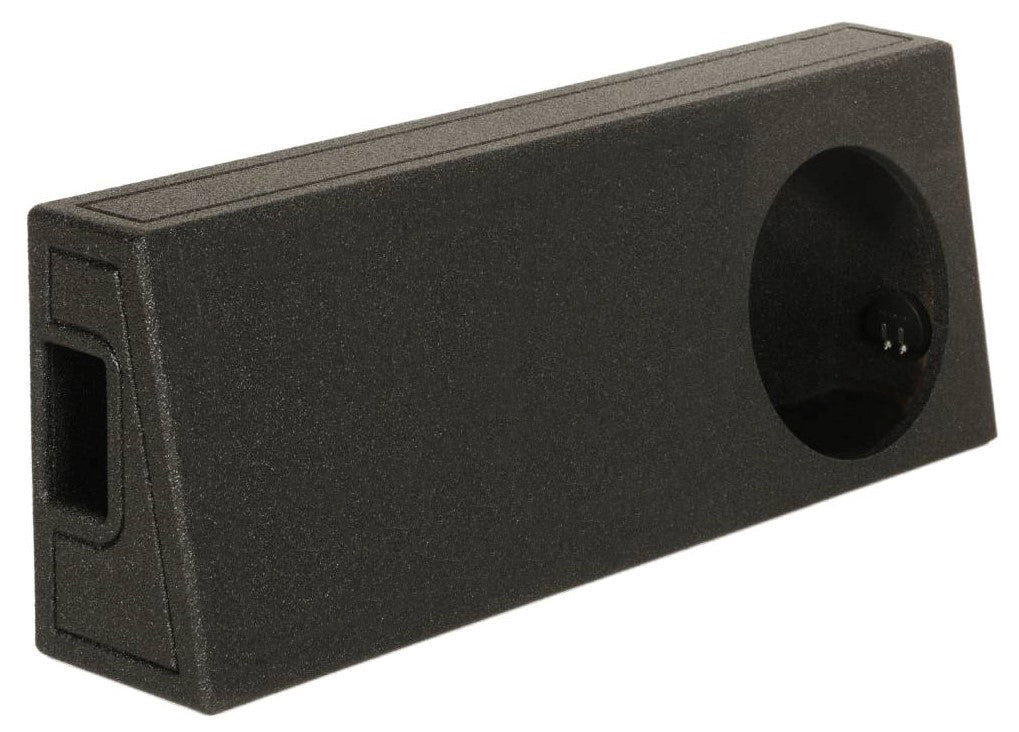

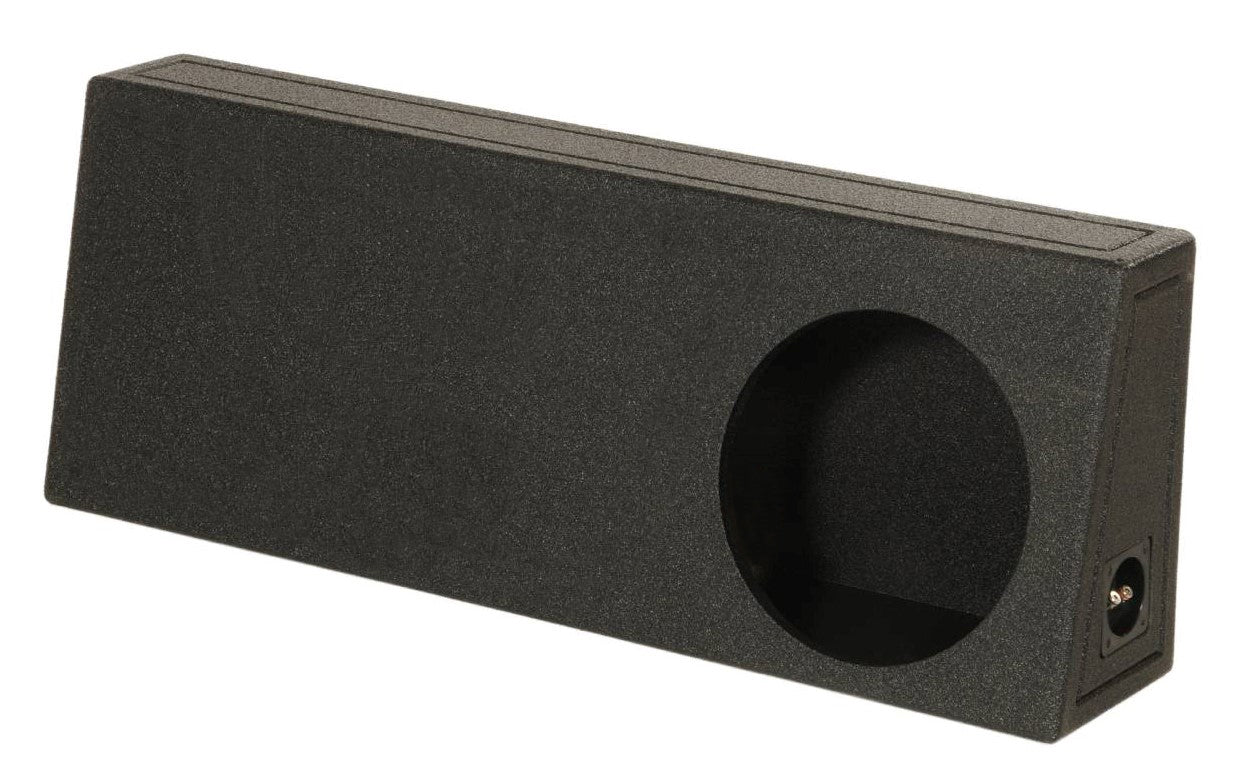

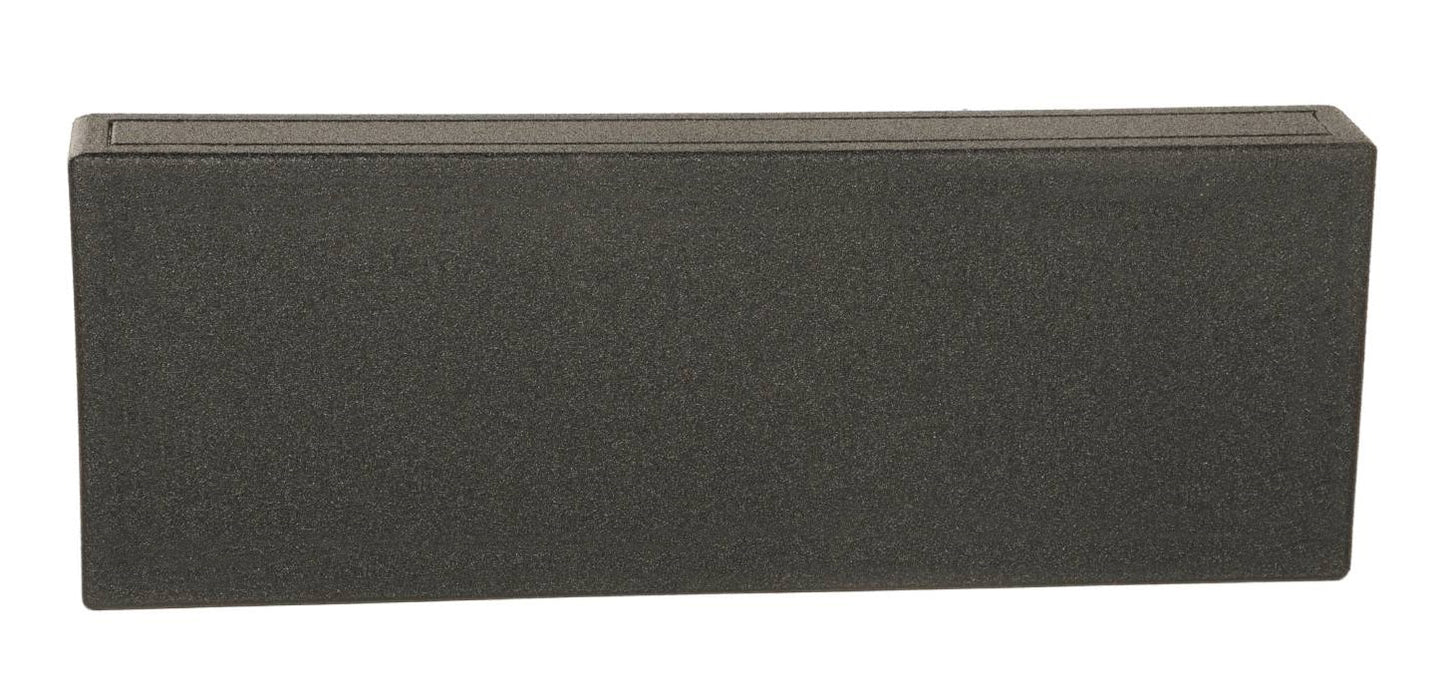

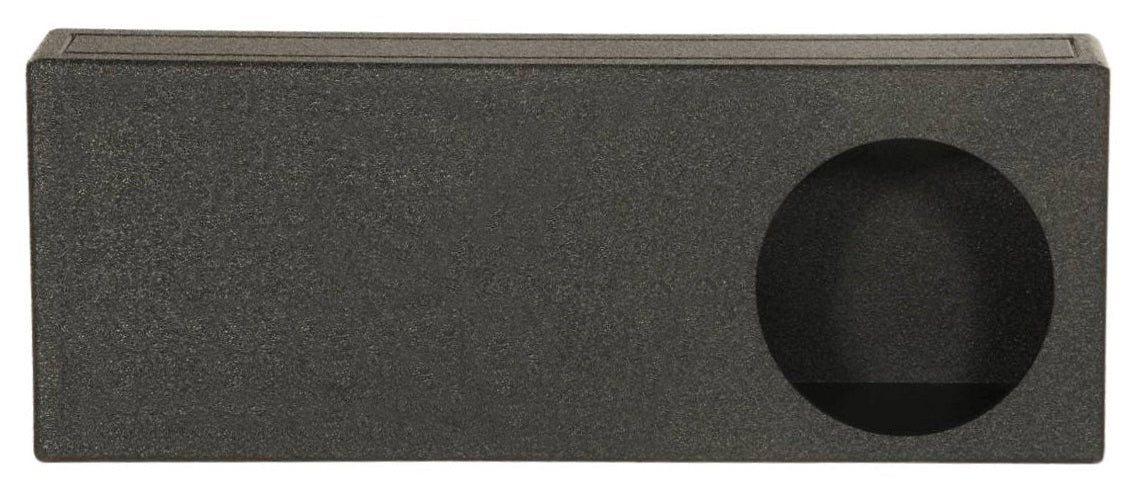

Features:
- Single 12" Ported Truck Style (Behind Seat)
- Finished with Durable Bed Liner
- Universal Truck Application, Behind Seat
- 3/4" MDF
Specifications:
- Air Space: 1.88 Cubic Feet
- Mounting Depth: 5"
- Height: 14.5"
- Width: 40"
- Top Depth: 5"
- Bottom Depth: 8"
- Tuning Frequency: 40HZ

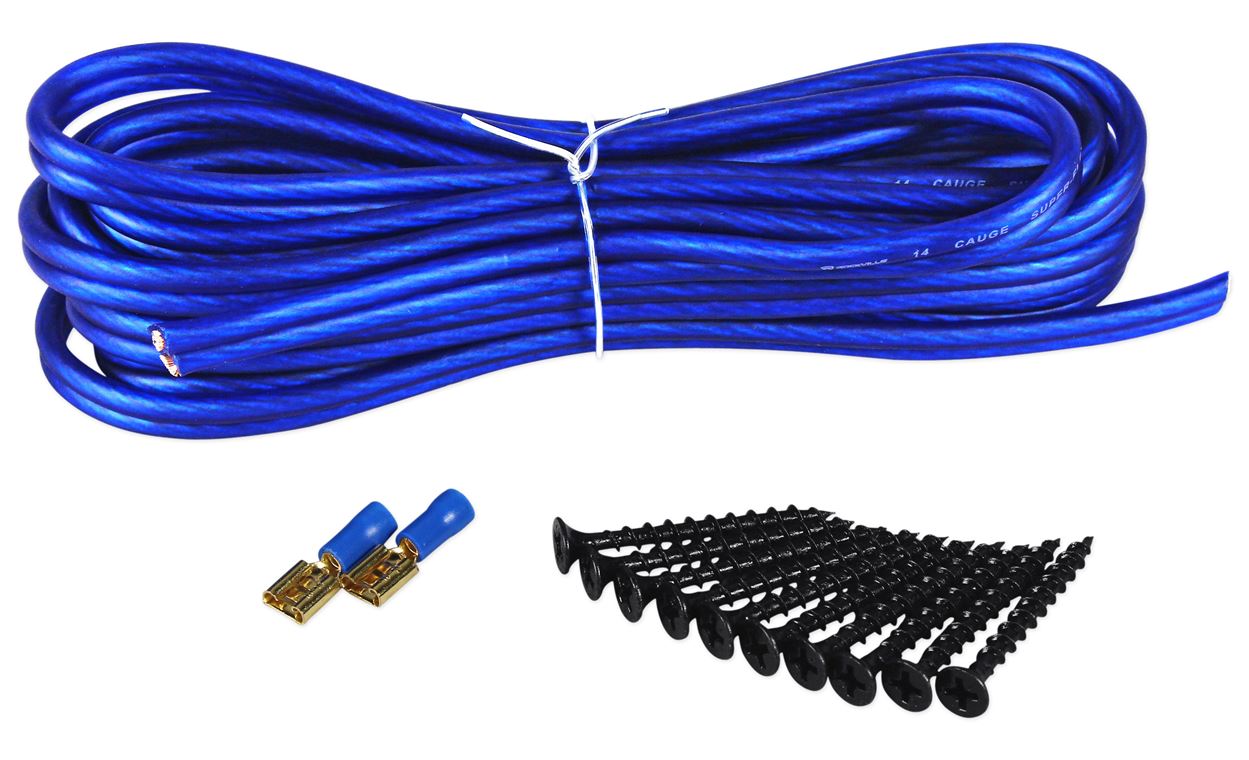

Complete Single Subwoofer Enclosure Installation Kit!
Includes:
- 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
- 12 Feet of 14 AWG Blue Speaker Wire
- 2 Spade Terminals
This accessory package includes everything you need to install one subwoofer into an enclosure, and wire to connect the enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested.
The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire. These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
- UPC:
- 613817047917
