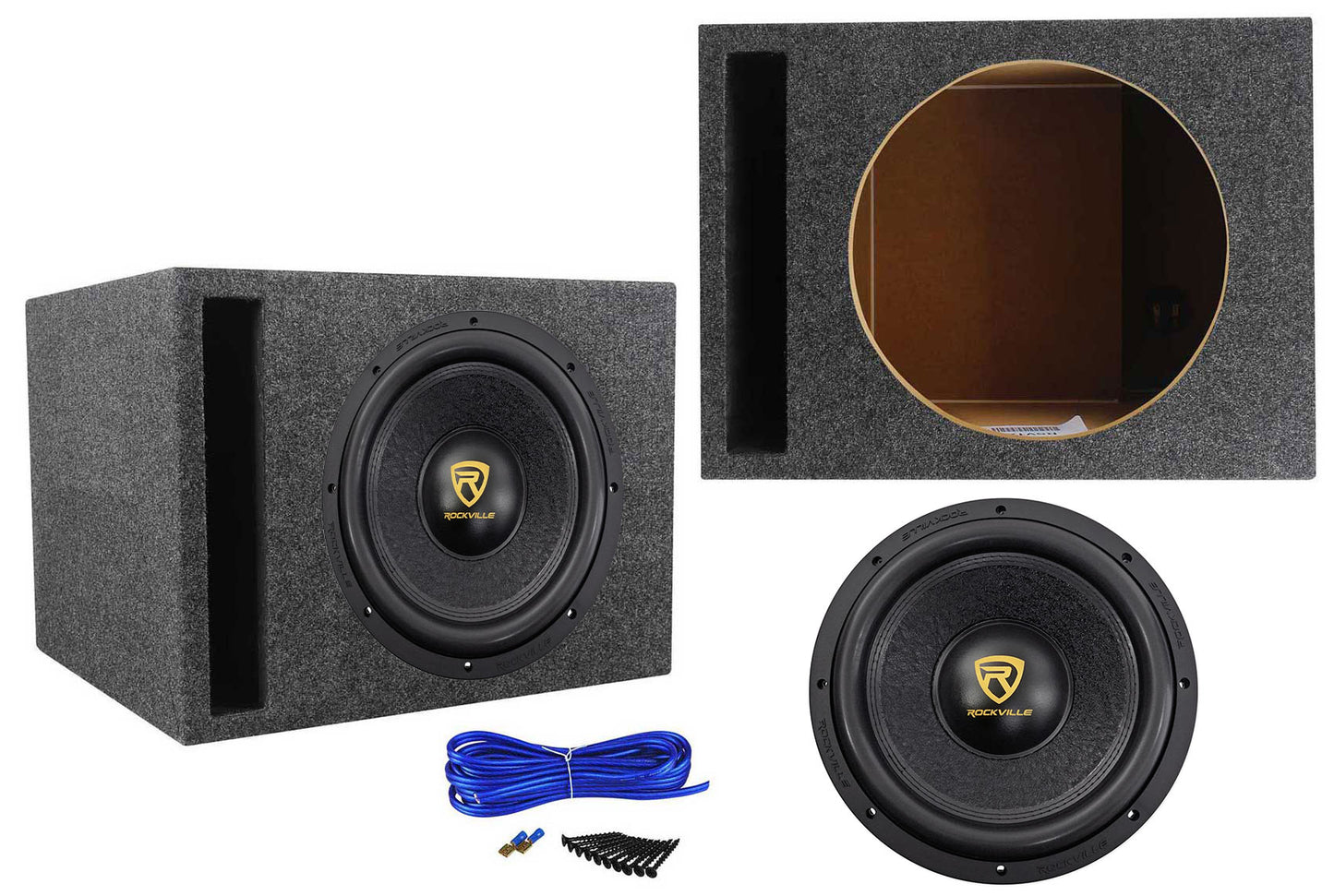

Package Includes:

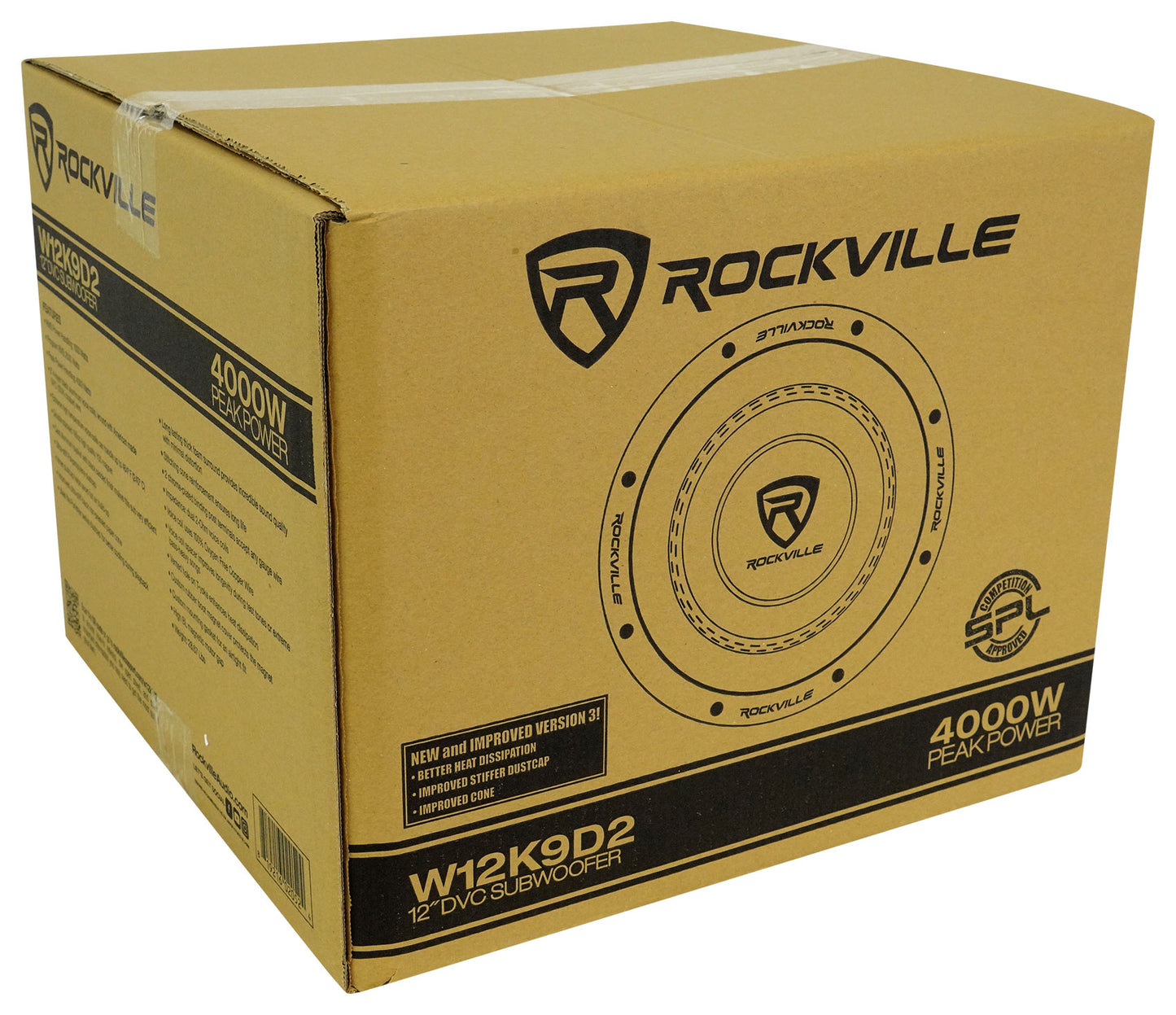

• (1) Rockville W12K9D2 V3 12" 4000w Peak Car Audio Subwoofer Dual 2-Ohm Sub 1000w RMS CEA Rated
• (1) Rockville Single 12” 1.22 cu.ft. 3/4" MDF Vented Subwoofer Enclosure Box
• 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 12 Feet of 14 AWG Blue Speaker Wire
• 2 Spade Terminals

---

All about your K9 Series Subwoofers:

The Rockville K9 series has been our best selling series of subs and it just got even better! Say hello to the K9 V3. This sub is a game changer. We improved the performance and cooling like crazy! Our engineers did some minor tweaks that give major results for bassheads who like to abuse subs! Weather you are an every day user or someone who pushes the limits of your equipment the K9 V3 is for you!

We made the following upgrades that will keep the voice coil cooler improving the subs ability to take constant abuse.

1. The dustcap was upgraded to the same one we use in our Punisher series. It is top of the line. Sure it increased our cost but we kept the low price the same!

2. We added an inner dustcap that stops heat from building up in the voice coil. We also made our pole vent smaller. The combination of these 2 changes keeps the voice coil significantly cooler when you are playing bass heavy songs or test tones.

3. We added a voice coil spacer that vastly improves the performance.

4. The cone has a smooth finish that allows the dustcap to be glued on more securely.

Features of W12K9D2 V3:

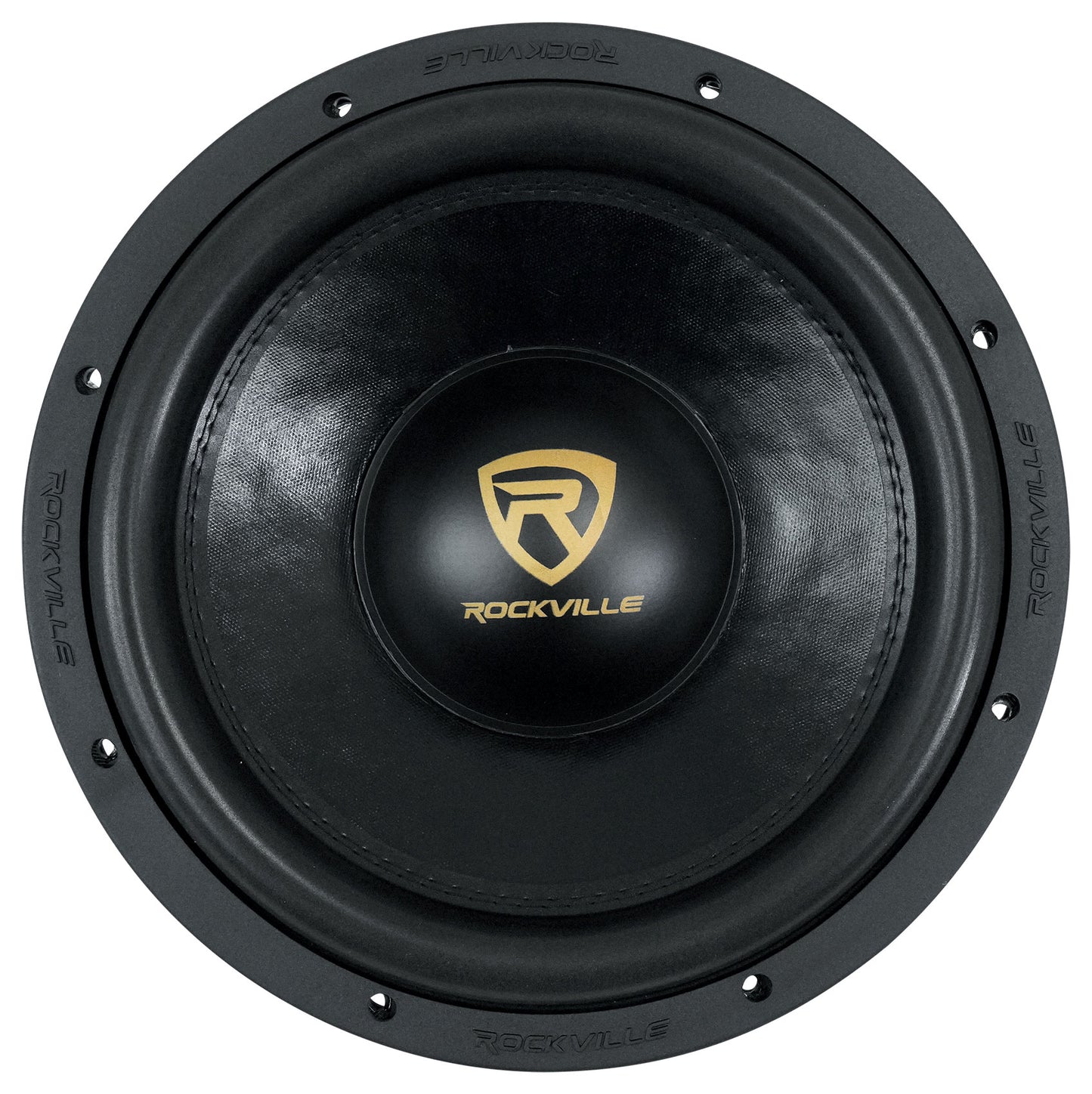

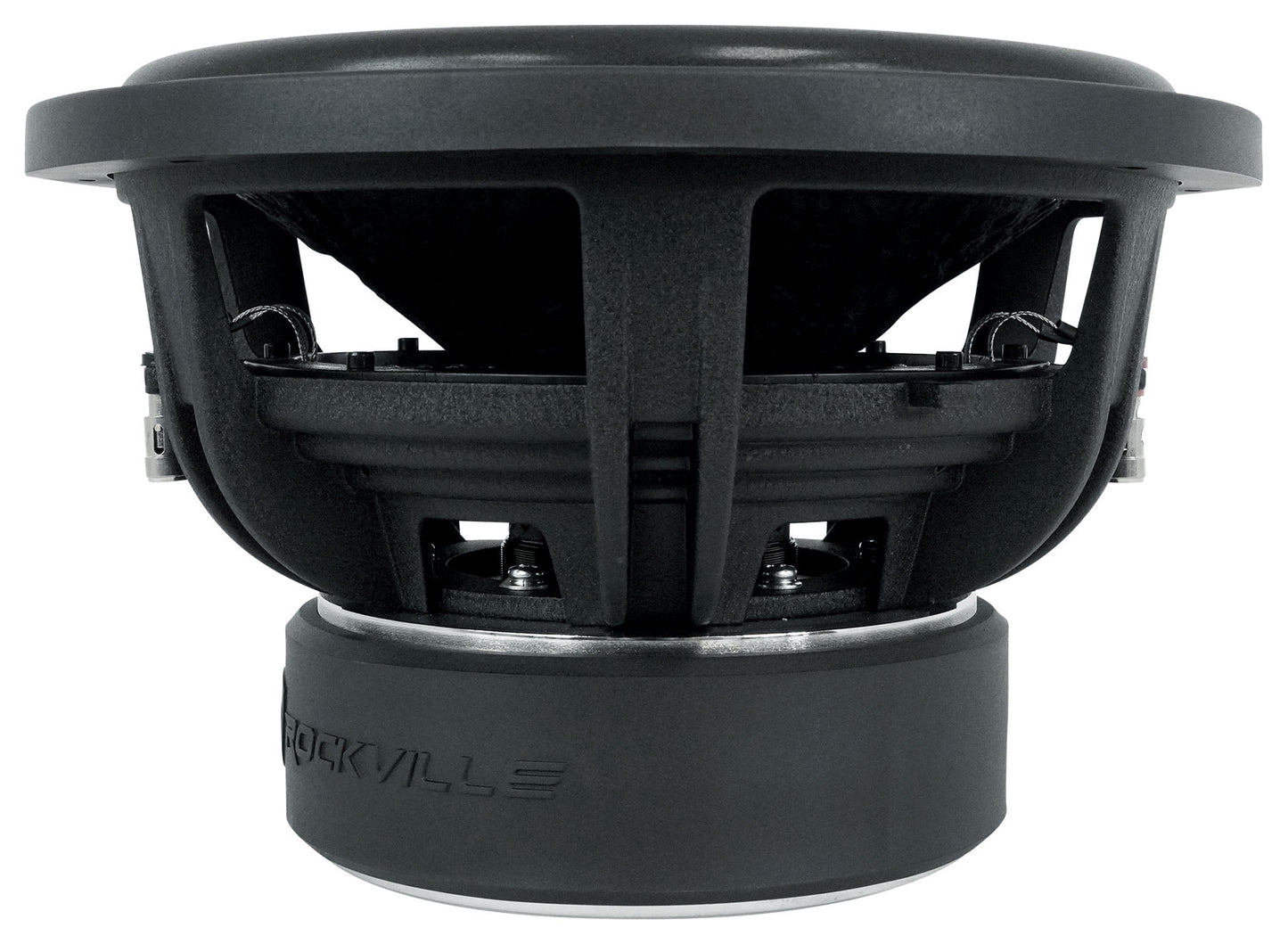

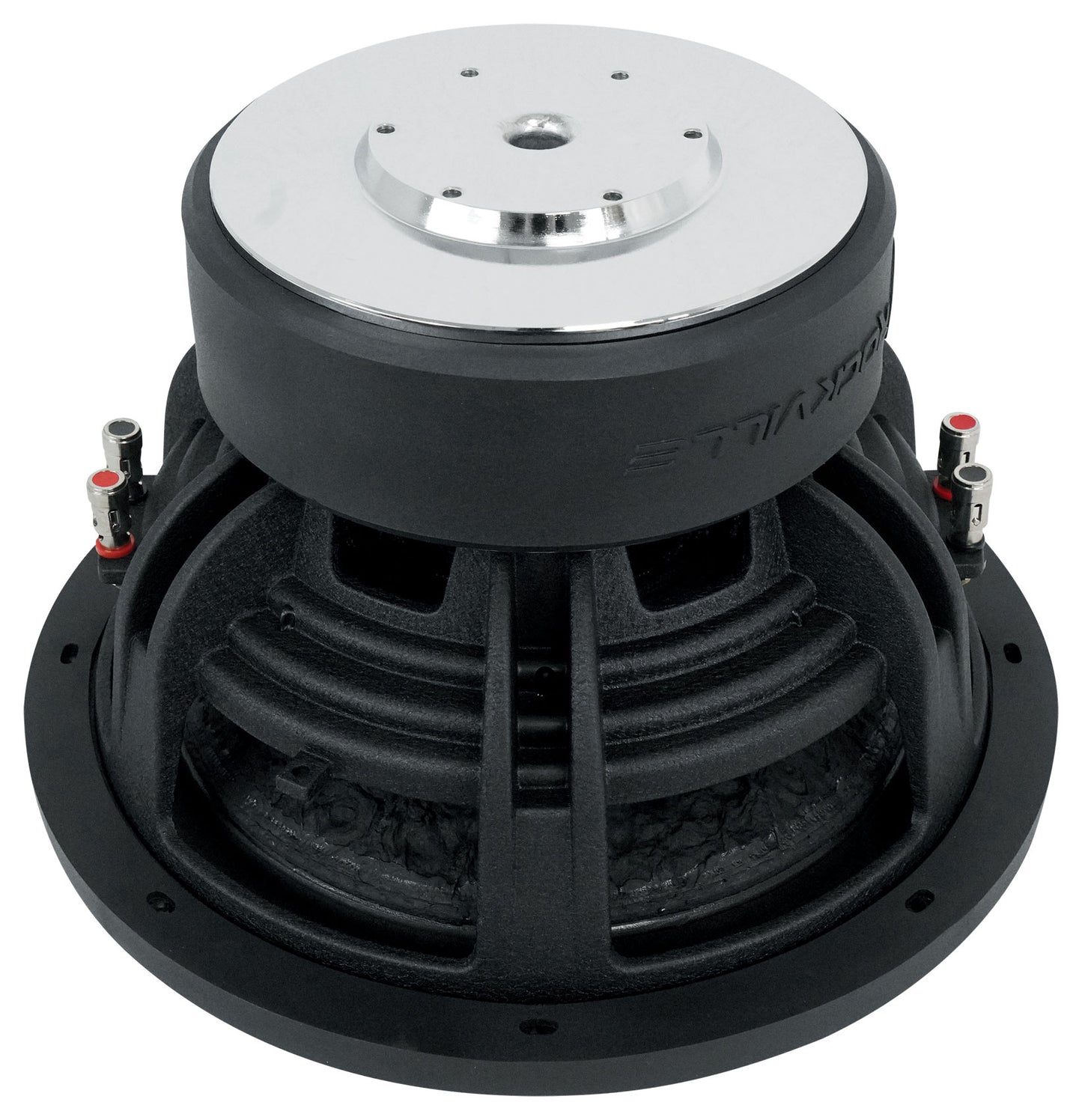

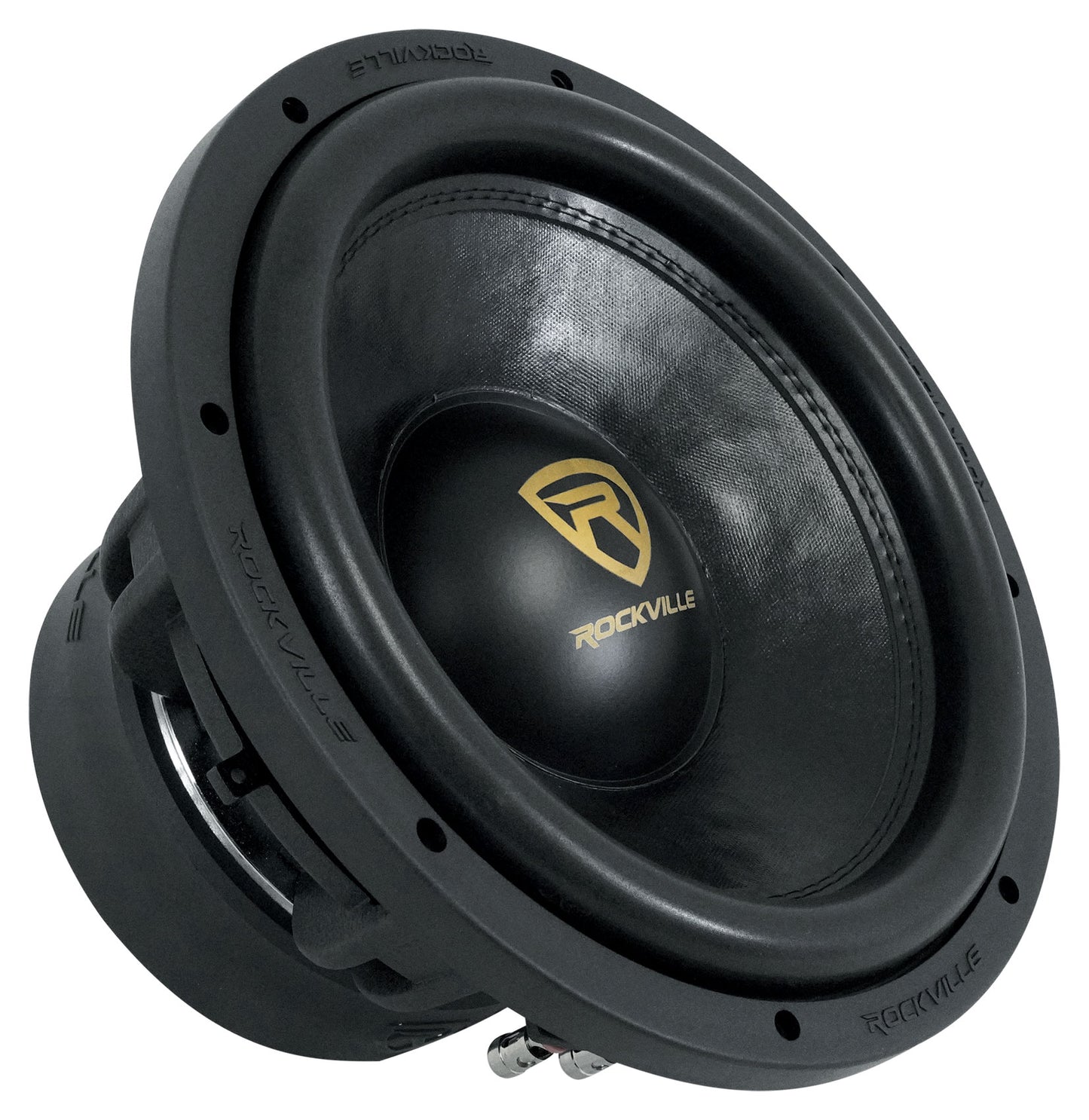

• Rockville W12K9D2 V3 K9 Series 12" Dual 2-Ohm Car Subwoofer
• Peak Power Handling: 4000 Watts
• Program Power Handling: 2000 Watts
• RMS Power Handling: 1000 Watts
• Ultra-stiff Non-Pressed Paper Punisher Cone
• Ultra-stiff Polypropylene Punisher Dustcap (The K9 V3 now uses the same dustcap as our Punisher series)
• We added an inner dustcap which helps to avoid hot air build-up in the voice coils resulting in more power handling
• More efficient air ventilation cools the voice coil even better than our V2
• We added a voice coil spacer improving longevity during test tones or extreme bass-heavy songs
• 3" 4-Layer Black Aluminum Former Wound with OFC Wire Made in USA
• This voice coil is stable up to 240 degrees celcius! The voice coil windings are made in the USA!
• Double Stacked 190 Oz High Quality Magnet
• Cast Aluminum Basket With Black Sanded Finish Makes This Sub Very Efficient And Lighter Weight
• Two Chrome-Plated Binding Post Terminals
• Black Non-Pressed Paper Cone With Beautiful Finish
• Our cones are ultra-stiff. They are thicker and stronger than other subs on the market making our subs able to handle more power.
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Red Stitching Cone Reinforcement Ensures Long Life
• New Ultra-stiff  PolyPropylene (PP) Dustcap
• Impedance: Dual 2-Ohm Voice Coils
• Vented Hole on T-yoke Enhances Heat Dissipation
• Special Custom Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Custom Rockville Mounting Gasket Looks Beautiful and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use high grade glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• Nomex Spider provides tear resistance, strength and long-term reliability over regular cotton and poly cotton spiders
• Cutout Diameter: 11.13” inches
• Mounting Depth: 6.85” inches
• Frequency Response: 33 Hz - 1.5K kHz
• 10mm T-Yoke + 10mm Washer
• Sensitivity: 83dB
• Sealed Enclosure Volume: 0.9 – 1.47 Cubic Feet
• Vented/Ported Enclosure Volume: 1.8 – 2.75 Cubic Feet
• XMAX is 28MM
• Weight: 28.67 Lbs.
• Shipping Weight: 33 Lbs.
• Shipping Box Dimensions: 14.57" x 14.57" x 10.83" Inches
• XMAX: 28MM

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 95mm (3.74 inches)
• Gap Plate Outside Diameter: 190mm (7.5 inches)
• Gap Plate Thickness: 25mm (1 inch)
• Yoke Outside Diameter: 180mm (7.1 inches)
• Yoke Thickness: 10mm (0.4 inches)
• Yoke Pole Diameter: 75mm (3 inches)

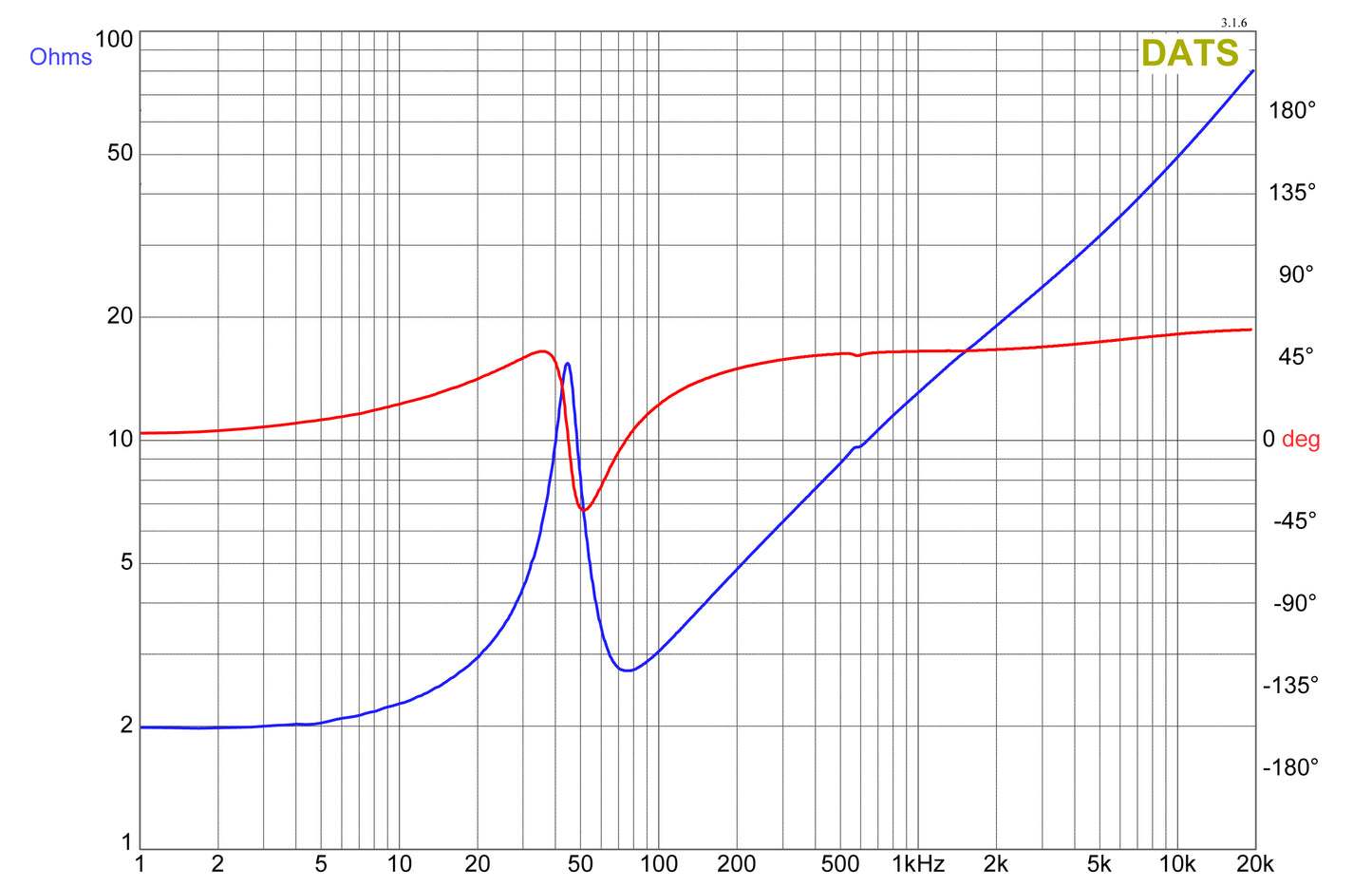

TS Parameters:

---

Description:

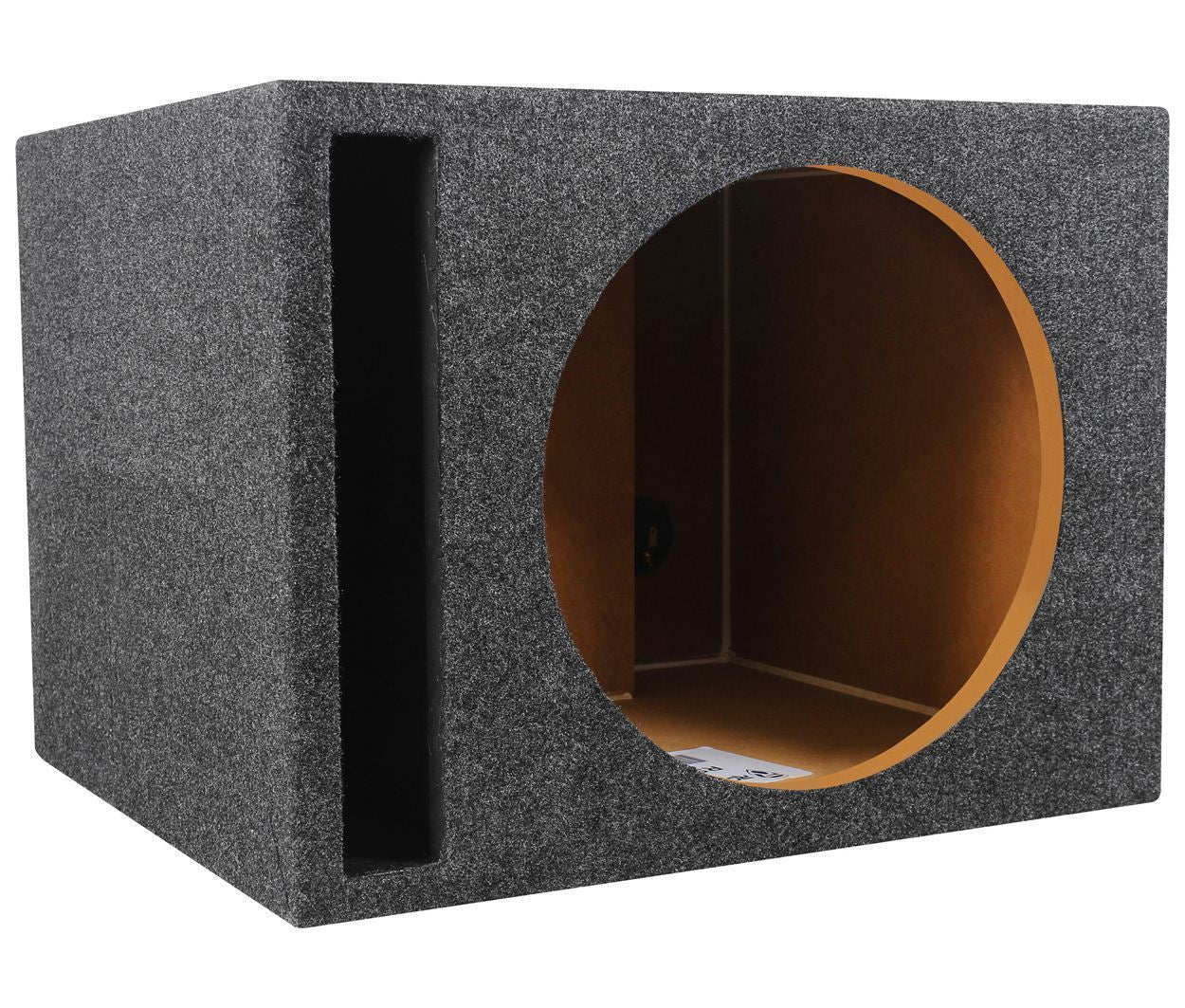

The RSV12 single vented speaker box is made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood.  This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you!  EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!

MADE IN THE USA WITH PRIDE!

Features:

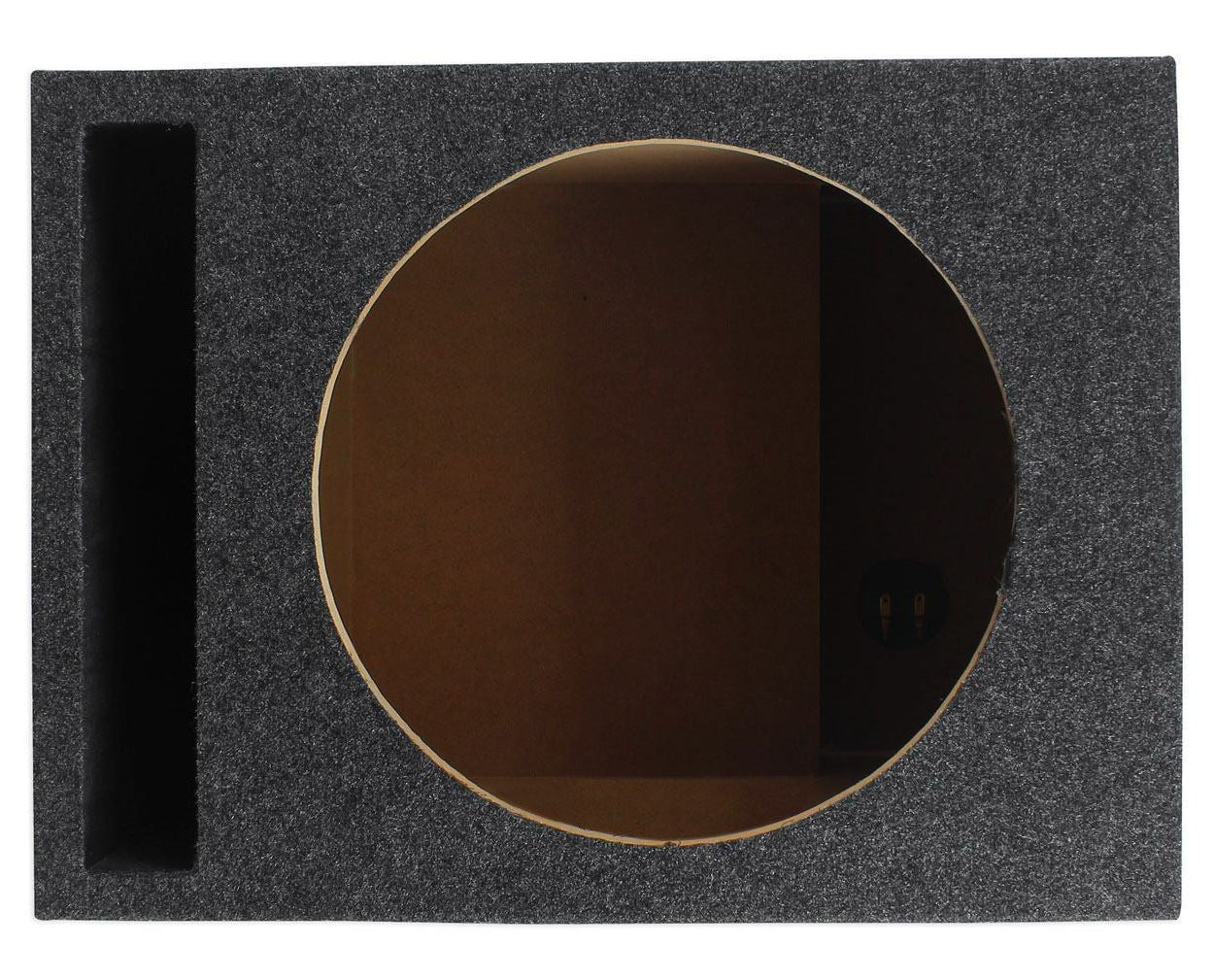

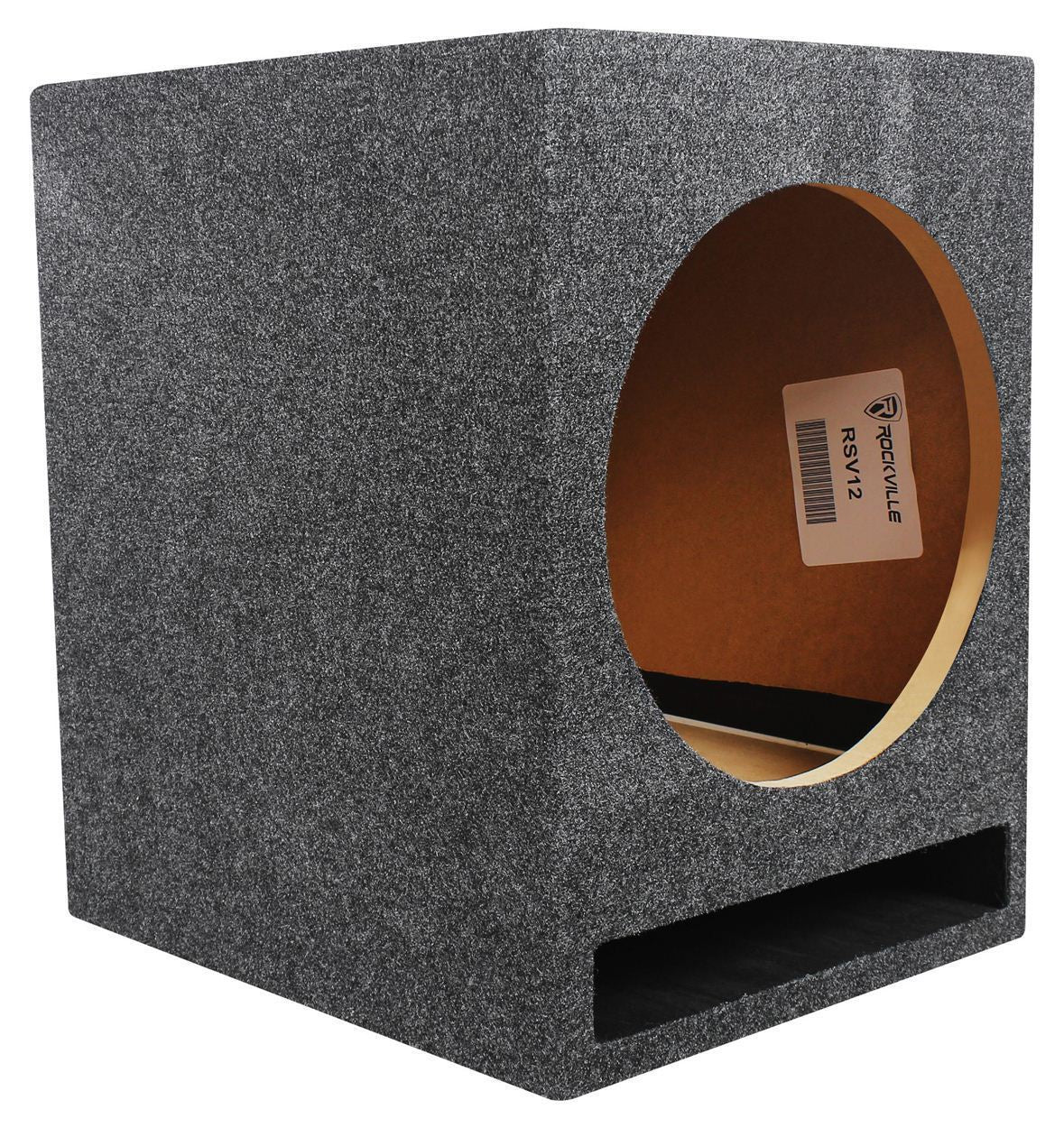

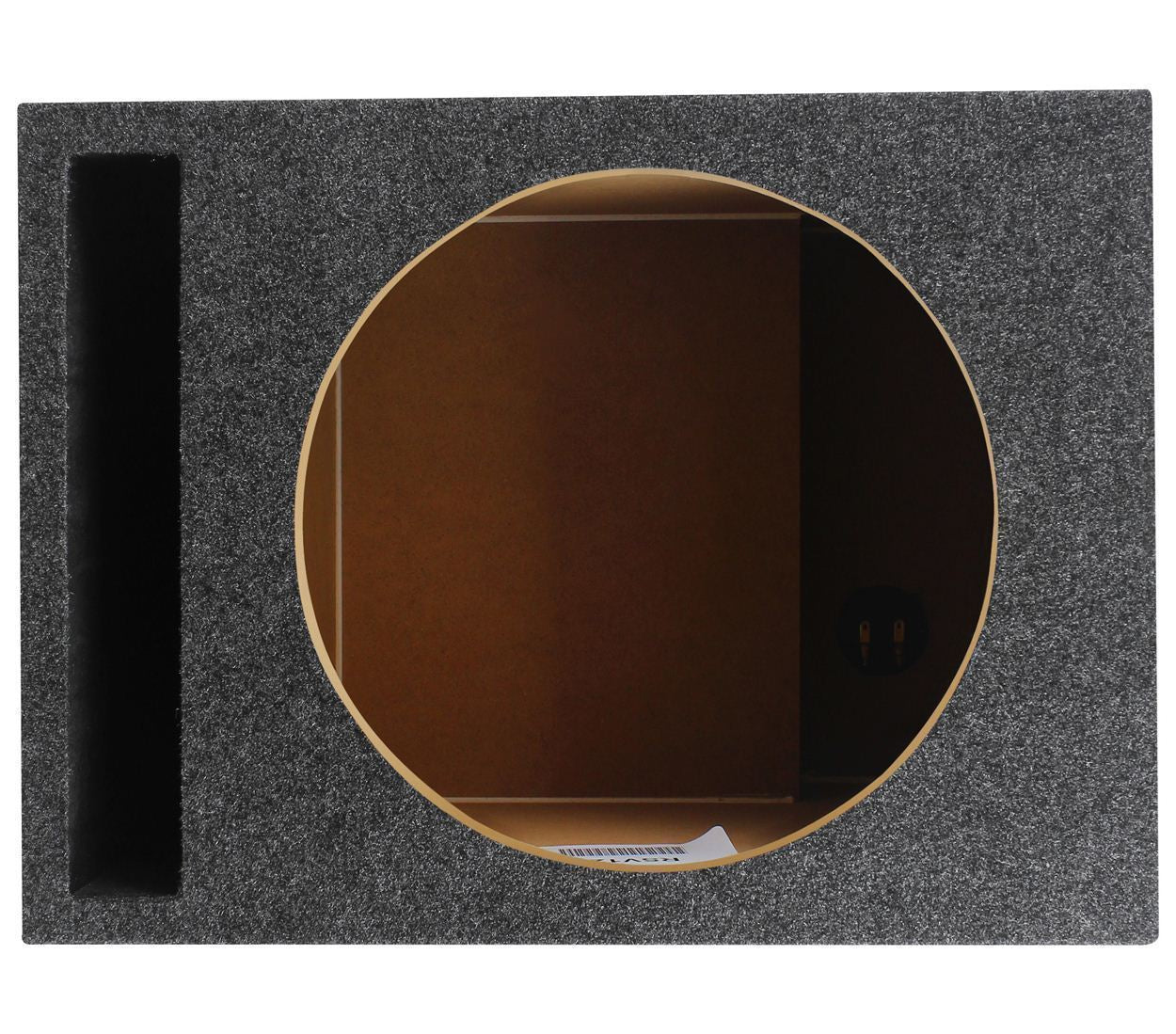

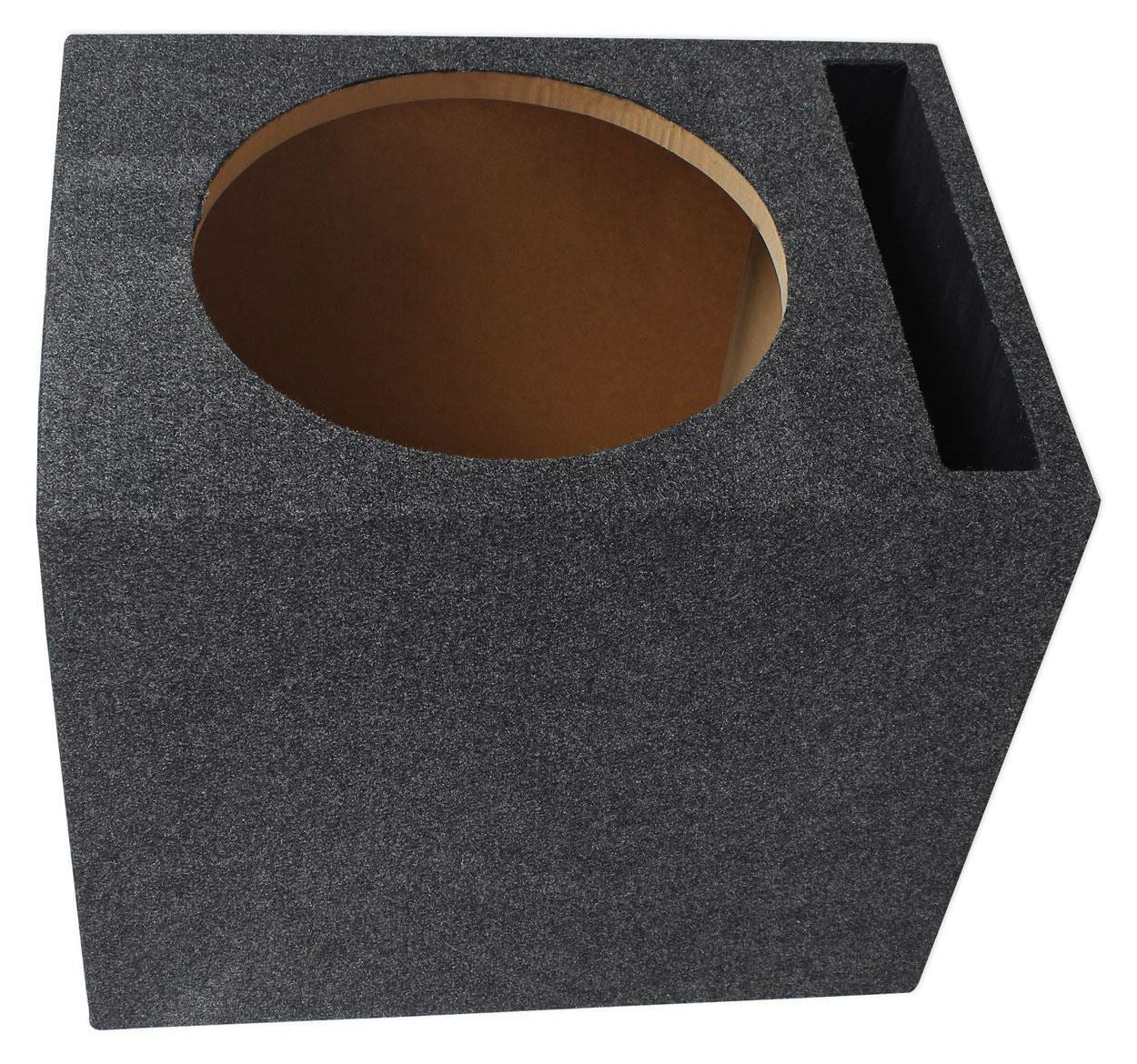

• Rockville RSV12 Single 12" Vented Subwoofer Enclosure
• Proudly Made In The USA, Using Only The Finest Quality Materials - For The Best Level of Performance From Your Subs!
• 3/4" USA Heavy Duty MDF Construction
• Machine precision cut mounting holes
• Top of the line Glue for extra durable adhesion
• High quality GOLD spring loaded terminals
• Designed, tested, and engineered to work with most of today’s popular woofers. These enclosures are built with the quality additives needed to maximize the performance of any sound system.

Enclosure Measurements:

• Type of Enclosure: Vented
• Enclosure Sub Size: Single 12"
• Dimensions in Inches: 16.0" L x 18.0" W x 13.25 H"
• Top and Bottom Depth: 16.0"
• Mounting Depth: up to 14.75" (enough depth for any sub on the market)
• Tuning Frequency: 38Hz
• Port Dimensions: 2" x 21" x 12"
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): 1.50 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood and port): 1.22 Cubic Feet

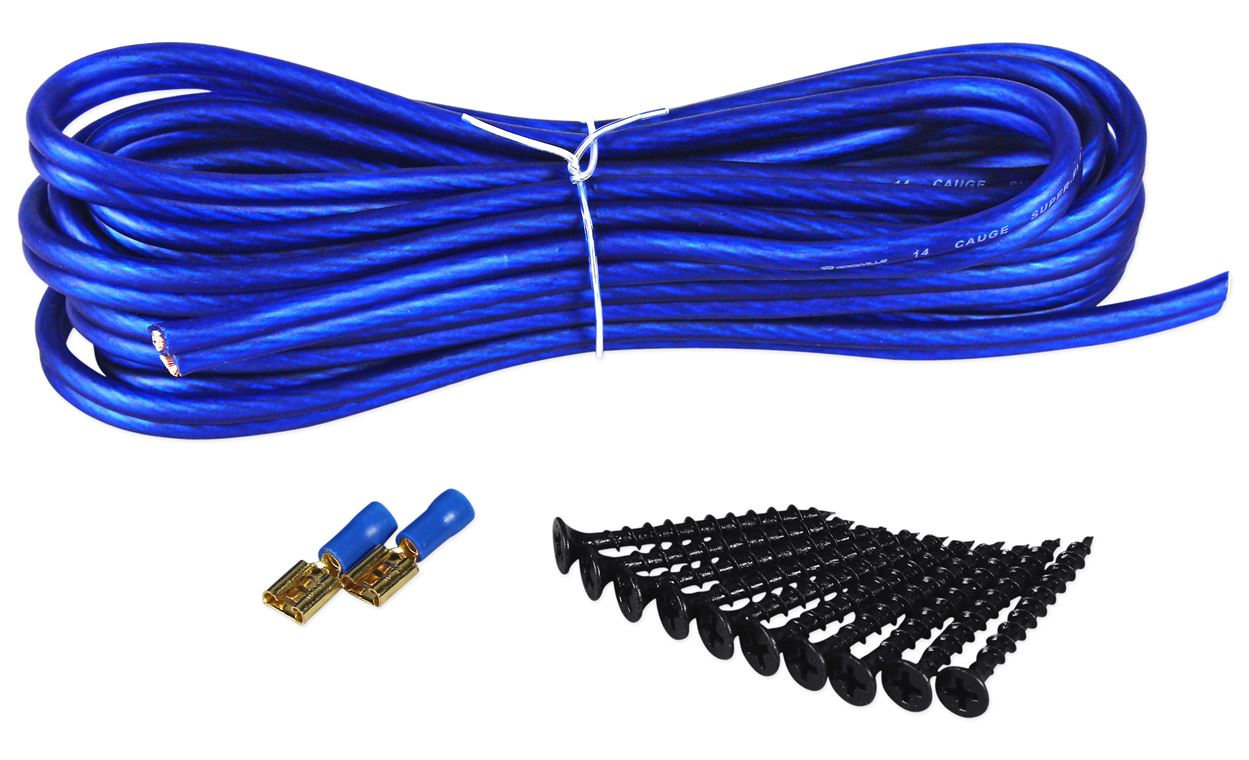

Complete Single Subwoofer Enclosure Installation Kit!

Includes:

• 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 12 Feet of 14 AWG Blue Speaker Wire
• 2 Spade Terminals

This accessory package includes everything you need to install one subwoofer into an enclosure, and wire to connect the enclosure to your amplifier.  This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure.  The speaker wire is 14 gauge.  This is way better than using 16 gauge.  You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire.  These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
