Package Includes:

• (1) Rockville 12" Car Audio Subwoofer

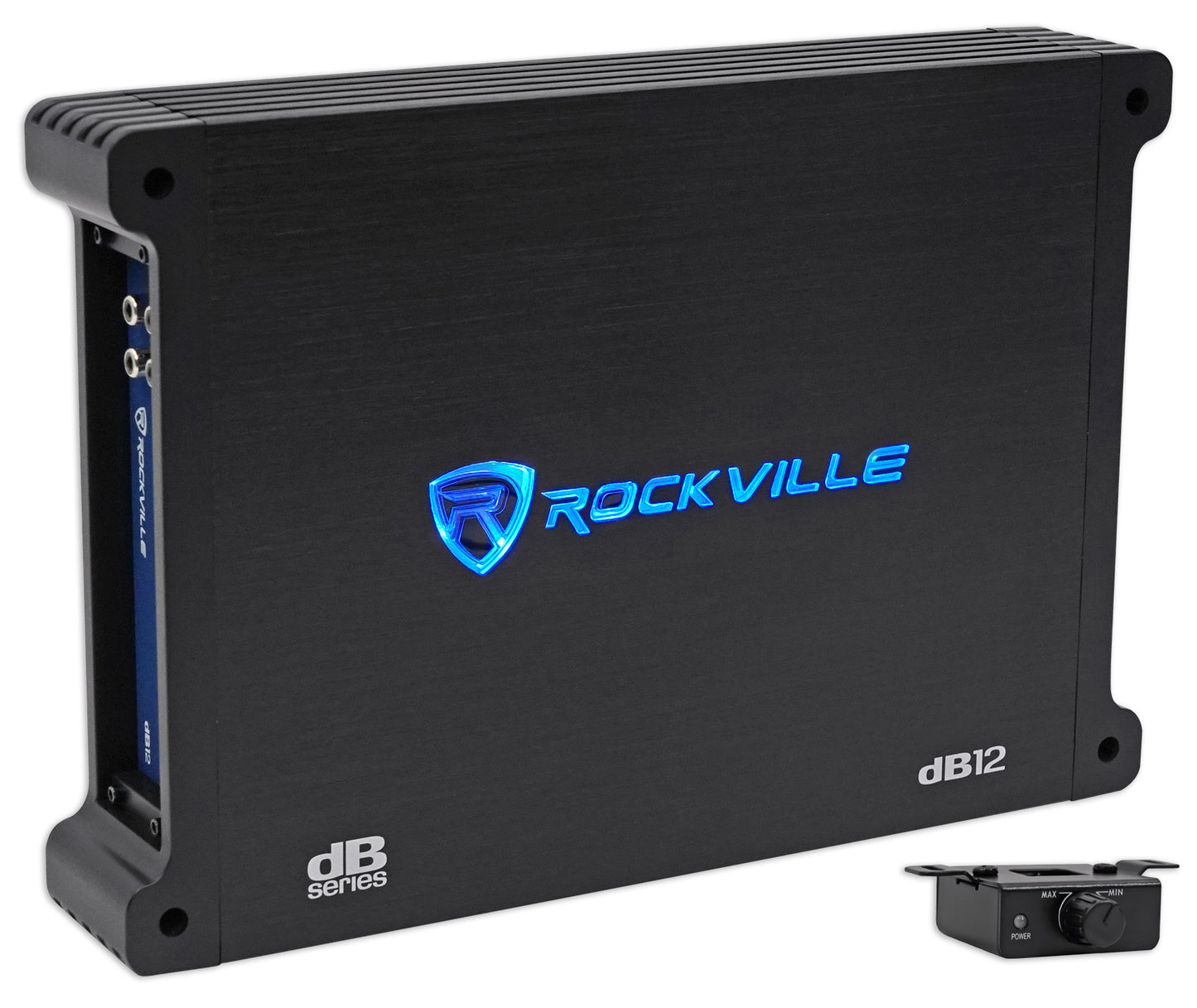

• (1) Rockville dB12 2000 Watt Peak/500 Watt Dyno-Certified RMS Mono 2 Ohm Amplifier Car Amp
• (1) Rockville RWK41 4 Gauge Complete Car Amp Wiring Installation Wire Kit with RCA's
• (1) Rockville 0.75 Cu Ft, Single 12" Sealed 3/4" MDF Car Sub Enclosure Box
• 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 12 Feet of 14 AWG Blue Speaker Wire
• 2 Spade Terminals

---

Video of W12K6D4 V2:

Features:

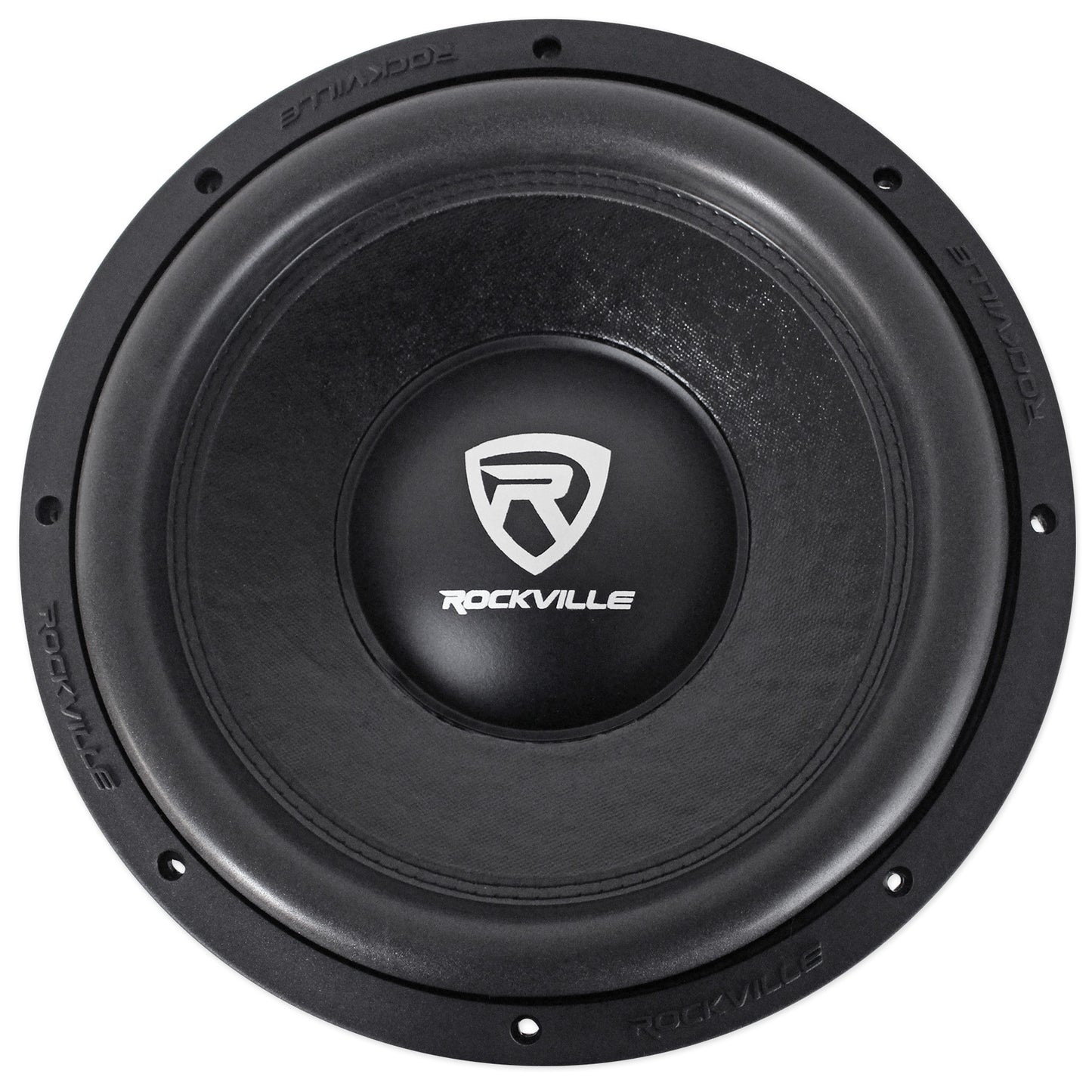

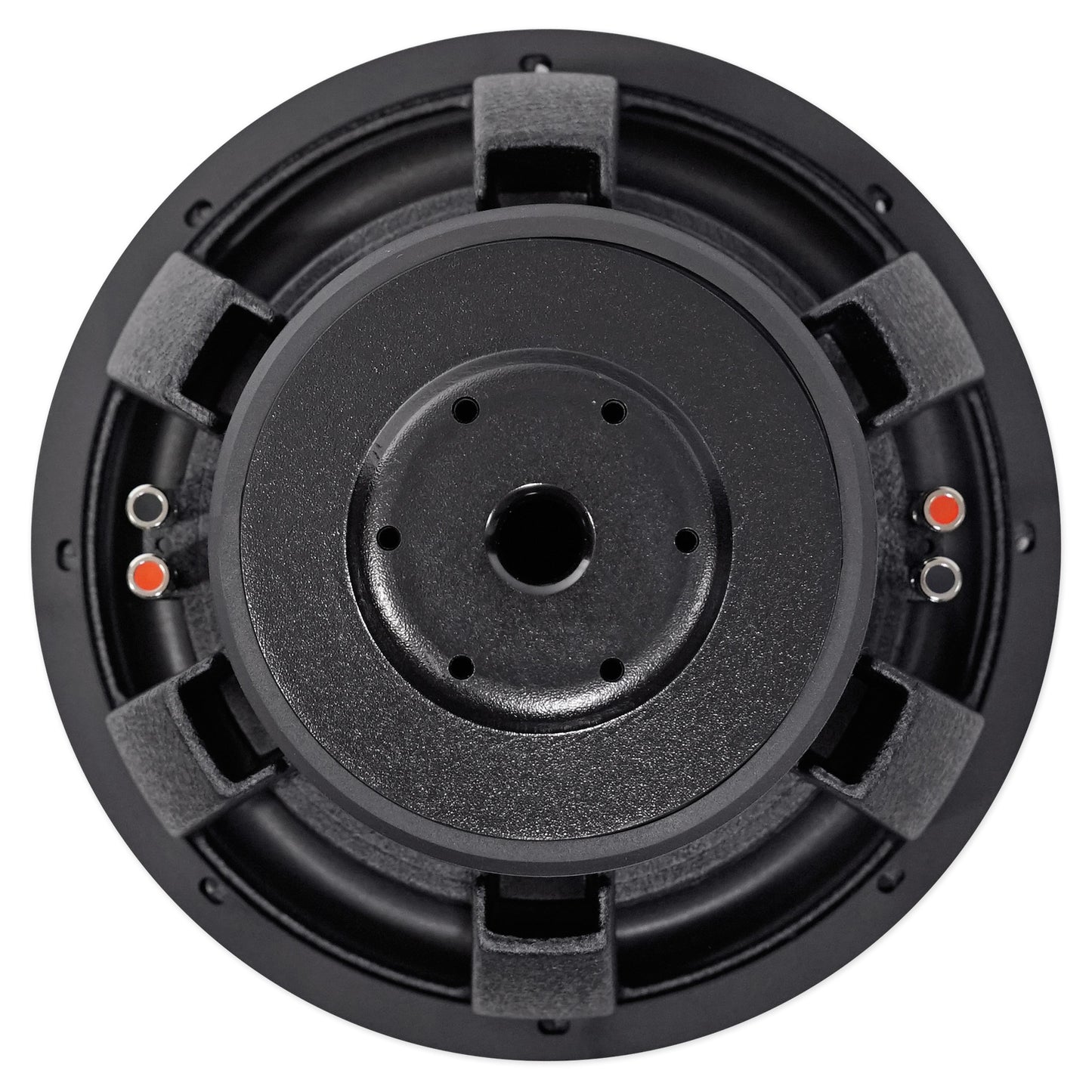

• Rockville W12K6D4 V2 K6 Series 12" Dual 4-Ohm Car Subwoofer
• Peak Power Handling: 2400 Watts
• Program Power Handling: 1200 Watts

• CEA Rated RMS Power Handling: 600 Watts
• 2.5" Voice coils (Black Aluminum Former Wound with 100% OFC Copper Wire
• The wire we use is made in the USA! It is one of the most important components to make the sub high quality and last longer
• Double Stacked 100 Oz High Quality Magnet
• Cast Aluminum Basket With Black Sanded Finish Makes This Sub Very Efficient
• Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Red Stitching Cone Reinforcement Ensures Long Life
• Polypropylene (PP) Dustcap

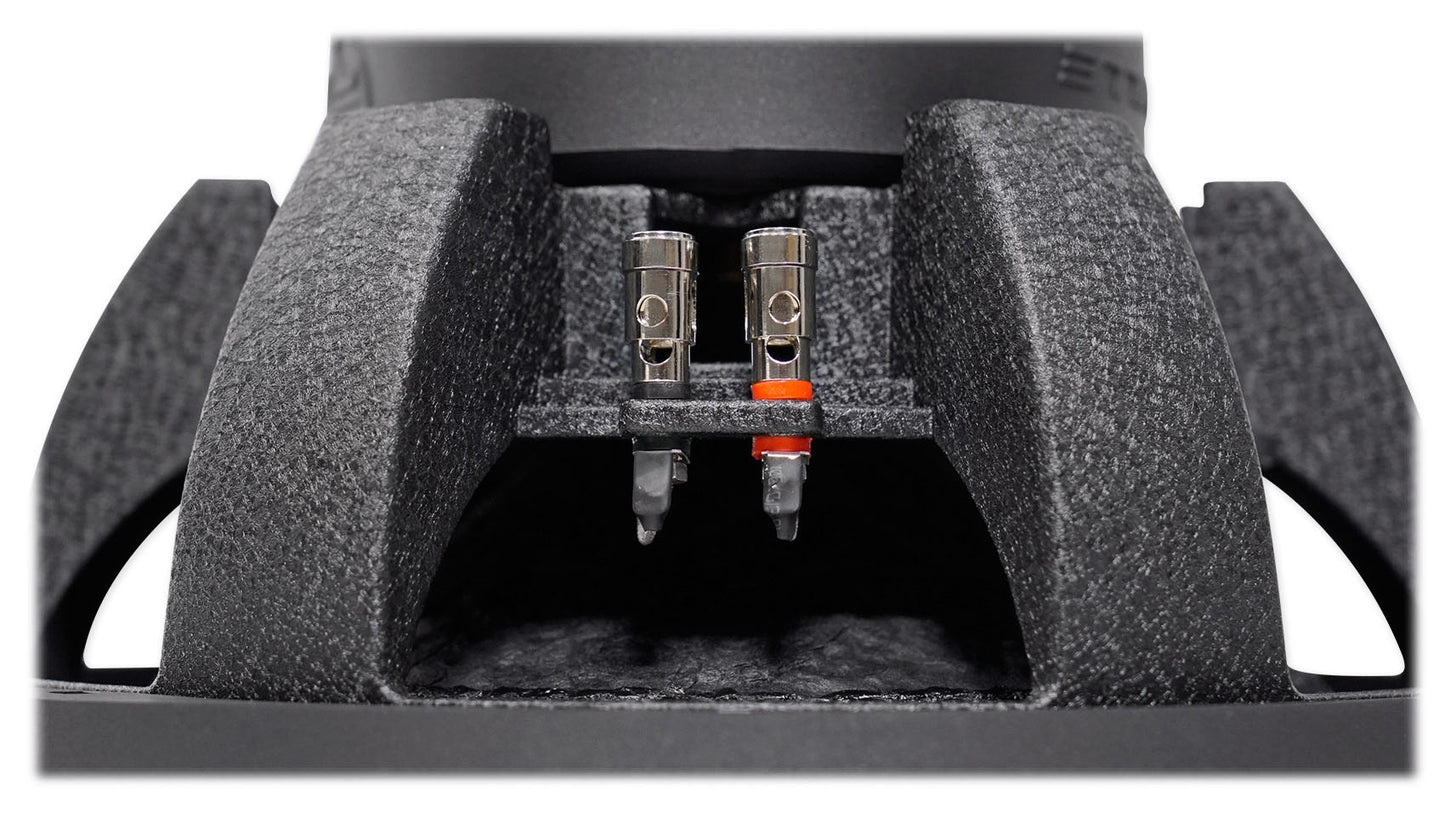

• Two Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
• Impedance: Dual 4-Ohm Voice Coils
• Vented Hole on T-yoke Enhances Heat Dissipation
• Special Custom Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Custom Rockville Mounting Gasket Looks Beautiful and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• Cutout Diameter: 11.125” inches
• Mounting Depth: 5.75” inches
• Frequency Response: 27 Hz - 1.5K kHz
• 8mm T-Yoke + 8mm Washer
• Sensitivity: 85dB
• Sealed Enclosure Volume: 1.0 - 1.5 Cubic Feet
• Vented/Ported Enclosure Volume: 1.65 - 2.5 Cubic Feet
• Weight: 17.64 Lbs.
• Shipping Weight: 22.05 Lbs.
• Shipping Box Dimensions: 15.75" x 15.75" x 13.6" Inches
• XMAX:22 MM (One way)

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 80mm (3.14 inches)
• Gap Plate Outside Diameter: 156mm (6.14 inches)
• Gap Plate Thickness: 20mm (0.8 inches)
• Yoke Outside Diameter: 145mm (5.71 inches)
• Yoke Thickness: 8mm (0.31 inches)
• Yoke Pole Diameter: 60mm (2.4 inches)

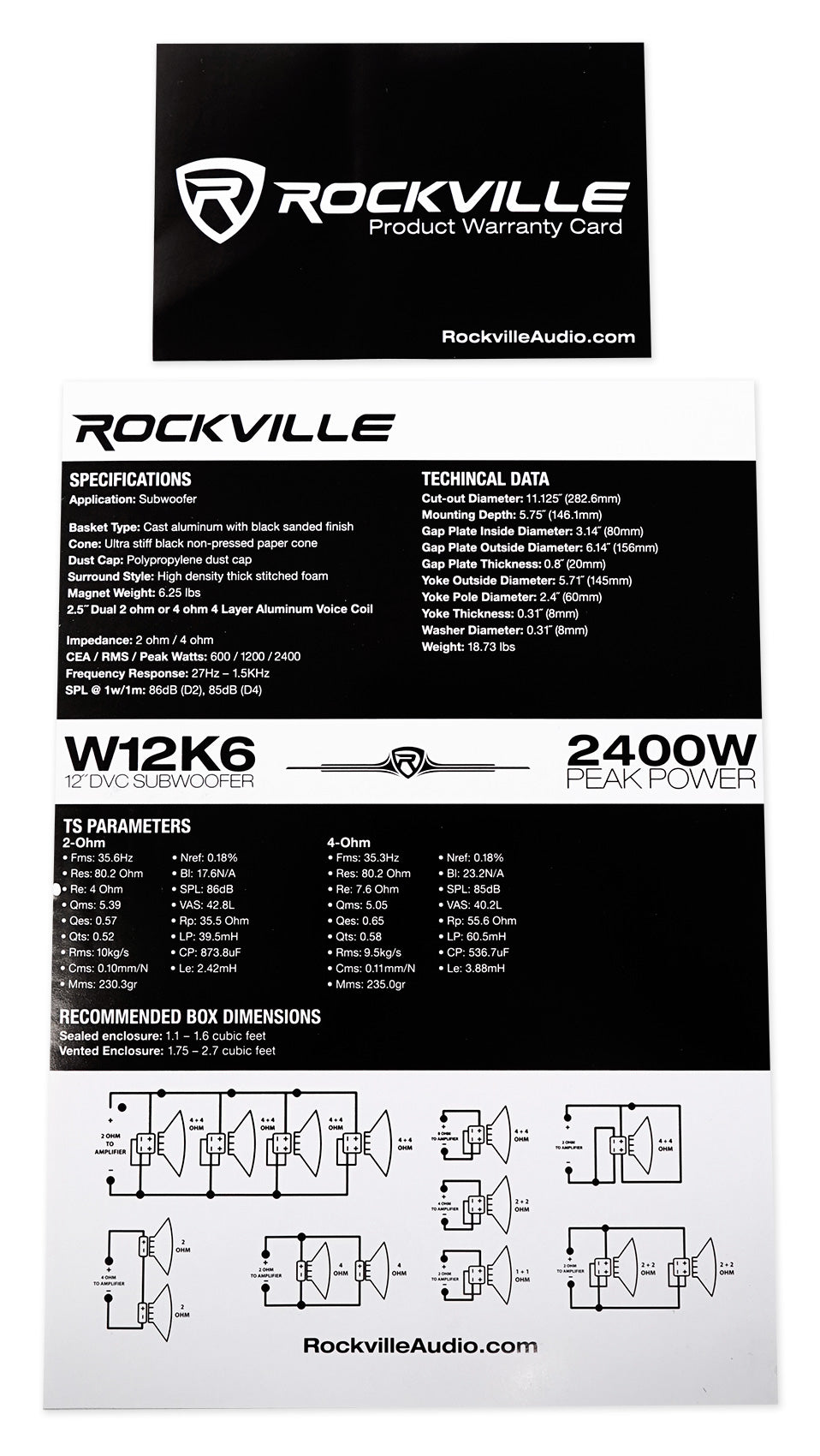

TS Parameters:

TS Parameter	Wired in Series	Wired in Parallel	Description of Measurement
Electrical Parameters
Re	8.58 Ohm	2.14 Ohm	Electrical voice coil resistance at DC
Le	6.549 mH	1.646 mH	Frequency independent part of voice coil inductance
L2	9.015 mH	2.289 mH	Para-inductance of voice coil
R2	14.79 Ohm	3.72 Ohm	Electrical resistance due to eddy current losses
Cmes	451.49 µF	1832.58 µF	Electrical capacitance representing moving mass
Lces	35.18 mH	8.68 mH	Electrical inductance representing drive compliance
Res	56.58 Ohm	14.09 Ohm	Resistance due to mechanical losses
fs	39.9 Hz	39.9 Hz	Drive resonance frequency
Mechanical Parameters (Using Laser)
Mms	219.823  g	219.582 g	Mechanical mass of drive diaphragm assembly including air load and voice coil
Mmd (Sd)	206.885 g	206.644 g	Mechanical mass of voice coil and diaphragm without air load
Rms	8.605 kg/s	8.505 kg/s	Mechanical resistance of total-drive losses
Cms	0.072 mm/N	0.072 mm/N	Mechanical compliance of drive suspension
Kms	13.84 N/mm	13.81 N/mm	Mechanical stiffness of driver suspension
Bl	22.065 N/A	10.946 N/A	Force factor (Bl product)
Lambda s	-0.013	0	Suspension creep factor
Loss Factors
Qtp	0.873	0.885	Total Q-factor consider all losses
Qms	6.41	6.475	Mechanical Q-factor of of drive in free air considering Rms only
Qes	0.972	0.985	Electrical Q-factor of drive in free air considering Re only
Qts	0.844	0.855	Total Q-factor considering Re and Rms only
Other Parameters
Vas	26.3903 l	26.4413 l	Equivalent air volume of suspension
n0	0.166%	0.164%	Reference efficiency (2 pi-radiation using Re)
Lm	84.4 dB	84.35 dB	Characteristic sound pressure level (SPL at 1m for 1W @ Re)
Lnom	84.1 dB	84.05 dB	Nominal sensitivity (SPL at 1m for 1W @ Zn)
Sd	508 cm²	508 cm²	Diaphragm area
EBP	41.0	40.5	Efficiency bandwidth product

---

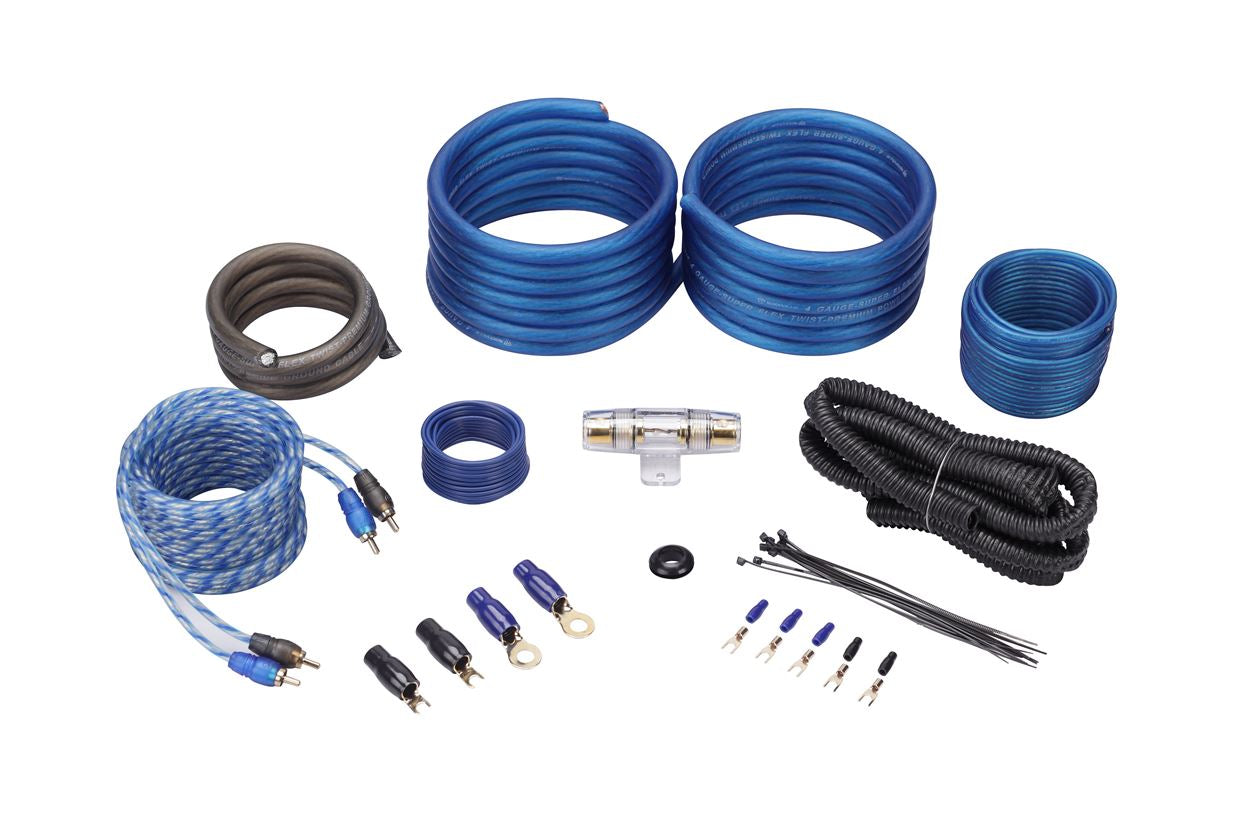

Video of RWK41:

Unboxing Video for RWK41:

Description:

The Rockville RWK41 4 AWG (American Wire Gauge) amp kit has the following differences over other amp kits on the market at this price point.

1. Our RCA cables are 100 % copper. These are top of the line RCA cables

2. Better Resistance: The only thing that really matters with wires is the resistance rating. This is a measurement of conductivity and how much signal is loss per foot of wire. Since Rockville wires are made with around 3 times as much copper as any other wire at this price point, these wires had a much better resistance rating which means they will transfer more power to your amps than the other brands.

3. We do not cheat you on the thickness of the wire. These are standard American wire gauge thickness. This is another reason our conductivity is better than anything else at this price point. Other brands in the market place write 4 gauge, but cheat you on the thickness. We are honest about the thickness.

4. The Rockville amplifier installation kits feature a new soft abrasion proof insulating jacket. This rugged PVC outer jacket allows for 100% improved flexibility over standard power cables making them extremely easy to route through your vehicles interior, and it maintains exceptional resistance to grease and oil. The PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F.

The RCA signal transfer cables included in this kit feature blue and silver twisted pair technology in a clear outer jacket insulation skin. Not only do the blue and silver wires look cool but they also provide superior signal transfer with maximum noise suppression. They are 100% copper to provide absolute lossless perfect signal transfer to your receiver. This technology reduces interference, so your audio signal flows clean and pure at all power levels.

This kit also includes a massive 60 Amp AGU Gold Plated Fuse, so you can be sure it will handle the all the DC power that your amp will need without even the slightest loss of current. The included 7 split loom tube provides protection for your power cable from the typically harsh environment found under the hood of your car.

Audiosavings product experts have tested this amp kit against many leading amp kits on the market and were were impressed not only by the great looks but by the quality of these Rockville installation kits as well. These kits had a lower resistance rating than the other brands we compared and tested them against. What this means is that Rockville manufactures their kits with more copper than other kits at this price point, ultimately providing your amplifiers with better and cleaner DC power, so they work cooler and more efficiently. You will hear the difference a Rockville installation kit will make!

Features:

• 1 – 17’ High Grade Twisted Pair of 100% Copper RCA Cable
• 17’ – 4 Gauge Translucent Blue SuperFlex Power Cables
• 17’ – 18 Gauge Blue Remote Cable
• 17’ – 16 Gauge Clear Speaker Wire
• 3’ – 4 Gauge Clear SuperFlex Ground Wire
• Gold Plated AGU Heat Resistant Fuse Holder
• 60 Amp AGU Gold Plated Fuse
• 7’ Split Tube Loom
• Accessories Include

---

Description of RSQ12S:

The RSQ12S is a single 12" sealed speaker box is made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood.  This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you!  EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!

MADE IN THE USA WITH PRIDE!

Features:

• Rockville RSQ12S Single 12" .75 cu.ft. MDF Sealed Subwoofer Enclosure Box
• Designed For 12" Subwoofers
• Machine precision cut mounting holes
• ¾” USA Heavy Duty MDF Construction
• Top of the line Glue for extra durable adhesion
• High quality GOLD spring loaded terminals
• Designed, tested, and engineered to work perfectly with high powered subs
• Designed to give the best sound quality

Enclosure Measurements:

• Type of Enclosure: Sealed
• Enclosure Sub Size: Single 12"
• Dimensions in Inches: 13.5" L x 10.5" W x 13.5 H"
• Top and Bottom Depth: 13.5"
• Mounting Depth: up to 11" (enough depth for any sub on the market)
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): 1.0 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 0.75 Cubic Feet
