Video of W10K6D2 V2:

Wiring for 1 DVC 2 Ohm SUBS:

Wiring for 2 DVC 2 Ohm SUBS:

Features:

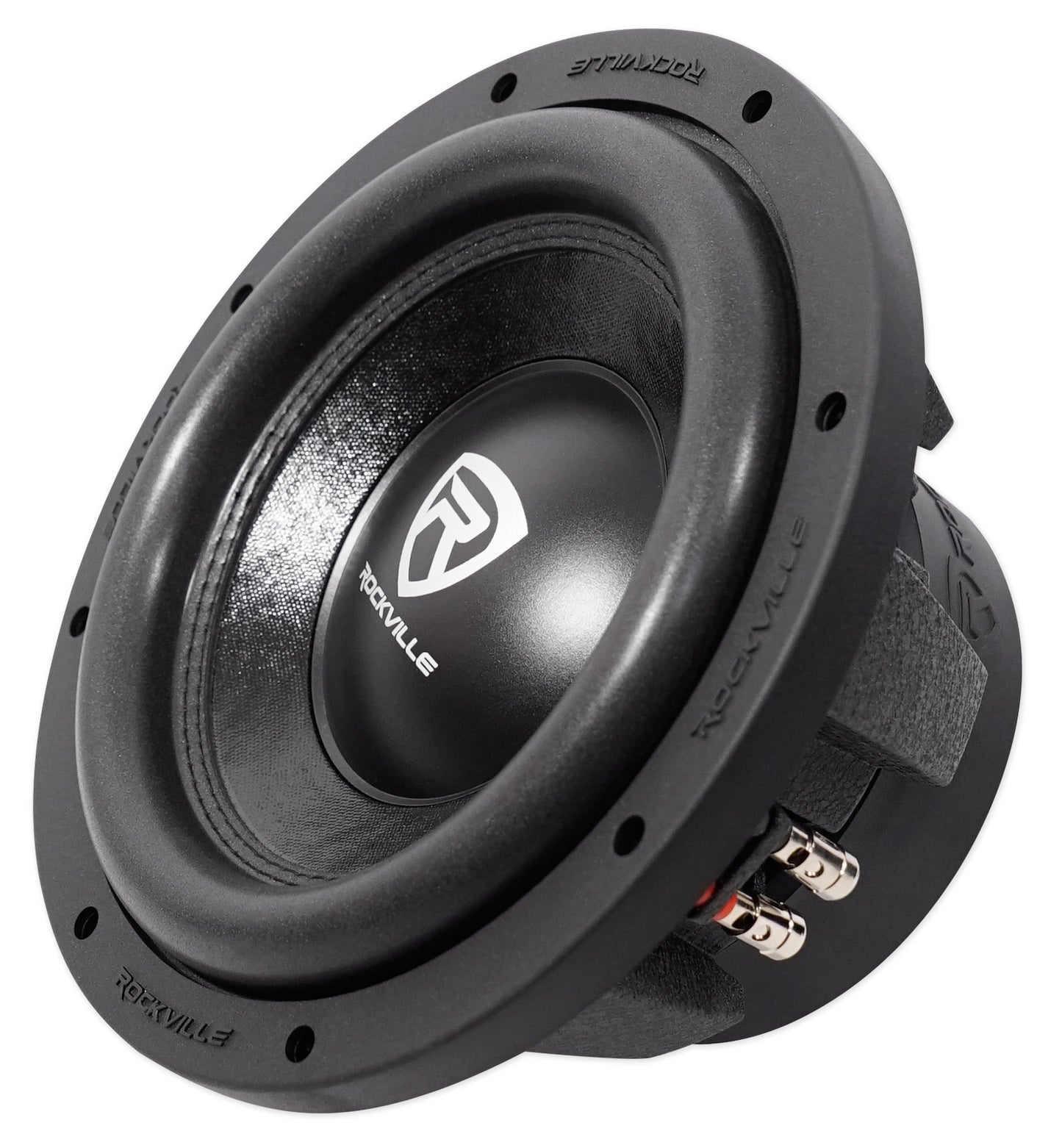

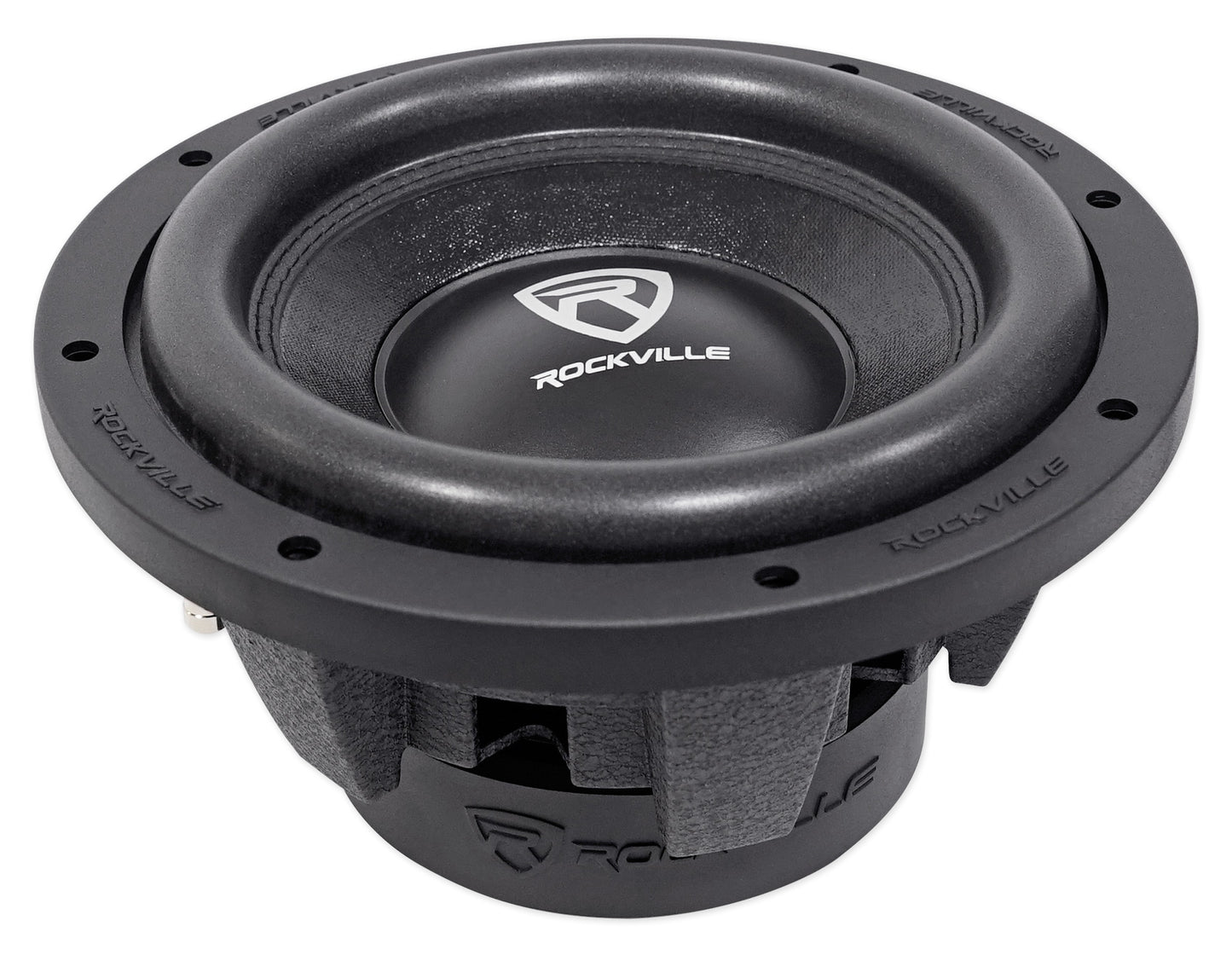

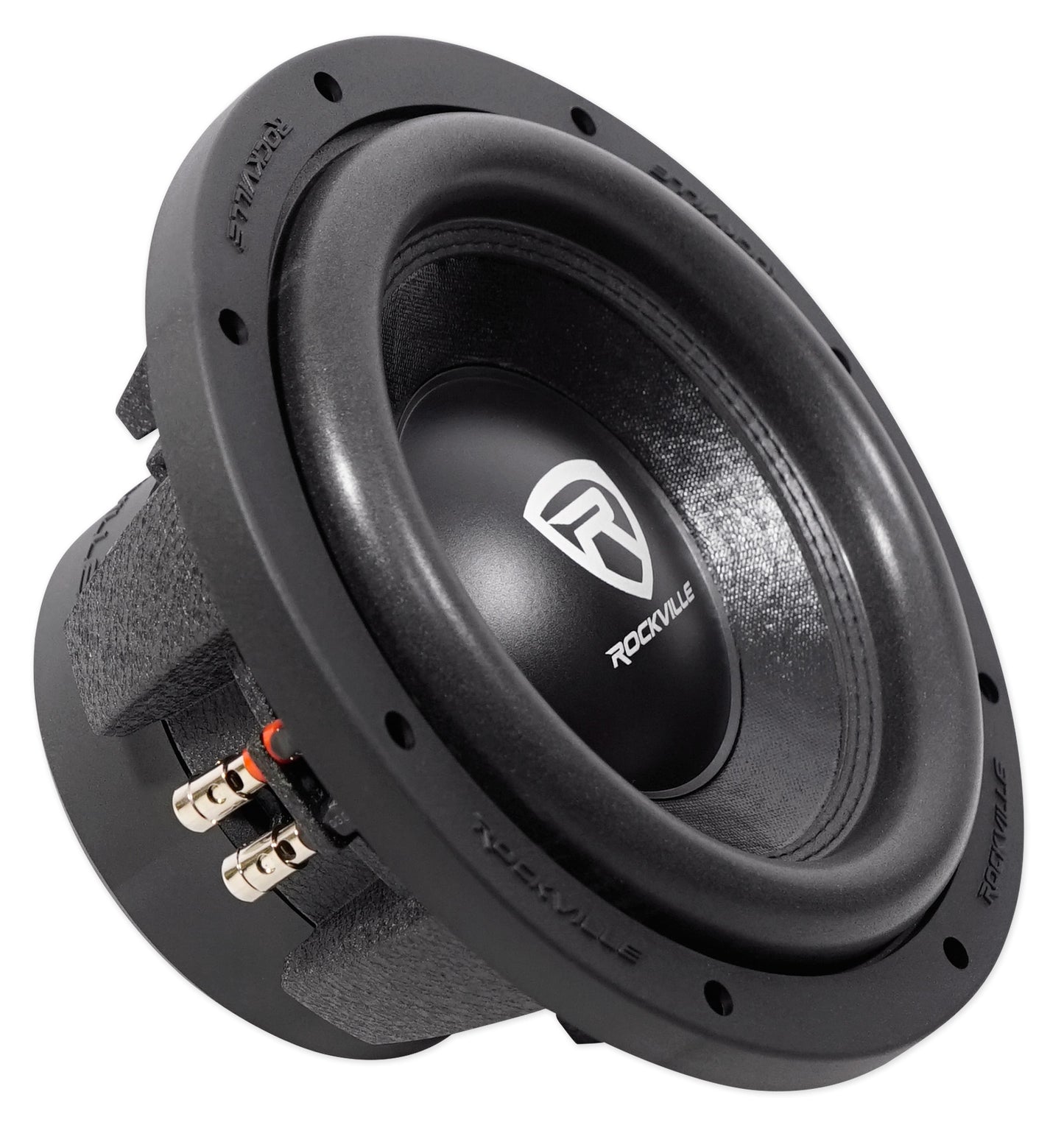

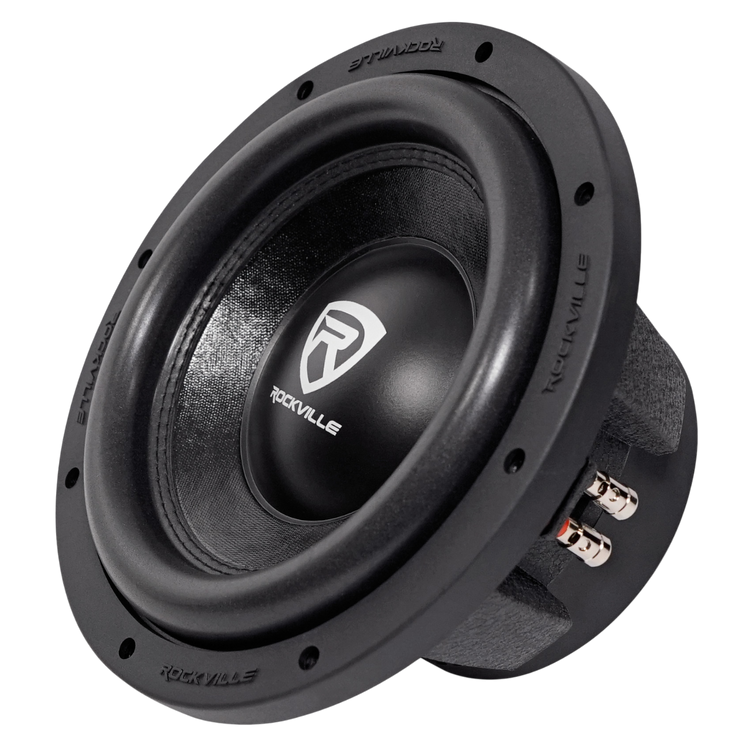

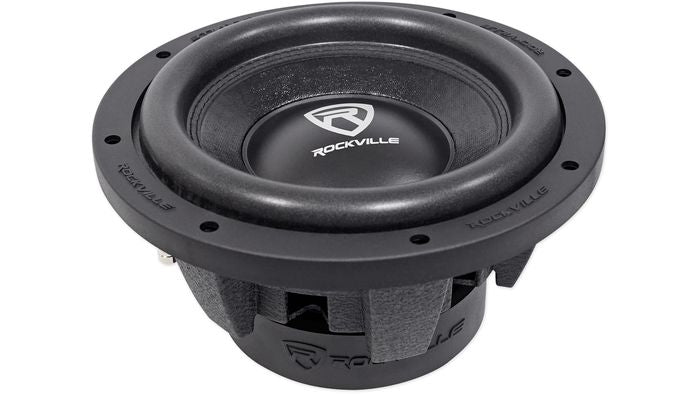

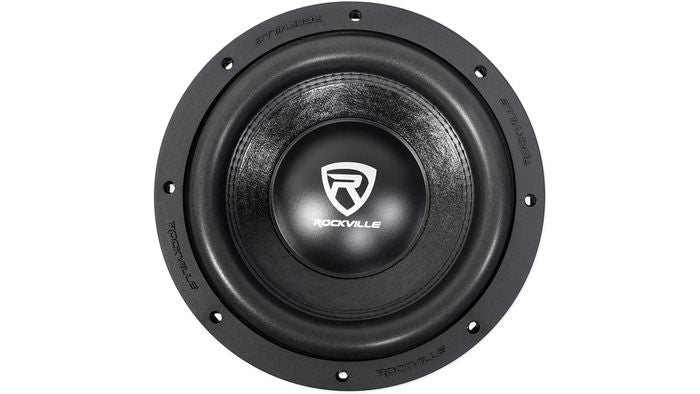

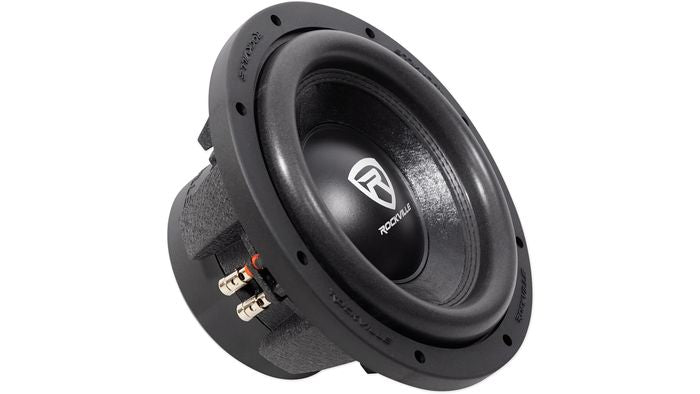

• Rockville W10K6D2 V2 K6 Series 10" Dual 2-Ohm Car Subwoofer
• Peak Power Handling: 2000 Watts
• Program Power Handling: 1000 Watts
• CEA Rated RMS Power Handling: 500 Watts
• 2.5" Voice coils (Black Aluminum Former Wound with 100% OFC Copper Wire
• The wire we use is made in the USA! It is one of the most important components to make the sub high quality and last longer
• Double Stacked 100 Oz High Quality Magnet
• Cast Aluminum Basket With Black Sanded Finish Makes This Sub Very Efficient

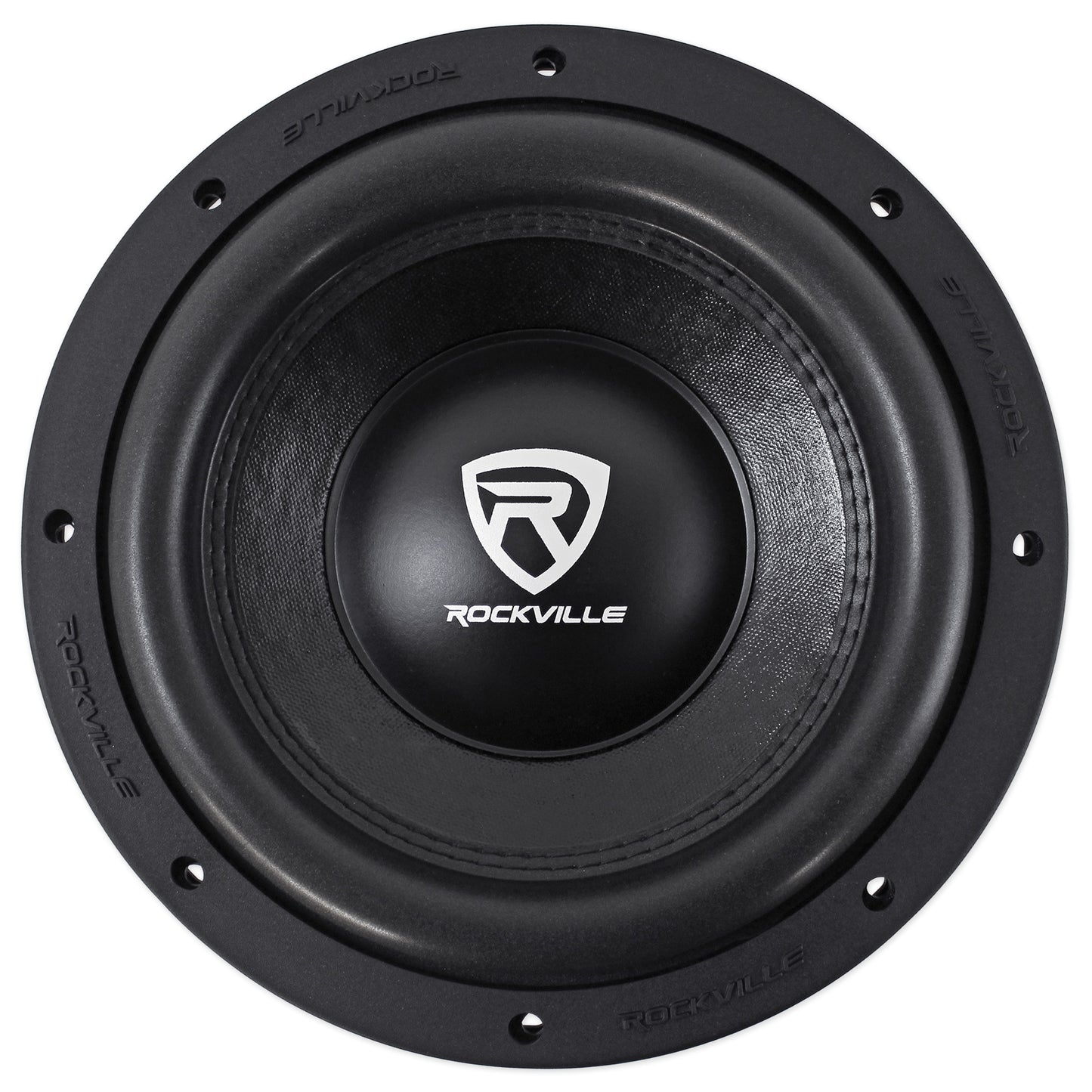

• Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Red Stitching Cone Reinforcement Ensures Long Life
• Polypropylene (PP) Dustcap

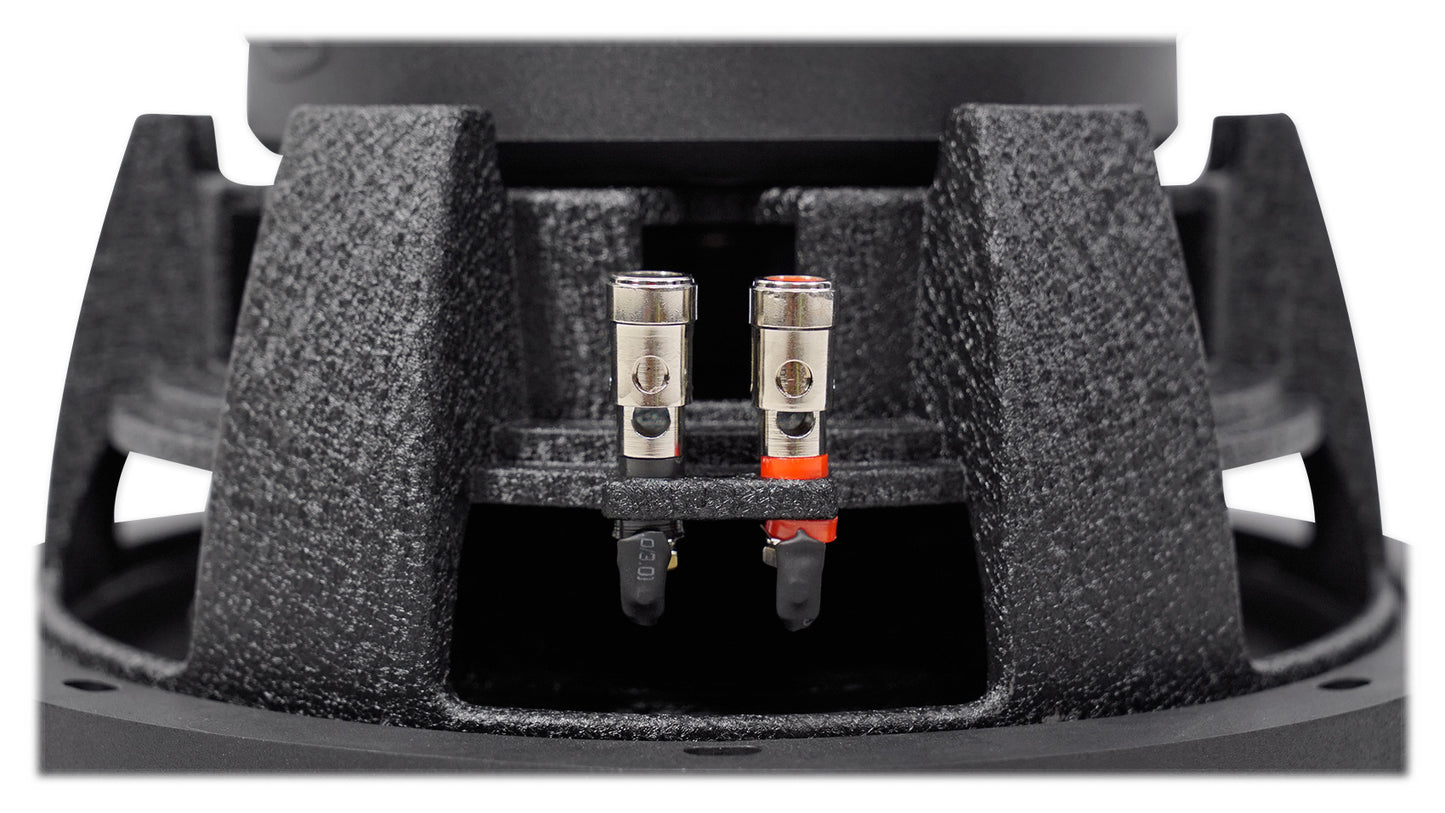

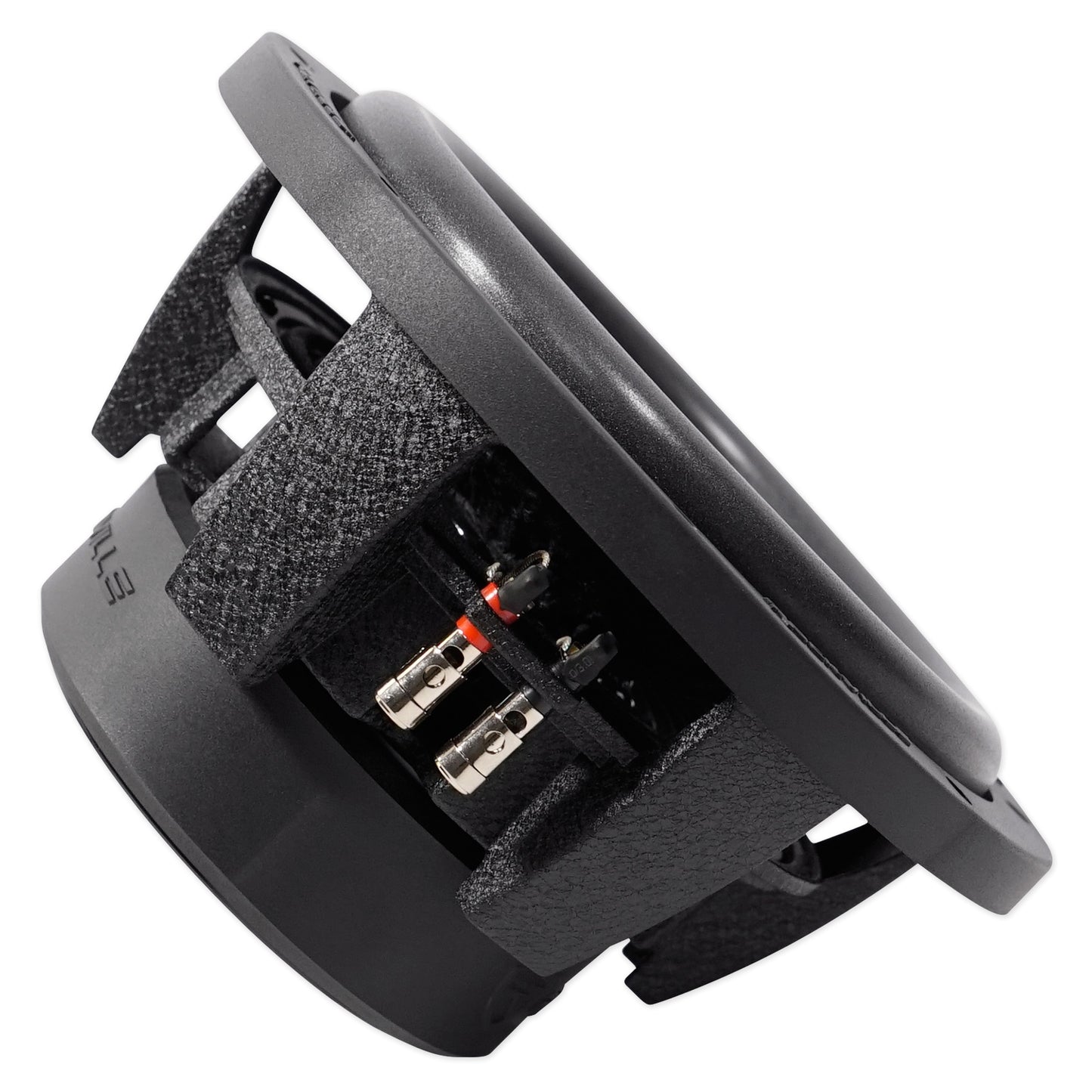

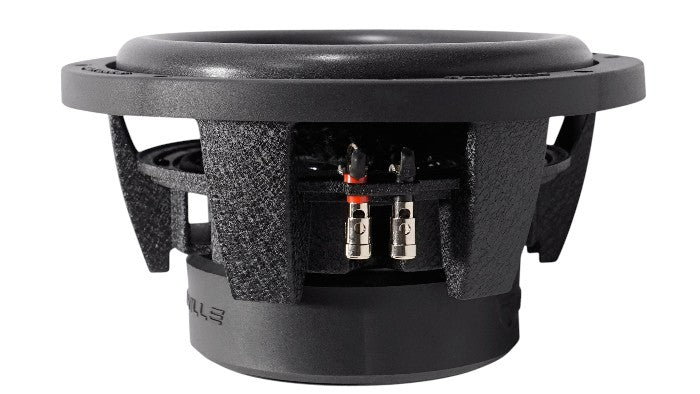

• Two Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
• Impedance: Dual 2-Ohm Voice Coils

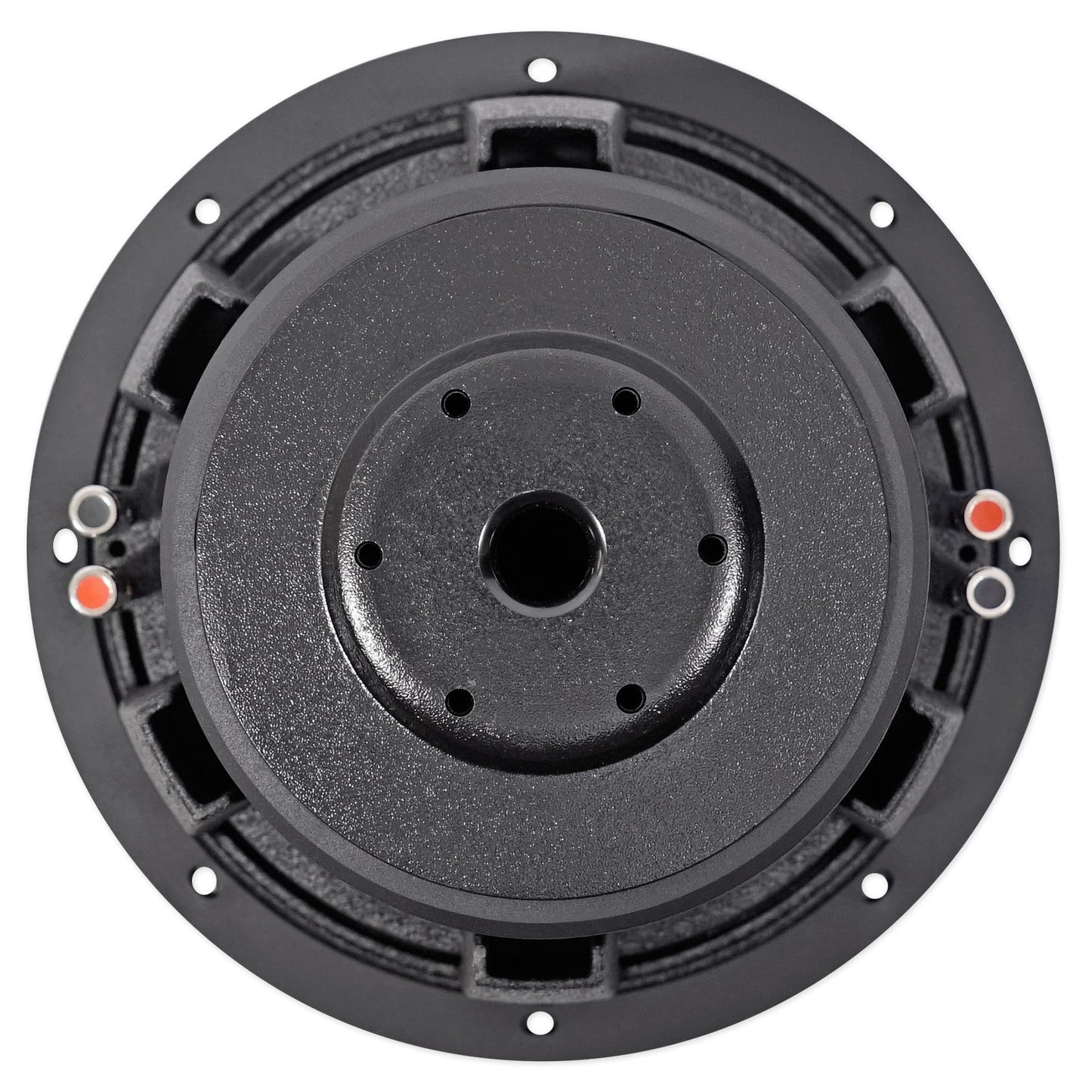

• Vented Hole on T-yoke Enhances Heat Dissipation

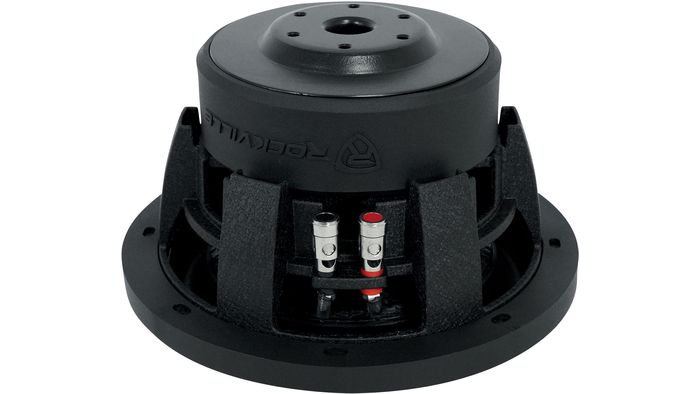

• Special Custom Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Custom Rockville Mounting Gasket Looks Beautiful and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• Cutout Diameter: 9.41" inches
• Mounting Depth: 5.29" inches
• Frequency Response: 36.7 Hz - 1.5K kHz
• 8mm T-Yoke + 8mm Washer
• Sensitivity: 85dB
• Sealed Enclosure Volume: 0.6 - 1.1 Cubic Feet
• Vented/Ported Enclosure Volume: 1.1 - 1.6 Cubic Feet
• Weight: 16.53 Lbs.
• Shipping Weight: 19.84 Lbs.
• Shipping Box Dimensions: 13.58" x 13.58" x 12.6" Inches
• XMAX: 20 MM (One way)

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 80mm (3.14 inches)
• Gap Plate Outside Diameter: 156mm (6.14 inches)
• Gap Plate Thickness: 20mm (0.8 inches)
• Yoke Outside Diameter: 145mm (5.71 inches)
• Yoke Thickness: 8mm (0.31 inches)
• Yoke Pole Diameter: 60mm (2.4 inches)

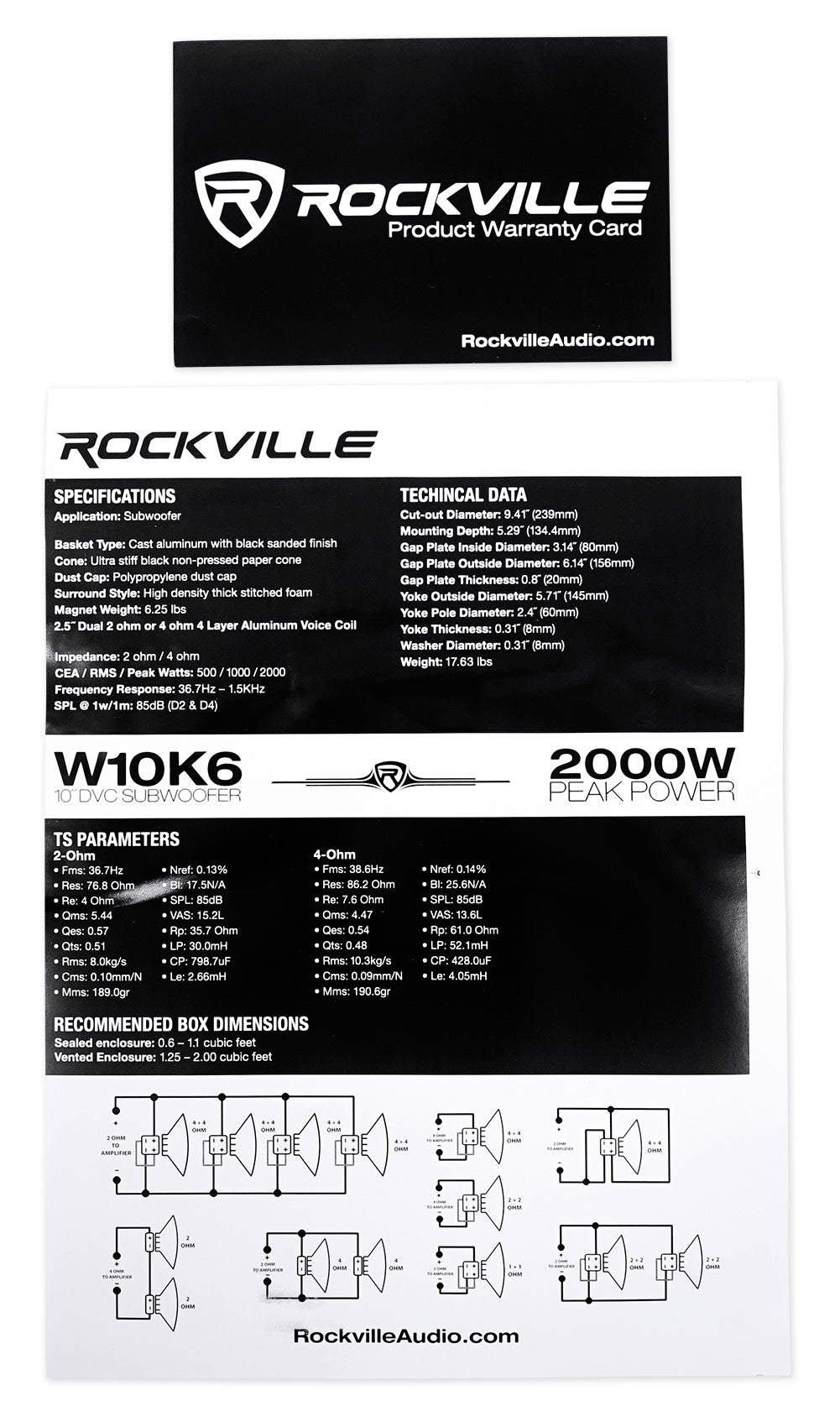

TS Parameters:

TS Parameter	Wired in Series	Wired in Parallel	Description of Measurement
Electrical Parameters
Re	4.32 Ohm	1.09 Ohm	Electrical voice coil resistance at DC
Le	5.32 mH	1.047 mH	Frequency independent part of voice coil inductance
L2	6.32 mH	1.412 mH	Para-inductance of voice coil
R2	8.09 Ohm	2.04 Ohm	Electrical resistance due to eddy current losses
Cmes	641.37 µF	2573.92 µF	Electrical capacitance representing moving mass
Lces	25.48 mH	6.38 mH	Electrical inductance representing drive compliance
Res	45.72 Ohm	11.24 Ohm	Resistance due to mechanical losses
fs	39.4 Hz	39.3 Hz	Drive resonance frequency
Mechanical Parameters (Using Laser)
Mms	203.494  g	201.259 g	Mechanical mass of drive diaphragm assembly including air load and voice coil
Mmd (Sd)	196.785 g	194.549 g	Mechanical mass of voice coil and diaphragm without air load
Rms	6.939 kg/s	6.956 kg/s	Mechanical resistance of total-drive losses
Cms	0.08 mm/N	0.082 mm/N	Mechanical compliance of drive suspension
Kms	12.45 N/mm	12.25 N/mm	Mechanical stiffness of driver suspension
Bl	17.812 N/A	8.843 N/A	Force factor (Bl product)
Lambda s	-0.041	-0.043	Suspension creep factor
Loss Factors
Qtp	0.656	0.661	Total Q-factor consider all losses
Qms	7.254	7.139	Mechanical Q-factor of of drive in free air considering Rms only
Qes	0.685	0.692	Electrical Q-factor of drive in free air considering Re only
Qts	0.626	0.631	Total Q-factor considering Re and Rms only
Other Parameters
Vas	12.2205 l	12.4184 l	Equivalent air volume of suspension
n0	0.105%	0.104%	Reference efficiency (2 pi-radiation using Re)
Lm	82.4 dB	82.39 dB	Characteristic sound pressure level (SPL at 1m for 1W @ Re)
Lnom	82.06 dB	88.03 dB	Nominal sensitivity (SPL at 1m for 1W @ Zn)
Sd	327.9 cm²	327.9 cm²	Diaphragm area
EBP	57.5	56.8	Efficiency bandwidth product
