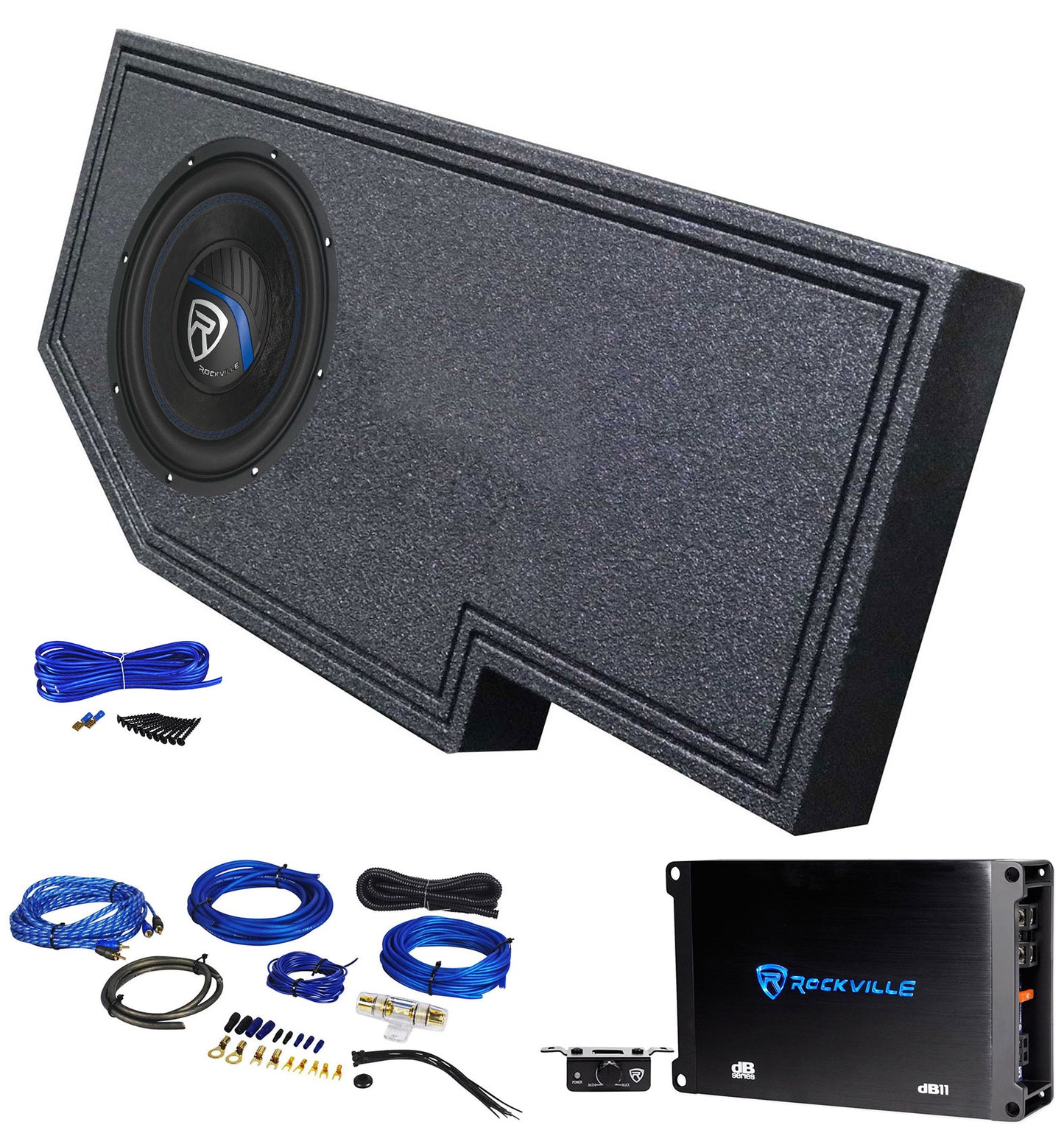

Package Includes:

• (1) Rockville K5 W10K5S2 10" 1200w 2 Ohm Car Audio Subwoofer Sub 300w RMS CEA Rated!
• (1) Rockville dB11 1400 Watt Peak/350 Watt RMS Mono 2-Ohm Amplifier Car Amp and Bass Remote
• (1) Rockville RWK81 8 Gauge Complete Amp Installation Wire Kit with 100% Copper RCA
• (1) Rockville REC128 10" Subwoofer Box Enclosure For Dodge 2002- Current Quad Cab
• (1) Complete Single Sub Box Enclosure Installation Kit: Speaker Wire, Screws, Spades

---

All about your K5 SERIES:

Features:

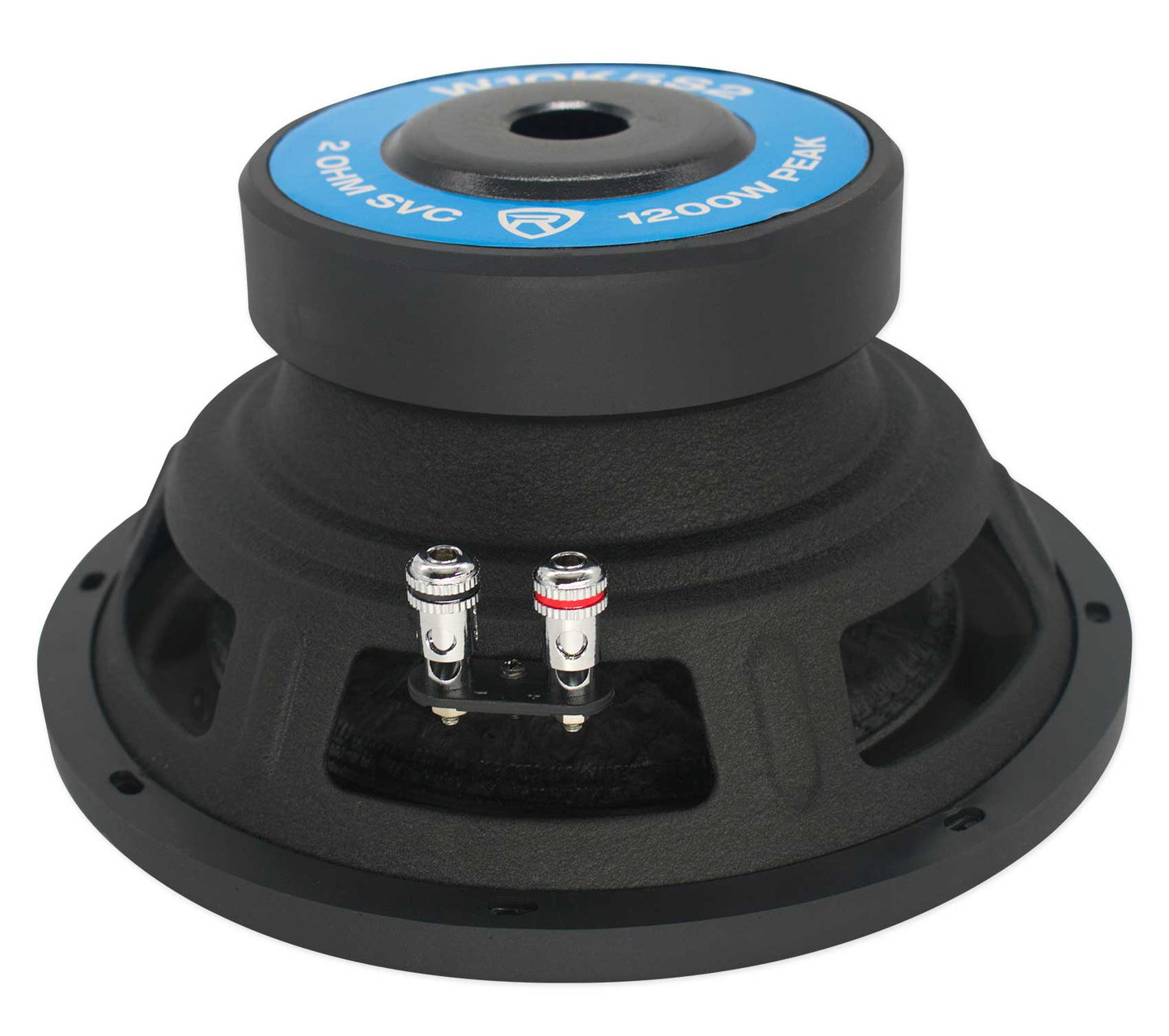

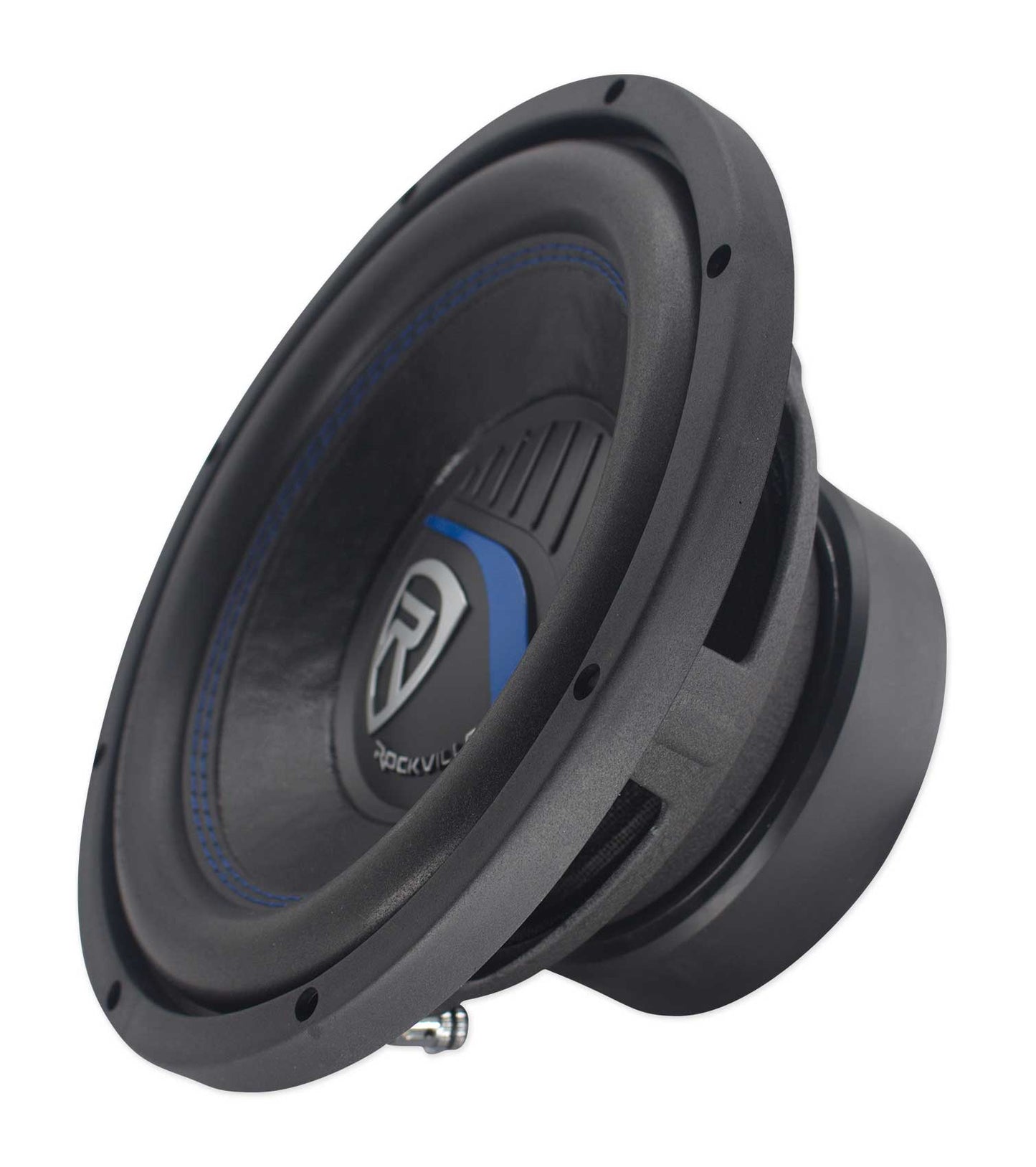

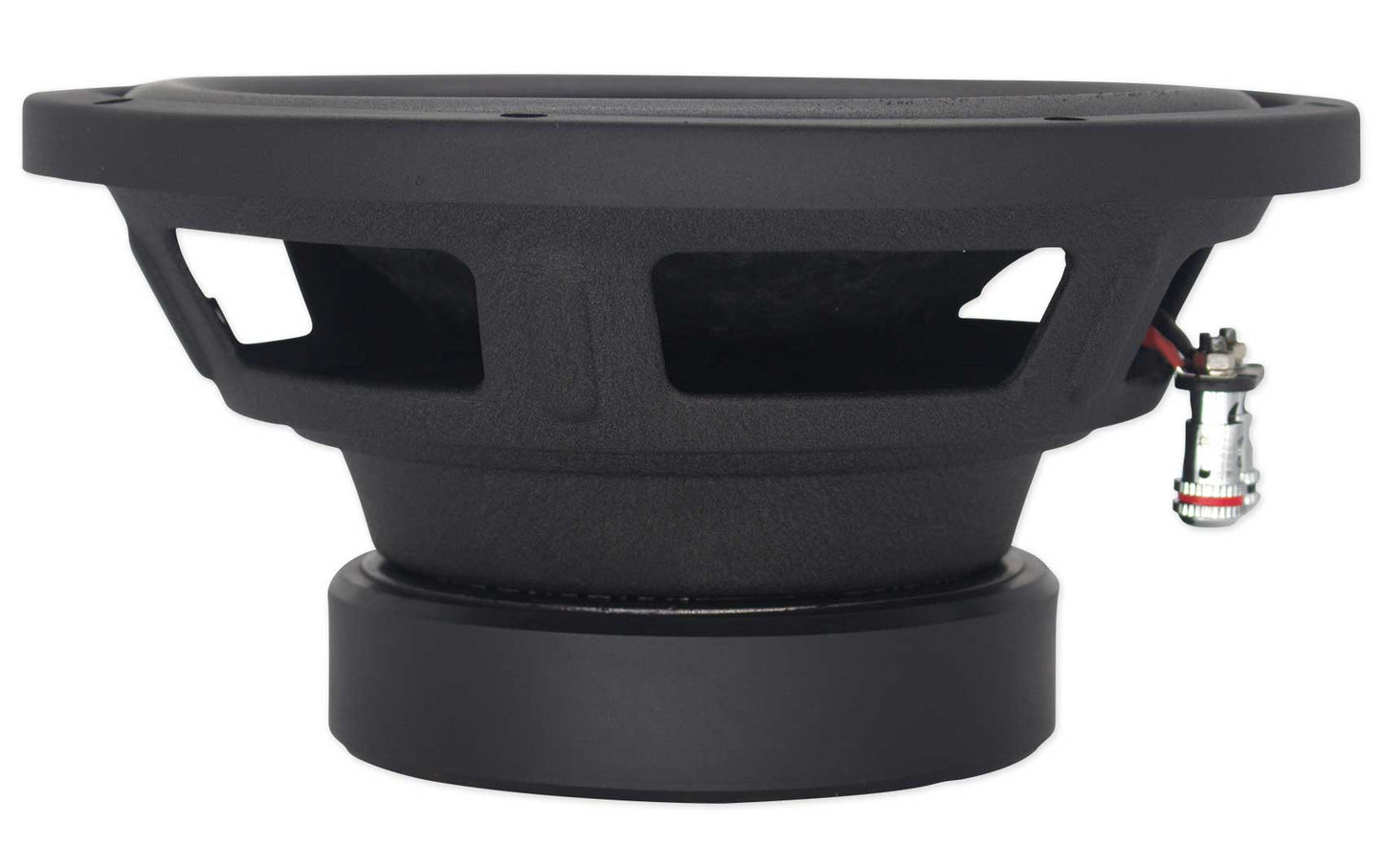

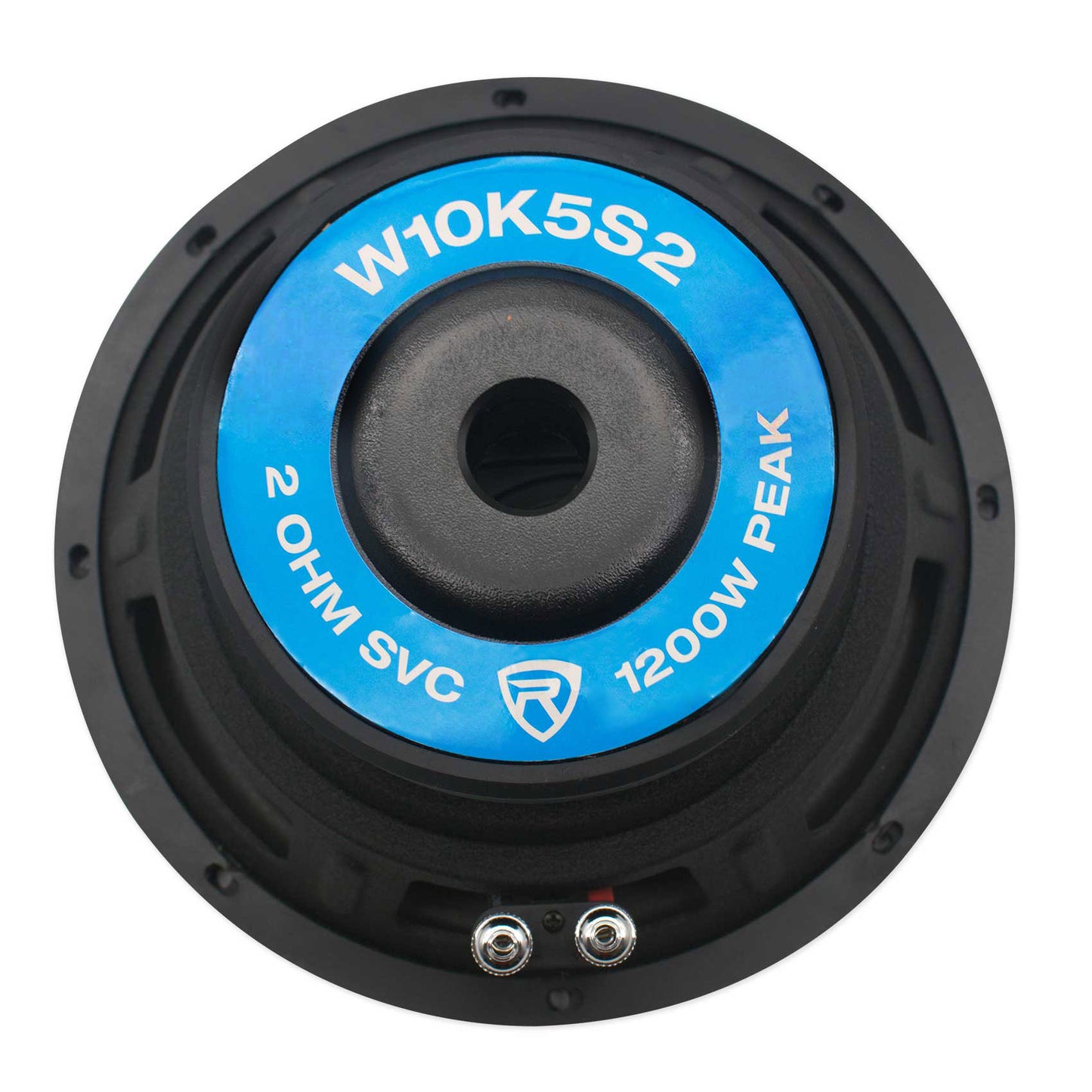

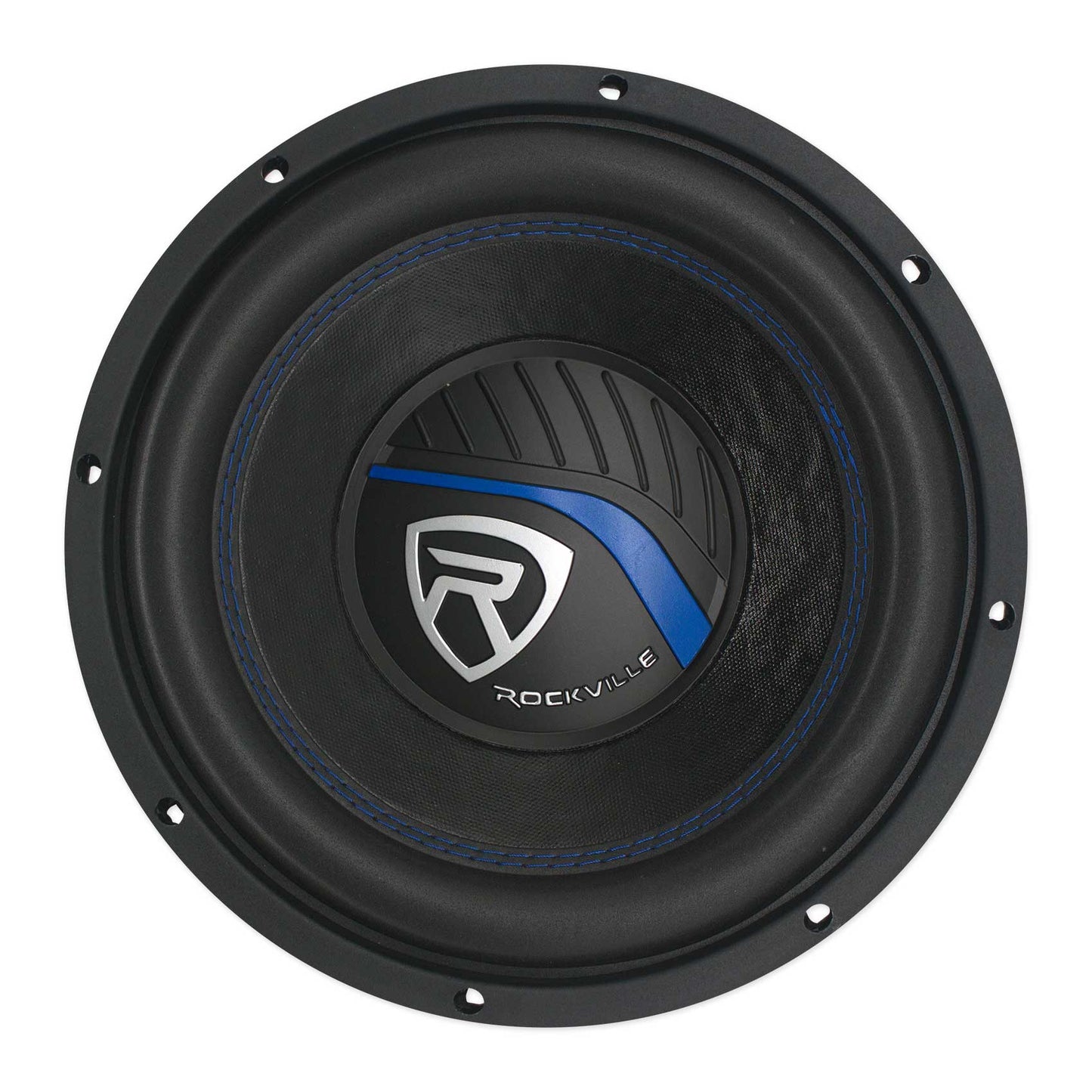

• Rockville W10K5S2 K5 Series 10" 2-Ohm Car Subwoofer
• Peak Power Handling: 1200 Watts
• Program Power Handling: 600 Watts
• CEA Rated RMS Power Handling: 300 Watts
• 2" 4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire
• The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire
• 40 Oz High Quality Magnet
• Cast Iron Basket With Black Sanded Finish
• Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone - This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Blue Stitching Cone Reinforcement Ensures Long Life
• Paper Dust cap is light weight and efficient helping the sub to play louder even if your amp is not so powerful

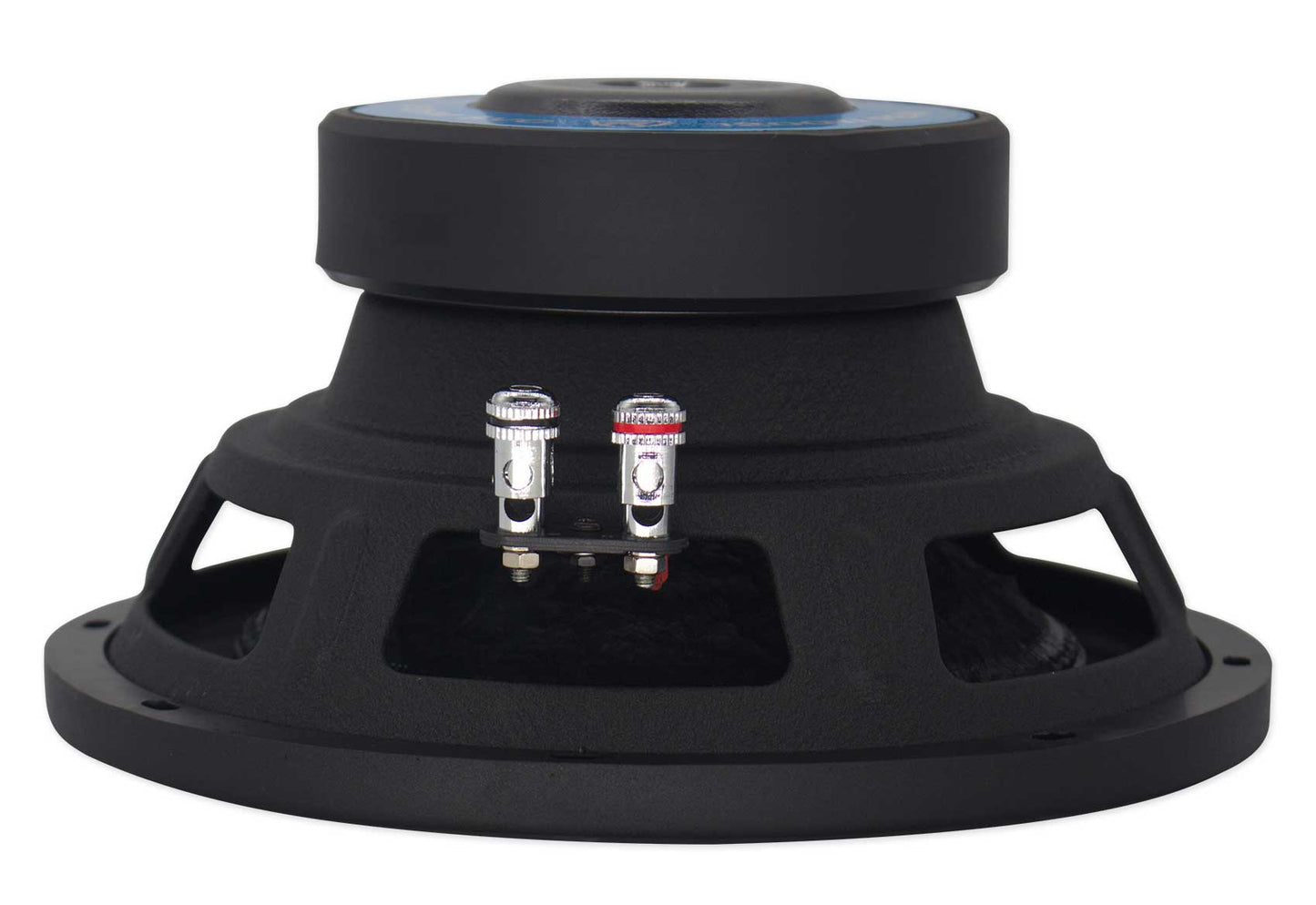

• Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
• Impedance: Single 2-Ohm Voice Coils
• Vented Hole on T-yoke Enhances Heat Dissipation
• Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Mounting Gasket with Rockville branding looks great and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated

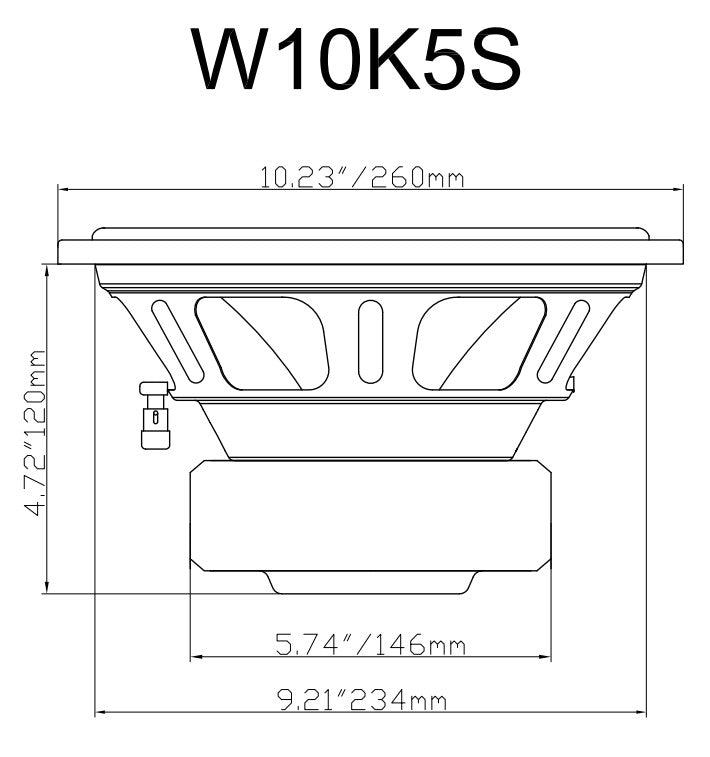

• Cutout Diameter: 9.05 inches
• Mounting Depth: 4.52 inches
• Frequency Response: 28 Hz - 1.3K kHz
• 6mm T-Yoke + 6mm Washer
• Sensitivity: 85.5dB
• Sealed Enclosure Volume: 0.5 - 1.3 Cubic Feet
• Vented/Ported Enclosure Volume: 0.9 - 1.6 Cubic Feet
• Weight: 7.8 Lbs.
• Shipping Weight: 9.3 Lbs.
• Shipping Box Dimensions: 11.42x 11.42 x 8.26 Inches

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 70mm (2.75 inches)
• Gap Plate Outside Diameter: 140mm (5.51 inches)
• Gap Plate Thickness: 25mm (0.98 inches)
• Yoke Outside Diameter: 130mm (5.11 inches)
• Yoke Thickness: 6mm (0.23 inches)
• Yoke Pole Diameter: 50mm (2 inches)

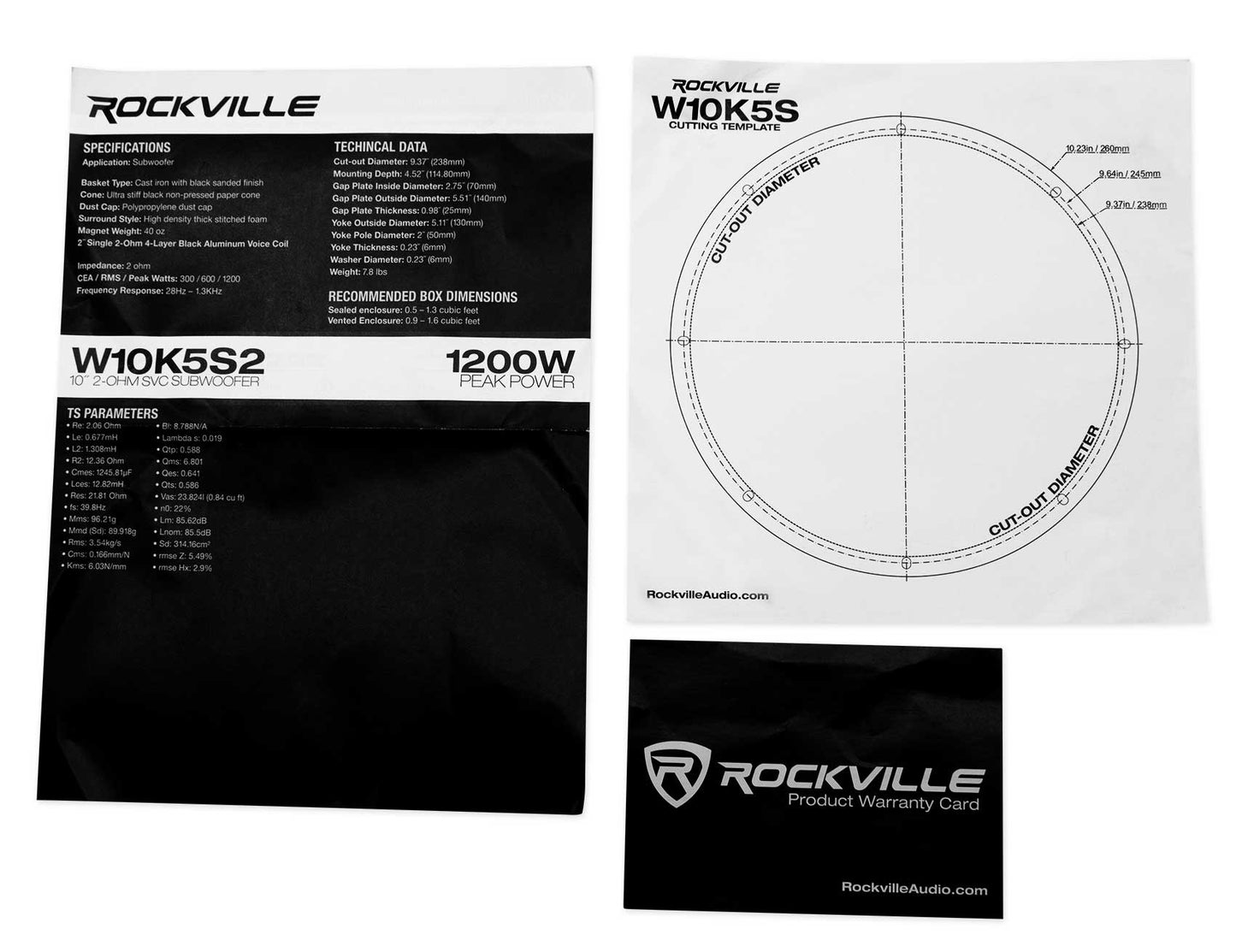

T/S Parameters (Tested on a Klippel):

Electrical Parameters
Re	2.06	Ohm	electrical voice coil resistance at DC
Le	0.677	mH	frequency independent part of voice coil inductance
L2	1.308	mH	para-inductance of voice coil
R2	12.36	Ohm	electrical resistance due to eddy current losses
Cmes	1245.81	µF	electrical capacitance representing moving mass
Lces	12.82	mH	electrical inductance representing driver compliance
Res	21.81	Ohm	resistance due to mechanical losses
fs	39.8	Hz	driver resonance frequency
Mechanical Parameters
(using laser)
Mms	96.21	g	mechanical mass of driver diaphragm assembly including air load and voice coil
Mmd (Sd)	89.918	g	mechanical mass of voice coil and diaphragm without air load
Rms	3.54	kg/s	mechanical resistance of  total-driver losses
Cms	0.166	mm/N	mechanical compliance of driver suspension
Kms	6.03	N/mm	mechanical stiffness of driver suspension
Bl	8.788	N/A	force factor (Bl product)

---

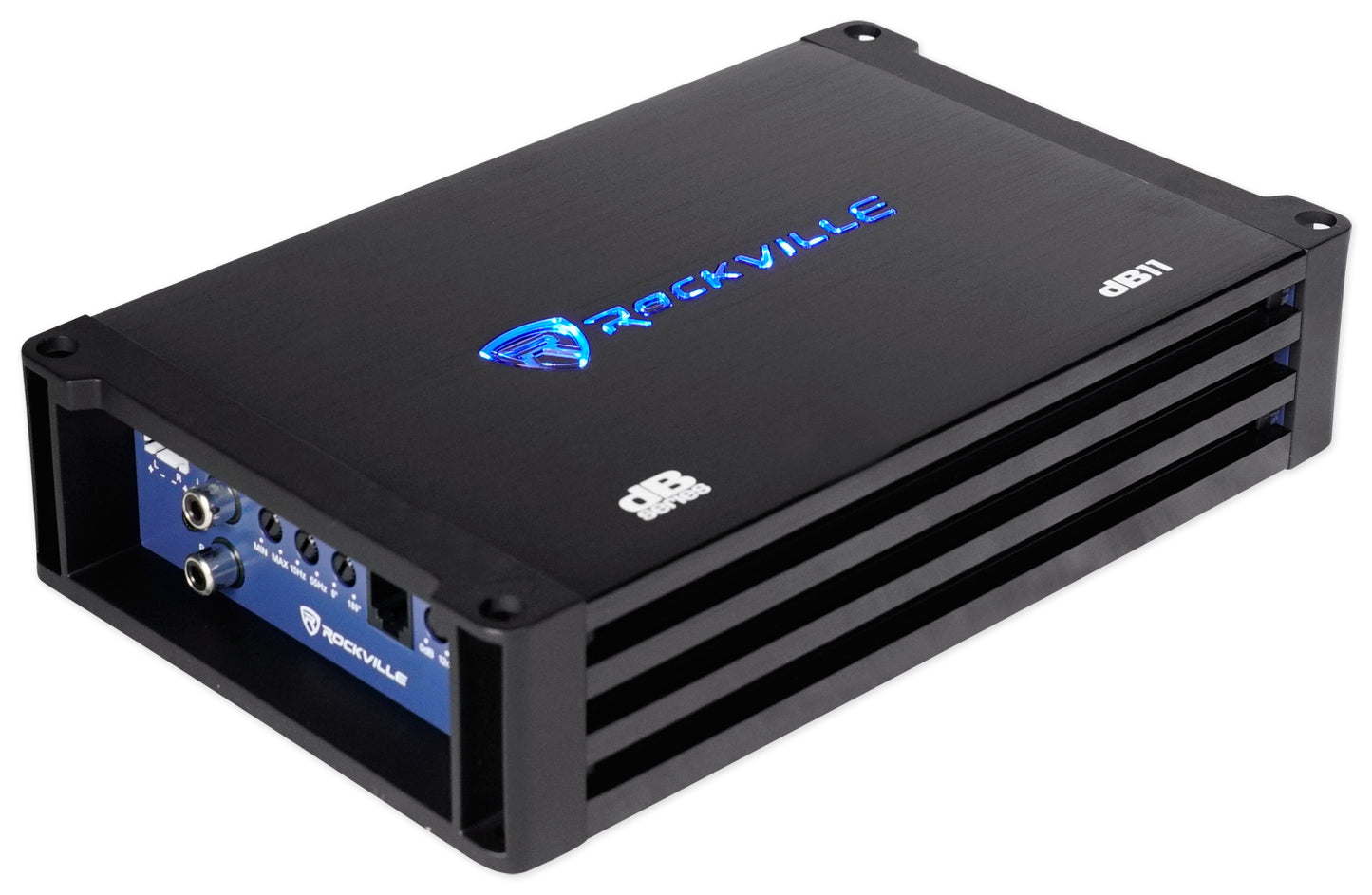

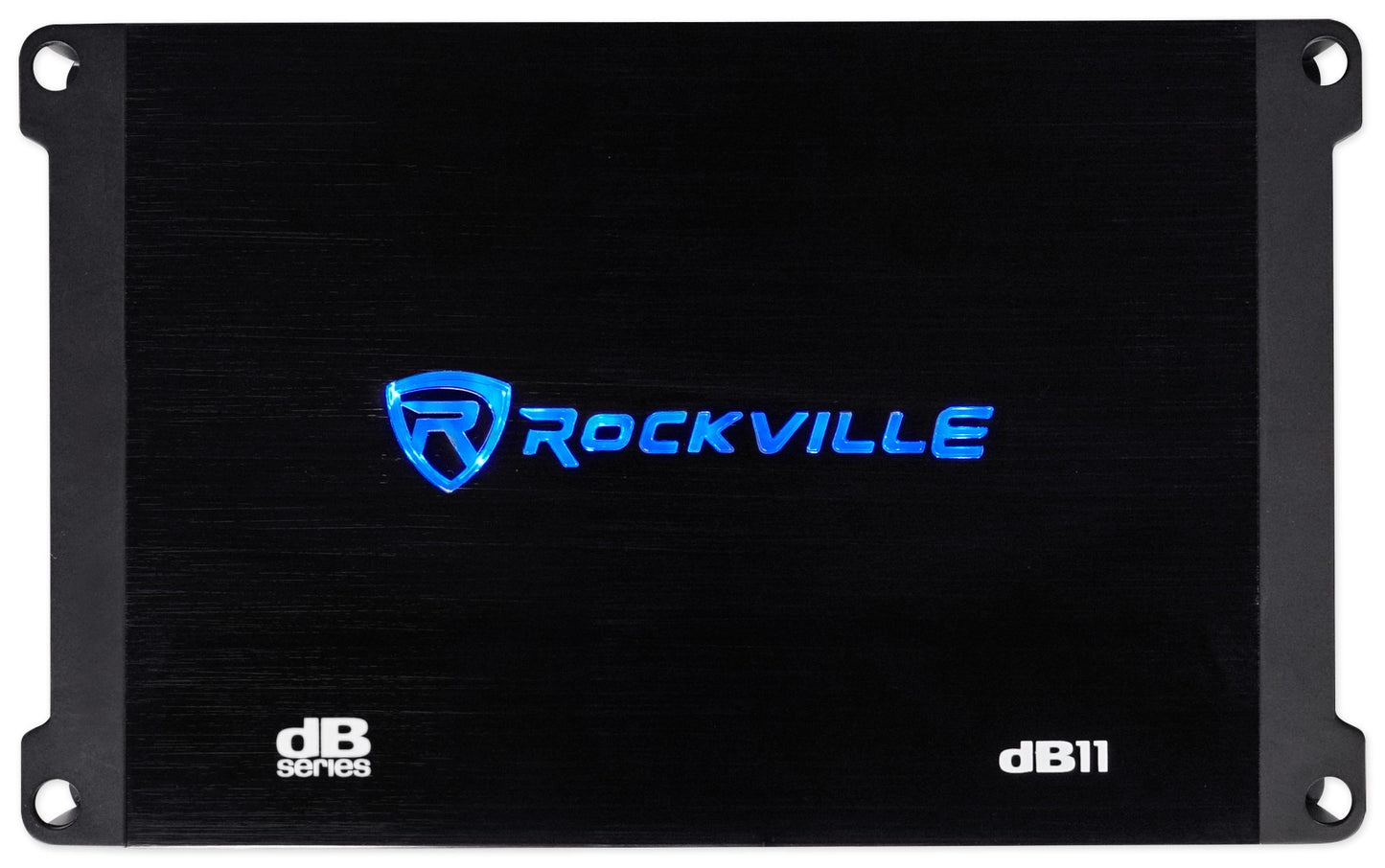

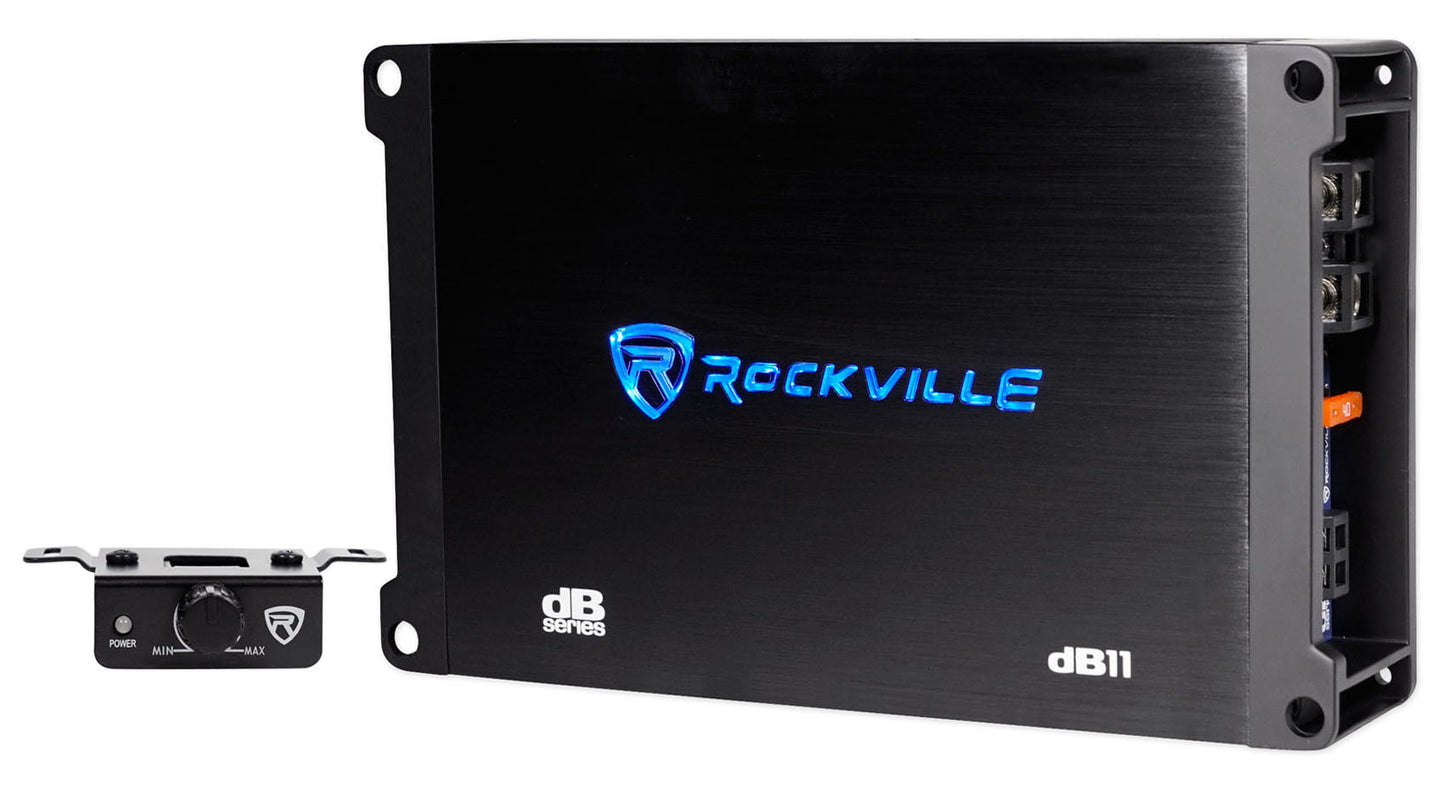

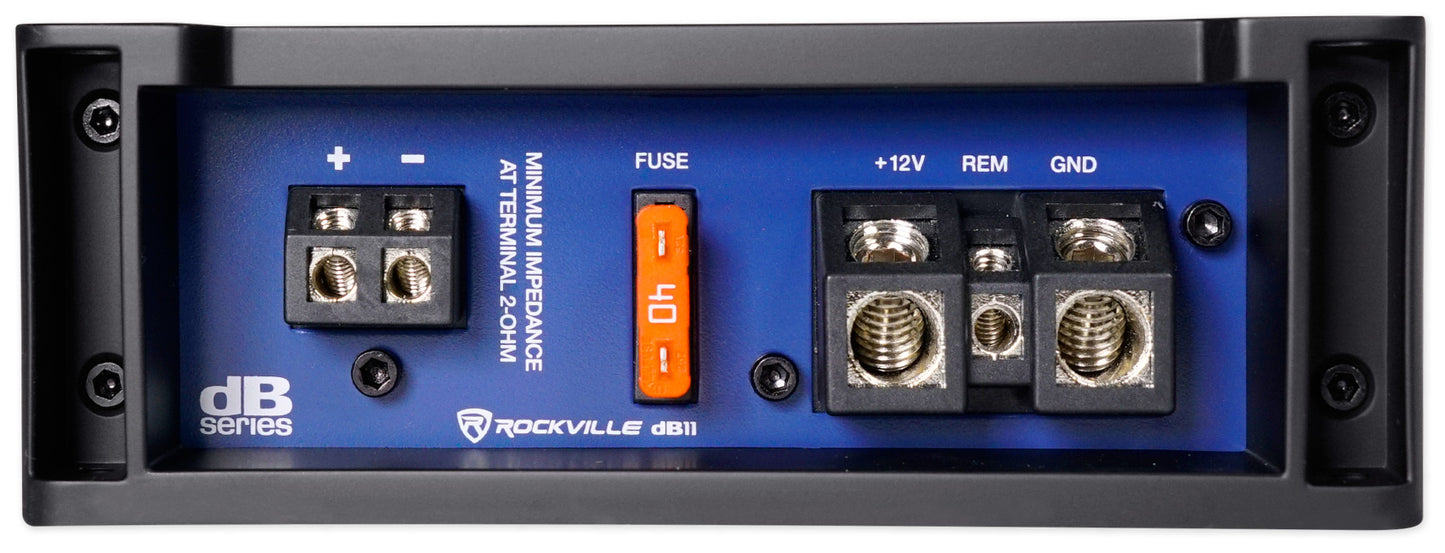

All About Your dB11:

How To Set the Gain On your Car Subwoofer Amplifier:

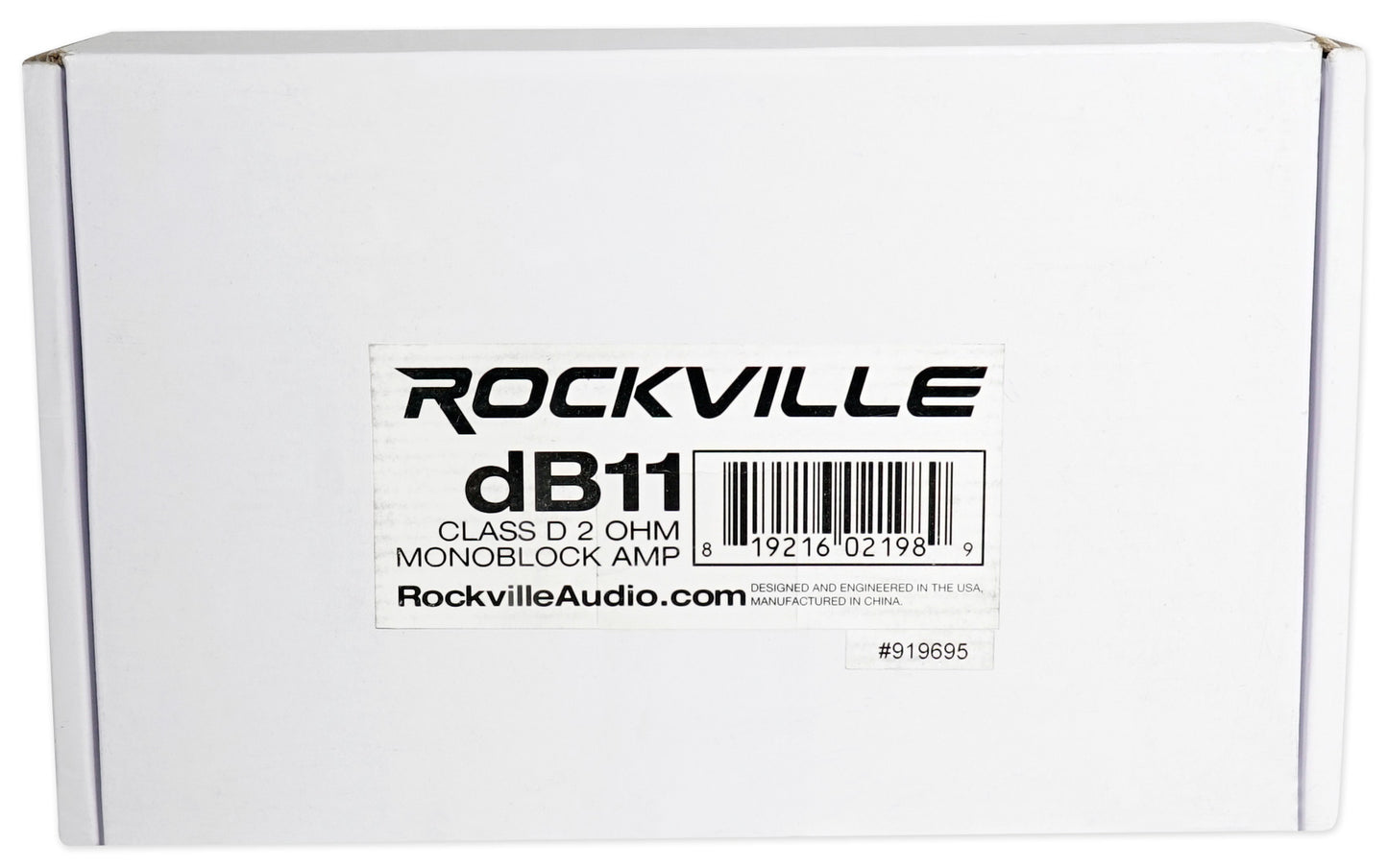

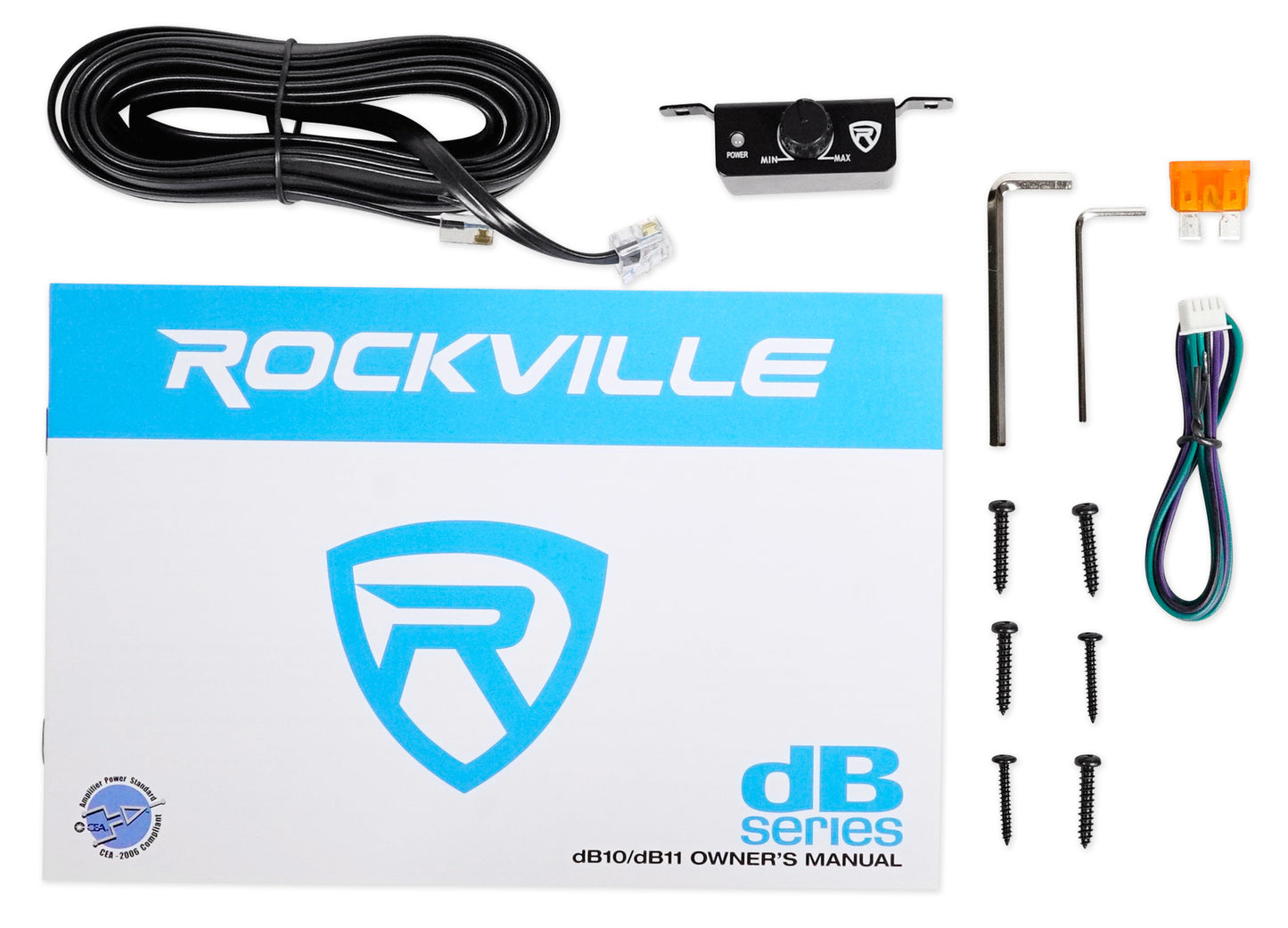

What's In The Box:

• (1) dB11 Amplifier

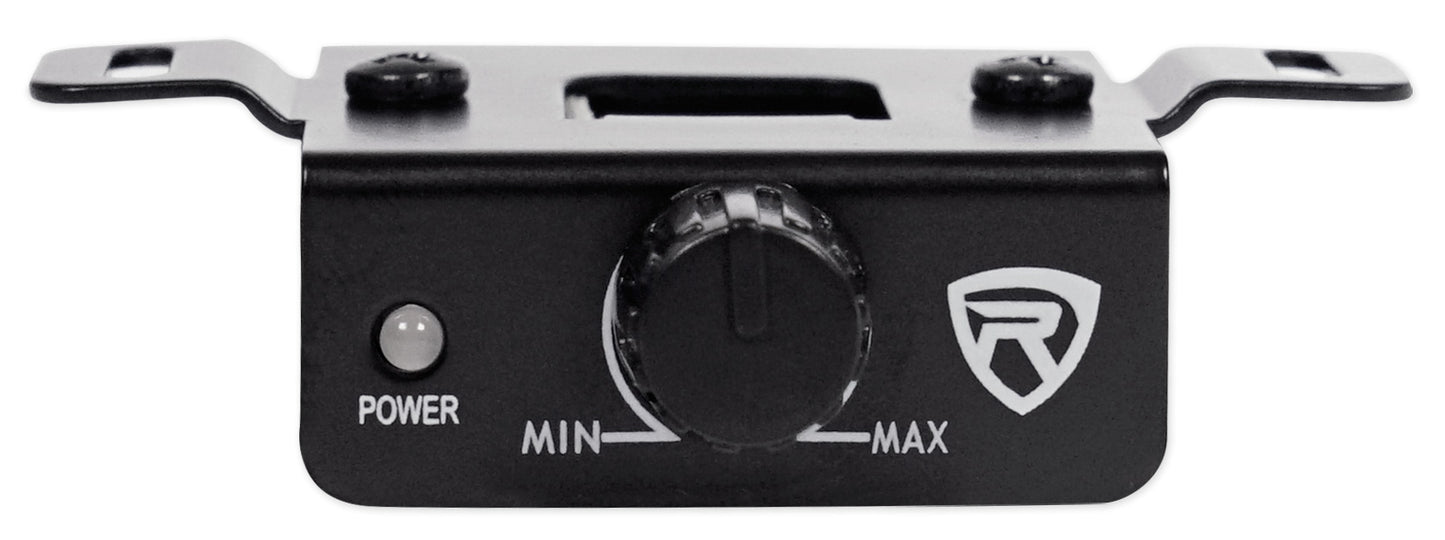

• (1) Bass Remote
• (1) Birth Sheet with Tested Power
• Owner's Manual
• Mounting Hardware
• Warranty

Features:

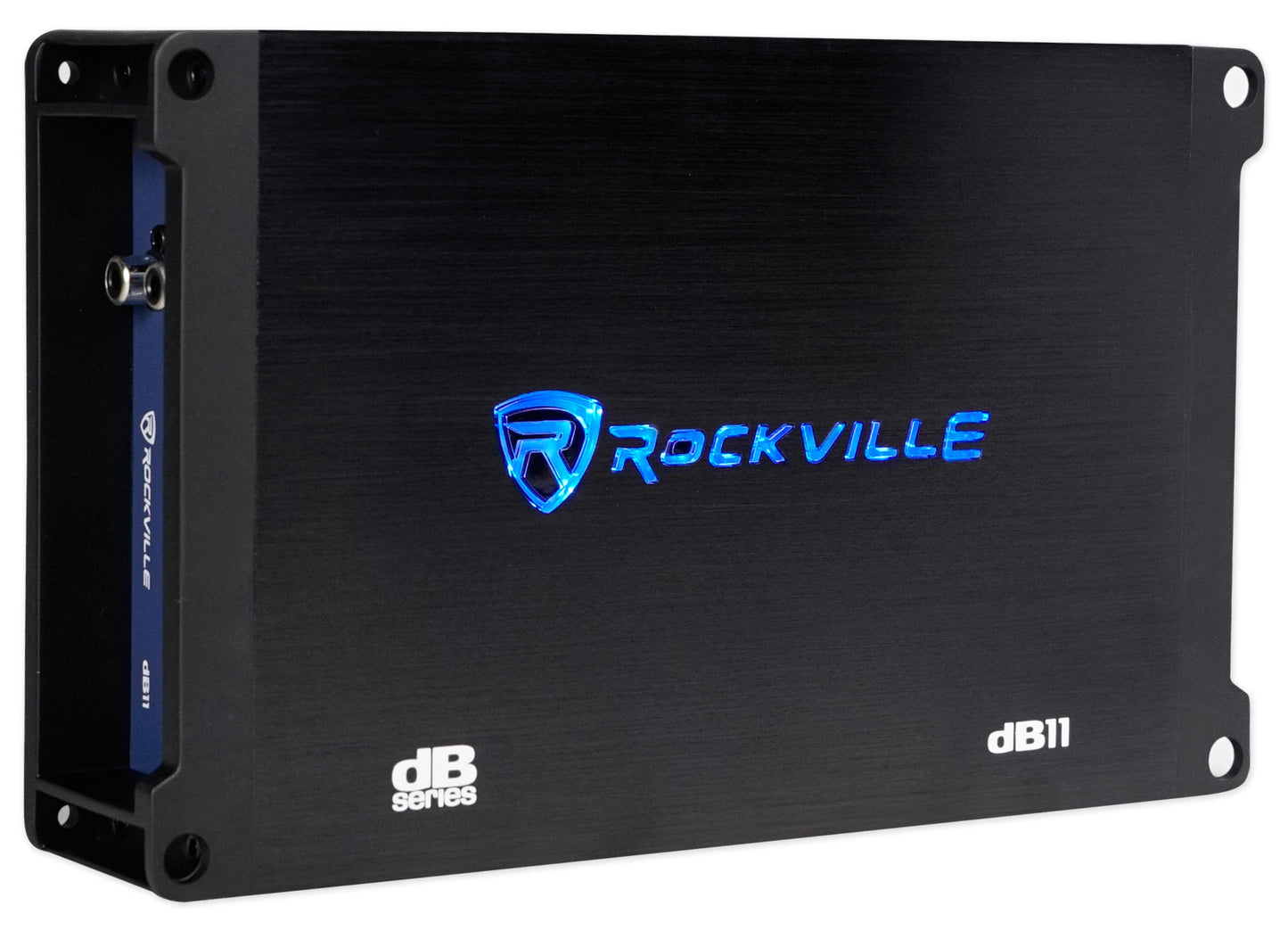

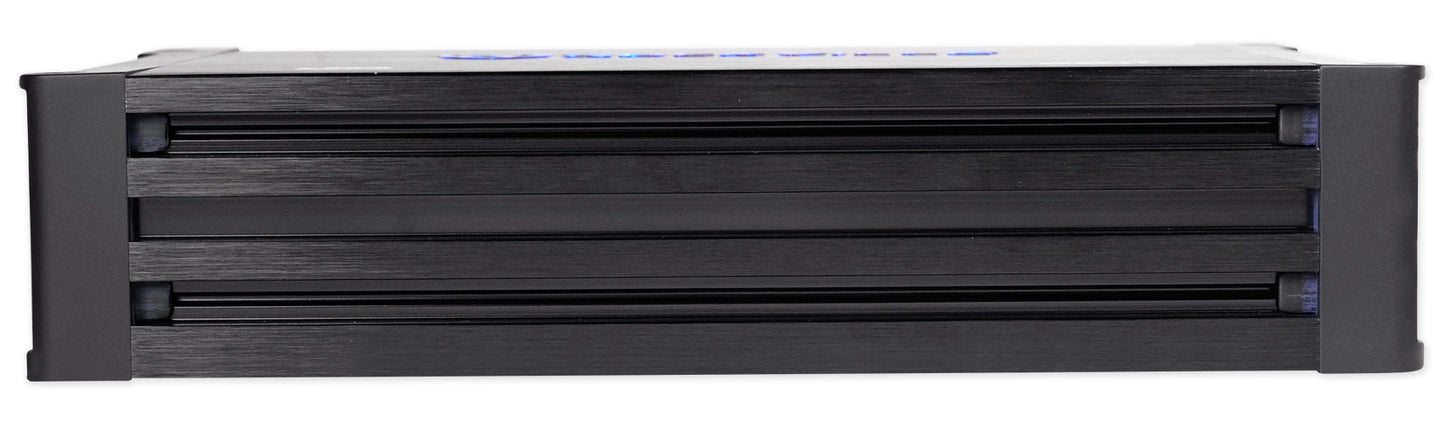

• Rockville dB11 1400 Watt Peak/350 Watt Dyno-Certified RMS Mono 2-Ohm Amplifier Car Amp+Bass Remote
• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
  - 2 Ohm: 350 Watts x 1 Channel <1% THD+N
  - 4 Ohm: 220 Watts x 1 Channel <1% THD+N
• Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
  - 2 Ohm: 1400 Watts x 1 Channel
  - 4 Ohm: 880 Watts x 1 Channel
• High-Speed MOSFET Power Supply
• Optical Coupler Class "D" Technology

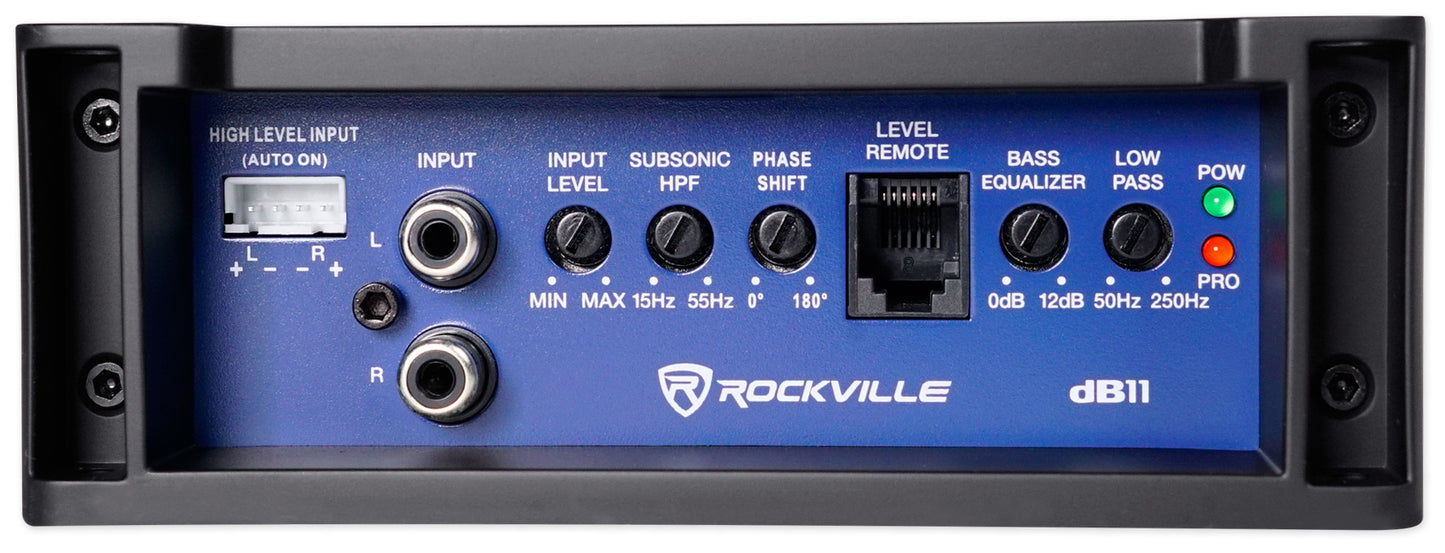

• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• Low Pass Filter: 50Hz - 250Hz
• Subsonic Filter: 15Hz - 55Hz
• Phase Control
• Full IC-Controlled Protection Circuitry
• Fully Adjustable 12dB Bass Equalizer
• Mute and Delay Soft Start System
• Status Mode LED Indicator
• Minimum THD at Rated Power: <0.1%
• S / N Ratio: >90dB
• Under Voltage Protection at 10V
• Over Voltage Protection at 16V
• Frequency Response: 15Hz - 250 Hz

Owner’s Manual

---

Video of RWK81:

Description:

The Rockville RWK81 8 AWG (American Wire Gauge) amp kit has the following diferences over other amp kits on the market at this price point.

1. Our RCA cables are 100 % copper. These are top of the line RCA cables.

2. Better Resistance: The only thing that really matters with wires is the resistance rating. This is a measurement of conductivity and how much signal is loss per foot of wire. Since Rockville wires are made with around 3 times as much copper as any other wire at this price point, these wires had a much better resistance rating which means they will transfer more power to your amps than the other brands.

3. We do not cheat you on the thickness of the wire. These are standard American wire gauge thickness. This is another reason our conductivity is better than anything else at this price point. Other brands in the market place write 8 gauge, but cheat you on the thickness. We are honest about the thickness.

4. The Rockville amplifier installation kits feature a new soft abrasion proof insulating jacket. This rugged PVC outer jacket allows for 100% improved flexibility over standard power cables making them extremely easy to route through your vehicles interior, and it maintains exceptional resistance to grease and oil. The PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F.

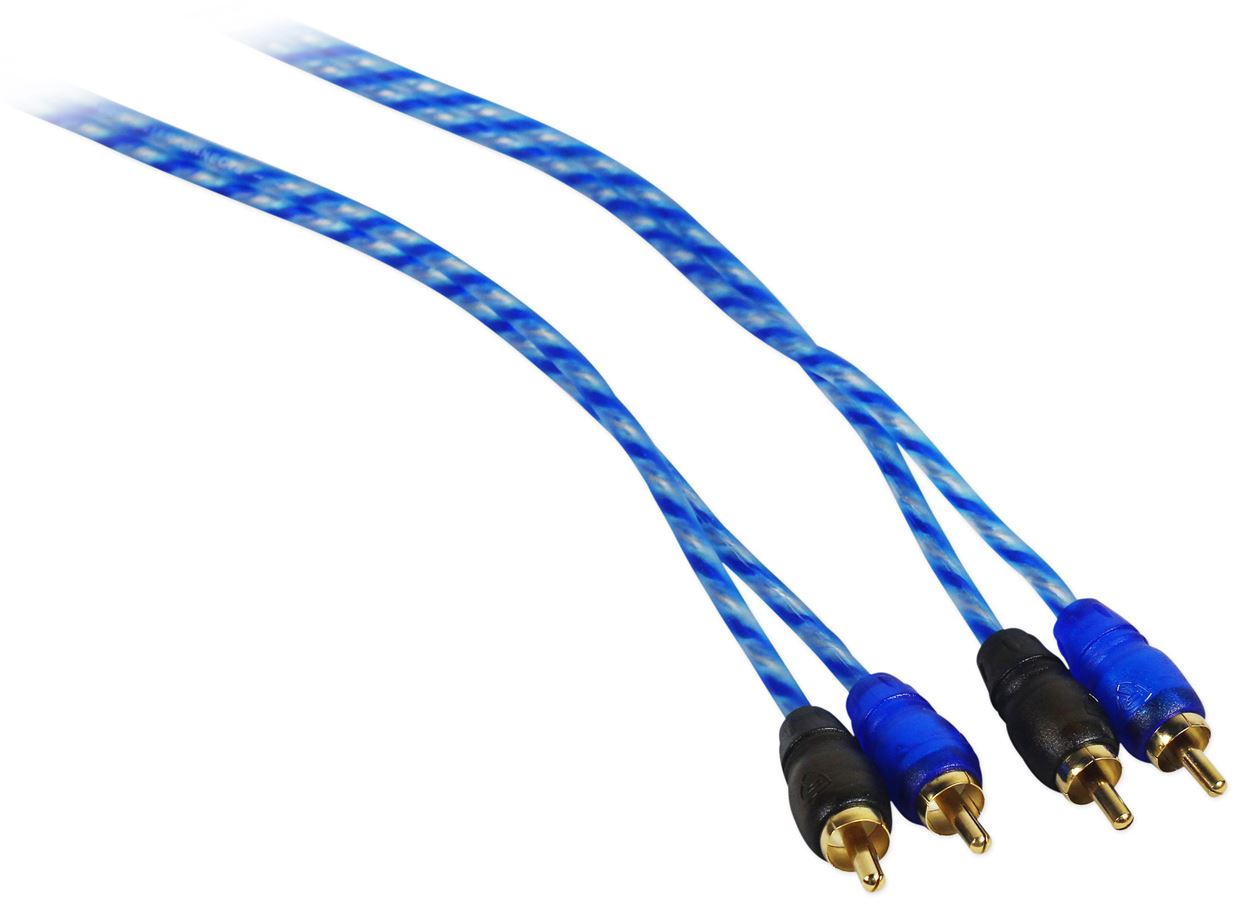

The RCA signal transfer cables included in this kit feature blue and silver twisted pair technology in a clear outer jacket insulation skin. Not only do the blue and silver wires look cool but they also provide superior signal transfer with maximum noise suppression. They are 100% copper to provide absolute lossless perfect signal transfer to your receiver. This technology reduces interference, so your audio signal flows clean and pure at all power levels.

This kit also includes a massive 60 Amp AGU Gold Plated Fuse, so you can be sure it will handle the all the DC power that your amp will need without even the slightest loss of current. The included 7 split loom tube provides protection for your power cable from the typically harsh environment found under the hood of your car.

Audiosavings product experts have tested this amp kit against many leading amp kits on the market and were were impressed not only by the great looks but by the quality of these Rockville installation kits as well. These kits had a lower resistance rating than the other brands we compared and tested them against. What this means is that Rockville manufactures their kits with more copper than other kits at this price point, ultimately providing your amplifiers with better and cleaner DC power, so they work cooler and more efficiently. You will hear the difference a Rockville installation kit will make!

One other last thing worth noting about our kit compared to others. Our kit cosmetically looks the best. It has blue power wire, clear ground wire, and twisted pair RCAs with matching colors. This model includes (1) sets of RCA cables.

Features:

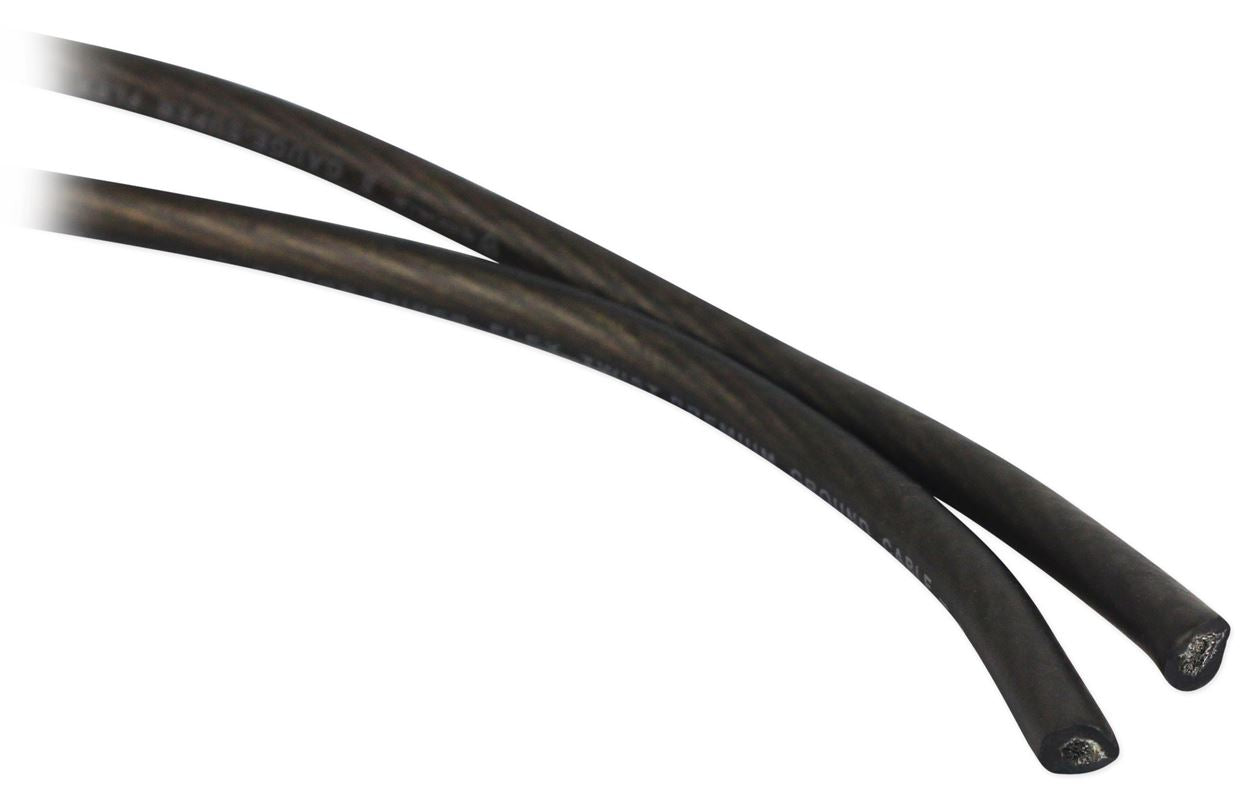

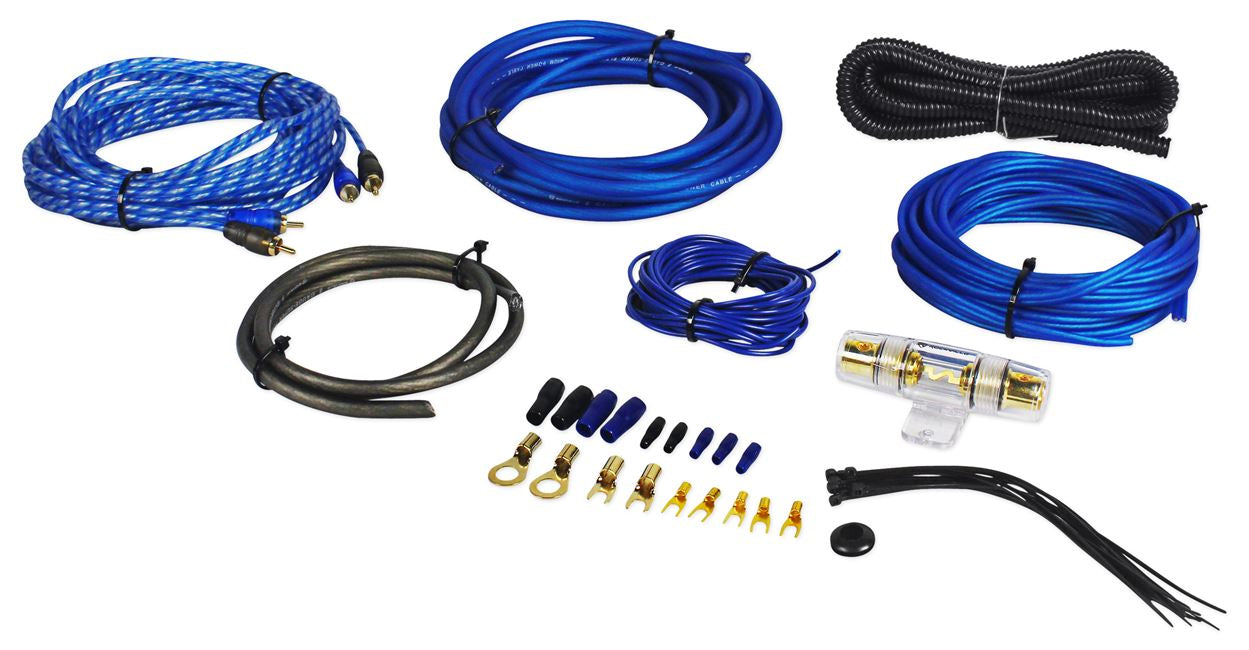

• Rockville RWK81 8 Gauge 2 Channel Car Amplifier Wiring Installation Kit
• (1) 17' High Grade Twisted Pair of 100% Copper RCA Cable

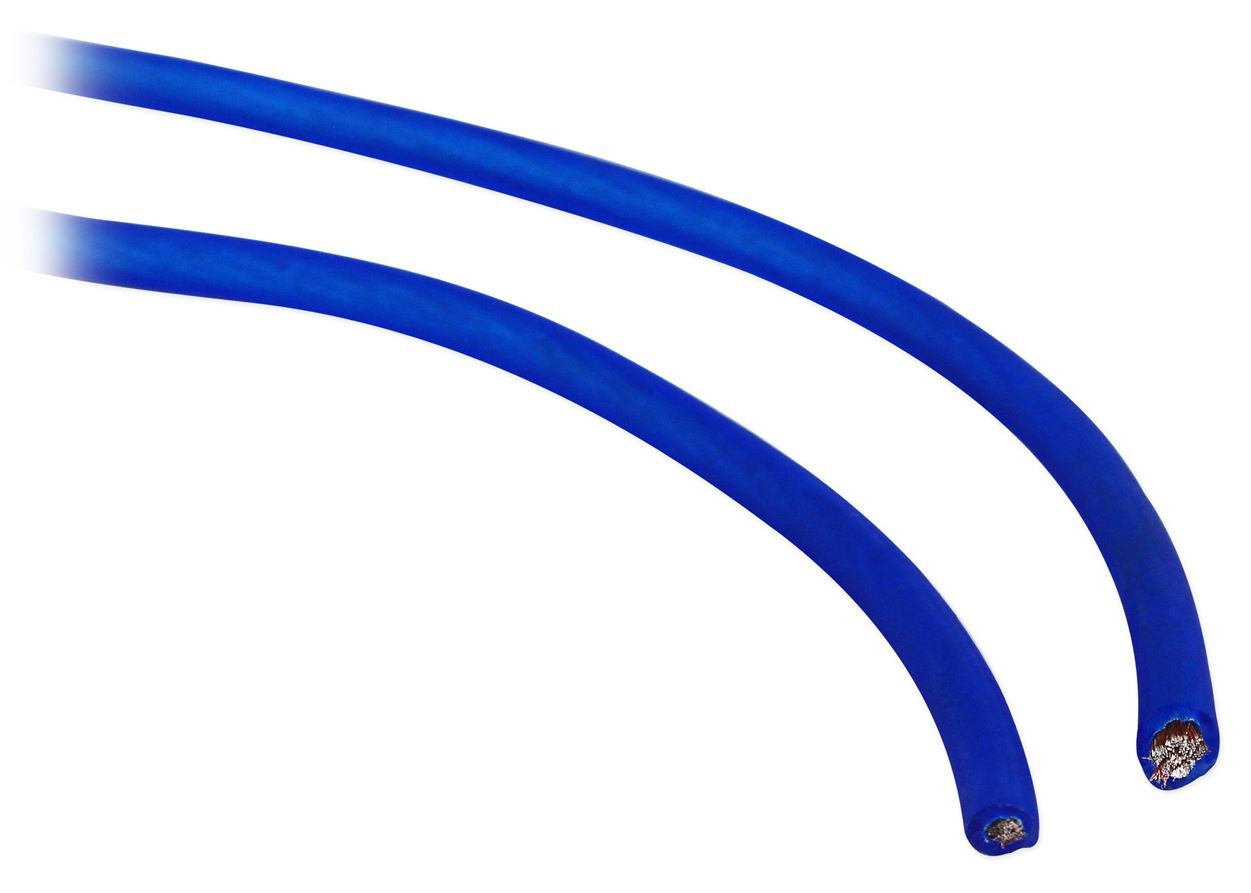

• 17' 8 Gauge Translucent Blue Super Flex Power Cables
• 17' 18 Gauge Blue Remote Cable
• 17' 16 Gauge Clear Speaker Wire
• 3' 8 Gauge Super Flex Ground Wire
• Gold Plated AGU Heat Resistant Fuse Holder
• 60 Amp AGU Gold Plated Fuse

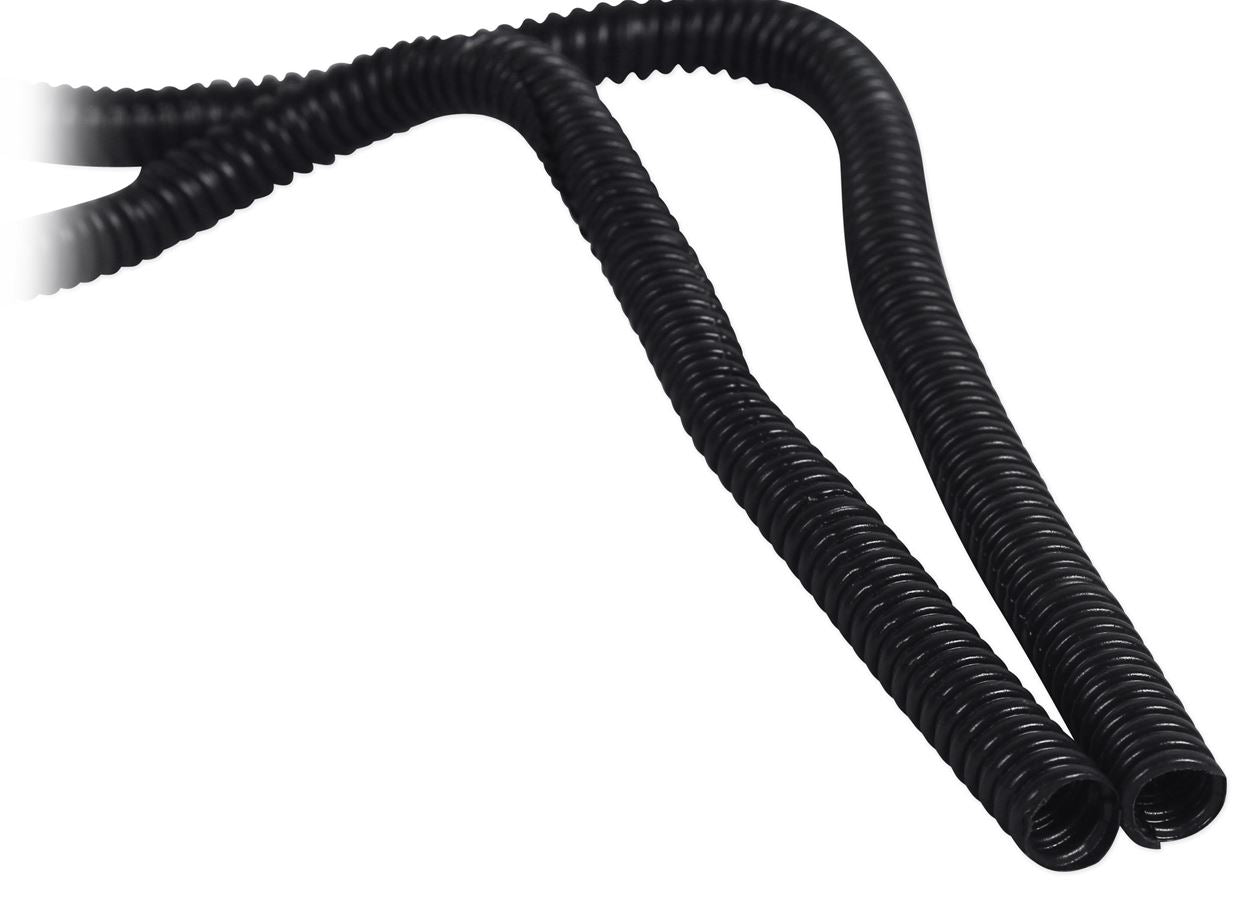

• 7' Split Tube Loom
• Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets
• Soft abrasion proof insulating jacket allows for 100% improved flexibility
• PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F

---

The Rockville Difference:

Whenever you see the Rockville shield on a product you know that it has the stamp of approval. While other companies simply import products from China, Rockville manufactures the products in China to lower your cost but do so under American style supervision and quality standards to get you that USA quality that you want!

About Rockville Quality Control Procedures:

The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty, though it is unlikely that you will need to use it.

Great features and great quality make Rockville a great choice.

---

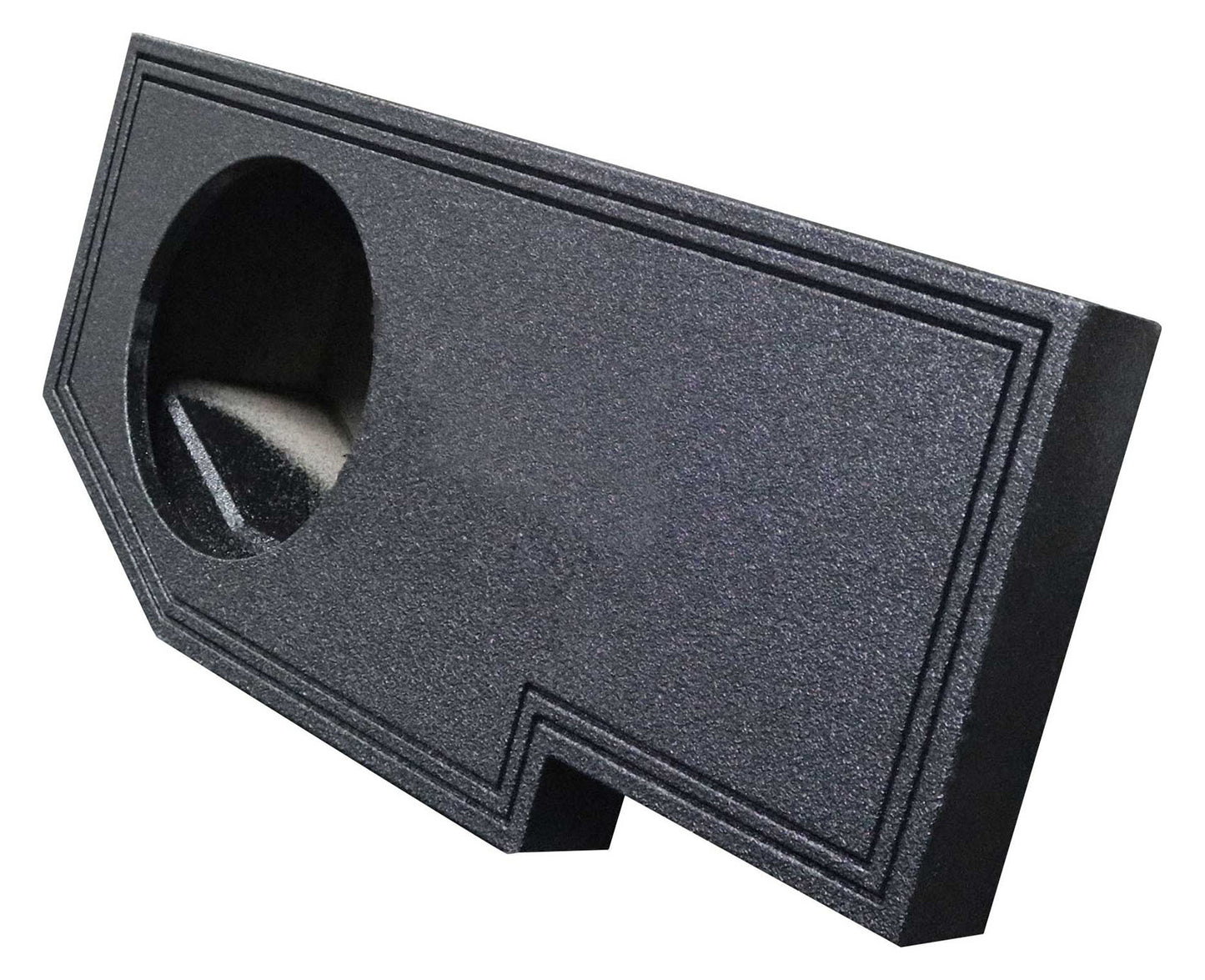

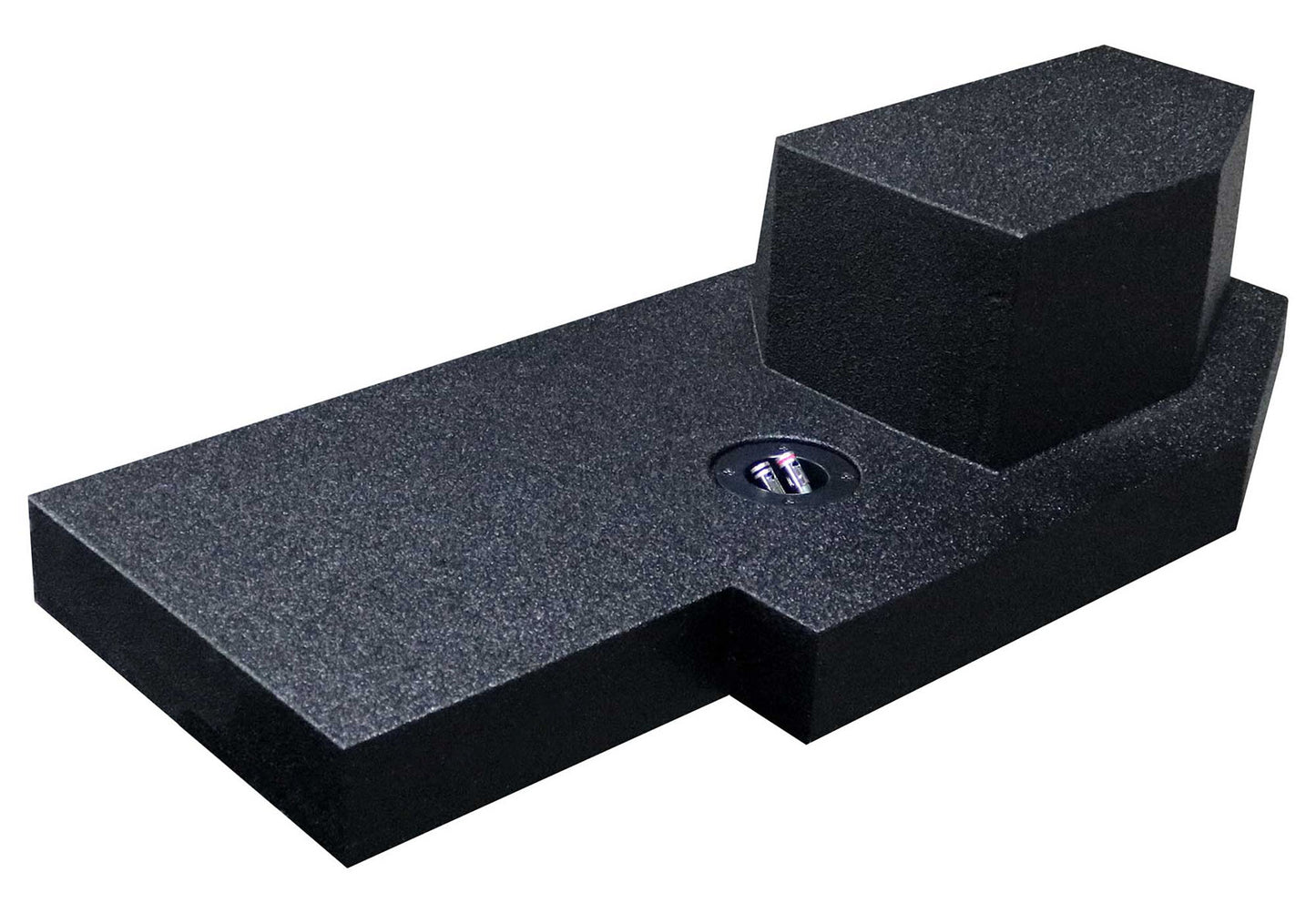

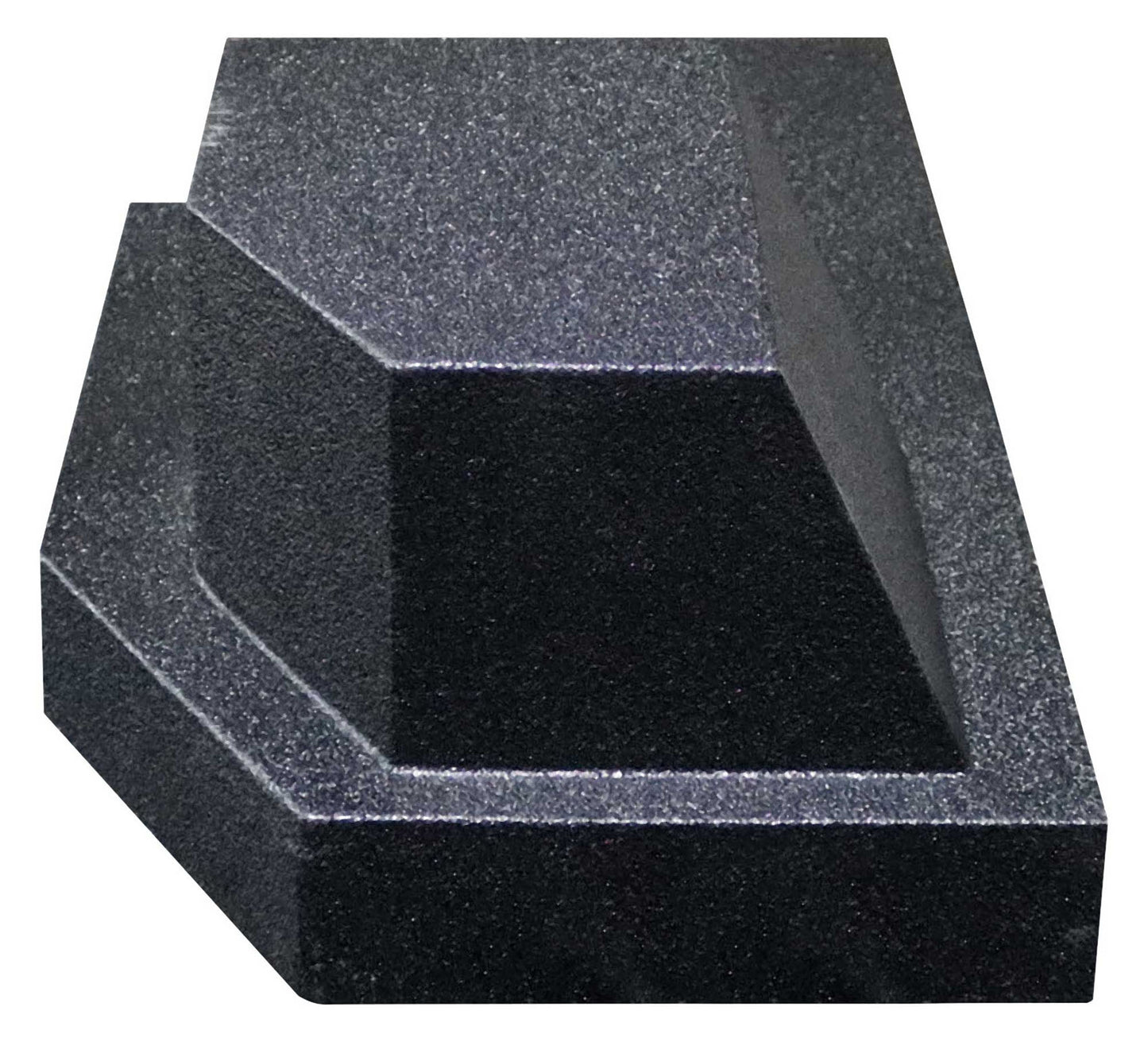

Description:

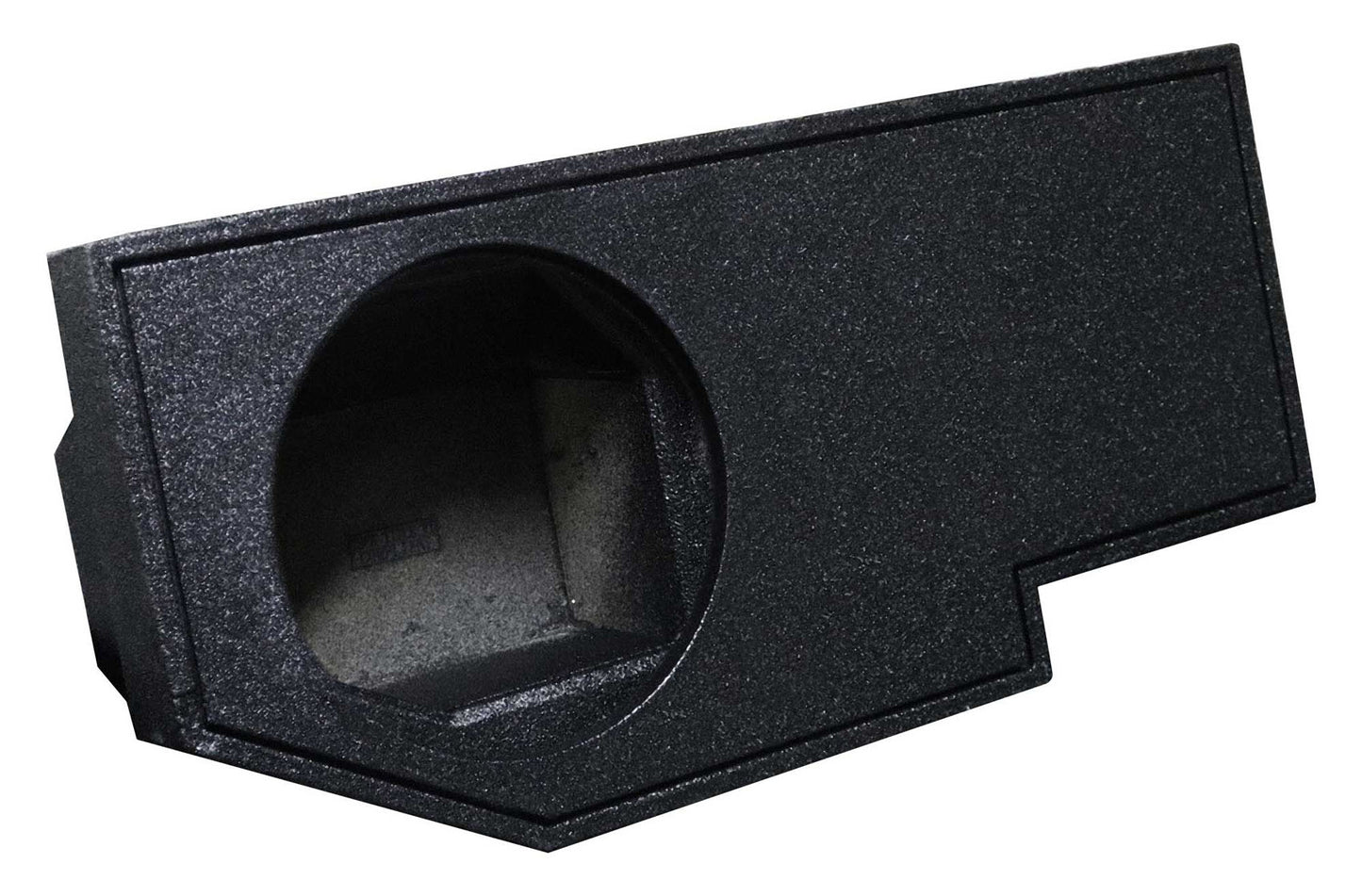

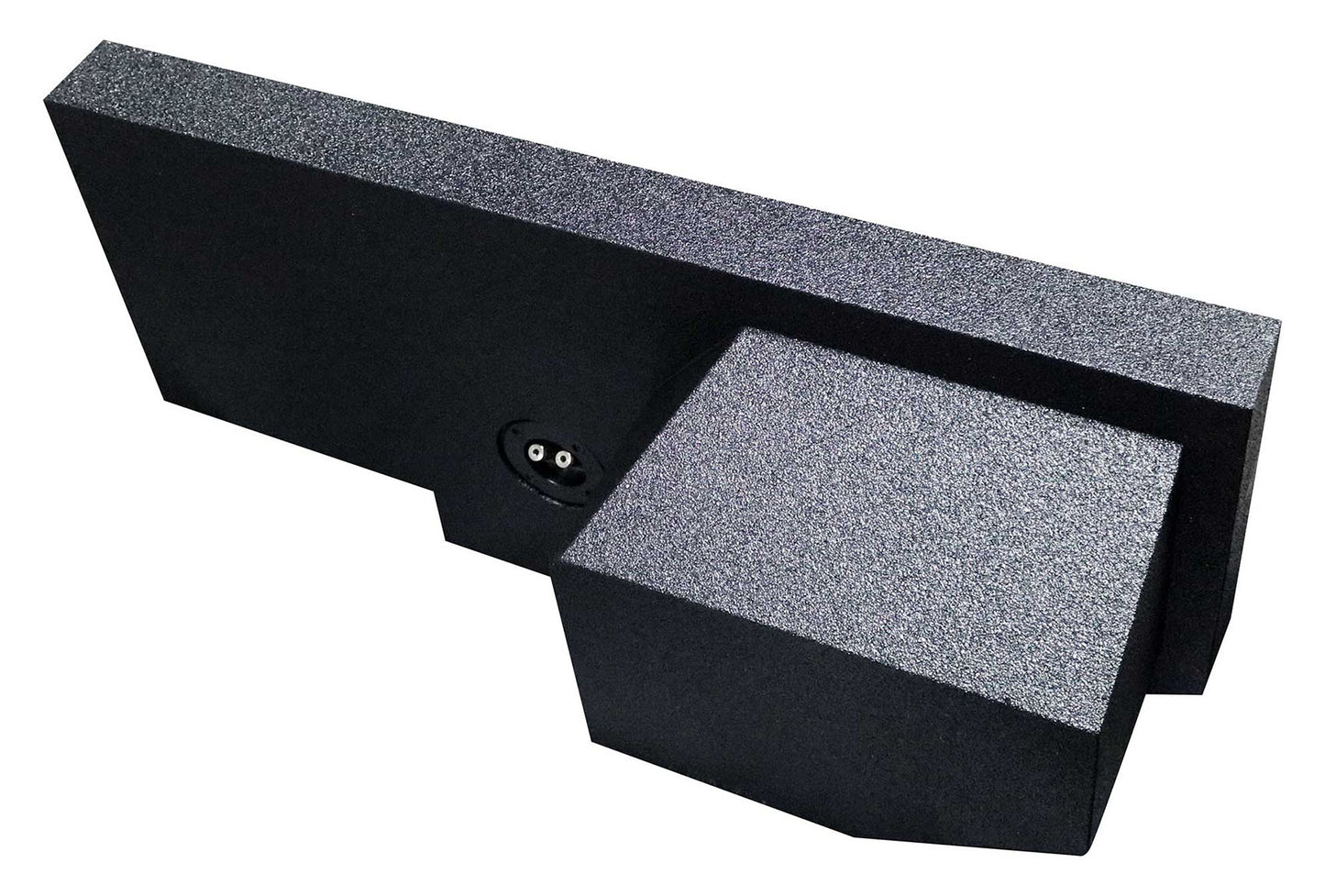

The REC128 speaker box is made in the USA with Grade "A" 5/8" MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The 5/8" USA MDF is much stronger than any type of import wood. This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you! EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn't enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more! MADE IN THE USA WITH PRIDE!

Features:

REC128 Single 10" Sealed Subwoofer Enclosure is Proudly Made In The USA, Using Only The Finest Quality materials - For The Best Level of Performance From Your Subs! This speaker box is custom designed for perfect fitment in a 2002- Current Dodge Quad Cab. The 5/8" USA Heavy Duty MDF Construction Machine precision cut mounting holes Top of the line Glue for extra durable adhesion Designed, tested, and engineered to work with most of today's popular woofers. These enclosures are built with the quality additives needed to maximize the performance of any sound system.

Enclosure Measurements:

• Type of Enclosure: Sealed Enclosure
• Sub Size: Single 10
• Dimensions in Inches: 8" x 13.5" x 29.5"
• Mounting Depth: up to 6.5"
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): 0.70 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 0.65 Cubic Feet

---

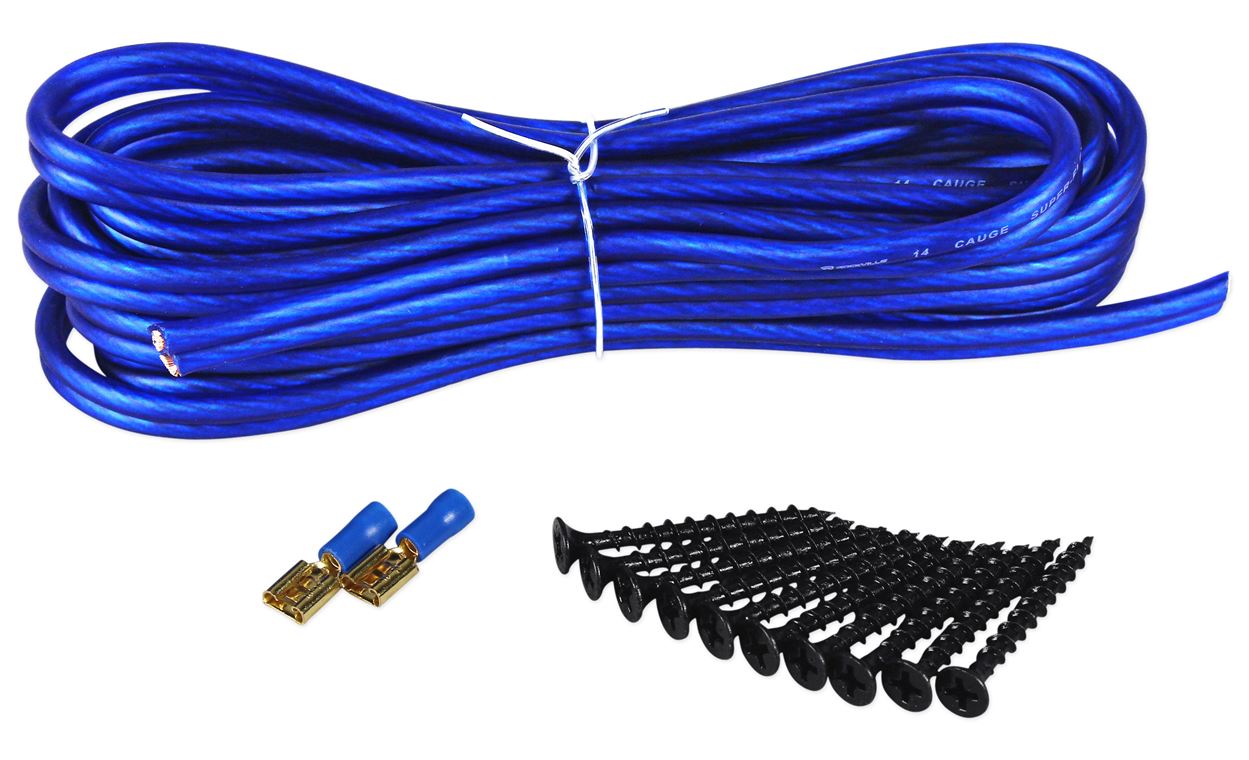

Complete Single Subwoofer Enclosure Installation Kit!

Includes:

• 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)

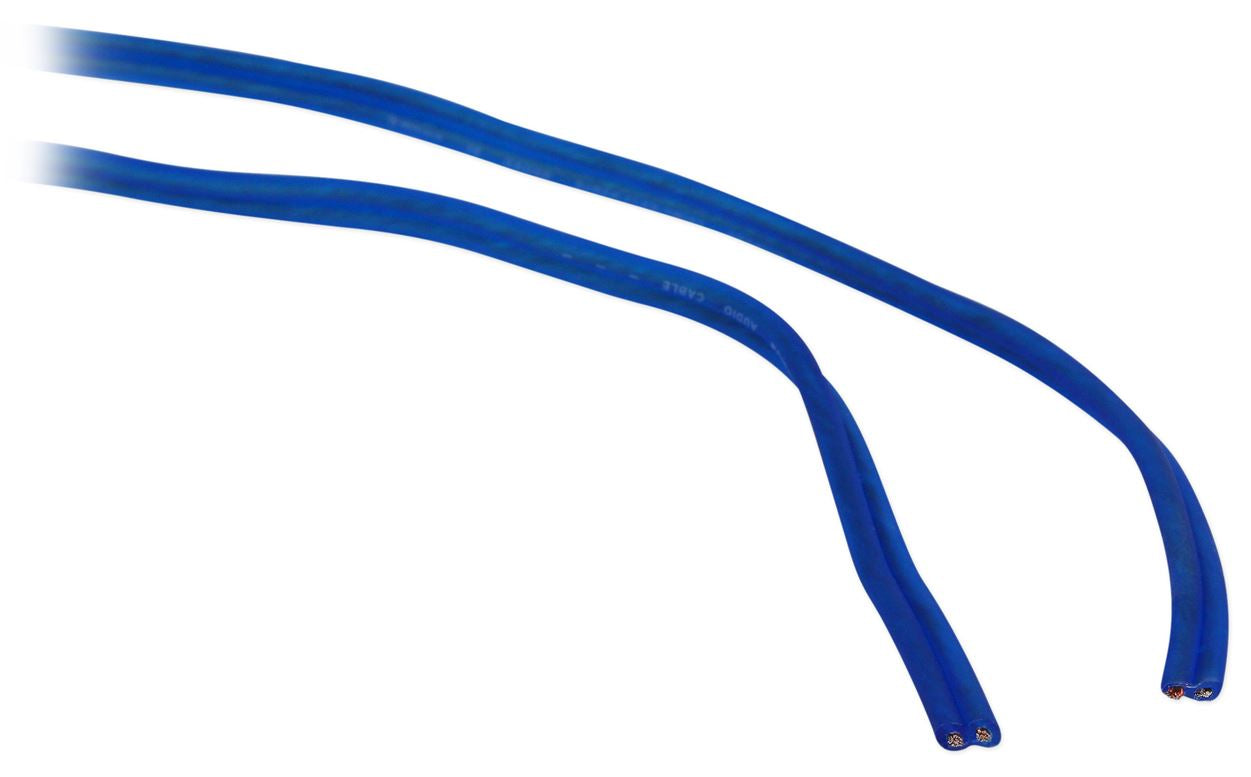

• 12 Feet of 14 AWG Blue Speaker Wire
• 2 Spade Terminals

This accessory package includes everything you need to install one subwoofer into an enclosure, and wire to connect the enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire. These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
