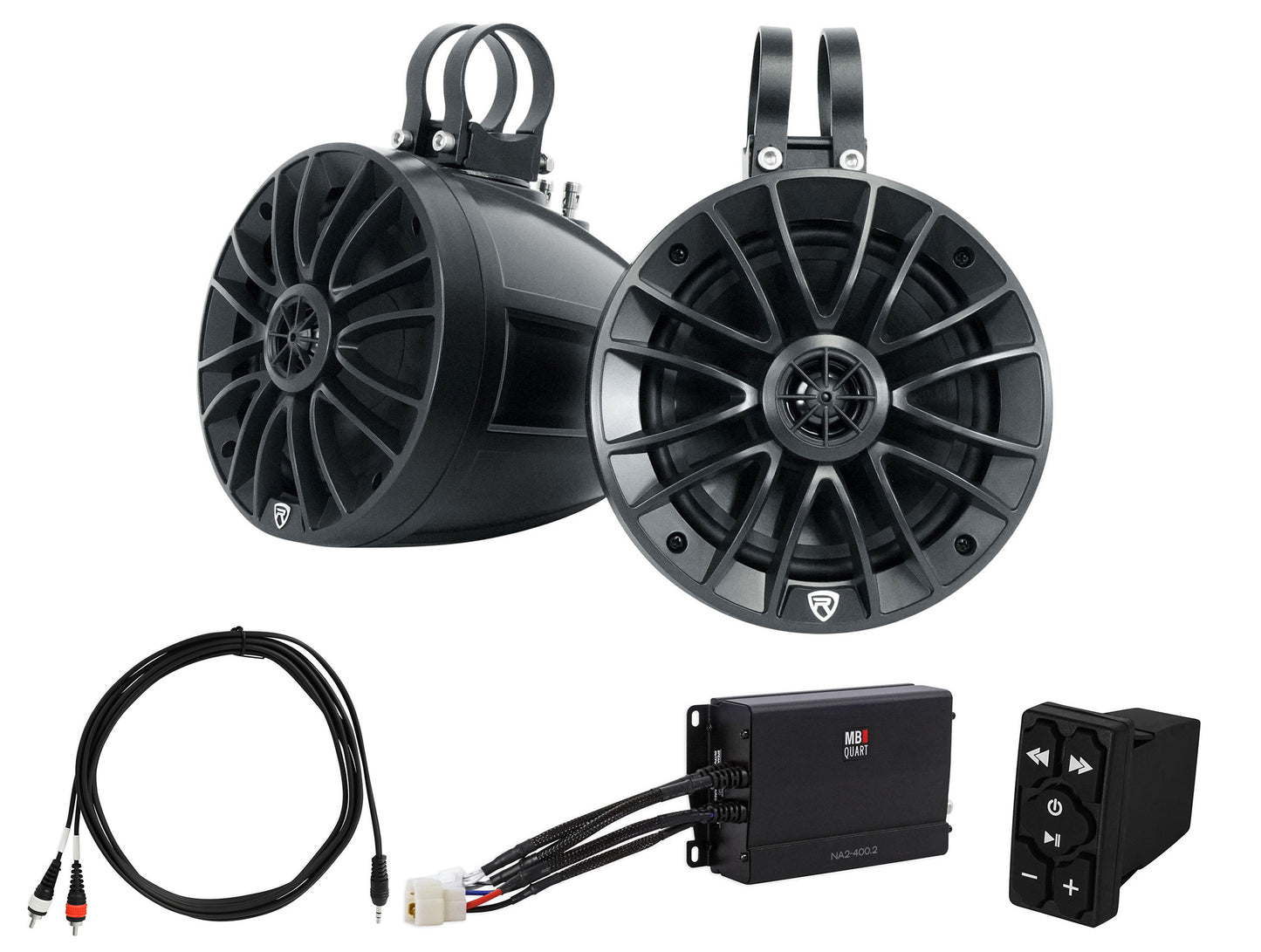

Package Includes:

• (1) Rockville UT65B UTV/ATV 6.5" Rollbar Wakeboard Marine Speakers/Swivel Mount/IPX6

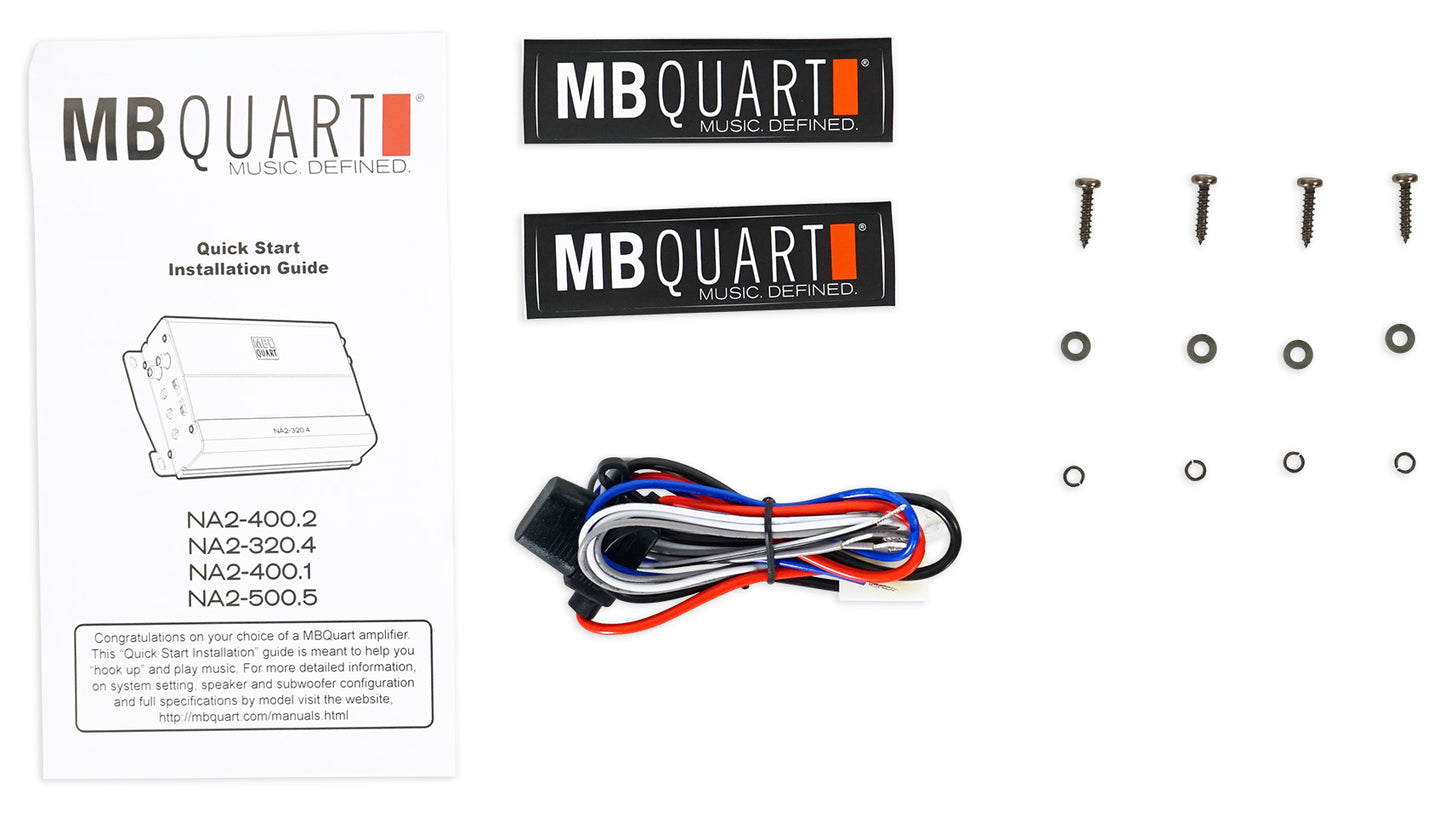

• (1) MB QUART NA2-400.2 400w 2-Channel Amplifier Amp For Polaris/ATV/UTV/RZR/CART
• (1) Rockville RockerBT Rocker Switch Bluetooth Controller+Aux For RZR/ATV/UTV/Cart
• (1) Rockville RNRMR10 10' 3.5mm 1/8" TRS to Dual RCA Cable 100% Copper

---

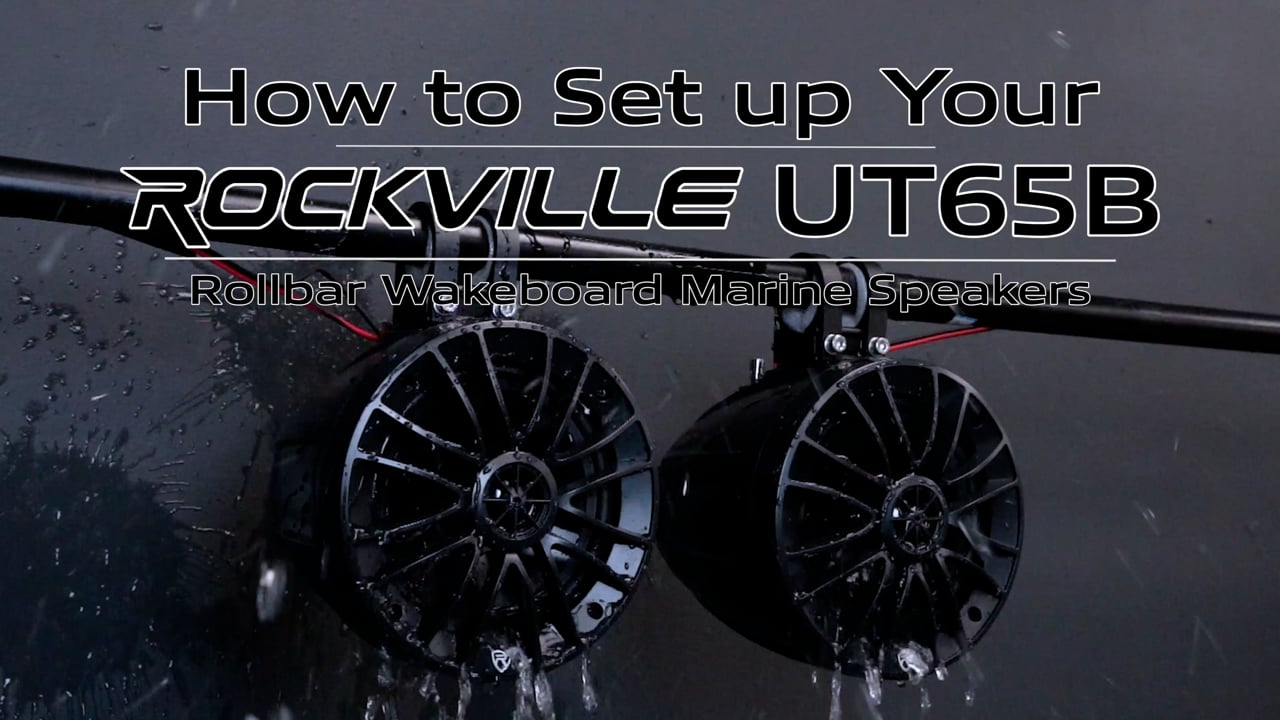

How To Set Up Your UT65B:

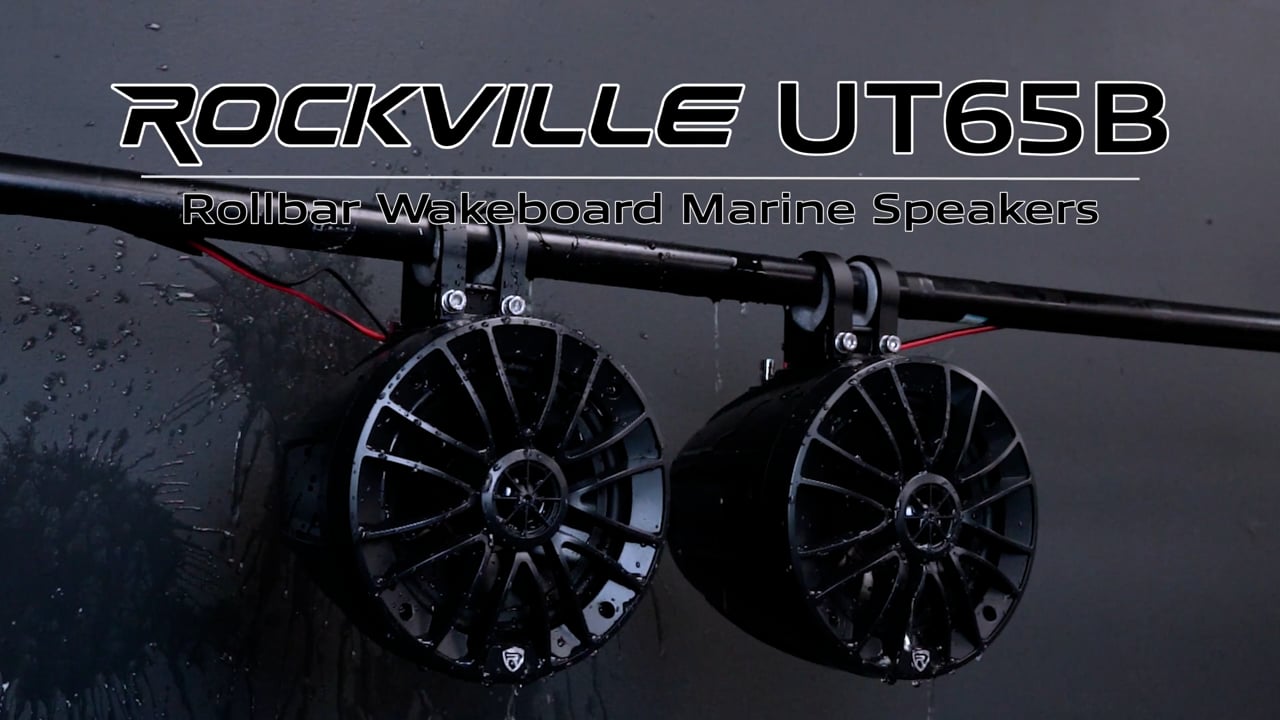

UT65B PRODUCT VIDEO:

What's In The Box:

• 2 swivel mount roll bar / wakeboard speakers

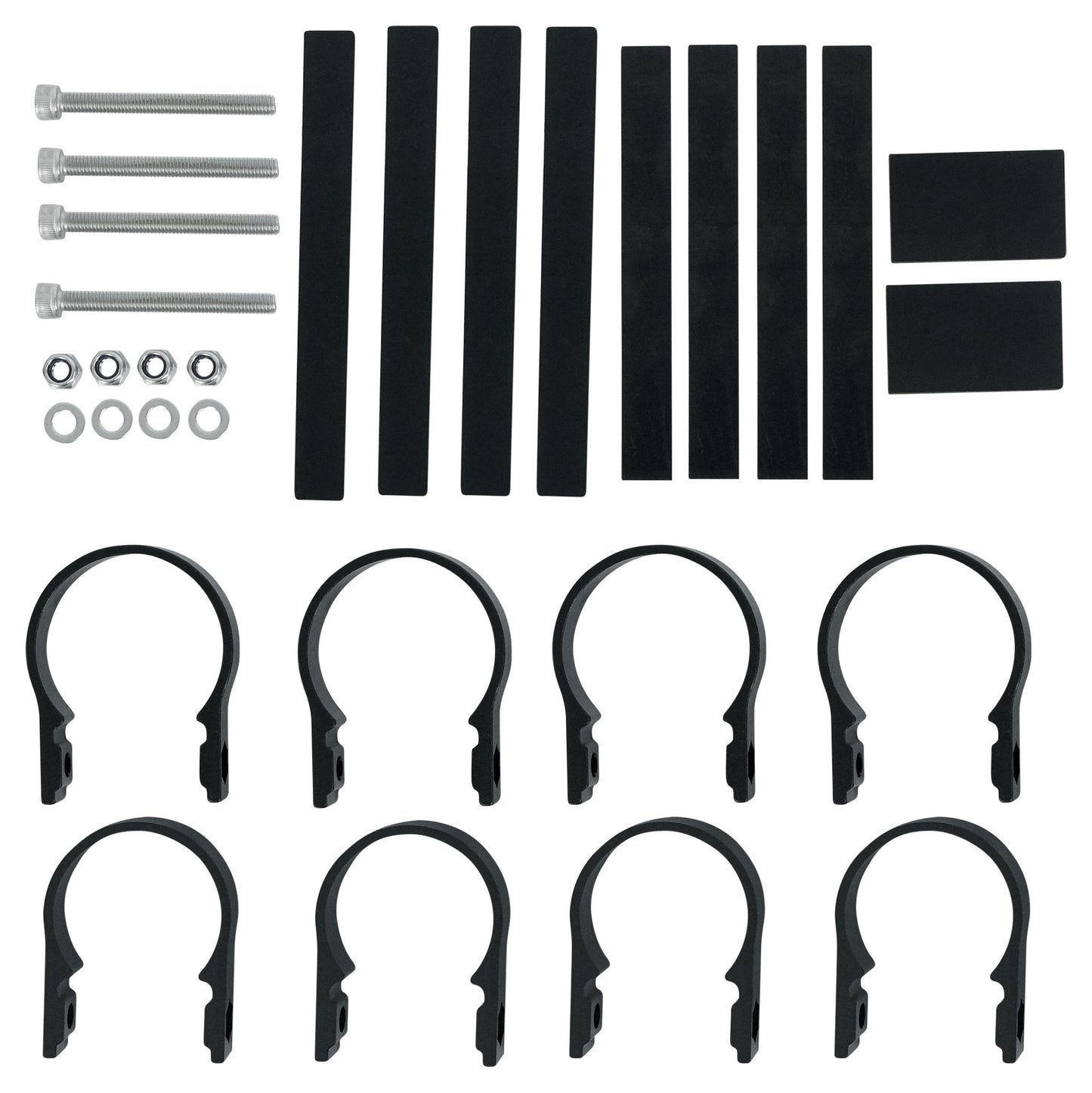

• Swivel Mounting brackets and mounting hardware to fit 1.5'' or 1.75" or 1.875" or 2" bars
• Installation Hardware

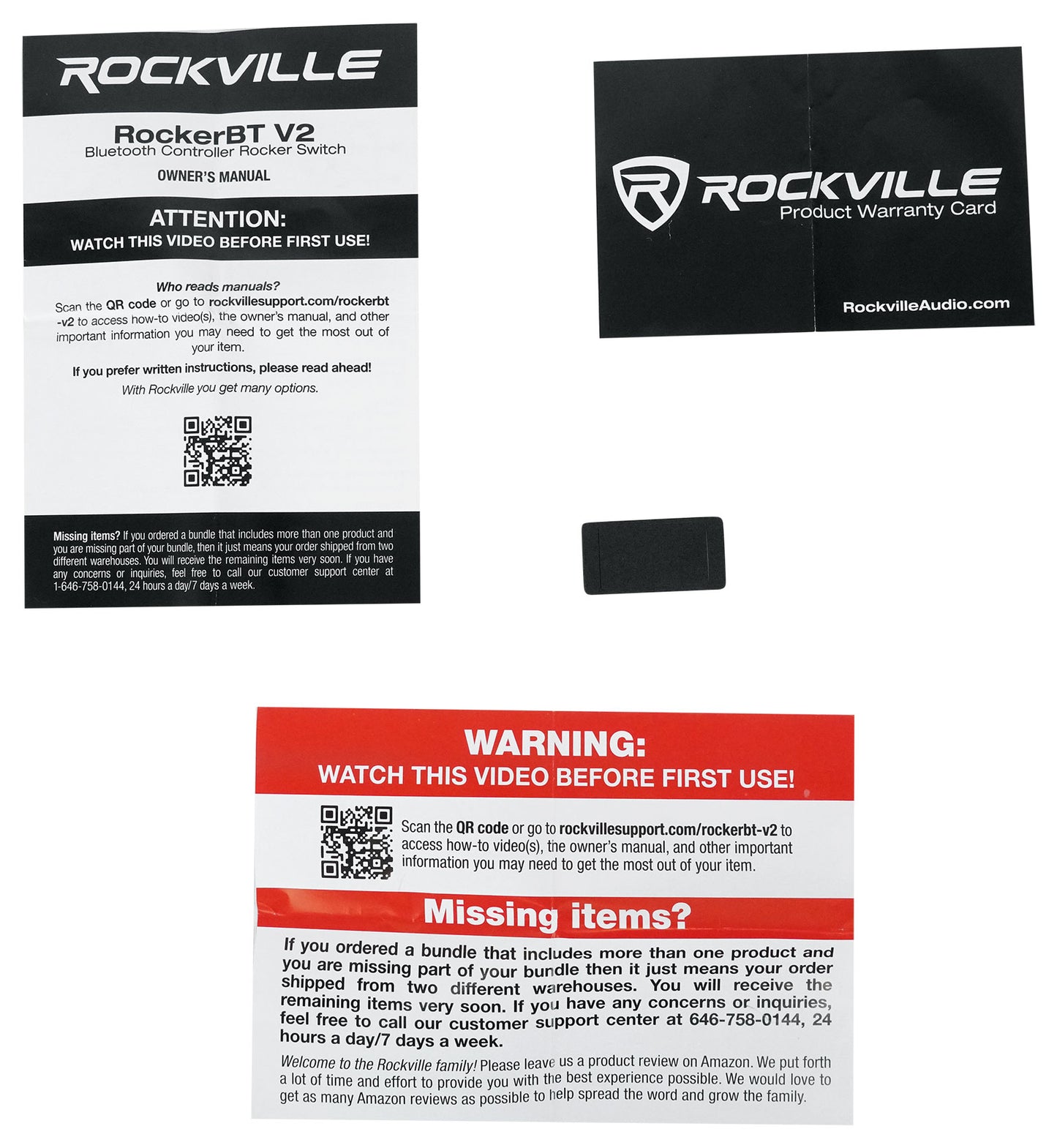

• Owner's Manual
• Warranty Card

Features:

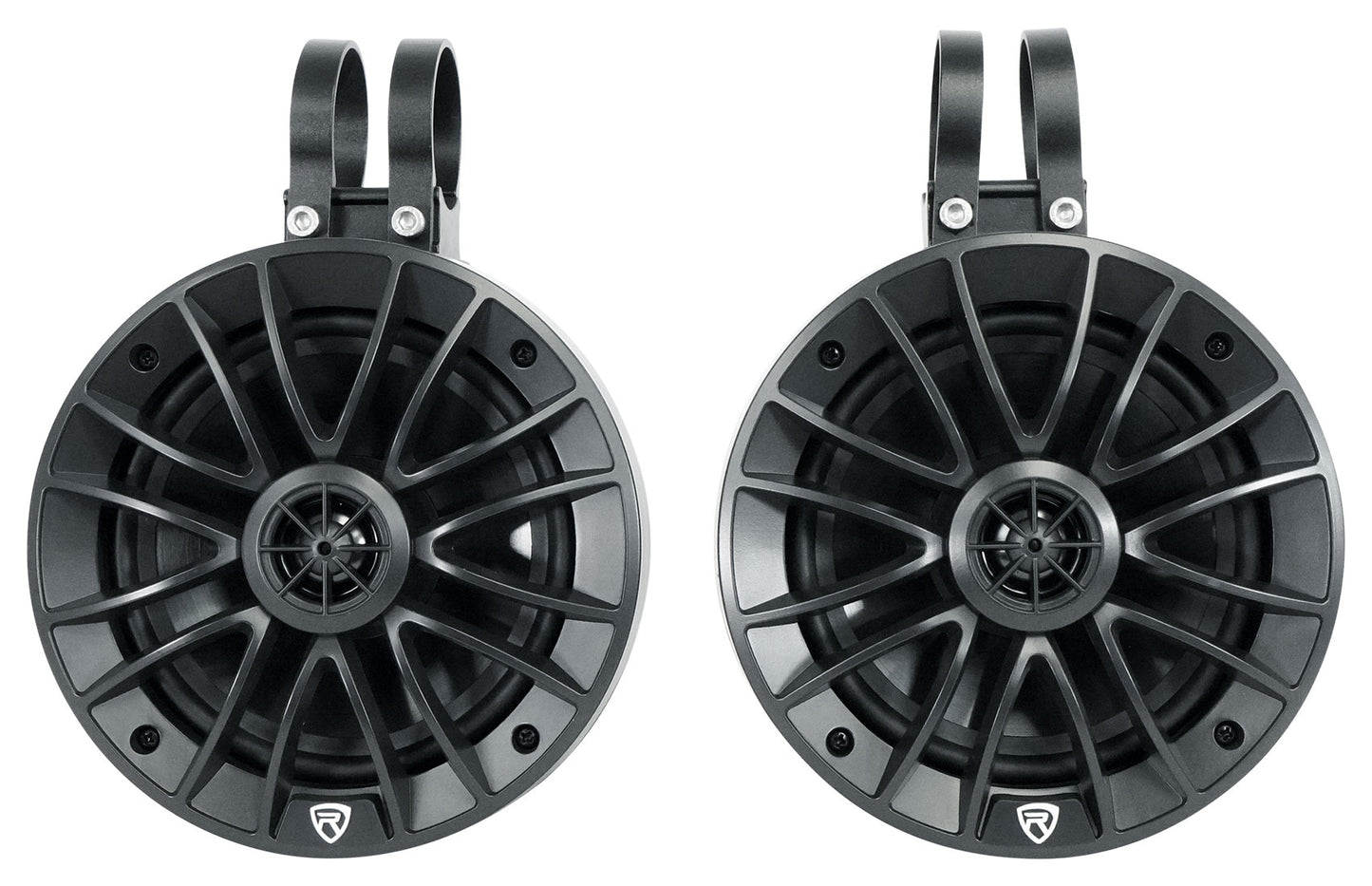

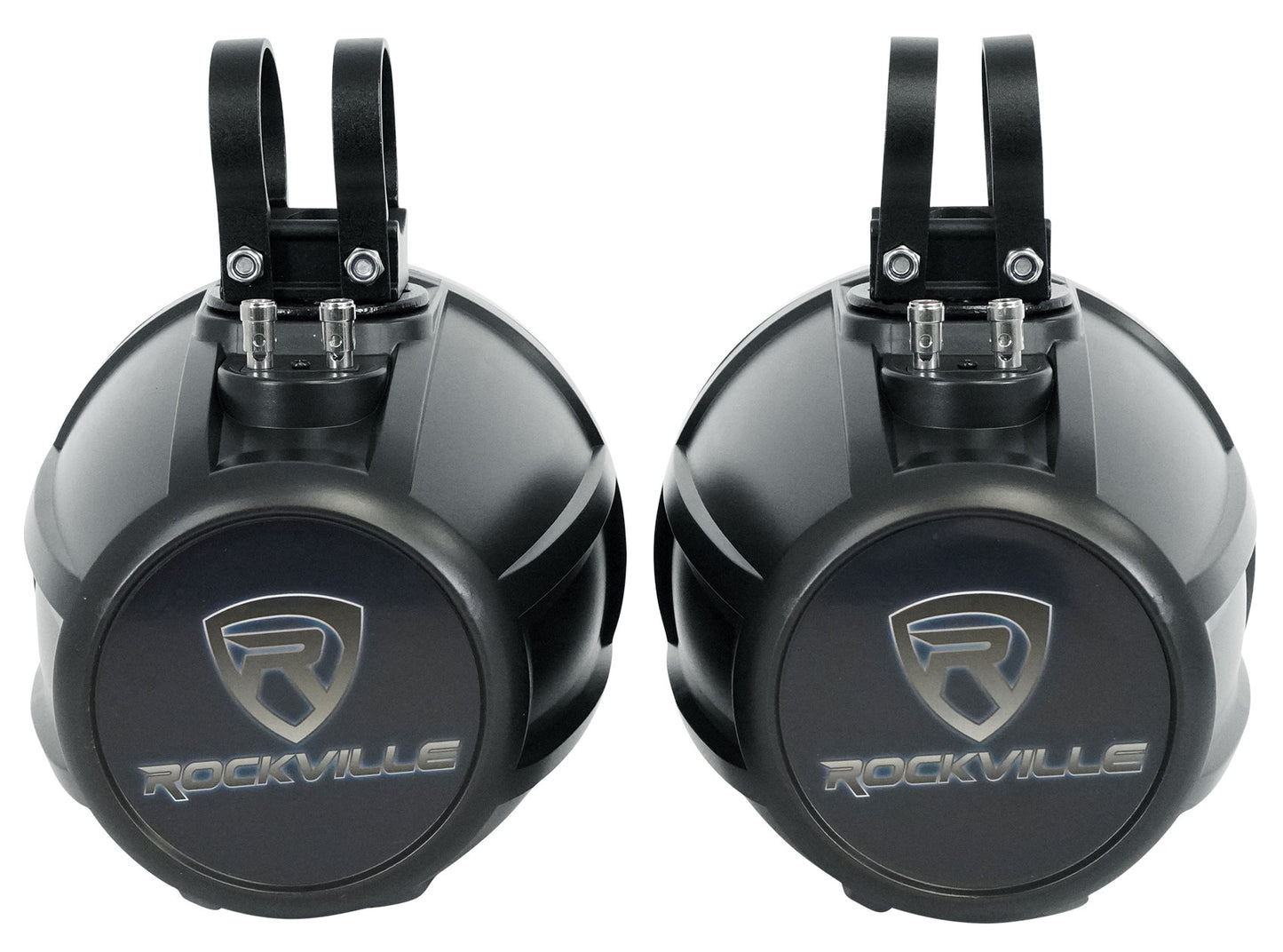

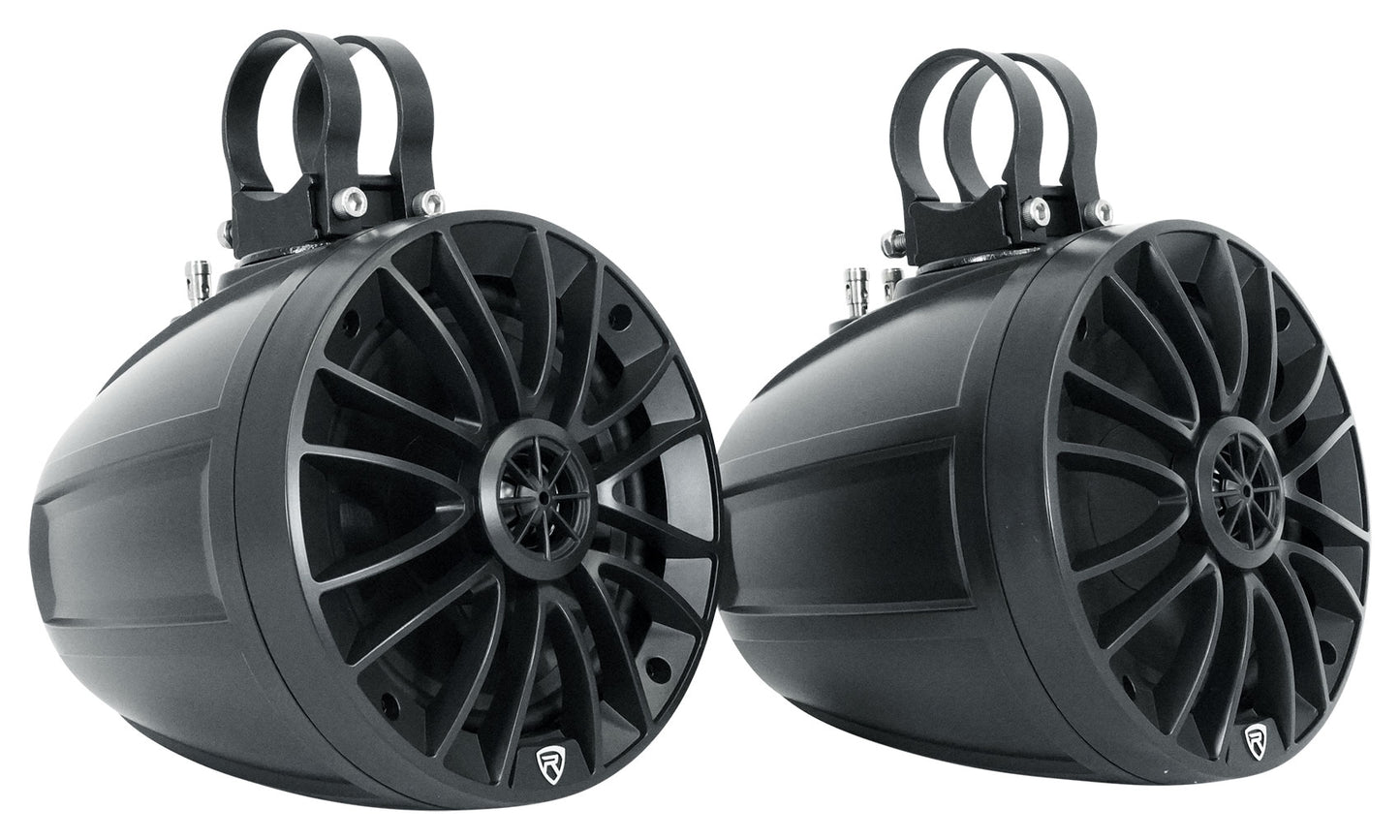

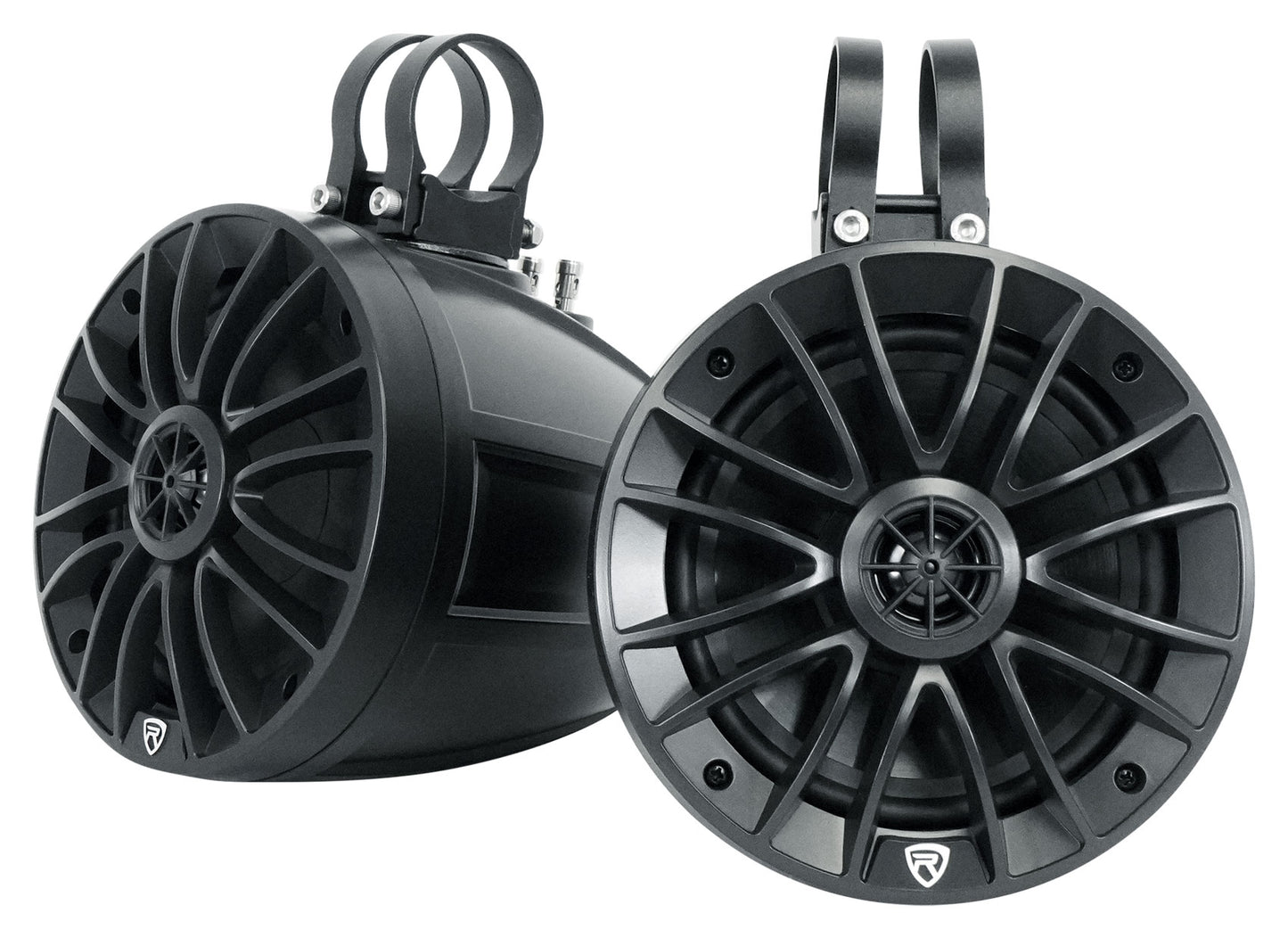

• Rockville UT65B Pair 6.5" Marine UTV/ATV Roll Bar / Wakeboard Tower Speakers
• Peak Power Handling: 400 Watts
• RMS Power Handling: 100 Watts
• True Coax Design With the Tweeter Completely Separated From the Cone
• Larger Cone Surface Area Gives Better Mids and Lows
• Less Mass Attached to the Cone Allows for Higher SPL and Sensitivity
• True coaxial design allows for superior sound quality, better stereo separation, and clearer mids and highs
• Heavy Duty ABS enclosure
• IPX6 Water Resistance Rated
• Marine-grade components are protected from the outdoor elements

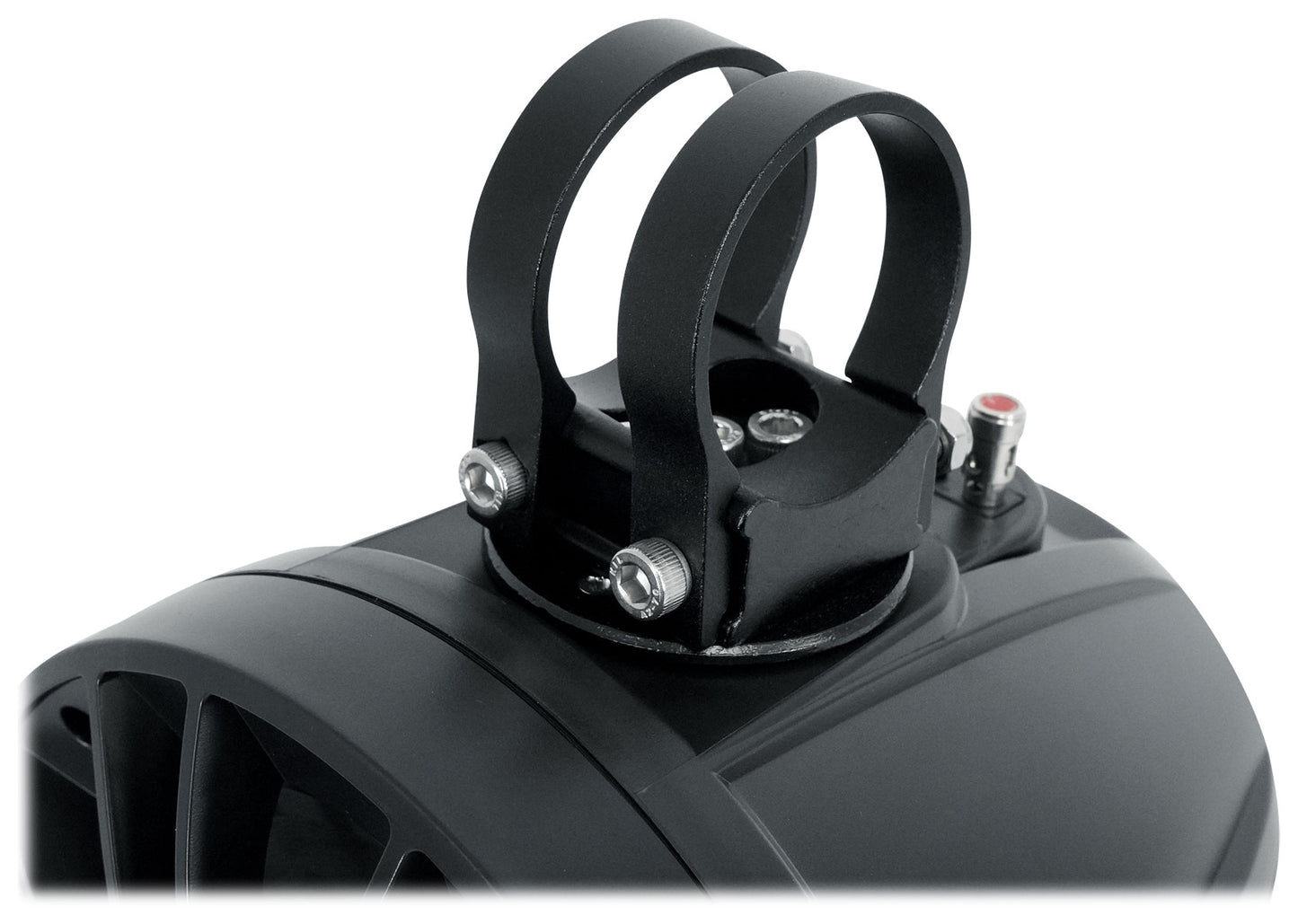

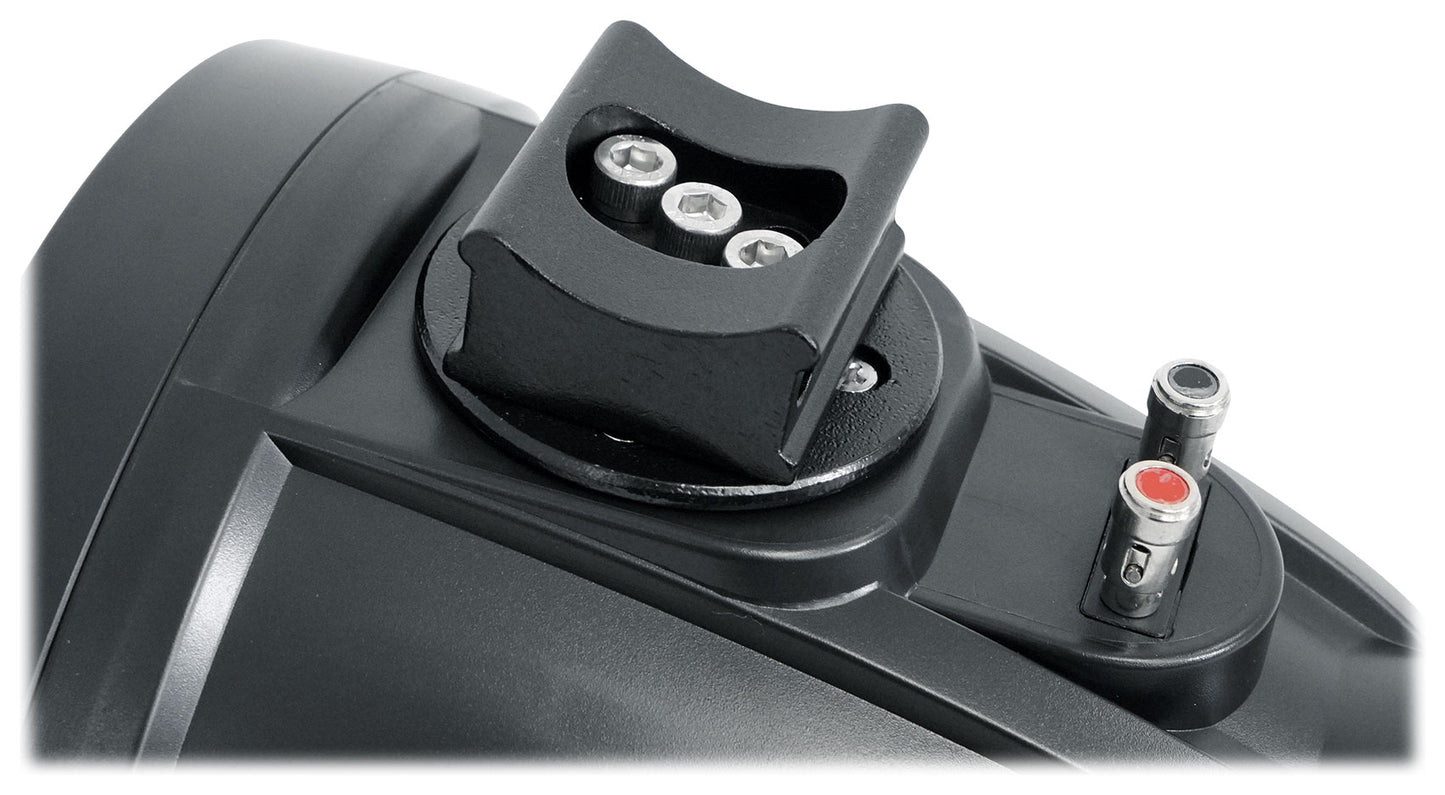

• Adjustable Aluminum Mounting Bracket is Strong and Sturdy
• Bracket Swivels 360 Degrees (Fixed swivel)
• Bracket supports any rollbar from 1.5" to 2" inches thick
• 6.5" Woofers with 11 oz Magnets and Oversized 1.25" Kapton Voice Coils
• 1" PEI Dome Tweeters with Neo magnets
• Fits wakeboard towers and roll bars ranging from 1.5" to 2" inches
• Shallow enclosure design is perfect for UTV, ATV, and marine applications
• Built-In Two-Way Crossover Network
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Resistant to Water, Rust, and UV Rays
• Terminals Are Sealed internally with silicone making them resistant to water
• Polypropylene Mica Injected Cone with Butyl Rubber Surround
• Frequency Response: 60Hz - 20KHz
• SPL: 87dB @ 1w/1m
• Impedance: 4 Ohms
• Shockproof Design
• ABS Weather Resistant Grills and Hardware
• CE and RoHS Certified
• Color: Black
• Dimensions (H x W x D): 9.84" x 7.17" x 7.32"

---

Features:

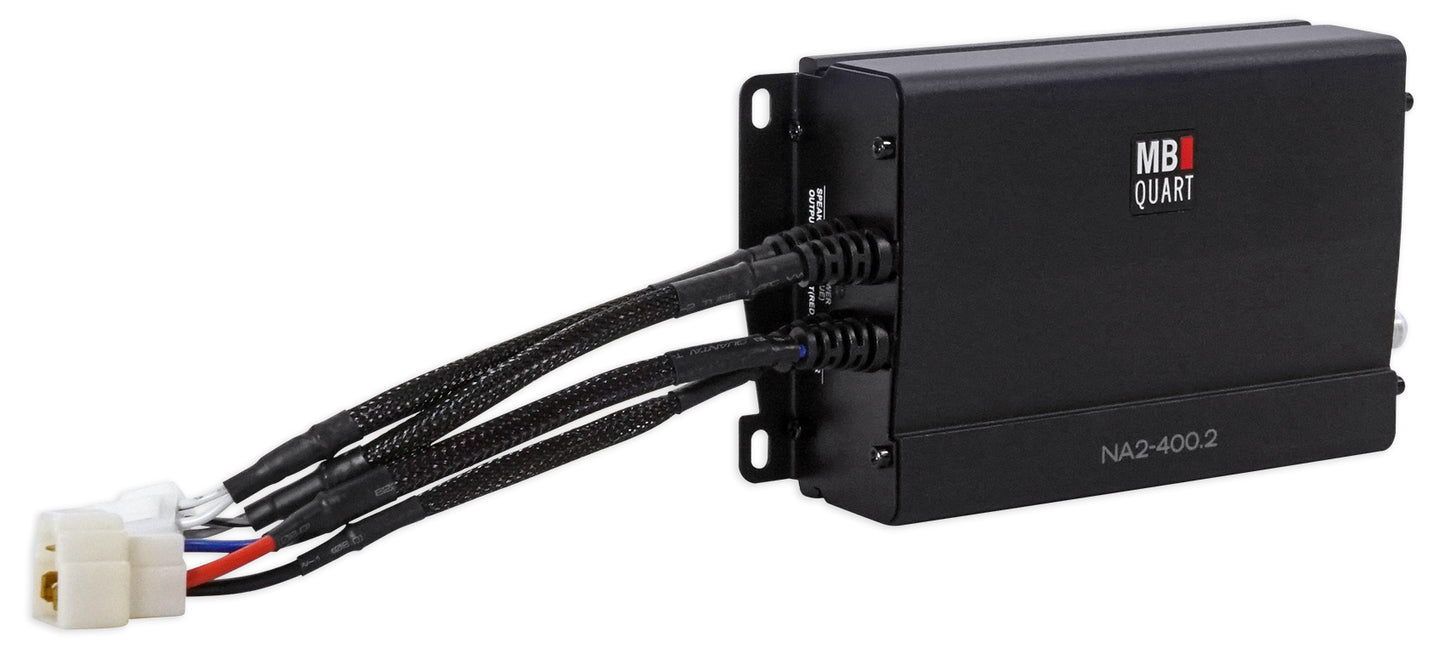

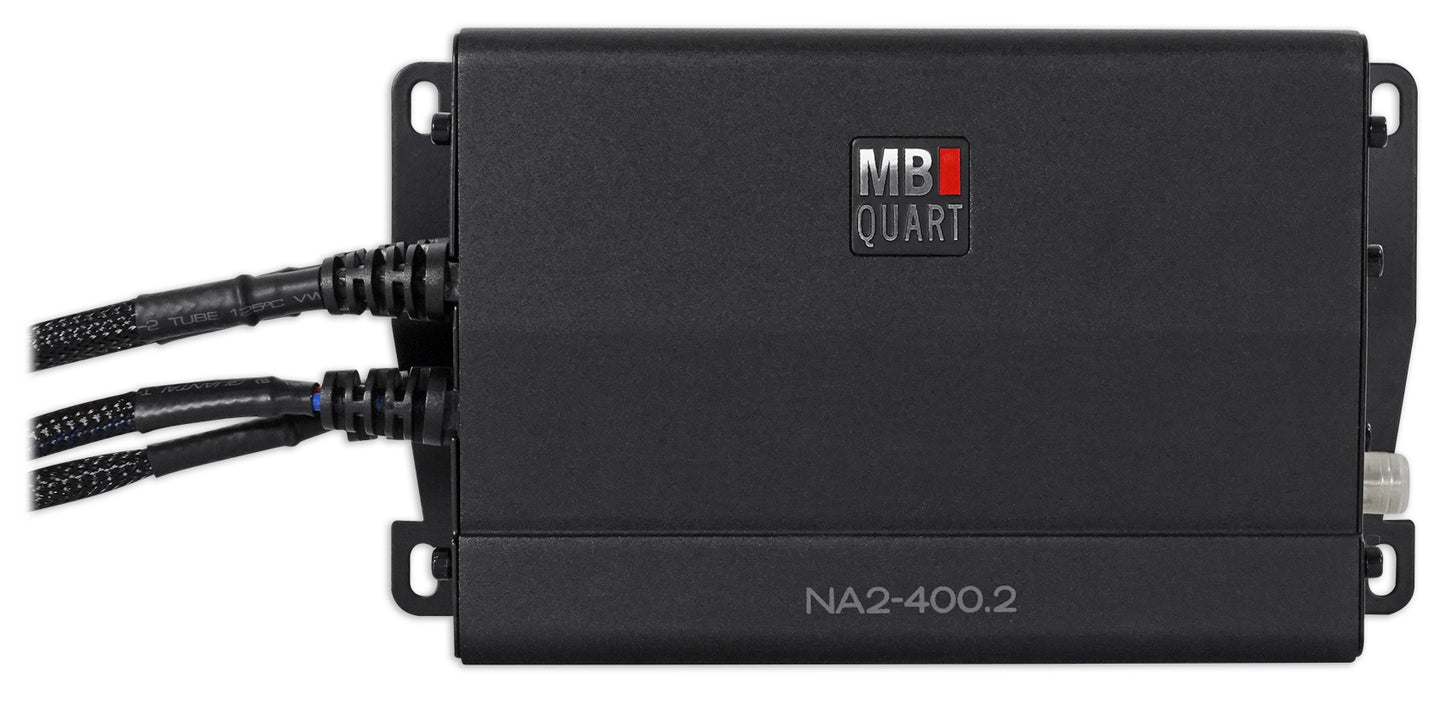

• MB QUART NA2 400.2 400w 2-Channel Amplifier Amp For Polaris/ATV/UTV/RZR/CART
• Marine Grade Protection: Yes - Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
• Pre-Amp Circuitry: Q-Stasis Pre Amplifier Stage - The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality
• Inputs: 1 Pair, RCA Nickel-Plated - High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
• Operation Mode: Two channel operation - Flexible installation allows this amplifier to run in two channel or bridged mono mode.

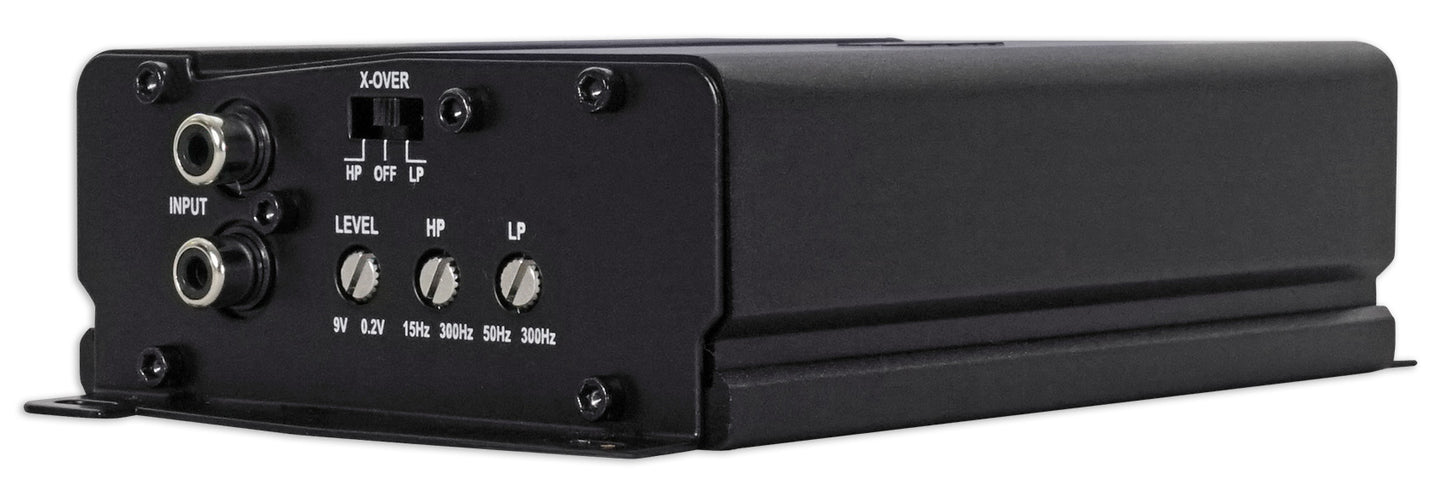

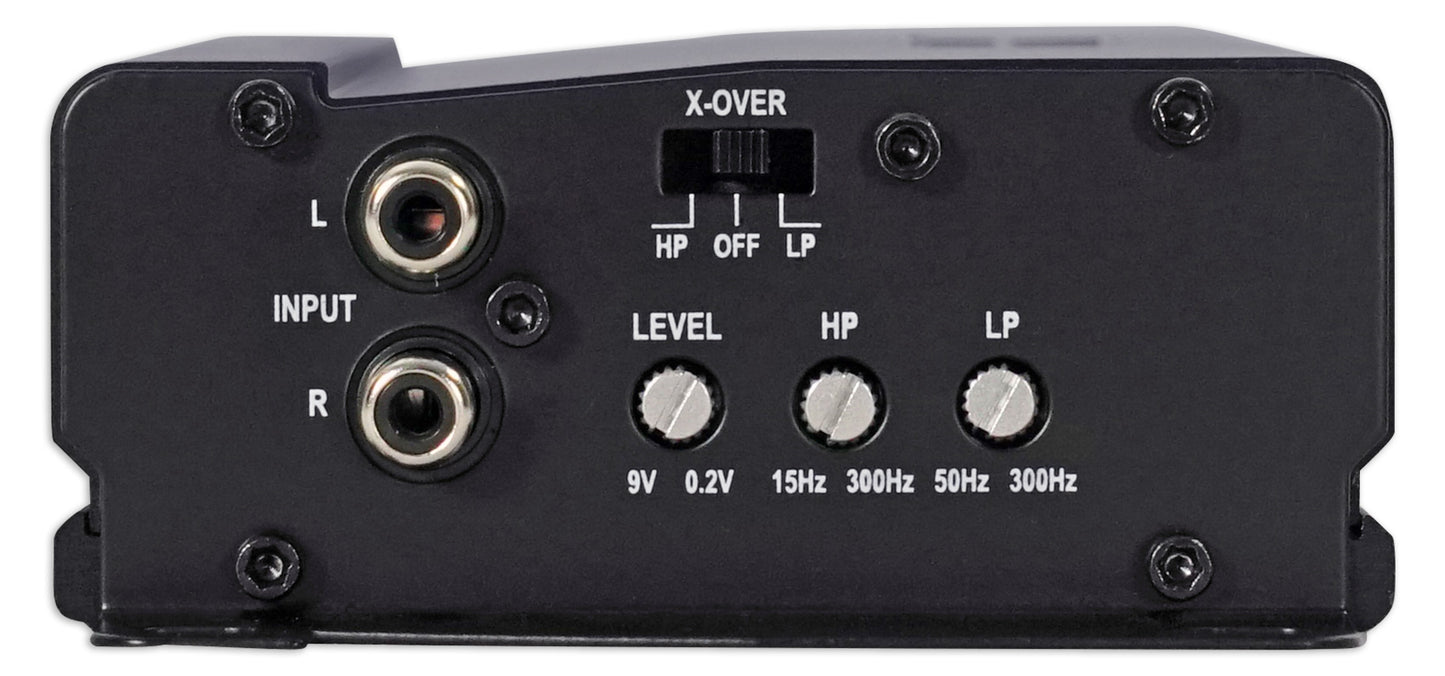

• Crossover / Signal Shaping: Switched FULL / LPF / HPF - Complete control of amplifier signal, essential when using two or more amplifiers
• Class / Topology: Full Range Class D - Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
• Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation
• Heat Sink: Aluminum - Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
• Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices

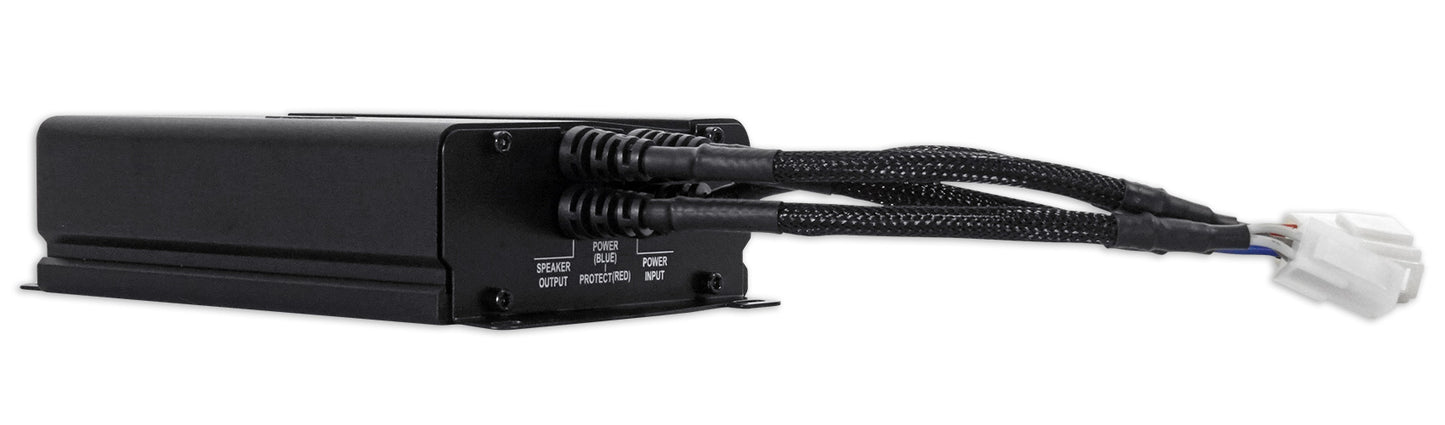

• Output Connections: Quick Dissconect Wires, RCA Connections - Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
• Connections Type: Gold-plated connections - Gold-plated power, ground, speaker and RCA corrosion resistant connections

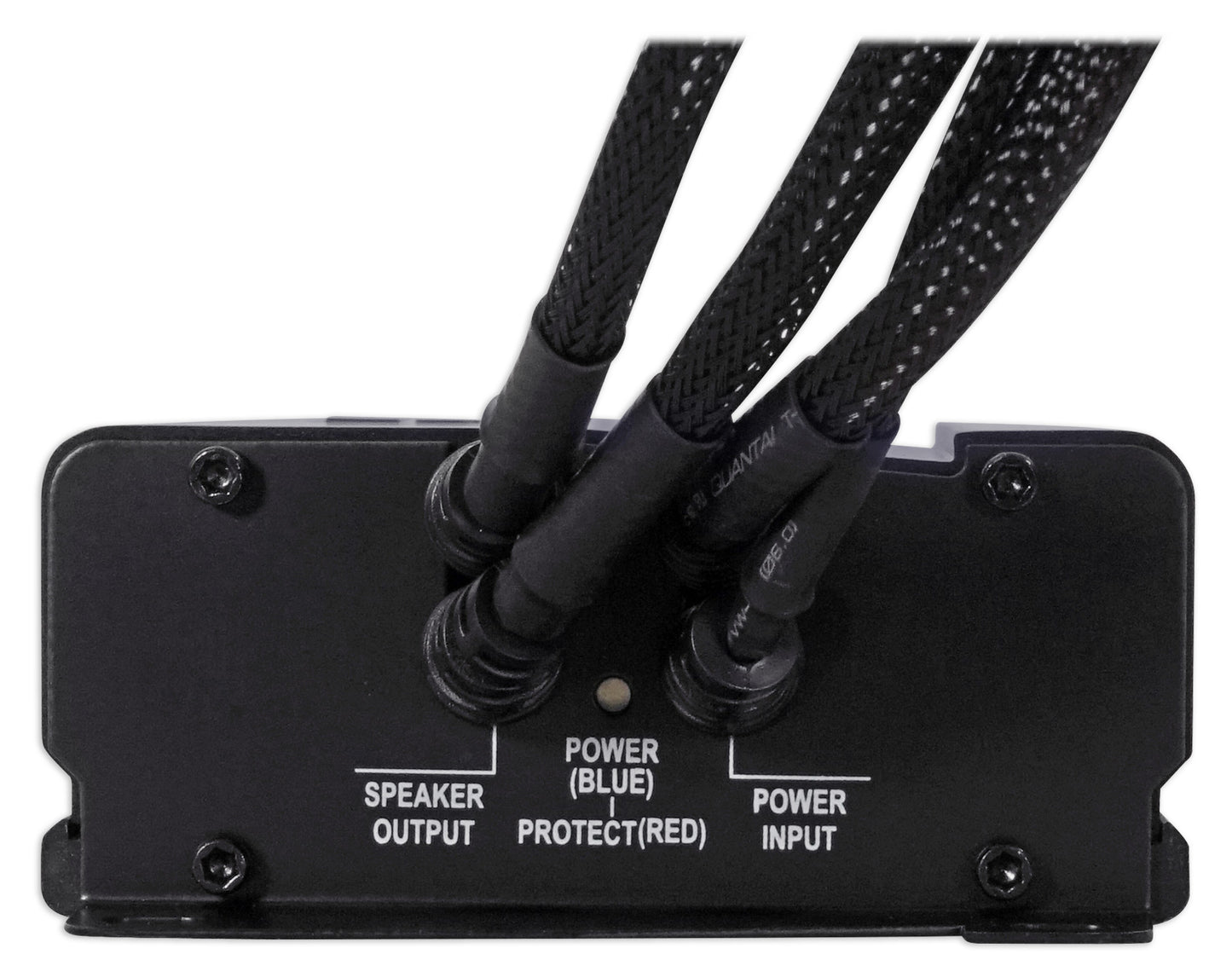

• Diagnostics: Three-stage protection circuits - Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
• Marinized / Waterproof: Yes - Water resistant for durability in any environment

Specifications:

• Class: Full Range Class D
• Variable Voltage: 0.2V~9V
• Signal to Noise Ratio: >90dB
• Frequency Response: 20Hz-20kHz
• Crossover Type: Electronic 12dB Per Octave
• Low Pass Crossover: Switch Low Pass 300 Hz
• Bass Boost: 0-12dB@45Hz
• Subsonic Filter: 60Hz
• Power @ 2-Ohms: 2 x 200W
• Power @ 4-Ohms: 2 x 100W
• Total Channels: 2
• Audio Inputs: RCA
• Power Terminal 12v/GND: Molex 10 ga
• Speaker Terminal Wire Gauge: Molex Plug Connector
• Fusing: 1 x 30 Amps
• Certifications: Marine & Powersports
• Dimensions: 3.70 X 5.51 X 1.77 in (9.4 X 14.0 X 4.5 cm)
• Weight: 2.12 lbs (0.96 kg)

---



 All About Your RockerBT:

How to install Bluetooth Controller in a UTV:

Description:

The Rockville RockerBT is the best quality Rocker switch Bluetooth controller on the market. Our engineers made sure this unit supports a full frequency range without passing through any distortion or unwanted Bluetooth noises. The advantage of a rocker switch controller is that it takes up no space. This is ideal for ATV’s, UTV,s, Side by sides, boats, golf carts, and more.

Our model has a remote wire output that goes to your amplifier which will automatically turn your amplifier on and off when the Bluetooth controller is on or off.

We also added an aux input and an aux output. The aux input allows you to connect any audio device such as an MP3 player, etc. The aux output will allow you to use this controller together with a receiver that has an aux input so you can add Bluetooth to a receiver that does not have it. However, the majority of applications will use this controller instead of a receiver.

A typical ATV install would consist of this rocker switch as the source unit, an amplifier to give power to your speakers, and 2 or 4 speakers. You can also add a subwoofer and a second amplifier if you choose.

Features:

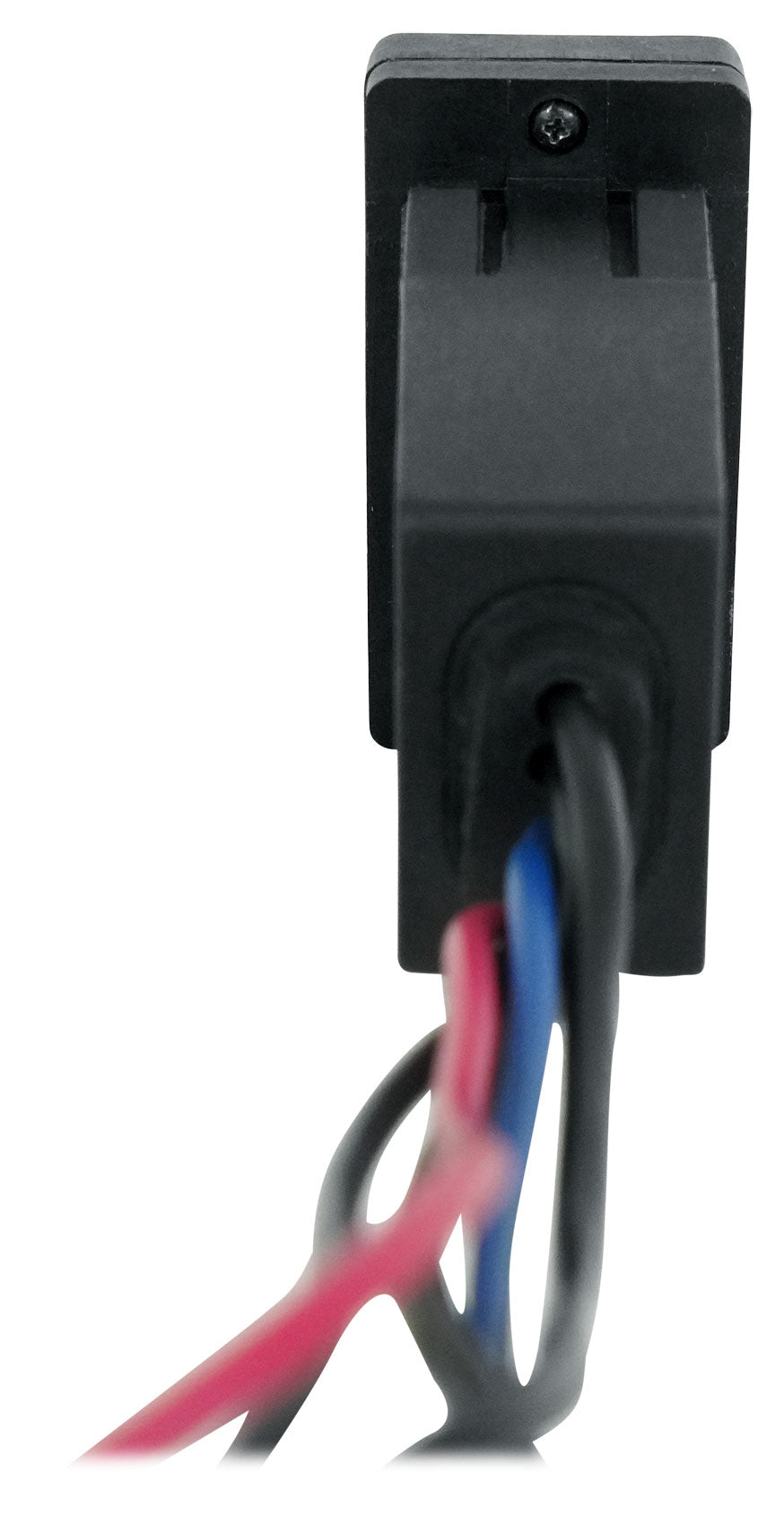

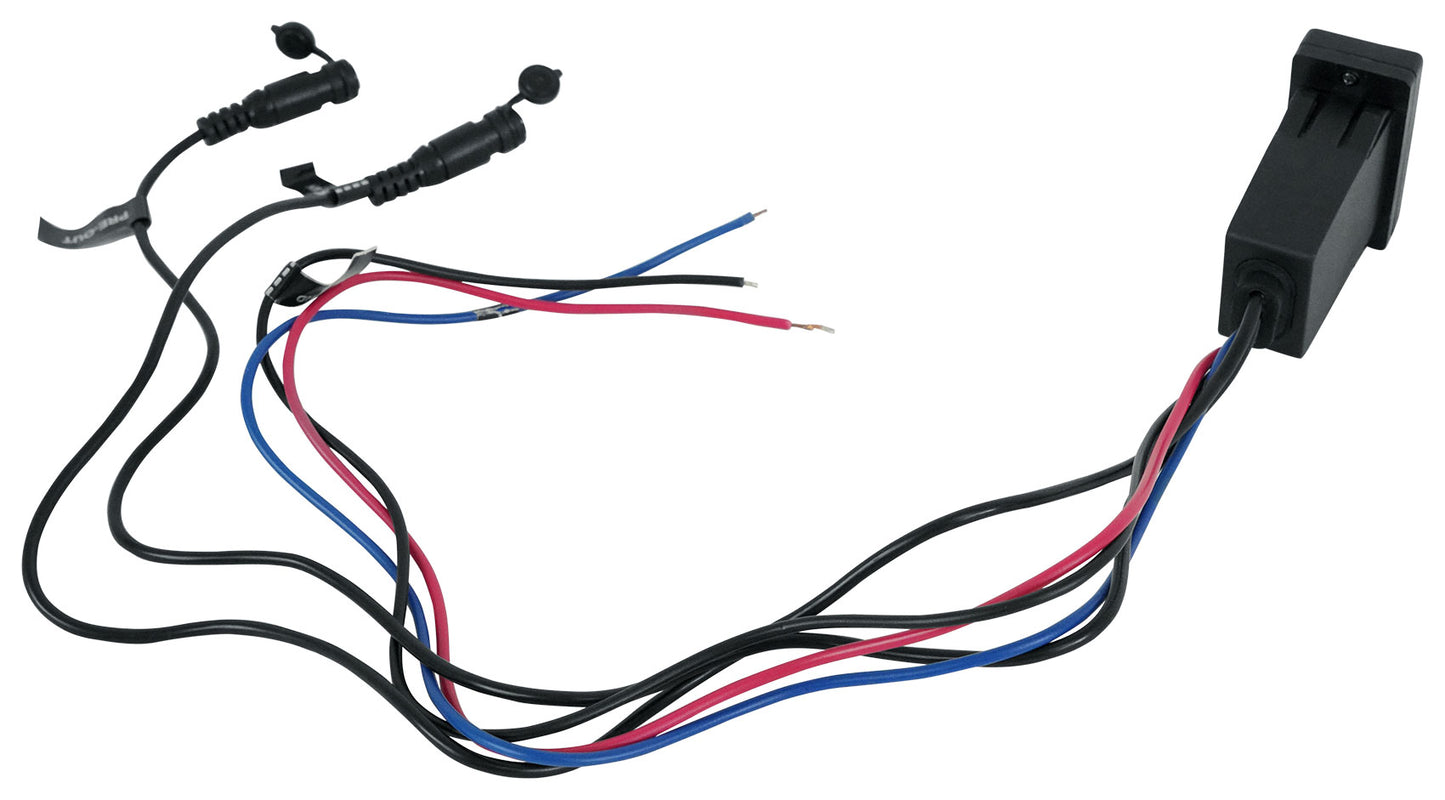

• Rockville RockerBT Bluetooth controller Rocker Switch
• Aux Input
• Remote Output allows you to turn any amplifier on or off

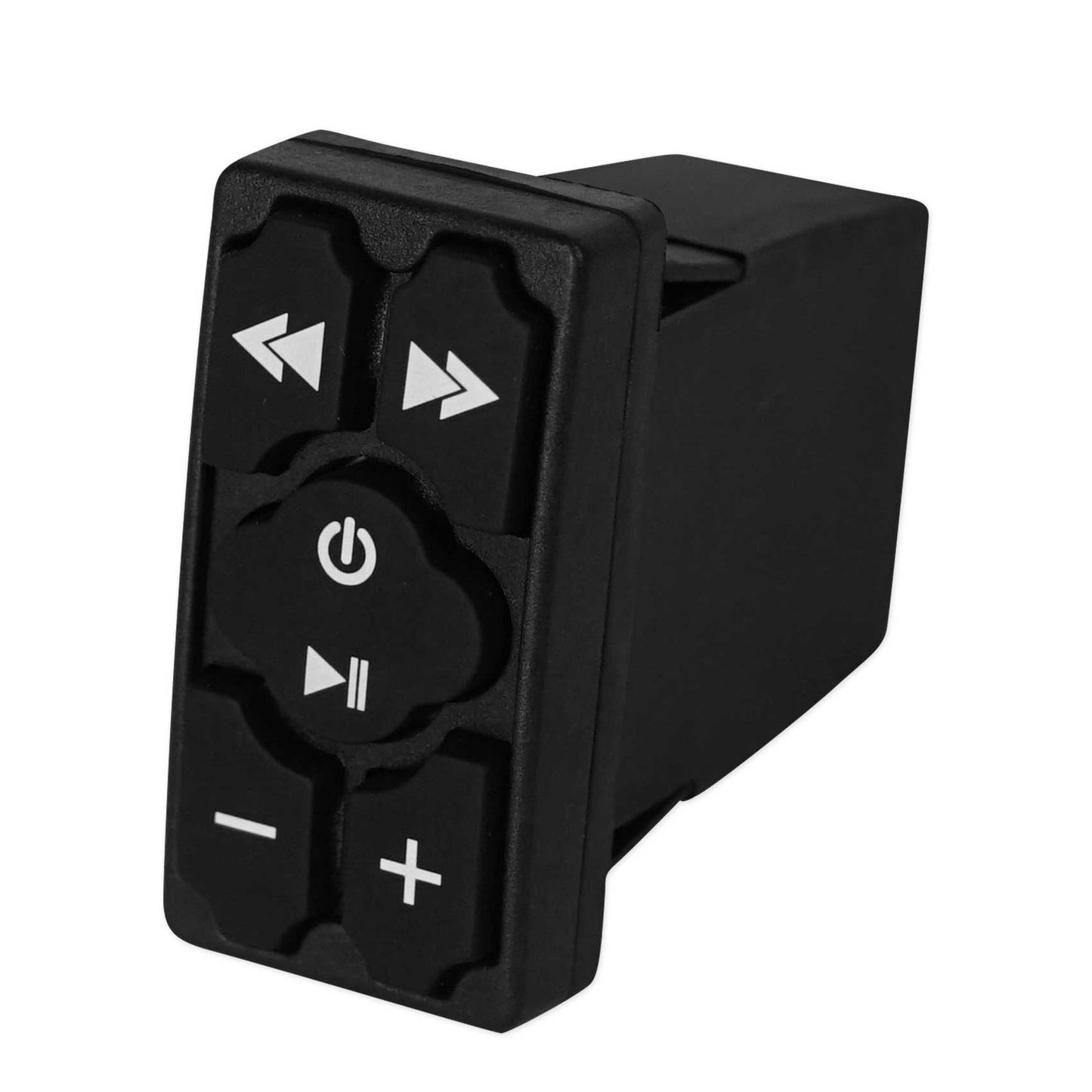

• Simple 5-Button Operation, - Play/Pause, Tracks Forward/Back, Volume Up/Down and Power On/Off
• Mounts into a Standard Rocker Switch opening

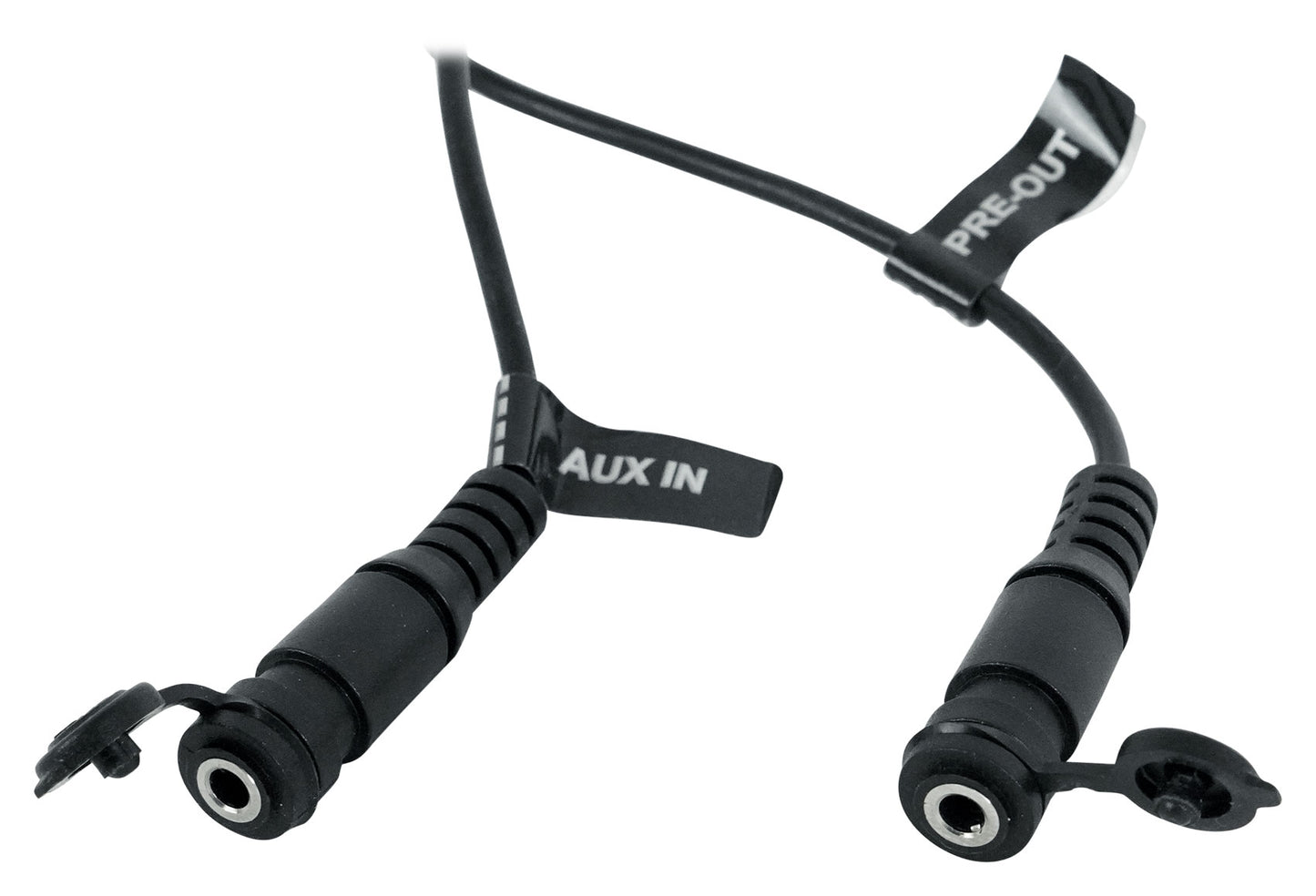

• 3.5 mm Aux input
• 3.5 mm Aux output
• Volume Controls the Bluetooth & AUX
• Replaces Head Unit and Works with Any Amplifier
• Perfect for Polaris/ATV/UTV/RZR/Golf carts, Boats, and more
• Marine Grade Protection: Meets or exceeds the American Boat and Yacht Council (ABYC) marine electronics standards and the American Society for Testing and Materials (ASTM)
• Bluetooth version 4.0
• Hassle Free Bluetooth Auto-Pairing
• Pre-amp Output

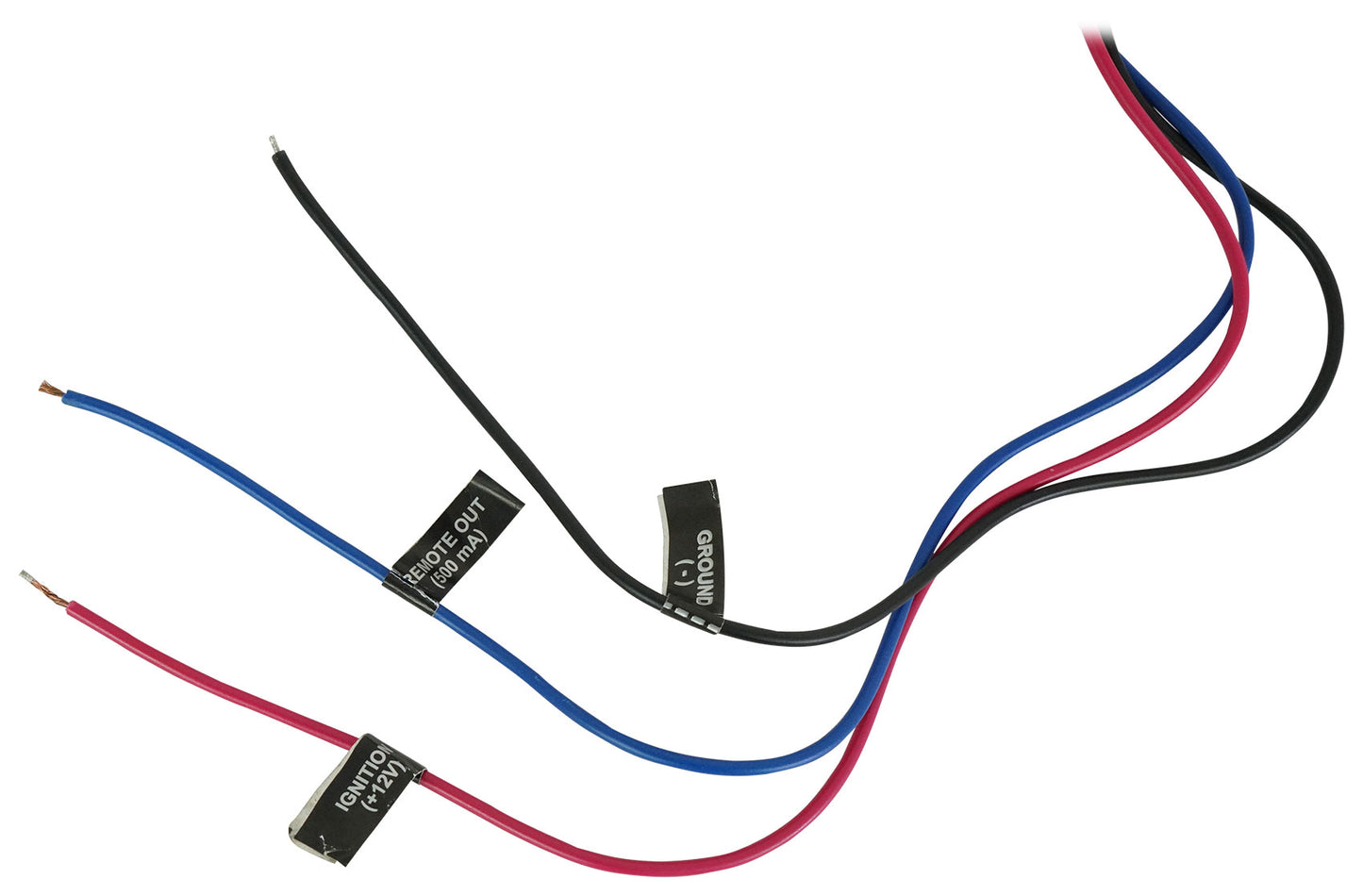

• Power and Ground Connections
• Back Lit Buttons for Easy Use Day or Night
• High quality buttons with a click feel when pressed (Perfect so you can click the button while riding)
• Dimensions: ( W x H x D ) 1.04" x 2.02" x 2.64" (Inches)

l

---

? Video of RNRMR10:

Authorized Rockville Dealer!

Description:

All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.

The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable’s copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.

Features:

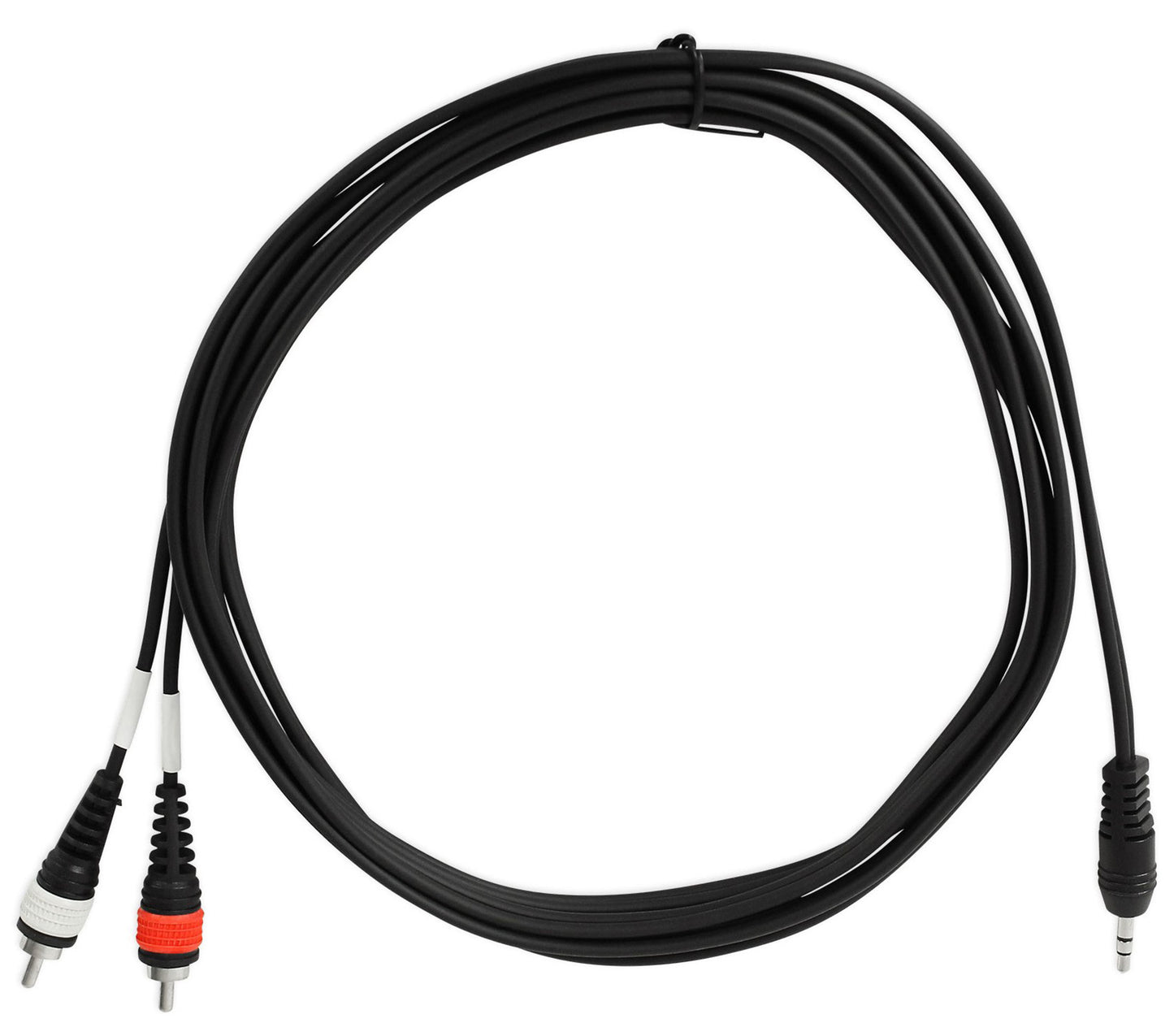

• Rockville RNRMR10 3.5mm 1/8" TRS to Dual RCA Cable
• Nickel-Plated Plugs for Rugged Durability and Efficient Signal Transfer
• 100% Copper Conductors for Enhanced Signal Clarity
• OFC Spiral Shields for Effective EMI and RFI Rejection and Flexibility
• Length: 10 Ft

---

About Rockville Quality Control Procedures:

The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty.
