Wires, Inputs, & Functions Explained on Your SK58 Package:

Video of K5 Series UPDATED:

Loaded Sub Enclosure Features:

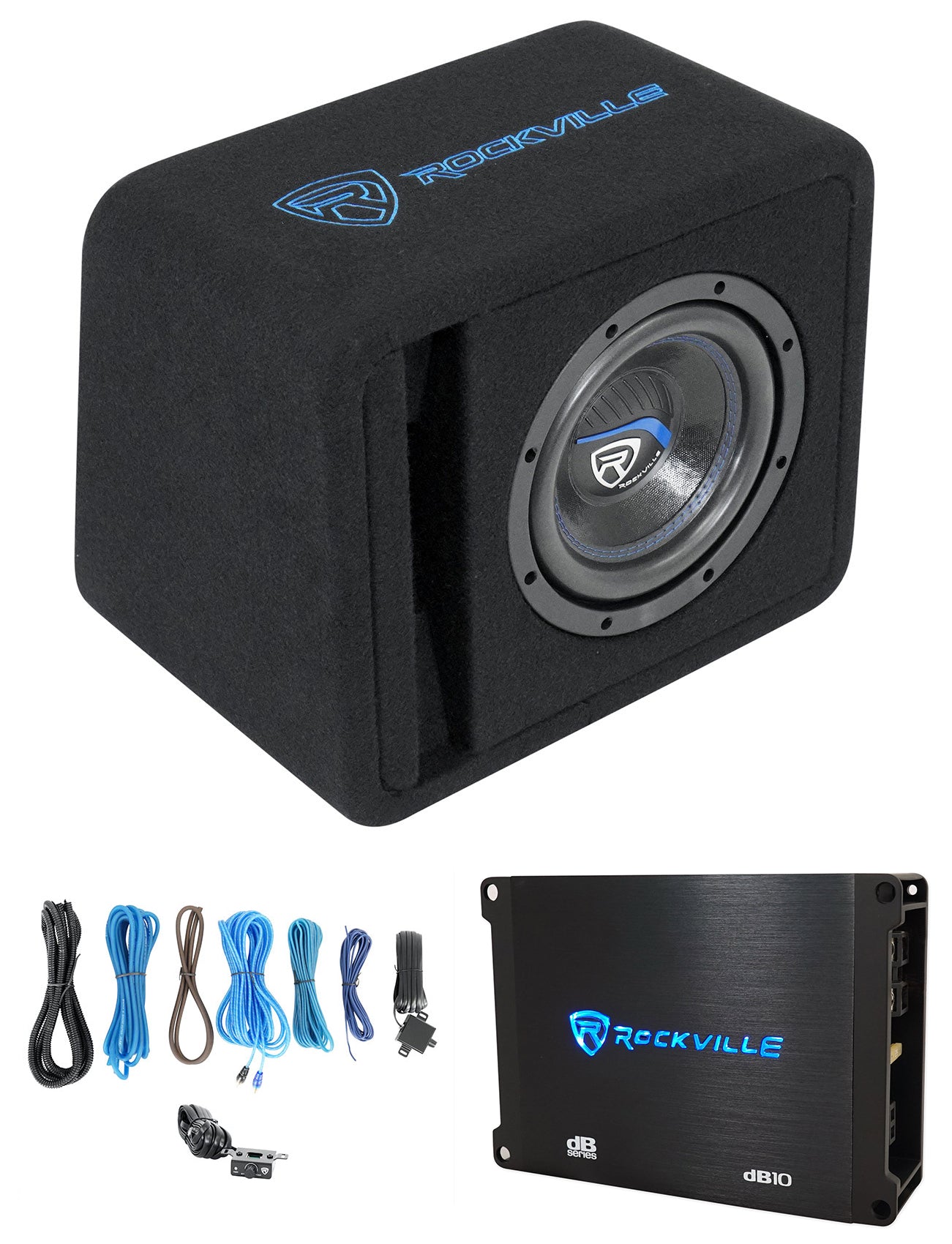

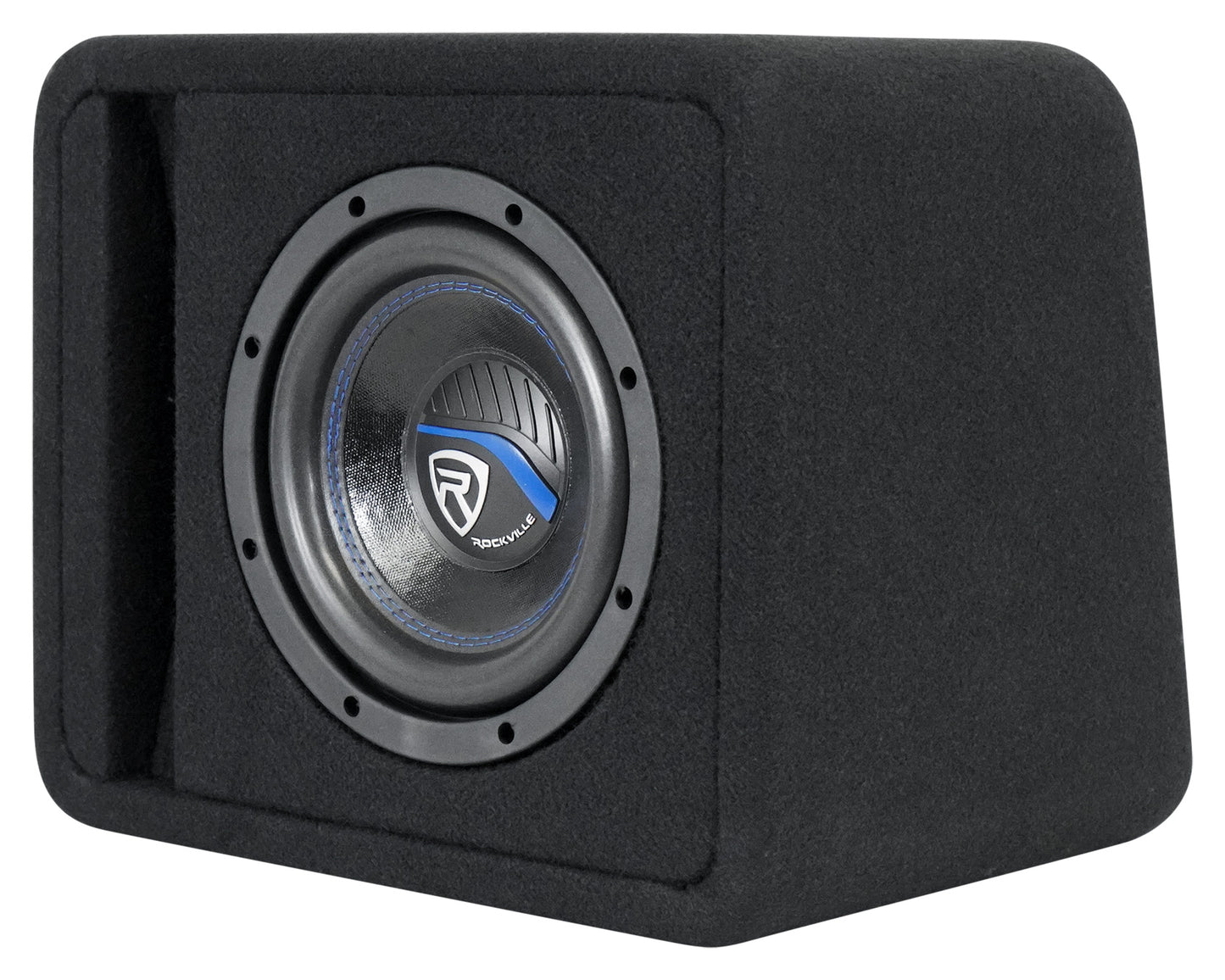

• Rockville Single 8" K5 800w Car Subwoofer Pre-loaded In Vented Sub Enclosure

• Peak Power Handling: 800 Watts

• Program Power Handling: 400 Watts

• CEA Rated RMS Power Handling: 200 Watts

• Final Impedance: 4 Ohm

• ¾” MDF enclosure

• Bonded stapled and braced

• Computer designed vents

• Angled at 15 % for perfect bass alignment

• High quality aviation grade tweed carpet

• Satin Nickel speaker wire push terminals

• Enclosure air space is 0.6 Cu Ft per sub

• Vent dimensions (inches): 1.25" x 4.75" x 7"

• Tuning frequency of enclosure: 37 Hz

• 1.5"  4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire

• The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire

• 30 Oz High Quality Magnet

• Cast Iron  Basket With Black Sanded Finish

• Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone – This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it

• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion

• Blue Stitching Cone Reinforcement Ensures Long Life

• Polypropylene dust cap

• Gold-Plated spring loaded push terminals

• Impedance: Single 4-Ohm Voice Coils

• Vented Hole on T-yoke Enhances Heat Dissipation

• Mounting Gasket with Rockville branding Makes it Easy To Mount the Subwoofer Air-Tight

• High BL Magnetic Motor Gap

• High grade black glue that handles extremely high temperatures which allows our woofer to handle even more power

• Cutout Diameter: 7.16 inches

• Mounting Depth: 3.54 inches

• Frequency Response: 37 Hz - 1.3K kHz

• 5mm T-Yoke + 5mm Washer

• Sensitivity: 85.7dB

• Sealed Enclosure Volume: 0.35 – 0.85 Cubic Feet

• Vented/Ported Enclosure Volume: 0.6 – 1.2 Cubic Feet

• Weight of enclosure: 23.1 Lbs.

• Dimensions of enclosure: 14.25“ x 10.75" x12"


Features of Amplifier:

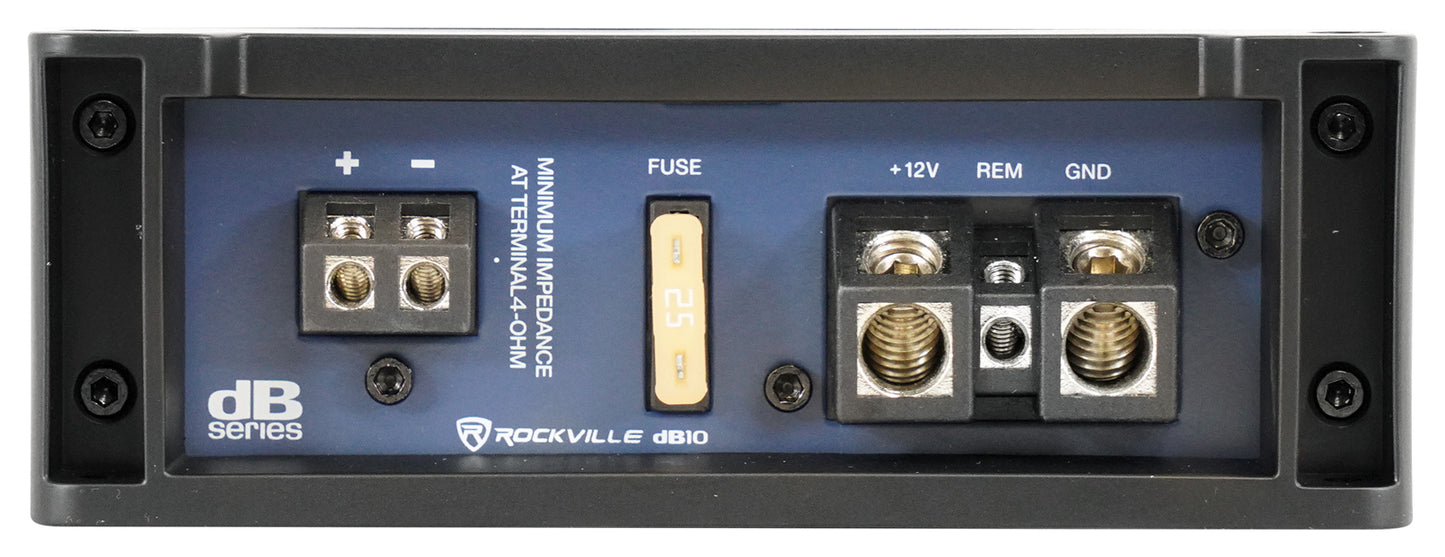

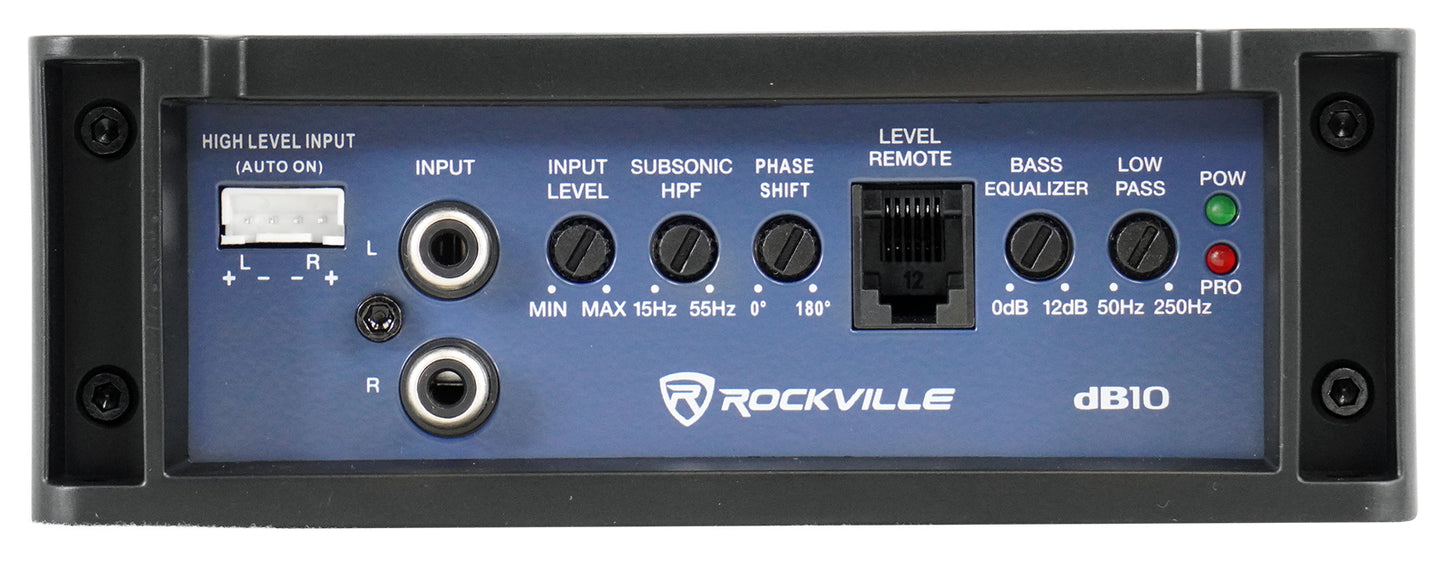

• Rockville dB10 800 Watt/400 Watt RMS Mono Class-D 4-Ohm Amplifier

• CEA Compliant Power Rating @ 4 Ohm: 200 Watts x 1 Channel

• RMS Power Rating @ 4 Ohm: 400 Watts x 1 Channel

• Peak Power Rating @ 4 Ohm: 800 Watts x 1 Channel

• High-Speed MOSFET Power Supply

• Minimum THD at Rated Power: <0.1%

• S / N Ratio: >90dB

• Under Voltage Protection: 10V

• Over Voltage Protection: 16V

• Frequency Response: 15 Hz - 250 Hz

• Damping Factor: >60 @ 100Hz

• Optical Coupler Class “D” Technology

• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry

• Low Pass Filter: 50 Hz - 250 Hz

• Subsonic Filter: 15 Hz - 55 Hz

• Phase Control

• Full IC-Controlled Protection Circuitry

• Fully Adjustable 12dB Bass Equalizer

• Mute and Delay Soft Start System

• Status Mode LED Indicator

• 25 Amp ATO Fuse

• Product Dimensions: (L x W x H) 7.7" x 5.5" x 2.0"

• Product Weight: 4.4 Lbs.


Features of wire kit:

• Rockville RWK81 8 Gauge 2 Channel Car Amplifier Wiring Installation Kit

• (1)  17 High Grade Twisted Pair of 100% Copper RCA Cable

• 17 8 Gauge Translucent Blue SuperFlex Power Cables

• 17 18 Gauge Blue Remote Cable

• 17 16 Gauge Clear Speaker Wire

• 3 8 Gauge SuperFlex Ground Wire

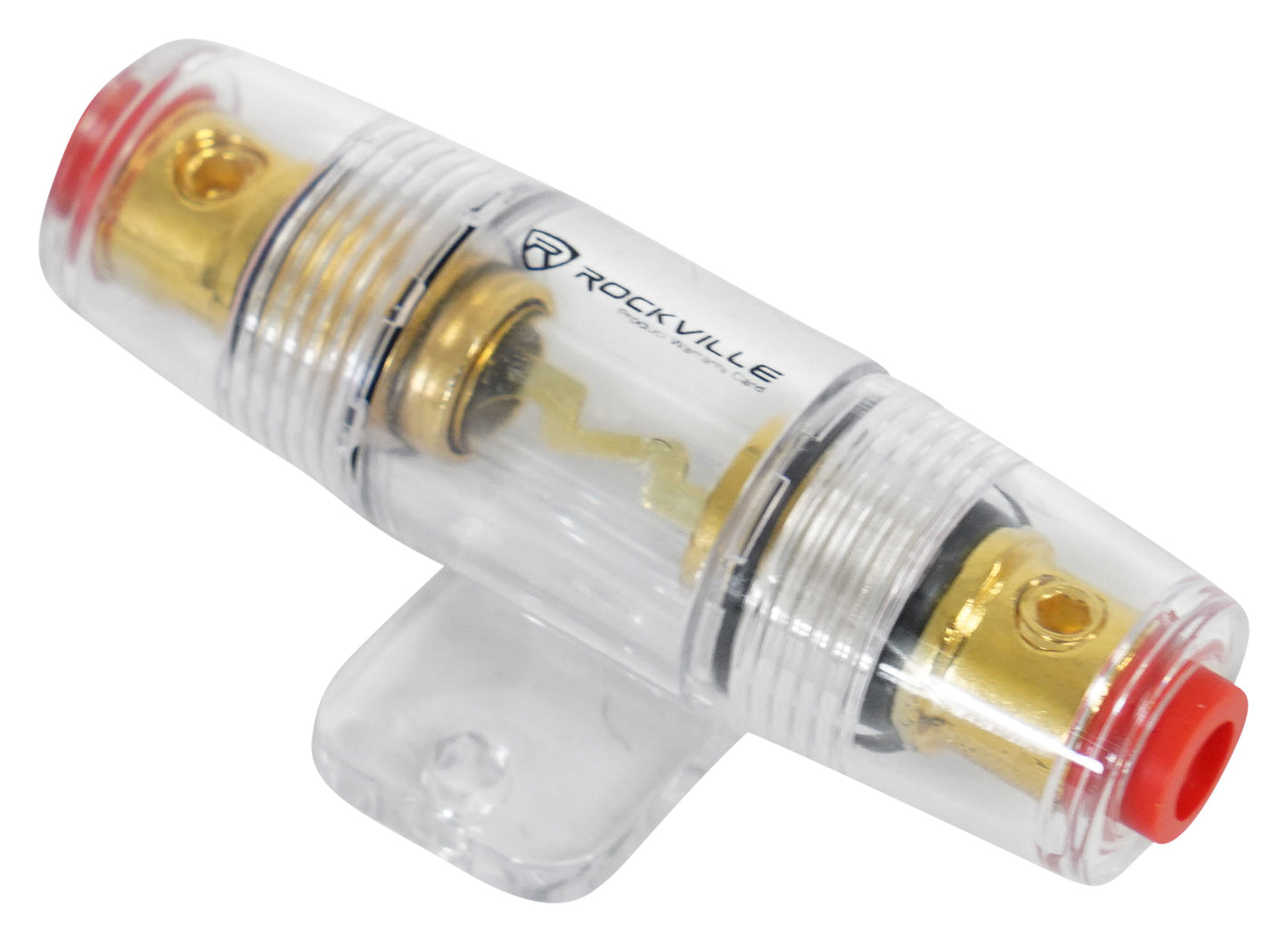

• Gold Plated AGU Heat Resistant Fuse Holder

• 60 Amp AGU Gold Plated Fuse

• 7 Split Tube Loom

• Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets

• Soft abrasion proof insulating jacket allows for 100% improved flexibility

• PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F
