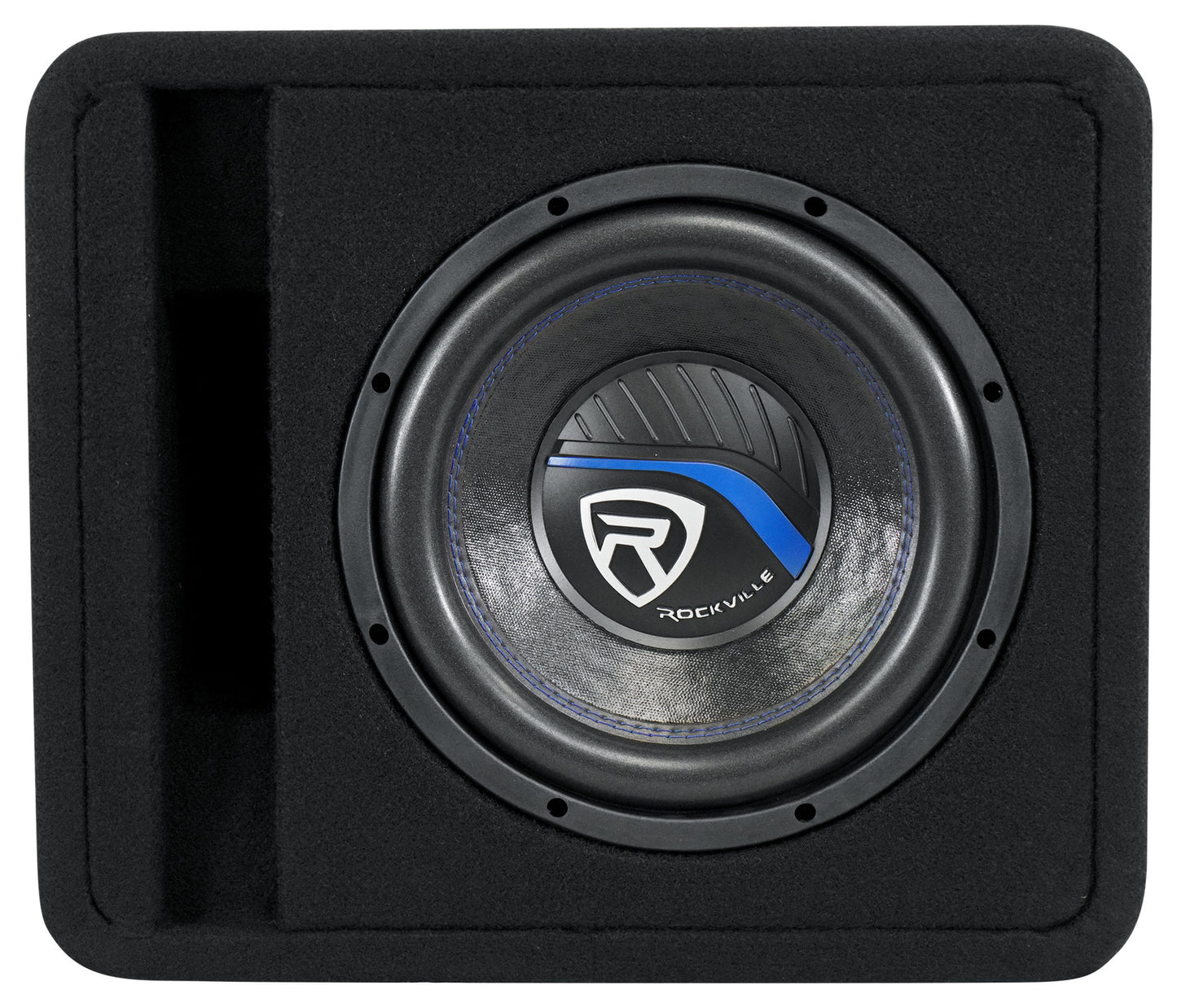

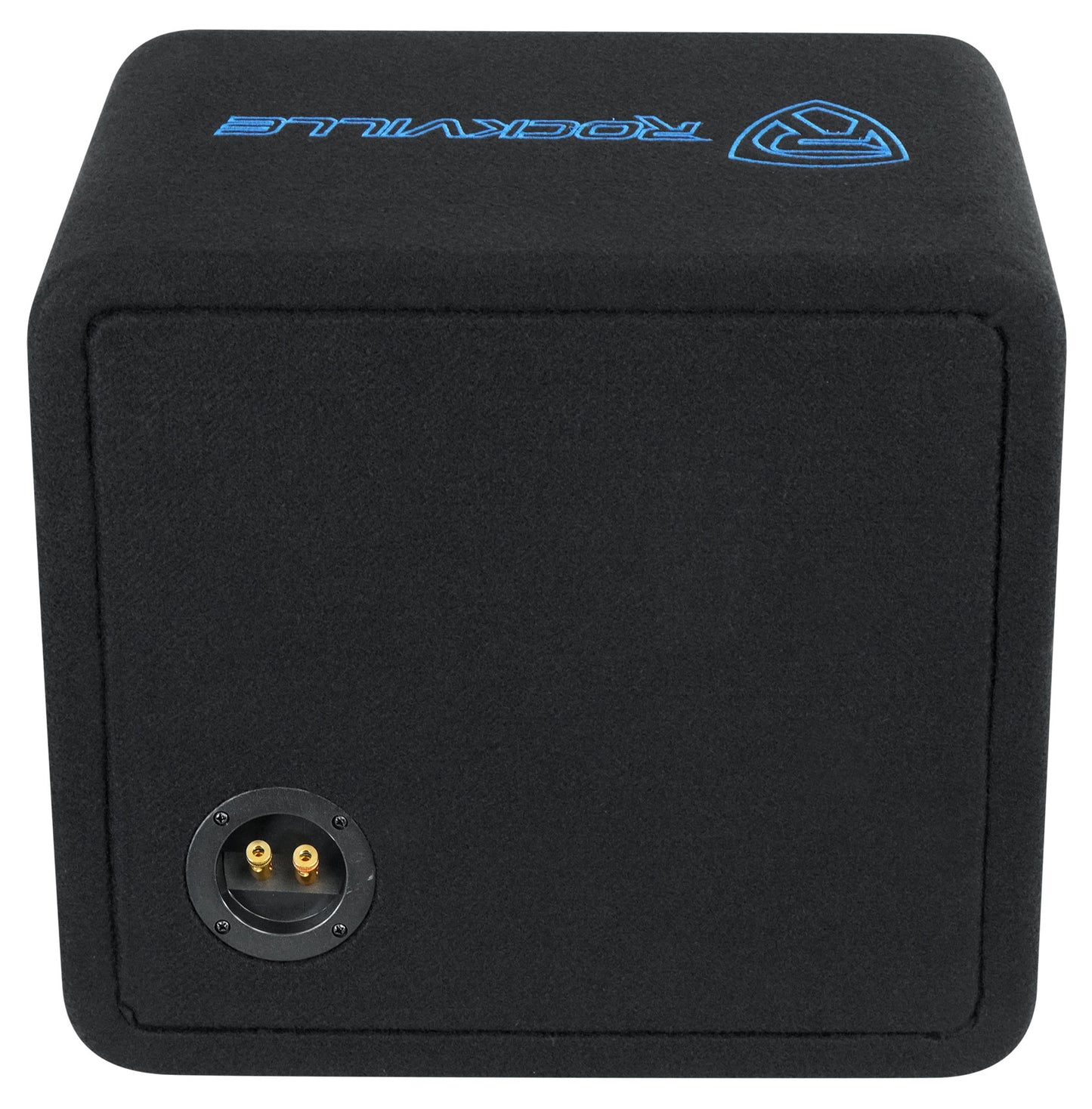

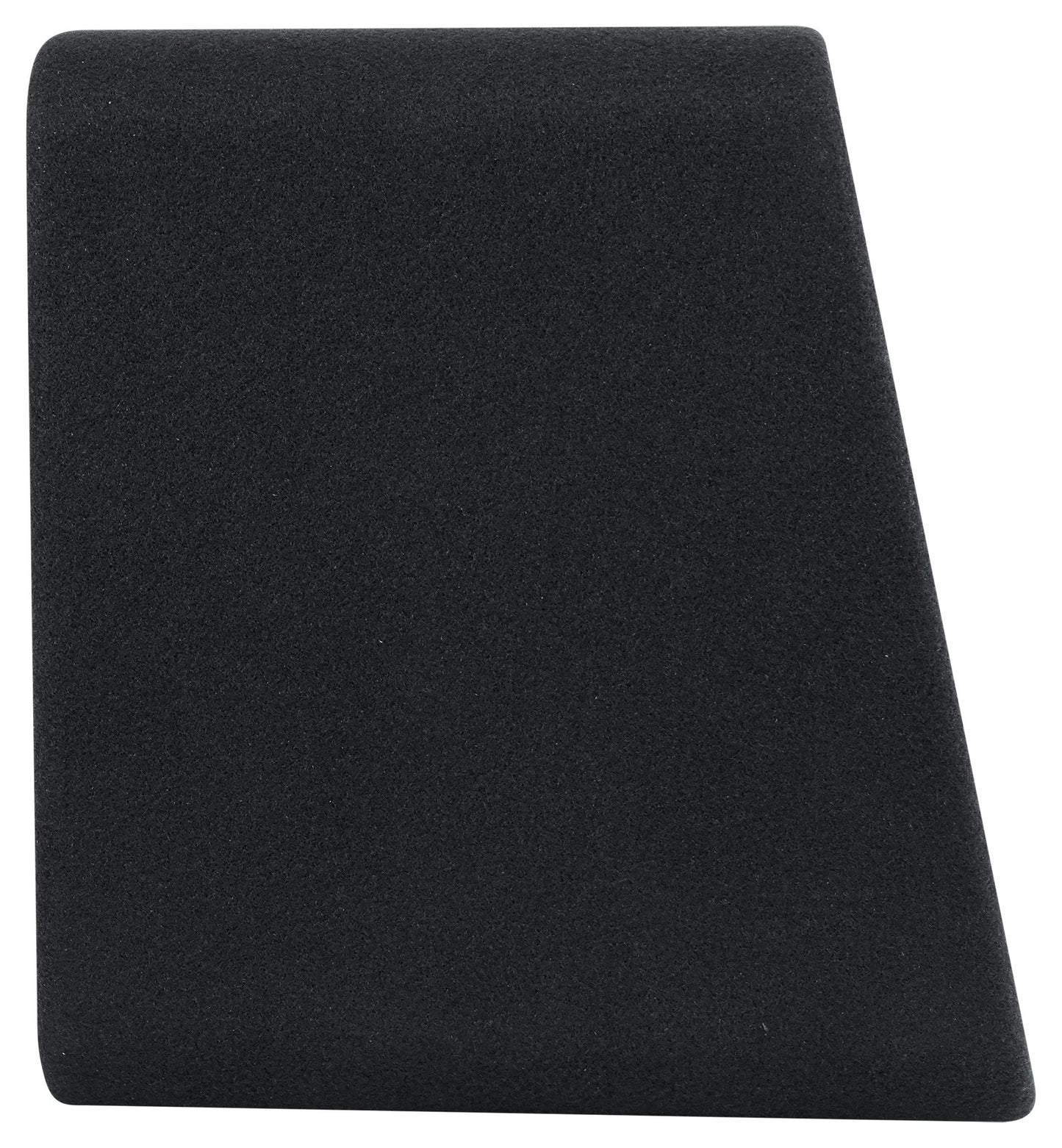

Loaded Sub Enclosure Features:

• Rockville Single 10" K5 1200w Car Subwoofer Pre-loaded In Vented Sub Enclosure

• Peak Power Handling: 1200 Watts

• Program Power Handling: 600 Watts

• CEA Rated RMS Power Handling: 300 Watts

• Final Impedance: 4 Ohm

• ¾” MDF enclosure

• Bonded stapled and braced

• Computer designed vents

• Angled at 15 % for perfect bass alignment

• High quality aviation grade tweed carpet

• Satin Nickel speaker wire push terminals

• Enclosure air space is 1.0 Cu Ft per sub

• Vent dimensions (inches): 2" x 6.5" x 8"

• Tuning frequency of enclosure: 35 Hz

• 2" 4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire

• The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire

• 40 Oz High Quality Magnet

• Cast Iron  Basket With Black Sanded Finish

• Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone – This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it

• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion

• Blue Stitching Cone Reinforcement Ensures Long Life

• Polypropylene Dust cap

• Gold-Plated spring loaded push terminals

• Impedance: Single 4-Ohm Voice Coils

• Vented Hole on T-yoke Enhances Heat Dissipation

• Mounting Gasket with Rockville branding Makes it Easy To Mount the Subwoofer Air-Tight

• High BL Magnetic Motor Gap

• High grade black glue that handles extremely high temperatures which allows our woofer to handle even more power

• Cutout Diameter: 9.05 inches

• Mounting Depth: 4.52 inches

• Frequency Response: 28 Hz - 1.3K kHz

• 6mm T-Yoke + 6mm Washer

• Sensitivity: 87.7dB

• Loaded enclosure weight: 33.2 Lbs.

• Loaded enclosure dimensions (inches): 16.25” x 13” x 14.25”

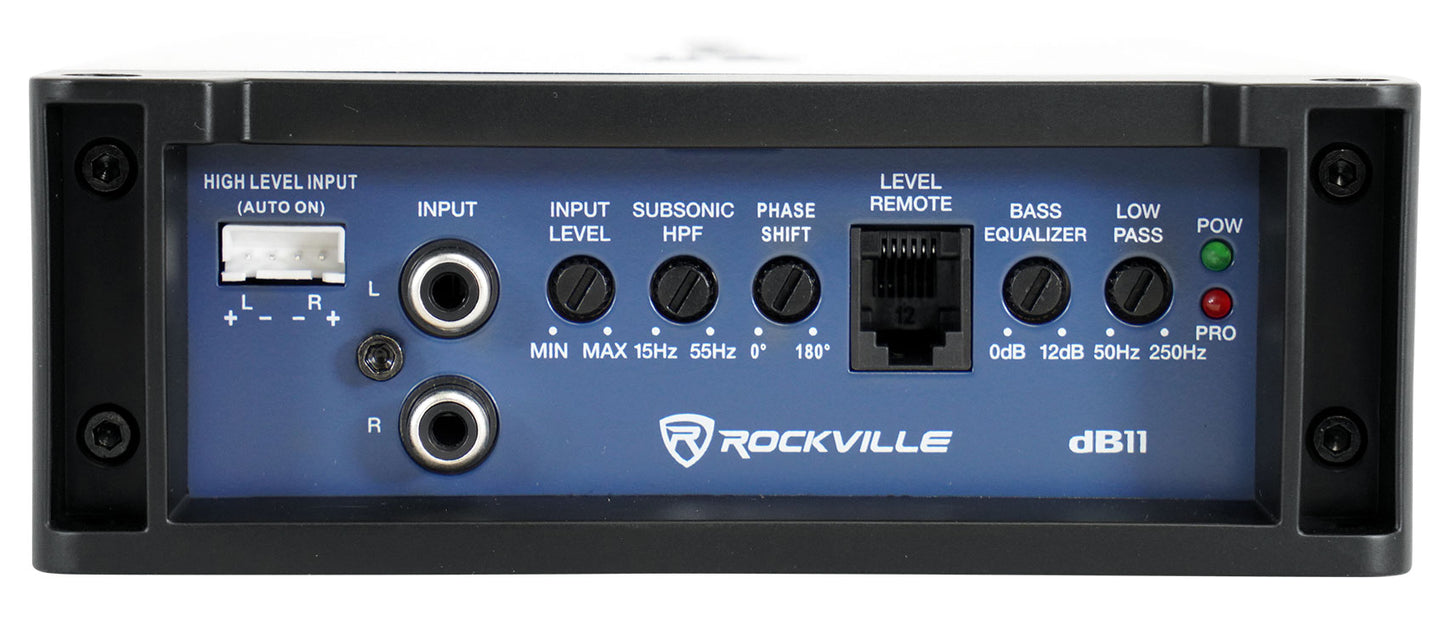

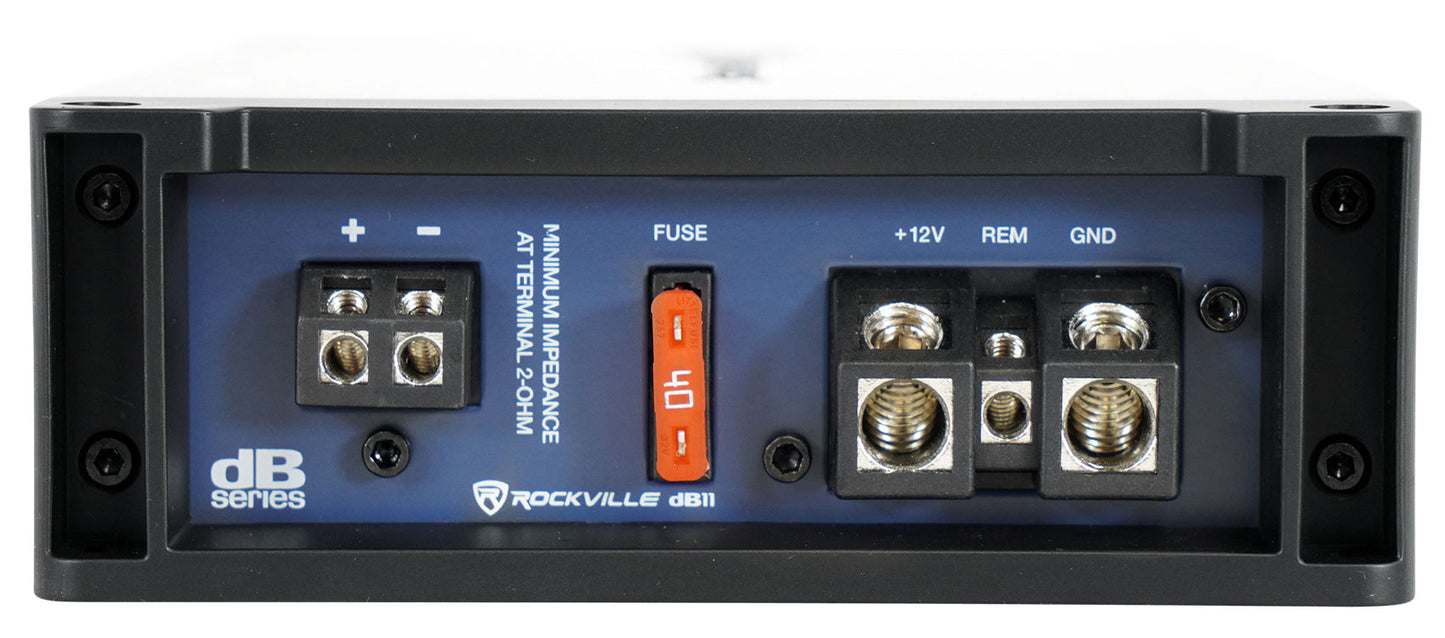

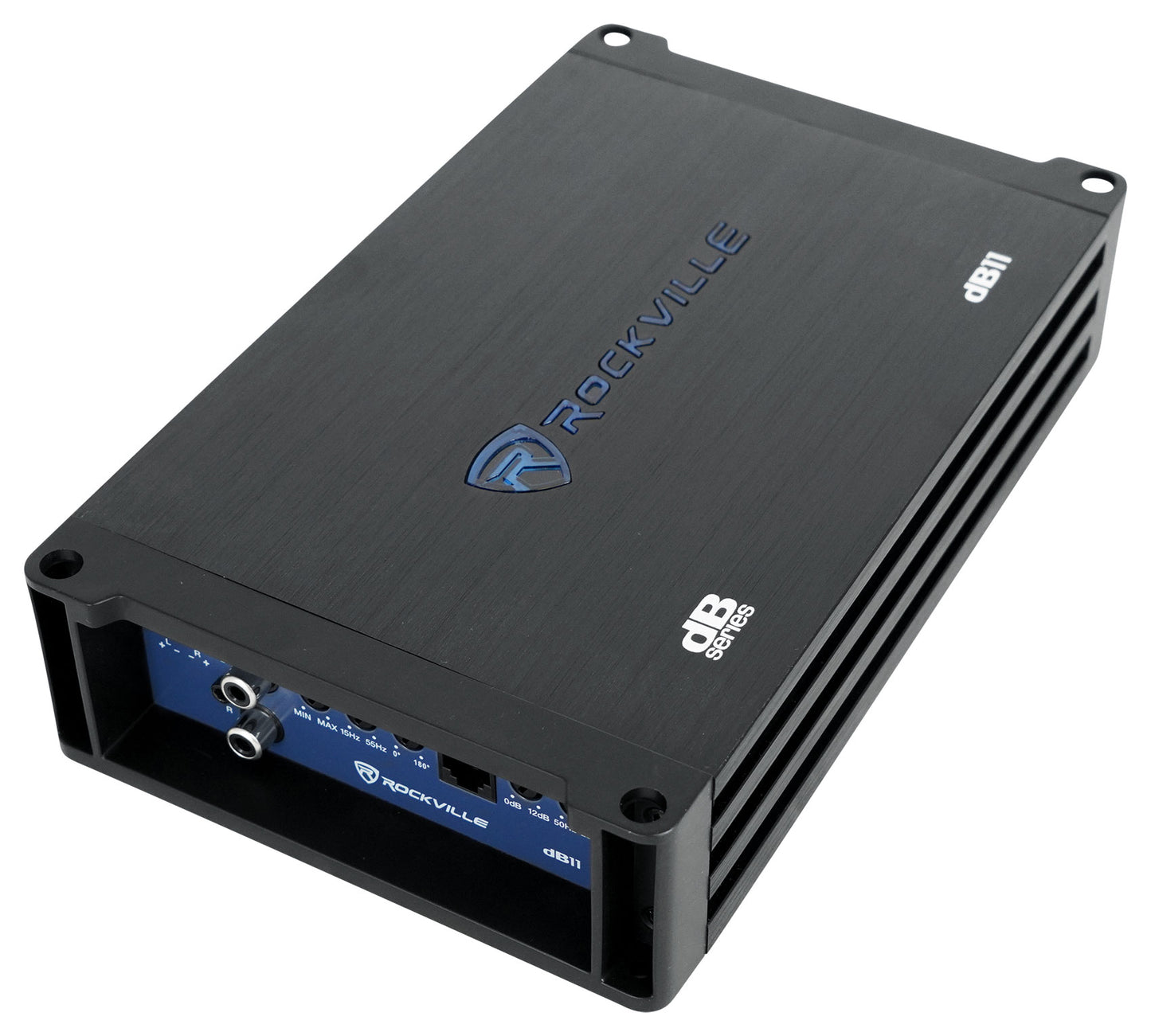

Features of Amplifier:

• Rockville dB11 1400w/700w RMS 2-Ohm Class-D Mono Car Amplifier and Bass Remote

• CEA Compliant Power Ratings (Rated at less than 1% distortion) (Use these CEA ratings when matching and comparing with other CEA compliant brands such as Kicker, Rockford Fosgate, etc.)
  - 2 Ohm: 350 Watts x 1 Channel <1% THD+N
  - 4 Ohm: 220 Watts x 1 Channel <1% THD+N

• Peak Power Rating: (The amount of power the amplifier can produce for a split second at the loudest part of a song)
  - 2 Ohm: 1400 Watts x 1 Channel
  - 4 Ohm: 880 Watts x 1 Channel

• High-Speed MOSFET Power Supply

• Optical Coupler Class “D” Technology

• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry

• Low Pass Filter: 50Hz - 250Hz

• Subsonic Filter: 15Hz - 55Hz

• Phase Control

• Full IC-Controlled Protection Circuitry

• Fully Adjustable 12dB Bass Equalizer

• Mute and Delay Soft Start System

• Status Mode LED Indicator

• Minimum THD at Rated Power: <0.1%

• S / N Ratio: >90dB

• Under Voltage Protection at 10V

• Over Voltage Protection at 16V

• Frequency Response: 15Hz - 250 Hz


Features of wire kit:

• Rockville RWK81 8 Gauge 2 Channel Car Amplifier Wiring Installation Kit

• (1)  17 High Grade Twisted Pair of 100% Copper RCA Cable

• 17 8 Gauge Translucent Blue SuperFlex Power Cables

• 17 18 Gauge Blue Remote Cable

• 17 16 Gauge Clear Speaker Wire

• 3 8 Gauge SuperFlex Ground Wire

• Gold Plated AGU Heat Resistant Fuse Holder

• 60 Amp AGU Gold Plated Fuse

• 7 Split Tube Loom

• Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets

• Soft abrasion proof insulating jacket allows for 100% improved flexibility

• PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F
