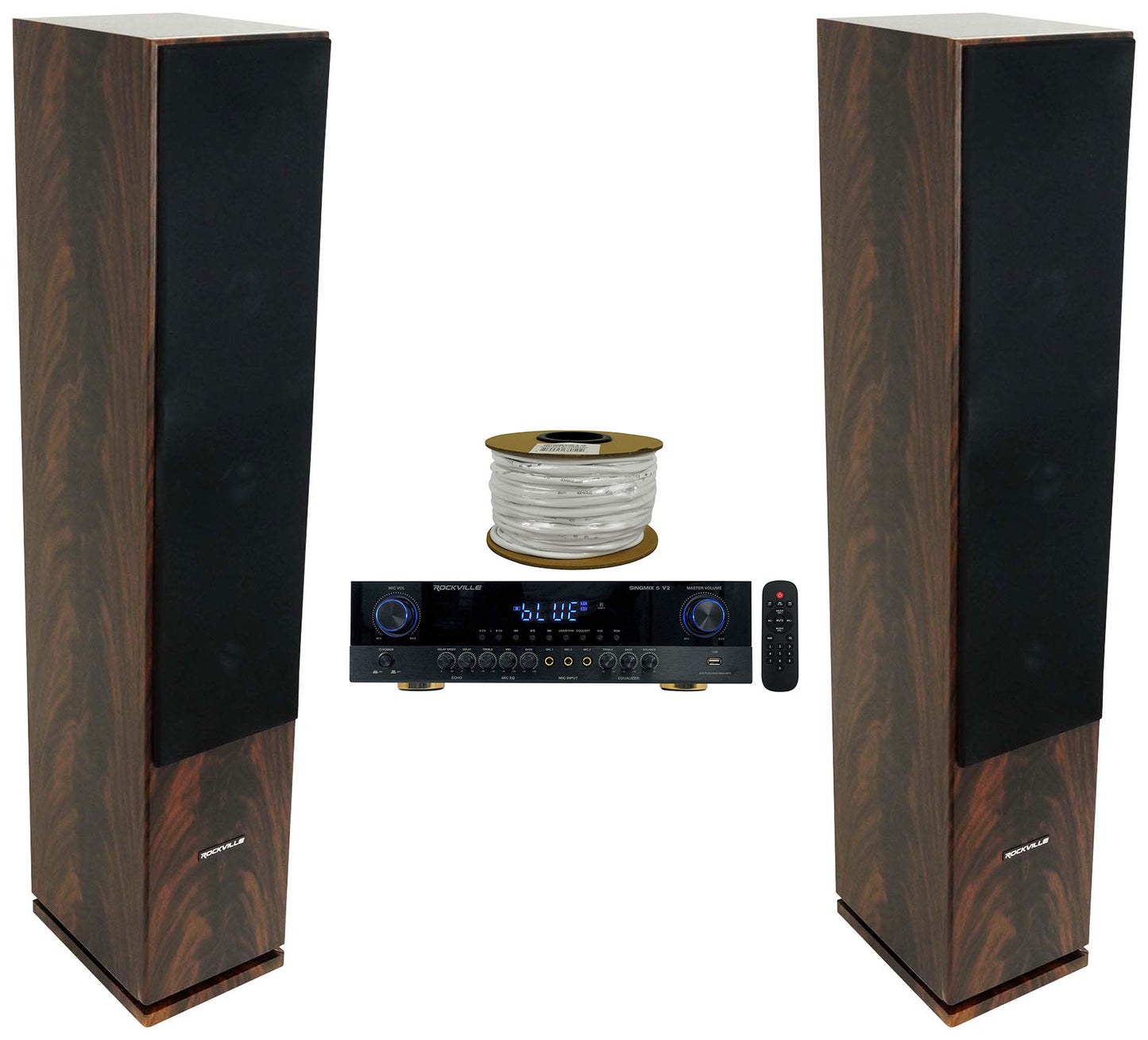

Package Includes:
- (1) Rockville SINGMIX 5 V2 2000w Bluetooth Pro/Karaoke/Home Amplifier Mixer Receiver
- (2) Rockville RockTower 68D Dark Wood Home Audio Tower Speaker Passive 8 Ohm
- (1) Rockville RCC14-100-2 CL2 Rated 14 AWG 100' CCA Speaker Wire In Wall Ceiling 70V
All About Your SINGMIX 5 V2:
How To Set Up Your SINGMIX 5 V2:
How To Set Up Your SINGMIX 5 V2 to a TV:
Description:

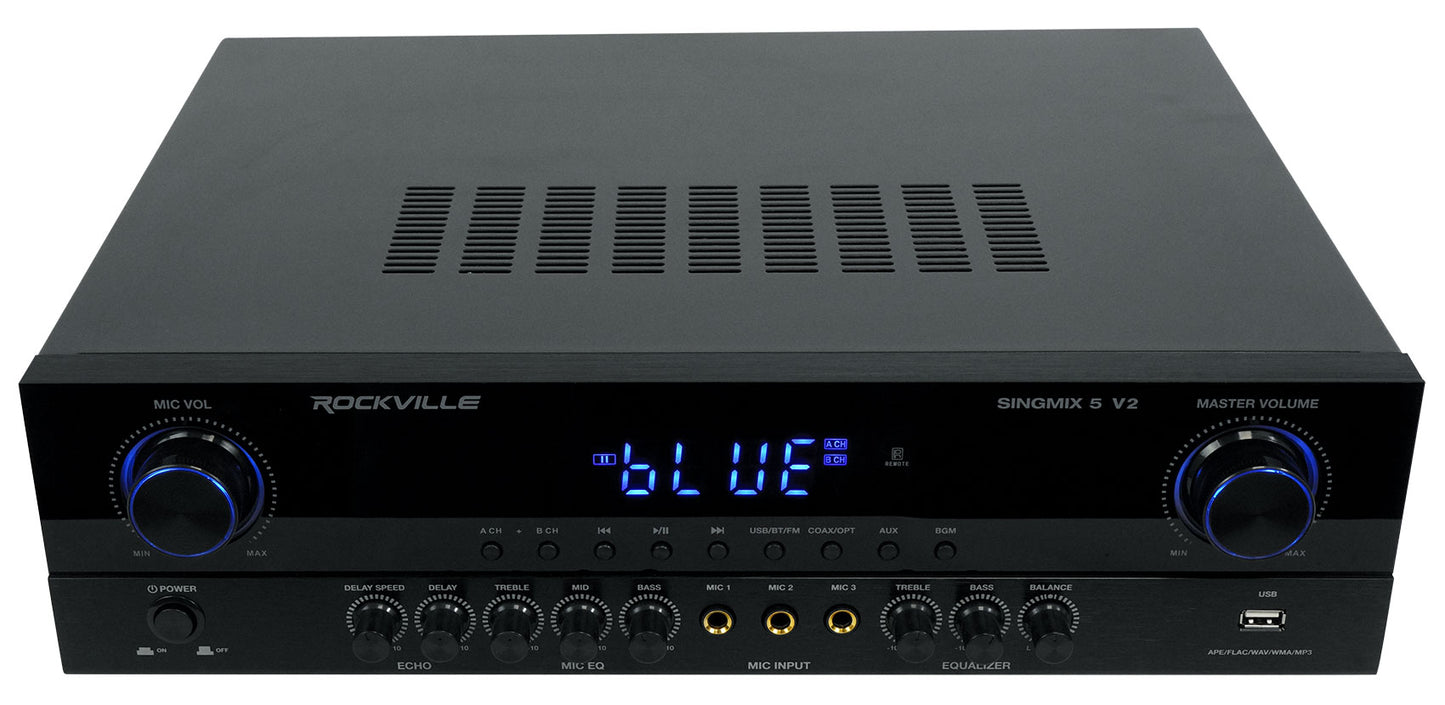

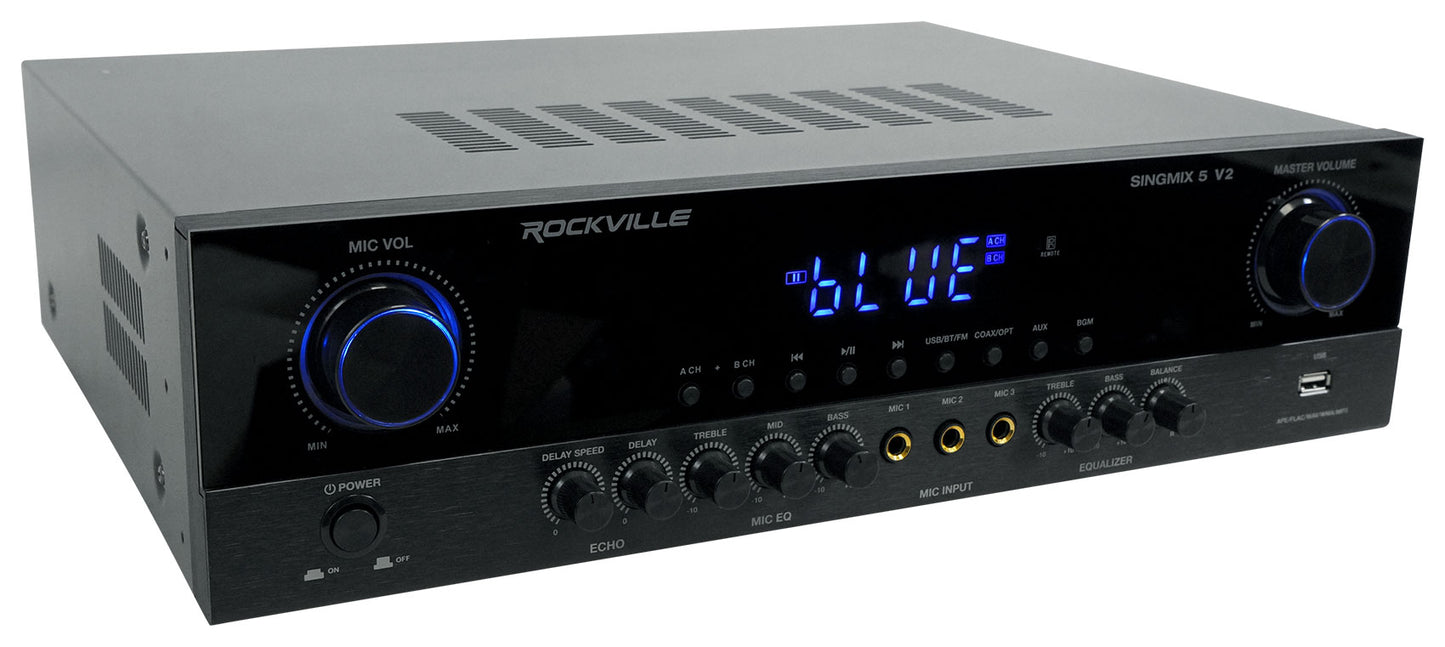

The SingMix 5 V2 by Rockville is our all new 2000 Watt karaoke mixing amplifier that has all the latest and greatest features.
We made the following improvements over our version 1.
This item is more compact so it takes up less space.
You can control the volume from the remote or from the unit. The last version only aloud you to control the volume from the receiver.
Improved overall quality by adding 2 more pairs of transistors.
Big power for professional applications
The SingMix 5 v2 boasts 600 watts RMS and 2000 watts of peak output power. This Professional amplifier is loud enough for medium to large size venues. This model features a quiet cooling fan that will keep this amp running cool even if you play it hard and loud for many consecutive hours. The transformer in this amp is huge! This amplifier weighs in at an impressive 17 LBS! Simply put, this is a beast of an amplifier!
Sound quality
This amp is tuned to give you professional sound quality with almost zero distortion! With individual built-in EQ's for both your music and your microphones you are in complete control. In addition, this amplifier features amazing vocal effects including delay, repeat, and echo controls.
Unmatched playback and expandability options
The SingMix 5 has a wide range of playback options including Bluetooth, USB, SD, and FM radio. It also has (5) ¼" mic inputs (3 on the front and 2 more on the rear). It has (2) RCA Inputs for any audio device like an iPad, Television, DVD player, etc. We also added optical and coax inputs to easily allow you to connect to a TV that does not have an RCA output.
There are 2 sets of RCA outputs. (1) RCA line and record out which allow you to connect a powered sub or another amp and recording device. There is also a Mic output which is a cool feature allowing you to only output the microphones to an external mixer, effects, monitors, etc.

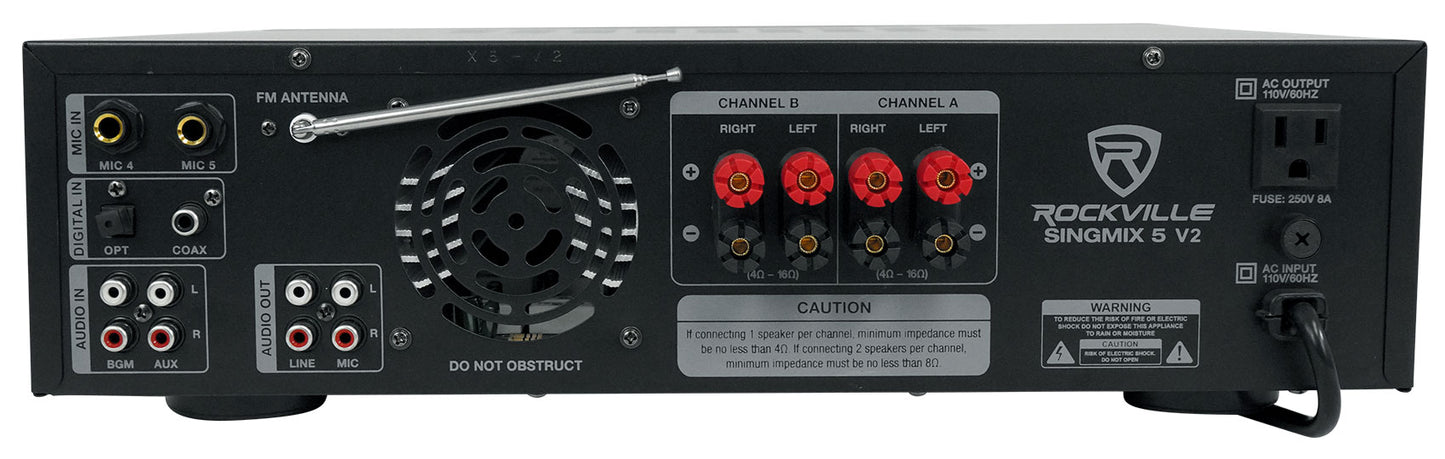

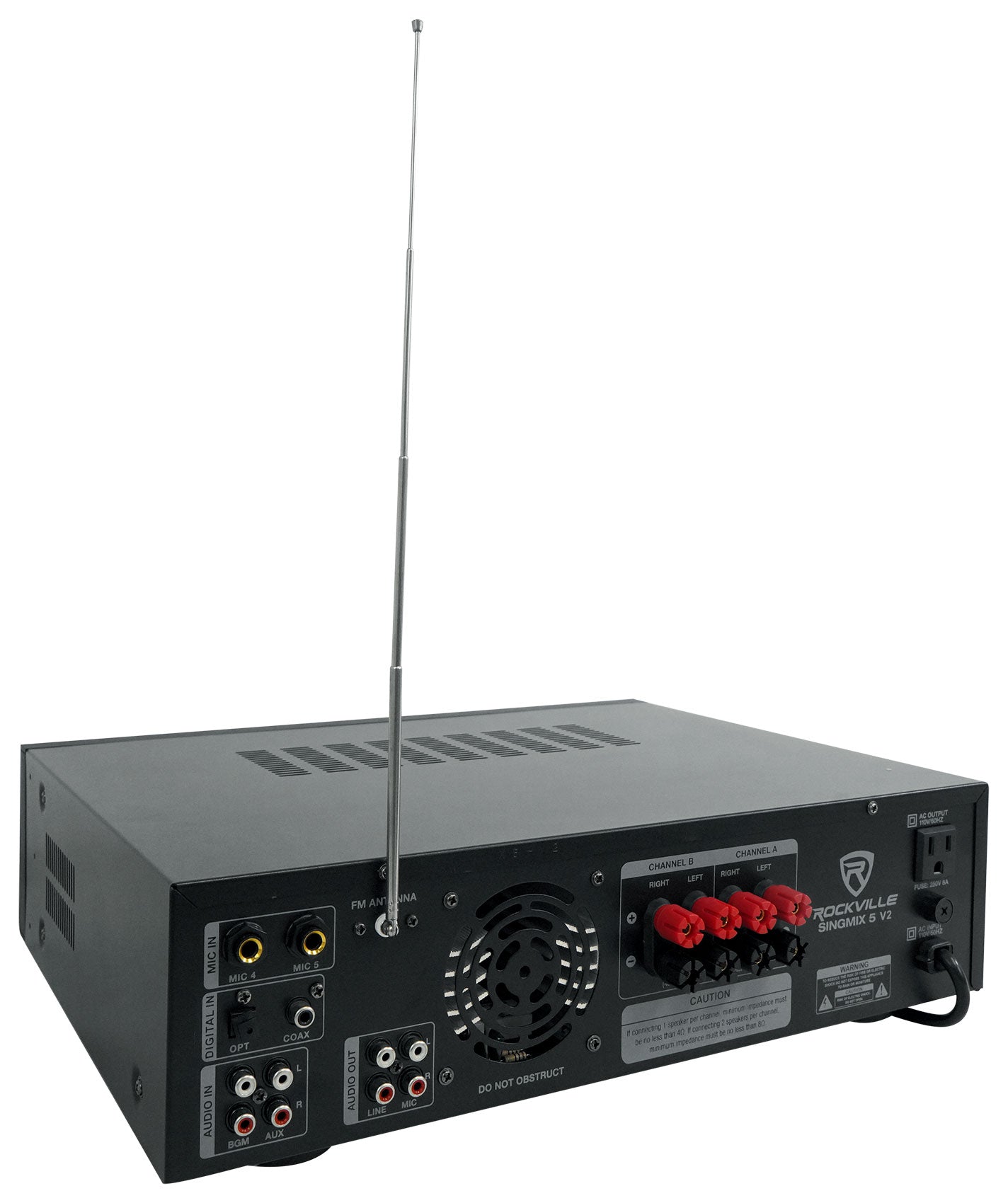

Inputs and Outputs:
- Front: (3) ¼" mic inputs (additional 2 mic inputs on the rear)
- Front: USB/SD Inputs, built-in Bluetooth, FM radio
- Rear: (2) RCA Inputs
- Rear: (2) MIC inputs (there are also 3 mic inputs on the front)
- optical input
- Coaxial input
- RCA Outputs (1 master line out and one mic out)
- Speaker outputs supports 4 speaker or 2 speaker setups (banana or bare wire)
Features:
- Rockville SINGMIX 5 2000 Watt Bluetooth Amplifier/Mixer/Receiver
- Speaker Outputs supports (4) 8 ohm speakers or (2) 8 ohm speakers or (2) 4 ohm speakers (Terminals are banana or bare wire)
- A and B speaker selector options allows you to split the speakers to 2 zones and turn each zone on or off. When both zones are playing it WILL play in stereo
- Built in Bluetooth with 35 Foot range
- USB input will play music files from a thumb drive or hard drive
- SD card playback will play music files stored on a memory card
- Precision tuning with metal knobs
- Mic mixer: 3 front microphone inputs with volume, tone, and echo control
- Additional 2 rear mic inputs
- Adjustable bass and treble music control
- Adjustable bass, mid, and treble mic controls
- Delay and repeat effect controls
- Sets of RCA line/REC outputs
- Set of RCA mic outputs

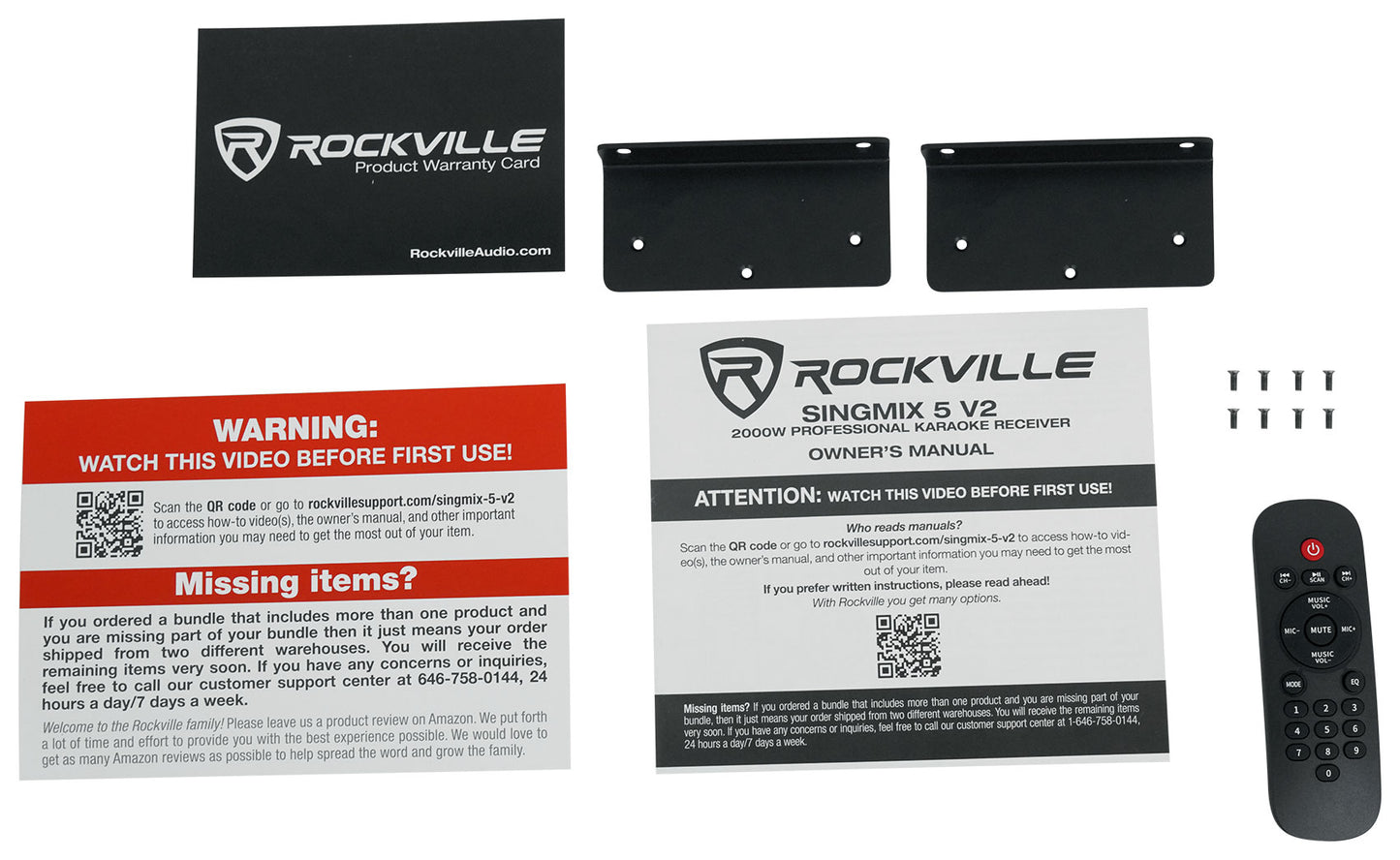

- Removable 19" Rack mount brackets make this perfect for tabletop use or for rack mount applications (Takes 2.5U rack spaces)

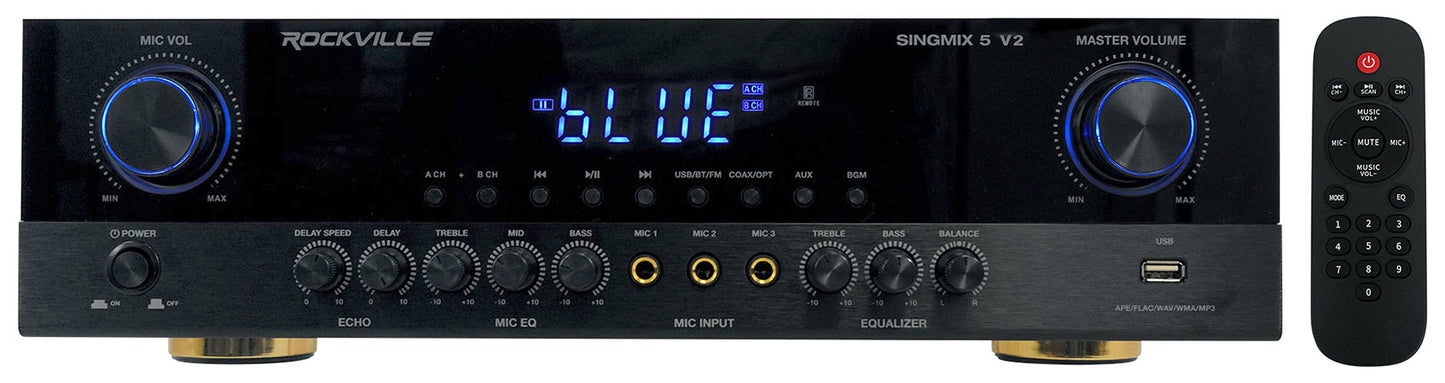

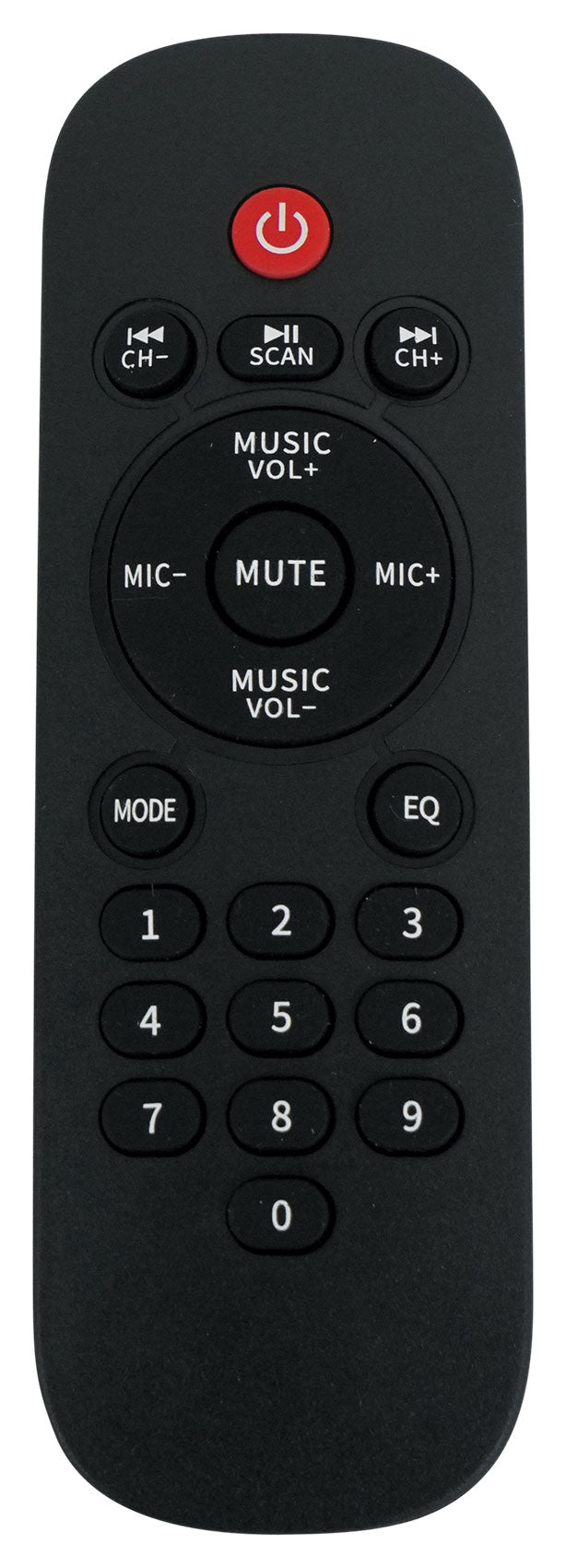

- Full function remote gives you easy access to all the important features
- Built in pre-amplifier
- Built in FM radio with manual tuning, and auto-scan
- Built in quiet cooling fan
- Bright blue LED display
- Perfect for karaoke, DJ, KJ, home, and commercial applications
- Rugged metal housing
- 110V use only
- Unit weight: 17.2 lbs (7.8 kg)
- Shipping weight: 22 lbs (10 kg)
- Unit dimensions: 16.9 inch x 13 inch x 4.3 inch
Specifications:
- RMS @ 4 Ohm less than 1 % THD: 600 Watts RMS (300 x 2)
- RMS @ 8 Ohm less than 1 % THD: 400 Watts RMS (200 x 2)
- Peak @ 4 Ohm at 10 % THD: 2,000 Watts Peak (1000 x 2)
- Peak @ 8 Ohm at 10 % THD: 1,500 Watts Peak (750 x 2)
- THD: less than 0.5%
- Input sensitivity: 250mv/47Kohm
- Frequency response: (20Hz-20KHz): ±2dB
- Signal to noise ratio: > 85db
- Tone characteristic (100Hz-10KHz) ±12dB
- 115V voltage power
Fit Guide:
| Brand | Model |
|---|---|
| Acesonic | SP-450 |
| API | K-909 |
| Audio2000's | ASP5210A |
| ASP5213 | |
| BMB | CSE-308 |
| CSE-312 | |
| CSN-300 | |
| CSN-500 | |
| CSD-2000 | |
| CSD-880 | |
| CSE-310II | |
| CSV-450 | |
| CSV-480 | |
| CSV-900 | |
| Vocopro | SV-500 |
| SV-600 | |
| SV-502 | |
| VX-8 | |
| VX-15 | |
| VX-12 | |
| IDOLpro | IPS-13 |
| IPS-630 |

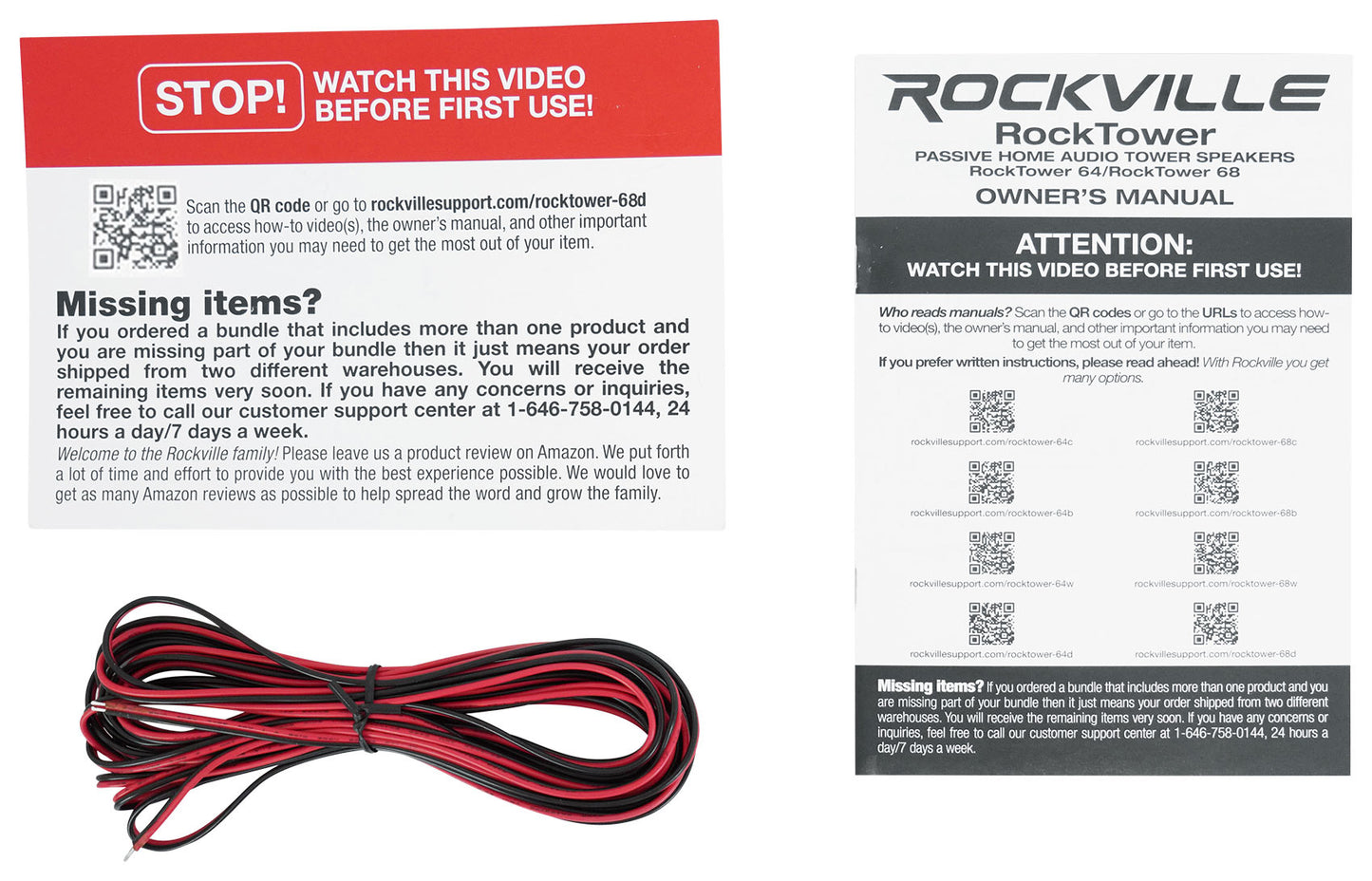

Owner's manual
All About Your RockTower Speakers:
How To Set Up Your RockTower Speakers:
Description:

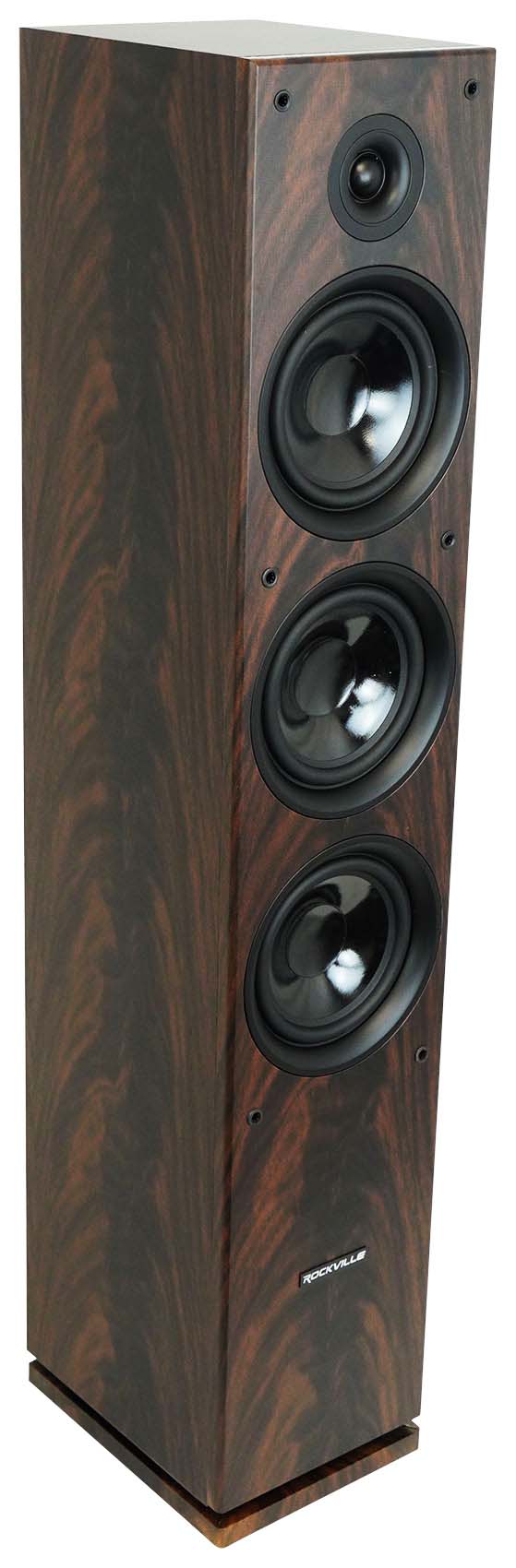

The RockTower 68B passive tower speaker delivers audiophile grade sound quality at an unbeatable price!
Design

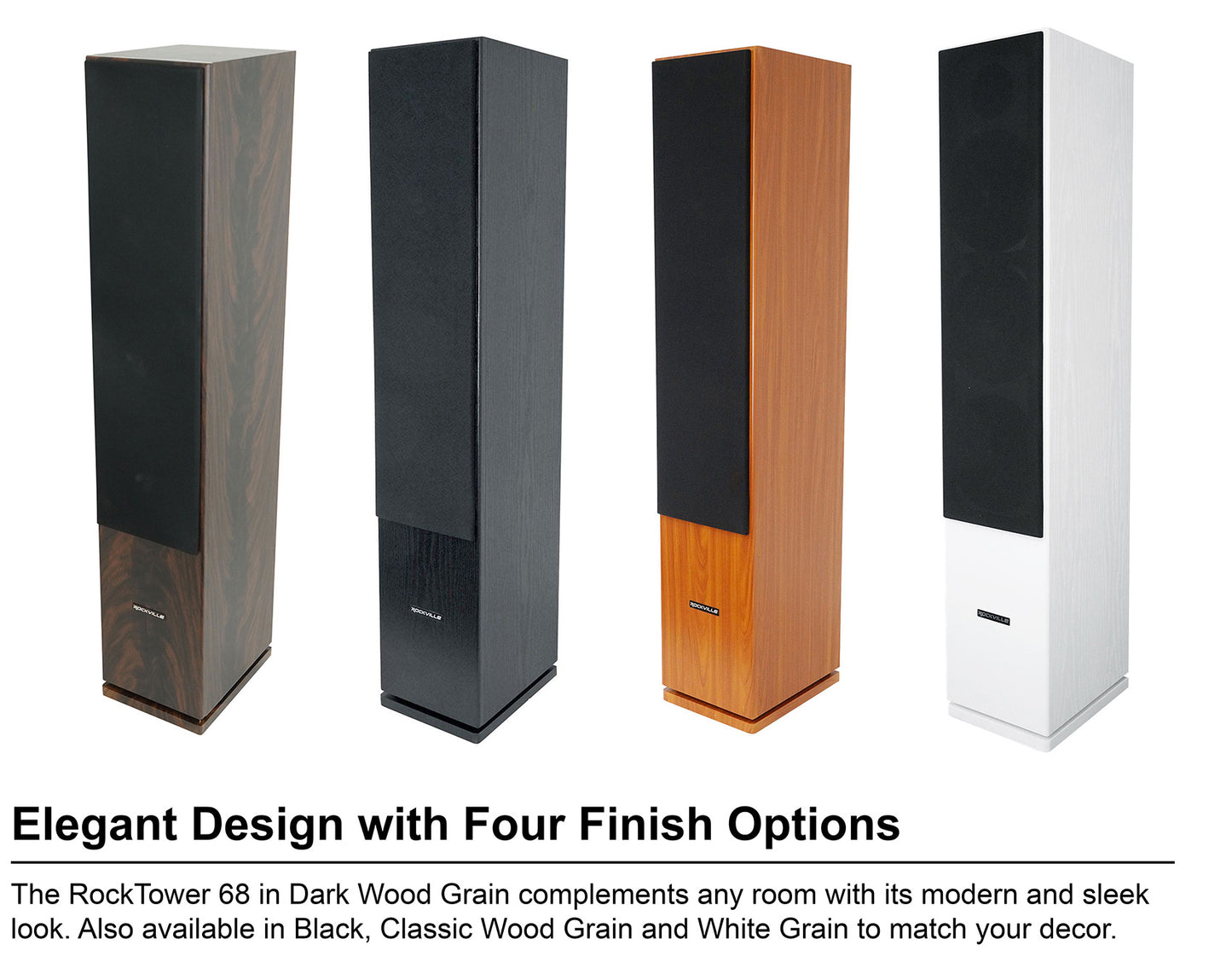

The Rocktower series of speakers come in 3 beautiful finishes. This listing is for the Dark Wood grain. We also offer it in classic wood grain, and white grain. The bottom of the speaker has a concealed and sturdy stand to finish the look. We also designed these to look great with the grills or without grills so you can rock the style you desire.
Power

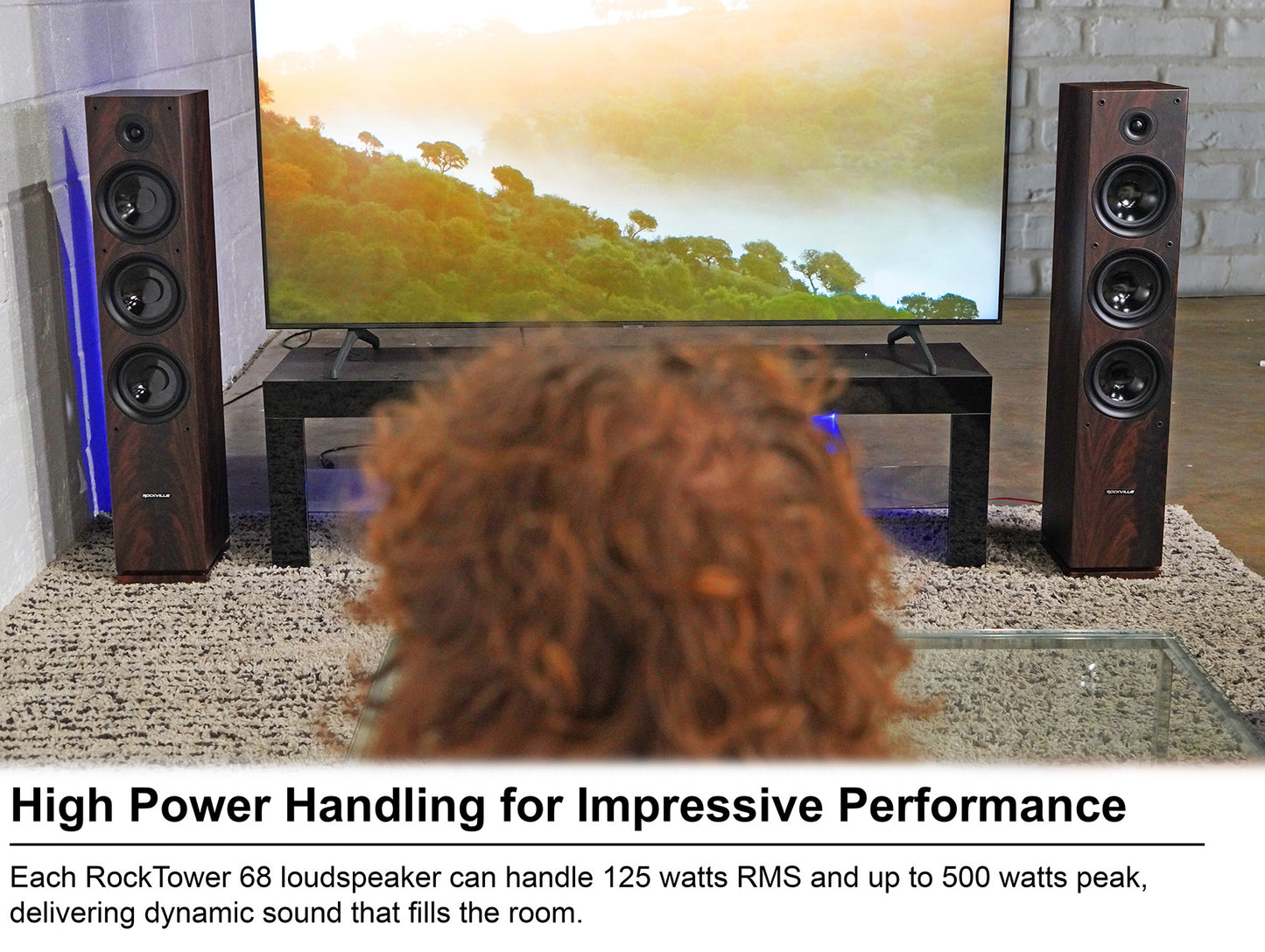

The power handling is an incredible 125 watts RMS each speaker! Even if you over-power these a little it would be fine because we under-rate their RMS power. The peak burst rating is 500 watts.

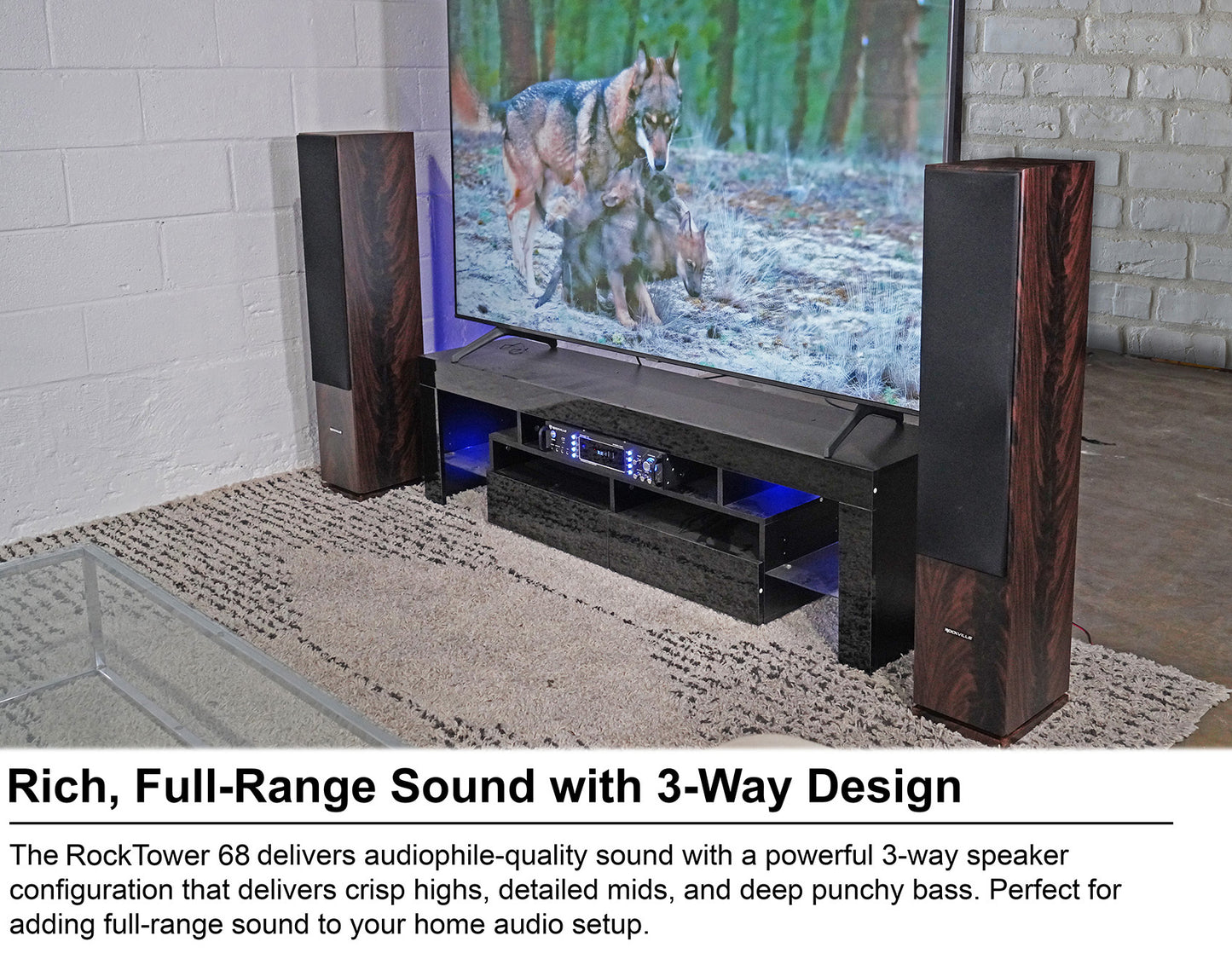

3-Way smart configuration

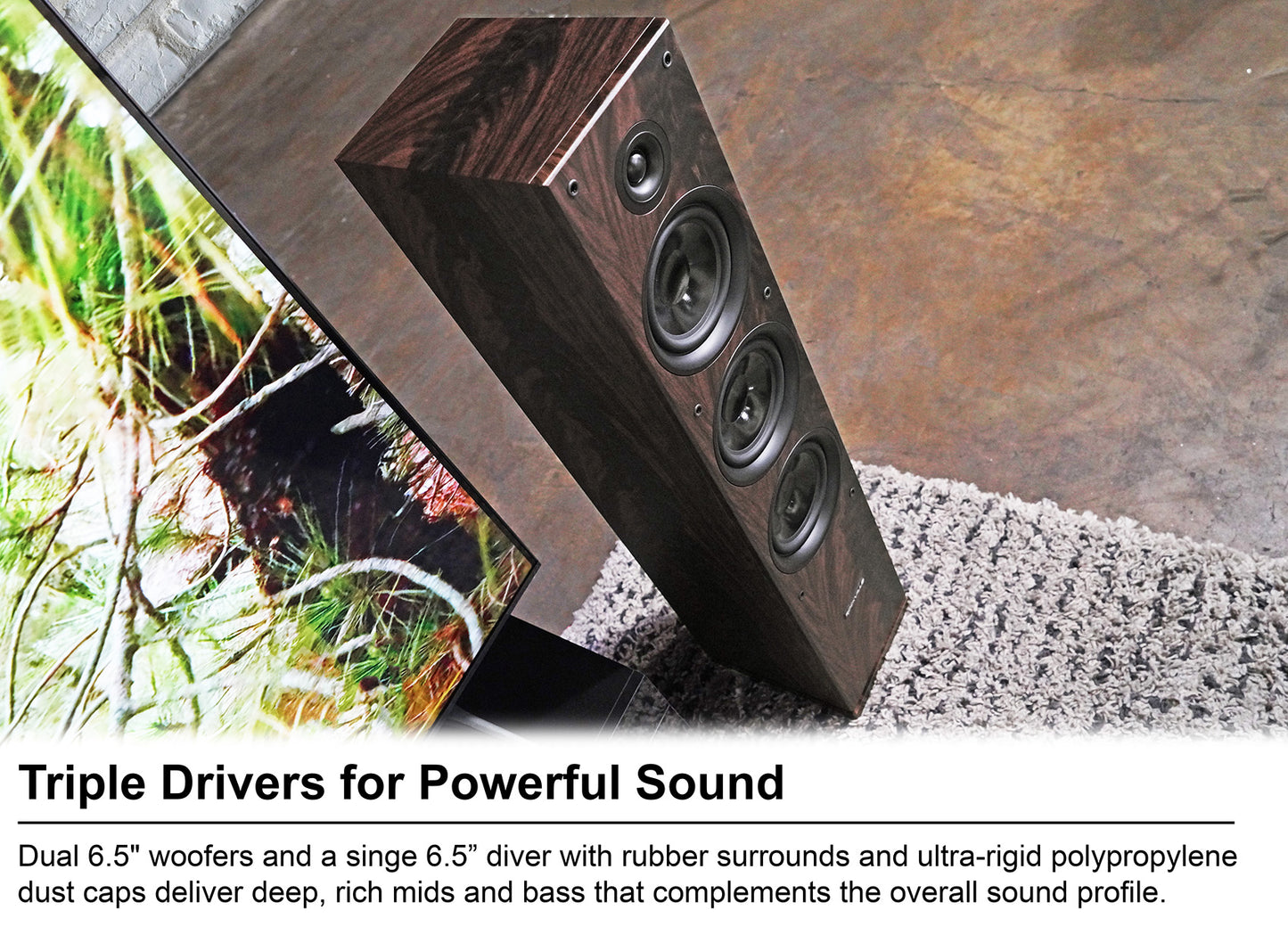

This speaker is built with a very smart configuration. It is a 3-way speaker that separated the highs, mids, and bass to different drivers. We use (2) 6.5" woofers to drive the bass, and (1) 6.5" driver dedicated to the midrange frequencies, and a 1" silk dome tweeter for crystal clear high frequencies.

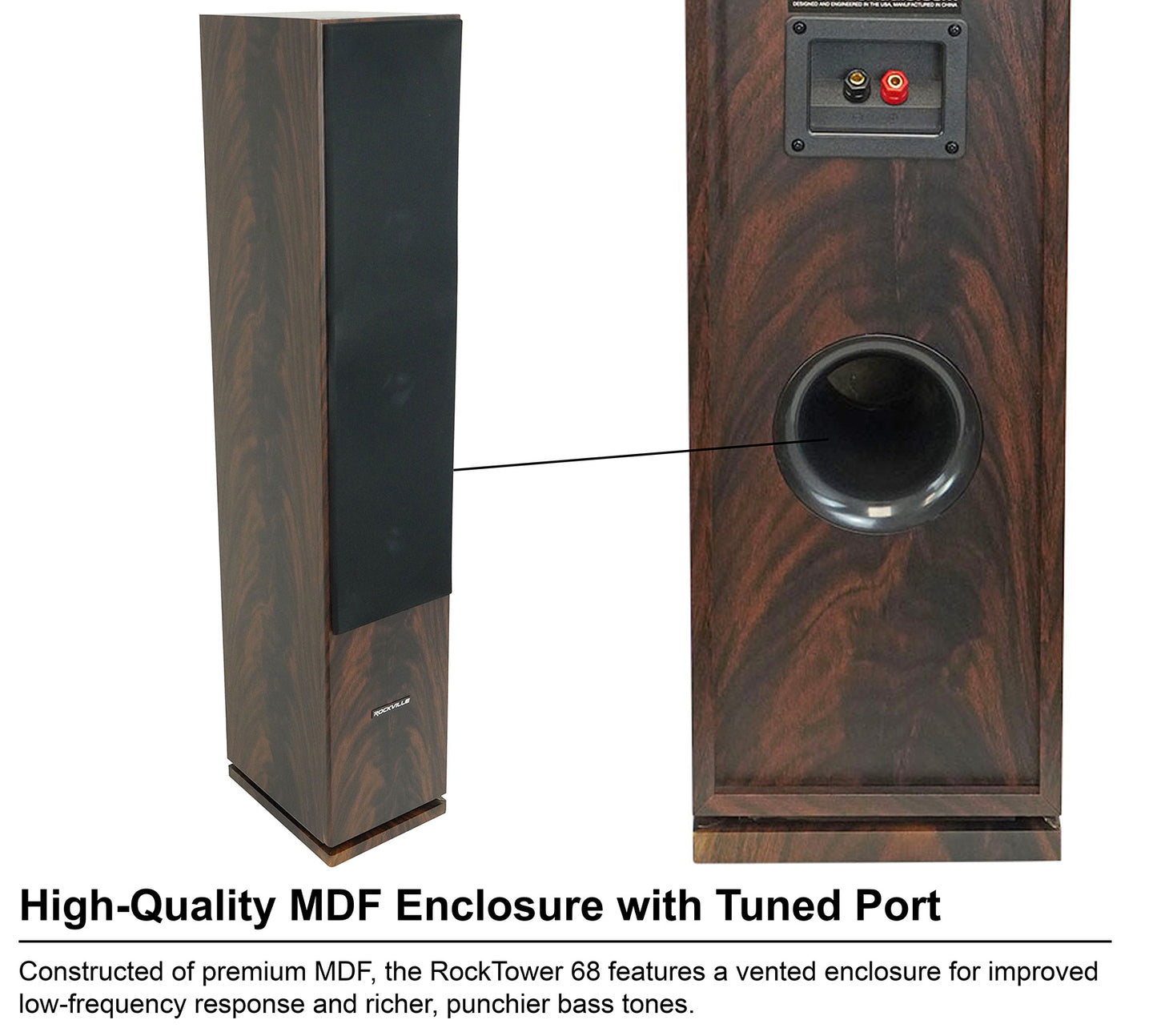

Enclosure
We enclose the speakers in a high quality MDF tower enclosure. (NO particle board Allowed!). We added a vent to the enclosure to give the low frequencies a boost. These sound great n their own and they sound even better with an added sub.

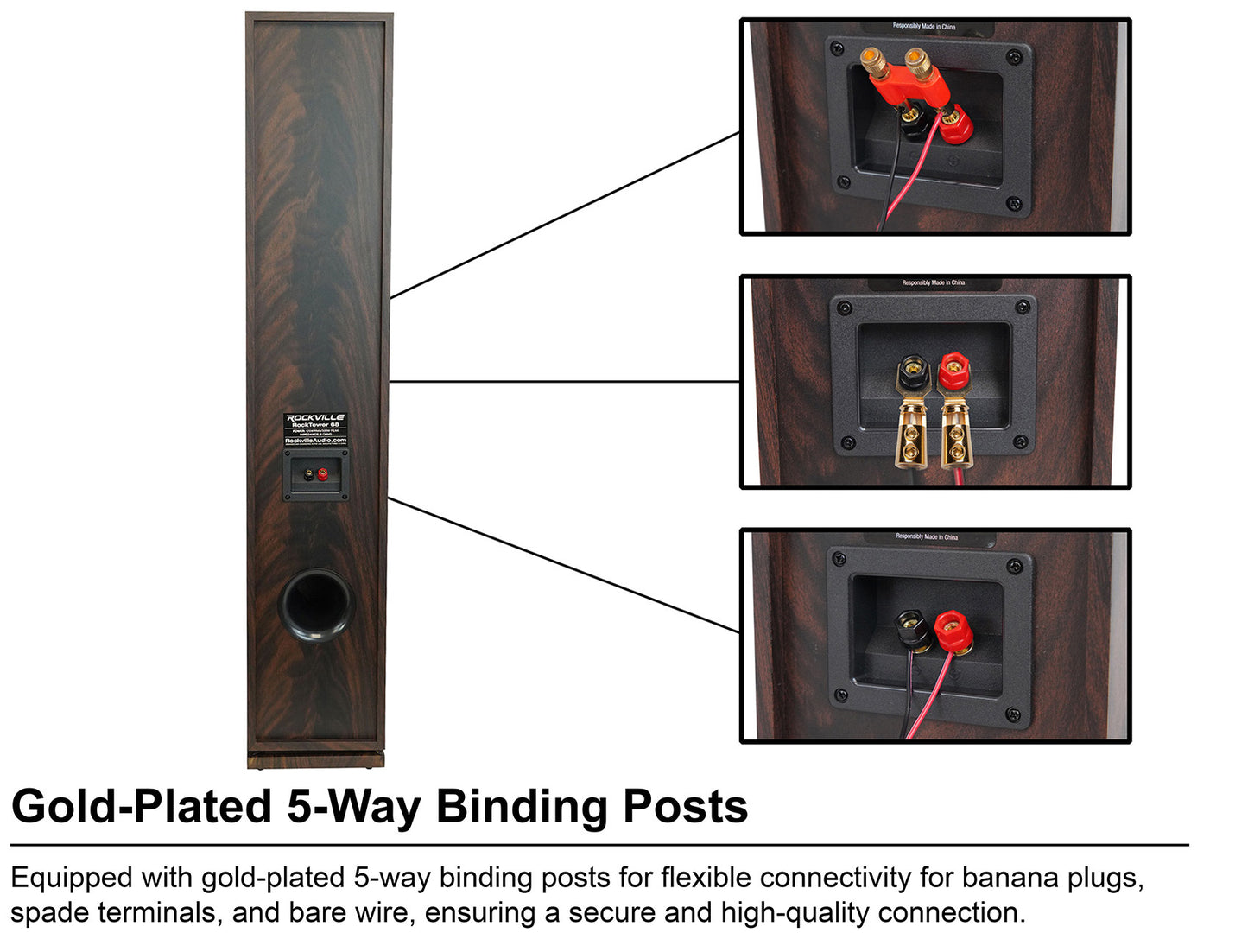

Rear panel
Our rear panel features everything you want in a passive speaker. The gold plated 5-way binding post terminals give the flexibility to use banana plugs, spade terminals, or bare wire.
Impedance options

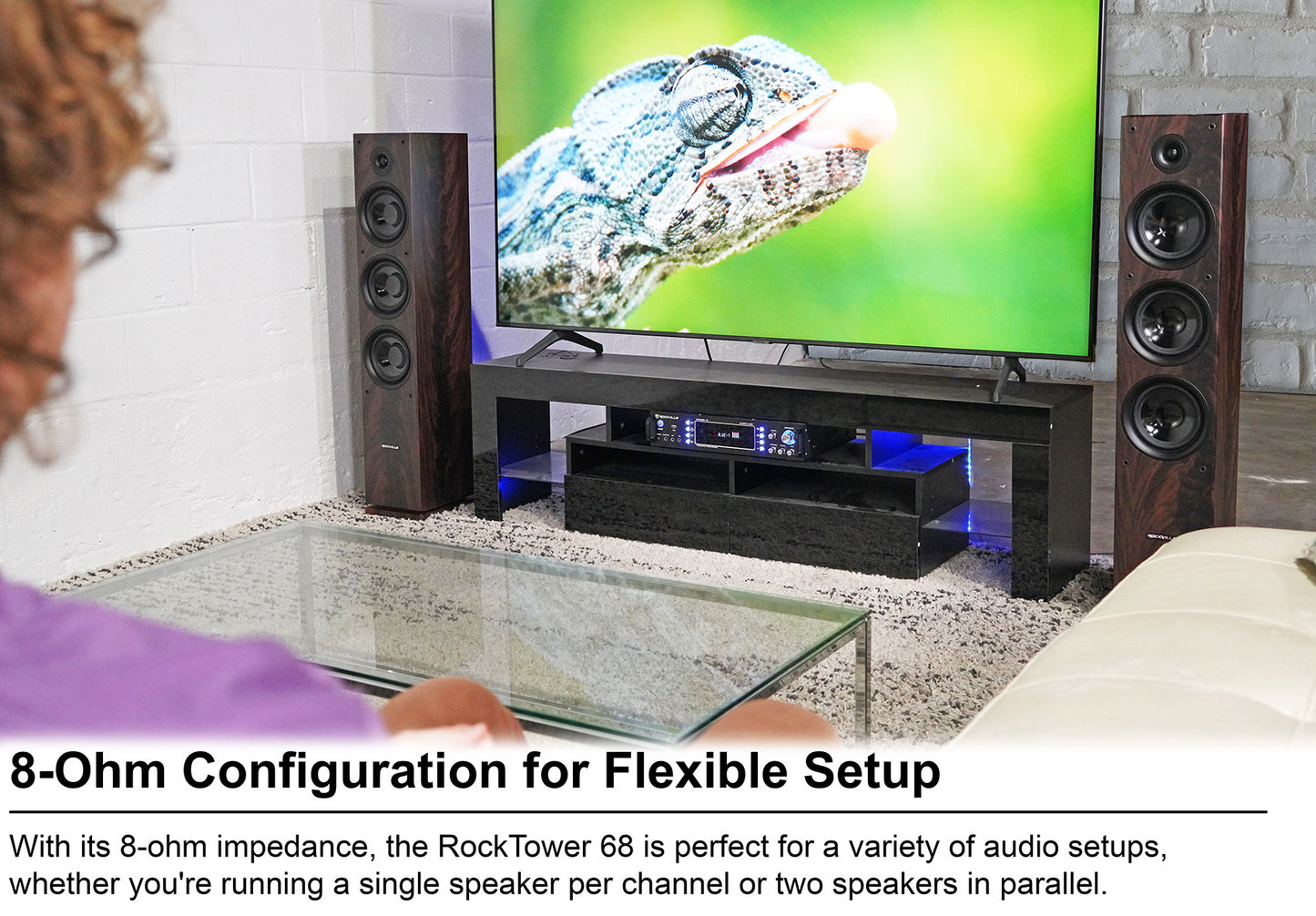

This listing is for the 8 ohm version and it is perfect if you want to run 1 to each channel of your amplifier or if you want to run 2 in parallel to each channel of your amplifier.
Features:
- Rockville RockTower 68D Dark Wood Grain Home Audio tower Speaker
- RMS Power: 125 Watts
- Peak Power: 500 Watts
- Woofer: 6.5" x 2
- Midrange: 6.5" x 1

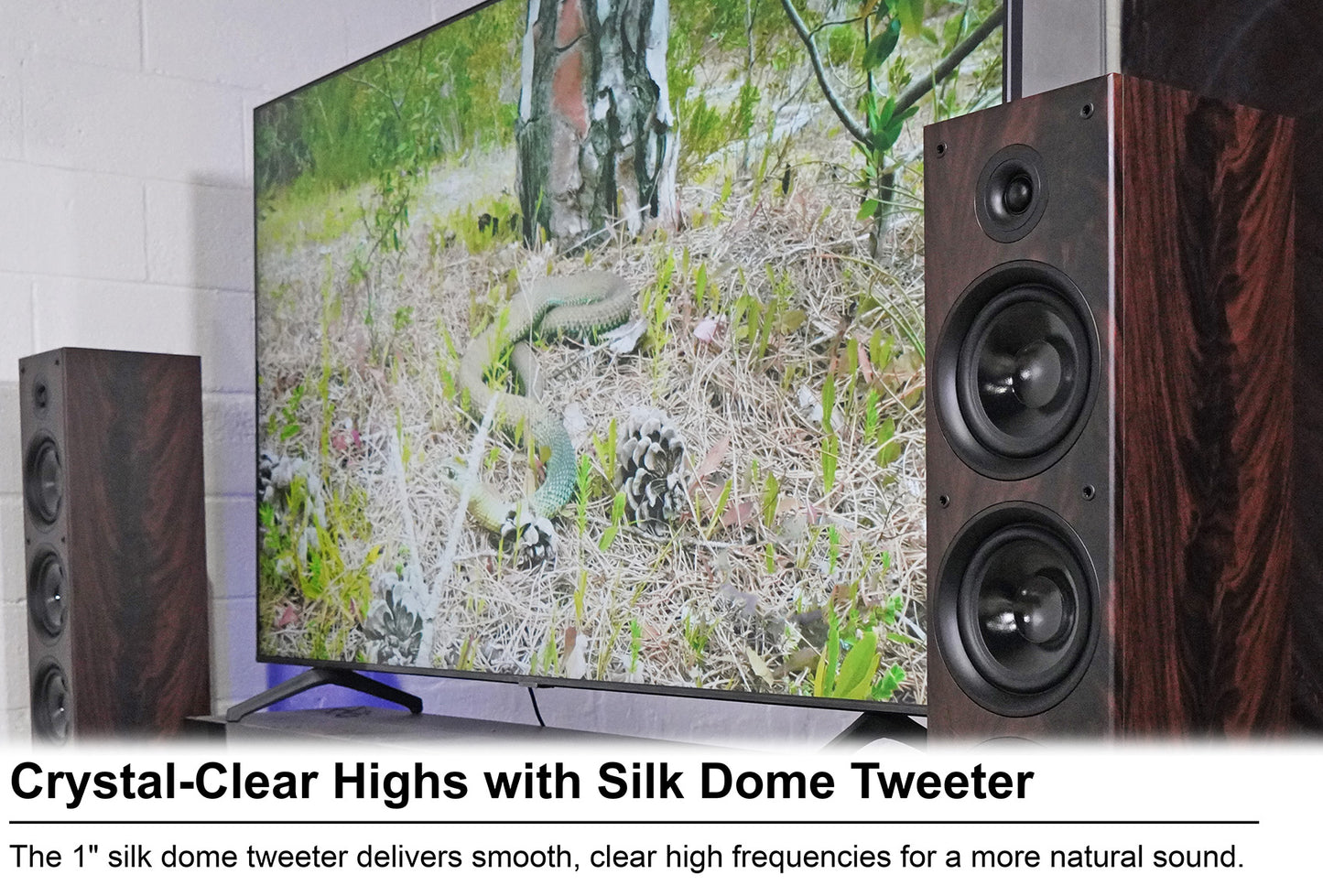

- Tweeter: 1" Silk dome tweeter
- Each Woofer has a 15 oz magnet and 1.25" voice coil
- Midrange has 8 oz magnet and 1" voice coil
- Cabinet material: Top quality MDF with beautiful vinyl wood grain finish
- Silk dome tweeter gives crisp and realistic sounding highs (silk dome are generally more musical)

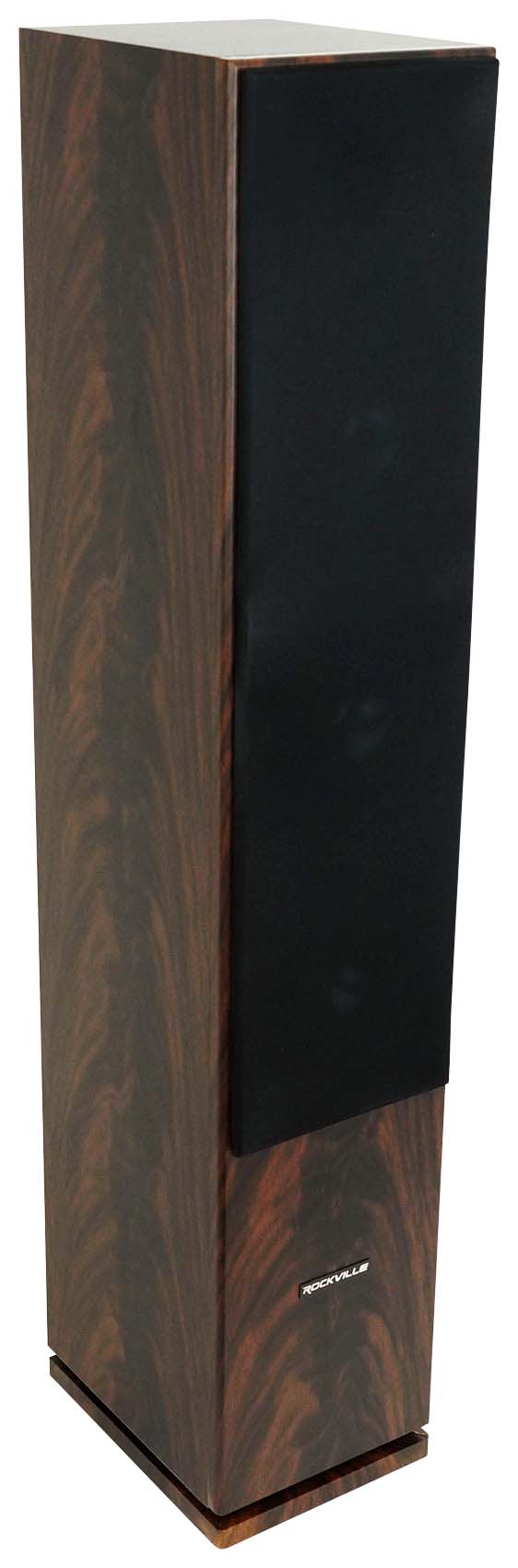

- Detachable grill (speaker looks amazing with and without the grill)
- Vented enclosure gives a boost of punchy bass at low frequencies
- Gold-plated 5-way binding post terminals can accept banana, bare wire, spade terminals, and more
- Impedance: 8 ohm
- Color: Dark Wood Grain (also available in white grain and classic wood grain)
- Ultra-stiff Polypropylene dust cap on woofer
- Built-in 3-way crossover separates frequencies so each driver can work together
- Rubber surrounds on woofer
- Frequency Response: 30Hz-20KHz
- Sensitivity:87 dB 1W/1m
- High Quality Golden Terminals
- Dimensions of each speaker (inches): 10.43" x 7.87" x 41.73"
- One pc speakers Shipping carton dimensions (inches): 14.2*11.4*46.5inch
- Weight per speaker: 26.2 lbs
All About Your RCC14 Series of Speaker Wire:
How To Set Up Your RCC14 Speaker Wire:
Description:

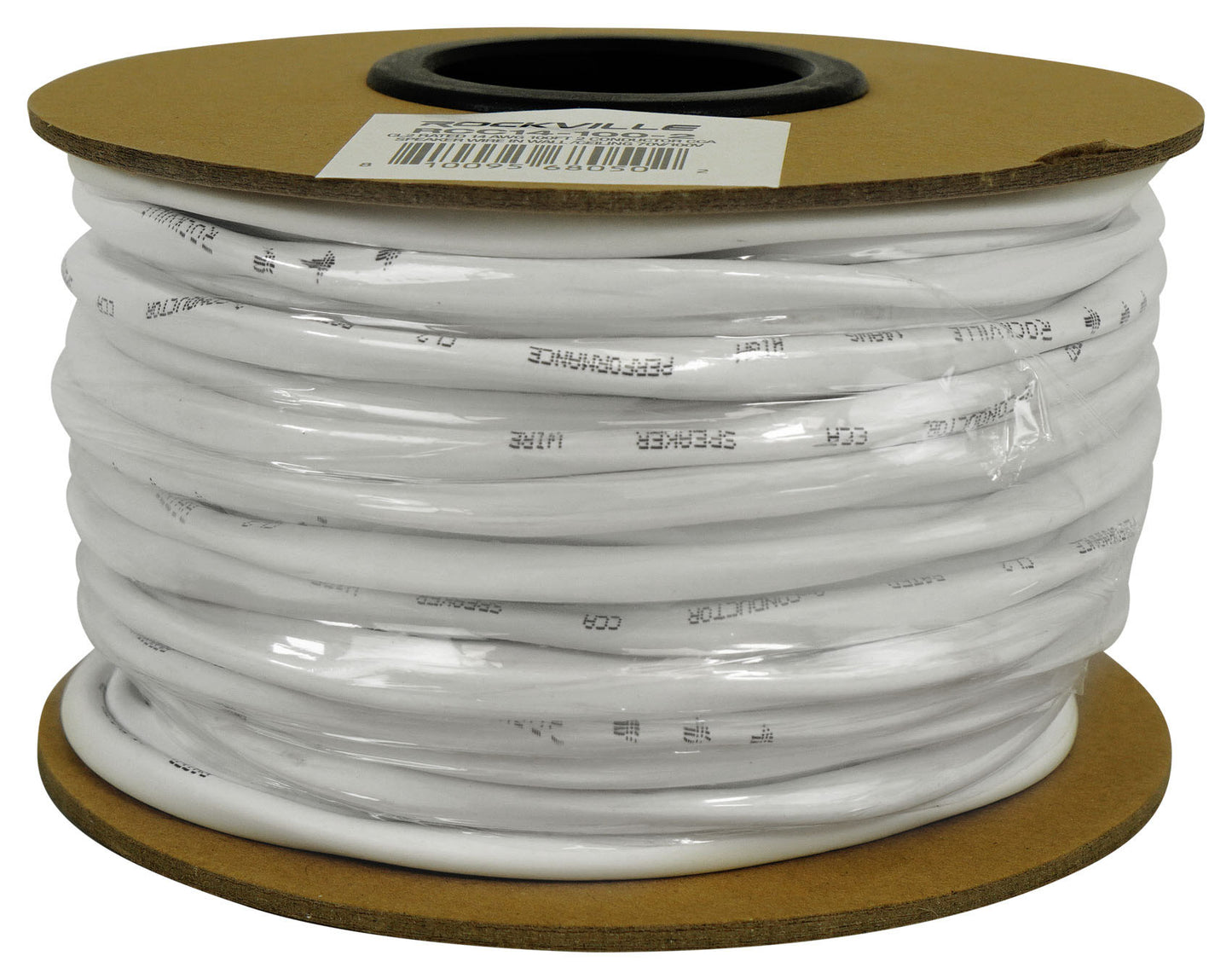

CL2 rated speaker wire is perfect for commercial or home applications. CL2 means you can safely install it in your ceiling or behind walls. If you are doing a 70V or 100V or 8 ohm installation of wire then this is the perfect product for you.
This speaker wire is CCA (copper clad aluminum). Our CCA will run well because we use 30 % copper and 70 % aluminum. There are other CCA cables on the market that use 10 % or less of copper. OFC cables are better but they cost way more and in many applications there will be no performance difference. You should use OFC cables for long runs or if a lot of power will be running through it.

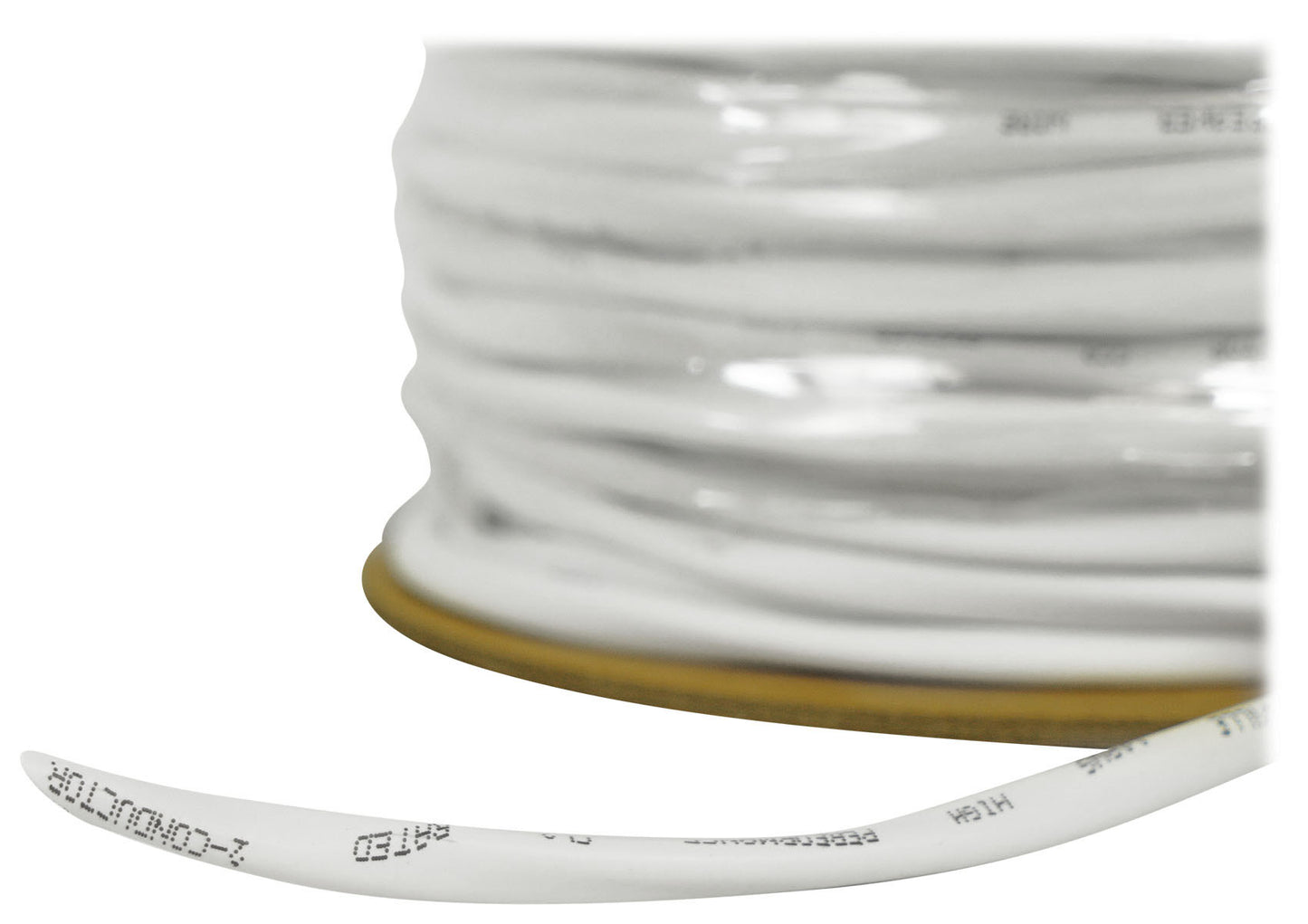

Each conductor is housed in a color-coded PVC for easy polarity identification. The entire cable is inside of a PVC material that is CL2 fire-safety rated.
Features:
- Rockville RCC14-100-2 CL2 Rated CCA (Copper Clad Aluminum) Speaker Wire For In Ceiling or In-Wall Installation
- 100 Feet
- 14 AWG (American Wire Gauge)
- 2 Conductor
- 30% Copper and 70 % Aluminum wire
- CL2 rated for safe installations in ceilings or walls
- Strands Count: 41 Wires Strand Size: 0.25mm
- Each conductor is housed in a color-coded PVC for easy polarity identification
