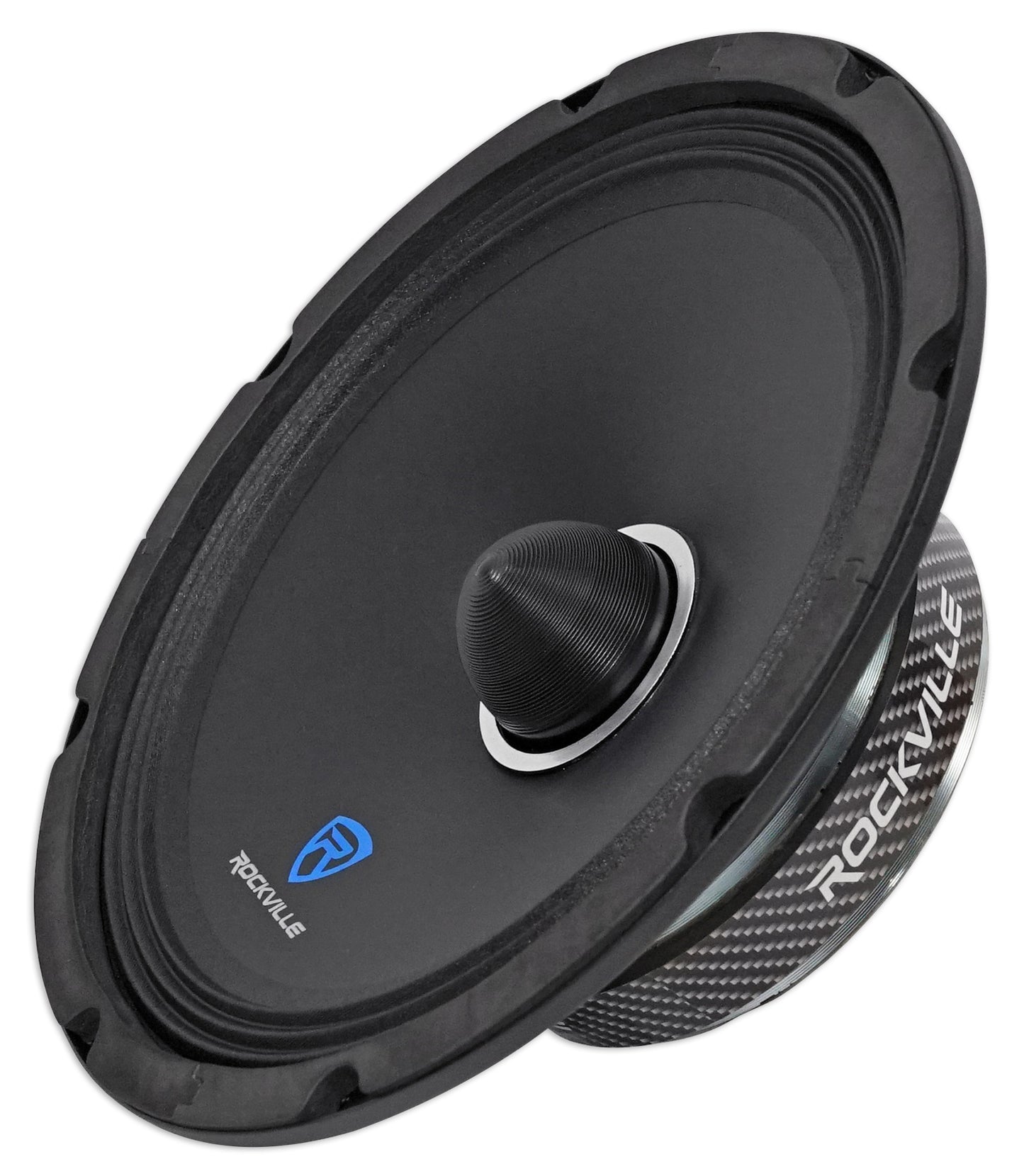

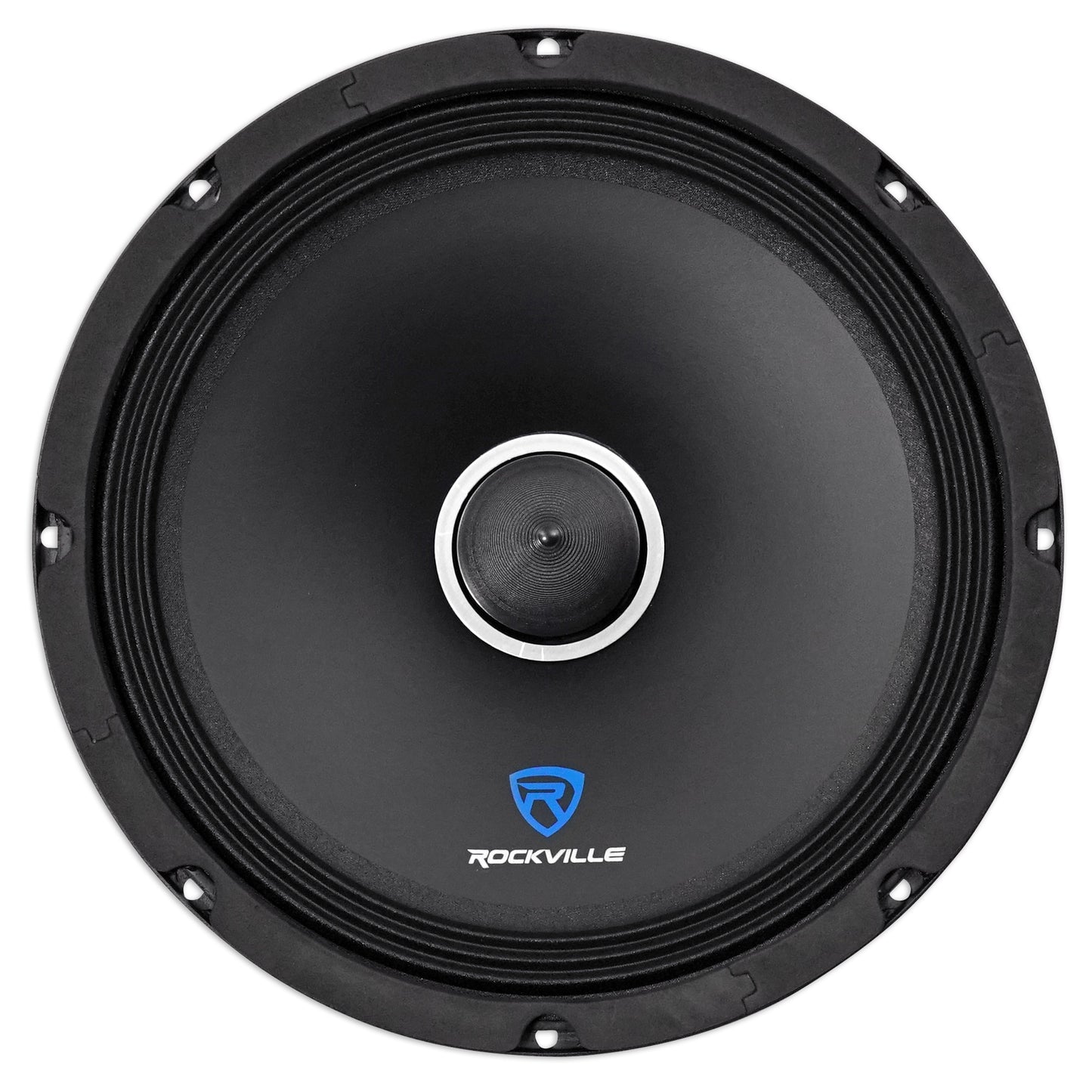

You are looking at the best value on the market today for high quality
mid speakers. The Rockville RXM104 is a 10" midrange/midbass driver that
features 600 watts peak power handling and 300 watts RMS per speaker.
These speakers are CEA compliant which means they are tested and rated
by the industry standard. They are rated the same way that other premium
brands such as Kicker, Rockford, and JBL rate their speakers. You
can feel confident when comparing these with other mids on the market or
when matching these up with a high quality amplifier. This is very
important because some of the cheaper brands on the market write bogus ratings like 2,000 watts on their mids, but
they aren't CEA compliant and they won't even handle 5 % of the power
they are rated at.
Extra care in the design and manufacturing are
seen throughout the speaker. We added thoughtful touches, such as

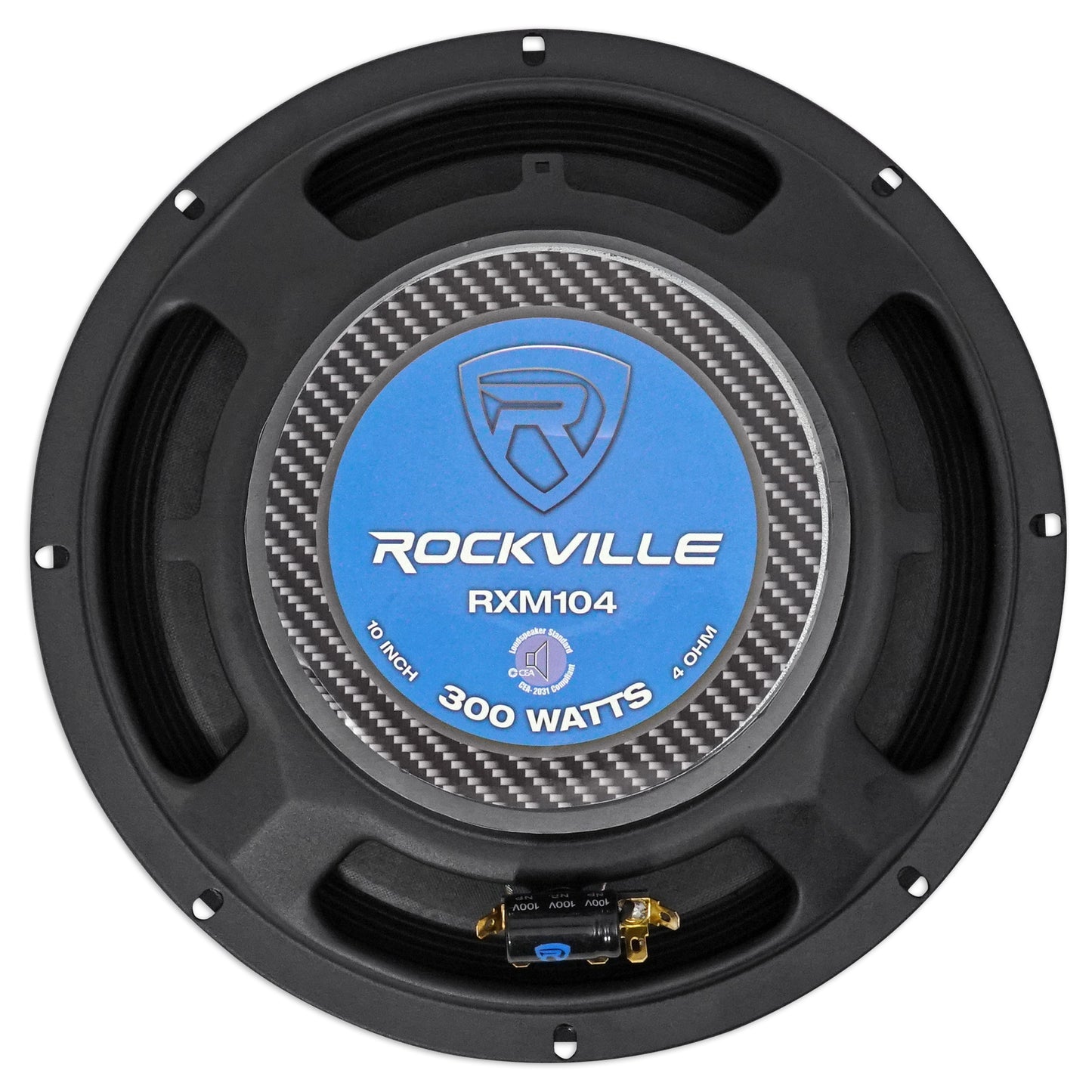

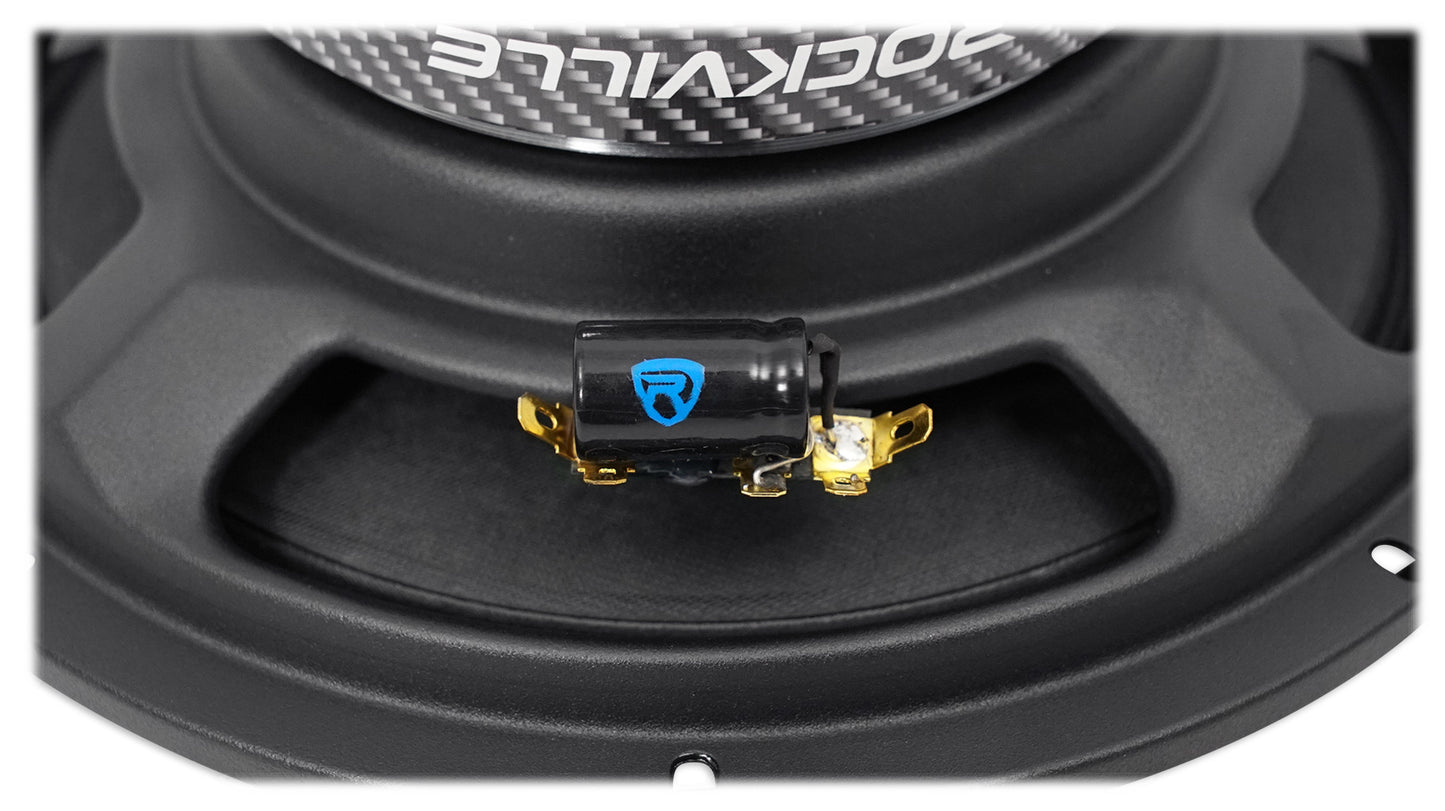

prewired capacitor crossovers, which prevent the speakers from blowing
easily while increasing the sound quality at higher volume levels. The
speakers have large 40 oz. magnets with oversized 2" high temperature
CCAW voice coils. The expanded high tinsel steel basket dampens vibration
so that all you hear is crystal clear musical response without any
external motor or vibration noises.
Unlike other brands which
produce their speakers by machine, the RXM104 speakers are hand-made
individually by technical teams dedicated to perfection and are subject
to rigorous quality control standards.

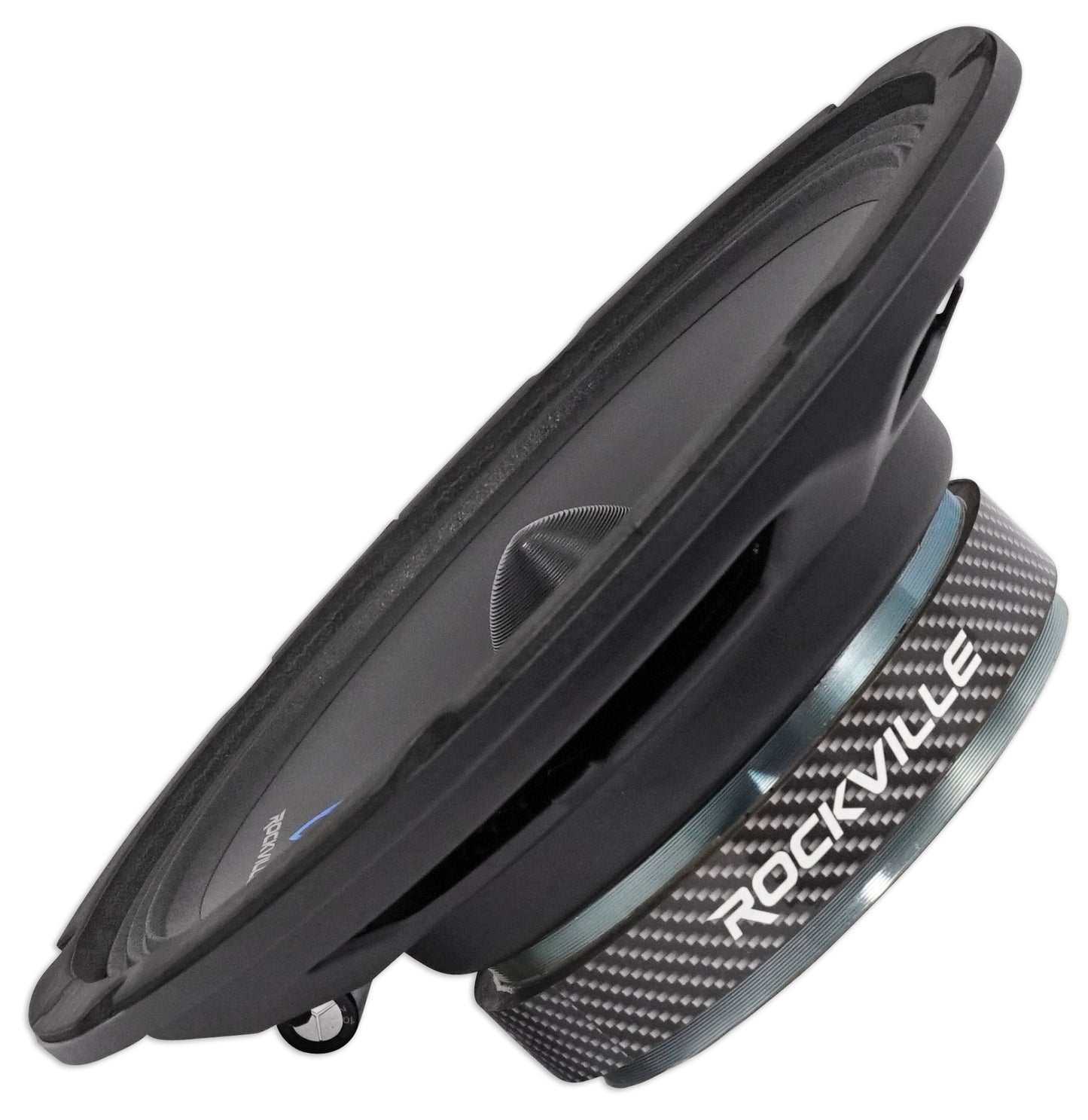

The super shallow mounting
depth facilitates easy fit in to door installations or in other tight
locations. To make these so shallow we had to use a slightly smaller
magnet, but our engineers were still able to keep the sound quality and
power ratings extremely high!
Features:
- Rockville RXM104 10 Inch 600 Watts / 300 Watts RMS 4-Ohms Midrange Car Speaker With Bullet
- Power Handling 600 watts Peak / 300 Watts RMS
- CEA Compliant Power Ratings
- Speaker Size: 10"
- Design: Open-Basket Mid-Bass/Mid-Range
- Bullet in middle for extended frequency
- Sensitivity: 94dB
- Frequency Response: 60Hz-10KHz
- Impedance: 4 ohms
- Cone is made with Kevlar
- Reinforced Black Pulp Cone
- Treated Cloth Accordion Suspension
- Linear Progressive Polyester-Cotton Composite Spider
- Acrylic Bullet Phase Plug High SPL Design
- High Tinsel Expanded Steel Basket
- Cloth surrounds reproduces very clean sound
- Zinc-plated T-yoke/washers
- Super Slim Design facilitates Door Installations
- Oversize 2 High Temperature CCAW Voice Coil
- 40 oz magnet

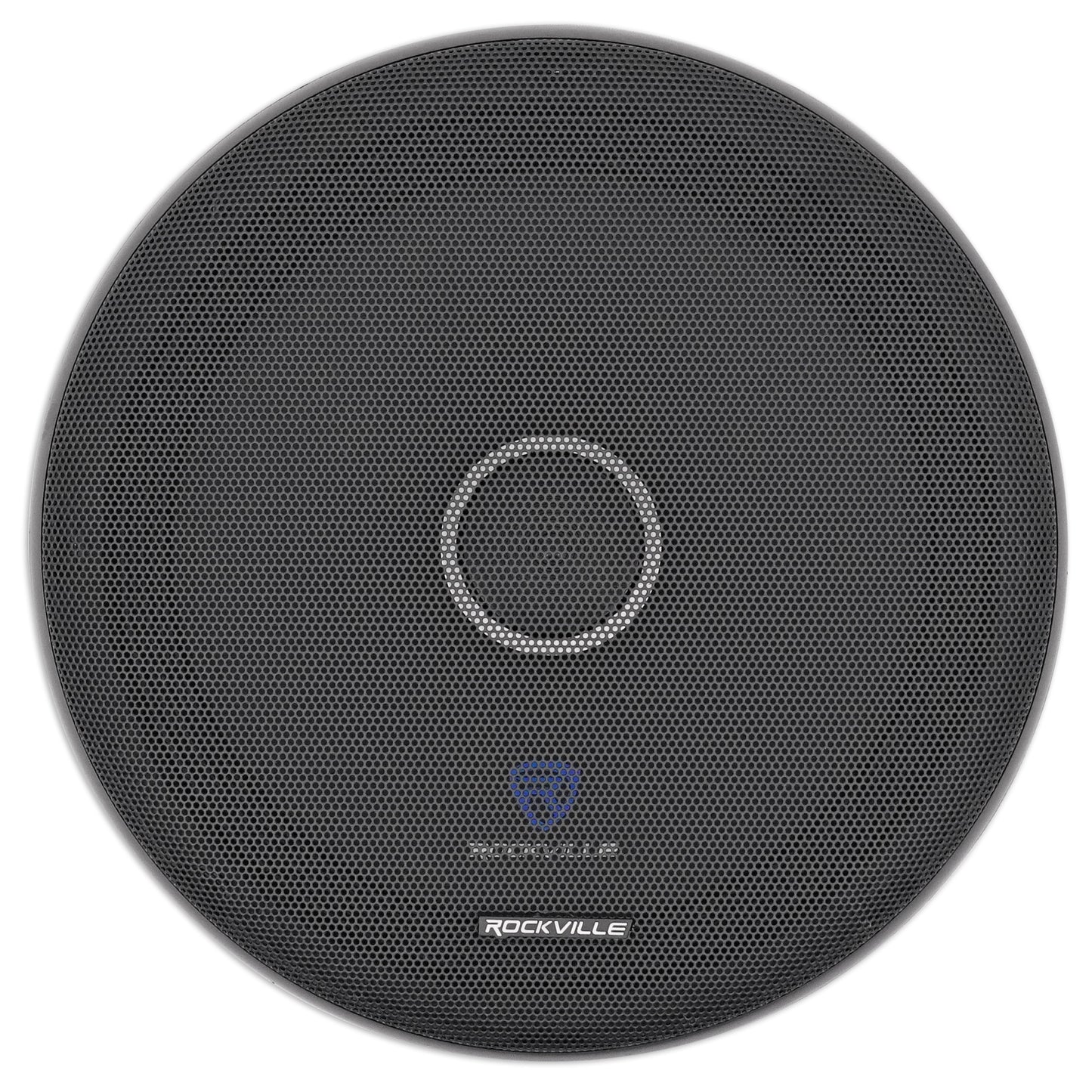

- Includes Wire Mesh Grill

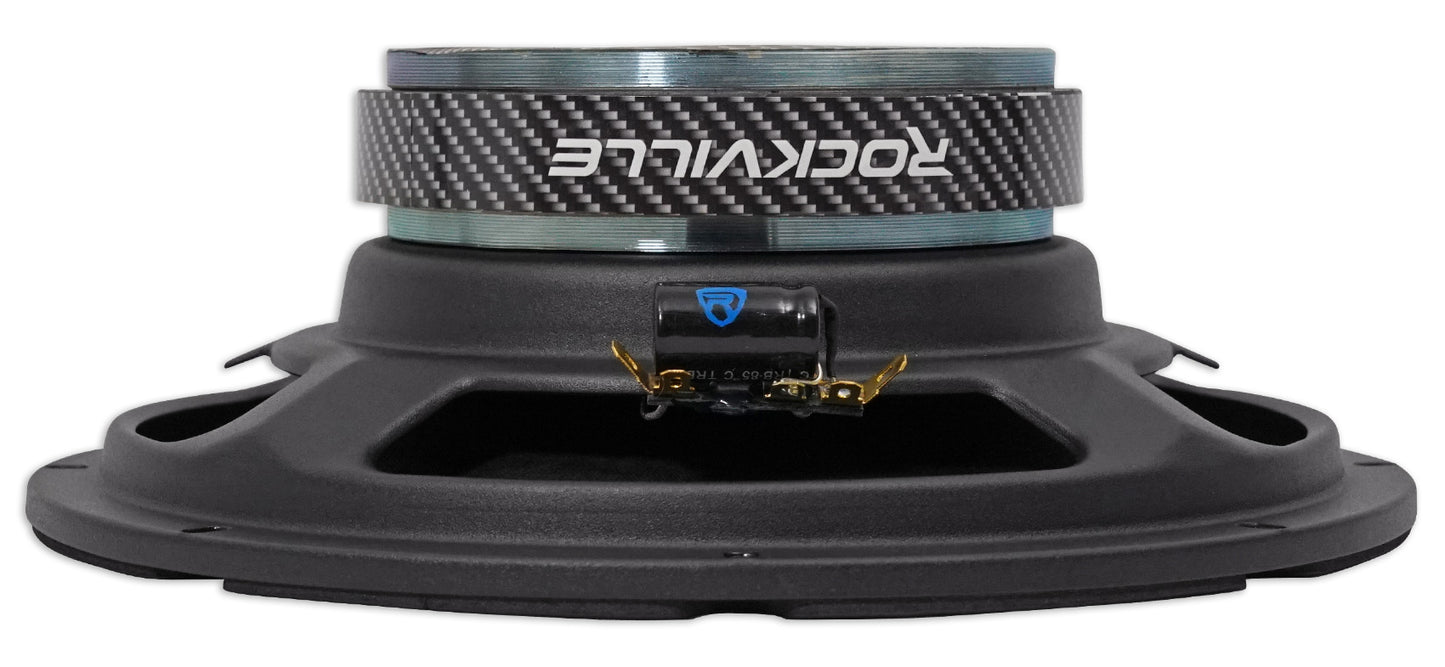

- Prewired with Bass Blocking Capacitor
- Shallow Mounting Depth
- Top-Mount Depth: 3.15"
- Cutout diameter: 9.61"
- Overall Diameter: 10.08”
- Mounting hole diameter: 8 holes- 0.217" x 0.315"

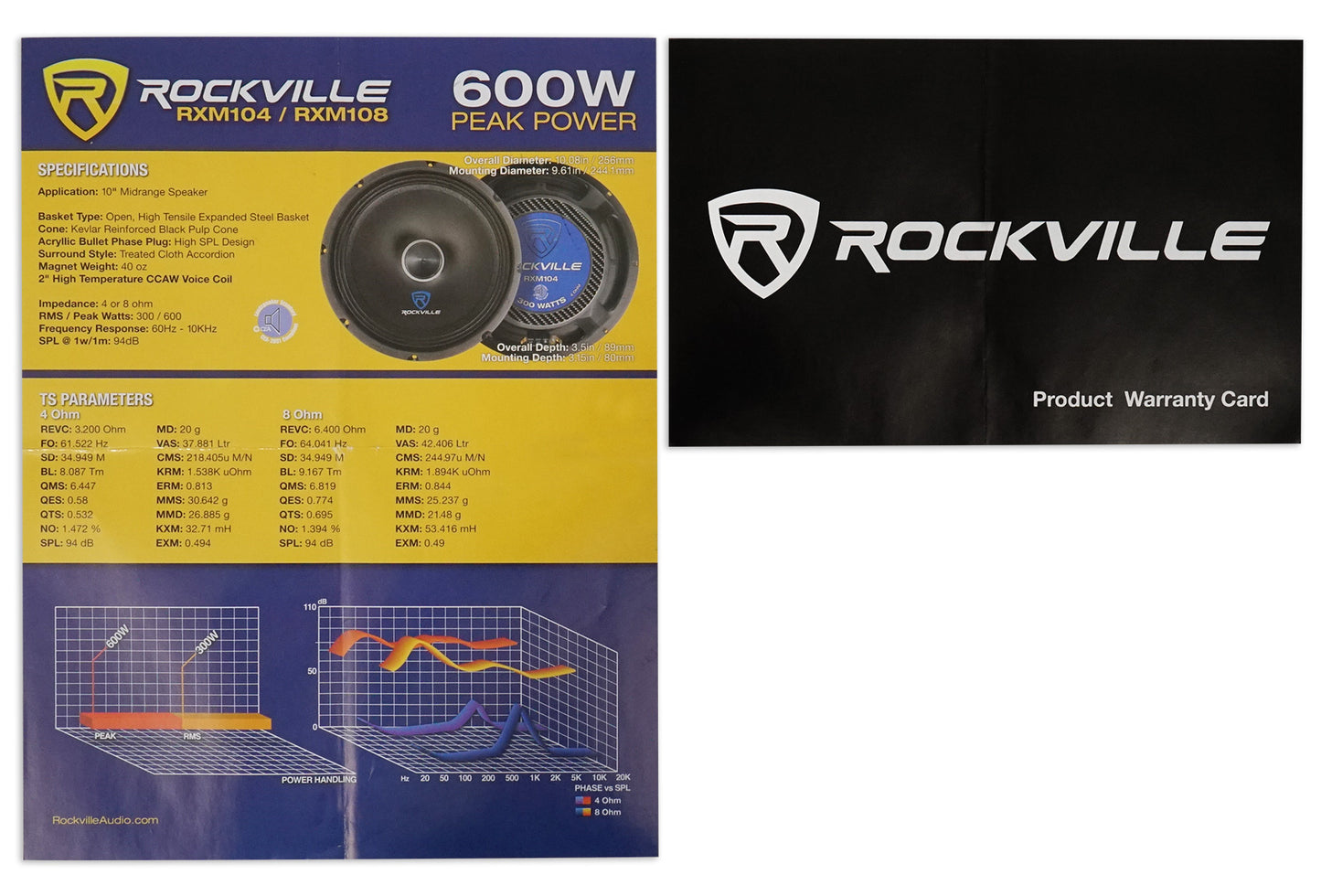

TS Parameters:
- Revc: 3.2 Ohm
- Fo: 61.522 Hz
- Sd: 34.949 M
- Md: 20 g
- BL: 8.087 Tm
- Qms: 6.447Qes: 0.58
- Qts: 0.532
- No.: 1.472 %
- SPL: 93.7 dB
- Vas: 37.881 Ltr
- Cms: 218.405 M/N
- Krm: 1.538K uOhm
- Erm: 0.813
- Mms: 30.642 g
- Mmd: 26.885 g
- Kxm: 32.71 mH
- Exm: 0.494
- UPC:
- 811080028910
