HOW TO SET UP YOUR RWM1203VH:

Video of RWM1203VH:

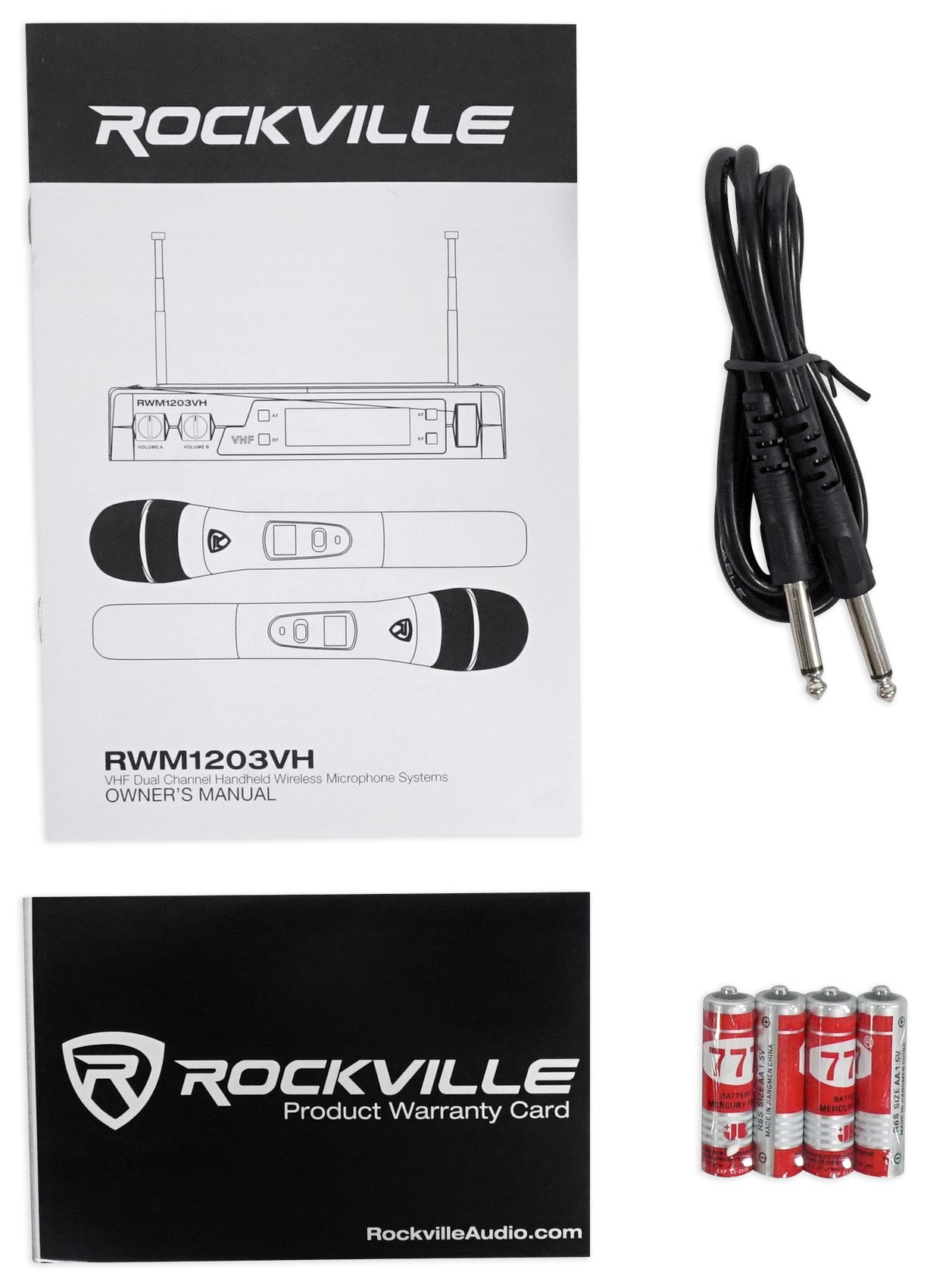

Includes:

• 2 wireless handheld microphones
• 1 receiver unit
• User manual
• Batteries
• Transfer Cable

Features:

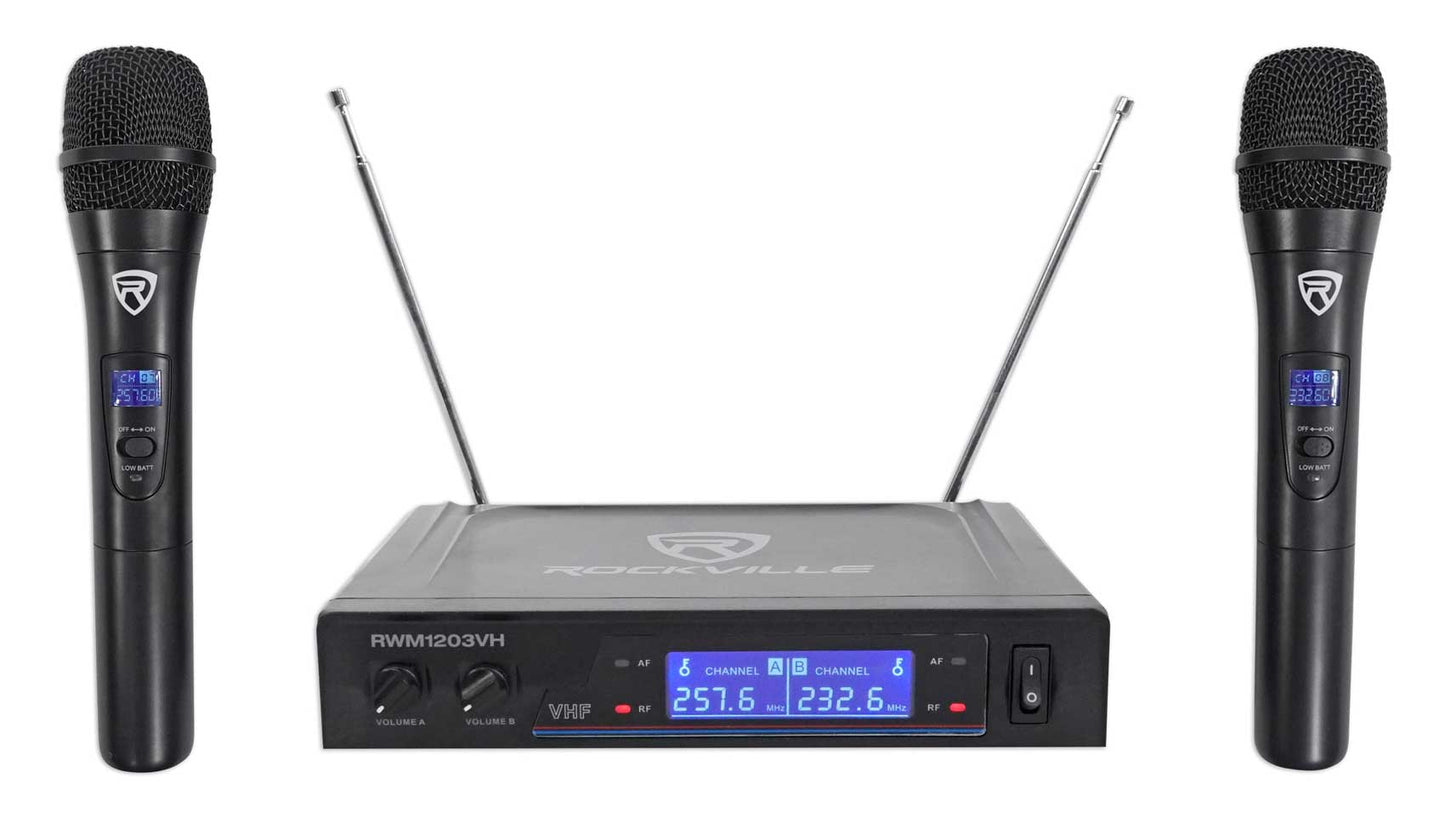

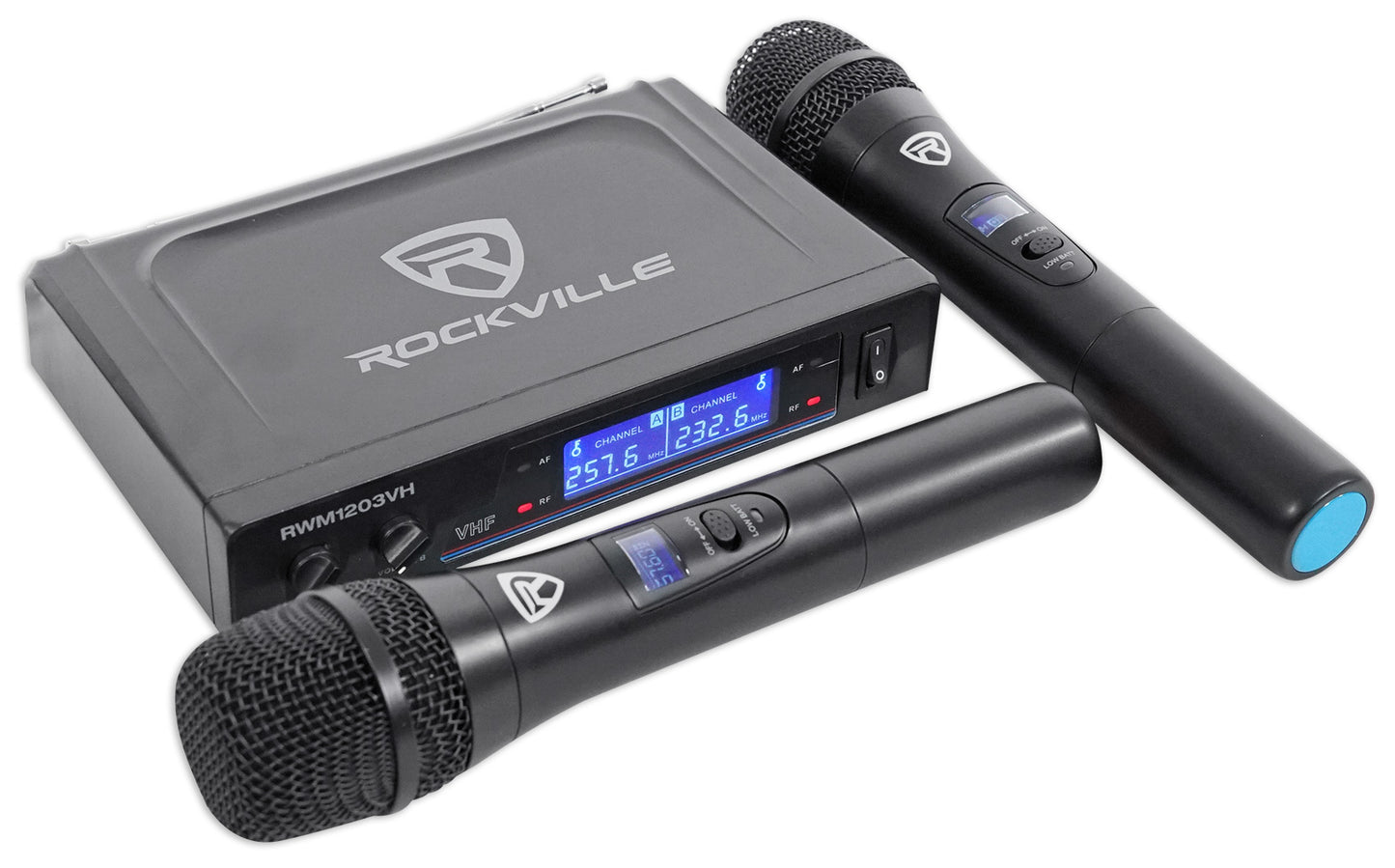

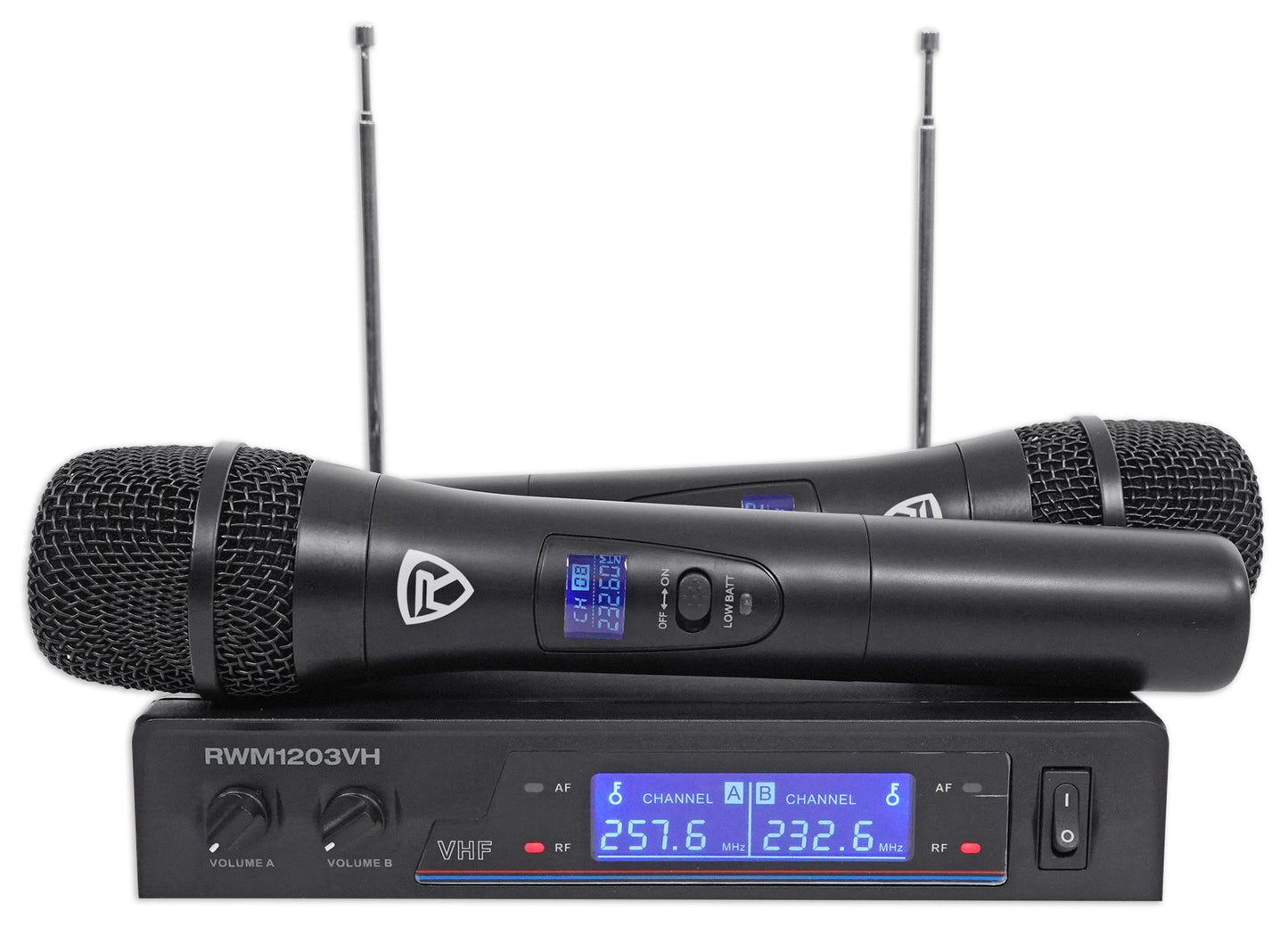

• Rockville RWM1203VH VHF Dual Channel Handheld Wireless Microphone System
• Large display on receiver + digital display on each mic
• Each mic is large and solid with a nice weighted feel
• Improved high performance wireless handheld microphone capsule
• Includes transmitter with two handheld, high sensitivity, unidirectional, wireless cardioid microphones
• Featuring a dual filter design to limit feedback and interference
• Ultra signal stability eliminates unwanted distortion
• Transmitter automatically links to receiver for ease of use
• Use two handheld mics at once
• Individual microphone volume controls
• Low power consumption for longer battery life
• System comes in 4 different frequency options. You can request a specific one in the notes
A. 255.1/227.1 MHZ
B. 224.9/256.9 MHZ
C. 228.9/253.4 MHZ
D. 230.8/255.8 MHZ

Specifications:

System:

• Operating Range: 150 feet or more
• Channel: Two Channel
• Frequency Range: 210MHz - 270MHz
• Frequency Response: 40Hz-18KHz
• S/N.:>103dB (1KHz-A)
• Operating Temp: 14°F - 122°F
• Oscillation Mode: Quartz Crystal
• Frequency Stability: ±0.005%
• Modulation Mode: VHF
• Harmonic Radiation :< 63dBm
• RF Output Power: 10mW
• Power Voltage: AC110V- 60Hz
• Mic Battery: AA x 2

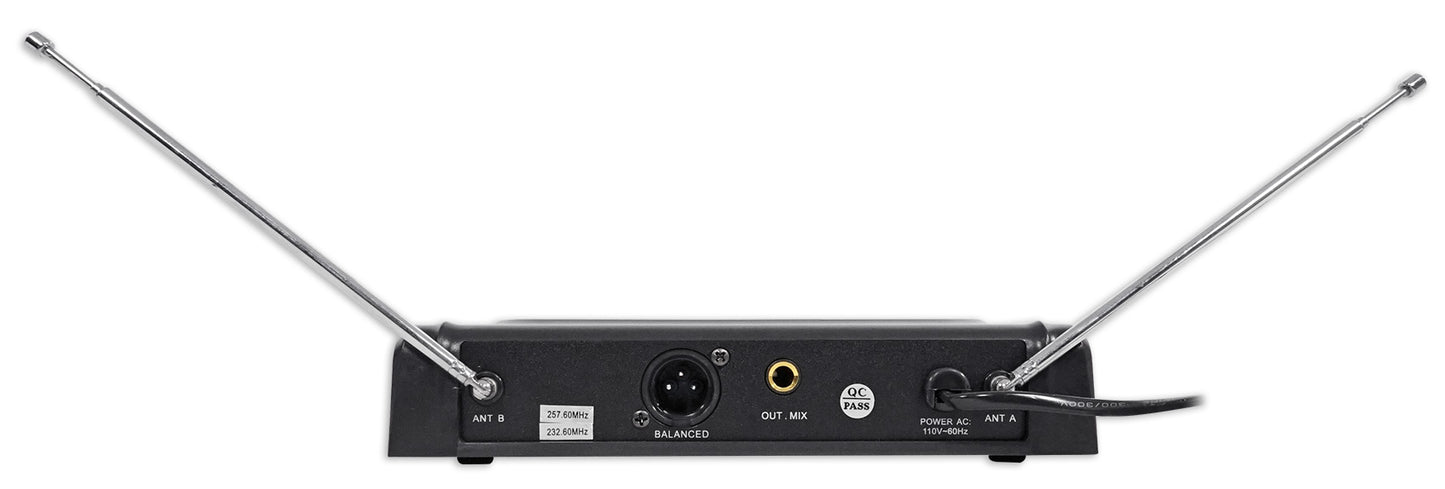

Receiver:

• Sensitivity: (S/N=30dB) >2mV
• Audio Output Impedance: 600O
• Audio Output Level.: 0-0.5V
• Power Supply: AC110V 60Hz
• Current Consumption: =50mA
• Audio Out Connector: 1/4" unbalanced

Transmitter:

• Frequency Stability: ±0.005%
• RF Output Power: =10mW
• Modulation Mode: VHF
• Maximum Deviation Range: ±50KHz
• Microphone Mode: Fixed
• Power Supply: AA/1.5V×2
• Current Consumption: =35mA
