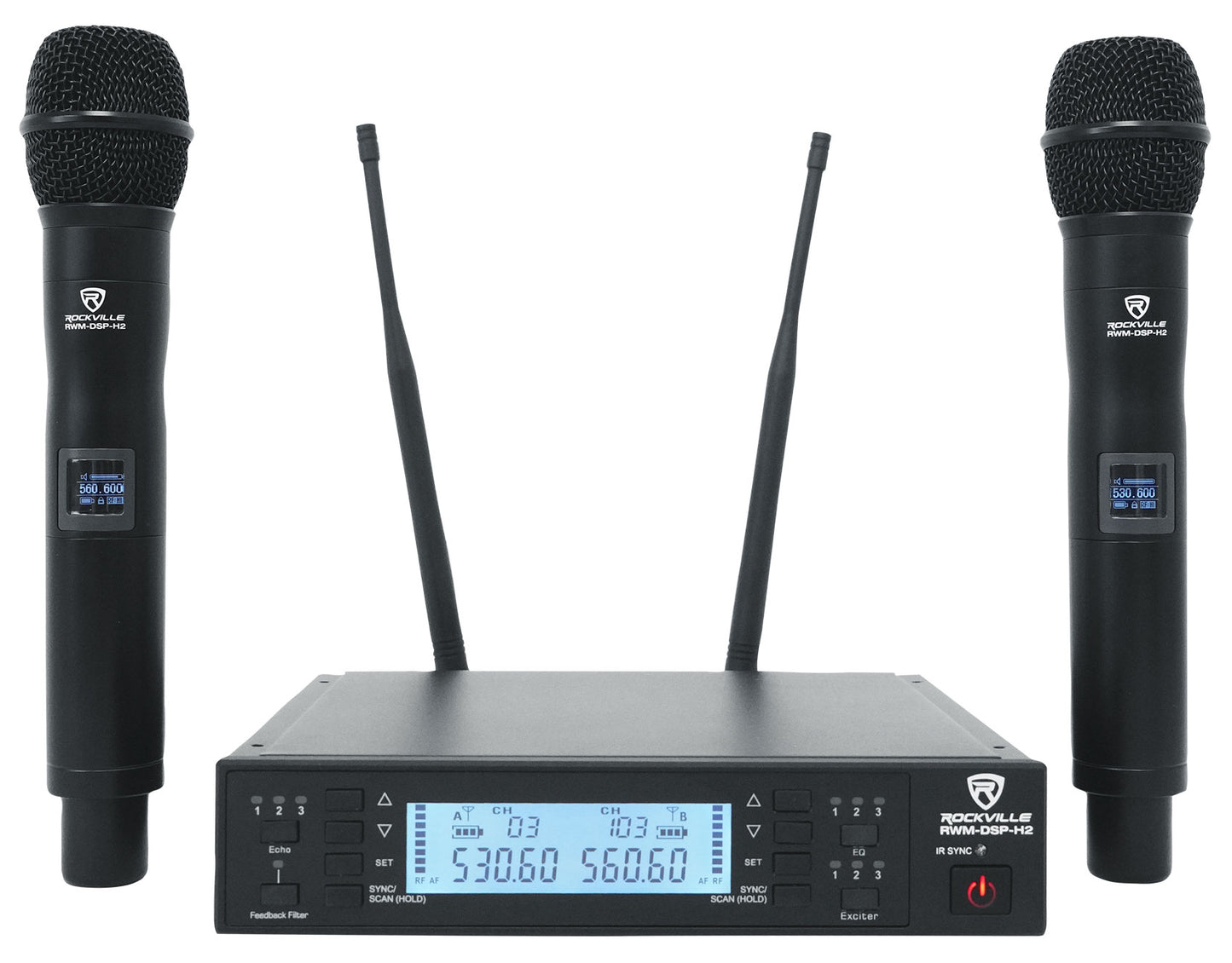

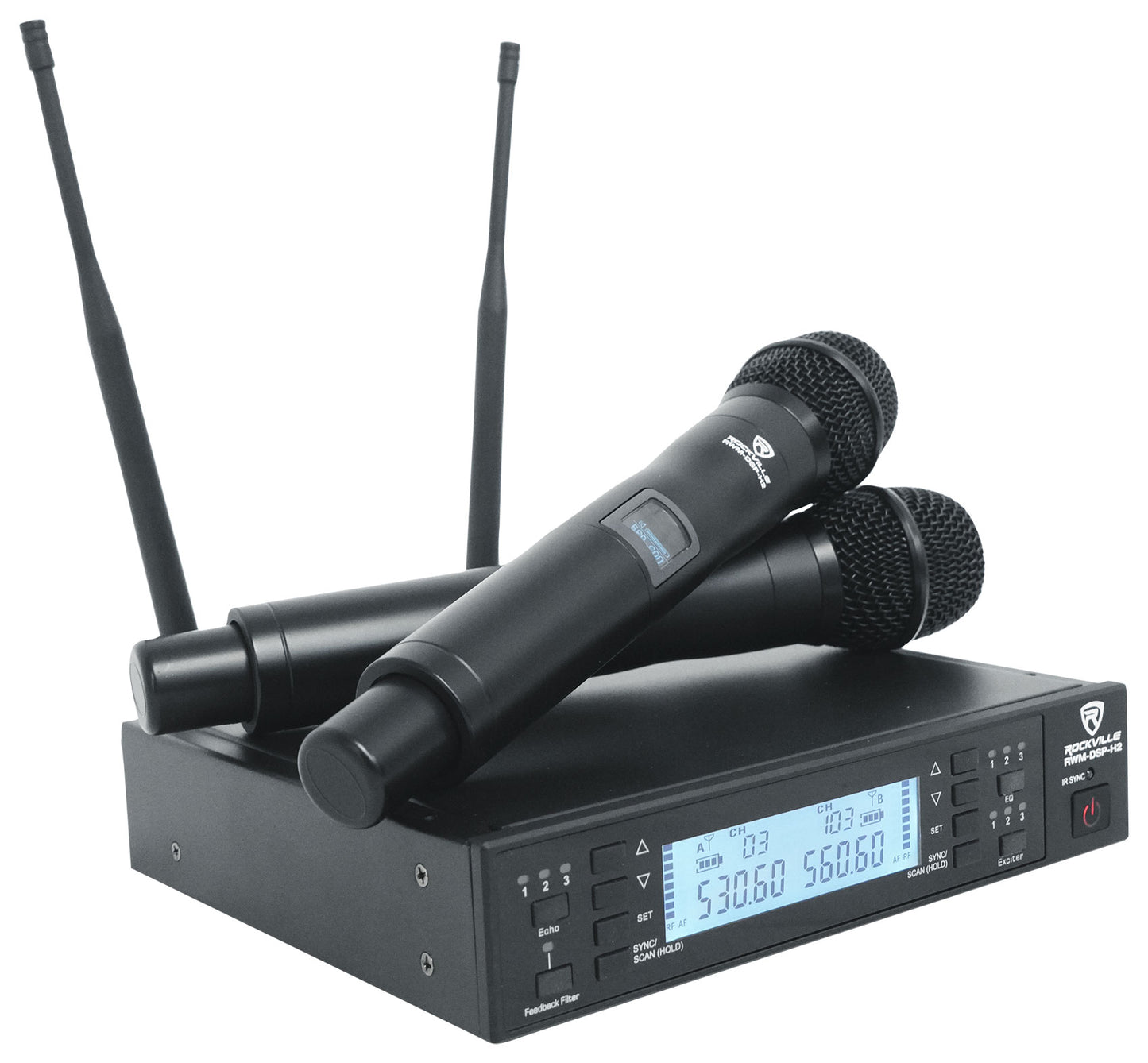

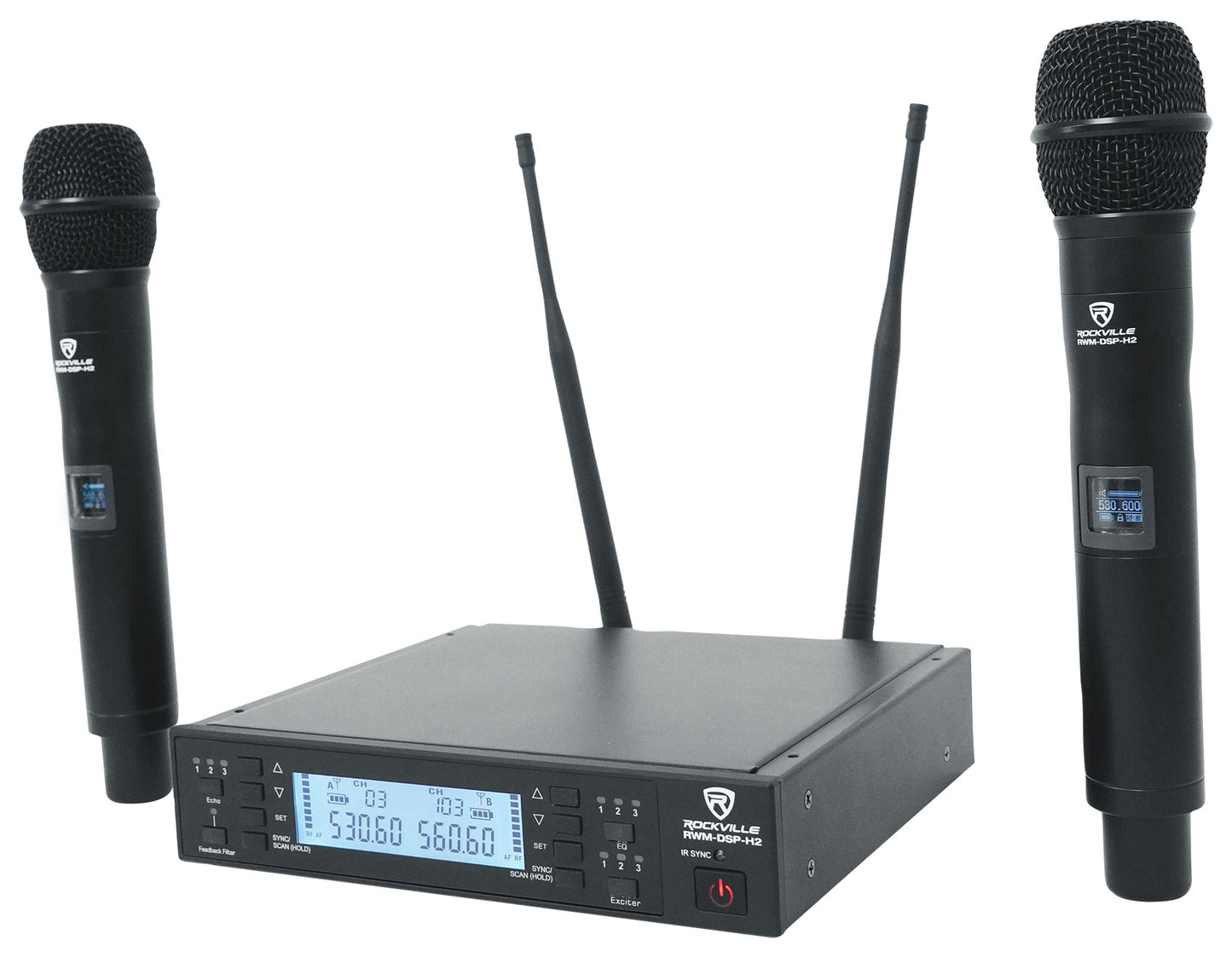

Introducing the Rockville RWM-DSP-H2 Dual Handheld UHF Microphone System with DSP Control

Unleash Your Sound Control with DSP Technology:

The RWM-DSP-H2 boasts DSP (Digital Signal Processing) control that empowers you to fine-tune your audio like never before. Adjust the EQ, delay, feedback filter, and exciter settings on the fly to create the perfect sound for any performance.

Connect the mic receiver to your PC or Mac and take full control over your audio. Customize three EQ presets, three delay presets, three exciter presets, and harness the power of feedback filtering. Here is how it works.

The mic receiver comes pre-booted with 3 built in delay effects, 3 EQ settings, 3 exciter settings, a feedback filter setting. You can connect the mic receiver to your computer and change the parameters. For example if you want to add a little more bass to one of the EQ settings you can do that and save that setting to EQ3.

Total Control and Versatility:

Lock your microphone settings in place, adjust RF intensity (high, low, medium) for extended range or longer battery life, and fine-tune sensitivity directly from the microphone. The OLED display on the mic keeps you informed about battery levels, ensuring you're always prepared.

Built to Last, Ready to Perform:

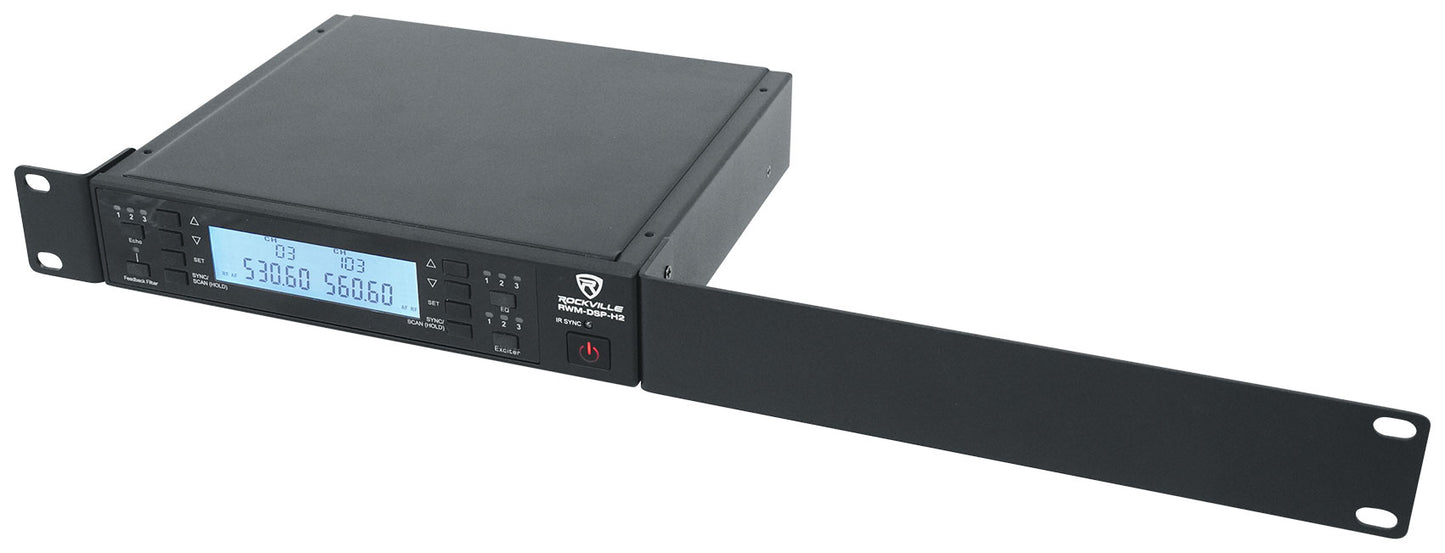

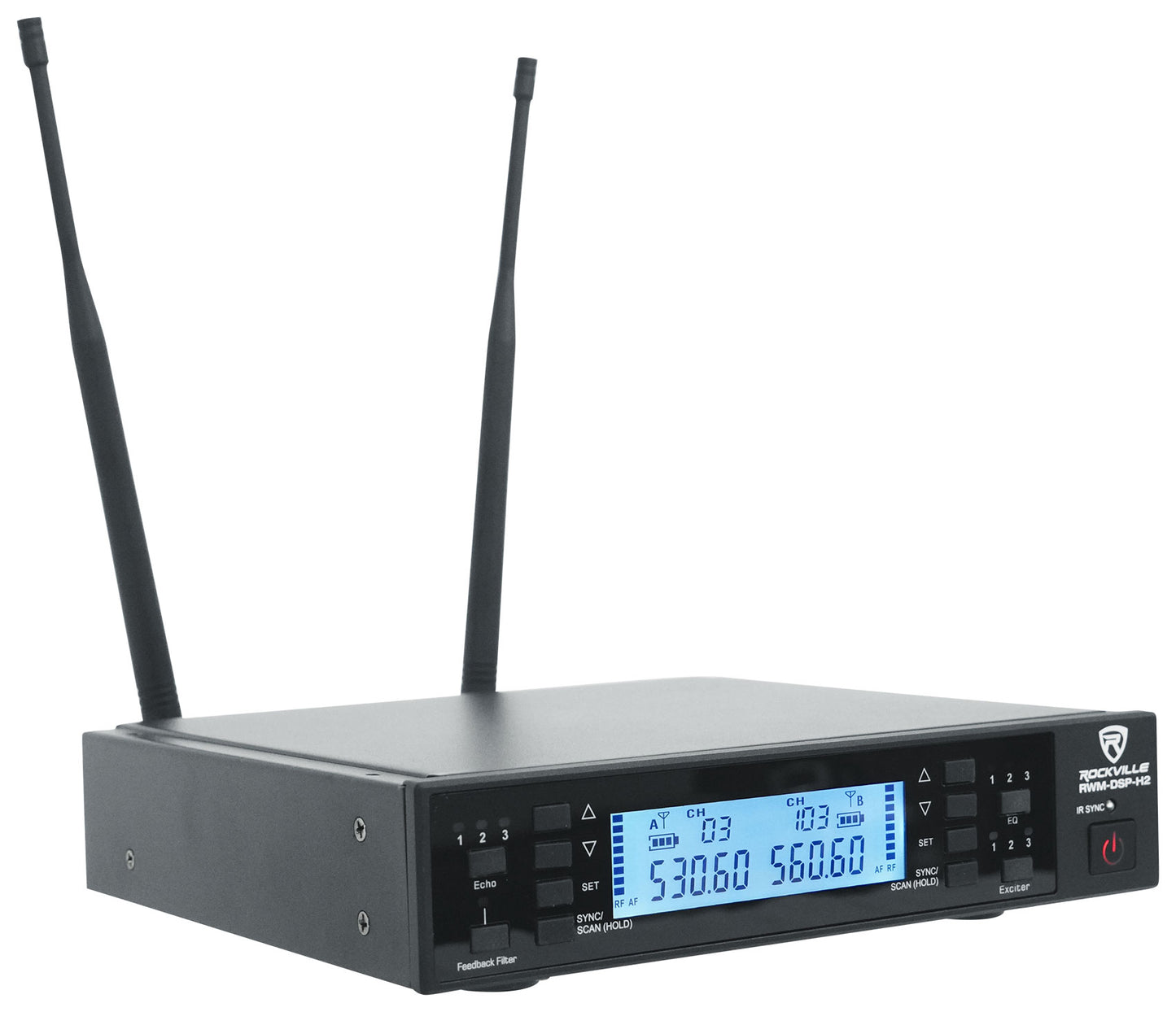

Crafted with a full metal rack mount receiver featuring removable rack ears, the RWM-DSP-H2 ensures durability and reliability. The digital display on the receiver keeps you informed with mic volume and frequency on each channel, and with 200 switchable channels and one-key pairing, changing frequencies on the fly is a breeze.

Unparalleled Microphone Quality:

The two handheld microphones are built tough with a full metal construction. Their digital displays make monitoring easy, and the covered buttons ensure you'll never accidentally press the wrong one during a performance. With unidirectional cardioid patterns, these mics capture your sound with precision.

Crystal Clear and Reliable:

Featuring dual filters to combat feedback and interference, individual microphone volume control, and ultra signal stability to minimize audio artifacts, this system guarantees pristine sound quality in any environment.

Technical Excellence:

The RWM-DSP-H2 offers a wide frequency response range of 30Hz-18KHz(±3 dB) with minimal distortion (T.H.D < 0.5%). The receiver sensitivity of -98dBm ensures clear and noise-free audio.

Versatile Connectivity:

Choose between individual XLR outputs for each microphone to send them to separate mixer channels, or use the ¼” TS mix output to combine both mic signals into one channel.

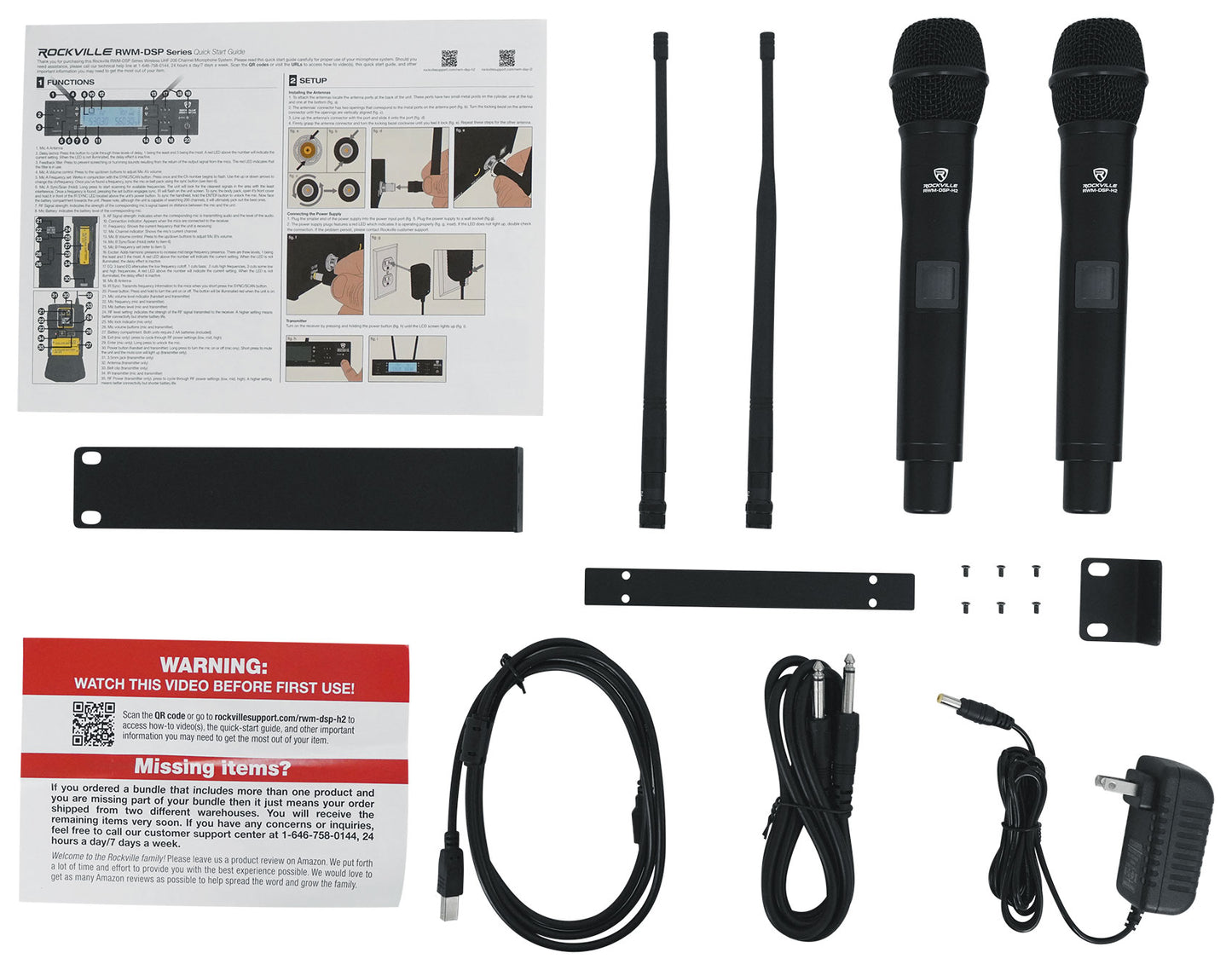

What's in the Box:

• (2) Microphones

• Full metal rack mount receiver with rack ears

• 5 ft. ¼” to ¼” cable (connects mic receiver to mixer or speaker)

• AC power adapter (5 ft.)

• (4) AA batteries

• (2) Antennas

• How-to training videos for beginners or experts on how to use this item

• Manual

• Warranty Card


Features:

• Rockville RWM-DSP-H2 Dual Handheld UHF Microphone System with DSP Control

• DSP allows you to adjust EQ, delay, feedback filter, exciter

• You can connect the mic receiver to a PC or Mac and change the presets for your 3 EQ presets, 3 delay presets, 3 exciter presets, and the feedback filter preset (feedback suppression)

• Full metal Mic receiver with removable rack ears

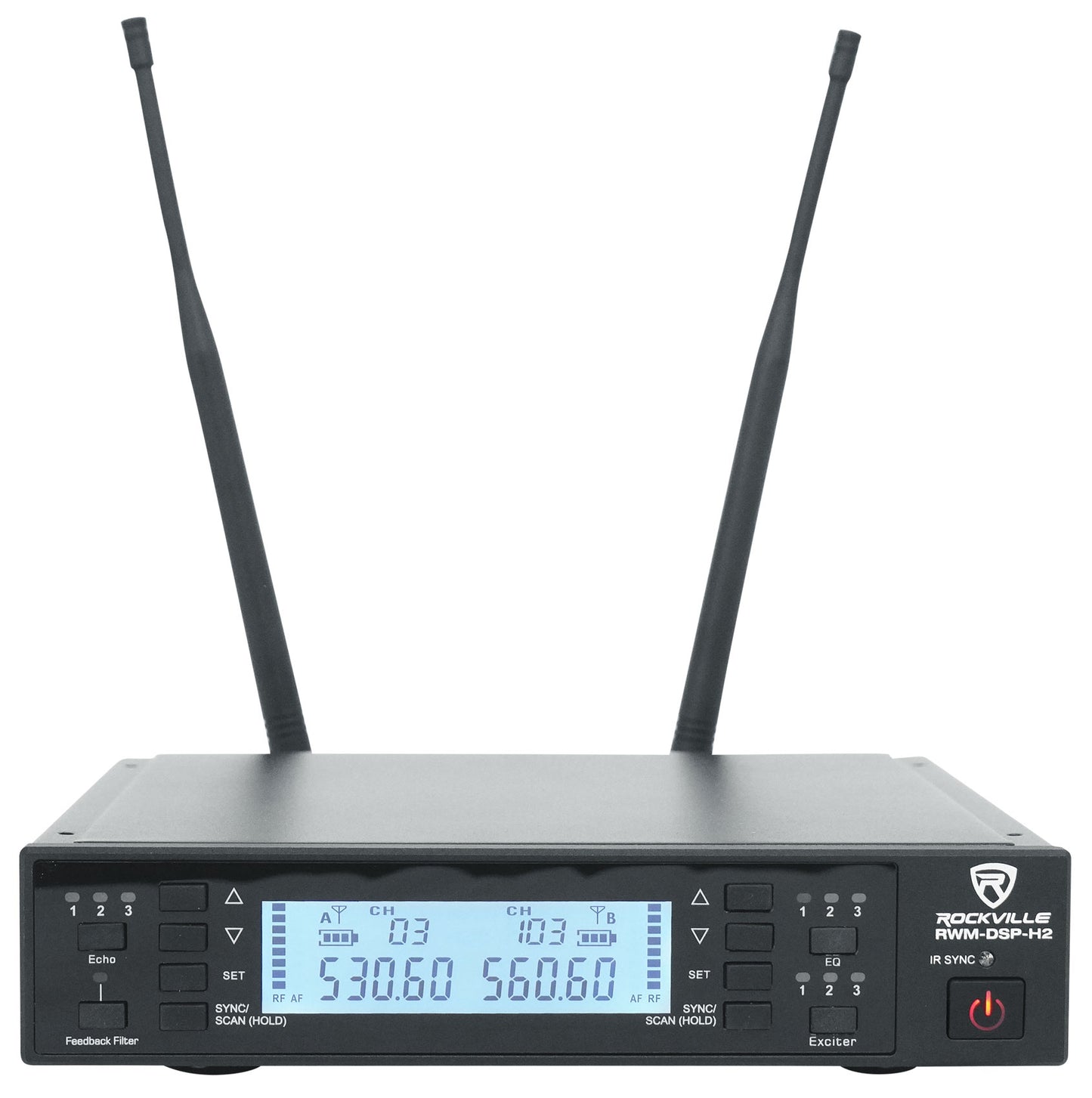

• Mic receiver with digital display shows mic volume and mic frequency on each channel

• 200 Switchable UHF Channels

• Switchable frequency uses one-key paring making it easy to change the channel on the fly

• The 2 handheld mics are full metal and extremely durable

• Mic receiver shows signal strength of the mic so if you go too far away it will show a lower signal strength

• The mics have a digital display on them, that shows battery life, RF connection, output level, frequency channel, RF power

• Mic has an adjustable sensitivity that you can set from the mic

• Mic has a user adjustable RF intensity (high, low, medium) (on high the range is longer but battery life will be shorter)

• The mic has buttons that are covered during use allowing you to change channels easily but you will not ever mistakenly hit a button in middle of a performance

• Mics are unidirectional cardioid patterns

• Mic can be locked

• Mic has an OLED display which is clear and easy to read

• Mic displays the battery level

• 2 Antenna inputs (includes antennas)

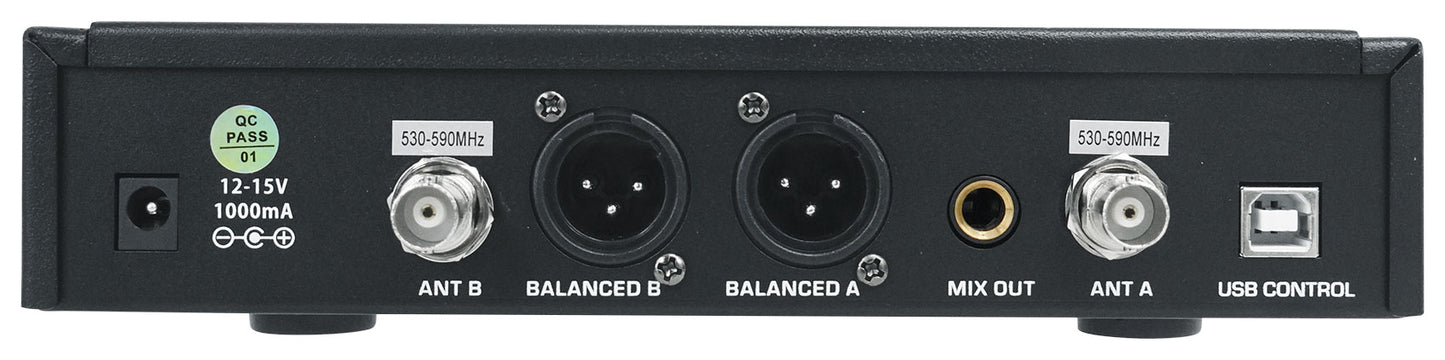

• Individual XLR output for each mic allows you to send each mic to a separate mixer channel or ¼” TS mix output will send both mic signals to 1 mixer channel

• Low power consumption for longer battery life

• Featuring a dual filter design to limit feedback and interference

• Individual microphone volume control

• Ultra signal stability minimizes audio artifacts

• Operating Range: 400´ – 600´ feet (indoor) and 350´ – 450´(outdoor)

• Frequency Stability: ±0.005%

• Modulation Mode: UHF

• Frequency Response: 30Hz-18KHz(±3 dB)

• T.H.D: < 0.5%(1KHz A-weighted)

• Receiver Sensitivity: -98dBm

• Sample rate: 48Khz

• Power Voltage: AC110V-240V 50/60Hz (auto switching)

• Mic Battery Operating Time: 6-10 hours on 2 AA batteries

• Oscillation mode: VCO internal

• Digital modulation method: pi/4 DQPSK

• Receiver dimensions: 7.1” (D) x 8.25” (W) x 1.8” (H)
