Video of RWM-4Z:

How to Set Up RWM-4Z:

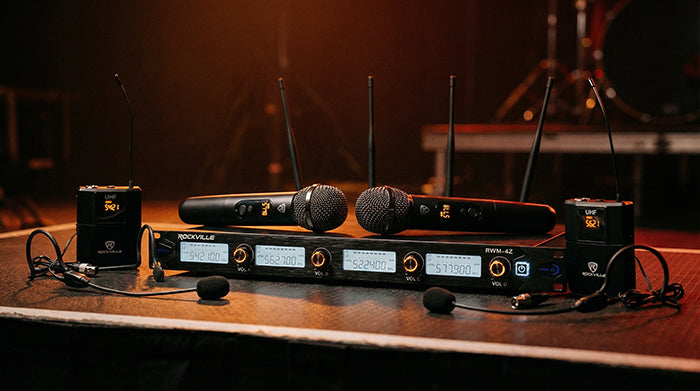

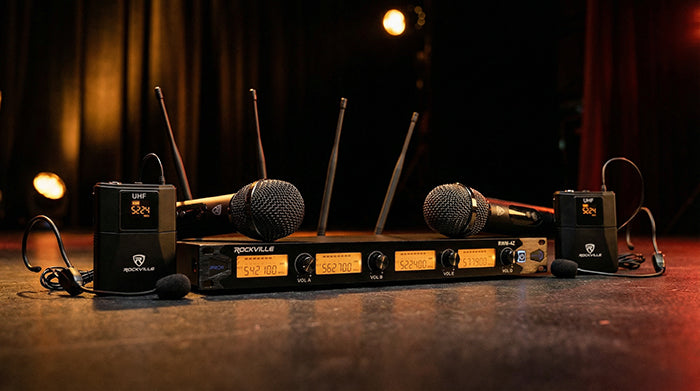

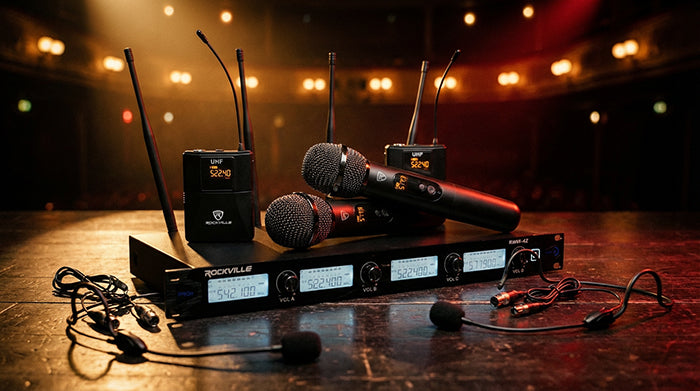

What's in the Box:

• Metal UHF rack mount receiver with Adjustable Frequency
• (2) handheld metal microphones with LCD display
• (2) bodypack transmitters with LCD display
• (2) headset mics
• (4) antennas
• (8) AA Batteries
• 6 Foot ¼” to ¼” audio cable
• 5 Foot Power adapter
• Owners manual and warranty card

Features:

• Rockville RWM-4Z Quad Wireless UHF 4 Microphone System w/Adjustable Frequency
• 20 Adjustable Unique Frequencies on each microphone ensures interference free operation (80 Total frequencies)
• Easy frequency switching by simply hitting the button on the microphone or bodypack transmitter
• Professional 19” metal rack mount receiver with LCD display
• Illuminated rotary knobs
• One button frequency switching allows you to hit the button on any of the microphones or transmitters and the frequency will change on that microphone and auto-sync with the receiver
• The display on the microphone shows channel, frequency, battery life
• The display on the receiver shows RF signal strength, AF signal strength, frequency channel, battery life of each handheld mic
• Operating Range: 300´ – 400´(indoor), 250´ – 350´(outdoor)
• Each mic uses different channel groups so that you will not get interference from one microphone to the other (There are 80 total different channels on this system – 20 unique frequencies per mic)
• Ergonomic metal microphones are extremely high quality and have a nice weight and feel to it
• Individual XLR outputs for each microphone to send each microphone to their own mixer channel
• XLR and ¼” mix output to send all 4 mics to one mixer channel
• Mute function
• On/Off on each microphone
• Low power consumption for longer battery life
• Individual microphone volume control
• Cardioid pick-up pattern
• Type: Handheld dynamic
• Featuring a dual filter design to limit feedback and interference
• Frequency Range: 500MHz-599MHz
• Frequency Stability: ±0.005%
• Modulation Mode: UHF
• Frequency Response: 50Hz-20KHz(±3 dB)
• Dynamic Range: 96dB
• S/N: 92dB
• T.H.D: < 0.1%(1KHz)
• Delay:<3.0ms
• Transmitter power: 10mW
• Receiver sensitivity: -96dB
• Transmitter current consumption:140mA @ DC 3.0V
• Receiver current consumption: 450mA @ DC 12.0V
• Audio Output Jack: XLR balance & 1/4" unbalanced
• Power Voltage: AC110V-240V 50/60Hz
• Operating Temperature: 14°F-122°F
• Mic Battery Operating Time: up to 10 hours
• Standard 1U rack mount receiver
• Rubber feet for tabletop use
