All about your RVA-M3:
How To Set the Gain On your Car Subwoofer Amplifier:
Features:

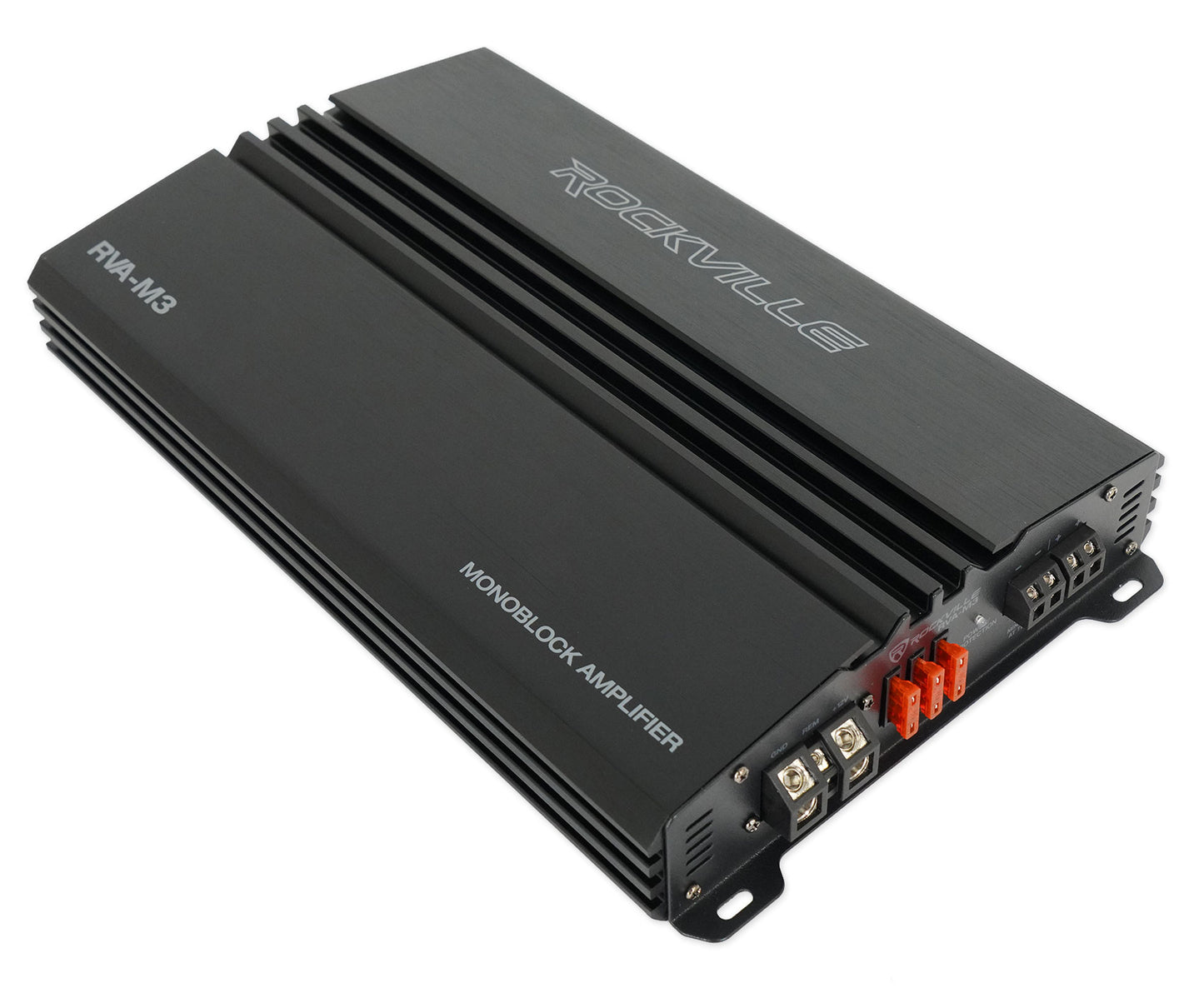

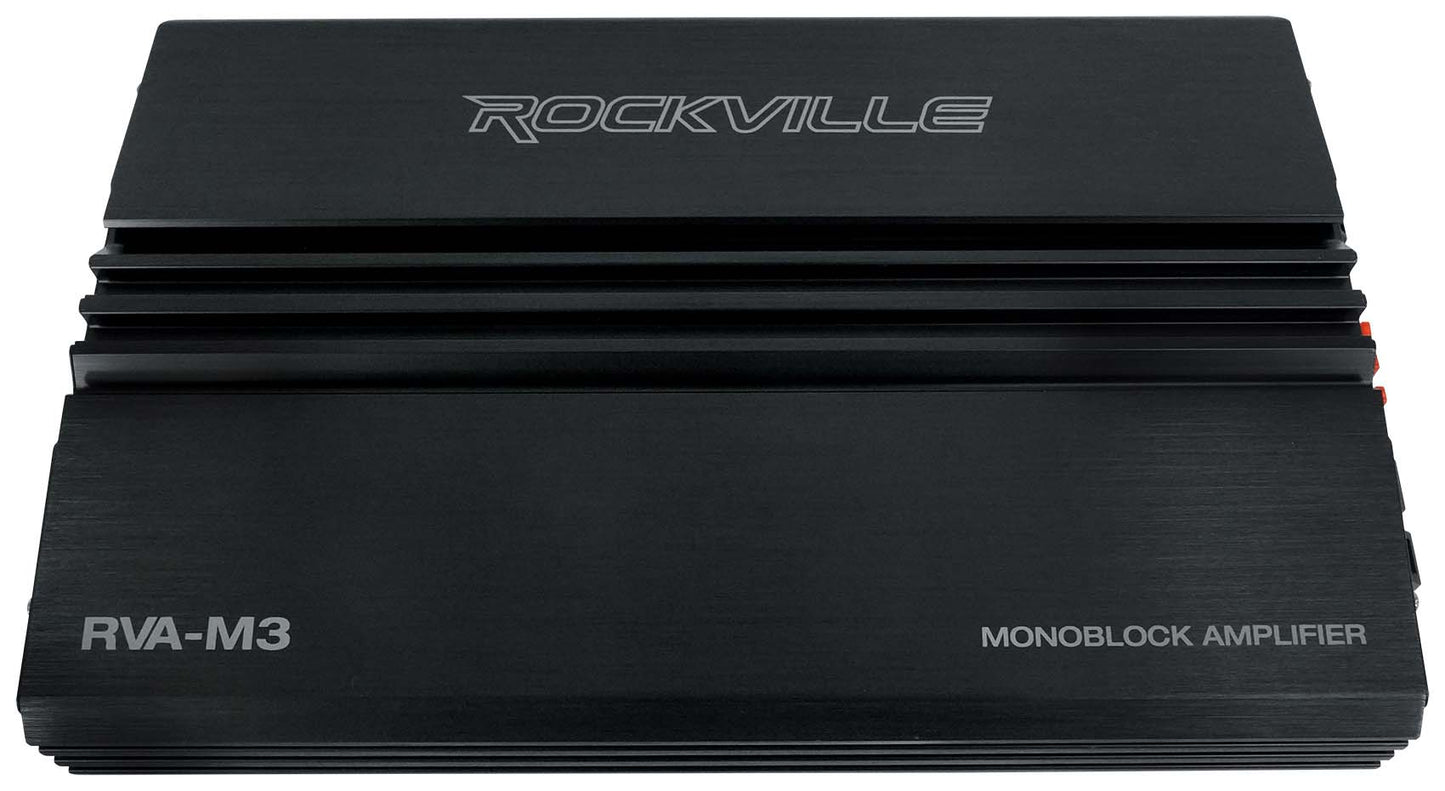

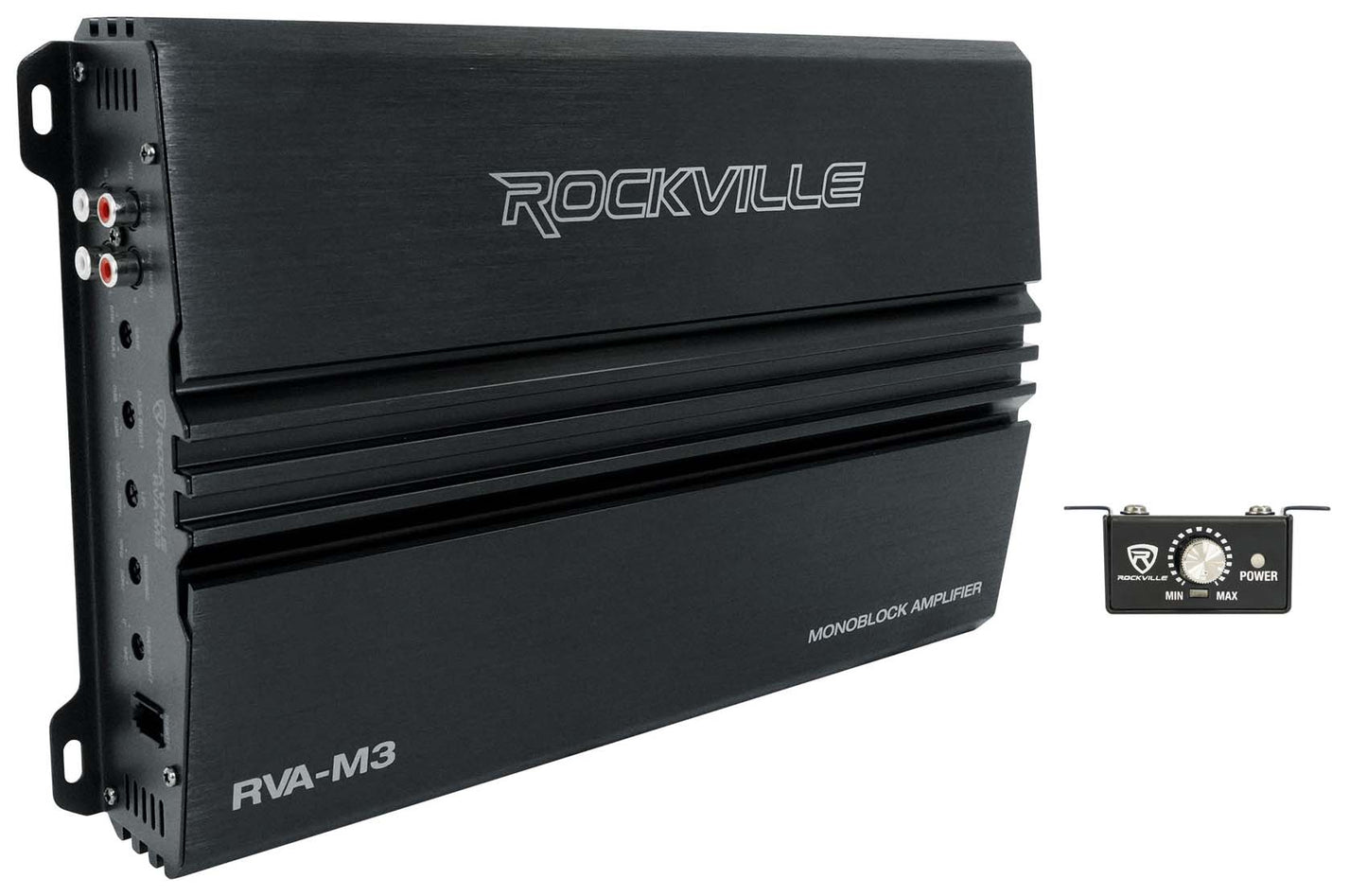

- Rockville RVA-M3 V2 4000 Watt Peak/1000 Watt Dyno-Certified RMS @ 1 Ohm Amplifier Mono Car Amp+Remote

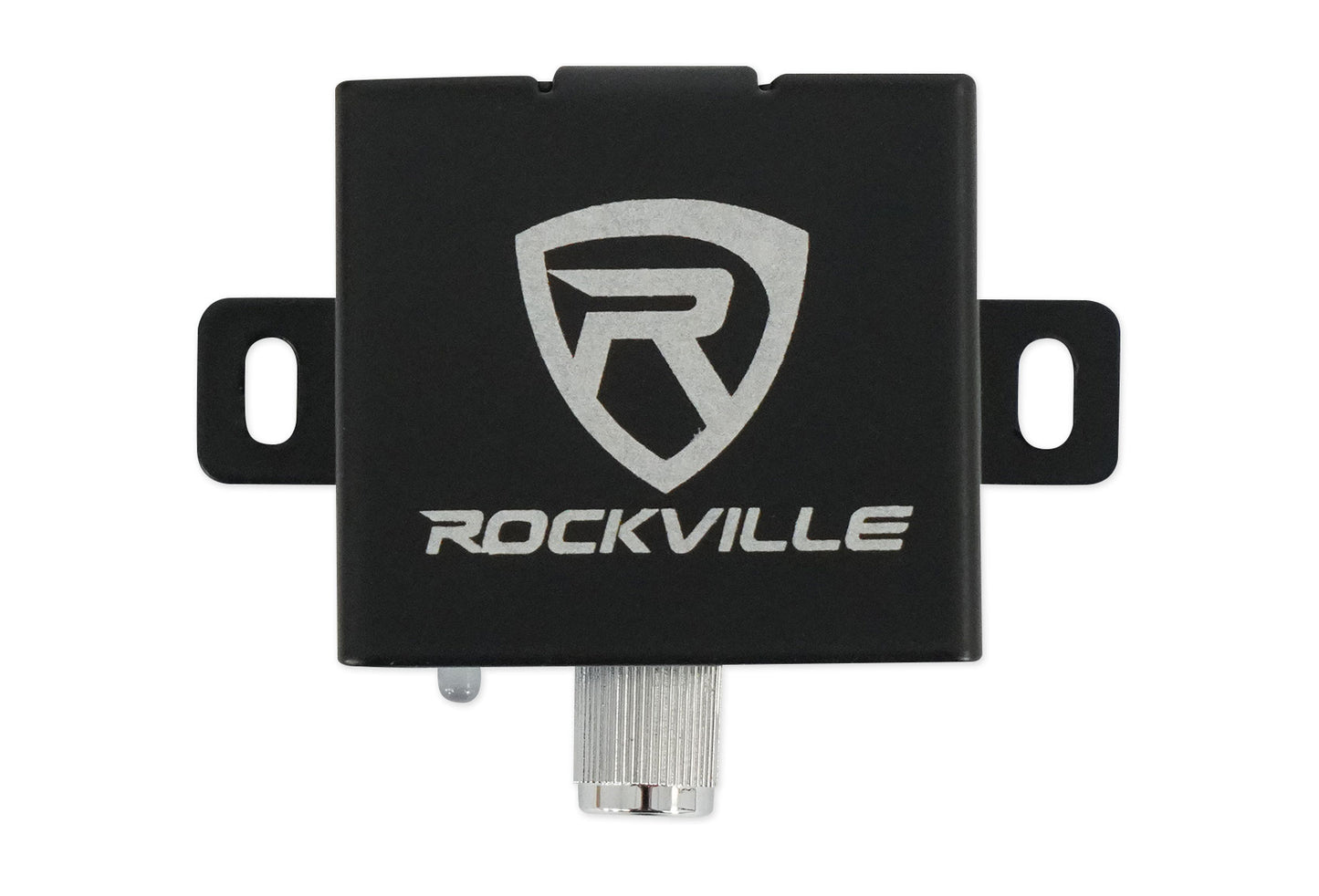

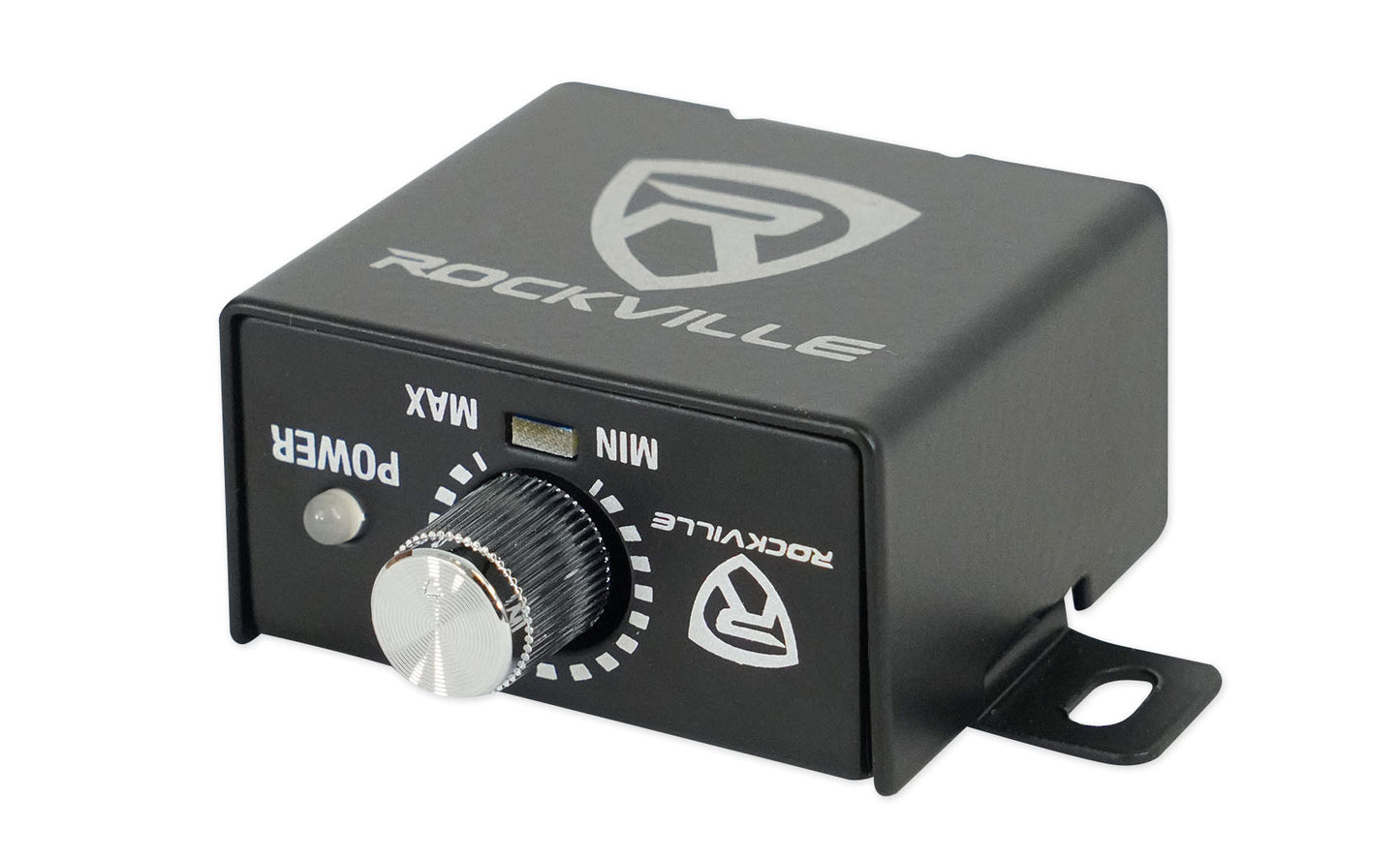

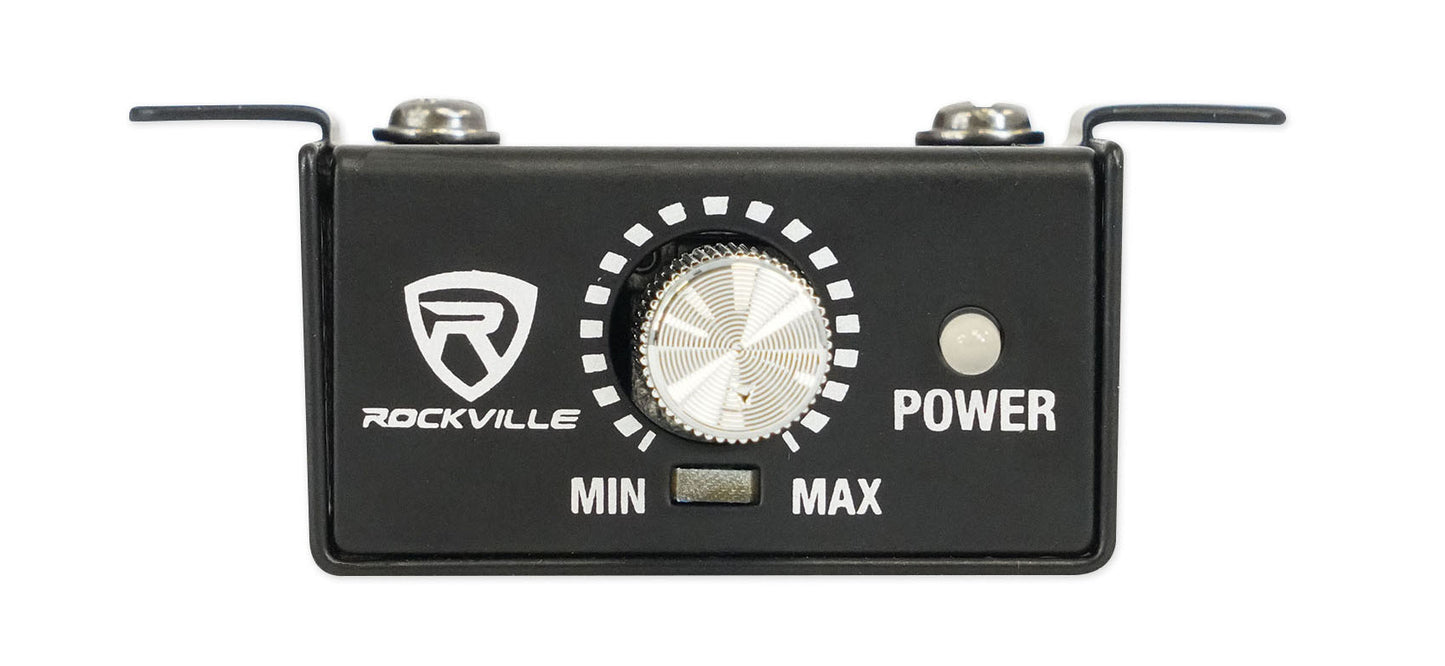

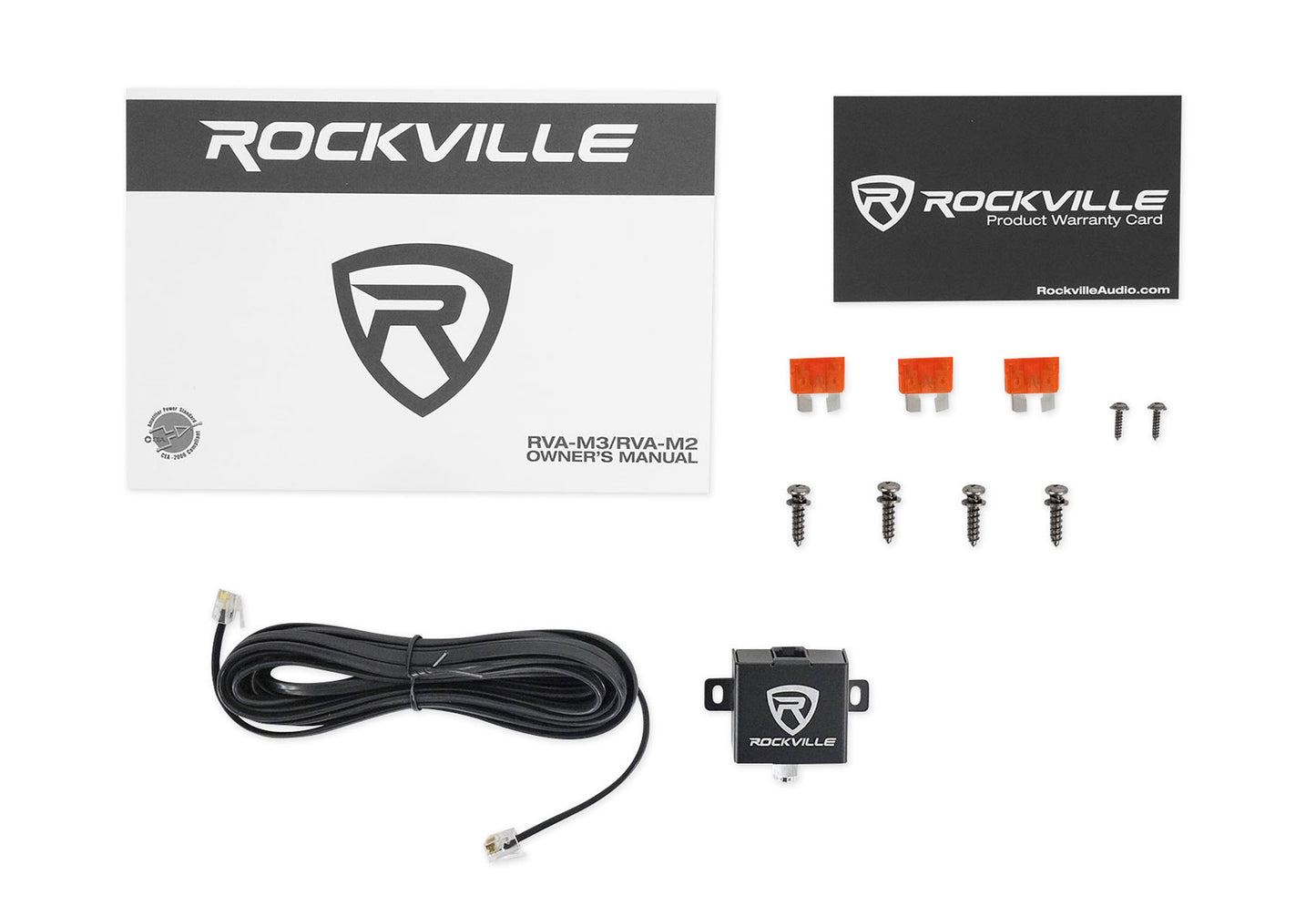

- Metal Bass Remote Included
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- 1 Ohm: 1000 Watts RMS (<1% THD @ 14.4 Volts) (78% efficient)
- 2 Ohm: 750 Watts RMS (<1% THD @ 14.4 Volts) (84.5% efficient)
- 4 Ohm: 500 Watts RMS (<1% THD @ 14.4 Volts) (88.3% Efficient)
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
- 1 Ohm: 4000 Watts
- V2 is upgraded with a double side SMT PCB board that dissipates heat efficiently
- High-Speed MOSFET Power Supply
- Class D Technology

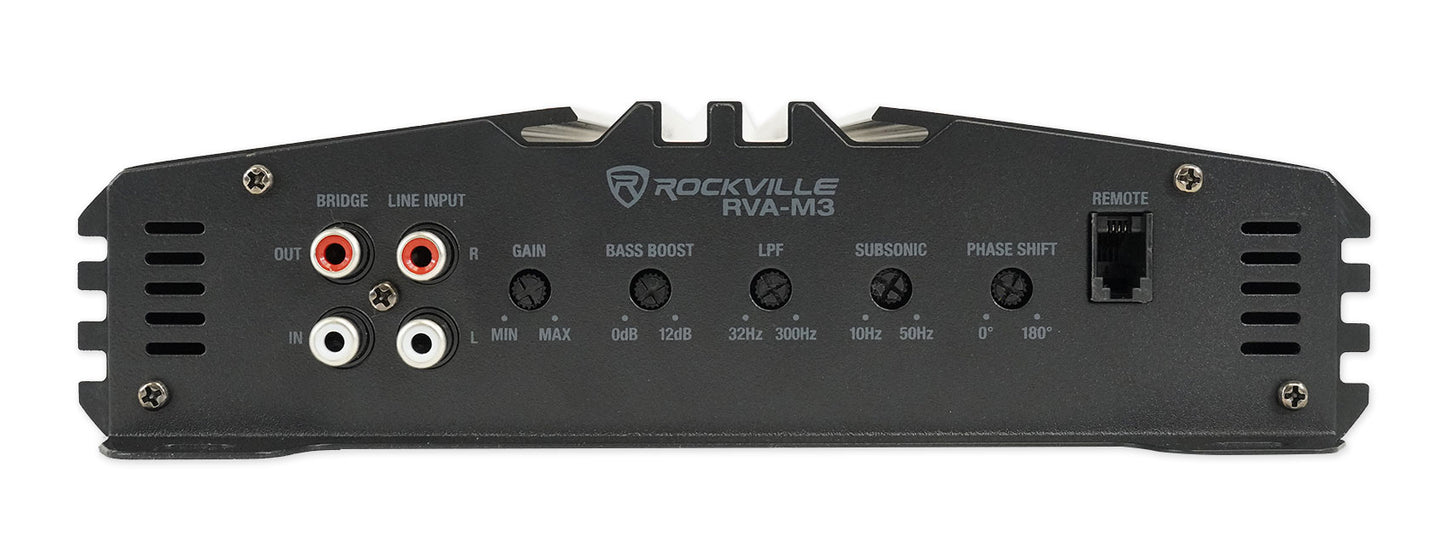

- Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
- Low Pass Filter: 32Hz - 300Hz
- Subsonic Filter: 10Hz - 50Hz
- Phase Control Switch
- Full IC-Controlled Protection Circuitry
- Adjustable 0-18dB Bass Equalizer
- Mute and Delay Soft Start System
- Status Mode LED Indicator
- Minimum THD at Rated Power: <0.1%
- S/N Ratio: >90dB
- Under Voltage Protection at 9V
- Over Voltage Protection at 16V
- Radiation cooling keeps the amp running at high volumes for hours straight
- Extruded aluminum heatsink
- Frequency Response: 10Hz - 300Hz
- Damping Factor: >150 @ 100Hz

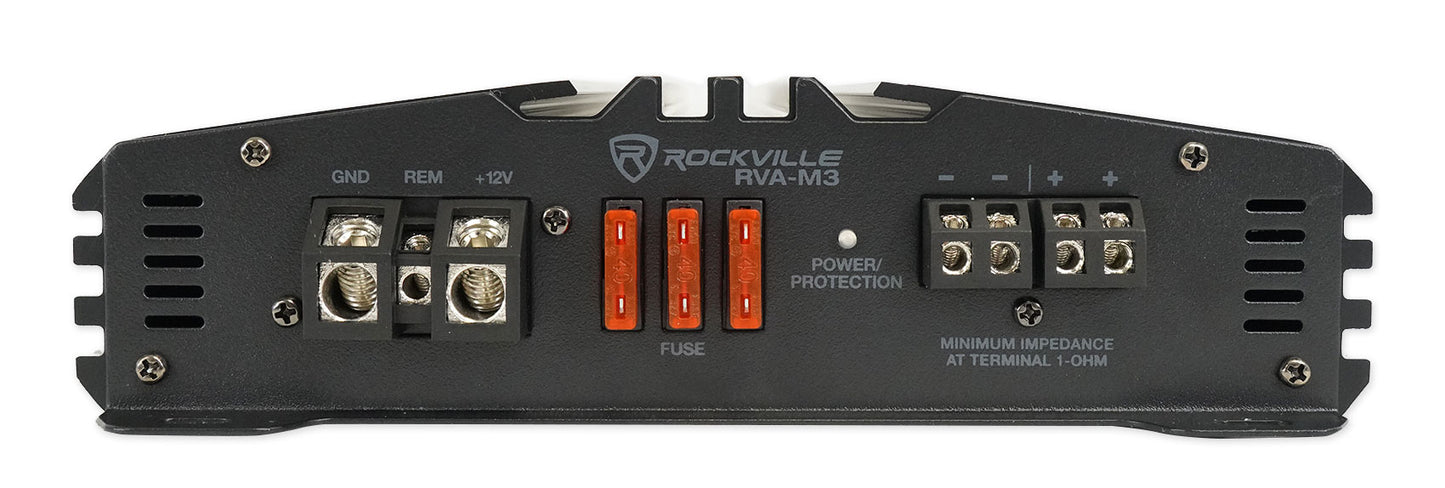

- Fuse: 40A*3
- Technology: This series uses a reliable Class D circuitry that gives you the most reliability and the most power for your money
- Dimensions: (L x W x H) 14" x 8.5" x 2.24"
- Weight:7.8 lbs
1 YEAR
- UPC:
- 810095683428
