HOW TO SET UP YOUR RPA SERIES (RPA70WBT V2, RPA60BT):

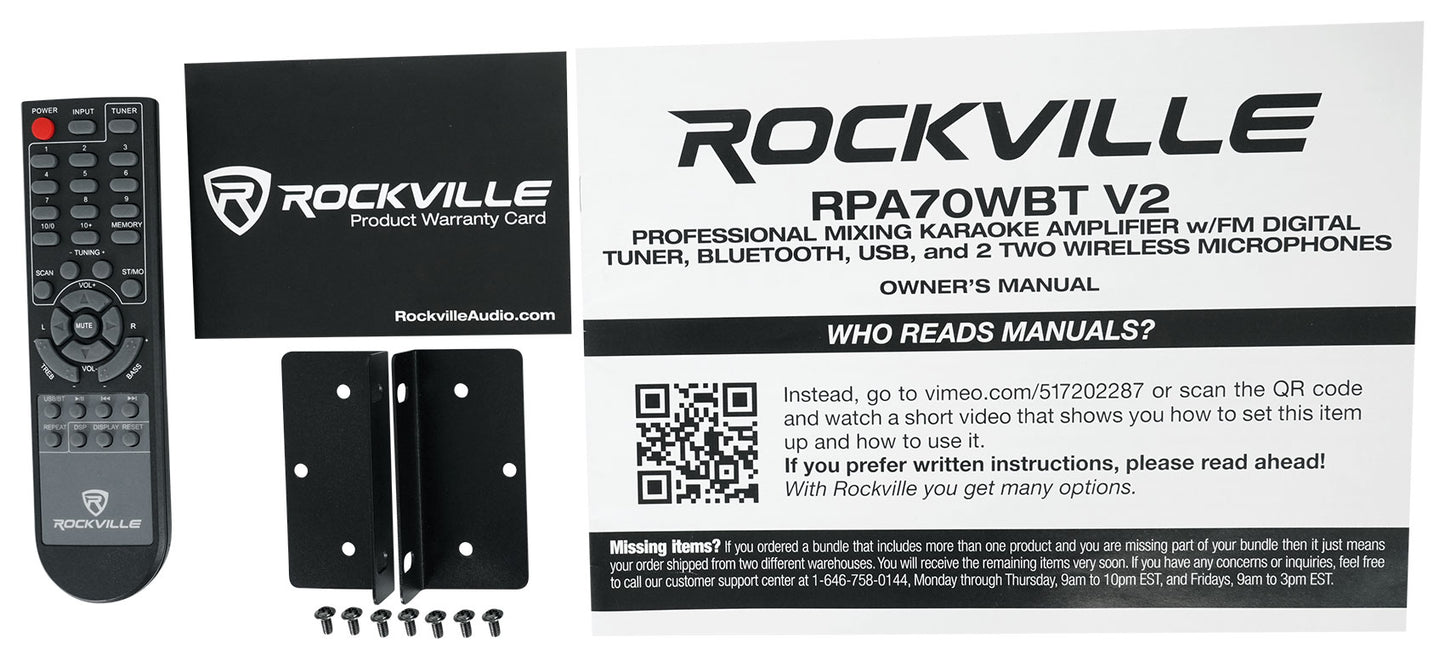

What's in the Box:
- RPA70WBT Receiver
- Rack Ears (Detachable)
- (2) VHF wireless mics with digital display
- (1) Remote Control
- (1) AC Power Plug
- Owners Manual
- Warranty Card
Description:
Huge Power
The RPA70WBT is loaded with 1,000 Watts of power! The built in amplifier is louder than similar products on the market that are rated at 3000 watts. When manufacturing this item we upgraded the power of the amplifier. We tested these against similar items on the market and these significantly outperformed the others rated at 2000 and 3000 watts. We do not exaggerate power ratings the way other brands on the market do.
Expandable
This is more than an amplifier. The RPA70WBT will be the control center for your home, karaoke, or professional audio system. There is an optical and coaxial input to easily integrate this with any television or LED panel. There is an RCA aux input for any media player like a CD player, etc. There is an RCA pre-amp output allowing you to expand your system by adding another amplifier or even powered speakers. The sub output allows you to add a powered subwoofer or another amplifier. The REC output allows you to record easily.
You can also connect 2 microphones directly to the front of the receiver.
Other playback options built into the unit are USB playback, Bluetooth, 3.5mm aux, and FM radio.
Great For Karaoke
There is a built in mic mixer with echo control, which makes this perfect for karaoke performances.
Bluetooth
Connect your favorite device, and quickly start a karaoke party with your favorite songs!
Full Function Remote
The remote control that is included will allow you to access all functions of the receiver quickly and efficiently.
Built In Radio
Another major advantage this model has is that it has a built in radio. This makes it perfect for home use, and the radio is also great for intermissions during live performances.
Adjustable Equalizer Settings
The adjustable equalizer will allow you to fine tune your music so it sounds at its best.
Built In Dual Cooling Fan
The built in fans keep the amp cool. This amp will never overheat on you like the cheaper ones out there. We actually upgraded this to a dual cooling fan when we were engineering these. Since we upgraded the amplifier we actually felt the need to also upgrade the fan of this unit to ensure it doesn't overheat.
Beautiful Multi Colored Display
The multi colored display is easy to read. It has an active EQ curve that goes to the beat of the music. The display is very user friendly.
Features:

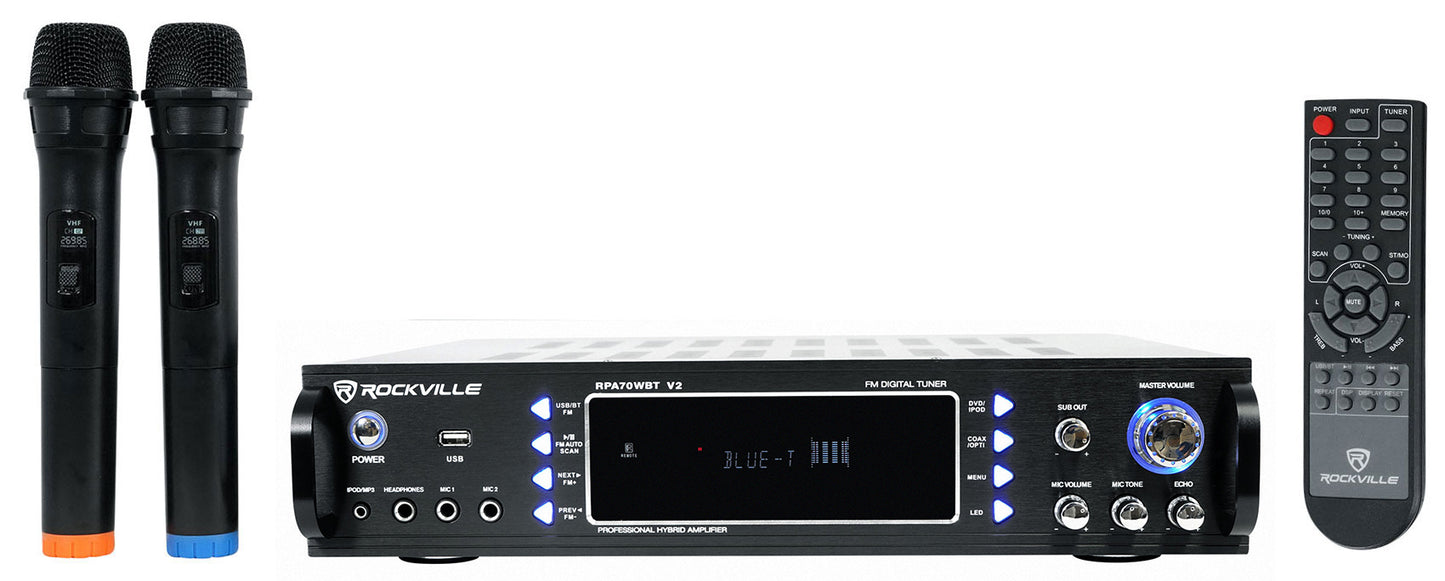

- Rockville RPA70WBT 19" 1000 Watt 2-Channel USB and Bluetooth Karaoke Receiver/Amplifier/Mixer with 2 Wireless Microphones

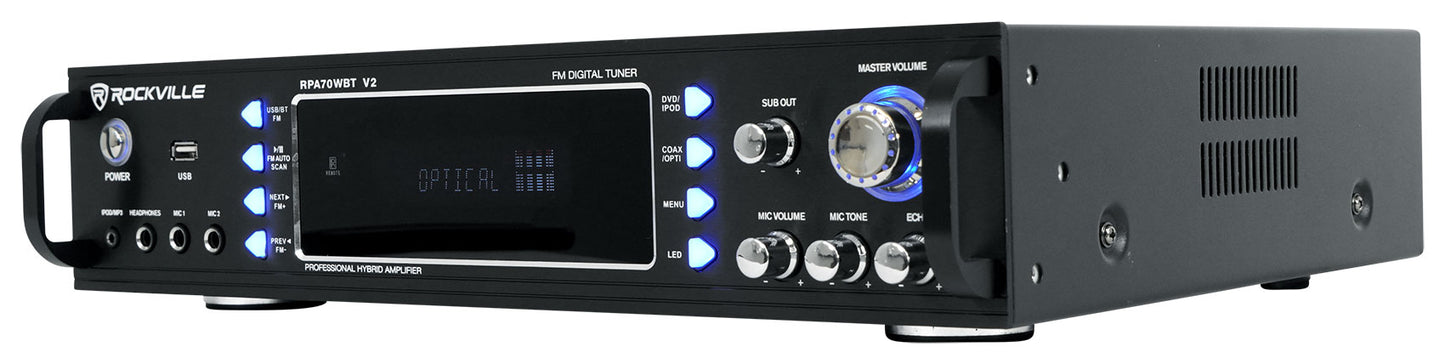

- 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
- RMS Power @ 4 Ohms: 125w x 2
- Peak Power @ 4 Ohms: 500w x 2
- RMS Power @ 8 Ohms: 100w x 2
- Peak Power @ 8 Ohms: 400w x 2
- THD: > 0.1%
- Input Sensitivity: 400mv/33 KOhm
- Frequency Response: 20 Hz - 20 kHz
- Signal to Noise Ratio: 80 dB
- Tone Characteristic: 100Hz-10KHz ±12dB
- 110v/220v Switchable

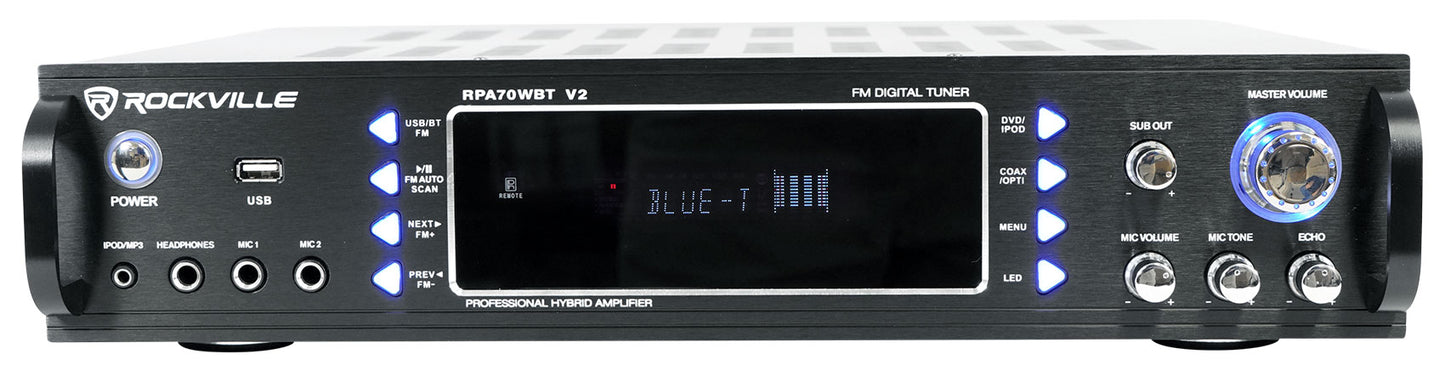

- Front Inputs: 3.5MM front aux input, 1/4” Headphone Jack, (2) 1/4" Mic Inputs, USB Input, Optical

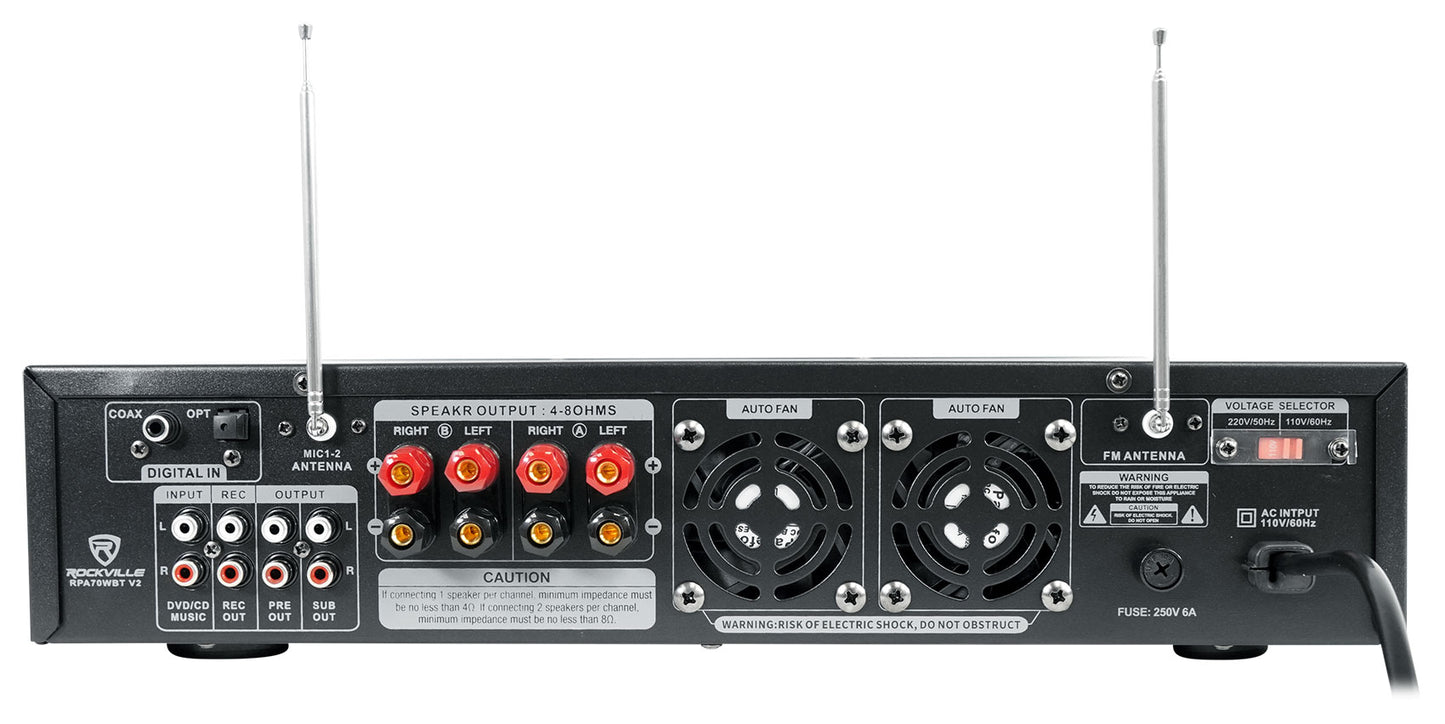

- Rear Inputs: RCA, Optical, Coaxial
- Rear Outputs:
- Preamp output for an external additional amplifier or powered speaker
- Sub preamp output to connect a powered subwoofer or an amplifier
- Record output to mixer

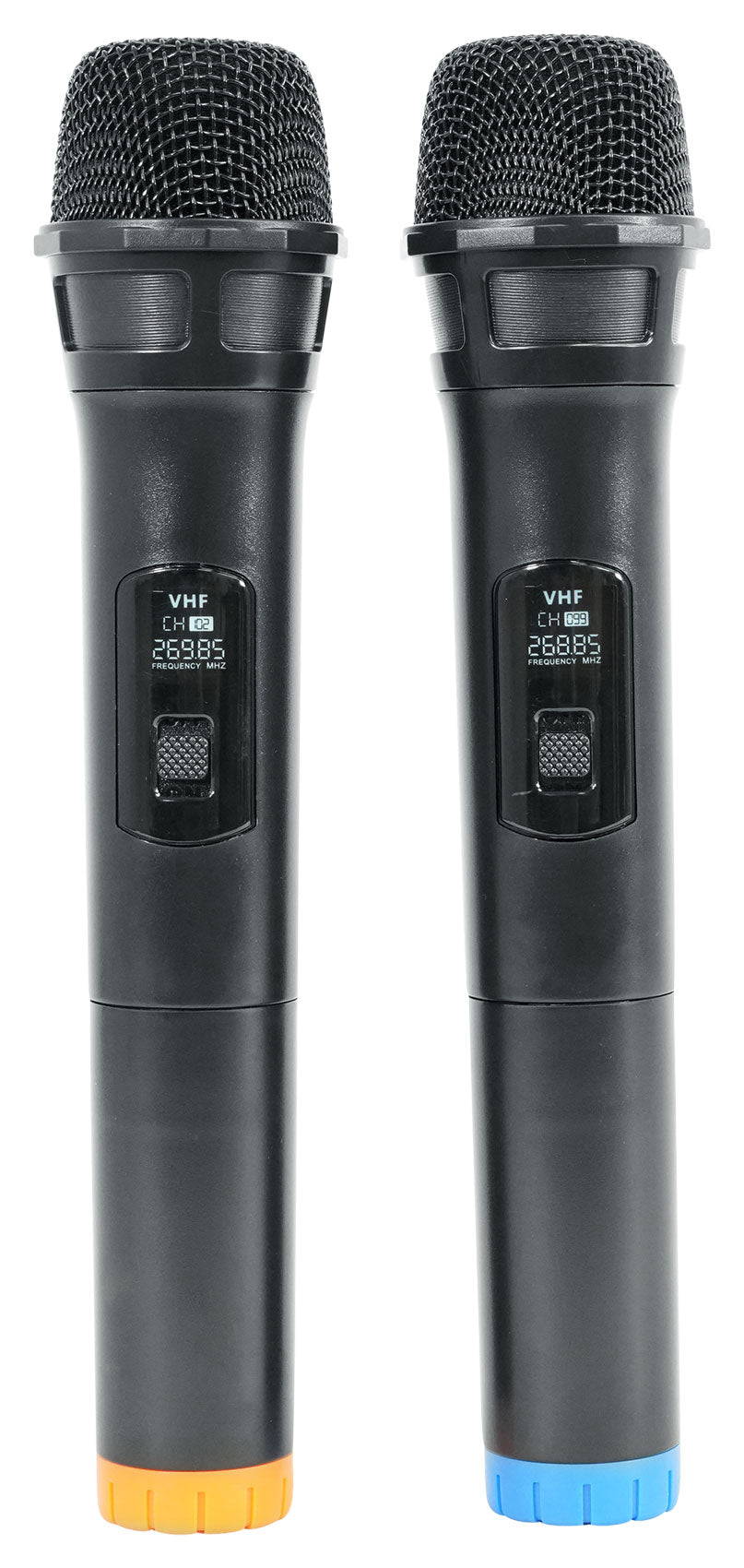

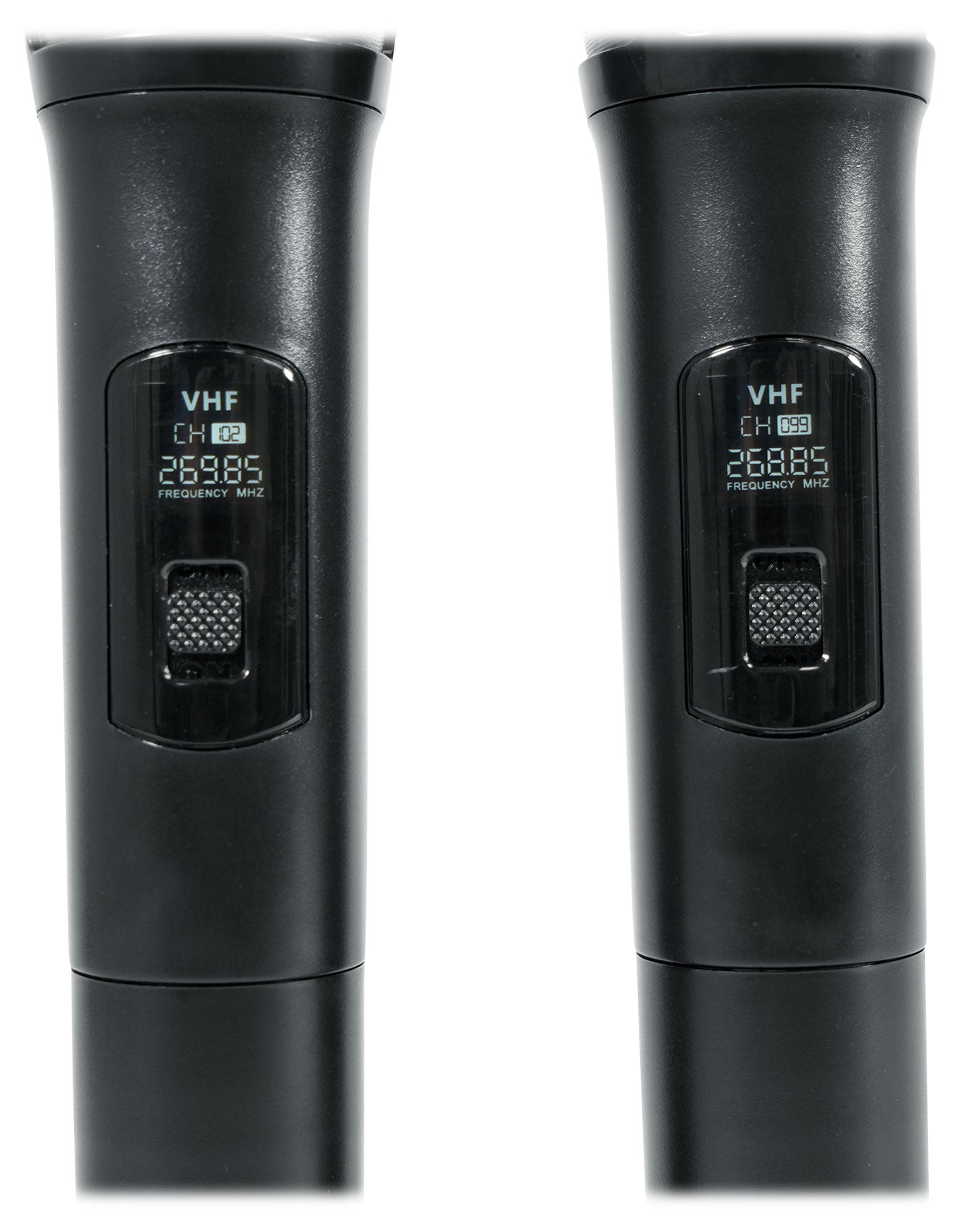

- Includes 2 wireless VHF mics with digital display and on/off switch (very high quality mics. Significantly better then our V1 mics)
- Record output to connect a recording device
- Bluetooth Capable
- Rear Speaker Terminals: Banana plug / binding post outputs for 4 speakers (2 on Channel A and 2 on Channel B)
- Built-in Pre-Amplifier
- Bass, treble, and balance control knobs
- Multicolor VFD Display
- FM Radio Tuner with Presets & Auto-Scan
- Preset EQ: Rock, Pop, Classical, Jazz
- Remote control for quick access to all functions
- Vacuum Fluorescent Digital Output Display Meters
- Separate gain controls for master volume & subwoofer
- Digital Karaoke System
- 2 front microphone inputs with volume, tone and echo controls
- Built-In Mic Mixer with Echo Control
- USB input for music files from USB thumb drive
- 3.5mm input for iPod / MP3 player
- Spectrum analyzer equalizer display
- Turbo cooling twin fan system
- Dimensions with rack ears (W x D x H): 19" x 12.25" x 3.5" inches
- Dimensions without rack ears (W x D x H): 17" x 12.25" x 3.5" inches
- UPC:
- 819216028681
