All About Your RPA40BT:

How To Set Up Your RPA40BT:

How To Create A Multi Room Home Audio System With Your RPA40BT:

How To Set Up Karaoke With Your RPA40BT:

How To Set Up Your TV To Your RPA40BT:

What's in the Box:

• Receiver
• Remote Control for the MP3 module
• Owners Manual
• Warranty Card

Description:

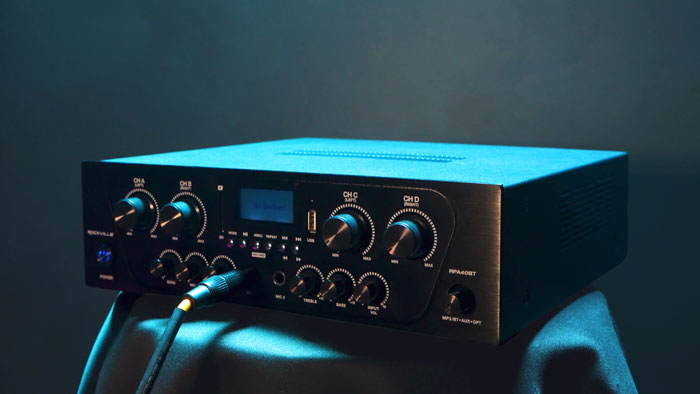

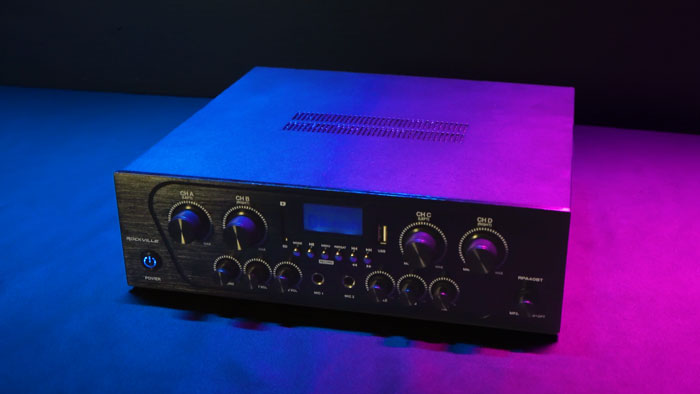

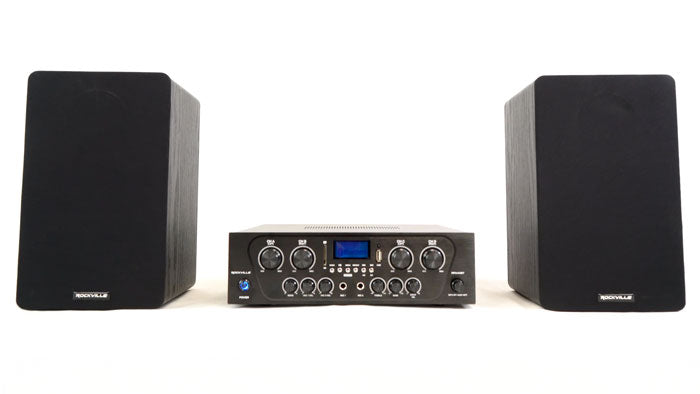

The RPA40BT is a 4 zone true 4 channel receiver for home audio or commercial audio.

It has a true 4 channel amplifier built in. Each channel has independent volume controls allowing you to connect speakers in up to 4 different rooms. You can easily add on a wall volume controller if you want to control the volume from each room.

Each channel/zone is 4-8 ohm stable which means you can connect (2) 8 ohm speakers in parallel on each channel which would allow you to connect up to 8 speakers (2 per zone).

Stereo/Mono

This has a stereo/mono switch which just means that if you connect 2 channels into a single zone you can get stereo separation of left and right channels. This receiver supports 4 mono zones or 2 stereo zones.

High power

When you pick this receiver up you can feel how heavy it is. It has a thick metal chassis to protect the internal amplifier. The amplifier puts out 250 watts RMS and 1,000 watts of peak power. All 4 zones have independent amplifiers that will easily power 1-2 speakers.

Playback options

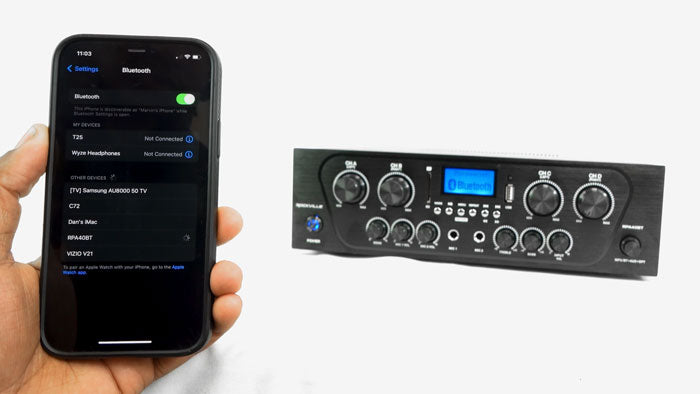

The RPA40BT has a high quality Bluetooth chip with a 35 foot range. It also has an RCA input to connect any audio device as well as an optical input to connect your television. The RCA output allows you to expand your system and add a powered subwoofer or another amplifier.

You can also connect 2 microphones directly to the front of the receiver and use this for karaoke or for PA announcements.

There is a built in mic mixer with echo control, mic bass, and mic treble controls which makes this perfect for karaoke performances.

Other playback options include SD card, USB playback, and FM radio.

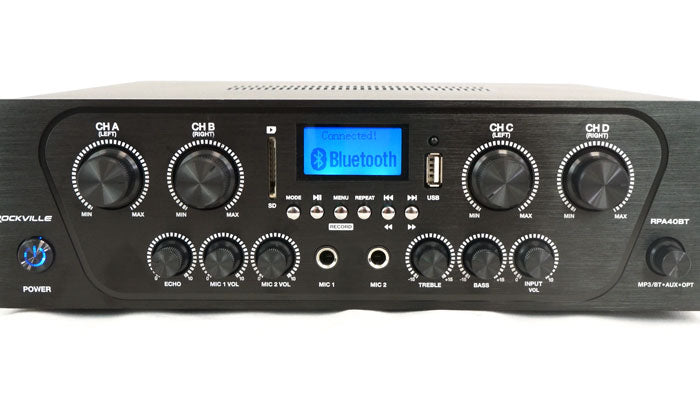

Controls

From the receiver you can control the volume of each zone/channel. There are bass and treble equalizer controls so you can tune the sound to your liking. You also get a master volume knob for the inputs and for the Bluetooth module.

Euro-block speaker terminals

The euro-block speaker terminals make connecting speaker wire easier than ever. You can detach the terminals connect your speaker wire and then connect the terminals back to the receiver. That is way easier then sticking your head into a shelf and bumping it into the wall 10 times. Euro-block terminals will literally save you many headaches.

Features:

• Rockville RPA40BT 1000w 4 Zone/Channel Home Stereo Bluetooth Amplifier Receiver
• 4 Independent channels / zones each with volume control
• 4 Mono zones, or 2 Stereo Zones
• RMS Power @ 4 Ohms: 62.5w x 4
• Peak Power @ 4 Ohms: 250w x 4
• RMS Power @ 8 Ohms: 40w x 4
• Peak Power @ 8 Ohms: 160w x 4
• Built in Bluetooth with 35 foot range
• Rear RCA input
• Rear Optical input
• Rear RCA output for a powered sub or adding another amplifier
• 4 sets of oversized detachable speaker terminals for easy installation without head-banging (Euro-block plugs)
• (2) 1/4" Mic Inputs on front panel
• USB and SD inputs for music files from USB thumb drive and SD drive
• Record output to mixer
• Record output to connect a recording device
• Bass and treble control knobs
• FM Radio Tuner with Presets & Auto-Scan
• Built-in Pre-Amplifier
• Preset EQ for Bluetooth/USB/SD (2 band EQ for other inputs)
• Remote control for MP3 module only (remote does not control zone volume, it only controls the Bluetooth/USB/FM radio)
• Variable speed cooling fan
• Input Sensitivity: 300mv/20 KOhm
• Frequency Response: 20Hz - 20kHz
• Signal to Noise Ratio: 60 dB
• Tone Characteristic: 100Hz-10KHz ±12dB
• THD: > 0.1%
• Dimensions in inches (W x D x H): 11.97" x 11.4" x 3.86"
• Weight: 13.23 lbs.
