How to Set Up Your RPA12, RPA14, and RPA16:

Video of RPA16:

Power Ratings:

• RMS Power Output:
• Stereo 8 Ohm: 2 x 1,000W
• Stereo 4 Ohm: 2 x 1,500W
• Bridged 8 Ohm: 1 x 3000W
• Peak Power Output:
• Stereo 4 Ohm: 2 x 5,000W Max
• Bridged 8 Ohm: 1 x 10,000W Max

Terminals:

• Input Terminals:
• Combo jack (XLR and ¼”) A & B inputs

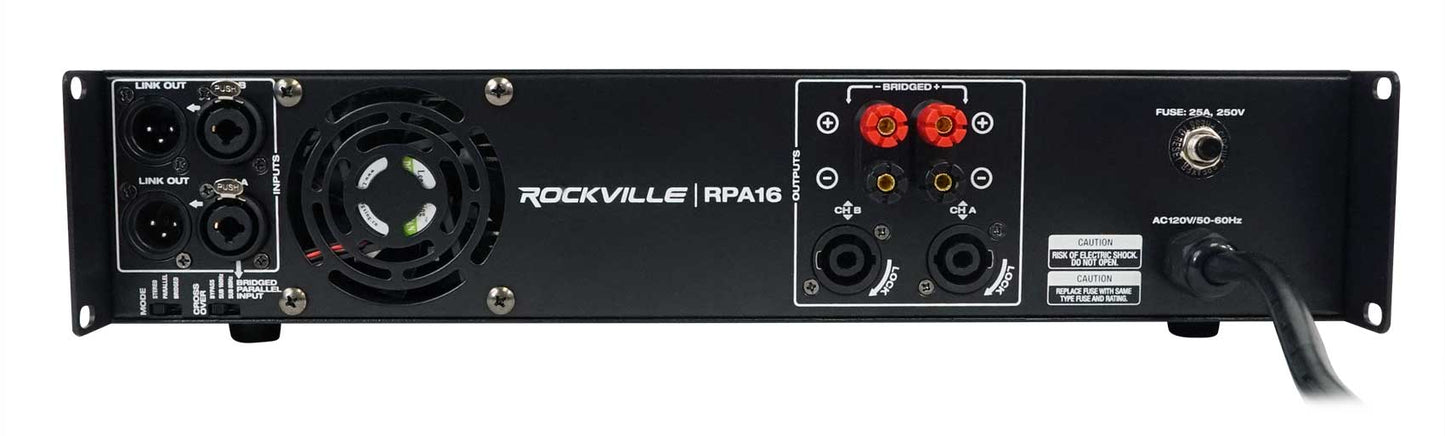

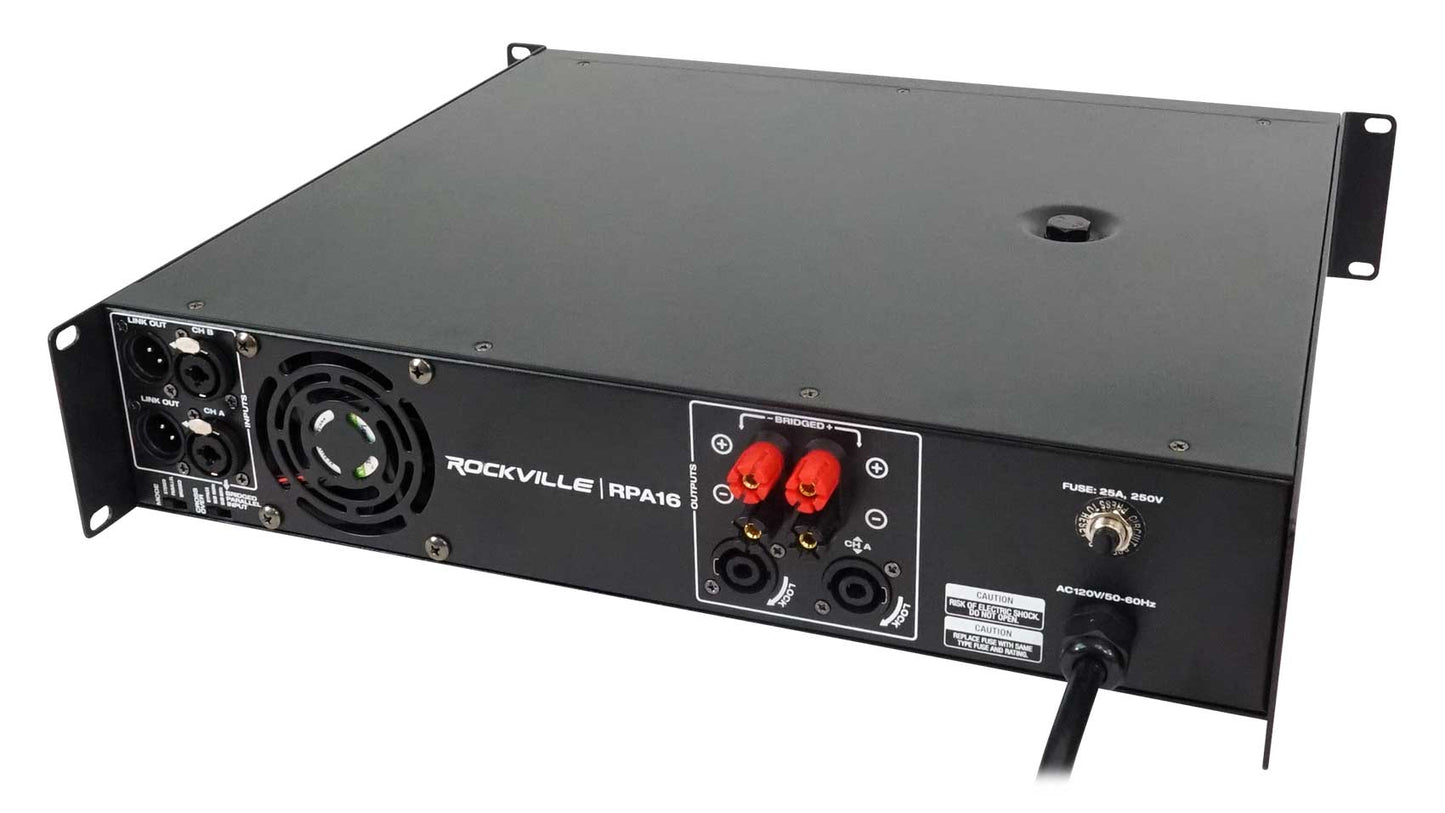

• Output Terminals:
• Banana binding post speaker output
• Speak on output
• XLR output to connect another amplifier or powered sub

Features:

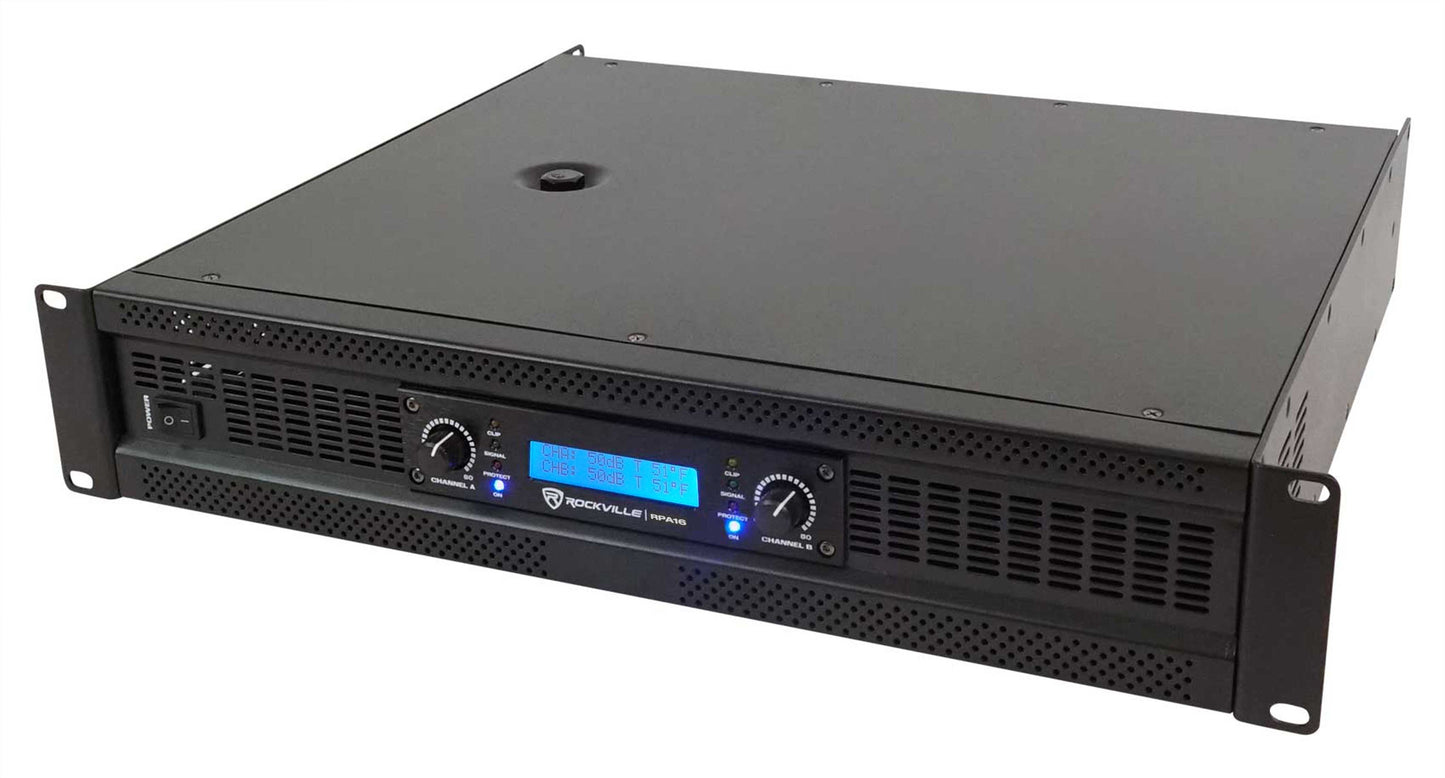

• Rockville RPA16 10,000 Watt Peak 2 Channel Professional/DJ Rack Mount Amplifier

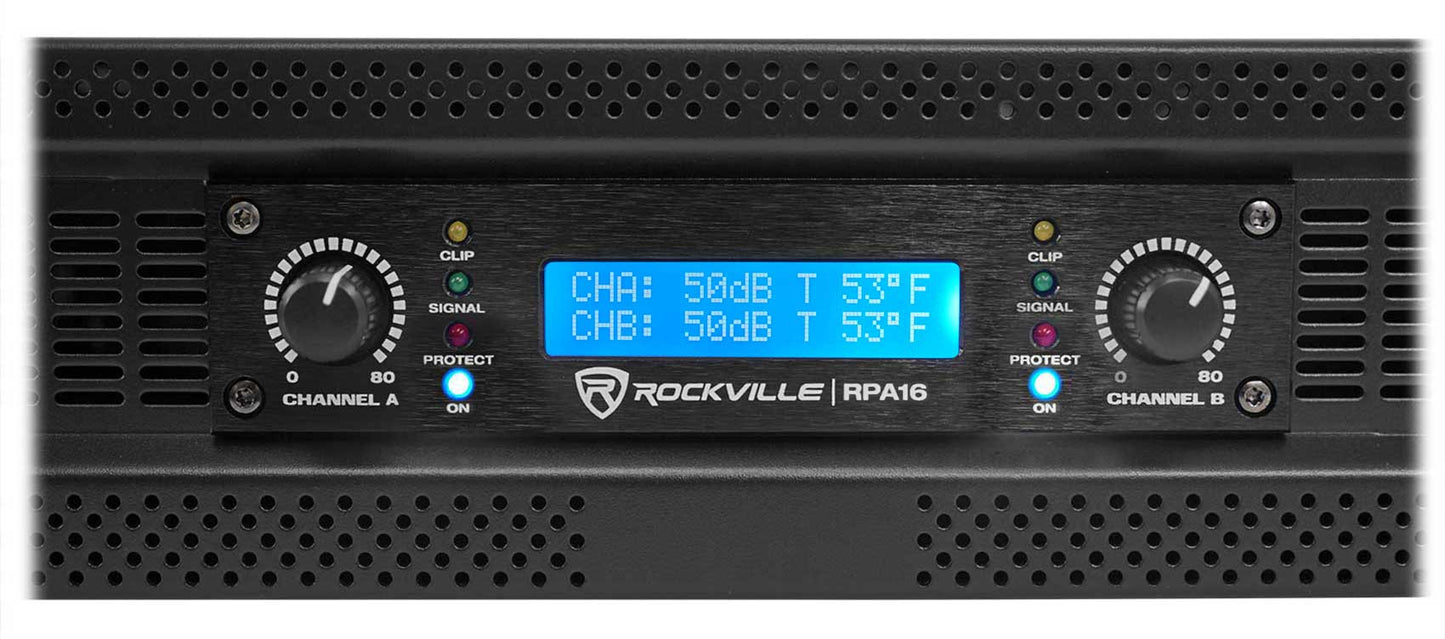

• LCD displays volume in dB per channel and operating temperature
• 2U rack space
• Built in limiter protects your speakers from distortion and clipping
• Bridged mode allows you to combine both channels power into one channel for use with a subwoofer
• Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration
• Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration
• Built in crossover switch (bypass, 80 Hz, 160 Hz) allows amp to be used with full range PA speakers, or Subwoofer(s)
• Channel A & B Clipping Led Indicators
• Channel A & B Separate Level Controls

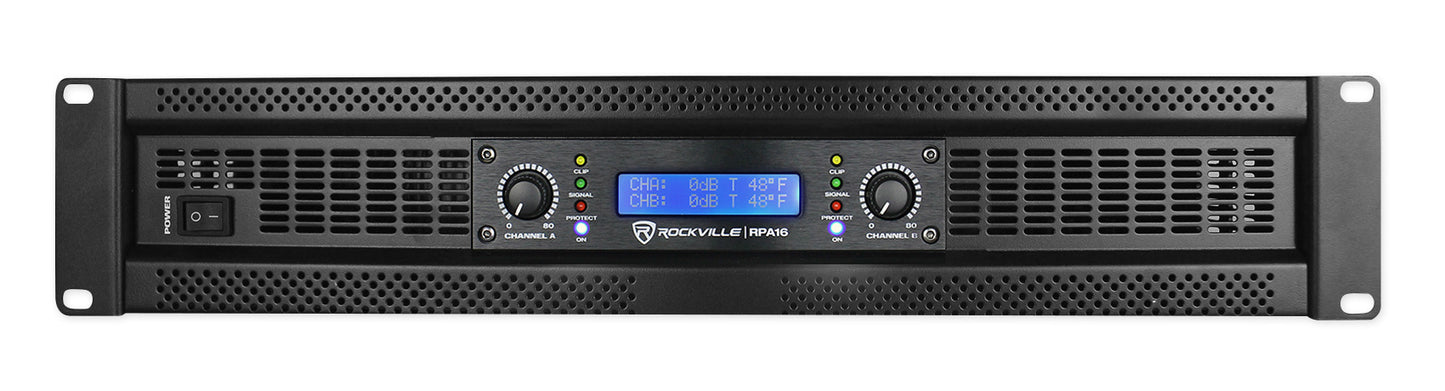

• Power, signal, clipping, and protection LED indicators on front of amp
• Heavy duty rack mount ears with handles
• Built-in variable high velocity quiet cooling fans
• Maximum headroom for 4-ohm and 8-ohm Speakers
• Level controls for precise setting and matching of sensitivity
• Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load
• User serviceable fuse (25A, 250V)
• Frequency Response (bandwidth @ 2Vrms out, @ -3.0dB) 10 Hz – 30 Khz
• THD + Noise @ 1Khz full power: <0.04%
• Input Impedance: 10K Ohm Balanced
• Input signal voltage: 660mV – 1.5V
• Input sensitivity: 0.7v
• Damping factor: ( 100Hz, 10w, 4 ohms): 36.5
• Damping factor: (1Khz @ 8 ohm): >400:1
• Effective damping factor (100Hz, 10w, 4 Ohms) 1.08
• Output impedance at speaker terminals: 0.10975 Ohm
• Frequency Response vs THD+N (worst case, across normal bandwidth 1W) 0.6%
• Signal to Noise Ratio: > 100dB
• IMD 60Hz & 1kHz, 4:1: <0.04%
• SLEW RATE (input filter limited) : 40v/uS
• Power Requirements: 120V / 50-60Hz
• Weight: 40.8 lbs
• Dimensions: 19.09 x 16.93 x 3.35 inch
