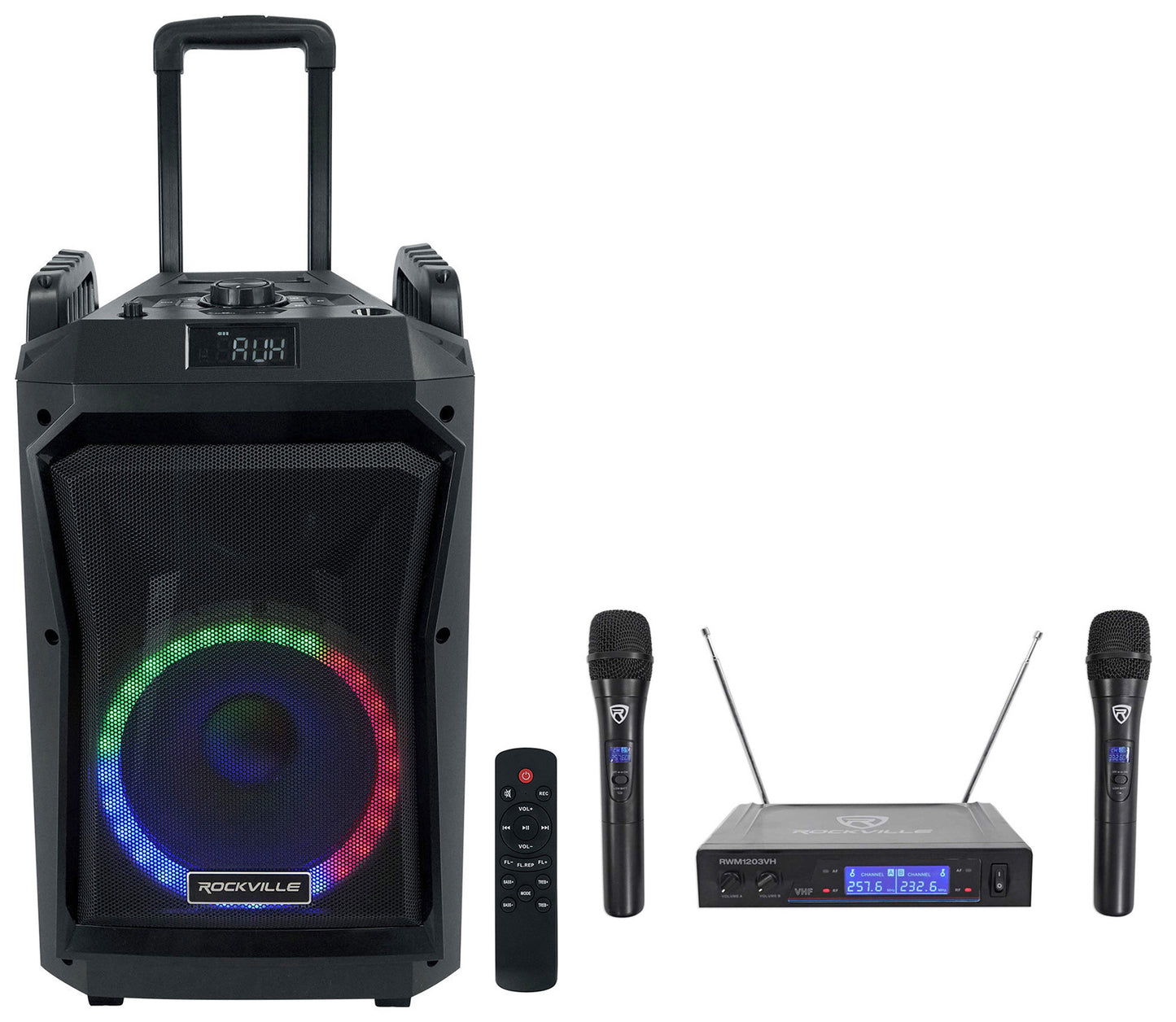

Package Includes:

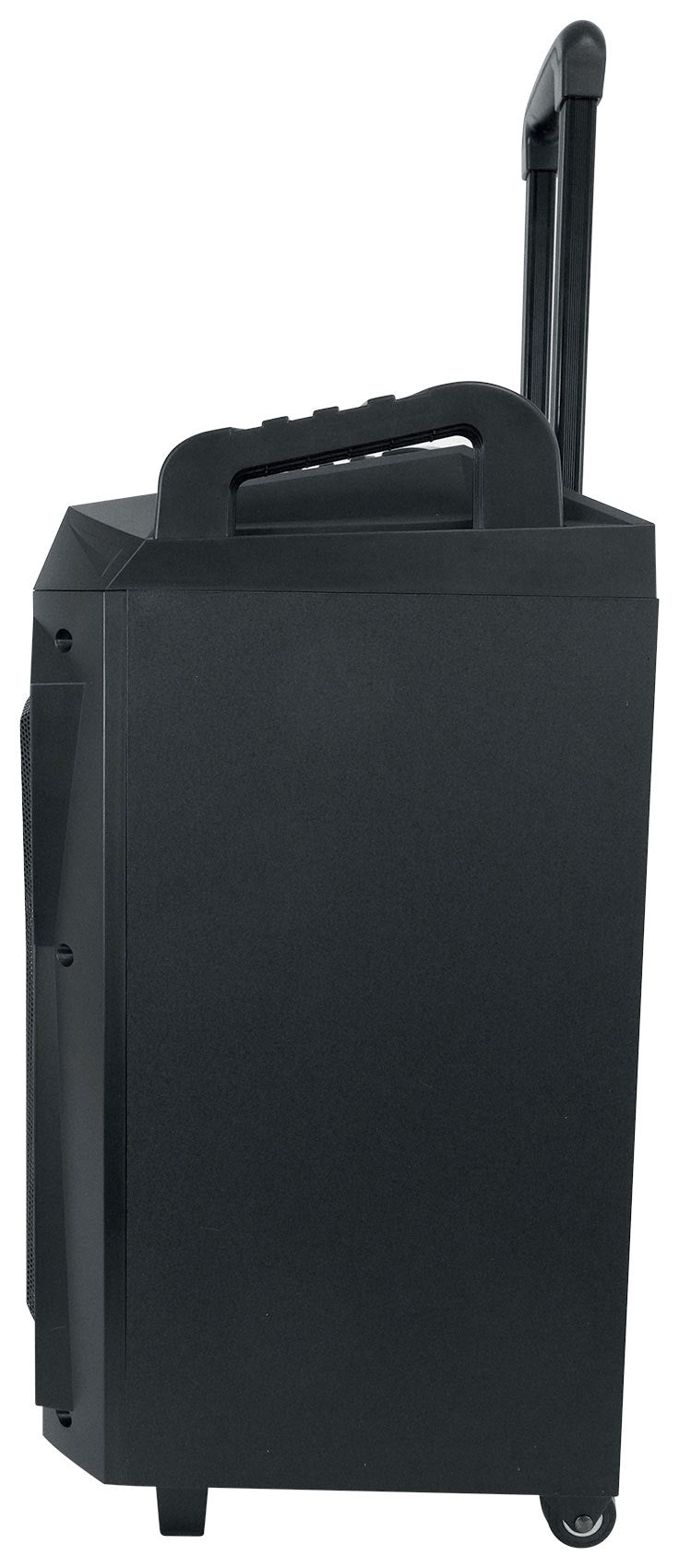

• (1) Rockville RockNGo 800 10" Portable Wireless Bluetooth Speaker w/LED/Wheels/Loud!
• (1) Rockville RWM1203VH VHF Wireless Dual HandHeld Microphone System/Digital Display

---

How To Set Up Your ROCKNGO 800:

How To Set Up KARAOKE on Your ROCKNGO 800:

How To Update Your ROCKNGO 800:

VIDEO OF ROCKnGO 800:

How to Set Up your ROCKnGo 800:

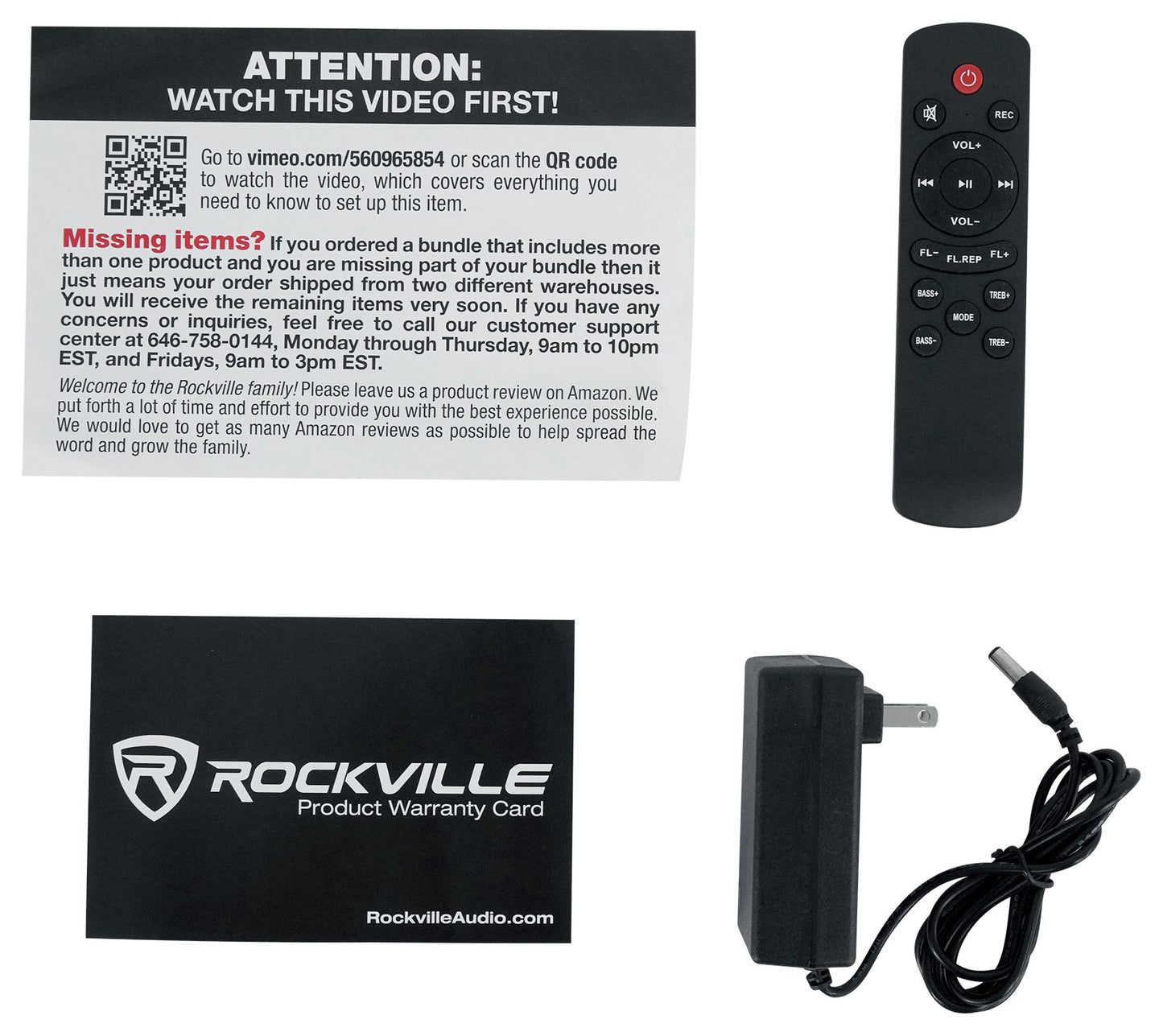

What's in the Box:

• 10" Wireless Speaker With Built in Bluetooth
• Remote Control
• Power Cable
• Warranty Card
• Owner’s Manual with video

Features:

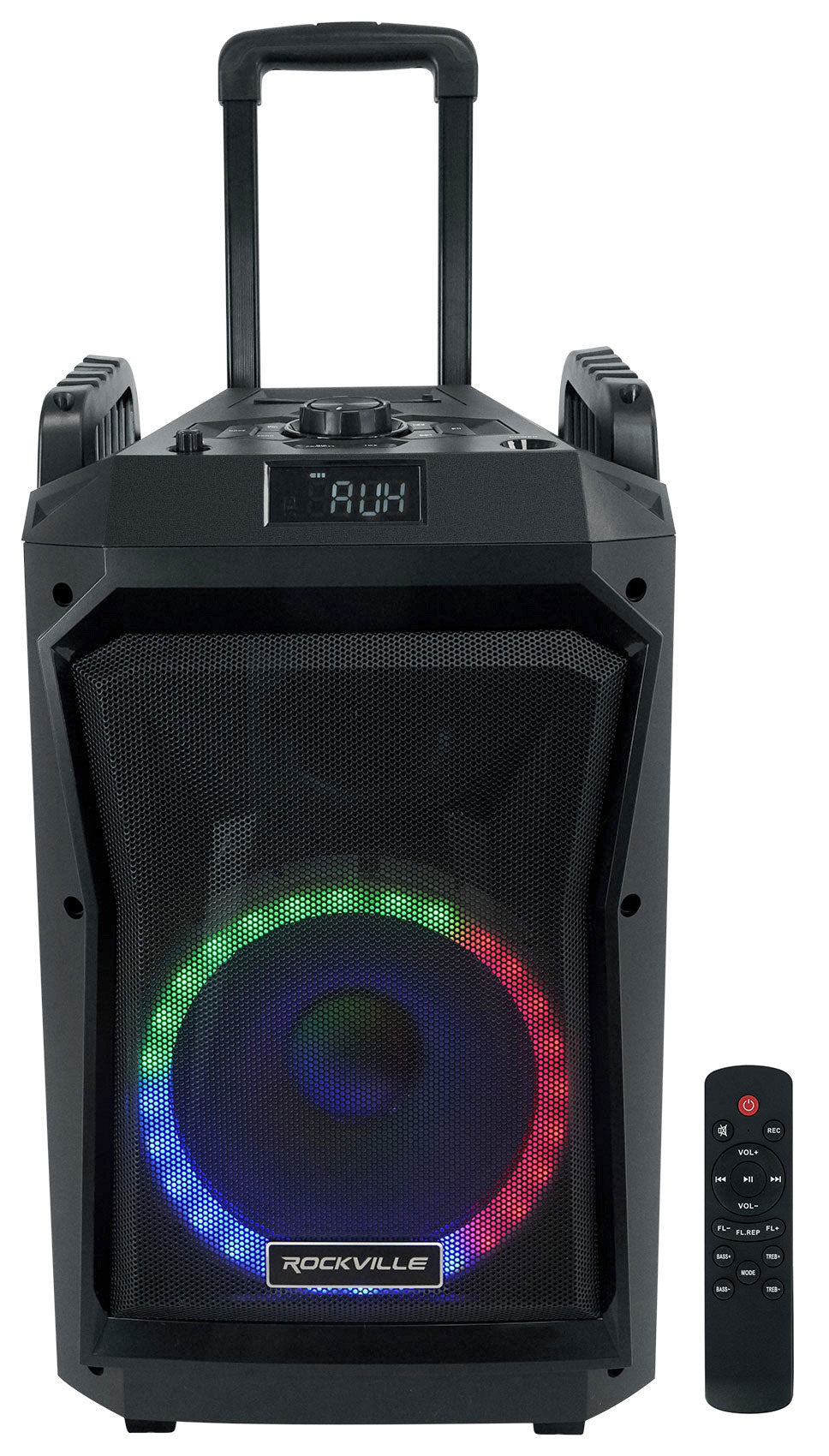

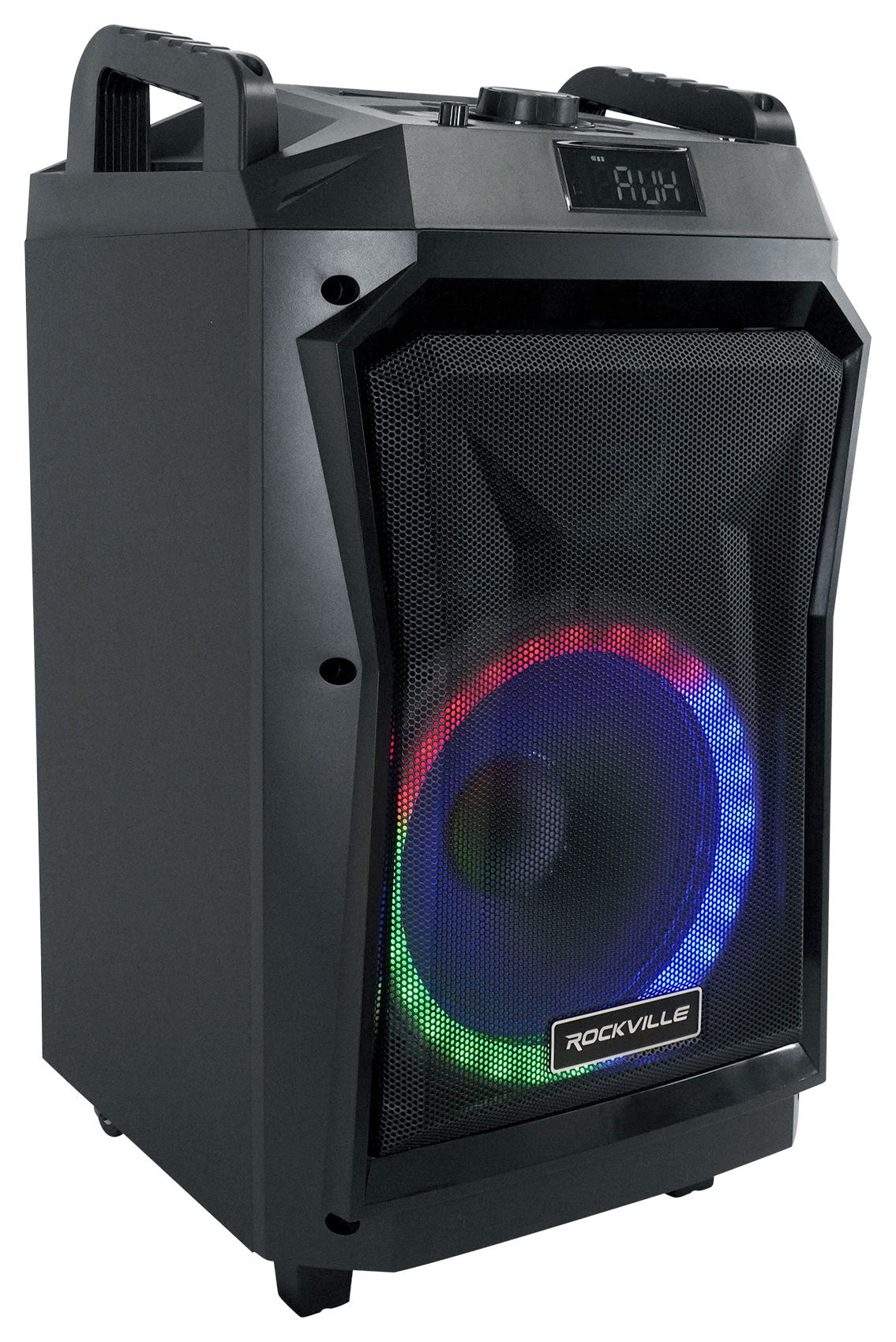

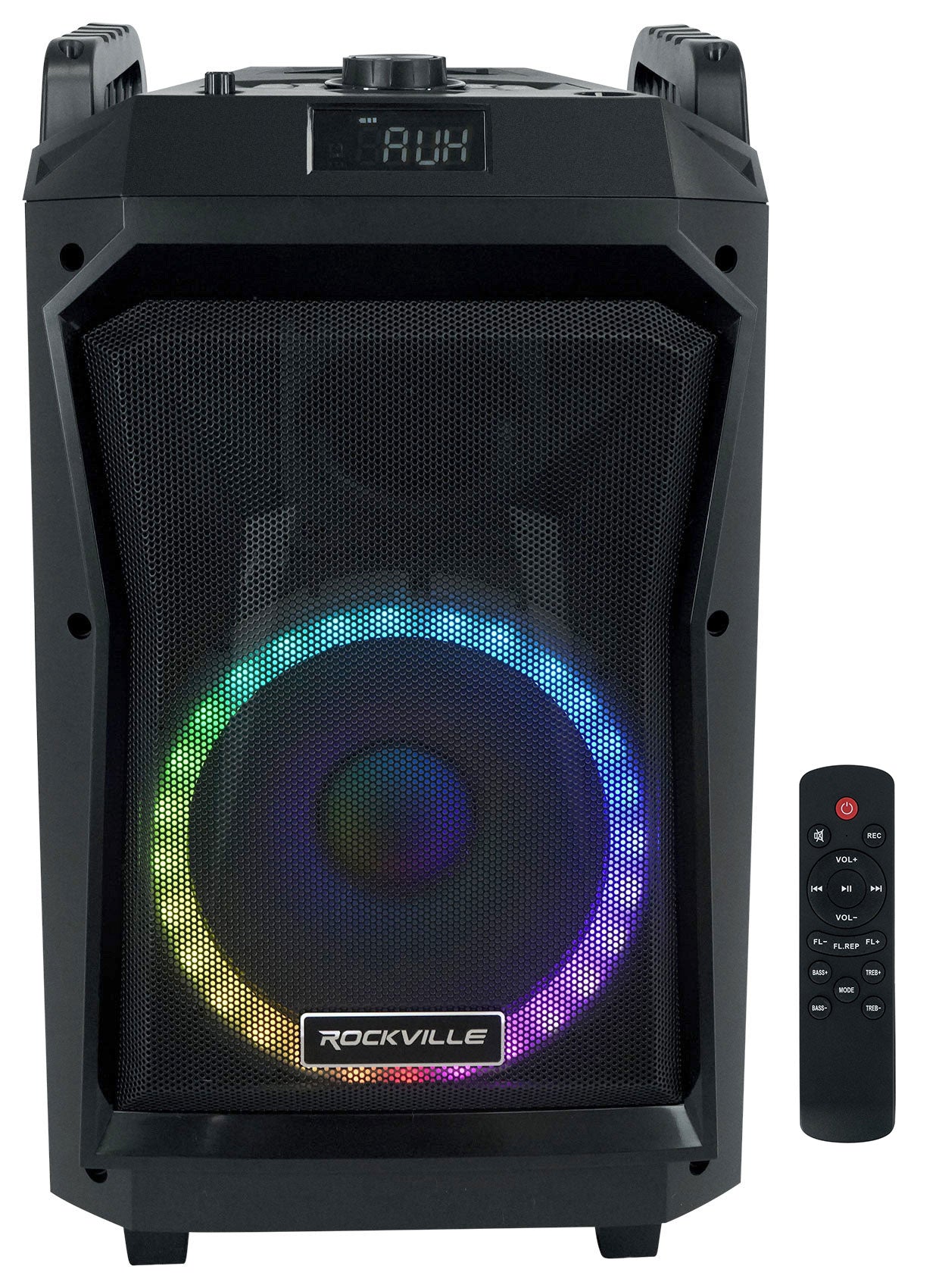

• Rockville RockNGo 800 10” Portable Powered Speaker with Bluetooth, USB and LED
• Peak Power Handling: 800 Watts
• RMS Power: 120 Watts
• The sound of this goes very loud and is very balanced with clear highs, strong midrange, and deep low-end bass response that goes down to 50Hz. This has way more bass compared to most other portable speakers
• Built-in Bluetooth wireless music playback
• Built in wireless linking allows you to pair multiple of these speakers together in a party mode to spread sound throughout the space
• Built-In USB
• LCD Display for MP3 player
• 3.5mm aux input
• 1 Mic Input (1/4")
• 1 Line/Guitar Input for Guitar, keyboard, bass or Any Audio Device
• Guitar Input Volume Control
• Mic Volume and Echo Controls

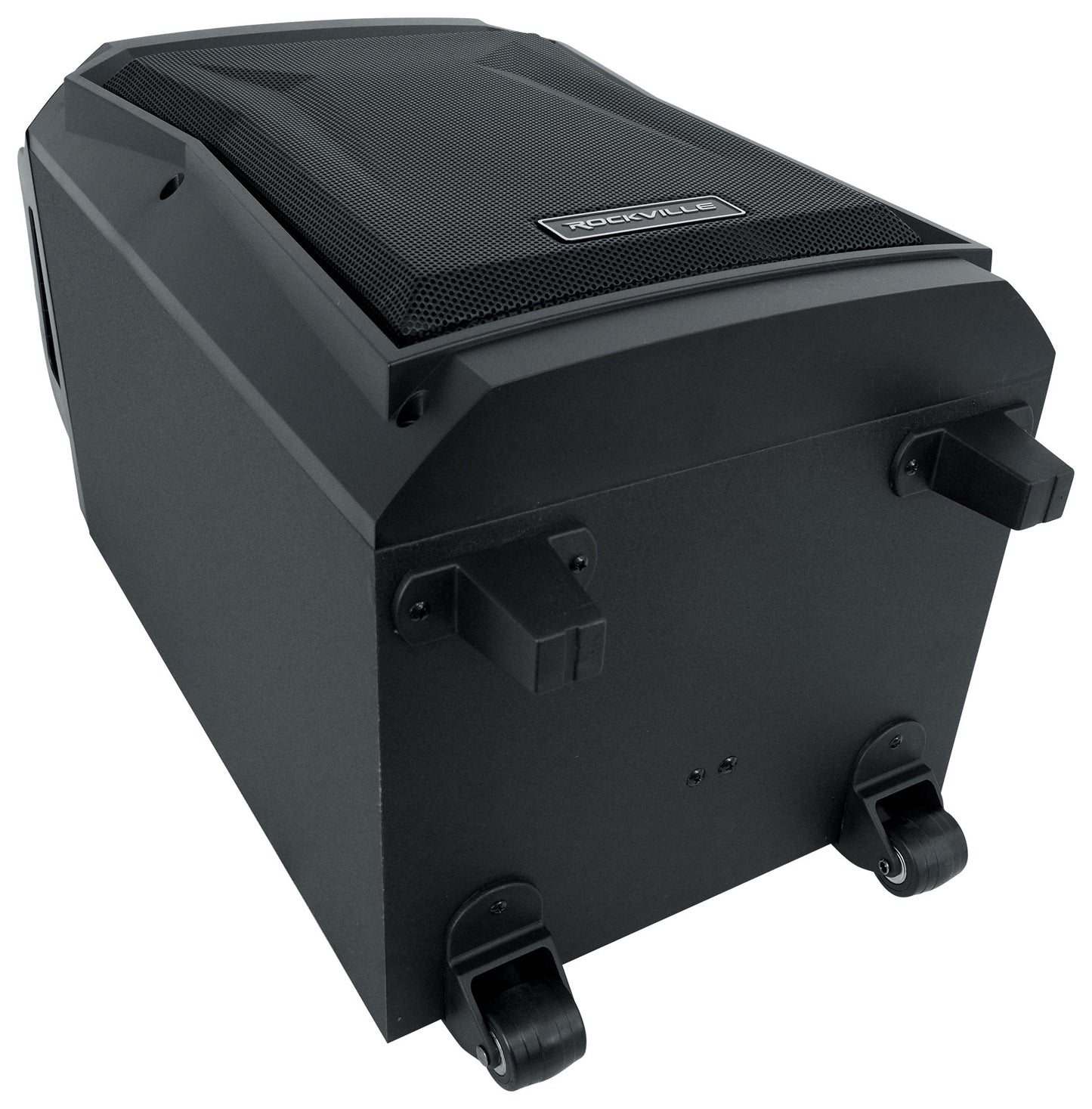

• Built-In Wheels and Carry Handles for Easy Transport
• Bluetooth Pairs in Under 4 Seconds and Has A 35 Foot Range with crystal clear reception

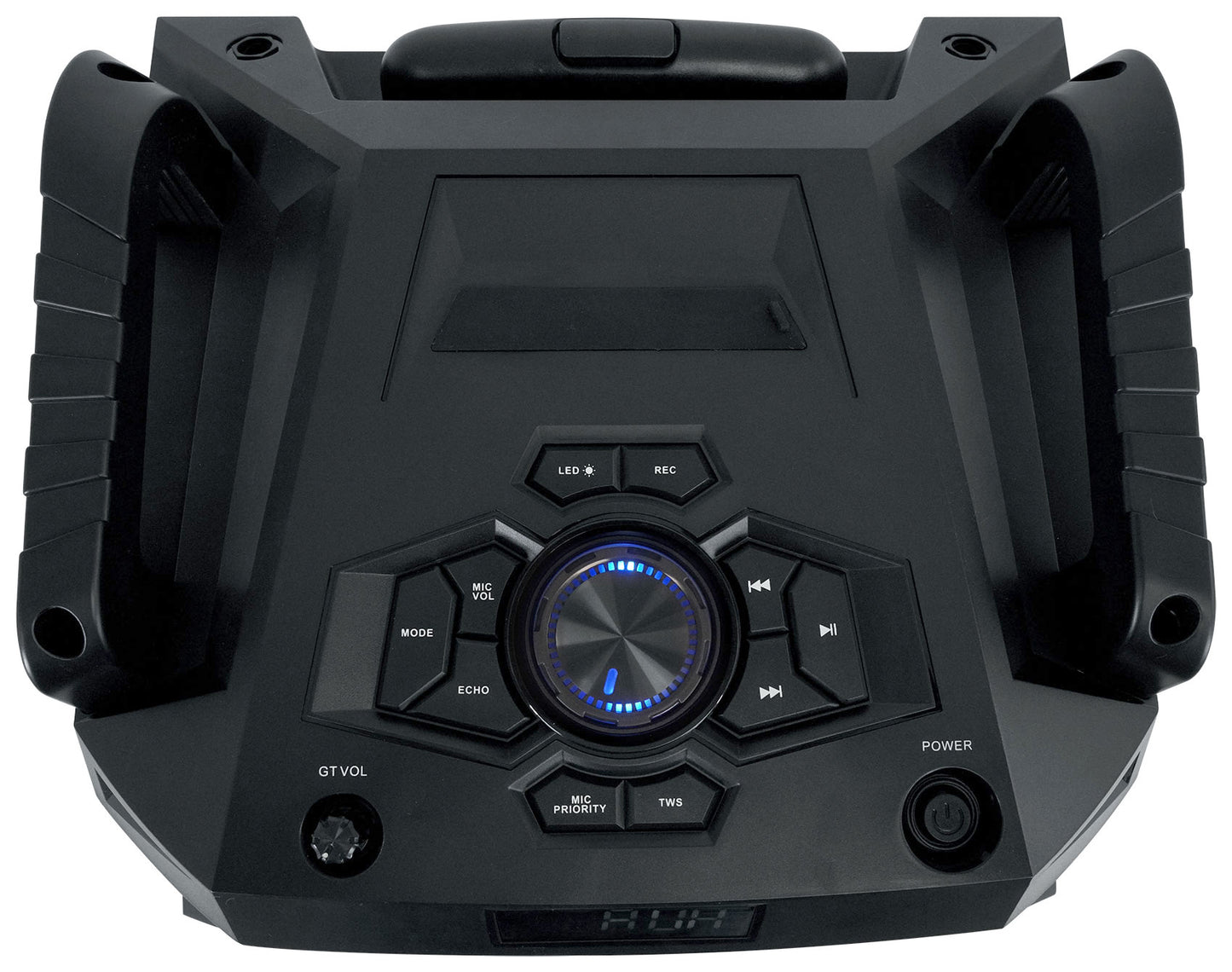

• Bass/ Treble/ Master Volume Controls
• Record Function Will Record Your Output Onto the SD Card or USB drive
• Built in LED lights with ability to control the light pattern and the color of the LED (There is an EQ lighting mode, blinking mode, multi color mode, etc)
• LED can be synced with the beat of the music
• Mic priority on/off function automatically lowers the music volume as you are talking into the microphone
• Power supply: 15V/3A with external power supply 110V/60Hz
• Battery lasts approximately 16 hours when using the unit on low volume, 8 hours on moderate volume and 5 hours on maximum volume.
• Speaker can run on their built-in battery or plugged into the wall through AC power

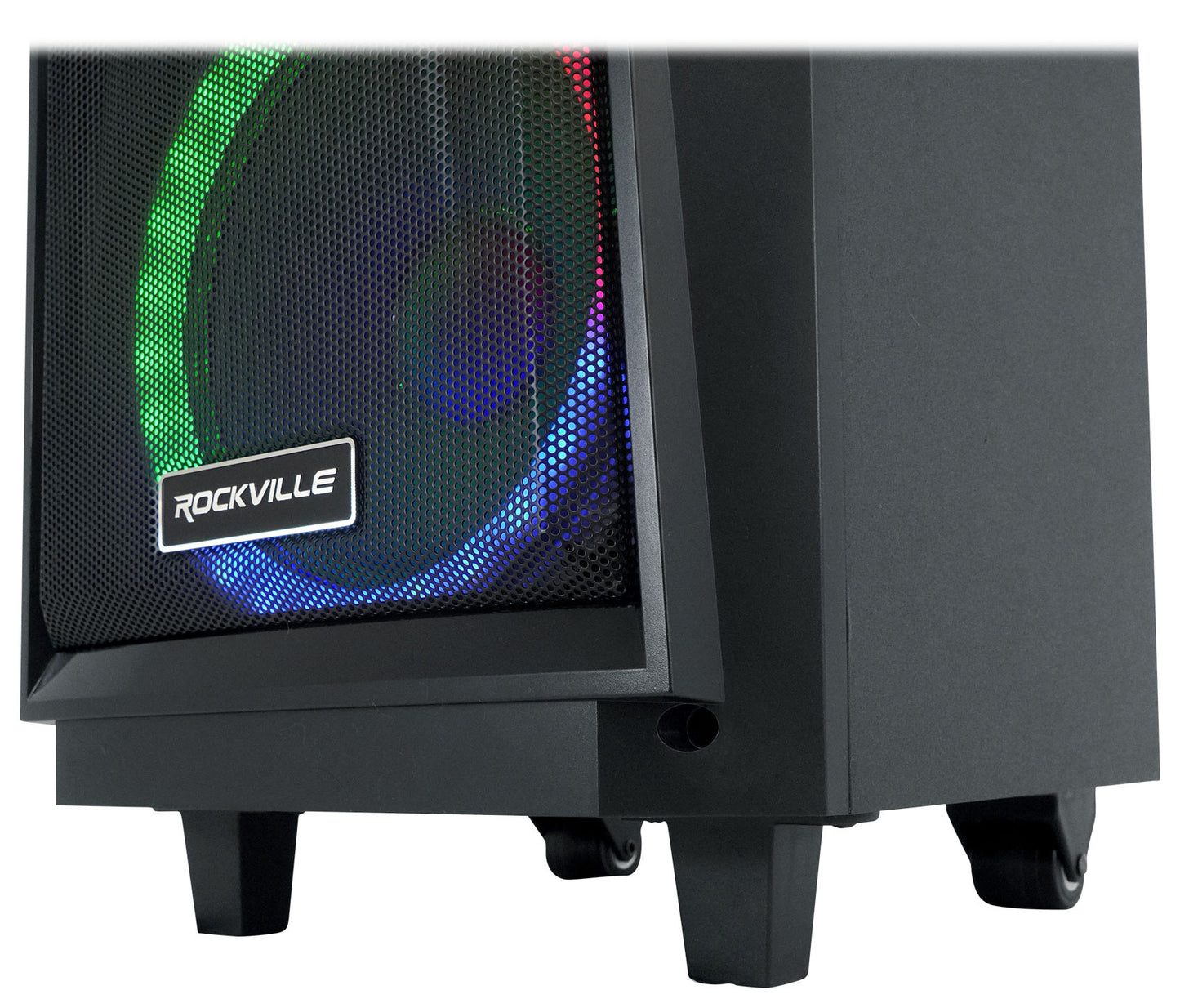

• Big Power 10’’ Woofer with great bass response
• 3’’ Large Tweeter Gives pristine Highs

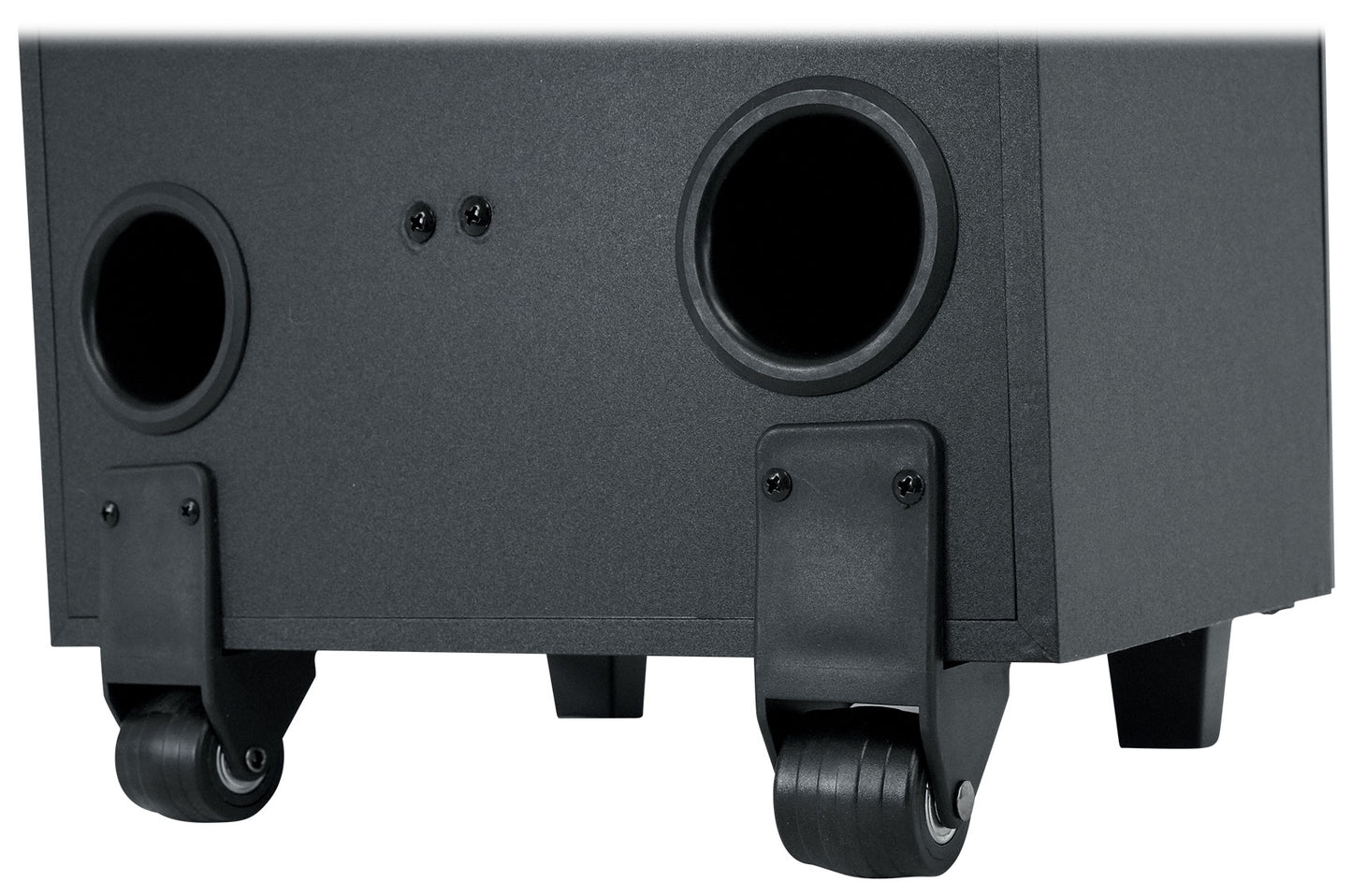

• (2) Computer Tuned Rear Ports For Extended Bass Frequency
• Frequency Response: 55Hz – 18KHz
• High Power Class D amplifier that is extremely power-efficient and provides powerful output
• Unit Weight: 28 Lbs
• Shipping Weight: 31.9 Lbs
• Unit Dimensions (W x H x D): 11.81'' x 21.65" x 12.99'' inches
• Shipping Dimensions (W x H x D): 15.90'' x 14.96'' x 25.39'' inches

---

HOW TO SET UP YOUR RWM1203VH:

Video of RWM1203VH:

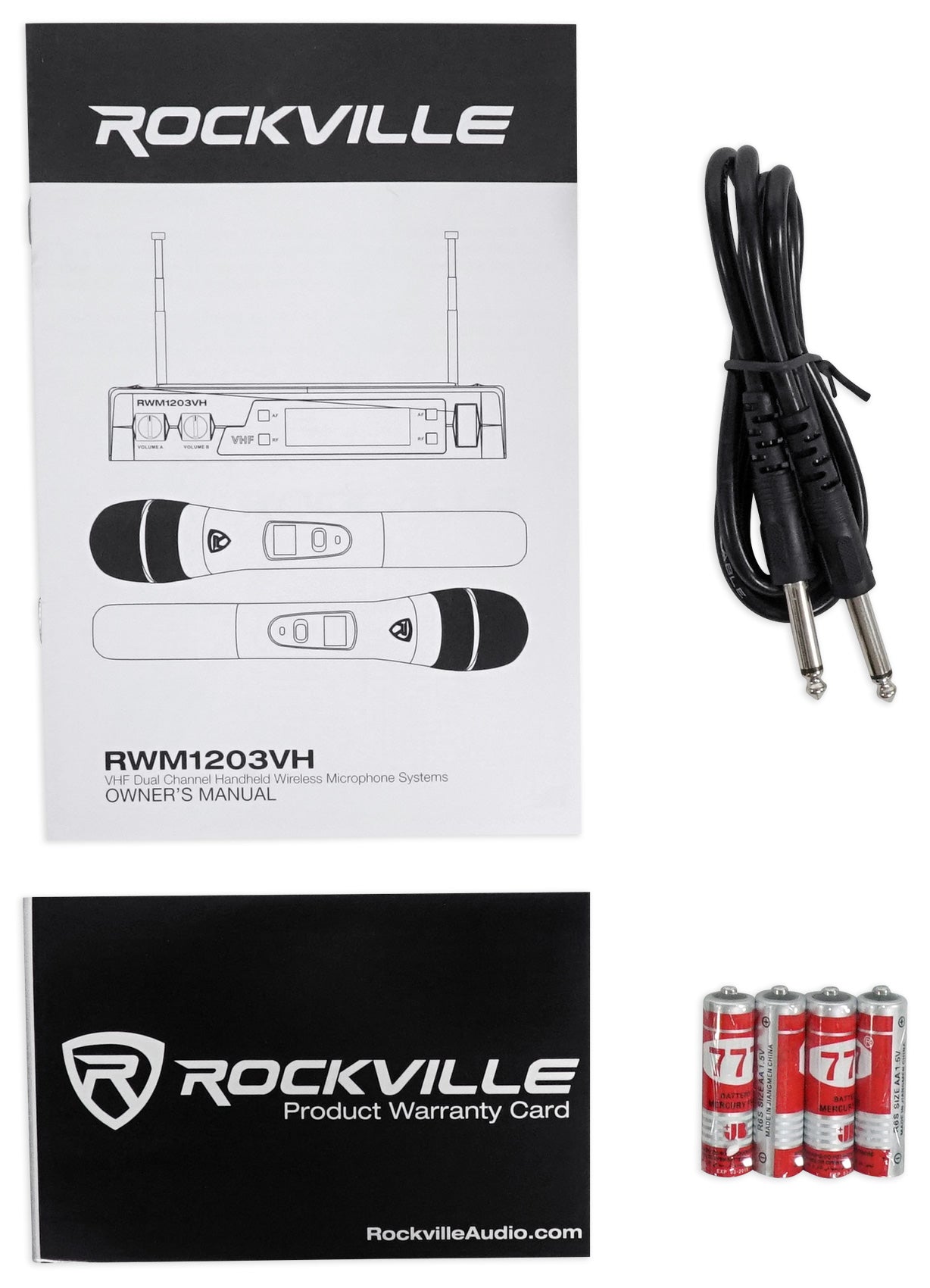

Includes:

• 2 wireless handheld microphones
• 1 receiver unit
• User manual
• Batteries
• Transfer Cable

Features:

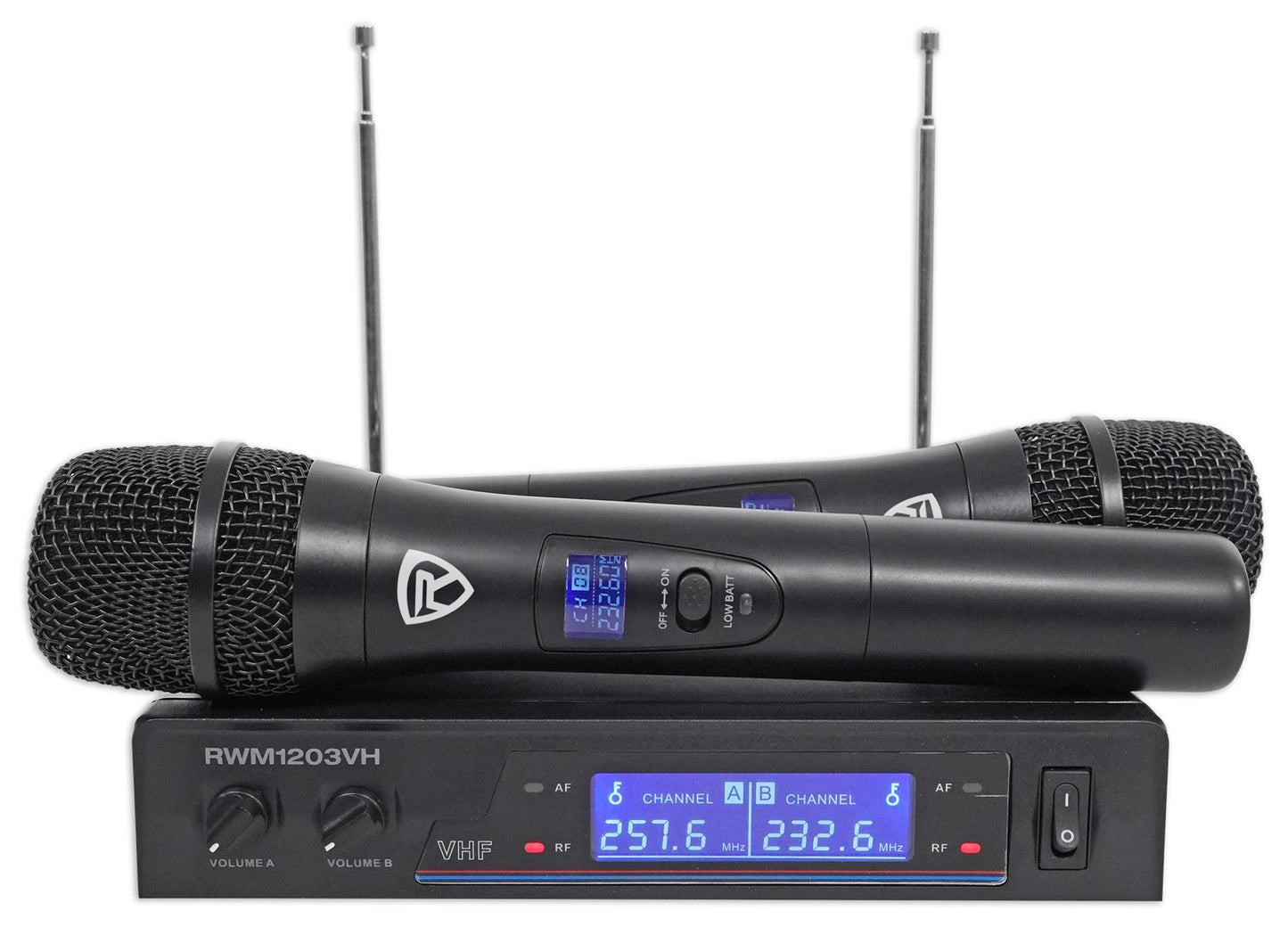

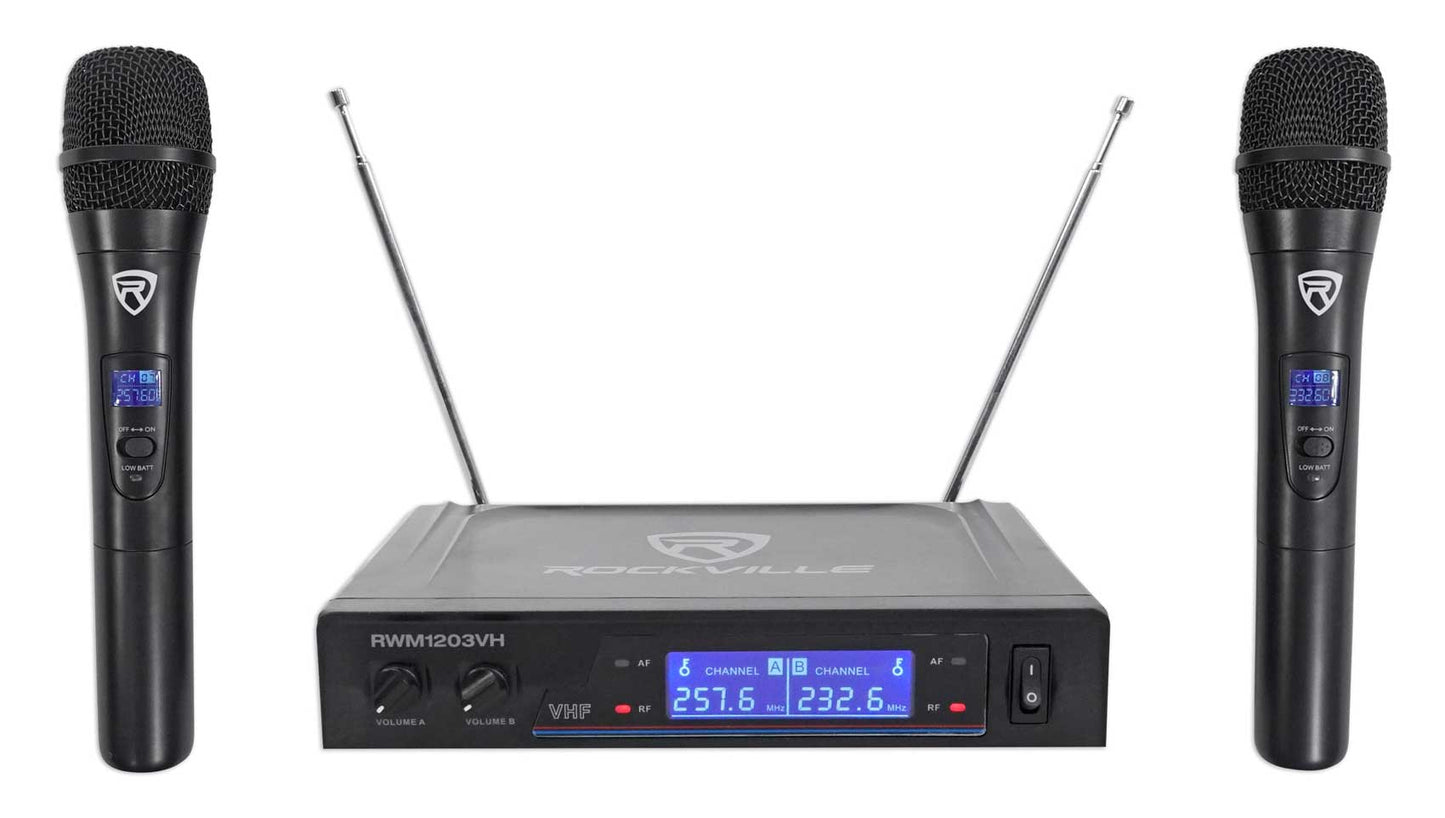

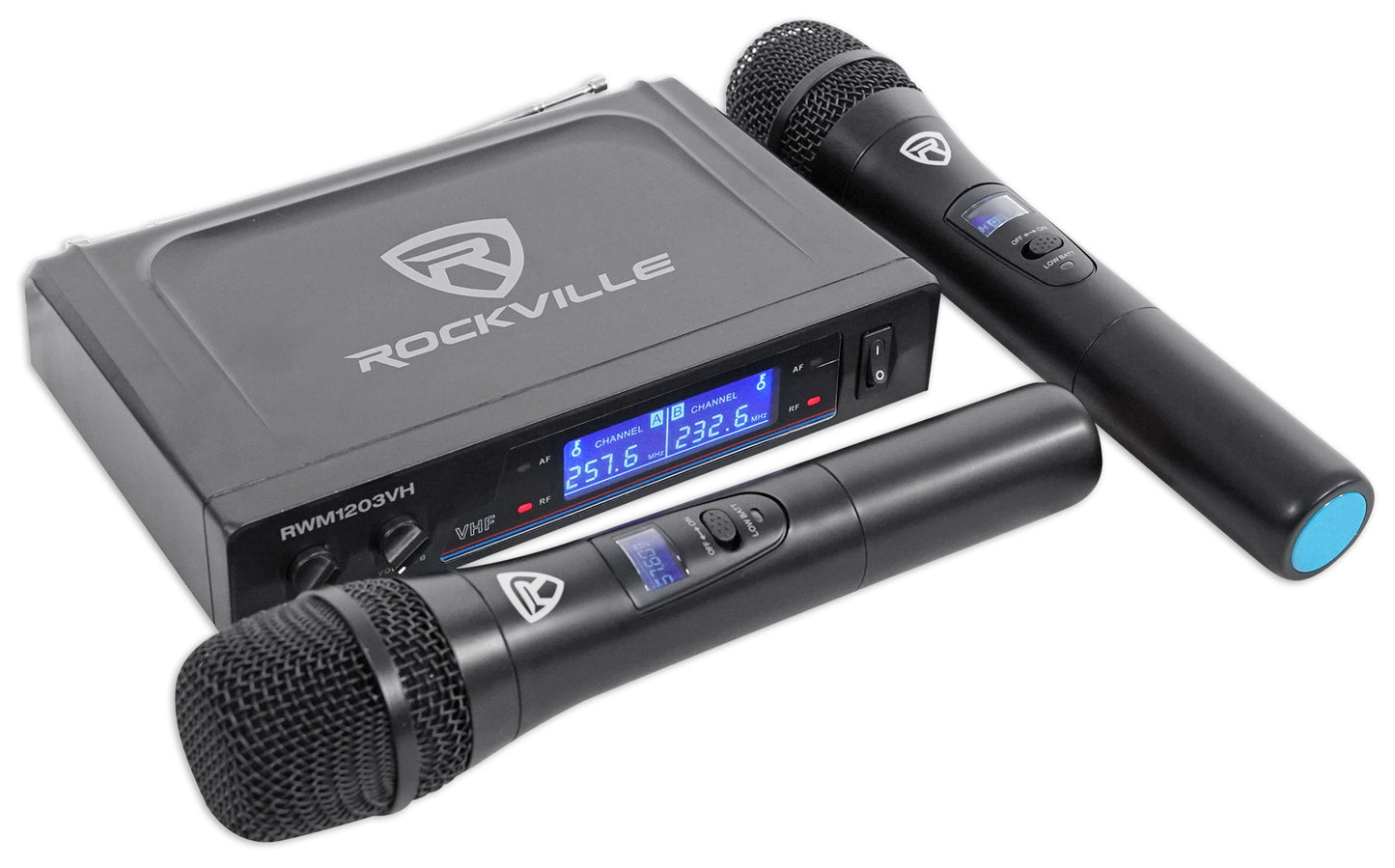

• Rockville RWM1203VH VHF Dual Channel Handheld Wireless Microphone System
• Large display on receiver + digital display on each mic
• Each mic is large and solid with a nice weighted feel
• Improved high performance wireless handheld microphone capsule
• Includes transmitter with two handheld, high sensitivity, unidirectional, wireless cardioid microphones
• Featuring a dual filter design to limit feedback and interference
• Ultra signal stability eliminates unwanted distortion
• Transmitter automatically links to receiver for ease of use
• Use two handheld mics at once
• Individual microphone volume controls
• Low power consumption for longer battery life
• System comes in 4 different frequency options. You can request a specific one in the notes
A. 255.1/227.1 MHZ
B. 224.9/256.9 MHZ
C. 228.9/253.4 MHZ
D. 230.8/255.8 MHZ

Specifications:

System:

• Operating Range: 150 feet or more
• Channel: Two Channel
• Frequency Range: 210MHz - 270MHz
• Frequency Response: 40Hz-18KHz
• S/N.:>103dB (1KHz-A)
• Operating Temp: 14°F – 122°F
• Oscillation Mode: Quartz Crystal
• Frequency Stability: ±0.005%
• Modulation Mode: VHF
• Harmonic Radiation :< 63dBm
• RF Output Power: 10mW
• Power Voltage: AC110V- 60Hz
• Mic Battery: AA x 2

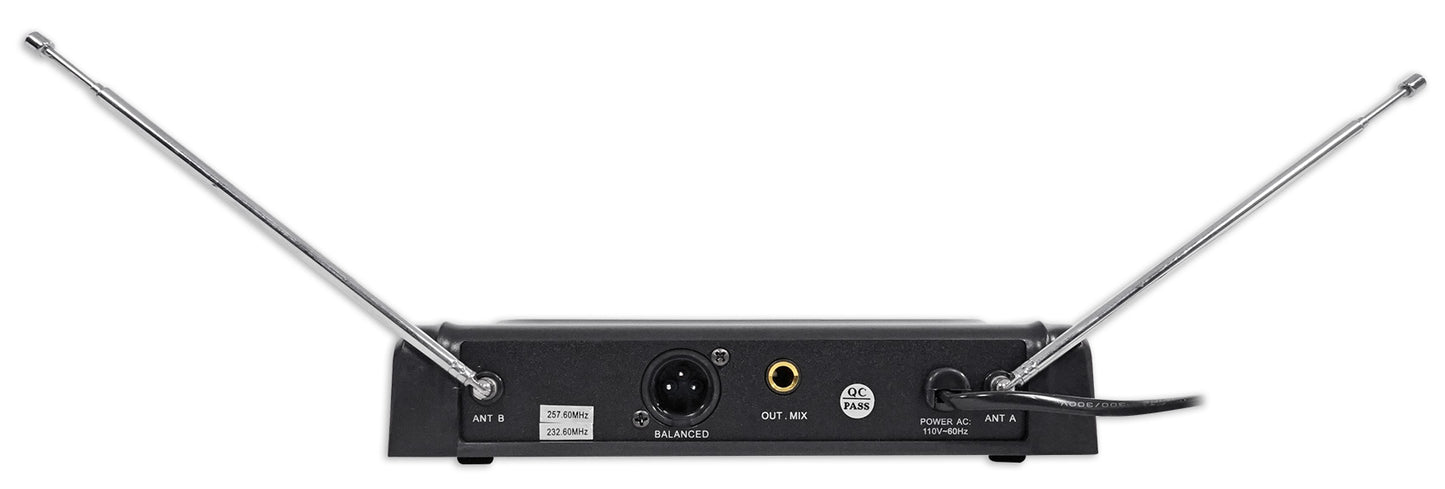

Receiver:

• Sensitivity: (S/N=30dB) >2mV
• Audio Output Impedance: 600O
• Audio Output Level.: 0-0.5V
• Power Supply: AC110V 60Hz
• Current Consumption: =50mA
• Audio Out Connector: 1/4" unbalanced

Transmitter:

• Frequency Stability: ±0.005%
• RF Output Power: =10mW
• Modulation Mode: VHF
• Maximum Deviation Range: ±50KHz
• Microphone Mode: Fixed
• Power Supply: AA/1.5V×2
• Current Consumption: =35mA
