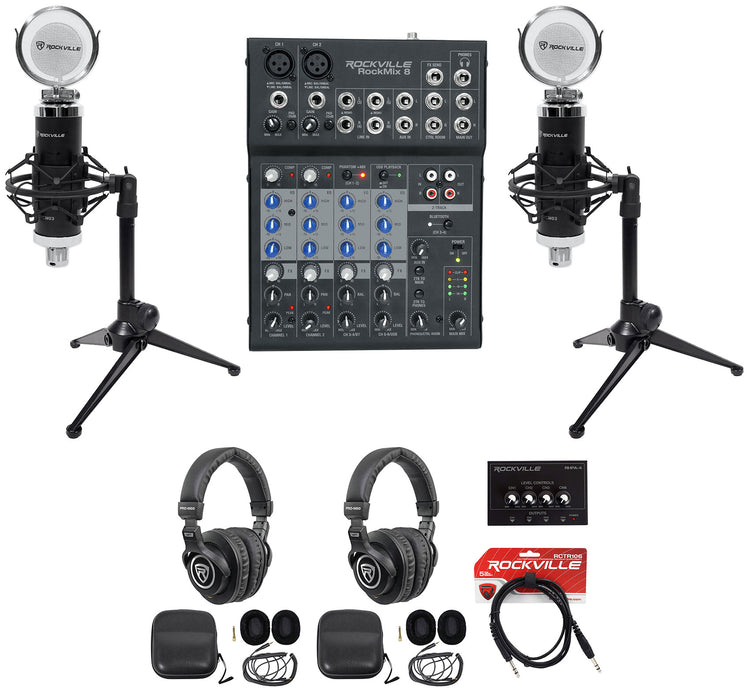

Package Includes:

• (1) Rockville ROCKMIX 8 Channel Mixer w USB Recording Interface+Compressor+Bluetooth
• (2) Rockville RCM03 Pro Studio Recording Condenser Microphone Mic+Metal Shock Mount
• (2) Rockville PRO-M50 Studio Headphones w/ Detachable Coil Cable, Case+Extra Ear Pad
• (1) Rockville RHPA4 4 Channel Professional Headphone Amplifier Stereo or Mono Amp
• (2) Rockville RDTS Adjustable Height Studio Desktop Tripod Microphone Stand+Mic Clip
• (1) Rockville RCTR106B 6' 1/4'' TRS to 1/4'' TRS Balanced Cable, Black, 100% Copper

---

Video of ROCKMIX 8:

How To Set Up Your ROCKMIX 8:

Inputs, Outputs, Controls Explained on Your ROCKMIX 8:

How To Use Bluetooth On Your ROCKMIX 8:

How To Connect a Laptop Or Computer to Your ROCKMIX 8:

How To Connect an Instrument or Microphone to Your ROCKMIX 8:

What's in the Box:

• Mixer
• Power Adapter
• User Manual
• USB interface cable

Description:

The Rockville RockMix 8 is the perfect solution for live bands, recording music, gyms, restaurants, podcasting, karaoke, and more. This compact mixer is packed with all of the important features that you need.

The built-in USB interface allows you to record the master output of all the channels to the recording software on your computer. The USB interface will also allow you to easily play back songs or other audio from your computer or laptop to channels 5 and 6 of the mixer. What is really cool is that you can EQ the sound from the mixer to get it to be exactly how you like.

The USB interface is also perfect for podcasting. It is the bridge to get your computer audio to your speakers or to get your audio output recorded to your computer. ?

Our low-noise mic pre-amp is clean, with a lot of headroom, ensuring a clear sound. Mic pre-amps are one of the most important parts of a mixer. A good quality pre-amp such as this one makes a world of a difference in the sound.

The 3-band EQ and panning allows you to customize the sound the way you want it. The FX send feature lets you connect external effects to the console in order to further shape and enhance your sound. We added pro Bluetooth connectivity, so you can have wireless playback whether you're in a gym, restaurant, home, or any other place where you do not want to hard wire your playback device. The Bluetooth is also a great way to have guests call to your podcast show.

We added a high quality compressor to channels 1 and 2 which is great for podcasts, singers, and drummers. A compressor is used to balance the dynamic range of your signal, so this way, the louder and quieter parts of the signal are all sounding perfect. What a compressor does is it allows you to set a minimum and maximum threshold for your audio signal. If you are doing a podcast and you might have parts with whispering and other parts where people are yelling. A compressor will make the podcast sound really professional. It will make the whispering easy to hear and it will lower the yelling to a normal usable range that sounds good on all speakers. It helps to avoid clipping as well. Another great use is for singers or drummers during live shows or recordings. The compressor will really fine tune the sound and make it sound even and balanced by avoiding potential clipping/distortion of your loud signals (kicks, snare hits, loud vocal passages etc.) Compression is also great for singers because It will also allow you to be able to sing low into the mic and it can help even out the audio levels. Please keep in mind you can set the level of compression or turn it off.

Channels 1 and 2 are loaded with XLR and ¼” inputs. Then you get 2 stereo channels that can accept a variety of sources ranging from microphones to any mono/stereo instruments . Both channel 1 and 2 provide 48v phantom power, allowing you to use condenser mics. There are also two additional 1/4” stereo and RCA aux inputs if you need to plug in extra sources.

The clipping indicators will prevent you from adding too much gain, making it easy to set your levels accurately.

This solid steel mixer is built like a Rock! Every component, including all potentiometers and knobs are extremely high grade.

If you want to podcast/stream on the go you are in luck! This mixer is USB bus-powered. All you need to do is to connect the provided USB cable to your computer and the mixer will get power and operate. We also include an adapter so you can plug it into a wall outlet for applications that don't require a computer. Another option to power the unit is by using a USB power bank, since the mixer only requires 5 volts of power.

Features:

• Rockville RockMix 8 Channel Mixer w/USB Interface and Bluetooth connectivity
• (2) XLR and ¼” Mic/Line inputs with gain and volume control, 3-band EQ, compressor, pan, and 48V phantom power with pad function
• (2) Stereo channels with 1/4” inputs, level control, EQ and FX send
• (1) Stereo channel with RCA input assignable to either headphone or main output
• (1) Stereo AUX IN channel with 1/4” inputs
• RCA main mix output to plug into your speakers with monitor volume knob
• 1/4” stereo headphone outputs
• Dual ¼” outputs for studio monitoring
• Pad buttons on channels 1 and 2 allows you to easily integrate condenser mics to your setup
• Main mix master volume knob
• Built in professional Bluetooth wireless audio streaming
• Built in USB interface to communicate as an external sound card with your favorite DAW
• USB Playback on/off on channels 5/6 with volume control and 3 band EQ
• Peak LED indicator detects clipping on channel 1 and 2
• LED clip indicators for main mix
• Power on LED indicator
• Super linear low-noise mic pre-amp (this uses a top of the line mic pre normally found in very expensive mixers)
• This mixer is built out of solid steel metal and when you pick it up you immediately can feel the weight and how solid it is.
• All knobs and potentiometers are super sturdy and linear
• 48V phantom power for condenser microphones on channel 1 and 2
• BUS powered allows you to power the mixer by plugging it into the USB of your computer or laptop
• Mixer includes a power adapter so you can power the mixer through the USB
• You can power the mixer through any power bank that you normally use to power your phone (this mixer is highly efficient and only requires 5 volts of power)
• British EQ circuitry is designed to emulate the classic EQ from the legendary mixers that came out in the 1950’s, 60’s and 70’s
• Dimensions (inches): 5.31" x 3.94" x 1.57"

Specifications:

• Mic: 1mV/1.7 KO(Gain max)
• Line, channel 1: 3mV/10KO(Gain max)
• Line, channel 2/3: 300mV/22KO
• Line channel 4/5: 300mV/22KO
• Output level: 5.8V max (MAIN; MONITOR; TAPE)
• Frequency range: 20 -25000 Hz
• THD: =0.05%
• S/N ratio: 81dB
• Equalizer
• Bass range: ±15dB/80Hz
• Mid range: ±15dB/2.5kHz
• High range: ±15dB/12kHz
• Headphone impedance: =16O
• USB interface: USB 2.0 full speed and earlier (also 1.1 compatible)
• 16-Bit Delta-Sigma, 44.1kHz Sampling rates; 48khHz max
• Bluetooth: Compliant with Bluetooth Specification V3.0 + EDR
• Phantom power for XLR jack: 18V
• Power supply via USB port: (5V/500mA) of the computer or via power supply unit provided and connected to AC100-240V 50/60Hz
• Dimensions: 101*45*135 mm
• Weight: 0.95 lbs.
• Suitable operating system for data transfer via USB interface:
• Windows 2000, XP or higher; Mac OS 9.0.4 or higher, 10.X or higher

---

All About Your RCM03:

How To Set Up Your RCM03:

How To Set Up Your RCM03 with an Interface:

How To Set Up Your RCM03 with a PSP5:

How To Set Up Your RCM03 with an ISOBOX:

Description:

Whether you’re recording vocals, instruments, or podcasts, this “lollipop” style condenser microphone delivers exceptional sound quality with a touch of elegance.

All Aluminum Chassis Design:

The RCM03 strikes the perfect balance between weight and performance. Its sturdy aluminum construction ensures durability without compromising on sound quality.

Unidirectional Cardioid Polar Pattern:

Say goodbye to unwanted noise. The cardioid pattern focuses on capturing sound directly in front of the microphone, reducing pickup from the sides and rear. Your recordings will be crystal clear, free from distractions.

Medium-Sized 16mm Diaphragm:

The RCM03’s diaphragm strikes a harmonious balance between natural sound and wide pickup area. Whether you’re belting out soulful melodies or recording delicate acoustic instruments, this microphone captures every nuance.

Easy Integration

This microphone can be used in multiple ways. You can connect this to the phantom power of your mixer or you can connect it directly to your computer sound card. We include both cables! We include a cable to connect it to your mixer as well as a cable to connect the mic to your computer!

Connect the RCM03 to your audio interface or mixer using 48V DC phantom power or or you can connect it directly to your computer sound card with the 3.5MM cable. We include both cables!. It's compatible with most setups, making it a versatile choice for home studios, podcasts, live streaming, and more.

Low Noise, High Sensitivity:

With a sensitivity of -29dB±2dB (0dB=1V/Pa at 1kHz), the RCM03 ensures that even the softest whispers are faithfully captured. No detail goes unnoticed.

Elegant “Lollipop” Style:

Stand out from the crowd with the RCM03’s unique design. Its sleek form factor adds a touch of sophistication to your recording setup.

What's Included:

• RCM03 Condenser Microphone (made of aluminum!)
• 100% Copper 10 foot 3.5mm jack to XLR cable to connect mic to your computer or other device
• 100% Copper 10 foot XLR to XLR cable to connect to any mixer with phantom power
• Metal Shock Mount
• Metal Anti-wind Foam Cap
• Owners Manual
• Warranty Card

Features:

• Rockville RCM03 Pro Studio Recording "Lollipop" Style Condenser Microphone
• All aluminum chassis design for optimal balance between weight and performance
• Standard shock mount included
• Polar Pattern: Unidirectional Cardioid
• Cardioid Polar Pattern Reduces Pickup of Sound From Sides and Rear, reducing unwanted noise
• Permanently Polarized Single Sided "Electret" Style Capsule
• Medium sized 16mm diaphragm for natural sound and wide pick up area
• Power Requirements: 48V DC Phantom Power
• Sensitivity: -29dB±2dB (0dB=1V/Pa at1kHZ)
• Output Impedance: 200O±30% (at 1kHz)
• Standard Operating Voltage: 3V
• Operating Voltage Range: 1.5V-10V
• Current Consumption: <= 500uA
• Voltage Deduction Characteristic: Within 3dB at 2V
• S/N Ratio: 74 dB
• Frequency Response: 30Hz - 20 KHz
• Fixed Crossover Filter Cutoff Frequency: 40Hz---16 KHz
• Load Impedance: >= 1000 Ohms
• Equivalent Noise Level: <= 18dBA (IEC 581-5)
• Max. Input SPL: 126dB (THD=1.0% at 1kHZ)
• Electrical Current: >= 4.8mA
• Microphone Body Net Weight: 380 Grams (0.84 Pounds)
• Microphone Max.diameter: 51mm (2" inches)
• Microphone Length: 215mm (8.46" inches)
• Microphone Material: Steel Basket + Aluminum Body
• PCB Layout: Surface Mount

---

About Rockville Quality Control Procedures:

The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty.

---

Includes:

• PRO-M50 headphones
• Detachable cable
• Soft suede and leather ear cushions (interchangeable)
• Leather hard travel protective case
• Gold plated ¼" adapter

All About Your PRO-M50:



Description:

Rockville brings you studio quality headphones and at an incredible price with its new PRO-M50 headphones. These are professional grade headphones that are guaranteed to ourperform headphones that cost triple the price! These feature ergonomically designed swiveling cups with interchangeable soft suede or leather finish cushions (included). The ear cups seal tight for excellent sound isolation and minimal bleed. Inside these cups you'll find 40mm Neodymium drivers delivering accurate audio with an extended frequency range for clear and rich bass, and a full frequency range of mids and highs. These are closed back style headphones specifically designed for studio monitoring. These play back the sound with a flat frequency curve so you can hear your music exactly how it was recorded. With the PRO-M50 you can expect to hear every detail of every song with extreme accuracy. These headphones cover full frequency ranges; even extending a bit past the frequencies that the human ear can hear.

The headband is made of soft leather, offering ultimate comfort even after extended wear. The beautifully designed stainless steel headband frame and arms are strong and durable. A detachable 51" coiled 100% Oxygen Free Copper cable with a gold plated 3.5mm plug is included along with a gold plated ¼" adapter to ensure the best possible signal. A hard leather case is included to store and protect your new investment when you are on the go.

Amazing sound quality will make these your go-to headphones whether in the studio or out and about!

Features:

• Rockville PRO-M50 Studio Headphones w/ Detachable Coil Cable, Case+Extra Ear Pad
• Professional High-Definition Studio Headphones
• 40mm Neodymium drivers
• Ergonomically designed swivel ear cups
• Supreme sound isolation
• Accurate sound reproduction
• Minimal bleed
• Sturdy and durable steel headband and arms
• Soft leather headband cover
• Interchangeable leather and soft suede ear cups covers included
• Detachable 51" coil cable made of 100% Oxygen Free Copper (158" fully extended)
• Gold plated 3.5mm connector
• Gold plated ¼" adapter
• Hard leather carrying case
• Stainless steel headband frame and moving arms are durable and long-lasting

Specifications:

• Style: Closed-Back
• Design: Circumaural
• Transducer Type: Dynamic
• Driver: 40MM
• Sensitivity: 97±3dB
• Impedance: 32ohm
• Frequency Response:10Hz - 25KHz
• Max. Power: 600MW
• Rating Power: 260MW
• Net Weight: 290g (with cable)

---

How to Set Up your RHPA4:

Video of RHPA4:

Includes:

• Headphone amplifier
• USB charging cable with charging brick
• Owners-manual
• Warranty card

Applications:

• Studio recording
• Podcasting
• Bands
• And more!

Features:

• Rockville RHPA4 4-Channel Professional Headphone Amplifier
• Inputs: ¼” and 3.5 mm input
• Stereo or Mono switch
• We include (4) ¼” TRS and (4) 3.5 mm headphone outputs run in parallel which means you can actually run 8 headphones (2 per channel)
• 4 Outputs each output has individual volume controls
• Thick metal shell casing
• High quality potentiometer knobs for each channel
• Power "On” LED.
• DC 5V USB power supply has low power consumption
• BUS powered means you can get power to the unit from a power bank or through the USB on a computer or laptop
• Rubber feet

Specifications:

• Input Impedance: 22K ohm
• Max. Input Level: +22dB
• Output Impedance: Min. 16Ohm
• Max. Gain: 20dB/Channel
• S/N Ratio: >98dB
• Frequency Response: 20 - 20 kHz
• S/N Ratio: > 90dB (ref 0dBu)
• THD: < 0.01%
• Power supply: 5VDC, >=1000mA via USB Power Adaptor
• Dimensions: 4.6” x 3” x 2.36”
• Weight: 0.85 Lbs
• 0dBu = 0.775Vrms

---

Video of RDTS:

Features:

• Rockville RDTS Adjustable Height Studio Desktop Tripod Microphone Stand and Mic Clip
• Includes standard mic clip for regular mics
• For condenser mics – this is compatible with any shock mount (Rockville Rockshock is recommended)
• Compatible with Rockville IPS22 phone
