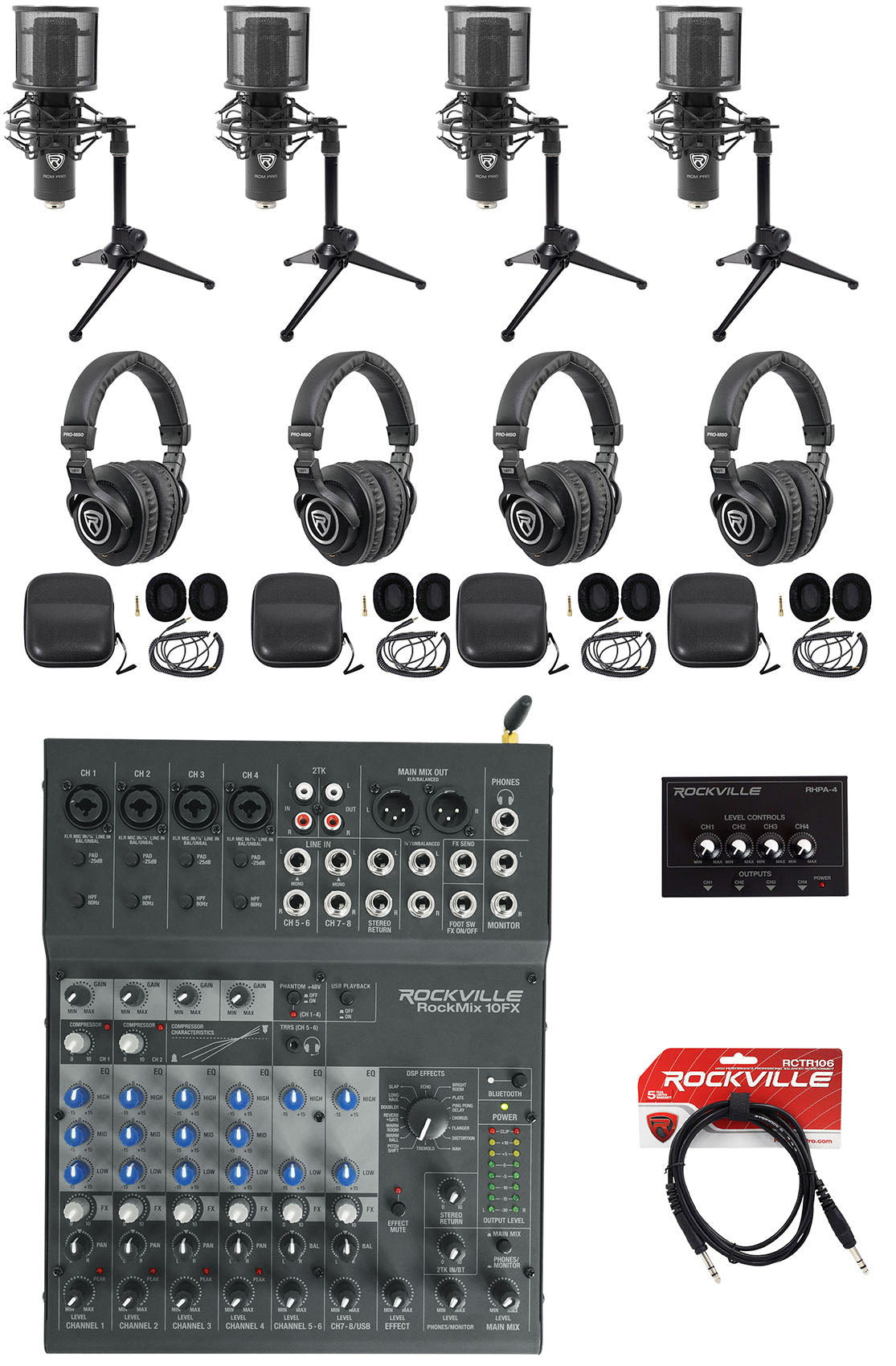

Package Includes:

• (1) Rockville ROCKMIX 10FX 10 Chan Mixer USB Computer Recording Interface+Effects
• (4) Rockville RCM PRO Studio/Recording Condenser Microphone w Samsung Capacitors
• (4) Rockville PRO-M50 Studio Headphones w/ Detachable Coil Cable, Case+Extra Ear Pad
• (1) Rockville RHPA4 4 Channel Professional Headphone Amplifier Stereo or Mono Amp
• (4) Rockville RDTS Adjustable Height Studio Desktop Tripod Microphone Stand+Mic Clip

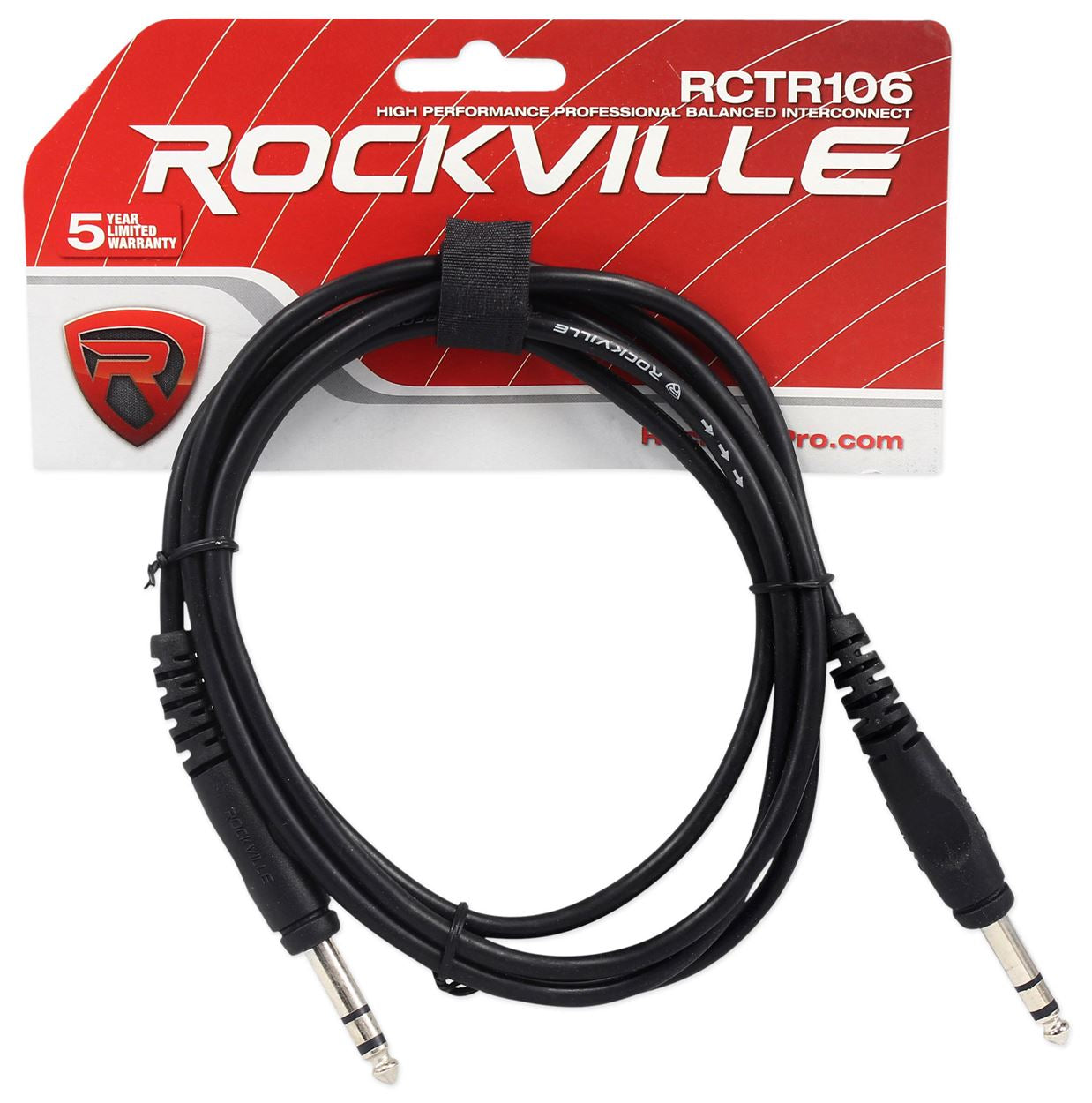

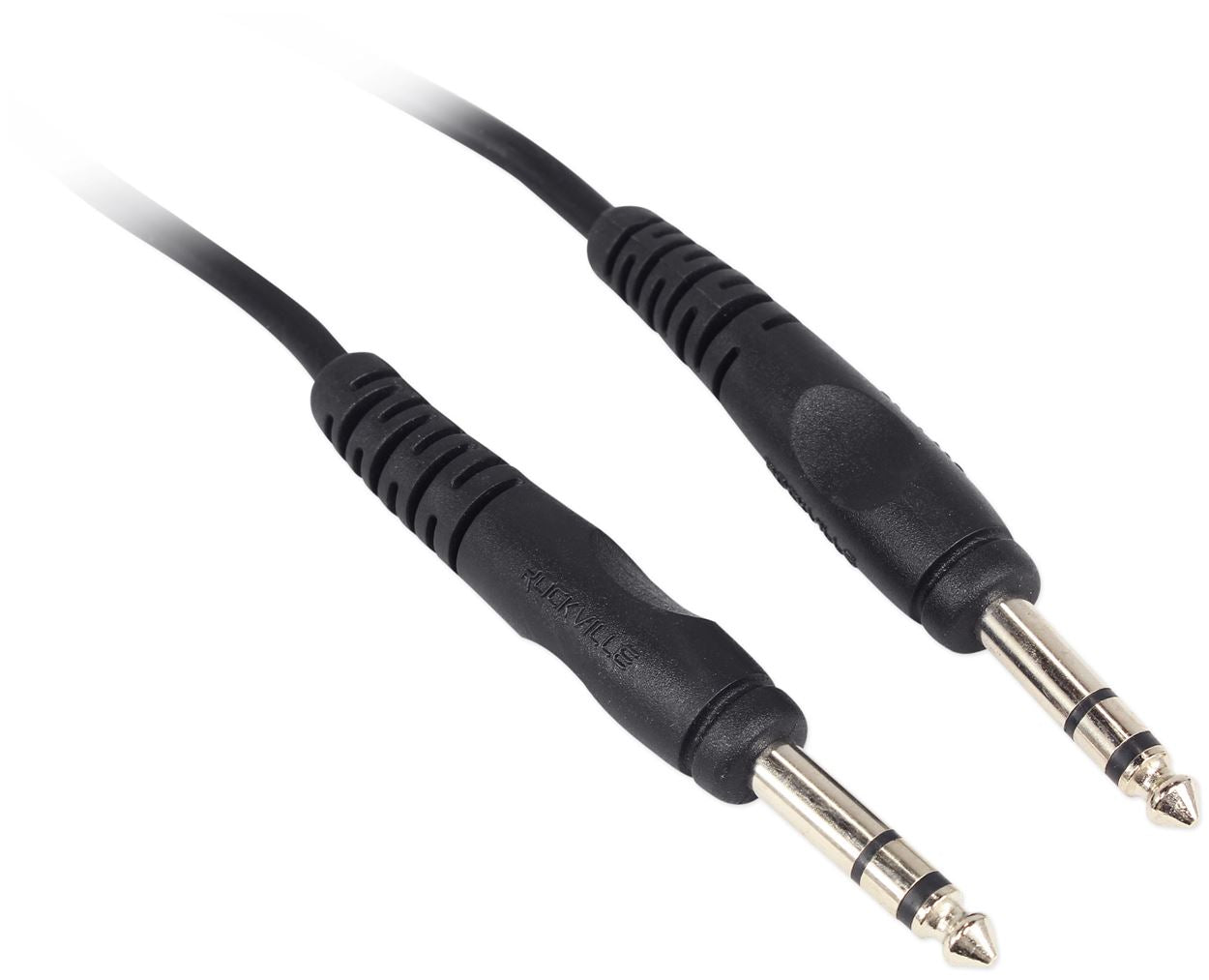

• (1) Rockville RCTR106B 6' 1/4'' TRS to 1/4'' TRS Balanced Cable, Black, 100% Copper

---

All About Your ROCKMIX 10FX:

ROCKMIX 10FX - New Effects Explained:

How To Set Up Your ROCKMIX 10FX:

HOW TO MANUAL ROCKMIX 10FX:

Video of ROCKMIX 10FX Product:

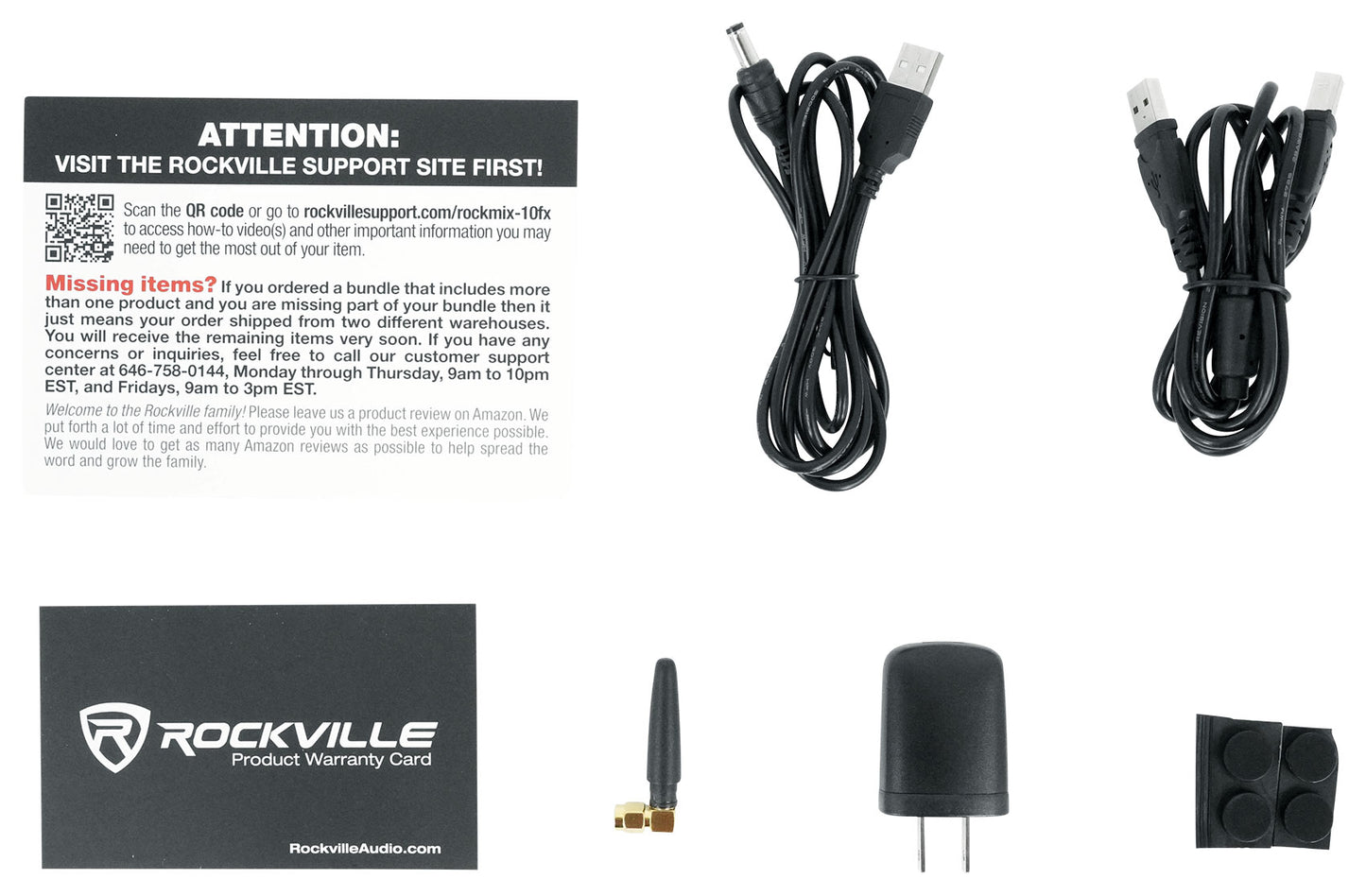

What's in the Box:

• Mixer
• Power Adapter
• User Manual
• USB interface cable
• Bluetooth Antenna

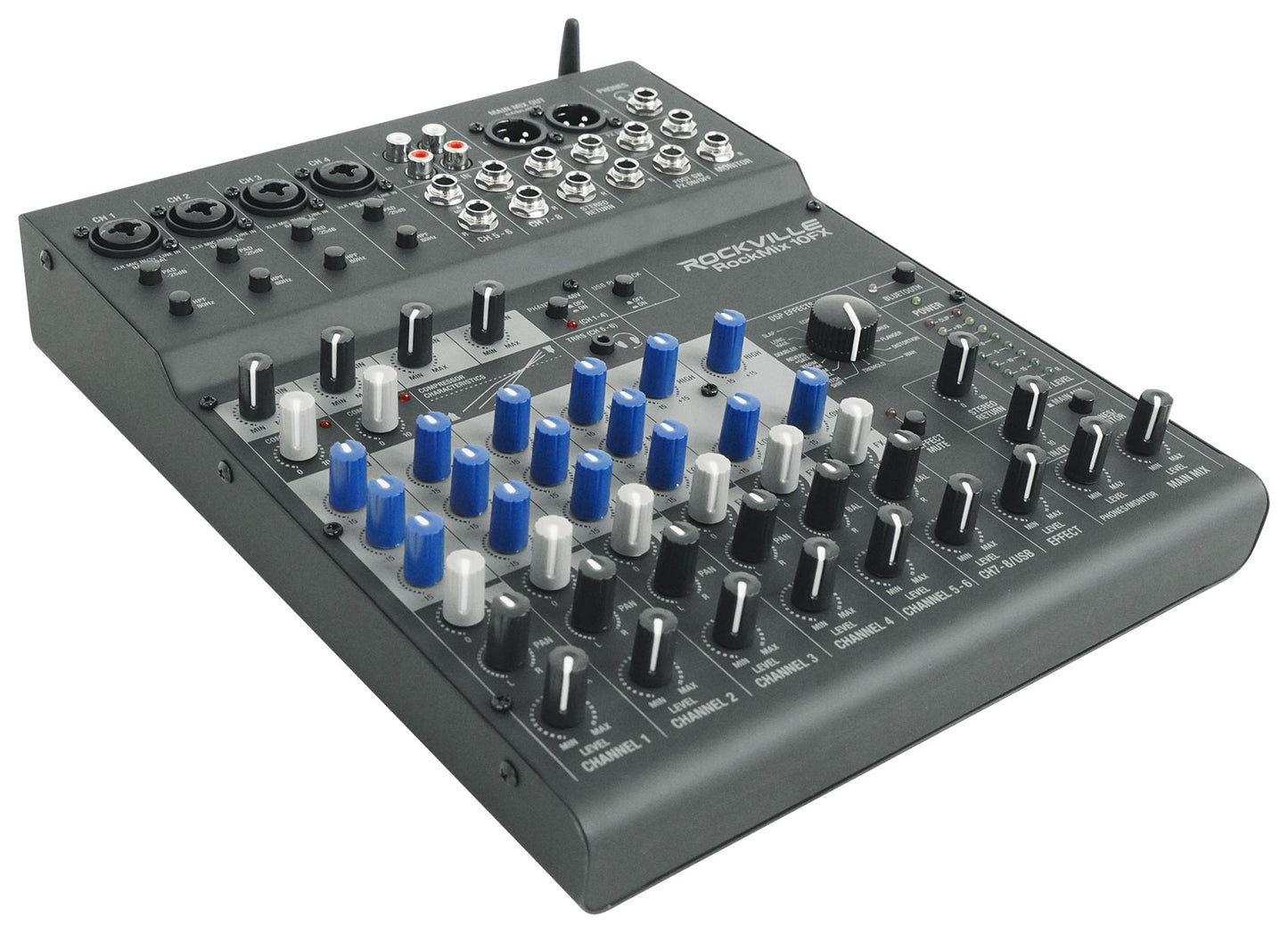

Description:

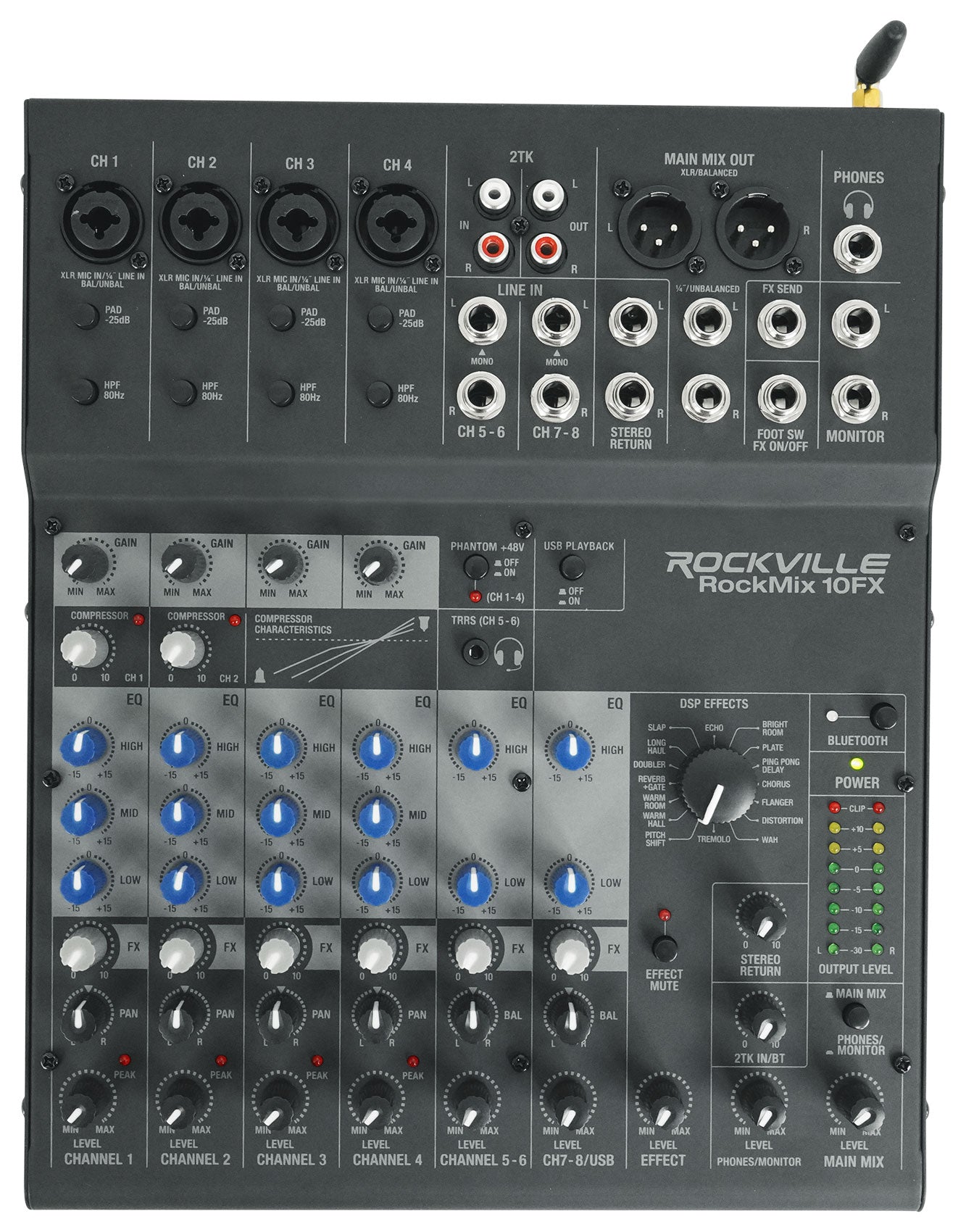

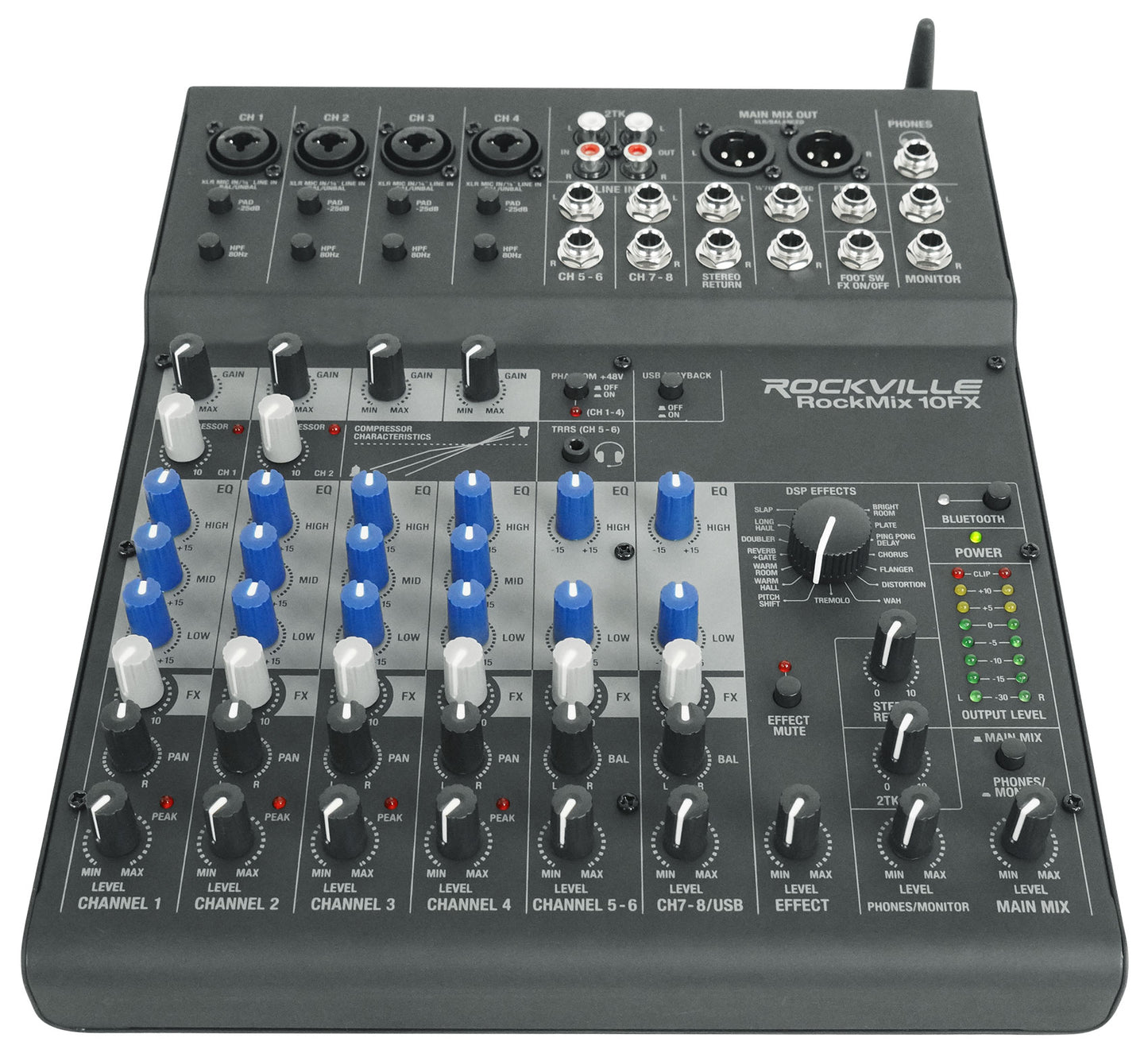

The Rockville RockMix 10FX is the perfect solution for live bands, houses of worship, recording music, gyms, restaurants, podcasting, karaoke, and more. This mixer is packed with all of the important features that you need.

The built in effects engine on this mixer has 16 amazing sounding effects, ranging from reverbs / delays, lush choruses to voice canceller. We use a high-resolution 24 bit DSP effects processor, which makes them sound so crisp. These sound better than most external FX processors.

The built-in USB interface allows you to record the master output of all the channels to the recording software on your computer. The USB interface will also allow you to easily play back songs or other audio from your computer or laptop to channels 7 and 8 of the mixer. What is really cool is that you can EQ the sound from the mixer to get it to be exactly how you like including adding effects.

The USB interface is also perfect for podcasting. It is the bridge to get your computer audio to your speakers or to get your audio output to your computer for recording or live streaming.

Our low-noise mic pre-amp is clean, with a lot of headroom, ensuring a clear sound. Mic pre-amps are one of the most important parts of a mixer. A good quality pre-amp such as this one makes a world of a difference in the sound.

The 3-band EQ and panning allows you to customize the sound the way you want it. The FX send feature lets you connect external effects to the console in order to further shape and enhance your sound. We added pro Bluetooth connectivity, so you can have wireless playback whether you're in a gym, restaurant, home, or any other place where you do not want to hardwire your playback device. The Bluetooth is also a great way to have guests call to your podcast show. We added an external bluetooth antenna for a reliable connection.

We added a high quality compressor to channels 1 and 2 which is great for podcasts, singers, and drummers. A compressor is used to balance the dynamic range of your signal, so this way, the louder and quieter parts of the signal are all sounding perfect. What a compressor does is it allows you to set a minimum and maximum threshold for your audio signal. We accomplish this with just one knob making it really easy to use. If you are doing a podcast and you might have parts with whispering and other parts where people are yelling. A compressor will make the podcast sound really professional. It will make the whispering easy to hear and it will lower the yelling to a normal usable range that sounds good on all speakers. It helps to avoid clipping as well. Another great use is for singers or drummers during live shows or recordings. The compressor will really fine tune the sound and make it sound even and balanced by avoiding potential clipping/distortion of your loud signals (kicks, snare hits, loud vocal passages etc.) Compression is also great for singers because if you sing softly into the mic, it will make those soft passages sound clear and level with the rest of your mix. Please keep in mind you can set the level of compression or turn it off. Our one knob compression is also really easy to use and set.

Channels 1 through 4 are loaded with XLR and ¼" combo jack inputs. Then you get 2 stereo channels that can accept a variety of sources ranging from microphones to any mono/stereo instruments. Channels 1 through 4 all have 48V phantom power for use with condenser mics.

Channels 5 through 8 are your stereo channels and they have 2 band EQ, effects and balance. These channels can accept a variety of sources ranging from microphones to any mono/stereo instruments.

Channels 9-10 is your RCA tape input which is perfect for any device. It is a basic stereo channel with level controls that can be routed either to your monitor or your master mix output which is really cool.

The clipping indicators will prevent you from adding too much gain, making it easy to set your levels accurately.

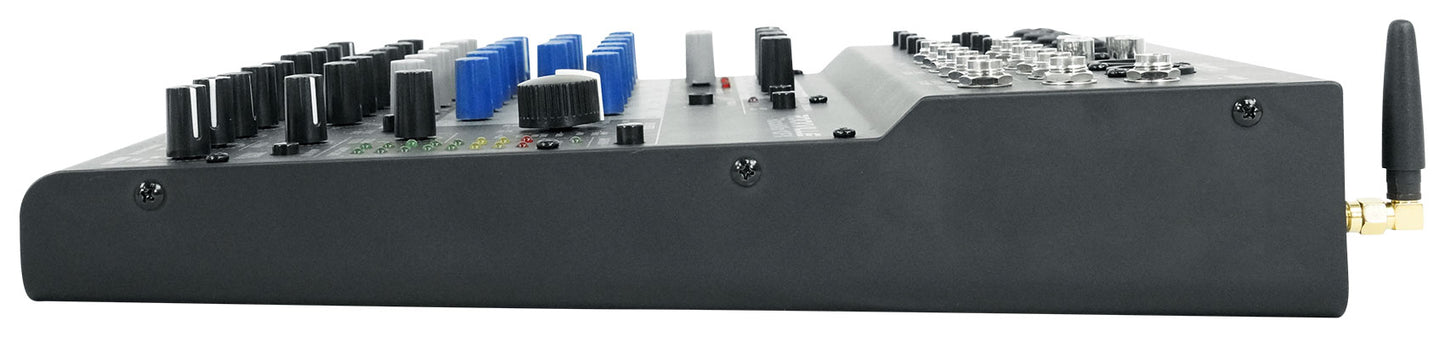

This solid steel mixer is built like a Rock! Every component, including all potentiometers and knobs are extremely high grade.

If you are using this for Karaoke you will love our vocal canceller function that will remove the vocals so you can sing along to the music!

Features:

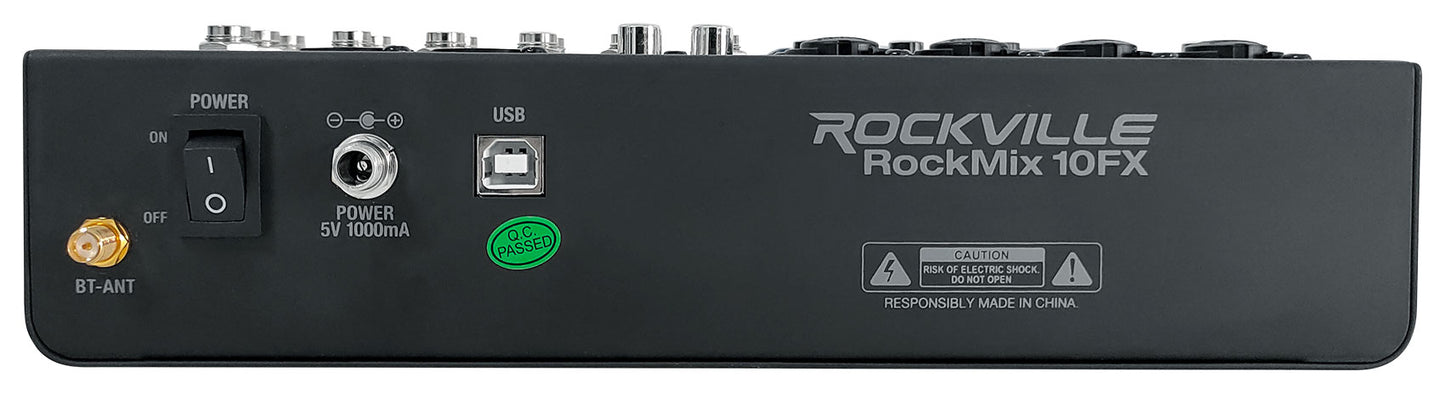

• Rockville RockMix 10FX 10 Channel Mixer with USB Recording Interface, Effects and Bluetooth
• Channels 1 and 2 have XLR / ¼" Mic/Line input combo jacks with gain and volume control, 3-band EQ, pan, 48V phantom power, pad, high pass filter, FX and compressor
• Channels 3 and 4 have XLR / ¼" Mic/Line input combo jacks with gain and volume control, 3-band EQ, pan, 48V phantom power, pad, high pass filter, FX
• Channels 5 - 8 have ¼" line input jacks with volume control and 2 band EQ, FX and can accept balanced and unbalanced signals and 6 have ¼" inputs
• Channels 9-10: TAPE Input with RCA inputs and level control assignable to either headphone or main output
• USB audio interface assignable to channels 7-8 with 2 band EQ, FX, balance controls
• RCA main mix output with volume control (to plug into your monitors)
• XLR Main mix balanced output
• ¼" Main mixed unbalanced output
• ¼" Headset and Monitor output
• 24 Bit FX engine with 16 DSP Effects (Each effect sounds great)
• Vocal Canceler feature for Karaoke applications
• Effect mute button (controllable with an optional footswitch)
• Built in professional Bluetooth wireless audio streaming
• Main mix master volume knob
• Built in USB interface will send the Summed Stereo Mix to your favorite DAW
• Interface will be identified and addressed as an external sound card in your DAW
• Peak LED indicator detects clipping on channels 1-4
• Main mix has left and right clip indicators
• Power on LED indicator
• Super linear mic preamp with low noise (this uses a top of the line mic pre normally found in very expensive mixers)
• This mixer is built out of solid steel metal and when you pick it up you immediately can feel the weight and how solid it is
• All knobs and potentiometers are super sturdy and linear
• 48V phantom power for condenser microphones
• Stereo return knob
• Rubber feet
• Mixer includes a power adapter DC5V/1A
• British EQ circuitry is designed to emulate the classic EQ from the legendary mixers that came out in the 1950's, 60's and 70's
• Dimensions: (L x W x H) 12.13" x 9.84" x 2.44"

Sensitivity/ Impedance:

• Mic(1-4): 3mV/5.3KO (Gain max)
• Line, channel 1-4 (Balanced): 15mV/24KO (Gain max)
• Line, channel 1-4 (Unbalanced): 15mV/12KO (Gain max)
• Line, channel 5-8/ STEREO/RETURN (Balanced): 300mV/44KO
• Line, channel 5-8/ STEREO/RETURN (Unbalanced): 300mV/22KO
• TAPE channel: 300mV/20KO
• Output level: 5.8V max (MAIN; MONITOR; TAPE)
• Frequency range: 20 -25000 Hz
• THD: =0.05%
• S/N ratio: 88dB
• Equalizer
• Bass range: ±15dB/80Hz
• Mid range: ±15dB/2.5KHz
• High range: ±15dB/12kHz
• Headphone impedance: =16O
• USB interface: USB 2.0 full speed and earlier (also 1.1 compatible)
• 16-Bit Delta-Sigma, 44.1kHz Sampling rates; 48khHz max,
• Bluetooth: Compliant with Bluetooth Specification V5.0 + EDR
• Phantom power for Combo jack: 48V
• Power supply via power supply unit provided and connected to AC100-240V 50/60Hz
• Dimensions: 385 (L) *295 W) *115 (H) mm
• Weight: 4.85LBS(2.2KG)
• Suitable operating system for data transfer via USB interface:
• Windows 2000, XP or higher; Mac OS 9.0.4 or higher, 10.X or higher.

---

How to Setup a Rockville Condenser Microphone with Your Computer:

Video of RCM PRO:

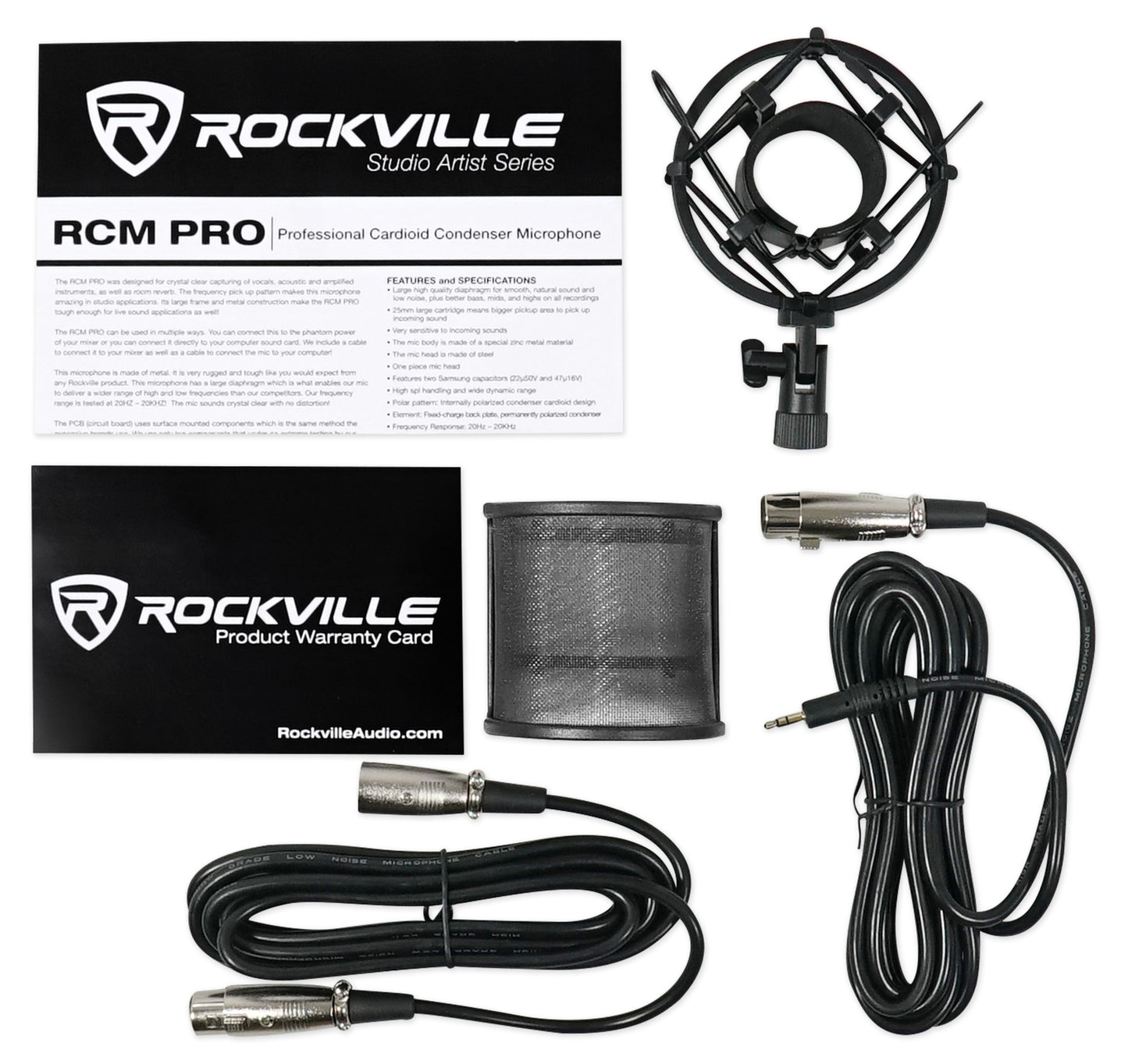

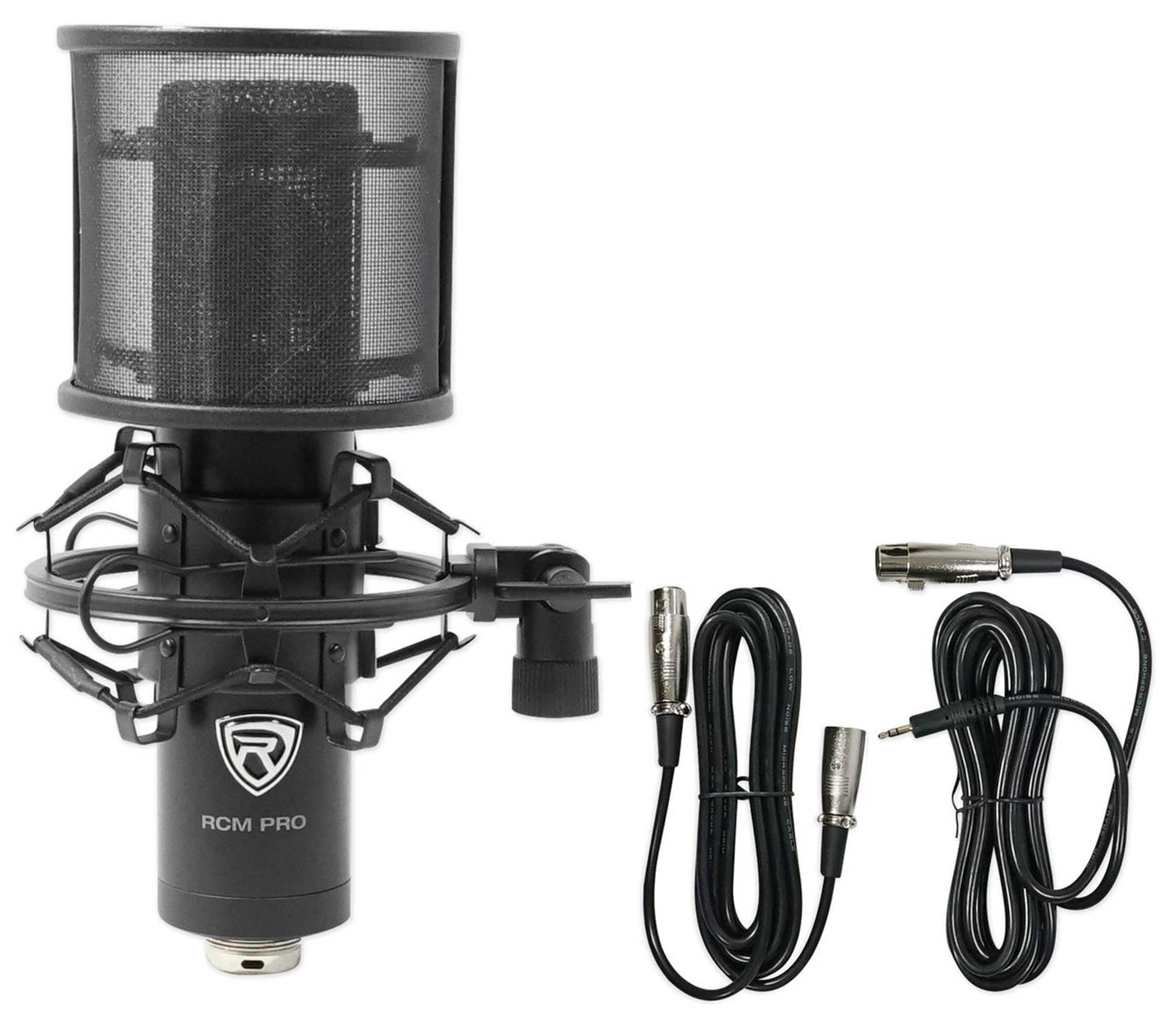

What's in the Box:

• (22 gauge, 10 feet) XLR to XLR Cable - To connect to the phantom power input on your mixer or interface
• (22 gauge, 10 feet) 3.5mm to XLR Cable - To connect the microphone to your computer

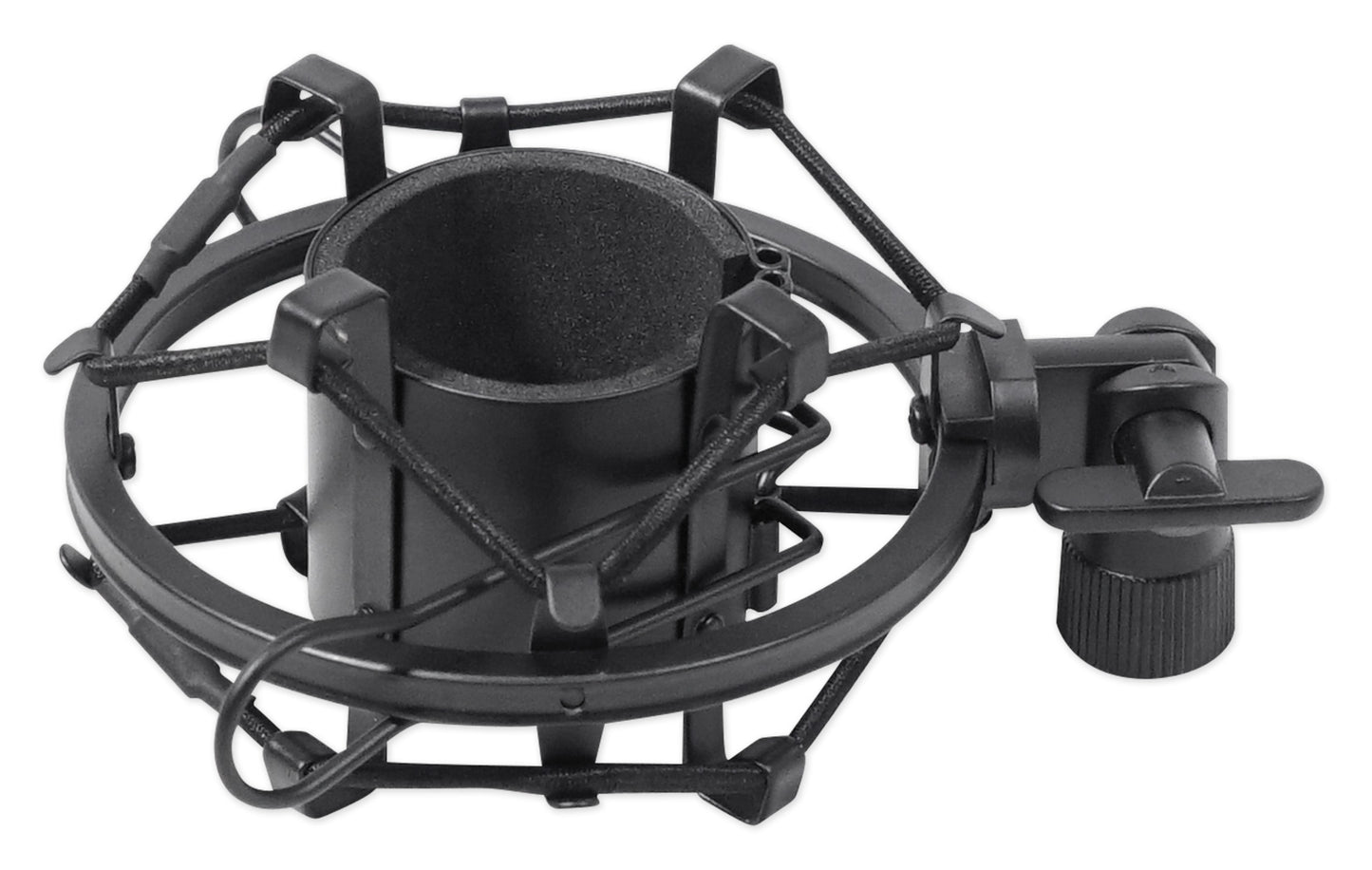

• Metal Shock Mount

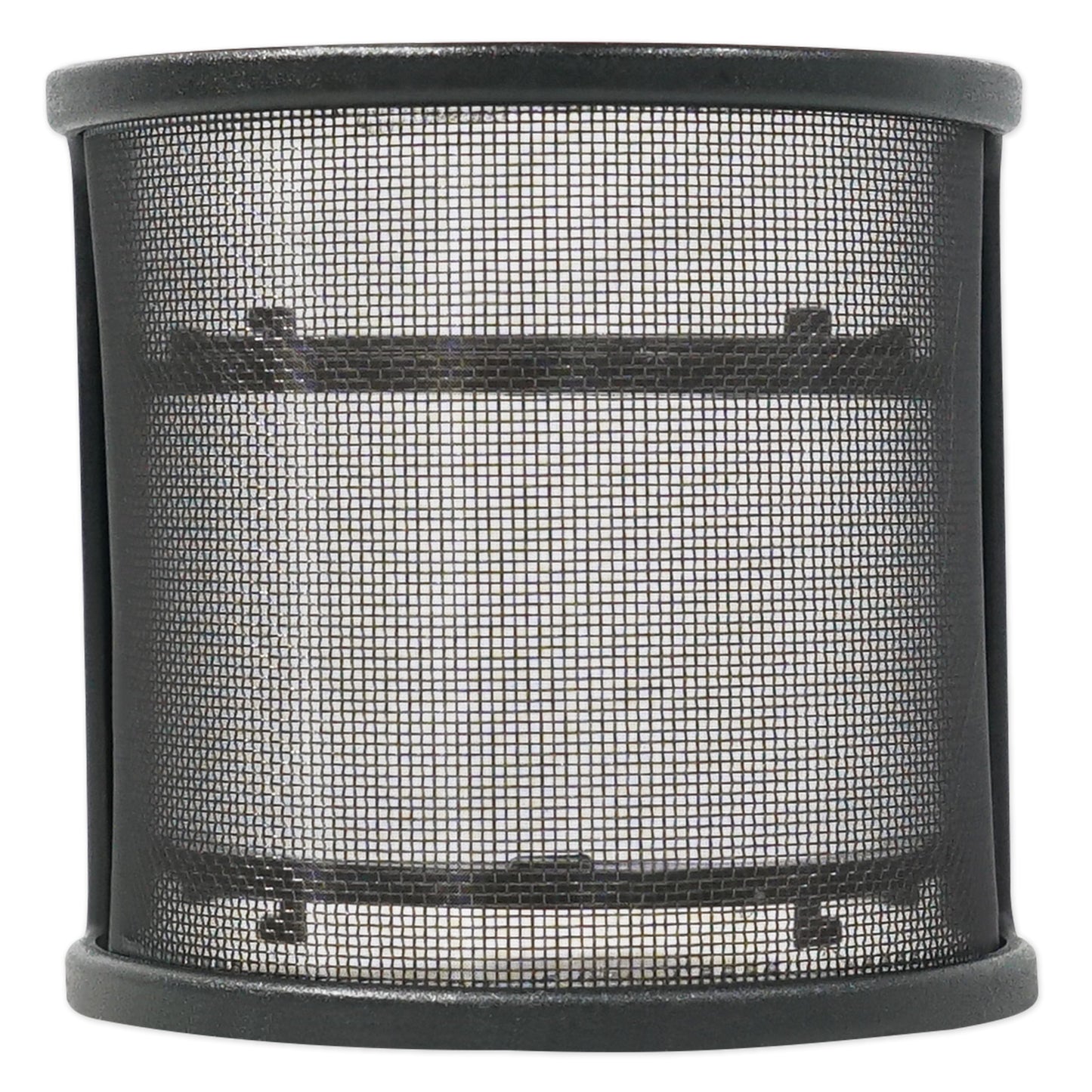

• Large Wind-Screen/Pop-Filter
• Owners Manual
• Warranty Card<

Description:

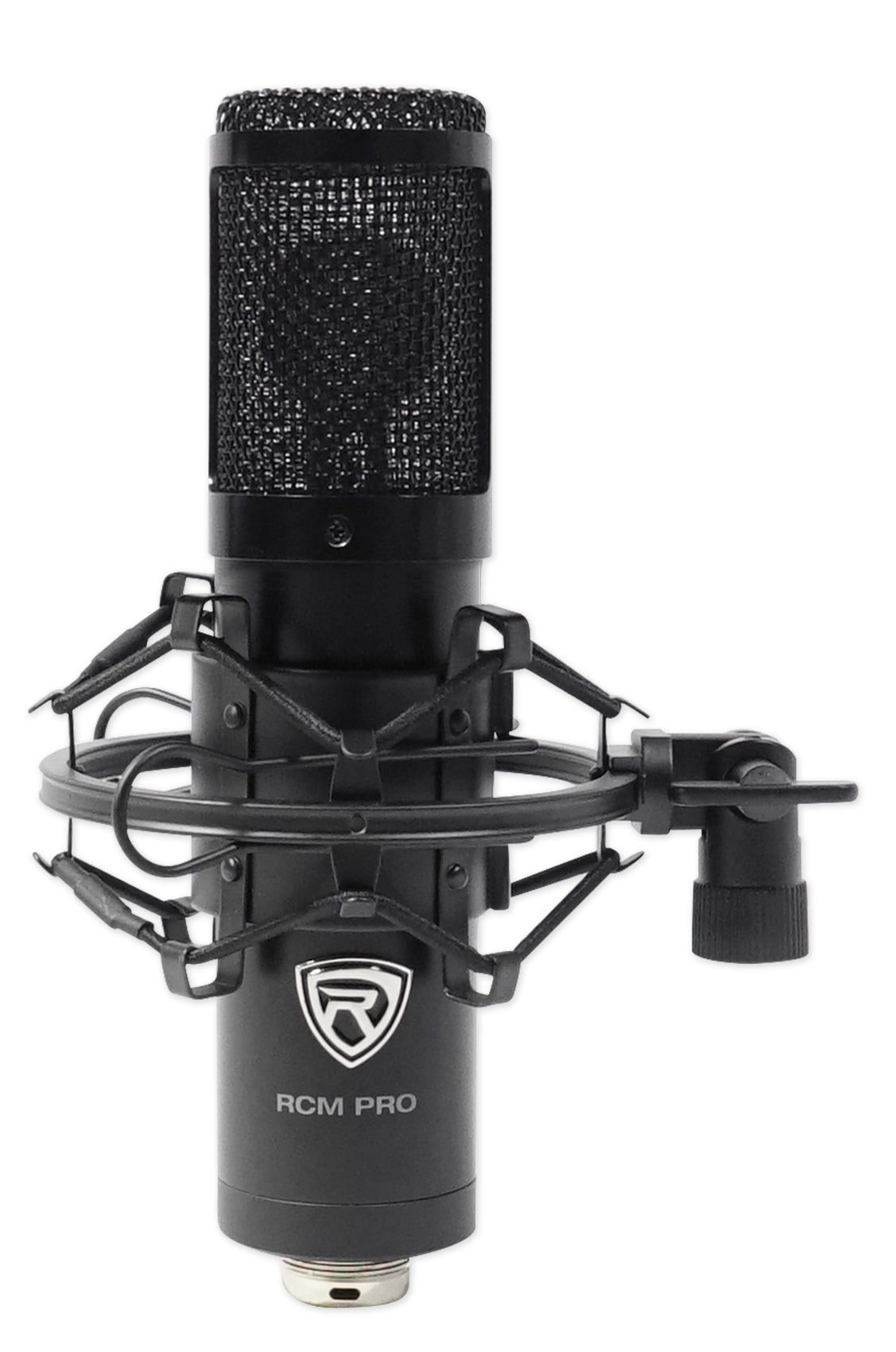

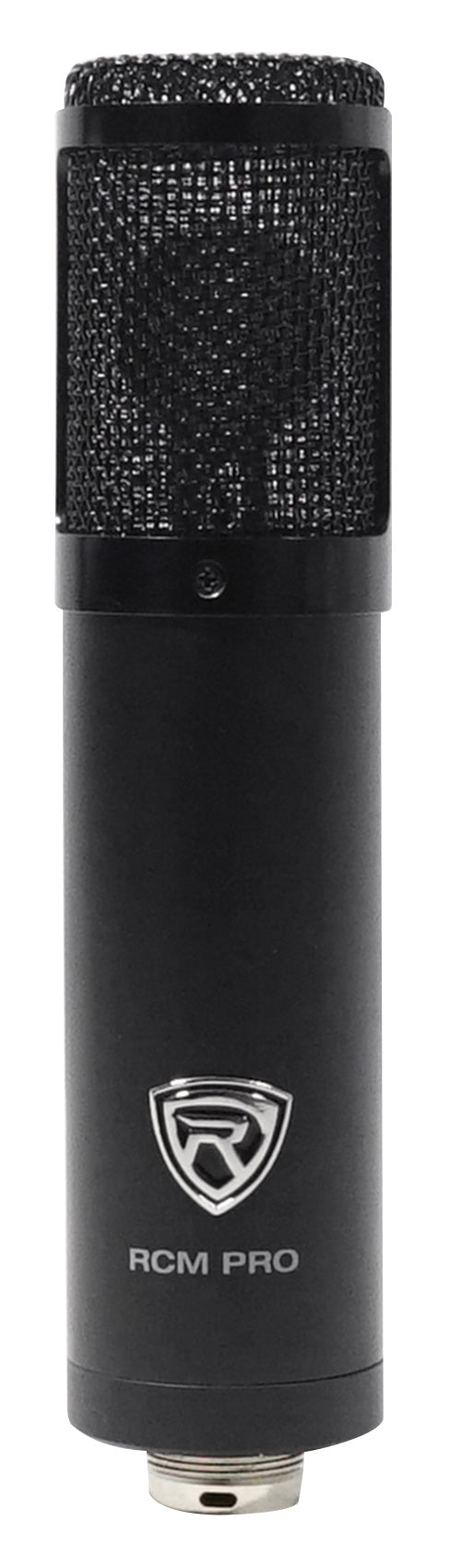

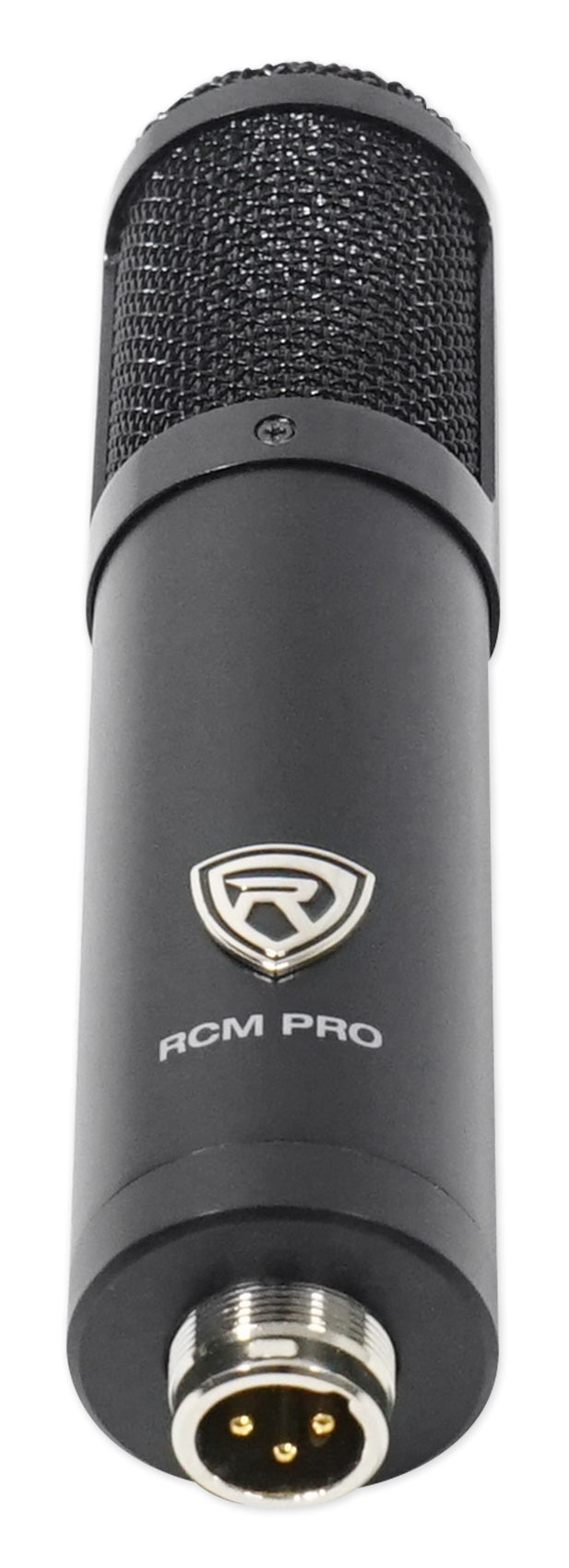

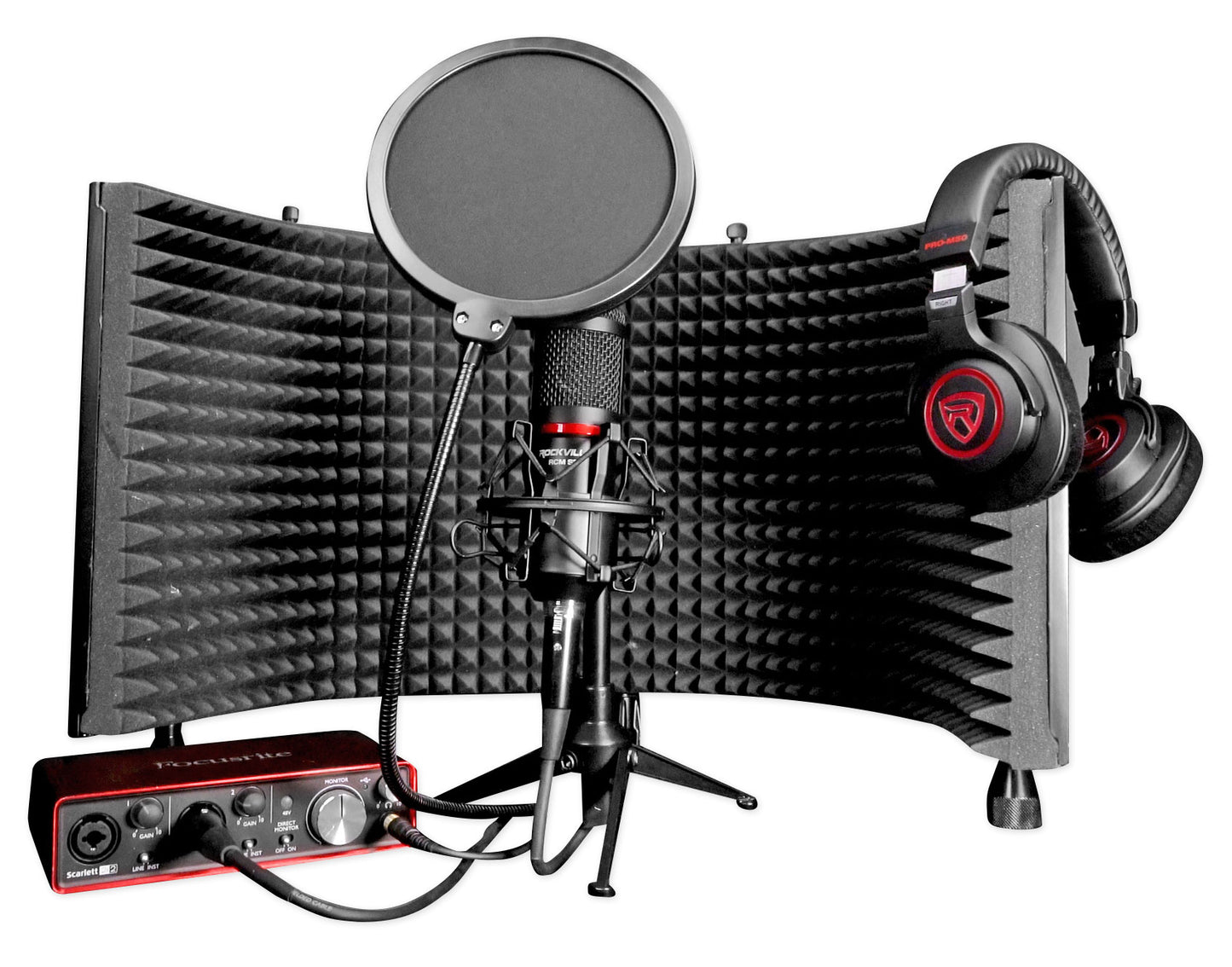

Introducing, the Rockville RCM PRO, our newest high-quality, professional studio/recording condenser microphone! With it's large diaphragm it provides smooth, natural sound and low noise, it also delivers great bass, mids, and highs on all of your recordings. This microphone is very sensitive to incoming sounds to give you the best possible sound! In addition, it includes a 25mm cartridge that allows for a bigger pickup area to pick up incoming sound. The cartridge is the most important aspect that determines the sound quality, and the RCM Pro has one of the best quality cartridges available for any microphone under $150. This microphone sounds better than other name brand microphones that cost twice the price!

The body of the microphone is made of a special zinc metal material. The super strong construction prevents noises from shocks and vibrations. This is especially important when recording loud music including drums and bass. The microphone head is made of strong, high quality steel and features a one-piece microphone head design. Most microphones will have a microphone head that is 2 pieces glued together. Our one-piece microphone head ensures longer life, and better durability. In addition, it helps to eliminate unwanted vibrations that may occur. This microphone has two capacitors (22µ50V and 47µ16V). We used Samsung capacitors from Korea, which are the highest quality capacitors on the market. These are important to help stabilize the voltage so that your recordings are consistent throughout, even if there are sudden changes in the volume or frequency ranges. We compared this microphone to the 3 most famous brands of microphones and the RCM PRO outperformed similar microphones that sell for over double the price!

Features:

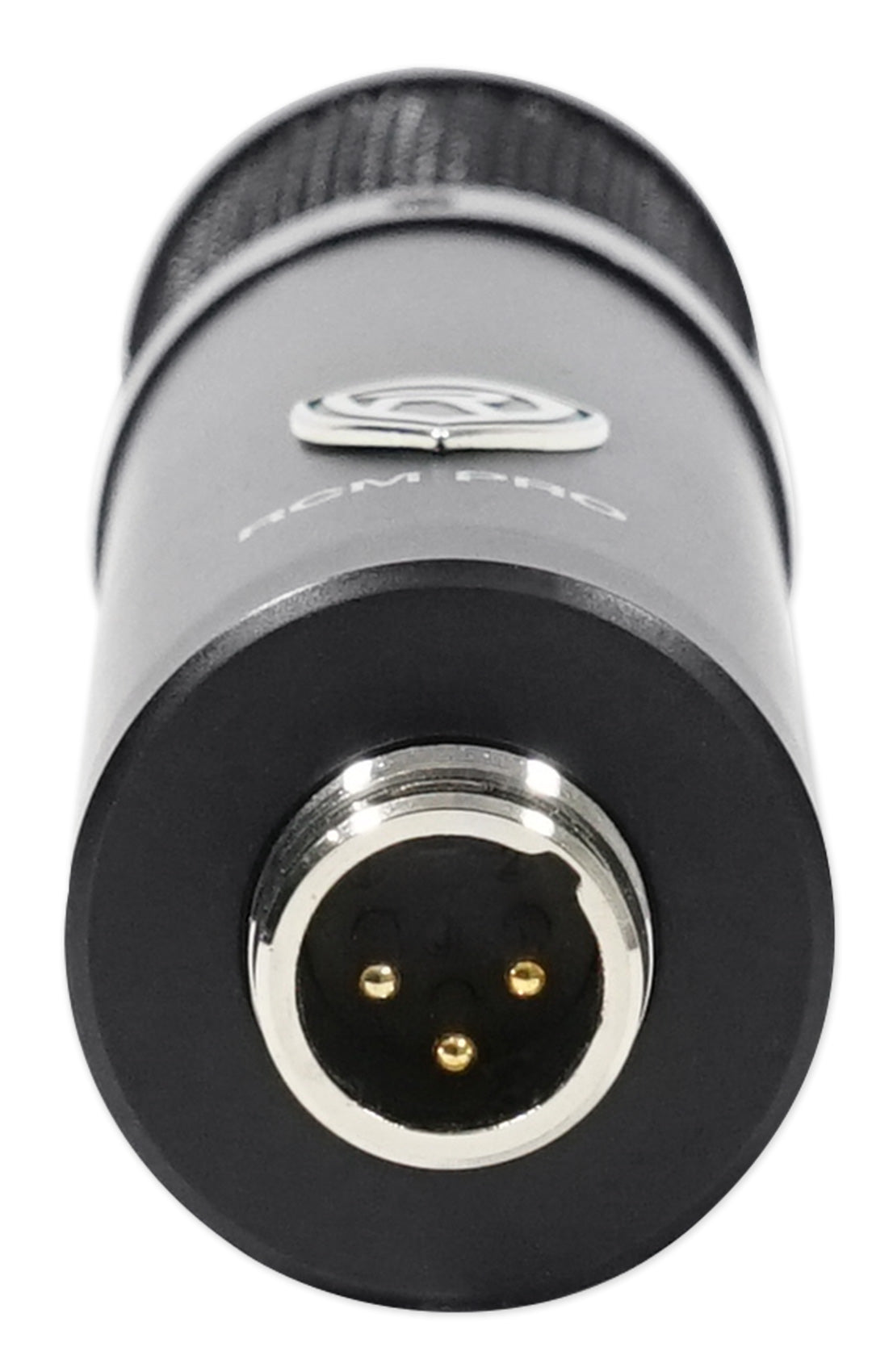

• Rockville RCM PRO Professional Studio/Recording Condenser Microphone
• Best Applications: Home-Studio, Recording Studio, Broadcasting, Podcasts, Live Performances, and much more!
• Large diaphragm for smooth, natural sound and low noise
• 25mm Large Cartridge - Allows For Bigger Pickup Area
• Two Large Capacitors: 22µ50V and 47µ16V
• Large Diaphragm - Provides Smooth Natural Sound, and Great Bass, Mids, & Highs
• High SPL Handling and Wide Dynamic Range
• Cardioid Polar Pattern Reduces Pickup of Sounds From Sides and Rear, Reducing Unwanted Noise
• Element: Fixed-charge back plate, permanently polarized condenser
• Microphone Head is Made of High Quality Steel featuring One-Piece Head Design
• Microphone Body Is Made of Special Zinc Metal Material - Prevents Noise From Shock and Vibrations
• Frequency Response: 20Hz - 20 kHz
• Open Circuit Sensitivity: -30dB ±2dB (0dB = 1V/Pa @ 1 kHz)
• Impedance: 100 Ohms
• Equivalent Noise Level: = 23 dB A (IEC581-5)
• Maximum Input Sound Level: 142dB SPL (THD = 1.0% @ 1 kHz)
• Electrical Current: ?500Ua
• Noise: 20dB SPL
• Dynamic Range (Typical): 124 dB, 1 kHz @ Max SPL
• Signal-to-Noise Ratio: 74 dB, 1 kHz @ 1 Pa
• PCB Layout: Surface Mount
• Fixed Crossover Filter Cutoff Frequency: 50Hz - 16 kHz
• Power Requirements: 48V DC Phantom Power
• Output Connector: 3-Pin XLR
• Product Weight: 0.74 Lbs
• Product Height: 7.44" inches
• Shipping Weight: 3.32 Lbs
• Shipping Dimensions: 13.98" x 7.87" x 3.15"

---

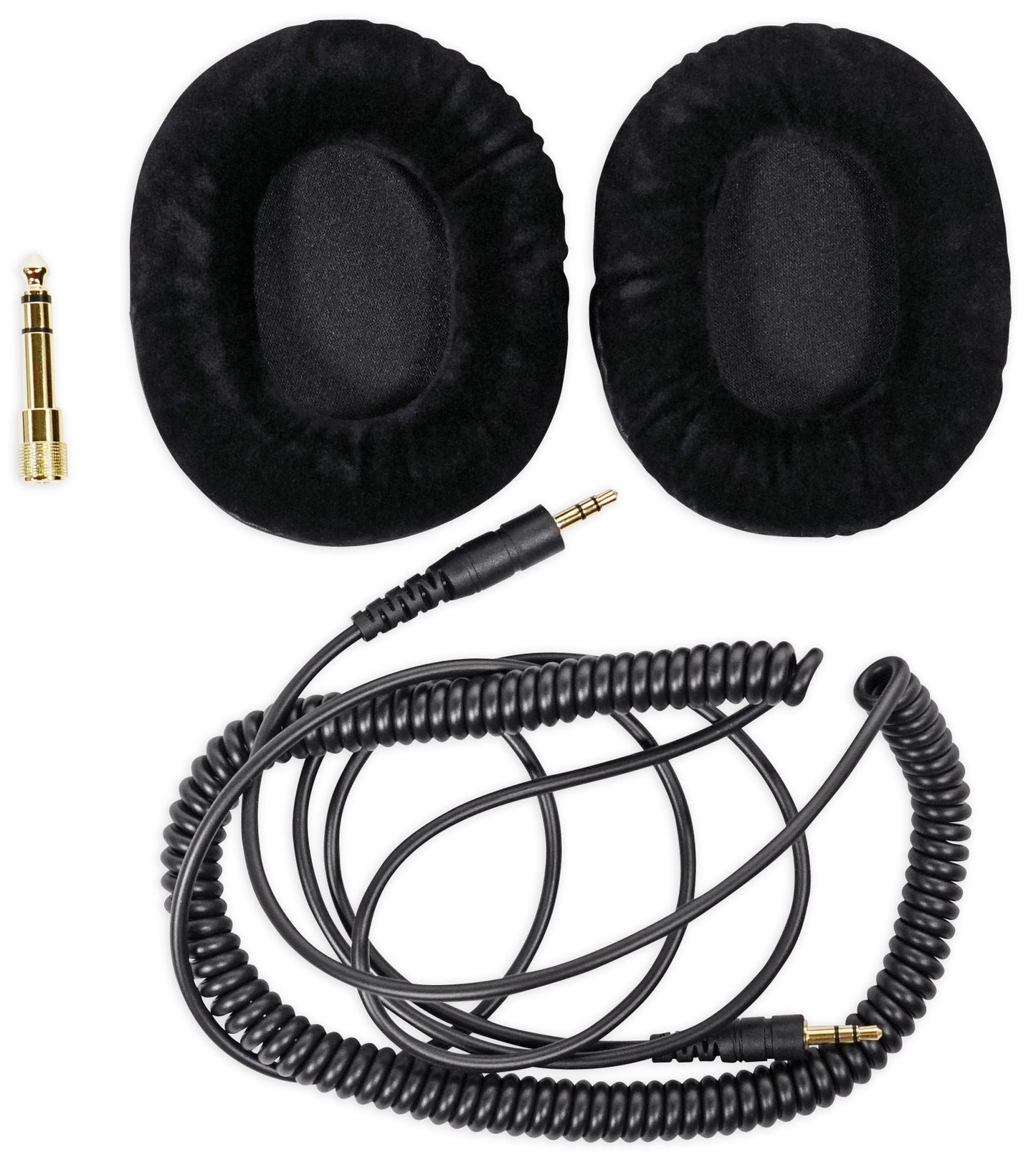

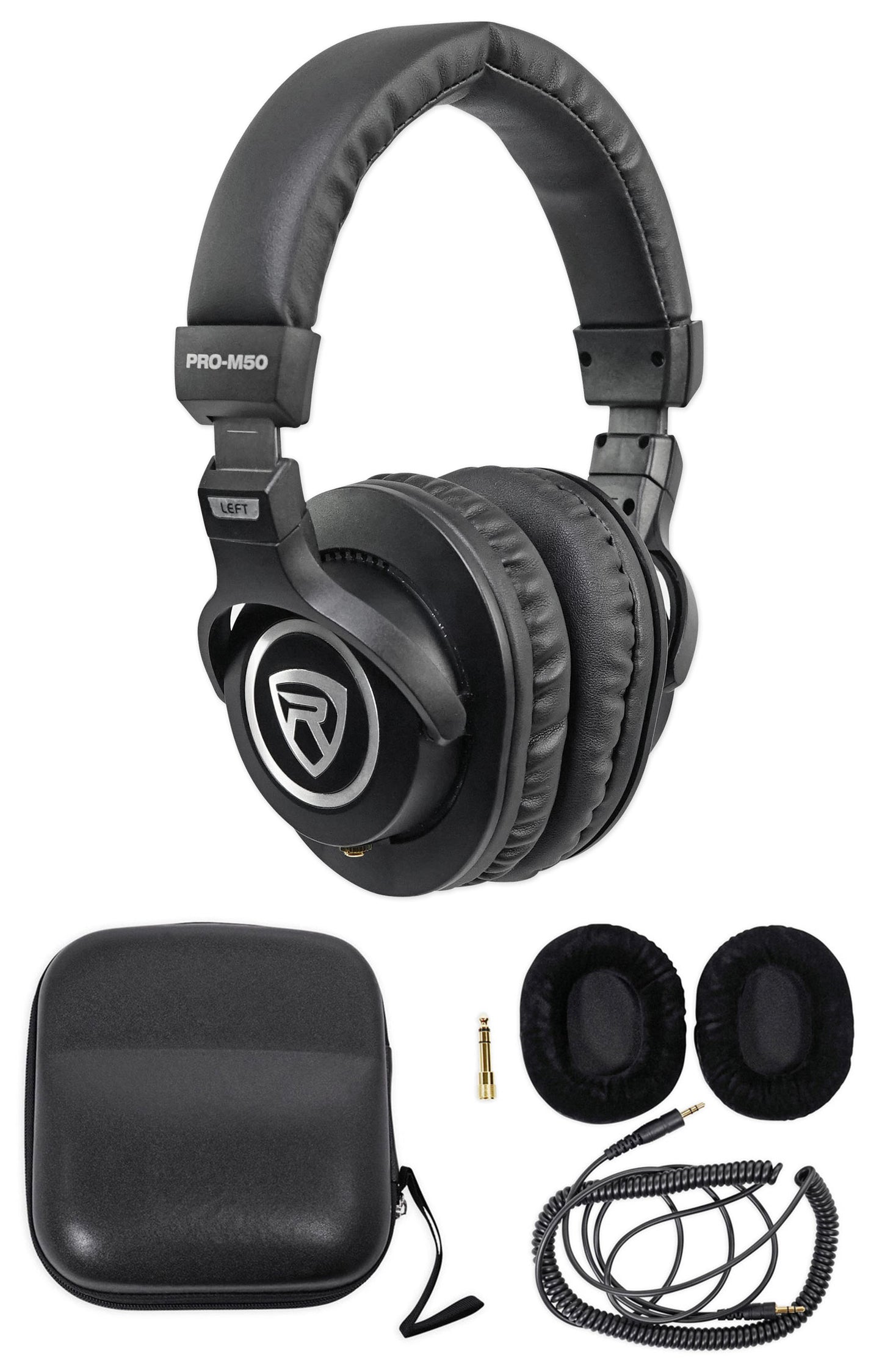

Includes:

• PRO-M50 headphones
• Detachable cable
• Soft suede and leather ear cushions (interchangeable)

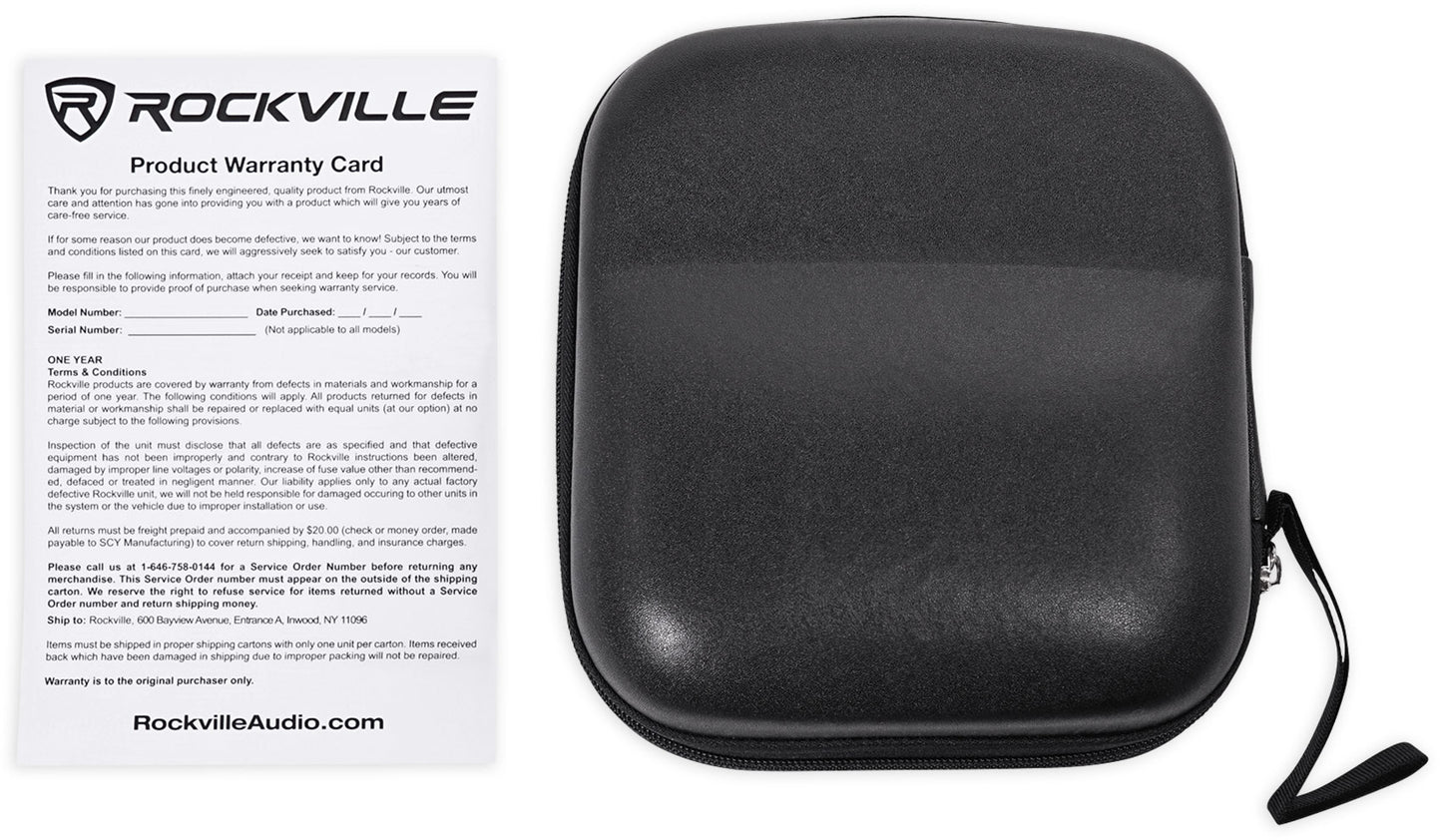

• Leather hard travel protective case
• Gold plated ¼" adapter

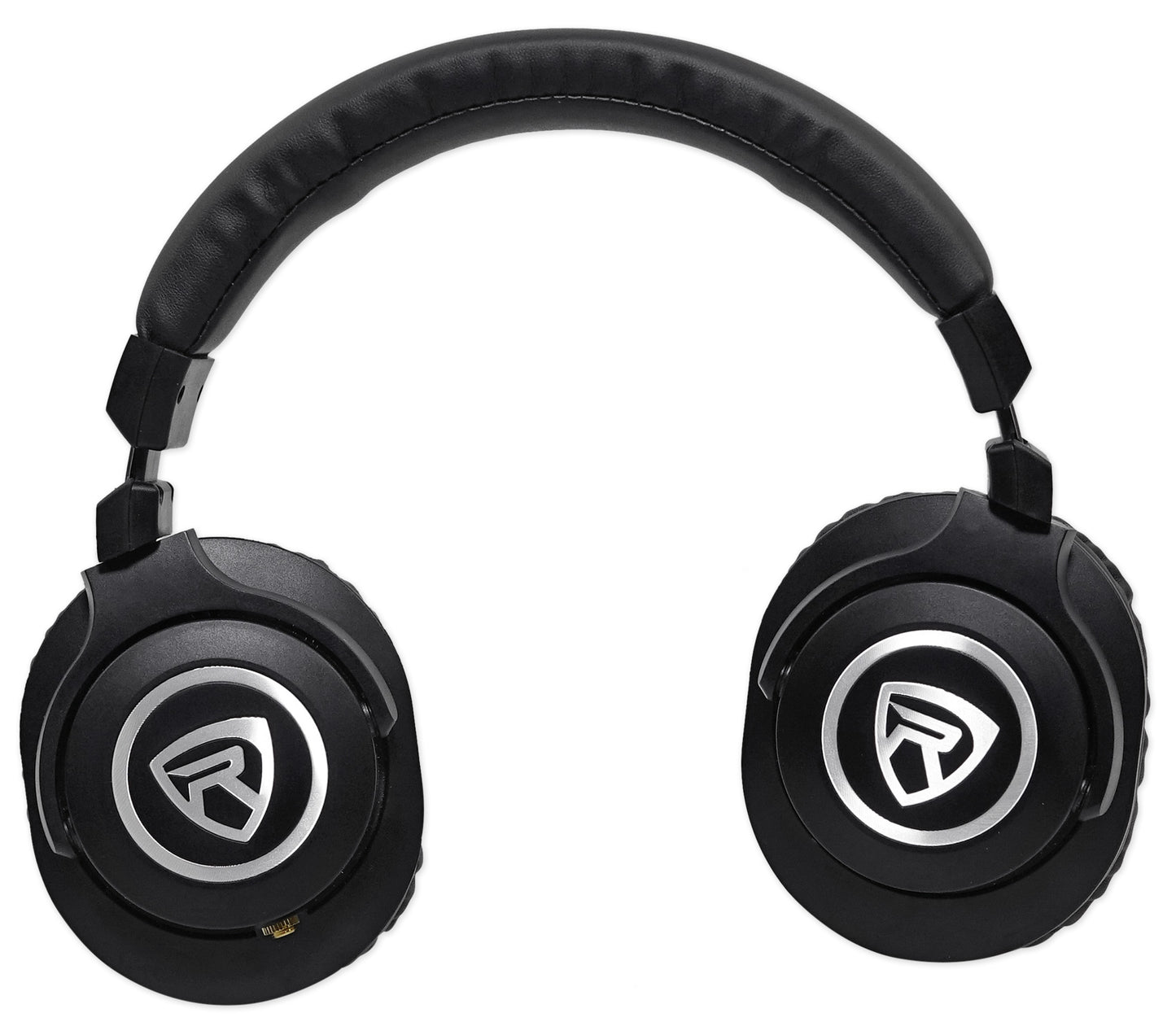

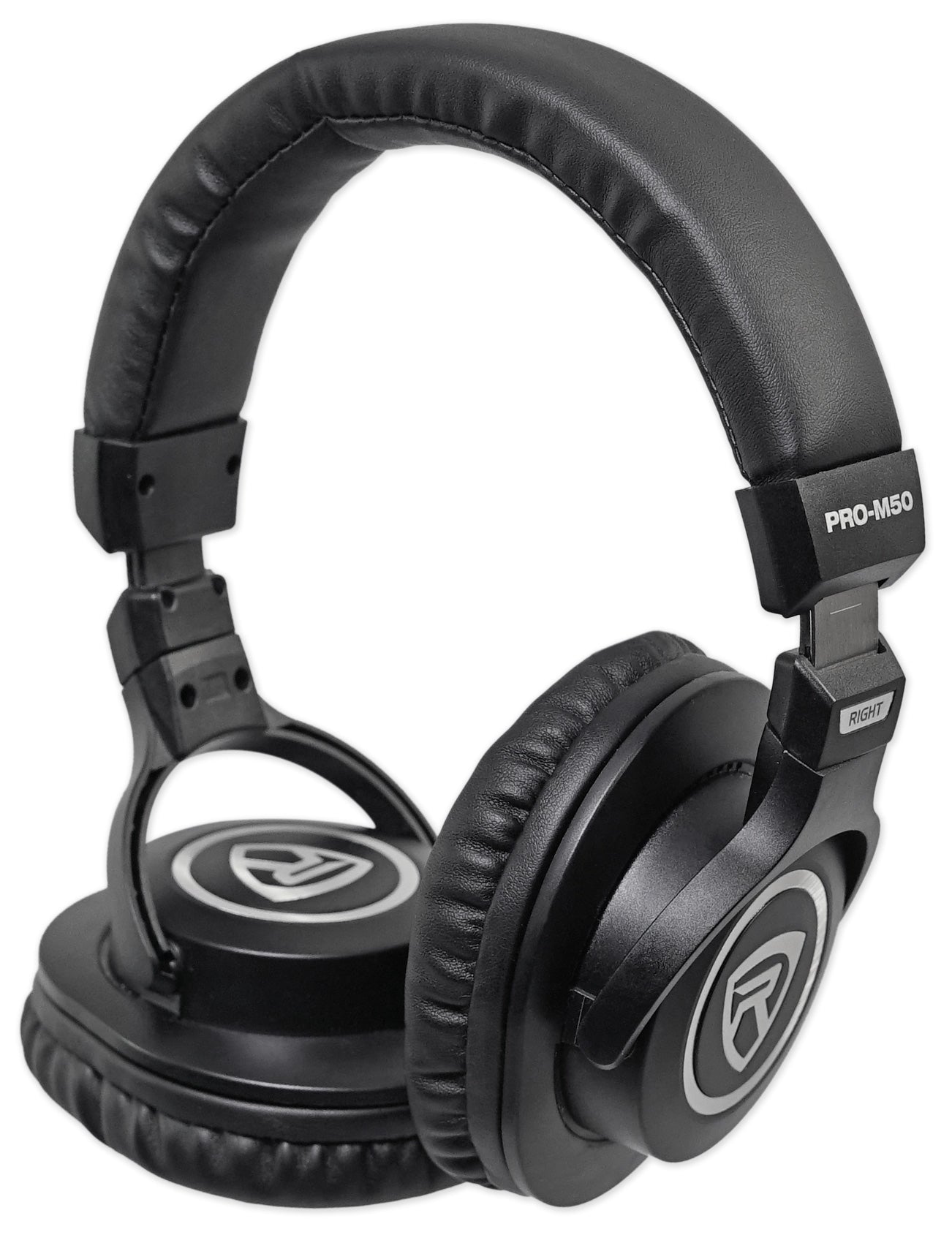

All About Your PRO-M50:



Description:

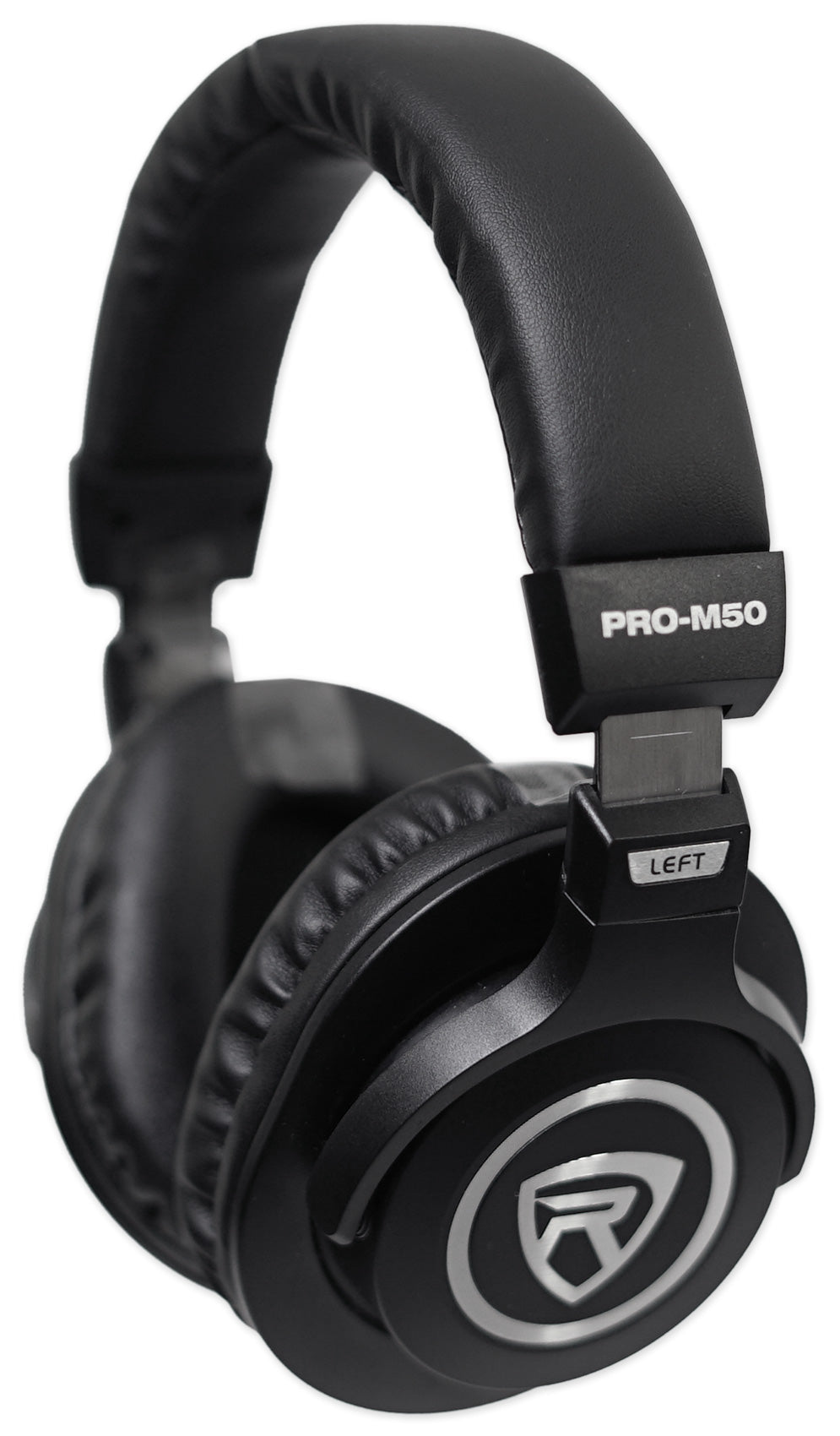

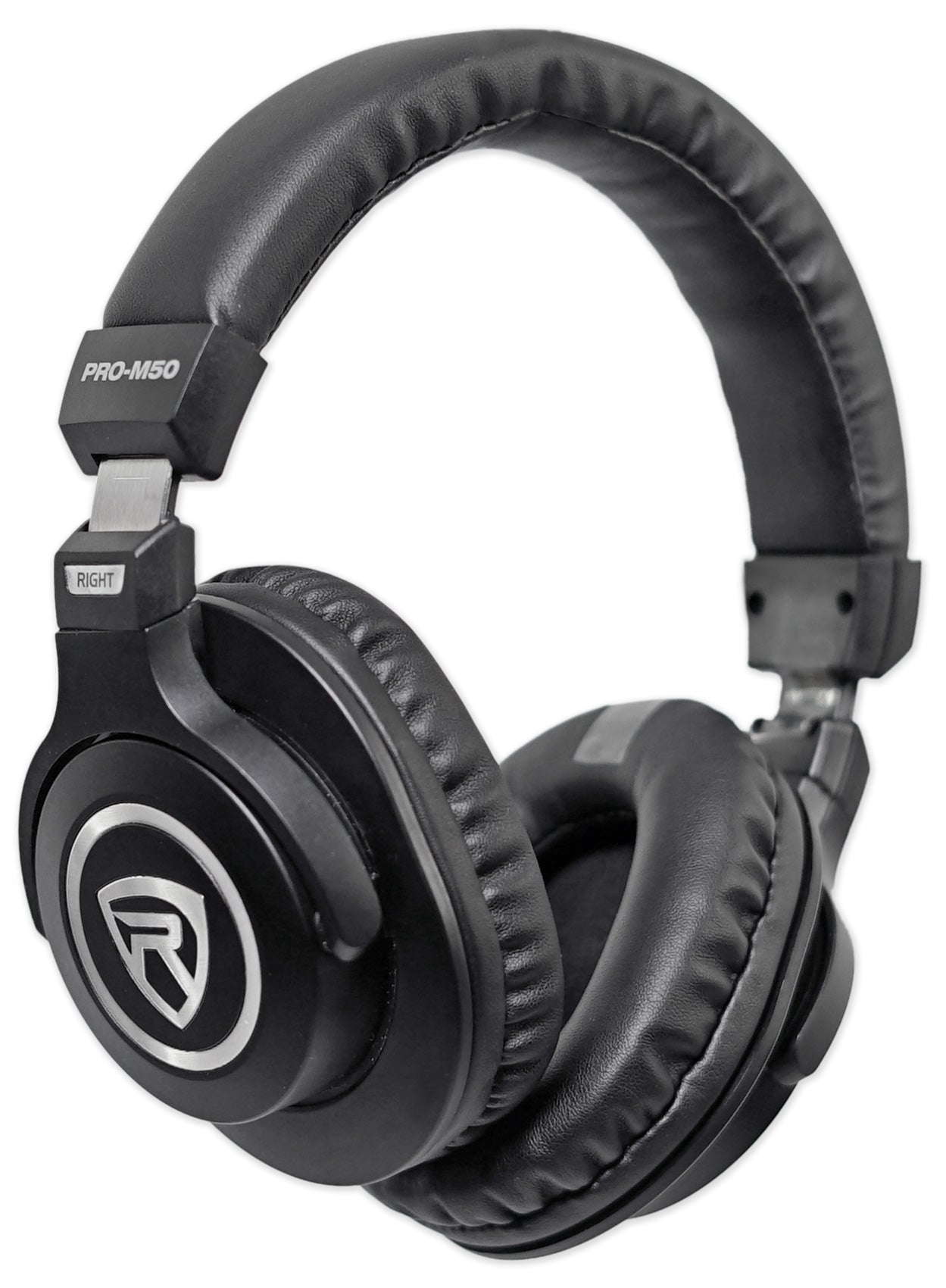

Rockville brings you studio quality headphones and at an incredible price with its new PRO-M50 headphones. These are professional grade headphones that are guaranteed to ourperform headphones that cost triple the price! These feature ergonomically designed swiveling cups with interchangeable soft suede or leather finish cushions (included). The ear cups seal tight for excellent sound isolation and minimal bleed. Inside these cups you'll find 40mm Neodymium drivers delivering accurate audio with an extended frequency range for clear and rich bass, and a full frequency range of mids and highs. These are closed back style headphones specifically designed for studio monitoring. These play back the sound with a flat frequency curve so you can hear your music exactly how it was recorded. With the PRO-M50 you can expect to hear every detail of every song with extreme accuracy. These headphones cover full frequency ranges; even extending a bit past the frequencies that the human ear can hear.

The headband is made of soft leather, offering ultimate comfort even after extended wear. The beautifully designed stainless steel headband frame and arms are strong and durable. A detachable 51" coiled 100% Oxygen Free Copper cable with a gold plated 3.5mm plug is included along with a gold plated ¼" adapter to ensure the best possible signal. A hard leather case is included to store and protect your new investment when you are on the go.

Amazing sound quality will make these your go-to headphones whether in the studio or out and about!

Features:

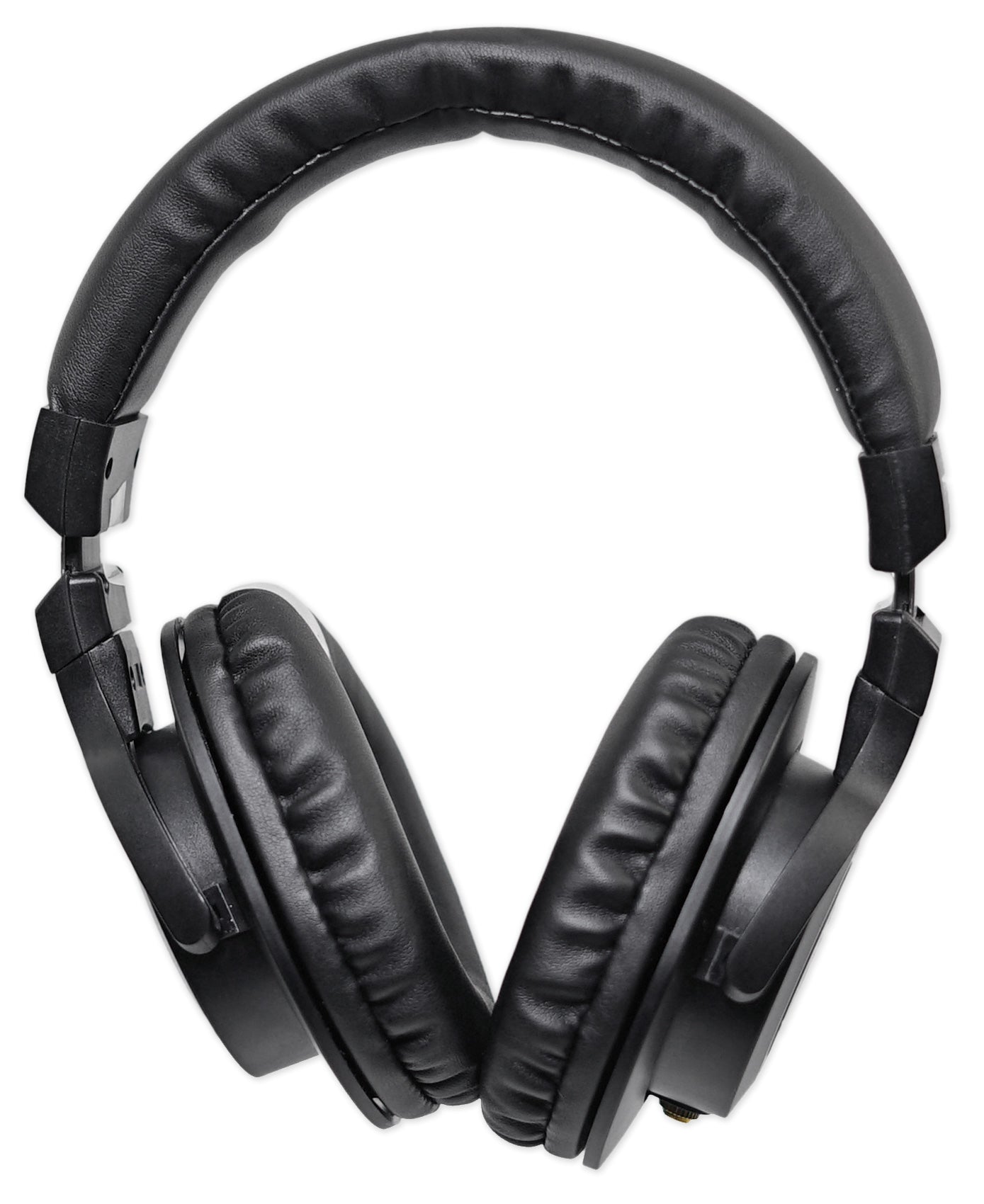

• Rockville PRO-M50 Studio Headphones w/ Detachable Coil Cable, Case+Extra Ear Pad
• Professional High-Definition Studio Headphones
• 40mm Neodymium drivers
• Ergonomically designed swivel ear cups
• Supreme sound isolation
• Accurate sound reproduction
• Minimal bleed
• Sturdy and durable steel headband and arms
• Soft leather headband cover
• Interchangeable leather and soft suede ear cups covers included
• Detachable 51" coil cable made of 100% Oxygen Free Copper (158" fully extended)
• Gold plated 3.5mm connector
• Gold plated ¼" adapter
• Hard leather carrying case
• Stainless steel headband frame and moving arms are durable and long-lasting

Specifications:

• Style: Closed-Back
• Design: Circumaural
• Transducer Type: Dynamic
• Driver: 40MM
• Sensitivity: 97±3dB
• Impedance: 32ohm
• Frequency Response:10Hz - 25KHz
• Max. Power: 600MW
• Rating Power: 260MW
• Net Weight: 290g (with cable)

---

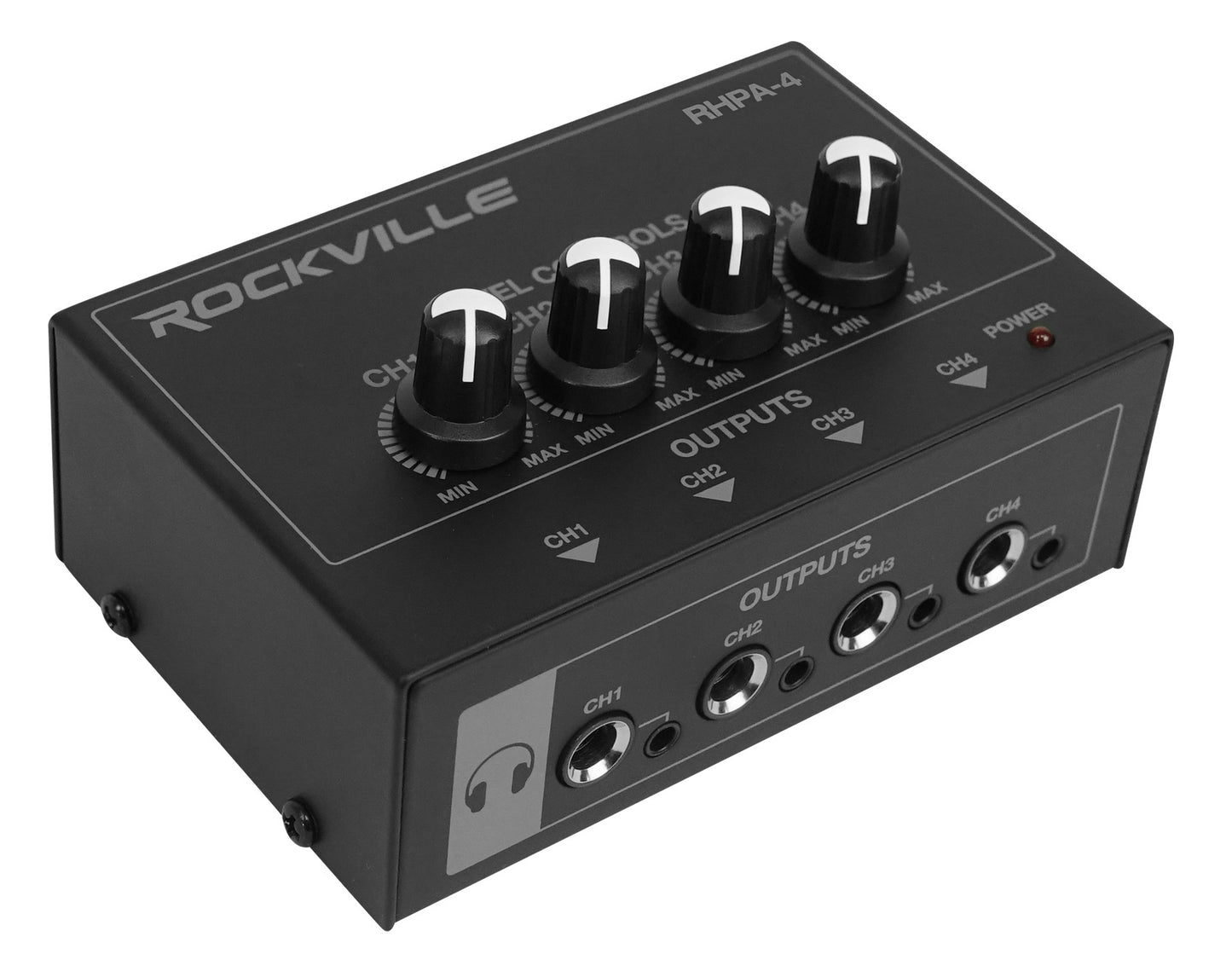

How to Set Up your RHPA4:

Video of RHPA4:

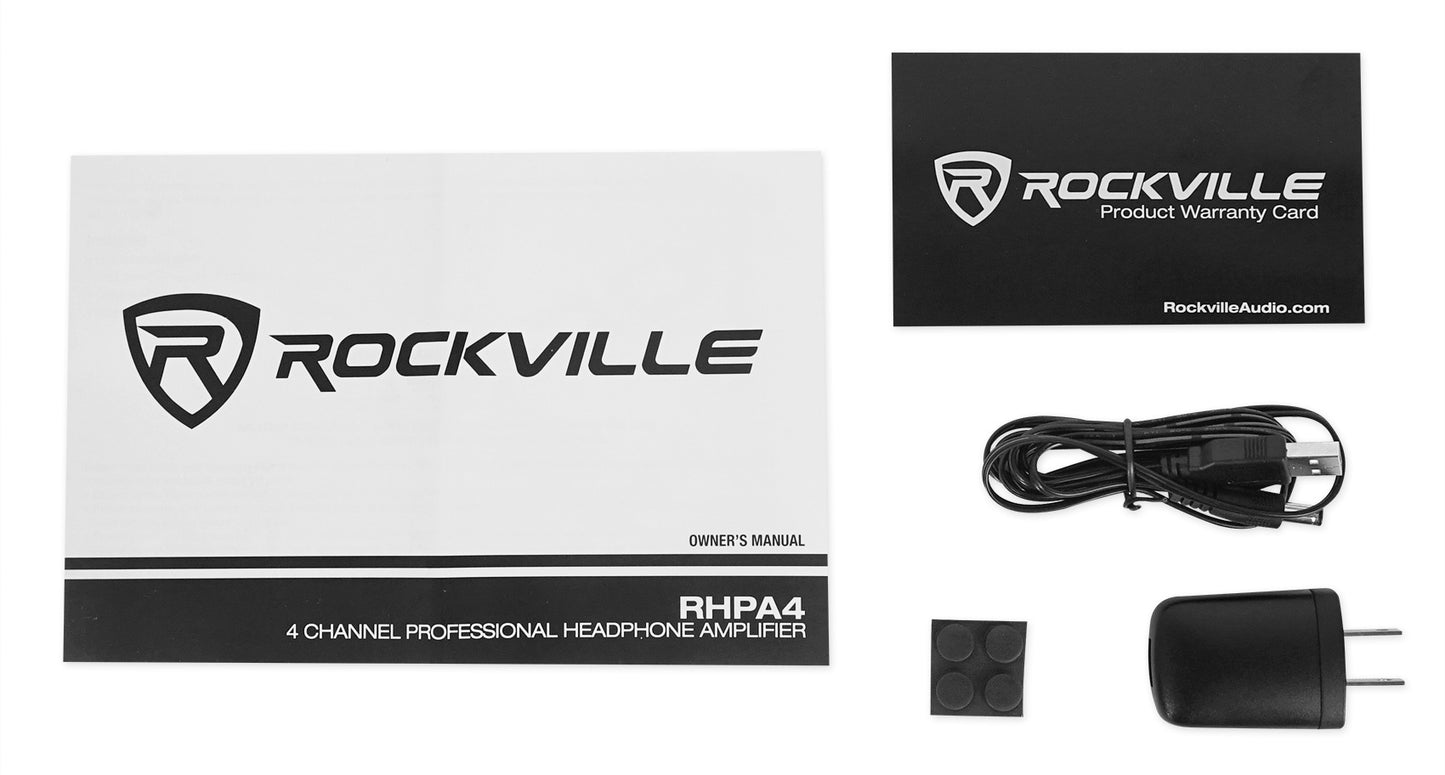

Includes:

• Headphone amplifier
• USB charging cable with charging brick
• Owners-manual
• Warranty card

Applications:

• Studio recording
• Podcasting
• Bands
• And more!

Features:

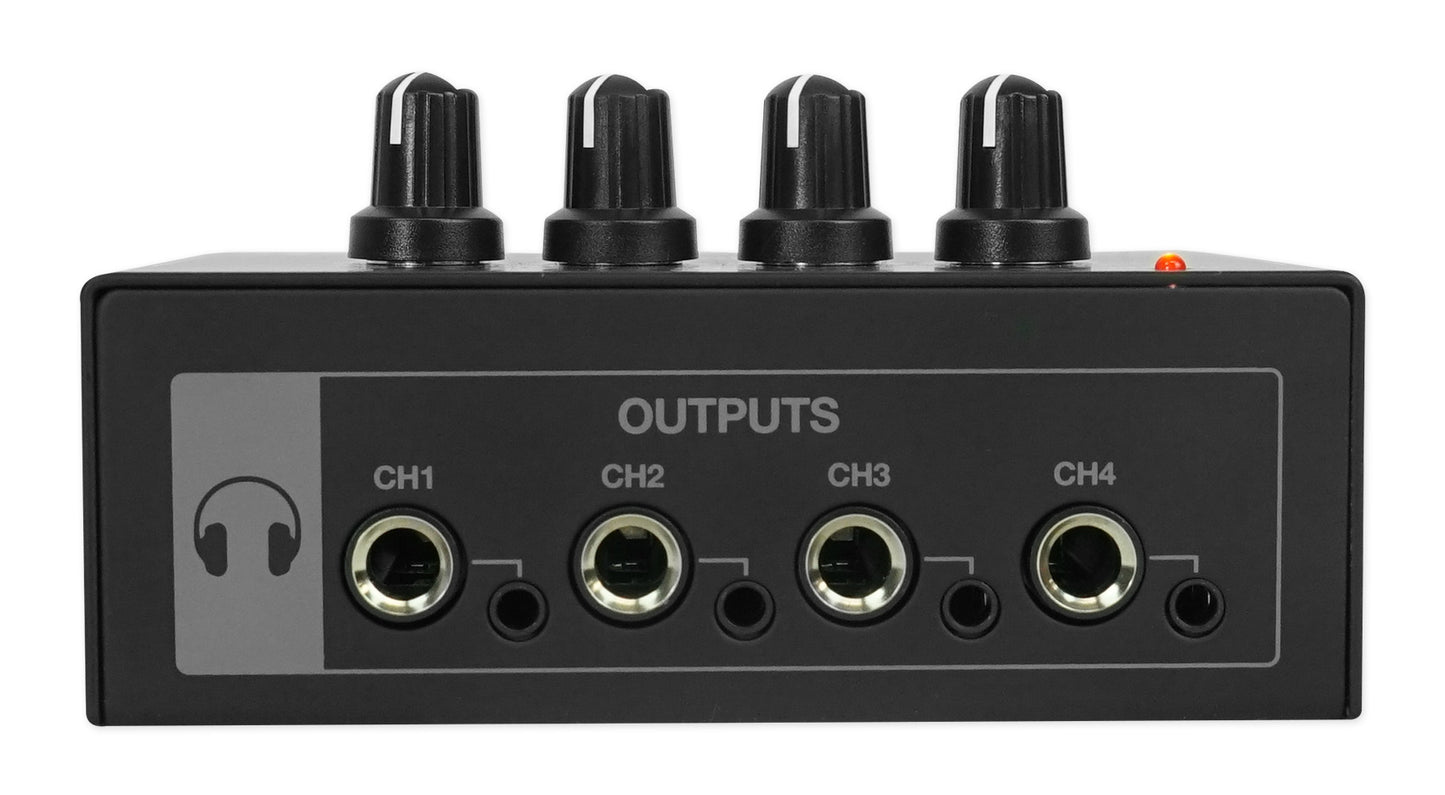

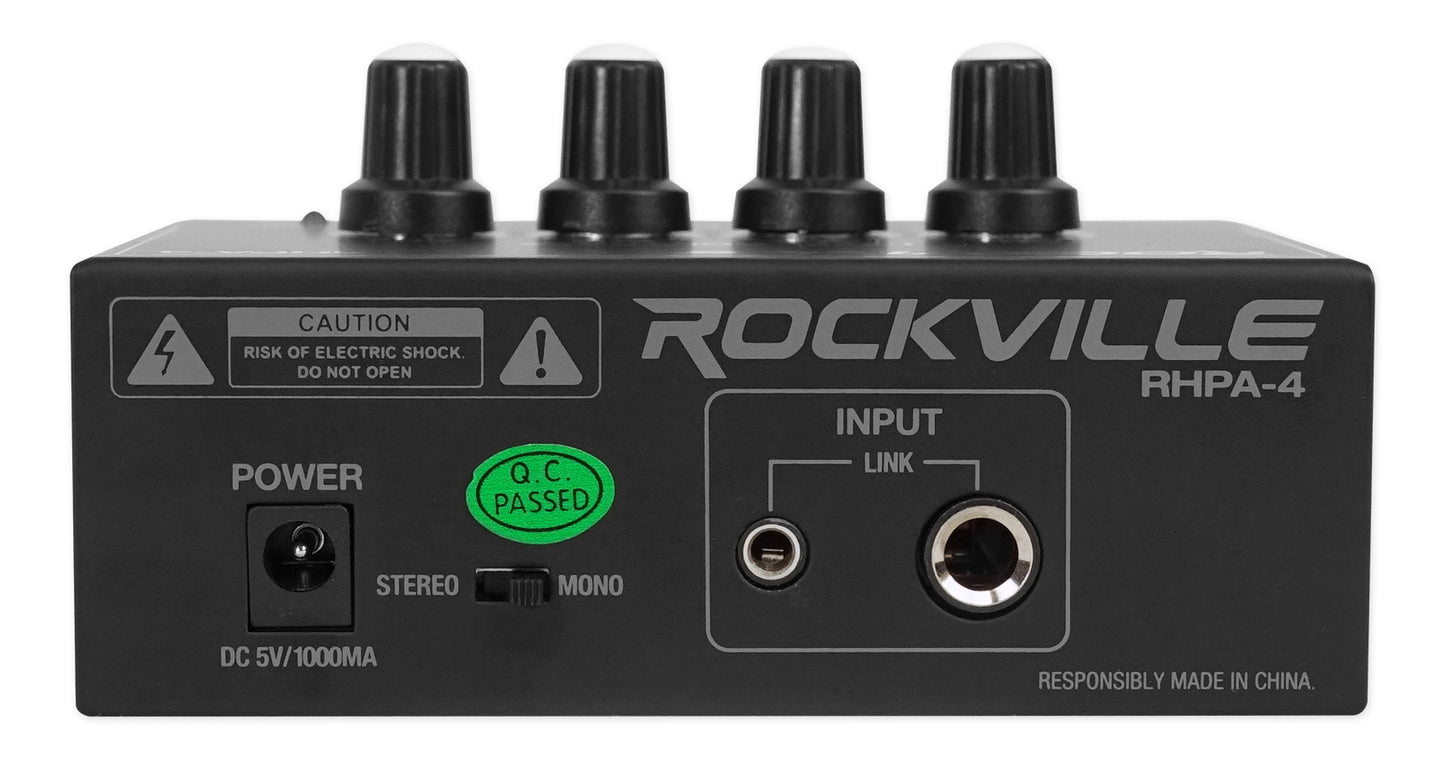

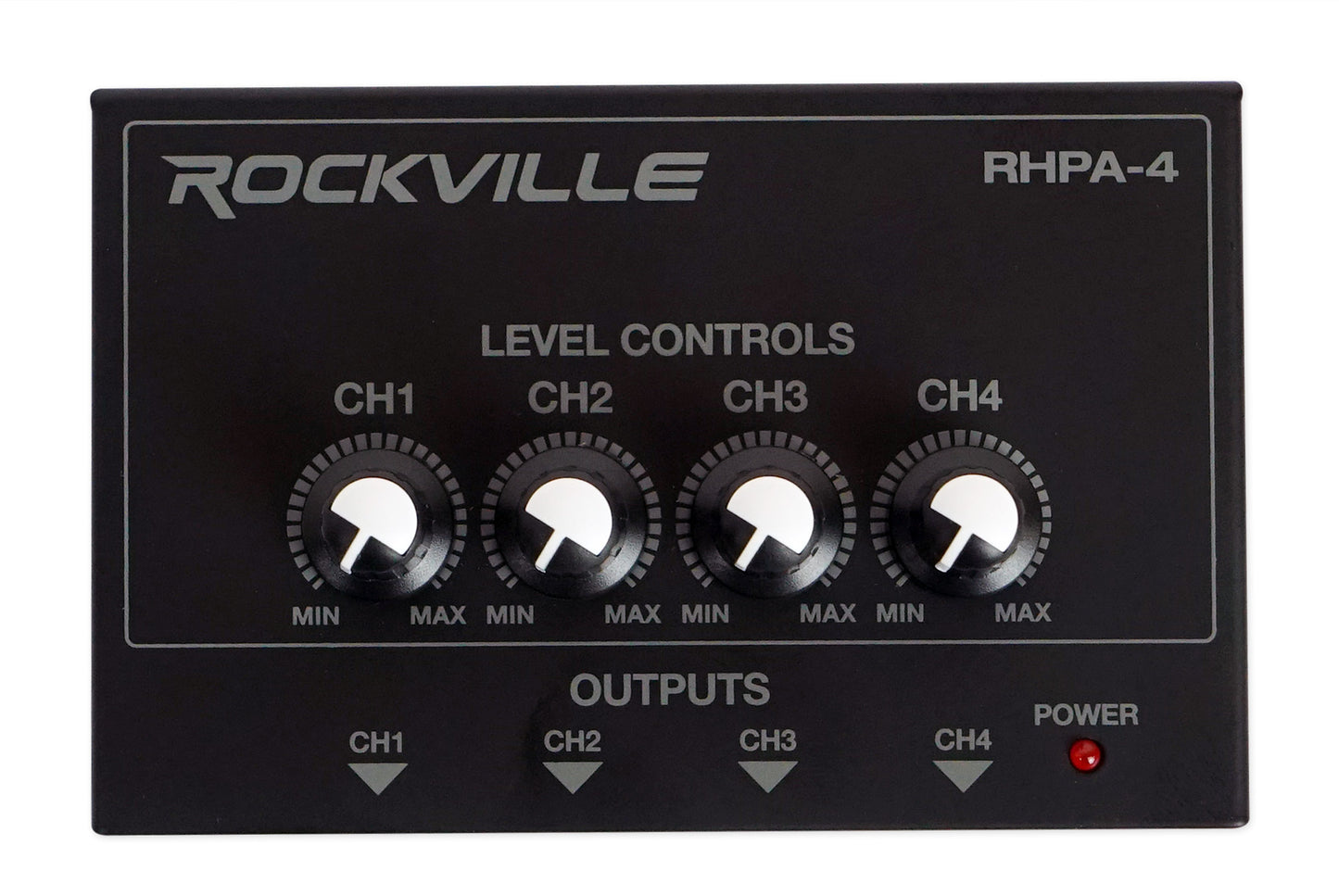

• Rockville RHPA4 4-Channel Professional Headphone Amplifier
• Inputs: ¼" and 3.5 mm input
• Stereo or Mono switch
• We include (4) ¼" TRS and (4) 3.5 mm headphone outputs run in parallel which means you can actually run 8 headphones (2 per channel)
• 4 Outputs each output has individual volume controls
• Thick metal shell casing
• High quality potentiometer knobs for each channel
• Power "On" LED.
• DC 5V USB power supply has low power consumption
• BUS powered means you can get power to the unit from a power bank or through the USB on a computer or laptop
• Rubber feet

Specifications:

• Input Impedance: 22K ohm
• Max. Input Level: +22dB
• Output Impedance: Min. 16Ohm
• Max. Gain: 20dB/Channel
• S/N Ratio: >98dB
• Frequency Response: 20 - 20 kHz
• S/N Ratio: > 90dB (ref 0dBu)
• THD: < 0.01%
• Power supply: 5VDC, >=1000mA via USB Power Adaptor
• Dimensions: 4.6" x 3" x 2.36"
• Weight: 0.85 Lbs
• 0dBu = 0.775Vrms

---

Video of RDTS:

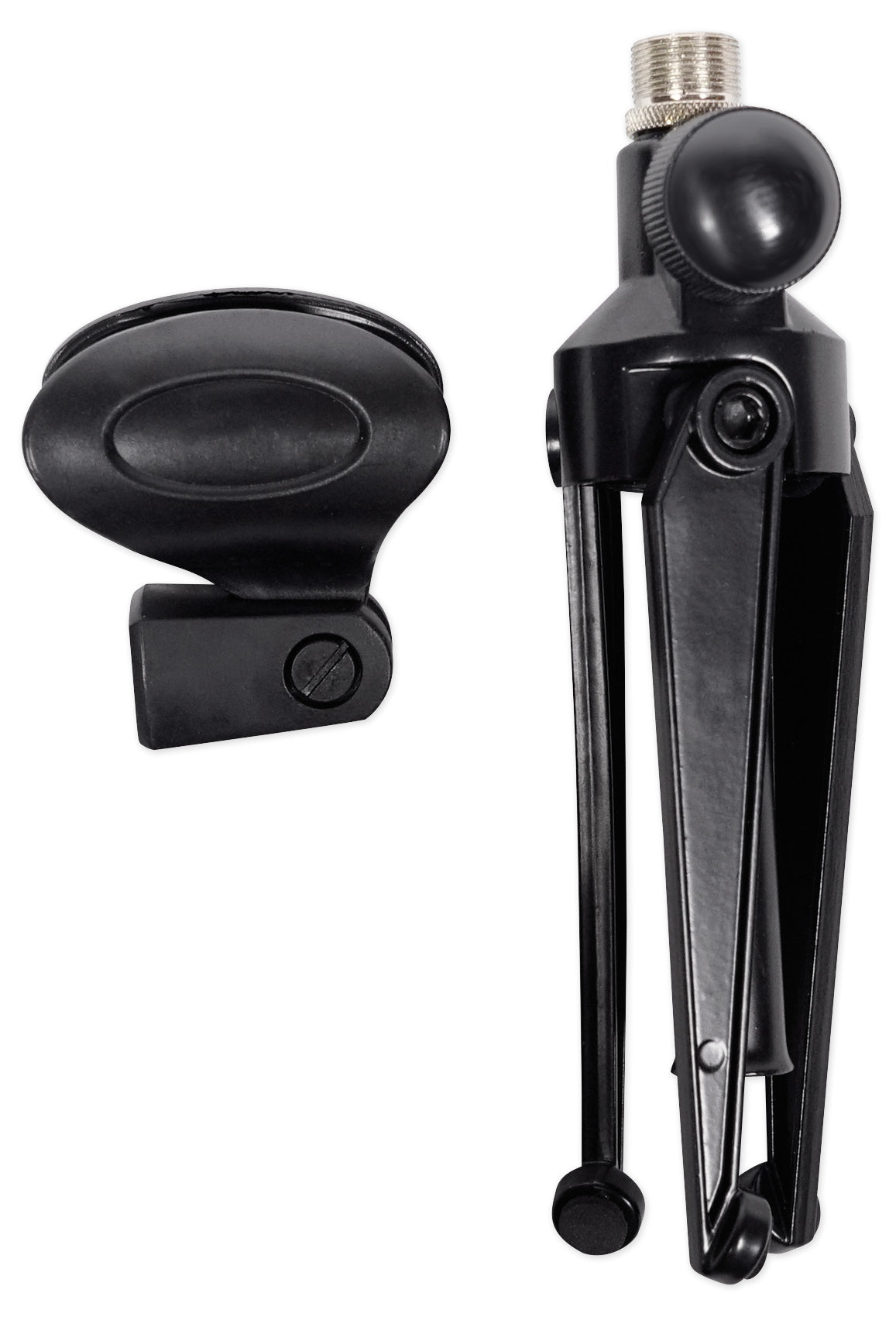

Features:

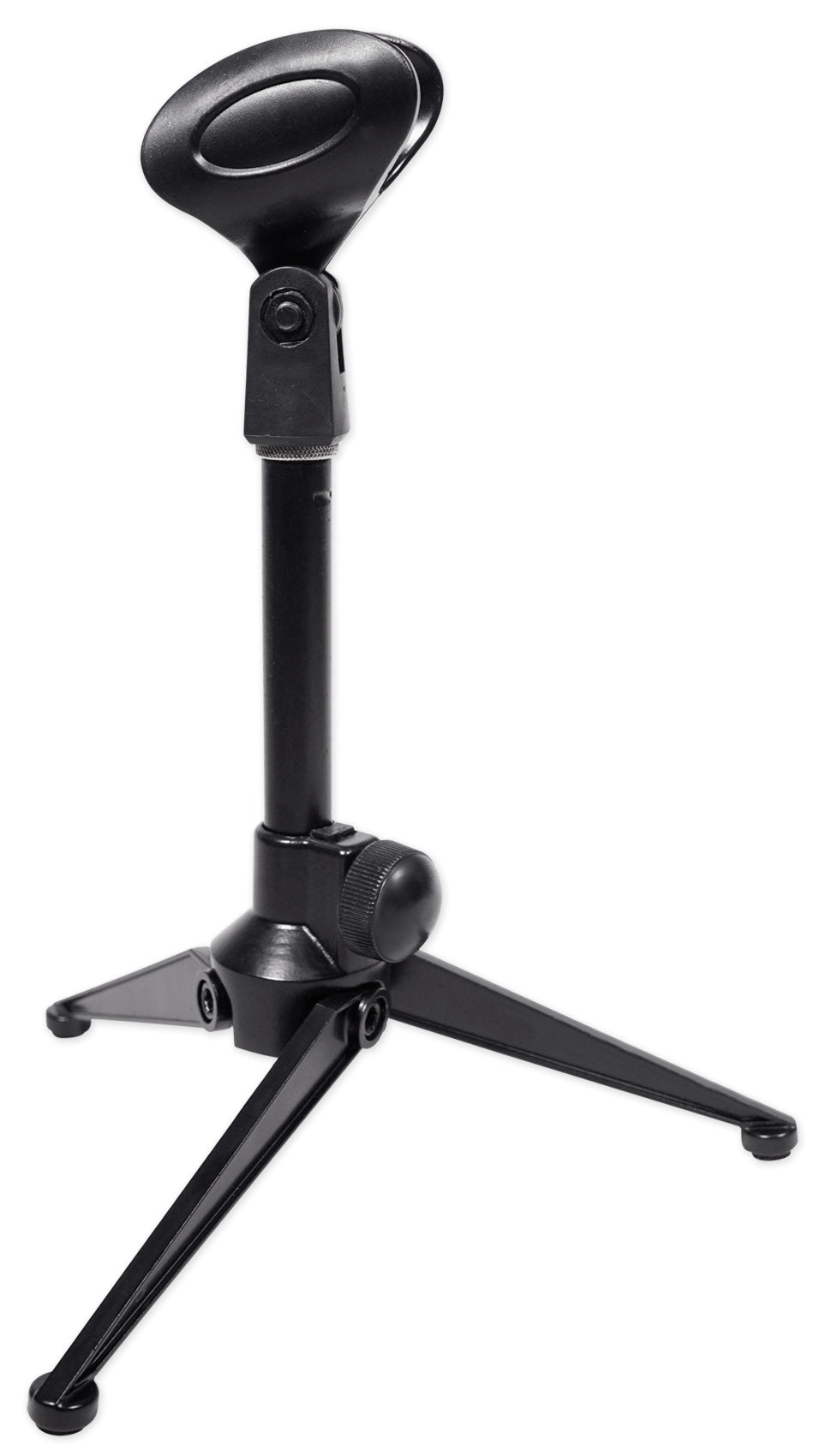

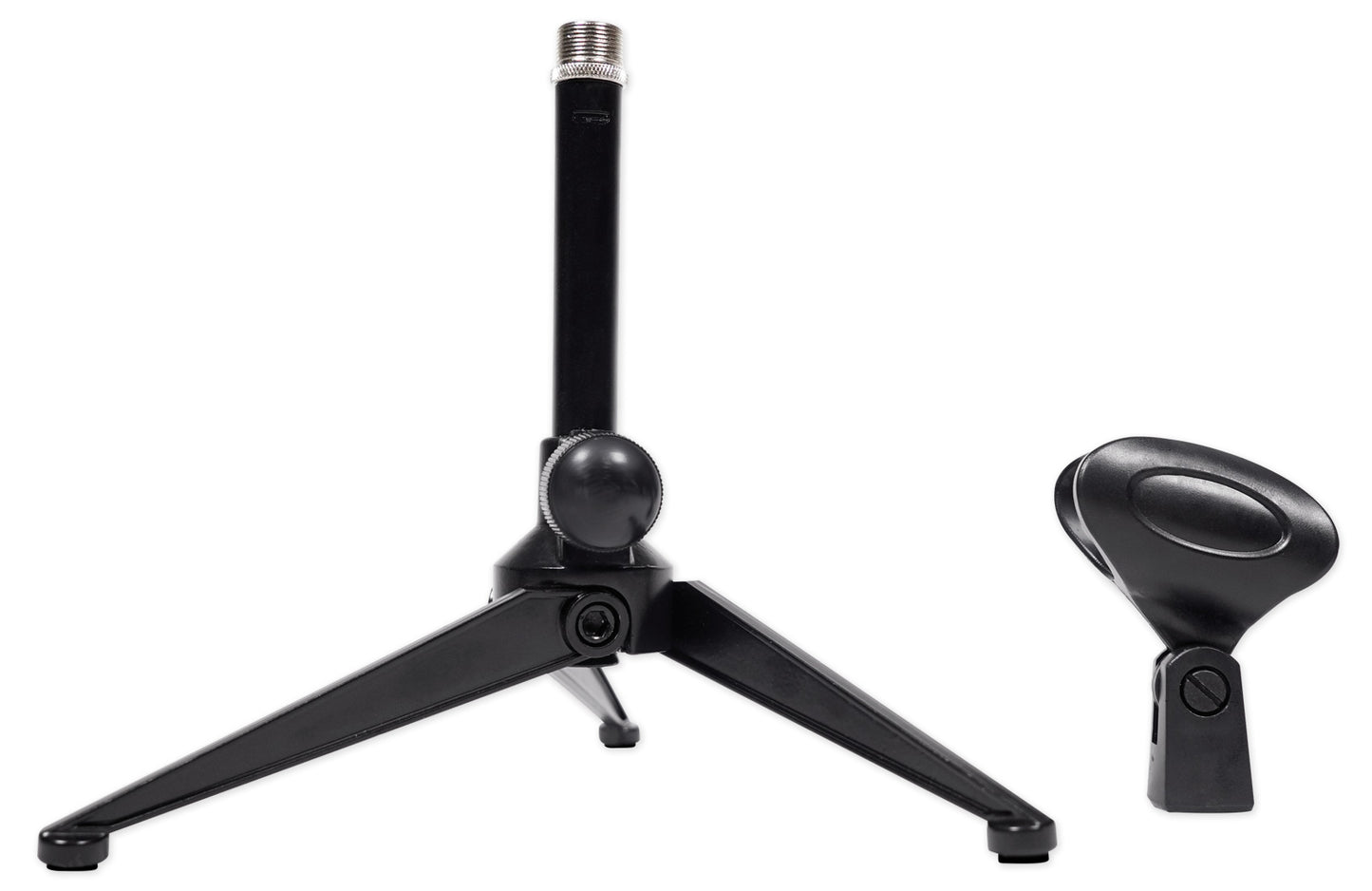

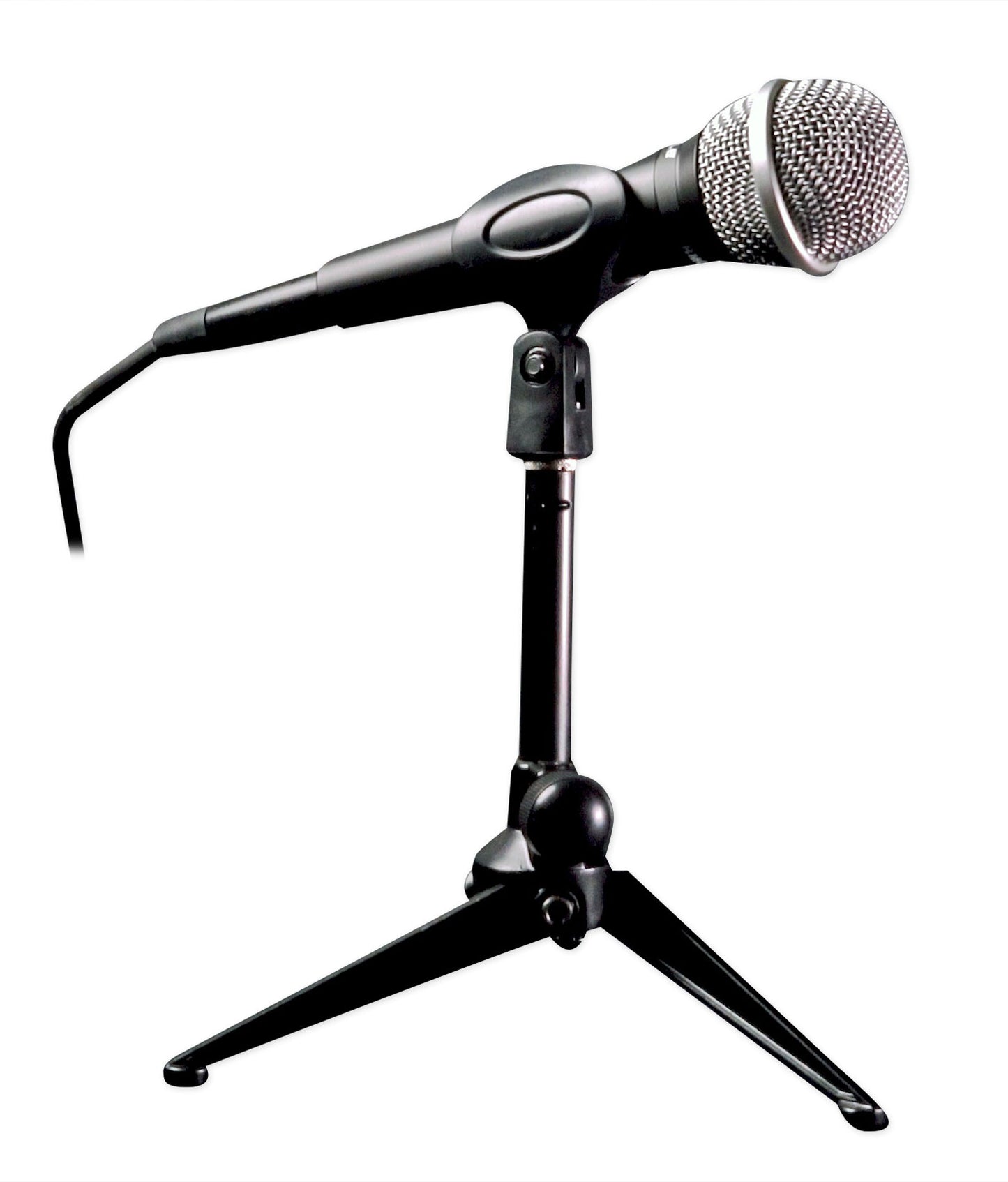

• Rockville RDTS Adjustable Height Studio Desktop Tripod Microphone Stand and Mic Clip
• Includes standard mic clip for regular mics
• For condenser mics - this is compatible with any shock mount (Rockville Rockshock is recommended)

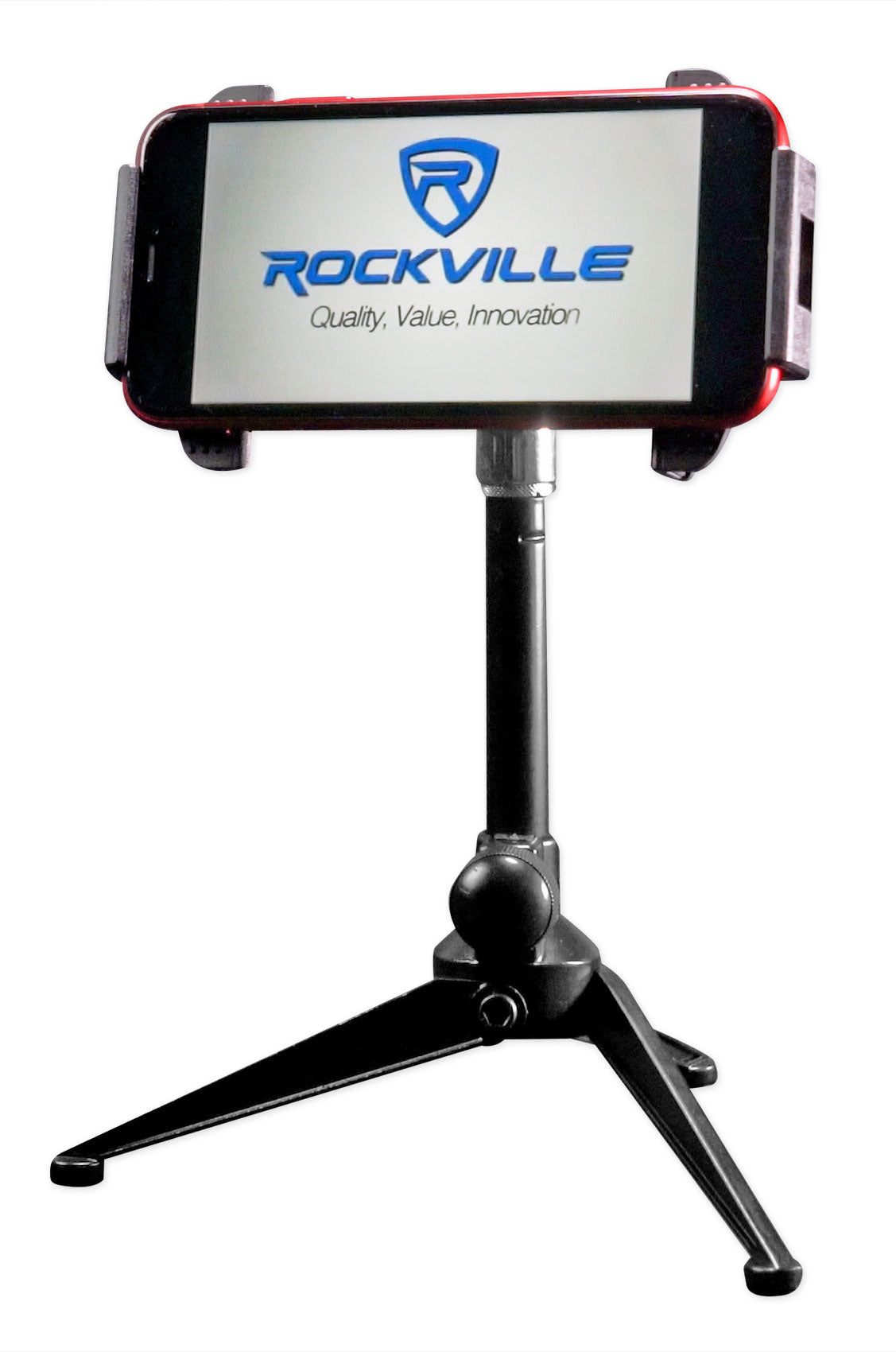

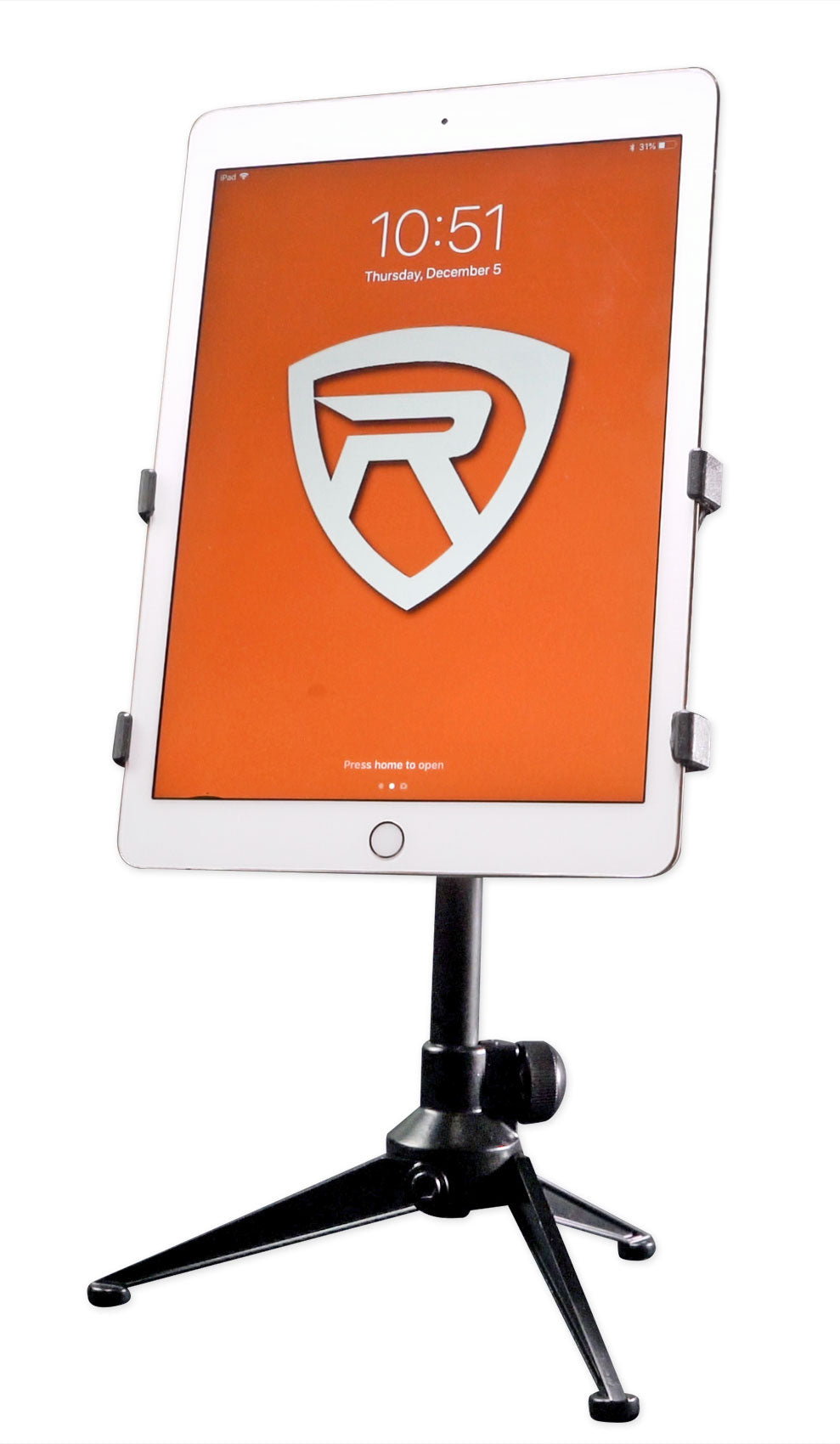

• Compatible with Rockville IPS22 phone/tablet holder (sold separately in our store)
• Foldable design
• Adjustable height from 5.9" to 7.1" inches
• Includes standard mic clip
• Includes a Metal 3/8 to 5/8 adapter to support any mic clip on the market
• All metal construction is extremely strong and durable
• Smoothly raise or lower height with a reliable tightening knob
• Stable tripod leg base provides the ultimate stability and precise balance
• Perfect for studio recording, home recording, podcasts, screen-casts, video chats, conferences,
