Package Includes:

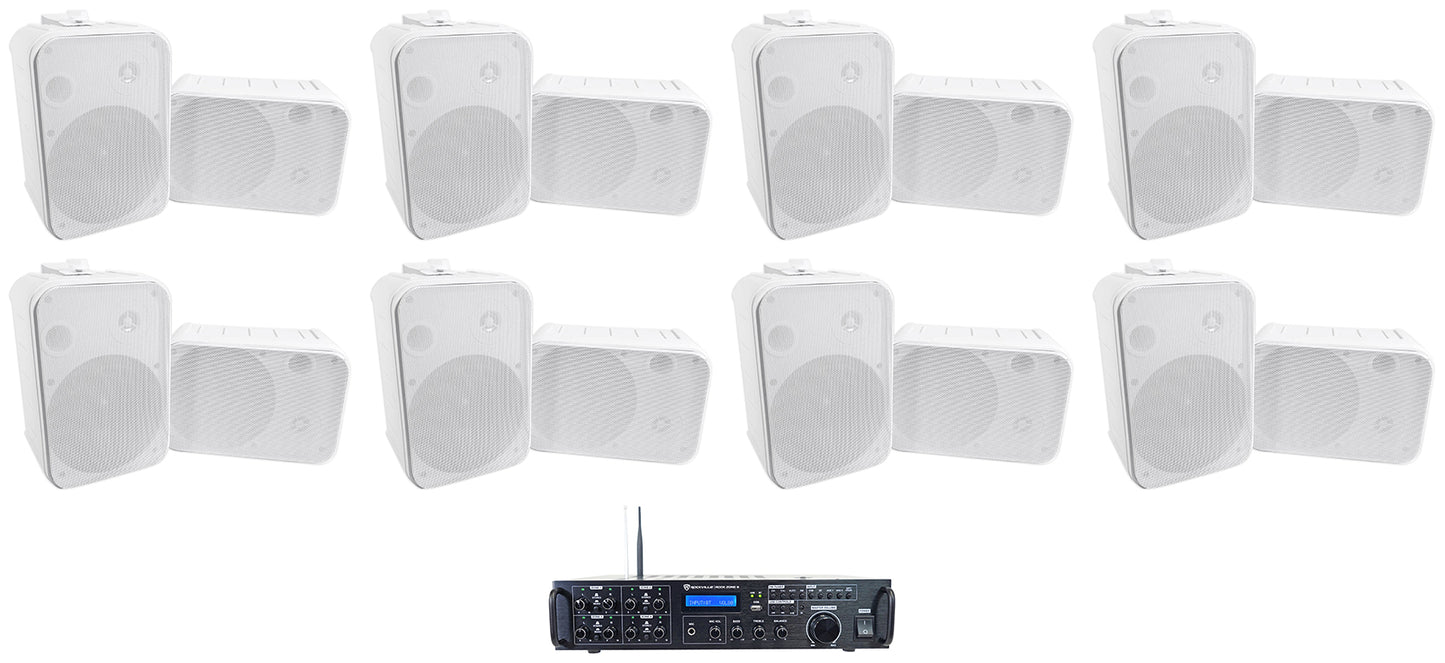

• (1) Rockville Rock Zone 8 8 channel 8 Zone 1000W RMS Multi Room Receiver/Amplifier

• (4) (2) Rockville HP65S-8 6.5" Outdoor/Indoor Home Theater Speakers w/Swivel Bracket


---

All About Your Rock Zone 8:

How To Set Up Your Rock Zone 8:

How To Set Up Speakers to Your ROCK ZONE 8:

How To Set Up For Karaoke with Your ROCK ZONE 8:

How To Set up a Multi-Room Setup with Your ROCK ZONE 8:

Controls, Inputs, and Outputs on Your ROCK ZONE 8 Explained:

How To Set Up Your ROCK ZONE 8 with a subwoofer or powered speaker:

What's in the Box:

• 8 Zone Amplifier

• Remote

• Detachable Rack mount ears

• Power Cable

• Owner’s manual

• Warranty

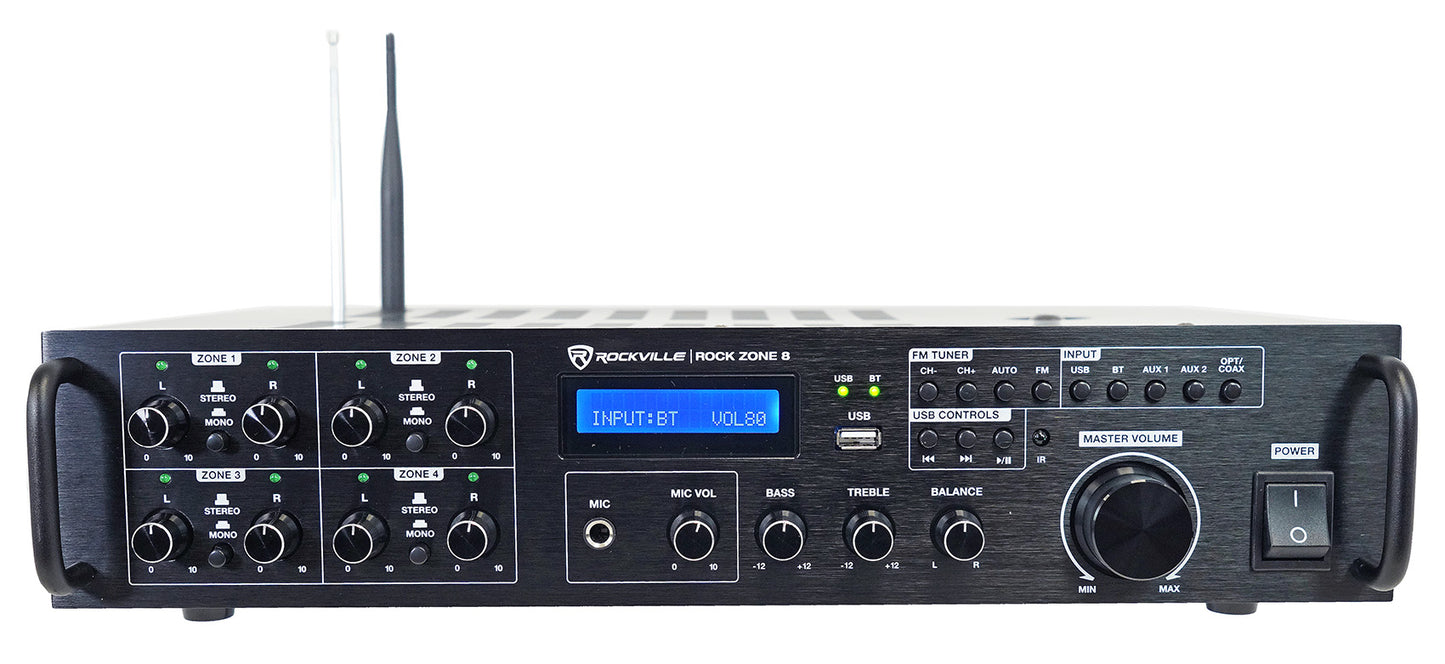

The Rock Zone 8 is an 8-channel amplifier that can be configured with either 4 stereo zones or 8 mono zones. It is perfect for both home and commercial audio applications. This amplifier has an impressive amount of power, with the most important rating being the RMS power at less than 1% THD. The amp puts out 125 watts x 8 channels at 4 ohms and 90 watts x 8 channels at 8 ohms. With this much power, you can support up to 32 speakers (4 per zone – 16 ohms each).

This receiver offers a wide range of playback options, including built-in Bluetooth playback, USB playback, optical input, 2 RCA inputs, FM radio, and a mic input.

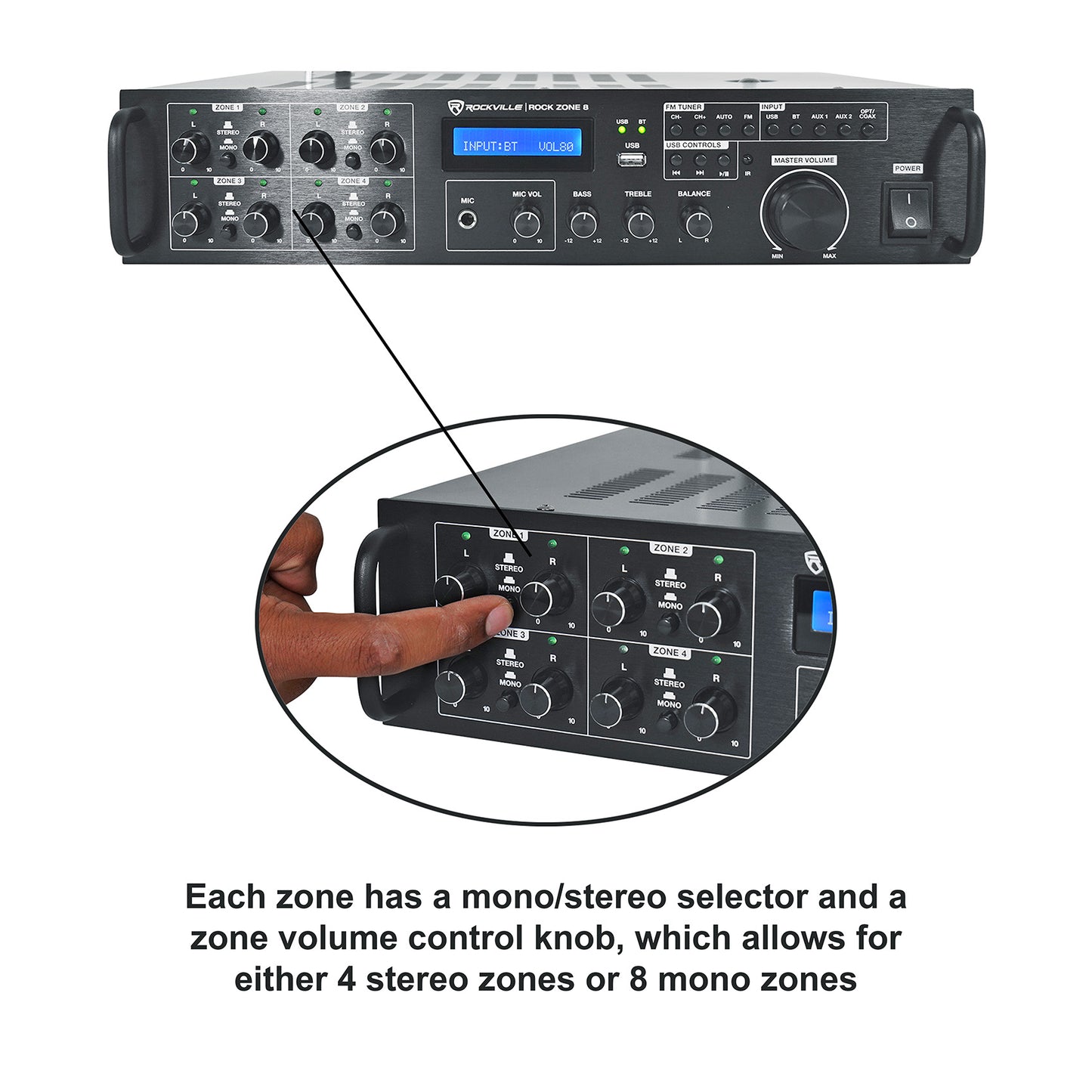

The controls are really easy to use. Each zone has a mono/stereo selector and a zone volume control knob. There are also bass and treble EQ controls to customize the sound. The mic input with mic volume control will output to all the zones.

Features:

• Rockville Rock Zone 8 8 channel 8 Zone 1,000 Watt RMS Multi Room Receiver/Amplifier

• 8 Independent channels / zones each with volume control

• 8 Mono zones, or 4 Stereo Zones

• RMS Power @ 4 Ohms: 125w x 8

• Peak Power @ 4 Ohms: 500w x 8

• RMS Power @ 8 Ohms: 90w x 8

• Peak Power @ 8 Ohms: 360w x 4

• Can power (8) speakers that are 4 or 8 ohm  (1 speaker per channel)

• Can power (16) 8-ohm speakers (2 run in parallel per channel)

• Can power (32) 16-ohm speakers (4 run in parallel per channel)

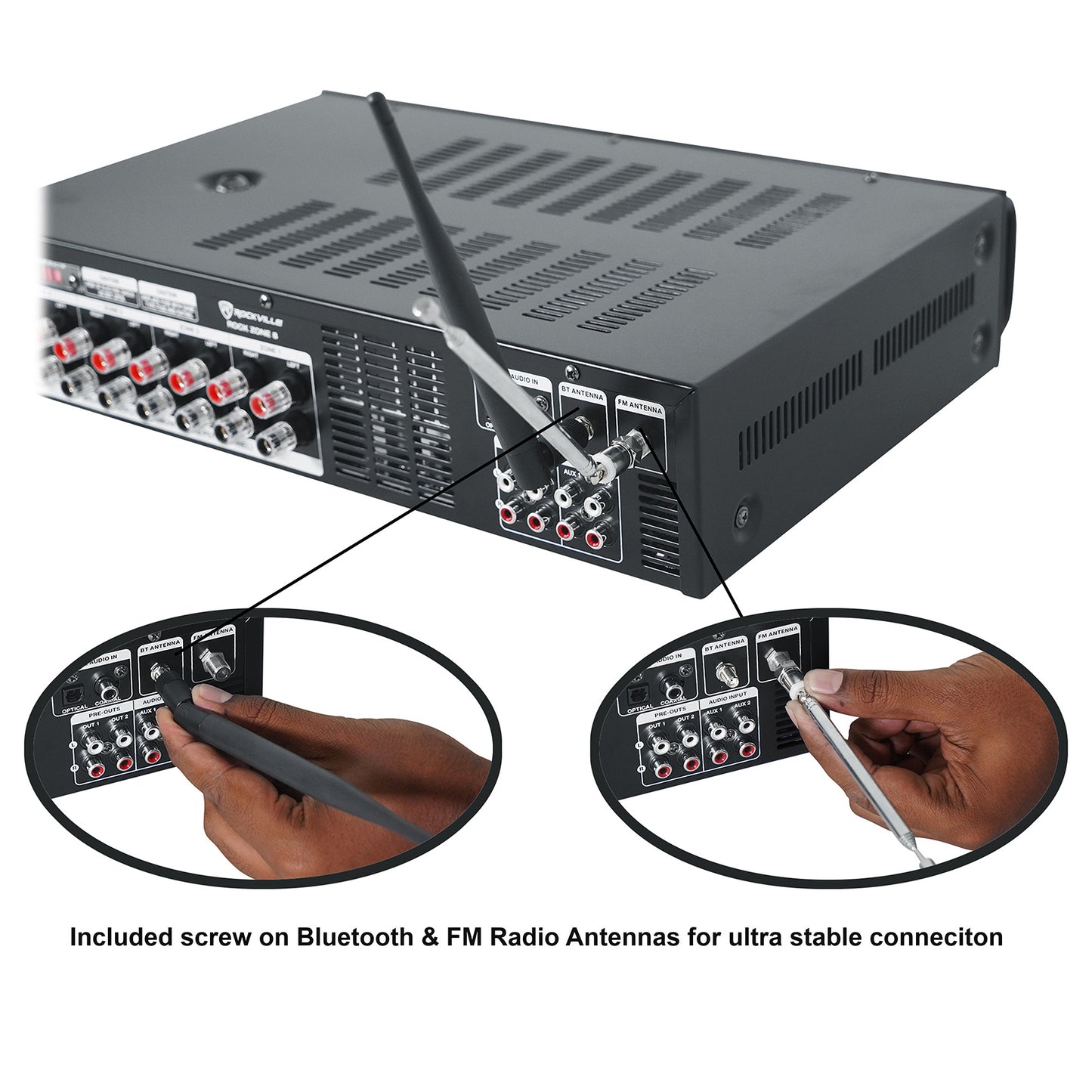

• Built in Bluetooth with 35 foot range and external antenna

• USB input to play audio stored on a thumb drive (32gb max)

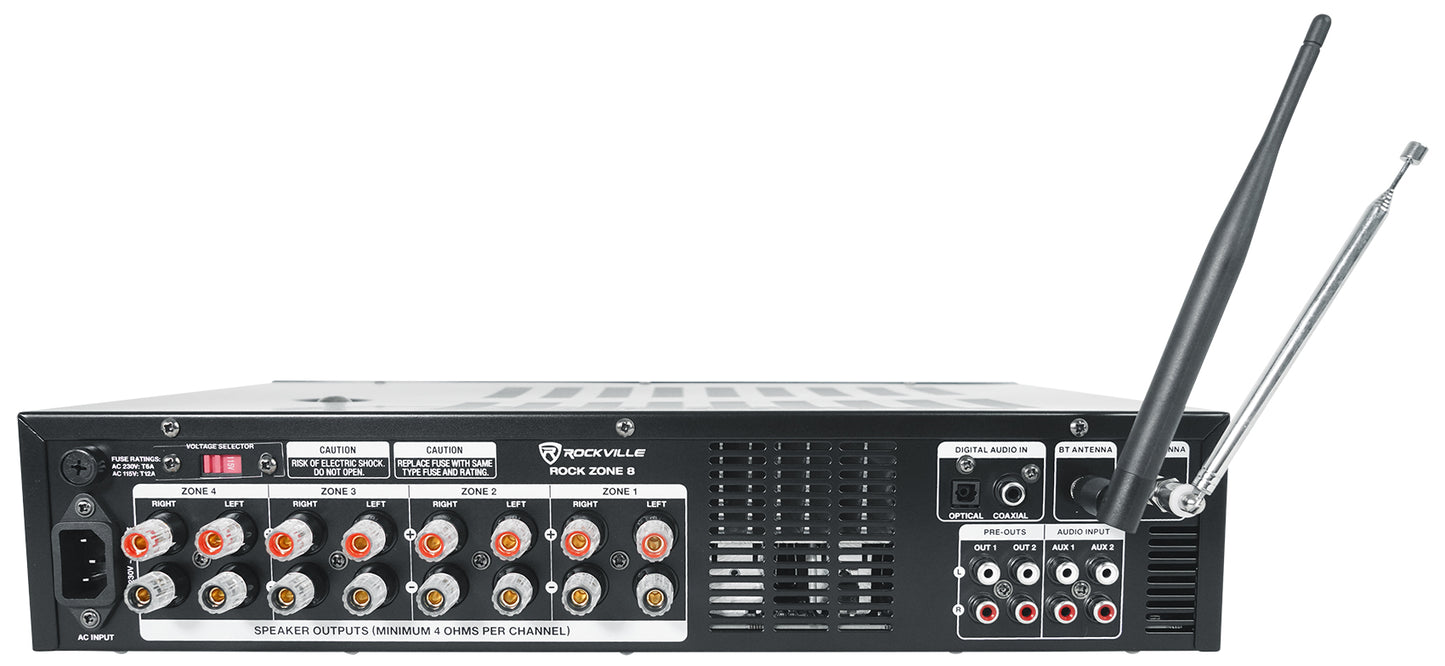

• Optical input

• Coaxial input

• (2) sets of RCA inputs

• RCA output for a powered sub or adding another amplifier

• RCA record output

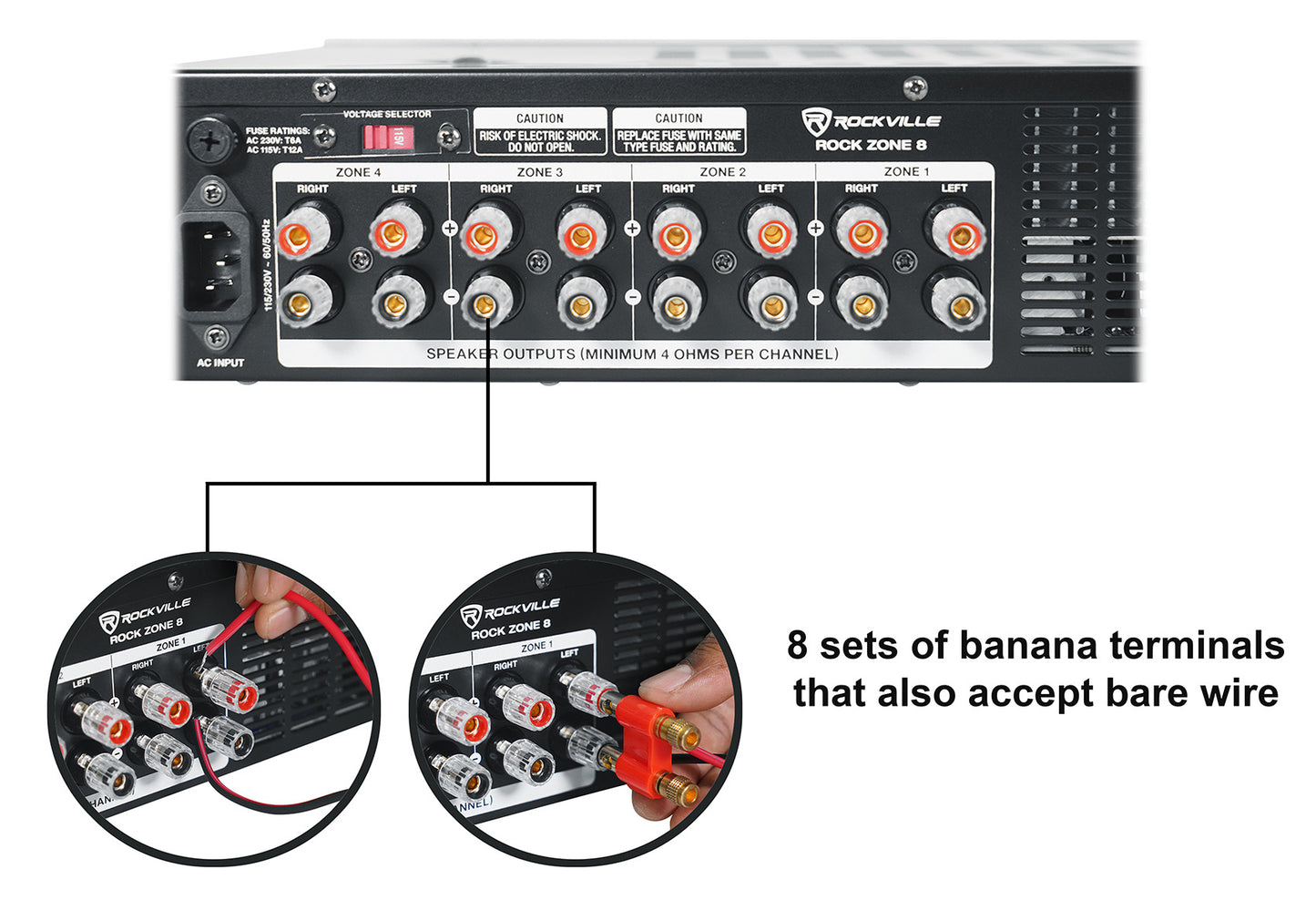

• 8 sets of banana terminals that also accept bare wire

• Record output to connect a recording device

• Bass and treble and balance control knobs
• Signal Indicator LED's
• FM Radio Tuner with Presets & Auto-Scan

• Preset EQ for Bluetooth/USB (2 band EQ for other inputs)

• Remote control for source, master volume, MP3 module only (remote does not control zone volume)

• 19" rack mountable (removable rack brackets)

• Variable speed cooling fan

• Frequency Response: 20Hz - 20kHz

• Built-in Pre-Amplifier

• A Weighted Signal to Noise (referenced to full 8 ohm power, worst channel)

• RCA Input: -90.7dBA

• USB Input: -86.4dBA

• Optical Input: -89.0dBA

• Bluetooth Input: -86.4dBA

• Rubber Feet

• 115V / 230V switchable

• Weight: 22.93lbs

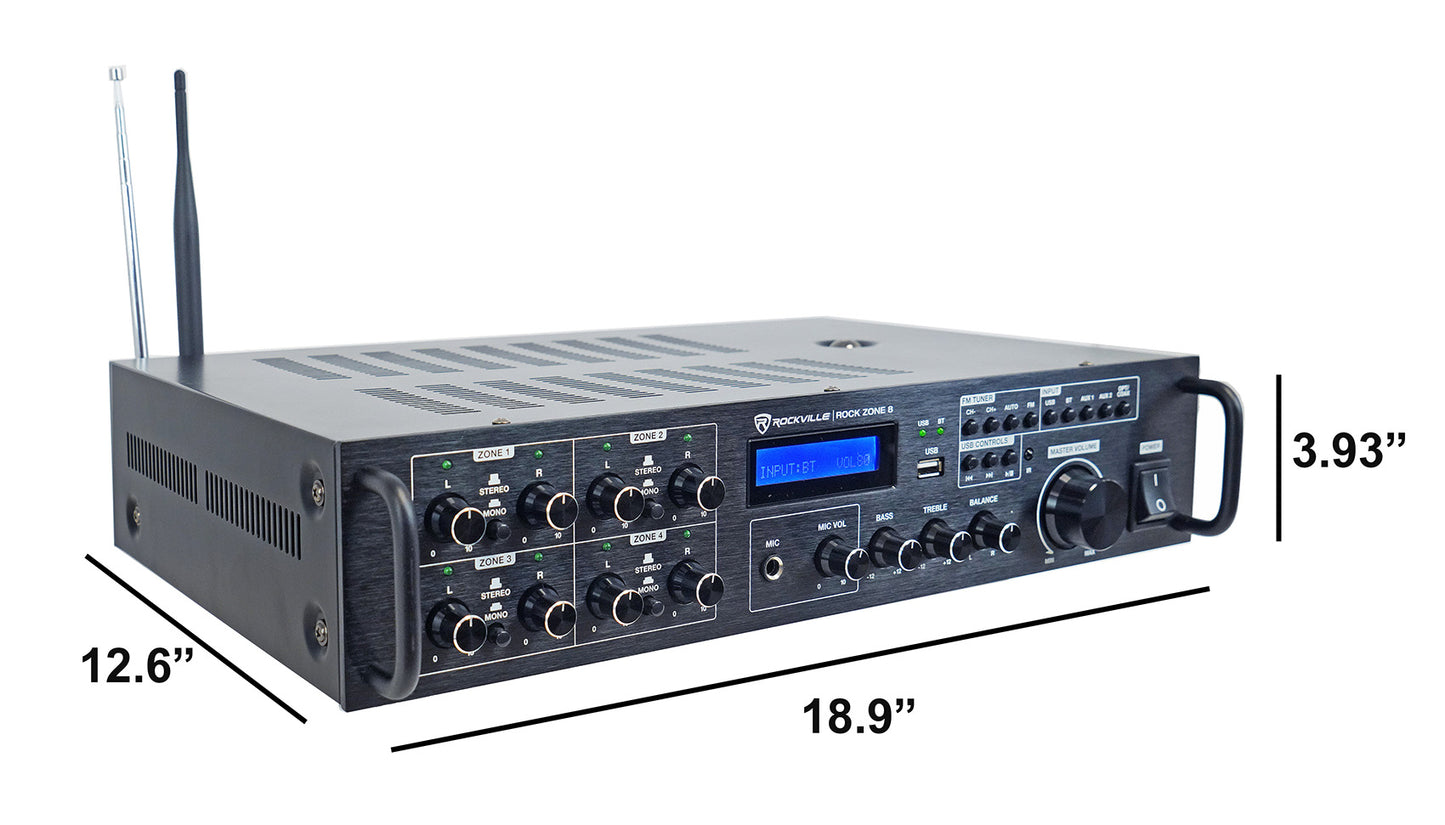

• Dimensions with the included rack mount ears attached: 18.9*3.93*12.6 inches

• Dimensions without rack mount ears: 16.9*3.5*10.4inch


Applications:

• Multi room home audio

• Offices

• Restaurant

• Retail stores

• Other commercial applications

---

How to Set up Your HP65S:

Video of HP65S:

Description:

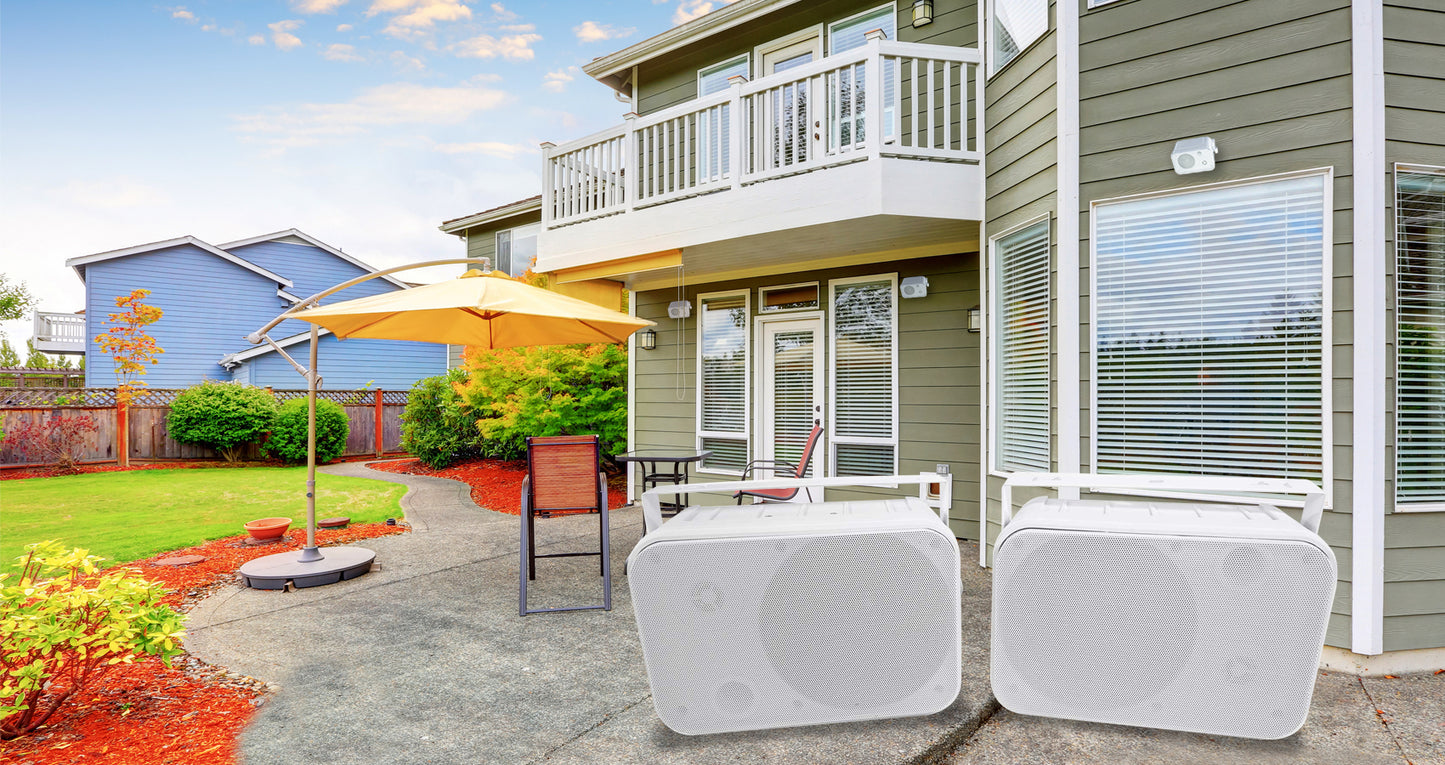

These speakers feature heavy duty ABS construction which can literally be thrown off your roof without getting damaged. These are also IPX44 rated for being weather and water resistant. They can withstand rain, mist, snow, wind, and anything the outdoors will throw at it. These speakers are perfect for patios, large backyards, and indoor applications. These are also perfect for use in commercial spaces like gyms, hotels, and more.

Rubber surrounds eliminate unwanted distortion while our forward-facing bass reflex port adds a deeper, more powerful bass response. Each pair puts out 160 watts RMS and 500 watts peak power. These speakers are extremely loud!

We upgraded our model with gold-plated spring loaded push button terminals for easy and secure wiring.

These speakers will outperform other speakers on the market that sell for $175 and up. We also are offering a 90 day money back guarantee including return shipping. If you are not 100% satisfied with these we will send you a pre-paid shipping label and take them back and refund all of your money.

Features:

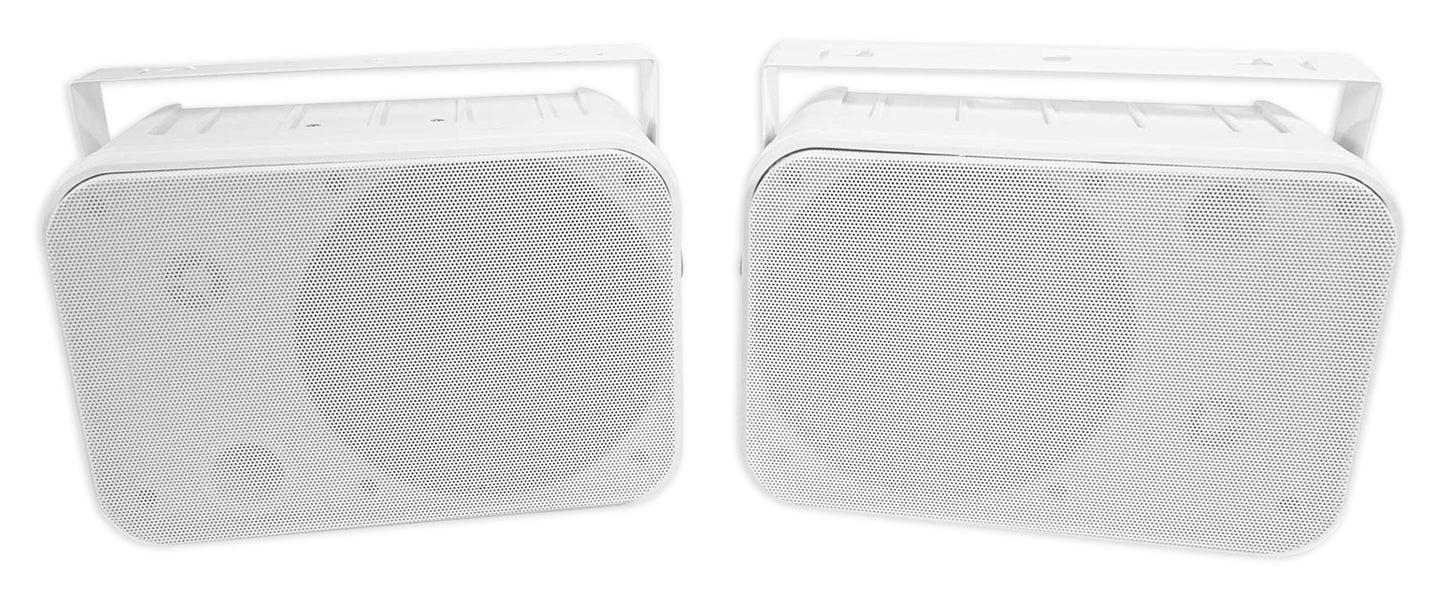

• Pair of Rockville HP65S-8 6.5” White 500 Watt Outdoor / Indoor Home Theater Speakers with Swivel Bracket

• Peak Power Handling: 500 Watts (per pair)

• RMS Power Handling: 160 Watts (per pair)

• IPX44 rated to withstand, rain, wind, etc

• Stainless steel grill will not rust

• Polypropylene Cone

• Rubber Surrounds

• 1” Aluminum Voice Coils

• 6.5” Woofer

• ½” Mylar Dome Tweeters

• 20 oz. Ferrite Magnet

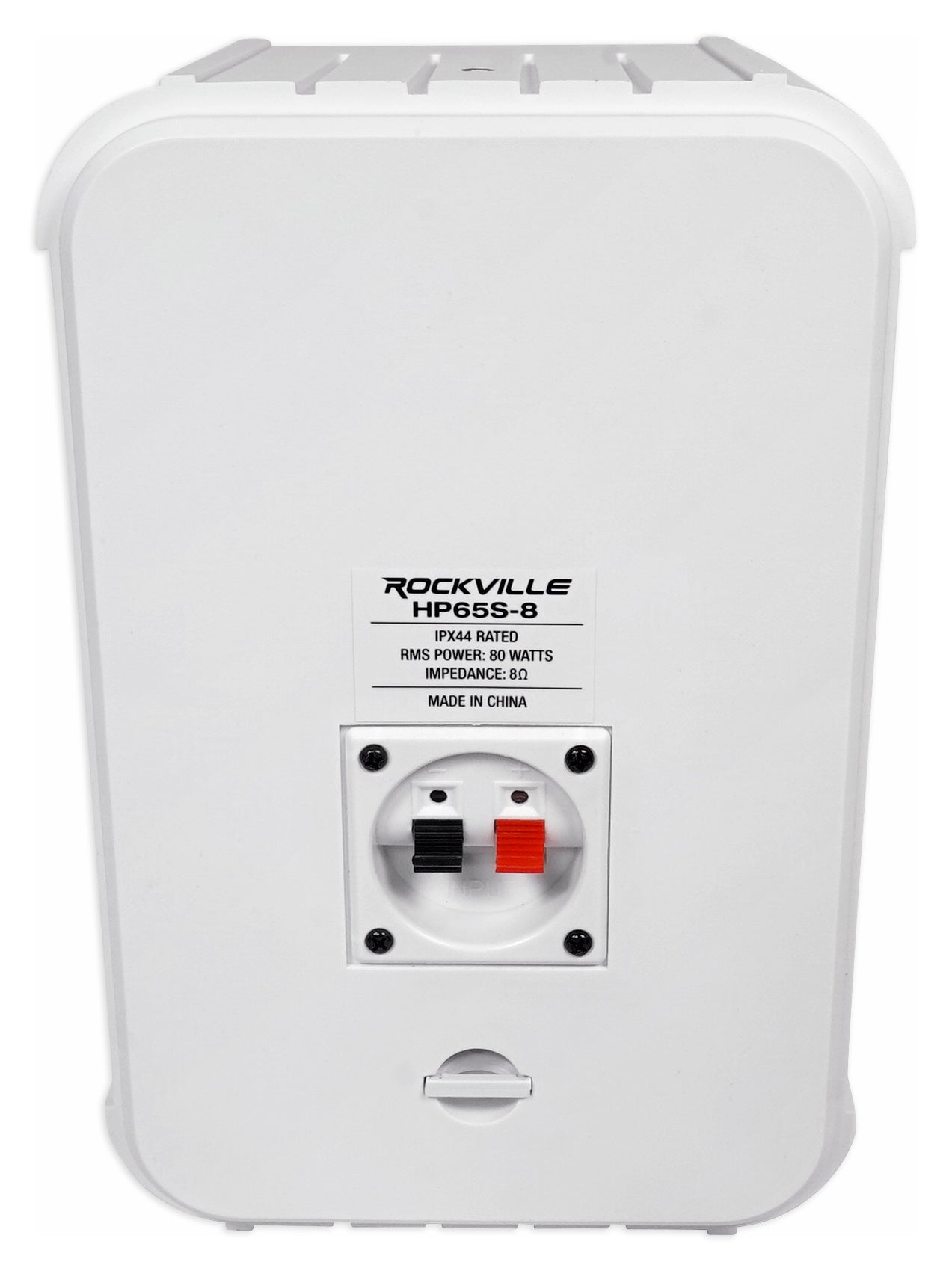

• High Quality Spring Loaded Push Terminals

• Completely Waterproof

• Tough ABS Construction

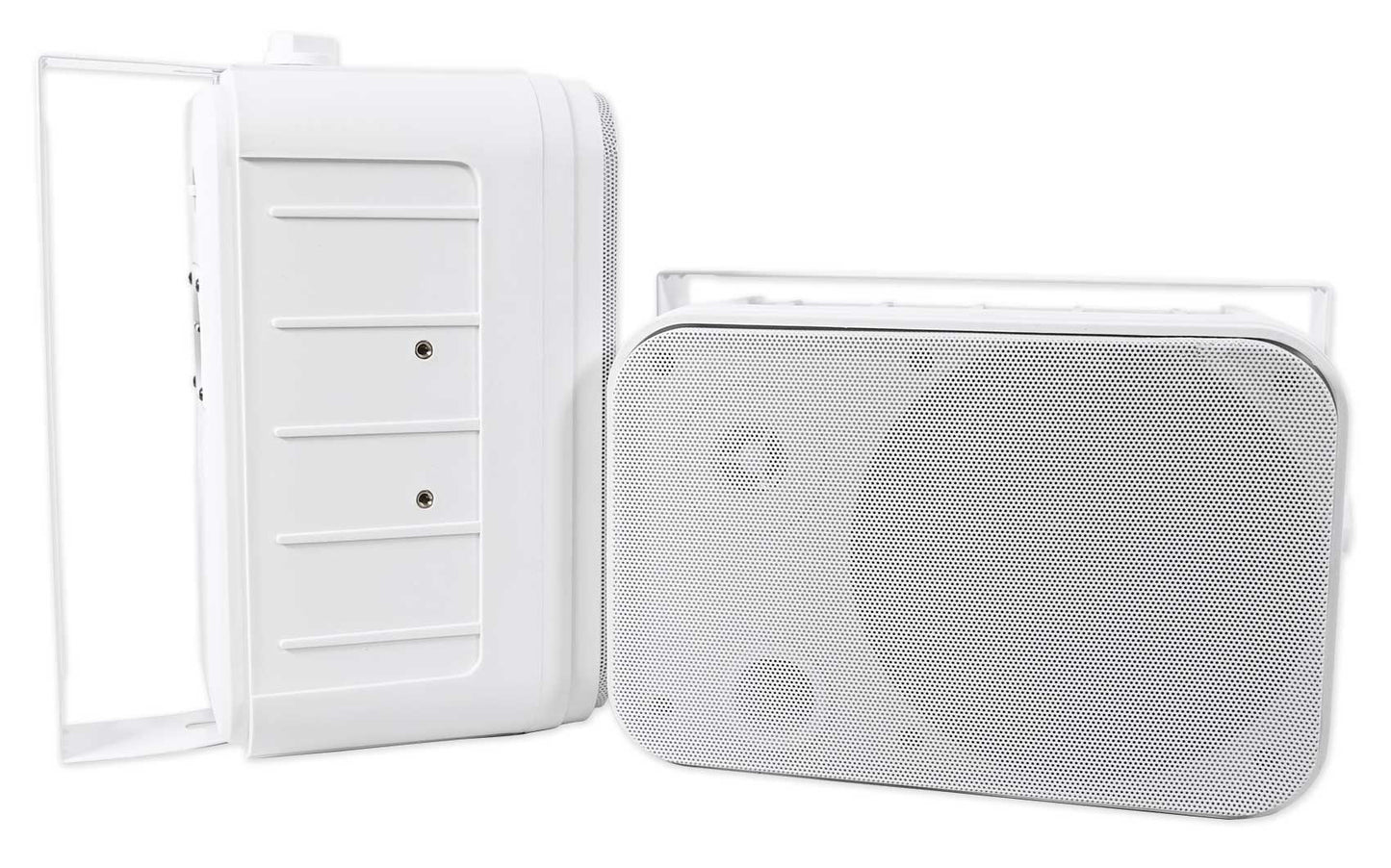

• Swiveling Metal Mounting Brackets

• Removable Metal Rustproof Grills

• Built-in Capacitor Crossover Network

• Frequency Response: 40Hz – 20KHz

• Sensitivity: 90dB @ 1w / 1m

• Impedance: 8 Ohms

• Dimensions (H*W*D): (10.6” x 7.1” x 6.2” inches) (270 x 180 x 158 mm)

• Color: White (paintable grill)
