Package Includes:

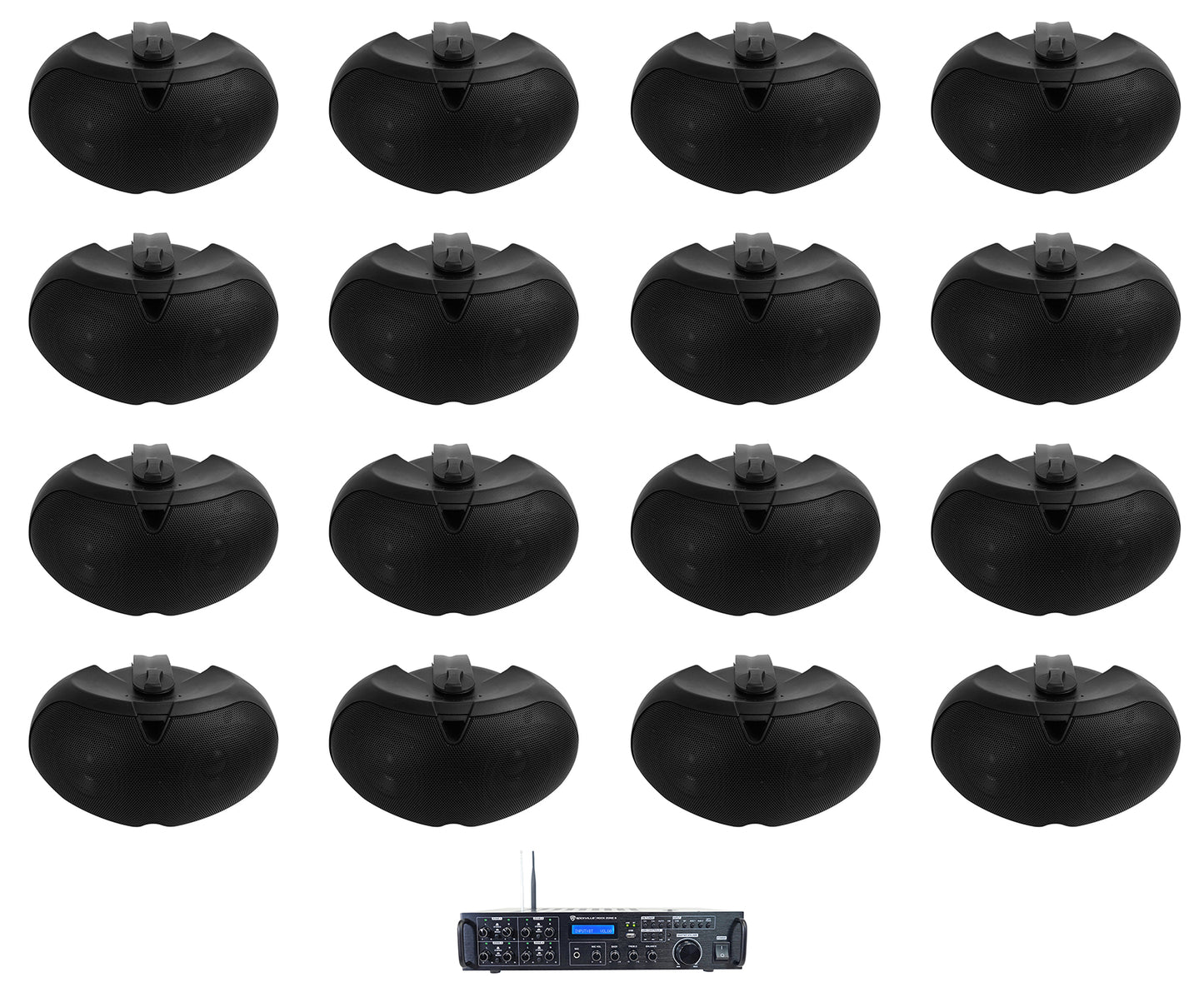

• (1) Rockville Rock Zone 8 8 channel 8 Zone 1000W RMS Multi Room Receiver/Amplifier

• (8) Rockville D4-8 Black Dual 4" 8 Ohm Wall Mount Swivel Outdoor Home Patio Speaker


---

All About Your Rock Zone 8:

How To Set Up Your Rock Zone 8:

How To Set Up Speakers to Your ROCK ZONE 8:

How To Set Up For Karaoke with Your ROCK ZONE 8:

How To Set up a Multi-Room Setup with Your ROCK ZONE 8:

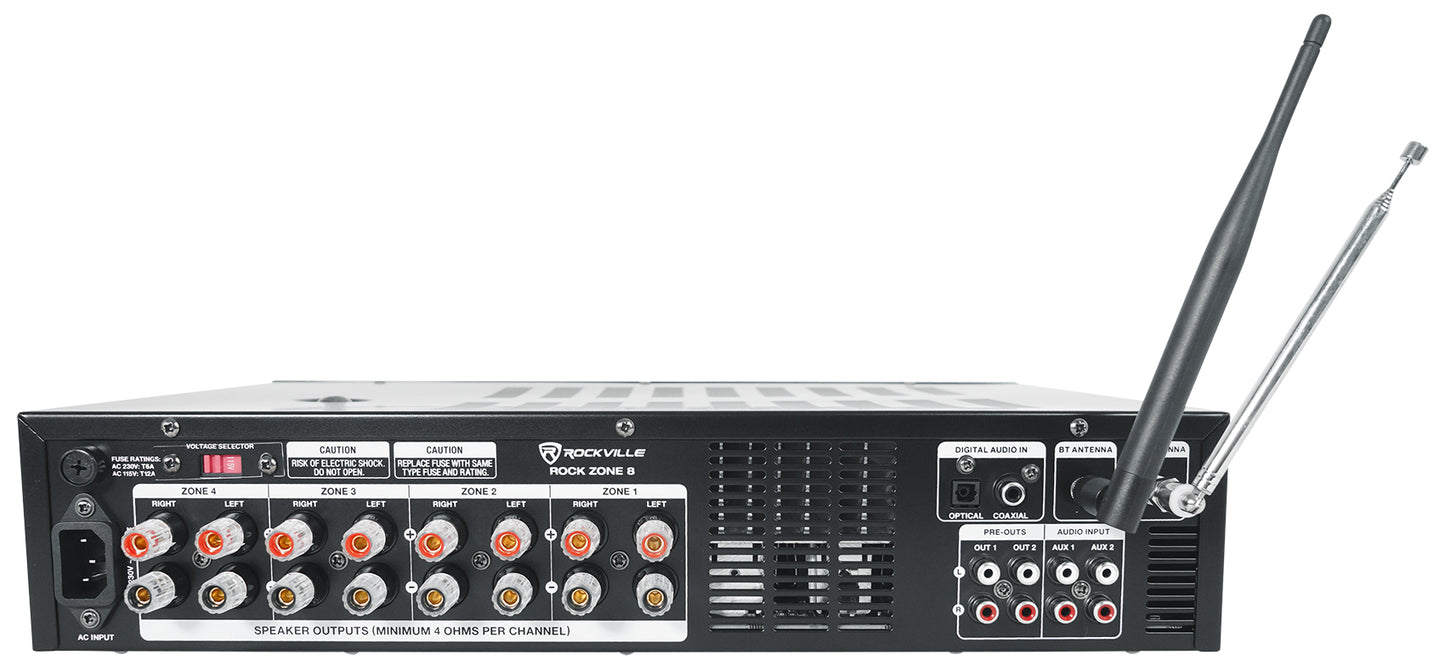

Controls, Inputs, and Outputs on Your ROCK ZONE 8 Explained:

How To Set Up Your ROCK ZONE 8 with a subwoofer or powered speaker:

What's in the Box:

• 8 Zone Amplifier

• Remote

• Detachable Rack mount ears

• Power Cable

• Owner’s manual

• Warranty

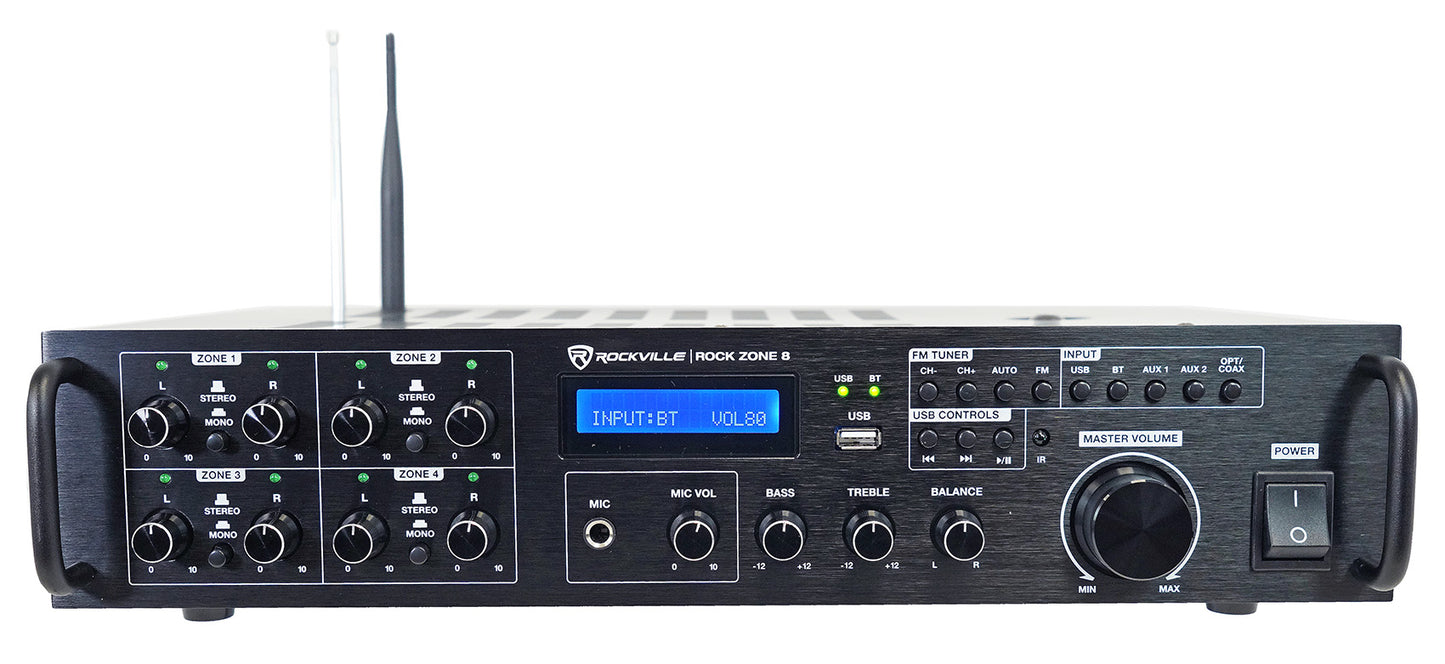

The Rock Zone 8 is an 8-channel amplifier that can be configured with either 4 stereo zones or 8 mono zones. It is perfect for both home and commercial audio applications. This amplifier has an impressive amount of power, with the most important rating being the RMS power at less than 1% THD. The amp puts out 125 watts x 8 channels at 4 ohms and 90 watts x 8 channels at 8 ohms. With this much power, you can support up to 32 speakers (4 per zone – 16 ohms each).

This receiver offers a wide range of playback options, including built-in Bluetooth playback, USB playback, optical input, 2 RCA inputs, FM radio, and a mic input.

The controls are really easy to use. Each zone has a mono/stereo selector and a zone volume control knob. There are also bass and treble EQ controls to customize the sound. The mic input with mic volume control will output to all the zones.

Features:

• Rockville Rock Zone 8 8 channel 8 Zone 1,000 Watt RMS Multi Room Receiver/Amplifier

• 8 Independent channels / zones each with volume control

• 8 Mono zones, or 4 Stereo Zones

• RMS Power @ 4 Ohms: 125w x 8

• Peak Power @ 4 Ohms: 500w x 8

• RMS Power @ 8 Ohms: 90w x 8

• Peak Power @ 8 Ohms: 360w x 4

• Can power (8) speakers that are 4 or 8 ohm  (1 speaker per channel)

• Can power (16) 8-ohm speakers (2 run in parallel per channel)

• Can power (32) 16-ohm speakers (4 run in parallel per channel)

• Built in Bluetooth with 35 foot range and external antenna

• USB input to play audio stored on a thumb drive (32gb max)

• Optical input

• Coaxial input

• (2) sets of RCA inputs

• RCA output for a powered sub or adding another amplifier

• RCA record output

• 8 sets of banana terminals that also accept bare wire

• Record output to connect a recording device

• Bass and treble and balance control knobs
• Signal Indicator LED's
• FM Radio Tuner with Presets & Auto-Scan

• Preset EQ for Bluetooth/USB (2 band EQ for other inputs)

• Remote control for source, master volume, MP3 module only (remote does not control zone volume)

• 19" rack mountable (removable rack brackets)

• Variable speed cooling fan

• Frequency Response: 20Hz - 20kHz

• Built-in Pre-Amplifier

• A Weighted Signal to Noise (referenced to full 8 ohm power, worst channel)

• RCA Input: -90.7dBA

• USB Input: -86.4dBA

• Optical Input: -89.0dBA

• Bluetooth Input: -86.4dBA

• Rubber Feet

• 115V / 230V switchable

• Weight: 22.93lbs

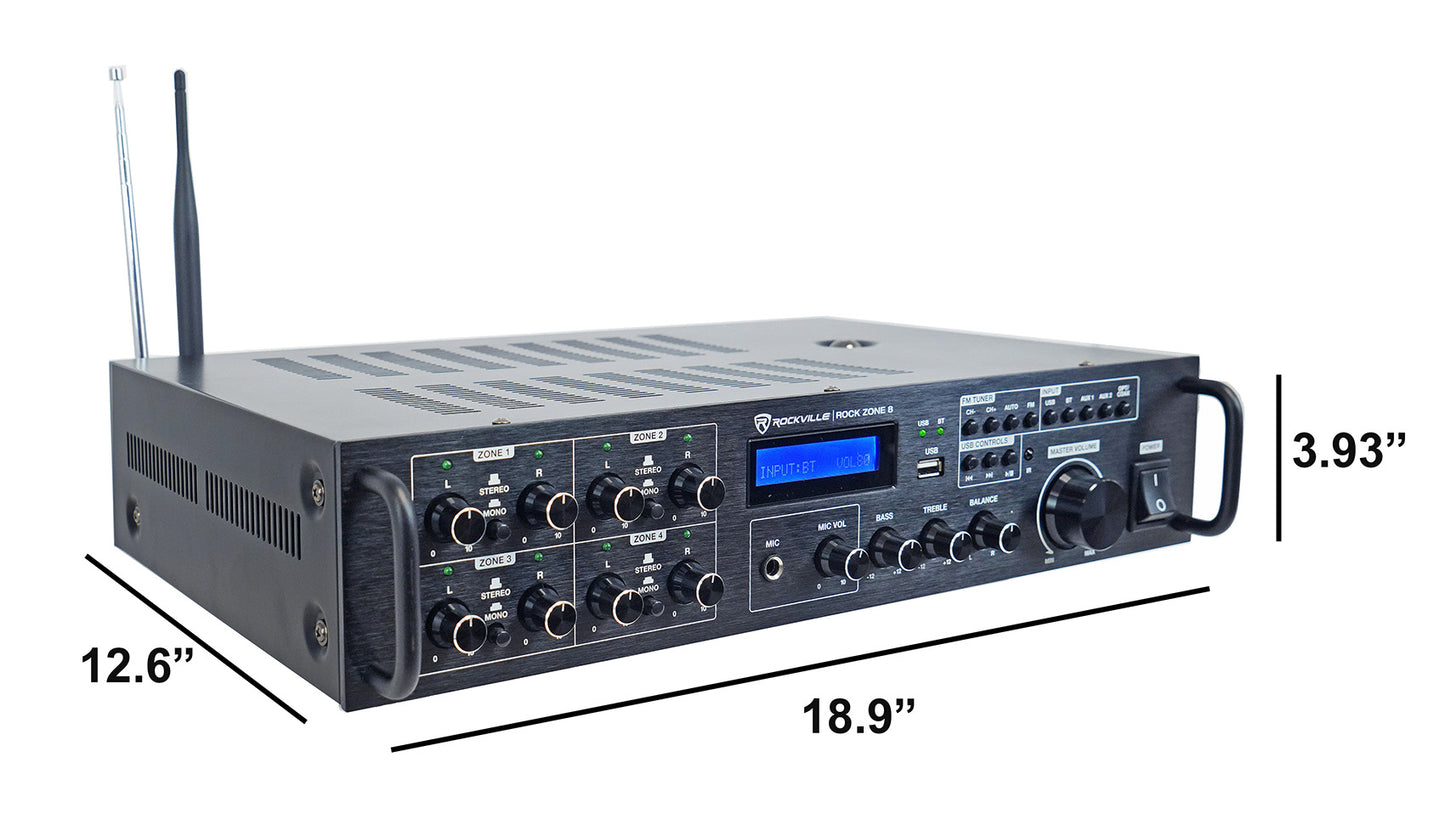

• Dimensions with the included rack mount ears attached: 18.9*3.93*12.6 inches

• Dimensions without rack mount ears: 16.9*3.5*10.4inch


Applications:

• Multi room home audio

• Offices

• Restaurant

• Retail stores

• Other commercial applications

---

How To Mount Your D4 Speaker To The Wall (step by step):

Description:

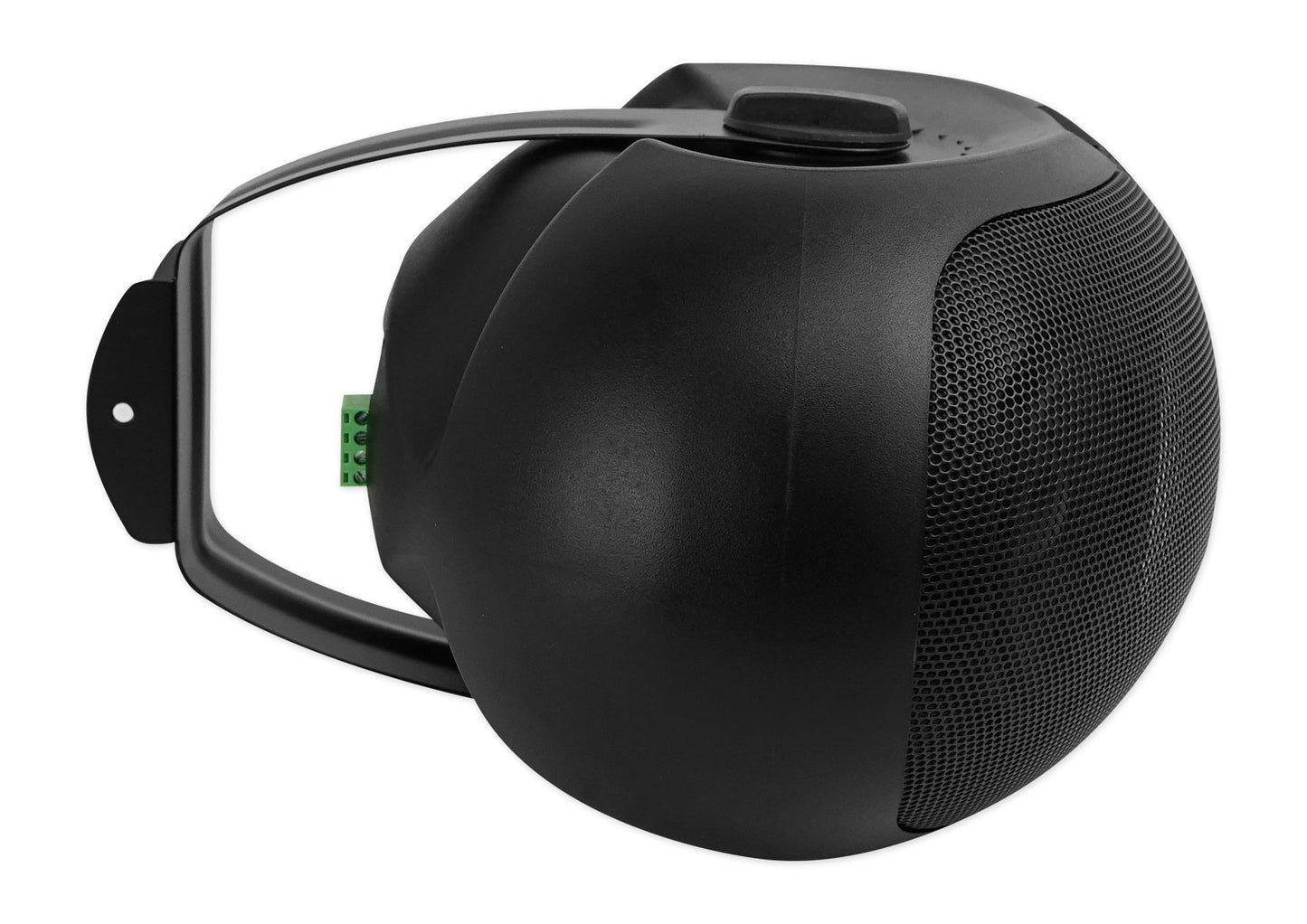

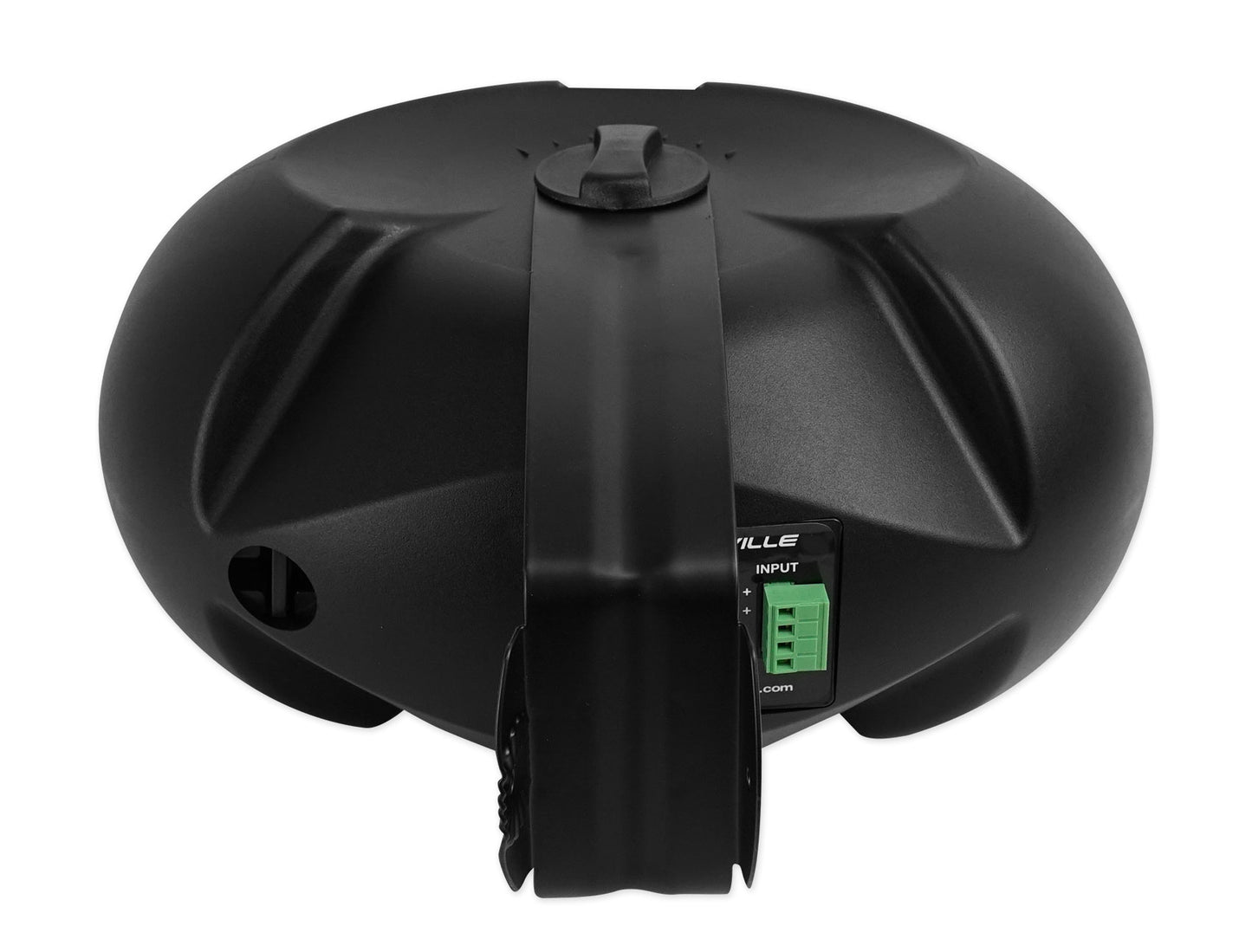

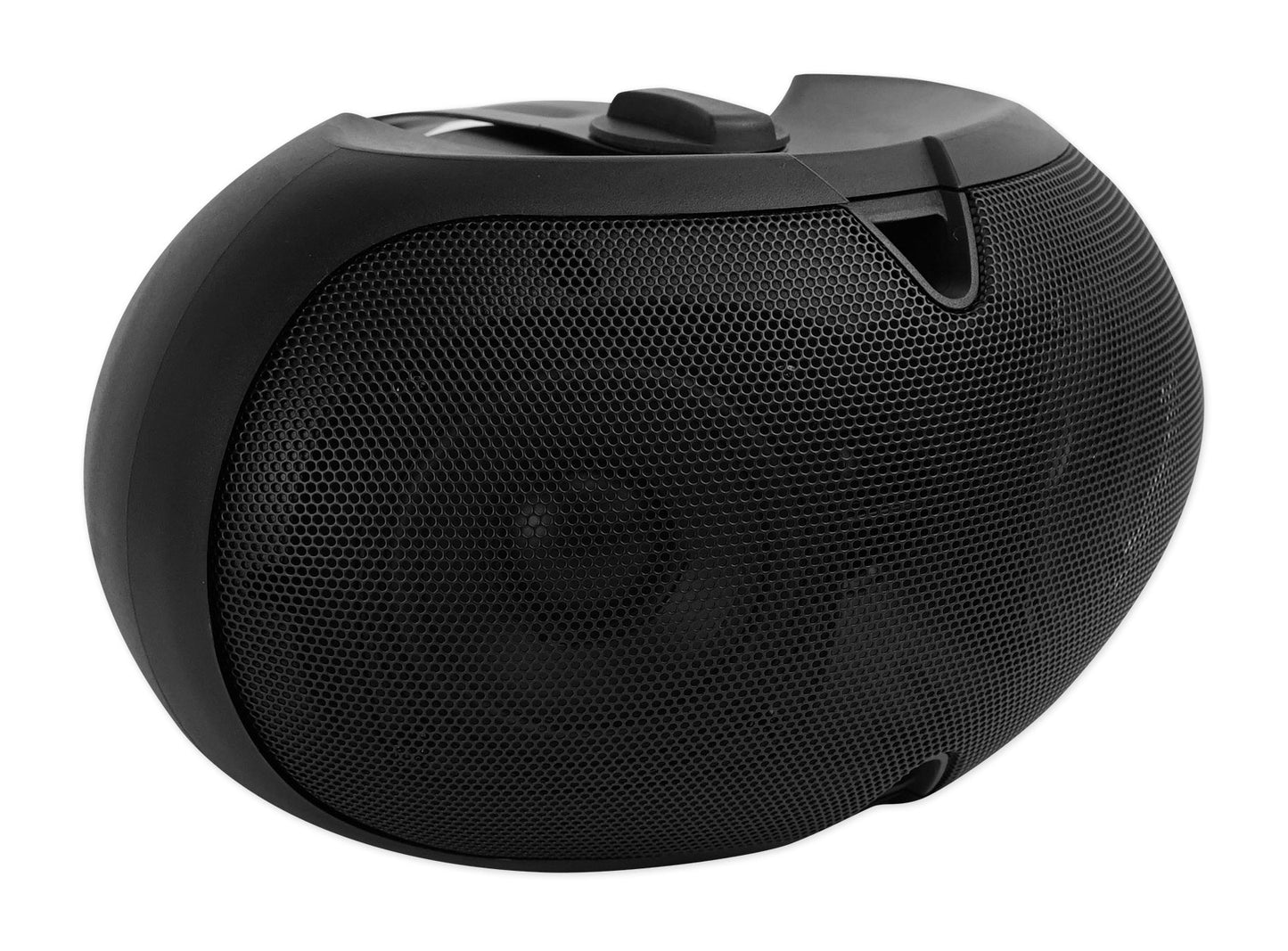

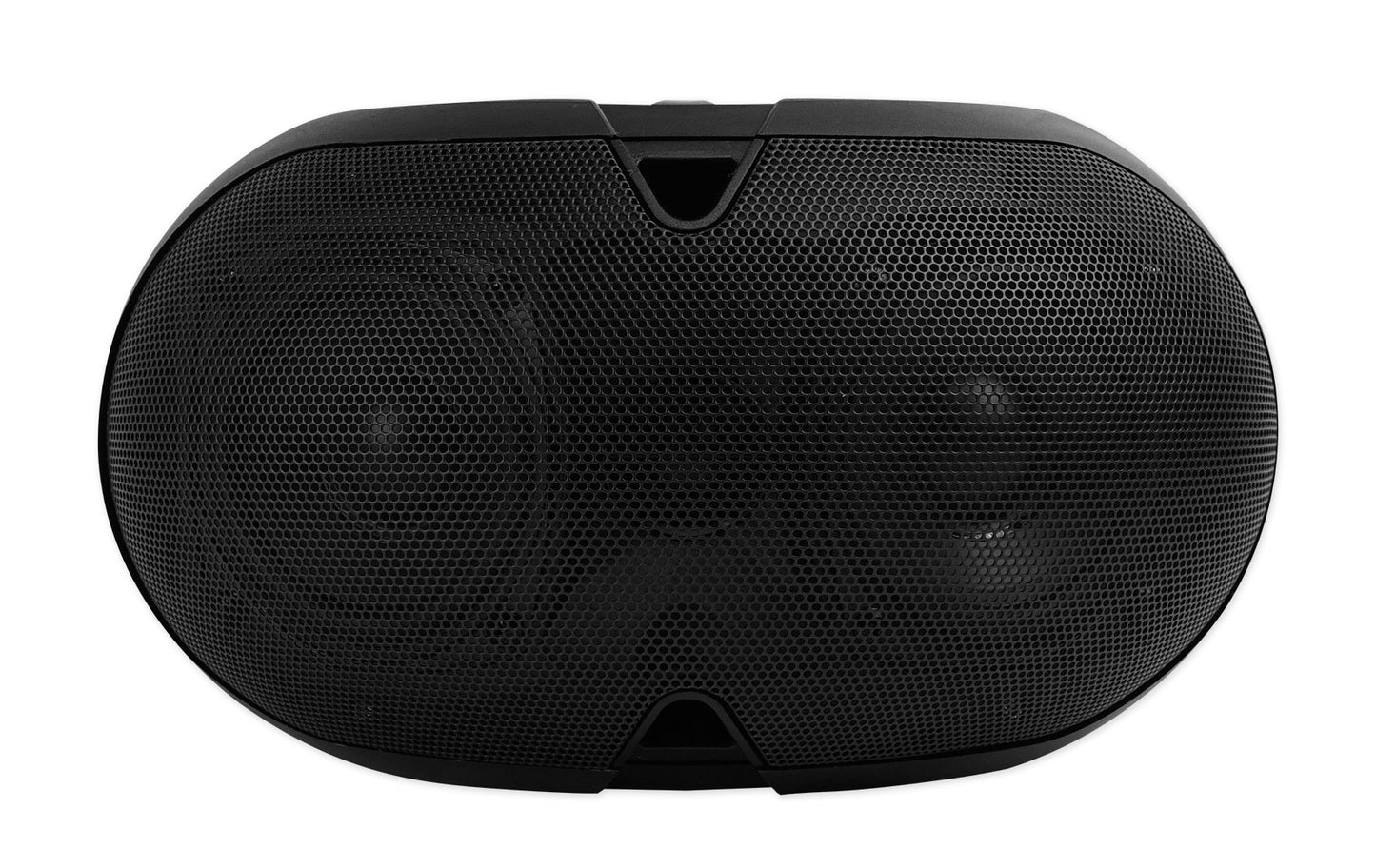

The D4-8 is a dual 4" speaker that is perfect for home audio systems, restaurants, patios, conference rooms, and much more. The dual speaker design disperses the sound wider so you can evenly spread the sound in any room.

The final impedance of this speaker is 8 ohms allowing you to connect 1 or 2 of them per channel to your amplifier or receiver. Each speaker can handle 50 watts RMS and 200 watts peak.

Our 4 way swivel bracket allows you to angle the speaker up, down, left and right for optimal sound staging.The sound these speakers produce are both rich and full. They include large 9.75 oz magnets and the tweeter is an audiophile grade silk soft dome tweeter. We also have a built in 2nd order 2500Hz fixed crossover that protects the speaker and creates a great sound curve for indoor or outdoor applications. The detachable euro-block terminals make installation quick and easy. The terminals work with ordinary speaker wire.

Power Handling:

• 50 Watts RMS each speaker
• 200 Watts Peak

Features:

• Rockville D4-8 Black Dual 4" 8 Ohm Wall Mount Swivel Outdoor Home Patio Speaker

• Weather resistant with rugged ABS cabinet is perfect for outdoor patio or indoor use
• Curved cabinet design for better sound coverage with an 80x120 degree dispersion
• Dual swivel mounting bracket supports vertical 90 degree swivel and horizontal 100 degrees swivel
• Polypropylene Cone
• Rubber Surround
• (2) 4" Woofers
• 1" Kapton Voice Coil
• 1" Soft Silk Dome Tweeter
• 9.75 oz. Ferrite Magnets
• Detachable Euro-Block Terminals with quick disconnect (uses regular speaker wire but its quicker)
• Built in 12dB/Octave crossover with dynamic speaker protector
• Crossover details: 2nd order / 2500Hz rolloff
• 8 Ohm impedance
• Frequency Response: 55Hz - 20KHz
• Sensitivity: 88 dB @ 1w / 1m
• Weight: 6.4 Lbs each
• Dimensions: 12.05" x 6.6" x 8.7"
• Color: Black
