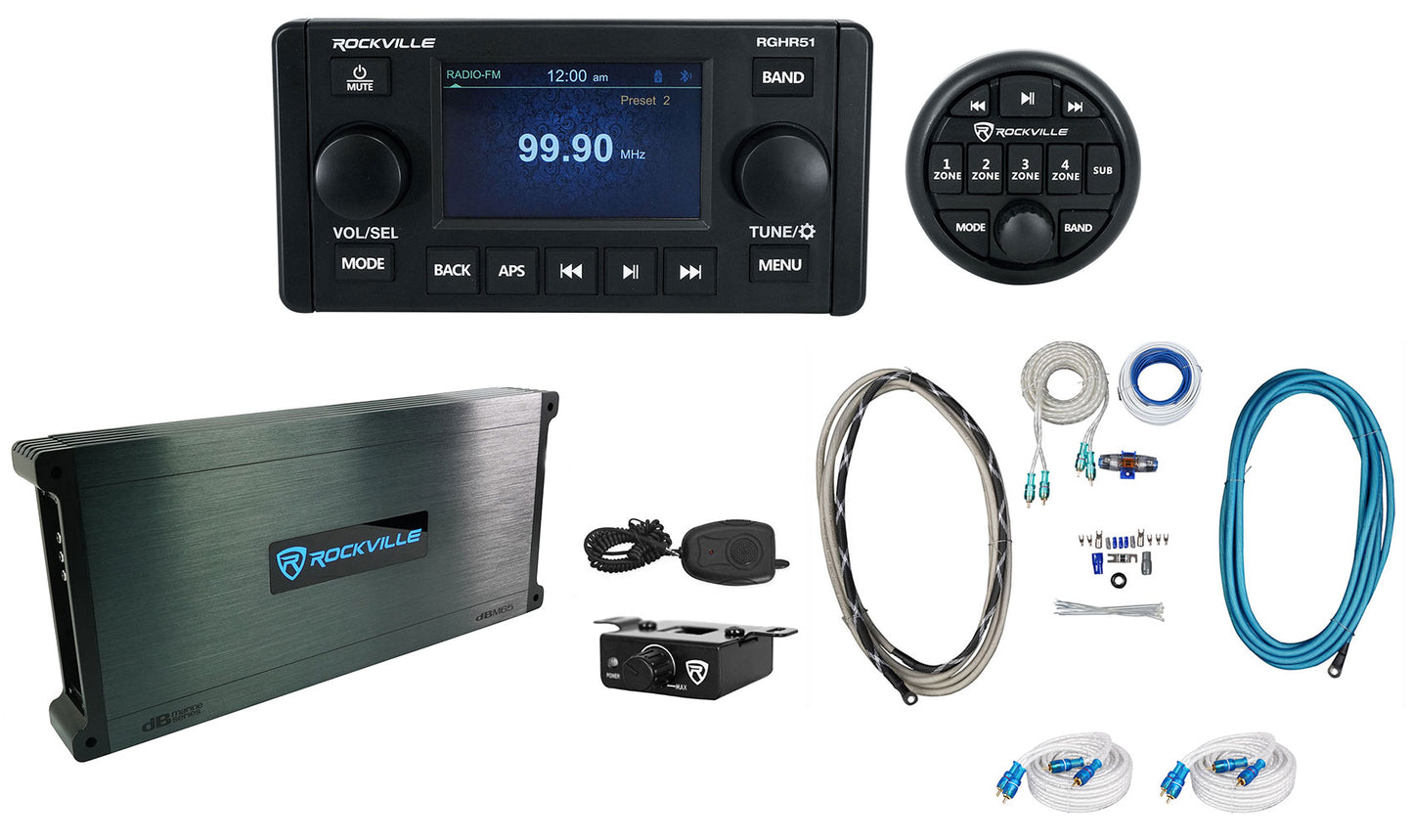

Package Includes:

• (1) Rockville RGHR51 5 Zone Single Din Marine Receiver Bluetooth/Radio/Wired Remote
• (1) Rockville DBM65 6-Channel 2600w Peak/660w RMS Marine/Boat Amplifier
• (1) Rockville RMWK4 4 AWG Gauge Waterproof Marine Amplifier/Amp Install Wire Kit
• (2) Rockville MRCA25 25 Foot Twisted Pair Marine RCA Cable 100% Copper, Split Pin

---

All About Your RGHR51:

How To Set Up Your RGHR51:

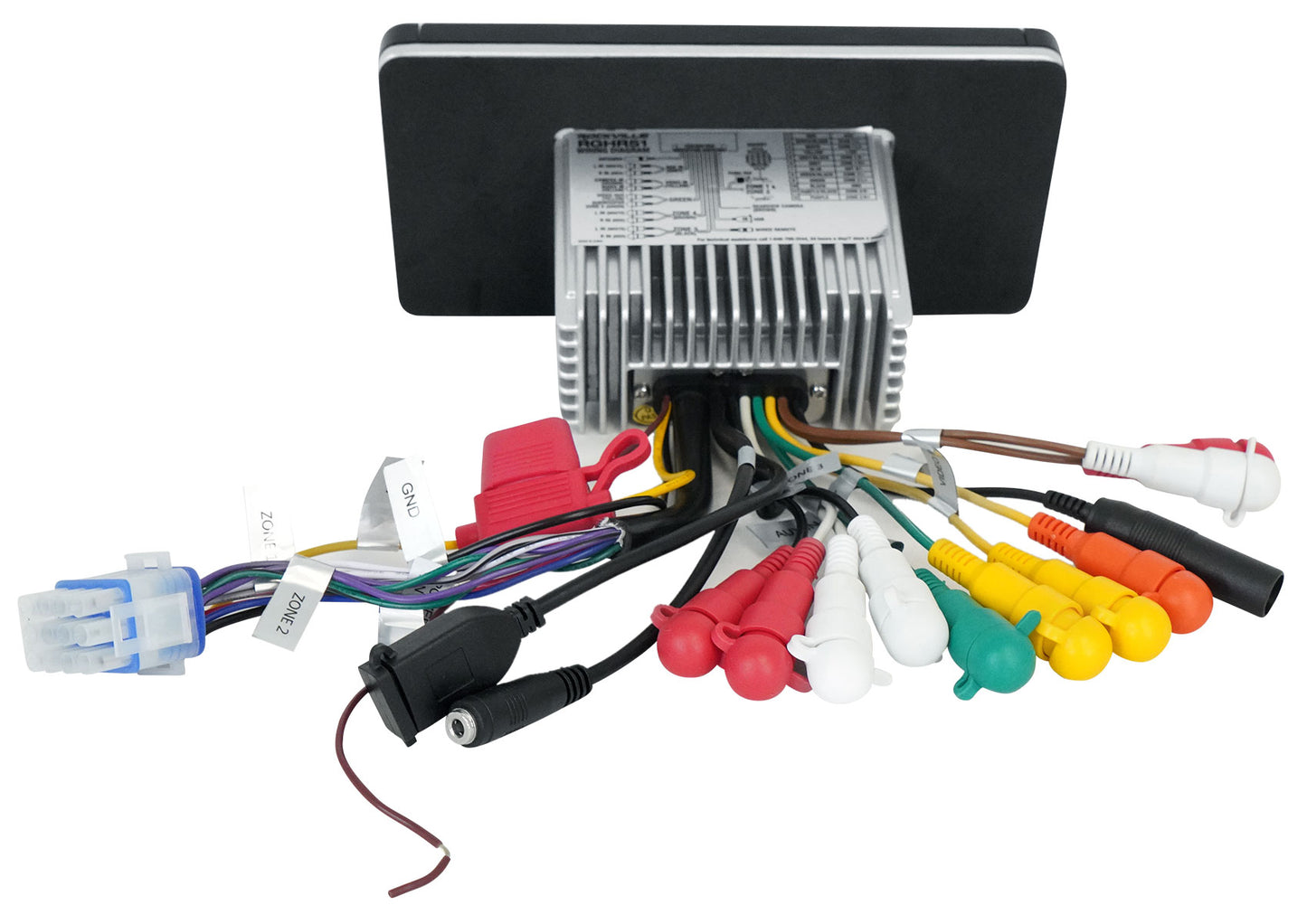

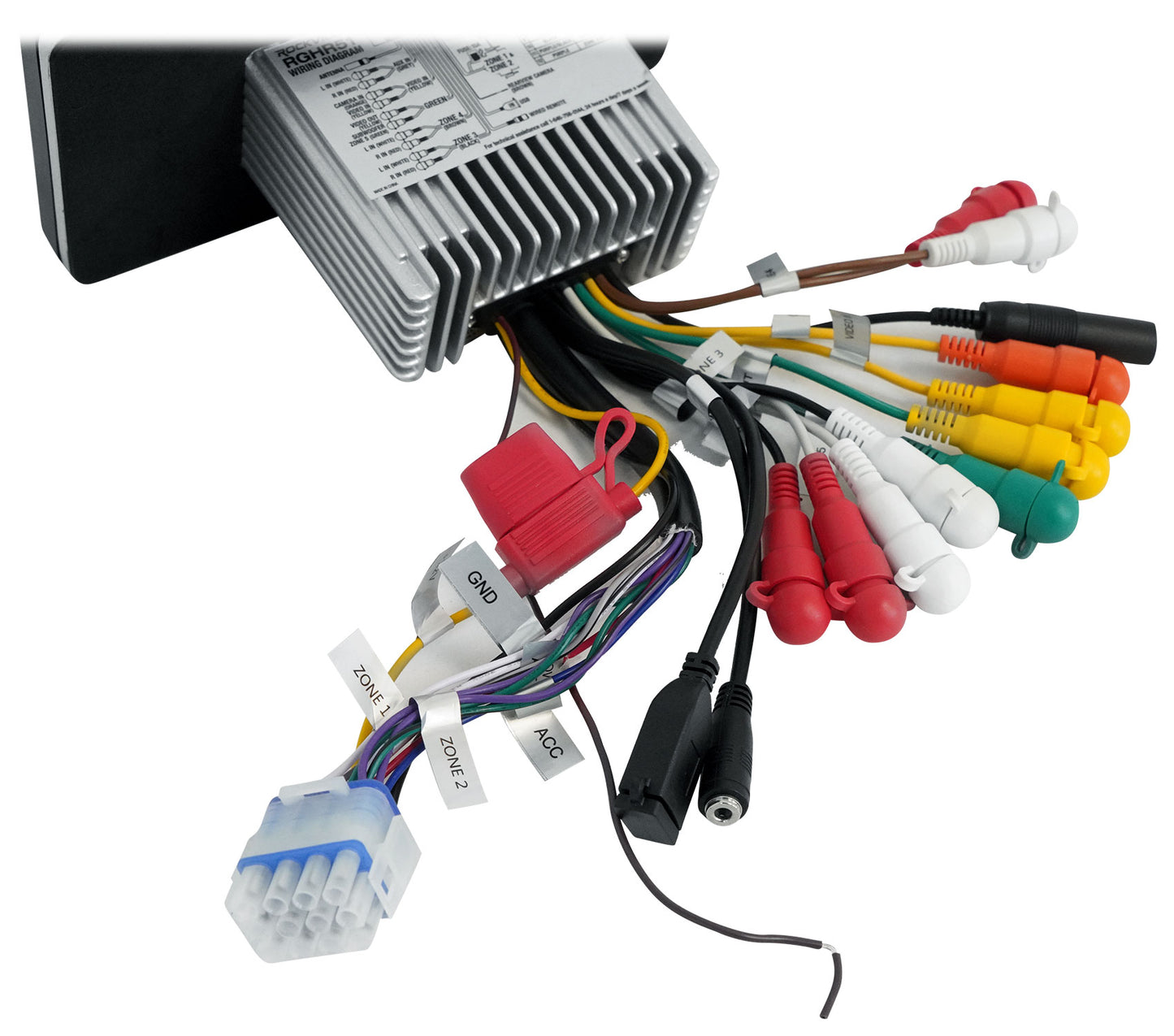

RGHR51 WIRES/INPUTS/OUTPUTS Explained!:

RGHR51 Zones Explained!:

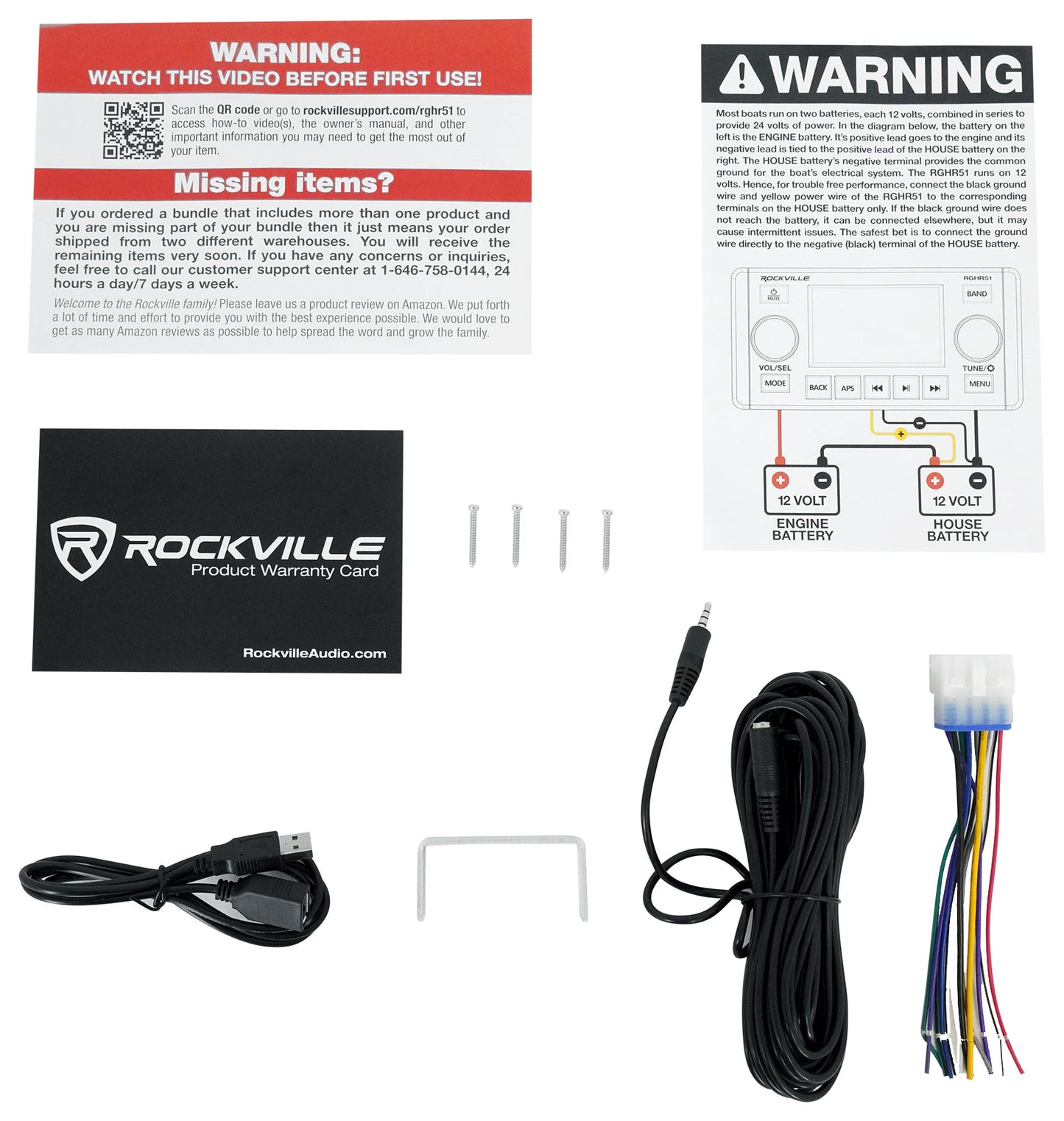

What's in the Box:

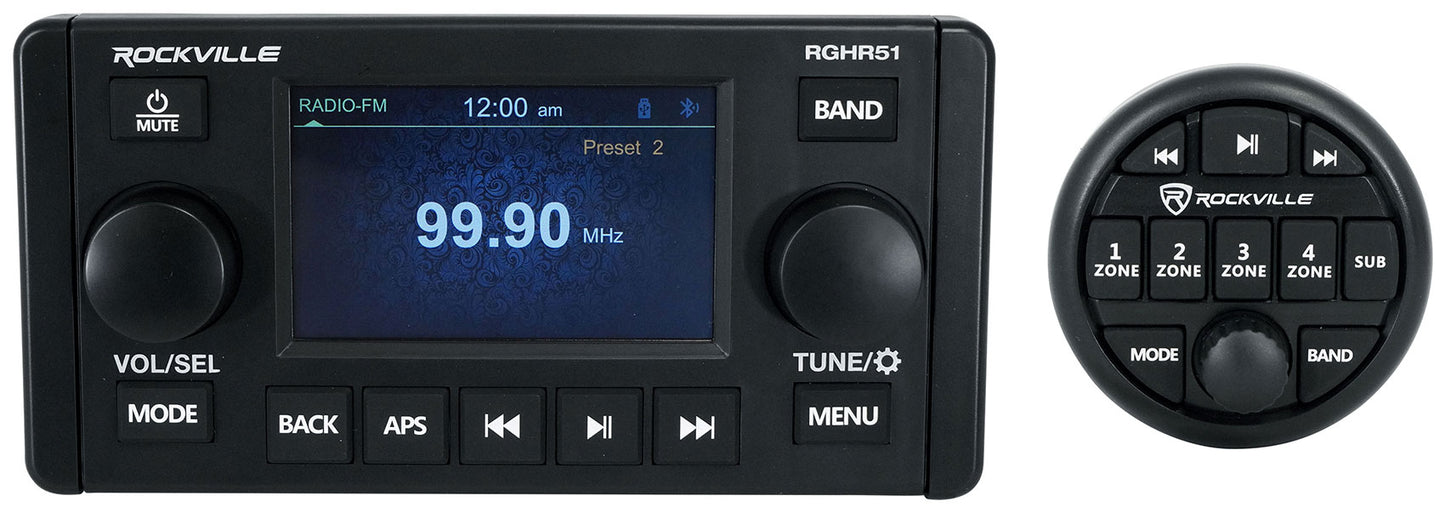

• Marine digital media receiver
• Wired remote with zone controls
• USB extension cable (40 inches)
• Mounting Screws for installation

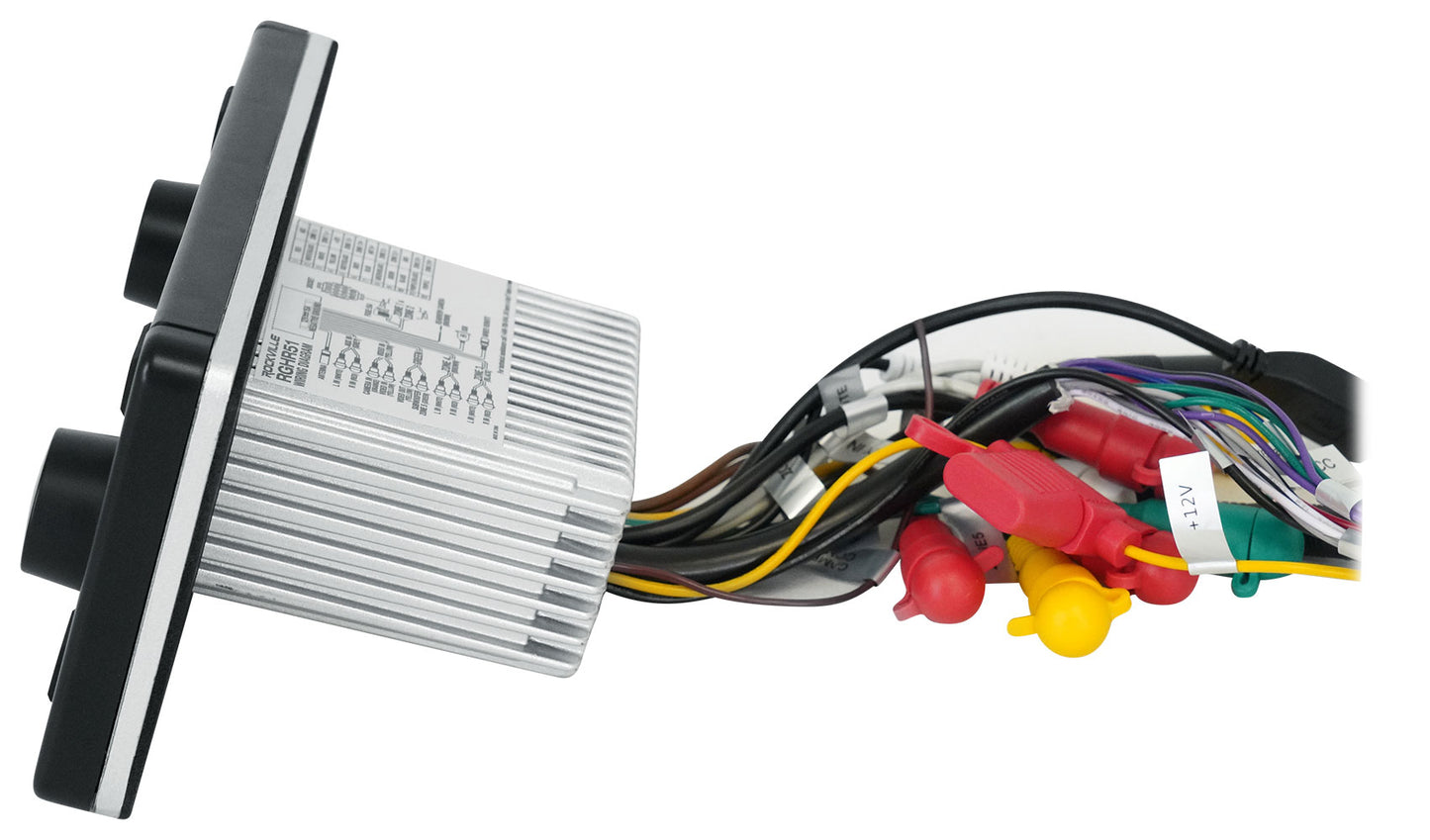

• Waterproof wiring harness for installation

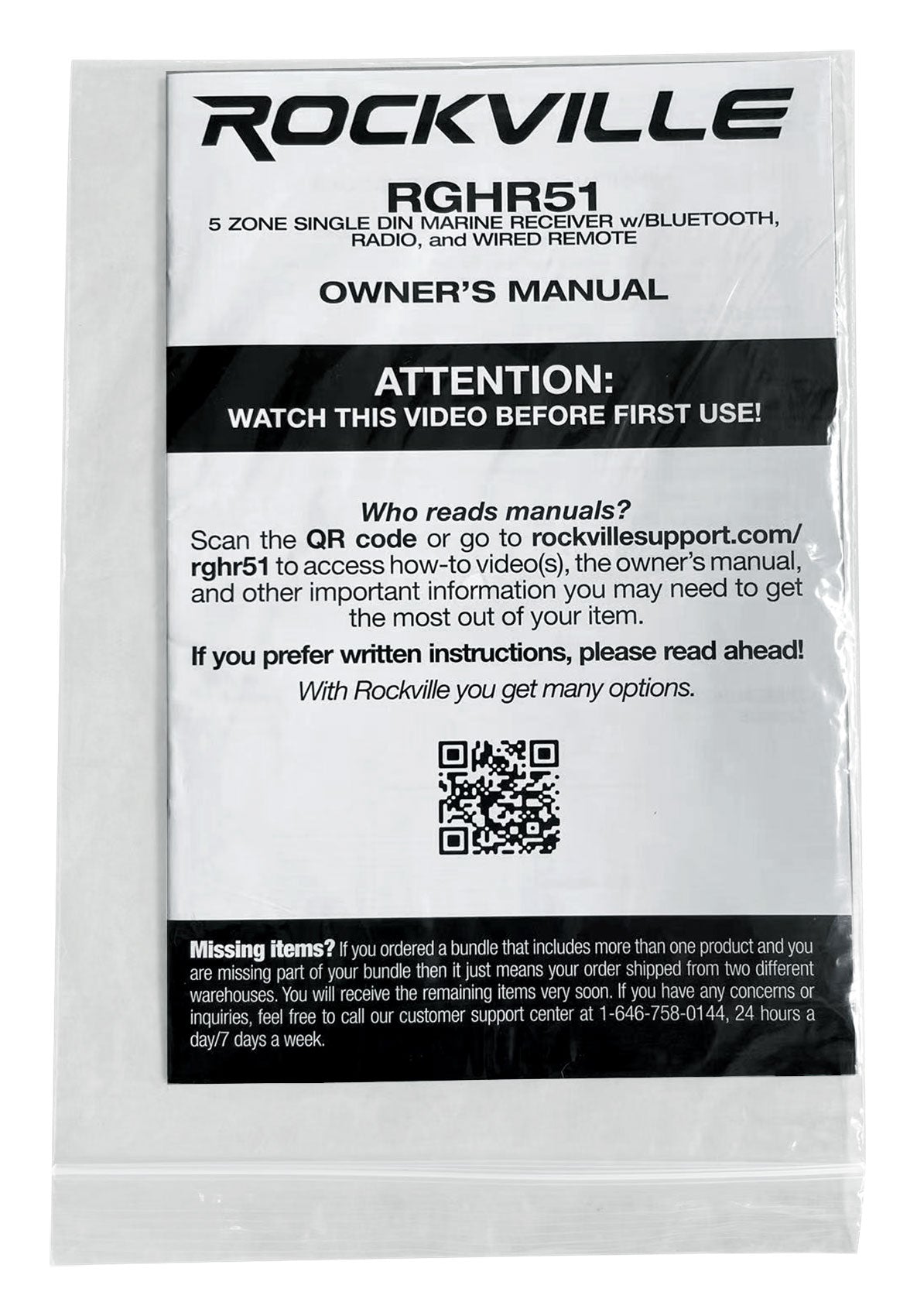

• Owner manual and warranty

Description:

5 Zones!

This marine receiver has 5 zones that each have independent volume controls both from the receiver and from the wired remote which we include. Here is how it works. Zone 1 and Zone 2 are the built in powerful 4 channel amplifier. With the addition of external amplifier(s) you can use the additional 3 zones. Each set of RCA outputs will connect to your external amplifier(s) and you will be able to control the volume level either from the receiver or from the wired remote.

4" TFT display

Our built in 4" TFT display is crystal clear and it makes it easy to navigate your tracks and settings. We also include a rear view camera input as well as an aux A/V input.

Intuitive Screen Display

With the intuitive screen display you can access all your photos, videos and music all in one place. Hold the band button to access photos and videos and songs stored on a USB thumb drive.

Crazy loud!

We used a built in amplifier that is louder than other marine receivers on the market. The RMS power of the built in amp is 28 watt x 4 channels! It is crazy loud and can be heard over the sound of the wind when you are on the water! There is also a built in EQ to customize the sound to your taste.

Latest listening features

The RGHR51 gives you many listening options. The Bluetooth technology allows you to stream audio from your Bluetooth enabled phone or other music player to the receiver. Our Bluetooth distance is 50 feet! There is also a USB input allowing you to listen to music stored on a thumb drive. You can plug in any audio device to the auxiliary input. There is a built in radio with crystal clear reception as well.

Includes a wired remote!

We include the wired remote inside the box. Most famous brands like to make extra money on the remote, but at Rockville we just include it because we know it will make your experience better. We custom engineered the remote to be able to control basic functions as well as control the volume in each zone!

Features:

• Rockville RGHR51 Single-Din Weather Resistant Digital Media Receiver with 5 Zones that each have independent volume control
• Includes wired remote with the ability to control the volume in each zone
• 4" TFT color display makes it easy to navigate menus
• Built in Bluetooth/USB/AM/FM playback
• Built-in 72 x 4 Watt Peak high powered amplifier (28 x 4 RMS)
• 3 pairs of pre-amp outputs each with independent volume controls
• 5 zones each with volume control (zone 1+2 = built in amplifier, zones 3, 4, 5 are the RCA outputs
• Built in EQ with preset EQ curves (Pop, Classic, Rock, Jazz, Beat, Flat)
• IP66 Waterproof Certification (Tested to withstand the elements)
• USB Input to play back audio files store on a USB thumb drive or any other USB device
• USB plays video
• RCA A/V input to play back a video source
• Rear camera input
• RCA Aux Input
• AM/FM Radio Built In with 18 FM and 12 AM presets + US and European tuning
• Bluetooth built in to stream audio from any Bluetooth enabled device
• USB Input Charges Your Phone
• Big easy to use buttons
• IP66 waterproof level
• meet ASTM B117 and ASTM D4329 standards
• Humiseal coated PCB board for waterproofing and protection from the elements
• USB is 500mA and 5V and supports 16GB max
• Specs of the built in amplifier
• TDA7850 power amplifier built in
• Low distortion even at top volumes

Specifications:

• Standard single din mounting: 1.97" Mounting Height x 3.94" Mounting Length (Inches) (this is the required mounting cutout)
• Mounting Depth: 3.23" (Inches)
• Front face plate: 7.87" L x 3.94" H (Inches)

---

How To Install a Marine Amplifier onto Your Boat:

Video of DBM65:

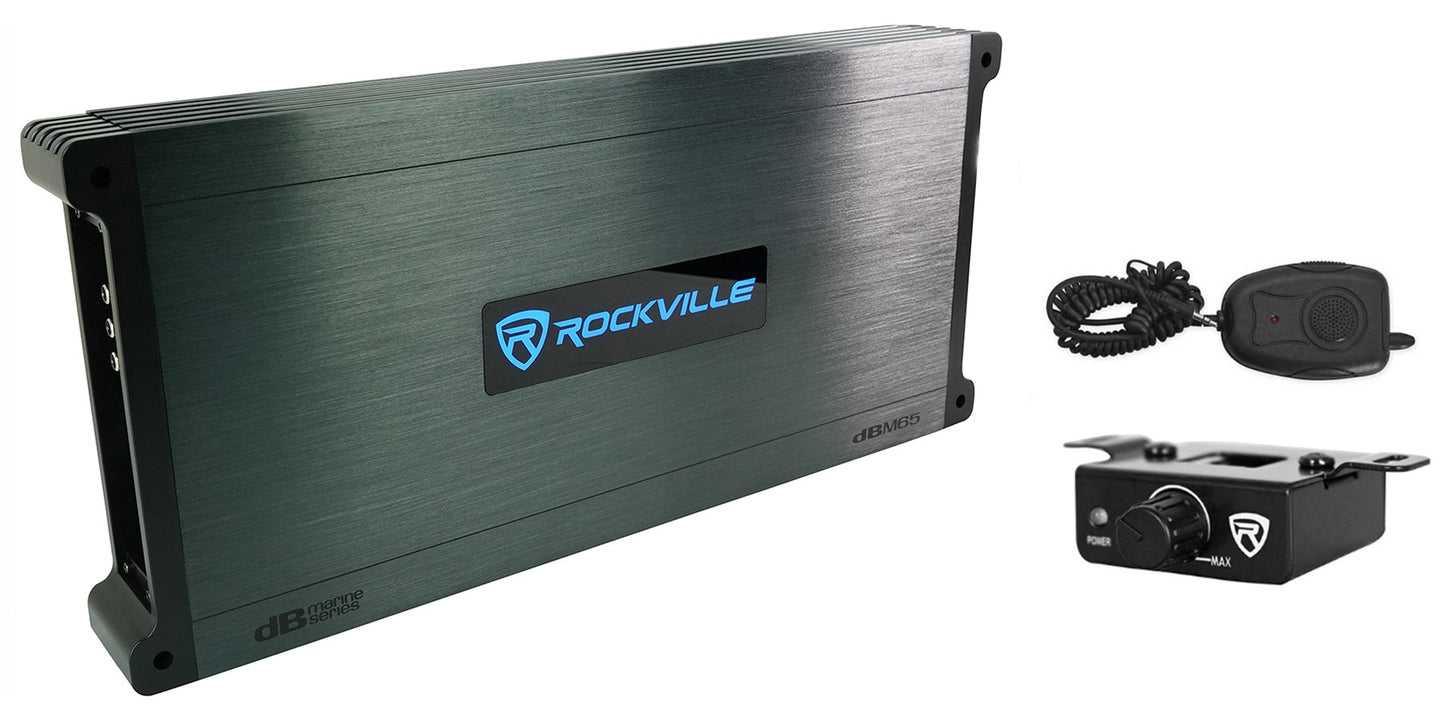

Includes:

• dBM65 Amplifier

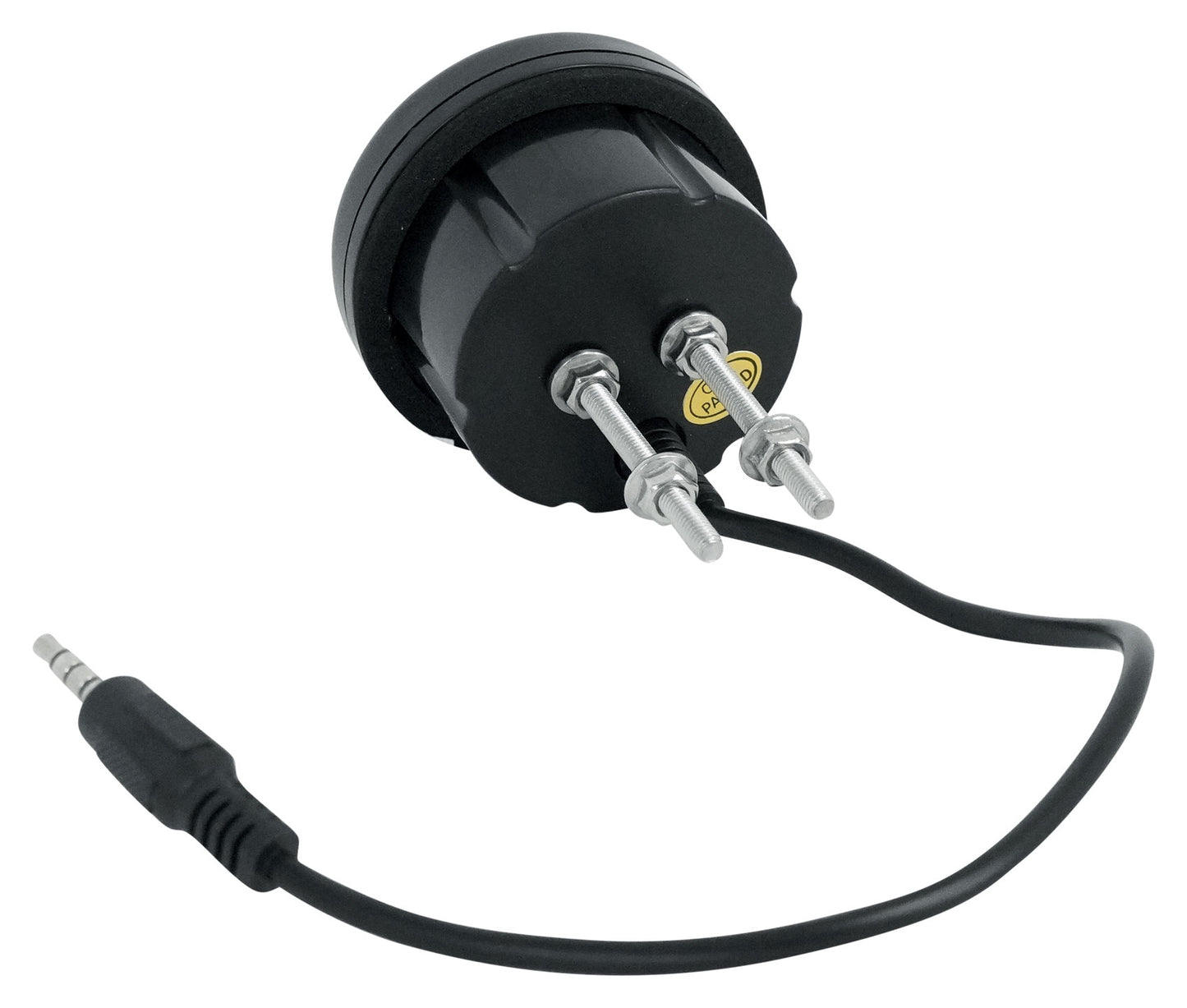

• Bass remote
• PA Microphone

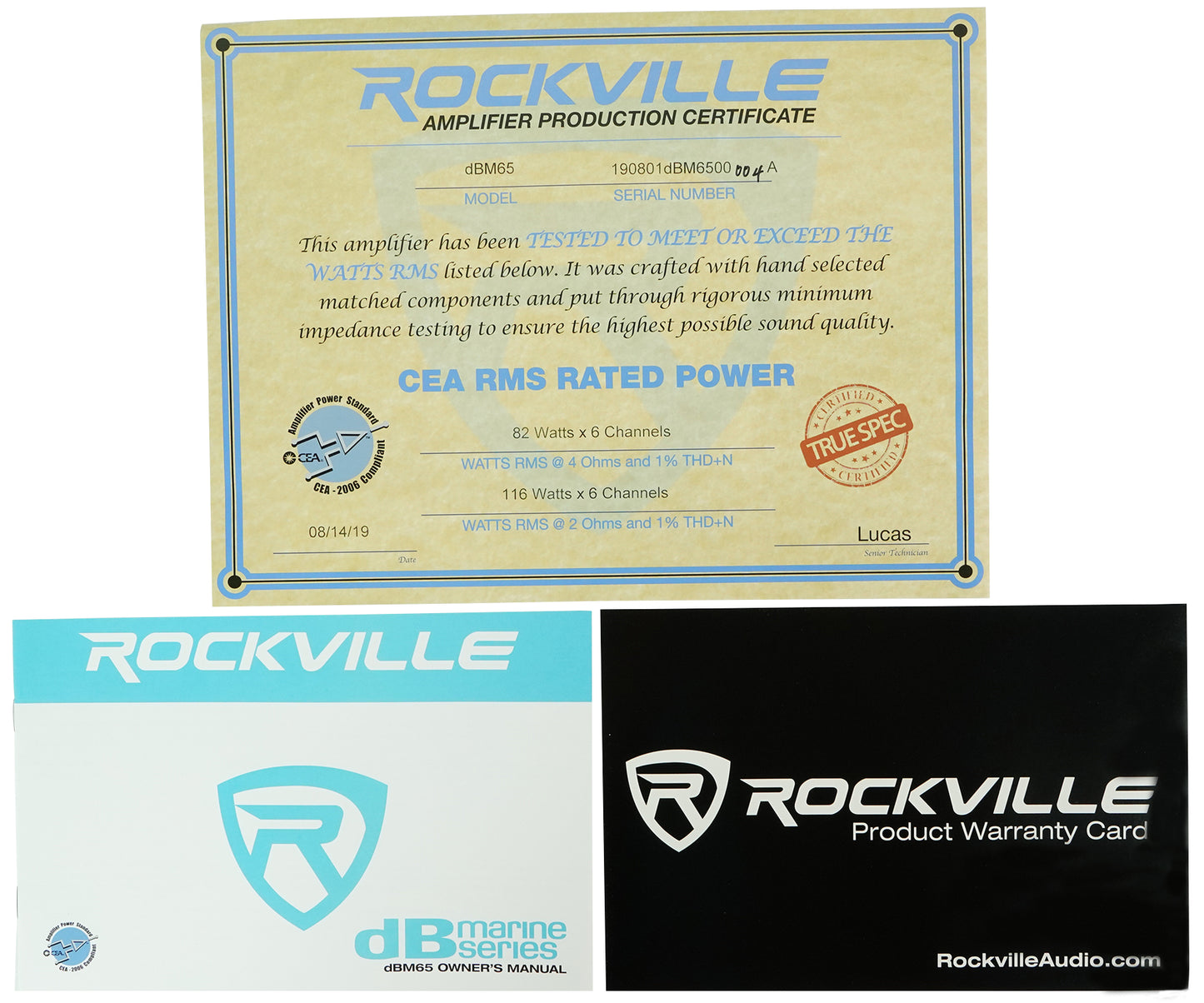

• Birth sheet with Tested Power
• Mounting Screws
• Warranty Card
• Owner’s Manual

Some Popular Configurations:

• 4 full range speakers and 1 or 2 subwoofers
• 8 full range speakers and 1 or 2 subwoofers
• 6 full range speakers (one per channel)
• 12 full range speakers (2 per channel)
• (3) extremely high-powered subwoofers
• Combination of midrange speakers and tweeters
• Combination of subwoofers, full range speakers, and tweeters

There are a ton of other configuration options, because you can bridge any 2 channels of the amp and you can also plug 2 speakers into any single channel of the amp. All channels can be used for full range speakers or for subwoofers since each channel has a crossover. With 110 watts Dyno-Certified per channel @ 2 ohms; each channel has more than enough power for the best speakers on the market.

There is also a really cool feature I wanted to mention quickly. It has 6 channel, 4 channel, and 2 channel selectable input modes. This means if you only have one set of RCA outputs on your receiver, you can run this in 2 channel mode and still have a 6 channel amp to connect many speakers! If you have 3 pairs of preamp outputs you can run the amp in 6 channel input mode. If you have 2 pairs you can select the 4 channel input mode.

Description:

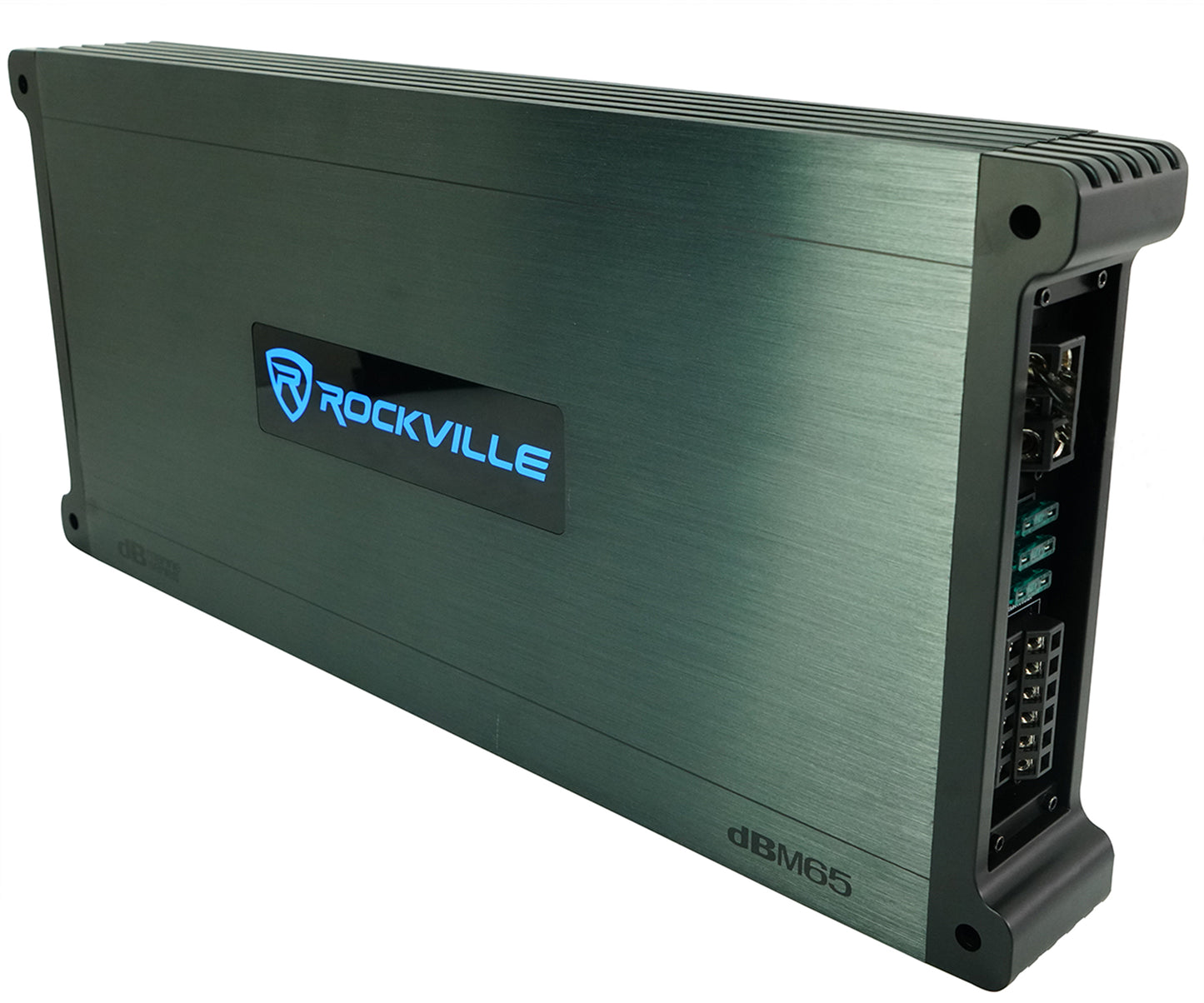

The all new dB marine series of amplifiers gives you the best of both worlds! We took the sound of our best-selling series of dB car amps and we added top of the line marine grade parts so that they will last forever and withstand even the harshest conditions on the water.

We went a little overboard (no pun intended) to make this amp marine ready. We conformal coated the PCB board with a waterproof glue that is painted on to protect the circuitry. We then added waterproof silicone covers over the terminals so that water can never get into the amp. The heat sink, including the bottom plate, is made of aluminum which is rustproof. The end panels, the internal mounting screws and hardware of the amp are made of stainless steel and are rustproof as well. Even after many years of use the amp will be rust free and operate like new!

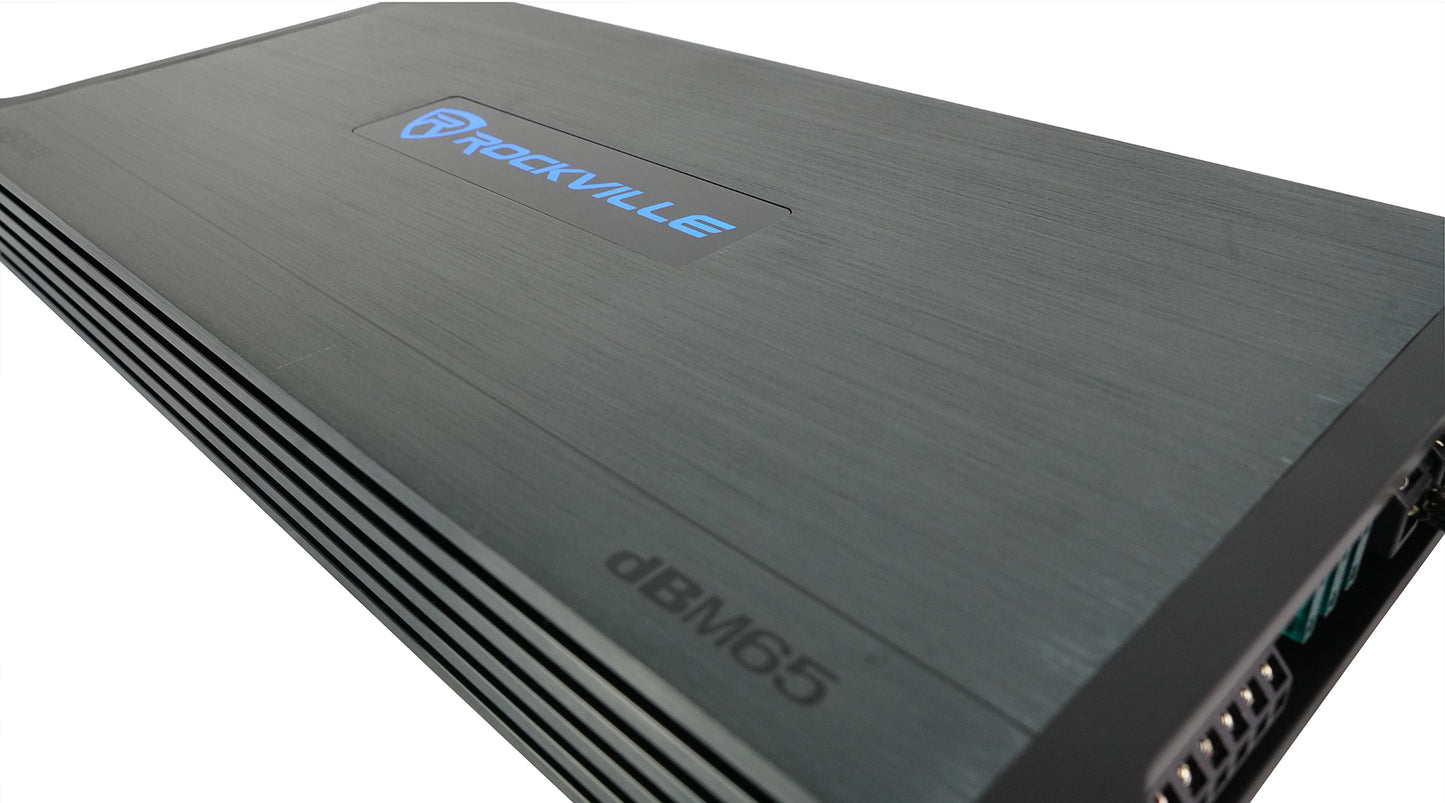

The DBM65 is a 6-Channel amplifier with 2,600 watts peak output and 650 watts Dyno-Certified power. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.

This amp has a very cool fully adjustable 12dB/Octave crossover. What is cool about it is that our crossover supports low pass, high pass, bandpass, and subsonic. This makes our amp ideal for subwoofers (sealed and vented), full range speakers, and midrange speakers. In high pass mode we allow you to filter out frequencies between 15Hz - 4K Hz. In full mode you will not be filtering any frequencies. The really cool part is in low pass mode you can use the high pass and low pass mode. So for example you can set the low pass mode to 50 hz, and then you can set the high pass to 15 Hz. In this case you would be playing frequencies in the range of 15-50 Hz on this channel. This would be an example of using the subsonic filter. Another option you have is for midrange speakers, you can use our low pass filter and set it really high. Lets say to 150 hz. And then you can set the high pass to 3K hz and your midrange speakers will only play that frequency range. Our advanced crossover technology will allow you to really fine tune each speaker to get the sound you desire.

The other cool thing is that this amp has 3 of these crossovers. Every 2 channels has its own set of advanced filters.
As an example; you can use:
Channels 1-2 for 4 full range speakers (in full mode)
Channels 3-4 for 8 midrange speakers (using the bandpass filter)
Channels 5-6 for a subwoofer or 2 (using low pass filter with or without the subsonic)

This amp is capable of supporting almost any setup you can think of.

The dBM65 is protected by a full IC controlled circuitry with mute, delay, and soft start technology to protect your amplifier and speakers from thumping when you turn your vehicle on.

We are so confident that you will be satisfied with this amplifier that we will offer you a 90 day money back guarantee. If this amp does not perform as well as you expected, we will send you a pre-paid shipping label and give you your money back. This means that, if for any reason you want to return the amplifier for a full refund within 90 days, you can! (Amp must be complete along with the box).

Features:

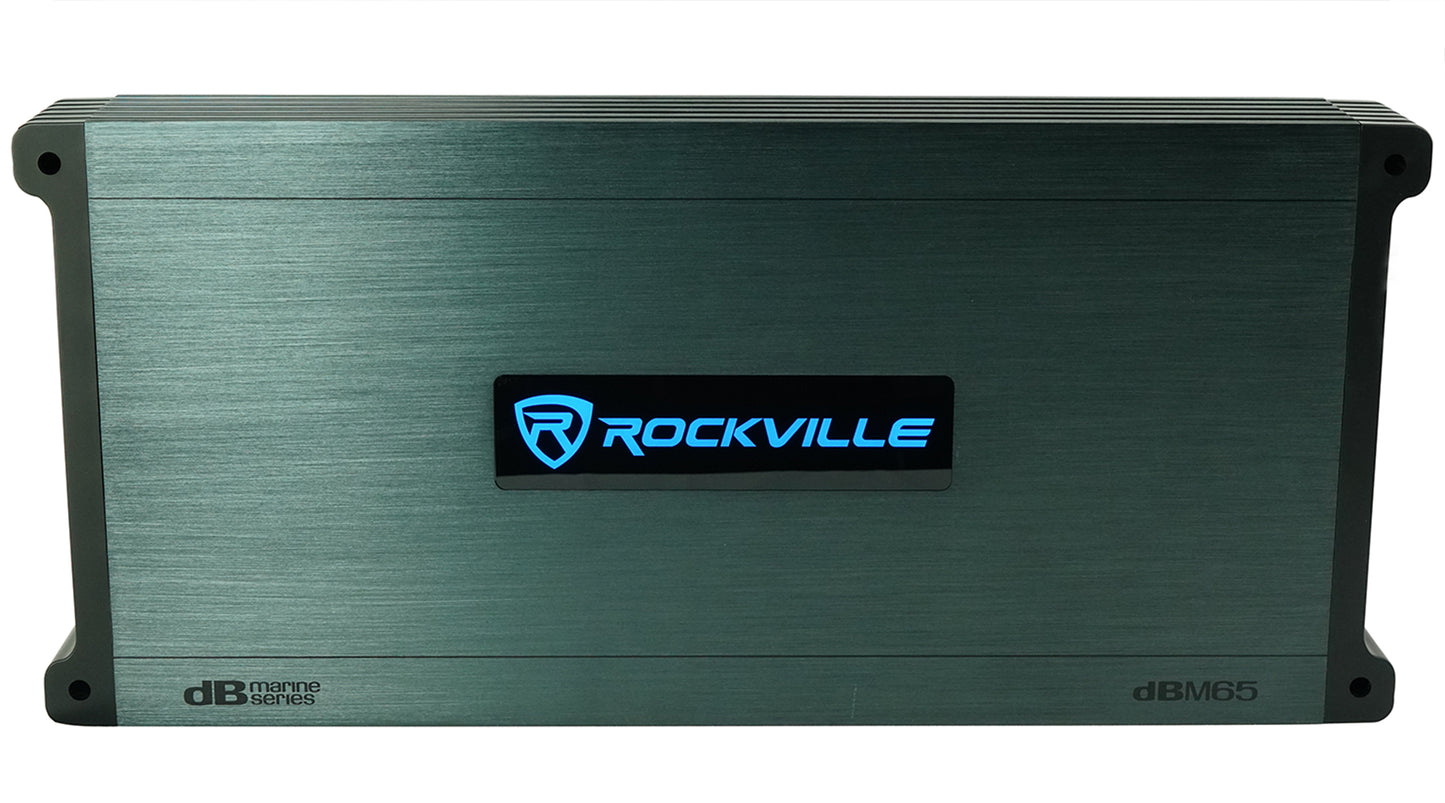

• Rockville DBM65 6-Channel 2600w Peak/660w Dyno-Certified RMS Marine/Boat Amplifier
• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)

  • 2 Ohm:110 Watts x 6 Channel <1% THD+N
  • 4 Ohm: 75 Watts x 6 Channel <1% THD+N
  • 4 Ohm Bridged: 220 Watts x 3 Channel
• Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)

  • 2 Ohm: 440 Watts x 6 Channel
  • 4 Ohm 300 Watts x 6 Channel
  • 4 Ohm Bridged: 880 Watts x 3 Channel
• All channels on the amp have crossovers so they can each be used for subs or full range speakers or midrange or tweeters
• All channels on the amplifier are bridgeable
• Painted Conformal Coating PCB Board (Uses 2577 Waterproof Glue)

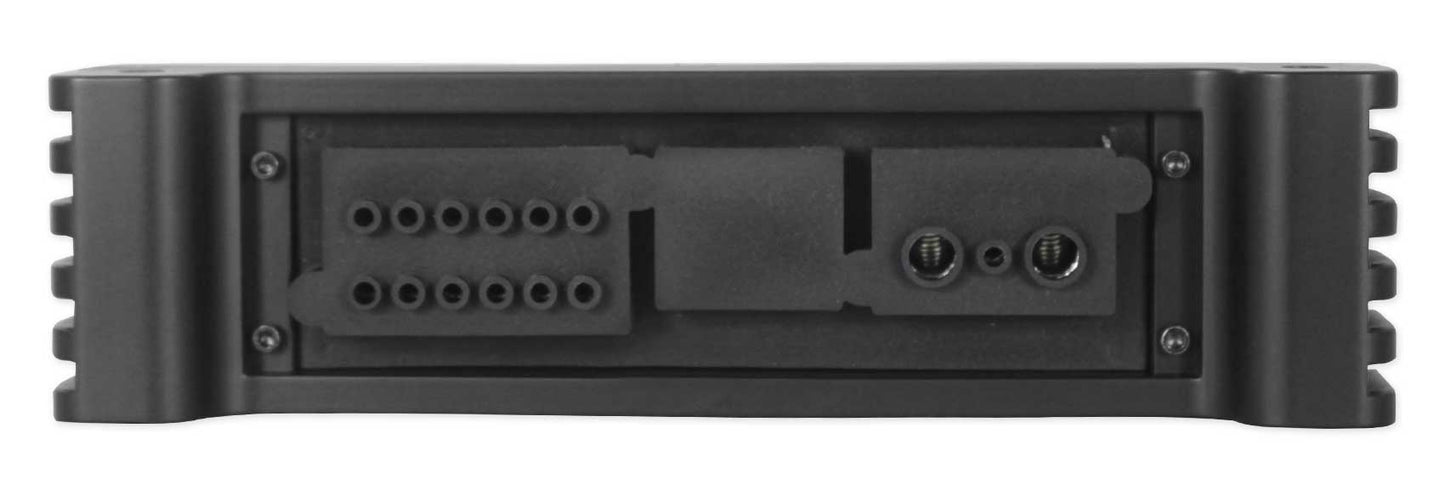

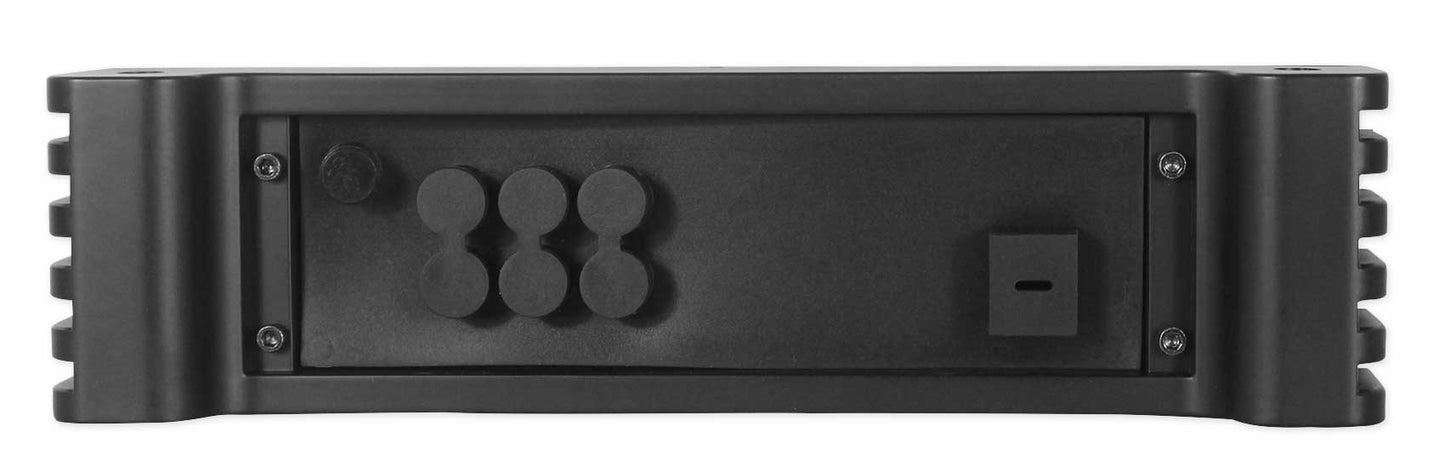

• Waterproof silicone covers for end panels
• Rustproof Aluminum heat sink with grey hairline finish
• Stainless steel end panels are rustproof
• All screws and mounting hardware are stainless steel and rustproof
• Bottom panel is aluminum and rustproof
• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• Adjustable High Pass Filter: 15Hz - 4KHz
• Adjustable Subsonic Filter: 15Hz - 40Hz (use both the LPF and HPF knobs)
• Adjustable Low Pass Filter: 40Hz - 4KHz
• Adjustable bandpass filter 15Hz - 4KHz (use both the LPF and HPF knobs)
• Fully Adjustable 12dB Bass Equalizer
• Channels 5&6 are mono only with 24 dB / Octave crossover in Low Pass mode
• Full IC-Controlled Protection Circuitry
• Adjustable input level
• Mute and Delay Soft Start System
• 8 Volt Preamp Circuitry
• 2CH/4CH/6CH Input Mode Switch
• Microphone Input with included PA microphone
• Remote Dashboard Subwoofer Control
• Status Mode LED Indicator
• High-Speed MOSFET Power Supply
• Studio-Grade Bipolar Output Stage Transistors
• Minimum THD at Rated Power: < 0.05%
• S / N Ratio: >90dB
• Frequency Response: 10Hz - 50KHz
• Damping Factor: >80 @ 100Hz
• Optical Coupler Technology

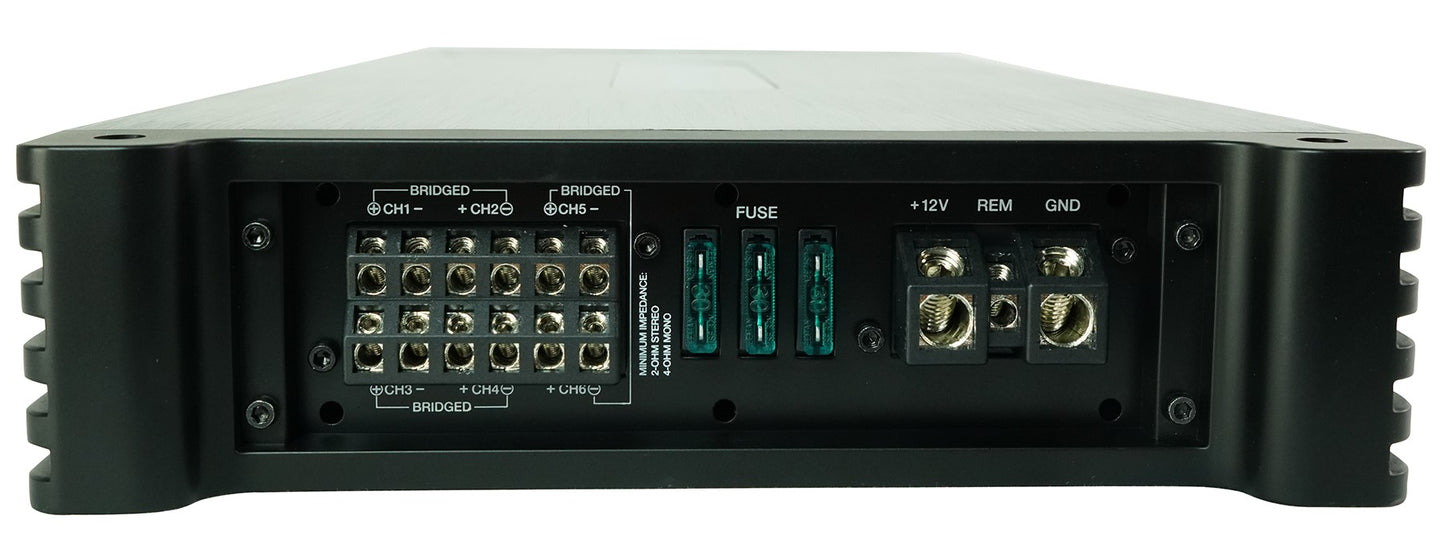

• 30 Amp x 3 ATC Fuse
• Dimensions: (W x H x L) 9" x 2.4" x 19.8"
• Weight: 12.3 Lbs

---

Video of RMWK:

Features:

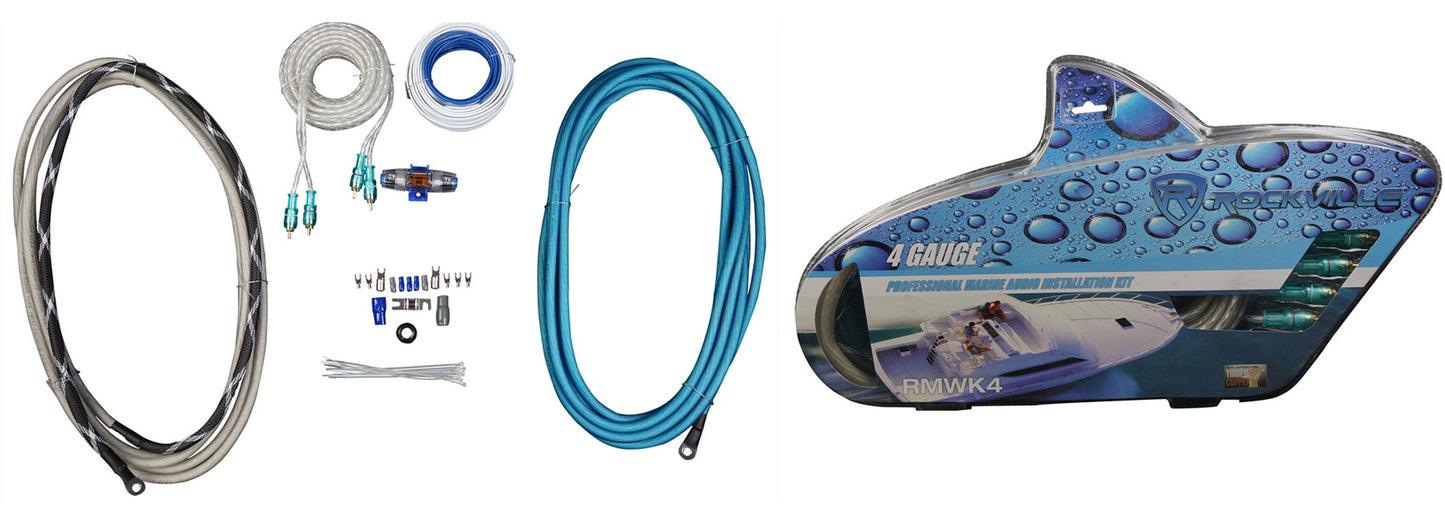

• Rockville RMWK4 4 AWG Gauge Waterproof Marine/Boat Amplifier Wire Installation Kit
• 20' Translucent, Twisted Pair, High Quality, Tinned-OFC Flexible PVC RCA Cable

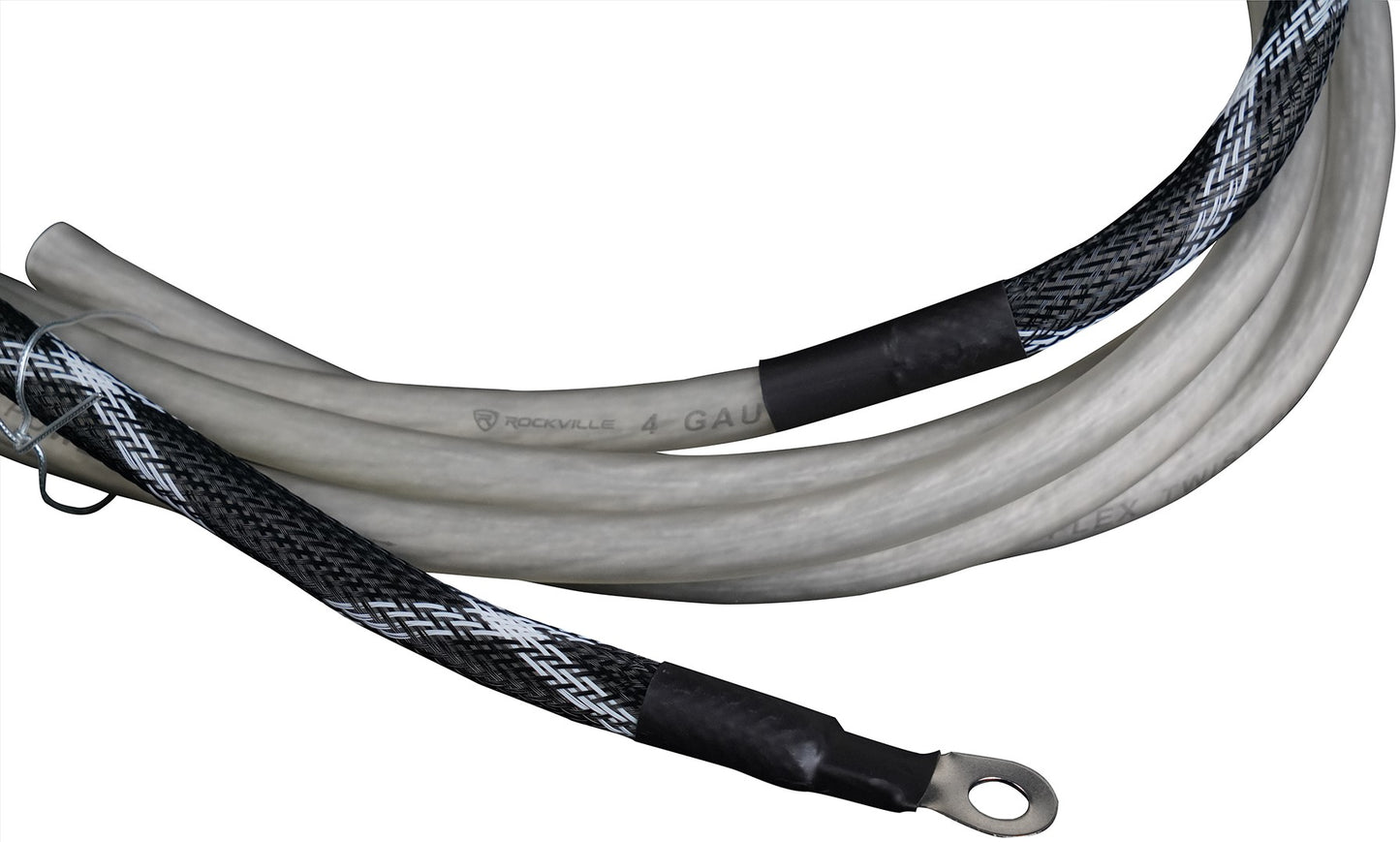

• 18' 4 Gauge High Current, Low Impedance, Clear Flexible Power Cable with 3' Black Poly Woven Mesh to better resist chemicals in the battery compartment
• 18' 4 Gauge High Current, Low Impedance, Light Blue, Flexible Ground Cable

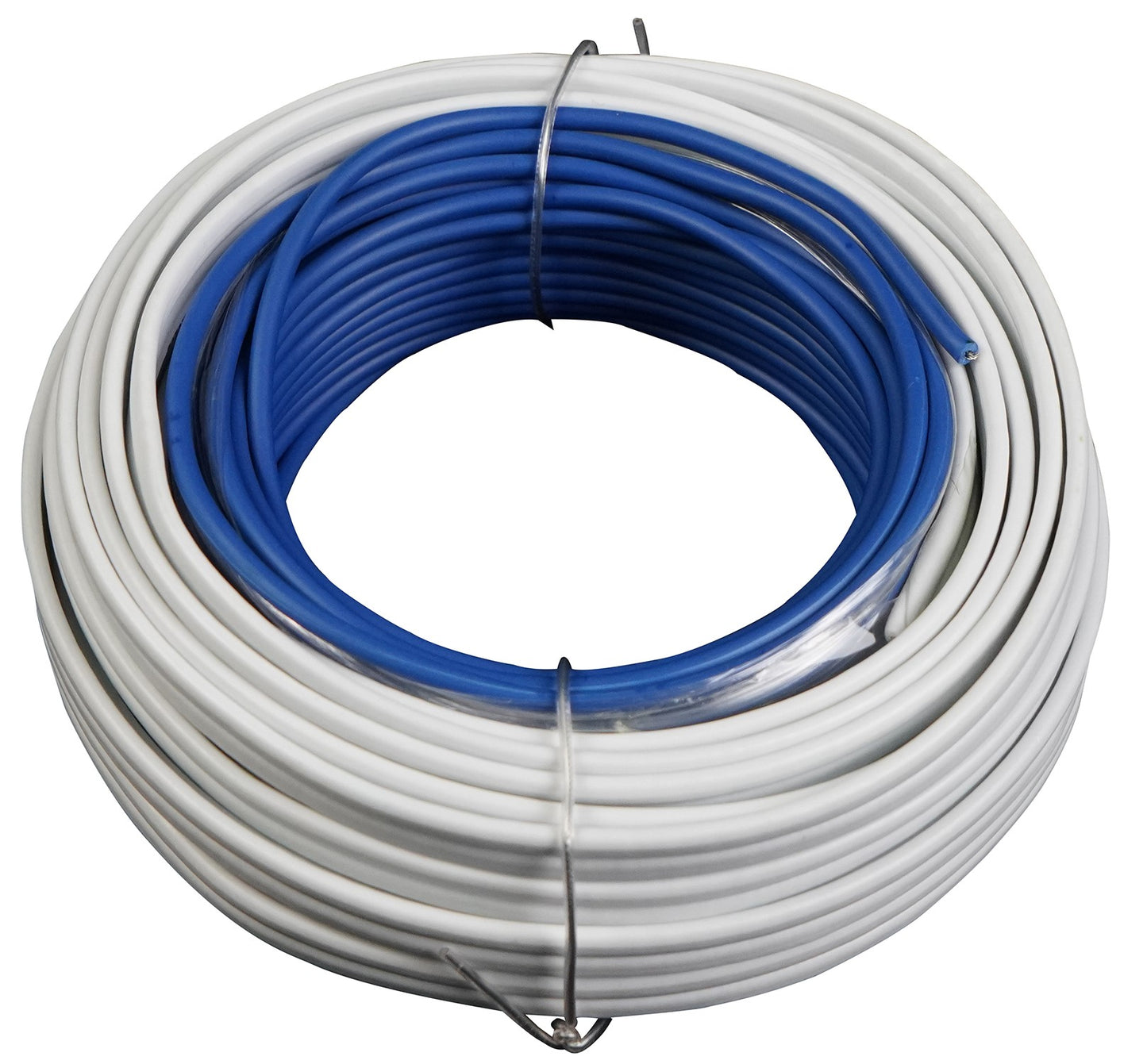

• 25' 16 Gauge 100% Tinned-CCA, White, Non-Transparent Resin PVC, Flat Speaker Cable
• 25' Blue Remote Wire

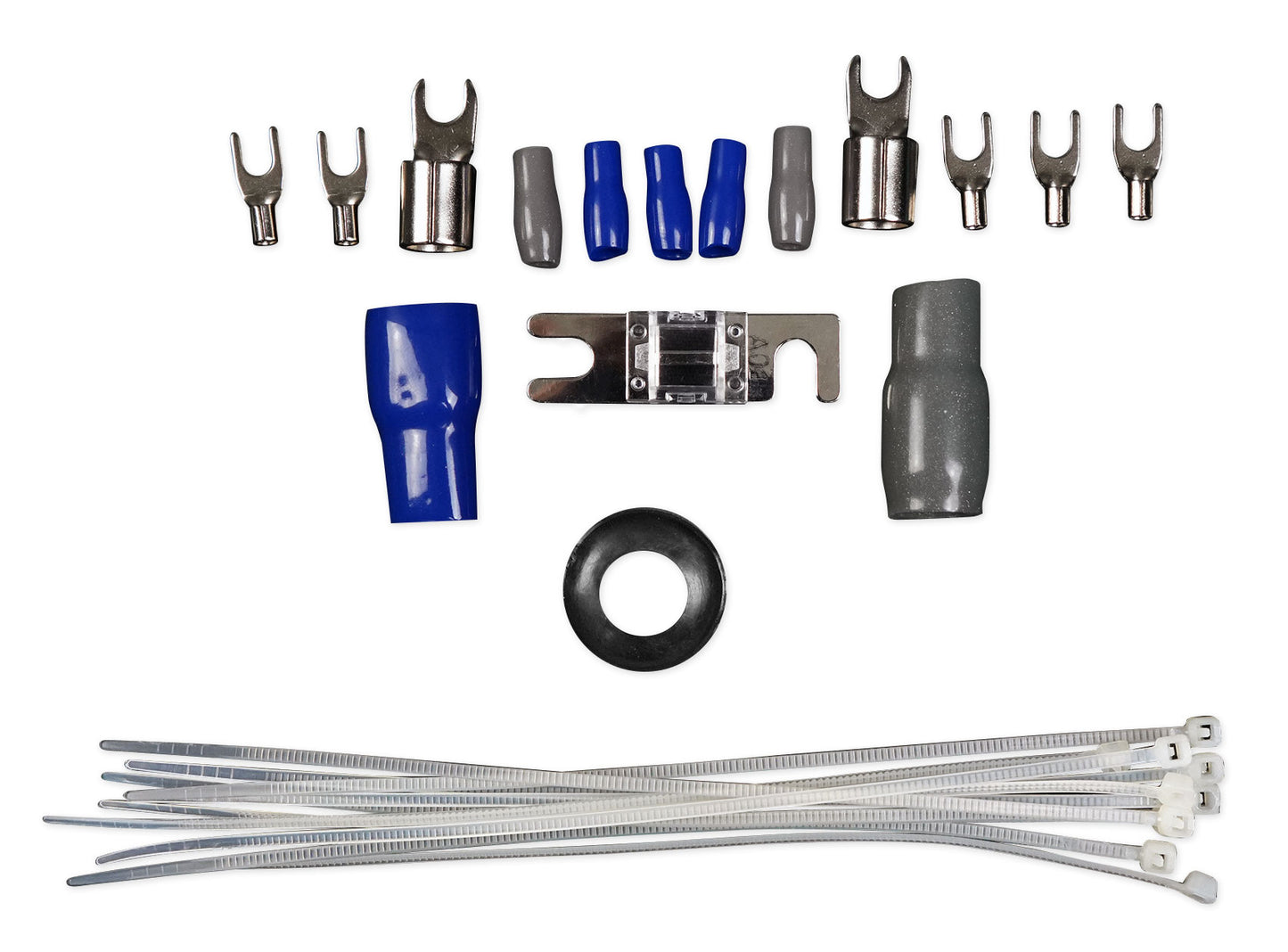

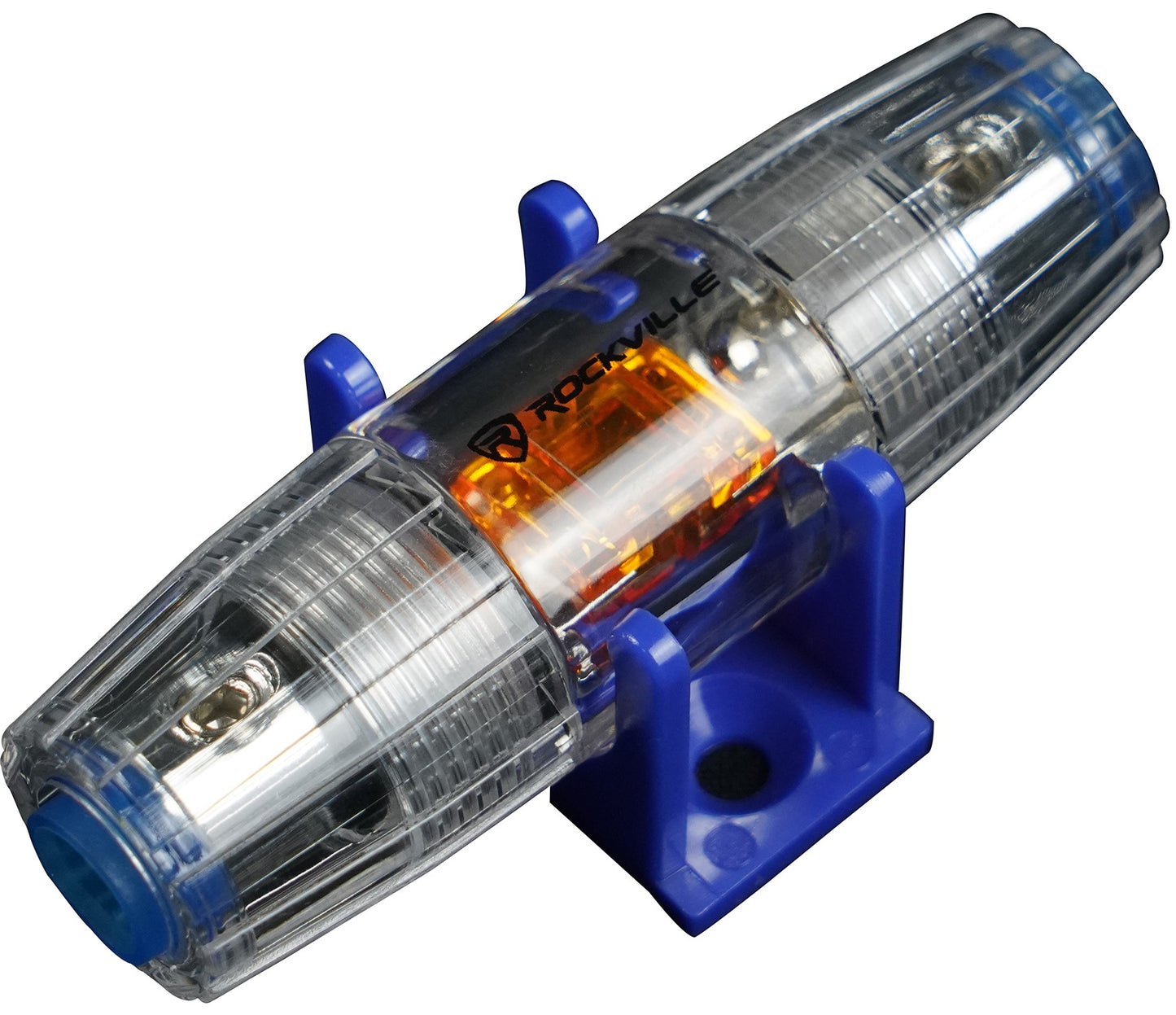

• (1) Silver Mini-ANL Fuse Holder - Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring
• (1) 120A Mini-ANL Fuse
• (1) 80A Mini-ANL Fuse
• (2) Ring Terminals
• (2) Spade Terminals
• (5) Speaker Cable Terminals
• (1) Washer
• (10) White Cable Ties

---

Description:

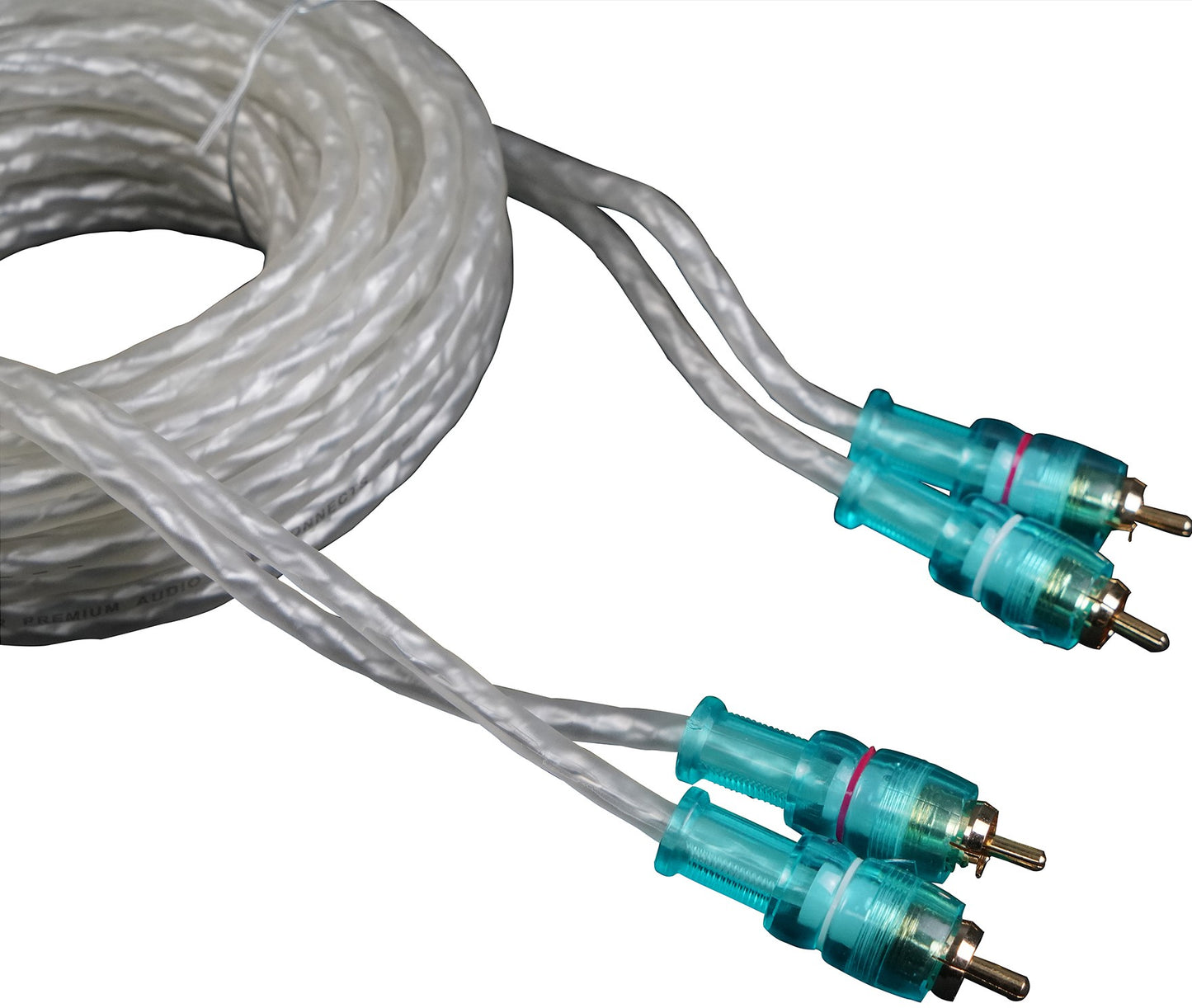

Rockville marine audio interconnect cables are specifically engineered to withstand the challenges of both salt water and fresh water marine installations. The utilization of tinned OFC copper conductors with polyethylene dielectrics in a twisted-pair arrangement optimizes noise rejection. The small-diameter white PVC jacket is ultra-flexible enabling our cables to be easily routed around bends and through tight spaces. Our exclusive molded connector features a water proof inner cap that is heat shrunk in place over all solder connections thus guaranteeing a completely water proof and corrosion resistant connection. Our locking plug design with split pin technology further insures tight connections that will not vibrate free even during the most extreme boating maneuvers.

Features:

• Rockville MRCA25 RCA Interconnect Cable
• 25' Ultra-Flexible PVC Shield
• Twisted Pair
• Premium Audiophile Marine RCA Interconnect Cable
• High Performance Water Proof RCA Plugs
• Tinned Copper Strands for Sonic Purity
• Outstanding Noise Rejection, Accuracy, and Frequency Response
