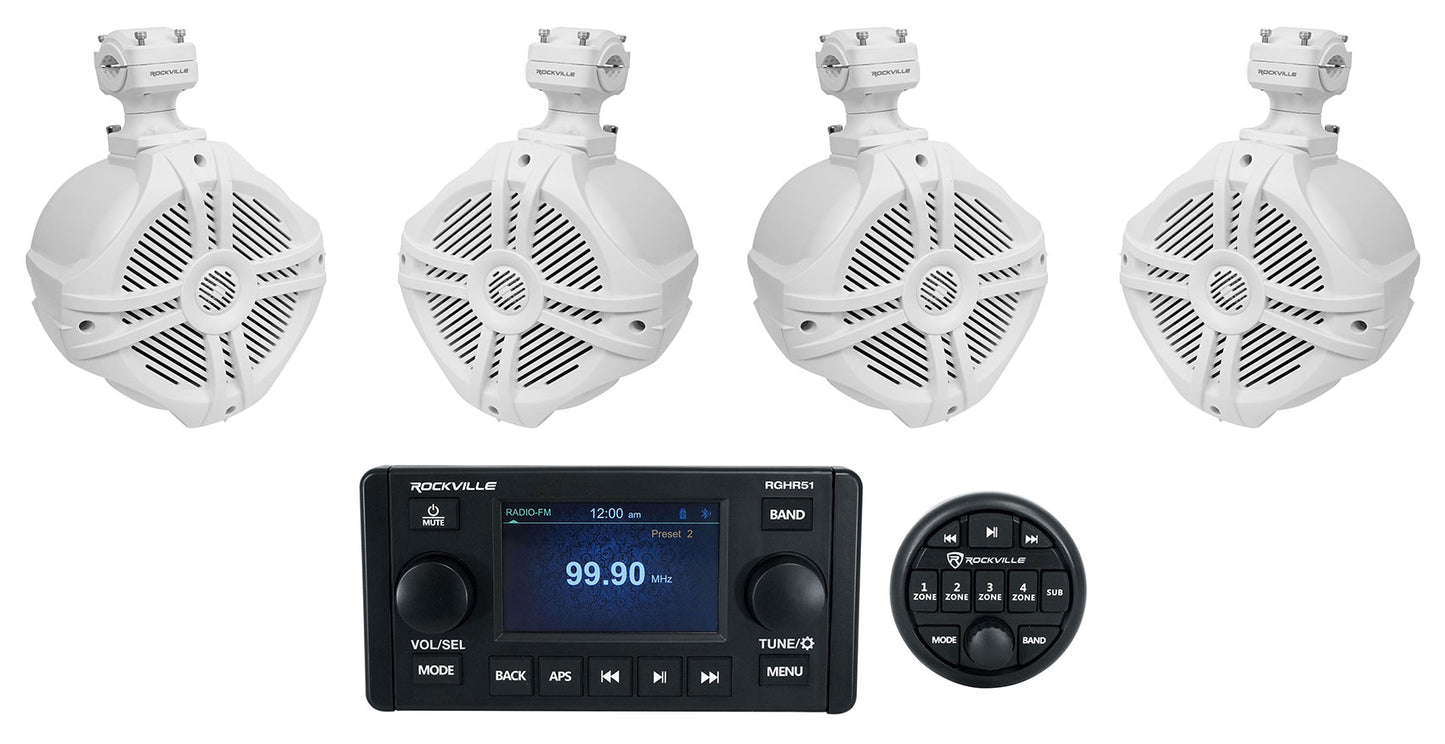

Package Includes:

• (1) Rockville RGHR51 5 Zone Single Din Marine Receiver Bluetooth/Radio/Wired Remote
• (2) Pair Rockville RWB70W White 6.5" 250w Marine Wakeboard 360° Swivel Tower Speakers

---

All About Your RGHR51:

How To Set Up Your RGHR51:

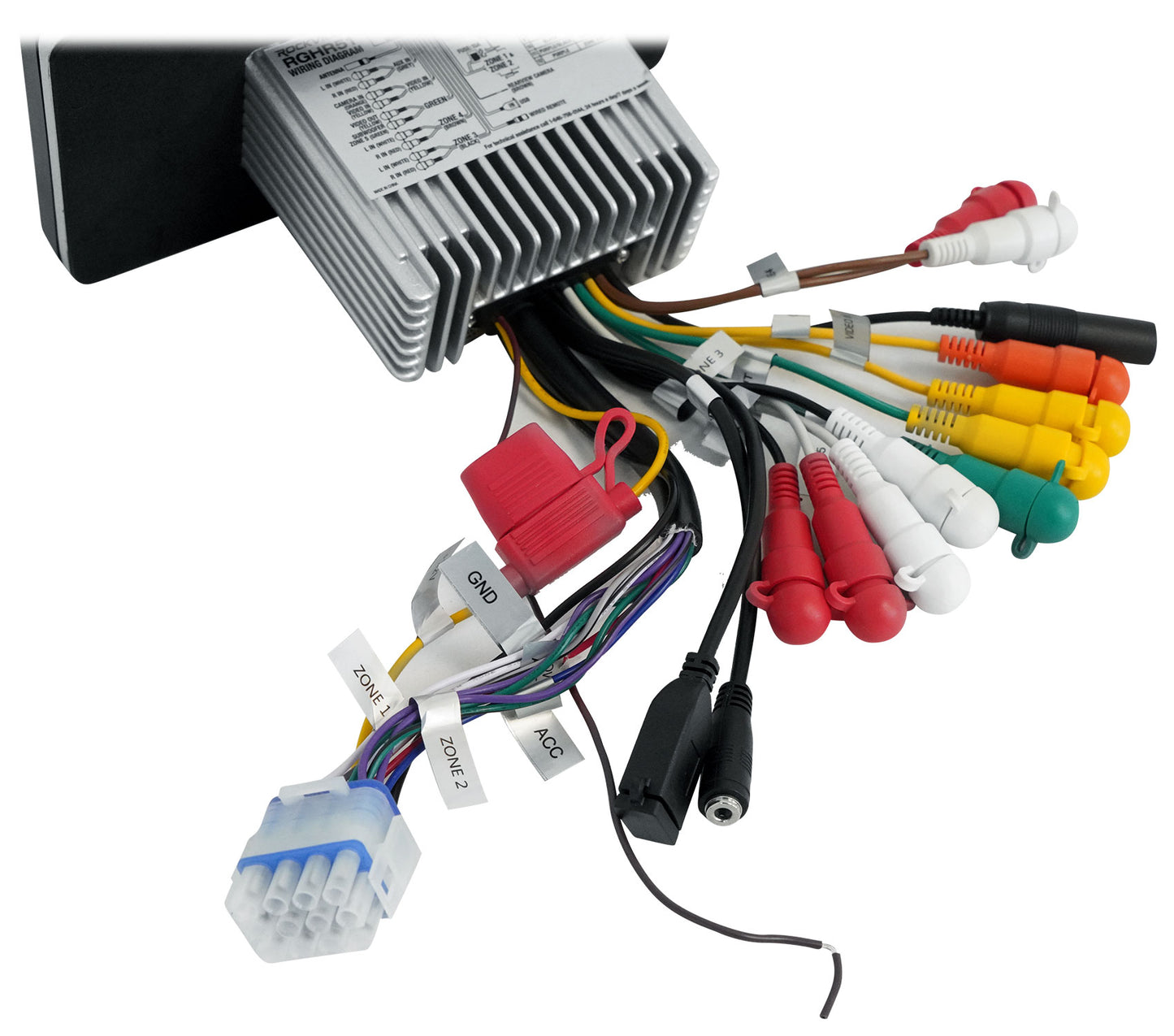

RGHR51 WIRES/INPUTS/OUTPUTS Explained!:

RGHR51 Zones Explained!:

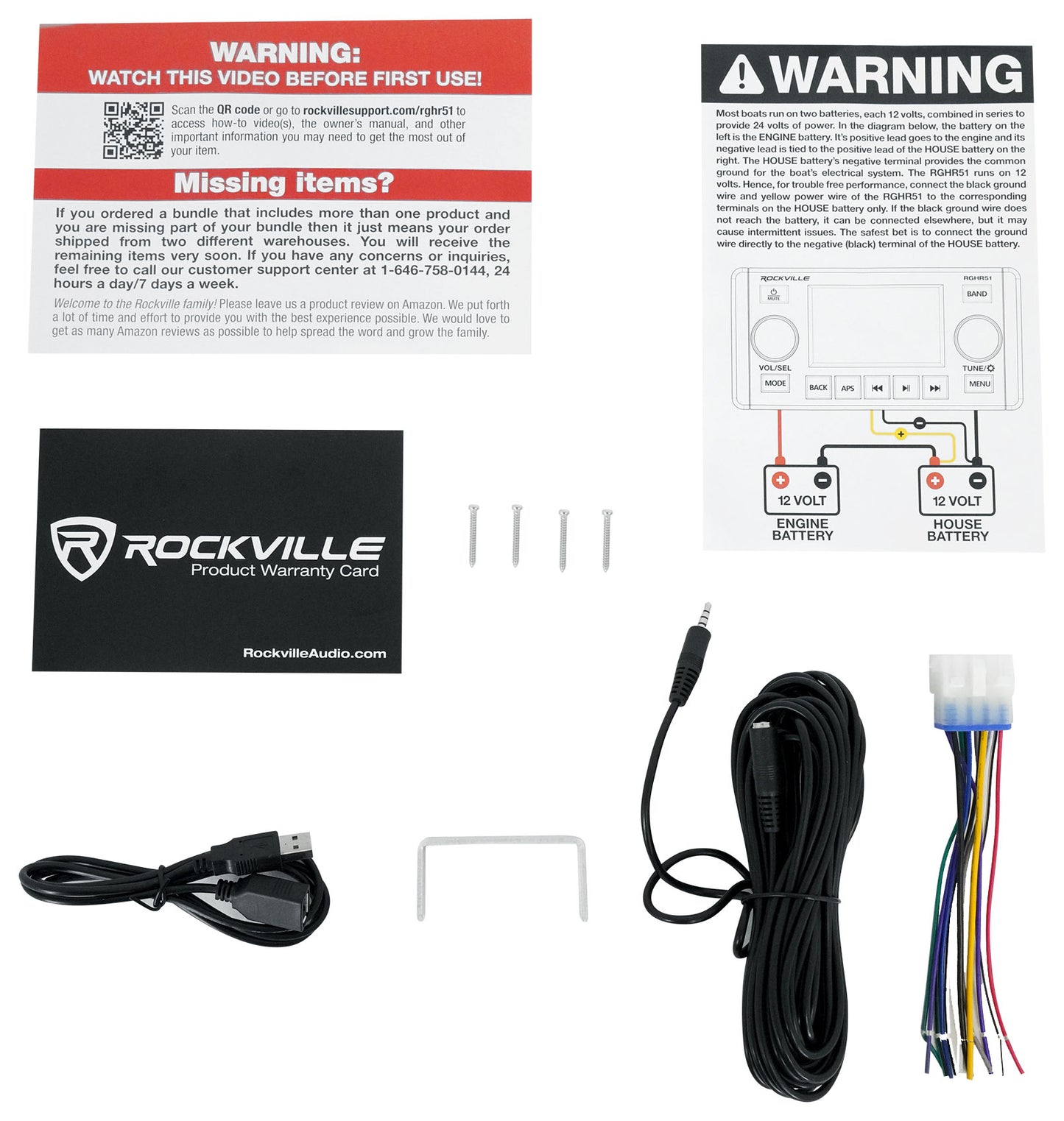

What's in the Box:

• Marine digital media receiver

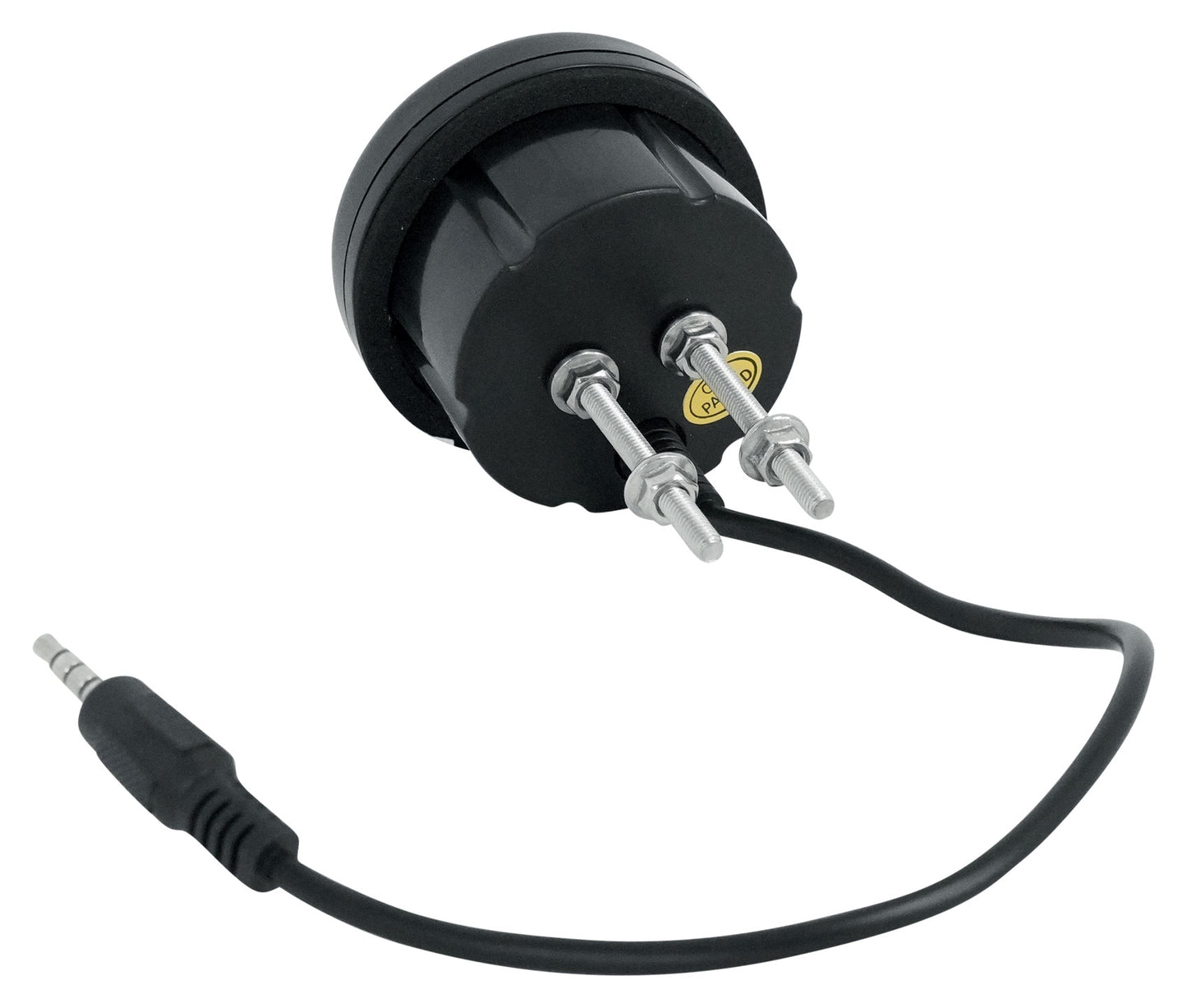

• Wired remote with zone controls
• USB extension cable (40 inches)
• Mounting Screws for installation

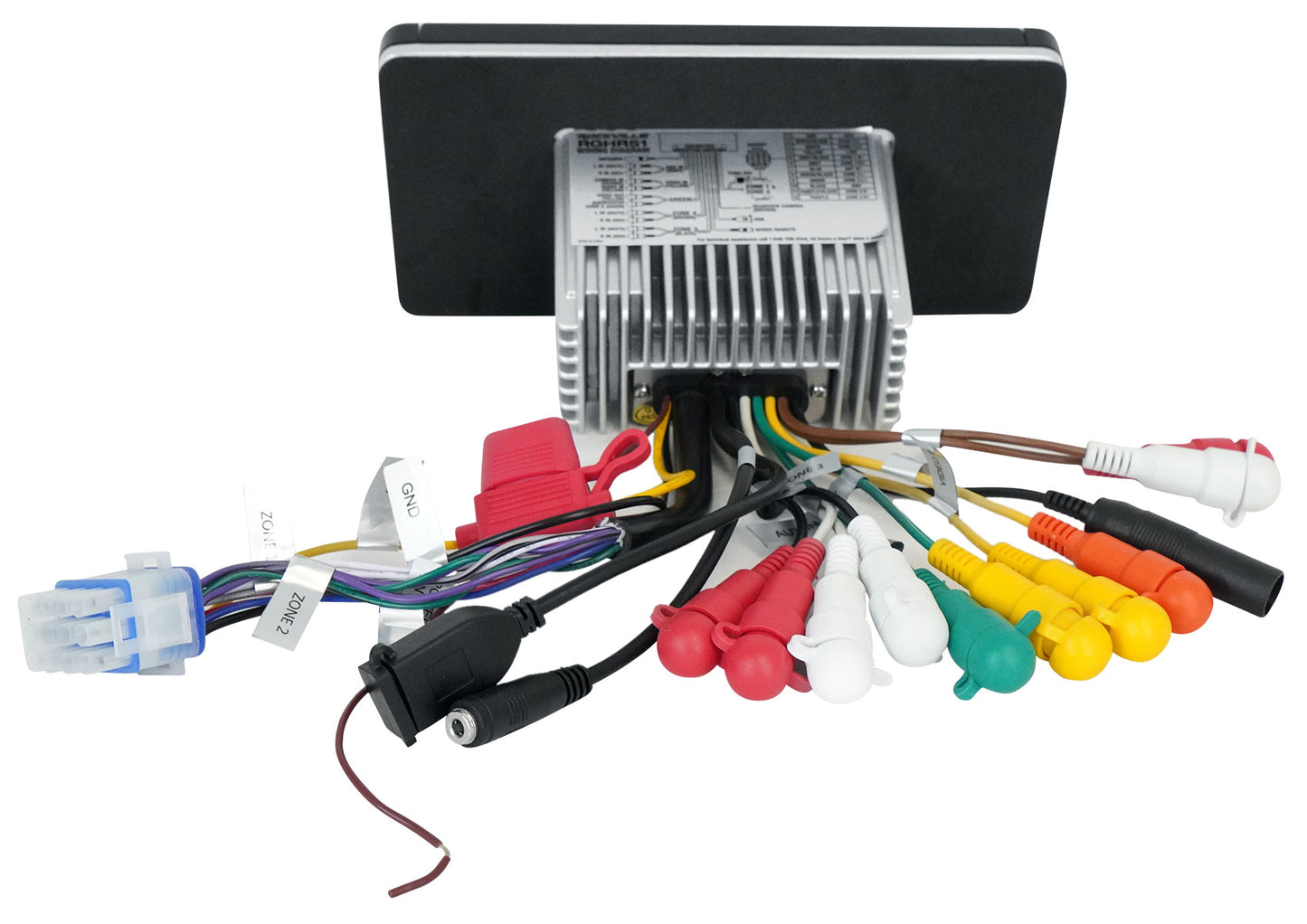

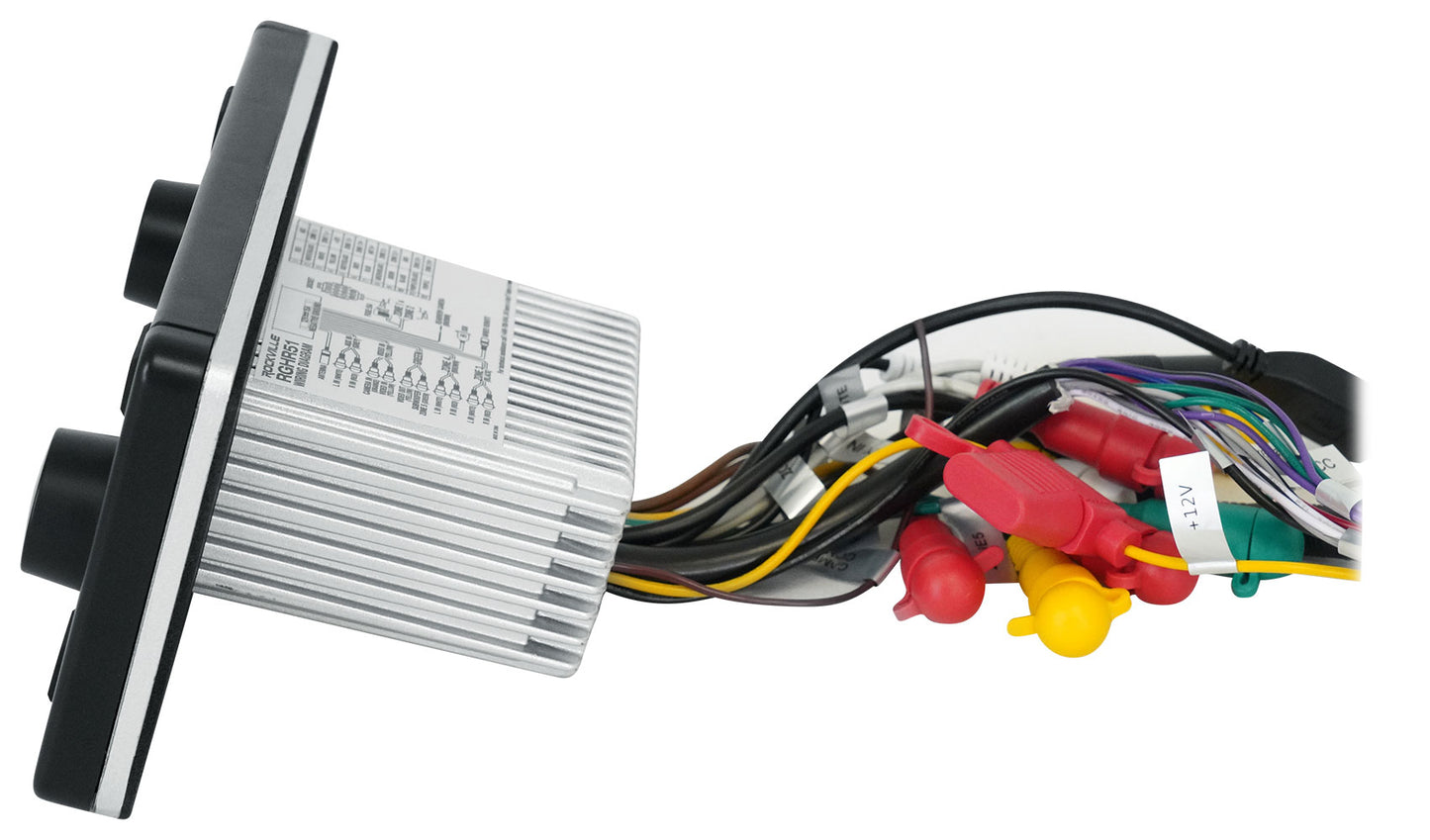

• Waterproof wiring harness for installation

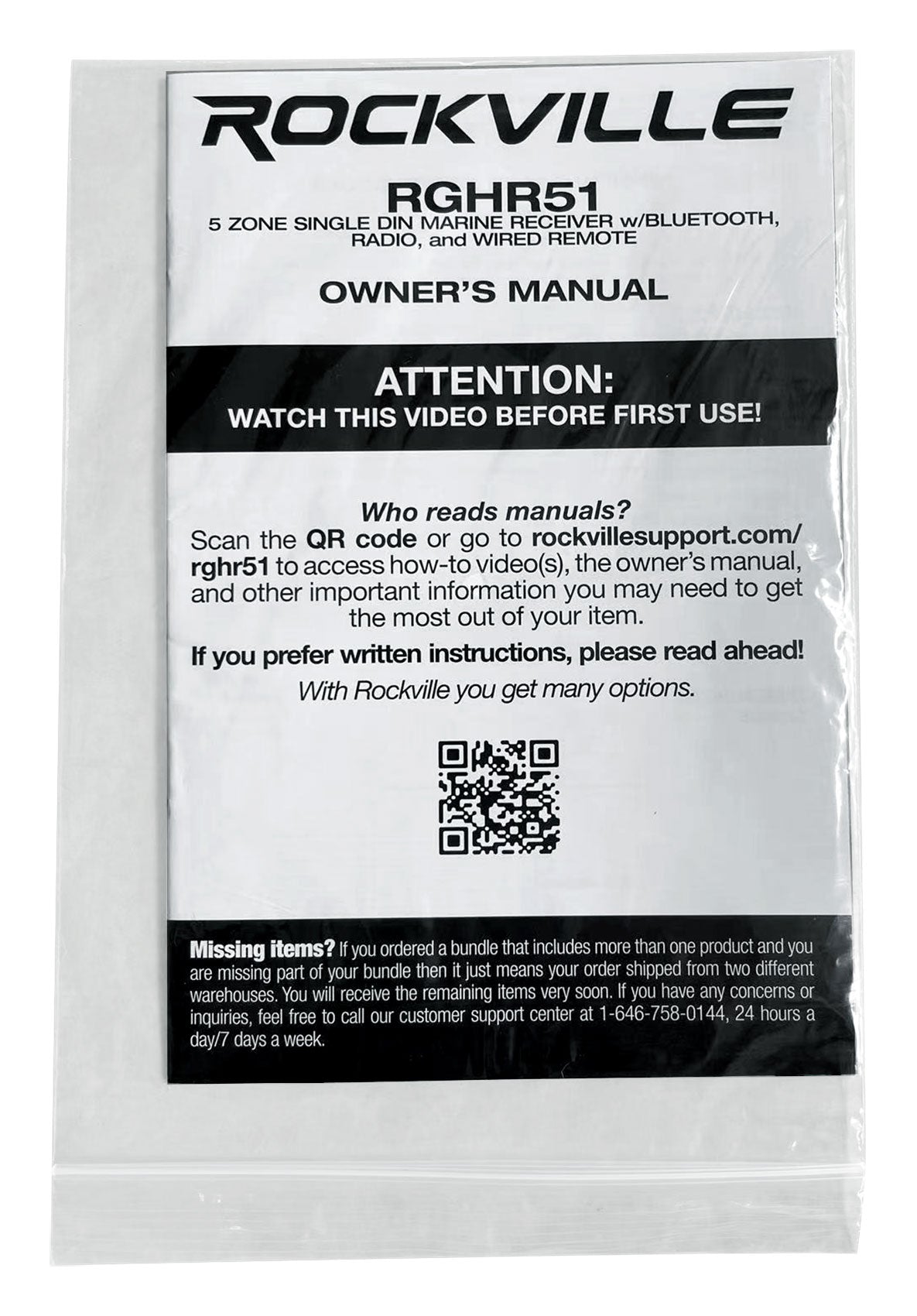

• Owner manual and warranty

Description:

5 Zones!

This marine receiver has 5 zones that each have independent volume controls both from the receiver and from the wired remote which we include. Here is how it works. Zone 1 and Zone 2 are the built in powerful 4 channel amplifier. With the addition of external amplifier(s) you can use the additional 3 zones. Each set of RCA outputs will connect to your external amplifier(s) and you will be able to control the volume level either from the receiver or from the wired remote.

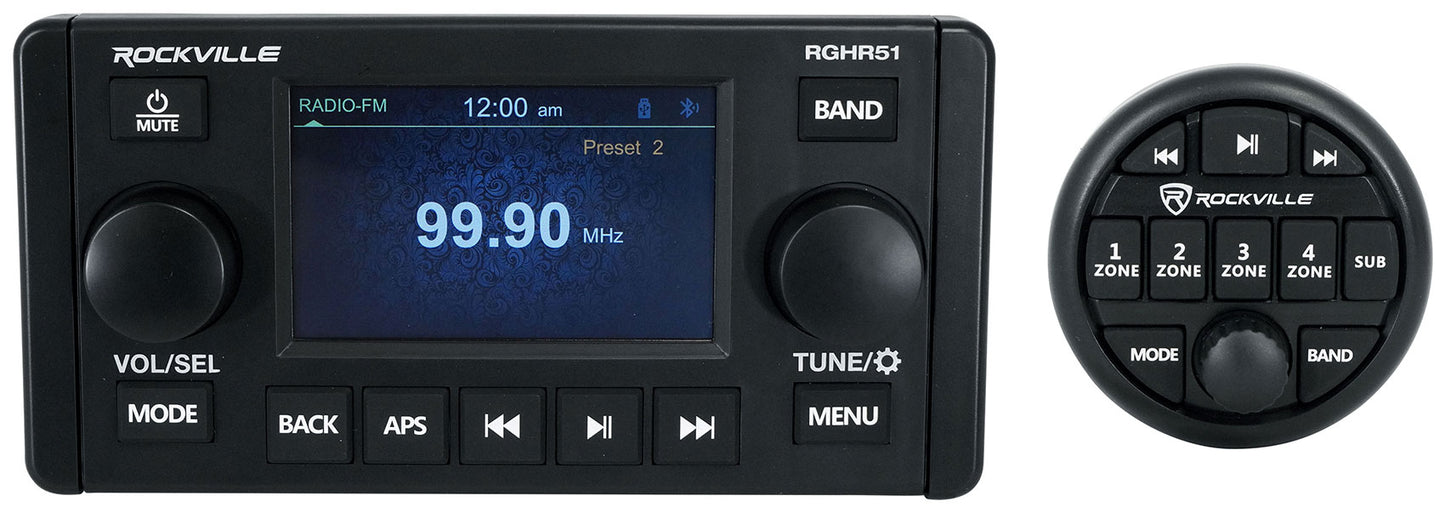

4" TFT display

Our built in 4" TFT display is crystal clear and it makes it easy to navigate your tracks and settings. We also include a rear view camera input as well as an aux A/V input.

Intuitive Screen Display

With the intuitive screen display you can access all your photos, videos and music all in one place. Hold the band button to access photos and videos and songs stored on a USB thumb drive.

Crazy loud!

We used a built in amplifier that is louder than other marine receivers on the market. The RMS power of the built in amp is 28 watt x 4 channels! It is crazy loud and can be heard over the sound of the wind when you are on the water! There is also a built in EQ to customize the sound to your taste.

Latest listening features

The RGHR51 gives you many listening options. The Bluetooth technology allows you to stream audio from your Bluetooth enabled phone or other music player to the receiver. Our Bluetooth distance is 50 feet! There is also a USB input allowing you to listen to music stored on a thumb drive. You can plug in any audio device to the auxiliary input. There is a built in radio with crystal clear reception as well.

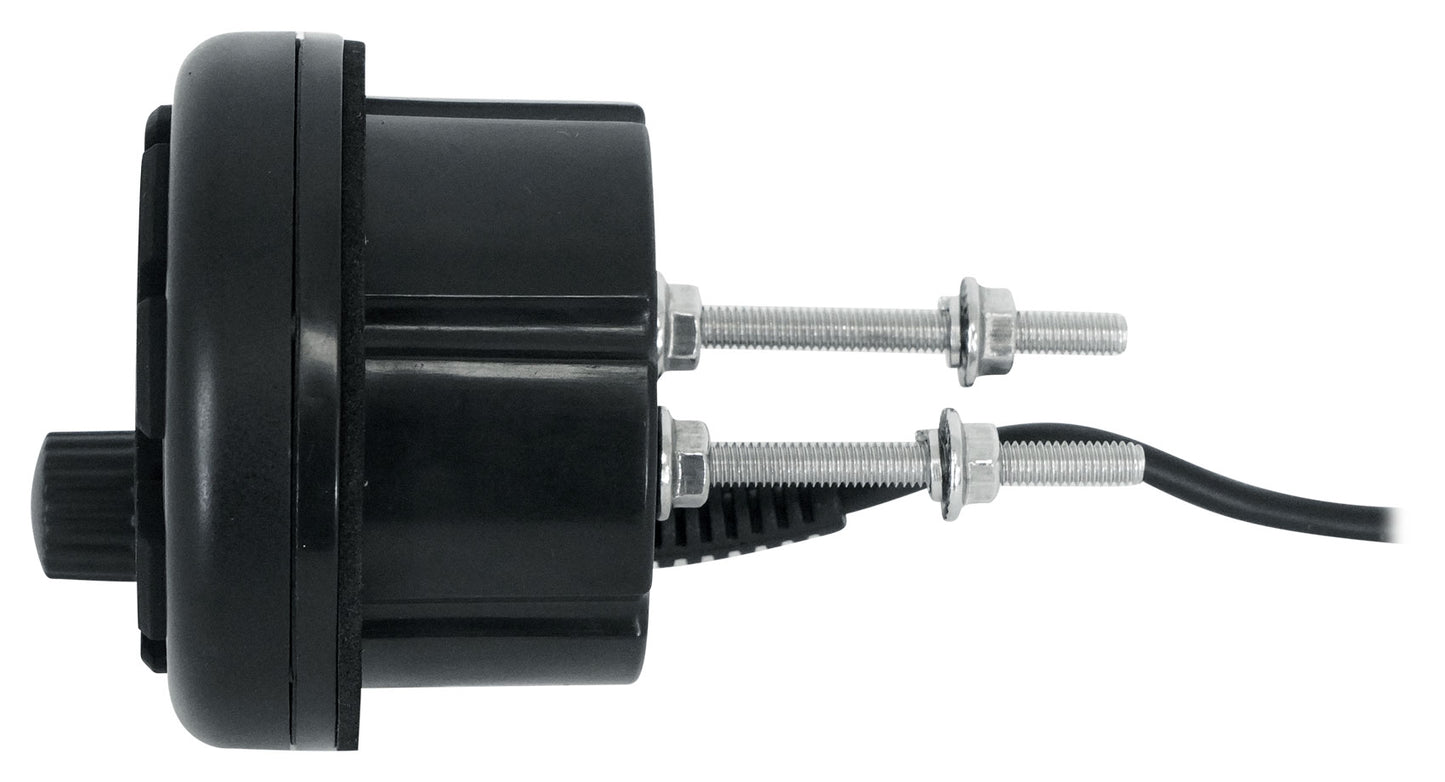

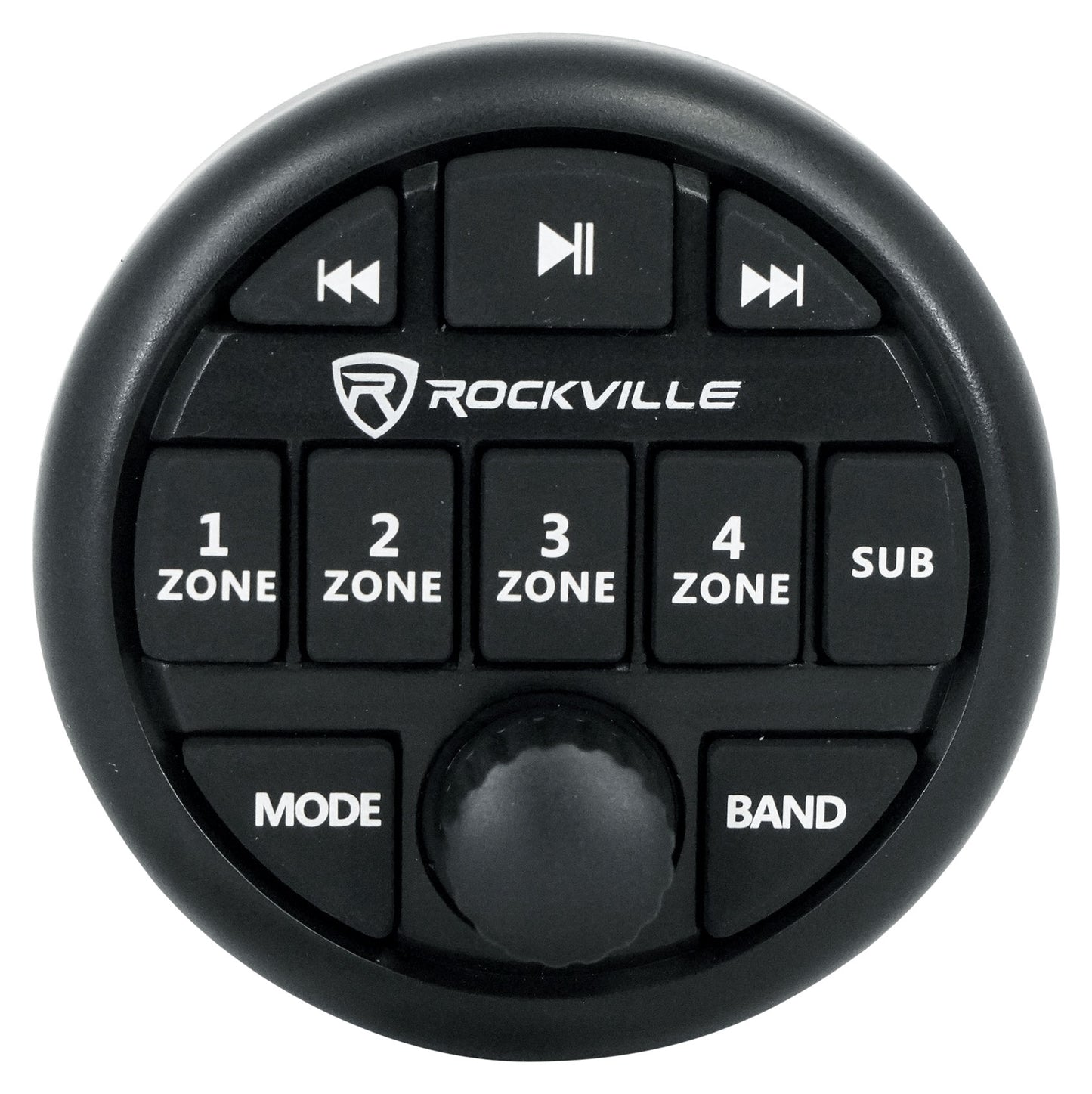

Includes a wired remote!

We include the wired remote inside the box. Most famous brands like to make extra money on the remote, but at Rockville we just include it because we know it will make your experience better. We custom engineered the remote to be able to control basic functions as well as control the volume in each zone!

Features:

• Rockville RGHR51 Single-Din Weather Resistant Digital Media Receiver with 5 Zones that each have independent volume control
• Includes wired remote with the ability to control the volume in each zone
• 4" TFT color display makes it easy to navigate menus
• Built in Bluetooth/USB/AM/FM playback
• Built-in 72 x 4 Watt Peak high powered amplifier (28 x 4 RMS)
• 3 pairs of pre-amp outputs each with independent volume controls
• 5 zones each with volume control (zone 1+2 = built in amplifier, zones 3, 4, 5 are the RCA outputs
• Built in EQ with preset EQ curves (Pop, Classic, Rock, Jazz, Beat, Flat)
• IP66 Waterproof Certification (Tested to withstand the elements)
• USB Input to play back audio files store on a USB thumb drive or any other USB device
• USB plays video
• RCA A/V input to play back a video source
• Rear camera input
• RCA Aux Input
• AM/FM Radio Built In with 18 FM and 12 AM presets + US and European tuning
• Bluetooth built in to stream audio from any Bluetooth enabled device
• USB Input Charges Your Phone
• Big easy to use buttons
• IP66 waterproof level
• meet ASTM B117 and ASTM D4329 standards
• Humiseal coated PCB board for waterproofing and protection from the elements
• USB is 500mA and 5V and supports 16GB max
• Specs of the built in amplifier
• TDA7850 power amplifier built in
• Low distortion even at top volumes

Specifications:

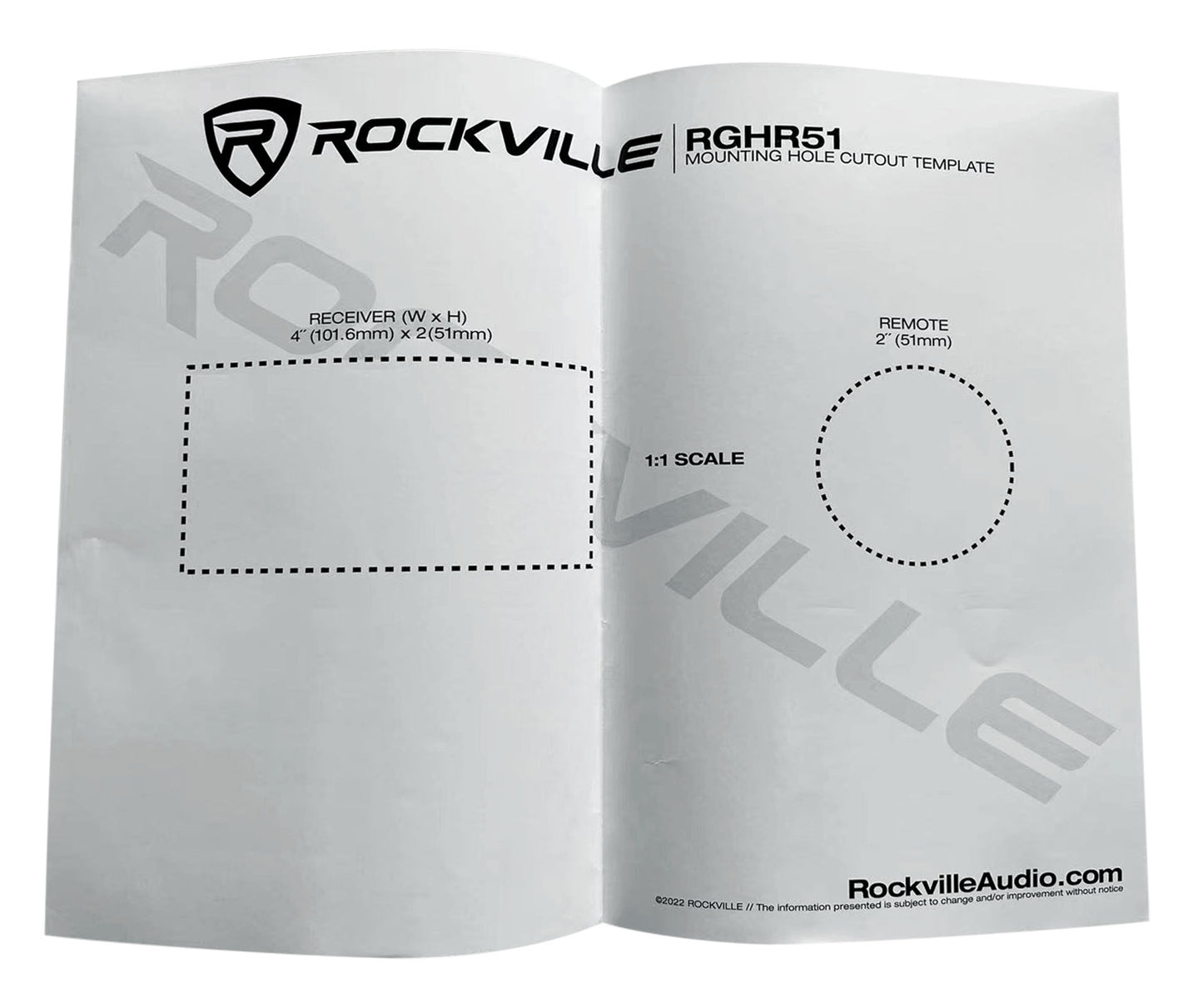

• Standard single din mounting: 1.97" Mounting Height x 3.94" Mounting Length (Inches) (this is the required mounting cutout)
• Mounting Depth: 3.23" (Inches)
• Front face plate: 7.87" L x 3.94" H (Inches)

Owner's manual

---

HOW TO RWB SERIES (RWB65B, RWB65W, RWB70B, RWB70W, RWB80B, RWB80W, RWB90W, RWB90B):

Video of RWB:

Includes:

• (2) Wakeboard Speakers
• (2) 360° Swivel Mounting Brackets
• Integrated Grill
• Installation Hardware

Description:

• No exaggerated power ratings: These speakers are rated with true world RMS ratings. No bootleg or exaggerated power ratings like other brands. These speakers are 150 watts RMS and 250 watts peak each. (150 watts RMS is equal to about 400 watts rated by other brands)
• Marine grade components and materials: these speakers are truly marine grade. They will not get damaged by water, salt water, or moisture. In addition the terminals (which are normally the first part of a marine speakers that gets damaged by water are made out of stainless steel and they are completely rustproof. There is also an additional waterproof coating cut completely protect the speakers.
• These can withstand all elements on the water for a lifetime of worry free use
• The mounting screws are longer than other versions we carry to accommodate thicker mounting bars. In addition to wakeboard tower's on boats, we tested these to be perfect for installing in Jeep Cherokee vehicles and even ATV's.

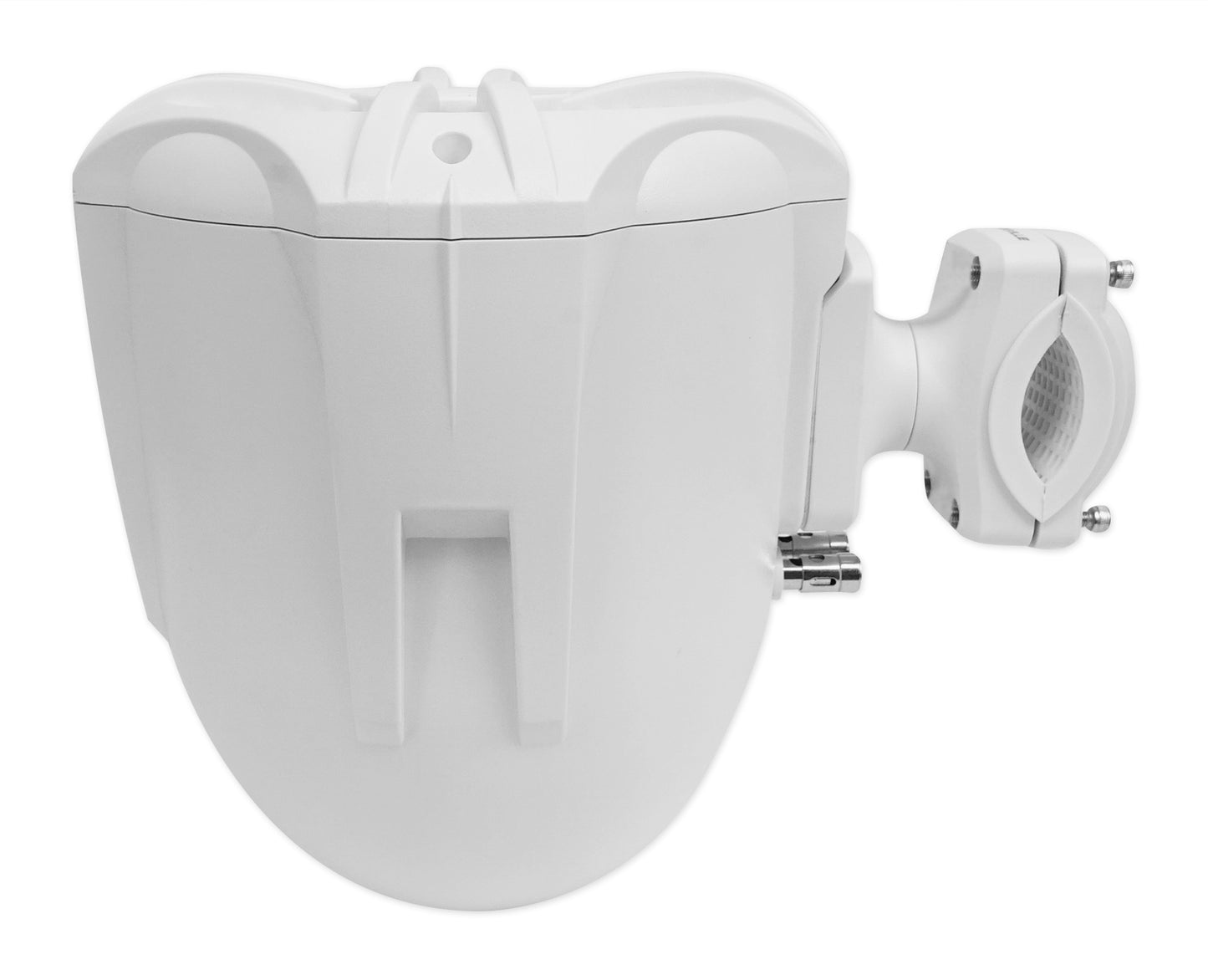

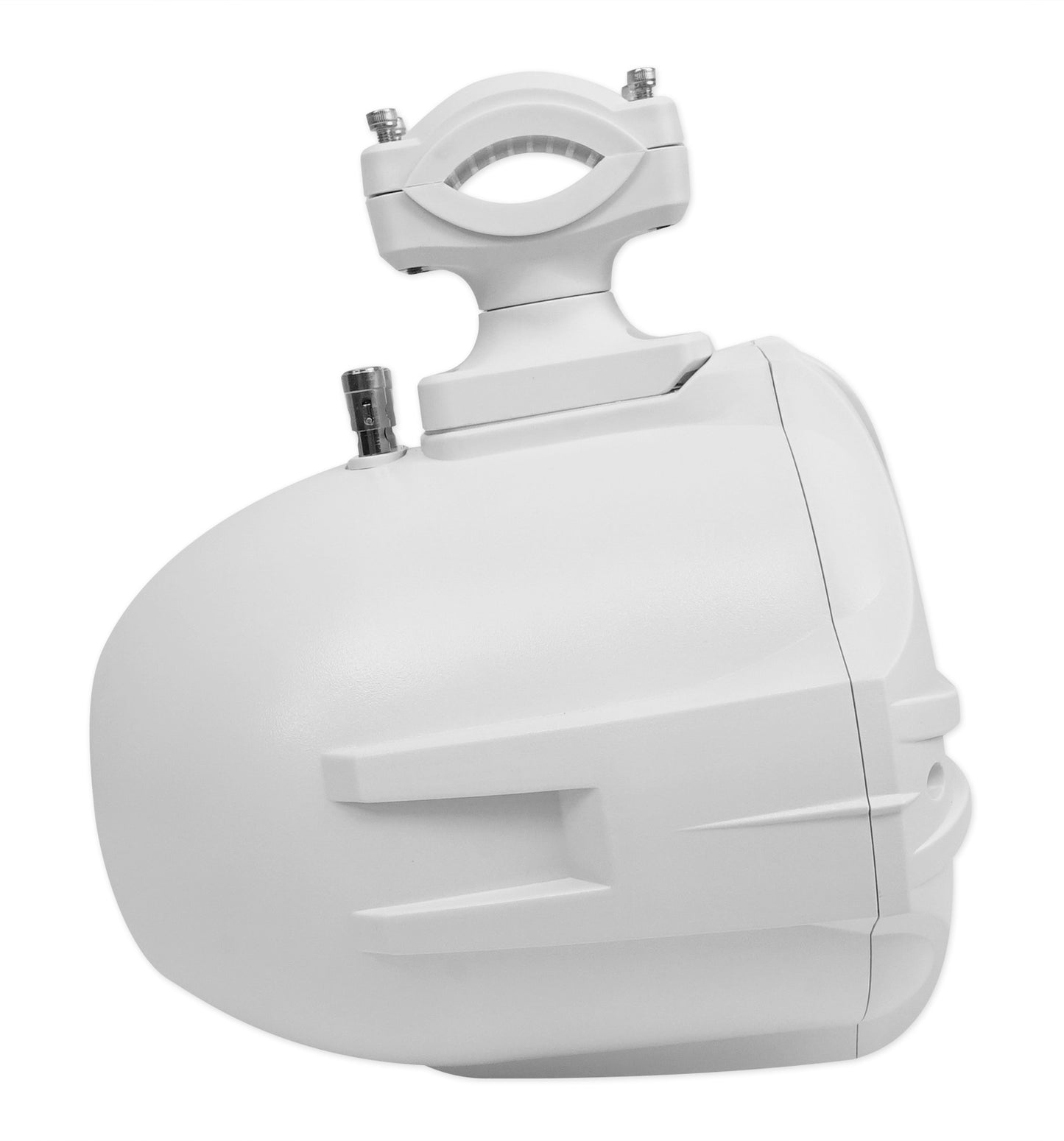

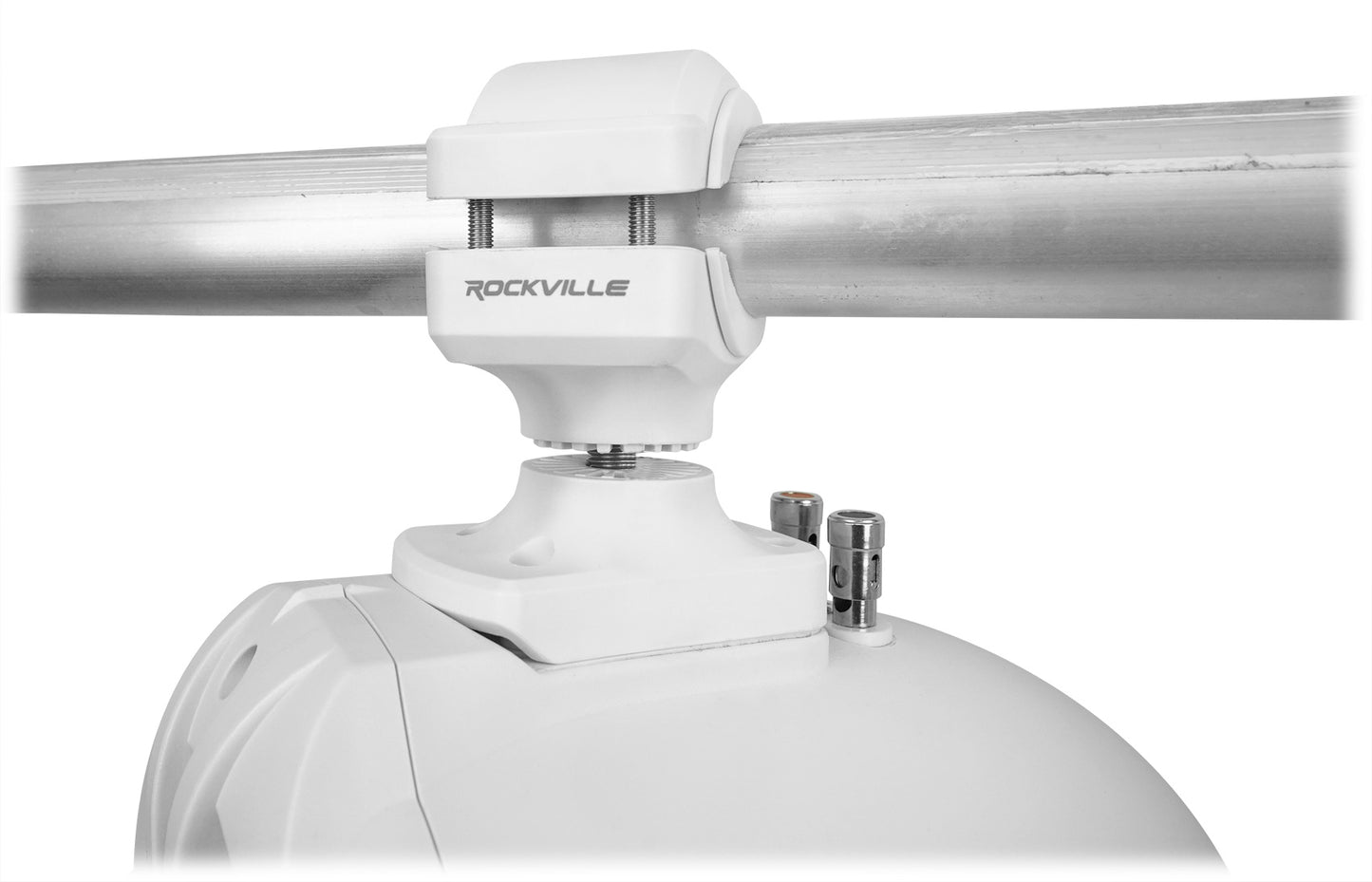

• We've added a new and improved nylon mounting bracket. Nylon is strong, light weight, and can withstand the toughest conditions. The bracket features a special UV coating to protect it from the elements. A 360° rotating mechanism built into the bracket allows you to position the speaker in any direction for optimum listening enjoyment. This also gives you the ability to rotate the speaker to the front or rear of your boat for different applications.

Features:

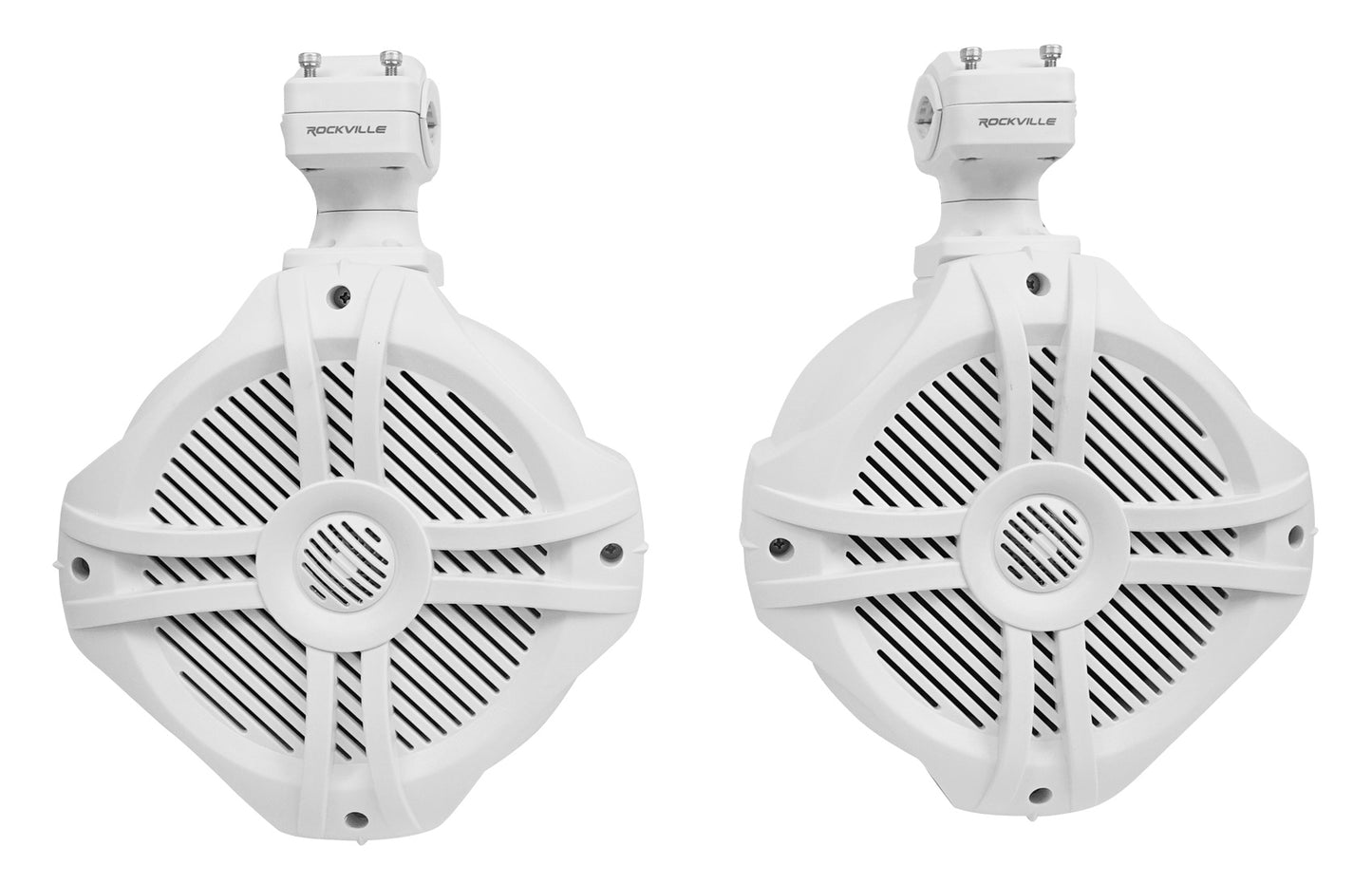

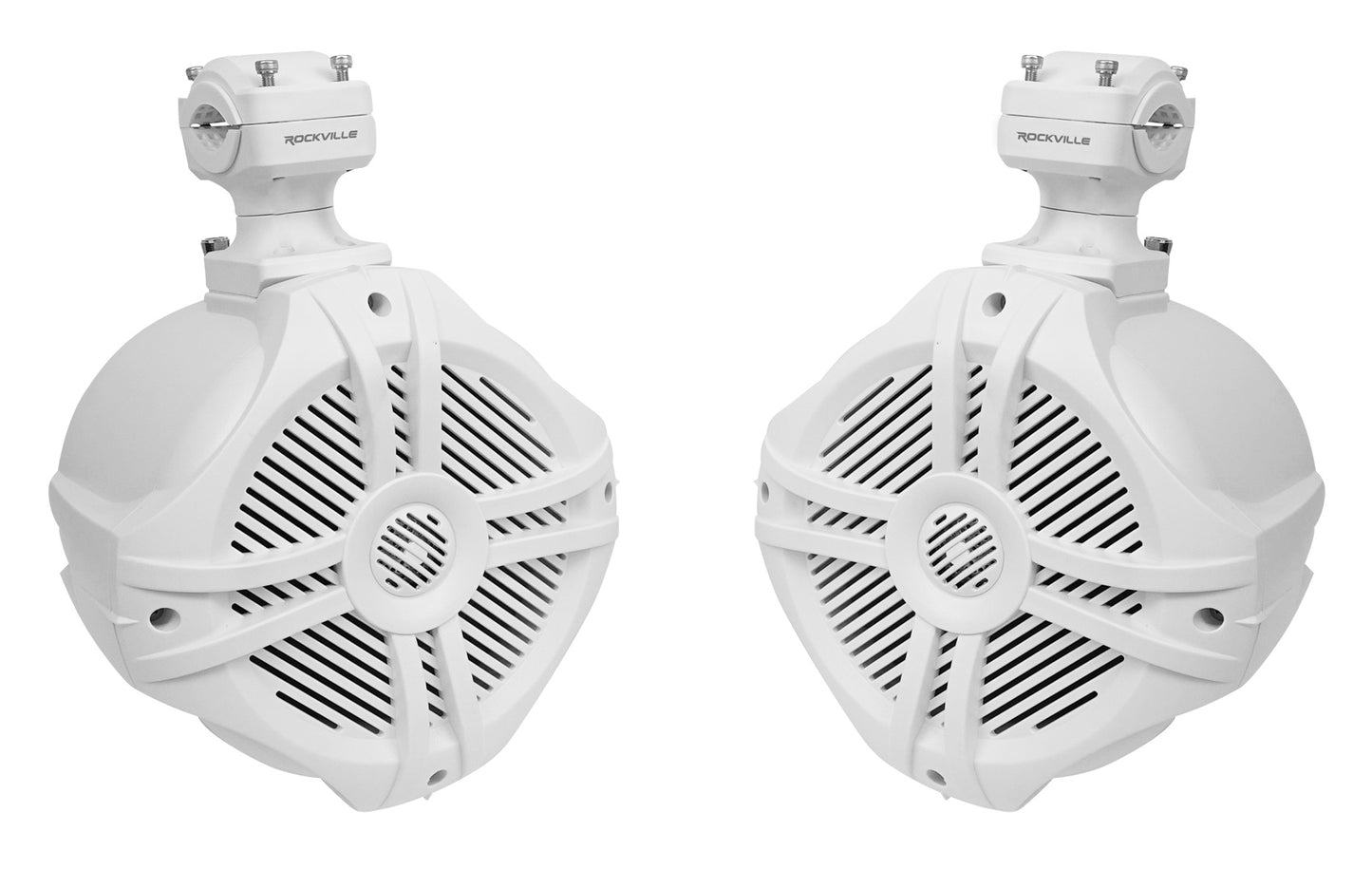

• (2) Rockville RWB70W White 6.5" 250w Marine Wakeboard 360° Swivel Tower Speakers
• Color : White
• 6.5" Two-Way High Fidelity Speaker System
• Adjustable Nylon Mounting Bracket Reinforced With Embedded Steel
• Includes Stainless Steel Mounting Hardware
• 1" Polymide Dome Neodymium Midrange Tweeter
• Built-In Two-Way Crossover Network
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Water / Rust Resistant

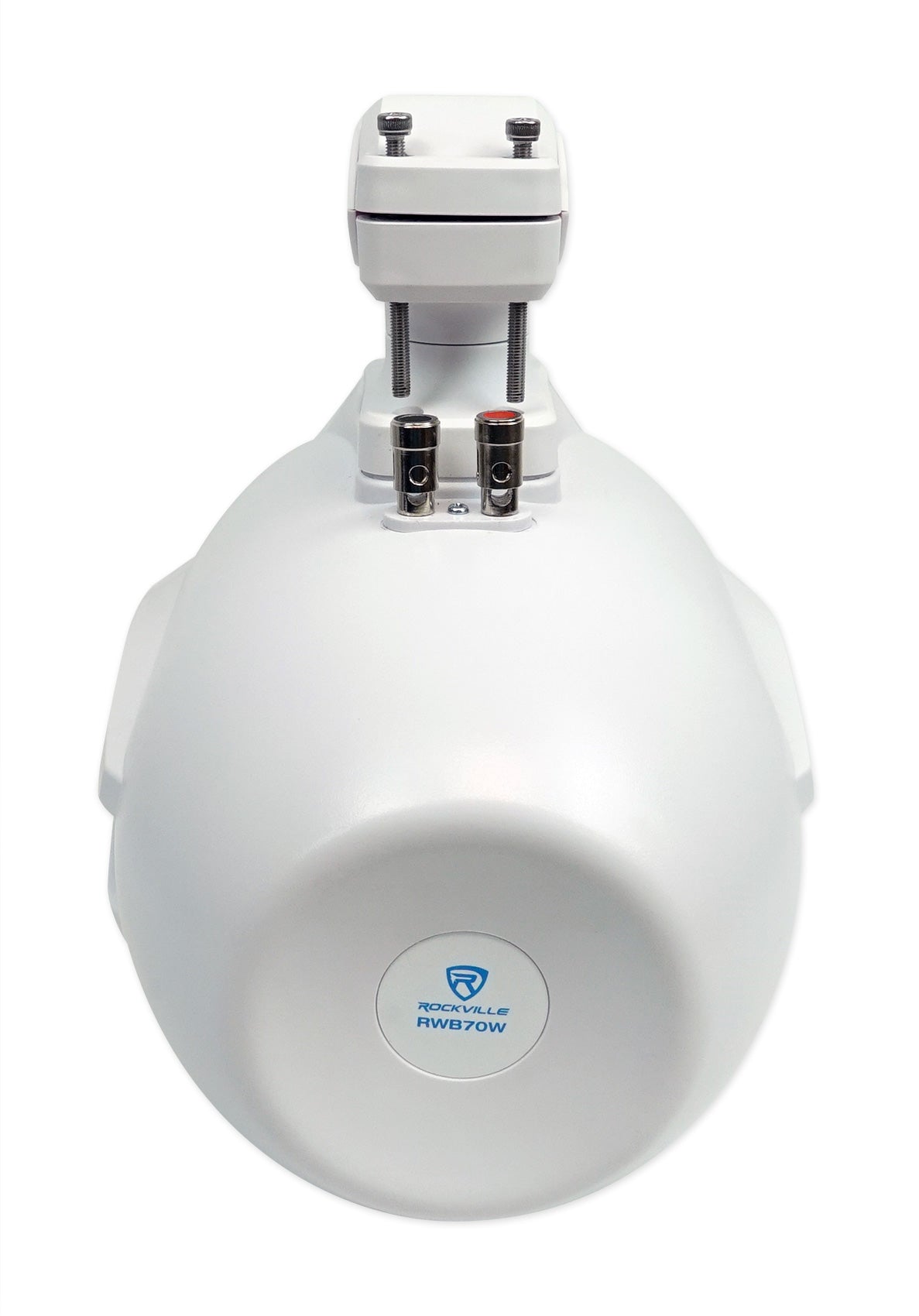

• Terminals Are Sealed with Rubber Gaskets
• Specially Tuned for PA Voice Over
• Polypropylene Mica Injected Cone with Santoprene Surround
• High BL Magnet Motor Structure
• Y30 High Density Magnets
• Oversized 1.25" Kapton Voice Coil

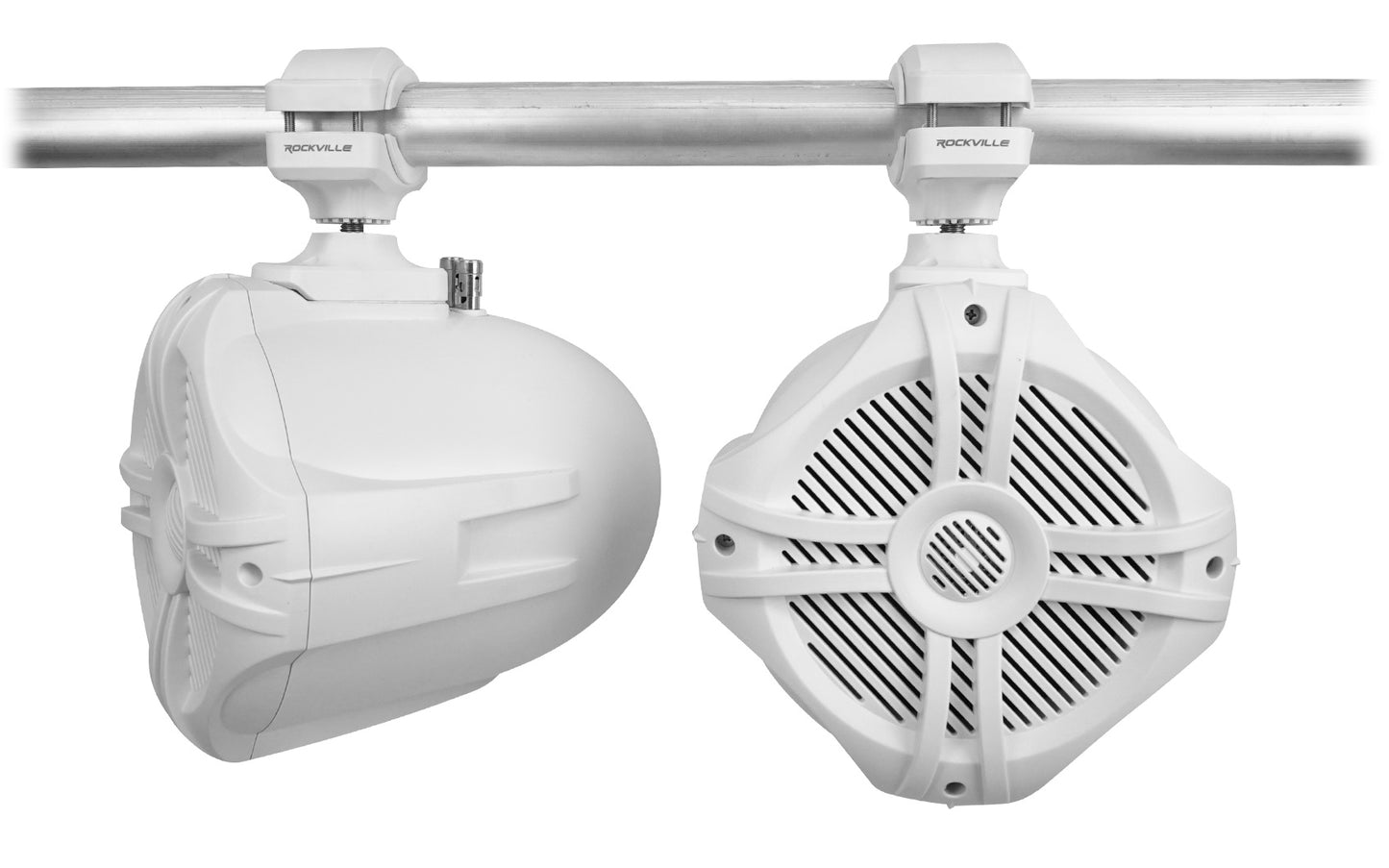

• These Wakeboards Fit bars ranging from 1.26" 2.87"
• Includes 65mm and 80mm screws that accommodate Jeep Wrangler and any roll bar
• Includes Stainless mounting hardware that wont rust or corrode

Details:

• Power Rating :
• Peak Power Handling : 500 Watts (250 Watts per Speaker)
• RMS Power Handling : 300 Watts (150 Watts per Speaker)
• Frequency Response : 70 - 20,000 Hz
• Sound Pressure Level : 96dB @ 1w/1m
• Impedance : 4 Ohms
• Mounting Depth : 9"

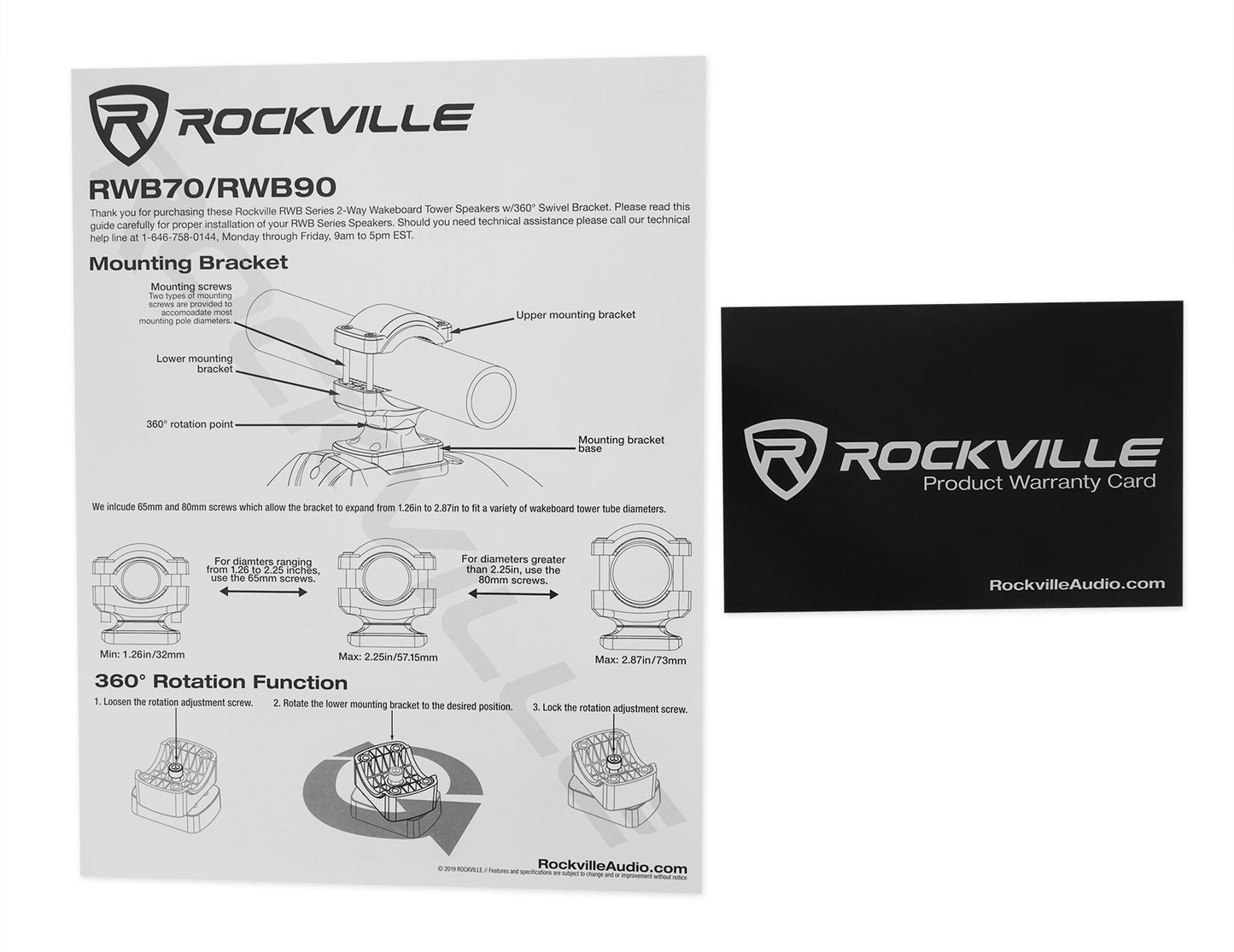

Owner's Manual

---

The Rockville Difference:
Whenever you see the Rockville shield on a product you know that it has the stamp of approval. While other companies simply import products from China, Rockville manufactures the products in China to lower your cost but do so under American style supervision and quality standards to get you that USA quality that you want!

About Rockville Quality Control Procedures:
The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty, though it is unlikely that you will need to use it.

Great features and great quality make Rockville a great choice.
