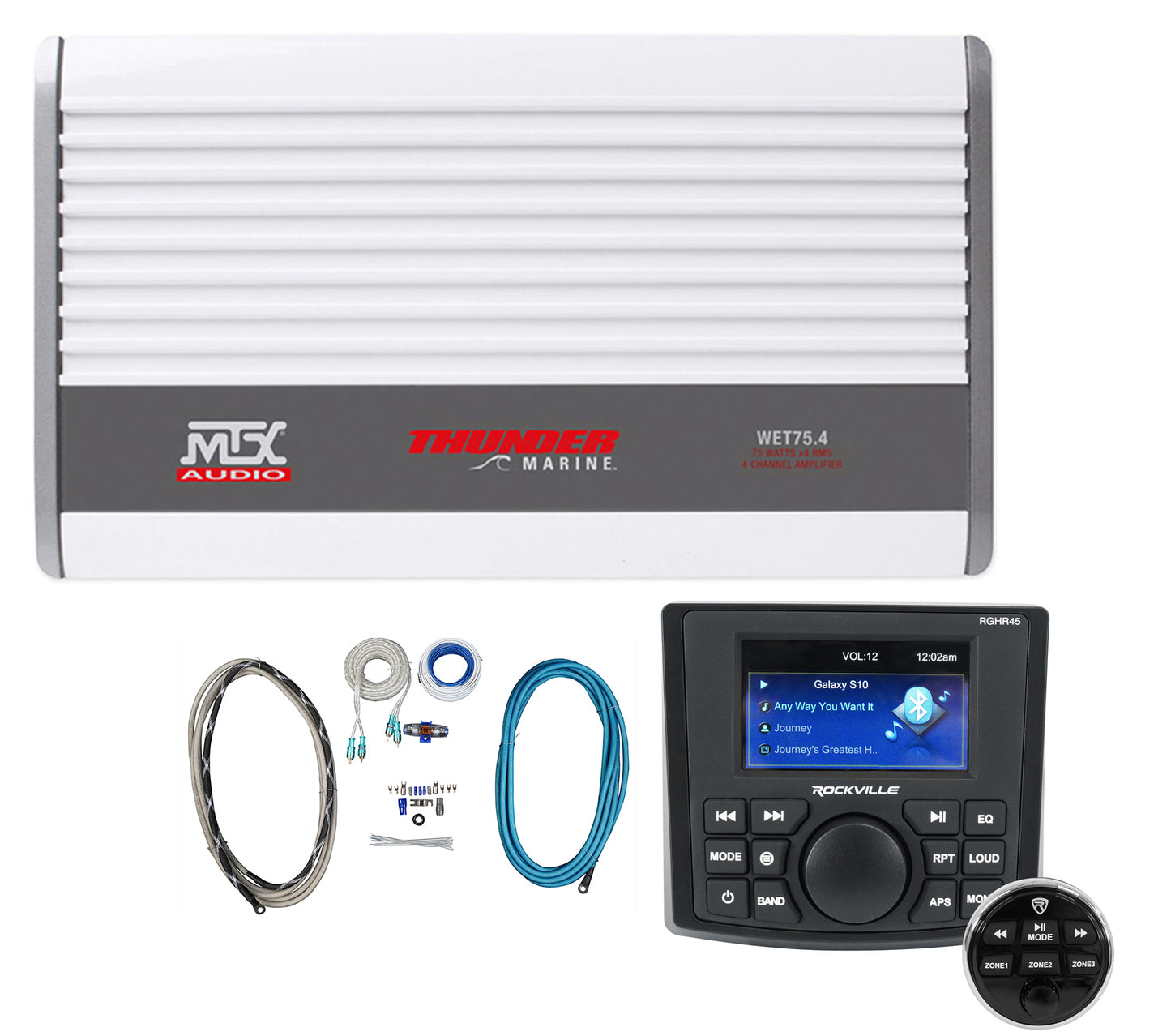

- (1) Rockville RGHR45 4 Zone Marine Gauge Hole Receiver Bluetooth/Radio/Wired Remote
- (1) MTX WET75.4 400 Watt RMS 4-Channel Marine Amplifier Amp 4 Boat/ATV/UTV/RZR/Cart
- (1) Rockville RMWK4 4 AWG Gauge Waterproof Marine Amplifier/Amp Install Wire Kit
HOW TO USE AND SET UP YOUR RGHR45:

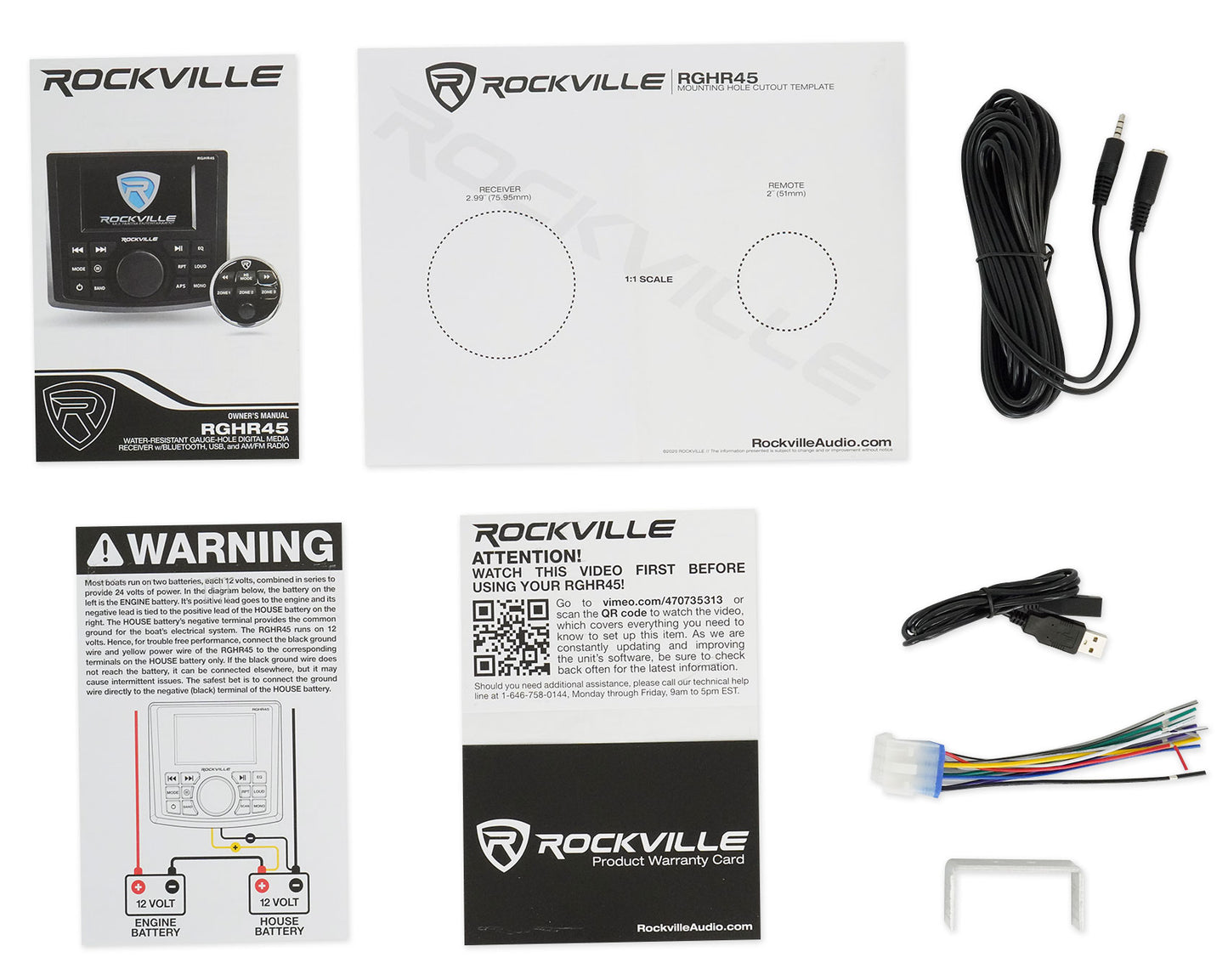

What's in the Box:
- Marine digital media receiver
- Wired remote with zone controls
- USB extension cable (40 inches)
- Mounting Screws for installation

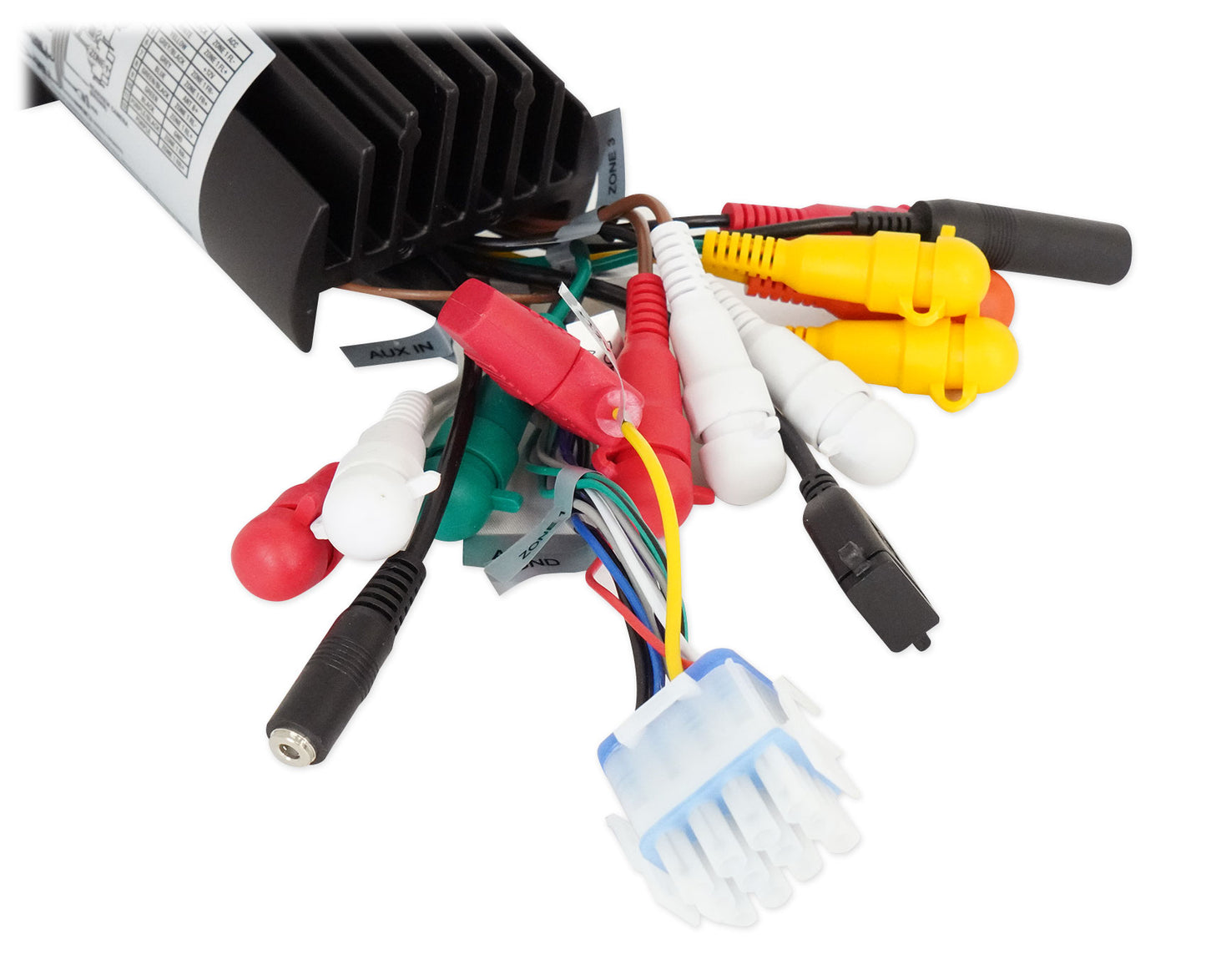

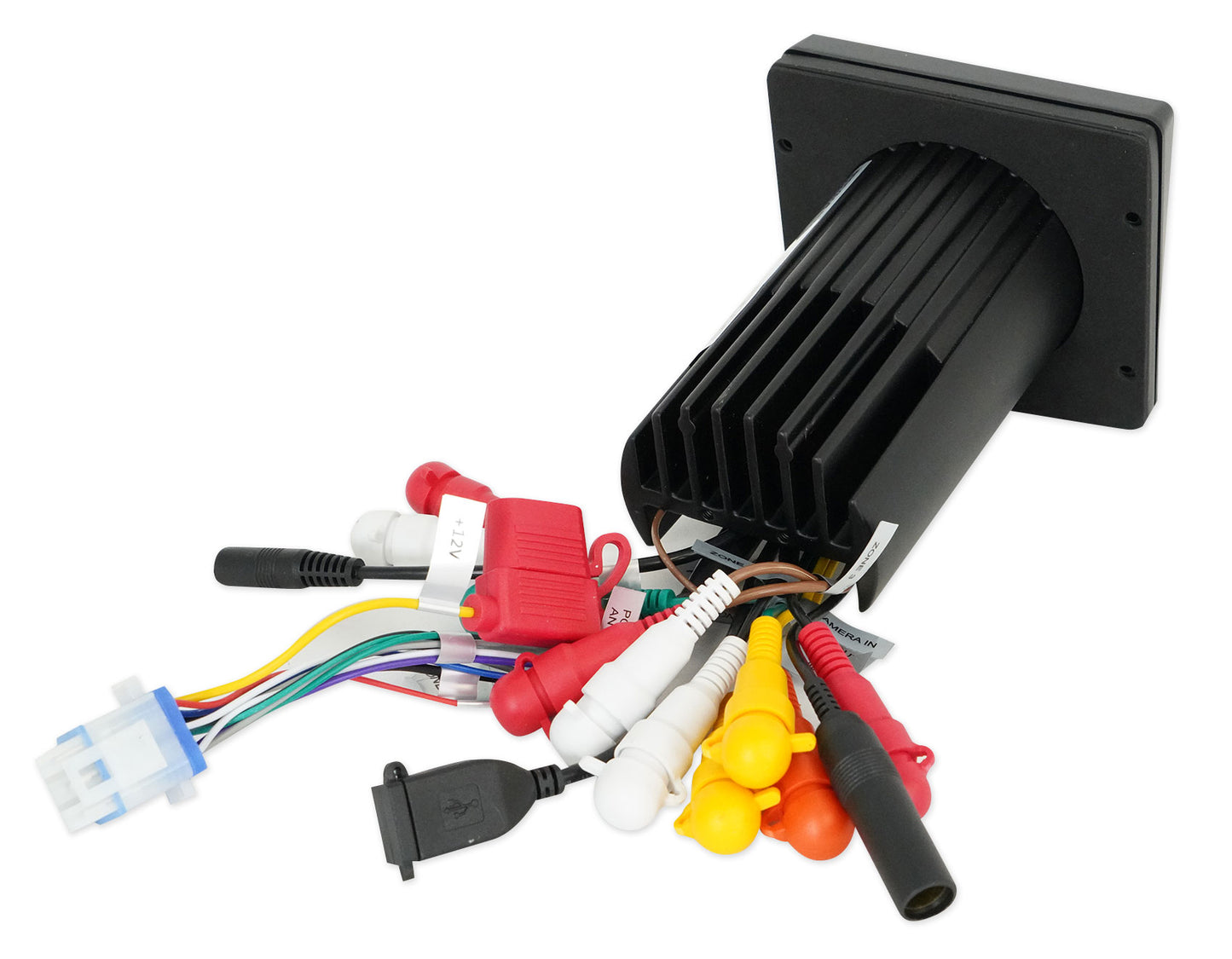

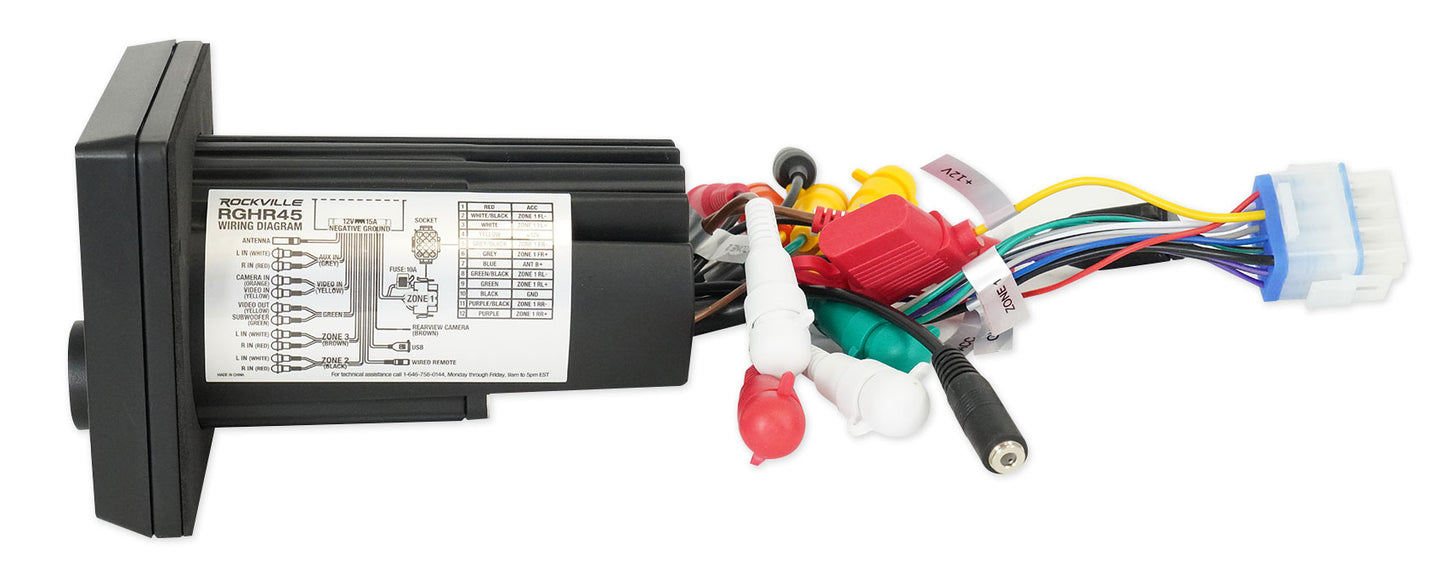

- Waterproof wiring harness for installation
- Owner manual and warranty
Description:
4 Zones!
This marine receiver has 4 zones that each have independent volume control. There are 3 zones for full range and a 4th zone for a subwoofer. Here is how it works. Zone 1 is the built in powerful 4 channel amplifier. With the addition of an external amplifier you can use the additional zones as follows: Zone 2 controls a full range set of RCA outputs. Zone 3 controls a second set of full range RCA outputs. Zone 4 controls a 3rd set of RCA outputs that are dedicated for subwoofer(s). You can control the volume in each of those zones both from the unit as well as from the included wired remote.

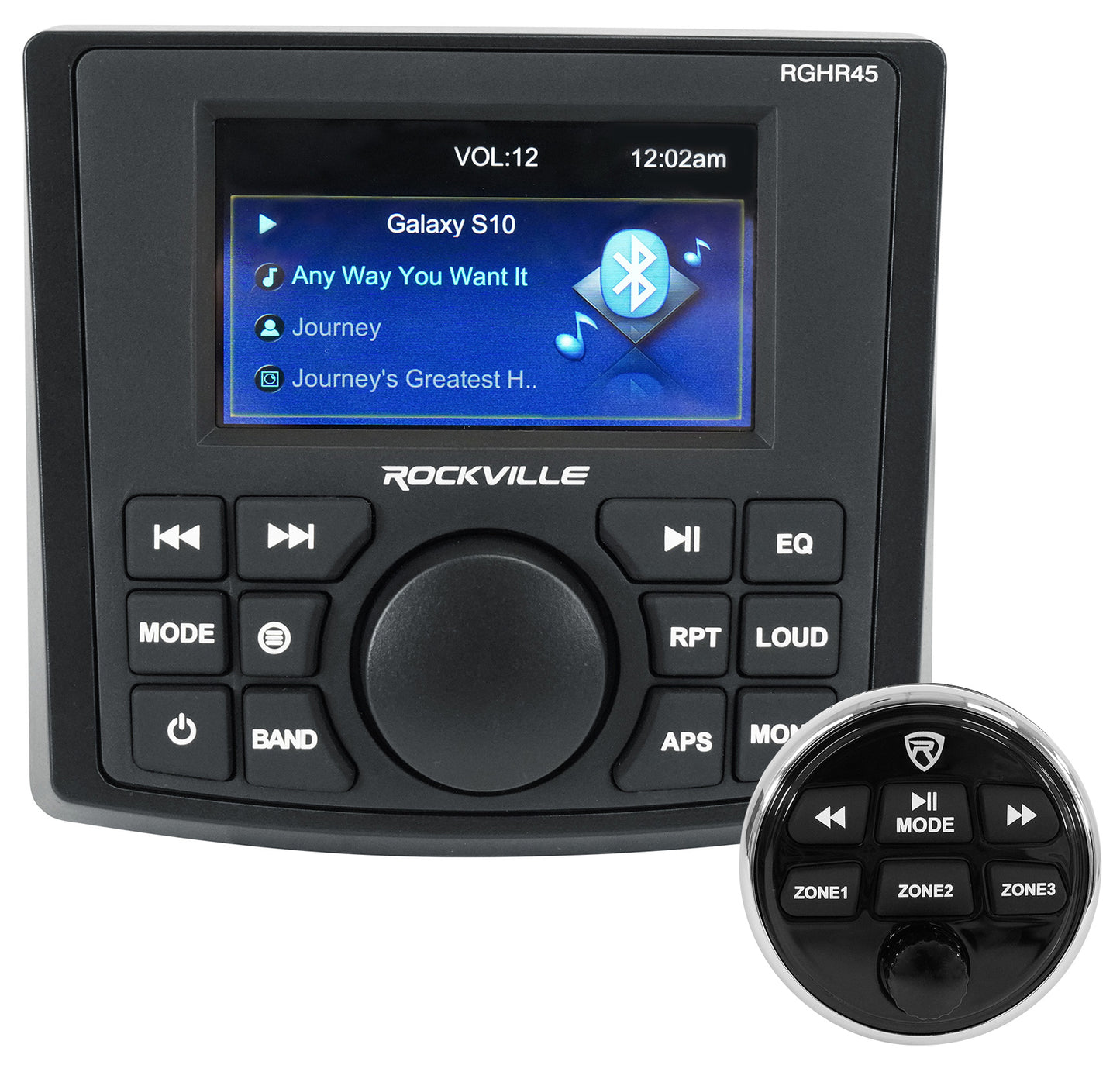

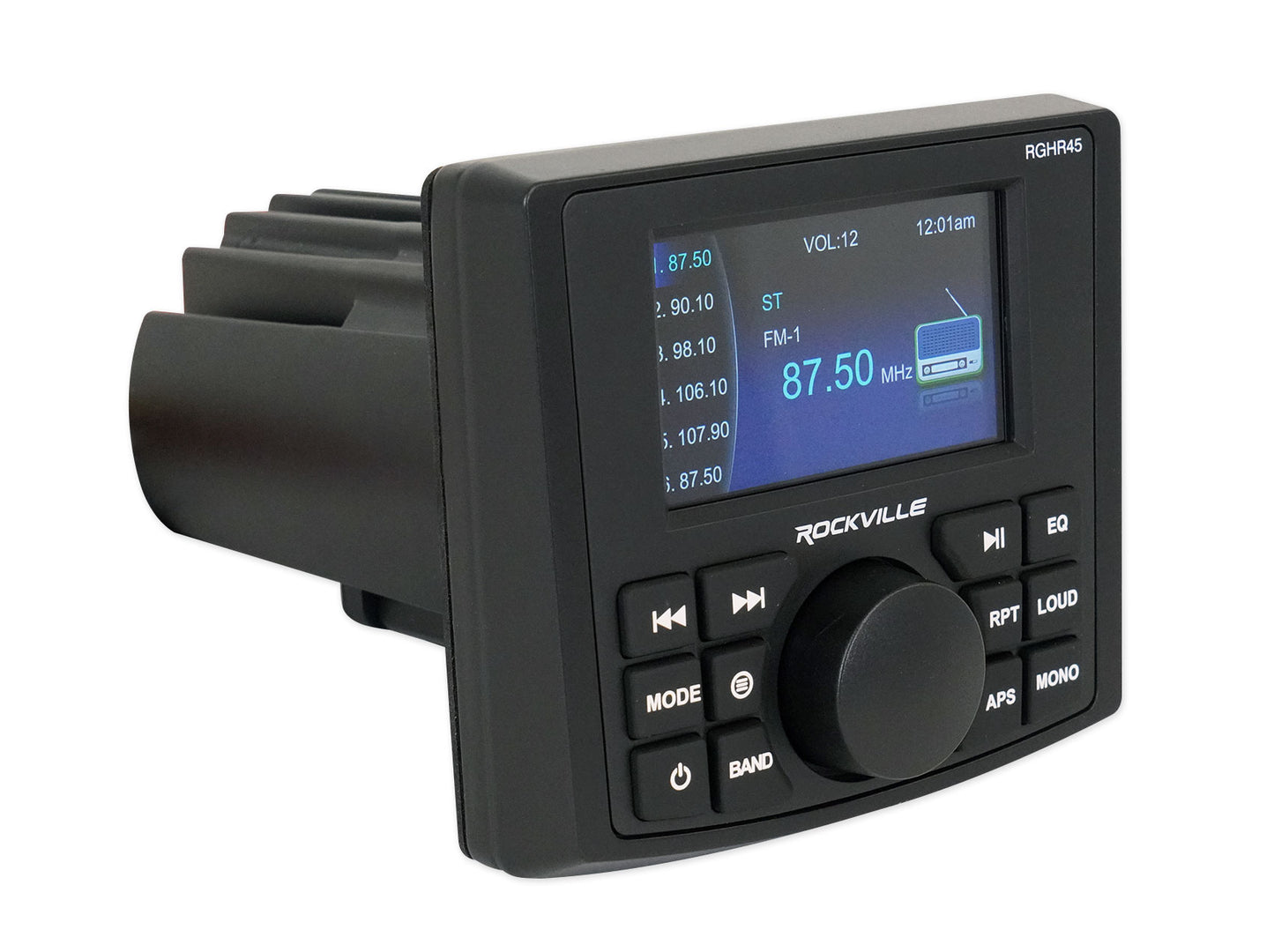

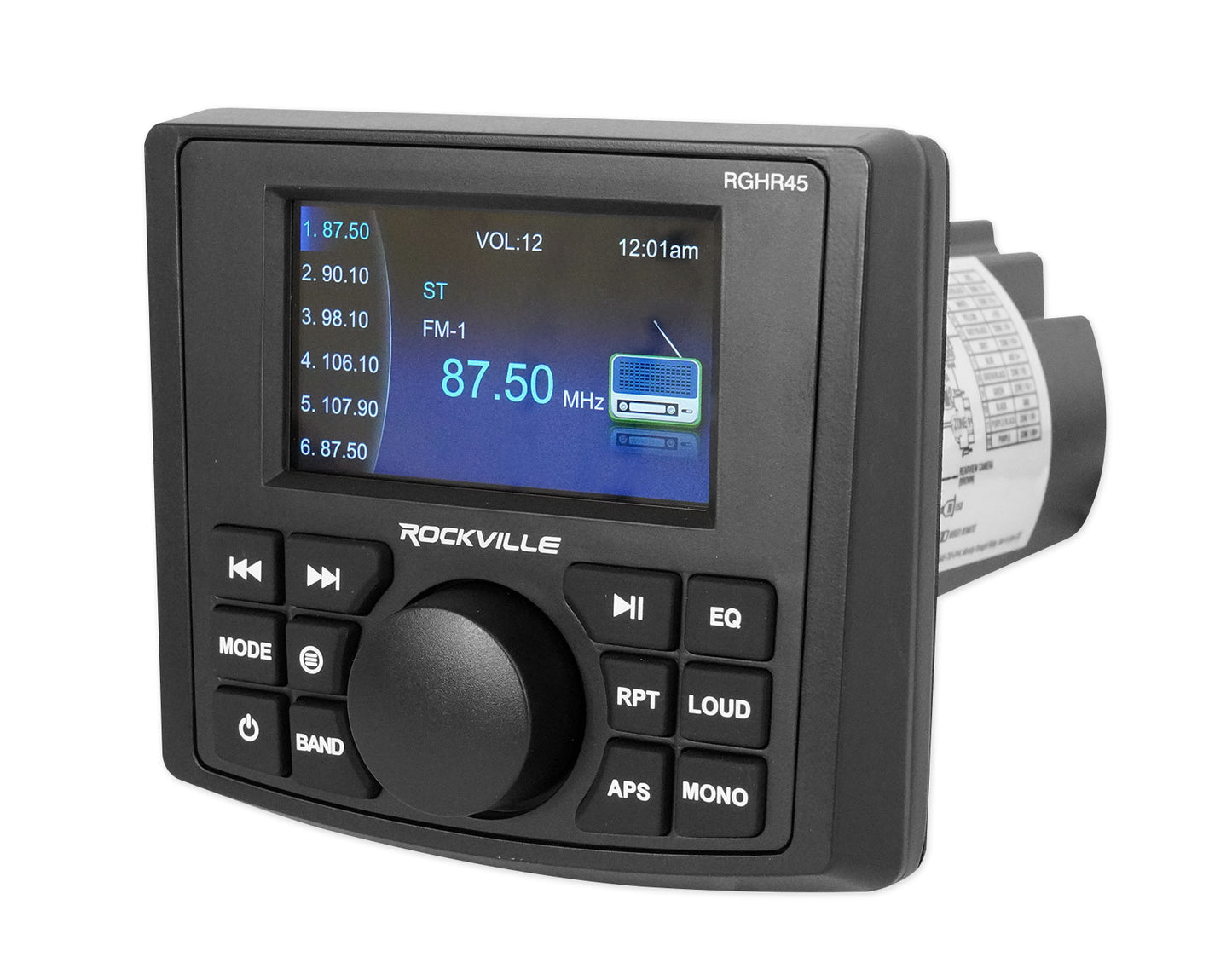

3” TFT display
Our built in 3” TFT display is crystal clear and it makes it easy to navigate your tracks and settings. We also include a rear view camera input as well as an aux A/V input.
Intuitive Screen Display
With the intuitive screen display you can access all your photos, videos and music all in one place. Hold the band button to access photos and videos and songs stored on a USB thumb drive.
Crazy loud!
We used a built in amplifier that is louder than other marine receivers on the market. The RMS power of the built in amp is 28 watt x 4 channels! It is crazy loud and can be heard over the sound of the wind when you are on the water! There is also a built in EQ to customize the sound to your taste.
Latest listening features
The RGHR45 gives you many listening options. The Bluetooth technology allows you to stream audio from your Bluetooth enabled phone or other music player to the receiver. Our Bluetooth distance is 50 feet! There is also a USB input allowing you to listen to music stored on a thumb drive. You can plug in any audio device to the auxiliary input. There is a built in radio with crystal clear reception as well.

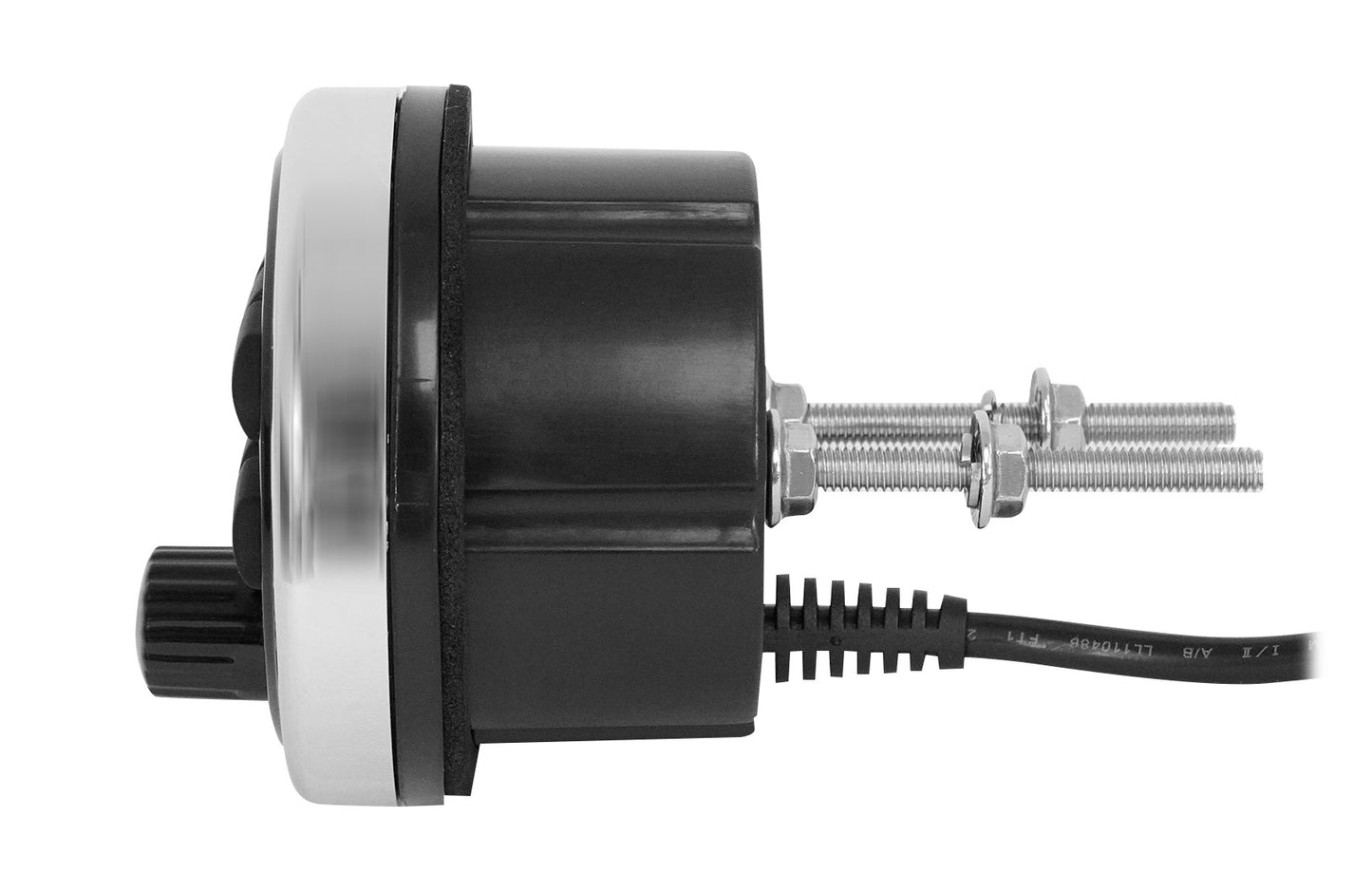

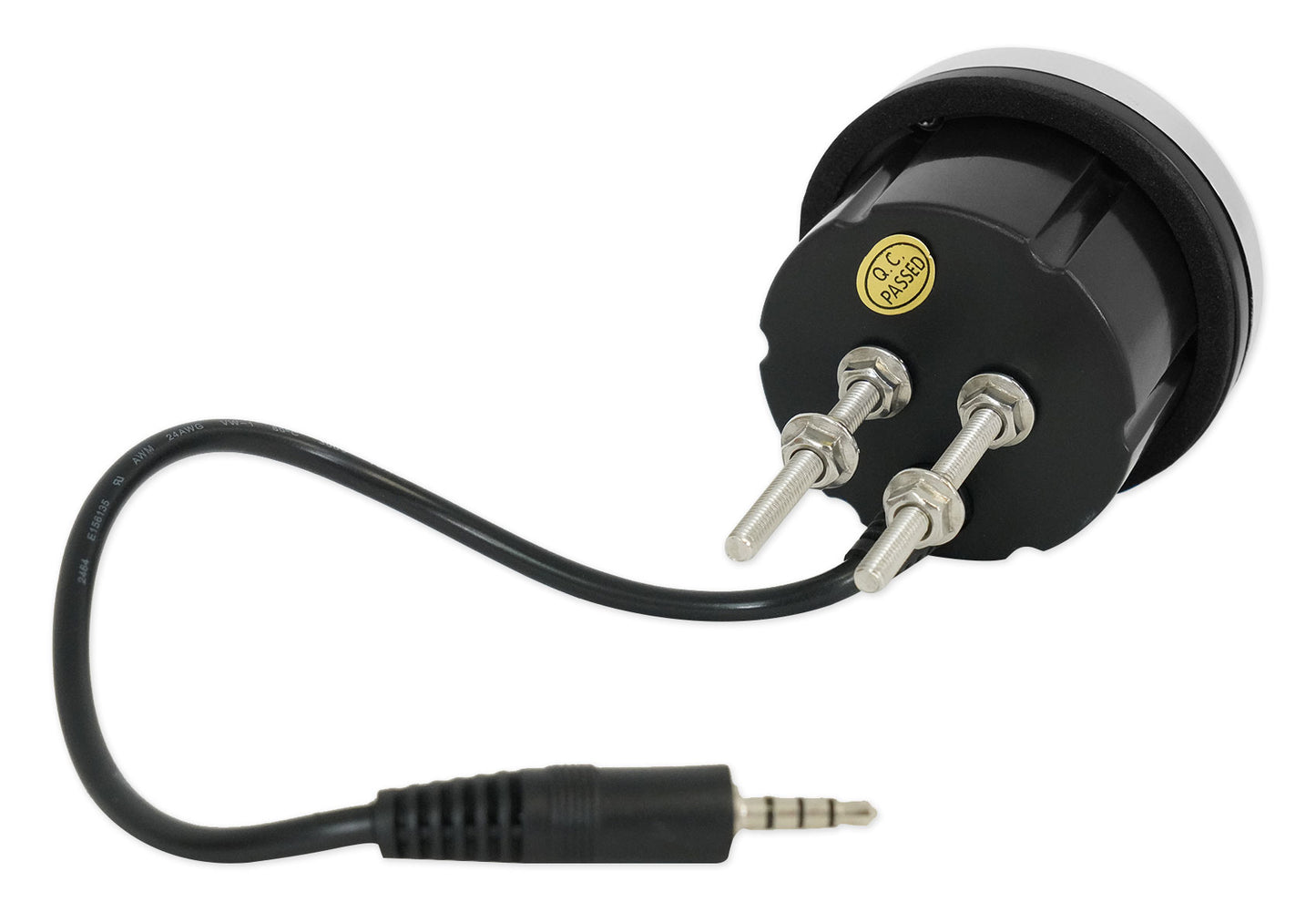

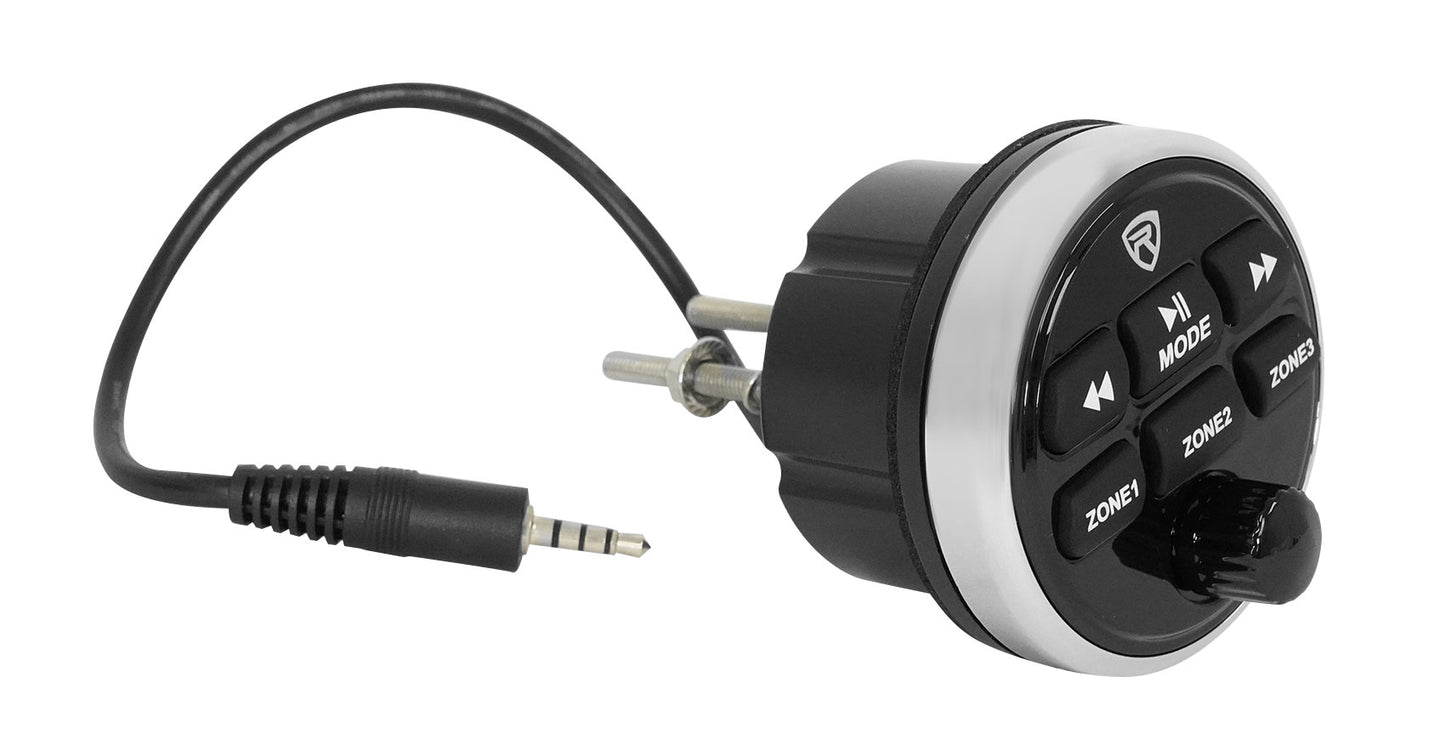

Includes a wired remote!
We include the wired remote inside the box. Most famous brands like to make extra money on the remote, but at Rockville we just include it because we know it will make your experience better. We custom engineered the remote to be able to control basic functions as well as control the volume in each zone!
Features:
- Rockville RGHR45 Weather Resistant Gauge-Hole Digital Media Receiver with 4 Zones that each have independent volume control
- Includes wired remote with the ability to control the volume in each zone
- 3” TFT color display makes it easy to navigate
- Built in Bluetooth/USB/AM/FM playback
- Fits into a standard Gauge-Hole (Tachometer) Opening
- Built-in 72 x 4 Watt Peak high powered amplifier (28 x 4 RMS)
- 3 pairs of pre-amp outputs
- 4 zones each with volume control (zone 1 = built in amplifier, zone 2 and 3 are RCA outputs, and zone 4 is the sub output)
- Built in EQ with preset EQ curves (Pop, Classic, Rock, Jazz, Beat, Flat)
- IP66 Waterproof Certification (Tested to withstand the elements)
- USB Input to play back audio files store on a USB thumb drive or any other USB device
- USB plays video
- RCA A/V input to play back a video source
- Rear camera input
- RCA Aux Input
- AM/FM Radio Built In with 18 FM and 12 AM presets + US and European tuning
- Bluetooth built in to stream audio from any Bluetooth enabled device
- USB Input Charges Your Phone
- Big easy to use buttons
- Back-lit 3 inch TFT display
- IP66 waterproof level
- meet ASTM B117 and ASTM D4329 standards
- Humiseal coated PCB board for waterproofing and protection from the elements
- Required cutout: 2.99" (diameter) x 4.96" (depth) x 4.53” (top plate diameter)
- 6.24 inch depth included the top plate
- USB is 500mA and 5V and supports 16GB max
- Specs of the built in amplifier
- TDA7851L quadbridge power amplifier
- 4 x 72 watts peak @ 2 ohm
- 4 x 48 watts peak @ 4 ohms
- Highly efficient even when running at 2 ohms!
- Low distortion even at top volumes
Authorized MTX Audio Dealer!

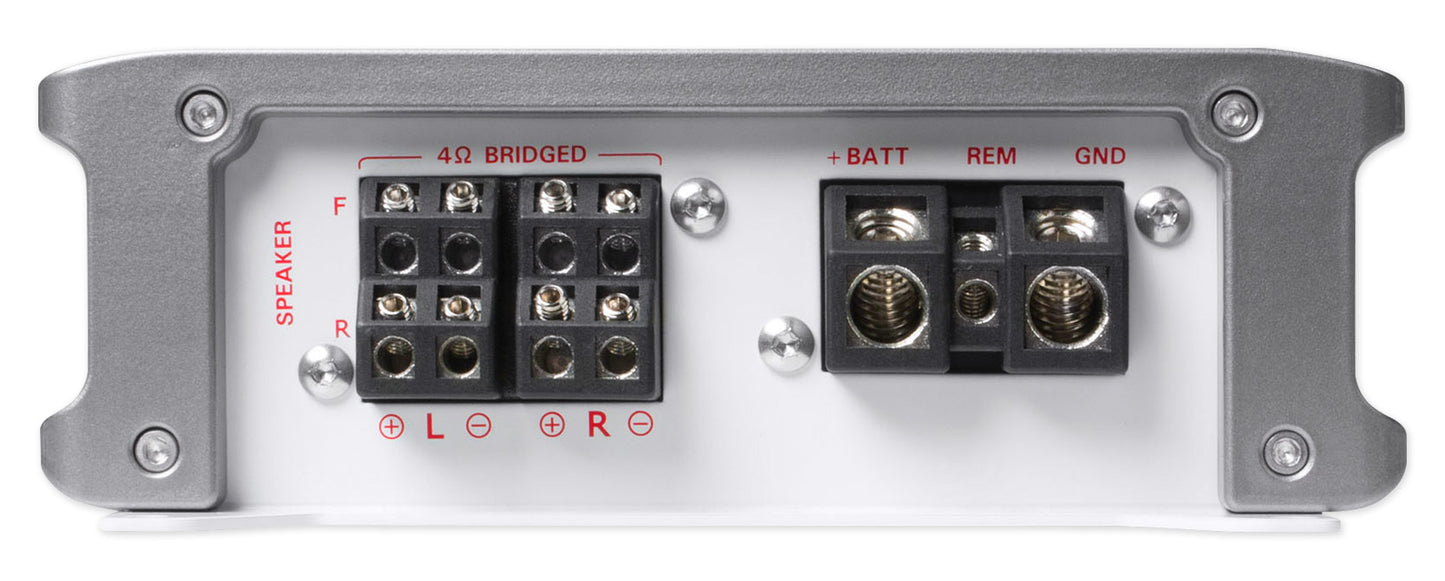

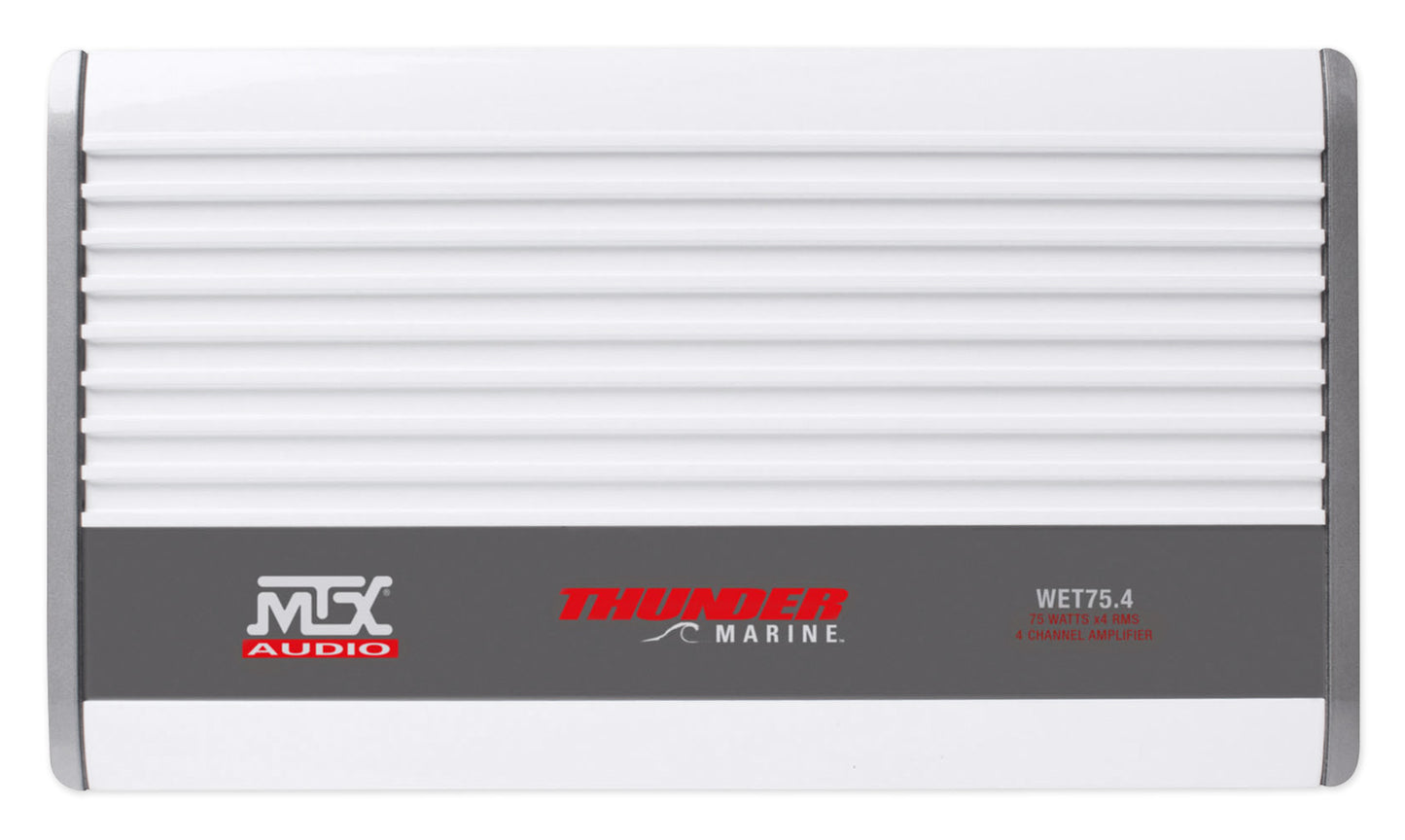

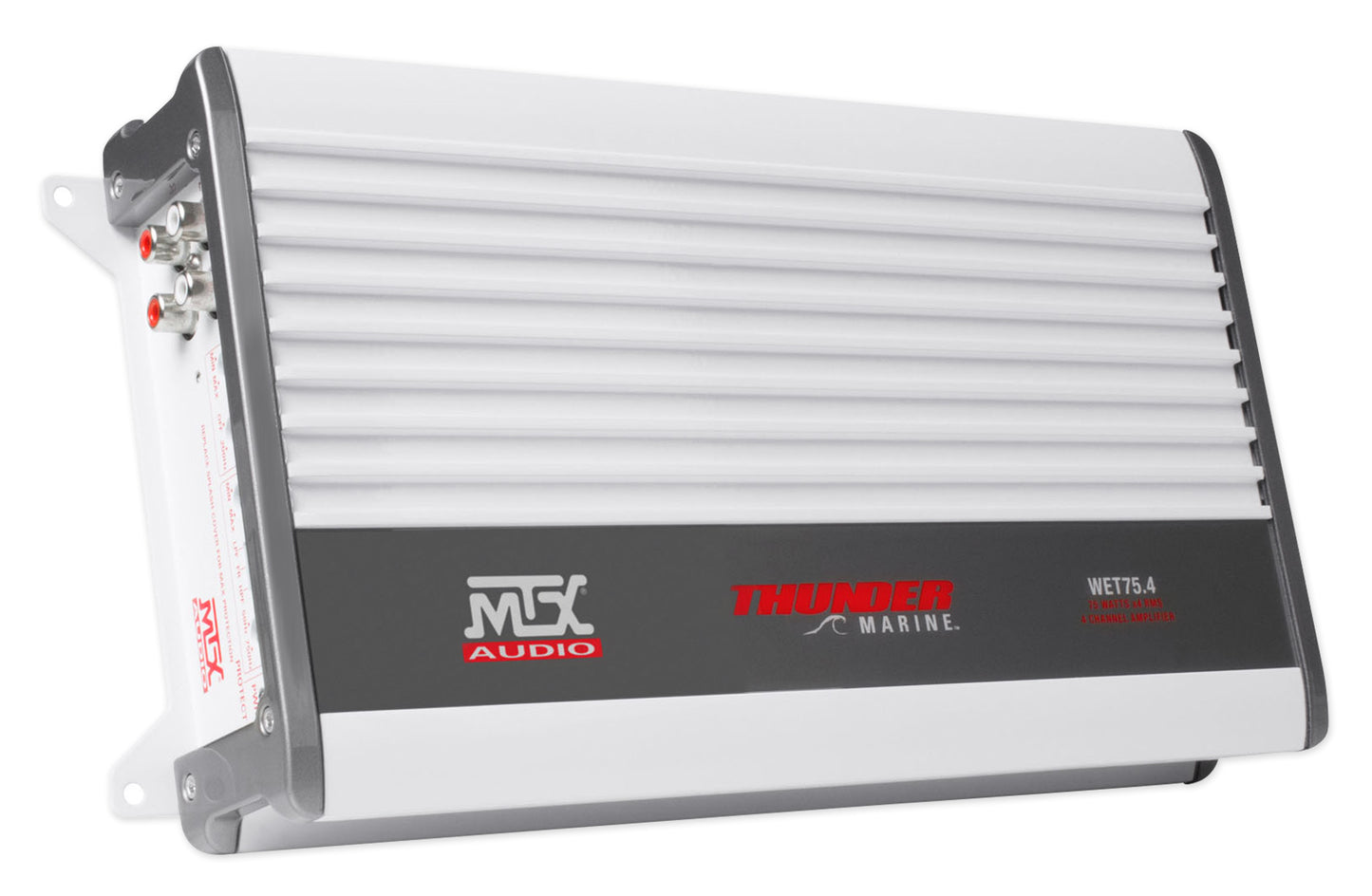

Description of WET75.4:
Super Amp
WET Series amplifiers from MTX Audio are designed to deliver all the power your system needs whether they are being used on a boat, bike or off-road vehicle. The WET75.4 is a 4-channel full range amplifier. The WET75.4 is capable of producing up to 400W total RMS power, 100 watts per channel. The unit features a a class A/B circuit design that delivers exceptional sound quality and small chassis with an extruded heat sink that effectively dissipates heat ensuring long play times.
Marine Hardened
It also incorporates a surface mount design, which attaches critical parts more securely to the circuit board creating greater resistance to vibration which is very important in boat and off-road applications. This amplifier features a conformal coated circuit board making it resistant to moisture that may get into the the chassis. Other features include stainless steel hardware, rubber gaskets around interconnects, and plastic covers that cover the controls preventing moisture from getting into the amplifier.
Features:
- MTX WET75.4 400 Watt 4-Channel Class A/B Marine Amplifier for Boat/Marine
- RMS Power Output @ 2 Ohms: 100 Watts x 4 Channel
- RMS Power Output @ 4 Ohms: 75 Watts x 4 Channel
- RMS Power @ 4 Ohms Bridged: 170 Watts
- Signal to Noise Ratio: 80dB
- Frequency Response: 15Hz - 25kHz
- Topology: Class A/B
- THD: <1.0%

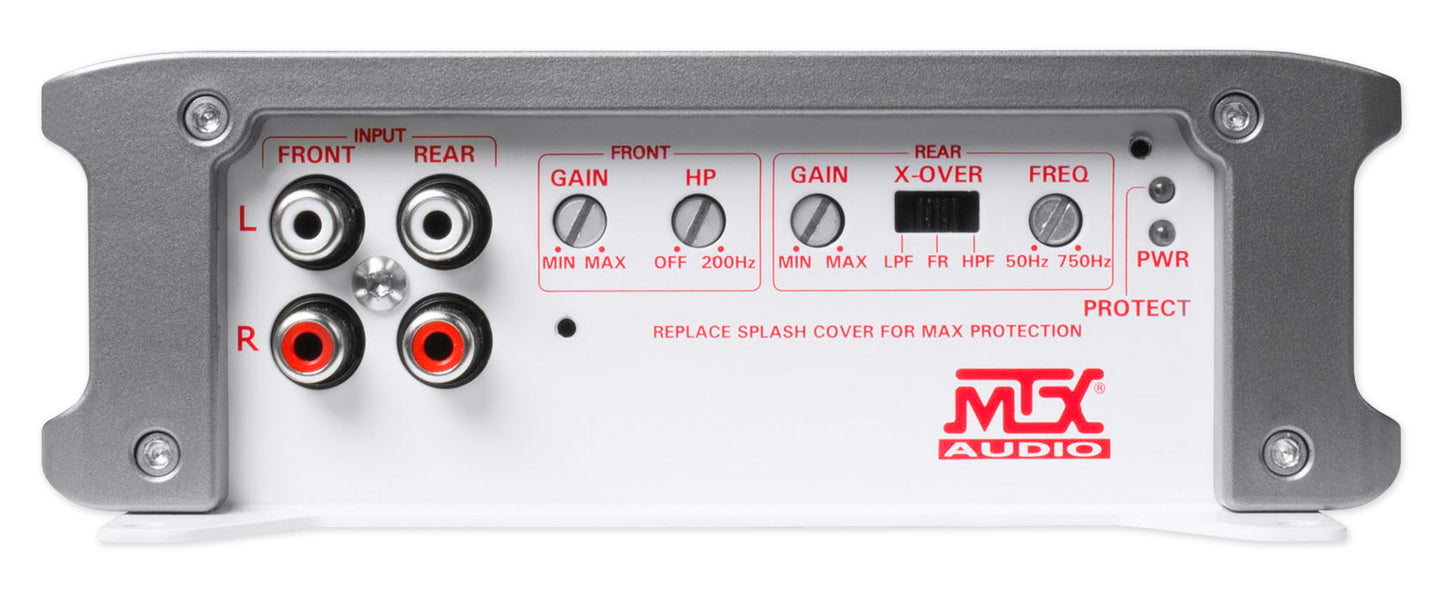

- Crossover: Variable LPF 50Hz to 750Hz (Rear), Variable HPF 10Hz-200Hz (Front), Variable HPF 50Hz-750Hz (Rear), 12dB/Oct
- Bass Boost: 0dB, 6dB, 12dB Switchable
- Max Sensitivity: 200mV
- Maximum Input Signal: 5V
- Weather Resistant: IP55 Rating
- Surface Mount PCB Design: Decreases chassis size, improves layout efficiency and increases vibration resistance without sacrificing performance or sound.
- Conformal Coated Circuit Board: Protects against corrosion or circuit deterioration due to exposure to moisture or salt conditions.
- Variable Butterworth Crossover: A 12dB/Oct crossover that allows you to set the frequency your speakers will play down or up to.
- Stainless Steel Hardware
- Rubber Gaskets Around RCA Connectors
- Plastic Cover Over Control Adjustments
- Triple Protection Circuitry: A Thermal, DC Offset, and Short Circuit Protection circuitry ensures the amplifier will protect itself in the event of a problem.
- Product Dimensions (H x W x D): 2.25" x 12.13" x 6.38" inches
Click here for the Owner's Manual
Video of RMWK:
Features:

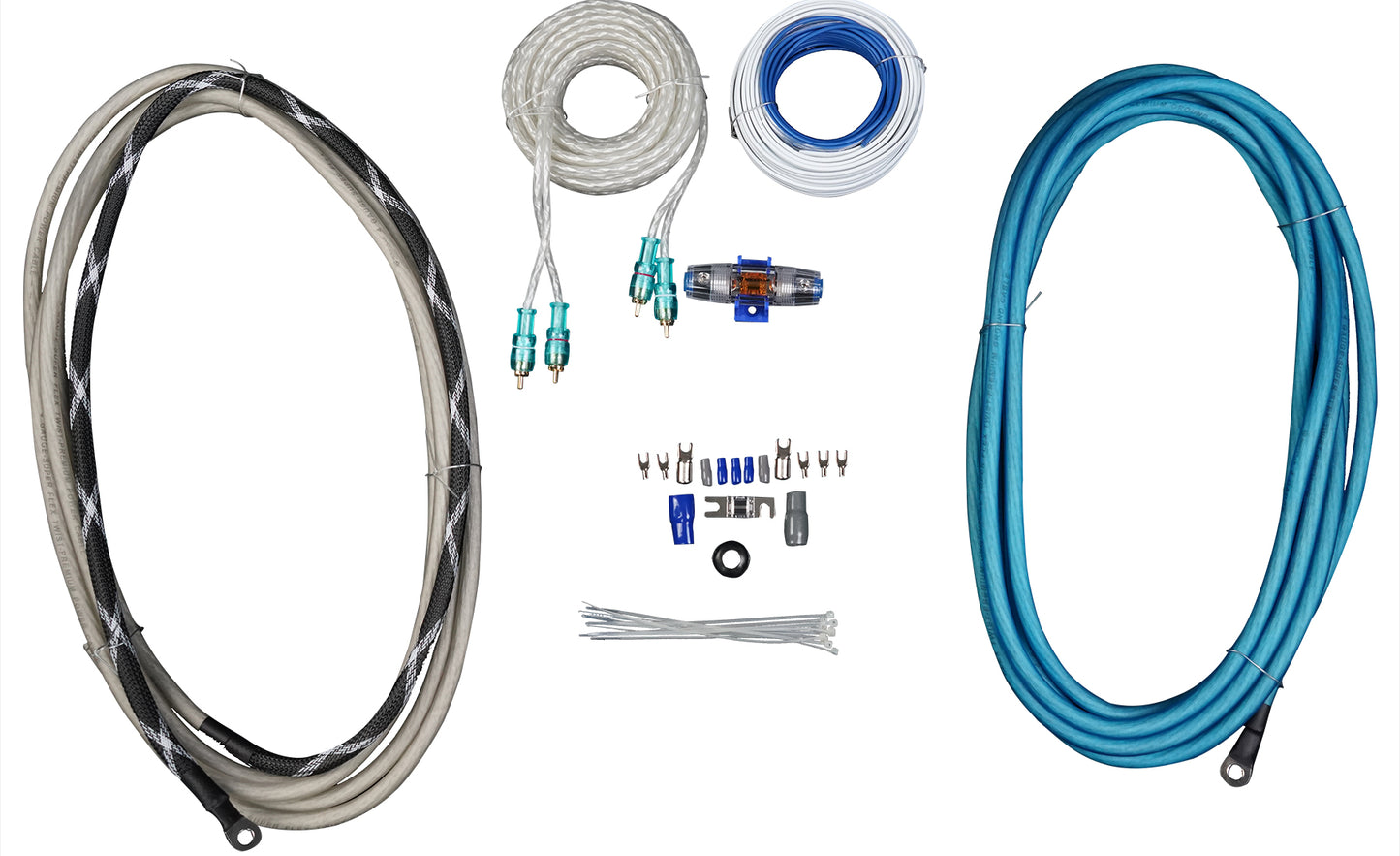

- Rockville RMWK4 4 AWG Gauge Waterproof Marine/Boat Amplifier Wire Installation Kit
- 20 ’ Translucent, Twisted Pair, High Quality, Tinned-OFC Flexible PVC RCA Cable
- 18’ 4 Gauge High Current, Low Impedance, Clear Flexible Power Cable with 3’ Black Poly Woven Mesh to better resist chemicals in the battery compartment
- 18’ 4 Gauge High Current, Low Impedance, Light Blue, Flexible Ground Cable
- 25’ 16 Gauge 100% Tinned-CCA, White, Non-Transparent Resin PVC, Flat Speaker Cable
- 25’ Blue Remote Wire
- (1) Silver Mini-ANL Fuse Holder – Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring
- (1) 120A Mini-ANL Fuse
- (1) 80A Mini-ANL Fuse
- (2) Ring Terminals
- (2) Spade Terminals
- (5) Speaker Cable Terminals
- (1) Washer
- (10) White Cable Ties
Owner's manual
- UPC:
- 613817029746
