Package Includes:

• (1) Rockville RGHR2 Marine Gauge Hole Receiver w Bluetooth USB, Radio + Wired Remote
• (1) Pair Rockville RWB90W White 8" 300w Marine Wakeboard 360° Swivel Tower Speakers
• (1) Rockville RXM-T1 1500w Peak / 370w Dyno-Certified RMS Marine/Boat 2 Channel Amplifier Stereo Amp Amp New
• (1) Rockville RMWK4 4 AWG Gauge Waterproof Marine Amplifier/Amp Install Wire Kit

---

All about your RGHR2:

How To Set Up Your RGHR2:

Included in the box:

• Marine digital media receiver
• Wired remote with 32.8 foot wire
• USB extension cable (40 inches)
• Mounting bracket
• Screws
• ISO wiring
• Owner manual and warranty

Description:

The Rockville RGHR2 is the best gauge hole receiver on the market. We developed this to give you the best sound and the best features.

Crazy loud!
We put in a built in amplifier that is louder than other marine receivers on the market. The RMS power of the built in amp is 28 watt x 4 channels! It is crazy loud and can be heard over the sound of the wind when you are on the water! There is also a built in EQ to customize the sound to your taste.

Included wired remote
Rockville is the only brand on the market that I know of that supplies a wired remote with your radio. The wired remote is a must have for any marine radio. This is great for boats and other powersport applications. We also include an extra long 32.8 foot wire so you will not need any additional extension cables.

Latest listening features
The RGHR2 gives you many listening options. The Bluetooth technology allows you to stream audio from your Bluetooth enabled phone or other music player to the receiver. Our Bluetooth distance is 50 feet! There is also a USB input allowing you to listen to music stored on a thumb drive. You can plug in any audio device to the auxiliary input. There is a built in radio with crystal clear reception as well.

Ability to connect multiple external amps
This receiver makes your system expandable. Two sets of pre-amp outputs allow you to hook up external amps for your speakers and/or subs. This has front and switchable rear/sub pre-amp outputs so you can amplifiy your speakers and a subwoofer amplifier.

Features:

• Rockville RGHR2 Weather Resistant Gauge-Hole Digital Media Receiver w/Bluetooth/USB/AM/FM
• Fits into a standard Gauge-Hole (Tachometer) Opening
• Built-in 72 x 4 Watt Peak high powered amplifier (28 x 4 RMS)
• Built in EQ with preset EQ curves (Pop, Class, Rock, Flat)
• IP66 Waterproof Certification (Tested to withstand the elements)
• USB Input to play back audio files store on a USB thumb drive or any other USB device
• RCA Aux Input
• AM/FM Radio Built In with 18 FM and 12 AM presets + US and European tuning
• Bluetooth built in to stream audio from any Bluetooth enabled device
• USB Input Charges Your Phone
• Two Sets of RCA Outputs (Front and a switchable rear/sub) allow you to connect external amplifiers
• Big easy to use buttons
• Backlit LCD display
• Wired Remote Control Included (normally $50)
• Required cutout: 2.96" (diameter) x 2.75" (depth)
• USB is 500mA and 5V and supports 16GB max
• Dimensions:
• 2.96" cutout mounting diameter
• 4.45" diameter top plate
• 3.9" mounting depth (not including top plate)
• 5.0" depth including the top plate
• Specs of the built in amplifier:
• TDA7851L quadbridge power amplifier
• 4 x 72 watts peak @ 2 ohm
• 4 x 48 watts peak @ 4 ohms
• 4 x 28 watts RMS @ 4 ohms
• Highly efficient even when running at 2 ohms!
• Low distortion even at top volumes

---



HOW TO RWB SERIES (RWB65B, RWB65W, RWB70B, RWB70W, RWB80B, RWB80W, RWB90W, RWB90B):



Video of RWB:

Includes:

• (2) Wakeboard Speakers
• (2) 360° Swivel Mounting Brackets
• Integrated Grill
• Installation Hardware

Description:

• No exaggerated power ratings : These speakers are rated with true world RMS ratings. No bootleg or exaggerated power ratings like other brands. These speakers are 200 watts RMS and 300 watts peak. (200 watts RMS is equal to about 500 watts rated by other brands)
• Marine grade components and materials: these speakers are truly marine grade. They will not get damaged by water, salt water, or moisture. In addition the terminals (which are normally the first part of a marine speakers that gets damaged by water are made out of stainless steel and they are completely rustproof. There is also an additional waterproof coating cut completely protect the speakers.
• These can withstand all elements on the water for a lifetime of worry free use
• The mounting screws are longer than other versions we carry to accommodate thicker mounting bars. In addition to wakeboard tower's on boats, we tested these to be perfect for installing in Jeep Cherokee vehicles and even ATV's.
• We’ve added a new and improved nylon mounting bracket. Nylon is strong, light weight, and can withstand the toughest conditions. The bracket features a special UV coating to protect it from the elements. A 360° rotating mechanism built into the bracket allows you to position the speaker in any direction for optimum listening enjoyment. This also gives you the ability to rotate the speaker to the front or rear of your boat for different applications.


Features:

• Pair Rockville RWB90W White 8" 300w Marine Wakeboard 360° Swivel Tower Speakers
• 8" Two-Way High Fidelity Speaker System
• Adjustable Nylon Mounting Bracket Reinforced With Embedded Steel
• Includes Stainless Steel Mounting Hardware
• 1" Polymide Dome Neodymium Midrange Tweeter
• Built-In Two-Way Crossover Network
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Water / Rust Resistant
• Terminals Are Sealed with Rubber Gaskets
• Specially Tuned for PA Voice Over
• Polypropylene Mica Injected Cone with Santoprene Surround
• High BL Magnet Motor Structure
• Y30 High Density Magnets
• Oversized 1.25” Kapton Voice Coil
• Large mounting screw accommodates roll bars found on many off road vehicles such as Jeep Wranglers, and ATV's equiped with a roll bar/cage.
• These Wakeboards Fit bars ranging from 1.26" 2.87"
• Color: White
• Includes 65mm and 80mm screws that accommodate Jeep Wrangler and any roll ba
• Includes Stainless mounting hardware that wont rust or corrode

Details:

• Power Rating :
• Peak Power Handling : 600 Watts (300 Watts per Speaker)
• RMS Power Handling : 400 Watts (200 Watts per Speaker)
• Frequency Response : 60 – 20,000 Hz
• Sound Pressure Level : 98dB @ 1w/1m
• Impedance : 4 Ohms
• Mounting Depth : 10.5"



---

Video of RXM-T1:

Unboxing Video for RXM-T1:

Description:

Over the years, the technology used to create audio amplifiers has grown by leaps and bounds. We consider it our mission to use our expertise in developing the latest technologies and to bring you the absolute best sounding amplifiers on the market and of course at a reasonable price. From its clean, sleek design to its high quality components, you will be amazed at the quality and power that these new Phenom amps offer.

The RXM-T1 is a 2 channel marine amplifier with 1,500 Watts peak output and 500 Watts MS (2x 250 @ 4 Ohms). You can also bridge the amplifier and get 1 x 750 Watts RMS @ 4 Ohms. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.

The RXM-T1 has a conformal coating on its PCB (printed circuit board) in order to protect against moisture, dust, chemicals, and temperature extremes. This coating protects the amplifier from the elements of the ocean. If water gets sprayed on the amplifier you will not have to worry. The exterior screws are made of stainless steel to better withstand the elements. This amplifier is fully marine-rated from start to finish.

One of the tricks to determine the real power of an amplifier is to multiply the fuse rating by 10 to determine the true RMS power. This formula almost always works within 20%. RXM-T1 features a 50 Amp Maxi Fuse. Compare this to other amps on the market with similar fuse ratings and you’ll see that with the RXM-T1 you are getting your money’s worth and then some.

This unit also features a high speed MOSFET power supply, studio-grade bipolar output stage transistors and ELNA brand audiophile capacitors. It has a fully adjustable 12dB/Octave cross over with differential circuitry. High Level inputs, also referred to as Speaker Level inputs, allow you to install the amplifier into your vehicle even if you do not have any preamp outputs available. This amplifier is completely universal. It can be installed to any marine system.

Other features include Auto-Start Smart turn-on (This function senses when there is a signal from the head unit and automatically turns on the amplifier hence no need to run a Remote Turn-On wire), a fully adjustable 12dB bass equalizer, 2 channel / bridgeable mono model, mute and delay soft start technology, and a crossover band-pass control. The RXM-T1 is protected by a full IC controlled circuit and has professional peak limiter circuitry guaranteeing distortion free musical playback at all levels.

The circuitry of this amplifier is a class A/B circuitry. Class A/B is known to have amazing sound quality. Pro audio amps usually all are class A/B. Class A/B however is not known for its efficiency. To make this amplifier more efficient we simulated a class “G” amplifier. Class G is technology that switches the rail voltage depending on how much power is being used. We have similar technology built into these class A/B amplifiers which make these about 65-70% efficiency which is just amazing for a class A/B amplifier.

We are so confident that you will be extremely satisfied with this amplifier that we are giving every customer a 90 day money back guarantee. So purchase the amplifier and try it for 90 days. If you are not happy, we will call tag it and cover return shipping costs and refund you all your money back. (Amp must be complete with accessories and original box please).

Features:

• Rockville RXM-T1 1500w Peak / 370w Dyno-Certified RMS Marine/Boat 2 Channel Amplifier Stereo Amp
• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
• 250 Watts (2 x 125 Watts) at 4 ohms and 1% THD+N
• 370 Watts (2 x 185 Watts) at 2 ohms < 1% THD
• 1 x 370 Watts bridged @ 4 Ohms < 1% THD
• Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
• 1500 Watts (2 x 750 @ 2 ohms or 1 x 1500 @ 4 Ohms)
• High-Speed MOSFET Power Supply
• Studio-Grade Bipolar Output Stage Transistors
• Fully Adjustable 12dB / Octave Crossover
• Low Pass Filter : 50Hz - 250Hz
• High Pass Filter : 15Hz - 250Hz
• Fully Adjustable 12dB Bass Equalizer with Differential Circuitry
• 2-Ohm Stable Stereo
• 4-Ohm Mono Bridgeable
• Mute and Delay Soft Start System
• Full IC-Controlled Protection Circuitry
• RCA Preamp Line Output
• ELNA Brand Audiophile Capacitors
• 8 Volt Preamp Circuitry
• Status Mode LED Indicator
• High Level Input with Smart Auto Turn-On
• Minimum THD at Rated Power: < 0.05%
• Frequency Response : 10Hz - 40KHz
• Damping Factor : > 200 @ 100Hz
• 50 Amp Maxi Fuse
• Dimensions : (W x H x L) 8.6" x 2" x 13"

---



Video of RMWK:

Features:

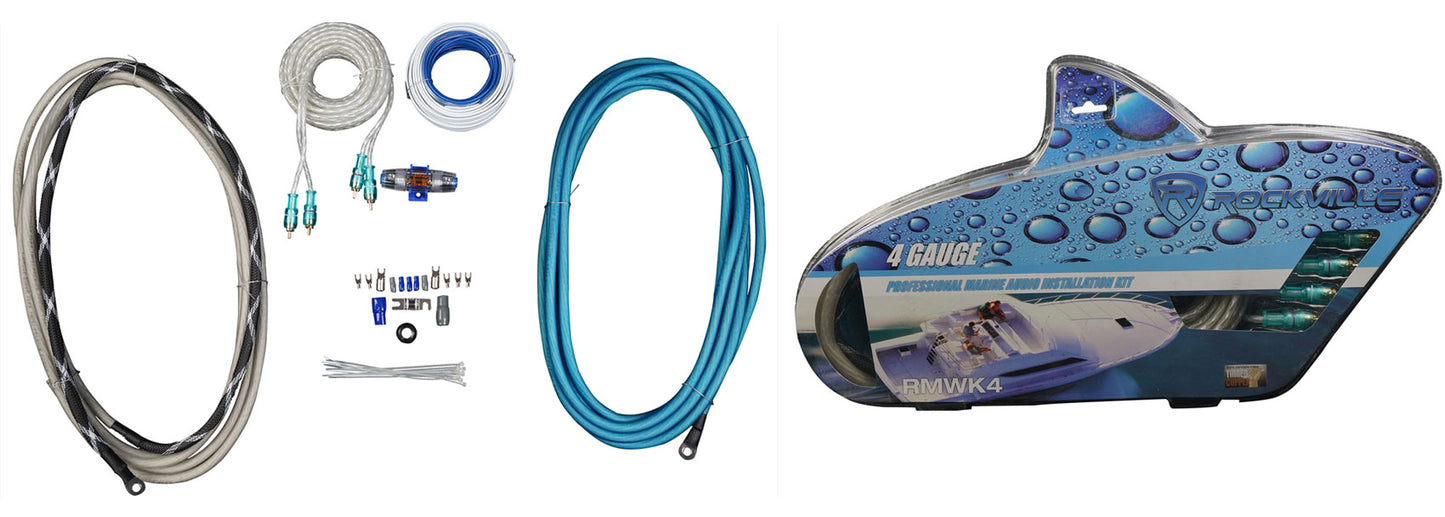

• Rockville RMWK4 4 AWG Gauge Waterproof Marine/Boat Amplifier Wire Installation Kit
• 20 ’ Translucent, Twisted Pair, High Quality, Tinned-OFC Flexible PVC RCA Cable
• 18’ 4 Gauge High Current, Low Impedance, Clear Flexible Power Cable with 3’ Black Poly Woven Mesh to better resist chemicals in the battery compartment
• 18’ 4 Gauge High Current, Low Impedance, Light Blue, Flexible Ground Cable
• 25’ 16 Gauge 100% Tinned-CCA, White, Non-Transparent Resin PVC, Flat Speaker Cable
• 25’ Blue Remote Wire
• (1) Silver Mini-ANL Fuse Holder – Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring
• (1) 120A Mini-ANL Fuse
• (1) 80A Mini-ANL Fuse
• (2) Ring Terminals
• (2) Spade Terminals
• (5) Speaker Cable Terminals
• (1) Washer
• (10) White Cable Ties
