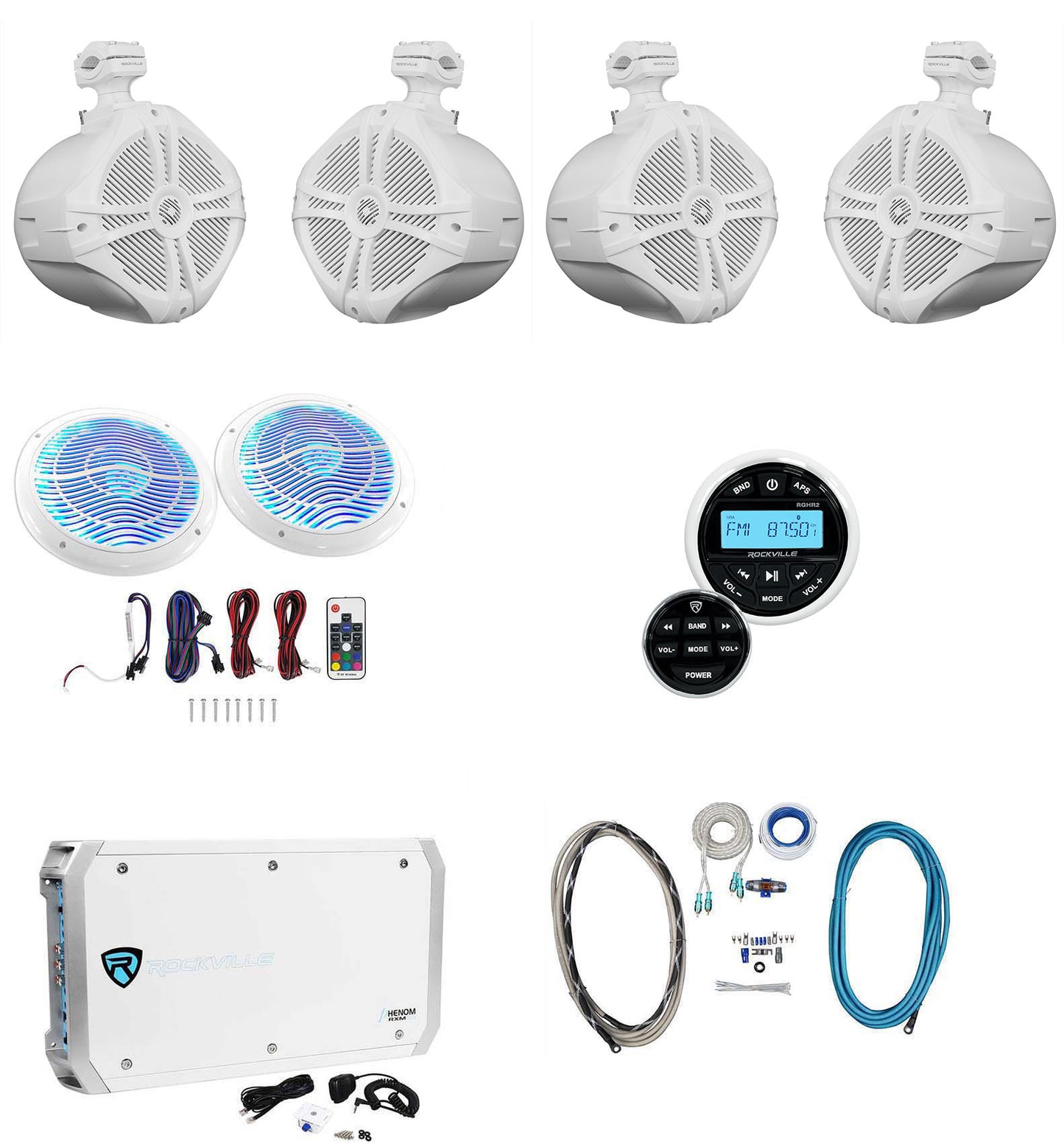

Package Includes:

• (1) Rockville RGHR2 Marine Gauge Hole Receiver w Bluetooth USB, Radio + Wired Remote
• (1) Rockville RMC80LW 8" 800w 2-Way White Marine Speakers w Multi Color LED + Remote

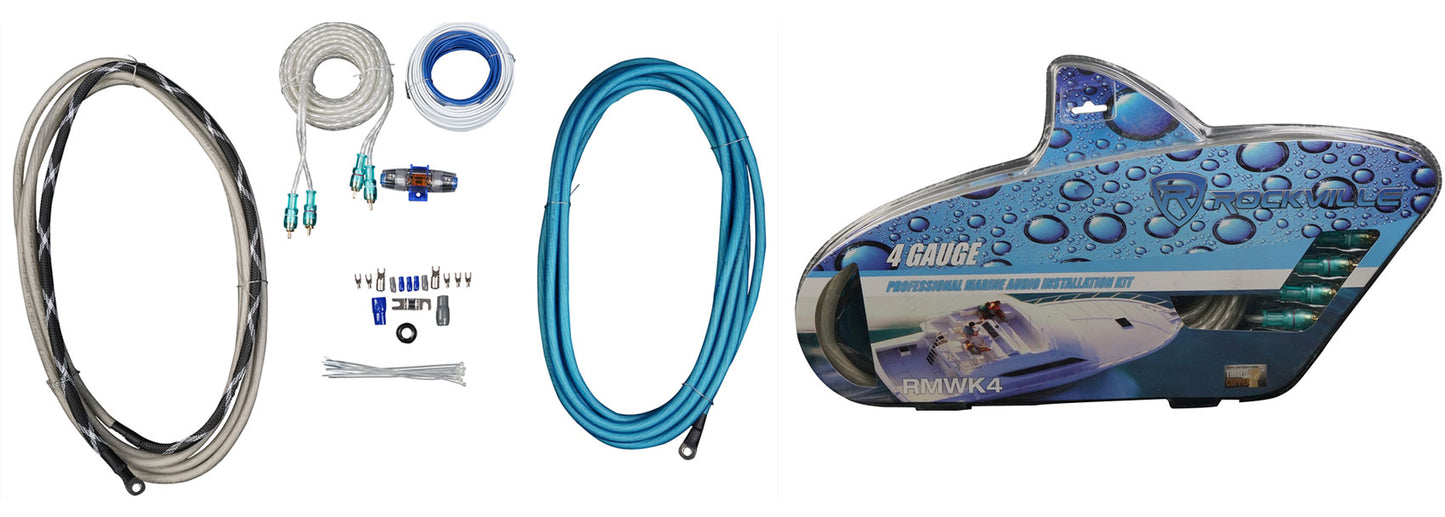

• (1) Rockville RMWK4 4 AWG Gauge Waterproof Marine Amplifier/Amp Install Wire Kit
• (2) Pair Rockville RWB90W White 8" 300w Marine Wakeboard 360° Swivel Tower Speakers

• (1) Rockville RXM-S6 Marine/Boat 6 Channel Amplifier 2600 Watt Peak / 660w Dyno-Certified RMS With Status Mode LED Indicator

---

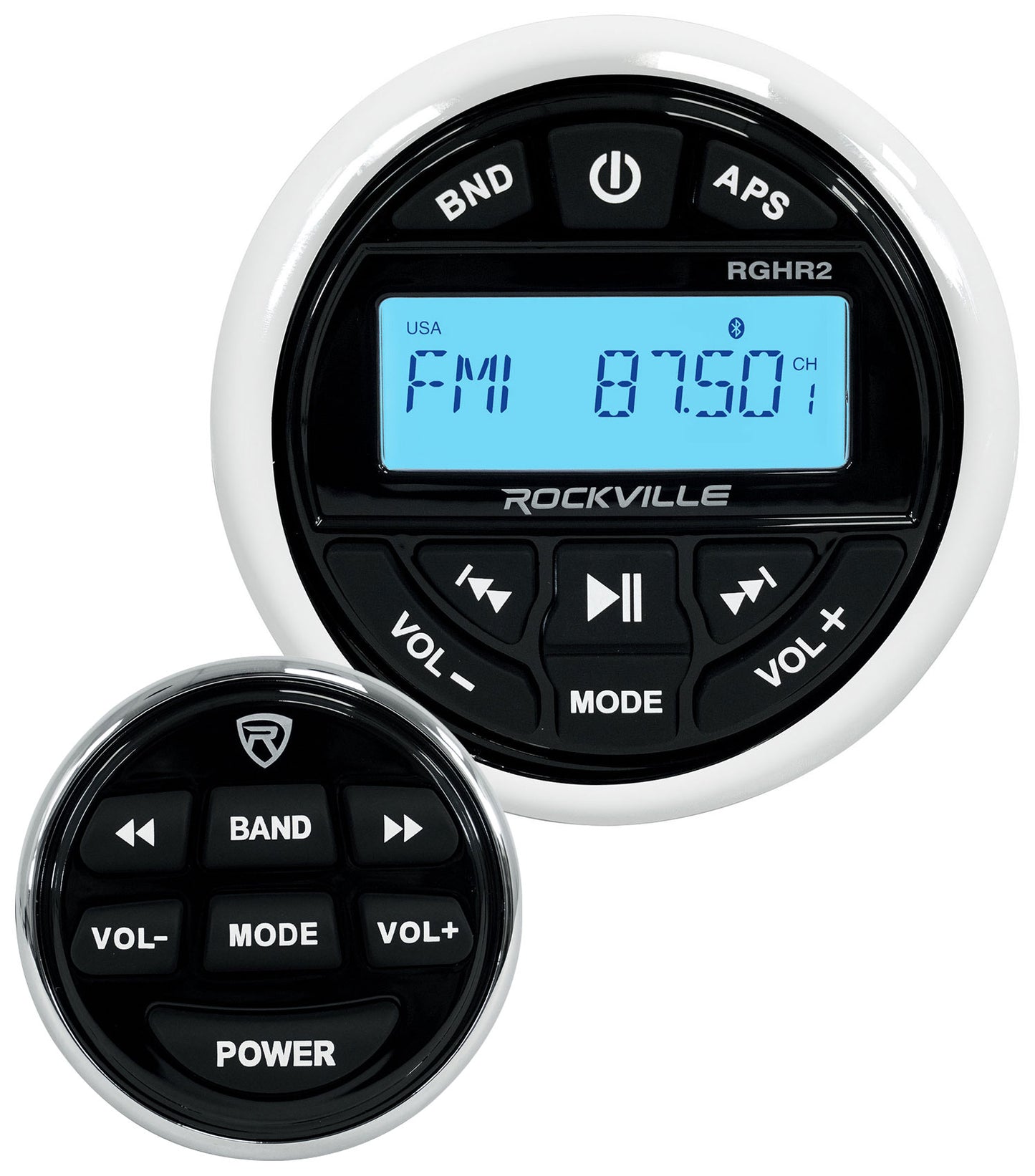

All about your RGHR2:

How To Set Up Your RGHR2:

Included In The Box:

• Marine Digital Media Receiver
• Wired Remote with 32.8 foot wire
• USB Extension Cable (40 inches)
• Mounting Bracket
• Screws
• ISO Wiring
• Owner Manual and Warranty

Description:

The Rockville RGHR2 is the best gauge hole receiver on the market. We developed this to give you the best sound and the best features.

Crazy loud!

We put in a built in amplifier that is louder than other marine receivers on the market. The RMS power of the built in amp is 28 watt x 4 channels! It is crazy loud and can be heard over the sound of the wind when you are on the water! There is also a built in EQ to customize the sound to your taste.

Included wired remote

Rockville is the only brand on the market that I know of that supplies a wired remote with your radio. The wired remote is a must have for any marine radio. This is great for boats and other powersport applications. We also include an extra long 32.8 foot wire so you will not need any additional extension cables.

Latest listening features

The RGHR2 gives you many listening options. The Bluetooth technology allows you to stream audio from your Bluetooth enabled phone or other music player to the receiver. Our Bluetooth distance is 50 feet! There is also a USB input allowing you to listen to music stored on a thumb drive. You can plug in any audio device to the auxiliary input. There is a built in radio with crystal clear reception as well.

Ability to connect multiple external amps

This receiver makes your system expandable. Two sets of pre-amp outputs allow you to hook up external amps for your speakers and/or subs. This has front and switchable rear/sub pre-amp outputs so you can amplify your speakers and a subwoofer amplifier.

Features:

• Rockville RGHR2 Weather Resistant Gauge-Hole Digital Media Receiver w/Bluetooth/USB/AM/FM
• Fits into a standard Gauge-Hole (Tachometer) Opening
• Built-in 72 x 4 Watt Peak high powered amplifier (28 x 4 RMS)
• Built in EQ with preset EQ curves (Pop, Class, Rock, Flat)
• IP66 Waterproof Certification (Tested to withstand the elements)
• USB Input to play back audio files store on a USB thumb drive or any other USB device
• RCA Aux Input
• AM/FM Radio Built In with 18 FM and 12 AM presets + US and European tuning
• Bluetooth built in to stream audio from any Bluetooth enabled device
• USB Input Charges Your Phone
• Two Sets of RCA Outputs (Front and a switchable rear/sub) allow you to connect external amplifiers
• Big easy to use buttons
• Backlit LCD display
• Wired Remote Control Included (normally $50)
• Required Cutout: 2.96" (diameter) x 2.75" (depth)
• USB is 500mA and 5V and supports 16GB max
• Dimensions:
• 2.96" cutout mounting diameter
• 4.45" diameter top plate
• 3.9" mounting depth (not including top plate)
• 5.0" depth including the top plate
• Specs of the built in amplifier:
• TDA7851L quadbridge power amplifier
• 4 x 72 watts peak @ 2 ohm
• 4 x 48 watts peak @ 4 ohms
• 4 x 28 watts RMS @ 4 ohms
• Highly efficient even when running at 2 ohms!
• Low distortion even at top volumes

---

Video of RMC80LW:

Unboxing Video of RMC80LW:

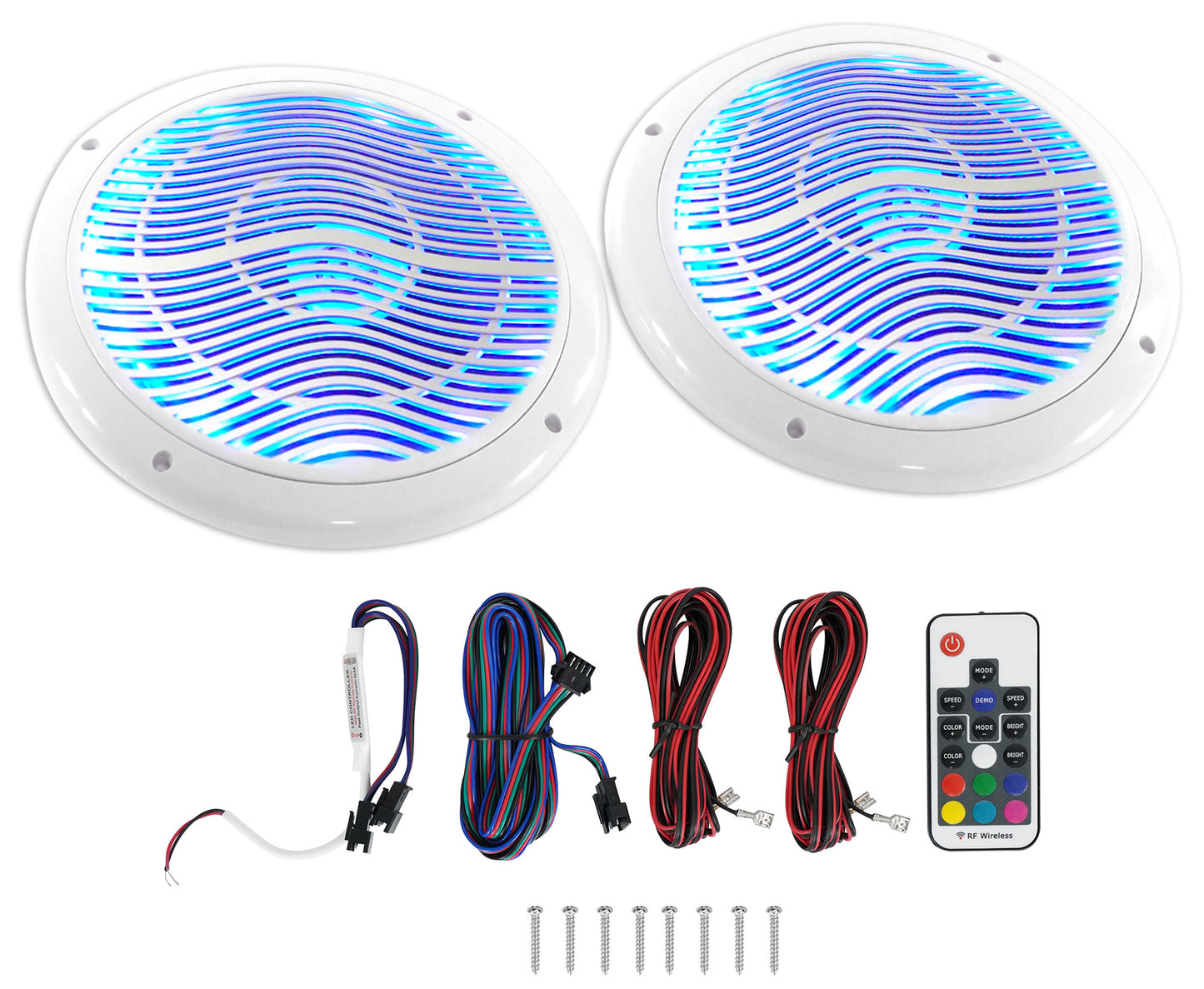

Includes:

• Pair of 8? marine speakers

• 16.4 feet of Speaker Wire

• Mounting Screws

• LED Remote Controller

The RMC80LW is the same amazing speaker as our RMC80 with the addition of an awesome LED lighting system built in. Our LED speakers feature 19 dynamic modes that are adjustable through the remote. There are 20 switchable static colors which can also be set through the remote. You can also strobe the lights and adjust the speed through the remote. You can adjust the brightness intensity of the light as well. There is a demo mode that will run through 9 dynamic programs and repeat.

The RMC series of marine speakers by Rockville are a major upgrade to our old RMS series. Don’t get me wrong we loved our old series, but we strive for perfection. We wanted a speaker that is more durable, more water resistant, can handle more power, and put out better sound quality!

As always we sent our team on a speaker-hunting adventure. We tested countless prototypes until the RMC series was born. We ended up with a speaker that has a lot more bass and mids than any other speaker on the market at this price point. This speaker will destroy all those cheap dual cone speakers, and it will compete with top branded marine speakers on the market today!

These speakers are completely waterproof and protected from the elements! They are UV treated and have a special waterproof coating to prevent water damage. Also these speakers come with a 1 year warranty to give you the peace of mind you deserve when purchasing from Rockville!

Rockville engineers care about quality and sound more than anything else. The RMC80LW was designed in a molded ABS plastic basket. The polypropylene cone is reliable and sounds great. This material is used on most of the top speakers on the market. We use rubber surrounds on these to eliminate unwanted distortion. In addition rubber is a very waterproof material. The ½? polymer tweeter puts out incredible sounding highs. The low end bass and mids of these speakers really makes them stand out.

The RMC80LW 8? marine speakers were engineered to deliver amazing power and sound quality in the outdoors; be it saltwater, freshwater or any other harsh environments. These speakers can withstand tons of abuse and can handle 400 watts peak and 100 watts RMS each. These Rockville speakers comply with the CEA 2031 Loud Speaker Standard. This same rating standard is used by the highest end marine brands in the industry. CEA compliant means you can rest assured that the ratings are 100% legitimate. (We compared these against other brands and although some of these other brands stated higher wattage the Rockville RMC80LW speakers were able to handle more than double the power!)

Using only true marine grade components and materials, the Rockville RMC80LW speakers are fully marinized against salt & fresh water conditions. They will not get damaged by fresh water, salt water, or moisture. There is also an additional waterproof and UV resistant coating to completely protect the speakers.

The speakers come with everything you need for installation including pre mounted grills and mounting hardware.

Features:

• Rockville RMC80LW 8” 2-Way 400 Watt Marine Boat Speakers in White

• CEA Compliant Power Ratings

• Power Rating: 400 Watts Peak /100 Watts RMS Per Speaker

• System Power: 800 Watts Combined

• 19 Dynamic LED Modes

• 20 Switchable static LED Colors

• 256-Grade PWM

• Adjustable LED Strobe Speed

• 5 Adjustable LED Brightness Settings

• Slim Card Type LED Remote

• Demo LED Mode

• Included Remote can be paired with one or more speakers

• 8“ 2-Way Speaker System

• Fully Marinized Against Salt & Fresh Water Conditions

• Completely Waterproof and rustproof

• Stainless Steel Terminals

• Molded ABS plastic basket

• Polypropylene Mica Injected Cone

• Rubber Surround

• High quality ferrite magnet

• 13mm (0.5” inch) Polymer Tweeter

• Oversized 1” CCAW Kapton Voice Coil

• Pre-installed mounting screws included

• Perfect for both marine, outdoor, and car use

• Impedance: 4 Ohms

• Frequency Response: 40Hz - 20KHz

• Sound Pressure Level: 91dB @ 1w/1m

• Total Diameter: 9.65”

• Cutout Diameter: 7.36”

• Total Height: 4.8”

• Mounting Depth: 3.54”

---



HOW TO RWB SERIES (RWB65B, RWB65W, RWB70B, RWB70W, RWB80B, RWB80W, RWB90W, RWB90B):



Video of RWB:

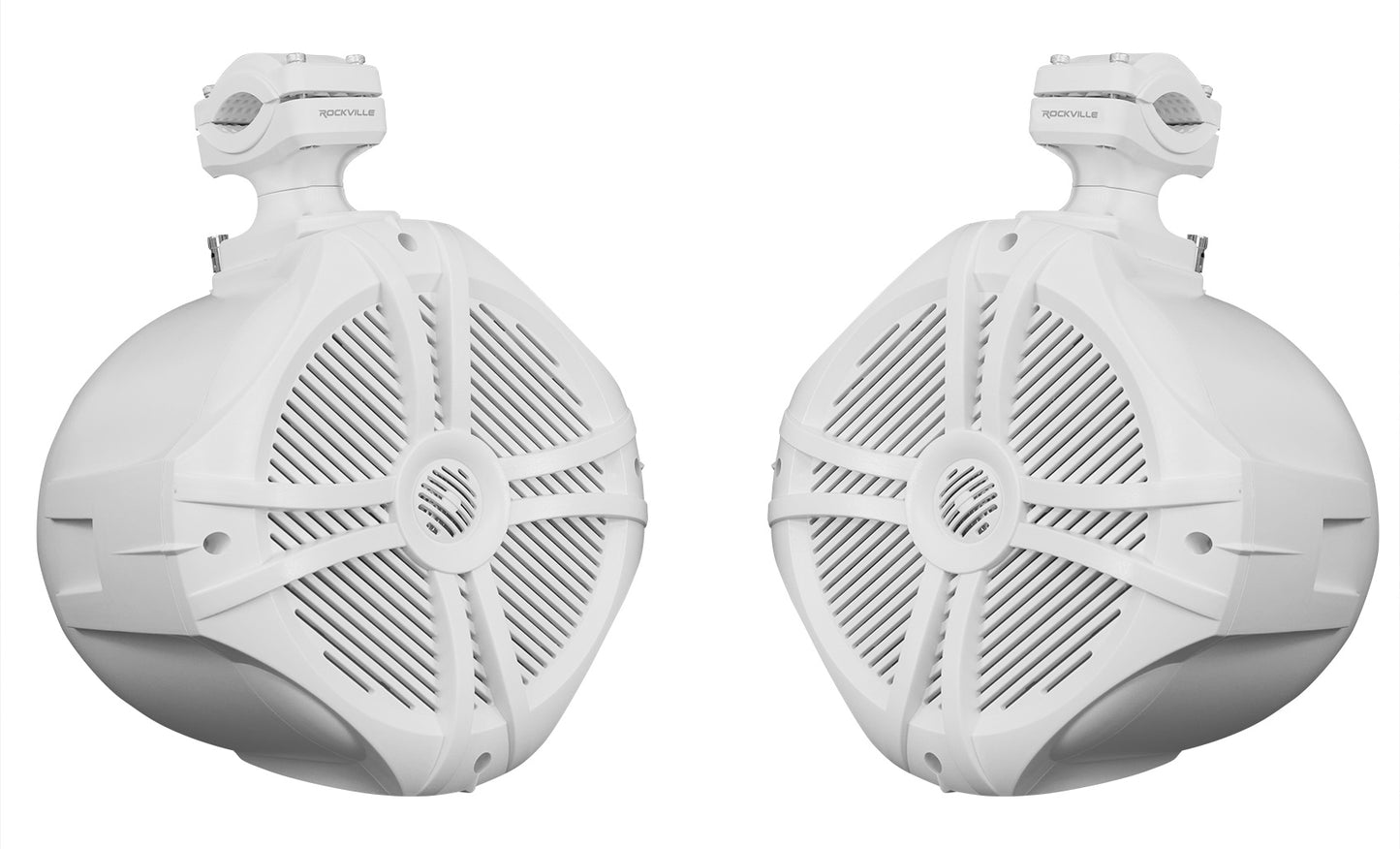

Includes:

• (2) Wakeboard Speakers
• (2) 360° Swivel Mounting Brackets
• Integrated Grill
• Installation Hardware

Description:

• No exaggerated power ratings : These speakers are rated with true world RMS ratings. No bootleg or exaggerated power ratings like other brands. These speakers are 200 watts RMS and 300 watts peak. (200 watts RMS is equal to about 500 watts rated by other brands)
• Marine grade components and materials: these speakers are truly marine grade. They will not get damaged by water, salt water, or moisture. In addition the terminals (which are normally the first part of a marine speakers that gets damaged by water are made out of stainless steel and they are completely rustproof. There is also an additional waterproof coating cut completely protect the speakers.
• These can withstand all elements on the water for a lifetime of worry free use
• The mounting screws are longer than other versions we carry to accommodate thicker mounting bars. In addition to wakeboard tower's on boats, we tested these to be perfect for installing in Jeep Cherokee vehicles and even ATV's.
• We’ve added a new and improved nylon mounting bracket. Nylon is strong, light weight, and can withstand the toughest conditions. The bracket features a special UV coating to protect it from the elements. A 360° rotating mechanism built into the bracket allows you to position the speaker in any direction for optimum listening enjoyment. This also gives you the ability to rotate the speaker to the front or rear of your boat for different applications.


Features:

• Pair Rockville RWB90W White 8" 300w Marine Wakeboard 360° Swivel Tower Speakers
• 8" Two-Way High Fidelity Speaker System
• Adjustable Nylon Mounting Bracket Reinforced With Embedded Steel
• Includes Stainless Steel Mounting Hardware
• 1" Polymide Dome Neodymium Midrange Tweeter
• Built-In Two-Way Crossover Network
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Water / Rust Resistant
• Terminals Are Sealed with Rubber Gaskets
• Specially Tuned for PA Voice Over
• Polypropylene Mica Injected Cone with Santoprene Surround
• High BL Magnet Motor Structure
• Y30 High Density Magnets
• Oversized 1.25” Kapton Voice Coil
• Large mounting screw accommodates roll bars found on many off road vehicles such as Jeep Wranglers, and ATV's equiped with a roll bar/cage.
• These Wakeboards Fit bars ranging from 1.26" 2.87"
• Color: White
• Includes 65mm and 80mm screws that accommodate Jeep Wrangler and any roll ba
• Includes Stainless mounting hardware that wont rust or corrode

Details:

• Power Rating :
• Peak Power Handling : 600 Watts (300 Watts per Speaker)
• RMS Power Handling : 400 Watts (200 Watts per Speaker)
• Frequency Response : 60 – 20,000 Hz
• Sound Pressure Level : 98dB @ 1w/1m
• Impedance : 4 Ohms
• Mounting Depth : 10.5"



---

Video of RXM-S6:

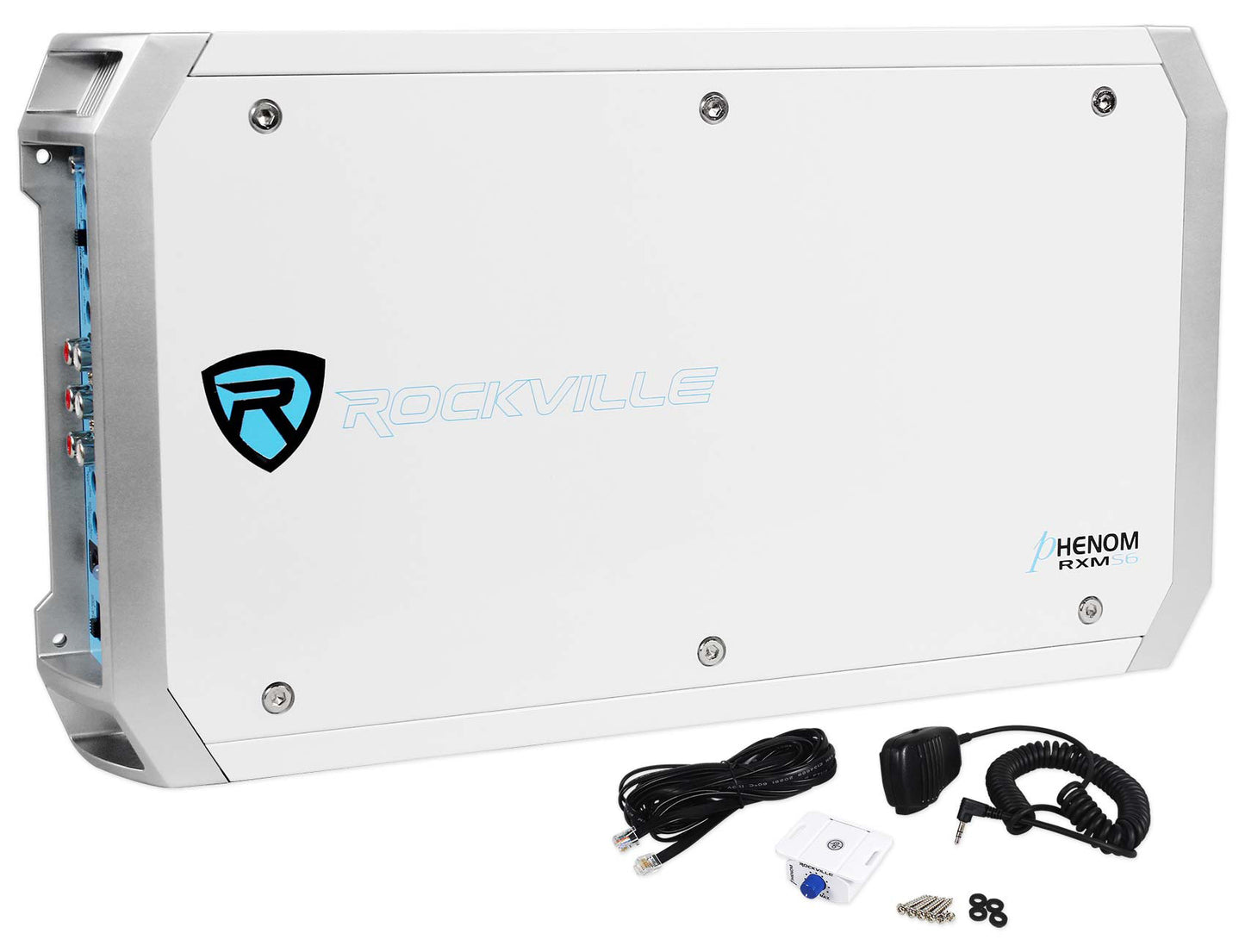

Includes:

• Amplifier
• PA Microphone
• Bass Remote
• Mounting Screws

Description:

Over the years, the technology used to create audio amplifiers has grown by leaps and bounds. We consider it our mission to use our expertise in developing the latest technologies and to bring you the absolute best sounding amplifiers on the market at a reasonable price. From its clean, sleek design to its high quality components, you will be amazed at the quality and power that these new Phenom amps offer.

Before we talk about the actual amplifier, I wanted to point out that we included a microphone. Most brands do not do this. We wanted to provide you guys with the best sounding marine amplifier of course. But we also wanted to give you the ability to have a microphone so you can use all the power of the system to communicate when out on the water. This will give you many new applications of what you can use your marine system for. We included a special circuitry in the amplifier that when you talk through the microphone the music will get lower and when you are done talking the music will go back to normal volume.

The RXM-S6 is a 6 channel amplifier with 2,600 Watts peak output and 420 Watts RMS (6 x 70 @ 4 Ohms). You can also bridge the amplifier and get 3 x 440 Watts RMS @ 4 Ohms. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.

This 6 Channel marine amplifier is amazing. It gives you amazing options for your marine speakers and/or subwoofers. Here are some wiring configurations. You can run 4 channels to (4) full range speakers, and then 2 of the channels to (2) subwoofers. You can also run those last 2 channels to wakeboard speakers if you wanted.

You can also run 2 speakers to each channel and connect for a total of 8 speakers to the 4 channels, and then you still have 2 channels left for your subwoofer(s). Another option would be to connect 12 full range speakers.

You can bridge any of the 2 channels together which means you can run this is a 6 channel, 3 channel, or 4 channel amplifier. So if you need 1 channel to have double the power, you can just bridge 2 channels into 1 and double the power.

The RXM-S6 has a conformal coating on its PCB (printed circuit board) in order to protect against moisture, dust , chemicals, and temperature extremes. This coating protects the amplifier from the elements of the ocean. If water gets sprayed on the amplifier you will not have to worry. The exterior screws are made of stainless steel to better withstand the elements. This amplifier is fully marine-rated from start to finish.

One of the tricks to determine the real power of a car amplifier is to multiply the fuse rating by 10 to determine the true RMS power. This formula almost always works within 20%. RXM-S6 features (2) 60 Amp Maxi Fuses. Compare this to other amps on the market with similar fuse ratings and you’ll see that with the RXM-S6 you are getting your money’s worth and then some.

This unit also features a high speed MOSFET power supply, studio-grade bipolar output stage transistors and ELNA brand audiophile capacitors. It has a fully adjustable 12dB/Octave cross over with differential circuitry. This also has pre-amp inputs
