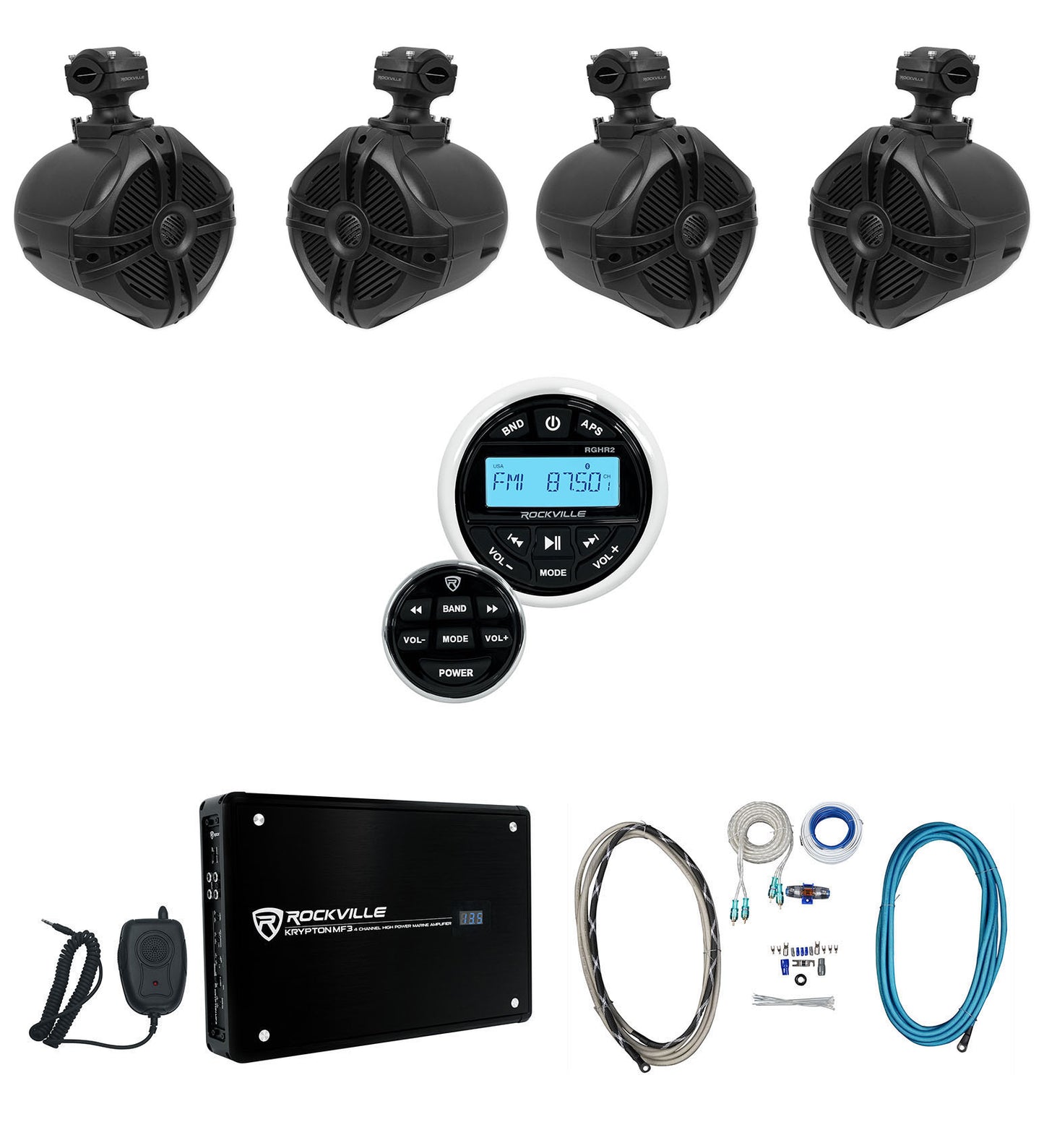

Package Includes:
- (1) Rockville RGHR2 Marine Gauge Hole Receiver w Bluetooth USB, Radio + Wired Remote
- (1) Rockville RMWK4 4 AWG Gauge Waterproof Marine Amplifier/Amp Install Wire Kit
- (2) Pair Rockville RWB70B Black 6.5" 250w Marine Wakeboard 360° Swivel Tower Speakers
- (1) Rockville KRYPTON MF3 1600w Peak / 400w RMS 4 Channel Marine Amplifier Boat Amp
All about your RGHR2:
How To Set Up Your RGHR2:
Included in the box:
- Marine digital media receiver
- Wired remote with 32.8 foot wire
- USB extension cable (40 inches)
- Mounting bracket
- Screws
- ISO wiring
- Owner manual and warranty
Description:
The Rockville RGHR2 is the best gauge hole receiver on the market. We developed this to give you the best sound and the best features.
Crazy loud!
We put in a built in amplifier that is louder than other marine receivers on the market. The RMS power of the built in amp is 28 watt x 4 channels! It is crazy loud and can be heard over the sound of the wind when you are on the water! There is also a built in EQ to customize the sound to your taste.
Included wired remote
Rockville is the only brand on the market that I know of that supplies a wired remote with your radio. The wired remote is a must have for any marine radio. This is great for boats and other powersport applications. We also include an extra long 32.8 foot wire so you will not need any additional extension cables.
Latest listening features
The RGHR2 gives you many listening options. The Bluetooth technology allows you to stream audio from your Bluetooth enabled phone or other music player to the receiver. Our Bluetooth distance is 50 feet! There is also a USB input allowing you to listen to music stored on a thumb drive. You can plug in any audio device to the auxiliary input. There is a built in radio with crystal clear reception as well.
Ability to connect multiple external amps
This receiver makes your system expandable. Two sets of pre-amp outputs allow you to hook up external amps for your speakers and/or subs. This has front and switchable rear/sub pre-amp outputs so you can amplifiy your speakers and a subwoofer amplifier.
Features:

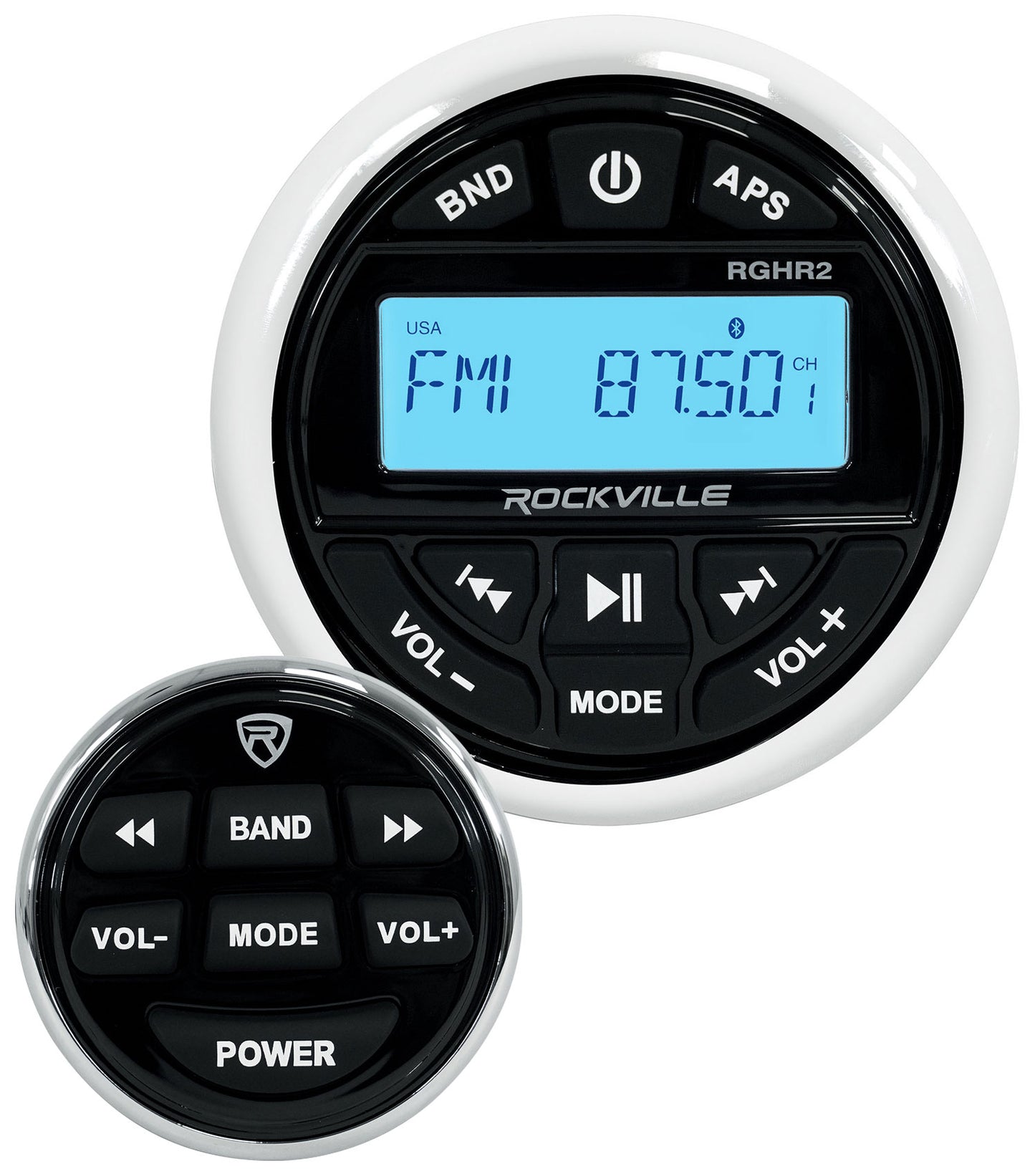

- Rockville RGHR2 Weather Resistant Gauge-Hole Digital Media Receiver w/Bluetooth/USB/AM/FM
- Fits into a standard Gauge-Hole (Tachometer) Opening
- Built-in 72 x 4 Watt Peak high powered amplifier (28 x 4 RMS)
- Built in EQ with preset EQ curves (Pop, Class, Rock, Flat)
- IP66 Waterproof Certification (Tested to withstand the elements)
- USB Input to play back audio files store on a USB thumb drive or any other USB device
- RCA Aux Input
- AM/FM Radio Built In with 18 FM and 12 AM presets + US and European tuning
- Bluetooth built in to stream audio from any Bluetooth enabled device
- USB Input Charges Your Phone
- Two Sets of RCA Outputs (Front and a switchable rear/sub) allow you to connect external amplifiers
- Big easy to use buttons
- Backlit LCD display
- Wired Remote Control Included (normally $50)
- Required cutout: 2.96" (diameter) x 2.75" (depth)
- USB is 500mA and 5V and supports 16GB max
- Dimensions:
- 2.96" cutout mounting diameter
- 4.45" diameter top plate
- 3.9" mounting depth (not including top plate)
- 5.0" depth including the top plate
- Specs of the built in amplifier:
- TDA7851L quadbridge power amplifier
- 4 x 72 watts peak @ 2 ohm
- 4 x 48 watts peak @ 4 ohms
- 4 x 28 watts RMS @ 4 ohms
- Highly efficient even when running at 2 ohms!
- Low distortion even at top volumes
HOW TO RWB SERIES (RWB65B, RWB65W, RWB70B, RWB70W, RWB80B, RWB80W, RWB90W, RWB90B):
Videos of RWB:
Includes:
- (2) Wakeboard Speakers
- (2) 360° Swivel Mounting Brackets
- Integrated Grill
- Installation Hardware
Description:
- No exaggerated power ratings: These speakers are rated with true world RMS ratings. No bootleg or exaggerated power ratings like other brands. These speakers are 150 watts RMS and 250 watts peak each. (150 watts RMS is equal to about 400 watts rated by other brands)
- Marine grade components and materials: these speakers are truly marine grade. They will not get damaged by water, salt water, or moisture. In addition the terminals (which are normally the first part of a marine speakers that gets damaged by water are made out of stainless steel and they are completely rustproof. There is also an additional waterproof coating cut completely protect the speakers.
- These can withstand all elements on the water for a lifetime of worry free use.
- The mounting screws are longer than other versions we carry to accommodate thicker mounting bars. In addition to wakeboard tower's on boats, we tested these to be perfect for installing in Jeep Cherokee vehicles and even ATV's.
- We've added a new and improved nylon mounting bracket. Nylon is strong, light weight, and can withstand the toughest conditions. The bracket features a special UV coating to protect it from the elements. A 360° rotating mechanism built into the bracket allows you to position the speaker in any direction for optimum listening enjoyment. This also gives you the ability to rotate the speaker to the front or rear of your boat for different applications.
Features:

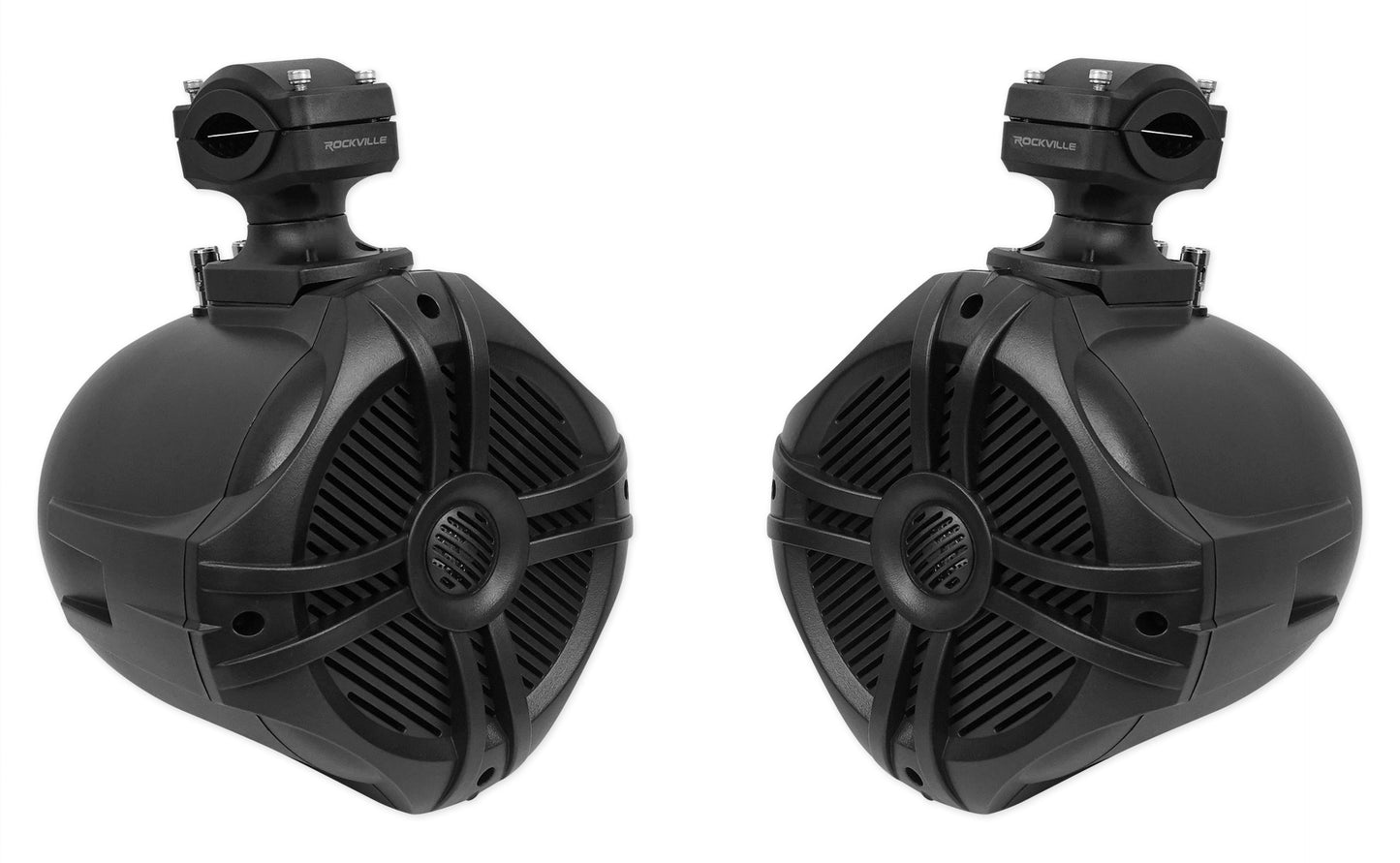

- Pair Rockville RWB70B Black 6.5" 250w Marine Wakeboard 360° Swivel Tower Speakers
- Color: Black
- 6.5" Two-Way High Fidelity Speaker System
- Adjustable Nylon Mounting Bracket Reinforced With Embedded Steel
- Includes Stainless Steel Mounting Hardware
- 1" Polymide Dome Neodymium Midrange Tweeter
- Built-In Two-Way Crossover Network
- Fully Marinized Against Salt & Fresh Water Conditions
- Completely Water / Rust Resistant
- Terminals Are Sealed with Rubber Gaskets
- Specially Tuned for PA Voice Over
- Polypropylene Mica Injected Cone with Santoprene Surround
- High BL Magnet Motor Structure
- Y30 High Density Magnets
- Oversized 1.25" Kapton Voice Coil
- These Wakeboards Fit bars ranging from 1.26" 2.87"
- Includes 65mm and 80mm screws that accommodate Jeep Wrangler and any roll bar
- Includes Stainless mounting hardware that wont rust or corrode
Details:
- Power Rating:
- Peak Power Handling: 500 Watts (250 Watts per Speaker)
- RMS Power Handling: 300 Watts (150 Watts per Speaker)
- Frequency Response: 70 - 20,000 Hz
- Sound Pressure Level: 96dB @ 1w/1m
- Impedance: 4 Ohms
- Mounting Depth: 9"
The Rockville Difference:
Whenever you see the Rockville shield on a product you know that it has the stamp of approval. While other companies simply import products from China, Rockville manufactures the products in China to lower your cost but do so under American style supervision and quality standards to get you that USA quality that you want!
About Rockville Quality Control Procedures:
The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty, though it is unlikely that you will need to use it.
Great features and great quality make Rockville a great choice.
KRYPTON MF SERIES PRODUCT VIDEO:
What's in the Box:
- Amplifier
- PA microphone
- Birth sheet with tested power
- Owner’s manual
- Mounting Screws
- Warranty
Description of KRYPTON MF3:
We took the sound of our Krypton car amps and we added top of the line marine grade parts so that they will last forever and withstand even the harshest conditions on the water.
We went a little overboard (no pun intended) to make this amp marine ready. We conformal coated the PCB board with a waterproof glue that is painted on to protect the circuitry. The heat sink, including the bottom plate, is made of aluminum which is rustproof. The end panels, internal mounting screws and hardware of the amp are made of stainless steel and are rustproof. Even after many years of use the amp will be rust free and operate like new!
This amp has a very cool fully adjustable 12dB/Octave crossover. What is cool about it is that our crossover supports low pass, high pass, bandpass, and subsonic. This makes our amp ideal for subwoofers (sealed and vented), full range speakers, and midrange speakers. In high pass mode we allow you to filter out frequencies between 15Hz - 4K Hz. In full mode you will not be filtering any frequencies. The really cool part is in low pass mode you can use the high pass and low pass mode. So for example you can set the low pass mode to 50 hz, and then you can set the high pass to 15 Hz. In this case you would be playing frequencies in the range of 15-50 Hz on this channel. This would be an example of using the subsonic filter. Another option you have is for midrange speakers, you can use our low pass filter and set it really high. Lets say to 3Khz and then you can set the high pass to 150Hz and your midrange speakers will only play that frequency range. Our advanced crossover technology will allow you to really fine tune each speaker to get the sound you desire.
The KRYPTON MF3 is protected by a fully IC controlled circuit which includes mute, delay and soft start technology so that the amplifier will turn on safely every time and protect your speakers from popping.
You will also notice we decided to add a cool battery voltage display meter which looks great but also serves as a tool for you to know if your battery voltage is dropping which would affect your systems performance. We designed the amps to be able to last for many years even if you are playing them at max volume before clipping for extended periods of time. This is a class A/B amplifier which is what we recommend to get the best sound quality out of full range speakers.
One other cool features about this amp is the marine public address system. Simply plug the microphone into the 3.5mm jack and you are ready to go. The amplifier features talk-over functionality. When the microphone is being used the music will fade to the background until you stop talking into the mic.
Features:

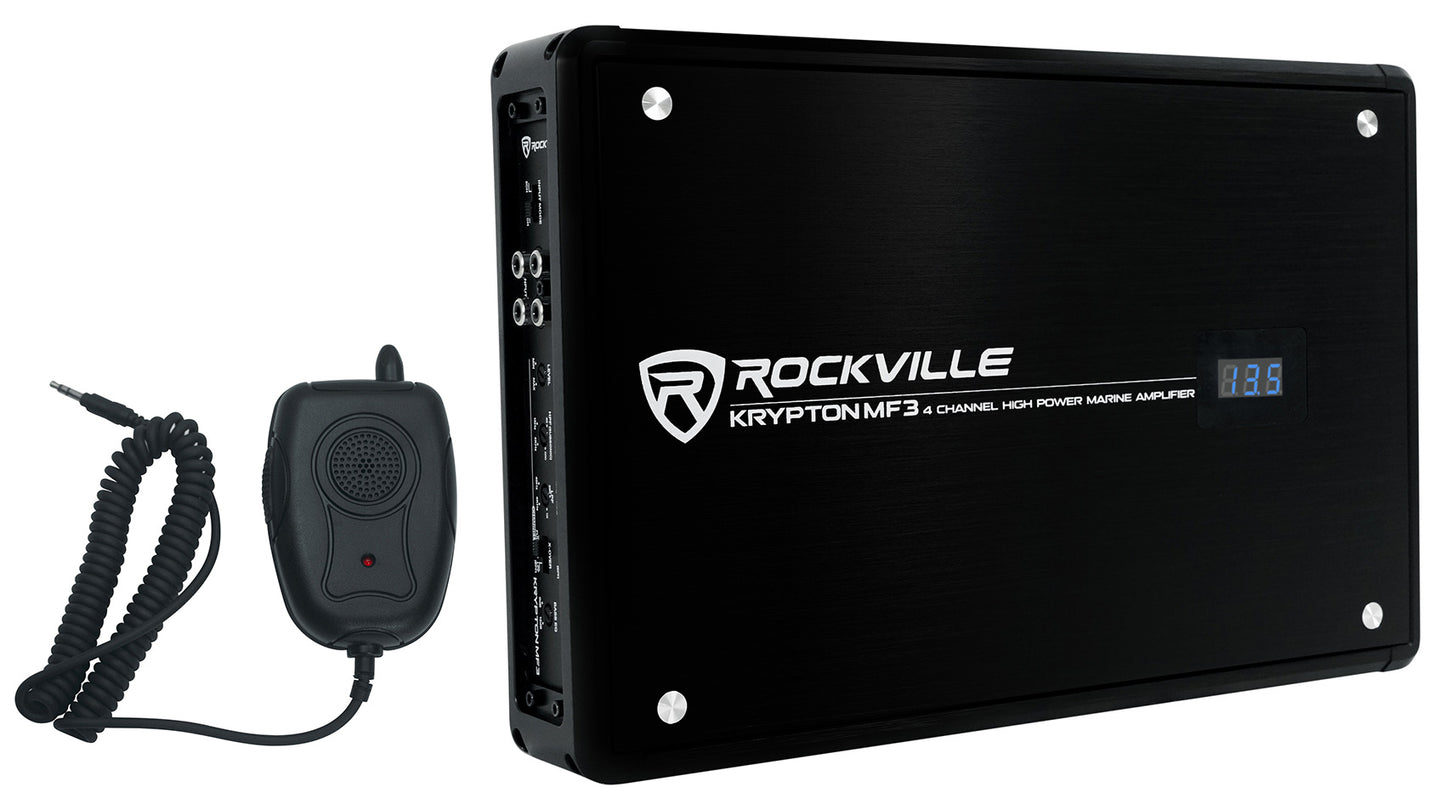

- Rockville KRYPTON MF3 1600w Peak/400w Dyno-Certified RMS 4 Channel Marine Amplifier Boat Amp
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- 2 Ohm: 100 Watts x 4 Channels <1% THD+N
- 4 Ohm: 70 Watts x 4 Channels <1% THD+N
- 4 Ohm Bridged: 200 Watts x 2 Channel
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
- 2 Ohm: 400 Watts x 4 Channels
- 4 Ohm: 280 Watts x 4 Channels
- 4 Ohm Bridged: 800 Watts x 2 Channels
- Painted Conformal Coating PCB Board (Uses 2577 Waterproof Glue)
- Rustproof Aluminum heat sink with black hairline finish
- Stainless steel end panels are rustproof
- All screws and mounting hardware are stainless steel and rustproof
- Bottom panel is aluminum and rustproof
- Marine public address system with microphone with talkover function
- All channels on the amp have crossovers so they can each be used for subs or full range speakers or tweeters or midrange speakers
- All channels on the amplifier are bridgeable
- Digital Voltage Display on Amp
- Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
- Adjustable Subsonic Filter: 15Hz -40Hz (This filter is on the HPF knob)
- Adjustable Low Pass Filter: 40Hz – 4KHz
- Adjustable Band Pass Filter: 15 Hz - 4 kHz (use both the HPF and LPF filter)
- Adjustable High Pass (Subsonic) Filter: 15 Hz - 4 kHz
- 2CH/4CH Input Mode Switch
- 8 Volt Preamp Circuitry
- Under Voltage Protection at 10V
- Over Voltage Protection at 16V
- High-Speed MOSFET Power Supply
- Full IC-Controlled Protection Circuitry
- Fully Adjustable 12dB Bass Equalizer
- Adjustable Input Level Control
- Studio-Grade Bipolar Output Stage Transistors
- Mute and Delay Soft Start System
- Status Mode LED Indicators
- Minimum THD at Rated Power: < 0.05%
- S / N Ratio: >90dB
- Frequency Response: 10Hz - 50KHz
- Damping Factor: >85 @ 100Hz
- 25 Amp x 2 ATC Fuses
- Color: Black
- Dimensions: (Lx W x H) 13.1? x 8.7? x 2.2?
Video of RMWK:
Features:

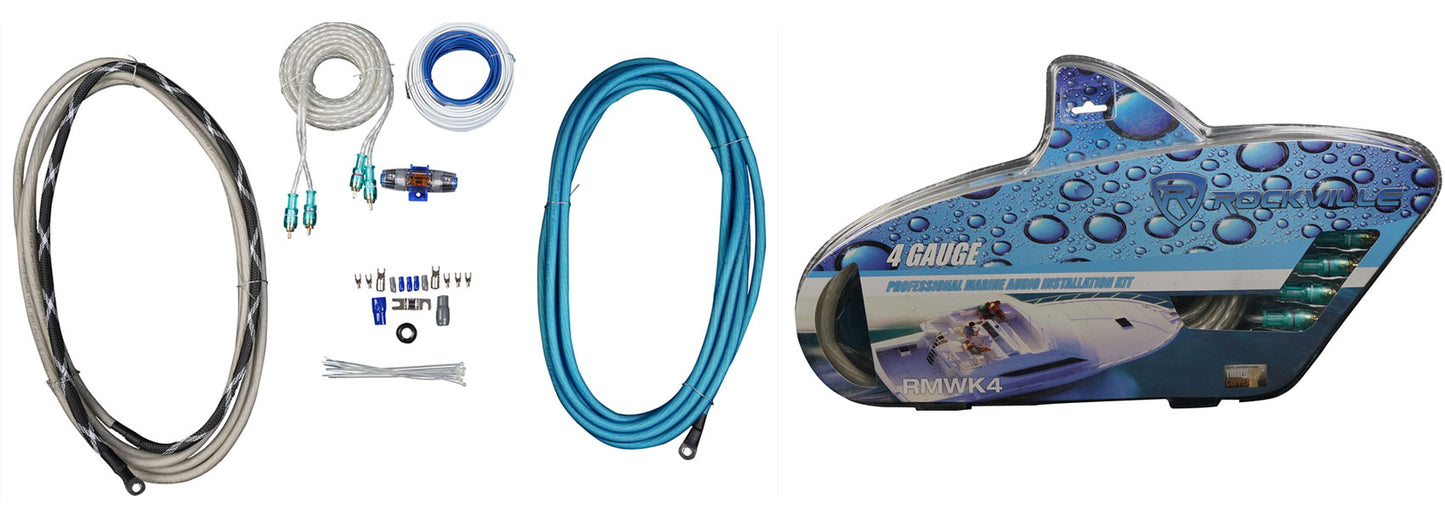

- Rockville RMWK4 4 AWG Gauge Waterproof Marine/Boat Amplifier Wire Installation Kit
- 20 ’ Translucent, Twisted Pair, High Quality, Tinned-OFC Flexible PVC RCA Cable
- 18’ 4 Gauge High Current, Low Impedance, Clear Flexible Power Cable with 3’ Black Poly Woven Mesh to better resist chemicals in the battery compartment
- 18’ 4 Gauge High Current, Low Impedance, Light Blue, Flexible Ground Cable
- 25’ 16 Gauge 100% Tinned-CCA, White, Non-Transparent Resin PVC, Flat Speaker Cable
- 25’ Blue Remote Wire
- (1) Silver Mini-ANL Fuse Holder – Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring
- (1) 120A Mini-ANL Fuse
- (1) 80A Mini-ANL Fuse
- (2) Ring Terminals
- (2) Spade Terminals
- (5) Speaker Cable Terminals
- (1) Washer
- (10) White Cable Ties
- UPC:
- 613815910473
