Package Includes:

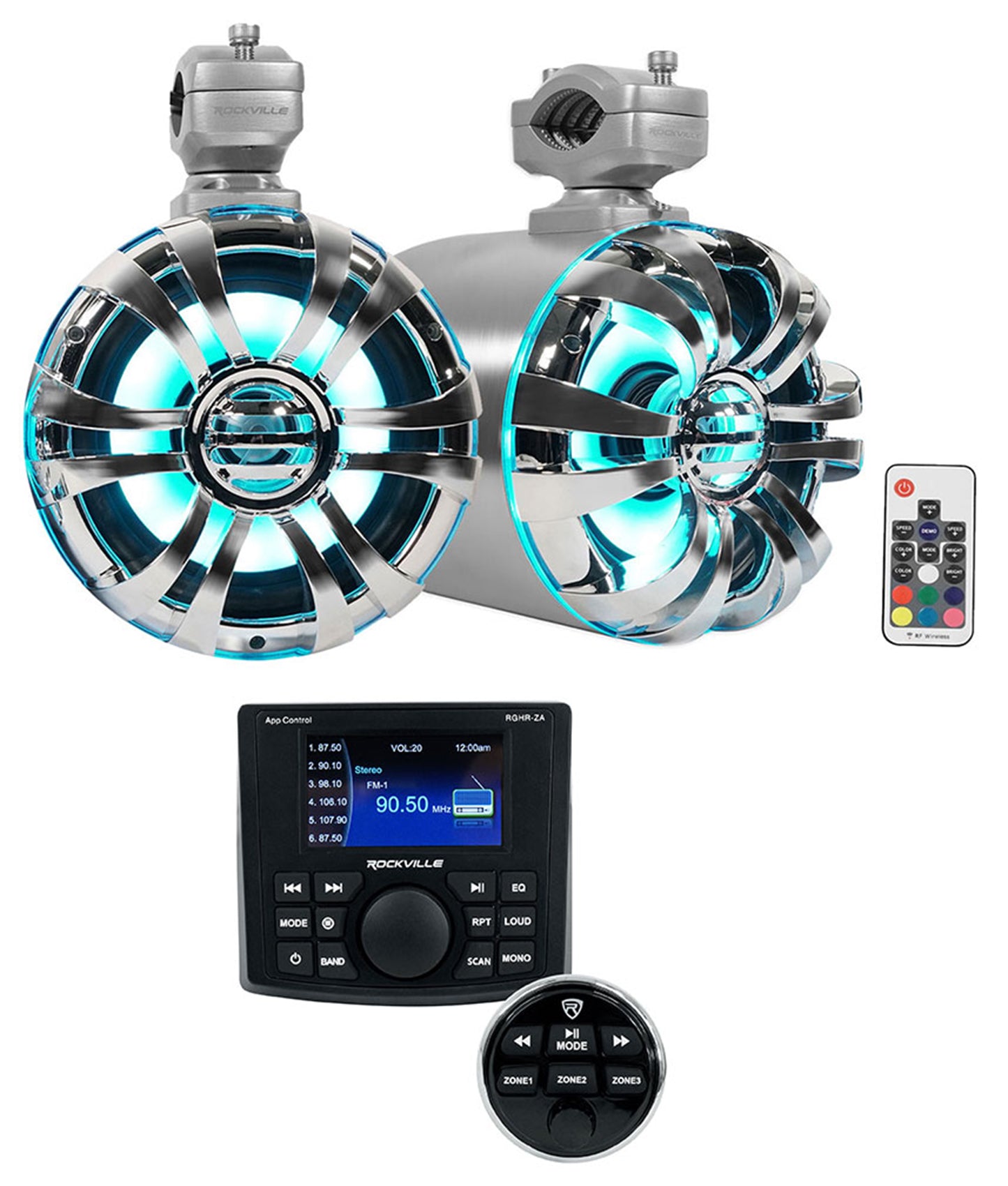

- (1) Rockville RGHR-ZA 4 Zone Marine Gauge Hole Receiver Bluetooth App Control+Remote
- (1) Pair Rockville WB65KLED 6.5" 600w Metal Marine Wakeboard LED Tower Speakers+Remote
All About Your RGHR-ZA:
How To Set Up Your RGHR-ZA:

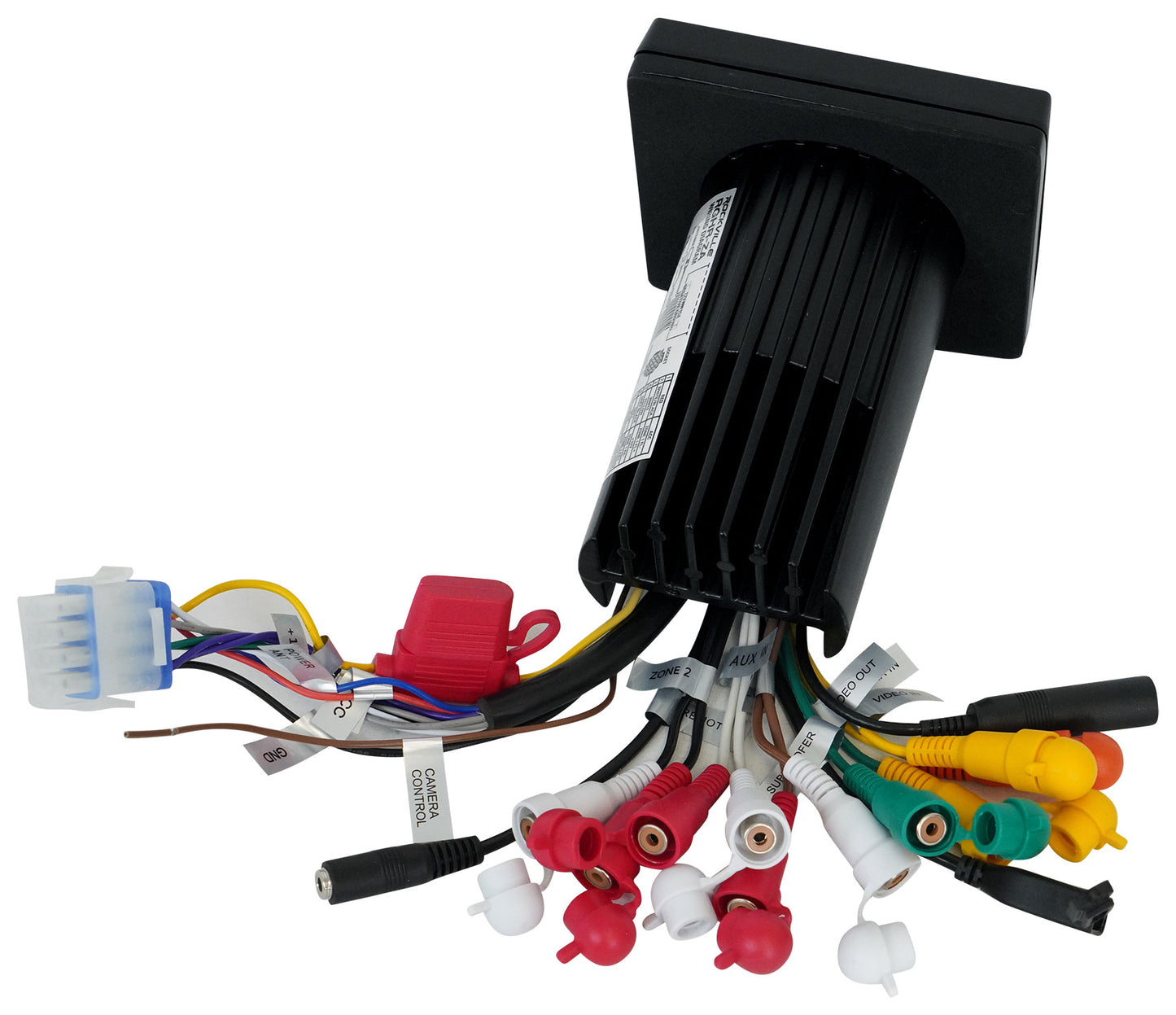

The Wires, Inputs, and Outputs Explained:
The Zones on your RGHR-ZA Explained:

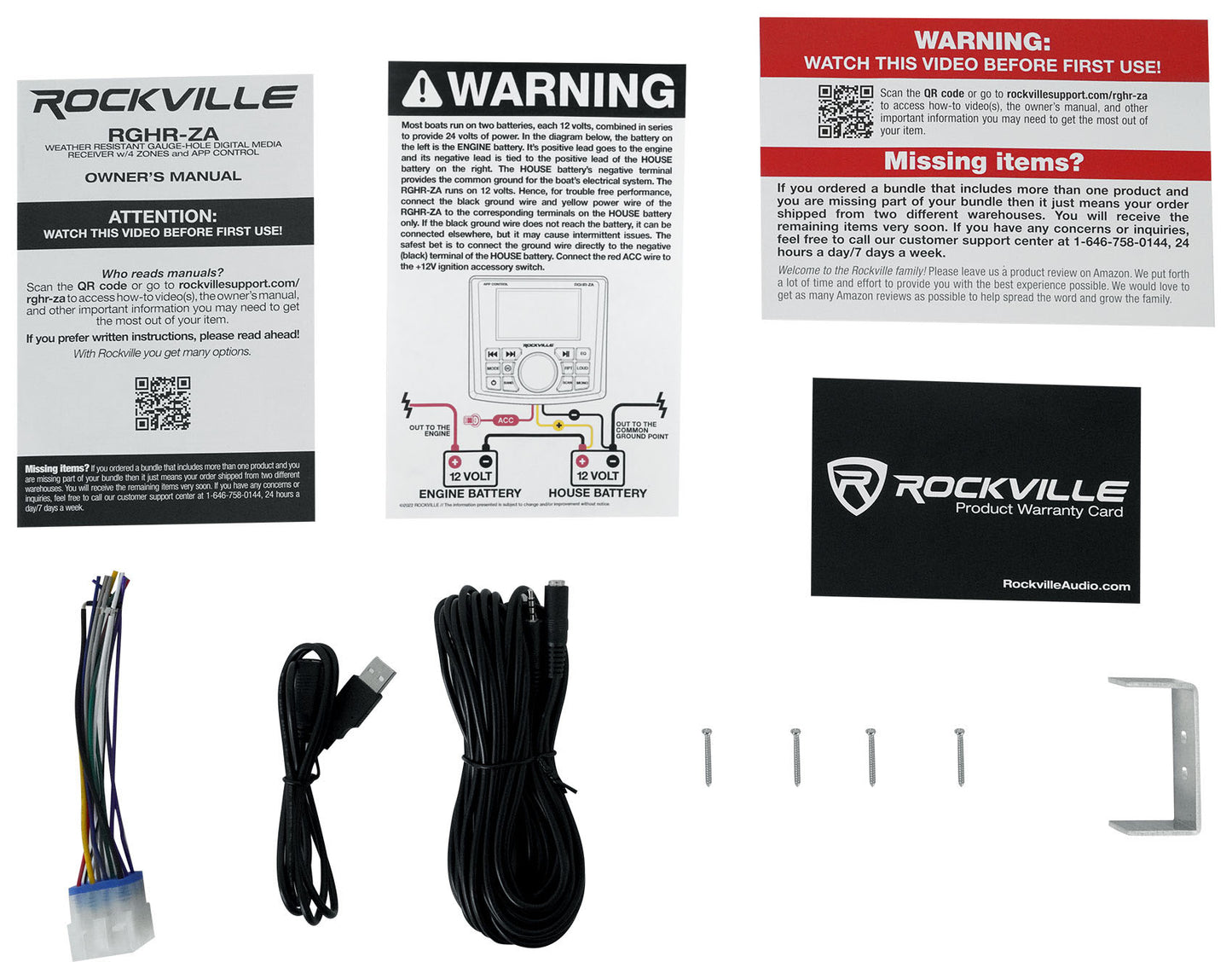

What's in the Box:
- Marine digital media receiver

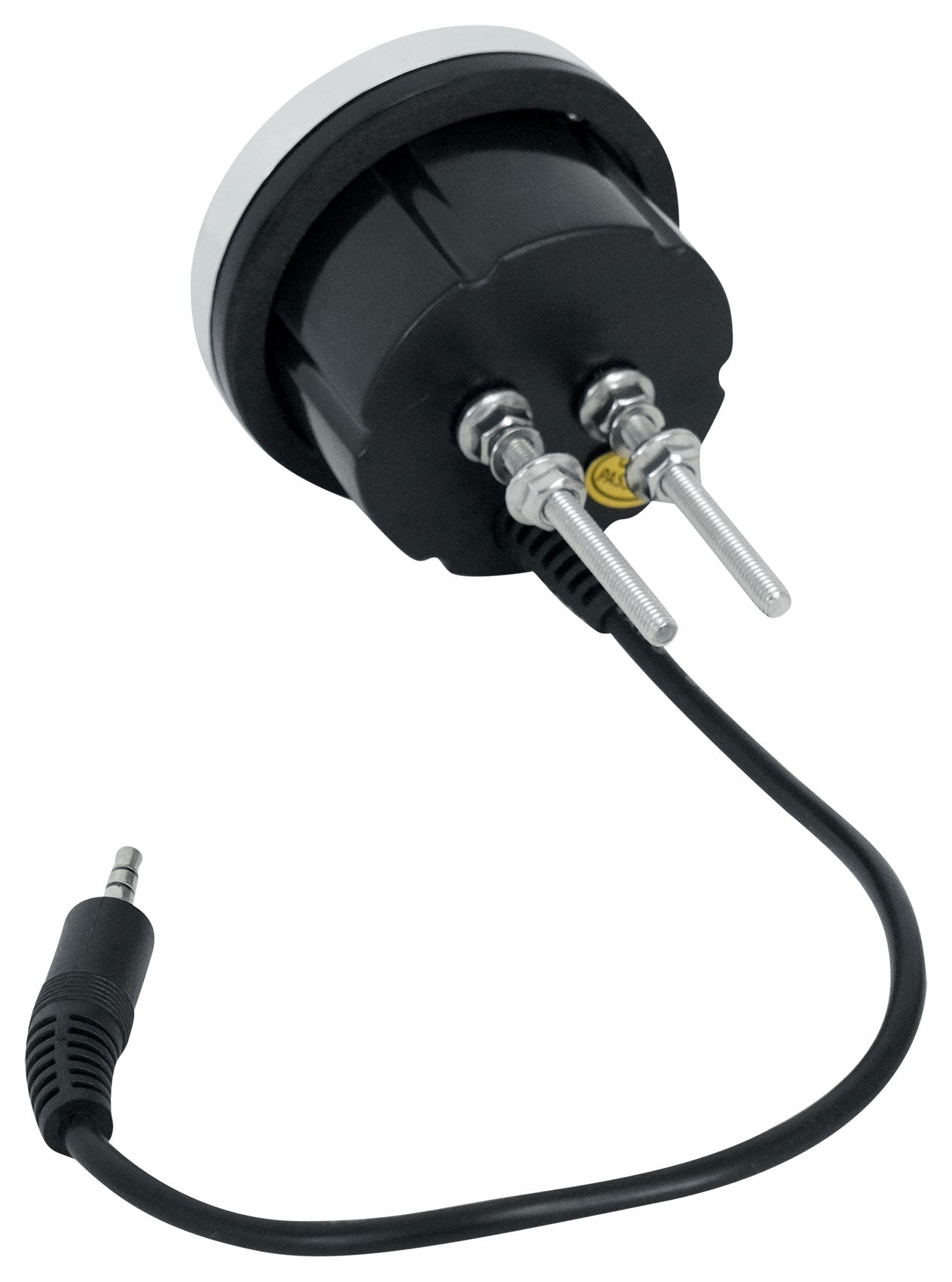

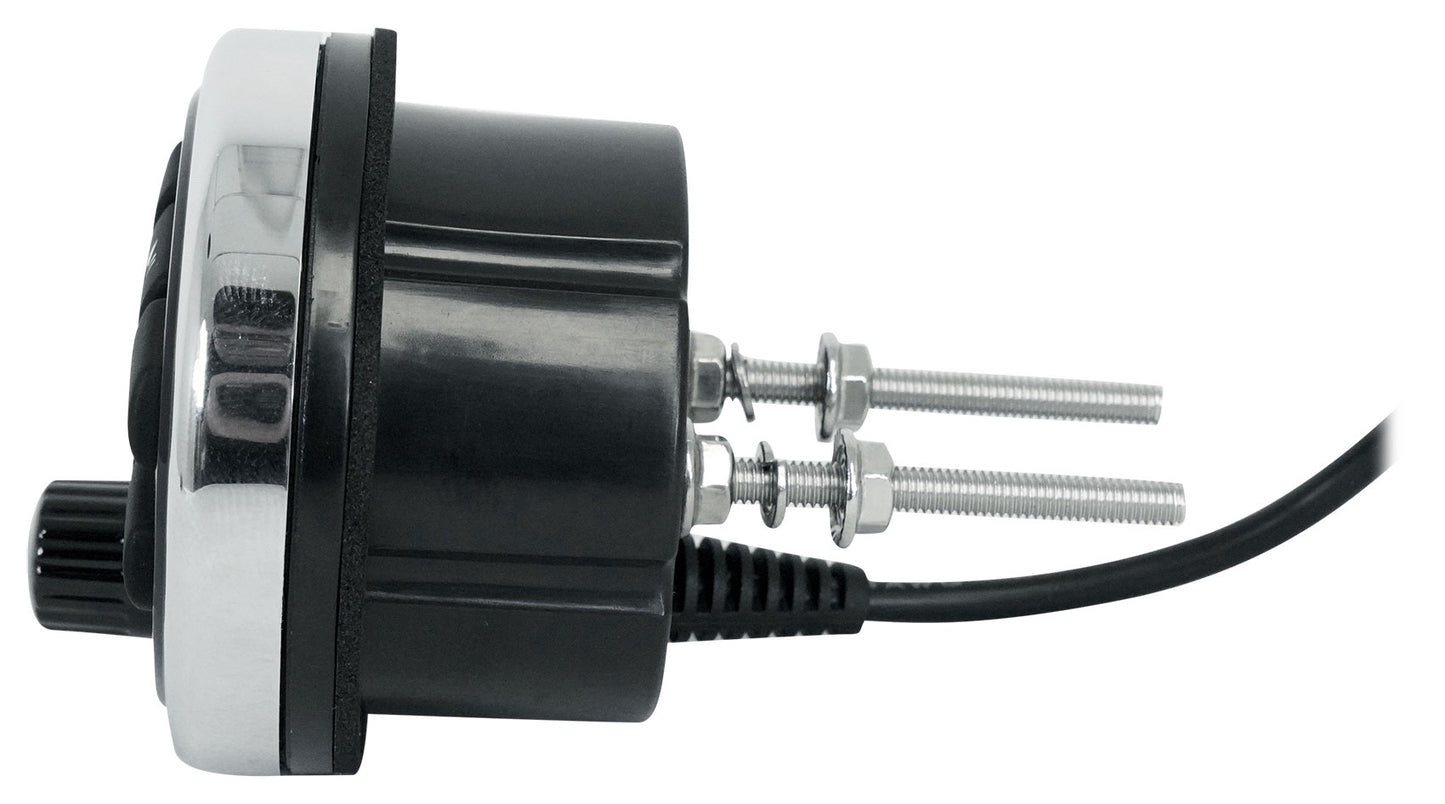

- Wired remote with zone controls
- USB extension cable (40 inches)
- Mounting Screws for installation

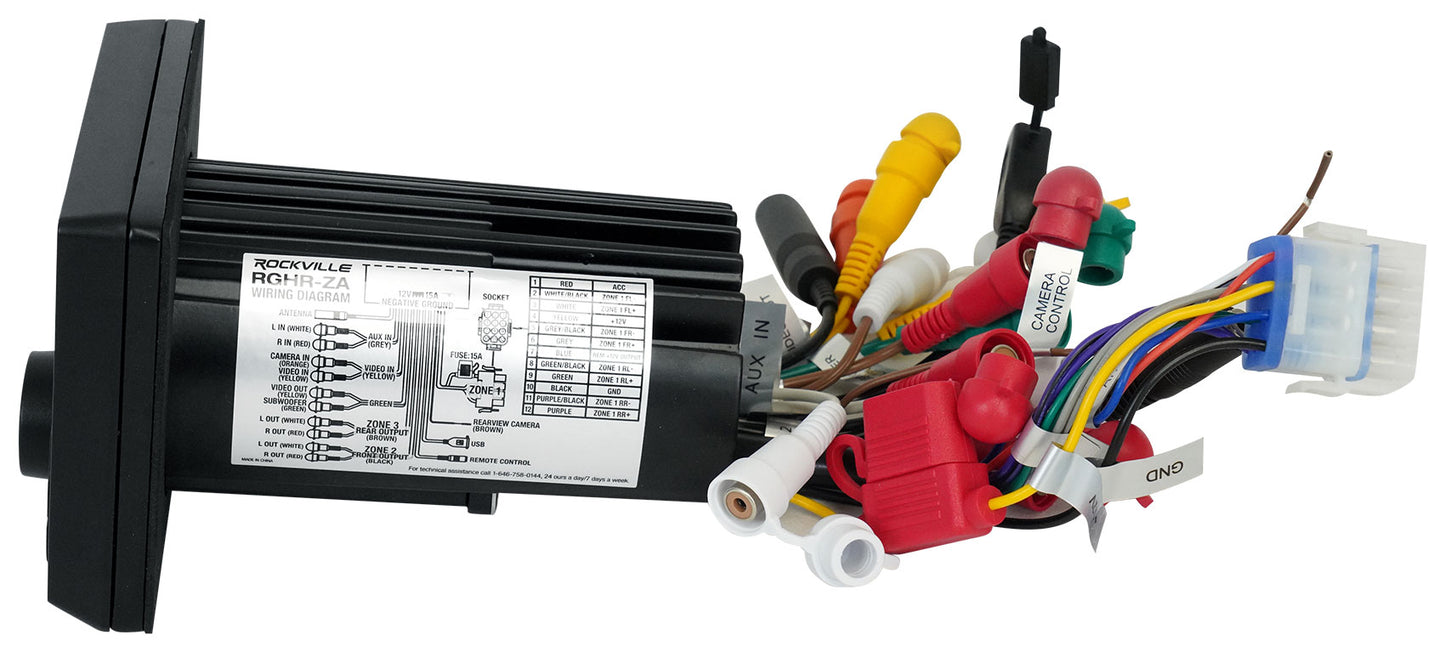

- Waterproof wiring harness for installation
- Owners manual and warranty card
Description:
4 Zones!
This marine receiver has 4 zones that each have independent volume control. There is also 3 ways to control each zones volume. You can raise or lower the volume in each zone either through the receiver, the wired remote, or through our iPhone or Android app.
There are 3 zones for full range and a 4th zone for a subwoofer. Here is how it works. Zone 1 is the built in powerful 4 channel amplifier. With the addition of an external amplifier you can use the additional zones as follows: Zone 2 controls a full range set of RCA outputs. Zone 3 controls a second set of full range RCA outputs. Zone 4 controls a 3rd set of RCA outputs that are dedicated for subwoofer(s).
App Control
This receiver has a really nice app available in the App store for both Android and iPhone. The App gives you full control over the volume in any zone as well as the ability to change the song or source, etc. All the commonly used functions are available in the app.

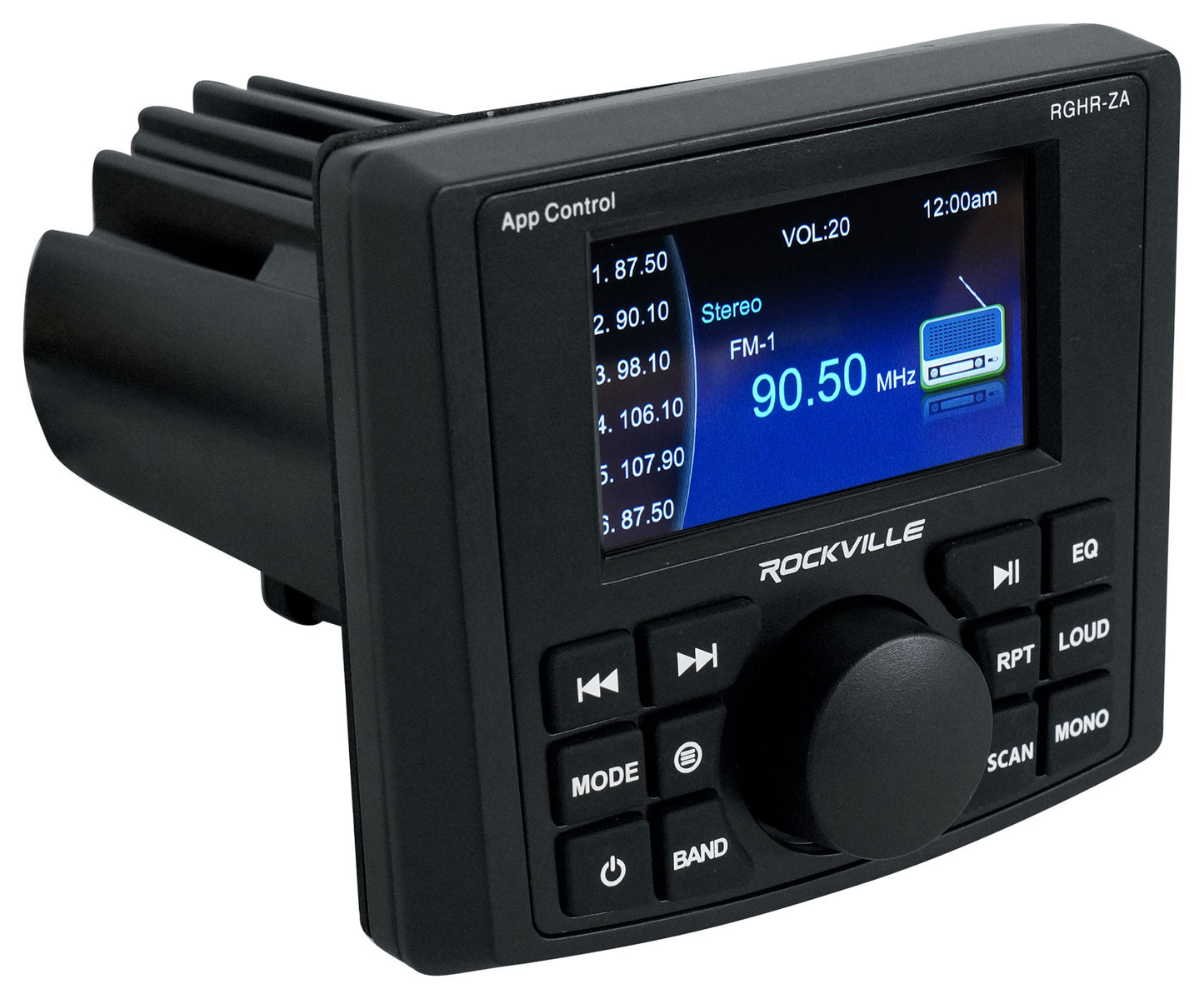

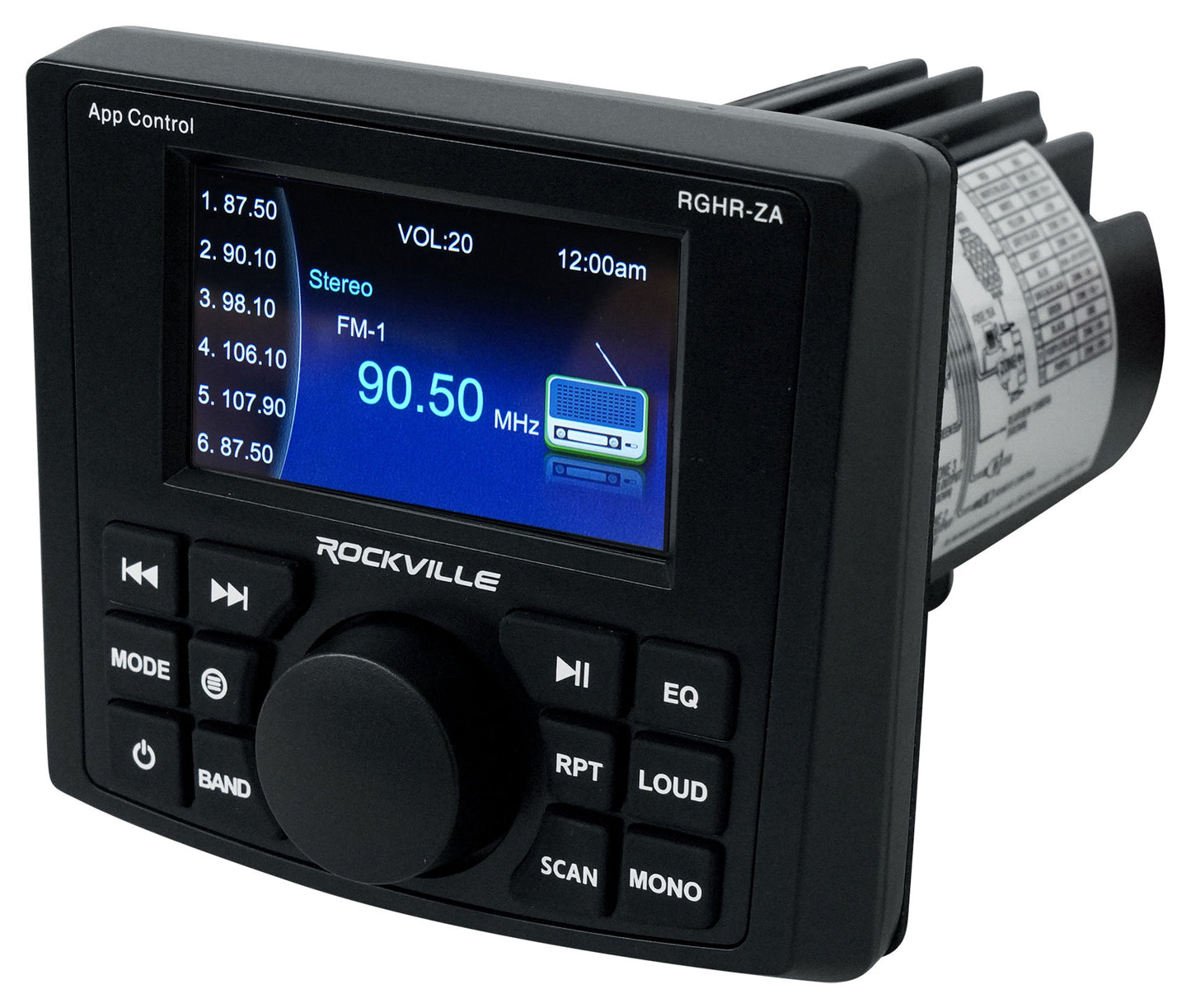

3? TFT display
Our built in 3? TFT display is crystal clear and it makes it easy to navigate your tracks and settings. We also include a rear view camera input as well as an aux A/V input.
Intuitive Screen Display
With the intuitive screen display you can access all your photos, videos and music all in one place. Hold the band button to access photos and videos and songs stored on a USB thumb drive.
Crazy loud!
We used a built in amplifier that is louder than other marine receivers on the market. The RMS power of the built in amp is 28 watt x 4 channels! It is crazy loud and can be heard over the sound of the wind when you are on the water! There is also a built in EQ to customize the sound to your taste.
Latest listening features
The RGHR-ZA gives you many listening options. The Bluetooth technology allows you to stream audio from your Bluetooth enabled phone or other music player to the receiver. Our Bluetooth distance is 50 feet! There is also a USB input allowing you to listen to music stored on a thumb drive. You can plug in any audio device to the auxiliary input. There is a built in radio with crystal clear reception as well.

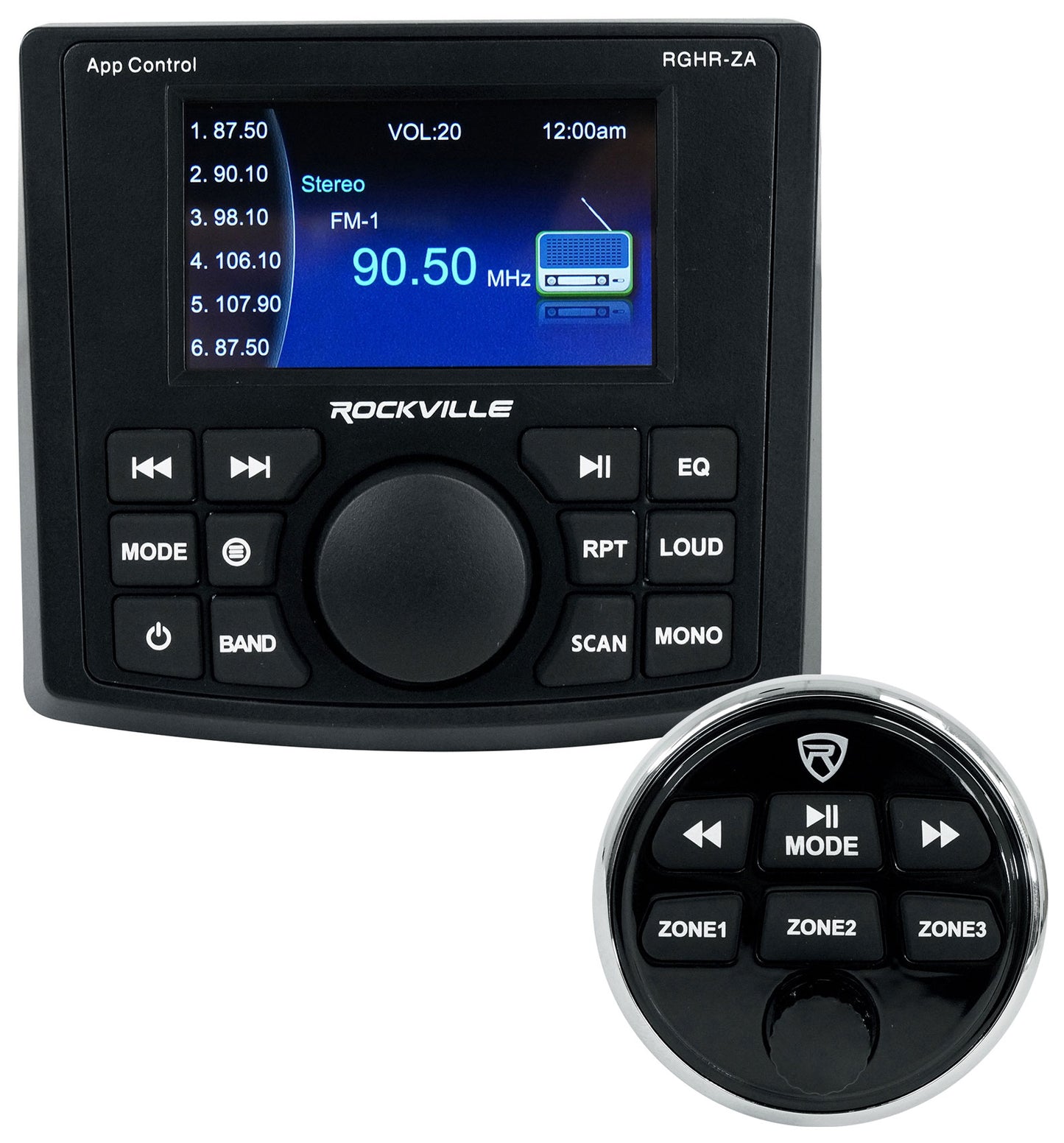

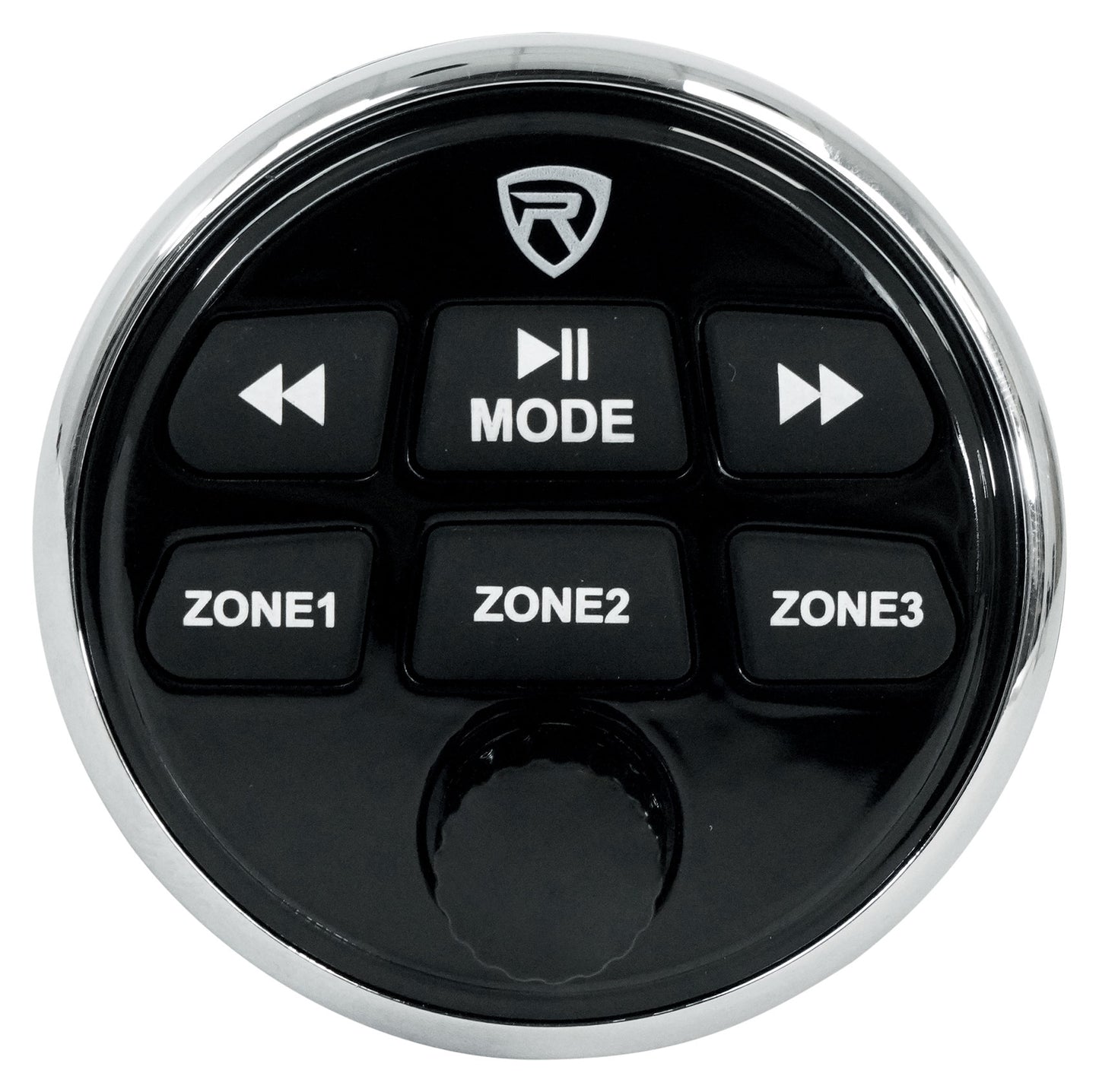

Includes a wired remote!
We include a wired remote inside the box. Most famous brands like to make extra money on the remote, but at Rockville we just include it because we know it will make your experience better. We custom engineered the remote to be able to control basic functions as well as control the volume in each zone!
Features:
- Rockville RGHR-ZA Weather Resistant Gauge-Hole Digital Media Receiver with 4 Zones and App control
- Includes wired remote with the ability to control the volume in each zone
- APP control allows you to download the free app for Android or iPhone and control zone volume, song selection, source selection, and more
- 3? TFT color display makes it easy to navigate
- Built in Bluetooth/USB/AM/FM playback
- Fits into a standard Gauge-Hole (Tachometer) Opening
- Built-in 72 x 4 Watt Peak high powered amplifier (28 x 4 RMS)
- 3 pairs of pre-amp outputs
- 4 zones each with volume control (zone 1 = built in amplifier, zone 2 and 3 are RCA outputs, and zone 4 is the sub output)
- Built in EQ with preset EQ curves (Pop, Classic, Rock, Jazz, Beat, Flat)
- IP66 Waterproof Certification (Tested to withstand the elements)
- USB Input to play back audio files stored on a USB thumb drive or any other USB device
- USB plays video
- RCA A/V input to play back a video source
- Rear camera input
- RCA Aux Input
- AM/FM Radio Built In with 18 FM and 12 AM presets + US and European tuning
- Bluetooth built in to stream audio from any Bluetooth enabled device
- USB Input Charges Your Phone
- Big easy to use buttons
- Back-lit 3 inch TFT display
- IP66 waterproof level
- meets ASTM B117 and ASTM D4329 standards
- Humiseal coated PCB board for waterproofing and protection from the elements

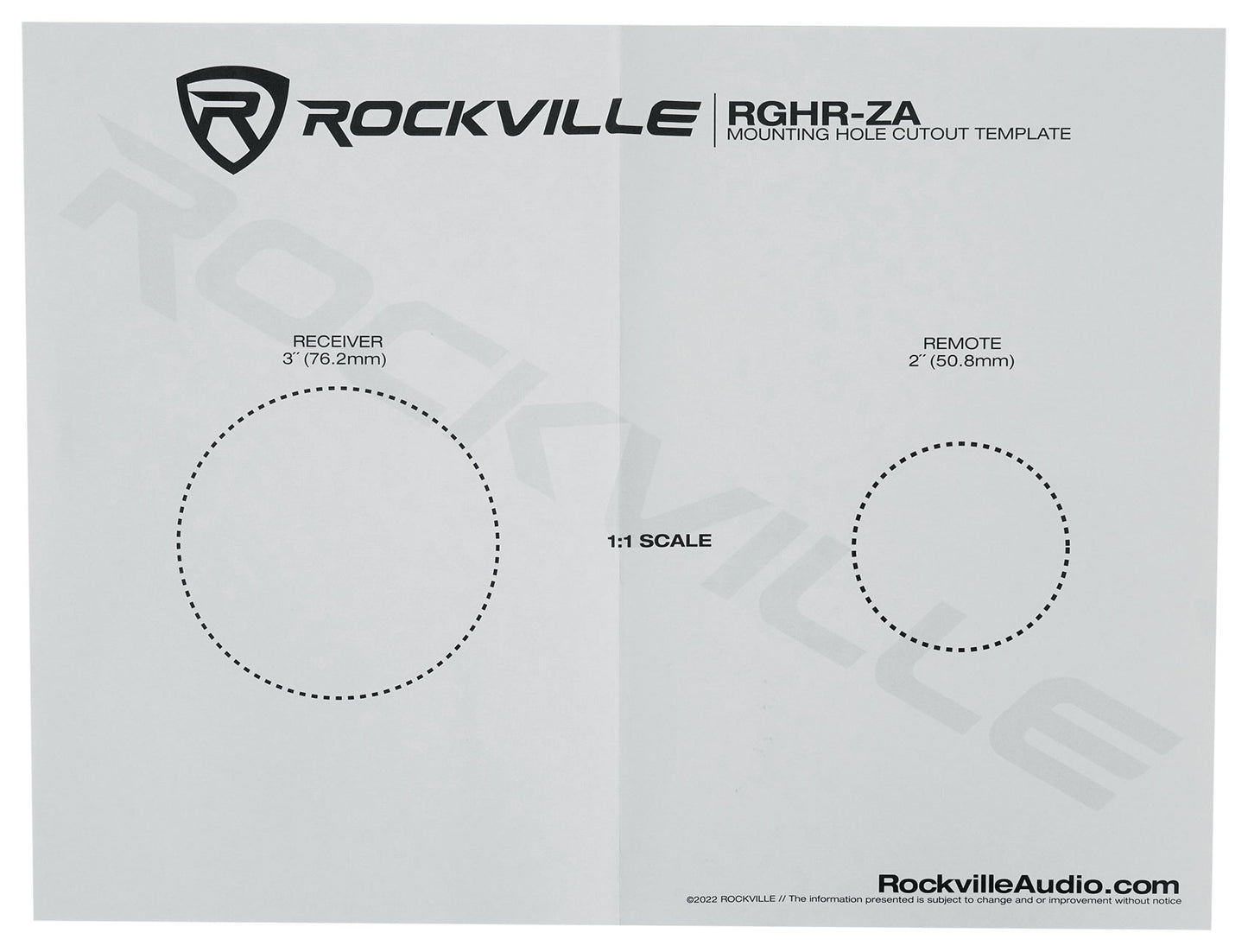

- Required cutout: 3" (diameter) x 4.96" (depth) x 4.5" (top plate diameter)
- 5.75 inch depth including the top plate
- USB is 500mA and 5V and supports 16GB max
- Specs of the built in amplifier
- TDA7851L quadbridge power amplifier
- 4 x 72 watts peak @ 2 ohm
- 4 x 48 watts peak @ 4 ohms
- Highly efficient even when running at 2 ohms!
- Low distortion even at top volumes
Owner's manual
Video of WB65KLED:

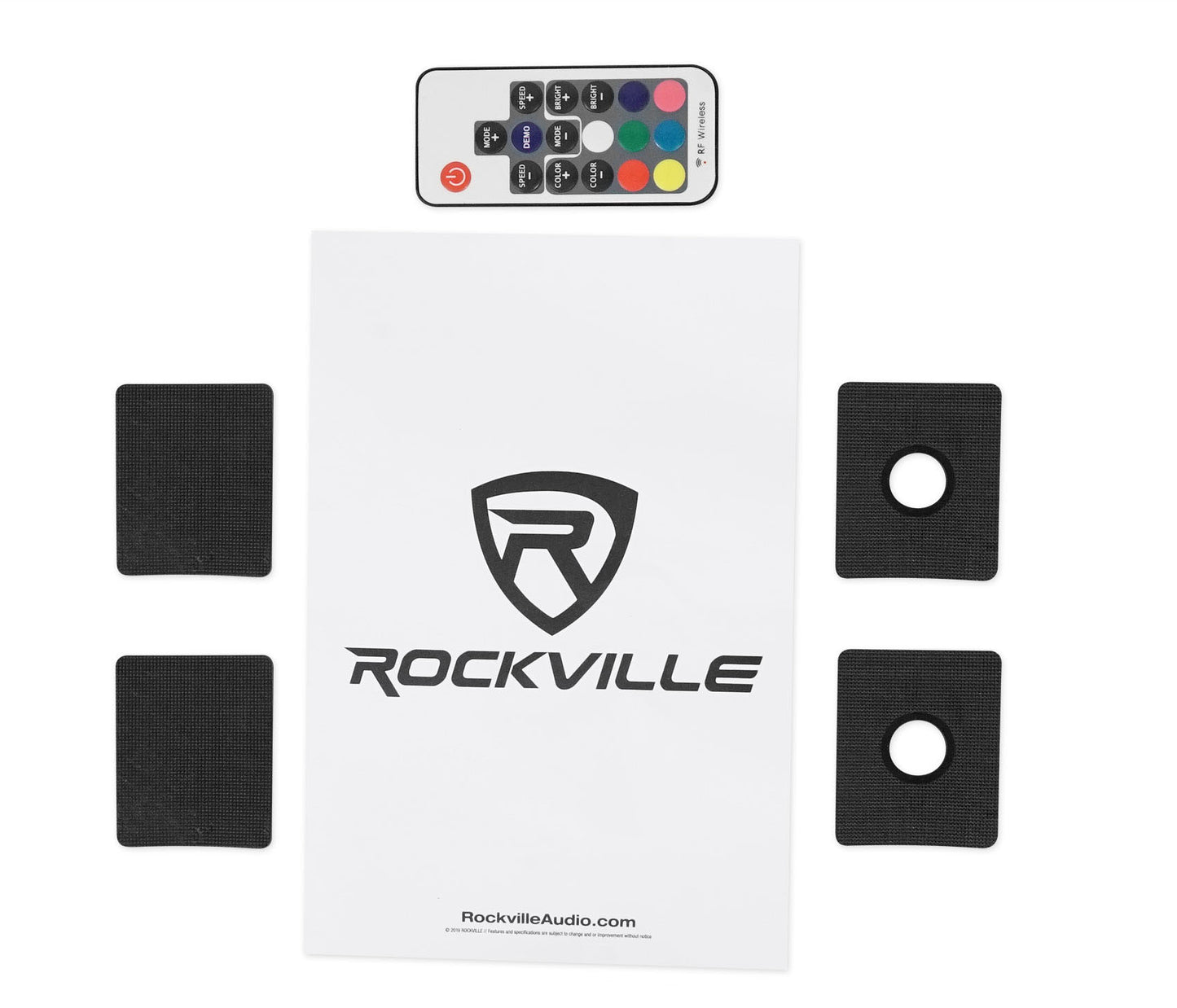

What's Included:

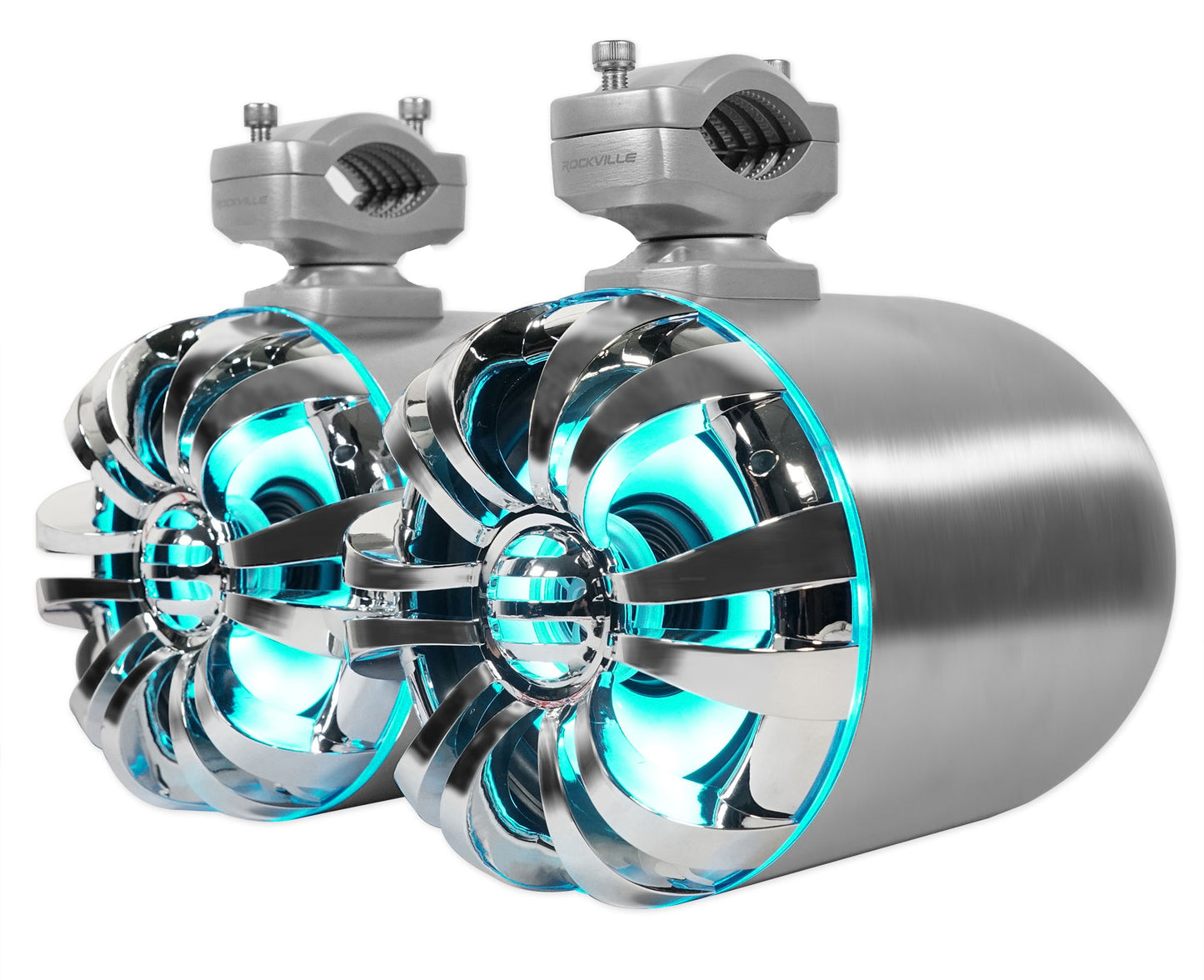

- Pair 6.5" marine wakeboard tower speakers with built in LED's
- Waterproof leading wire
- Mounting brackets and mounting hardware
- ABS chrome grill
- Installation hardware
- Wiring instructions

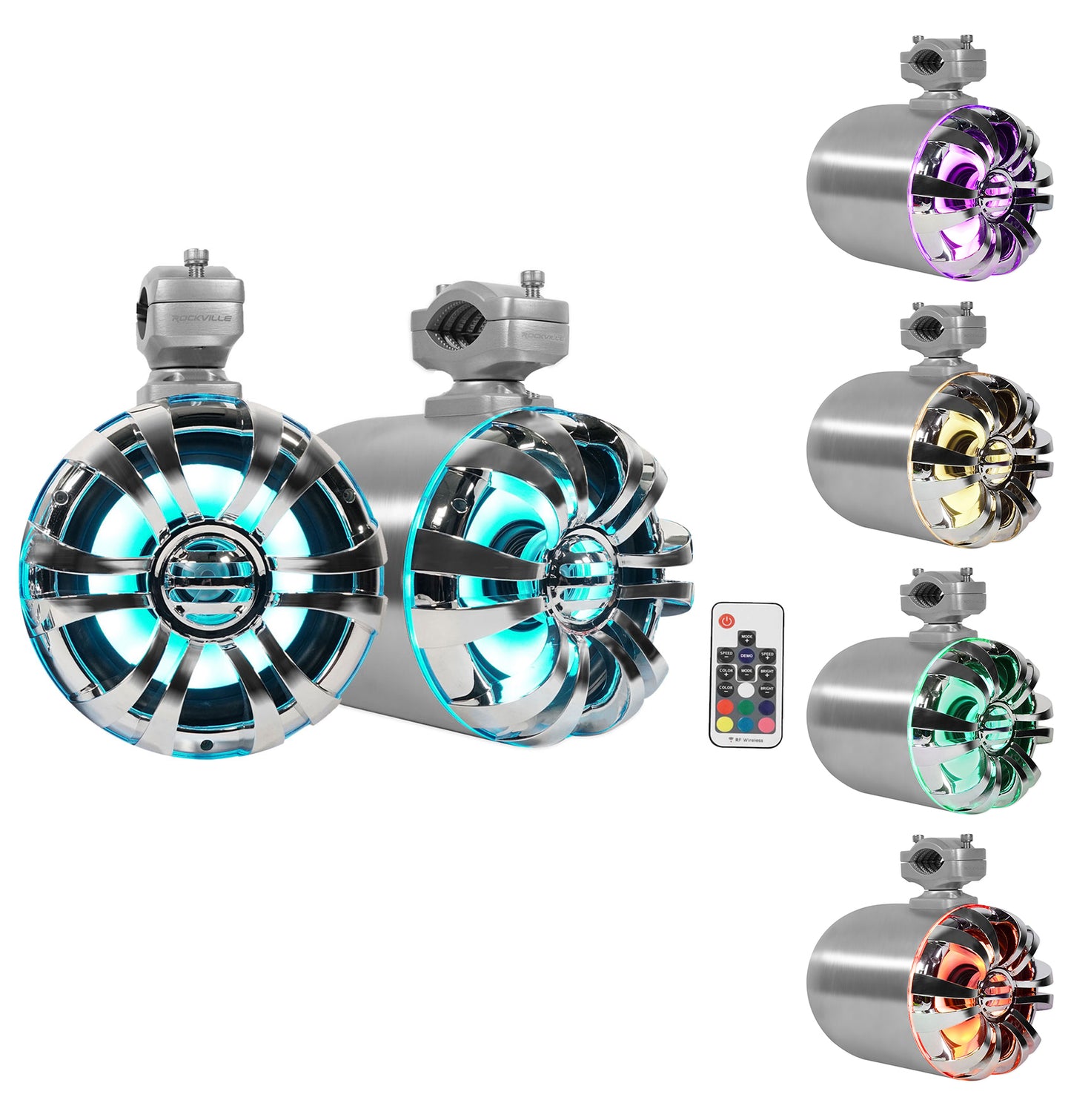

Description:

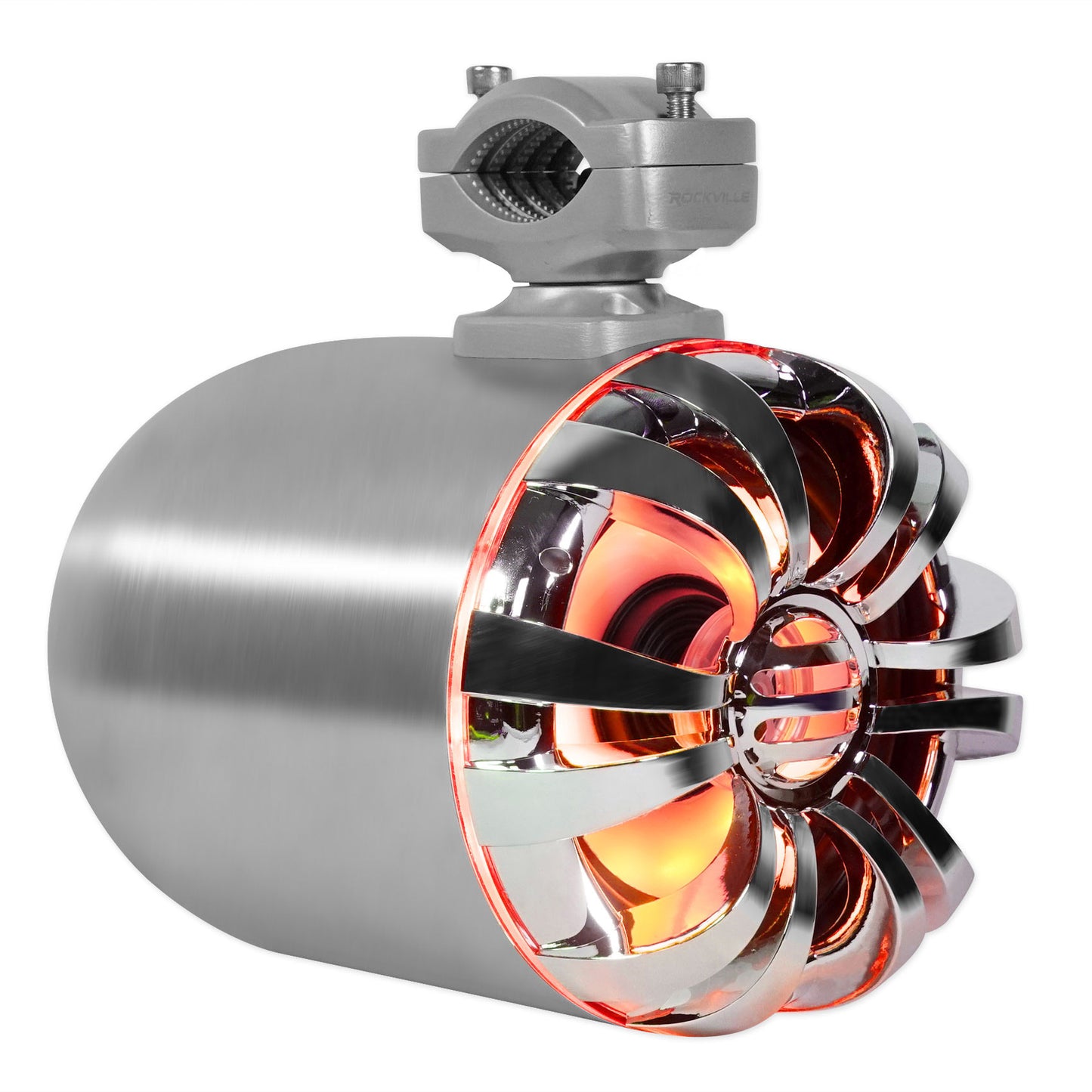

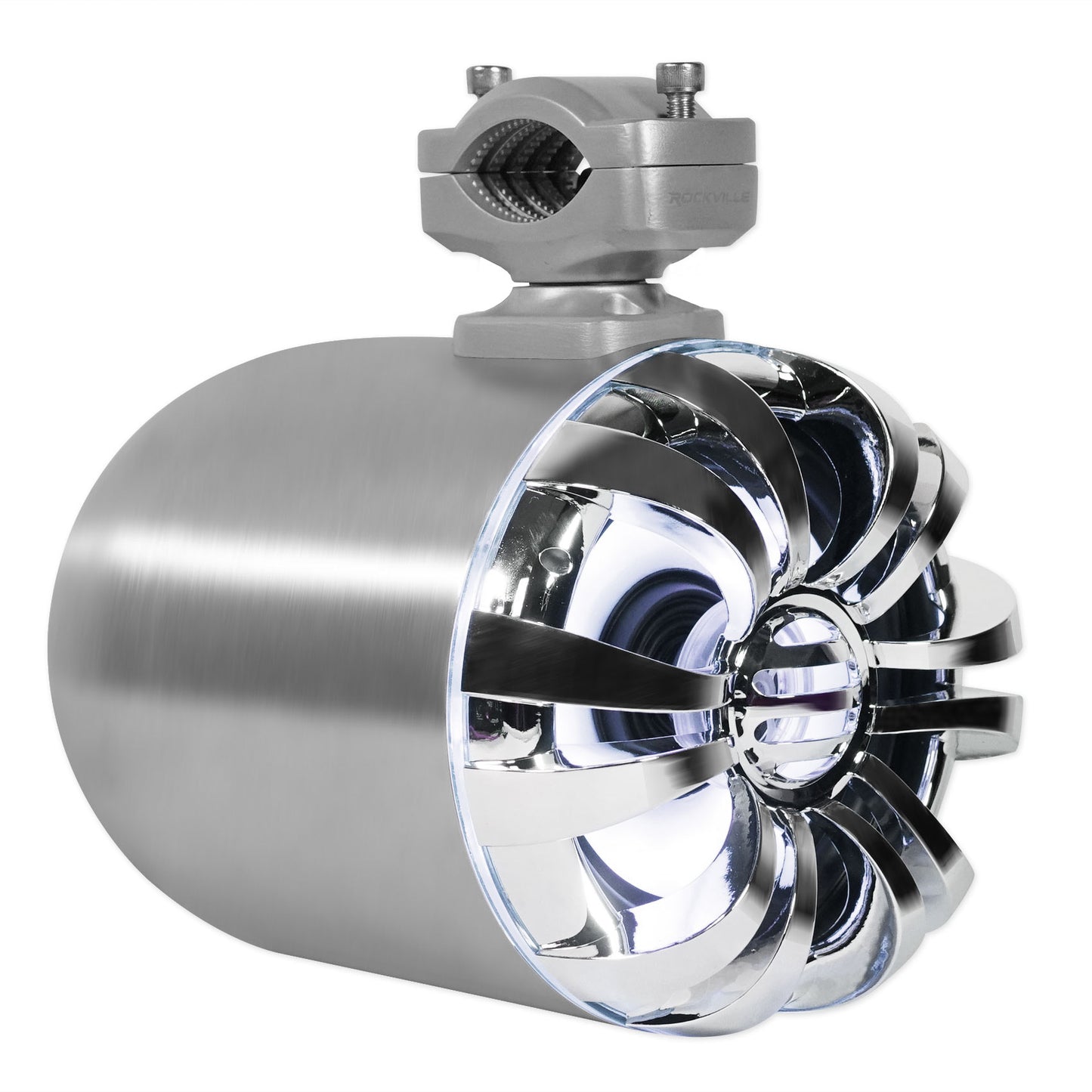

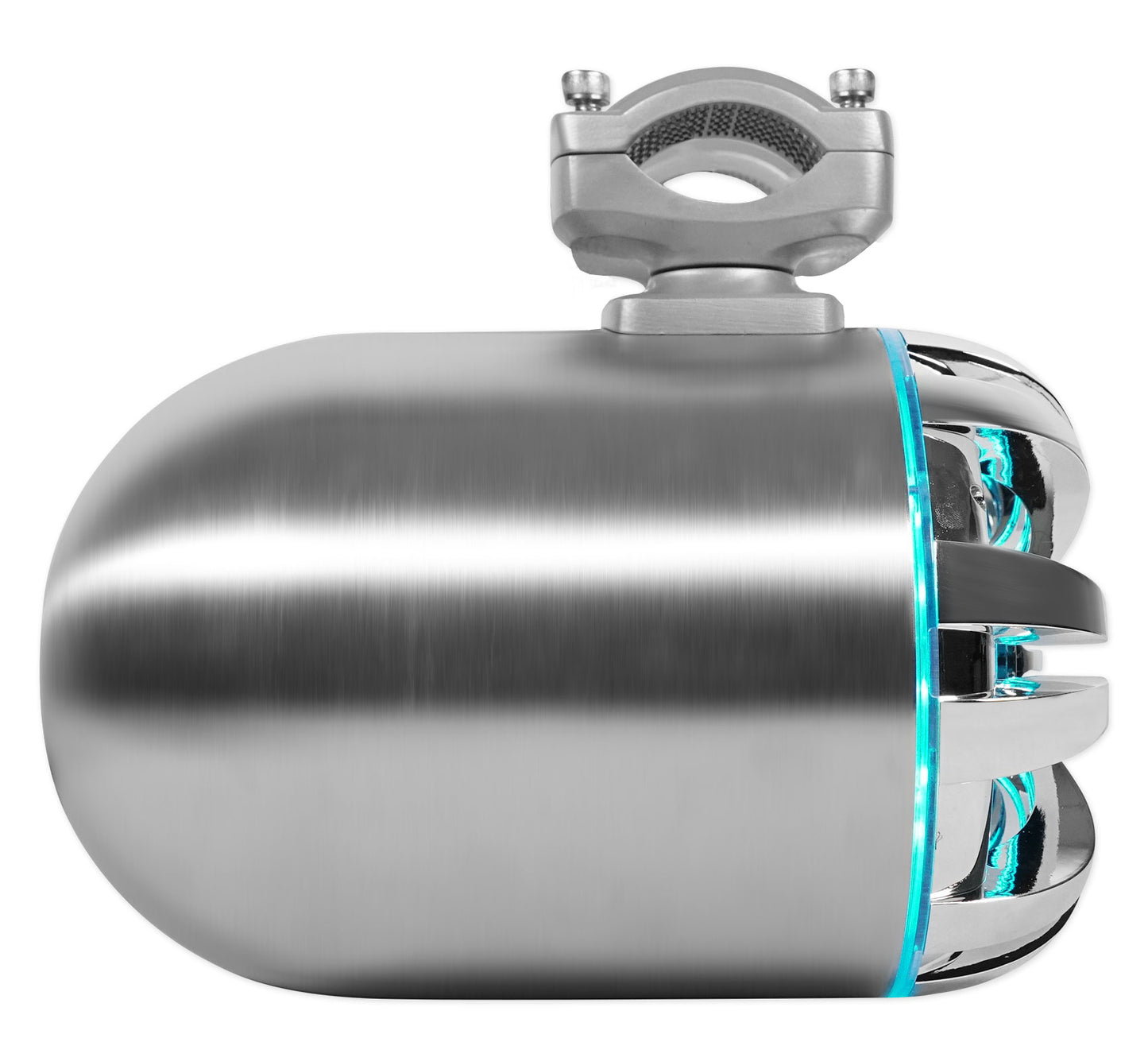

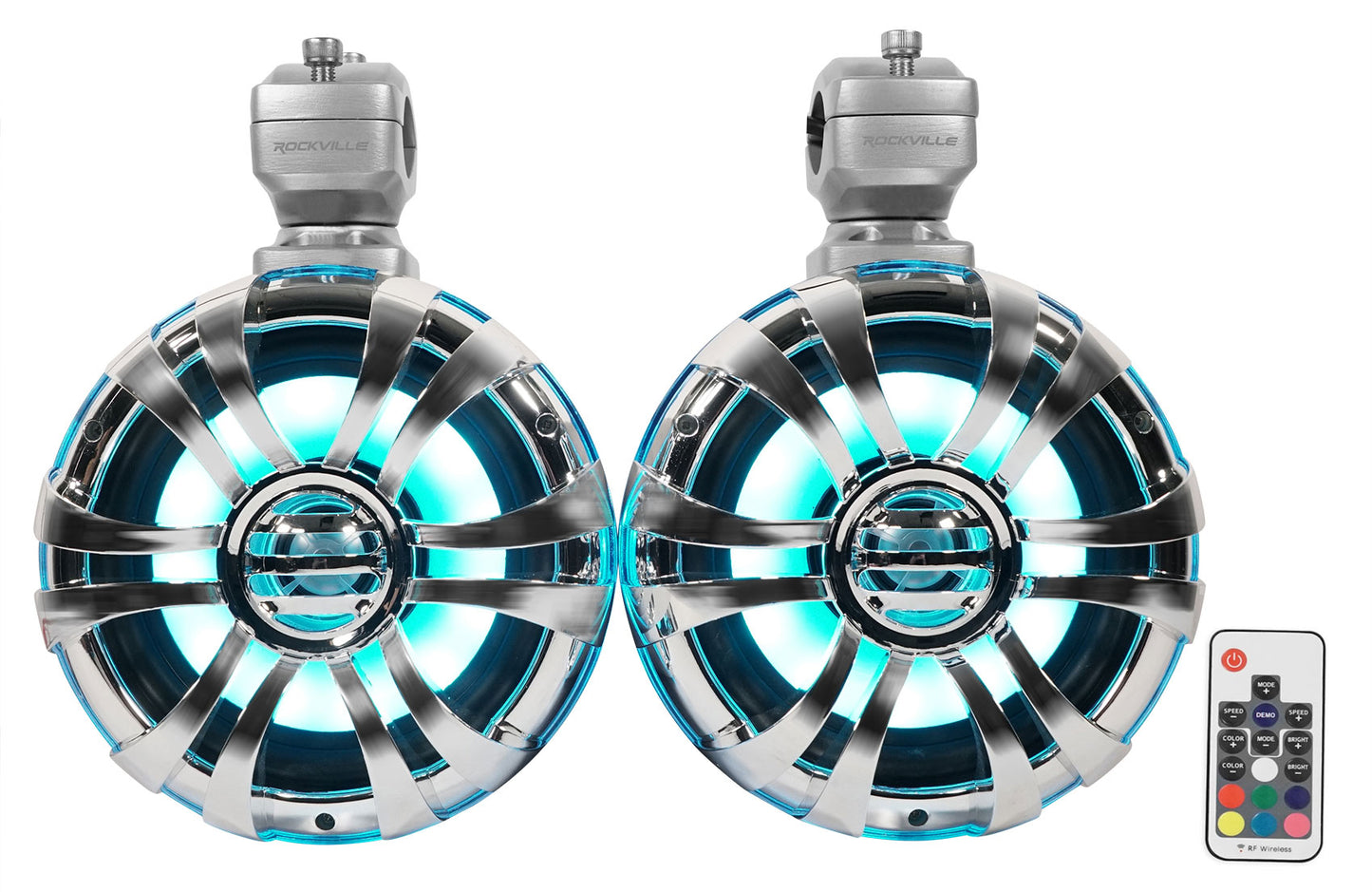

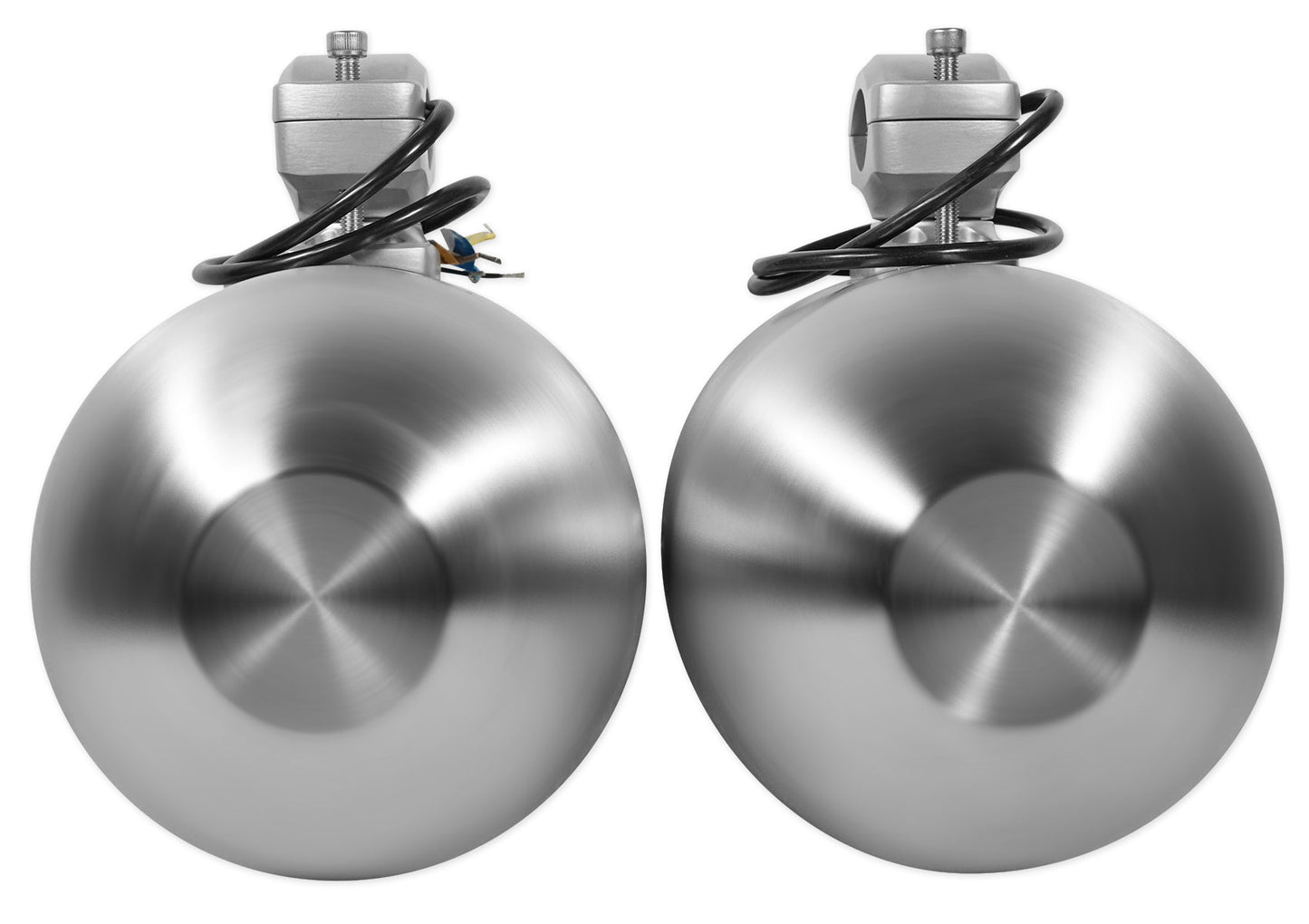

The WB65KLED 2-way marine wakeboard tower speakers with built in LED's by Rockville are the newest addition to the Rockville marine audio lineup. These speakers are both sleek and durable. You get a pair of 6.5" waterproof speakers in a stainless steel enclosure with a chrome grill finish. Each speaker is equipped with a 1" titanium dome tweeter and a 6.5" long excursion woofer. Each speaker can handle 150 watts RMS and 300 watts peak! The built in blue LED's are both reliable and look great! They really complete the sleek look of these speakers. Adding these tower speakers to either your boat, jeep, or UTV will surely enhance the look of your ride!
Rockville engineers care about quality and sound more than anything else. The WB65KLED was designed with good looks and durability in mind. The grill is constructed from ABS and is painted in chrome for an amazing finish. The 1" titanium dome tweeters really make the sound of these speakers stand out. The highs on these speakers are crisp, clear, and extremely loud! The long excursion woofer is both reliable and sounds great. The material used on these woofers are the same materials used on most of the top speakers on the market. We use rubber surrounds on these to eliminate unwanted distortion. In addition, rubber is an extremely waterproof material. The long excursion woofer makes for low end bass and mids that truly make these speakers sound amazing!
The mounting brackets are made of aluminum and built to last. These brackets are light weight, durable and can withstand the toughest conditions. The bracket features a special UV coating to protect it from the elements. A 360 degree rotating mechanism built into the bracket allows you to position the speaker in any direction for optimum listening enjoyment. This also gives you the flexibility to rotate the speaker to the front or rear of your ride.
We use only marine grade components and materials making these speakers truly waterproof. They will not get damaged by fresh water, salt water, or moisture. In addition to wakeboard towers on boats, these speakers are versatile and are perfect for installing in Jeeps, ATVs, and UTVs.
Features:
- Pair Rockville WB65KLED 6.5" Polished Silver Wakeboard Tower Speaker w/ Built in LED's
- Peak Power Handling per speaker: 300 Watts
- RMS Power Handling per speaker: 150 Watts
- Frequency Response: 50Hz to 20kHz
- Sound Pressure Level: 90dB
- Impedance: 4 Ohm
- Polished silver stainless steel enclosure
- Aluminum Mounting Bracket
- Quick and Easy Speaker Angle Adjustment
- Bracket rotates 360 degrees
- 1" Titanium Dome Tweeter
- Fully Marinized Against Salt & Fresh Water Conditions
- Completely Resistant to Water, Rust, and UV Rays
- Polypropylene Mica Injected Cone with Rubber Surround
- 15 oz High Density Magnet
- 1" Voice Coil
- CE and RoHS Certified
- These wakeboard speakers fit bars ranging from 1" to 2.5"
- Dimensions per speaker (H x W x D): 7.8" x 7.8" x 11.8"
- Weight per speaker: 5.3lbs
- Color: polished silver
