How to set up your RDI5:

Video of RDI5:

What makes ours better:

• Larger transformer deliver true 600 ohm output
• Thick steel chassis for reliable performance
• 50K ohm parallel link jack enables you to connect the output from the RDI5 directly to power amplifiers without a separate pre-amplifier
• Matches the signal level and impedance with unity gain, with no adverse effects on the source signal

Some Common Applications:

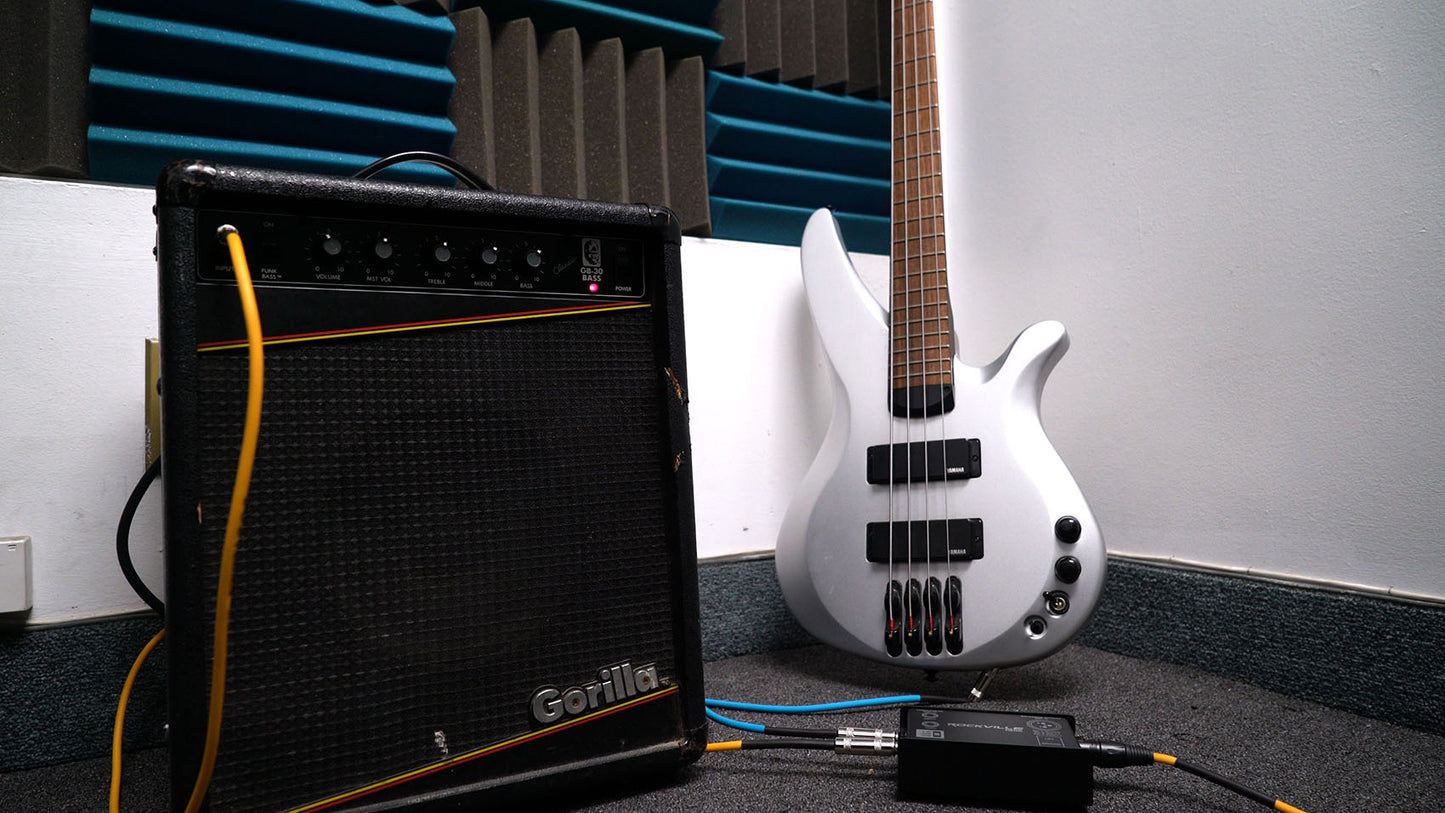

• Connect your electric guitar or bass to a mixer or recording interface

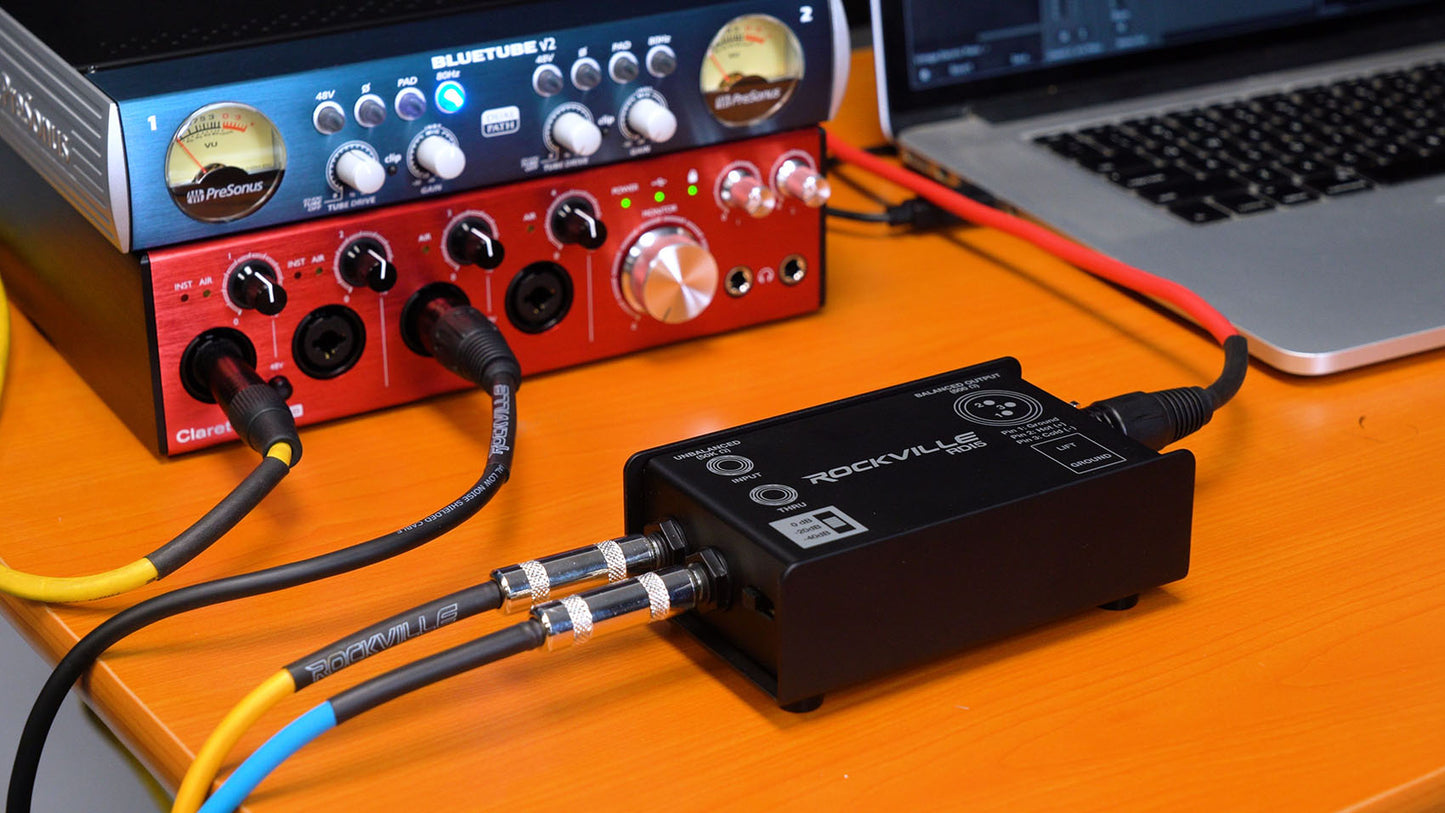

• Connect your keyboards directly to a mixer or recording interface
• Convert a DJ mixer that is unbalanced to a balanced signal
• Allows you to feed effects directly to your mixer. The RDI5 has the capability to accept speaker level inputs from a power amplifier’s output. This allows eq and effects signals to be fed directly to the console.

Features:

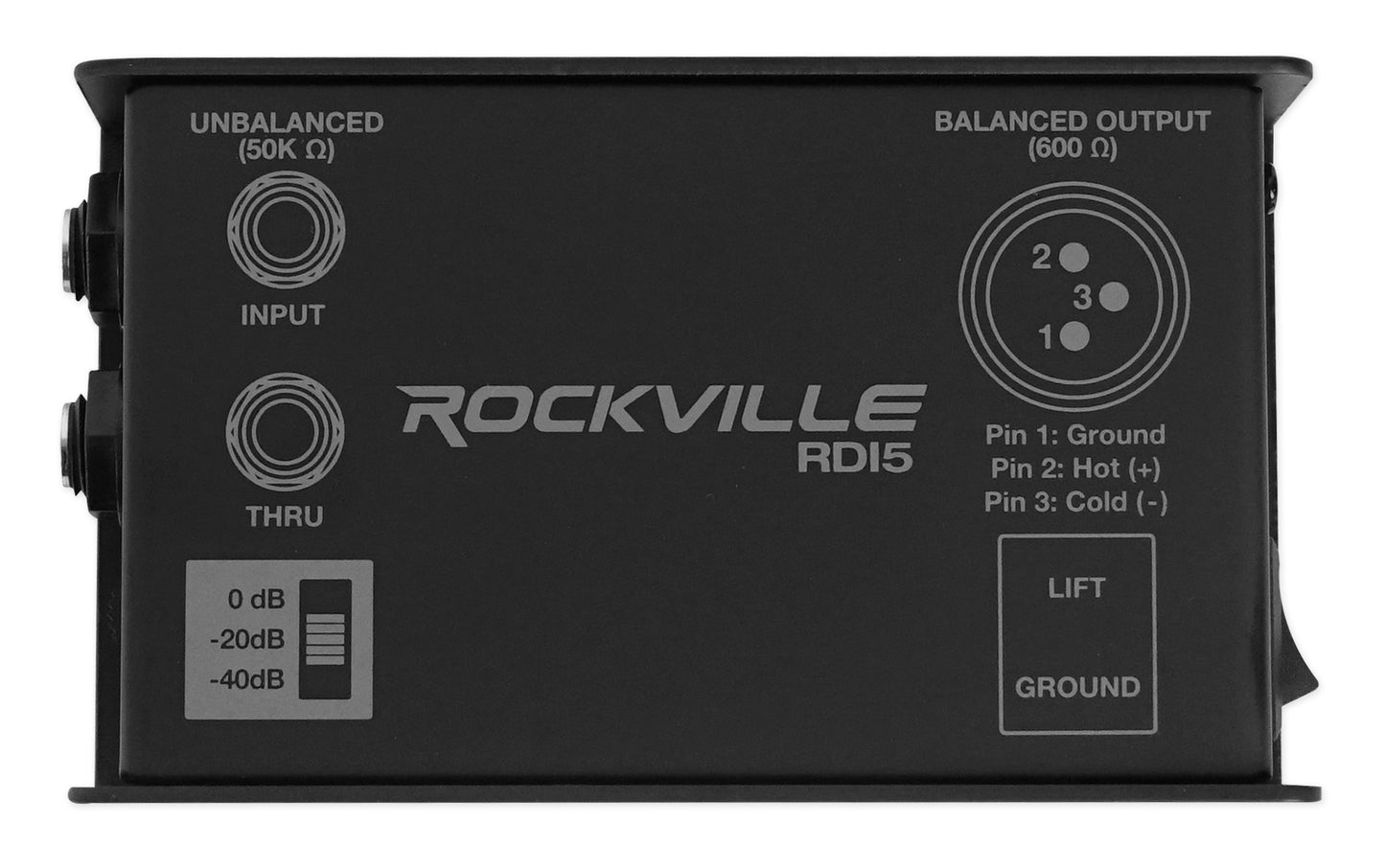

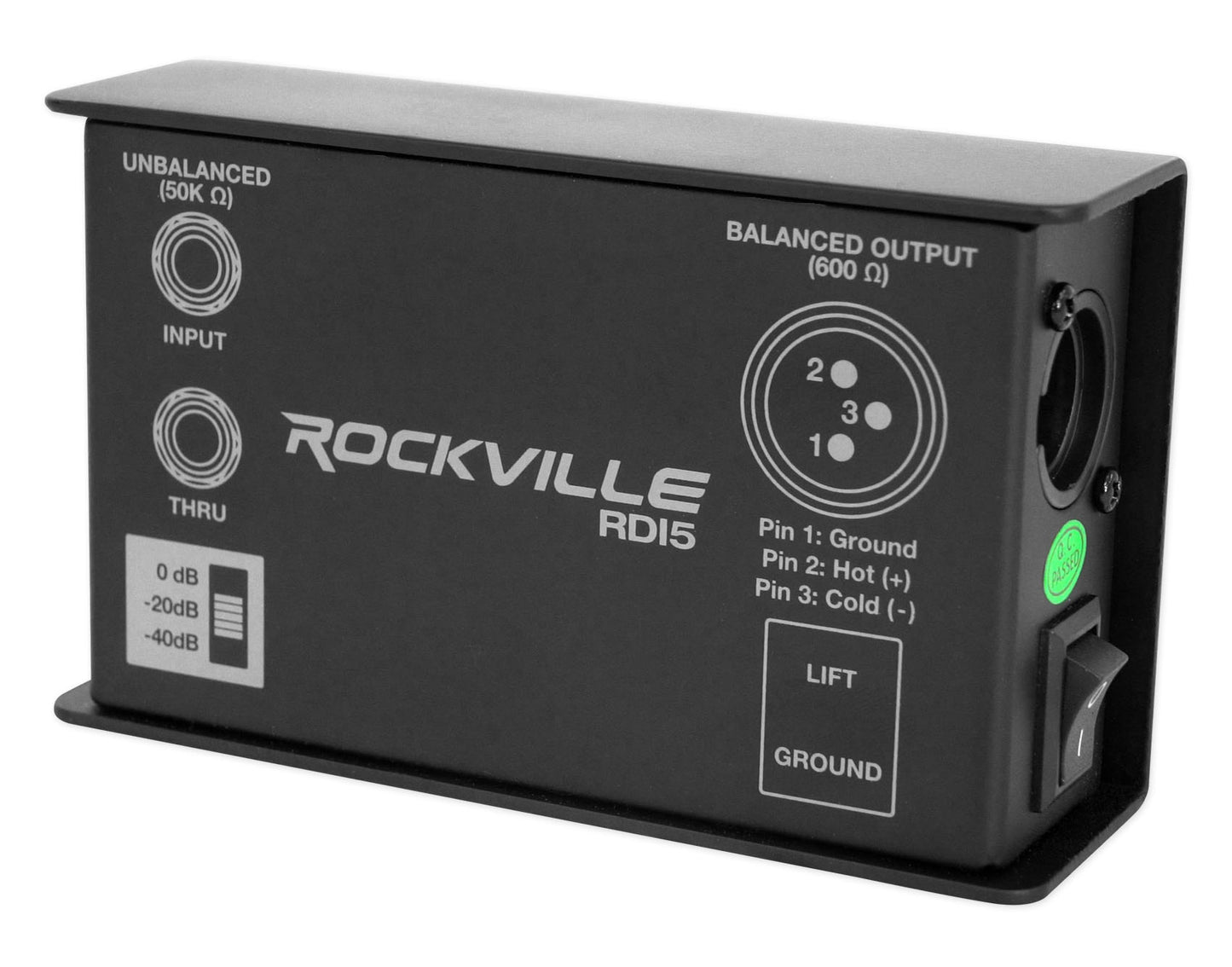

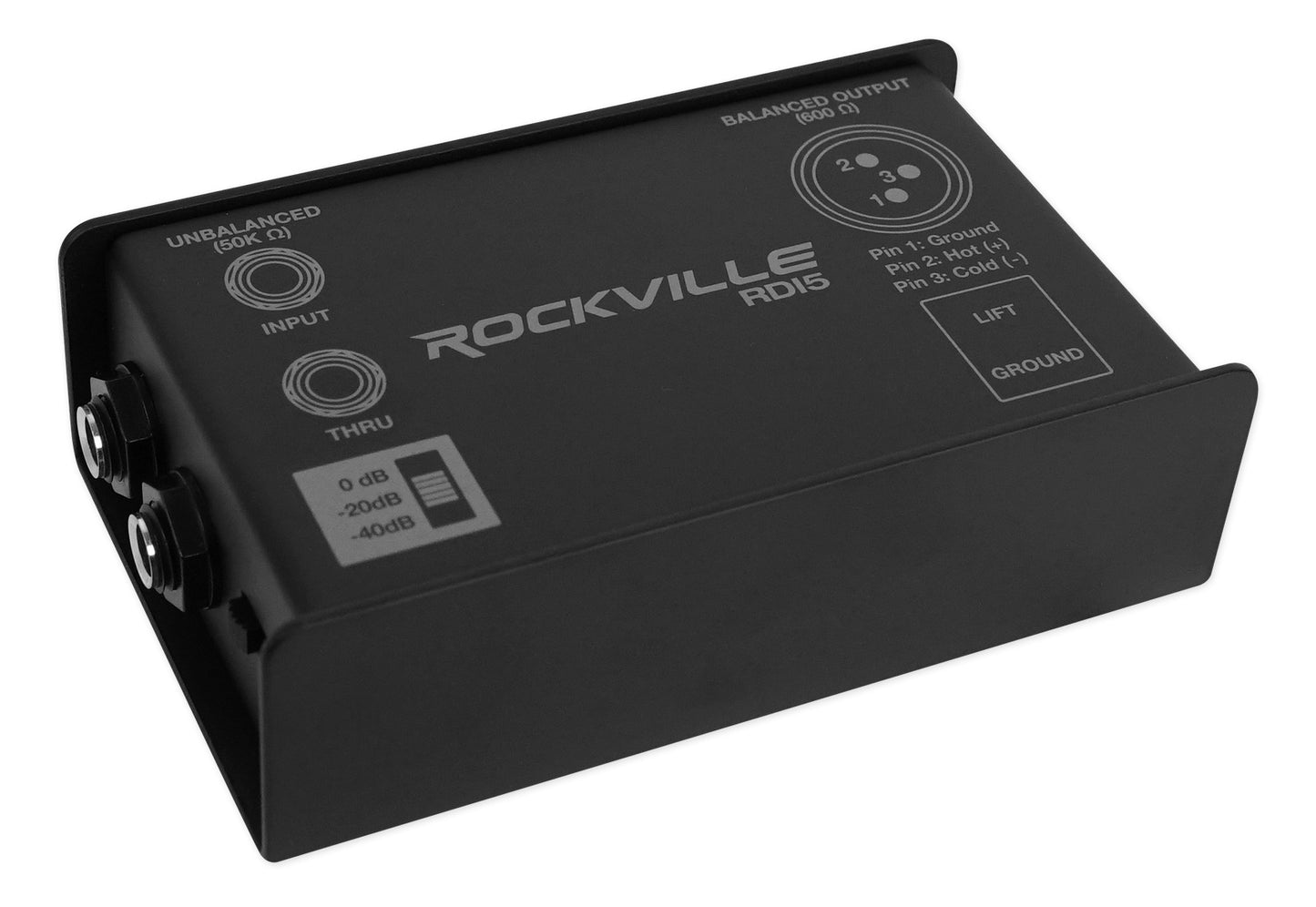

• Rockville RDI5 Passive DI Box - Converts Guitar/Instrument or other Signal to Balanced Mic Level
• Switchable input attenuation
• 0dB for electric guitar and bass pickups
• -20dB for line level signals, such as keyboards and cd players
• -40dB for speaker feeds

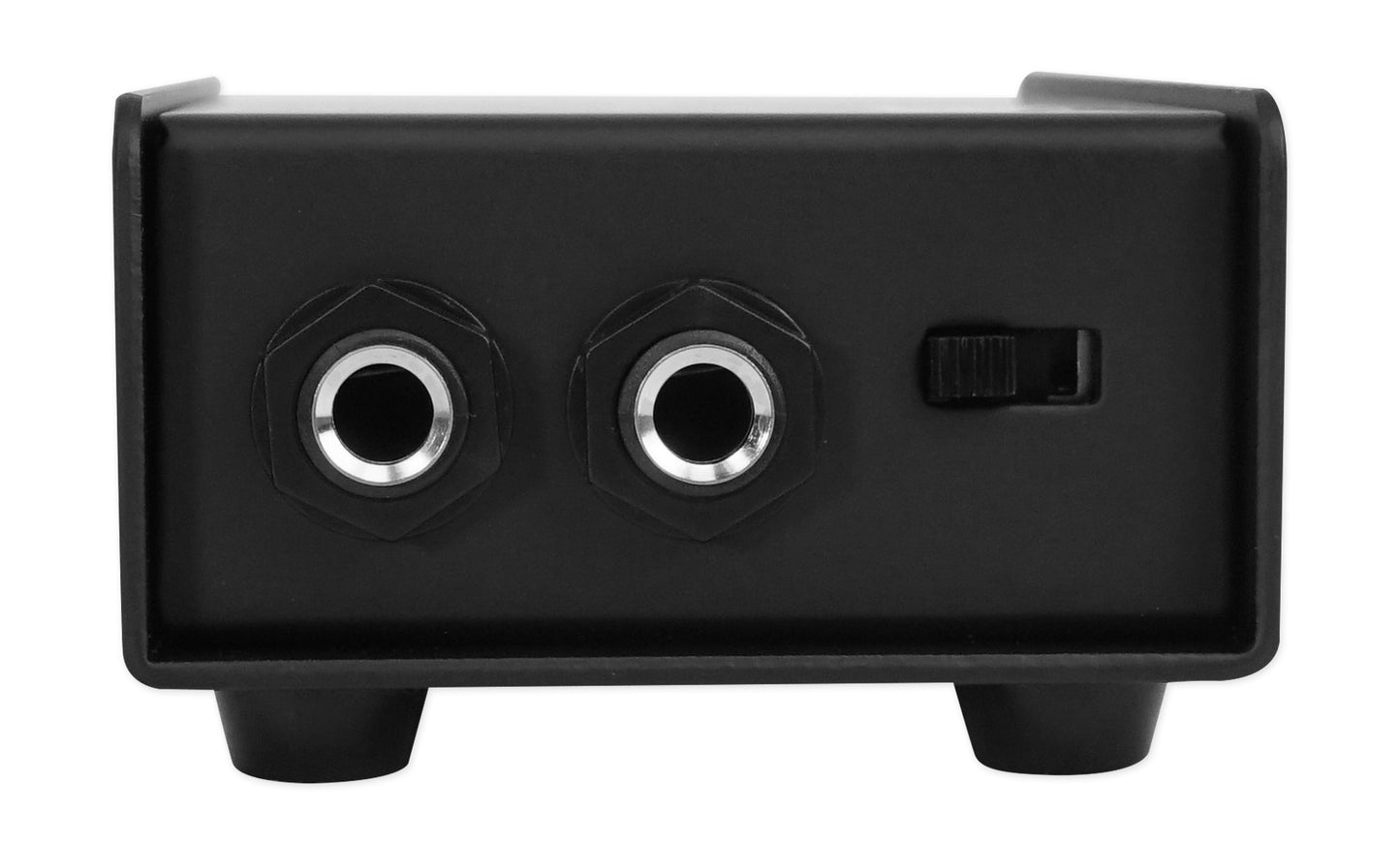

• Input Connectors: 1/4" TRS Jack connectors

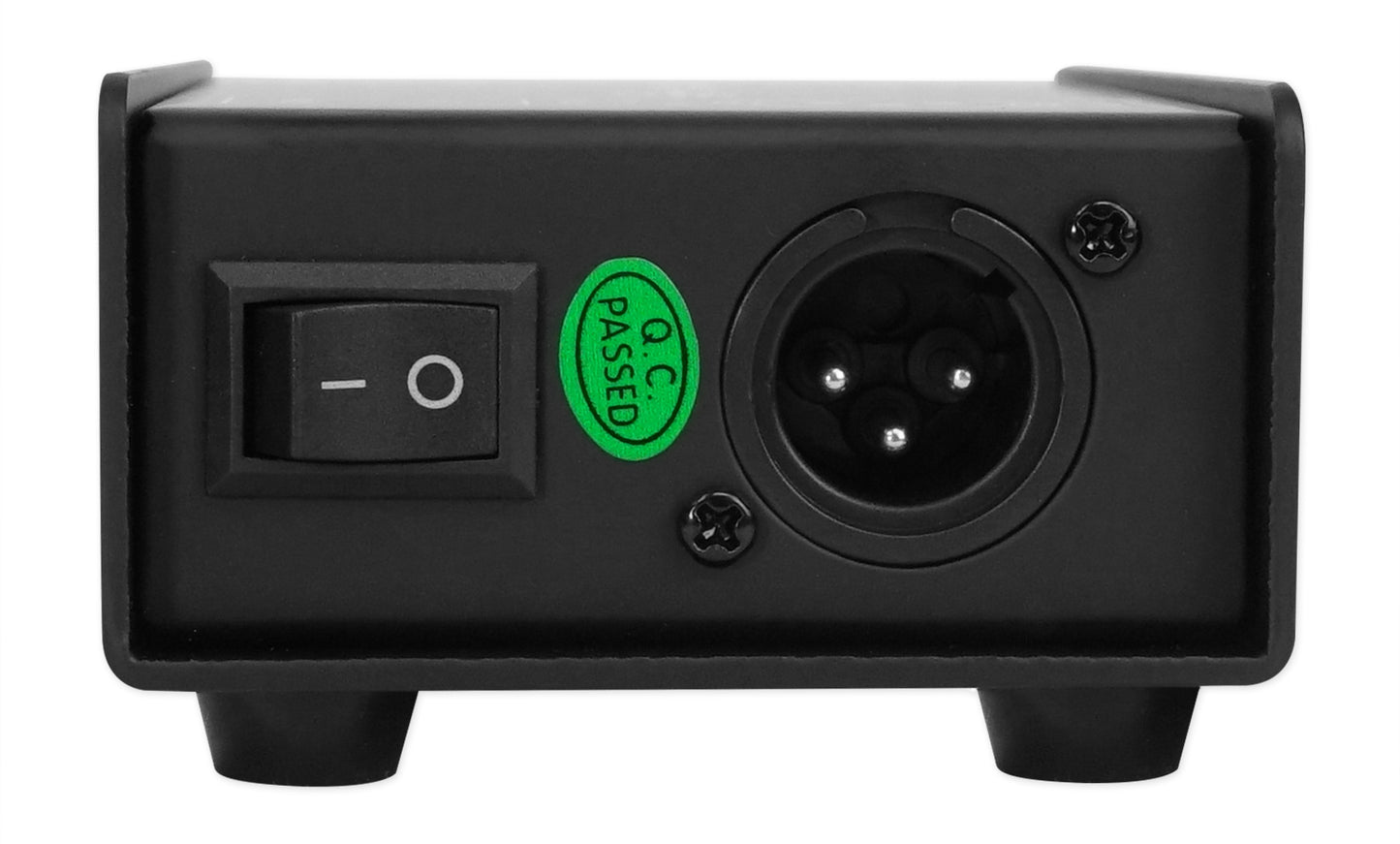

• Output Connector: XLR Connector
• 50K ohm instrument input
• 50K ohm parallel link jack
• Matches the signal level and impedance with unity gain, with no adverse effects on the source signal
• 600 Ohm XLR output jack - enables you to send a balanced signal to a mixer
• We use a transformer that is 2-3 times larger than most other ones on the market to give you true 600 ohm output
• The 50K ohm parallel link jack output enables you to connect the output from the RDI5 directly to power amplifiers without a separate pre-amplifier
• Switchable ground lift to help eliminate hum caused by ground loops
• Thick steel Chassis is sturdy and strong
• Frequency Response: 10 Hz – 50KHz@ +4dB
• Dimensions: 5.04” x 2.95” x 1.57”
• Weight: 1.33 Lbs
