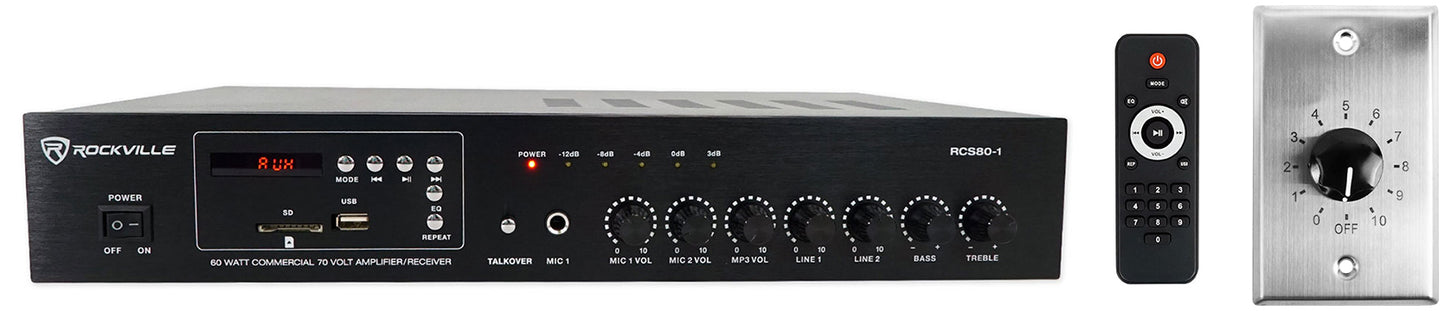

- (1) Rockville RCS80-1 60 Watt 70v Commercial/Restaurant Amplifier/Bluetooth Receiver
- (1) Rockville VOL70100 100w 70v Stainless Wall Volume Control Zone Controller Box
Video of RCS80-1:

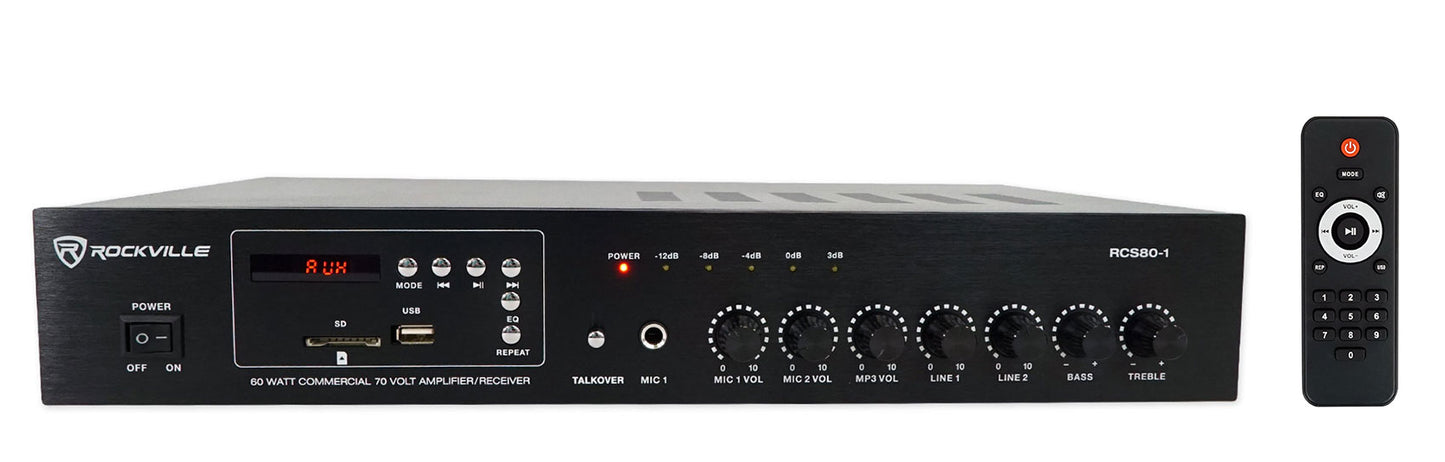

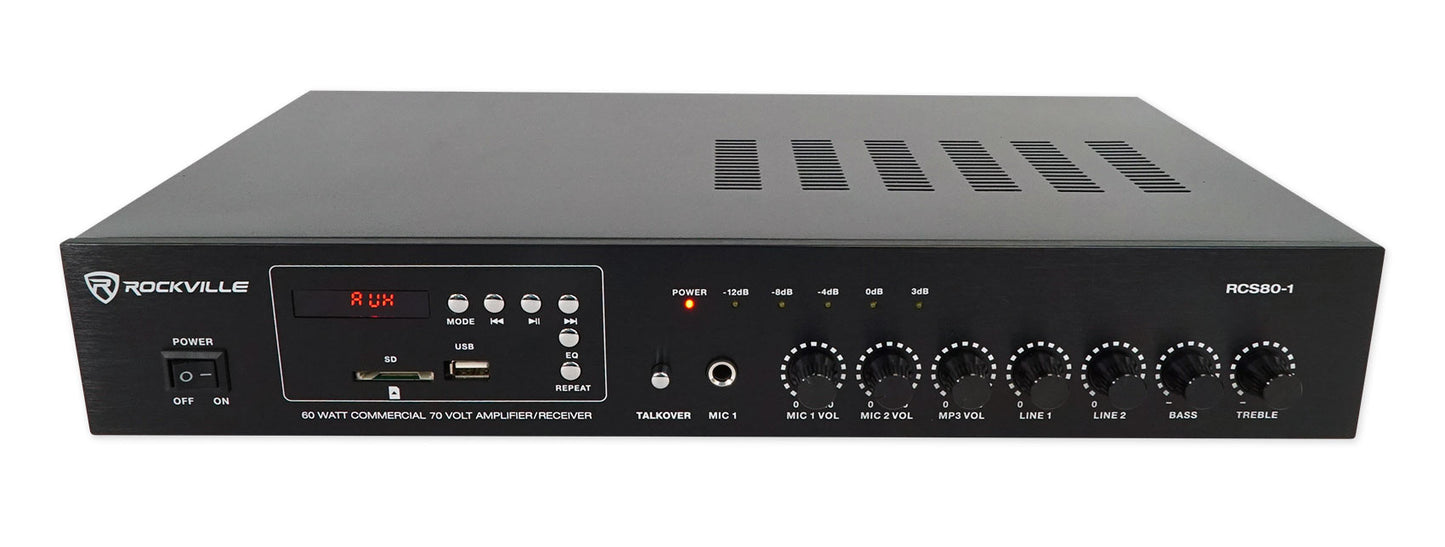

Rockville RCS80-1: The Ultimate 60-Watt 70V Amplifier for Your Business
Transform Your Space with Professional Sound—Affordably and Easily
Say goodbye to complicated audio setups and sky-high contractor fees. The Rockville RCS80-1, our flagship commercial amplifier in the RCS series, delivers powerful 60-watt performance in a sleek, rack-mountable design.
Perfect for restaurants, bars, schools, and more, this digital hybrid amplifier/receiver supports 70-volt, 100-volt, 8-ohm, and 4-ohm systems—giving you pro-grade sound without the hassle.
Why You’ll Love the RCS80-1
- Save Thousands: Install a 70-volt system yourself—no expensive contractors needed. (We include lots of how-to videos and a team of support professionals to help you with your installation)
- Wow Your Guests: Stream crystal-clear music via Bluetooth from your phone, or play files from USB/SD (up to 32GB).
- Versatile Control: Dual mic inputs for announcements, speeches or karaoke, plus separate volume knobs for mics, MP3, and line inputs.
- Set the Mood: Customize sound with bass/treble controls and tailor speaker output for every room.

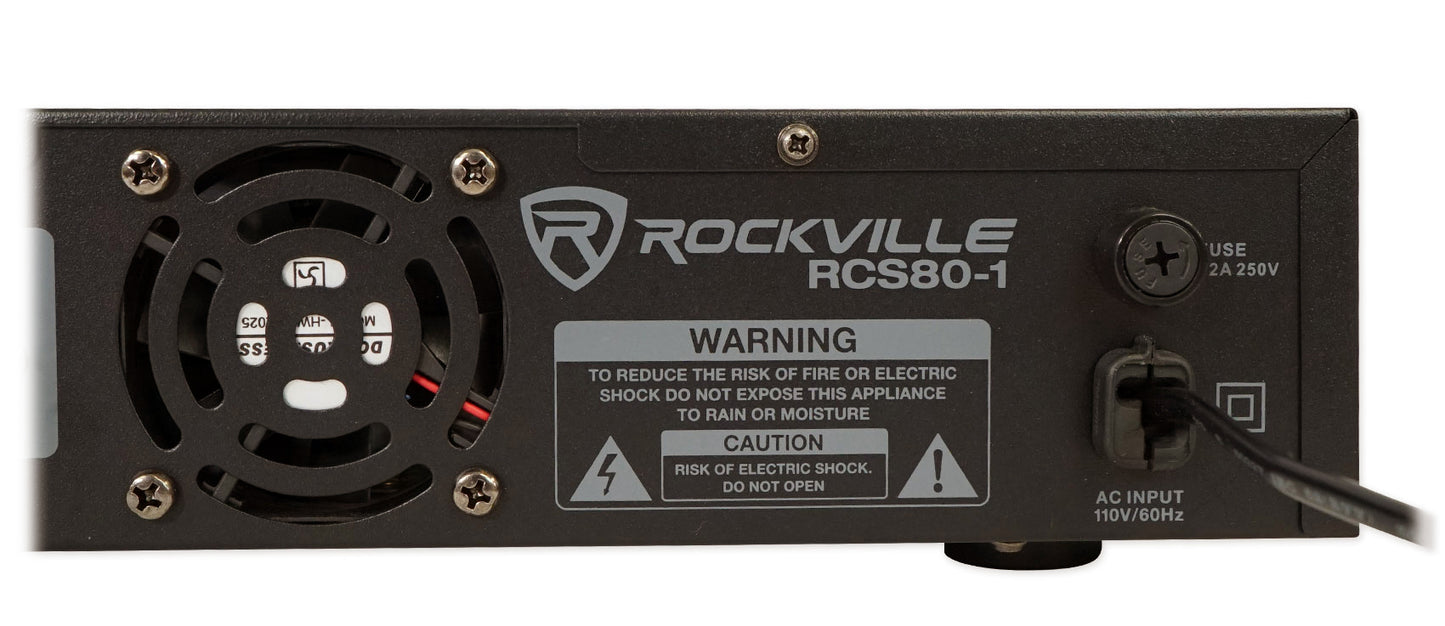

- Built to Last: A cooling system keeps it running smoothly for years.

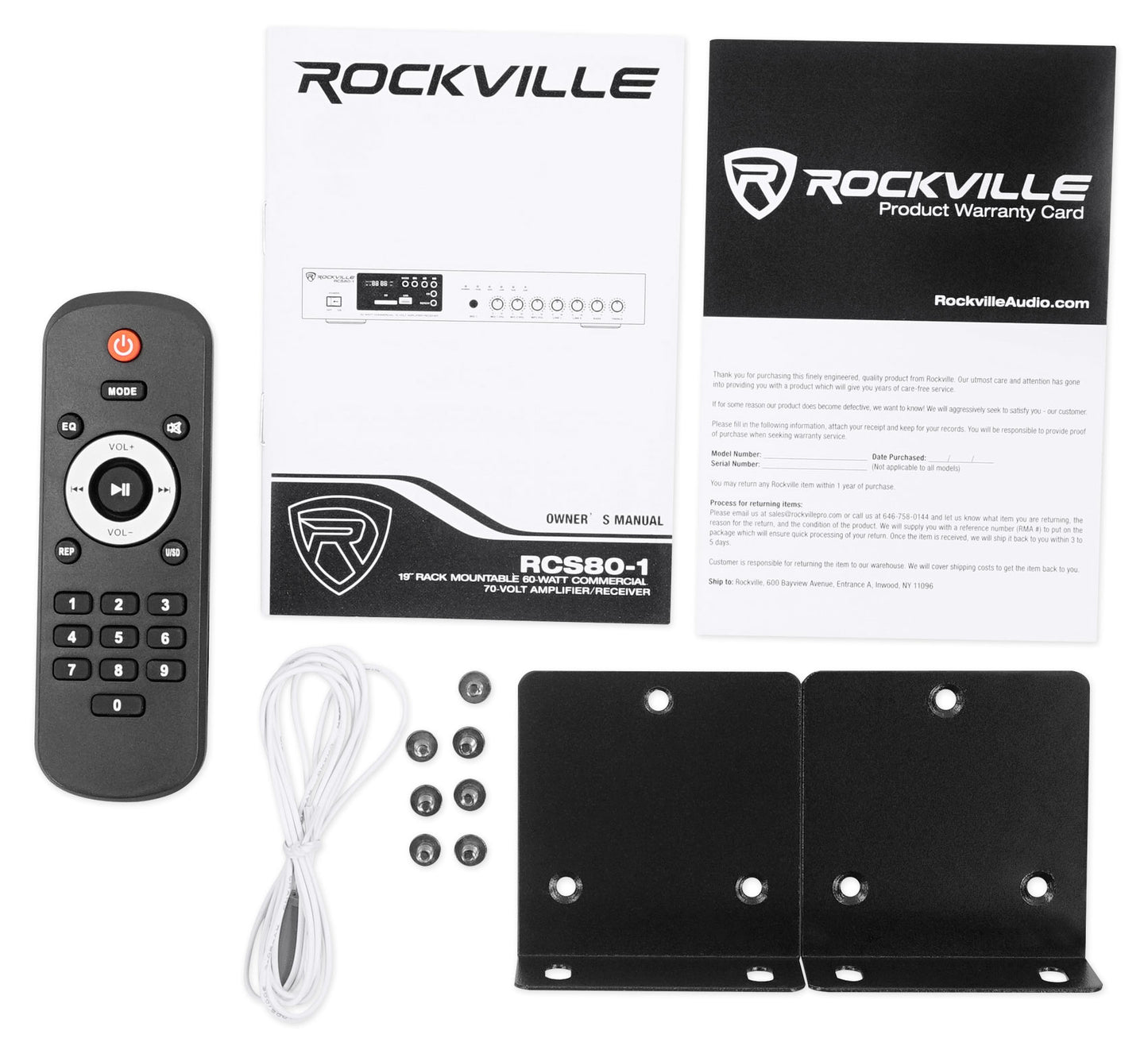

What’s Inside the Box
- Amplifier

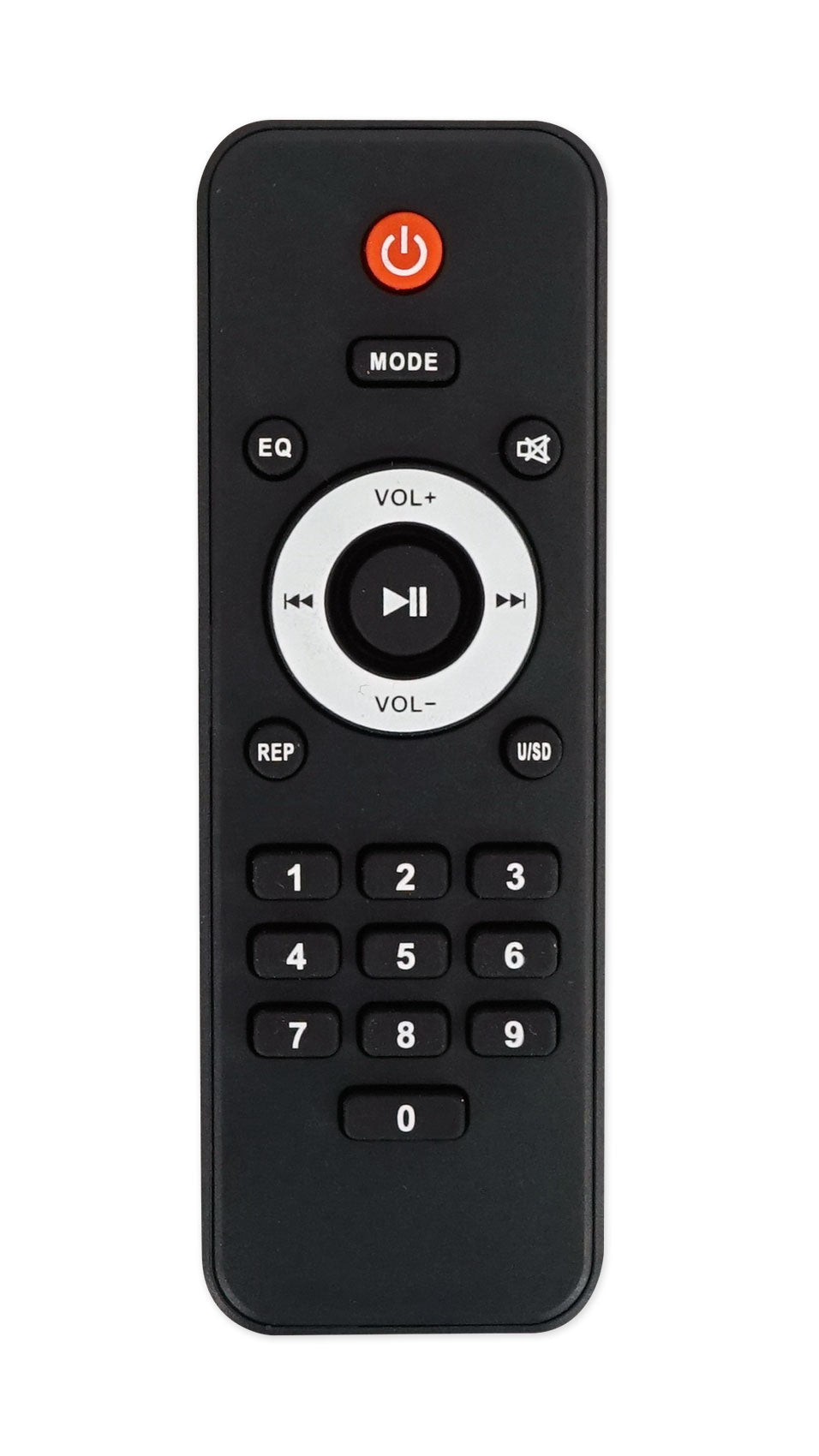

- Remote Control
- Rack Mount Ears
- Power Cable
- FM Radio Antenna
- Owner’s Manual
- Warranty
Unleash the Power of 70-Volt Technology
Why settle for basic audio? With 70-volt systems, you get:
- Effortless Setup: Wire multiple speakers (e.g., 10 at 5W or 20 at 2.5W) with no impedance worries.
- Custom Sound: Adjust wattage per speaker—5W in the dining area, 10W at the bar, 3W in hallways.
- Long-Distance Clarity: Run speaker lines far without signal loss.
- Mix & Match: Pair with ceiling speakers, wall units, or subwoofers—your choice!
The RCS80-1’s 60-watt output powers up to 60 watts of speakers, making it a breeze to create the perfect audio environment.
Key Features
- Power Options: 70/100V (60W RMS), 4-ohm (80W), 8-ohm (70W), 16-ohm (11W).

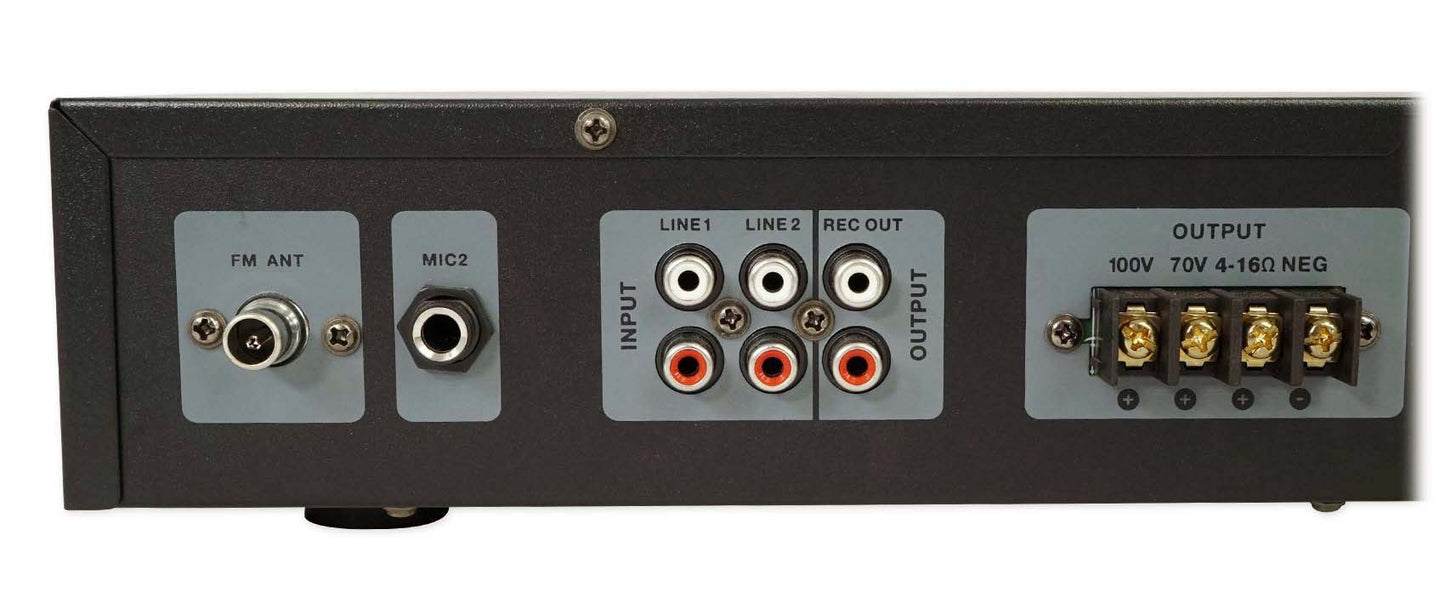

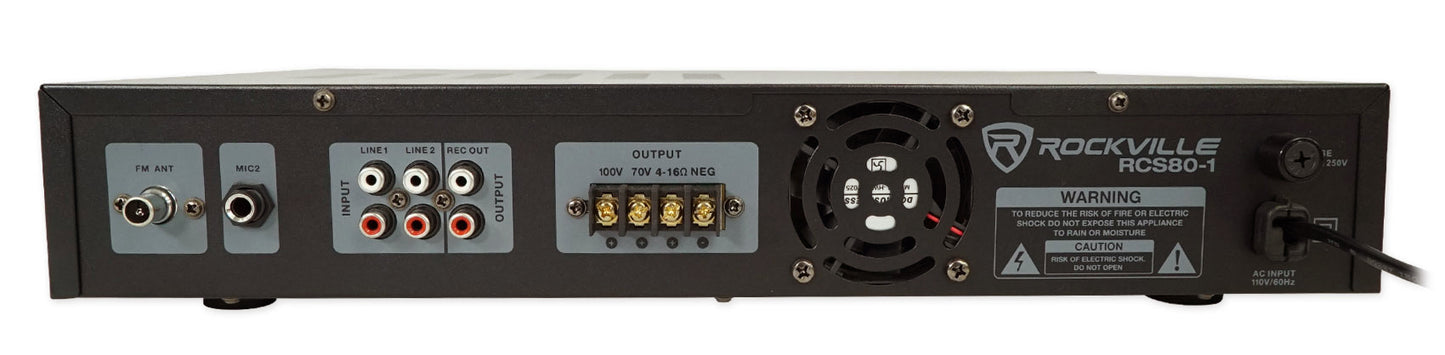

- Connectivity: Bluetooth, FM tuner, USB/SD inputs, 2 RCA AUX inputs, 2 mic inputs, RCA REC output.

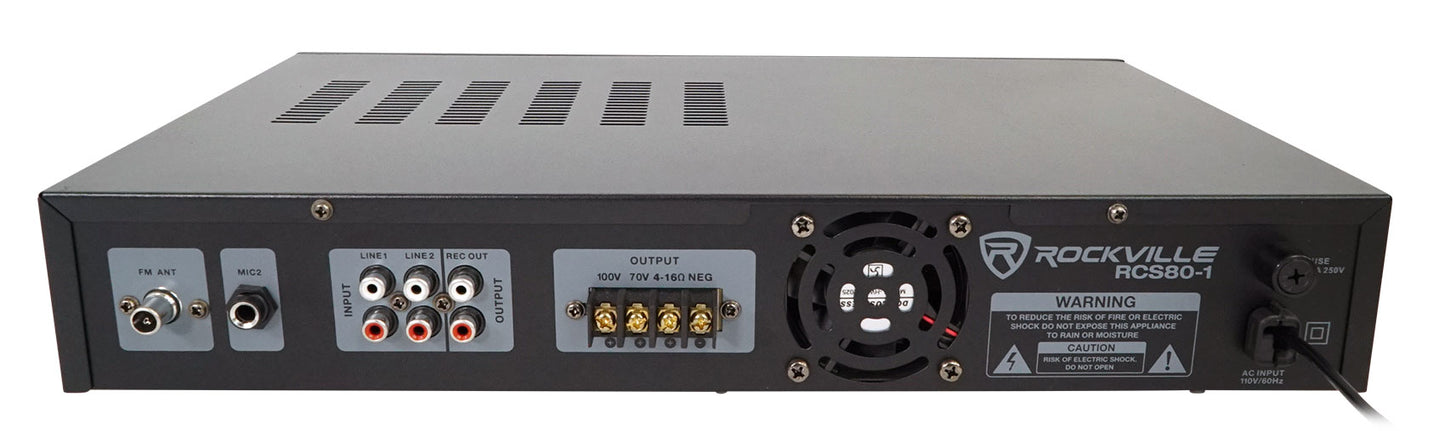

- Speaker Outputs: 100V, 70V, 8-ohm terminals + shared negative.
- Specs: <0.5% distortion, >79dB signal-to-noise, 10Hz-22.8kHz frequency response.
- Compact: 16.9" x 9.45" x 2.76", 10.03 lbs.
Perfect For:
- Restaurants & Cafés
- Bars & Lounges
- Schools & Conference Rooms
How To Set Up Your VOL70100 Controller:
How To Set Up Your VOL70100 For a Multi Room Setup:
Video of VOL70:

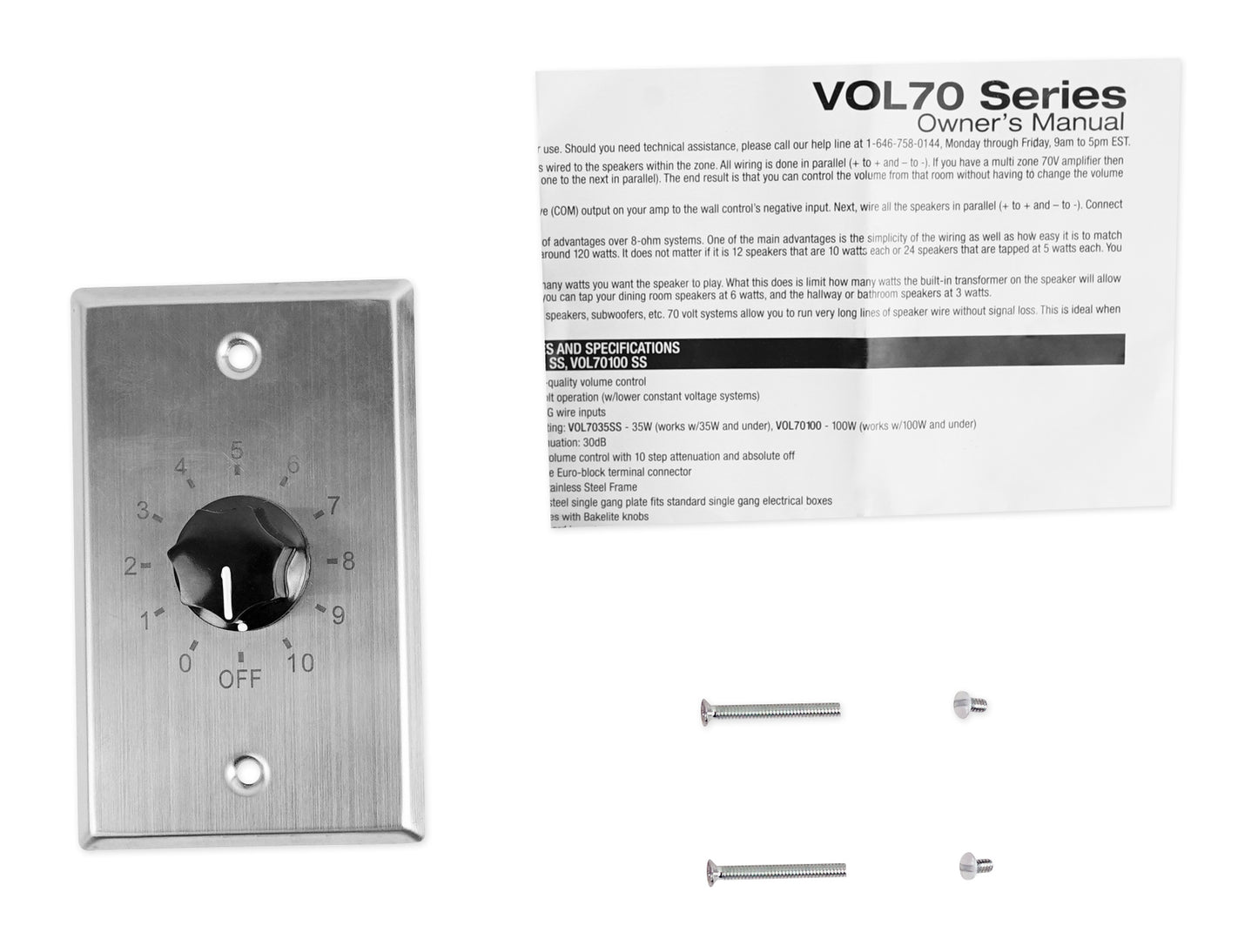

Description:

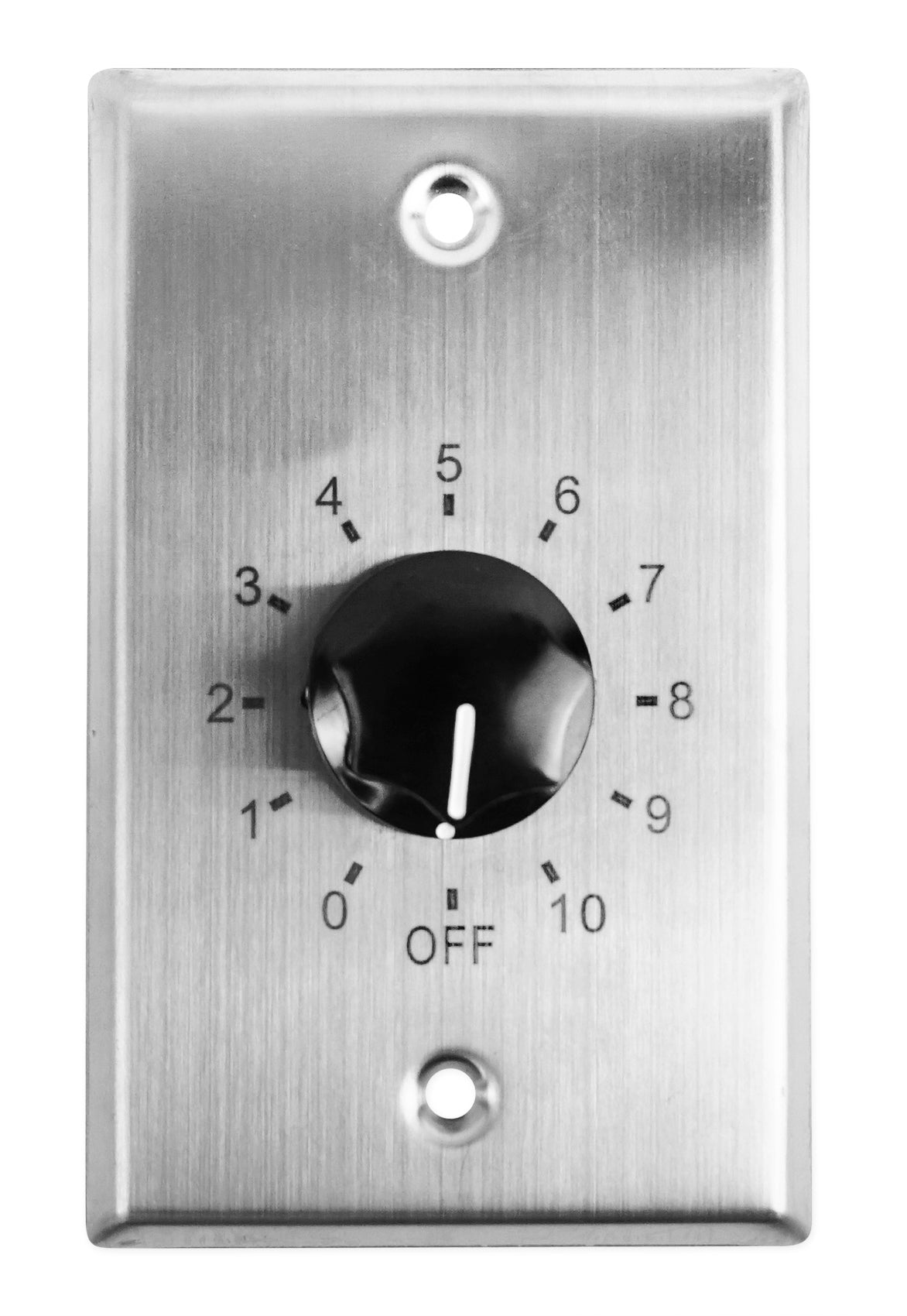

The VOL70100 SS by Rockville is a 70 volt 100 watt wall volume controller. Our volume controllers are some of the best on the market. These are for constant voltage systems such as 70 volt or 100 volt.
The reliability and accuracy is what makes a big difference. This model uses a smooth potentiometer that is precise and accurate. The knob is made out of a special material called bakelite which is a special synthetic type of plastic that is resistant to heat and scratches. The black knob has a 12 step attenuation with volume control from 0 through 10 as well as an absolute off position. 0 will mute the music while the off position will turn the unit off.

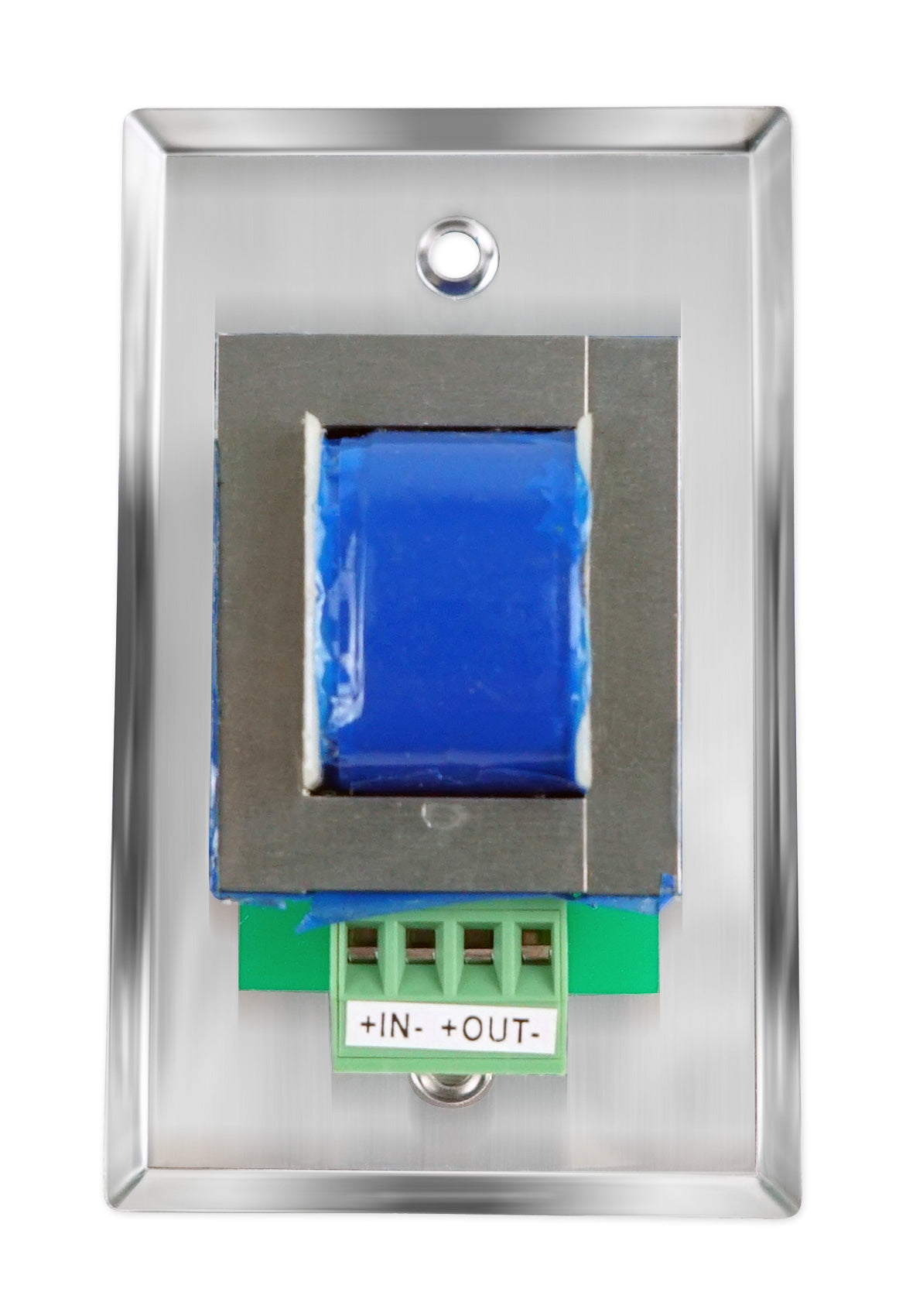

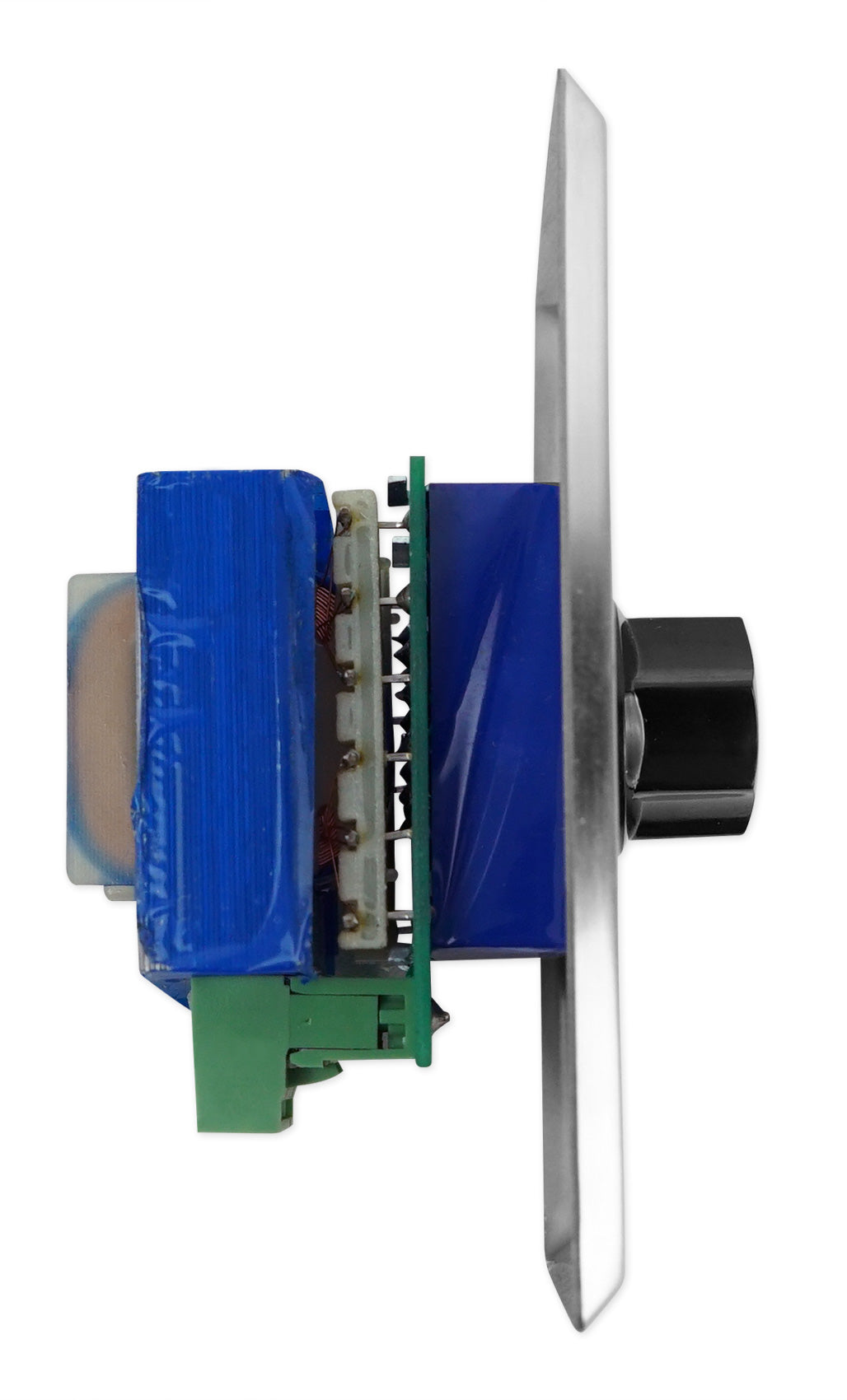

This model supports any zone with 100 watts or less going to it. The euro-block connectors make installation easily. The terminals are fully detachable. We use a beautifully designed plate that will fit in with your standard décor. These are a standard 1-gang size for easy installation. Internally the circuit board is protected from dust build up to ensure long life.
What is a 70 volt volume controller ?
If you already have a multi zone 70V amplifier then you can go out from any zone and into this volume controller and then out from the controller into the speakers (each speaker is wired from one to the next in parallel). The end result is that you can access the volume control from that room without having to change the volume from the amplifier itself.
What is 70 volt ?
70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 150 watts and you can install speakers that total around 120 watts. It does not matter if it is 12 speakers that are 10 watts each or 24 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 to 20% more power than the combined watts your speakers are tapped at.
When we say the word tap, we are referring to the switch that is located on the rear of these speakers where you can select how many watts you want the speaker to play. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 6 watts, and the hallway or bathroom speakers at 3 watts.
Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.
Features:
- Rockville VOL70100 SS 100 Watt 70 Volt Wall Volume Control Zone Controller Box 1-Gang
- 16-24 AWG wire inputs
- Rugged Stainless Steel Frame with Black Knob
- Power Rating: 100W (works with 100 Watts and under)
- Total Attenuation: 30dB
- Dimensions: 4.5”(H) x 2.75”(W) x 2.88”(D) (including the knob)
- Item Weight: 0.82 Lbs
- Rotating volume control with 12 step attenuation (volume o through 10 and an absolute off position)
- The knob is made out of a special material called bakelite which is a special synthetic type of plastic that is resistant to heat and scratches
- 70, 100 volt operation (also works with lower constant voltage systems)
- Detachable Euro-block terminal connector allows you to quickly and easily connect speaker wire
- Stainless steel single gang plate fits standard single gang electrical boxes
- Attractive design will fit in well with your standard decor
- Stainless steel Plates with black color Knobs
- Dependable performance with protection from dust (internal board is protected with special tape)
- Excellent frequency response so you do not get any signal deterioration
- Mounting screws are included
- It is recommended that this volume control be mounted in a "backless" junction box so it gets adequate ventilation
- If an enclosed box is to be used, we recommend a deep box (3.5 inches in depth)
- Premium-quality volume control
Owner's manual
- UPC:
- 613817179731
