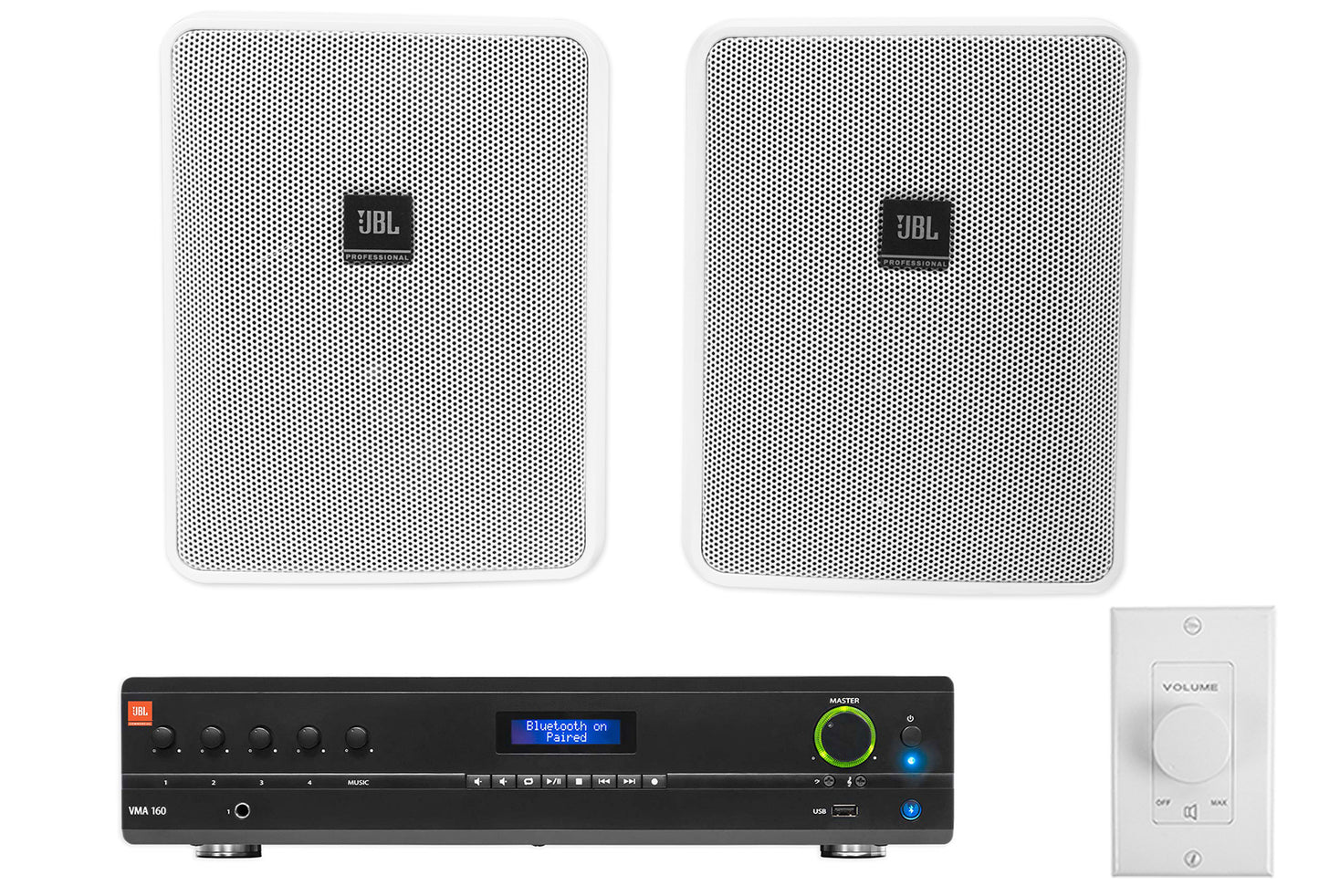

- (1) JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs
- (1) (2) JBL Control 25-1 5.25" 30w 70v Wall-Mount Commercial Restaurant/Bar Speakers
- (1) Rockville VOL70100 White 100 Watt 70v Wall Volume Control Zone Controller Box
Authorized JBL Dealer!
Description:

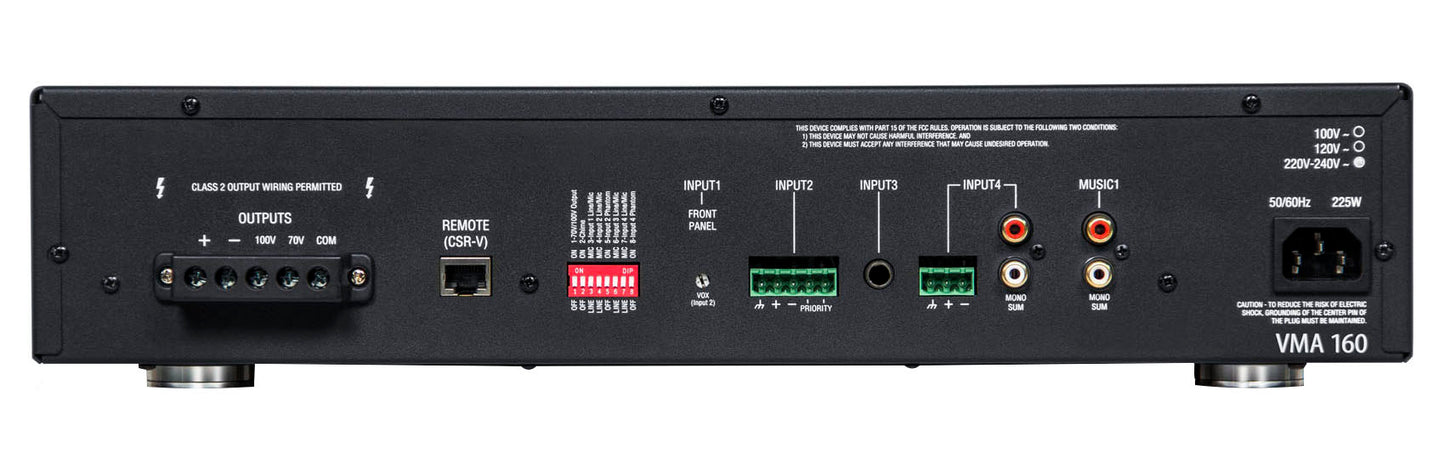

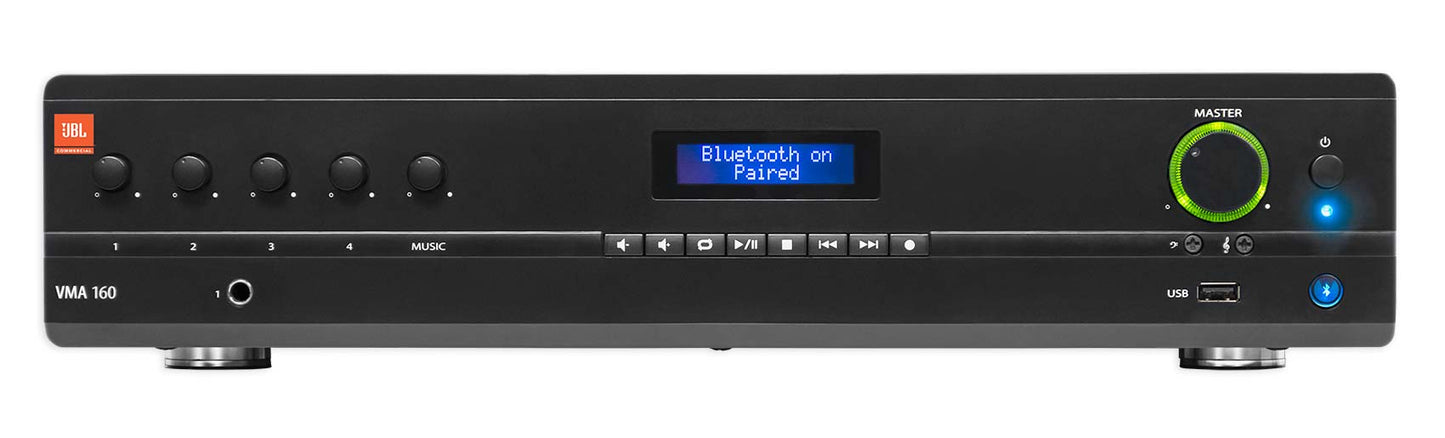

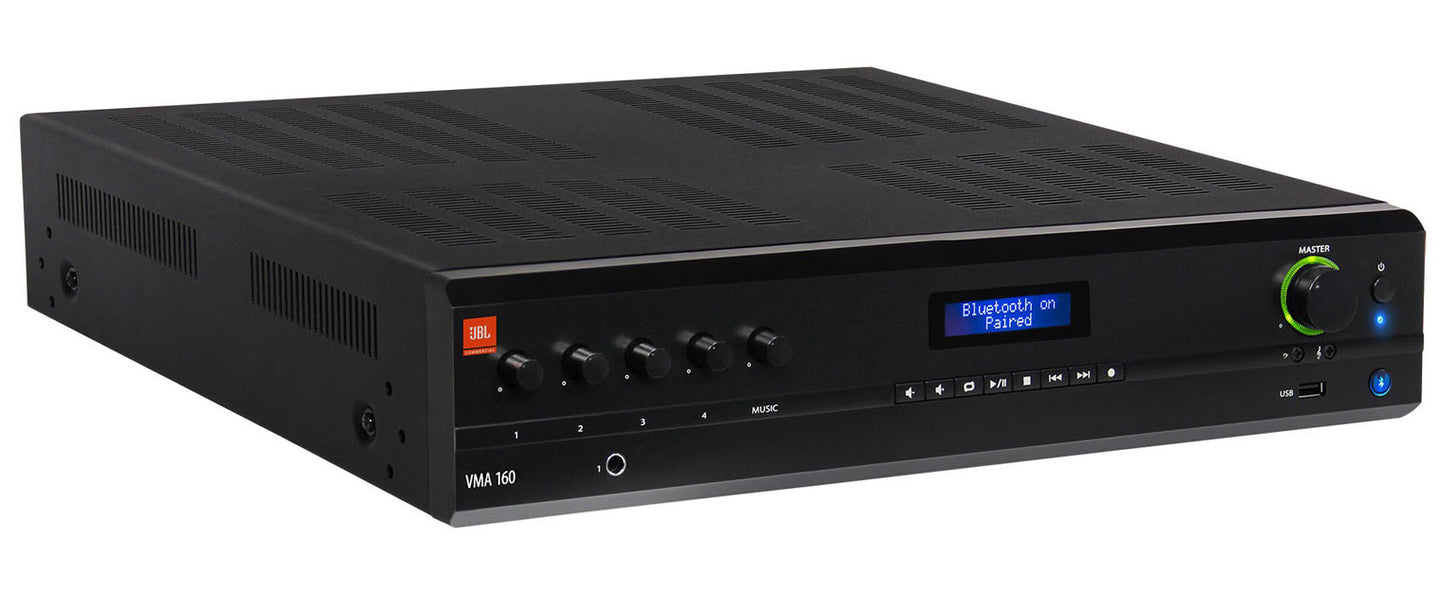

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4O, 8O) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.
Features:
- JBL VMA160 60 Watt 70V Mixer/Amplifier with Bluetooth and 5 Channel Inputs
- Max Output Power: 60 Watts
- Frequency Response: 20 Hz - 20 kHz
- THD (Total Harmonic Distortion): <0.5%
- Signal-to-Noise Ratio: > 76 dB
- Input Impedance: Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms
- Phantom Power: 27VDC
- Crosstalk: -70 dB
- Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
- Minimum Load Impedance: 4 Ohms, 80 Ohms,160 Ohms
- Insertion Loss: 1 dB Maximum
- Number of Inputs: 5
- Number of Outputs: 1
- Tone Control: Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
- Input Sensitivity: Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
- Independent bass and treble controls for each output channel
- Paging Chime, and Priority Muting
- Rack mounting hardware included
- Product Dimensions (W x D x H): 17" x 16.3" x 3.5" inches
- Product Weight: 19.4 Lbs.
Authorized JBL Dealer!
Description:

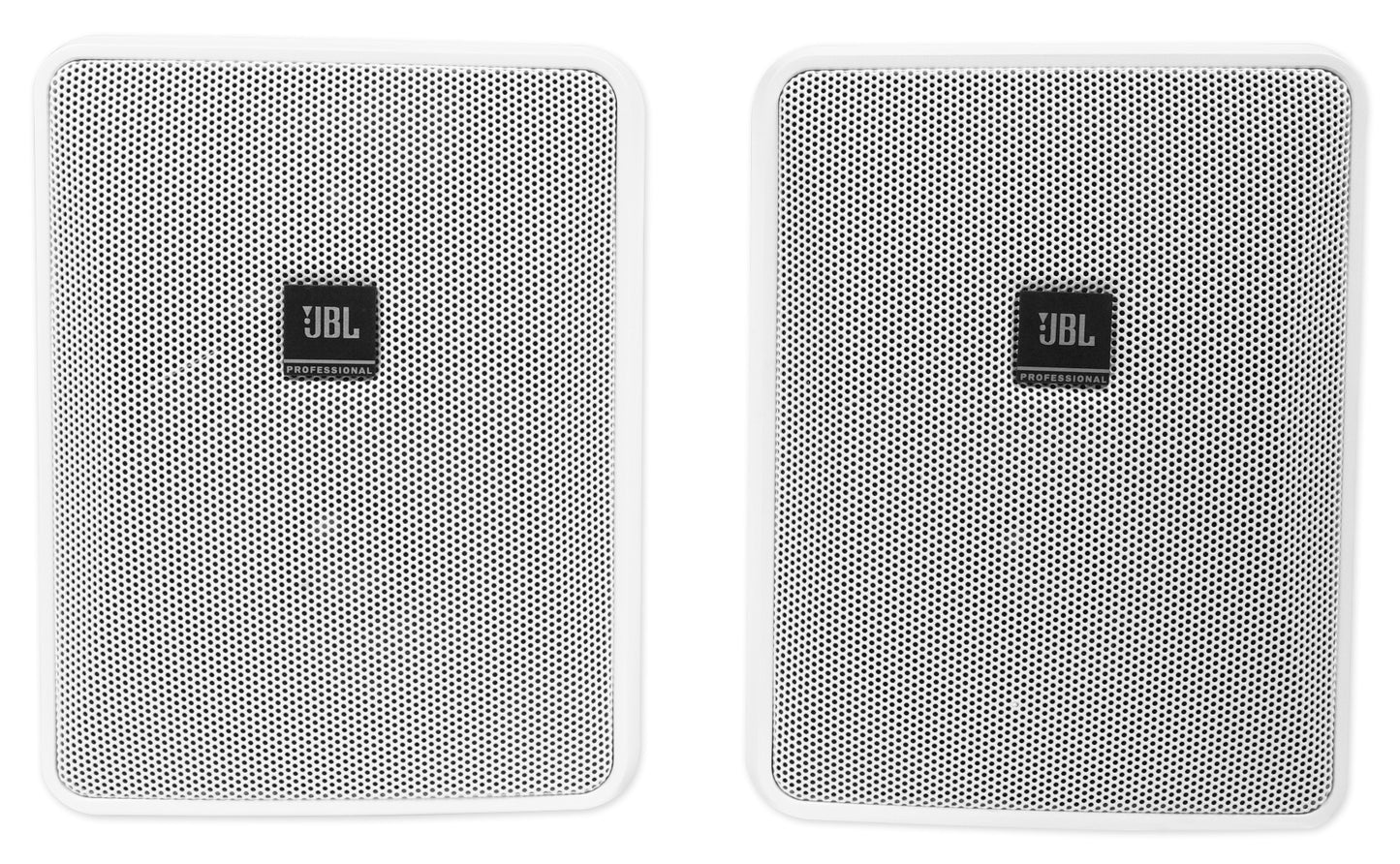

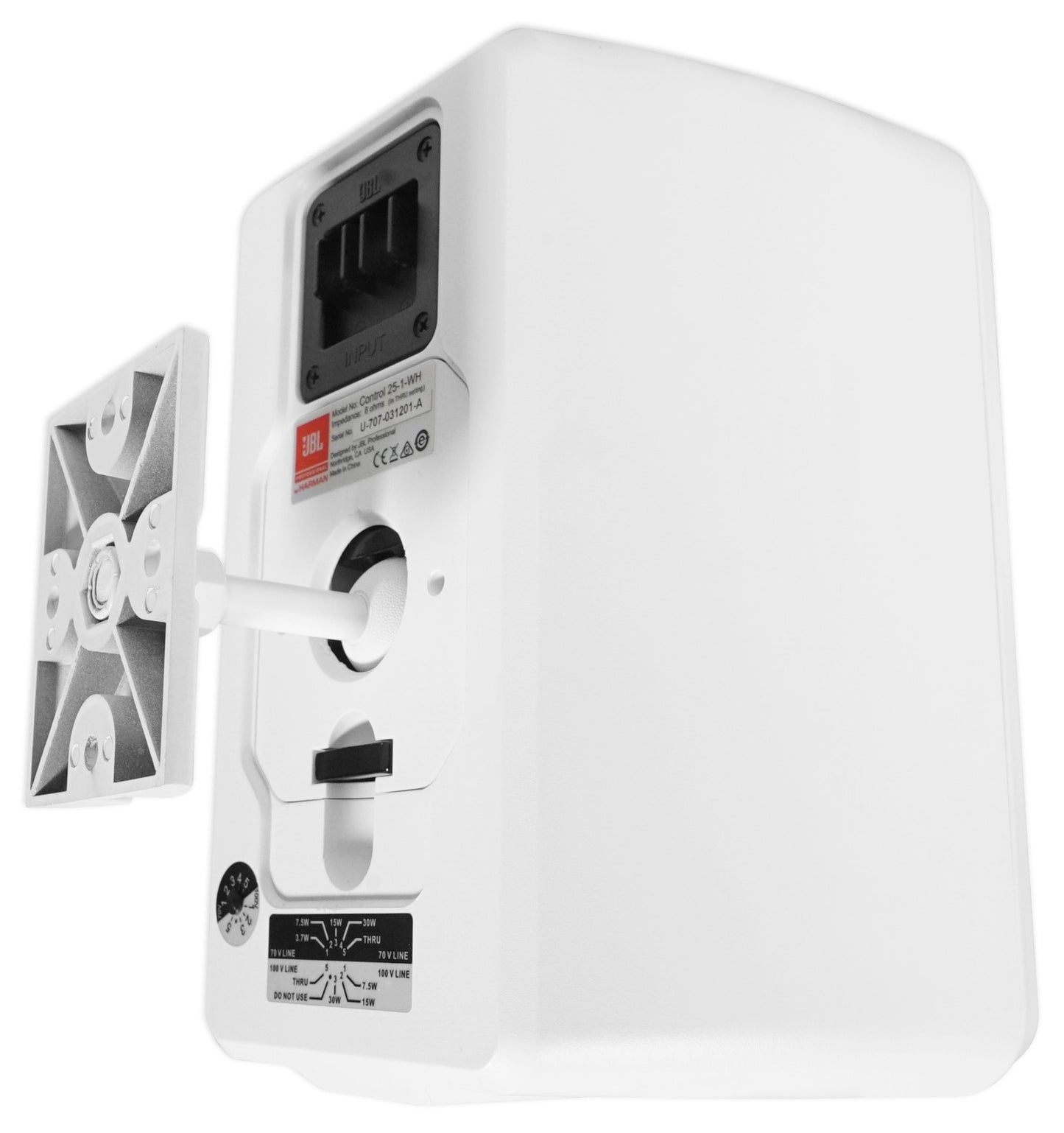

Designed by JBL, these Control 25-1 loudspeakers are two-way 5.25" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, white enclosures, and JBL's proprietary InvisiBall mounting hardware. This hardware allows you to install the speakers through a hidden access point behind its logo badge. As such, the Control 25-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.
These monitors are capable of handling 200W of programmatic material at 8 Ohms, and feature a built-in multi-tap transformer for operation on distributed speaker lines. With an SPL of 110 dB, you can blast these speakers pretty loudly as well, while their cone geometry ensures a pleasurable listening experience in both on- and off-axis situations. Additionally, their PEI diaphragms render a smooth high-frequency response. But sound is not the only consideration: Kapton voice coil formers, JBL's WeatherEdge rubberized extensions, and a durable cabinet construction provide protection against heat, rain, wind, or anything else the elements might throw at you in the coming years.
Also, while the Control 25-1 comes in a white finish, it doesn't have to stay that way: these speakers accept a variety of finishes and pigments to match any surrounding.
Features:
- 2 JBL Control 25-1 5.25" 100w White Surface-Mount Speakers 4 Home/Restaurant/Bar
- 5.25" Woven-Fiberglass LF Drivers
- 0.75" PEI Diaphragm Tweeters
- 200W RMS at 8 Ohms
- Durable, Weatherized Enclosures

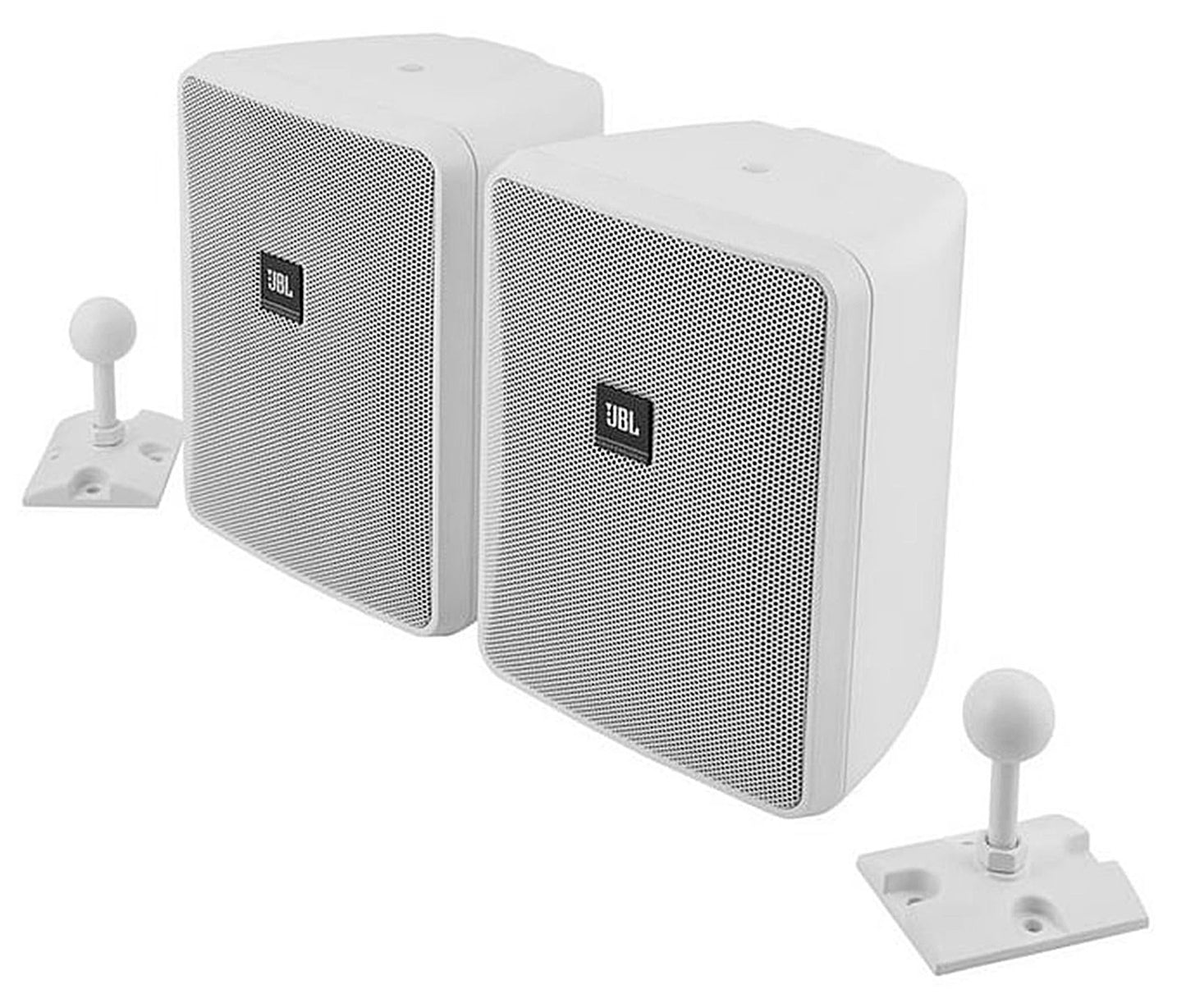

- InvisiBall Mounting Hardware
- Zinc-Plated Grilles
- Good for Off-Axis Listening
- 60 Hz to 20 kHz Frequency Response
Specifications:
- Power Rating: 200 W continuous program (2 h). 100 W (400 W peak), continuous pink noise (2 h). 75 W (300 W peak) continuous pink noise (100 h)
- Nominal Impedance: 8 ohms (THRU setting)
- Maximum Input Voltage: 25.3 V RMS (2 h), 50.6 V peak
- Frequency Response ± 3dB: 85 Hz to 17 kHz
- Frequency Response ±10 dB: 60 Hz to 20 kHz
- Sensitivity: 90 dB, 1 W / 1 m (average 100 Hz to 10 k Hz)
- Coverage Angle: 100° x 100°
- Directivity Factor: 6.0 (averaged 1 kHz to 16 kHz)
- Directivity Index: 7.6 dB (averaged 1 kHz to 16 kHz)
- Crossover Type: 2nd order low-pass, 2nd order high-pass

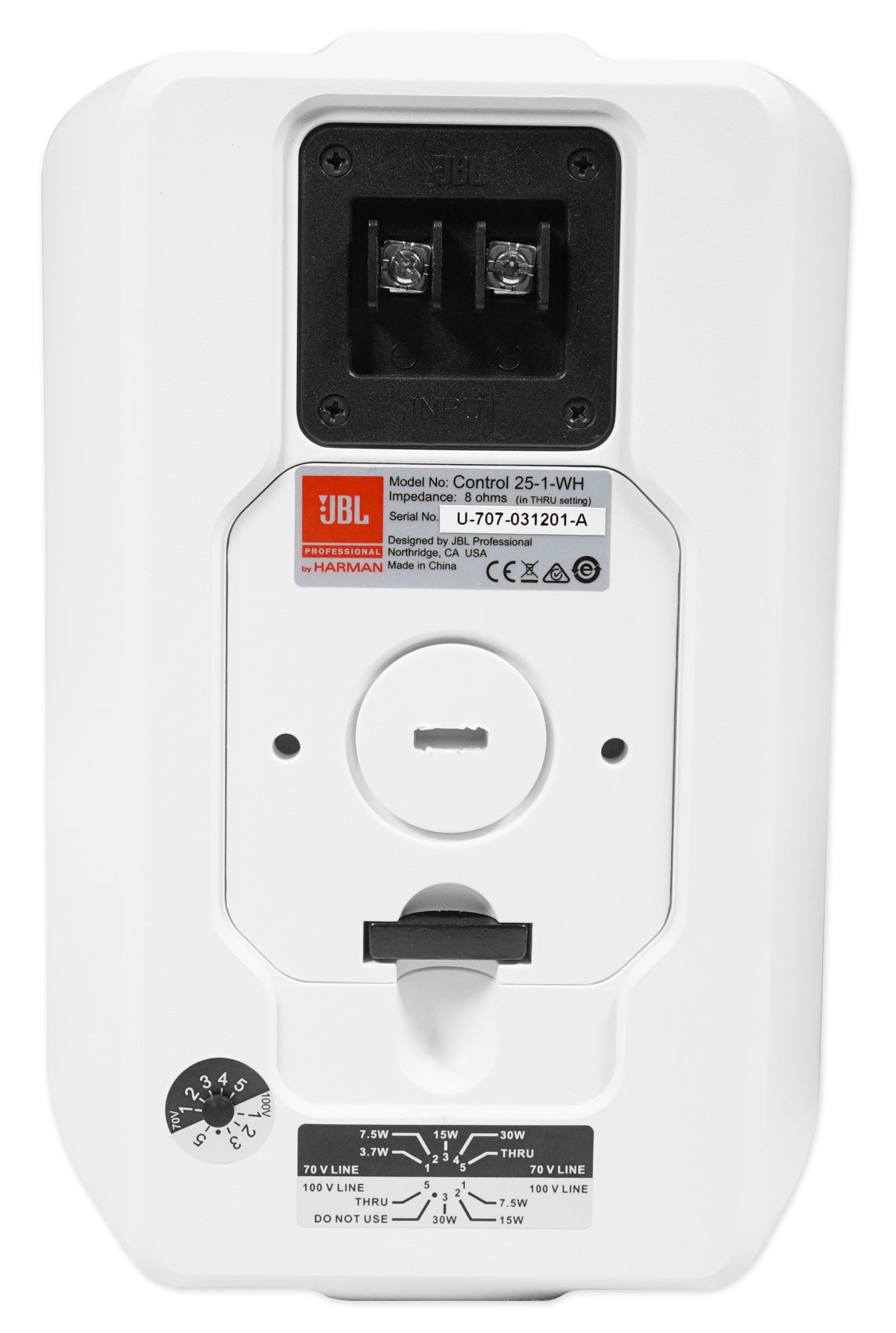

- Transformer Taps: 70 V: 30 W, 15 W, 7.5 W, 3.7 W, 100 V: 30 W, 15 W, 7.5 W. Insertion loss < 0.94 dB at any tap setting. Thru setting: 8 Ohms nominal
- Recommended Protective High-Pass: 60 Hz high-pass (24 dB/oct) (for 8 Ohms operation and for all 70 V / 100 V taps settings)
- LF Driver Size: 5.25" / 135 mm
- HF Driver Size: 0.75" / 19 mm
- Driver Type: LF Driver: Woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. HF Driver: PEI diaphragm, low-viscosity ferro-magnetic fluid, and Kapton voice coil former
- Enclosure Material: High-impact polystyrene (HIPS)
- Grille: Highly zinc-plated, finished in durable TGIC polyester powder-coating
- Termination: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2)
- Environmental: IP-44 per IEC529; exceeds MilSpec 810 for humidity, salt-spray, temperature & UV; passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray
- Agency Rating: ROHS-compliant; Transformer UL Recognized per UL1876
- Dimensions (H x W x D): 9.6 x 7.4 x 5.7" / 243 x 188 x 145 mm
- Weight: 7.5 lb / 3.4 kg
- Package Weight: 18.0 lb
- Box Dimensions (LxWxH): 16.0 x 11.75 x 11.4"
Video of VOL70:
Description:

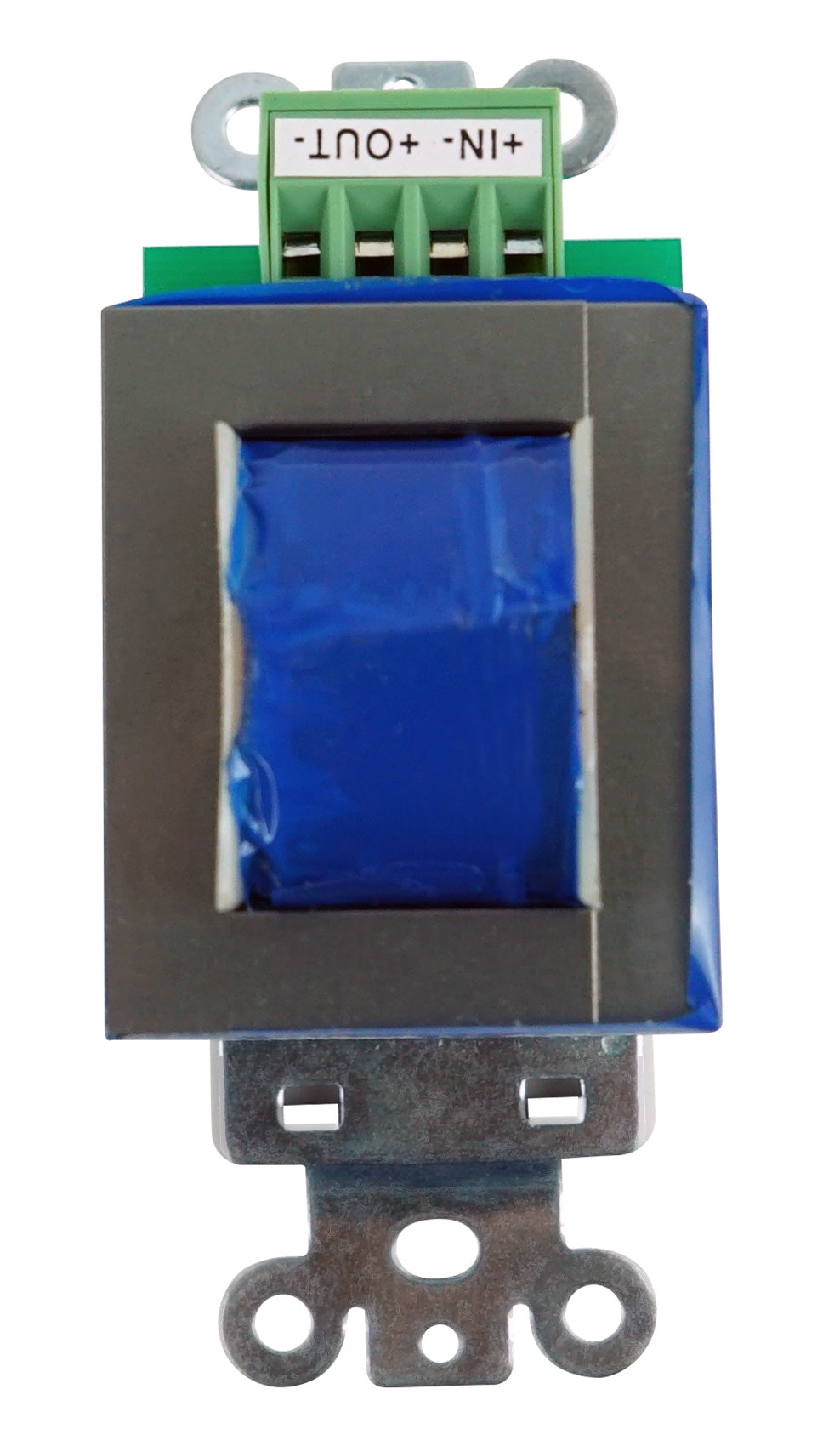

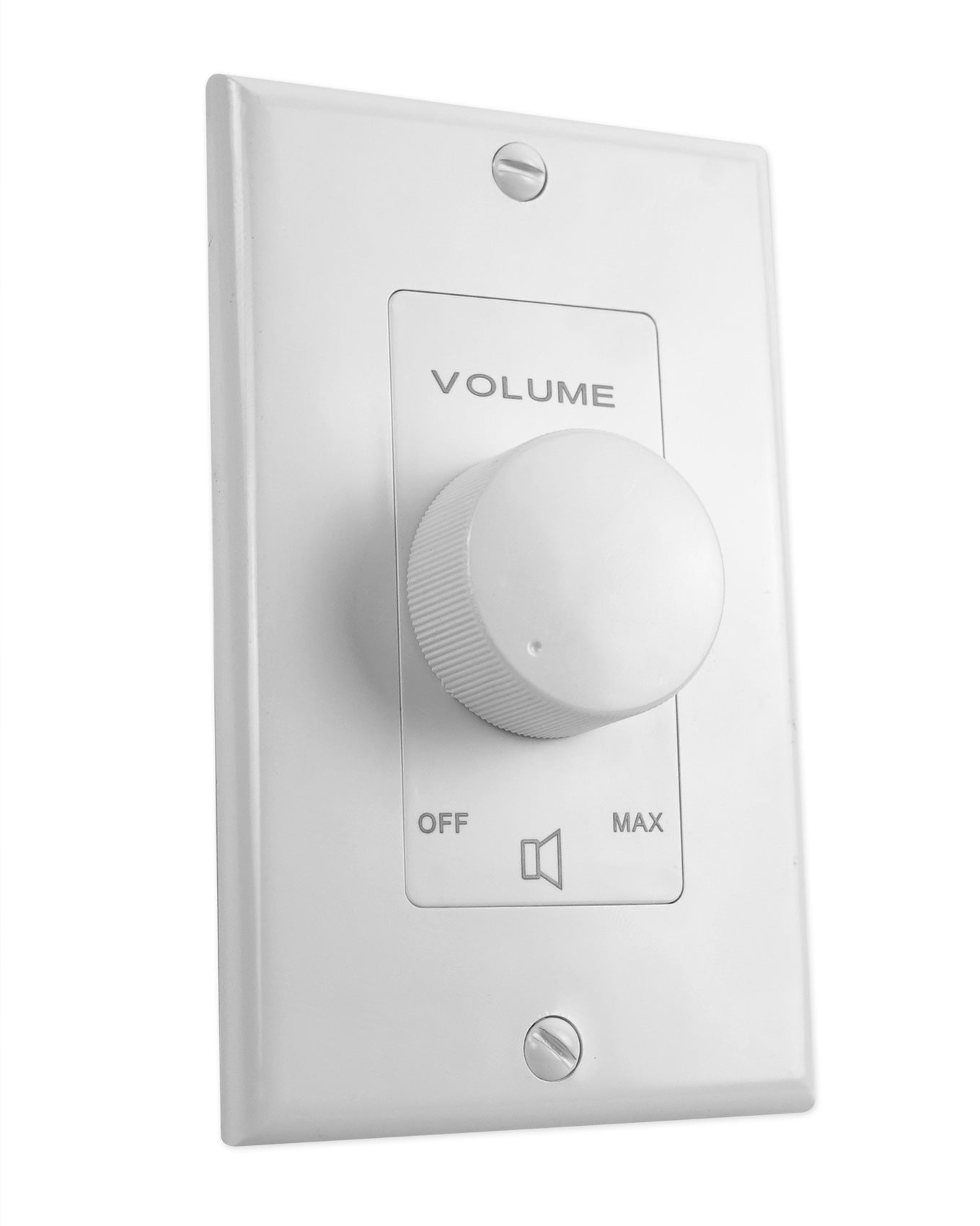

The VOL70100 by Rockville is a 70 volt 100 watt wall volume controller. Our volume controllers are some of the best on the market. These are for constant voltage systems such as 70 volt or 100 volt. The reliability and accuracy is what makes a big difference. Our 11 step controller is precise and accurate.
This model supports any zone with 100 watts or less going to it. The euro-block connectors make installation easily. The terminals are fully detachable. We use a beautifully designed plate that will fit in with your standard décor. These are a standard 1-gang size for easy installation. Internally the circuit board is protected from dust build up to ensure long life.
What is a 70 volt volume controller ?
If you already have a multi zone 70V amplifier then you can go out from any zone and into this volume controller and then out from the controller into the speakers (each speaker is wired from one to the next in parallel). The end result is that you can access the volume control from that room without having to change the volume from the amplifier itself.
What is 70 volt ?
70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 150 watts and you can install speakers that total around 120 watts. It does not matter if it is 12 speakers that are 10 watts each or 24 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 to 20% more power than the combined watts your speakers are tapped at.
When we say the word tap, we are referring to the switch that is located on the rear of these speakers where you can select how many watts you want the speaker to play. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 6 watts, and the hallway or bathroom speakers at 3 watts.
Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.
Features:

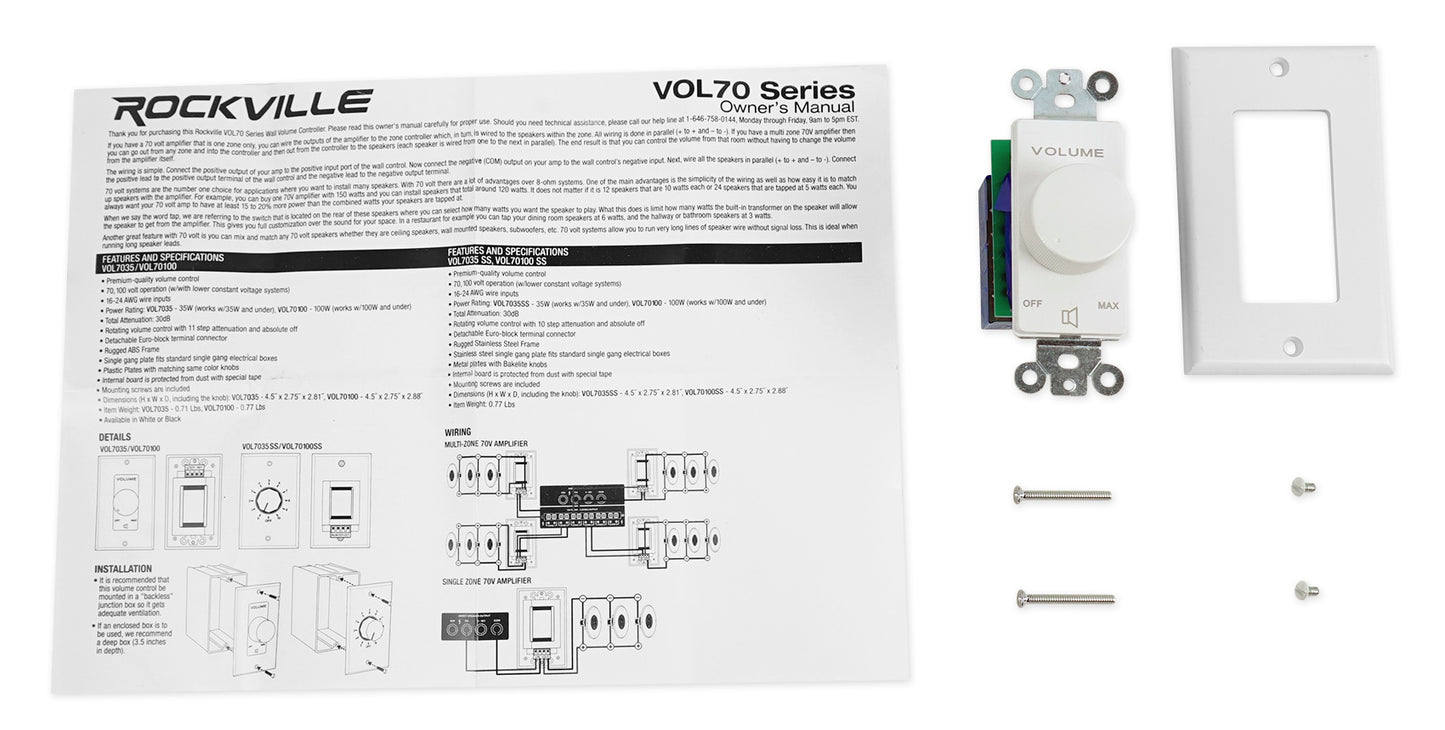

Owner's manual
